1 Introduction

Recent advances in nanotechnology expanded its potential applications in diverse fields. In the Biomedical field Nanotechnology has been successfully applied in healthcare, health monitoring, support immune systems, creating novel drug delivery systems, detecting the presence of infectious agents, and identifying specific types of cancer [1, 2, 3]. It has been used in waste-water management, controlling biodiversity, and assisting biodegradation to improve the environment [4]. Nanomaterials play important roles in industrial manufacturing processes, quality control procedures, and self-cleaning anti-microbial textiles [5, 6]. ‘Nanomachines’ have also been deployed in nuclear, biological and chemical defense systems for surveillance for military and defense purposes [7]. A nanomachine is composed of a power supply, memory, antenna and CPU module, and it behaves as an autonomous node capable of performing tasks such as computing, storing, sensing and/or actuating at the nanolevel. The nanomachines are fabricated using three approaches - top-down, bottom-up, and bio-hybrid approach [8]. Existing electronic devices are scaled down to the nanolevel using the top-down approach, but in the case of bottom-up, molecular components are used to create the nanomachines. The bio-hybrid approach uses biological elements as patterns to be replicated with synthesized components [9].

The nanomachines with limited capabilities perform tasks by forming an interconnected nanonetwork. The traditional communication protocols are not applicable to enable the nodes to communicate among themselves at the nanoscale, these conventional systems need to undergo extensive revisions. Based on the preferred transmission medium, different communication paradigms have been proposed over time, which include acoustic, nanomechanical, molecular, and electromagnetic (EM) [10].

For practical reasons, only specific paradigms can be applied to specific scenarios. For example, due to a very high absorption coefficient of acoustic waves in bones and muscle fiber, using acoustic paradigm based communication is impractical [5]. Nanomechanical communication requires physical contact between transmitting and receiving nanomachines, which is not always possible. The molecular and EM communication paradigms have been very promising [10] with molecules as the encoder, transmitter and receiver of information in molecular communication [11] and EM waves as the communication means among nanomachines in EM communication [12].

Networks operating in the Terahertz (THz) band (i.e., THz) offer promising solutions for many applications, including health monitoring, biochemical weapon monitoring, and plant monitoring, which otherwise are not possible [10]. Recent advances in THz communication allow development of a new generation of nano-EM communication schemes. Because many molecules resonate within the THz band, THz radiation may exploit this to penetrate opaque materials with high selectivity [13], making it suitable for biomedical and healthcare applications [14].

The need for energy-efficient, low cost, simple and scalable healthcare solutions is at its peak and can be served with miniaturized devices (MD) [15]. However, existing MD systems have difficulty performing multiple tasks simultaneously, i.e., functions offered by consumer electronic devices, and functions related to healthcare (e.g., long-term health monitoring). The wireless body sensor network (WBSN) can achieve this objective by providing inexpensive and continuous health monitoring by implanting tiny biosensors inside the human body, which do not impair normal activities [16]. These devices then communicate among themselves, as required, and transmit the required information to a receiving end. To make this communication smooth, different strategies have been investigated [17]. In particular, due to the short communication range of the nanodevices, a multihop EM communication paradigm has been extensively explored with appropriate EM power [16]. Some late methods addressing communication at the nanolevel include Graphene-enabled EM communication, molecular diffusion, Foster Resonance Energy Transfer [18], etc. However, direct applicability at the nanoscale is hampered by device size, complexity, and energy consumption [19]. Additionally, the large bandwidth of the THz band (i.e., Terabits per second, Tbps) is susceptible to shadowing and noise [20].

This work proposes a lightweight communication scheme suitable for WBSN operating at the THz band with four main contributions:
i) First, an energy-efficient forwarding scheme based on Nano Cluster Composition Algorithm (NCCA) is proposed for THz band communication in WBSN.
ii) Second, a channel behavior model is investigated on the basis of the aggregated impact of molecular absorption, spreading losses, and shadowing.
iii) Third, the joint impact of energy harvesting and energy consumption processes is considered for developing a nanosensor energy model, which includes the stochastic nature of energy arrival.
iv) Finally, closed-form outage probability expressions are deduced for both single and multilinks. To enhance information detection precision and energy-efficiency, in the case of multilink, a cooperative fusion approach is used where data from disparate sources are fused at a predefined fusion node. Given the outage probability, the approach has been extended to determine outage capacity of the considered channel.

The remainder of the paper is organized as follows. Related work on existing schemes is presented in section 2. The system model is presented in 3, which includes the channel behavior model and nanosensor energy model. Section 4 is devoted to performance assessment of the proposed scheme from simulation results. In addition, final concluding remarks are provided in section 5.

2 EM Communication at the Nanoscale

EM communication has attracted increasing attention due to its suitability in nanonetworks. EM communication at the nanoscale has been reviewed from different perspectives highlighting various opportunities and many associated challenges. In an in-depth review, Akyildiz and Jornet discussed EM communication in nanonetworks, identified several communication challenges at the nanoscale (e.g., THz channel modeling), and proposed a roadmap [12]. Yu et al. provided the available forwarding schemes for EM-based wireless nanosensor networks (WNSN) in the THz band [21].

2.1 EM Communication and the Internet-of-Nano-Things

The ‘Internet of Things’ has also been extended to the ‘Internet of Nano Things’ (IoNT) by interconnecting nanonetworks to the Internet. A reference architecture of the IoNT was introduced in [22] by Akyildiz and Jornet where the THz band was considered for EM communication at the nanoscale. Few major challenges concerning channel modeling, information modulation, and protocols for nanonetworks were highlighted. In another study, Dressler and Fischer investigated connecting a body area network with in-body nanodevices [20], identified the challenges of such integration, proposed associated network architecture, and laid the foundation for simulation-based performance evaluation of such concepts. A WNSN, formed by hexagonal cell-based nanosensors deployed randomly at different body organs, was proposed in [23] for intra-body disease detection as an application of the IoNT.

2.2 Network Communication Protocols

A routing framework considering the peculiarities of the WNSNs was proposed by Pierobon et al., both in terms of nanoscale energy harvesting process and Terahertz band wireless communication [24]

. A hierarchical cluster-based architecture was considered to reduce network operation complexity. The proposed routing framework was based on a previously proposed medium access control (MAC) protocol where joint throughput and lifetime scheduling were performed by a nanocontroller on top of a time division multiple access (TDMA) framework within each cluster. Selecting efficient multihop communication saved energy. The total routing strategy was conceived over a cluster and communication of nanosensors within it. How the clusters were constructed and how inter-cluster communication occurred was not clear.

Based on a WNSN using EM communication in the THz band, Piro et al. proposed a new routing algorithm along with an efficient MAC protocol and improved Nano-Sim (see [25] for nano-sim), an NS-3 module to model WNSNs [26].

A hierarchical network architecture integrating Body Area Nano-NETwork (BANNET) and an external macroscale healthcare monitoring system was proposed [27]. In this work, two different energy-harvesting aware protocol stacks using optimal routing protocol and a greedy routing approach were conceived for handling the communication of nanosensors moving uniformly in an environment mimicking human blood vessels. An energy-aware MAC protocol was used in both strategies to identify the available nanonodes through a handshake mechanism. These two schemes performed well compared with the simple flooding scheme. However, high computational capacity was required for the optimal scheme.

A channel aware forwarding scheme for EM-based WNSN (EM-WNSN) in the THz band was proposed by Yu et al. as a solution to the THz frequency selective feature of networking [21]. This work evaluated classical multihop forwarding and single end-to-end transmission schemes for EM-WNSNs. Jornet et al. proposed a Physical Layer Aware MAC protocol for EM nanonetworks in the THz band (PHLAME) where the transmitting and receiving nanodevices were allowed to jointly select the communication parameters in an adaptive fashion [28]. The protocol minimizes interference in the nanonetwork and maximizes the probability of successfully decoding the received information. Its performance was analyzed in terms of energy consumption per unit bit of information, normalized available throughput and average packet delay. However, due to the usage of a handshake during the transmission process and large computations deployed on nanosensors to dynamically find communication parameters, its wide usage in WNSNs has been hampered. The energy and spectrum-aware MAC protocol was an approach to achieve perpetual WNSNs [29]. The objective was to achieve fair throughput and lifetime optimal channel access by jointly optimizing energy harvesting and consumption processes in nanosensors. A novel symbol compression scheduling algorithm was proposed based on critical packet transmission ratio. Packet-level timeline scheduling was also proposed to achieve balanced single-user throughput with an infinite network lifetime. The whole scenario assumed that all the nanosensors could communicate directly with the nanocontroller in one hop, which is not feasible.

Mohrehkesh and Weigle proposed a method to maximally utilize the harvested energy for nanonodes in perpetual WNSNs that communicate in the THz band [30]

. They designed an energy model as a Markov decision process considering that energy arrivals follow a stochastic process. Additionally, a lightweight heuristic method was proposed for resource-limited nanonodes that could perform close to optimal and would not require a heavy processing load on a nanonode. In addition to the development of sophisticated energy-aware communication protocols, successful WNSN systems should have energy sources to provide sufficient energy for the nanodevices to communicate. Jornet and Akyildiz proposed an energy model for self-powered nanosensors to jointly analyze the energy harvesting and energy consumption processes


. The energy harvesting process was realized by means of a piezoelectric nanogenerator, and the energy consumption process was reviewed for EM communication in the THz band. A mathematical framework was also developed to obtain the probability distribution of nanosensor energy and to investigate the end-to-end packet delay and achievable throughput of WNSNs.

Additionally, there are few relevant works proposed for WSNs but applicable to WNSNs with minor modification and extension. Afsar and Tayarani [32]

surveyed different clustering approaches in WSNs from the viewpoint of the objectives and characteristics of the approaches and classified the available clustering algorithms based on different metrics (e.g., mobility, cluster count, cluster size, and complexity of algorithm). Younis and Fahmy proposed a new energy efficient clustering of sensor nodes in ad hoc sensor networks

[33], called Hybrid Energy-Efficient Distributed clustering (HEED), which performs uniform cluster head distribution across the network. Afsana et al. evaluated the performance of multihop links and approximated outage probability based on end-to-end signal-to-interference plus noise ratio (SINR) for wireless ad hoc networks [34]. To better characterize the performance of channels, Behruzifar and Falahati [35] proposed another approach, which maximizes the outage capacity over cut-off fading states for wireless channels assuming that both transmitter and receiver have full channel state information (CSI). Yigit et al. proposed channel-aware routing for smart grid applications [36], and Zenia et al. reviewed energy efficient routing protocols for underwater WSN [37].

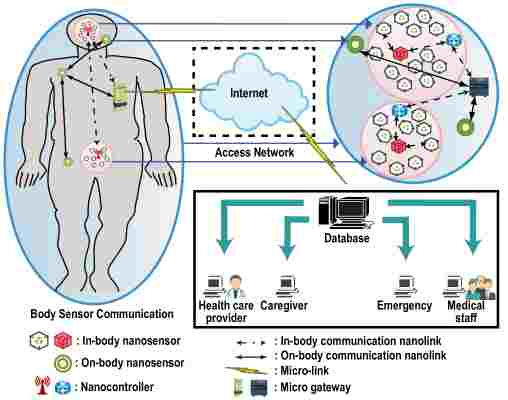

Fig. 1: A possible communication architecture. The network is composed of nanonodes, nanocontrollers, and a micro gateway. The in-body and on-body nanosensors are placed to accumulate data from inside and outside of the human body, respectively. Nanocontrollers collect data from the nanosensors and forward them to the micro gateway, which is responsible for storing the data in a remote database using the Internet, and these data can be accessed by the relevant entities.

2.3 Terahertz Channel Modeling

Channel modeling is another important issue in EM communications at the nanoscale over the THz band. Jornet and Akyildiz proposed a physical channel model and used it to investigate signal path loss, molecular absorption, and channel capacity of the network [38]. Radiative transfer theory was used in computing total path loss of a signal traveling short distances to assess molecular absorption. Different power allocation patterns were proposed for the THz band including a scheme based on the transmission of femtosecond-long pulses; using these power allocation schemes, the performance of the THz band was evaluated for channel capacity. The propagation model proposed by Piro et al. characterized the performance of THz communication in human tissue considering the attenuation of EM waves in human skin tissues [39]. They deduced channel capacity and communication ranges for different physical transmission settings. Path loss and molecular absorption noise temperature were also obtained using optical parameters of human skin tissues and were verified through extensive experimental tests. In addition, Javed and Naqvi proposed SimpleNano, a channel model for WNSNs that is capable of transmitting in the THz range [40] where a log-distance path loss model together with random attenuation was approximated in mediums such as the human body.

3 System Model

3.1 Network Model

In modeling the network, it is assumed that a network of nanosensor nodes, constrained by energy, is placed into a human body to construct a body sensor network (BSN). A possible system architecture is shown in Fig. 1. The communication is expected to be from inside to outside of the body through nanosensor nodes. Nanocontrollers (NC) are deployed for in-body communication, which aggregate information coming from in-body nanosensors. The micro gateway, a wireless interface connecting the subnetwork of nanosensors to the Internet, collects data and forwards them to the relevant entity (e.g., healthcare provider, medical staff, etc.) using the Internet and/or intranet.

3.2 Proposed Approach

The proposed approach (see Fig. 2) uses a multi-layered topology based on the distance of deployed nanosensors from NC. To increase network stability and achieve high energy efficiency, each layer is divided into multiple nano-clusters and re-clustering is avoided. Nano cluster controllers (NCCs) from each layer are elected based on the residual energy of nanosensors. NCCs collect data from nano-cluster members (NCMs) and forward aggregated data towards NC. Clusters of one layer are capable of communicating with clusters of the immediate upper or lower layers. It is assumed that nanosensors are capable of controlling power dynamically. NCC conducts intra-cluster communication using low power transmission range and inter-cluster communication using high power transmission range.

A major problem in WNSN communication is the high probability of link failure due to low transmission power and high transmission losses (e.g., path loss and shadowing). This problem can be addressed successfully using cooperative communication among NCCs (i.e., amplify-and forward, and decode-and-forward [41, 42]) and information fusion at the fusion node [43]. The role of the fusion node is executed by either the destination NCC or the NC where the information fusion occurs.

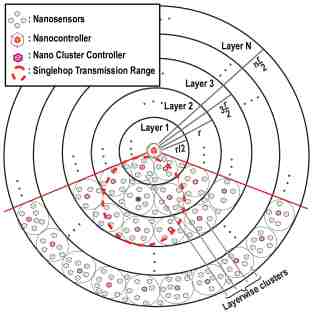

Fig. 2: Possible architecture of proposed scheme. Nanosensors are deployed within their associated concentric layers of radius , where is the number of layers and is the transmission range of each nanosensor. The singlehop transmission range for a nano cluster controller, marked with *, is indicated by the orange dashed-circle. The nanocontroller is assumed to be placed at the center of all layers. Nanosensors form clusters under each layer follow the proposed algorithm 2.

3.3 Network Configuration

The network is organized in layers to help the nanosensors discover the layers they belong to. Assuming the sensing field to be circular, at first the whole network is divided into several virtual layers with respect to the NC. The radius of each layer is computed as where is the number of layers and is the transmission range of each nanosensor. Layers are divided in a manner that ensures the transmission range of each nanosensor of a particular layer spans its adjacent layers. Upon receiving a broadcasted message from NC, all the nanosensors calculate their distances from NC, compare their distances with the layer radius, and register themselves to appropriate layers. The mechanism of Nanosensor Distribution over Layers (NDL) is presented in algorithm 1.

= Number of deployed nanosensors
= Distance of nanosensor with respect to NC
=Received Signal Strength Indicator
= Layer number to which node is assigned
= Transmission range of each nanosensor
Data: ,
NC broadcasts “Hello packets” to all ;
foreach  do
       Calculate with respect to NC based on received ;
       registers itself into layer ;
end foreach
Algorithm 1 NDL Algorithm

3.4 Nano Cluster Composition

After all nanosensors are assigned to their respective layers, the initial NCCs are automatically elected based on their residual energy. This election process involves, at the initial round, the NCC candidates competing for the ability to upgrade to NCC by multicasting their weight, denoted by and calculated using eq. (1), to neighboring candidates.


where, is the residual energy of nanosensor , and is the maximum energy.

If a given nanosensor does not find another nanosensor with larger , it declares itself as NCC. After NCCs have been elected, cluster formation begins. The new NCCs multicast short range advertisement messages to all non-clustered nanonodes within the same layer. Each of the non-member nanosensors having a higher received signal strength indicator (RSSI) sends a join request to its respective NCC and registers itself as an NCM. This process continues until clusters are formed and all nodes are assigned to their respective NCCs. To reduce clustering overhead, clustering is done only once for the whole network. Only the NCC will be changed after each transmission using a round robin process. The NCCA is presented in algorithm 2.

= Number of deployed nanosensors
= Normalized residual energy of sensor
= Nanosensor with maximum
= General Node
foreach  do
       Calculate using eq. (1);
       Multicast within associated ;
       if  then
       end if
end foreach
Elected multicasts short range advert message to within associated ;
foreach  do
       Check received from all NCCs within range;
       Send join request to NCC as NCM for which is maximum and get registered;
end foreach
Algorithm 2 NCCA for cluster formation

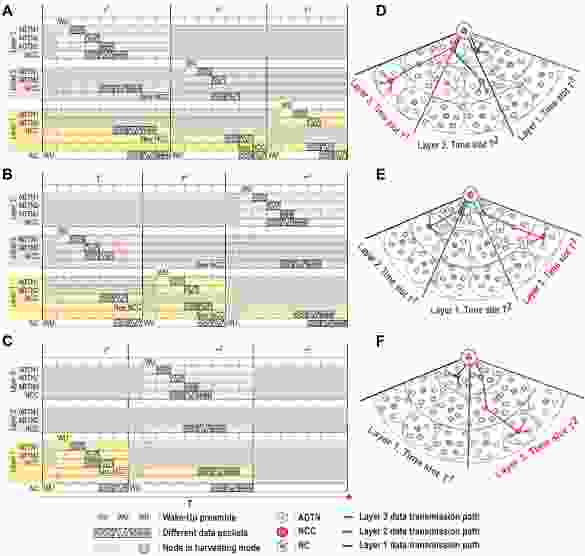

Fig. 3: Time scheduling mechanism. It is assumed that there are three homocentric layers in the network. Transmission cycle T is divided into three variable length time slots (, and ) based on the data requirements of layers. Each timeslot is further distributed among clusters and ADTNs based on the value of (eq. (2)) by the nanocontroller.

3.5 Communication Mechanism

The sensed data are aggregated and forwarded to NC in multihop fashion using a novel TDMA based dynamic scheduling scheme. In our scenario, to collect information from the whole BSN, the NC periodically seeks data transmission request packets from all the nanosensors. In response, each Active Data Transmission Node (ADTN, i.e., an NCM with data to transmit) sends transmission request packets whose structure is shown in table I.

TABLE I: Structure of transmission message request forwarded to NC

Each of these packets consists of information about the ADTN (NCM ID) and NC (NC ID), ADTN’s distance from NC (), ADTN’s layer information (), amount of data to be sent (), and the residual energy (

). In turn, the NC will prioritize data to be received, estimate total time considering propagation delay for a complete transmission and specify packet transmission order for the ADTNs. Transmission timeline scheduling is done in the following three phases:

Phase 1: The NC allocates a variable-length transmission time slot for each layer. The slot length depends on the transmission parameters, i.e., total amount of transmittable data of the layer, total time required for the data to be transmitted, and priority of the data. The NC calculates the layer ordering weight - - employing eq. (2) and determines the layer order of data transmission.


where, is the layer ordering weight; , , are the IDs of layer, cluster, and node respectively; , are the transfer time per data unit for a layer and transmission cycle completion time; is the propagation delay; is the number of clusters in a layer; is the number of ADTNs in a cluster; is the priority of data to be sent; and is the amount of data to be transmitted.

Phase 2: The NC then divides the total allocated time for a particular layer among its clusters based on the amount of data the cluster needs to transmit. This will prevent TDMA intra-cluster transmission from colliding with other cluster transmissions from the same layer.

Phase 3: Based on the assigned time slots for each cluster, each ADTN under it is allocated a new sub time slot using the mechanism shown in algorithm 3.

= Weight upon which layers are ordered
= List of prioritized order of layers
= ; = Time slot for layer
= Time slot for Cluster of layer
= Time slot for ADTN of cluster of layer
Result: Variable length time slots for all ADTNs
NC relays message to NCMs requesting transmission;
ADTNs send transmission request message to NC;
Calculate using eq. (2) for each layer;
Calculate total time for a complete cycle;
Sort into descending order ;
Set priority of layers according to the order;
For each layer create prioritized layer list ;
foreach  do
       Calculate layer time ;
       foreach  do
             Calculate each cluster time ;
             foreach  do
                   Calculate ADTN time ;
                   Allocate time slots accordingly;
             end foreach
       end foreach
end foreach
Algorithm 3 Algorithm for time slot allocation

Fig. 3 shows an exemplary time scheduling procedure with a 3 layer network which requires time to complete a transmission cycle. Using value (calculated by eq. (2)) the NC prioritized the transmitting layers as layer 2, layer 1, and layer 3 during time slots. Each layer 1, 2, and 3 has 2, 3, and 4 clusters with 2, 2, and 3 ADTNs to transmit. The time slot scheduling is prioritized based on the amount of data each cluster needs to transmit from a layer. In this example, layer 2 () is scheduled in 3 time slots each for a cluster () which are then distributed among ADTNs (i.e., is divided into , and allocated to the transmitting ADTNs). This procedure is repeated for all transmitting clusters and layers. This proposed time scheduling scheme utilizes optimally the large bandwidth provided by the THz band and ensures collision avoidance both at NCCs and NC.

3.6 Data Transmission

At the beginning, all nanosensors - except NCCs - remain in harvesting mode. After the time allocation, NC sends a wake-up preamble to activate the layer with the highest priority, in turn, activating all the ADTNs of that layer for transmission.

In the intra-cluster period (see algorithm 4), ADTNs forward their data to respective NCCs, either directly (i.e., ADTN to NCC) or via another NCM, depending on energy per bit consumption to transmit. Considering as transmitting ADTN, as NCM and as NCC, and denoting the average energy required to transmit a bit by using link, using link, and using links, the data is transmitted directly from to NCC if, otherwise, an intermediate hop is used and the time slot of ADTN is divided equally for ADTN-NCM and NCM-NCC communication.

The inter-cluster–inter-layer period starts (see algorithm 4). The NCCs aggregate data and forward them to NCCs of an adjacent lower layer. After forwarding data, NCCs call for new NCC election using round-robin scheduling. New NCCs then multicast their new status to other NCMs. Previous NCCs give their information list to new NCCs and go to harvesting mode. All nodes except the new NCC start harvesting and the data transmission mode is paused until another wake-up message arrives.

Result: A Cycle of data transmission
foreach  do
       NC sends wake up preamble;
       while  do
            ADTNs send data to respective NCC using time slots;
             NCC aggregates data ;
       end while
      while  do
             if  receives multiple links then
                   performs fusion ;
                   transmits fused data to NC;
                   performs DaF scheme to transmit data to lower layer ;
             end if
             New NCC is elected using round robin fashion;
             New NCC multicasts update to other NCMs;
             Previous NCC transfers its information list to new NCC;
             All ADTNs and previous NCC go to harvesting mode except the new NCC until another wake up preamble reaches;
       end while
end foreach
Algorithm 4 Algorithm for the data transmission process
Fig. 4: Possible cases of data transmission. Timeslot allocation (A-C) and data transmission processes (D-F) are shown for three different cases. As per the data transmission mechanism, NC calculates the value (see eq. (2)) to prioritize different layers’ data dispatching and assigns them the necessary timeslots to relay. Case 1 (A,D): layers are prioritized as layer 3, layer 2, and layer 1 to transmit during , , and timeslots. Case 2 (B,E): the priority of the layers are layer 2, layer 1, and layer 3 and they transmit during , , and timeslots, respectively. Case 3 (C, F): only two layers transmit in the order layer 1 and layer 3 during and timeslots.

Fig. 4 shows three possible transmission scenarios. In the first scenario (A and D) where the priority order of the 3 layers are set as layer 3, layer 2, and layer 1. To initiate the transmission, the NC first sends a wake-up preamble to layer 3. The ADTNs belonging to layer 3 are activated in response to the preamble and set to data transmission mode while the remaining ADTNs stay in harvesting mode. In addition to the ADTNs of layer 3, the NCCs of all layers are activated during the transmission process. Once the data transmission is completed, new NCCs are elected and all other ADTNs along with previous NCCs return to harvesting mode. In the second scenario (B and E) the transmission layer order is changed to layer 2, layer 1, and layer 3. Here, time slots are allocated for layer 2 first, and the wake-up preamble is sent to layer 2 to complete the transmission which is then followed by layer 1 and finally by layer 3. In the third scenario (C and F), only two layers transmit data in the order layer 1 and layer 3. As layer 2 does not transmit, no time slot has been allocated for it. In the first time slots upon arrival of the wake-up preamble layer 1 transmits and then layer 3 transmits in the second time slot. The generic flow chart of the data transmission process is shown in Fig. 5.

Fig. 5: A flowchart of the communication framework. The communication mechanism consists of inter-cluster and intra-cluster communication. After a layer is activated, data transmission begins. In intra-cluster communication, all ADTNs send their data packet to the NCC within their associated cluster. NCC fuses data and conducts inter-cluster communication towards the NC. Once a transmission is completed by an NCC, it calls for new NCC election within the same cluster for conducting succeeding transmission. After a new NCC is elected, previous NCCs with retired ADTNs harvest until another wake-up call arrives from the NC.

A transmission with decode-and-forward (DaF) strategy involving information fusion is shown in Fig. 6. In DaF, the cooperative NCCs (; where is the Layer and is the NCC number) successfully receive, decode and forward the transmission to the adjacent lower layer () using a distributed space-time code [44]. Since the intermediate NCCs decode the message successfully and forward it to the next layer’s NCC(s), no outage is expected to occur during these hops. This fusion helps to reduce information outage and data redundancy.

Fig. 6: Data fusion using cooperative communication. A conceptual overview of a fusion mechanism is shown. All intermediate NCCs between the source and fusion node performs DaF to transmit data; the last hop NCC performs fusion to eliminate data redundancy.

3.7 Channel Behavior Model

An EM wave in THz band experiences several attenuations (in particular absorption and spreading losses) while propagating through human tissues. Both link distance (for link) and signaling frequency influence these attenuation.

Molecular absorption causes attenuation or absorption loss depending on the type of molecular composition constituting the medium. The human body is the transmission medium when placed nanosensors constitute the BSN. In the human body, water molecules outnumber other molecules, thus, the value of the molecular absorption coefficient is given by the weighted average of different absorption coefficients of water molecules present in different body parts [40].

In the THz band BSN, the wave propagation range through human tissues is constrained by a large spreading loss [39] and shadowing [45]. Shadowing, caused by body part movement, increases the blocking probability because of broken line-of-sight links between the transmitter and receiver [45].

If is the transmitted power at the source node , then the total received power at the destination considering the molecular absorption, spreading, and shadowing effect is given by eq. (3) [46].


where is the gain constant, is the path loss exponent,

is a normal distributed random variable with zero mean and

standard deviation, is the molecular absorption coefficient, and is the speed of light. The RPS component is the ‘received power due to shadowing’, the AL is ‘absorption loss’, and the SL is ‘spreading loss’.

The interference power, for the link with , is computed by eq. (4).


The th hop’s SINR () can be computed by fusing Equations (3) and (4) and considering additive white Gaussian noise power at destination () using eq. (5) [47].


Because path loss due to shadowing at the molecular level follows lognormal distribution (LND), also follows LND under lognormal shadowing and is approximated by a lognormal random variable with standard deviation () and mean () calculated by the Fenton-Wilkinson method [48].

Outage () is given by eq. (6) with error function when falls below a threshold () [47].


The total channel capacity () is obtained by summing individual capacities of the sub-channels using eq. (7) [49].


where is the bandwidth of each sub-channel .

In the DaF strategy [41], the outage is calculated using eq. (8).


where is the number of multipaths between the source and the fusion node, is the th link’s SINR from the source node to the fusion node, and is the number of layers.

The outage capacity probability, , determines the constant data rate in non-outage fading states using eq. (9) and denotes the actual capacity of a transmitting channel [46].

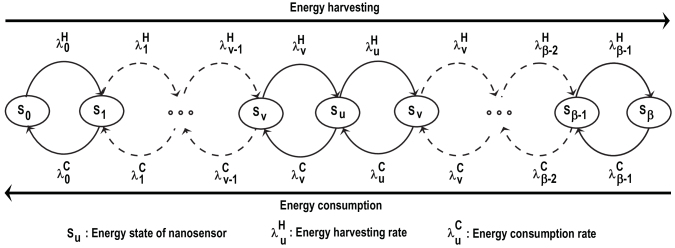

Fig. 7: A Partial Markov decision process (MDP) for a nanosensor energy model. The energy harvesting and consumption process is modeled by representing states and transitions using nano-stationary continuous-time Markov process, .

3.8 Energy Model of the Nanosensor

The nanosensor energy is modeled using nano-stationary continuous-time Markov process, , which describes the evolution of the energy states in time [31]. is the energy state of a nanosensor; at state it has the minimum energy () to operate, and at state it has full energy. Here, is the number of cycles needed to charge the nano power source (e.g., Piezoelectric nanogenerator as in [31], Pyroelectric nanogenerators as in [50], etc.) up to an energy value

. The Markov chain of the model without self transitions is shown in Fig.

7 and is defined by its transition rate matrix calculated by eq. (11). Each element of the matrix refers to the transition rate from state to state and is defined in eq. (10).


where is the energy harvesting rate, is the energy consumption rate, and is defined as .


For a power source of cycles with cycle length , is computed using the expressions shown in eq. (LABEL:ea1).

where is the generator voltage, is the resistance of the nano power source, and is the harvested charge per cycle (cy.).

The maximum energy stored in the nano power source, , is estimated using eq. (13).


where is the energy stored in the nano power source [31], is the total capacitance of the nano power source, and is the voltage of the charging power source.

When the value of approaches , the voltage of the charging power source () becomes equal to the voltage of the generator (). In this case, the maximum energy () is given by eq. (14).


The number of cycles () needed to charge the power source to an energy value () is derived as in eq. (15).


If the energy of the power source is increased by , then the energy harvesting rate, , of the nano power source is computed using eq. (16).


Based on eq. (16), the harvesting rate for transition from energy state to state , , is given by eq. (17); and the energy consumption rate is given by eq. (18).


where is the energy required to transmit a packet, and is the energy at state and is given by .


Given the energy required for multi and singlehop transmission, the energy saving probability for multihop transmission, , is defined by eq. (19).


where is the average bit energy required for transmission; is the transmission from source (ADTN/ NCC) to a relay node (NCC), is the transmission from the relay node to destination (NC), is the direct transmission from source to destination; and is the rate constant, which depends on the density of the deployed nodes.

Finally, the rate of change of is quantified using eq. (20).

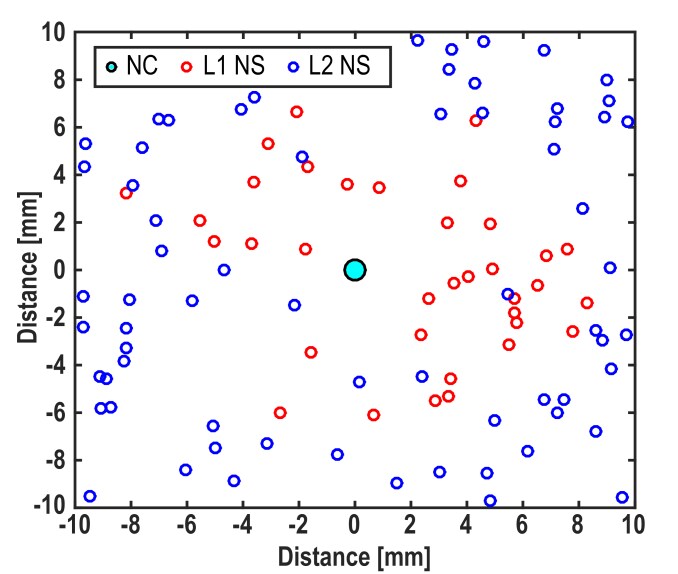

Fig. 8: Plot of coordinates of deployed nanonodes. One hundred nanosensors have been deployed using a constant mobility model with a deployment area of .

4 Performance Assessment

The model’s performance was evaluated for energy efficiency and outage capacity considering the effects of molecular absorption, spreading, path loss, and shadowing. The model’s performance was compared to an ‘Existing’ method proposed by Pierobon et al. [24].

The proposed communication model was simulated using Nano-Sim (see [26]) for a network with nanonodes deployed using a constant mobility model within an area of mm radius with the NC placed at the center. The nanosensor coordinates are shown in Fig. 8. The nodes send messages through multihop paths to the NC. The THz band channel model is devised with a standard gaseous medium comprising of water vapor molecules. Simulation parameters are listed in table II.

Parameter (Unit) Value
Communication model EM Thz
Simulation duration ()
Number of nanonodes from to
Deployment area ()
Node position Stationary
Tx Range of nanonodes ()
Pulse energy ()
Pulse duration ()
Pulse interval time ()
Packet size ()
Initial TTL value
Message generation time interval ()
Average time between vibrations ()
SINR threshold, ()
Path loss exponent
No. of trials
Simulation iteration 100
TABLE II: Simulation Parameters

4.1 Energy Usage

Fig. 9 compares the performance of the model in terms of energy spent by each ADTN to transmit packets towards NCC using singlehop and multihop communication.

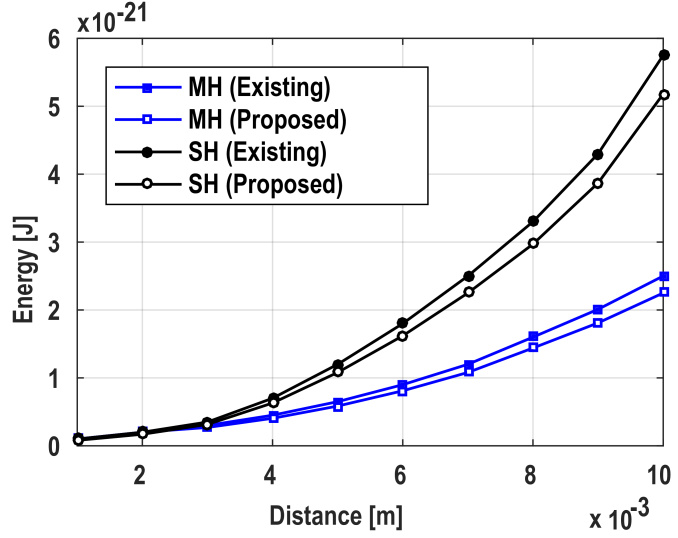

Fig. 9: Comparison of energy usage. With increasing distance multihop routing requires less energy than that of singlehop. As the NCC is elected to optimize the energy usage, the proposed routing method operate at a lower energy than that of [24].

As seen in Fig. 9, the energy consumption by an ADTN increases with its distance from the NCC. For a distance less than mm, the ADTN uses a comparable amount of energy in both singlehop and multihop transmissions. In comparison to a singlehop, multihop transmission of an ADTN requires less energy to transmit to NCC with increasing distances. It also has been found that the proposed algorithm requires less energy, as the NCC is at its best position to collect ADTNs transmission.

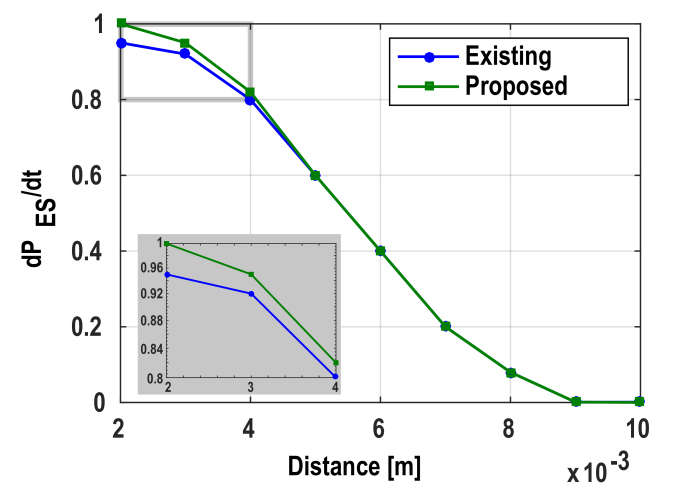

Fig. 10: Changes in the rate of energy saving probability. The proposed scheme is able to save more energy for a considerable amount of transmission distance (below mm) in comparison to the previously proposed one in [24].

As seen in Fig. 10, in multihop transmission, the rate of change of energy saving probability is higher than that of [24] for average link distances (upto mm) between source-relay and relay-destination nodes. This energy usage reduction in the proposed scheme is due to the insightful selection of the NCC based on maximum normalized residual energy among the nodes (see algorithm 2).

4.2 Capacity Observation

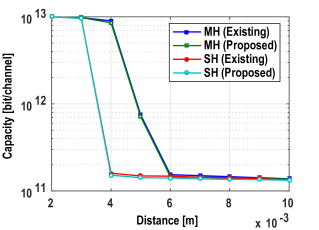

Fig. 11: Channel-wise capacity comparison. The average capacity decreases with the increase of distance between ADTN and NC.

Fig. 11 shows the effect of distance between the ADTN and NC on average capacity for singlehop and multihop transmission. The average capacity remains similar for both single and multihop transmissions for upto mm of distance, after which the capacity of the singlehop decreases in comparison to the multihop until the distance of mm. For further distances, due to hop-count limits, both transmission modes return to a similar average capacity. It is noteworthy that the proposed routing framework achieves a similar average capacity to the one of Pierobon et al. despite having used less energy (see Fig. 9).

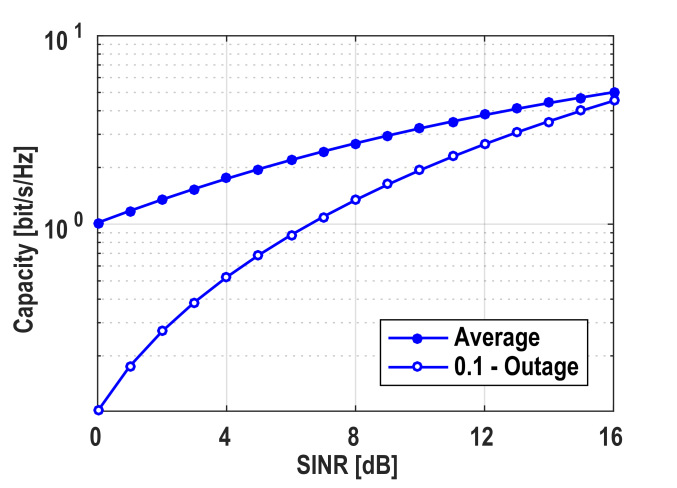

Fig. 12: Average and outage capacity. Significant reduction is noticed in the average capacity of the THz communication link considering a 0.1-outage.

It is implicit that the average channel capacity cannot guarantee actual link realization but the outage capacity provides a good estimation (see eq. (9)). For example, the link SINR is low for slow fading and/or shadowing. As expected, with increasing the average link capacity decreases (see Fig. 12).

4.3 Outage Probability Analysis

The outage probability has been analyzed through Monte-Carlo simulations with parameters trials: , tolerance: , : , , and k: (see eq. (6) and (4)).

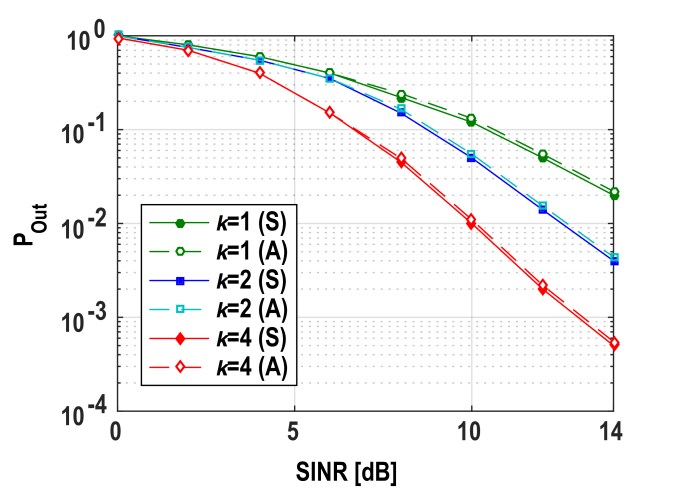

Fig. 13: Effect of cooperative fusion on . In both simulation (S) and analytical (A) results, the outage probability decreases drastically while fusing the information at the fusion node.

The outage probability decreases with an increasing number of links (i.e., k). As seen in Fig. 13, at , the outage probabilities are approximately and for and parallel links fused at the fusion node (see Fig. 6), and the probability is for a single link. The multisensor fusion at the fusion node enhances the link SINR, which decreases the outage probability and ensures improved quality of service compared to single link multihop communication. The simulation (S) and the analytical (A) results closely match each other ensuring the accuracy of the simulation.

5 Conclusion

Nano electromagnetic communication for WBSN is in its infancy and there are quite a few challenges to be addressed before it can be applied efficiently in the biomedical field. Due to the size of the nanonodes, their resources are limited. Low processing capability, limited battery power, and small memory unit pose major bottlenecks in designing communication protocols for nanonetworks. To overcome the bottlenecks, different protocol stacks have been proposed; however, the network layer has been less studied and explored in nanocommunication.

This work proposed a new energy-efficient forwarding scheme for electromagnetic wireless nanonetworks to improve the performance of nanocommunication over the THz band for a WBSN. The channel behavior of the proposed scheme was investigated considering the combined effect of molecular absorption, spreading loss, and shadowing. To allow continuous operation, the nanonodes of the system require energy harvesting. The proposed scheme facilitates energy efficiency by selecting a multiple layered cluster based multihop communication which is supported by a modified nanosensor energy model. To ensure the quality of service of the WBSN communication, which is hampered by factors such as – network lifetime, data detection accuracy, and data aggregation delays, we adopted a cooperative fusion approach.

The performance of the scheme was evaluated for energy saving probability, outage probability, and outage capacity. Simulation results demonstrated that the proposed scheme outperforms the existing ones in energy saving and capacity. Additionally, multisensor fusion at the fusion node ensures an enhanced link quality by decreasing the outage probability which is very important in case of smart healthcare applications.


This research received no specific grant from any funding agency in the public, commercial, or not-for-profit sectors. The authors are particularly thankful to Mr. Shamim Al Mamun and Ms. Nusrat Jahan for their help and fruitful discussion.


  • [1] T. Yamada, Y. Iwasaki, H. Tada, H. Iwabuki, M. K. Chuah, and et al., “Nanoparticles for the delivery of genes and drugs to human hepatocytes,” Nat. Biotechnol., vol. 21, no. 8, pp. 885–890, 2003.
  • [2] S. Sahoo and et al., “The present and future of nanotechnology in human health care,” Nanomedicine, vol. 3, no. 1, pp. 20–31, 2007.
  • [3] J. Wang and W. Gao, “Nano/microscale motors: Biomedical opportunities & challenges,” ACS Nano, vol. 6, pp. 5745–51, 2012.
  • [4] W. Gao and J. Wang, “The environmental impact of micro/nanomachines: A review,” ACS Nano, vol. 8, pp. 3170–80, 2014.
  • [5] I. F. Akyildiz, F. Brunetti, and C. Blazquez, “Nanonetworks: A new communication paradigm,” Comput. Netw., vol. 52, no. 12, pp. 2260–2279, 2008.
  • [6] N. Rikhtegar and M. Keshtgary, “A brief survey on molecular and electromagnetic communications in nano-networks,” Int. J. Comput. Appl., vol. 79, no. 3, pp. 16–28, 2013.
  • [7] I. F. Akyildiz, J. M. Jornet, and M. Pierobon, “Nanonetworks: A new frontier in communications,” Commun. ACM, vol. 54, no. 11, pp. 84–89, 2011.
  • [8] L. P. Gine and I. F. Akyildiz, “Molecular communication options for long range nanonetworks,” Comput. Netw., vol. 53, no. 16, pp. 2753–2766, 2009.
  • [9] M. Haselman and S. Hauck, “The future of integrated circuits: A survey of nanoelectronics,” Proc. IEEE, vol. 98, pp. 11–38, 2010.
  • [10] I. F. Akyildiz, J. M. Jornet, and C. Han, “Terahertz band: Next frontier for wireless communications,” Phys. Commun., vol. 12, pp. 16–32, 2014.
  • [11] D. Malak and O. Akan, “Molecular communication nanonetworks inside human body,” Nano Commun. Netw., vol. 3, pp. 19–35, 2012.
  • [12] I. F. Akyildiz and J. M. Jornet, “Electromagnetic wireless nanosensor networks,” Nano Commun. Netw., vol. 1, no. 1, pp. 3–19, 2010.
  • [13] A. Moldovan, M. Ruder, I. F. Akyildiz, and W. Gerstacker, “Los and nlos channel modeling for terahertz wireless communication with scattered rays,” in Proc. GLOCOMW, 2014, pp. 388–392.
  • [14] G. Piro and et al., “Terahertz electromagnetic field propagation in human tissues: A study on communication capabilities,” Nano Commun. Netw., vol. 10, pp. 51–59, 2016.
  • [15] M. Patel and J. Wang, “Applications, challenges, and prospective in emerging body area networking technologies,” IEEE Wirel. Commun., vol. 17, no. 1, pp. 80–88, 2010.
  • [16] Q. H. Abbasi and et al., “Nano-communication for biomedical applications: A review on state-of-the-art from physical layers to novel networking concepts,” IEEE Access, vol. 4, pp. 3920–35, 2016.
  • [17] R. Cavallari and et al., “A survey on wireless body area networks: Technologies and design challenges,” IEEE Commun. Surv. Tut., vol. 16, no. 3, pp. 1635–1657, 2014.
  • [18] M. Kuscu and O. B. Akan, “A nanoscale communication channel with fluorescence resonance energy transfer (fret),” in Proc. IEEE INFOCOM, 2011, pp. 425–430.
  • [19] S. Misra, N. Islam, J. Mahapatro, and J. Rodrigues, “Green wireless body area nanonetworks: Energy management & game of survival,” IEEE J. Biomed. Health Inform., vol. 18, pp. 467–475, 2014.
  • [20] F. Dressler and S. Fischer, “Connecting in-body nanocommunication with BAN: Challenges & opportunities of the internet of nano things,” Nano Comm. Netw., vol. 6, no. 2, pp. 29–38, 2015.
  • [21] H. Yu, B. Ng, and W. K. Seah, “Forwarding schemes for em-based wireless nanosensor networks in the terahertz band,” in Proc. NANOCOM, 2015, pp. 1–6.
  • [22] I. F. Akyildiz and J. M. Jornet, “The internet of nano-things,” IEEE Wirel. Commun., vol. 17, no. 6, pp. 58–63, 2010.
  • [23] S. J. Lee, C. Jung, K. Choi, and S. Kim, “Design of wireless nanosensor networks for intrabody application,” Int. J. Distrib. Sens. Netw., vol. 11, no. 7, p. 176761, 2015.
  • [24] M. Pierobon and etl al., “A routing framework for energy harvesting wireless nanosensor networks in the terahertz band,” Wirel. Netw., vol. 20, no. 5, pp. 1169–1183, 2014.
  • [25] G. Piro and et al., “Simulating wireless nano sensor networks in the ns-3 platform,” in Proc. WAINA, 2013, pp. 67–74.
  • [26] G. Piro, L. A. Grieco, G. Boggia, and P. Camarda, “Nano-sim: Simulating electromagnetic-based nanonetworks in the network simulator 3,” in Proc. SimuTools, 2013, pp. 203–210.
  • [27] G. Piro, G. Boggia, and L. A. Grieco, “On the design of an energy-harvesting protocol stack for body area nano-networks,” Nano Commun. Netw., vol. 6, no. 2, pp. 74–84, 2015.
  • [28] J. M. Jornet and et al., “Phlame: A physical layer aware mac protocol for electromagnetic nanonetworks in the terahertz band,” Nano Commun. Netw., vol. 3, pp. 74–81, 2012.
  • [29] P. Wang, J. M. Jornet, M. G. Abbas Malik, N. Akkari, and I. F. Akyildiz, “Energy and spectrum-aware mac protocol for perpetual wireless nanosensor networks in the terahertz band,” Ad Hoc Netw., vol. 11, no. 8, pp. 2541–2555, 2013.
  • [30] S. Mohrehkesh and M. C. Weigle, “Optimizing energy consumption in terahertz band nanonetworks,” IEEE J. Sel. Area Commun., vol. 32, no. 12, pp. 2432–2441, 2014.
  • [31] J. M. Jornet and I. F. Akyildiz, “Joint energy harvesting and communication analysis for perpetual wireless nanosensor networks in THz band,” IEEE Trans. Nanotechnol., vol. 11, pp. 570–580, 2012.
  • [32] M. Afsar and M. Tayarani, “Clustering in sensor networks: A literature survey,” J. Netw. Comput. Appl., vol. 46, pp. 198–226, 2014.
  • [33] O. Younis and S. Fahmy, “Distributed clustering in ad-hoc sensor networks: a hybrid, energy-efficient approach,” in Proc. IEEE INFOCOM, vol. 1, 2004, p. 640.
  • [34] F. Afsana, N. Z. Zenia, N. Islam, F. A. Sunny, M. S. Kaiser, and S. A. Mamun, “Multi-priority and trusted multi-path selection algorithm for ad-hoc network,” in Proc. ICEEICT, 2014, pp. 1–6.
  • [35] A. Behruzifar and A. Falahati, “Maximizing outage capacity in rayleigh fading channel,” Int. J. Comput. Sci. Artif. Intell., vol. 2, no. 1, pp. 15–17, 2012.
  • [36] M. Yigit, V. C. Gungor, E. Fadel, L. Nassef, N. Akkari, and I. F. Akyildiz, “Channel-aware routing and priority-aware multi-channel scheduling for wsn-based smart grid applications,” J Netw. Comput. Appl., vol. 71, pp. 50 – 58, 2016.
  • [37] N. Z. Zenia, M. Aseeri, M. R. Ahmed, Z. I. Chowdhury, and M. S. Kaiser, “Energy-efficiency and reliability in {MAC} and routing protocols for underwater wireless sensor network: A survey,” J Netw. Comput. Appl., vol. 71, pp. 72–85, 2016.
  • [38] J. M. Jornet and I. F. Akyildiz, “Channel modeling and capacity analysis for electromagnetic wireless nanonetworks in thz band,” IEEE Trans. Wirel. Commun., vol. 10, no. 10, pp. 3211–3221, 2011.
  • [39] G. Piro and et al., “Terahertz communications in human tissues at the nanoscale for healthcare applications,” IEEE Trans. Nanotechnol., vol. 14, no. 3, pp. 404–406, 2015.
  • [40] I. Javed and I. Naqvi, “Frequency band selection and channel modeling for wnsn applications using simplenano,” in Proc. ICC, 2013, pp. 5732–5736.
  • [41] A. Nosratinia, T. E. Hunter, and A. Hedayat, “Cooperative communication in wireless networks,” IEEE Commun. Mag., vol. 42, no. 10, pp. 74–80, 2004.
  • [42] X. Chen, H. Chen, and W. Meng, “Cooperative Communications for Cognitive Radio Networks: From Theory to Applications,” IEEE Commun. Surv. Tut., vol. 16, no. 3, pp. 1180–1192, 2014.
  • [43] G. Kampis and P. Lukowicz, “Collaborative Knowledge Fusion by Ad-Hoc Information Distribution in Crowds,” Procedia Comput. Sci., vol. 51, pp. 542–551, 2015.
  • [44] S. M. Alamouti, “A simple transmit diversity technique for wireless communications,” IEEE J. Sel. Area Comm., vol. 16, no. 8, pp. 1451–1458, 1998.
  • [45] A. Brizzi, A. Pellegrini, L. Zhang, and Y. Hao, “Statistical path-loss model for on-body communications at 94 ghz,” IEEE Trans. Antenna Propag., vol. 61, no. 11, pp. 5744–5753, 2013.
  • [46] F. Afsana and et al., “Outage capacity analysis of cluster-based forwarding scheme for Body Area Network using nano-electromagnetic communication,” in Proc. EICT, 2015, pp. 383–388.
  • [47] F. Afsana, N. Jahan, and M. S. Kaiser, “An energy efficient cluster based forwarding scheme for body area network using nano-scale em communication,” in Proc. WIECON-ECE, 2015, pp. 491–494.
  • [48] J. M. Kelif and M. Coupechoux, “Joint impact of pathloss shadowing and fast fading - an outage formula for wireless networks,” CoRR, vol. abs/1001.1110, 2010.
  • [49] A. Goldsmith, Wireless Communications.   New York, USA: Cambridge University Press, 2005.
  • [50] Y. Yang and et al., “Pyroelectric nanogenerators for harvesting thermoelectric energy,” Nano Lett., vol. 12, no. 6, pp. 2833–8, 2012.
