An Empirical Study on the Usage of Transformer Models for Code Completion

08/03/2021 ∙ by Matteo Ciniselli, et al. ∙ Unisannio USI Università della Svizzera italiana William & Mary 0

Code completion aims at speeding up code writing by predicting the next code token(s) the developer is likely to write. Works in this field focused on improving the accuracy of the generated predictions, with substantial leaps forward made possible by deep learning (DL) models. However, code completion techniques are mostly evaluated in the scenario of predicting the next token to type, with few exceptions pushing the boundaries to the prediction of an entire code statement. Thus, little is known about the performance of state-of-the-art code completion approaches in more challenging scenarios in which, for example, an entire code block must be generated. We present a large-scale study exploring the capabilities of state-of-the-art Transformer-based models in supporting code completion at different granularity levels, including single tokens, one or multiple entire statements, up to entire code blocks (e.g., the iterated block of a for loop). We experimented with several variants of two recently proposed Transformer-based models, namely RoBERTa and the Text-To-Text Transfer Transformer (T5), for the task of code completion. The achieved results show that Transformer-based models, and in particular the T5, represent a viable solution for code completion, with perfect predictions ranging from  29 reached in the simpler scenario of few tokens masked from the same code statement.

READ FULL TEXT VIEW PDF
POST COMMENT

Comments

There are no comments yet.

Authors

page 9

page 11

page 18

This week in AI

Get the week's most popular data science and artificial intelligence research sent straight to your inbox every Saturday.

1 Introduction

Code completion is considered as one of the “killer” features of modern Integrated Development Environments (IDEs) [13, 65, 44]: It can provide developers with predictions about the next code token (e.g., a method call) to write given the code already written in the IDE, thus speeding up software development and preventing potential mistakes [29, 30].

Several works in this field have been proposed. Most of them aim at advancing the performance of code completion tools, especially in terms of prediction accuracy. Such research has allowed to move from simple alphabetically ranked lists of recommendations for completing what a developer is typing (e.g., a list of possible method calls matching what has been typed by the developer) to “intelligent” completions considering the context surrounding the code [13, 65], the history of code changes [65], and/or coding patterns mined from software repositories [34, 58, 72, 5, 57, 59, 32]. Last, but not least, Deep Learning (DL) models have been applied to code completion [78, 42, 44, 2, 68, 17], setting new standards in terms of prediction performance. Although the performance of code completion techniques have substantially improved over time, the type of support they provide to developers has not evolved at the same pace. Most of these techniques are only able to predict the next token the developer is likely to type and, consequently, they are only evaluated in this specific scenario. Only a few recent studies focus on predicting multiple contiguous tokens [2, 68]. This leaves the following question unanswered: how far can we go with DL-based token prediction (even beyond the source code line boundary)?

We present a large-scale empirical study exploring the limits and capabilities of state-of-the-art DL models to support code completion. Besides generating the next token(s) the developer is likely to write, we apply DL models to the generation of entire statements and code blocks (e.g., the body of an if statement). Among the many DL models proposed in the literature, we focus on models using the Transformer architecture [75]. In particular, in our recent work published at MSR 2021 [17] we evaluated the performance of a RoBERTa model [50] in the code completion tasks described above. RoBERTa is a BERT (Bidirectional Encoder Representations from Transformers) model [20] using a pre-training task in which random words in the input sentences are masked out using a special <MASK> token, with the model in charge of predicting the masked words. While experimenting with RoBERTa for the task of code completion, we faced an important limitation that did not make it suitable for the study we wanted to perform (i.e., the prediction of multiple masked tokens): In the RoBERTa pre-training task <MASK> tokens must be used to mask code tokens, thus implicitly suggesting to the model how many code tokens must be generated to autocomplete the masked statement. This would not be realistic in a real usage scenario, in which the code completion engine must guess the tokens to generate, without the developer suggesting how many tokens must be generated. To overcome this limitation, we had to adapt the RoBERTa pre-training objective to be able to guess, from a single <MASK> token masking one or more code tokens in the given statements, which and how many code tokens must be generated [17]. The adaptation of the RoBERTa pre-training objective was inspired by the recently proposed Text-To-Text Transfer Transformer (T5) architecture [61], suggesting this as a good fit for the task of code completion.

In this work, we extend our MSR 2021 paper [17] by showing that the T5 substantially overcomes the performance of the RoBERTa model, being able to correctly predict even entire code blocks, something that we found to be not achievable with RoBERTa. As in [17], we focus on three code prediction scenarios: (i) token-level predictions, namely classic code completion in which the model is used to guess the last tokens in a statement the developer started writing; (ii) construct-level predictions, in which the model is used to predict specific code constructs (e.g., the condition of an if statement) that can be particularly useful to developers while writing code; and (iii) block-level predictions, with the masked code spanning one or more entire statements composing a code block (e.g., the iterated block of a for loop).

We compare the performance of several models. First, we use the RoBERTa model as presented in [17] as representative of BERT-like models. Second, we use T5 model for the task of code completion for the first time in this paper. The T5 has been recently shown to outperform many state-of-the-art techniques in code-related tasks [53]. Third, we use the state-of-the-art cached n-gram model by Hellendoorn and Devanbu [32] as a baseline for DL-based models.

Both RoBERTa and T5 models are trained in two phases: pre-training, which allows defining a shared knowledge-base useful for a large class of sequence-to-sequence tasks (e.g., guessing masked words in English sentences to learn about the language), and fine-tuning, which specializes the model on a specific downstream task (e.g.,

learning the translation of sentences from English to German). Several tasks can be used in the fine-tuning, to possibly take advantage of transfer learning (

i.e., the knowledge acquired on one task can be reused by the model for another task). In our work, we want to investigate the performance of the two transformer-based models by also looking at the role played on the models’ performance by the pre-training task and the transfer learning across different tasks. However, since this requires the training of many different variants of the experimented models, we adopt the following strategy. First, we compare RoBERTa and T5 by training three different models for the three code completion scenarios (i.e., token-level, construct-level, and block-level) we experiment with. This implies creating three different RoBERTa and T5 models (six models overall). Then, we take the best performing one (T5) and we show that using pre-training increases its performance, even though the impact is limited. Finally, we show that fine-tuning a single T5 model to support all three prediction tasks boosts performance confirming transfer learning across the three very similar tasks (i.e., knowledge acquired in one task can be used to perform another task).

The achieved results show that, for the typical code completion task (i.e., token-level), T5 is able to correctly guess all masked tokens in 66% to 69% of cases (depending on the used dataset), with RoBERTa achieving 39% to 52% and the -gram model 42% to 44%. In the most challenging prediction scenario, in which we mask entire blocks, RoBERTa and the -gram model show their limitations, being able to only correctly reconstruct the masked block in less than 9% of the cases, while the T5 achieves 30% of correct predictions.

It is worth noting that the goal of our study is not to show that the T5 model is the best option for neural-based code completion. Our work focuses on empirically exploring the capabilities of learning-based code completion techniques, and T5, RoBERTa, and the -gram model have been chosen as representatives of the state-of-the-art.

In summary, as compared to our MSR 2021 paper [17], the contributions of this work are as the following: (i) we perform a comprehensive empirical study with an additional state-of-the-art approach, namely the T5 model, showing its very promising performance for the code completion task; (ii) differently from [17] in which three different RoBERTa models have been fine-tuned on the three code completion scenarios (i.e., token-level, construct-level, and block-level) without pre-training and without testing the impact of transfer learning, we pre-train and fine-tune several versions of the best performing model (i.e., the T5), to investigate these aspects; (iii) for the best performing model, we also explore the possibility of exploiting the confidence of the predictions as a measure of the prediction quality, showing the reliability of such an indicator.

The source code and data used in our work are publicly available in a comprehensive replication package [18].

2 Study Design

The study goal is to assess the effectiveness of Transformer-based DL models in predicting masked code tokens at different granularity levels. We address the following research questions (RQs):

RQ: To what extent are transformer models a viable approach to learn how to autocomplete code? This RQ investigates the extent to which T5 and RoBERTa can be used for predicting missing code tokens. We assess the quality of the generated predictions from both a quantitative (i.e., BLEU score [21], Levenshtein distance [46]) and a qualitative (i.e., perfect predictions, potential usefulness of wrong predictions) point of view. RQ is further detailed in the following three sub-RQs:

RQ: To what extent does the number of masked tokens impact the prediction quality? We train and test the approaches we experiment with on datasets in which masked code tokens span from few contiguous tokens in a given statement to multiple missing statements composing a code block. RQ explores the limits of Transformer models when considering simple and more challenging code completion scenarios.

RQ: To what extent are the performance of the models influenced by the specificity of the dataset employed for training and testing it? While it is reasonable to expect that larger training datasets tend to help deep learning models, we are interested in answering RQ from a different perspective. To address this RQ, we compare the autocompletion performance on two different datasets: a first, more general one, composed of Java methods; and a second, more specific one, composed of methods from Android apps. While the programming language is the same, the second dataset makes heavy use of Android APIs, and the same APIs are likely to be used for similar purposes, e.g., app features dealing with GPS positioning share common API usages. We expect this to create “regularities” in the Android dataset to help model learning.

RQ: What is the role of pre-training and transfer learning in the performance of Transformer-based models? As explained in Section 1, both RoBERTa and T5 can be pre-trained and then fine-tuned on several tasks. RQ investigates the boost in performance (if any) brought by (i) pre-training of the models, and (ii) fine-tuning a single model on several tasks to take advantage of transfer learning. Such an additional analysis has been performed only for the best-performing model (i.e., the T5).

RQ:

How do the DL-based models compare to a state-of-the-art n-gram model?

An alternative to DL models is represented by statistical language models based on

n-grams. In this research question, we compare the DL models to the state-of-the-art n-gram cached model [32].

2.1 Context Selection: Datasets

Our study involves two datasets. The first one comes from our MSR’21 paper [17] and is used to fine-tune the RoBERTa and T5 model and to train the -gram model. We refer to this dataset as fine-tuning dataset and it includes both a Java and an Android dataset to allow answering RQ. The second dataset has been built specifically to answer RQ (i.e., to have a different dataset that can be used for the pre-training of the best performing model among RoBERTa and T5 (i.e., pre-training dataset). Next we describe how both datasets have been built.

2.1.1 Fine-tuning dataset

To create the Java dataset, we started from the CodeSearchNet Java Dataset provided by Husain et al. [36]

. This dataset contains over 1.5M Java methods collected from open-source, non-fork, GitHub repositories. For details on how the dataset has been built, see the report by Husain

et al. [36]. For our work, the most important criteria used in the dataset construction are: (i) excluding methods of fewer than three lines; (ii) removing near-duplicate methods using the deduplication algorithm from CodeSearchNet; this is done to not inflate the performance of the models as result of overlapping instances between training and test sets [1] and (iii) removing methods with the name containing the “test” substring in an attempt to remove test methods; methods named “toString” are removed as well.

To build the Android dataset we adopted a similar procedure. We cloned the set of 8,431 open-source Android apps from GitHub available in the AndroidTimeMachine dataset [24]. Then, we extracted from each project’s latest snapshot the list of methods. This resulted in a total of

2.2M methods. Then, we applied the same filtering heuristics defined for the Java dataset, ending up with 654,224 methods. Since one of the goals of our study is also to compare the performance of the models when applied on a more generic (Java) and a more specific (Android) dataset, we randomly selected from the Java dataset 654,224 methods, to match the size of the Android dataset.

In our MSR paper [17], we also experimented with code abstraction as used in the previous studies [73, 74] to avoid the open vocabulary problem. However, new DL-based models do not suffer from this limitation anymore thanks to the usage of tokenizers exploiting techniques such as Byte Pair Encoding (BPE) [23]. For this reason, while in [17] we built two versions of the fine-tuning dataset (with and without abstraction), in this work we only focus on the datasets using raw source code since this is the real scenario in which code completion techniques are used. Such clarification is needed since, when building the fine-tuning dataset, methods for which parsing errors occurred during the abstraction process were excluded [17], leaving the Java dataset with 634,799 methods, and the Android one with 532,096.

Then, the three versions of each dataset (Java and Android) summarized in Table I were created using the following masking processes:

Token masking. For each code line in each method having more than one token we mask its last tokens, where is a random number between , where is the number of tokens composing . The purpose of token-masking is to simulate a typical code completion scenario: A developer starts writing a code line, and the tool recommends how to complete it. Given a method having lines with more than one token, we generate versions of , each of them having one and only one line with the last tokens masked. We set the maximum number of masked tokens to 10 (i.e., if then ).

Construct masking. We selected a number of code constructs for which it could be particularly useful to be supported with automated code completion. Given a method , we use the scrML [66] toolkit to identify all ’s tokens used to: (i) define the complete condition of an if statement or of a while/for loop (e.g., in a statement having for(int i=0; i<data.size(); i++) we identify all tokens between parenthesis as those used to define the for loop); (ii) define the parameters in a method call (e.g., in copyFile(source, target) the tokens “source”, “,”, and “target” are identified); and (iii) define the exception caught in a catch statement (e.g., in catch(IOException io) we identify IOException io as the involved tokens). For this results in a set ={, , , }, where represents a set of relevant tokens for one of the previously mentioned constructs (e.g., is the set of tokens used to define the for loop condition).

Given , we generate versions of it, each one having one of the subject constructs masked. Also, in this case we set the maximum number of masked tokens to 10. This means that if a construct requires more than 10 tokens to be masked, it is not masked in our dataset.

Block masking. We use srcML to identify in each method its code blocks. We define a code block as the code enclosed between two curly brackets. For example, a block may be, besides the method body itself, the code executed in a for/while loop, when an if/else/else if condition is satisfied, etc. Then, given the number of blocks identified in , we create versions of each one having a specific code block masked. We set the maximum size of the masked block to two complete statements. This means that if a block is composed of more than two statements, it is not masked.

Domain Masking Dataset #Instances #Tokens
Level
Token Training 750k 46.9M
Evaluation 215k 13.4M
Test 219k 13.6M
Construct Training 750k 48.2M
Java Evaluation 104k 6.7M
Test 106k 6.7M
Block Training 298k 19.1M
Evaluation 39k 2.5M
Test 40k 2.5M
Token Training 750k 47.4M
Evaluation 198k 12.5M
Test 201k 12.6M
Construct Training 750k 48.9M
Android Evaluation 99k 6.4M
Test 101k 6.5M
Block Training 205k 13.4M
Evaluation 27k 1.7M
Test 27k 1.8M
TABLE I: Study datasets. One instance corresponds to a method with masked token(s).

In summary, there are six fine-tuning datasets: For each of the two domains (Java or Android) there are three different masking levels (token, construct, block). These masking levels have been pick to simulate code completion tasks having different complexity (with token masking expected to be the simplest and block-masking the most complex).

Starting from the six datasets, we created the training, evaluation, and test sets in Table I

. As a first step, we filtered out specific instances from our datasets. First, when using generative deep learning models, the variability in length of the sentences (in our case, methods) provided as input can affect the training and performance of the model, even when techniques such as padding are employed. For this reason, we analyzed the distribution of methods length in our dataset, finding that two-thirds of them are composed of at most 100 tokens. For this reason, as done by Tufano

et al. [74], we excluded from our datasets all the methods having more than 100 tokens. Second, RoBERTa cannot efficiently handle cases in which the masked tokens are more than the non-masked tokens. This often happens, for example, when masking the entire method body in the block-level masking approach. Thus, those instances are excluded as well.

After the filtering steps, we split each of the six datasets into training (80%), evaluation (10%), and test (10%) sets. While the methods in the dataset are randomly ordered, the splitting we performed was not random to avoid biasing the learning. To explain this point, let us consider the case of the block masking dataset. Given a method having blocks in it, we add in the dataset versions of , each having one and only one block masked. Suppose that contains two blocks and , thus leading to two versions of : One in which is masked () and is not and vice versa (). With a random splitting, it could happen that is assigned to the training set and to the test set. However, in the is not masked. Thus, when the model has to guess the tokens masked in it would have the solution in the training set, resulting in boosted prediction performance. For this reason, we randomly select 80% of the methods in each dataset and assign all of their masked versions to the training set. Then, we proceed in the same way with evaluation and test sets.

Using this procedure, we obtained the datasets in Table I. Important to note is that, given the original size of the datasets using token-level and construct-level masking, we decided to cap the training set to 750k instances (no changes were done in the evaluation and test sets). This was necessary given the computationally expensive process of training several DL models (as it will be clear later, our study required the training of 19 different DL-based models). Also, the size of the evaluation and test sets is slightly different since, as explained before, we split the dataset based on the methods (not on their masked versions) and each method can result in a different number of its generated masked versions.

2.1.2 Pre-training dataset

To build the pre-training dataset, we used the GitHub Search platform [19] to identify all Java repositories having at least 100 commits, 10 contributors, and 10 stars. These filtering criteria only aim at reducing the likelihood of selecting toy and personal projects for the building of this dataset. We sorted the projects by their number of stars, cloning the top 6,000 and extracting from each of them the methods in the latest snapshot tagged as a release, to only rely on methods likely to be syntactically correct. Repositories for which no snapshot was tagged as a release were excluded, leaving 3,175 repositories. Finally, since we wanted to avoid extremely large projects to influence the dataset too much (i.e., to contribute too many methods to the dataset), we cap the maximum number of methods to extract from each repository to 1,500. This was also due to limit the number of the pre-training instances to a manageable size according to our available hardware resources. Similarly to what had been done for the fine-tuning dataset, we also removed test methods identified as all those using the @test annotation or containing the word “test” in the method name after camel case splitting (i.e., we do not exclude updateStatus). Also, since the goal of the pre-training dataset is to provide instances in which random tokens are masked to make the model “familiar” with a specific context (i.e., the Java language in our case), we excluded very short methods ( 15 tokens) not having enough elements to mask and, for the same reasons explained for the fine-tuning dataset, long methods (in this case, 200 tokens).

We then removed all the duplicates within the pre-training dataset, keeping in the dataset only the first occurrence of each duplicate. After having removed the duplicates, the dataset contained 1,874,338 different methods. Finally, we ensured that the pre-training dataset does not contain any methods belonging to the fine-tuning dataset (neither in the training, evaluation, or test sets). We found a total of 23,977 duplicates between the pre-training and the fine-tuning datasets, leading to a final number of 1,850,361 instances in the pre-training dataset.

2.2 Context Selection: Techniques

In this section we overview three experimented techniques, i.e., RoBERTa [50], T5 [61], and -gram [32]. We refer to the original papers presenting them for additional details.

2.2.1 RoBERTa

The first Transformer-based model leverages the off-the-shelf RoBERTa model, which is an Encoder-Transformer architecture. Details about the RoBERTa model are provided in a report by Liu et al. [50], while here, we mainly focus on explaining why it represents a suitable choice for code completion. BERT-based models, such as RoBERTa, use a special pre-training where random words in the input sentence are masked out with a special <MASK> token. This pre-training task is very well-suited to simulate a code completion task, in which the input is an incomplete code snippet the developer is writing and the masked tokens represent the code needed to autocomplete the snippet. However, one limitation of such a pre-training is that when attempting to predict multiple tokens, e.g., an entire masked if condition, it requires the number of tokens to generate to be known, due to the fixed sequence length of Transformers [75]. To overcome this issue, we modify such an objective masking spans of tokens using a single <MASK> token.

As previously explained, BERT models such as RoBERTa can be pre-trained and fine-tuned on several tasks [20]. The result will be a single model able to support different tasks and, possibly, taking advantage of what it learned for a specific task to also improve its performance in a different task. In our study, we start by comparing the RoBERTa and the T5 models in a scenario in which no pre-training is performed and a single model is built for each of the three code completion tasks previously described (i.e., token, construct, and block masking) by using the fine-tuning dataset. Then, for the best performing model among the two (i.e., T5), we also experiment with pre-training and multi-task fine-tuning. We trained six RoBERTa models, one for each dataset in Table I.

To train the RoBERTa models, we used the Python transformers library [80]. Besides training the RoBERTa models, we also had to train a tokenizer for each of them. We trained a Byte Pair Encoding (BPE) [23] model using the HuggingFace’s tokenizers Python library [35]. BPE uses bytes as vocabulary, allowing it to tokenize every text without requiring the unknown token often used in applications of DL to NLP. When used on source code[41], BPE has been shown to manage the out-of-vocabulary problem.

2.2.2 T5

To support multitask learning in the domain of NLP, Raffel et al. [61] presented the T5 model. T5 is designed to handle input of variable size using a stack of self-attention layers [16]. The encoders are all identical in structure and each one is comprised of two subcomponents: a self-attention layer followed by a small feed-forward network. Layer normalization [8] is applied to the input of each subcomponent while a residual skip connection [31] adds each input of the subcomponent to its output. Dropout [67] is applied within the feed-forward network, on the skip connection, on the attention weights, and at the input and output of the entire stack. The decoders work similarly to the encoders: Each self-attention layer is followed by an additional attention mechanism that attends to the output of the encoder.

The output of the final decoder block is fed into a dense layer with a softmax output, to produce the output probabilities over the vocabulary. T5 offers two advantages compared to other DL models: (i) it is usually more efficient than RNNs since it allows to compute the output layers in parallel, and (ii) it can detect hidden and long-ranged dependencies among tokens, without assuming that nearest tokens are more related than distant ones. The latter is particularly relevant in code-related tasks.

T5 is presented in five pre-defined variants [61]: small, base, large, 3 Billion, and 11 Billion that differ in complexity, size, and, as a consequence, training time. T5, the smaller variant, has 60 million parameters while T5, the largest, has 11 billion parameters. Despite Raffel et al. [61] report that the largest model offers the best accuracy, its training time is sometimes too high to justify its use. Given our computational resources, we opted for the T5 model; therefore, we expect that our results represent a lower bound for the performance of a T5-based model.

2.2.3 -gram

As a baseline for comparison, we used the widely studied statistical language models based on -gram. An -gram model can predict a single token following the tokens preceding it. Even though the -gram model is meant to predict a single token given the preceding tokens, we designed a fair comparison for the scenario in which we mask more than one token. In particular, we use the -gram model in the following way: Let us assume that we are predicting, using a -gram model, how to complete a statement having five tokens T, of which the last two are masked (M): T, T, T, M, M. We provide as input to the model T and T to predict M, obtaining the model prediction P. Then, we use T and T to predict M, thus obtaining the predicted sentence T, T, T, P, P. Basically, all predictions are joined to predict multiple contiguous tokens.

We adopted the state-of-the-art of -gram model proposed by Hellendoorn and Devanbu: the -gram cached model [32]. The -gram models are trained on the same training sets used for the fine-tuning of the DL models without, however, masked tokens.

2.3 Training of the Models

We detail the process used for the training and hyperparameters tuning of the two deep learning models that we experimented with.

Hyperparameter Experimented Values Best
Learning rate {, , }
Batch size {16, 32, 64} 64
# Hidden Layers {6, 12, 16} 12
# Attention Heads {6, 12, 16} 16
Hidden Layer Size {256, 512, 768, 1024} 768
Intermediete Size {3072, 4096} 4,096
TABLE II: Hyperparameters Tuned for the RoBERTa Models.

2.3.1 RoBERTa

We performed hyperparameter tuning using the Weights & Biases’s [77] Python library on a Linux server with an Nvidia RTX Titan GPU. Table II reports the hyperparameters we tuned, the range of values we tested for them, and the value in the best configuration we found. Besides those parameters, we used an attention dropout probability of 0.1, and an hidden layer dropout probability of 0.3. For the tokenizer, the vocabulary size was set to 50k. The hyperparameter search was performed using the training and the evaluation sets of the Android dataset with token masking. We picked as the best configuration the one that, when applied to the evaluation set, was able to obtain the highest number of “perfect predictions”. We define as “perfect” a prediction that exactly matches the code written by the developers. Thus, the model correctly guesses all masked tokens. If one of the masked tokens is different we do not consider the prediction as “perfect”. While, in principle, a different hyperparameter tuning would be necessary for each dataset, such a process is extremely expensive, and preliminary investigations we performed on a subset of the other datasets showed minor differences in the achieved best configuration.

The training was performed across servers using their GPUs. The first was equipped with an Nvidia Tesla V100S, the second with an Nvidia RTX Titan, and the third with 3 Nvidia GTX 1080Ti. The training time strongly depends on the size of the dataset and the used server but ranged between 28 and 114 hours per model. Note that, once trained, each model can be used to perform predictions in the split of a second (on average, 0.12 second on a laptop CPU), thus making them a viable solution for “real-time” code completion.

We train each model for a maximum of 50 epochs. However, we adopted the following stopping condition. At the end of each training epoch, we executed the model on the evaluation set and we compute the number of perfect predictions. If we observe that, during the training, the performance of the model is worsening in terms of perfect predictions on the evaluation set (

i.e., the model is likely overfitting to the training set), we stop the training. In particular, given a model trained for epoch, we stop the training if the number of perfect predictions on the evaluation set is lower than the number of perfect predictions achieved after the

epoch. This ensures that the models can have some fluctuations in performance for up to three epochs. Then, if it is still not improving, we stop its training and take the best model (in terms of perfect predictions on the evaluation test) obtained up to that moment. None of the models were trained for the whole 50 epochs.

Learning Rate Type Parameters
Constant (C-LR)
Slanted Triangular (ST-LR)
Inverse Square Root (ISQ-LR)
Polynomial Decay (PD-LR)
TABLE III: Hyperparameters Tuned for the T5 Models.

2.3.2 T5

We rely on the same configurations used by Mastropaolo et al. [53]. In particular, concerning the pre-training, we do not tune the hyperparameters of the T5 model because the pre-training step is task-agnostic, and this would provide limited benefits. Instead, we experiment with four different learning rate schedules for the fine-tuning phase, using the configurations reported in Table III, and identify the best-performing configuration in terms of perfect predictions on the evaluation sets. Each of the four experimented configurations has been trained for 100k steps (7 epochs) before assessing its performance on the evaluation sets. Across all six evaluation datasets (Table I), the best performing configuration was the one using the Slanted Triangular learning rate, confirming the findings in [53]. Also, all T5 models we built use a SentencePiece [45] tokenizer trained on the pre-training dataset and are composed of 32k wordpieces [53].

The best configuration we identified has been used to train six different T5 models (i.e., one for each dataset in Table I) and assess their performance on the corresponding test set. These results can be used to compare directly the T5 and the RoBERTa model when fine-tuned without pre-training and in a single-task setting (i.e., no transfer learning). Since we found the T5 to perform better than RoBERTa, we also use this model to answer RQ. Thus, in addition to these six models, we also built additional seven models: six of them leverage pre-training plus single-task fine-tuning. In other words, they are the equivalent of the first six models we built, with the addition of a pre-training phase.

For pre-training the T5 model, we randomly mask of the tokens in each instance (method) of the pre-training dataset. The pre-training has been performed for 200k steps (28 epochs), since we did not observe any improvement going further. We used a 2x2 TPU topology (8 cores) from Google Colab to train the model with a batch size of 256, with a sequence length (for both inputs and targets) of 256 tokens. As a learning rate, we use the Inverse Square Root with the canonical configuration [61]. The training requires around 26 seconds for 100 steps.

Finally, we created a T5 model exploiting both pre-training and multi-task fine-tuning (i.e., a single model was first pre-trained, and then fine-tuned on all six datasets in Table I). This was done to check the impact of transfer learning on the model performance. Overall, we trained 13 T5 models: six with no pre-training and single-task fine-tuning, six with pre-training and single-task fine-tuning, and one with pre-training and multi-task fine-tuning.

2.4 Analysis of Results

We compute the following metrics to answer RQ by running each trained model on the test sets in Table I:

The Bilingual Evaluation Understudy (BLEU)-n score [21]. The BLEU score is a metric for assessing the quality of automatically translated text [21]. The BLEU score computes the weighted percentage (i.e., considering the number of occurrences) of words appearing in both translated text and reference. We use four variants of BLEU, namely BLEU-1, BLEU-2, BLEU-3, and BLEU-4. A BLEU-n variant computes the BLEU score by considering the n-grams in the generated text. Most of previous work in the SE literature adopt the BLEU-4 score [27, 38, 76]. However, such a variant cannot be computed when the target prediction (in our case, the number of masked tokens) is lower than four. For this reason, we compute four different versions from BLEU-1 to BLEU-4. BLEU-1 can be computed for all predictions, while BLEU-n with n1 only for predictions having a length (i.e., number of tokens) higher or equal than . The BLEU score ranges between 0% and 100%, with 100% indicating, in our case, that the code generated for the masked tokens is identical to the reference one.

The Levenshtein distance [46]. To provide a proxy measure of the effort needed by developers to convert a prediction generated by the model into the reference (correct) code, we compute the Levenshtein distance at token-level: This can be defined as the minimum number of token edits (insertions, deletions or substitutions) needed to transform the predicted code into the reference one. Since such a measure is not normalized, it is difficult to interpret it in our context. Indeed, saying that five tokens must be changed to obtain the reference code tells little without knowing the number of tokens in the reference code. For this reason, we normalize such a value by dividing it by the number of tokens in the longest sequence among the predicted and the reference code.

The percentage of perfect predictions, which tells us about the cases in which each of the experimented models is able to exactly recommend the masked code for all tokens.

We statistically compare the results achieved by RoBERTa and T5 using different statistical analyses. We assume a significance level of 95%. As explained below, we use both tests on proportions and non-parametric tests for numerical variables; parametric tests cannot be used because all our results in terms of BLEU score or Levenshtein distance deviate from normality, according to the Anderson-Darling test [4] (p-values0.001). Whenever an analysis requires to run multiple test instances, we adjust p-values using the Benjamini-Hochberg procedure [81].

To (pairwise) compare the perfect predictions of RoBERTa and T5, we use the McNemar’s test [55]

, which is a proportion test suitable to pairwise compare dichotomous results of two different treatments. To compute the test results, we create a confusion matrix counting the number of cases in which (i) both T5 and RoBERTa provide a perfect prediction, (ii) only T5 provides a perfect prediction, (iii) only RoBERTa provides a perfect prediction, and (iv) neither T5 nor RoBERTa provide a perfect prediction. Finally, we complement the McNemar’s test with the Odds Ratio (OR) effect size.

The comparison between different datasets, aimed at addressing RQ, is performed, again, through a proportion test, but this time, being the analysis unpaired (i.e., we are comparing results over two different datasets), we use Fischer’s exact test (and related OR) on a matrix containing, for different approaches and for different masking levels, the number of correct and incorrect predictions achieved on Java and Android.

To compare results of T5 and RoBERTa in terms of BLEU-n score and Levenshtein distance, we use the Wilcoxon signed-rank test [79] and the paired Cliff’s delta [26] effect size. Similarly, the comparison between datasets in terms of BLUE-n score and Levenshtein distance, being unpaired, is performed using the Wilcoxon rank-sum test [79] and the unpaired Cliff’s delta effect size.

For the T5, we also statistically compare the performance achieved (i) with/without pre-training, and (ii) with/without transfer learning. Also in this case, McNemar’s test is used to compare perfect predictions.

Finally, we take the best performing model (i.e., T5 with pre-training and multi-task fine-tuning) and we check whether the confidence of the predictions can be used as a reliable proxy for the “quality” of the predictions. If this is the case, this means that in a recommender system built around the trained model, the developer could decide to receive recommendations only when their confidence is higher than a specific threshold. T5 returns a score for each prediction, ranging from minus infinity to 0. This score is the log-likelihood () of the prediction. Thus, if it is 0, it means that the likelihood of the prediction is 1 (i.e., the maximum confidence, since ), while when it goes towards minus infinity, the confidence tends to 0.

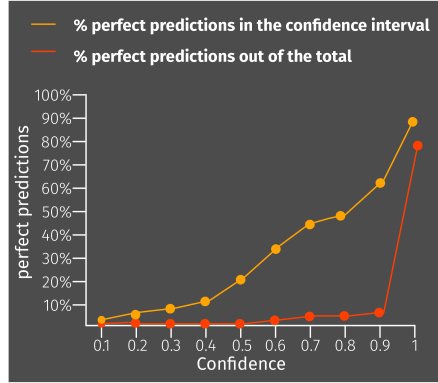

We split the predictions performed by the model into ten intervals, based on their confidence going from 0.0 to 1.0 at steps of 0.1 (i.e., first interval includes all predictions having a confidence with 0 c 0.1, last interval has 0.9 c). Then, we report for each interval the percentage of perfect predictions.

To corroborate our results with a statistical analysis, we report the OR obtained by building a logistic regression model relating the confidence (independent variable) with the extent to which the prediction achieved a perfect prediction (dependent variable). Given the independent variable estimate

in the logistic regression model, the OR is given by , and it indicates the odds increase corresponding to a unit increase of the independent variable. We also determine the extent to which the confidence reported by the model correlates with the number of masked tokens. To this extent, we use the Kendall’s correlation [43], which does not suffer from the presence of ties (occurring in our dataset) as other non-parametric correlations.

To address RQ, for all the datasets, we compare the performance of the DL-based models with that of the state-of-the-art cached n-gram model [32] using the implementation made available by the authors [56]. We tried to design a fair comparison, although the n-gram model is designed to predict a single token given the tokens preceding it. Thus, in a scenario in which we mask more than one token, we use the -gram model in the following way: We run it to predict each masked token in isolation. Then, we join all predictions to generate the final string (i.e., set of previously masked tokens). The -gram models are trained on the same training sets used for the fine-tuning of the DL-based models without, however, masked tokens. We compare the three approaches in terms of perfect predictions generated on the test sets. A statistical comparison is performed using the McNemar’s test [55] and ORs.

3 Results Discussion

We start by contrasting the performances of T5 and RoBERTa (Section 3.1). Then, we show how the -gram model compares with the DL-based ones (Section 3.2). Finally, Section 3.3 presents qualitative examples of correct predictions made by the models and discusses the semantic equivalence of non-perfect predictions.

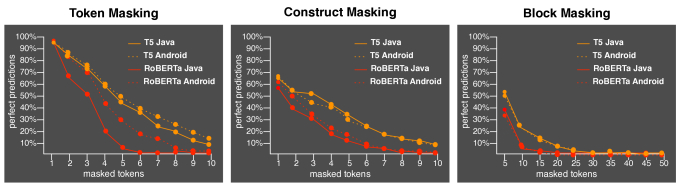

Fig. 1: Percentage of perfect predictions achieved by T5 and RoBERTa

3.1 DL-based models performance comparison (RQ)

Fig. 1 depicts the results achieved by DL-based models in terms of perfect predictions for different masking approaches, namely (from left to right) token-masking, construct-masking, and block-masking. The plots show the percentage of perfect predictions ( axis) by the number of masked tokens ( axis). For example, in the token masking scenario we randomly mask, for each source code line having more than one token, its last tokens, where is a random number between , with being the number of tokens of , and is capped to a maximum of 10. The results achieved by the T5 are reported in orange while those for RoBERTa in red; continuous lines represent the results achieved on the Java dataset, while the dashed lines are used for the Android dataset.

The left-side graph in Fig. 1 shows the percentage of perfect predictions when we only mask the last token (i.e., one masked token), the last two tokens, etc.. The scale on the axis is different when dealing with the block masking scenario since here we mask entire blocks thus having, in some cases, dozens of masked tokens. Each point indicates that between and tokens were masked, e.g., for the first data point at most 5 tokens were masked, for the second between 5 and 10, etc..

Token masking
Java Android
T5 RoBERTa T5 RoBERTa
BLEU-1 0.83 0.60 0.85 0.73
BLEU-2 0.73 0.43 0.76 0.61
BLEU-3 0.60 0.23 0.64 0.44
BLEU-4 0.47 0.10 0.51 0.28
Levenshtein 0.16 0.35 0.14 0.24
Construct masking
Java Android
T5 RoBERTa T5 RoBERTa
BLEU-1 0.68 0.51 0.68 0.57
BLEU-2 0.55 0.34 0.57 0.43
BLEU-3 0.48 0.24 0.49 0.33
BLEU-4 0.37 0.14 0.43 0.26
Levenshtein 0.32 0.48 0.32 0.41
Block masking
Java Android
T5 RoBERTa T5 RoBERTa
BLEU-1 0.65 0.44 0.62 0.44
BLEU-2 0.57 0.32 0.54 0.31
BLEU-3 0.49 0.21 0.46 0.21
BLEU-4 0.41 0.13 0.38 0.13
Levenshtein 0.35 0.54 0.37 0.55
TABLE IV: BLEU score and Levenshtein distance for T5 and RoBERTa.

Table IV reports the average BLEU score in the four considered variants and the average normalized Levenshtein distance achieved by T5 and RoBERTa. Also in this case the results are grouped based on the masking level and dataset.

Dataset and Masking Level T5 RoBERTa
With Pretraining No Pretraining No Pretraining
Single-task Multi-task Single-task Single-task
Java Token 62.9% 66.3% 61.0% 38.9%
Construct 51.2% 53.0% 48.4% 33.4%
Block 27.2% 28.8% 22.9% 8.7%
Android Token 64.8% 69.3% 63.8% 51.8%
Construct 49.3% 50.8% 46.8% 37.4%
Block 27.5% 29.7% 22.8% 9.4%
Overall 56.2% 59.3% 54.1% 38.7%
TABLE V: Perfect predictions of T5 models with different fine-tuning strategies, and RoBERTa model

The results in Fig. 1 and Table IV are achieved by the DL-based models in the simplest scenario, i.e., single-task without pretraining. To answer RQ we run additional experiments for the best model (i.e., T5). The results of such experiments are provided in Table V as the percentage of perfect predictions for different variants of the T5 model, i.e., with/without pretraining and using single- and multi-task fine-tuning. Table V also reports the results achieved with the RoBERTa model in the simplest scenario to simplify the results discussion.

3.1.1 Impact of number of masked tokens (RQ) and specificity of the dataset (RQ)

Three findings immediately emerge from the analysis of Fig. 1: (i) as expected, the higher the number of masked tokens, the lower the performance of the models; (ii) the results achieved on the more specific dataset (i.e., Android, dashed lines in Fig. 1) are substantially better as compared to the ones achieved for Java only in the token-masking scenario with the RoBERTa model (see statistics in Table VIII); (iii) the T5 model (orange lines in Fig. 1) substantially outperforms RoBERTa (see statistics in Table VI and Table VII). Also, the performance of RoBERTa drops more steadily as compared to that of T5 when the number of masked tokens increases.

Dataset Masking p-value OR
Java Token 0.001 8.87
Construct 0.001 4.69
Block 0.001 8.14
Android Token 0.001 4.47
Construct 0.001 2.94
Block 0.001 7.61
TABLE VI: Perfect prediction: Mcnamar’s test comparison between T5 and RoBERTa

Table VI reports results of the McNemar’s test and ORs for the comparison between T5 and RoBERTa in terms of their ability to perform perfect predictions. As it can be seen, the (adjusted) p-values always indicate a statistically significant difference, and the ORs indicates that T5 has between 2.94 and 8.87 higher odds to provide a perfect prediction than RoBERTa.

Dataset Masking BLEU 1 BLEU 2 BLEU 3 BLEU 4 Levenshtein
p-value d p-value d p-value d p-value d pvalue d
Java Token 0.001 0.33 (S) 0.001 0.41 (M) 0.001 0.51 (L) 0.001 0.62 (L) 0.001 -0.32 (S)
Construct 0.001 0.22 (S) 0.001 0.30 (S) 0.001 0.32 (S) 0.001 0.35 (M) 0.001 -0.21 (S)
Block 0.001 0.39 (M) 0.001 0.43 (M) 0.001 0.47 (M) 0.001 0.49 (L) 0.001 -0.38 (M)
Android Token 0.001 0.17 (S) 0.001 0.21 (S) 0.001 0.27 (S) 0.001 0.34 (M) 0.001 -0.17 (S)
Construct 0.001 0.14 (N) 0.001 0.20 (S) 0.001 0.22 (S) 0.001 0.27 (S) 0.001 -0.14 (N)
Block 0.001 0.33 (M) 0.001 0.39 (M) 0.001 0.42 (M) 0.001 0.44 (M) 0.001 -0.34 (M)
TABLE VII: BLEU score and Levensthein distance comparison between T5 and RoBERTa: Wilcoxon signed-rank and Cliff’s delta (N: negligible, S: small, M: medium, L: large)

Concerning the comparison of BLEU scores or Levensthein distances (whose average values are reported in Table IV) between T5 and RoBERTa, statistical results (Wilcoxon signed-rank test adjusted p-values and Cliff’s ) are in Table VII. Also in this case, differences are always statistically significant, with varying effect sizes (generally larger for greater levels of BLEU score, and for Java than Android) in favor of T5 (for the Levensthein distance a negative is in favor of T5, as it is a distance).

Masking Method p-value OR
Token T5 0.001 0.89
RoBERTa 0.001 0.59
Construct T5 0.001 1.07
RoBERTa 0.001 0.84
Block T5 0.67 1.01
RoBERTa 0.01 0.93
TABLE VIII: Comparison between different datasets for perfect predictions - results of Fisher’s exact test (OR1 indicate better performances for Android)

Token masking. The left part of Fig. 1 shows that, as expected, the lower the number of masked tokens the higher the perfect predictions. Not surprisingly, the models are very effective when we only mask the last token in a statement. Indeed, in most cases, this will be a semicolon, a parenthesis, or a curly bracket. Thus, it is easy for the model to guess the last token. When moving to more challenging scenarios like the last five tokens masked in a statement, the percentage of perfect predictions for RoBERTa on the Java dataset drops to less than 10%, a major gap with the T5 model that keeps a percentage of perfect predictions higher than 40%. As for the dataset, both models achieve significantly better performance on the Android dataset (Fisher’s test p-value0.001 and OR), which is more specific and, thus, more subject to regularities in the source code. However, the gap in terms of perfect predictions between the Java and the Android dataset is much more marked for the RoBERTa model (e.g., 20% at against a 6% for the T5).

Looking at Table IV, the BLEU scores and the Levenshtein distance confirm what observed for perfect predictions: performances for the Android dataset are better than for the Java one. According to Wilcoxon rank-sum test, all differences, except for RoBERTa at Block level, are statistically significant, yet with a negligible/small Cliff’s (detailed statistical results are in the online appendix).

Construct masking. In this scenario (see central sub-graph in Fig. 1), T5 and RoBERTa achieve respectively above 65% and 55% of perfect predictions when a single token is masked for both datasets. Note that, in this scenario, also a single-token prediction is not trivial since we are in a context in which such a single token represents (i) the complete condition of an if statement or a while/for loop, or (ii) the parameters in a method call, or (iii) the exception caught in a catch statement. When the prediction is represented by a single token, it is usually related to a Boolean used in an if condition (e.g.,if(true), if(valid), etc.) or the single parameter needed for a method invocation.

Also in this case, a higher number of masked tokens implies lower performance, and again the T5 outperforms RoBERTa significantly for both datasets although the gap is smaller. Finally, as shown in Table VIII, while with RoBERTa results for Android are better, for T5 we achieve an OR.

In terms of BLEU score and Levenshtein distance, the achieved values are worse as compared to the token-level masking, confirming the more challenging prediction scenario represented by the construct-level masking. On average, the developer may need to modify 40% and 30% of the predicted tokens to obtain the reference code (small variations are observed between Java and Android) when using RoBERTa and T5, respectively.

Block masking. This represents the most challenging prediction scenario: The masked part can involve an entire statement or even span over two statements (maximum boundary we set). The performance of T5 and RoBERTa in terms of perfect predictions are respectively above 50% and 35% when dealing with small masked blocks, up to five tokens. These blocks are mostly related to return statements representing a code block (e.g., the value to return when an if condition is satisfied), such as { return false; }, { return null; }, etc.

For longer blocks, the performance substantially drops. When considering blocks having between six and ten masked tokens, RoBERTa is able to generate a correct prediction in 5% of cases, as compared to the 25% achieved by the T5. The largest masked block reporting a perfect prediction for the T5 model is composed of 36 and 39 tokens for Android (see Fig. 2) and Java datasets respectively, compared to the 13 and 15 tokens achieved with the RoBERTa model.

Fig. 2: Perfect prediction of 36 tokens generated by T5 in the Android dataset

At this level (see Table VIII), the difference in terms of performance between Java and Android is not so evident, and even insignificant for T5.

As expected, the BLEU scores are the lowest in this scenario (Table IV), and the developer may need to revise, on average, % and % of the predicted tokens, independently from the dataset of interest, when using RoBERTa and T5, respectively.

Answer to RQ: As the number of masked tokens increases, the DL-based models have a harder time generating correct predictions. Still, the performance achieved by the T5 model looks promising and, as we will discuss later, can be further pushed through a proper pretraining and multi-task fine-tuning.

Answer to RQ: When looking at the best model (i.e., the T5), its performance on the two datasets is quite similar, with no major differences observed. A strong difference in performance is only observed in the token-masking scenario with the RoBERTa model.

3.1.2 Impact of pre-training and transfer learning (RQ)

As explained in Section 2.3.2, we trained seven additional T5 models to assess the impact of pretraining and transfer learning on its performance. First, we added to the six models for which we previously discussed the T5 performance (i.e., no pretraining, single-task) the pretraining phase (obtaining a pretrained model in the single-task scenario, i.e., no transfer learning). Then, we take the pretrained model, and fine-tuned it in a multi-task setting, investigating the impact of transfer learning.

Dataset Masking Comparison p-value OR
Java Token single vs. none 0.001 1.44
multi vs. single 0.001 1.81
multi vs none 0.001 2.33
Construct single vs. none 0.001 1.61
multi vs. single 0.001 1.34
multi vs none 0.001 1.92
Block single vs. none 0.001 2.19
multi vs. single 0.001 1.32
multi vs none 0.001 2.32
Android Token single vs. none 0.001 1.23
multi vs. single 0.001 2.27
multi vs none 0.001 2.61
Construct single vs. none 0.001 1.58
multi vs. single 0.001 1.28
multi vs none 0.001 1.81
Block single vs. none 0.001 2.14
multi vs. single 0.001 1.39
multi vs none 0.001 2.39
TABLE IX: Effect of different pretraining levels for T5: McNemar’s test results. None indicates the T5 model with no pre-training and single-task finetuning. Single and Multi indicates the pre-trained model with single- and multi-task fine-tuning, respectively.

Table V shows the achieved results also reporting the performance of the previously discussed T5 and RoBERTa models (i.e., no pretraining, single-task in Table V). Results of a statistical comparison made using McNemar’s test are reported in Table IX. As it is shown, the pretraining has a positive (OR) and statistically significant effect in all cases, and the fine-tuning in a multi-task setting outperforms the single-task pretraining. Looking at Table V, the pretraining had a positive impact on the accuracy of T5, boosting the percentage of perfect predictions from 1% to 4.7%, depending on the test dataset. The benefit of pretraining is more evident in the most challenging block-level scenario (5%). Overall, when considering all test datasets as a whole, the percentage of perfect predictions increases from 54.1% to 56.2% (+2.1%).

By training a single model on the six training datasets, the percentage of perfect predictions further increases, going up to an overall 59.3%. Note that improvements can be observed on all test datasets and, for the token-masking scenario, they can reach 5%.

The performance improvement is also confirmed by the results achieved in terms of BLEU score and the Levenshtein distance that, for the sake of brevity, we report in our replication package [18].

Answer to RQ: We found both pretraining and multi-task fine-tuning to have a positive impact on the T5 performance. Overall, such an improvement accounts for +5.2% in terms of perfect predictions (36,009 additional instances correctly predicted).

Fig. 3: Perfect predictions by the confidence of the model

3.1.3 T5 Confidence Level

The T5 returns a score for each prediction, ranging from minus infinity to 0. This score is the log-likelihood of the prediction itself. If the score is -2 then it means that the log-likelihood of the prediction is -2. Hence, the likelihood is 0.14 () and this implies that the model has a confidence of 14% for the prediction to be correct. If the score is 0, repeating the same computation as above, the model has a confidence of 100% about the prediction itself.

Fig. 3

reports the relationship between the percentage of perfect predictions and the confidence of the model. The orange line shows the percentage of perfect predictions within each confidence interval (

e.g., 90% of predictions having a confidence higher than 0.9 are correct), while the red line reports the percentage of perfect predictions that are due to predictions in that confidence interval out of the total (e.g., 78% of all perfect predictions have a confidence higher than 0.9).

Fig. 3 shows a strong relationship between the confidence of the model and the correctness of the prediction. While this result might look minor, it has an important implication: It would be possible to build a reliable code completion tool around the T5 model. Indeed, the tool could be configured to only trigger recommendations when the confidence of the prediction is higher than a given threshold (e.g., 0.9). This would result in an extremely high precision.

From a statistical perspective, a logistic regression model correlating the confidence level and the perfect prediction outcome indicates a statistically significant (p-value 0.001) correlation, and an estimate of 6.58, which means 720 higher odds of a perfect prediction for each unit increase of the confidence, i.e., 72 higher odds of a perfect prediction for a 0.1 increase of the confidence, i.e., a tick on the x-axis of Fig. 3.

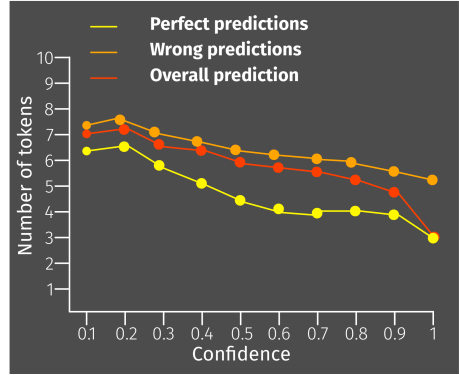

Fig. 4: Average length (in tokens) of the predictions by confidence

Fig. 4 analyzes the average length, in tokens, of the perfect predictions (yellow line), wrong predictions (orange line) and for all the predictions (red line) among all confidence intervals. It is clear that the length of the prediction is related to the confidence, since the model has higher confidence for shorter predictions. Indeed, the average number of tokens in perfect predictions for the highest confidence interval (i.e., 3 tokens) is much lower than the average number of tokens in perfect predictions for the lowest confidence interval (i.e., 6 tokens). This confirms previous findings showing that the model is more likely to correctly predict shorter statements.

From a statistical perspective, this is confirmed by a significant (p-value 0.001), negative, and moderate Kendall’s correlation (=-0.36).

Dataset and Masking Level T5 RoBERTa -gram
Java Token 61.0% 38.9% 30.4%
Construct 48.8% 33.9% 12.5%
Block 22.9% 8.7% 4.6%
Android Token 63.8% 51.9% 35.4%
Construct 47.1% 37.8% 17.6%
Block 22.8% 9.4% 6.6%
Overall 54.3% 38.8 24.9%
TABLE X: Perfect predictions of the three models
Dataset Masking Comparison p-value OR
Java Token T5 vs. RoBERTa 0.001 8.93
RoBERTa vs. n-grams 0.001 2.21
T5 vs. n-grams 0.001 10.31
Construct T5 vs. RoBERTa 0.001 4.65
RoBERTa vs. n-grams 0.001 5.29
T5 vs. n-grams 0.001 11.62
Block T5 vs. RoBERTa 0.001 8.15
RoBERTa vs. n-grams 0.001 2.85
T5 vs. n-grams 0.001 14.38
Android Token T5 vs. RoBERTa 0.001 4.47
RoBERTa vs. n-grams 0.001 4.26
T5 vs. n-grams 0.001 10.14
Construct T5 vs. RoBERTa 0.001 2.91
RoBERTa vs. n-grams 0.001 5.30
T5 vs. n-grams 0.001 9.04
Block T5 vs. RoBERTa 0.001 7.62
RoBERTa vs. n-grams 0.001 1.90
T5 vs. n-grams 0.001 10.00
TABLE XI: Comparison with the n-grams model: results of McNemar’s test

3.2 Comparison with an n-gram Model

We answer RQ by comparing the DL-based models without pretraining and in the single-task setting to the -gram model. We opted for this comparison for the sake of fairness, since in this way the -gram model has been trained on exactly the same dataset as the two DL-based models.

Table X reports the comparison in terms of perfect predictions between T5, RoBERTa and the -gram [32] model in different evaluation scenarios, as well as the overall results. For example, T5 produced 61% perfect predictions on the Java dataset when using token masking. Results of statistical tests (McNemar’s test) are in Table XI.

One important clarification is needed to properly interpret the results of Table X. Since the -gram model uses a different script to tokenize the code, we excluded from the test sets cases in which the tokens to predict (i.e., the masked ones) are tokenized differently between the DL-based approaches and -gram one (e.g., one identifies 4 tokens and the other one 5). This resulted in the exclusions of a few hundred instances from each test set and explains the slightly different performances reported for T5 and RoBERTa between Table X and Fig. 1.

Table XI reports results of the statistical comparison among the three models, using McNemar’s test. DL-based models achieve better performance in all experimented datasets, and McNemar’s tests always indicate statistically significant differences, with ORs ranging between 1.90 (RoBERTa vs n-grams, block masking for Android) and 14.38 (block masking, T5 vs n-grams for Java).

In the token masking scenario, the performance of the -gram model are very competitive when compared with RoBERTa, while the T5 performs substantially better. When masking specific constructs, the gap in performance becomes stronger (see Table X) with a substantial gap especially between T5 and -gram. Finally, in the block masking experiment, RoBERTa and -gram techniques struggle to obtain a high percentage of perfect predictions, with the T5 performing better achieving more than twice the number of perfect predictions as compared to the competitive techniques.

While the DL-based models showed superior performance, there are two important aspects to consider. First, the -gram model allows for faster training. We estimate four to five times less training time needed for the -gram model as compared to the DL-based models. We do not report precise data since such a study would require executing the training many times on the same machine, and such an analysis is out of the scope of this work. Once trained all models can generate predictions in fractions of a second. Second, in our evaluation, the -gram cache model cannot leverage information about other code components coming from the same project (e.g., same file or package [32]) of the method in which the prediction is performed. This is one of the advantages of the cache model [32] and, in a real scenario, it should be possible to use this information assuming that the method on which the prediction is performed is not the first one written in the whole system.

Dataset and Masking Level T5 RoBERTa -gram
NC WC
Java Token 65.5% 42.2% 32.5% 43.9%
Construct 56.0% 38.0% 14.5% 20.5%
Block 25.8% 8.5% 5.2% 8.5%
Android Token 69.9% 50.9% 35% 42.2%
Construct 52.8% 37.8% 13.9% 22.0%
Block 33.6% 13.0% 9% 11.9%
Overall 57.7% 38.2% 23.9% 31.5%
TABLE XII: Perfect predictions of -gram model when providing the cloned repository (WC) vs. when not providing (NC). In comparison to DL-based models (200 methods)

While our design ensures that all three models leverage the same training information, we also experimented with the -gram cache model in a scenario where the code from the “test project” is available when generating a prediction. For a given method in the test set, we clone its repository and check if the source code of in the latest system snapshot is exactly the same as in the test set. If this is the case, we run the prediction on providing the cloned repository as a test folder, in such a way that it is leveraged by the cache model (this is done through the implementation of Hellendoorn et al. [32]). If the method changed, we discard it and move to the next one. Since such a process is very expensive, we collected 200 methods from each test set, and we compare the performance of the -gram model when such additional information is provided (and not) on these instances.

Table XII reports the achieved results. As expected, the performance of the -gram model increase thanks to the use of the information in the test project. On these same instances, the performance of T5 and RoBERTa models are always superior but in the case of Java token and block masking for RoBERTa.

Answer to RQ: The -gram model is a competitive alternative to RoBERTa, while the T5 confirms its superior performance. It is worth highlighting the much cheaper cost of training (and possibly re-training several times) an -gram model as compared to a DL-based approach.

3.3 Qualitative Results

To give a better idea to the reader about the capabilities of the experimented models in supporting code completion, we report in Fig. 5 examples of correct predictions for the T5 model in different scenarios/datasets. Examples of predictions for the RoBERTa and -gram model are available in the replication package [18].

Given the achieved results showing the superiority of the T5 model, we had a better look to a sample of the wrong predictions it generates, to see whether some of them are semantically correct (e.g., return 0x0; is equivalent to return 0;) despite being different from the reference code written by the developers. The first author looked at 200 wrong predictions generated within the highest confidence interval, finding that only in three cases the prediction was semantically equivalent, with the reference code including extra (unnecessary) brackets not generated by the T5 model (e.g., T5 predicts entry; instead of (entry);). Overall, it appeared that several of the generated predictions, while wrong, might still speedup the implementation process, for example when out of the parameters needed for a method invocation are correctly predicted. Clearly, only a user study with developers can help in assessing the actual usefulness of these predictions during real coding activities.

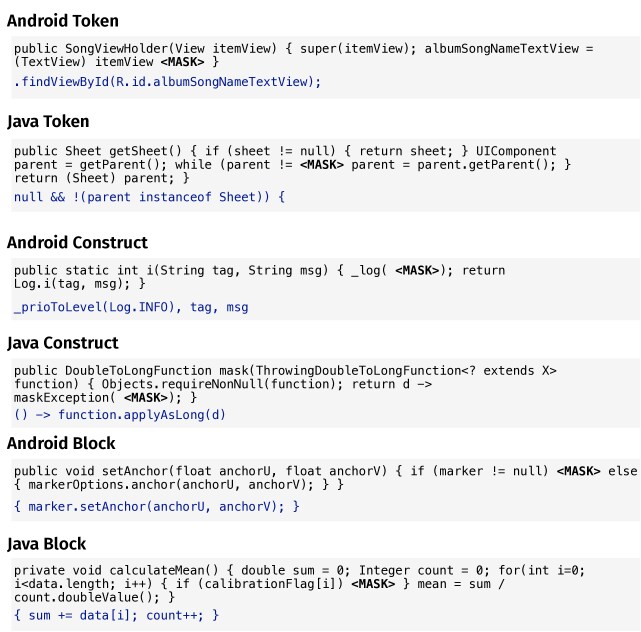

Fig. 5: Examples of perfect predictions generated by T5

Finally, since we found cases in which the perfect predictions of the T5 spanned across dozens of tokens, being almost unrealistic, we checked whether the 21 perfect predictions having more than 30 tokens were already present in the training set. Indeed, while we ensure that there are no duplicated methods between training and test, it is possible that two different methods and have the same masked part (i.e., the two methods are different in the non-masked part but they have the same set of masked tokens). Only one out of the 21 inspected cases was already present in the training set and related to the transpose of a matrix. The model was able to correctly predict very complex masked parts such as "{ if (defaultProviders != null && index < defaultProviders.length) { return defaultProviders[index].getRebuild(defaultProviders, index + 1); } } ".

4 Threats to Validity

Threats to construct validity concern the relationship between theory and observation One threat, also discussed by Hellendoorn et al. [33], is related to how we simulate the extent to which code completion intervenes during development, i.e., by masking source code elements. As explained in Section 2.1, we consider different masking levels, not only to evaluate the amount of code completion that can be predicted but also to simulate different ways a developer writes source code, especially because we cannot assume this is done sequentially. However, we are aware that the considered masking levels cover a limited number of cases that may not completely reflect how developers write code.

Another threat is related to how we assess the code completion performances. On the one hand, 100% BLEU score clearly reflects a perfect prediction. However, the BLEU score may to be sufficient to assess the performance of code-related tasks [64] and, in general, it is difficult to evaluate the usefulness of semantic equivalent predictions or imperfect yet useful. To mitigate this threat, we report some qualitative examples, indicating how partially-complete recommendations could still be useful.

Threats to internal validity concern factors, internal to our study, that could influence its results. To this extent, an important factor that influences DL performance is the calibration of hyperparameters, which has been performed as detailed in Section 2.4. We are aware that due to feasibility reasons we only performed a limited calibration of the hyperparameters. Hence, it is possible that a more detailed calibration would produce better performances.

Threats to conclusion validity concern the relationship between evaluation and outcome. As explained in Section 2.4 we used appropriate statistical procedures, also adopting p-value adjustment when multiple tests were used within the same analysis.

Threats to external validity are related to the generalizability of our findings. On the one hand, we have evaluated the performances of the models on two large datasets. At the same time, we do not know whether the obtained results generalize to different domains than Android, and other programming languages than Java. A further threat is that our study is limited to the RoBERTa and T5 models for DL and, as a baseline for n-gram models, the one by Hellendoorn and Devanbu [32]. While we claim such models are well-representative of the current state-of-the-art, it would be desirable to investigate how alternative approaches would work for the different evaluation scenarios.

5 Related Work

We start by detailing the literature related to code completion techniques and, more specifically, we highlight the approaches aimed at (partially) automating code writing. Then, we present studies investigating the effectiveness of code completion techniques. Due to lack of space, we do not discuss recently proposed techniques for automating bug-fixing [74, 15, 9], modeling activities [51], learning code changes [73, 12], as well as source code search engines that can be used to identify pieces of code for reuse [10, 63, 70, 71, 25, 54].

5.1 Code Completion Approaches

The Prospector tool by Mandelin et al. [52] pioneered the area of code completion approaches, and aimed at suggesting, within the IDE, variables or method calls from the user’s code base. Prospector was then followed by improvements such as the InSynth tool by Gvero et al. [28] which, given a type expected at a given point in the source code, searches for type-compatible expressions. Other approaches focus on specific elements of API usage completion. The work from Zhang et al. [82] aims at recommending parameter usages, achieving 64% of useful recommendations and 53% of perfect ones.

Bruch et al. [13] introduced the intelligent code completion system, able to filter out from the list of candidate method calls recommended by the IDE those that are more relevant to the current working context. Their results show the capability to correctly predict up to 82% of method calls actually needed by developers, and up to 72% of those that are relevant to the current development context. The approach by Bruch et al. has been improved by Proksch et al. [60]

, by adding further contextual information and by proposing a Pattern-based Bayesian Networks approach. As a result, Proksch

et al. were able to substantially reduce the model size while keeping about the same level of prediction accuracy. Differently from the aforementioned approaches, we do not restrict code completion to method calls.

Robbes and Lanza [65] used information extracted from the change history of software systems to support the code completion of method calls and class names. Their approach has been implemented in a tool named OCompletion, and the performed empirical evaluation demonstrated its ability to propose a correct match in the top-3 results in 75% of cases.

Asaduzzaman et al. [5] proposed a technique named CSCC (Context Sensitive Code Completion). They collect code examples from software repositories and, for each method call, represent its context as a set of methods, keywords, class and interface names appearing within four lines of code. This contextual information is then used to filter out method call recommendations. The assumption is that similar contexts imply similar method calls. CSCC outperforms previous approaches, achieving 86% precision and 99% recall.

Hindle et al. [34] pioneered the work on statistical language models applied to software. They conceived the idea of “naturalness of source code” and used n-gram models to create a language-agnostic algorithm that is able to predict the next token in a given statement. The trained model’s average entropy is between three and four bits, indicating a high degree of naturalness.

Raychev et al. [62] approach the code completion problem through statistical language models. They extract sequences of method calls from a large code base, and use this dataset to train a language model able to predict API calls. Their model achieves a 90% accuracy in the top-3 recommendations.

Nguyen et al. [58] proposed GraPacc, a context-sensitive code completion model trained on a database of API usage patterns. These patterns are then matched to a given code under development to support code completion. GraPacc achieves up to 95% precision and 92% recall. A similar approach was later on proposed by Niu et al. [59] for API completion in Android: Given an API method as a query, their approach recommends a set of relevant API usage patterns. They report a 18% improvement of F-Measure when comparing to pattern extraction using frequent-sequence mining.

Tu et al. [72] introduced a cache component to exploit the “localness of code” in the n-gram model. Results show that since the code is locally repetitive, localized information can be used to improve performance. The enhanced model outperforms standard n-gram models by up to 45% in accuracy. In a related work, Frankset al. [22] implemented CACHECA, an Eclipse auto-completion plugin exploiting the aforementioned cache langauge model [72]. In comparison to Eclipse built-in suggestions, their tool improves the accuracy of top 1 and top 10 suggestions by 26% and 34%, respectively.

Hellendoorn and Devanbu [32] proposed further improvements to the cached models aimed at considering specific characteristics of code (e.g., unlimited, nested and scoped vocabulary). Then, they compare their model with DL-based models, showing its superiority. Also, they show that the two families of techniques can be combined together, leading to an unprecedented 1.25 bits of entropy per token. The findings showed that DL, with the considered limitations, was not the best technique for modeling source code.

Karampatsis et al. [42]

, a few years later, suggested instead that neural networks are the best language-agnostic algorithm for code completion. They proposed to overcome the

out of vocabulary problem by using Byte Pair Encoding [23]. In addition, the proposed neural network is able to dynamically adapt to different projects. Their best model outperforms n-gram models, achieving an entropy of 1.03 bits.

Kim et al. [44]

leveraged the Transformers neural network architecture for code completion. They provide the syntactic structure of code to the network by using information from the Abstract Syntax Tree to fortify the self-attention mechanism. Among the several models they experiment with, the best one reached a MRR up to 74.1% in predicting the next token.

Alon et al. [2] addressed the problem of code completion with a language agnostic approach named Structural Language Model. It leverages the syntax to model the code snippet as a tree. The model, based on LSTMs and Transformers, receives an AST representing a partial expression (statement), with some missing consecutive tokens to complete. Their best model reached state-of-the-art performance with an exact match accuracy for the top prediction of 18.04%.

Svyatkovskiy et al. [68] introduced IntelliCode Compose, a general-purpose multilingual code completion tool capable of predicting code sequences of arbitrary token types. They do not leverage high-level structural representation, such as AST, and use subtokens to overcome the out of vocabulary problem. Their model can recommend an entire statement, and achieves a perplexity of 1.82 for the Python programming language.

Liu et al. [48] presented a Transformer-based neural architecture pre-trained with the goal of incorporating both code understanding and generation tasks. Afterwards, the model was then fine-tuned on the classic code completion task (i.e., predicting the next token to write).

A problem related to code completion has also been tackled by Watson et al. [76]: The authors exploit a sequence-to-sequence model to recommend assert statements for a given Java test case. This technique is able to generate a specific type of code statement, with a top-1 accuracy of 31%. Also, Kanade et al. [40] show how code embeddings can support code-related tasks, including variable misuse and repair, related to code completion when focusing on a single token.

Svyatkovskiy et al. [69] proposed a different perspective on neural code completion, shifting from a generative task to a learning-to-rank task. Their model is used to rerank the recommendations provided via static analysis, being cheaper in terms of memory footprint than generative models. To this aim, Avishkar et al. [11] proposed a neural language model for code suggestion in Python, aiming to capture long-range relationships among identifiers exploiting a sparse pointer network.

To address the out-of-vocabulary issue in standard neural language models, Jian et al. [47] proposed a pointer mixture deep learning model for Python benefiting from the pointer copy mechanism. Such architecture helps the model to generate an out-of-vocabulary word from local context through a pointer component when generating a within-vocabulary token is not possible.

A considerable step forward, has been taken recently by Aye and Kaiser [6] proposing a novel language model to predict the next top-k tokens while taking into consideration some real-world constraints such as (i) prediction latency, (ii) size of the model and its memory footprint, and (iii) validity of suggestions. Chen et al. [14] proposed a deep learning model for API recommendation combining structural and textual code information based on an API context graph and code token network. The evaluation model significantly outperforms the existing graph-based statistical approach and the tree-based deep learning approach for API recommendation.

To the best of our knowledge, our work is the first to present a comprehensive study on the effectiveness of Transformer models for code completion tasks. Indeed, all previous techniques and studies dealing with code completion are limited to the generation of missing tokens in a single statement. At the same time, we push this problem forward by attempting the automatic generation of an entire code block (e.g., the body of a for statement).

5.2 Studies About the Effectiveness of Code Completion Approaches

Although code completion techniques are likely to be beneficial for developers, their limitations (e.g., prediction latency, accuracy) can bound their practical usefulness. For this reason, several studies investigated the effectiveness of code completion techniques.

Jin and Servant [39] investigated the effect of different recommendation list lengths on the developers’ productivity. They found that a lengthy suggestion lists are not uncommon and reduce the developer’s likelihood of selecting one of the recommendations.

Lin et al. [37] focus on the performance of a code2vec [3] model, in the context of method name recommendation. The authors retrain the model on a different dataset and assess it in a more realistic setting where the training dataset does not contain any record from evaluation projects. The results suggest that while the dataset change had little impact on the model’s accuracy, the new project-based setting negatively impacted the model. Lin et al. [37] also evaluated the usefulness of code2vec suggestions by asking developers to assess the quality of suggestions for non-trivial method names. The evaluation results show the model rarely works when it is needed in practice. Further investigation also revealed that around half of successful recommendations (48%) occur for simpler scenarios, such as setter/getter methods or when the recommended name is copied from the method body source code.

Hellendoorn et al. [33] studied 15,000 real code completions from 66 developers founding that typically-used code completion benchmarks — e.g., produced by artificially masking tokens — may misrepresent actual code completion tasks. The study by Hellendoorn et al. suggests that further research is needed to assess the actual applicability of DL-based code completion to the real-world. This is however out of scope for our work, because our aim is to assess the capability of DL models to predict non-trivial portions of code going beyond a single method call or parameter.

Liu et al. [49] investigate the performance of deep learning-based approaches for generating code from requirement texts. For that, they assessed five state-of-the-art approaches on a larger and more diverse dataset of pairs of software requirement texts and their validated implementation as compared to those used in the literature. The evaluation results suggest that the performance of such approaches, in terms of common metrics (e.g., BLEU score), is significantly worse than what reported in the literature. The authors attribute this observation to the relatively small datasets on which such models are evaluated.

Similarly, Aye et al. [7] investigate the impact of using real-world code completion examples (i.e., code completion acceptance events in the past) for training models instead of artificial examples sampled from code repositories. The usage of such realistic data on n-gram and transformer models suggests a significant accuracy decrease. Later, an A/B test conducted with Facebook developers confirmed that the autocompletion usage increases by around 6% for models trained on real-world code completion examples.

Our work, differently from previous studies, aims at assessing the capability of state-of-the-art Transformer-based models in predicting non-trivial snippets of code. In contrast, it is out of this study scope to asses the developer’s perception of the prediction models that would require an extensive study with developers.

6 Conclusion

We investigated the ability of Transformer-based DL-models in dealing with code completion tasks having a different level of difficulty, going from the prediction of a few tokens within the same code statement, up to entire code blocks we masked. Among the three models we experimented with, namely T5 [61], RoBERTa [20], and the cached n-gram model [32], the T5 resulted to be the most effective in supporting code completion.

Our study provided a series of highlights that will guide our future research. First, when the code to complete spans over multiple statements, these models, with the training we performed, are still far from being a valuable solution for software developers. Indeed, even the best performing model (T5) struggles in guessing entire code blocks. While it is always possible to adopt larger models maybe trained on more data, we plan to investigate alternative solutions mixing, for example, retrieval-based on DL-based solutions.

Second, the confidence of the predictions generated by the T5 turned out to be a very reliable proxy for the quality of its predictions. This is something fundamental for building tools around this model, as it can be used by developers to just ignore low-confidence recommendations. Future studies will investigate how the developers perceive the usefulness of recommendations having different characteristics, including length, confidence, and covered code constructs.

Finally, a user study is also needed to understand what is the level of accuracy (in terms of perfect predictions) needed to consider tools built around these models as effective for developers. In other words, it is important to understand the “percentage of wrong predictions” a developer can accept before considering the tool counterproductive. Such a study is also part of our research agenda.

Acknowledgment

This project has received funding from the European Research Council (ERC) under the European Union’s Horizon 2020 research and innovation programme (grant agreement No. 851720).

References

  • [1] M. Allamanis CodeSearchNet deduplication algorithm. Note: https://github.com/github/CodeSearchNet/blob/master/src/dataextraction/dedup_split.py Cited by: §2.1.1.
  • [2] U. Alon, R. Sadaka, O. Levy, and E. Yahav (2019) Structural language models of code. arXiv, pp. arXiv–1910. Cited by: §1, §5.1.
  • [3] U. Alon, M. Zilberstein, O. Levy, and E. Yahav (2019)

    Code2vec: learning distributed representations of code

    .
    Proceedings of the ACM on Programming Languages 3 (POPL), pp. 1–29. Cited by: §5.2.
  • [4] (2008) Anderson–darling test. In The Concise Encyclopedia of Statistics, pp. 12–14. External Links: ISBN 978-0-387-32833-1, Document, Link Cited by: §2.4.
  • [5] M. Asaduzzaman, C. K. Roy, K. A. Schneider, and D. Hou (2014) Context-sensitive code completion tool for better api usability. In 2014 IEEE International Conference on Software Maintenance and Evolution, Vol. , pp. 621–624. Cited by: §1, §5.1.
  • [6] G. A. Aye and G. E. Kaiser (2020) Sequence model design for code completion in the modern ide. arXiv preprint arXiv:2004.05249. Cited by: §5.1.
  • [7] G. A. Aye, S. Kim, and H. Li (2020) Learning autocompletion from real-world datasets. arXiv preprint arXiv:2011.04542. Cited by: §5.2.
  • [8] J. L. Ba, J. R. Kiros, and G. E. Hinton (2016) Layer normalization. arXiv preprint arXiv:1607.06450. Cited by: §2.2.2.
  • [9] J. Bader, A. Scott, M. Pradel, and S. Chandra (2019) Getafix: learning to fix bugs automatically. Proc. ACM Program. Lang. 3 (OOPSLA), pp. 159:1–159:27. Cited by: §5.
  • [10] S. Bajracharya, T. Ngo, E. Linstead, Y. Dou, P. Rigor, P. Baldi, and C. Lopes (2006) Sourcerer: a search engine for open source code supporting structure-based search. In Companion to the 21st ACM SIGPLAN Symposium on Object-Oriented Programming Systems, Languages, and Applications, OOPSLA ’06, pp. 681–682. External Links: ISBN 159593491X, Document Cited by: §5.
  • [11] A. Bhoopchand, T. Rocktäschel, E. Barr, and S. Riedel (2016) Learning python code suggestion with a sparse pointer network. arXiv preprint arXiv:1611.08307. Cited by: §5.1.
  • [12] S. Brody, U. Alon, and E. Yahav (2020) Neural edit completion. arXiv preprint arXiv:2005.13209. Cited by: §5.
  • [13] M. Bruch, M. Monperrus, and M. Mezini (2009) Learning from examples to improve code completion systems. In Proceedings of the 7th Joint Meeting of the European Software Engineering Conference and the ACM SIGSOFT Symposium on The Foundations of Software Engineering, ESEC/FSE 2009, pp. 213–222. Cited by: §1, §1, §5.1.
  • [14] C. Chen, X. Peng, Z. Xing, J. Sun, X. Wang, Y. Zhao, and W. Zhao (2020) Holistic combination of structural and textual code information for context based api recommendation. arXiv preprint arXiv:2010.07514. Cited by: §5.1.
  • [15] Z. Chen, S. Kommrusch, M. Tufano, L. Pouchet, D. Poshyvanyk, and M. Monperrus (2019) SequenceR: sequence-to-sequence learning for end-to-end program repair. CoRR. External Links: Link Cited by: §5.
  • [16] J. Cheng, L. Dong, and M. Lapata (2016) Long short-term memory-networks for machine reading. arXiv preprint arXiv:1601.06733. Cited by: §2.2.2.
  • [17] M. Ciniselli, N. Cooper, L. Pascarella, D. Poshyvanyk, M. Di Penta, and G. Bavota (2021) An empirical study on the usage of bert models for code completion. In Proceedings of the 18th Working Conference on Mining Software Repositories, MSR ’21, pp. To Appear. Cited by: §1, §1, §1, §1, §1, §2.1.1, §2.1.
  • [18] M. Ciniselli Replication package https://github.com/mciniselli/T5_Replication_Package.git. Cited by: §1, §3.1.2, §3.3.
  • [19] O. Dabic, E. Aghajani, and G. Bavota (2021) Sampling projects in github for MSR studies. In Proceedings of the 18th International Conference on Mining Software Repositories, MSR’21, pp. To appear. External Links: Link Cited by: §2.1.2.
  • [20] J. Devlin, M. Chang, K. Lee, and K. Toutanova (2019-06) BERT: pre-training of deep bidirectional transformers for language understanding. In Proceedings of the 2019 Conference of the North American Chapter of the Association for Computational Linguistics: Human Language Technologies, Volume 1 (Long and Short Papers), pp. 4171–4186. Cited by: §1, §2.2.1, §6.
  • [21] M. Dreyer and D. Marcu (2012-06) HyTER: meaning-equivalent semantics for translation evaluation. In Proceedings of the 2012 Conference of the North American Chapter of the Association for Computational Linguistics: Human Language Technologies, Montréal, Canada, pp. 162–171. External Links: Link Cited by: §2.4, §2.
  • [22] C. Franks, Z. Tu, P. Devanbu, and V. Hellendoorn (2015) Cacheca: a cache language model based code suggestion tool. In 2015 IEEE/ACM 37th IEEE International Conference on Software Engineering, Vol. 2, pp. 705–708. Cited by: §5.1.
  • [23] P. Gage (1994) A new algorithm for data compression. C Users J. 12 (2), pp. 23?38. Cited by: §2.1.1, §2.2.1, §5.1.
  • [24] F. Geiger, I. Malavolta, L. Pascarella, F. Palomba, D. D. Nucci, and A. Bacchelli (2018-05) A graph-based dataset of commit history of real-world android apps. In Proceedings of the 15th International Conference on Mining Software Repositories, MSR, External Links: Link Cited by: §2.1.1.
  • [25] M. Grechanik, C. Fu, Q. Xie, C. McMillan, D. Poshyvanyk, and C. Cumby (2010) A search engine for finding highly relevant applications. In Proceedings of the 32nd ACM/IEEE International Conference on Software Engineering - Volume 1, ICSE ’10, pp. 475–484. External Links: ISBN 9781605587196 Cited by: §5.
  • [26] R. J. Grissom and J. J. Kim (2005) Effect sizes for research: a broad practical approach. 2nd Edition edition, Lawrence Earlbaum Associates. Cited by: §2.4.
  • [27] X. Gu, H. Zhang, D. Zhang, and S. Kim (2016) Deep api learning. In Proceedings of the 2016 24th ACM SIGSOFT International Symposium on Foundations of Software Engineering, FSE 2016, New York, NY, USA, pp. 631–642. External Links: ISBN 978-1-4503-4218-6, Link, Document Cited by: §2.4.
  • [28] T. Gvero, V. Kuncak, I. Kuraj, and R. Piskac (2013) Complete completion using types and weights. In ACM SIGPLAN Conference on Programming Language Design and Implementation, PLDI ’13, Seattle, WA, USA, June 16-19, 2013, pp. 27–38. Cited by: §5.1.
  • [29] S. Han, D. R. Wallace, and R. C. Miller (2009) Code completion from abbreviated input. In 2009 IEEE/ACM International Conference on Automated Software Engineering, pp. 332–343. Cited by: §1.
  • [30] S. Han, D. R. Wallace, and R. C. Miller (2011) Code completion of multiple keywords from abbreviated input. Automated Software Engineering 18 (3-4), pp. 363–398. Cited by: §1.
  • [31] K. He, X. Zhang, S. Ren, and J. Sun (2016) Deep residual learning for image recognition. In

    Proceedings of the IEEE conference on computer vision and pattern recognition

    ,
    pp. 770–778. Cited by: §2.2.2.
  • [32] V. J. Hellendoorn and P. Devanbu (2017) Are deep neural networks the best choice for modeling source code?. In Proceedings of the 2017 11th Joint Meeting on Foundations of Software Engineering, ESEC/FSE 2017, pp. 763?773. Cited by: §1, §1, §2.2.3, §2.2, §2.4, §2, §3.2, §3.2, §3.2, §4, §5.1, §6.
  • [33] V. J. Hellendoorn, S. Proksch, H. C. Gall, and A. Bacchelli (2019) When code completion fails: a case study on real-world completions. In Proceedings of the 41st International Conference on Software Engineering, ICSE 2019, Montreal, QC, Canada, May 25-31, 2019, pp. 960–970. Cited by: §4, §5.2.
  • [34] A. Hindle, E. T. Barr, Z. Su, M. Gabel, and P. Devanbu (2012) On the naturalness of software. In Proceedings of the 34th International Conference on Software Engineering, ICSE 2012, pp. 837–847. External Links: ISBN 9781467310673 Cited by: §1, §5.1.
  • [35] Hugging face’s tokenizer repositor. Note: https://github.com/huggingface/tokenizers Cited by: §2.2.1.
  • [36] H. Husain, H. Wu, T. Gazit, M. Allamanis, and M. Brockschmidt (2019) CodeSearchNet challenge: evaluating the state of semantic code search. CoRR abs/1909.09436. External Links: Link Cited by: §2.1.1.
  • [37] L. Jiang, H. Liu, and H. Jiang (2019) Machine learning based recommendation of method names: how far are we. In 2019 34th IEEE/ACM International Conference on Automated Software Engineering (ASE), pp. 602–614. Cited by: §5.2.
  • [38] S. Jiang, A. Armaly, and C. McMillan (2017-10)

    Automatically generating commit messages from diffs using neural machine translation

    .
    In 2017 32nd IEEE/ACM International Conference on Automated Software Engineering (ASE), ASE’17, pp. 135–146. Note: ISSN: External Links: Document Cited by: §2.4.
  • [39] X. Jin and F. Servant (2018) The hidden cost of code completion: understanding the impact of the recommendation-list length on its efficiency. In Proceedings of the 15th International Conference on Mining Software Repositories, pp. 70–73. Cited by: §5.2.
  • [40] A. Kanade, P. Maniatis, G. Balakrishnan, and K. Shi (2020) Learning and evaluating contextual embedding of source code. External Links: 2001.00059 Cited by: §5.1.
  • [41] R. Karampatsis, H. Babii, R. Robbes, C. Sutton, and A. Janes (2020) Big code != big vocabulary: open-vocabulary models for source code. In Proceedings of the 42nd International Conference on Software Engineering, ICSE 2020, pp. To Appear. Cited by: §2.2.1.
  • [42] R. Karampatsis and C. A. Sutton (2019) Maybe deep neural networks are the best choice for modeling source code. CoRR abs/1903.05734. External Links: Link Cited by: §1, §5.1.
  • [43] M. Kendall (1938) A new measure of rank correlation. Biometrika. Cited by: §2.4.
  • [44] S. Kim, J. Zhao, Y. Tian, and S. Chandra (2020) Code prediction by feeding trees to transformers. arXiv preprint arXiv:2003.13848. Cited by: §1, §1, §5.1.
  • [45] T. Kudo and J. Richardson (2018) SentencePiece: A simple and language independent subword tokenizer and detokenizer for neural text processing. CoRR abs/1808.06226. Cited by: §2.3.2.
  • [46] V. Levenshtein (1966) Binary Codes Capable of Correcting Deletions, Insertions and Reversals. Soviet Physics Doklady 10, pp. 707. Cited by: §2.4, §2.
  • [47] J. Li, Y. Wang, M. R. Lyu, and I. King (2017) Code completion with neural attention and pointer networks. arXiv preprint arXiv:1711.09573. Cited by: §5.1.
  • [48] F. Liu, G. Li, Y. Zhao, and Z. Jin (2020) Multi-task learning based pre-trained language model for code completion. In Proceedings of the 35th IEEE/ACM International Conference on Automated Software Engineering, ASE 2020. Cited by: §5.1.
  • [49] H. Liu, M. Shen, J. Zhu, N. Niu, G. Li, and L. Zhang (2020) Deep learning based program generation from requirements text: are we there yet?. IEEE Transactions on Software Engineering. Cited by: §5.2.
  • [50] Y. Liu, M. Ott, N. Goyal, J. Du, M. Joshi, D. Chen, O. Levy, M. Lewis, L. Zettlemoyer, and V. Stoyanov (2019) RoBERTa: A robustly optimized BERT pretraining approach. CoRR abs/1907.11692. External Links: Link Cited by: §1, §2.2.1, §2.2.
  • [51] P. Mäder, T. Kuschke, and M. Janke (2019) Reactive auto-completion of modeling activities. IEEE Transactions on Software Engineering. Cited by: §5.
  • [52] D. Mandelin, L. Xu, R. Bodík, and D. Kimelman (2005) Jungloid mining: helping to navigate the API jungle. In Proceedings of the ACM SIGPLAN 2005 Conference on Programming Language Design and Implementation, Chicago, IL, USA, June 12-15, 2005, pp. 48–61. Cited by: §5.1.
  • [53] A. Mastropaolo, S. Scalabrino, N. Cooper, D. Palacio, D. Poshyvanyk, R. Oliveto, and G. Bavota (2021) Studying the usage of text-to-text transfer transformer to support code-related tasks. In 43rd International Conference on Software Engineering (ICSE 2021), Vol. , pp. https://arxiv.org/abs/2102.02017. External Links: Document Cited by: §1, §2.3.2.
  • [54] C. McMillan, M. Grechanik, D. Poshyvanyk, C. Fu, and Q. Xie (2012) Exemplar: a source code search engine for finding highly relevant applications. IEEE Transactions on Software Engineering 38 (5), pp. 1069–1087. Cited by: §5.
  • [55] Q. McNemar (1947) Note on the sampling error of the difference between correlated proportions or percentages. Psychometrika 12 (2), pp. 153–157. Cited by: §2.4, §2.4.
  • [56] N-gram cached model. Note: https://github.com/SLP-team/SLP-Core Cited by: §2.4.
  • [57] A. T. Nguyen, H. A. Nguyen, and T. N. Nguyen (2016) A large-scale study on repetitiveness, containment, and composability of routines in open-source projects. In Proceedings of the IEEE/ACM 13th Working Conference on Mining Software Repositories (MSR 2016), pp. 362–373. Cited by: §1.
  • [58] A. T. Nguyen, T. T. Nguyen, H. A. Nguyen, A. Tamrawi, H. V. Nguyen, J. Al-Kofahi, and T. N. Nguyen (2012) Graph-based pattern-oriented, context-sensitive source code completion. In 2012 34th International Conference on Software Engineering (ICSE), pp. 69–79. Cited by: §1, §5.1.
  • [59] H. Niu, I. Keivanloo, and Y. Zou (2017) API usage pattern recommendation for software development. Journal of Systems and Software 129, pp. 127–139. Cited by: §1, §5.1.
  • [60] S. Proksch, J. Lerch, and M. Mezini (2015) Intelligent code completion with bayesian networks. ACM Trans. Softw. Eng. Methodol. 25 (1), pp. 3:1–3:31. Cited by: §5.1.
  • [61] C. Raffel, N. Shazeer, A. Roberts, K. Lee, S. Narang, M. Matena, Y. Zhou, W. Li, and P. J. Liu (2019) Exploring the limits of transfer learning with a unified text-to-text transformer. External Links: 1910.10683 Cited by: §1, §2.2.2, §2.2.2, §2.2, §2.3.2, §6.
  • [62] V. Raychev, M. Vechev, and E. Yahav (2014) Code completion with statistical language models. In Proceedings of the 35th ACM SIGPLAN Conference on Programming Language Design and Implementation, PLDI 2014, pp. 419–428. Cited by: §5.1.
  • [63] S. P. Reiss (2009) Semantics-based code search. In Proceedings of the 31st International Conference on Software Engineering, ICSE ’09, pp. 243–253. External Links: ISBN 9781424434534, Document Cited by: §5.
  • [64] S. Ren, D. Guo, S. Lu, L. Zhou, S. Liu, D. Tang, N. Sundaresan, M. Zhou, A. Blanco, and S. Ma (2020) CodeBLEU: a method for automatic evaluation of code synthesis. CoRR abs/2009.10297. External Links: Link Cited by: §4.
  • [65] R. Robbes and M. Lanza (2010) Improving code completion with program history. Automated Software Engineering 17 (2), pp. 181–212. Cited by: §1, §1, §5.1.
  • [66] ScrML website. Note: https://www.srcml.org/ Cited by: §2.1.1.
  • [67] N. Srivastava, G. Hinton, A. Krizhevsky, I. Sutskever, and R. Salakhutdinov (2014) Dropout: a simple way to prevent neural networks from overfitting. The journal of machine learning research 15 (1), pp. 1929–1958. Cited by: §2.2.2.
  • [68] A. Svyatkovskiy, S. K. Deng, S. Fu, and N. Sundaresan (2020) IntelliCode compose: code generation using transformer. arXiv preprint arXiv:2005.08025. Cited by: §1, §5.1.
  • [69] A. Svyatkovskiy, S. Lee, A. Hadjitofi, M. Riechert, J. Franco, and M. Allamanis (2020) Fast and memory-efficient neural code completion. External Links: 2004.13651 Cited by: §5.1.
  • [70] S. Thummalapenta and T. Xie (2007) Parseweb: a programmer assistant for reusing open source code on the web. In Proceedings of the Twenty-Second IEEE/ACM International Conference on Automated Software Engineering, ASE ’07, pp. 204–213. External Links: ISBN 9781595938824, Document Cited by: §5.
  • [71] S. Thummalapenta and T. Xie (2008) SpotWeb: detecting framework hotspots and coldspots via mining open source code on the web. In 2008 23rd IEEE/ACM International Conference on Automated Software Engineering, Vol. , pp. 327–336. Cited by: §5.
  • [72] Z. Tu, Z. Su, and P. Devanbu (2014) On the localness of software. In Proceedings of the 22nd ACM SIGSOFT International Symposium on Foundations of Software Engineering, FSE 2014, New York, NY, USA, pp. 269–280. External Links: ISBN 9781450330565, Link, Document Cited by: §1, §5.1.
  • [73] M. Tufano, J. Pantiuchina, C. Watson, G. Bavota, and D. Poshyvanyk (2019) On learning meaningful code changes via neural machine translation. In Proceedings of the 41st International Conference on Software Engineering, ICSE 2019, Montreal, QC, Canada, May 25-31, 2019, pp. 25–36. Cited by: §2.1.1, §5.
  • [74] M. Tufano, C. Watson, G. Bavota, M. Di Penta, M. White, and D. Poshyvanyk (2019) An empirical study on learning bug-fixing patches in the wild via neural machine translation. ACM Trans. Softw. Eng. Methodol. 28 (4), pp. 19:1–19:29. Cited by: §2.1.1, §2.1.1, §5.
  • [75] A. Vaswani, N. Shazeer, N. Parmar, J. Uszkoreit, L. Jones, A. N. Gomez, Ł. Kaiser, and I. Polosukhin (2017) Attention is all you need. In Advances in Neural Information Processing Systems 30, I. Guyon, U. V. Luxburg, S. Bengio, H. Wallach, R. Fergus, S. Vishwanathan, and R. Garnett (Eds.), pp. 5998–6008. External Links: Link Cited by: §1, §2.2.1.
  • [76] C. Watson, M. Tufano, K. Moran, G. Bavota, and D. Poshyvanyk (2020) On learning meaningful assert statements for unit test cases. In Proceedings of the 42nd International Conference on Software Engineering, ICSE 2020, pp. To Appear. Cited by: §2.4, §5.1.
  • [77] Weights and biases website. Note: https://www.wandb.com/ Cited by: §2.3.1.
  • [78] M. White, C. Vendome, M. Linares-Vásquez, and D. Poshyvanyk (2015) Toward deep learning software repositories. In Proceedings of the 12th Working Conference on Mining Software Repositories, MSR ’15, Piscataway, NJ, USA, pp. 334–345. External Links: ISBN 978-0-7695-5594-2, Link Cited by: §1.
  • [79] F. Wilcoxon (1945) Individual comparisons by ranking methods. Biometrics Bulletin 1 (6), pp. 80–83. External Links: ISSN 00994987 Cited by: §2.4.
  • [80] T. Wolf, L. Debut, V. Sanh, J. Chaumond, C. Delangue, A. Moi, P. Cistac, T. Rault, R. Louf, M. Funtowicz, and J. Brew (2019)

    HuggingFace’s transformers: state-of-the-art natural language processing

    .
    ArXiv abs/1910.03771. Cited by: §2.2.1.
  • [81] B. Yoav and H. Yosef (1995) Controlling the false discovery rate: a practical and powerful approach to multiple testing. Journal of the Royal Statistical Society. Series B (Methodological) 57 (1), pp. 289–300. External Links: ISSN 00359246 Cited by: §2.4.
  • [82] C. Zhang, J. Yang, Y. Zhang, J. Fan, X. Zhang, J. Zhao, and P. Ou (2012) Automatic parameter recommendation for practical API usage. In 34th International Conference on Software Engineering, ICSE 2012, June 2-9, 2012, Zurich, Switzerland, pp. 826–836. Cited by: §5.1.
