1 Introduction
The primary objective of a generative model is to generate realistic data. Recently proposed adversarial training schemes, such as generative adversarial networks (GANs), have exhibited remarkable performance not only in terms of the quality of each instance but also the diversity of the generated data. Despite those improvements, the generation mechanism inside the generative models is not wellstudied.
In general, a generative model maps a point in the latent space to a sample in the data space. In other words, data instances are embedded as latent vectors in a perspective of the trained generative model. A latent space is divided by boundaries derived from the structure of the model, where the vectors in the space represent the generation information according to which side of boundaries they are placed. We utilize these characteristics to examine the generation mechanism of the model.
When we select an internal layer and a latent vector in the DGNNs, there exists the corresponding region which is established by a set of boundaries. Samples in this region have the same activation pattern and deliver similar generation information to the next layer. The details of the delivered information can be identified indirectly by comparing the generated outputs from these samples. Given a DGNN trained to generate human faces, for example, if we identify the region in which samples share a certain hair color but vary in others characteristics (eye, mouth, etc.), such a region would be related to the generation of the same hair color.
However, it is nontrivial to obtain samples from the region with desired properties of DGNNs because (1) thousands of generative boundaries are involved in the generation mechanism and (2) a linear modification in the input dimension may cause a highly nonlinear change in the internal units and the output. Visiting the previous example again, there may exist regions with different hair colors, distinct attributes, or their combinations. Furthermore, a small linear modification of the vector in the latent space may change the entire output [23]. To overcome this difficulty, an efficient algorithm to identify the appropriate region and explore the space are necessary.
In this paper, we propose an efficient, explorative sampling algorithm to reveal the characteristics of the internal layer of DGNNs. Our algorithm consists of two steps: (1) to handle a large number of boundaries in DGNNs, our algorithm approximates the set of critical boundaries of the query which is the given latent vector using Bernoulli dropout approach [3]; (2) then our algorithm efficiently obtains samples which share same attributions as the query in a perspective of the trained DGNNs by expanding the treelike exploring structure [10] until it reaches the boundaries of the region.
The advantages of our algorithm are twofold: (1) it can guarantee sample acceptance in high dimensional space where the rejection sampling based on the Monte Calro method easily fails when the region area is unknown; (2) it can handle sampling strategy in a perspective of the model where the commonly used based sampling [4] is not precise to obtain samples considering complex nonspherical generative boundaries [9]. We experimentally verify that our algorithm obtains more consistent samples compared to based sampling methods on deep convolutional GANs (DCGAN) [18] and progressive growing of GANs (PGGAN) [7].
2 Related Work
Generative Adversarial Networks
The adversarial training between a generator and a discriminator has highly improved the quality and diversity of samples genereted by DGNNs [6]. Many generative models have been proposed to generate room images [18] and realistic human face images [7, 8]. Despite those improvements, the generation mechanisms of the GANs are not clearly analyzed yet. Recent results revealed that the relationship between the input latent space and the output data space in a trained GAN by showing a manipulation in the latent vectors changes attributes in the generated data [18, 27]. Generation roles of some neural nodes in a trained GAN are identified with the intervention technique [2].
Explaining deep neural networks
One can explain an output of neural networks by the sensitivity analysis, which aims to figure out which portion of an input contributes to the output. The sensitivity can be calculated by class activation probabilities
[26], relevance scores [14] or gradients [22]. DeconvNet [25], LIME [21] and SincNet [20] trains a new model to explain the trained model. Geometric analyis could also reveal the internal structure indirectly [15, 12, 5]. The activation maximization [4], or GANs [17] have been used to explain the neural network by using examples. Our method is an examplebased explanation which brings a new geometric persprective to analyze DGNNs.Geometric analysis on the inside of deep neural networks
Geometric analysis attempts to analyze the internal working process by relating the geometric properties, such as boundaries dividing the input space or manifolds along the boundaries, to the output of the model. The depth of a network with nonlinear activations was shown to contribute to the formation of boundary shape [15]
. This property makes complex, nonconvex regions surrounded by boundaries derived by internal layers. Although such regions are complicated, each region for a single classification in DNN classifiers is shown to be topologically connected
[5]. It has also been shown that the manifolds learned by DNNs and distributions over them are highly related to the representation capability of a network [12].Examplebased explanation of the decision of the model
Activation maximization is one of examplebased methods to visualize the preferred inputs of neurons in a layer and according patterns in hidden layers
[4]. The learned deep neural representation can be denoted by preferred inputs because it is related to the activation of specific neurons [17]. The reliability of examples for explanation also has been argued considering the connectivity among the justified samples [9].3 Generative Boundary Aware Sampling in Deep Generative Neural Networks
This section presents our main contribution, the explorative generative boundary aware sampling (EGBAS) algorithm, which can obtain samples sharing the identical attributes from the perspective of the DGNNs. Initially, we define the terms used in our algorithm. Then we explain EGBAS which comprises of (1) an approximate representation of generative boundaries and (2) an efficient stochastic exploration to obtain samples in the complex, nonconvex generative region.
3.1 Deep Generative Neural Networks
Although there are various architecture of DGNNs, we represent the DGNNs in a unified form. Given DGNNs with layers, the function of DGNNs model is decomposed into , where is a vector in the latent space . denotes the value of th element and . In general, the operation
includes linear transformations and a nonlinear activation function.
3.2 Generative Boundary and Region
The latent space of the DGNNs is divided by hypersurfaces learned during the training. The networks make the final generation based on these boundaries. We refer these boundaries as the generative boundaries.
Definition 1 (Generative Boundary (GB)).
The th generative boundary at the th layer is defined as
In general, there are numerous boundaries in the th layer of the network and the configuration of the boundaries comprises the region. Because we are mainly interested in the region created by a set of boundaries, we denote the definition of halfspace which is a basic component of the region.
Definition 2 (Halfspace).
Let a halfspace indicator for the th layer. Each element indicates either or both of two sides of the halfspace divided by the th GB. We define the halfspace as
The region can be represented by the intersection of each halfspace in the th layer. For the case where , the halfspace is defined as the entire latent space, so th GB does not contribute to comprise the region.
Definition 3 (Generative Region (GR)).
Given a halfspace indicator in the th layer, let the set of according halfspaces . Then the generative region is defined as
For a network with a single layer (
), the generative boundaries are linear hyperplanes. The generative region is constructed by those boundaries and appears as a convex polytope. However, if the layers are stacked with nonlinear activation functions (
), the generative boundaries are bent, so the generative region will have a complicated nonconvex shape [15, 19].3.3 Smallest Supporting Generative Boundary Set
Decision boundaries have an important role in classification task, as samples in the same decision region have the same class label. In the same context, we manipulate the generative boundaries and regions of the DGNNs.
Specifically, we want to collect samples that are placed in the same generative region and have identical attributes in a perspective of the DGNNs. To define this property formally, we first define the condition under which the samples share the neural representation.
Definition 4 (Neural Representation Sharing (NRS)).
Given a pair of latent vectors satisfies the neural representation sharing condition in th layer if
It is practically challenging to find samples that satisfy the above condition, because a large number of generative boundaries exist in the latent space, as shown in Figure 2(fig:SSGBS_1). Various information represented by thousands of generative boundaries makes it difficult to identify which boundary is in charge of each piece of information. We relax the condition of the neural representation sharing by considering a set of the significant boundaries.
Definition 5 (Relaxed NRS).
Given a subset and a pair of latent vectors satisfies the relaxed neural representation sharing condition if
Then, we must select important boundaries for the relaxed NRS in the th layer. We believe that not all nodes deliver important information for the final output of the model as some nodes could have low relevance of information [16]. Furthermore, it has been shown that a subset of features mainly contributes to the construction of outputs in GAN [2]. We define the smallest supporting generative boundary set (SSGBS), which minimizes the influences of minor (noncritical) generative boundaries.
Definition 6 (Smallest Supporting Generative Boundary Set).
Given the generator and a query , for th layer and any real value , if there exists an indicator such that
and there is no where such that
then we denote a set as the smallest supporting generative boundary set (SSGBS).
In the same context, we denote the generative region that corresponds to the SSGBS as the smallest supporting generative region (SSGR).
It is impractical to explore all the combinations of boundaries to determine the optimal SSGBS, owing to the exponential combinatoric search space.^{1}^{1}1For example, a simple fully connected layer with outputs generates up to generative boundary sets. To avoid this problem, we used the Bernoulli dropout approach [3] to obtain the SSGBS. We define this dropout function as , where is an elementwise multiplication. We optimize
to minimize the loss function
, which quantifies the degradation of generated image with the sparsity of Bernoulli mask.(1)
We iteratively update the parameter using gradient descent to minimize the loss function in Equation (3.3). Then we obtain the SSGBS from the optimized Bernoulli parameter with a proper threshold in the th layer. For each iteration, we apply the elementwise multiplication between and sampled mask to obtain masked feature value and feed it to obtain the modified output.
After obtaining the optimal Bernoulli parameter , we first define an optimal halfspace indicator with the proper probability threshold (e.g., ). We set the value of elements in to zero for removing GBs which have minor contributions to the generation mechanism. That is,
where is indicator function. Representing SSGBS and SSGR is straightforward from the Definition 6 with . Figure 2 shows the generative boundaries and the generated digit of the SSGBS without and with the optimized Bernoulli parameter with . The generated digits indicate that the effect of the removal of minor generative boundaries on the output is not significant.
3.4 Explorative Generative Boundary Aware Sampling
After obtaining SSGR , we gather samples in the region and compare the generated outputs of them. Because the possesses a complicated shape, simple neighborhood sampling methods such as based sampling cannot guarantee exploration inside the . To guarantee the relaxed NRS, we apply the GB constrained exploration algorithm inspired by the rapidlyexploring random tree (RRT) algorithm [10], which is invented for the robot path planning in complex configuration spaces. We refer to the modified exploration algorithm as generative boundary constrained RRT (GBRRT). Figure 3(fig:RRT1_a) depicts the explorative trajectories of GBRRT.
We name the entire sample exploration process for DGNNs which is comprised of finding SSGBS in arbitrary layer and efficiently sampling in SSGR as explorative generative boundary aware sampling (EGBAS).
4 Experimental Evaluations
This section presents analytical results of our algorithm and empirical comparisons with variants of based sampling method. We select three different DGNNs; (1) DCGAN [18] with the wasserstein distance [1] trained on MNIST, (2) PGGAN [7] trained on the church dataset of LSUN [24] and (3) the celebA dataset [13].
The based sampling collects samples based on distance metric. We choose and distance as baseline, and sample in each ball centered at the query. use In practice, the value of is manually selected. We use the set of accepted samples and rejected samples, and , obtained by the EGBAS to set the for fair comparisons. We set the average of accepted samples which can represent the middle point of the SSGR, then we calculate with min/max distance between and as,
Figure 4 indicates the visualization of calculating in the DCGANMNIST. After is set, are determined to have the same volume as the ball. Figure 5 shows the geometric comparisons of each sampling method in the first hidden layer () of DCGANMNIST.
4.1 Qualitative Comparison of EGBAS and based Sampling

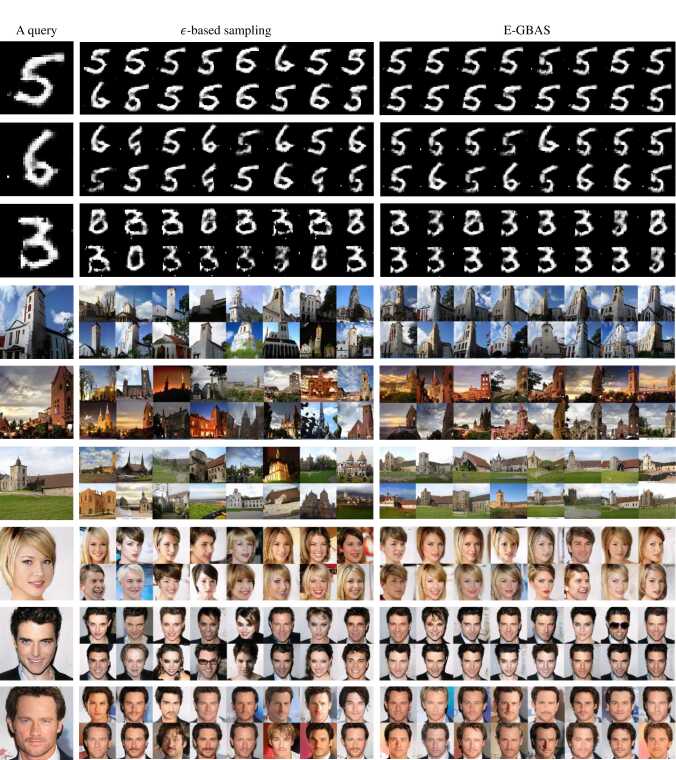

We first demonstrate how the generated samples vary if they are inside or outside of the obtained GR. As shown in Figure 1, we mainly compare the samples generated from EGBAS (blue region) to the samples from the based sampling (red region). A given query and a target layer, EGBAS explores the SSGR and obtains samples that satisfy the relaxed NRS. Figure 7 depicts the results of the generated images from EGBAS and the based sampling. We observed that the images generated by EGBAS share more consistent attributes (e.g., composition of view and hair color) which is expected property of NRS. For example, in the first row of celebA results, we can identify the sampled images share the hair color and angle of face with different characteristics such as hair style. In LSUN dataset, the second row of results share the composition of buildings (right aligned) and the weather (cloudy).
We try to analyze the generative mechanism of DGNNs along the depth of layer by changing the target layer. Figure 6
shows the examples and the standard deviations of the generated images by EGBAS in each target layer. From the results, we discover that the variation of images is more localized as the target layer is set to be deeper. We argue that the GB in the lower layer attempts to maintain an abstract and generic information (e.g., angle of scene/entire shape of face), while those in the deeper layer tends to retain a concrete and localized information (e.g., edge of wall/mustache).
DCGANMNIST  PGGANLSUN  PGGANcelebA

Layer #  1  2  3  4  2  4  6  2  4  6
based sampling  0.0819  0.0711  0.0718  0.0343  0.4951  0.4971  0.4735  0.5150  0.4994  0.4892
based sampling  0.0834  0.0722  0.0720  0.0344  0.4641  0.4322  0.3365  0.4859  0.4799  0.3384
EGBAS  0.0781  0.0694  0.0675  0.0323  0.3116  0.2558  0.1748  0.2980  0.2789  0.1446
4.2 Quantitative Results
The Similarity of Activation Values in Discriminator
A DGNN with the adversarial training has a discriminator to measure how realistic is the output created from a generator. During the training, the discriminator learns features to judge the quality of generated images. In this perspective, we expect that generated outputs from samples which satisfy NRS have similar feature values in the internal layers of the discriminator. We use cosine similarity between feature values of samples and the query. The relative evaluations of NRS for each sampling method are calculated by the average of similarities. When we denote a discriminator
, the query and the obtained set of samples , the similarity of feature values in the th layer is defined as the Equation (2). The operation consists of linear transformations and a nonlinear activation function.(2)
Table 2 shows the results of measuring the similarity for each internal layer in the discriminator.
Layer #  1  2  3  4

MNIST
based  0.722  0.819  0.864  0.991
based  0.727  0.823  0.867  0.991
EGBAS  0.747  0.838  0.878  0.992
LSUN
based  0.578  0.602  0.957  0.920
based  0.551  0.613  0.960  0.946
EGBAS  0.578  0.637  0.967  1.000
celebA
based  0.678  0.718  0.785  0.963
based  0.684  0.720  0.789  0.965
EGBAS  0.702  0.733  0.804  0.970
Variations of Generated Image
To quantify the consistency in attributes of the generated images, we calculate the standard deviation of generated images sampled by EGBAS and variants of the based sampling. The standard deviation is calculated as Equation (3). The experimental results are shown in Table 1.
(3)
We randomly select 10 query samples and compute the average standard deviation of generated sets. Table 1 indicates that our EGBAS has lower loss (i.e., consistent with the input query) compared to the based sampling in all three models and target layers.
5 Conclusion
In this study, we propose the explorative algorithm for analyzing the GR to identify generation mechanism in the DGNNs. Especially, we probe the internal layer in the trained DGNNs without additional training by introducing the GB of DGNNs. To gather samples which satisfy the NRS condition in the complicated and nonconvex GR, we applied GBRRT. We empirically show that the collected samples in the latent space with the NRS condition share the same generative properties. We also qualitatively indicate that the NRS in the distinct layers implies different generative attributes. Furthermore, the concept of the proposed algorithm is general and can also be used to probe the decision boundary in the classifier. So we believe that our method can be extended to different types of deep neural networks.
