1 Introduction

The automated inference of pedestrian attributes is a long-lasting goal in video surveillance and has been the scope of various research works (Mabrouk and Zagrouba, 2018) (Kumari et al., 2015). Commonly known as pedestrian attribute recognition (PAR), this topic is still regarded as an open problem, due to extremely challenging variability factors such as occlusions, viewpoint variations, low-illumination, and low-resolution data (Fig. 1 (a)).

Deep learning frameworks have repeatedly been improving the state-of-the-art in many computer vision tasks, such as object detection and classification, action recognition and soft biometrics inference. In the PAR context, several models have been also proposed

(Schmidhuber, 2015), (Liu et al., 2017a), with most of these techniques facing particular difficulties to handle the heterogeneity of visual surveillance environments.

Figure 1: (a) Examples of some of the challenges in the PAR problem: crowded scenes, poor illumination conditions, and partial occlusions. (b) Typical structure of PAR networks, which receive a single image and perform labels inference.

Researchers have been approaching the PAR problem from different perspectives (Wang et al., 2019): (Li et al., 2015), (Sudowe et al., 2015), (Abdulnabi et al., 2015) proposed deep learning models based on full-body images to address the data variation issues, while (Liu et al., 2018), (Gkioxari et al., 2015), (Li et al., 2016), (Chen et al., 2018) described body-part deep learning networks to consider the fine-grained features of the human body parts. Other works focused particularly on the attention mechanism (Sarafianos et al., 2018), (Sarfraz et al., 2017), (Li et al., 2016), and typically performed additional operations in the output of the mid-level and high-level convolutional layers. However, learning a comprehensive feature representation of pedestrian data, as the backbone for all those approaches, still poses some challenges, mostly resulting from the multi-label and multi-task intrinsic properties of PAR networks.

In opposition to previous works that attempted to jointly extract local, global and fine-grained features from the input image, in this paper, we propose a multi-task network that processes the feature maps and not only considers the correlation among the attributes but also captures the foreground features using a hard attention mechanism. The attention mechanism yields from the element-wise multiplication between the feature maps and a foreground mask that is included as a layer on top of the backbone feature extractor. Furthermore, we describe a weighted binary cross-entropy loss, where the weights are determined based on the number of categories (e.g., gender, ethnicity, age, …) in each task. Intuitively, these weights control the contribution of each category during training and are the key to avoid the predominance of some labels over the others, which was one of the problems we identified in our evaluation of the previous works. In the empirical validation of the proposed method, we used two well-known PAR datasets (PETA and RAP) and three baseline methods considered to represent the state-of-the-art.

The contributions of this work can be summarized as follows:

  1. We propose a multi-task classification model for PAR that its main feature is to focus on the foreground (human body) features, attenuating the effect of background regions in the feature representations (Fig. 2);

  2. We describe a weighted sum loss function that effectively handles the contribution of each category (e.g., gender, body figure, age, etc.) in the optimization mechanism, which prohibits some of the categories to predominate over the others during the inference step;

  3. Inspired by the attention mechanism, we implement an element-wise multiplication layer that simulates hard attention in the output of the convolutional layers, which particularly improves the robustness of feature representations in highly heterogeneous data acquisition environments.

Original

Typical methods

Proposed method with different settings
Figure 2: Comparison between the attentive regions obtained typically by previous methods (Li et al., 2018b), (Zhu et al., 2017) and ours solution, while inferring the Gender attribute. Note the less importance given to background regions by our solution with respect to previous techniques.

The remainder of this paper is organized as follows: Section 2 summarises the PAR-related literature, and section 3 describes our method. In section 4, we provide the empirical validation details and discuss the obtained results. Finally, conclusions are provided in section 5.

2 Related Work

The ubiquity of CCTV cameras has been rising the ambition of obtaining reliable solutions for the automated inference of pedestrian attributes, which can be particularly hard in case of crowded urban environments. Given that face close-shots are rarely available at far distances, PAR upon full-body data is of practical interest. In this context, the earlier PAR methods focused individually on a single attribute and used handcrafted feature sets to feed classifiers such as SVM or AdaBoost

(Deng et al., 2014), (Zhu et al., 2013) (Layne et al., 2014). More recently, most of the proposed methods were based on deep learning frameworks, and have been repeatedly advancing the state-of-the-art performance (Tan et al., 2019), (Li et al., 2019), (Zhao et al., 2019), (Lou et al., 2019).

In the context of deep learning, (Zhu et al., 2015) proposed a multi-label model composed of several CNNs working in parallel, and specialized in segments of the input data. (Li et al., 2015) compared the performance of single-label versus multi-label models, concluding that the semantic correlation between the attributes contributes to improve the results. (Sudowe et al., 2015)

proposed a parameter sharing scheme over independently trained models. Subsequently, inspired by the success of Recurrent Neural Networks,

(Wang et al., 2017)

proposed a Long Short-Term Memory (LSTM) based model to learn the correlation between the attributes in low-quality pedestrian images. Other works also considered information about the subjects pose

(Li et al., 2018a), body-parts (Yang et al., 2016) and, viewpoint (Liu et al., 2018), (Sarfraz et al., 2017), claiming to improve performance by obtaining better feature representations. In this context, by aggregating multiple feature maps from low, mid, and high-level layers of the CNN, (Liu et al., 2017b) enriched the obtained feature representation. For a comprehensive overview of the existing human attribute recognition approaches, we refer the readers to (Wang et al., 2019).

3 Proposed Method

As illustrated in Fig. 2, our primary motivation is to provide a PAR pipeline that is robust to background-based irrelevant features, which should contribute for improvements in performance, particularly in crowded scenes that partial occlusions of human body silhouettes occur (Fig. 1 (a) and Fig. 2).

3.1 Overall Architecture

Fig. 3 provides an overview of the proposed model, inferring the complete set of attributes of a pedestrian at once, in a single-shot paradigm. Our pipeline is composed of four main stages: 1) the convolutional layers, as general feature extractors; 2) the body segmentation module, that is responsible for discriminating between the foreground/background regions; 3) the multiplication layer, that in practice implements the attention mechanism; and 4) the task-oriented branches, that avoid the predominance of some of the labels over others in the inference step.

At first, the input image feeds a set of convolutional layers, where the local and global features are extracted. Next, we use the body segmentation module to obtain the binary mask of the pedestrian body. This mask is used to remove the background features, by an element-wise multiplication with the feature maps. The resulting features (that are free of background noise) are then compressed using an average pooling strategy. Finally, for each task, we add different fully connected layers on top of the network, not only to leverage the useful information from other tasks but also to improve the generalization performance of the network. We have adopted a multi-task network, because the shared convolutional layers extract the common local and global features that are necessary for all the tasks (i.e., behavioral attributes, regional attributes, and global attributes) and then, there are separate branches that allow the network to focus on the most important features for each task.

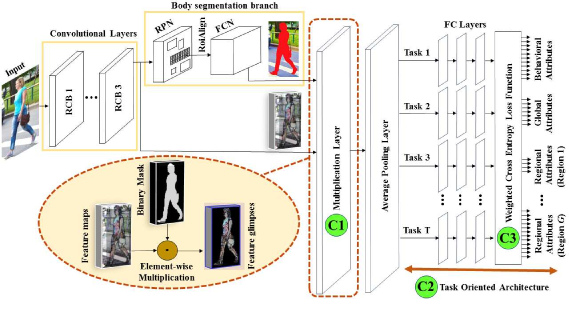

Figure 3: Overview of the major contributions (C) in this paper. C1) the element-wise multiplication layer receives a set of feature maps and a binary mask , and outputs a set of attention glimpses. C2) The multitask-oriented architecture provides to the network the ability to focus on the local (e.g., head accessories, types of shoes), behavioral (e.g., talking, pushing), and global (e.g., age, gender) features (visual results are given in Fig. 7). C3) a weighted cross-entropy loss function not only considers the interconnection between the different attributes, but also handles the contribution of each label in the inference step. RCB is the abbreviation for Residual Convolutional Block, illustrated in Fig. 4. RPN, FCN, and FCL stand for Region Proposal Network, Fully Connected Network, and Fully Connected layer, respectively.

3.2 Convolutional Building Blocks

The implemented convolution layers are based on the concept of residual block. Considering as the input of a conventional neural network, we want to learn the true distribution of the output . Therefore, the difference (residual) between the input and output is , and can be rearranged to . In other words, traditional network layers learn the true output , whereas residual network layers learn the residual . It is worth mentioning that it is easier to learn the residual of the output and input, rather than only the true output (He et al., 2016a)

. In fact, residual-based networks have the degree of freedom to train the layers in residual blocks or skip them. As the optimal number of layers depends on the complexity of the problem under study, adding skip connections makes the neural network active in training the useful layers.

There are various types of residual blocks made of different arrangements of the Batch Normalization (BN) layer, activation function, and convolutional layers. Based on the analysis provided in

(He et al., 2016b), the forward and backward signals can directly propagate between two blocks, and optimal results will be obtained when the input is used as skip connection (Fig. 4).

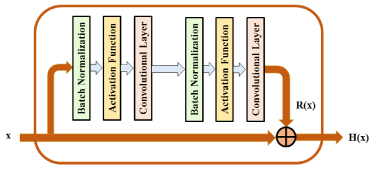

Figure 4: Residual convolutional block in which the input is considered a skip connection.

3.3 Foreground Human Body Segmentation Module

We used the Mask R-CNN (He et al., 2017a) model to obtain the full-body human masks. This method adopts a two-stage procedure after the convolutional layers: a Region Proposal Network (RPN) (Ren et al., 2015) that provides several possibilities for the object bounding boxes, followed by an alignment layer; and a Fully Convolutional Network (FCN) (Long et al., 2015)

that infers the bounding boxes, class probabilities, and the segmentation masks.

3.4 Hard Attention: Element-wise Multiplication Layer

The idea of an attention mechanism is to provide the neural network with the ability to focus on a feature subset. Let be an input image, the corresponding feature maps, an attention mask, an attention network with parameters , and an attention glimpse (i.e., the result of applying an attention mechanism to the image ). Typically, the attention mechanism is implemented as , and , where

is an element-wise multiplication. In soft attention, features are multiplied with a mask of values between zero and one, while in the hard attention variant, values are binarized and - hence - they should be fully considered or completely disregarded.

In this work, as we produce the foreground binary masks, we applied a hard attention mechanism on the output of the convolutional layers. To this end, we used an element-wise multiplication layer that receives a set of feature maps and a binary mask , and returns a set of attention glimpses , in which , , and are the height, weight, and the number of the feature maps, respectively.

3.5 Multi-Task CNN Architecture and Weighted Loss Function

We consider multiple soft label categories (e.g., gender, age, lower-body clothing, ethnicity and hairstyle), with each of these including two or more classes. For example, the category of lower-body clothing is composed of 6 classes: {’pants’, ’jeans’, ’shorts’, ’skirt’, ’dress’, ’leggings’}. As stated above, there are evident semantic dependencies between most of the labels (e.g., it is not likely that someone uses a ’dress’ and ’sandals’ at the same time). Hence, to model these relations between the different categories, we use a hard parameter sharing strategy(Ruder, 2017) in our multi-task residual architecture. Let , , , be the number of tasks, the number of categories (labels) in each task, the number of classes in each category, and the number of samples in each class, respectively.

During the learning phase, the model receives one input image , its binary mask , the ground truth labels , and returns as the predicted attributes (labels):

(1)

in which denotes the predicted attributes.

The key concept of the learning process is the loss function. In the single attribute recognition(Liu et al., 2015) setting, if the -th image , is characterized by the -th attribute, , then ; otherwise, . In case of having multiple attributes (multi-task), the predicting functions are in the form of , and . We define the minimization of the loss function over the training samples for the th attribute as:

(2)

where contains a set of optimized parameters related to the -th attribute, while returns the predicted label () for the -th attribute of the image . Besides, is the loss function that measures the difference between the predictions and ground-truth labels.

Considering the interconnection between attributes, one can define a unified multi-attribute learning model for all the attributes. In this case, the loss function jointly considers all the attributes:

(3)

in which contains the set of optimized parameters related to all attributes.

In opposition to the above-mentioned functions, in order to consider the contribution of each category in the loss value, we define a weighted sum loss function:

where are scalar values corresponding to the number of classes in the categories .

Using the sigmoid activation function for all classes in each category, we can formulate the cross-entropy loss function as:

(5)

where is the binary value that relates the class label in category . The ground-truth label for observation and is the predicted probability of the observation .

4 Experiments and Discussion

The proposed PAR network was evaluated on two well-known datasets: the PETA (Deng et al., 2014) and the Richly Annotated Pedestrian (RAP) (Li et al., 2018b), with both being among the most frequently used benchmarks in PAR experiments.

Branch Annotations
Soft Biometrics Gender, Age, Body figure, Hairstyle, Hair color
Clothing Attributes Hat, Upper body clothes style and color, Lower body clothes style and color, Shoe style
Accessories Glasses, Backpack, Bags, Box
Action Telephoning, Talking, Pushing, Carrying, Holding, Gathering
Table 1: RAP dataset annotations

4.1 Datasets

RAP (Li et al., 2018b) is the largest and the most recent dataset in the area of surveillance, pedestrian recognition, and human re-identification. It was collected at an indoor shopping mall with 25 HD cameras (spatial resolution ) during one month. Benefiting from a motion detection and tracking algorithm, authors have processed the collected videos, which resulted in 84,928 human full-body images. The resulting bounding boxes vary in size from to . The annotations provide information about the viewpoint (’front’, ’back’, ’left-side’, and ’right-side’), body occlusions, and body-part pose, along with a detailed specification of the train-validation-test partitions, person ID, and 111 binary human attributes. Due to the unbalanced distribution of the attributes and insufficient data for some of the classes, only 55 of these binary attributes were selected (Li et al., 2018b). Table 1 shows the categories of these attributes. It is worth mentioning that, as the annotation process is performed per subject instance, the same identity may have different attribute annotations in distinct samples.

PETA (Deng et al., 2014) contains ten different pedestrian image collections gathered in outdoor environments. It is composed of 19,000 images corresponding to 8,705 individuals, each one annotated with 61 binary attributes, from which 35 were considered with enough samples and selected for the training phase. Camera angle, illumination, and the resolution of images are the particular variation factors in this set.

4.2 Evaluation Metrics

PAR algorithms are typically evaluated based on the standard classification accuracy per attribute, and on the mean accuracy () of the attribute. Further, the mean accuracy over all attributes was also used (He et al., 2017b), (Lin et al., 2019):

(6)

where denotes one attribute, and is the total number of attributes. For each attribute , , , , and stand for the number of positive samples, negative samples, correctly recognized as positive samples, correctly identified as negative samples.

4.3 Preprocessing

RAP and PETA samples vary in size, with each image containing exclusively one subject annotated. Therefore, to have constant ratio images, we first performed a zero-padding and then resized them into

. It worth mentioning that, after each residual block, the input size is divided by 2. Therefore, as we have implemented the backbone with residual stages, to multiply the binary mask and feature maps with a size of , the input size should be . Note that the sharp edges caused by these zero pads do not affect the network due to the presence of the multiplication layer before the classification layers.

To assure a fair comparison between the tested methods, we used the same train-validation-test splits as in (Li et al., 2018b): images were used for learning, for validation purposes, and the remaining 16,985 images used for testing. The same strategy was used for the PETA dataset. Table 2 shows the parameter settings of our multi-task network.

Parameter Value
Image input shape
Mask input shape
Learning rate
Learning decay

Number of epochs

200
Drop-out probability 0.7
Batch size 8
Table 2: Parameter Settings for the experiment on RAP dataset.

4.4 Implementation Details

Our method was implemented using Keras

with Tensorflow

backend (Abadi et al., 2016), and all the experiments were performed on a machine with an Intel Core iK CPU @ GHz (Hexa Core — Threads) processor, NVIDIA GeForce RTX Ti GPU, and GB RAM.

The proposed CNN architecture was fulfilled as a dual-step network. At first, we applied the body segmentation network (i.e., Mask R-CNN, explained in the next subsection) to extract the human full-body masks. We then trained a two-input multi-task network that receives the preprocessed masks and the input data. It is worth mentioning that, on account of the spreading or gathering nature of the attributes features in the full-body human images, we intuitively clustered all the binary attributes into and groups for the experiments on RAP and PETA, respectively, as given in Table 3.

Dataset Task 1 (Full Body) Task 2 (Head ) Task 3 (Upper Body) Task 4 (Lower Body) Task 5 (Foot wears) Task 6 (Accessories) Task 7 (Action)
PETA Female, Male, AgeLess30, AgeLess45, AgeLess60, AgeLarger60 Hat, LongHair, Scarf, Sunglasses, Nothing Casual, Formal, Jacket, Logo, Plaid, ShortSleeves, Strip, Tshirt, Vneck, Other Casual, Formal, Jeans, Shorts, ShortSkirt, Trousers LeatherShoes, Sandals, FootwearShoes, Sneaker Backpack , MessengerBag, PlasticBags, CarryingNothing, CarryingOther -
RAP Female, Male, AgeLess16, Age17-30, Age31-45, Age46-60, BodyFat, BodyNormal, BodyThin, Customer, Employee BaldHead, LongHair, BlackHair, Hat, Glasses Shirt, Sweater, Vest, TShirt, Cotton, Jacket, SuitUp, Tight, ShortSleeves, Others LongTrousers, Skirt, ShortSkirt, Dress, Jeans, TightTrousers Leather, Sports, Boots, Cloth, Casual, Other Backpack, ShoulderBag, HandBag, Box, PlasticBag, PaperBag, HandTrunk, Other Calling, Talking, Gathering, Holding, Pushing, Pulling, CarryingByArm, CarryingByHand
Table 3: Task specification policy for PETA and RAP datasets.

As above stated, we used the pre-trained Mask R-CNN (Abdulla, 2017) to obtain all the foreground masks in our experiments. The used segmentation model was trained in the MS-COCO dataset (Lin et al., 2014). Table 4 provides the details of our implementation settings.

Parameter Value
Image input dimension
RPN anchor scales 32, 64, 128, 256, 512
RPN anchor ratio 0.5, 1, 2
Number of proposals per image 256
Table 4: Mask R-CNN parameter settings

By feeding the input images to the convolutional building blocks, we obtain a set of feature maps that will be multiplied by the corresponding mask, using the element-wise multiplication layer. This layer receives two inputs with the same shapes. Transferring the input data with shape of into a -residual block backbone, we obtain a -shaped output. Also, masks are resized to have the same size as the corresponding feature maps. Therefore, as a result of multiplying the binary mask and feature maps, we obtain a set of attention glimpses with the shape. These glimpses are down-sampled to features using a global average pooling layer to decrease the sensitivity of the locations of the features in the input image (Lin et al., 2013). Afterward, in the interest of training one classifier for each task, a architecture is stacked on top of the shared layers for each task.

4.5 Comparison with the State-of-the-art

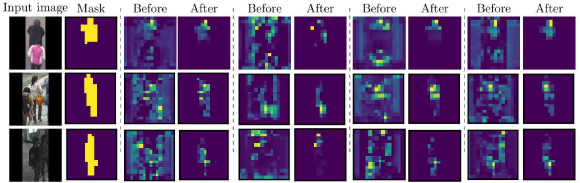

Figure 5: The effectiveness of the multiplication layer on filtering the background features from the feature maps. The far left column shows the input images to the network, the Mask column presents the ground truth binary mask (the first input of the multiplication layer), the columns with Before label (the second input of the multiplication layer) display the feature maps before applying the multiplication operation, and the columns with After label show the output of the multiplication layer.

We compared the performance attained by our method to three baselines, that were considered to represent the state-of-the-art: ACN (Sudowe et al., 2015), DeepMar (Li et al., 2018b), and MLCNN (Zhu et al., 2017) on the RAP and the PETA datasets. These methods have been selected for two reasons: 1- in a way similar to our method, ACN and DeepMar are global-based methods (i.e., they extract features from the full-body images) 2- Authors of these methods have reported the results for all the attributes in a separate way, assuring a fair comparison between the performance of all methods.

As the solution proposed in this paper, the ACN (Sudowe et al., 2015) method analyzes the full-body images and jointly learns all the attributes without relying on additional information. DeepMar (Li et al., 2018b) is a global-based end-to-end CNN model that provides all the binary labels for the input image, simultaneously. In (Zhu et al., 2017)

, authors propose a multi-label convolutional neural network (MLCNN) that divides the input image into overlapped parts and fuses the features of each CNN to provide the binary labels for the pedestrians. Tables

5 and 6 provide the obtained results observed for the three methods considered in the PETA and RAP datasets.

Table 5 shows the evaluation results of the DeepMar and MLCNN methods, including our model on the PETA dataset. According to this table, our model shows superior recognition rates for 22 (out of 27) attributes, concluded to more than 3% improvement in total accuracy. If we consider 35 attributes, the proposed network achieves a 91.7% recognition rate while this value for the DeepMar approach is 82.6%.

The experiment carried out without considering image augmentation (i.e., 5-degree rotation, horizontal flip, 0.02 width and height shift range, 0.05 shear range, 0.08 zoom range and changing the brightness in the interval [0.9,1.1]), showed 85.5% and 88.2% average accuracy for 27 and 35 attributes, respectively. We augmented the images randomly, and after the visualization of some images, we determined the values in augmentations.

As shown in Table 6, the average recognition rates for the ACN and DeepMar methods respectively were 68.92% and 75.54%, while our approach achieved more than 92%. In particular, excluding five attributes (i.e., Female, Shirt, Jacket, Long Trousers, and Other class in attachments category), our PAR model provides notoriously better results than the DeepMar method, and better than the ACN model in all cases.

The proposed method shows superior results in both datasets; however, in 22 attributes of the RAP benchmark, the recognition percentage is yet less than 95%, and in 7 cases, this rate is even less than 80%. The same interpretation is valid for the PETA dataset as well, which indicates the demands of more research works in the PAR field of study.

Attributes DeepMar (Li et al., 2018b) MLCNN (Zhu et al., 2017) Proposed
Male 89.9 84.3 91.2
AgeLess30 85.8 81.1 85.3
AgeLess45 81.8 79.9 82.7
AgeLess60 86.3 92.8 93.9
AgeLarger60 94.8 97.6 98.6
Head-Hat 91.8 96.1 97.4
Head-LongHair 88.9 88.1 92.3
Head-Scarf 96.1 97.2 98.2
Head-Nothing 85.8 86.1 90.7
UB-Casual 84.4 89.3 93.4
UB-Formal 85.1 91.1 94.6
UB-Jacket 79.2 92.3 95.0
UB-ShortSleeves 87.5 88.1 93.4
UB-Tshirt 83.0 90.6 93.8
UB-Other 86.1 82.0 84.8
LB-Casual 84.9 90.5 93.7
LB-Formal 85.2 90.9 94.0
LB-Jeans 85.7 83.1 86.7
LB-Trousers 84.3 76.2 78.9
Shoes-Leather 87.3 85.2 89.8
Shoes-Footwear 80.0 75.8 79.8
Shoes-Sneaker 78.7 81.8 86.6
Backpack 82.6 84.3 89.2
MessengerBag 82.0 79.6 86.3
PlasticBags 87.0 93.5 94.5
Carrying-Nothing 83.1 80.1 85.9
Carrying-Other 77.3 80.9 78.8
Average of 27 Att. 85.4 86.6 90.0
Average of 35 Att. 82.6 - 91.7
Table 5: Comparison between the results observed in the PETA dataset (mean accuracy percentage). The highest accuracy values per attribute among all methods appear in bold.
Attributes ACN (Sudowe et al., 2015) DeepMar (Li et al., 2018b) Proposed
Female 94.06 96.53 96.28
AgeLess16 77.29 77.24 99.25
Age17-30 69.18 69.66 69.98
Age31-45 66.80 66.64 67.19
Age46-60 52.16 59.90 96.88
BodyFat 58.42 61.95 87.24
BodyNormal 55.36 58.47 78.20
BodyThin 52.31 55.75 92.82
Customer 80.85 82.30 96.98
Employee 85.60 85.73 97.67
BaldHead 65.28 80.93 99.56
LongHair 89.49 92.47 94.67
BlackHair 66.19 79.33 94.94
Hat 60.73 84.00 99.02
Glasses 56.30 84.19 96.76
UB-Shirt 81.81 85.86 83.93
UB-Sweater 56.85 64.21 92.66
UB-Vest 83.65 89.91 96.91
UB-TShirt 71.61 75.94 77.17
UB-Cotton 74.67 79.02 89.48
UB-Jacket 78.29 80.69 71.93
UB-SuitUp 73.92 77.29 97.18
UB-Tight 61.71 68.89 96.10
UB-ShortSleeves 88.27 90.09 90.79
UB-Others 50.35 54.82 97.91
LB-LongTrousers 86.60 86.64 84.88
LB-Skirt 70.51 74.83 97.37
LB-ShortSkirt 73.16 72.86 98.10
LB-Dress 72.89 76.30 97.34
LB-Jeans 90.17 89.46 91.56
LB-TightTrousers 86.95 87.91 94.71
shoes-Leather 71.92 80.50 84.00
shoes-Sports 62.59 71.58 80.68
shoes-Boots 85.03 91.37 96.68
shoes-Cloth 68.74 72.31 98.67
shoes-Casual 54.57 64.58 77.74
shoes-Other 52.42 61.56 92.00
Backpack 68.87 80.61 98.03
ShoulderBag 69.30 82.52 93.29
HandBag 63.95 76.45 97.64
Box 66.72 76.18 96.30
PlasticBag 61.53 75.20 97.78
PaperBag 52.25 63.34 99.07
HandTrunk 79.01 84.57 97.74
Other 66.14 76.14 71.54
Calling 74.66 86.97 97.13
Talking 50.54 54.65 97.54
Gathering 52.69 58.81 95.47
Holding 56.43 64.22 97.71
Pushing 80.97 82.58 99.15
Pulling 69.00 78.35 98.24
CarryingByArm 53.55 65.40 97.77
CarryingByHand 74.58 82.72 87.57
Other 54.83 58.79 99.13
Average 68.92 75.54 92.23
Table 6: Comparison of the results observed in the RAP dataset (mean accuracy percentage). The highest accuracy values per attribute among all methods appear in bold.

4.6 Ablation Studies

In this section, we study the effectiveness of the mentioned contributions in Fig. 3. To this end, we trained and tested a light version of the network (with three residual blocks and input image size ) on the PETA dataset with similar initialization, but different settings (Table 7). The first row of Table 7 shows the performance of a network, constructed from three residual blocks with four shared fully connected layers on top, plus one fully connected layer for each attribute. In this architecture, as the system cannot decide on each task independently, the performance is poor (), and the network cannot predict the uncorrelated attributes (e.g., behavioral attributes versus appearance attributes) effectively. However, the results in the second row of Table 7 show that repeating the fully connected layers for each task independently (while keeping the rest of the architecture unchanged), improves the results by around . Furthermore, equipping the network with the proposed weighted loss function (Table 7, row ) and adding the Multiplication layer (Table 7, row ) showed further improvements in the performance to and , respectively.

Multi-task architecture Multiplication Layer Weighted Loss (Binary-cross-entropy) mAP (%)
- - - 81.11
- - 89.18
- 89.35
- 89.73
Table 7: Ablation studies. The first row shows our baseline system with a multi-label architecture and binary-cross-entropy loss function, while the other rows indicate the proposed system with various settings.

Feature map visualization. Neural networks are known as poorly interpretable models. However, as the internal structures of the CNNs are designed to operate upon two-dimensional images, they preserve the spatial relationships for what it is being learned Goodfellow et al. (2016). Hence, by visualizing the operations on each layer, we can understand the behavior of the network. As a result of slicing the small linear filters over the input data, we obtain the activation maps (feature maps). To analyze the behavior of the proposed multiplication layer (Fig. 3), we visualized the input and output feature maps in Fig. 5, such that the columns labeled as Mask and Before refer to the inputs of the layer, and the columns labeled as After show the multiplication results of the two inputs. As it is evident, unwanted features resulting from the partial occlusions were filtered from the feature map, which improved the overall performance of the system.

Where is the network looking at? As a general behavior, CNNs infer what could be the optimal local/global features of a training set and generalize them to decide on unseen data. Here, partial occlusions can easily affect this behavior and decrease the performance, being helpful to understand where the model is actually looking at in the prediction phase. To this end, we plot some heat maps to investigate the effectiveness of the proposed multiplication layer and task-oriented architecture. Heat maps are easily understandable and highlight the regions on which the network focuses while making a prediction.

Fig. 6 shows the behavior of the system regarding the examples with partial occlusions. As it is seen, the proposed network is able to filter the harmful features of the distractors effectively, while focusing on the target subject. Moreover, Fig. 7 shows the model behavior during the attribute recognition in each task.

Figure 6: Illustration of the effectiveness of the multiplication layer upon the focus ability of the proposed model in case of partial occlusions. Samples regard the PETA dataset, with the network predicting the age and gender attributes.

Loss Function. Table 8 provides the performance of the proposed network, when using different loss functions suitable for binary classification. Focal loss Lin et al. (2017) forces the network to concentrate on hard samples, while the weighted Binary Cross-Entropy (BCE) loss Li et al. (2015) allocates a specific binary weight to each class. Training the network using binary focal loss function showed accuracy in the test phase, while this number was for the weighted BCE loss (see Table 8).

The proposed weighted loss function uses the BCE loss function, while recommends different weights for each class. We further trained the proposed model with the binary focal loss function using the proposed weights. The results in Table 8 indicate a slight improvement in the performance when we train the network using the proposed weighted loss function with BCE ().

Loss Function mAP (%)
Binary focal loss function Lin et al. (2017) 79.30
Weighted BCE loss function Li et al. (2015) 90.19
Proposed weighted loss function (with BCE) 90.34
Proposed weighted loss function (with binary focal loss) 89.27
Table 8: Performance of the network trained with different loss functions on PETA dataset.
Figure 7: Visualization of the heat maps resulting of the proposed multi-task network. Sample regard the PETA dataset. The leftmost column shows the original samples, the column Task 1 (i.e., recognizing age and gender) presents the effectiveness of the network focus on the human full-body, and the remaining columns display the ability of the system on region-based attribute recognition. The task policies are given in Table 3.

5 Conclusions

Complex background clutter, viewpoint variations, and occlusions are known to have a noticeable negative effect on the performance of person attribute recognition (PAR) methods. According to this observation, in this paper, we proposed a deep-learning framework that improves the robustness of the obtained feature representation by directly discarding the background regions in the fully connected layers of the network. To this end, we described an element-wise multiplication layer between the output of the residual convolutional layers and a binary mask representing the human full-body foreground. Further, the refined feature maps were down-sampled and fed to different fully connected layers, that each one is specialized in learning a particular task (i.e., a subset of attributes). Finally, we described a loss function that weights each category of attributes to ensure that each attribute receives enough attention, and there are not some attributes that bias the results of others. Our experimental analysis on the PETA and RAP datasets pointed for solid improvements in the performance of the proposed model with respect to the state-of-the-art.

Acknowledgments

This research is funded by the “FEDER, Fundo de Coesao e Fundo Social Europeu” under the “PT2020 - Portugal 2020” program, “IT: Instituto de Telecomunicações” and “TOMI: City’s Best Friend.” Also, the work is funded by FCT/MEC through national funds and, when applicable, co-funded by the FEDER PT2020 partnership agreement under the project UID/EEA/50008/2019.

References

  • M. Abadi, P. Barham, J. Chen, Z. Chen, A. Davis, J. Dean, M. Devin, S. Ghemawat, G. Irving, M. Isard, et al. (2016)

    Tensorflow: a system for large-scale machine learning

    .
    In 12th USENIX Symposium on Operating Systems Design and Implementation (OSDI 16), pp. 265–283. Cited by: §4.4.
  • W. Abdulla (2017) Mask r-cnn for object detection and instance segmentation on keras and tensorflow. Github. Note: https://github.com/matterport/Mask_RCNN Cited by: §4.4.
  • A. H. Abdulnabi, G. Wang, J. Lu, and K. Jia (2015) Multi-task cnn model for attribute prediction. IEEE Transactions on Multimedia 17 (11), pp. 1949–1959. Cited by: §1.
  • Y. Chen, S. Duffner, A. STOIAN, J. Dufour, and A. Baskurt (2018) Pedestrian attribute recognition with part-based CNN and combined feature representations. In VISAPP2018, Funchal, Portugal. External Links: Link Cited by: §1.
  • Y. Deng, P. Luo, C. C. Loy, and X. Tang (2014) Pedestrian attribute recognition at far distance. In Proceedings of the 22Nd ACM International Conference on Multimedia, MM ’14, New York, NY, USA, pp. 789–792. External Links: ISBN 978-1-4503-3063-3, Link, Document Cited by: §2, §4.1, §4.
  • G. Gkioxari, R. Girshick, and J. Malik (2015) Actions and attributes from wholes and parts. In Proceedings of the IEEE International Conference on Computer Vision, pp. 2470–2478. Cited by: §1.
  • I. Goodfellow, Y. Bengio, and A. Courville (2016) Deep learning. MIT press. Cited by: §4.6.
  • K. He, G. Gkioxari, P. Dollár, and R. Girshick (2017a) Mask r-cnn. In Proceedings of the IEEE international conference on computer vision, pp. 2961–2969. Cited by: §3.3.
  • K. He, X. Zhang, S. Ren, and J. Sun (2016a) Deep residual learning for image recognition. In Proceedings of the IEEE conference on computer vision and pattern recognition, pp. 770–778. Cited by: §3.2.
  • K. He, X. Zhang, S. Ren, and J. Sun (2016b) Identity mappings in deep residual networks. In European conference on computer vision, pp. 630–645. Cited by: §3.2.
  • K. He, Z. Wang, Y. Fu, R. Feng, Y. Jiang, and X. Xue (2017b) Adaptively weighted multi-task deep network for person attribute classification. In Proceedings of the 25th ACM international conference on Multimedia, pp. 1636–1644. Cited by: §4.2.
  • J. Kumari, R. Rajesh, and K. Pooja (2015) Facial expression recognition: a survey. Procedia Computer Science 58, pp. 486–491. Cited by: §1.
  • R. Layne, T. M. Hospedales, and S. Gong (2014) Attributes-based re-identification. In Person Re-Identification, pp. 93–117. Cited by: §2.
  • D. Li, X. Chen, and K. Huang (2015) Multi-attribute learning for pedestrian attribute recognition in surveillance scenarios. In 2015 3rd IAPR Asian Conference on Pattern Recognition (ACPR), pp. 111–115. Cited by: §1, §2, §4.6, Table 8.
  • D. Li, X. Chen, Z. Zhang, and K. Huang (2018a) Pose guided deep model for pedestrian attribute recognition in surveillance scenarios. In 2018 IEEE International Conference on Multimedia and Expo (ICME), pp. 1–6. Cited by: §2.
  • D. Li, Z. Zhang, X. Chen, and K. Huang (2018b) A richly annotated pedestrian dataset for person retrieval in real surveillance scenarios. IEEE transactions on image processing 28 (4), pp. 1575–1590. Cited by: Figure 2, §4.1, §4.3, §4.5, §4.5, Table 5, Table 6, §4.
  • Q. Li, X. Zhao, R. He, and K. Huang (2019) Visual-semantic graph reasoning for pedestrian attribute recognition. In

    Proceedings of the AAAI Conference on Artificial Intelligence

    ,
    Vol. 33, pp. 8634–8641. Cited by: §2.
  • Y. Li, C. Huang, C. C. Loy, and X. Tang (2016) Human attribute recognition by deep hierarchical contexts. In European Conference on Computer Vision, pp. 684–700. Cited by: §1.
  • M. Lin, Q. Chen, and S. Yan (2013) Network in network. arXiv preprint arXiv:1312.4400. Cited by: §4.4.
  • T. Lin, P. Goyal, R. Girshick, K. He, and P. Dollár (2017) Focal loss for dense object detection. In Proceedings of the IEEE international conference on computer vision, pp. 2980–2988. Cited by: §4.6, Table 8.
  • T. Lin, M. Maire, S. Belongie, J. Hays, P. Perona, D. Ramanan, P. Dollár, and C. L. Zitnick (2014) Microsoft coco: common objects in context. In European conference on computer vision, pp. 740–755. Cited by: §4.4.
  • Y. Lin, L. Zheng, Z. Zheng, Y. Wu, Z. Hu, C. Yan, and Y. Yang (2019) Improving person re-identification by attribute and identity learning. Pattern Recognition. Cited by: §4.2.
  • P. Liu, X. Liu, J. Yan, and J. Shao (2018) Localization guided learning for pedestrian attribute recognition. arXiv preprint arXiv:1808.09102. Cited by: §1, §2.
  • W. Liu, Z. Wang, X. Liu, N. Zeng, Y. Liu, and F. E. Alsaadi (2017a) A survey of deep neural network architectures and their applications. Neurocomputing 234, pp. 11–26. Cited by: §1.
  • X. Liu, H. Zhao, M. Tian, L. Sheng, J. Shao, S. Yi, J. Yan, and X. Wang (2017b)

    Hydraplus-net: attentive deep features for pedestrian analysis

    .
    In Proceedings of the IEEE international conference on computer vision, pp. 350–359. Cited by: §2.
  • Z. Liu, P. Luo, X. Wang, and X. Tang (2015) Deep learning face attributes in the wild. In Proceedings of the IEEE international conference on computer vision, pp. 3730–3738. Cited by: §3.5.
  • J. Long, E. Shelhamer, and T. Darrell (2015) Fully convolutional networks for semantic segmentation. In Proceedings of the IEEE conference on computer vision and pattern recognition, pp. 3431–3440. Cited by: §3.3.
  • M. Lou, Z. Yu, F. Guo, and X. Zheng (2019) MSE-net: pedestrian attribute recognition using mlsc and se-blocks. In International Conference on Artificial Intelligence and Security, pp. 217–226. Cited by: §2.
  • A. B. Mabrouk and E. Zagrouba (2018) Abnormal behavior recognition for intelligent video surveillance systems: a review. Expert Systems with Applications 91, pp. 480–491. Cited by: §1.
  • S. Ren, K. He, R. Girshick, and J. Sun (2015) Faster r-cnn: towards real-time object detection with region proposal networks. In Advances in neural information processing systems, pp. 91–99. Cited by: §3.3.
  • S. Ruder (2017) An overview of multi-task learning in deep neural networks. CoRR abs/1706.05098. External Links: Link, 1706.05098 Cited by: §3.5.
  • N. Sarafianos, X. Xu, and I. A. Kakadiaris (2018) Deep imbalanced attribute classification using visual attention aggregation. In Proceedings of the European Conference on Computer Vision (ECCV), pp. 680–697. Cited by: §1.
  • M. S. Sarfraz, A. Schumann, Y. Wang, and R. Stiefelhagen (2017) Deep view-sensitive pedestrian attribute inference in an end-to-end model. arXiv preprint arXiv:1707.06089. Cited by: §1, §2.
  • J. Schmidhuber (2015) Deep learning in neural networks: an overview. Neural networks 61, pp. 85–117. Cited by: §1.
  • P. Sudowe, H. Spitzer, and B. Leibe (2015) Person attribute recognition with a jointly-trained holistic cnn model. In Proceedings of the IEEE International Conference on Computer Vision Workshops, pp. 87–95. Cited by: §1, §2, §4.5, §4.5, Table 6.
  • Z. Tan, Y. Yang, J. Wan, H. Wan, G. Guo, and S. Z. Li (2019) Attention based pedestrian attribute analysis. IEEE transactions on image processing. Cited by: §2.
  • J. Wang, X. Zhu, S. Gong, and W. Li (2017) Attribute recognition by joint recurrent learning of context and correlation. In Proceedings of the IEEE International Conference on Computer Vision, pp. 531–540. Cited by: §2.
  • X. Wang, S. Zheng, R. Yang, B. Luo, and J. Tang (2019) Pedestrian attribute recognition: a survey. arXiv preprint arXiv:1901.07474. Cited by: §1, §2.
  • L. Yang, L. Zhu, Y. Wei, S. Liang, and P. Tan (2016) Attribute recognition from adaptive parts. arXiv preprint arXiv:1607.01437. Cited by: §2.
  • X. Zhao, L. Sang, G. Ding, J. Han, N. Di, and C. Yan (2019)

    Recurrent attention model for pedestrian attribute recognition

    .
    In Proceedings of the AAAI Conference on Artificial Intelligence, Vol. 33, pp. 9275–9282. Cited by: §2.
  • J. Zhu, S. Liao, Z. Lei, and S. Z. Li (2017) Multi-label convolutional neural network based pedestrian attribute classification. Image and Vision Computing 58, pp. 224–229. Cited by: Figure 2, §4.5, §4.5, Table 5.
  • J. Zhu, S. Liao, Z. Lei, D. Yi, and S. Li (2013) Pedestrian attribute classification in surveillance: database and evaluation. In Proceedings of the IEEE international conference on computer vision workshops, pp. 331–338. Cited by: §2.
  • J. Zhu, S. Liao, D. Yi, Z. Lei, and S. Z. Li (2015) Multi-label cnn based pedestrian attribute learning for soft biometrics. In 2015 International Conference on Biometrics (ICB), pp. 535–540. Cited by: §2.
