I Introduction

Cyber-security is a key concern for both private and public organizations, given the high cost of security compromises and attacks; malicious cyber-activity cost the U.S. economy between $57 billion and $109 billion in 2016 [36]. As a result, spending on security research and development, and security products and services to detect and combat cyber-attacks has been increasing [13].

Organizations produce large amounts of network, host and application data that can be used to gain insights into cyber-security threats, misconfigurations, and network operations. While security domain experts can manually sift through some amount of data to spot attacks and understand them, it is virtually impossible to do so at scale, considering that even a medium sized enterprise can produce terabytes of data in a few hours. Thus there is a need to automate the process of detecting security threats and attacks, which can more generally be referred to as security anomalies.

Major approaches to detect such anomalies fall into two broad categories: human expert driven (mostly rules-based) and machine learning based (mostly unsupervised)

[38]. The first approach involves codifying domain expertise into rules, for example, if the number of login attempts exceeds a threshold, or more than a threshold number of bytes are transferred during the night, and so on. While rules formulated by security experts are useful, they are ineffective against new (zero-day) and evolving attacks; furthermore, they are brittle and difficult to maintain. On the other hand, enabled by the vast amounts of data collected in modern enterprises, machine learning based approaches have become the preferred choice for detecting security anomalies.

The machine learning models to detect security anomalies typically output a severity or anomaly score; this score allows ranking and prioritization of the anomalies. A security analyst can then further investigate these anomalies to understand their root causes, if they are true positives, and if any remedial action is required. However, anomaly detectors typically do not provide any assistance in this process. In fact, any direction or pointers in terms of features, or groups of features, responsible for a high anomaly score would allow prioritization of causes to look at first and thus save an analyst’s time and effort; this would help even though the information may not directly reveal the root cause of an anomaly. For example, based on the contributions an anomaly detector assigns to features related to external traffic volume, number of ports active, number of external hosts, etc, analysts would decide the course of their investigation into the underlying causes of that particular anomaly.

However, most anomaly detection models are black-boxes that output an anomaly score without any associated explanation or reasoning. In fact, there is an inverse relationship between building complex models that can make accurate predictions and explaining these predictions in a human-interpretable way. For example, explaining the predictions of simpler models, such as linear regression, logistic regression or decision trees, is considerably easier compared to complex models such as random forests or deep neural networks, which build complex non-linear relationships between the input and the predicted output.

As a result, when models that can explain their output are needed, as is often the case, for example, in medical diagnosis (a doctor needs to provide a detailed explanation of the diagnosis to the patients [5]), or credit card application (an explanation of why or why not a particular application is approved is usually required [32]

), simpler models are preferred. However, interpretability comes at a cost since in most instances complex models tend to have higher accuracy. Therefore, there is an unavoidable trade-off between model interpretability and model accuracy. Recently deep learning models are being successfully used for cyber-security applications

[37, 41, 2, 7]. In fact, a part of the focus of a recently organized workshop is the application of deep learning to security [8].

In this paper, we focus on explaining the outputs of complex models in the cyber-security anomaly detection domain, where outputs are usually anomaly scores. We propose ACE – Anomaly Contribution Explainer, to bridge the gap between the predictions provided by an anomaly detection model and the interpretation required to support human intervention in realistic applications. Specifically, ACE provides explanations, in terms of the features’ contributions, by building a specialized linear model to locally approximate the anomaly score that a black-box anomaly detection model generates. These explanations aid a security analyst to quickly diagnose the reported anomaly. Our source code is publicly available111Source code available at

Our key contributions are:

  • We design and implement two methods, ACE and ACE-KL, for explaining scores of individual anomalies detected by black-box models in terms of feature contributions.

  • We validate our methods on three data sets: 1) a synthetically generated insider threat data set; 2) a real world netflow data set; and 3) a real world Android malware data set. In all of these cases, the results are encouraging and improved upon a recent work [29] as a baseline.

The high-level overview of our approach is shown in Figure 1, and we focus on the meta-model approximation to explain the score of a particular anomaly.

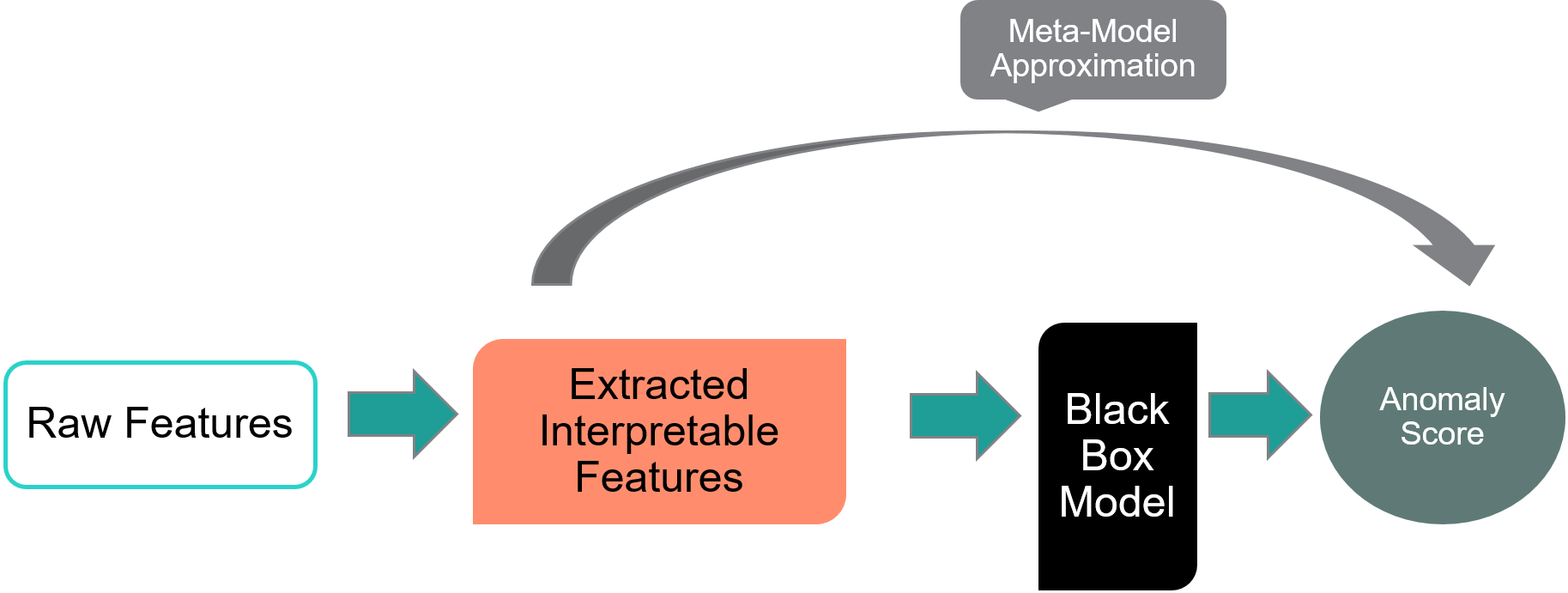

Fig. 1: Overview of the anomaly detection and interpretation workflow for the ACE or ACE-KL meta-model.

Ii Related Work

While model interpretability and explanation have a long history [3, 9, 24], the recent success and rise in popularity of complex machine learning models (such as deep neural networks) has led to a surge of interest in model interpretability, as these complex models offer no explanation of their output predictions. Given the extensive literature on this subject, we only discuss work most related to ours; Guidotti et al.[15] provide a comprehensive survey on explainability.

Methods for generating explanations from complex models fall into two main categories: 1) model-specific  [35, 11, 31, 22, 26], which exploit a model’s internal structure and as a result only work for that specific model type; and 2) model-agnostic [30, 21, 1] or black-box methods, which do not depend on the underlying model type. Our work belongs to the second category.

Several model-agnostic methods investigate the sensitivity of output with respect to the inputs to explain the output: An early attempt called ExplainD used additive models to weight the importance of features with a graphical explanation [28]. In Strumbelj et al.’s work [34]

, the authors exploited notions from coalitional game theory to explain the contribution of value of different individual features.

LIME[29], designed for classification problems, was built to explain a new data point after a black-box model is trained. MFI [39] is a non-linear method able to detect features impacting the prediction through their interaction with other features. More recently, LORE [14]

used a synthetic neighbourhood generated through a genetic algorithm to explain the feature importance and

SHAP [25] assigns each feature an importance value for a particular prediction. Our proposed methods belong to this category, and are closest to LIME [29].

Anomaly detection is widely studied and an important topic in data mining. However, explanation of the detected anomalies has received relatively little attention from researchers. For instance, one of the most widely cited surveys on anomaly detection [6] makes no reference to explainability. Research on anomaly detection and explainability includes: work on anomaly localization [17, 20]

, which refers to the task of identifying faulty sensors from a population of sensors; feature selection or importance


; estimating model sensitivity

[40]; and method specific techniques [18, 19]. Despite their advantages, these methods are either tailored too closely for specific anomaly detection methods, or only consider sensitivity of inputs, not their entire contribution, and are not suitable for the security domain where anomalies and methods to detect evolve rapidly.

Iii Methods

Iii-a Problem Statement

Formally, the model explanation problem in the context of anomaly detection can be stated as follows:

Given 1) a black-box anomaly detection model , an arbitrary function with an input having features: , which outputs an anomaly score , that is, where is a scalar; and 2) a random data point that produces score , the goal is to estimate , the normalized contributions of each feature of . Note that a may be zero if it does not contribute to an anomaly.

Iii-B Assumptions and Observations

We assume the output of the anomaly detector is an anomaly score in the range

, with 0 indicating no anomaly, and the score monotonically increasing with the severity of the anomaly. Such a score is widely used in anomaly detectors. Note that if an anomaly detector outputs an anomaly probability,

, it is easy to convert it to such a score by the transformation: .

A careful study of existing techniques such as LIME [29] reveals their unsuitability for anomaly explanation. These methods can only explain the importance of a feature locally, but not the whole contribution of that feature. For example, consider a linear regression scenario, i.e., , where is the

th feature of the vector (here we also encode the bias term

as , and the corresponding is always ). Assume a given feature is of “small importance”, determined by its non-significant corresponding weight , (assuming is a value close to ). However, if is extremely large in a new example, for instance, , and , the multiplication of and still makes a large contribution to the predicted value .

This observation has practical implications in anomaly detection problems, especially in security-related problems. For example, when a feature tends to appear in some range of values in training, a trained black-box model will weigh it accordingly. After the well-trained model is deployed, a new attack prototype can evolve focusing on specific attributes, which were neglected at training time, but now takes high attribute values. Even if the anomaly may be detected by a well trained black-box model as it results in high output scores, the underlying reason might escape the security analysts’ attention.

Iii-C Anomaly Contribution Explainer (ACE)

ACE explains a specific anomaly by computing its feature contribution vector obtained through a local linear approximation of the anomaly score. Using this simple approximation, the real contribution that th feature makes to form is naturally . However, it is possible some are negative. These terms correspond to features that negatively impact an anomaly, and thus cannot be its cause. We want to discard these terms and focus on the features positively contributing to an anomaly. Therefore, we use the “softplus” function [10], which is a “smoothed” relu function to model the contribution of towards the entire anomaly. The intuition behind this choice is evident: we calculate the contribution by neglecting the negative components while considering the positive part linearly; this function forces all negative components to and retains all the positive components linear to their original value; further, the convexity of this function simplifies the computation.

We define as the anomaly score, calculated by the blackbox model. Further, to normalize all of the contributions towards the anomaly score, by denoting the normalized contribution of feature as , we formally define the normalized contribution (“contribution” thereafter) of each feature as


To approximate a particular anomaly score generated by a black-box model at a point

of interest, we form the loss function with a modified linear regression, by sampling the neighborhood of

to obtain neighbors and obtaining their corresponding anomaly scores:

where is the anomaly score generated by a black-box model for the th neighbor, set to be in this study is the hyper parameter that controls the norm regularizer, and is the weight calculated by a distance kernel for the

th neighbor. The parameters are estimated by minimizing the loss function, using the neighbourhood of the original example formed through sampling. Based on the fact that this neighbourhood is close enough to the point of intersection between the surface and the tangent plane, we use this neighbourhood to approximate the tangent plane, which is the linear regression. We choose the normal distribution

, where

is an identity matrix for continuous features, as the neighborhood region to ensure the samples are close enough to the examined point; and a

distribution to flip the value for binary features for the same reason. A distance kernel is used to calculate the distance between the examined point and the neighbors as such: , where is the distance between the original point and the neighbor , which in our study was used as the Euclidean distance. is a pre-defined kernel width; here we use . Thus, the larger the distance, the smaller the weight of that neighbor in parameter estimation, and vice versa. The overview of this approach is shown in Algorithm 1.

1:black-box model f, Number of neighbors N
2:The sample x to be examined
3:Distance kernel , Number of feature K measures the distance between a sample and , which is used as the inverse weight
5:for  do
6:     if  then
7:          is a normal distribution
8:     else if  then

is a Bernoulli distribution

10:     end if
13:end for
15:Compute and sort for each is the index for th feature
16:Pick the top from the sorted results and calculate the contribution (Eq. 1)
Algorithm 1 Anomaly Contribution Explainer (ACE)

Iii-D Anomaly Contribution Explainer with KL Regularizer (ACE-KL)

The ACE-KL model extends the ACE model by adding an additional regularizer. This regularizer tries to maximize the KL divergence between a uniform distribution and the calculated distribution of contributions of all the inspected features. By adding this regularizer to our loss function, our anomaly contribution explainer assigns contribution to inspected features in a more distinguishable way, inducing more contributions from the dominant ones and reducing the contributions from those less dominant ones. The KL divergence between a uniform distribution and a particular distribution takes the following form:


where is the uniform distribution and is the calculated distribution.

Hence, the loss function is formalized as following:

where set to in this study is the hyper parameter to control the KL regularizer. This formulation forces the calculated distribution to be peaky. Therefore, in terms of contributions, those features that contribute most get better explained than others. Intuitively, this characteristic yields a better visualization for security analysts in real applications.

Further, a merit that our ACE-KL model retains is that the new loss function is still a convex function. We sketch the proof by taking advantage of the Scalar Composition Theorem [4]:

Corollary 1.

The loss function of ACE-KL model is a convex function, w.r.t. its model parameters.


The formulation of the loss function for ACE-KL consists of two parts: a regular ridge regression and an additional regularizer. It is trivial to show a ridge regression is a convex function w.r.t. its parameters.

Now we show the additional regularizer is also a convex function (for each ):

( , so is a constant)

where is convex. By the Scalar Composition Theorem, the regularizer is convex. Then a linear combination of the convex ridge regression part and the regularizer retain the property of convexity. ∎

Iv Experiments and Results

Iv-a Data sets

We validate our methods on three security related data sets. The first data set is the CERT Insider Threat v6.2 (abbreviated as CERT) [23, 12]. It is a synthetically generated, realistic data set consisting of application-level system logs, such as HTTP get/post requests, emails and user login/logout events. The second data set contains pcap traces from UNB [33], which we converted to netflow logs using nfdump. It is partially labelled with port scanning and intrusion events. Lastly, the third data set–AndroidMalware [42]–is a collection of about 1,200 malwares observed on Android devices.

Iv-B Feature Extraction

To evaluate our methods, we build anomaly detection models on these data sets. Note that the models can be supervised or unsupervised as long as they produce an anomaly score. Furthermore, while we ensure these models have reasonable accuracy, building the best possible anomaly detection models for these data sets is not the focus of this work. We extract the following features from the data sets.

CERT. Similar to a previous study [37], we extract count features conditioned on time of day, where a day is uniformly discretized into four intervals. In our experiments, we use one day as the smallest time window and each example is the composite record of day-user. We examine three different Internet activities: “WWW visit”, “WWW upload” and “WWW download”. Hence, in this setting, the total number of features are

, and so is the input dimensionality of the autoencoder model (one of the baselines).

UNB Netflow: We extracted 108 features that can be categorized into three sets: Count, Bitmap, and Top-K. The Count features count the number of bytes/packets for incoming and outgoing traffic; the Bitmap features include type of services, TCP flags, and protocols; the Top-K features encode the IP addresses with traffic flows ranked in top k over all the addresses.

AndroidMalware: 122 binary features are extracted, mainly related to frequent permission requests from apps.

Iv-C Evaluation Metrics

We consider the contributions to be a distribution over features. To quantitatively evaluate contributions produced by a method, we use its Kullback-Leibler (KL) divergence with respect to ground truth contributions. The KL divergence measures how one probability distribution diverges from another probability distribution. Given the distribution of modeled contributions,

and the ground truth contributions distribution of the data point, the KL divergence is formulated as:


where is the th feature. The lower the KL divergence, the closer the modeled contribution is to the real contribution for that data point. Note that this KL divergence metrics is different from the regularizer term in ACE-KL, which forces the formulated distribution away from a uniform distribution.

Iv-D Baseline Methods

We use LIME [29] as our main baseline. We consider it representative of similar methods since it is recent and well cited. LIME only works for classification problems; however, most anomaly detection problems require an anomaly score to express the confidence of detection. We therefore extend LIME to support regression problems. This extension is straightforward: in classification problems, each feature is mapped onto a classification class by looking at the estimated weights of each feature to decide the importance of that feature to the particular class. In a regression problem, we can assume it to be a one-class classification problem. We therefore transform LIME from multi-class classification to a one-class problem, and examine the importance of each feature to the anomaly score.

Iv-E Evaluation on CERT

To evaluate ACE and ACE-KL on CERT, first we train an autoencoder as our black-box model, although in principle it could be any model. Its anomaly score () on a data point is computed as the mean squared error (MSE) between the input and the output vector. In addition to applying ACE and ACE-KL, we compute feature contributions from the autoencoder model using the reconstruction error of each of the inputs, similar to [37]. Thus, the autoencoder model serves as an additional baseline. While the CERT data set has some anomalies, we also artificially inject some by perturbing the input features. The data set contains two years of activities. We use the first year of the data set for injected anomalies detection, as it has no anomaly marked. We also detect anomalies present in the second year.

Iv-E1 Evaluation on Injected Anomalies

We perturb individual features and groups of features. However, due to space limitations, we only present perturbation of groups of five features. The rest of the results on injected anomalies are described in the appendix.

Multiple Feature Perturbation

The synthetic anomalies are created as follows. We first calculated the mean values of each feature based on the non-preprocessed raw data, and draw from a Poisson distribution based on the mean value of each feature using

This sampling approach ensures that first, all the synthesized features are integers; second, the original value is around the mean of the raw data. After we sample from this distribution, we perturbed it by adding a value to the feature : . This new value’s expectation is which exceeds the mean value of by a large magnitude, thus this perturbation can represent an anomaly from the original data.

We randomly chose five features to perturb. Each feature of a data point is standardized to

using the mean and the standard deviation of that feature of the training set, and fed into the trained black-box to create an anomaly score.

The results are shown in Figure  2. ACE accurately identified the contributions in both anomalies, and performed significantly better than both baselines considered according to the KL-divergence metric. ACE-KL, while not as accurate as ACE, highlights the top contributors.

(a) Features 1, 3, 10, 8, 7 were perturbed.
(b) Features 6, 0, 9, 7, 3 were perturbed.
Fig. 2: (left) Feature contributions on two synthetic examples, with perturbation on five randomly chosen features. Contribution is the percentage of a feature towards the anomaly score. (right) KL-divergence of each method with respect to the ground truth.

Iv-E2 Evaluation on Real Anomalies

The CERT data set contains labeled scenarios where insiders behave maliciously. Figure 3 shows contribution analysis on the days that have the malicious activities. In Figure 3(a) and 3(c), feature captures the malicious activities, while in Figure 3(b) feature is the ground-truth anomalous feature. The experimental results and the corresponding KL-divergence are shown in Figure 3. ACE and ACE-KL accurately capture the feature responsible for the anomalies. Both ACE and ACE-KL have significantly lower KL divergence, outperforming the baselines.

(a) WWW download anomaly, feature 7, day 398.
(b) WWW upload anomaly, feature 8, day 404.
(c) WWW download anomaly, feature 7, day 409.
Fig. 3: Three real anomalies in the CERT data set. (left) Feature contributions using ACE, ACE-KL and two baselines. (right) KL-divergence between feature contributions computed by the methods and the ground truth contributions. ACE and ACE-KL has the most similar contribution as the ground truth (which is always 1.0).

Iv-F Evaluation on UNB Netflow Data Set

This section presents the evaluation of ACE and ACE-KL on UNB Netflow with similar settings as CERT. A separately trained autoencoder is used as a black-box anomaly detection model. Due to space limitations, we present results of applying ACE and ACE-KL to only two anomalies here. Table I provides a short description of the top 10 features that are useful to interpret the results. Figure 4 shows the feature contributions for the anomalies, and Table II provides details on the feature values and their contributions. Since the annotation is at the packet level, it is not easy for a person to manually determine the root cause for the anomaly.

# std src ports Number of standard source ports
avg std src ports per dst ip Average number of standard source ports per destination IP
protos out 3 Third bit in the Protocol feature (3 bit feature indicating TCP, UDP, or Other)
top1 out Top 1st outgoing IP address (in terms of bytes)
top3 out Top 3rd outgoing IP address (in terms of bytes)
(a) Features for outgoing flows (when IP is source)
max duration in Maximum incoming flow duration
# std dst ports Number of standard destination ports
avg std dst ports per src ip Average number of standard destination ports per source IP
Flags in 3 Third bit in the flags field
total duration in Total duration of the incoming flows
(b) Features for incoming flows (when IP is destination)
TABLE I: Short descriptions of top features in the results.

For anomaly 1, the highest contributing feature is ‘max_duration_in’, which is the maximum duration of an incoming flow into this IP address ( After examining the netflow records, we found that the high value for this feature was related to long-lived (i.e., persistent) TCP connections. Although benign, this was an unusual activity relative to other recorded traffic. The other high values correspond to the number of standard source and destination ports. This was found to be related to a port scanning activity, which was not previously discovered, i.e., was not labeled. Anomaly 2 is almost exactly similar to Anomaly 1 with a similar port scanning activity.

(a) Anomaly 1
(b) Anomaly 2
Fig. 4: Contribution analysis on two anomalies in netflow data.
Index Feature Name ACE-KL ACE value
43 max duration in 0.207 0.317 239.961
0 # std src ports 0.195 0.030 158
30 # std dst ports 0.174 0.071 156
13 max duration out 0.100 0.011 240.085
3 avg std src ports per dst ip 0.064 0.177 1
26 min n bytes out 0.062 0.034 20
33 avg std dst ports per src ip 0.052 0.250 1
70 protos out 3 0.046 0.021 1
56 min n bytes in 0.041 0.035 20
98 top1out 0.025 0.005
12 total duration out 0.018 0.008 62154.867
42 total duration in 0.018 0.041 44405.557
(a) Anomaly1:, Sunday
Index Feature Name ACE-KL ACE value
0 # std src ports 0.275 0.087 158
30 # std dst ports 0.246 0.175 156
92 flags in 3 0.104 0.0496 0
3 avg std src ports per dst ip 0.090 0.097 0
33 avg std dst ports per src ip 0.074 0.156 0
70 protos out 3 0.065 0.130 1
101 top4 out 0.030 0.024
105 top3 in 0.030 0.029
104 top2 in 0.023 0.109
107 top5 in 0.023 0.059
13 max duration out 0.020 0.005 280.53
102 top5 out 0.020 0.078
(b) Anomaly2:, Sunday
TABLE II: Contributions and feature values for top two anomalies in netflow data. The contributions in bold are the top ones.

Identifying anomalies from netflow records is a time consuming and laborious (and thus error-prone) task. Since our method is able to systematically provide a basic explanation (in terms of features) of why some of the anomalies were identified as such, the internal security expert who we consult is convinced that our method is trustworthy and practical. As noted earlier, several of the IP addresses exhibited multiple distinct anomalous behaviors, as well as benign characteristics such as the persistent TCP connections for certain applications. As future work the expert recommended investigating how to systematically discern between multiple anomalies involving a single IP address, to make it easier for a security analyst to understand which are malicious and require their attention, and which are benign and can be ignored. This would accelerate an analyst’s ability to respond faster to malicious activities, and therefore improve the security of the analyst’s organizations.

Iv-G Evaluation on Android Malware Data Set

Finally, we evaluate ACE and ACE-KL on the Android malware data set[42]. This data set captures various features related to app activities, including their installation methods, activation mechanisms as well as their susceptibility to carry malicious payloads. In this data set, each example is a numeric, binary vector of 122 dimensions, representing features for malware detection. Peng et al. [27]

successfully built probabilistic generative models for ranking risks of those Android malwares in a semi-supervised learning setting by using a large amount of additional unlabeled data. The risk scoring procedure is a form of anomaly detection, and the risk scores equate to anomaly scores. Thus, in this evaluation, we used the pre-built hierarchical mixture of naive Bayes (HMNB) model

[27] as the black-box model to generate an anomaly score, and applied our approach to explain the anomaly. As the HMNB model calculates the likelihood of a malware in the population, we use the negative log-likelihood as the anomaly score.

We inspected the four malwares that obtained the highest anomaly score by using the pre-trained HMNB model. Before we analyzed the anomalies using ACE and ACE-KL, all the s in the features were replaced by s, as a feature will result in a constant contribution of a feature. The contributions of each feature is calculated using ACE and ACE-KL. The final results are presented in Fig 5. The feature indices are sorted by the contributions calculated by ACE, and we only show the top 10 features. In all four cases, ACE and ACE-KL produce consistent contributions, although their results differ from LIME.

(c) Anomaly 1
(d) Anomaly 2
(e) Anomaly 3
(f) Anomaly 4
Fig. 5: Contribution analysis on four anomalies in Android malware data. We only show the top 10 features that contribute most significantly to the anomaly score in terms of percentage.

To gain a better understanding of the difference between ACE, ACE-KL and LIME, we show the probability mass graph of all the features as the contributions for Malware 1 in Figure 6

. As stated, both ACE and ACE-KL identified the same features that contribute most to the anomaly. Further, the contribution distribution induced by ACE-KL forms a more skewed distribution, highlighting those features that contribute most to the anomaly while neglecting those with small contributions. In contrast, the contribution distribution calculated by LIME is relatively flat compared to ACE and ACE-KL.

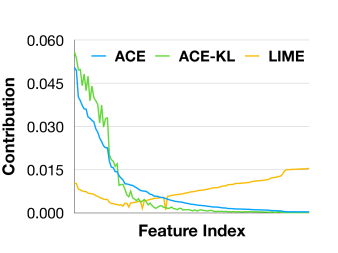

Fig. 6: Probability mass function for each feature in Malware 1. This forms the whole contribution distribution to the anomaly score for this Malware.

Anomaly Remediation: Although the Android Malware data set is labeled with anomalies, the contributing features to these anomalies are unknown, making it difficult to validate our results. To get some degree of validation, we conducted additional experiments which we call “anomaly remediation”. Essentially, we change input feature values (flip binary features) to repair a particular anomaly, i.e., to see if the anomaly score reduces significantly for a particular example.

In these experiments, we first flip the top 10 binary contributing features detected by ACE (or ACE-KL, in all four cases the top 10 features are identical for ACE and ACE-KL) for the four anomalies, and the top 10 features selected by LIME. We also randomly sample 10 features among all the 112 features, and flip them. Our conjecture is as follows: if the true features causing the Android app to be classified as malware correspond to those detected by ACE, then fixing the anomaly (by flipping the features) should result in much higher drop in the anomaly score than if the 10 features were randomly picked. The results of our experiments are summarized in Figure

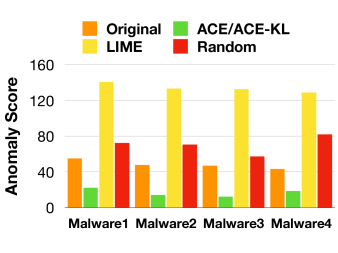

Fig. 7: Comparison of original anomaly scores, the scores after anomaly remediation for ACE/ACE-KL and LIME, and the scores after random feature selection. Remediation with ACE/ACE-KL greatly reduces the anomaly score after the correct features contributing mostly to the anomaly score are identified, while LIME and randomly choosing a feature to remedy increase the anomaly score (by flipping a feature that does not contributing significantly to the anomaly originally).

As can be seen in Figure 7, by flipping the top 10 features detected by ACE/ACE-KL, the anomaly scores generated by the well-trained black-box model significantly drop for all four malwares. If we randomly pick the 10 features, the anomaly scores increase for all the four malwares. This is expected since only a small number of features are likely to cause a particular anomaly, and random sampling is more likely to select non-contributing features. Surprisingly, remediation of the top 10 features selected by LIME result in a higher increase in the score than random selection, which further shows LIME is not suitable for this problem. We suspect this is likely because LIME only considers the weight vector of the regression framework, neglecting the importance of whether the feature is 1 or -1.

V Conclusions

In this paper we proposed methods for explaining results of complex security anomaly detection models in terms of feature contributions, which we define as the percentage of a particular feature contributing to the anomaly score. Based on our experimental results on synthetic and real data sets, we demonstrated that ACE consistently outperforms the baseline approaches for anomaly detection explanation. ACE-KL helps provide a simpler explanation focusing on the most significant contributors. Both approaches have valuable applications in the area of anomaly detection explanation in security. In the future, we plan to further validate our approach in other security problems and other domains.


  • [1] D. Baehrens, T. Schroeter, S. Harmeling, M. Kawanabe, K. Hansen, and K. MÞller (2010) How to explain individual classification decisions. JMLR. Cited by: §II.
  • [2] D. S. Berman, A. L. Buczak, J. S. Chavis, and C. L. Corbett (2019) A survey of deep learning methods for cyber security. Information 10 (4), pp. 122. Cited by: §I.
  • [3] O. Biran and C. Cotton (2017) Explanation and justification in machine learning: a survey. In IJCAI-17 Workshop on Explainable AI (XAI), Cited by: §II.
  • [4] S. Boyd and L. Vandenberghe (2004) Convex optimization. Cambridge University Press, New York, NY, USA. Cited by: §III-D.
  • [5] R. Caruana, Y. Lou, J. Gehrke, P. Koch, M. Sturm, and N. Elhadad (2015) Intelligible models for healthcare: predicting pneumonia risk and hospital 30-day readmission. In Proc. of the International Conference on Knowledge Discovery and Data Mining (KDD), Cited by: §I.
  • [6] V. Chandola, A. Banerjee, and V. Kumar (2009) Anomaly detection: a survey. CSUR. Cited by: §II.
  • [7] Z. Cui, F. Xue, X. Cai, Y. Cao, G. Wang, and J. Chen (2018) Detection of malicious code variants based on deep learning. IEEE Transactions on Industrial Informatics 14 (7), pp. 3187–3196. Cited by: §I.
  • [8] (2019)(Website) External Links: Link Cited by: §I.
  • [9] F. Doshi-Velez and B. Kim (2017) Towards a rigorous science of interpretable machine learning. ArXiv e-prints. Cited by: §II.
  • [10] C. Dugas, Y. Bengio, F. Bélisle, C. Nadeau, and R. Garcia (2000) Incorporating second-order functional knowledge for better option pricing. In Proc. of the Conference on Advances in Neural Information Processing Systems (NIPS), Cited by: §III-C.
  • [11] R. Féraud and F. Clérot (2002) A methodology to explain neural network classification. Neural Networks. Cited by: §II.
  • [12] J. Glasser and B. Lindauer (2013) Bridging the gap: a pragmatic approach to generating insider threat data. In IEEE SPW, Cited by: §IV-A.
  • [13] (2018)(Website) External Links: Link Cited by: §I.
  • [14] R. Guidotti, A. Monreale, S. Ruggieri, D. Pedreschi, F. Turini, and F. Giannotti (2018) Local Rule-Based Explanations of Black Box Decision Systems. ArXiv e-prints. Cited by: §II.
  • [15] R. Guidotti, A. Monreale, S. Ruggieri, F. Turini, F. Giannotti, and D. Pedreschi (2018-08) A survey of methods for explaining black box models. CSUR (5). Cited by: §II.
  • [16] S. Hara, T. Katsuki, H. Yanagisawa, T. Ono, R. Okamoto, and S. Takeuchi (2017) Consistent and efficient nonparametric different-feature selection. In

    Proc. of the International Conference on Artificial Intelligence and Statistics (AISTATS)

    Cited by: §II.
  • [17] S. Hara, T. Morimura, T. Takahashi, H. Yanagisawa, and T. Suzuki (2015) A consistent method for graph based anomaly localization. In Proc. of the International Conference on Artificial Intelligence and Statistics (AISTATS), Cited by: §II.
  • [18] S. Hirose, K. Yamanishi, T. Nakata, and R. Fujimaki (2009) Network anomaly detection based on eigen equation compression. In Proc. of the International Conference on Knowledge Discovery and Data Mining (KDD), Cited by: §II.
  • [19] T. Idé, A. C. Lozano, N. Abe, and Y. Liu (2009) Proximity-based anomaly detection using sparse structure learning. In SDM, Cited by: §II.
  • [20] R. Jiang, H. Fei, and J. Huan (2011) Anomaly localization for network data streams with graph joint sparse pca. In Proc. of the International Conference on Knowledge Discovery and Data Mining (KDD), Cited by: §II.
  • [21] I. Kononenko, E. Štrumbelj, Z. Bosnić, D. Pevec, M. Kukar, and M. Robnik-Šikonja (2013) Explanation and reliability of individual predictions. Informatica. Cited by: §II.
  • [22] W. Landecker, M. D. Thomure, L. M. Bettencourt, M. Mitchell, G. T. Kenyon, and S. P. Brumby (2013) Interpreting individual classifications of hierarchical networks. In IEEE Symposium on CIDM, Cited by: §II.
  • [23] B. Lindauer, J. Glasser, M. Rosen, K. C. Wallnau, and L. ExactData (2014) Generating test data for insider threat detectors.. Journal of Wireless Mobile Networks, Ubiquitous Computing, and Dependable Applications. Cited by: §IV-A.
  • [24] Z. C. Lipton (2018) The mythos of model interpretability. Queue. Cited by: §II.
  • [25] S. M. Lundberg and S. Lee (2017) A unified approach to interpreting model predictions. In Proc. of the Conference on Advances in Neural Information Processing Systems (NIPS), Cited by: §II.
  • [26] D. Martens, J. Huysmans, R. Setiono, J. Vanthienen, and B. Baesens (2008)

    Rule extraction from support vector machines: an overview of issues and application in credit scoring

    In Rule extraction from support vector machines, Cited by: §II.
  • [27] H. Peng, C. Gates, B. Sarma, N. Li, Y. Qi, R. Potharaju, C. Nita-Rotaru, and I. Molloy (2012) Using probabilistic generative models for ranking risks of android apps. In CCS, Cited by: §IV-G.
  • [28] B. Poulin, D. Eisner, P. Lu, R. Greiner, D. S Wishart, A. Fyshe, B. Pearcy, C. MacDonell, and J. Anvik (2006) Visual explanation of evidence with additive classifiers. In National Conference on Artificial Intelligence, Cited by: §II.
  • [29] M. T. Ribeiro, S. Singh, and C. Guestrin (2016) ”Why should i trust you?”: explaining the predictions of any classifier. In Proc. of the International Conference on Knowledge Discovery and Data Mining (KDD), Cited by: 2nd item, §II, §III-B, §IV-D.
  • [30] M. Robnik-Šikonja and I. Kononenko (2008) Explaining classifications for individual instances. IEEE Transactions on Knowledge and Data Engineering. Cited by: §II.
  • [31] M. Robnik-Šikonja, A. Likas, C. Constantinopoulos, I. Kononenko, and E. Štrumbelj (2011) Efficiently explaining decisions of probabilistic rbf classification networks. In International Conference on Adaptive and Natural Computing Algorithms, Cited by: §II.
  • [32] Y. Shi (2012) China’s national personal credit scoring system: a real-life intelligent knowledge application. In Proc. of the International Conference on Knowledge Discovery and Data Mining (KDD), Cited by: §I.
  • [33] A. Shiravi, H. Shiravi, M. Tavallaee, and A. A. Ghorbani (2012) Toward developing a systematic approach to generate benchmark datasets for intrusion detection. Computer Security. Cited by: §IV-A.
  • [34] E. Strumbelj and I. Kononenko (2010) An efficient explanation of individual classifications using game theory. JMLR. Cited by: §II.
  • [35] H. J. Suermondt (1992) Explanation in bayesian belief networks. Ph.D. Thesis, Stanford University. Cited by: §II.
  • [36] (2018)(Website) External Links: Link Cited by: §I.
  • [37] A. Tuor, S. Kaplan, B. Hutchinson, N. Nichols, and S. Robinson (2017) Deep learning for unsupervised insider threat detection in structured cybersecurity data streams. In AAAI Workshop on AI for Cybersecurity Workshop, Cited by: §I, §IV-B, §IV-E.
  • [38] K. Veeramachaneni, I. Arnaldo, V. Korrapati, C. Bassias, and K. Li (2016) AI: training a big data machine to defend. In BigDataSecurity, HPSC and IDS, Cited by: §I.
  • [39] M. M. -C. Vidovic, N. Görnitz, K. Müller, and M. Kloft (2016) Feature Importance Measure for Non-linear Learning Algorithms. ArXiv e-prints. Cited by: §II.
  • [40] W. H. Woodall, R. Koudelik, K. Tsui, S. B. Kim, Z. G. Stoumbos, and C. P. C. MD (2003) A review and analysis of the mahalanobis—taguchi system. Technometrics. Cited by: §II.
  • [41] M. Yousefi-Azar, V. Varadharajan, L. Hamey, and U. Tupakula (2017) Autoencoder-based feature learning for cyber security applications. In 2017 International joint conference on neural networks (IJCNN), pp. 3854–3861. Cited by: §I.
  • [42] Y. Zhou and X. Jiang (2012) Dissecting android malware: characterization and evolution. In IEEE Symposium on SP, Cited by: §IV-A, §IV-G.

Vi Appendix: Additional Experimental Results

Vi-a Perturb One Feature for CERT

In this section we present the experimental results of applying different anomaly explanation methods by perturbing only one of the twelve features in the CERT data set as an injected anomaly in Figure 8. The left column shows the contributions of each feature calculated by the anomaly explanation method, and the right column the KL-divergence between the distribution of the calculated contributions and the uniform distribution. As we can see from Figure 8, ACE and ACE-KL perform well across all six examples consistently, while Autoencoder and LIME fail to capture the contribution of the anomaly in some cases even there is only one anomaly feature.

(a) Features 0 is perturbed.
(b) Features 2 is perturbed.
(c) Features 4 is perturbed.
(d) Features 6 is perturbed.
(e) Features 8 is perturbed.
(f) Features 10 is perturbed.
Fig. 8: Feature contribution calculated by different methods on 6 synthetic examples, where each of them has one feature perturbed. The left side are the contributions of each feature calculated using different method, and the right side are the KL-divergence for each method.

Vi-B Perturb Two Feature for CERT

In this section, we present the experimental results of applying different anomaly explanation methods by perturbing two of the twelve features in the CERT data set as an injected anomaly in Figure 9. As previously described, the left column shows the contributions of each feature calculated by anomaly explanation method, and the right column the KL-divergence between the distribution of the calculated contributions and the true distribution. As seen from Figure 9, ACE and ACE-KL perform well across all four examples consistently, while Autoencoder only captures the second anomaly in the third and the fourth examples, and LIME fails to capture any of the anomalies in an accurate manner, with higher KL-divergence compared to the true distribution. These results further empirically support our claim that LIME is not suitable for anomaly explanation in the security domain while ACE and ACE-KL are very powerful tools in this application domain.

(a) Features 0, 1 are perturbed.
(b) Features 0, 2 are perturbed.
(c) Features 0, 3 are perturbed.
(d) Features 0, 4 are perturbed.
Fig. 9: Feature contribution calculated by different methods on 4 synthetic examples, where each of them has two features perturbed. The left side are the contributions of each feature calculated using different method, and the right side are the KL-divergence for each method.
