I Introduction

In recent years, unmanned aerial vehicle (UAV) has attracted a lot of interests in wireless communication due to its high mobility, flexible deployment and low cost[1, 2, 3, 4]. Because of the broadcast characteristic of wireless signals, secure wireless transmission in UAV networks is a very challenging problem[5]. In the last decade, physical-layer security (PLS) has been heavily and widely investigated in wireless networks [6, 7, 8, 9, 10, 11, 12, 13]. In [6], from information-theoretical viewpoint, Wyner first proved and claimed that secrecy capacity may be achievable if the eavesdropping channel is weaker than the desired one. Recently, there are some studies of focusing on the security of UAV systems. In [9]

, the authors combined the transmission outage probability and secrecy outage probability as a performance metric to optimize the power allocation (PA) strategy. In addition, the authors in

[14] utilized the UAV as a mobile relay node to improve secure transmission, where an iterative algorithm based on difference-of-concave program was also developed to circumvent the non-convexity of secrecy rate (SR) maximization.

Since the channel from ground base station Alice to UAV Bob can be usually regarded as line-of-sight (LoS) link, directional modulation (DM) technology can be naturally applied to UAV networks[15, 16]. As one of the key techniques in PLS, DM is recently attracted an ever-increasing attention from both academia and industry world[17, 18, 19]. To enhance the PLS in DM networks, the artificial noise (AN) is usually exploited to degrade the eavesdropping channel[20, 21, 22]. The authors in [23] first introduced the null-space projection method to project the AN along the eavesdropping direction on the null-space of the steering vector. In the multicast scenario, the leakage-based method is adopted to design both the precoding vector and AN projection matrix[11]. In order to maximize the SR, a general power iterative (GPI) scheme was proposed in [24] to optimize both the useful precoding vector and the AN projection matrix. In DM systems, to implement the DM synthesis, the directional angle should be measured in advance. This generates measurement errors[25]. In the presence of angle measurement errors, the authors in [26, 27] proposed two robust DM synthesis beamforming schemes to exploit the statical property of these errors. Actually, the two method achieved a substantial SR improvement over existing non-robust ones. And in the absence of the statistical distribution of measurement error, a blind robust main-lobe-integration-based leakage beamformer was proposed to achieve an improved security in DM systems[28]. In [12], a random frequency diverse (RFD) array was combined with directional modulation with the aid of AN to achieve a secure precise wireless transmission (SPWT). To reduce the circuit cost and complexity of SPWT receiver, the authors in [13] replaced RFD with random subcarrier selection to achieve a SPWT.

Given the fixed beamforming vector and AN projection matrix, PA between confidential messages and AN will have a direct impact on SR performance as shown in the following literature. In [29], the authors first derived the secrecy outage probabilities (SOPs) for the on-off transmission scheme and the adaptive transmission scheme. Using the SOPs, the optimal PA was presented to maximize the SR. Given matched-filter precoder and the NSP of AN, a PA strategy of maximizing secrecy rate (Max-SR) was proposed and shown to make a significant SR gain in the case of small-scale antenna array and low signal-to-noise ratio (SNR) region in [30].

However, in the above literatures, the beamformimg scheme and PA are independently optimized. How to establish the relationship between them? In other words, how to implement the information propagation between them? In this paper, we propose an alternative iterative structure (AIS) between PA and beamforming with the aim of improving the average SR. During the UAV’s flight from source to destination, the secrecy sum-rate (SSR) maximum problem is converted into independent subproblems per position. The subproblem of maximizing SR is a joint optimization of the beamforming vector, AN projection vector, and PA factor. This joint optimization problem is very hard. To simplify this problem, the beamforming and AN projection vectors are constructed by the leakage criterion. Then, we maximize SR to get the PA factor. Next, using the designed PA factor, the beamforming and AN projection vectors is computed again. This process is repeated until the terminal condition is satisfied. This forms the AIS proposed by us. From simulations, it follows that the proposed AIS converges quickly and achieves a substantial SR performance gain over fixed beamforming scheme plus fixed PA strategies.

The remainder of the paper is organized as follows. In Section II, we present the system model and the problem formulation. In Section III, the beamforming vector and AN projection vector are given, the PA strategy of Max-SR is derived, and the AIS is proposed. Simulation and numerical results are shown in Section IV. Finally, we draw our conclusions in Section V.

Notations: Throughout the paper, matrices, vectors, and scalars are denoted by letters of bold upper case, bold lower case, and lower case, respectively. Signs , , and represent transpose, conjugate transpose, modulus and norm, respectively. denotes the identity matrix.

Ii System Model

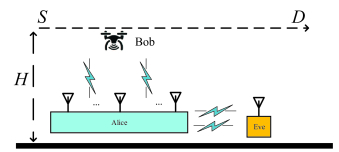

Fig. 1: Schematic diagram of UAV system with directional modulation.

In Fig. 1, a UAV network is shown. Here, a legitimate UAV user (Bob) flies along an -meters long direct link between S and D, while receives messages from the base station (Alice). On ground, Alice with transmit antennas performs as a base station, and sends confidential messages to Bob. Also there exists a potential illegal receiver Eve to wiretap confidential messages. We assume that Alice and Eve are both on the ground and are located at two fixed positions. Bob flies at an altitude of (m) above ground, with a constant moving speed (m/s), and the total flight time interval from to is (s).

As UAV Bob moves from S to D, we sample its position with equal time spacing and the total number of sampling points is . The transmit signal at sampling point is expressed as

(1)

where is the total transmit power, denotes the th sampling point, and stand for the PA parameters for confidential messages and AN, respectively. denotes the transmit beamforming vector of the confidential message to the desired direction, and is the beamforming vector of AN forwarded to the undesired direction, and . In (1), is the confidential message satisfying , and

denotes the scalar AN being a complex Gaussian random variable with zero mean and unit variance.

The corresponding receive signal at Bob can be written as

(2)

where represents the path loss from Alice to Bob, is the distance from Alice to Bob, is the path loss exponent and is the path loss at reference distance , represents the steering vector from Alice to Bob, and is the direction angle from Alice to Bob at position . The complex additive white Gaussian noise (AWGN) at Bob is denoted by .

In the same manner, the received signal at Eve is given by

(3)

where , denotes the path loss from Alice to Eve, denotes the steering vector from Alice to Eve, and means the direction angle from Alice to Eve at position . The complex AWGN at Eve is .

It should be mentioned that the steering vectors in (II) and (II) have the following form

(4)

and the phase function is defined by

(5)

where is the index of antenna, is the direction angle, represents the distance spacing between two adjacent antennas, and is the carrier wavelength of transmit signal.

As per (II) and (II), the achievable rates from Alice to Bob and to Eve at sampling position can be expressed as

and

respectively. Accordingly, the total achievable SSR of covering the flight from to can be written as

(8)

To maximize the above SSR , we need to optimize the suitable beamforming vectors and , and PA factor . Due to the independence of variables at each position , the total achievable SSR maximization problem can be equivalently decomposed into subproblems of maximizing the SR at each sample point, that is

(9)

Within the above right side summation, the term can be casted as the following complex joint optimization problem

(10)

Obviously, it is very hard to solve the above joint optimization problem. Below, we first design the and in advance by making use of rule of leakage. Provided that and are given, the optimal PA strategy of Max-SR is addressed by the a simplified version of the above optimization problem. Due to the fixed values of and , the above joint optimization reduces to a single-variable PA problem as follows

(11)

with .

Iii Proposed AIS scheme

In this section, we first compute and by using the concept of leakage. Following this, the optimal PA strategy of Max-SR will be solved by setting the first-order derivative to zero. Finally, an alternating iterative structure is established between and to further improve the SR performance. Provided that the value of is available, the beamforming vectors and are independently designed by the basic concept of leakage in [31, 32] due to their independent property that the AN leakage from Eve to Bob and the confidential message leakage from Bob to Eve.

Iii-a Design for fixed

From the aspect of Bob, we design the beamforming vector of the useful information-carried signal by minimizing its leakage to Eve. It can be expressed by the following optimization problem

(12)

where

(13)

Using the generalized Rayleigh-Ritz ratio theorem, the optimal

for maximizing the SLNR can be obtained from the eigenvector corresponding to the largest eigen-value of the matrix

(14)

Since the rank of the above matrix is one, we can directly give the closed-form solution to (III-A) as

(15)

Iii-B Design for fixed

Similar to , from the aspect of Eve, we design the beamforming vector of AN by minimizing its leakage to Bob, called maximizing AN-and-leakage-to-noise ratio (ANLNR), which is formed as

(16)

where

(17)

In accordance with the generalized Rayleigh-Ritz ratio theorem, the optimal for maximizing the ANLNR is also obtained from the eigenvector corresponding to the largest eigen-value of the matrix

(18)

which further yields

(19)

Iii-C Optimize by the Max-SR rule for fixed and

In Subsections A and B, both and are obtained by fixing the PA factor . Now, with the known values of and , by introducing the auxiliary variable , the optimization problem (II) will be casted as

(20)

where

(21)

where

(22)
(23)
(24)
(25)
(26)

with .

Optimization problem (III-C) is a non-convex program due to the first constraint, and it can be solved by one-dimensional exhaustive search method (ESM). To lower the complexity of the one-dimensional ESM, we propose a closed-form solution to optimization problem problem (III-C). Considering at , the first constraint can be rewritten as , which forms

(27)

Observing the definition of function shown in (III-C), it is very clear that is a continuous and differentiable function of variable in the closed interval . Thus, the optimal must locate at some endpoints or some stationary points. In what follows, we solve this problem in two steps: firstly, find the stationary points by vanishing the first-order derivative of ; secondly, select the optimal value of by comparing the values of among the set of candidate points to the critical number.

The critical points of can be solved by

(28)

which is further reduced to

(29)

which yields

(30)

and

(31)

where

(32)

In summary, considering , we have the candidate set for the critical number of function as follows

(33)

In what follows, we need to decide which one in set is the final solution to maximize the function . Obviously, means that . That is, the SR is equal to zero. Thus, the should be deleted from the above candidate set. We have a reduced candidate set as follows

(34)

Below, let us discuss these two stationary points , and under what condition of , i.e., the sign of value of . The first special case is , then the two real roots and will not exist. On this basis, we should check the remaining three cases as follows.
Case 1. , the rational function is a monotonously increasing function. It will achieve the maximum value at .
Case 2. , the stationary point is . We need to judge whether . While , we obtain the PA parameter by comparing the value of and . Otherwise, the optimal PA factor is selected as .
Case 3. , the rational function is a monotonously decreasing function. Therefore, the PA parameter is . This result leads to a contradiction with the reduced candidate set in (34).

As for , we need to judge whether the two candidates meeting the conditions that the PA parameter lies in the interval of (0, 1). Then, compare the values of at the endpoints and corresponding stationary points to get the optimal PA parameter. There are four different cases.
Case 1. If , , then compare the values of , and .
Case 2. If , , then compare the values of and .
Case 3. If , , then compare the values of and .
Case 4. If , , then the value of will be optimal.

After making the above comparison, we can get the optimal PA parameter of Max-SR given the values of and .

Iii-D Proposed AIS

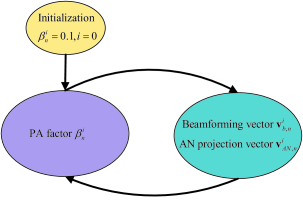

Fig. 2: Proposed AIS

To further enhance the SR performance in our system, an AIS sketched in Fig. 2 is established among , , and with an initial value of , where superscript denotes the th iteration of position . Then, the PA parameter is decided from several candidates via the discussion of different cases according to the process in Subsection C. Subsequently, using the new value of , we compute the values of and based on (15) and (19). This process will be repeated until is smaller than a predefined value. The detailed procedure is also indicated in Fig. 3.

To make clear, the iterative algorithm is summarized as Algorithm 1.

Initialization: .

  1. For given , compute the and based on (15) and (19),

  2. Solve (III-C) and discuss aforementioned two scenarios to obtain ,

  3. Update ,

  4. Compute ,

  5. Until .

Algorithm 1 Proposed alternating iterative algorithm

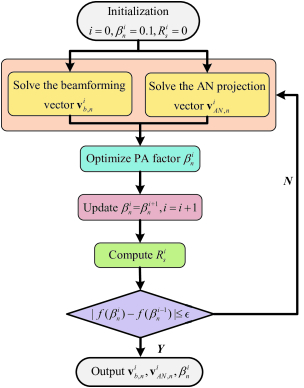

Fig. 3: Flow chart of the proposed AIS

Iv Simulation and Discussion

To evaluate the SR performance of the proposed AIS, simulation results and analysis are presented in the following. The parameters and specifications are used as follows: the spacing between two adjacent antennas is , the path loss exponent , the distance between and is =800m, the distance between Alice and Eve is 200m, the flying altitude of UAV Bob is =20m, the UAV speed is =8m/s, the sample interval =1s, and the number of sampling points .

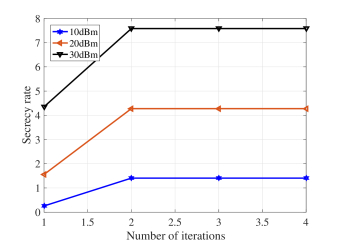

Fig. 4: SR versus number of iterations for the proposed AIS.

Fig. 4 demonstrates the convergence of the proposed AIS. From this figure, we can clearly observe that the proposed AIS can converge rapidly for three distinct transmit powers. It is very obvious that the proposed AIS can converges within one or two iterations. This convergence rate is attractive. More importantly, after convergence, the proposed AIS may achieve an excellent SR improvement before convergence.


Fig. 5: Histogram of SR versus number of antennas ( and =10dBm).

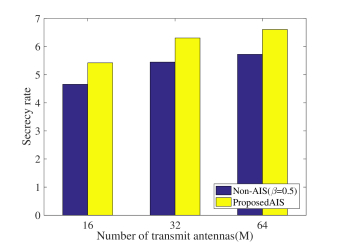

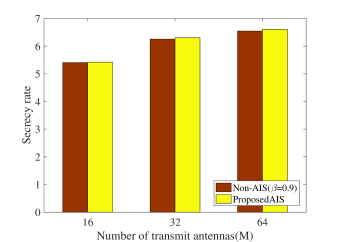

Fig. 6: Histogram of SR versus number of antennas ( and =10dBm).

Fig. 7: Histogram of SR versus number of antennas ( and =20dBm).

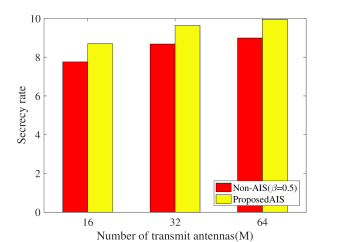

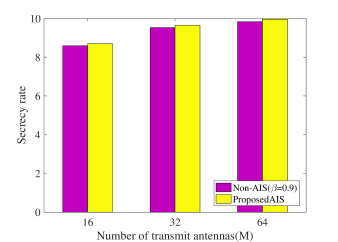

Fig. 8: Histogram of SR versus number of antennas ( and =20dBm).

Fig. 9: Histogram of SR versus number of antennas ( and =30dBm).

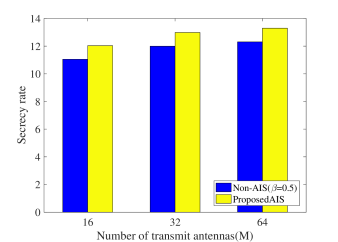

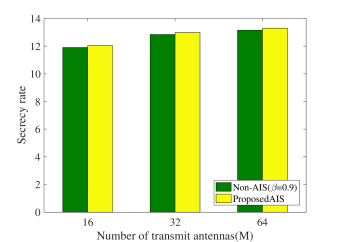

Fig. 10: Histogram of SR versus number of antennas ( and =30dBm).

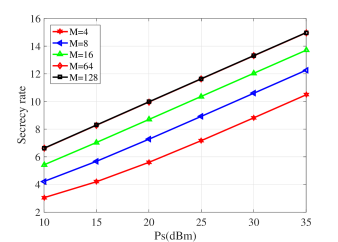

Fig. 11: SR versus of the proposed AIS.

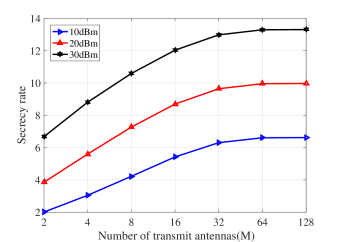

Fig. 12: SR versus number of antennas of the proposed AIS.

Fig. 5 and Fig. 6 show the histograms of SR versus number of transmit antennas of the proposed AIS with optimal PA parameter compared with Max-SLNR plus Max-ANLNR with typical fixed and for =10dBm, respectively. From the two figures, we can observe that the proposed AIS achieves a substantial and slight SR performance gains over Max-SLNR plus Max-ANLNR with fixed , and , respectively.

Next, in Fig. 7, and Fig. 8, we increase up to 20dBm. From the two figures, it can be clearly seen that the proposed AIS still shows an appreciated improvements over Max-SLNR plus Max-ANLNR with typical fixed and , respectively.

Lastly, in Fig. 9, and Fig. 10, the transmit power is increased up to 30dBm. From the two figures, it can be clearly seen that the proposed AIS still shows an appreciated improvements over Max-SLNR plus Max-ANLNR with typical fixed and , respectively.

Fig. 11 plots the curves of SR versus for the proposed AIS with different numbers of transmit antennas. From this figure, we can see that the SR increases gradually as the transmit power for the fixed number of transmit antennas. Similarly, if we fix the transmit power, we find that increasing the number of transmit antennas will also improve the SR performance obviously. However, for a large number of antennas, the SR performance gain achieved by doubling the number of antennas becomes smaller.

Fig. 12 illustrates the curves of SR versus number of transmit antennas of the proposed AIS. In Fig. 12, given three different scenarios =10dBm, 20dBm, and 30dBm, the SR performance approaches three different ceils as the number of transmit antennas tends to be large-scale.

V Conclusion

In our work, we have investigated a UAV-enabled wireless system. An AIS is proposed to realize an iterative operation between beamforming and PA to further improve SR. Firstly, we established a complex joint optimization problem of maximizing SR. To make the complex joint optimization problem more simple, the Max-SLNR and Max-ANLNR criterion is adopted to construct the beamforming vector and the AN projection vector . Then, given the solved and , we turn to address the single-variable PA optimization problem of Max-SR. Actually, SR is regarded as a continuous and differentiable function of PA factor with being in a closed interval . By the analysis of the set of critical points, we can attain the optimal value of . Finally, a low-complexity AIS between the beamforming and AN projection vectors, and the PA factor are proposed to further enhance the secrecy rate. Simulation results show that the proposed AIS can converge rapidly, and the optimal PA strategy can substantially improve the SR performance compared with some typical PA factors such as , and . Moreover, the SR of the proposed AIS grows gradually with the increasing of the . Furthermore, our proposed AIS has achieved an appreciated SR performance gain in small-scale number of transmit antennas.
