I Introduction

Object detection in aerial images aims at identifying the locations and categories of objects of interest (e.g.

, planes, ships, vehicles). With the framework of Deep Convolutional Neural Networks (DCNNs), object detection in aerial images (ODAI) has made significant progress in recent years

[6, 25, 37, 9, 43], where most of existing methods are devoted to cope with the challenges raised by the large scale variations and arbitrary orientations of crowded objects in aerial images.

To achieve better detection performance, most state-of-the-art aerial object detectors [9, 43, 41, 38] rely on the complex R-CNN [11]

frameworks, which consist of two parts: a Region Proposal Network (RPN) and an R-CNN detection head. In a general pipeline, the RPN is used to generate high-quality Region of Interests (RoIs) from horizontal anchors, and then an RoI Pooling operator is adopted to extract accurate features from RoIs. The R-CNN is finally employed to regress the bounding boxes and classify them into different categories. However, it is worth noticing that horizontal RoIs often result in severe misalignment between bounding boxes and oriented objects

[9, 37]. For example, a horizontal RoI usually contains several instances due to oriented and densely packed objects in aerial images. A natural solution is employing oriented bounding boxes as anchors to alleviate this issue [25, 37]. As a consequence, well-designed anchors with different angles, scales and aspect ratios are required, which however leads to massive computations and memory footprint. Recently, RoI Transformer [9] was proposed to address this issue by transforming horizontal RoIs into rotated RoIs, avoiding a large number of anchors, but it still needs heuristically defined anchors and complex RoI operation.

(a) The misalignment issue and our solution
(b) Speed vs. accuracy (mAP) on DOTA test-dev
Fig. 1: (a) The misalignment (red arrows) between an anchor box (blue bounding box) and convolutional features (light blue rectangle). To alleviate this issue, we first refine the initial anchor into a rotated one (orange bounding box), and then adjust the feature sampling locations (orange points) with the guide of the refined anchor box to extract aligned deep features. The green box denotes the ground truth. (b) Performance comparisons of different methods under the same settings: ResNet50 (in small markers) and ResNet101 (in big markers) backbones, input size of images, without data augmentation. FR-CNN [31], Mask R-CNN [14], RetinaNet [20], Hybird Task Cascade (HTC) [4] and RoI Transformer (RoITrans) [9] are tested. The speed of all methods is reported on V100 GPU. Note that Mask R-CNN, HTC and RoITrans are tested based on the AerialDetection111https://github.com/dingjiansw101/AerialDetection. project. RoITrans indicates an official re-implementation.

In contrast with R-CNN based detectors, one-stage detectors regress the bounding boxes and classify them directly with regular and densely sampling anchors. This architecture enjoys high computational efficiency but often lags behind in accuracy [37]. As shown in Fig. 1 (a), we argue that severe misalignment in one-stage detectors matters:

  • Heuristically defined anchors are with low-quality and cannot cover the objects, leading a misalignment between objects and anchors. For example, the aspect ratio of a bridge usually ranges from to , and only a few or even no anchors can be assigned to it. This misalignment usually aggravates the foreground-background class imbalance and hinders the performance.

  • The convolutional features from the backbone network are usually axis-aligned with fixed receptive field, while objects in aerial images are distributed with arbitrary orientations and variant appearances. Even an anchor box is assigned to an instance with high confidence (i.e., IoU), there is still a misalignment between anchor boxes and convolutional features. In other words, the corresponding features of an anchor box are hard to represent the whole object to some extent. As a result, the final classification score can not accurately reflect the localization accuracy, which also hinders the detection performance in post-processing phase (e.g., non-maximum suppression (NMS)).

To address these issues in one-stage detectors, we propose a Single-Shot Alignment Network (SA-Net) which consists of two modules: a Feature Alignment Module (FAM) and an Oriented Detection Module (ODM). The FAM can generate high-quality anchors with an Anchor Refinement Network (ARN) and adaptively align the feature according to the corresponding anchor boxes (Fig 1(a)) with an Alignment Convolution (AlignConv). Different from other methods with densely sampling anchors, we employ only one squared anchor for each location in the feature map, and the ARN refines them into high-quality rotated anchors. Then the AlignConv, a variant of convolution, adaptively aligns the feature according to the shapes, sizes and orientations of its corresponding anchors. In the ODM, we first adopt active rotating filters (ARF) [47] to encode the orientation information and produce orientation-sensitive features, and then extract orientation-invariant features by pooling the orientation-sensitive features. Finally, we feed the features into a regression sub-network and a classification sub-network to yield the final predictions. Besides, we also explore the approach to detect objects on large-size images (e.g., ) rather than on chip images, which significantly reduces the overall inference time with negligible loss of accuracy. Extensive experiments on commonly used datasets, i.e., DOTA [37] and HRSC2016 [26], demonstrate that our proposed method can achieve state-of-the-art performance while keeping high efficiency, see Fig 1 (b).

Our main contributions are summarized as follows:

  • We propose a novel Alignment Convolution to alleviate the misalignment between axis-aligned convolutional features and arbitrary oriented objects in a fully convolutional way. Note AlignConv has negligible extra consuming time compared with standard convolution and can be embedded into many detectors with little modification.

  • With the Alignment Convolution embedded, we design a light Single-Shot Alignment Network which enables us to generate high-quality anchors and aligned features for accurate object detection in aerial images.

  • We report mAP on the oriented object detection task on the DOTA dataset, achieving the state-of-the-art in both speed and accuracy.

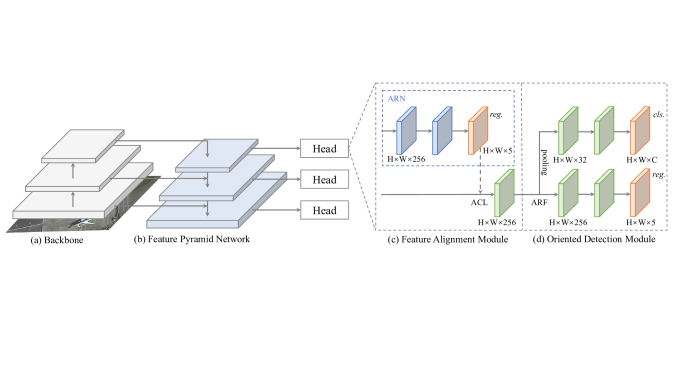

Fig. 2: Architecture of the proposed SA-Net. SA-Net consists of a backbone network, a Feature Pyramid Network [20], a Feature Alignment Module (FAM) and an Oriented Detection Module (ODM). The FAM and ODM make up the detection head which is applied to each scale the the feature pyramid. In FAM, the Anchor Refinement Network (ARN) is proposed to generate high-quality rotated anchors. Then we feed the anchors and input features into the Alignment Convolution Layer (ACL) to extract aligned features. Note we only visualize the regression (reg.) branch of ARN and ignore the classification (cls.) branch for simplification. In ODM, we first adopt active rotating filters (ARF) [47] to generate orientation-sensitive features, and pool the features to extract orientation-invariant features. Then a cls. branch and a reg. branch are applied to produce the final detections.

Ii Related Works

With the advance of machine learning, especially deep learning, object detection has made significant progress in recent years, which can be roughly divided into two groups: two-stage detectors and one-stage detectors. Two-stage detectors

[11, 13, 31, 14] first generate a sparse set of RoIs in the first stage, and perform an RoI-wise bounding box regression and object classification in the second one. One-stage detectors, e.g., YOLO [30] and SSD [23], detect objects directly and do not require the RoI generation stage. Generally, the performance of one-stage detectors usually lag behind two-stage detectors due to extreme foreground-background class imbalance. To address this problem, the Focal Loss [20] can be used, and anchor-free detectors [17, 46, 42] alternatively formulate object detection as a points detection problem to avoid complex computations related to anchors and usually run faster.

Ii-a Object Detection in Aerial Images

Objects in aerial images are often crowded, distribute with large scale variations and appear at arbitrary orientations. Generic object detection methods with horizontal anchors [37] usually suffer from severe misalignment in such scenarios: one anchor/RoI may contain several instances. Some methods [25, 24, 28] adopt rotated anchors with different angles, scales and aspect ratios to alleviate this issue, while involving heavy computations related to anchors (e.g., bounding box transform and ground truth matching). Ding et al. [9] propose RoI Transformer to transform horizontal RoIs into rotated RoIs, which avoids a large number of anchors and alleviates the misalignment issue. However, it still needs heuristically defined anchors and complex RoI operations. Instead of employing rotated anchors, Xu et al. [38] glide the vertex of the horizontal bounding box to accurately describe an oriented object. But the corresponding feature of a RoI is still horizontal and suffers from the misalignment issue. Recently proposed RDet [40] samples features from five locations (e.g., center and corners) of the corresponding anchor box and sum them up to re-encode the position information. In contrast with the above methods, the proposed SA-Net in this paper gets ride of heuristically defined anchors and can generate high-quality anchors by refining horizontal anchors into rotated anchors. Besides, the proposed FAM module enables to achieve feature alignment in a fully convolutional way.

Ii-B Feature Alignment in Object Detection

Feature alignment usually refers to the alignment between convolution features and anchor boxes/RoIs, which is important for both two-stage and one-stage detectors. Detectors relying on misaligned features are hard to obtain accurate detections. In two-stage detectors, an RoI operator (e.g., RoIPooling [13], RoIAlign [14] and Deformable RoIPooling [7]

) is adopted to extract fixed-length features inside the RoIs which can approximately represent the location of objects. RoIPooling first divides an RoI into a grid of sub-regions and then max-pools each sub-region into the corresponding output grid cell. However, RoIPooling quantizes the floating-number boundary of an RoI into integer, which introduces misalignment between the RoI and the feature. To avoid the quantization of RoIPooling, RoIAlign adopts bilinear interpolation to compute the extract values at each sampling location in sub-regions, significantly boosting the performance of localization. Meanwhile, Deformable RoIPooling adds an offset to each sub-region of an RoI, enabling adaptive feature selection. However, the RoI operator usually involves massive region-wise operation,

e.g., feature warping and feature interpolation, which becomes a bottleneck toward fast object detection.

Recently, Guided Anchoring [34] tries to align features with the guide of anchor shapes. It learns an offset field from the anchor prediction map and then guides the Deformable Convolution (DeformConv) to extract aligned features. AlignDet [5] designs an RoI Convolution to obtain the same effect as RoIAlign in one-stage detector. Both [34] and [5] achieve feature alignment in a fully convolutional way and enjoy high efficiency. These methods work well for objects in nature images but often lose their performance when detecting objects that are oriented and densely packed in aerial images, although some of them (e.g., Rotated RoIPooling [28] and Rotated Position Sensitive RoIAlign [9]) have been adopted to achieve feature alignment in oriented object detection. Different from the aforementioned methods, our proposed method aims at alleviating the misalignment between axis-aligned convolutional features and arbitrary oriented objects, which adjusts the feature sampling locations with the guide of anchor boxes.

Ii-C Inconsistency between Regression and Classification

An object detector usually consists of two parallel tasks: bounding-box regression and object classification, which share the same features from the backbone network. And the classification score is used to reflect the localization accuracy in a post-processing phase (e.g., NMS). However, as discussed in [16] and [36], there is a common inconsistency between classification score and localization accuracy. Detections with high classification scores may produce bounding boxes with low localization accuracy. While other nearby detections with high localization accuracy may be suppressed in the NMS step. To address this issue, IoU-Net [16]

proposed to learn to predict the IoU of a detection as the localization confidence and then combine the classification score and localization confidence as the final probability of a detection. Double-Head R-CNN

[36] adopts different head architectures for different tasks, i.e., fully connected head for classification and convolution head for regression. In our methods, we aim to improve the classification score by extracting aligned features for each instance. Especially when detecting densely packed objects in aerial images, accurate features are important to robust classification and precise localization. Besides, as discussed in [36], shared features from the backbone are not suitable for both classification and localization. Inspired by [47] and [18], we first adopt active rotating filters to encode the orientation information and then extract orientation-sensitive features and orientation-invariant features for regression and classification, respectively.

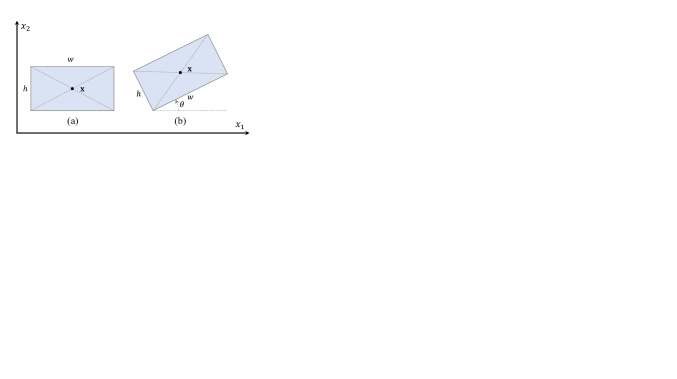

Fig. 3: Two types of bounding box. (a) Horizontal bounding box with center point , width and height . (b) Oriented bounding box . denotes the center point. and represent the long side and short side of a bounding box, respectively. means the angle from the position direction of to the direction of where . And an oriented bounding box turns to a horizontal one when , e.g., .
(a) (b) (c) (d)
Fig. 4: Illustration of the sampling locations in different methods with 33 kernel. (a) is the standard 2D convolution. (b) is Deformable Convolution [7]. (c) and (d) are two examples of our proposed AlignConv with horizontal and rotated anchor box (orange rectangle), respectively.

Iii Proposed Method

In this section, we first enable RetinaNet for oriented object detection and select it as our baseline in Section III-A. We then detail the Alignment Convolution in Section III-B. The architectures of Feature Alignment Module and Oriented Detection Module are presented in Section III-C and Section III-D, respectively. Finally, we show details of the proposed SA-Net in both training and inference phase. The overall architecture is shown in Fig. 2. And the code is available at https://github.com/csuhan/s2anet.

Iii-a RetinaNet as Baseline

We choose a representative single-shot detector, RetinaNet [20] as our baseline. It consists of a backbone network and two task-specific subnetworks. Feature pyramid network (FPN) [19] is adopted as the backbone network to extract multi-scale features. Classification and regression subnetworks are fully convolutional networks with several (i.e., 4) stacked convolution layers. Moreover, Focal loss is proposed to address the extreme foreground-background class imbalance during training.

Note that RetinaNet is designed for generic object detection, outputting horizontal bounding box (Fig. 3 (a)) represented as,

with as the center of the bounding box. In order to compatible with oriented object detection, we replace the regression output of the RetinaNet with oriented bounding box (Fig. 3 (b)) as,

where denotes the angle from the position direction of to the direction of the width  [9]. All other settings keep unchanged with original RetinaNet.

Iii-B Alignment Convolution

In a standard 2D convolution, we first sample over the input feature map defined on by a regular grid , and then sum up the sampled values weighted by . For example, the grid represents a kernel size and dilation 1. For each location on the output feature map , we have

(1)

Compared with standard convolution, Alignment Convolution (AlignConv) adds an additional offset field for each location , that is

(2)

As shown in Fig. 4 (c) and (d), for location , the offset field is calculated as the difference between anchor-based sampling locations and regular sampling locations (i.e., ). Let represent the corresponding anchor box at location . For each , the anchor-based sampling location can be defined as

(3)

where indicates the kernel size,

denotes the stride of the feature map, and

is the rotation matrix, respectively. The offset field at location is

(4)

In this way, we can transform the axis-aligned convolutional features of a given location into arbitrary oriented ones based on the corresponding anchor box.

Comparisons with other convolutions. As shown in Fig. 4, standard convolution samples over the feature map by a regular grid. DeformConv learns an offset field to augment the spatial sampling locations. However, it may sample from wrong locations with weak supervision, especially for densely packed objects. Our proposed AlignConv extracts grid-distributed features with the guide of anchor boxes by adding an additional offset field. Different from DeformConv, the offset field in AlignConv is inferred from the anchor boxes directly. The examples in Fig. 4 (c) and (d) illustrate that our AlignConv can extract accurate features inside the anchor boxes.

Iii-C Feature Alignment Module (FAM)

This section introduces the FAM that consists of an Anchor Refinement Network and an Alignment Convolution Layer, illustrated in Fig. 2 (c).

Anchor Refinement Network. The Anchor Refinement Network (ARN) is a light network with two parallel branches: an anchor classification branch (not shown in the figure) and an anchor regression branch. The anchor classification branch classifies anchors into different categories and the anchor regression branch refines horizontal anchors into rotated anchors with high-quality. By default, the classification branch is discarded in the inference phase to speed up the model. But for a fast version of SA-Net (see Section IV-D), the output of the classification branch is reserved to suppress false predictions in NMS. Following the one-to-one fashion in anchor-free detectors, we preset one squared anchor for each location in the feature map. And we do not filter out the predictions with low confidence because we notice that some negative predictions turn to positive in the final predictions.

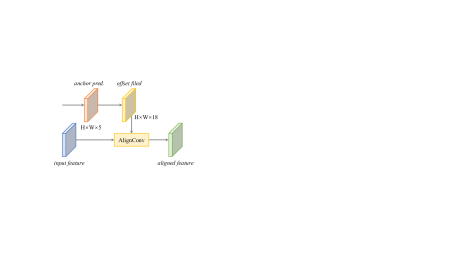

Fig. 5: Alignment Convolution Layer. It takes the input feature and the anchor prediction (pred.) map as input and output the aligned feature.

Alignment Convolution Layer. With AlignConv embedded, we forms an Alignment Convolution Layer (ACL) which is shown in Fig. 5. Specifically, for an anchor prediction map, we first decode the relative offset into the absolute anchor boxes . Then the offset field calculated by Eq. (4) along with the input feature are fed into AlignConv to extract aligned features. Note that for each anchor box, we sample 9 (i.e., 3 rows and 3 columns) points to obtain the offset field with a channel of 18 (i.e., the horizontal and vertical offset of 9 points). It should be emphasized that ACL is a light convolution layer with negligible speed latency in offset field calculating.

Iii-D Oriented Detection Module (ODM)

As shown in Fig. 2 (d), the Oriented Detection Module (ODM) is proposed to alleviate the inconsistency between classification score and localization accuracy and then performs accurate object detection. We first adopt active rotating filters (ARF) [47] to encode the orientation information. An ARF is a filter that actively rotates times during convolution to produce a feature map with orientation channels ( is 8 by default). For a feature map and an ARF , the -th orientation output of can be denoted as

(5)

where is the clockwise -rotated version of , and are the -th orientation channel of and , respectively. Applying ARF to the convolution layer, we can obtain orientation-sensitive feature with explicitly encoded orientation information. The bounding box regression task benefits from the orientation-sensitive feature, while the object classification task requires invariant features. Following [47], we aims to extract orientation-invariant feature by pooling the orientation-sensitive feature. This is simply done by choosing the orientation channel with the strongest response as the output feature .

(6)

In this way, we can align the feature of objects with different orientations, toward robust object classification. Compared with the orientation-sensitive feature, the orientation-invariant feature is efficient with fewer parameters. For example, an feature map with 8 orientation channels becomes after pooling. Finally, we feed the orientation-sensitive feature and orientation-invariant feature into two subnetworks to regress the bounding boxes and classify the categories, respectively.

Iii-E Single-Shot Alignment Network

We adopt RetinaNet as the baseline, including its network architecture and most parameter settings, and form SA-Net based on the combination of FAM and ODM. In the following, we detail SA-Net in both training and inference phase.

Regression targets. Following previous works, we give the parameterized regression targets as:

(7)

where , are for the ground-truth box and the anchor box respectively (likewise for ). And is an integer to ensure (see Fig. 3). In FAM, we set to represent a horizontal anchor. Then the regression targets can be expressed by Eq. (7). In ODM, we first decode the output of FAM and then re-compute the regression targets by Eq. (7).

Matching strategy. We adopt IoU as the metrics, and an anchor box can be assigned to positive (or negative) if its IoU greater than a foreground threshold (or less than a background threshold, respectively). Different from the IoU between horizontal bounding boxes, we calculate the IoU between two oriented bounding boxes. By default, we set foreground threshold as and background threshold as in both FAM and ODM.

Loss function. The loss of SA-Net is a multi-task one which consists of two parts, i.e.

, the loss of FAM and the loss of ODM. For each part, we assign a class label to each anchor/refined anchor and regress its location. The loss function can be defined as:

(8)

where is a loss balance parameter, is an indicator function, and are the numbers of positive samples in the FAM and ODM respectively, is the index of a sample in a mini-batch. and are the predicted category and refined locations of the anchor in FAM. and are the predicted object category and locations of the bounding box in ODM. and are the ground-truth category and locations of the anchor . The Focal loss [20] and smooth loss are adopted as the classification loss and the regression loss , respectively.

Inference. SA-Net is a fully convolutional network and we can simply forward an image through the network without complex RoI operation. Specifically, we pass the input image to the backbone network to extract pyramid features. Then the pyramid features are fed into FAM to produce refined anchors and aligned features. After that, ODM encodes the orientation information to produce the predictions with high confidence. Finally, we choose top- (i.e., 2000) predictions and adopt NMS to yield the final detections.

Iv Experiments and Analysis

Iv-a Datasets

DOTA [37]. It is a large aerial image dataset for oriented objects detection which contains 2806 images with the size ranges from to and 188282 instances of 15 common object categories includes: Plane (PL), Baseball diamond (BD), Bridge (BR), Ground track field (GTF), Small vehicle (SV), Large vehicle (LV), Ship (SH), Tennis court (TC), Basketball court (BC), Storage tank (ST), Soccer-ball field (SBF), Roundabout (RA), Harbor (HA), Swimming pool (SP), and Helicopter (HC).

Both training and validation sets are used for training, and the testing set is used for testing. Following [37], we crop a series of patches from original images with a stride of 824. We only adopt random horizontal flipping during training to avoid over-fitting and no other tricks are utilized if not specified. For fair comparison with other methods, we adopt data augmentation (i.e., random rotation) in the training phase. For multi-scale experiments, we firstly resize original images at three scales (0.5, 1.0 and 1.5) and then crop them into 10241024 patches with a stride of 512.

HRSC2016 [26]. It is a high resolution ship recognition dataset annotated with oriented bounding boxes which contains 1061 images, and the image size ranges from to . We use the training (436 images) and validation (181 images) sets for training and the testing set (444 images) for testing. All images are resized to without changing the aspect ratio. Horizontal flipping is applied during training.

Iv-B Implementation Details

We adopt ResNet101 FPN as the backbone network for fair comparison with other methods, and ResNet50 FPN is adopted for other experiments if not specified. For each level of pyramid features (i.e., to ), we preset one squared anchor per location with a scale of 4 times the total stride size (i.e., 32, 64, 128, 256, 512). The loss balance parameter

is set to 1. The hyperparameters of Focal loss

are set to and . We adopt the same training schedules as Detectron [12]

. We train all models in 12 epochs for DOTA and 36 epochs for HRSC2016. SGD optimizer is adopted with an initial learning rate of 0.01 and the learning rate is divided by 10 at each decay step. The momentum and weight decay are 0.9 and 0.0001, respectively. We adopt learning rate warmup for 500 iterations. We use 4 V100 GPUs with a total batch size of 8 for training and a single V100 GPU for inference by default. The time of post-processing (

e.g., NMS) is included in all experiments.

Iv-C Ablation Studies

Model #Anchor Depth mAP Speed
(a) RetinaNet 9 4 68.05 62 ms
(b) RetineNet 9 2 67.64 58 ms
(c) RetineNet 1 2 67.00 51 ms
TABLE I: Results of different RetinaNet on DOTA. Depth indicates the number of convolution layer in two subnetworks of RetinaNet.
Methods PL BD BR GTF SV LV SH TC BC ST SBF RA HA SP HC mAP Speed
Conv 88.87 76.34 46.42 67.53 77.21 74.80 82.27 90.79 81.22 85.02 50.99 61.10 63.54 67.24 53.25 71.11 59 ms
DeformConv 88.96 80.23 45.92 67.51 77.10 74.23 84.28 90.81 81.47 85.56 54.19 64.11 64.85 68.13 48.34 71.71 60 ms
GA-DeformConv 88.72 79.56 46.19 65.41 76.86 74.96 79.44 90.78 80.99 84.73 55.31 63.17 62.07 67.69 54.12 71.33 60 ms
AlignConv 89.11 82.84 48.37 71.11 78.11 78.39 87.25 90.83 84.90 85.64 60.36 62.60 65.26 69.13 57.94 74.12 62 ms
TABLE II: Comparing Alignment Convolution (AlignConv) with other convolution methods. We compare our AlignConv with the standard convolution (Conv), Deformable Convolution (DeformConv) and Guided Anchoring Deformable Convolution (GA-DeformConv).

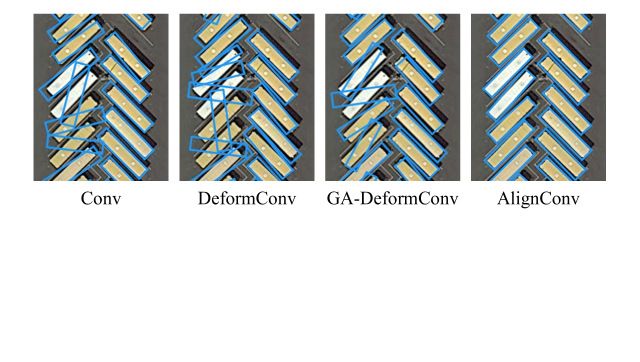

Fig. 6: Qualitative comparison of different convolution methods. The blue bounding box indicates the prediction of large vehicle.
Baseline Different Settings of SA-Net
ARN
ACL
ARF
mAP 67.00 68.26 71.17 73.24 71.11 74.12
TABLE III: Ablation studies. We choose a light RetinaNet (shown in Table I (c)) as the baseline, and experiment different settings of SA-Net, i.e., Anchor Refinement Network (ARN), Alignment Convolution Layer (ACL) and active rotating filters (ARF).
Model FAM ODM mAP Speed Size
(a) RetinaNet - - 68.05 62 ms 279 Mb
(b) SA-Net 1 1 73.04 57 ms 257 Mb
(c) SA-Net 2 2 74.12 62 ms 273 Mb
(d) SA-Net 4 4 73.30 71 ms 304 Mb
TABLE IV: Experiments of different network designs. We explore the network design in FAM and ODM with different number of convolutional layers. Setting (c) is the default setting of our proposed method shown in Fig. 2.

RetinaNet as baseline. As a single-shot detector, RetinaNet is fast enough. However, any module added to it will introduce more computations. We experiment different architectures and settings on RetinaNet. As shown in Table I (a), RetinaNet achieves a mAP of 68.05% in 62 ms, indicating that our baseline is solid. If the depth of RetinaNet head changes from 4 to 2, the mAP drops 0.41% and the inference time reduces 4 ms. Furthermore, if we set one anchor per location (Table I (c)), the inference time reduces 11% with a accuracy drop of 1.5% compared with Table I (a). The results show that a light detection head and few anchors can also achieve competitive performance and better speed-accuracy trade-off.

Effectiveness of AlignConv. As discussed in Section III-B, we compare AlignConv with other methods to validate its effectiveness. We only replace AlignConv with other convolution methods and keep other settings unchanged. Besides, we also add comparison with Guided Anchoring DeformConv (GA-DeformConv) [34]. Note that the offset field of GA-DeformConv is learned from the anchor prediction map in ARN by a convolution.

As shown in Table II, AlignConv surpasses other methods by a big margin. Compared with the standard convolution, AlignConv improves about 3% mAP while only introduces 3ms speed latency. Besides, AlignConv improves the performance for almost all categories, especially for those categories with large aspect ratios (e.g., bridge), densely distribution (e.g., small vehicles and large vehicles) and fewer instances (e.g., helicopters). On the contrary, DeformConv and GA-DeformConv only achieve 71.71% and 71.33% mAP, respectively. The qualitative comparison in Fig. 6 shows that AlignConv achieves accurate bounding box regression in detecting densely packed and arbitrary oriented objects, while other methods with implicit learning get poor performance.

Effectiveness of ARN and ARF. To evaluate the effectiveness of ARN and ARF, we experiment different settings of SA-Net. If ARN is discarded, then FAM and ODM share the same initial anchors without refinement. If ARF is discarded, we replace the ARF layer with standard convolution layer. As shown in Table III, without ARN, ACL and ARF, our method achieves 68.26% mAP, 1.26% mAP higher than the baseline method. This is mainly because we add supervision in both FAM and ODM. With the participation of ARN, we obtain 71.17% mAP, showing that anchor refinement is important to the final predictions in ODM.

Besides, we find the combination of ARN and ARF, which achieves 71.17% mAP, does nothing for performance improvement. However, if we put ACL and ARF together, there is an obvious improvement, from 73.24% to 74.12%. We argue that CNNs are not rotation-invariant, and even we can extract accurate features to represent the object, the corresponding features are still rotation-sensitive. So the participation of ARF augments the orientation information explicitly, which leads to better regression and classification.

Network design. As shown in Table IV, we explore different network designs in FAM and ODM. Compared with the baseline method in Table IV (a), we can conclude that SA-Net is not only an effective detector with high accuracy, but also an efficient detector in both speed and model size. The results in Table IV (b), (c) and (d) show that our proposed method is insensitive to the depth of the network and the performance improvements mainly come from our novel alignment mechanism. Besides, as the number of layers increases, there is a performance drop from Table IV (c) to (d). We hypothesize that deeper network can not benefit the small object detection which needs a smaller receptive field.

Input Size Stride #Image Output mAP Time (s)
1024 8143 ODM 71.20 150 / 126
824 10833 ODM 74.12 246 / 160
512 20012 ODM 74.62 352 / 308
Original - 937 ODM 74.01 120 / 103
Original - 937 FAM 70.85 104 / 97
TABLE V: Comparison of different settings detecting on large images in DOTA. Stride is the cropping stride referred in Section IV-A. #Image means the number of images or chips. Output indicates the module (i.e., FAM or ODM) used for testing. We show the inference time required for entire dataset using FP32/FP16 with 4 V100 GPUs.
Methods #Image mAP mAP mAP
ClusDet [39] 1055 32.2 47.6 39.2
SA-Net (Ours) 458 42.7 72.7 45.3
SA-Net (Ours) 458 43.9 75.8 46.3
TABLE VI: Comparing SA-Net with ClusDet [39] on DOTA. Following [39], we report the accuracy of five categories (i.e., planes, small vehicles, large vehicles, ships and helicopters) on the validation set with different IoU thresholds (i.e., mAP, mAP and mAP). The results are calculated from the axis-aligned bounding boxes of the output of SA-Net. #Image means the number of images or chips. indicates that the output of FAM is adopted for the final results.

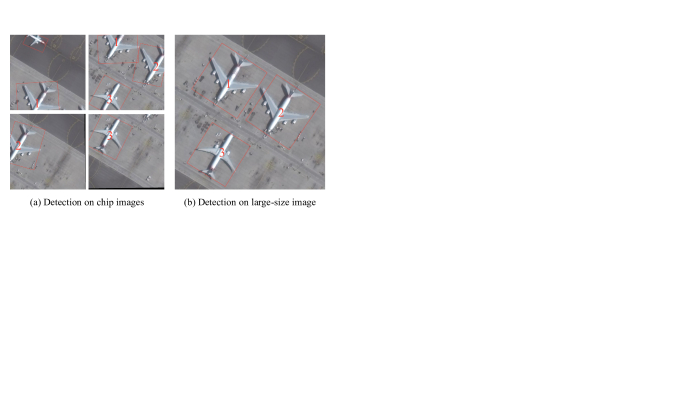

Fig. 7: Qualitative comparison of detection results. We crop a large-size image into chip images with a stride of 824. The large-size image and chip images are fed into the same network to produce detection results (e.g., planes in red boxes) without resizing. Instances with the same number are corresponding.

Iv-D Detecting on large-size images

The size of aerial image often ranges from thousands to tens of thousands, which means more computations and memory footprint. Many previous works [37, 9] adopt a detection on chips strategy to alleviate this challenge, even if a chip does not contain any object. ClusDet [39] tries to address this issue by generating clustered chips, while introducing more complex operations (e.g., chip generation and results merge) and significant performance drop. As our proposed SA-Net is efficient and the architecture is flexible, we aims to detect objects on large-size images directly.

We first explore different settings of the input size and cropping stride, and report the mAP and overall time during inference (Table V). We first crop the images into chips, and the mAP improves from 71.20% to 74.62% when the stride decreases from 1024 to 512. However, the number of chip images increases from 8143 to 20012, and the overall inference time increases about 135%. If we detect on the original large-size images without cropping, the inference time has reduced by 50% with negligible loss of accuracy. We argue that the cropping strategy makes it hard to detect objects around the boundary (Fig. 7). Besides, if we adopt the output of FAM for detection and Floating-Point 16 (FP16) to speed up the inference, we can reduce the inference time to 97 seconds with a mAP of 70.85%. Compared our SA-Net with ClusDet [39] (Table VI), our method only process 428 images and outperforms ClusDet by a large margin. If we adopt the output of FAM for evaluation, we still achieve 42.7% mAP and 72.7% mAP. The result demonstrates that out method is efficient and effective, and our detection strategy can achieve better speed-accuracy trade-off.

Methods Backbone PL BD BR GTF SV LV SH TC BC ST SBF RA HA SP HC mAP FPS
two-stage:
FR-O [37] R-101 79.42 77.13 17.70 64.05 35.30 38.02 37.16 89.41 69.64 59.28 50.30 52.91 47.89 47.40 46.30 54.13 -
Azimi et al. [1] R-101-FPN 81.36 74.30 47.70 70.32 64.89 67.82 69.98 90.76 79.06 78.20 53.64 62.90 67.02 64.17 50.23 68.16 -
RoI Trans. [9] R-101-FPN 88.64 78.52 43.44 75.92 68.81 73.68 83.59 90.74 77.27 81.46 58.39 53.54 62.83 58.93 47.67 69.56 5.9
CADNet [43] R-101-FPN 87.80 82.40 49.40 73.50 71.10 63.50 76.60 90.90 79.20 73.30 48.40 60.90 62.00 67.00 62.20 69.90 -
SCRDet [41] R-101-FPN 89.98 80.65 52.09 68.36 68.36 60.32 72.41 90.85 87.94 86.86 65.02 66.68 66.25 68.24 65.21 72.61 -
Xu et al. [38] R-101-FPN 89.64 85.00 52.26 77.34 73.01 73.14 86.82 90.74 79.02 86.81 59.55 70.91 72.94 70.86 57.32 75.02 10.0
CenterMap-Net [35] R-50-FPN 88.88 81.24 53.15 60.65 78.62 66.55 78.10 88.83 77.80 83.61 49.36 66.19 72.10 72.36 58.70 71.74 -
CenterMap-Net [35] R-101-FPN 89.83 84.41 54.60 70.25 77.66 78.32 87.19 90.66 84.89 85.27 56.46 69.23 74.13 71.56 66.06 76.03 -
one-stage:
RetinaNet [20] R-101-FPN 88.82 81.74 44.44 65.72 67.11 55.82 72.77 90.55 82.83 76.30 54.19 63.64 63.71 69.73 53.37 68.72 12.7
DRN [29] H-104 88.91 80.22 43.52 63.35 73.48 70.69 84.94 90.14 83.85 84.11 50.12 58.41 67.62 68.60 52.50 70.70 -
DRN [29] H-104 89.71 82.34 47.22 64.10 76.22 74.43 85.84 90.57 86.18 84.89 57.65 61.93 69.30 69.63 58.48 73.23 -
RDet [40] R-101-FPN 89.54 81.99 48.46 62.52 70.48 74.29 77.54 90.80 81.39 83.54 61.97 59.82 65.44 67.46 60.05 71.69 -
RDet [40] R-152-FPN 89.49 81.17 50.53 66.10 70.92 78.66 78.21 90.81 85.26 84.23 61.81 63.77 68.16 69.83 67.17 73.74 -
SA-Net (Ours) R-50-FPN 89.11 82.84 48.37 71.11 78.11 78.39 87.25 90.83 84.90 85.64 60.36 62.60 65.26 69.13 57.94 74.12 16.0
SA-Net (Ours) R-50-FPN 89.11 81.51 48.75 72.85 78.23 76.77 86.95 90.84 83.59 85.52 62.70 61.63 66.55 68.94 56.24 74.01 22.6
SA-Net (Ours) R-101-FPN 88.70 81.41 54.28 69.75 78.04 80.54 88.04 90.69 84.75 86.22 65.03 65.81 76.16 73.37 58.86 76.11 12.7
SA-Net (Ours) R-50-FPN 88.89 83.60 57.74 81.95 79.94 83.19 89.11 90.78 84.87 87.81 70.30 68.25 78.30 77.01 69.58 79.42 16.0
SA-Net (Ours) R-101-FPN 89.28 84.11 56.95 79.21 80.18 82.93 89.21 90.86 84.66 87.61 71.66 68.23 78.58 78.20 65.55 79.15 12.7

TABLE VII: Comparisons with state-of-the-art methods on DOTA. R-101-FPN stands for ResNet 101 with FPN (likewise R-50-FPN), and H-104 stands for Hourglass 104. indicates training and testing without data augmentation. denotes the input is the original images other than chip images. means multi-scale training and testing.
Methods RC2 [22] RPN [45] RRD [18] RoI Trans. [9] Xu et al. [38] RDet [40] DRN [29] CenterMap-Net [35] SA-Net (Ours)
#Anchor - 24 13 20 20 126 - 15 1
mAP 75.7 79.6 84.3 86.2 88.2 89.26 92.7 92.8 90.17 / 95.01
TABLE VIII: Comparisons of state-of-the-art methods on HRSC2016. #Anchor means the number of anchors at each location of the feature map. indicates that the result is evaluated under PASCAL VOC2012 metrics.

Iv-E Comparisons with the State-of-the-art

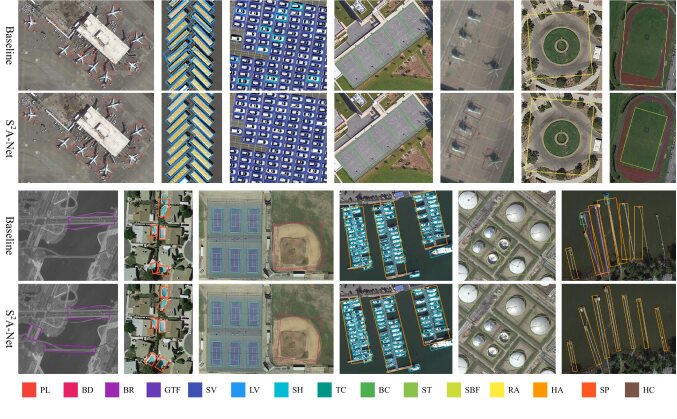

Fig. 8: Comparison of the detection results in DOTA with different methods. For each image pair, the upper image is the baseline method while the bottom is our proposed SA-Net.

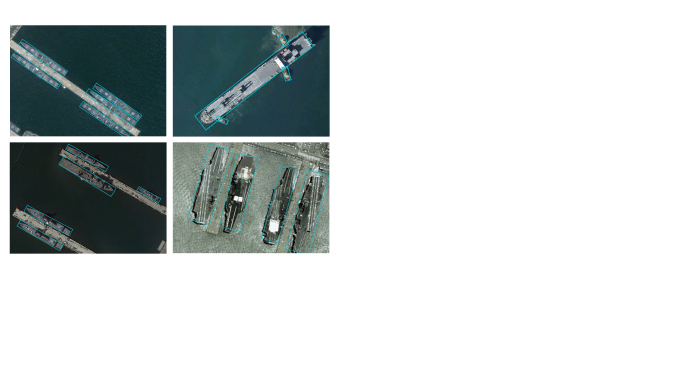

Fig. 9: Some detection results in HRSC2016 with our proposed SA-Net.

In this section, we compare our proposed SA-Net with other state-of-the-art methods on two aerial detection datasets DOTA and HRSC2016. The settings have been introduced in Section IV-A and Section IV-B.

Results on DOTA111The result is available at https://captain-whu.github.io/DOTA/results.html with setting name hanjiaming. Note that, to concentrate on studying the algorithmic problem of ODAI, this setting is without using model fusions which can further improve the detection performance.. Note all results are reported on ResNet101 backbone if not specified. We re-implement RetinaNet which is referred in Sec III-A. As shown in Table VII, we achieve 74.01% mAP in 22.6 FPS with ResNet-50-FPN backbone and without any data augmentation (e.g., random rotation). Note that the FPS is a relative FPS and we obtain it by calculating the overall inference time and the number of chip images (i.e., 10833). Besides, we achieve state-of-the-art 76.11% mAP with ResNet101 FPN backbone, outperforming all two-stage and one-stage methods. In multi-scale experiments, our SA-Net achieves 79.42% and 79.15% mAP with a ResNet-50-FPN and ResNet-101-FPN backbone, respectively. And we achieve the best result in 10 categories, especially those hard categories (e.g., bridge, soccer-ball field, swimming pool, helicopter). Qualitative detection results of the baseline method (i.e., RetinaNet) and our SA-Net are visualized in Fig 8. Compared with RetinaNet, our SA-Net produces less false predictions when detecting on the object with dense distribution and large scale variations. Results on HRSC2016. Note that DRN [29] and CenterMap-Net [35] are evaluated under PASCAL VOC2012 metrics while other methods are evaluated under PASCAL VOC2007 metrics, and the performance under VOC2012 metrics is better than that under VOC2007 metrics. As shown in Table VIII, our proposed SA-Net achieves 90.17% and 95.01% mAP under VOC2007 and VOC2012 metrics respectively, outperforming all other methods. The objects in HRSC2016 have large aspect ratios and arbitrary orientations. Previous methods often set more anchors for better performance, e.g., 20 in RoI Trans. and 126 in RDet. Compared with the previous best result 89.26% (VOC2007) by RDet and 92.8% (VOC2012) by CenterMap-Net, we improve 0.91% and 2.21% mAP respectively with only one anchor, which effectively get ride of heuristically defined anchors. Some qualitative results are shown in Fig. 9.

V Conclusion

In this paper, we propose a simple and effective Single-Shot Alignment Network (SA-Net) for oriented object detection in aerial images. With the proposed Feature Alignment Module and Oriented Detection Module, our SA-Net realizes full feature alignment and alleviates the inconsistency between regression ans classification. Besides, we explore the approach to detect on large-size images for better speed-accuracy trade-off. Extensive experiments demonstrate that our SA-Net can achieve state-of-the-art performance on both DOTA and HRSC2016.

References

  • [1] S. M. Azimi, E. Vig, R. Bahmanyar, M. Körner, and P. Reinartz (2018) Towards multi-class object detection in unconstrained remote sensing imagery. In ACCV, pp. 150–165. Cited by: TABLE VII.
  • [2] N. Bodla, B. Singh, R. Chellappa, and L. S. Davis (2017) Soft-NMS - Improving Object Detection with One Line of Code. In ICCV, Vol. 2017-Octob, pp. 5562–5570.
  • [3] Z. Cai and N. Vasconcelos (2018) Cascade r-cnn: delving into high quality object detection. In CVPR, pp. 6154–6162.
  • [4] K. Chen, W. Ouyang, C. C. Loy, D. Lin, J. Pang, J. Wang, Y. Xiong, X. Li, S. Sun, W. Feng, Z. Liu, and J. Shi (2019-06) Hybrid task cascade for instance segmentation. pp. 4969–4978. Cited by: Fig. 1.
  • [5] Y. Chen, C. Han, N. Wang, and Z. Zhang (2019) Revisiting feature alignment for one-stage object detection. arXiv preprint arXiv:1908.01570. Cited by: §II-B.
  • [6] G. Cheng, P. Zhou, and J. Han (2016)

    Learning rotation-invariant convolutional neural networks for object detection in vhr optical remote sensing images

    .
    IEEE Transactions on Geoscience and Remote Sensing. Cited by: §I.
  • [7] J. Dai, H. Qi, Y. Xiong, Y. Li, G. Zhang, H. Hu, and Y. Wei (2017) Deformable convolutional networks. In ICCV, pp. 764–773. Cited by: Fig. 4, §II-B.
  • [8] J. Ding, Z. Zhu, G. Xia, X. Bai, S. Belongie, J. Luo, M. Datcu, M. Pelillo, and L. Zhang (2018) ICPR2018 contest on object detection in aerial images (odai-18). In ICPR,
  • [9] J. Ding, N. Xue, Y. Long, G. Xia, and Q. Lu (2019) Learning roi transformer for oriented object detection in aerial images. In CVPR, pp. 2849–2858. Cited by: Fig. 1, §I, §I, §II-A, §II-B, §III-A, §IV-D, TABLE VII, TABLE VIII.
  • [10] M. Everingham, L. Van Gool, C. K. Williams, J. Winn, and A. Zisserman (2010) The pascal visual object classes (voc) challenge. IJCV 88 (2), pp. 303–338.
  • [11] R. Girshick, J. Donahue, T. Darrell, and J. Malik (2014) Rich feature hierarchies for accurate object detection and semantic segmentation. In CVPR, pp. 580–587. Cited by: §I, §II.
  • [12] R. Girshick, I. Radosavovic, G. Gkioxari, P. Dollár, and K. He (2018) Detectron. Note: https://github.com/facebookresearch/detectron Cited by: §IV-B.
  • [13] R. Girshick (2015) Fast R-CNN. In ICCV, pp. 1440–1448. Cited by: §II-B, §II.
  • [14] K. He, G. Gkioxari, P. Dollar, and R. Girshick (2017) Mask r-cnn. In ICCV, pp. 2980–2988. Cited by: Fig. 1, §II-B, §II.
  • [15] K. He, X. Zhang, S. Ren, and J. Sun (2016) Deep residual learning for image recognition. In CVPR, pp. 770–778.
  • [16] B. Jiang, R. Luo, J. Mao, T. Xiao, and Y. Jiang (2018-09) Acquisition of localization confidence for accurate object detection. In ECCV, Cited by: §II-C.
  • [17] H. Law and J. Deng (2018-09) CornerNet: detecting objects as paired keypoints. In ECCV, Cited by: §II.
  • [18] M. Liao, Z. Zhu, B. Shi, G. Xia, and X. Bai (2018) Rotation-sensitive regression for oriented scene text detection. In CVPR, pp. 5909–5918. Cited by: §II-C, TABLE VIII.
  • [19] T. Lin, P. Dollár, R. Girshick, K. He, B. Hariharan, and S. Belongie (2017) Feature pyramid networks for object detection. In CVPR, pp. 2117–2125. Cited by: §III-A.
  • [20] T. Lin, P. Goyal, R. Girshick, K. He, and P. Dollár (2017) Focal loss for dense object detection. In ICCV, pp. 2980–2988. Cited by: Fig. 1, Fig. 2, §II, §III-A, §III-E, TABLE VII.
  • [21] T. Lin, M. Maire, S. J. Belongie, J. Hays, P. Perona, D. Ramanan, P. Dollár, and C. L. Zitnick (2014)

    Microsoft coco: common objects in context

    .
    pp. 740–755.
  • [22] L. Liu, Z. Pan, and B. Lei (2017) Learning a rotation invariant detector with rotatable bounding box. arXiv preprint:1711.09405. Cited by: TABLE VIII.
  • [23] W. Liu, D. Anguelov, D. Erhan, C. Szegedy, S. Reed, C. Fu, and A. C. Berg (2016) SSD: single shot multibox detector. In ECCV, pp. 21–37. Cited by: §II.
  • [24] Z. Liu, J. Hu, L. Weng, and Y. Yang (2017) Rotated region based cnn for ship detection. pp. 900–904. Cited by: §II-A.
  • [25] Z. Liu, H. Wang, L. Weng, and Y. Yang (2016-08) Ship Rotated Bounding Box Space for Ship Extraction From High-Resolution Optical Satellite Images With Complex Backgrounds. IEEE Geoscience and Remote Sensing Letters. Cited by: §I, §I, §II-A.
  • [26] Z. Liu, L. Yuan, L. Weng, and Y. Yang (2017) A high resolution optical satellite image dataset for ship recognition and some new baselines. In ICPRAM, pp. 324–331. Cited by: §I, §IV-A.
  • [27] W. Luo, Y. Li, R. Urtasun, and R. Zemel (2016) Understanding the effective receptive field in deep convolutional neural networks. In NIPS, pp. 4905–4913.
  • [28] J. Ma, W. Shao, H. Ye, L. Wang, H. Wang, Y. Zheng, and X. Xue (2018) Arbitrary-oriented scene text detection via rotation proposals. IEEE Trans. on Multimedia. Cited by: §II-A, §II-B.
  • [29] X. Pan, Y. Ren, K. Sheng, W. Dong, H. Yuan, X. Guo, C. Ma, and C. Xu (2020-06) Dynamic refinement network for oriented and densely packed object detection. In CVPR, Cited by: §IV-E, TABLE VII, TABLE VIII.
  • [30] J. Redmon, S. Divvala, R. Girshick, and A. Farhadi (2016) You only look once: unified, real-time object detection. In CVPR, pp. 779–788. Cited by: §II.
  • [31] S. Ren, K. He, R. Girshick, and J. Sun (2017) Faster R-CNN: towards real-time object detection with region proposal networks. IEEE Trans. on PAMI (6), pp. 1137–1149. Cited by: Fig. 1, §II.
  • [32] Z. Tian, C. Shen, H. Chen, and T. He (2019) FCOS: fully convolutional one-stage object detection. In ICCV, pp. 9626–9635.
  • [33] T. X. Vu, H. Jang, T. X. Pham, and C. D. Yoo (2019) Cascade rpn: delving into high-quality region proposal network with adaptive convolution. In NIPS,
  • [34] J. Wang, K. Chen, S. Yang, C. C. Loy, and D. Lin (2019) Region proposal by guided anchoring. In CVPR, pp. 2960–2969. Cited by: §II-B, §IV-C.
  • [35] J. Wang, W. Yang, H. Li, H. Zhang, and G. Xia (in press) Learning center probability map for detecting objects in aerial images. IEEE Transactions on Geoscience and Remote Sensing. Cited by: §IV-E, TABLE VII, TABLE VIII.
  • [36] Y. Wu, Y. Chen, L. Yuan, Z. Liu, L. Wang, H. Li, and Y. Fu (2019) Rethinking classification and localization for object detection. arXiv preprint arXiv:1904.06493. Cited by: §II-C.
  • [37] G. Xia, X. Bai, J. Ding, Z. Zhu, S. Belongie, J. Luo, M. Datcu, M. Pelillo, and L. Zhang (2018) DOTA: a large-scale dataset for object detection in aerial images. In CVPR, pp. 3974–3983. Cited by: §I, §I, §I, §I, §II-A, §IV-A, §IV-A, §IV-D, TABLE VII.
  • [38] Y. Xu, M. Fu, Q. Wang, Y. Wang, K. Chen, G. Xia, and X. Bai (2020) Gliding vertex on the horizontal bounding box for multi-oriented object detection. IEEE Trans. on PAMI. Cited by: §I, §II-A, TABLE VII, TABLE VIII.
  • [39] F. Yang, H. Fan, P. Chu, E. Blasch, and H. Ling (2019-04) Clustered object detection in aerial images. In ICCV, Vol. 2019-Octob, pp. 8310–8319. Cited by: §IV-D, §IV-D, TABLE VI.
  • [40] X. Yang, Q. Liu, J. Yan, A. Li, Z. Zhang, and G. Yu (2019) R3Det: refined single-stage detector with feature refinement for rotating object. arXiv preprint arXiv:1908.05612. Cited by: §II-A, TABLE VII, TABLE VIII.
  • [41] X. Yang, J. Yang, J. Yan, Y. Zhang, T. Zhang, Z. Guo, X. Sun, and K. Fu (2018) SCRDet: towards more robust detection for small, cluttered and rotated objects. In ICCV, pp. 8231–8240. Cited by: §I, TABLE VII.
  • [42] Z. Yang, S. Liu, H. Hu, L. Wang, and S. Lin (2019) RepPoints: point set representation for object detection. In ICCV, pp. 9656–9665. Cited by: §II.
  • [43] G. Zhang, S. Lu, and W. Zhang (2019) CAD-net: a context-aware detection network for objects in remote sensing imagery. IEEE Transactions on Geoscience and Remote Sensing PP, pp. 1–10. Cited by: §I, §I, TABLE VII.
  • [44] S. Zhang, L. Wen, X. Bian, Z. Lei, and S. Z. Li (2018) Single-shot refinement neural network for object detection. In CVPR, pp. 4203–4212.
  • [45] Z. Zhang, W. Guo, S. Zhu, and W. Yu (2018) Toward arbitrary-oriented ship detection with rotated region proposal and discrimination networks. IEEE Geoscience and Remote Sensing Letters (99), pp. 1–5. Cited by: TABLE VIII.
  • [46] X. Zhou, D. Wang, and P. Krähenbühl (2019) Objects as points. In arXiv preprint arXiv:1904.07850, Cited by: §II.
  • [47] Y. Zhou, Q. Ye, Q. Qiu, and J. Jiao (2017) Oriented response networks. In CVPR, pp. 4961–4970. Cited by: Fig. 2, §I, §II-C, §III-D.
