Due to the mobility and ever expanding capabilities, smart phones have become increasingly ubiquitous in people’s everyday life performing tasks such as social networking, online banking, and entertainment. Android, as an open source and customizable operating system (OS) for smart phones, is currently dominating the smart phone market by 77.32% [Statcounter2018]. However, due to its large market share and open source ecosystem of development, Android attracts not only the developers for producing legitimate Android applications (apps), but also attackers to disseminate malware (malicious software) that deliberately fulfills the harmful intent to the smart phone users (e.g., stealing user credentials, pushing unwanted apps or advertisements). Because of lacking trustworthiness review methods, developers can easily upload their Android apps including repackaged apps and malware to the official marketplace (i.e., Google Play). The presence of other third-party Android markets (e.g., Opera Mobile Store, Wandoujia) makes this problem worse. Driven by the considerable economic profits, there has been explosive growth of Android malware which posed serious threats to the smart phone users - i.e., it’s reported that there have been newly generated Android malware that infected more than million smart phones in the first half of 2018 [TencentSecurity2018]. To evade the detection of mobile security products (e.g., Norton, Lookout and Tencent Mobile Security), Android malware has turned to be increasingly sophisticated. For example, as shown in Figure 1, the “TigerEyeing” trojan is a new kind of Command and Control (C&C) malware that pretends to be legitimate apps (e.g., mobile games, system tools) and only executes to perform the profitable tasks on-demand. The explosive growth and increasing sophistication of Android malware call for new defensive techniques that are capable of protecting smart phone users against novel threats.
To combat the evolving Android malware attacks, by collaboration with smart phone vendors, in this paper, we first extract the Application Programming Interface (API) call sequences from runtime executions of Android apps in users’ smart phones to capture their behaviors. To comprehensively characterize Android apps, we further analyze higher-level semantic relationships within the ecosystem, such as whether two apps have similar behaviors, whether they co-exist in the same smart phone that can be identified by its unique International Mobile Equipment Identity (IMEI) number, whether they are signed by the same developer or produced by the same company (i.e., affiliation), etc. To model such complex relationships, we present a structured heterogeneous information network (HIN) [Sun and Han2012] and use meta-path based approach [Sun et al.2011] to build up relatednesses over apps. To efficiently classify nodes (e.g., apps) in the constructed HIN, HIN embedding methods [Fu, Lee, and Lei2017, Dong, Chawla, and Swami2017, Fan et al.2018] have been proposed. However, most of these existing methods are primarily designed for static networks, where all nodes are known before learning. As our application requires real-time prediction of new coming nodes (i.e., unknown apps) to detect Android malware, it is infeasible to rerun HIN embeddings whenever new nodes arrive, especially considering the fact that rerunning HIN embeddings also results in the need of retraining the downstream classifier. How to efficiently learn the representations of out-of-sample nodes in HIN, i.e. nodes that arrive after the HIN embedding process, remains largely unanswered. To solve this problem, we propose the HinLearning
method to first obtain in-sample node embeddings and then learn the representations of out-of-sample nodes in HIN, which is capable to preserve the heterogeneous property of HIN and also allows fast and scalable learning. Afterwards, we design a deep neural network (DNN) classifier leveraging the advantages of convolutional neural networks (CNNs) and Inception for Android malware detection. We develop a systemAiDroid for real-time Android malware detection, which has the following major traits:
Besides runtime behaviors extracted from Android apps, we further analyze the complex relationships within the ecosystem (i.e., app-API, app-IMEI, app-signature, app-affiliation, IMEI-signature, IMEI-affiliation relations) to characterize Android apps. We then present HIN to represent the Android apps and exploit meta-path based approach to depict the relatednesses over apps. This provides a comprehensive solution that is capable to be more resilient against Android malware’s evasion tactics.
We are the first to propose the method (denoted as HinLearning) to efficiently learn the representations for out-of-sample nodes in HIN using in-sample node embeddings while without rerunning/adjusting them, which makes the downstream classifier feasible for classifying new arriving nodes (e.g., apps) without retraining. Though it’s proposed for real-time Android malware detection, the HinLearning method is a general framework which is able to learn desirable node representations in HIN (i.e., including in-sample and out-of-sample nodes) and thus can be further applied to various speed-sensitive dynamic network mining tasks (e.g., node classification, clustering).
We provide a comprehensive experimental study based on the large-scale real sample collections from Tencent Security Lab, which demonstrates the effectiveness and efficiency of our developed system AiDroid. It has already been incorporated into Tencent Mobile Security product that server millions of users worldwide.
2. System Overview
The overview of our developed system AiDroid for real-time Android malware detection is shown in Figure 2, mainly consisting of the following components:
Feature Extractor. Through the installed Tencent Mobile Security product, smart phone users can upload the extracted API call sequences of Android apps as well as the meta-data to AiDroid. It will then analyze various relationships among different types of entities (i.e., app, API, IMEI, signature, affiliation) to depict the Android apps. (See Section 3.1. for details.)
In this module, based on the features extracted from the previous component, a structural HIN is first presented to model the relationships among different types of entities; and then different meta-paths are built from the HIN to capture the relatedness over apps from different views (i.e., with different semantic meanings). (See Section 3.2. for details.)
HIN Representation Learner. In HinLearning, based on the meta-path schemes built from the previous module, a heterogeneous in-sample node embedding method HINE is first proposed to learn the low-dimensional representations for in-sample nodes in HIN; then, Hin2Img method is devised to learn representations of out-of-sample nodes using learned in-sample node embeddings, which is also capable to enrich representations of in-sample nodes. (See Section 3.3. for details.)
DNN Classifier. After representation learning using HinLearning, the learned representations of in-sample nodes with type of app will be fed to the designed DNN (see Section 3.4. for details) to train the classification model, based on which new arriving nodes (i.e., out-of-sample nodes with type of app) can be predicted as either benign or malicious.
3. Proposed Method
In this section, we introduce the detailed approaches of how we represent the Android apps, and how to solve Android malware detection (i.e., classification) problem based on the representations.
3.1. Feature Extraction
Dynamic Behavior Extraction. API calls are used by Android apps in order to access Android OS functionality and system resources. Therefore, we extract the sequences of API calls in the application framework from runtime executions of Android apps to capture their behaviors. For example, a sequence of API calls (StartActivity, checkConnect, getPhoneInfo, receiveMsg, sendMsg, finishActivity) extracted from the previous mentioned “TigerEyeing” trojan represents its typical behaviors of connecting to the C&C server in order to fetch the configuration information; while another sequence of its extracted API calls (startActivity, checkConnect, sendSMS, finishActivity) denotes its intention of sending SMS messages without user’s concern. Note that, to simplify the further computation, each API call in the extracted sequences will be mapped to an integer ID.
Relation-based Feature Extraction. Besides the API call sequences extracted from an Android app that can be used to represent its behaviors, to detect the increasingly sophisticated Android malware, we further consider the following kinds of relationships.
R1: To describe the relation between an app and an API call it invokes during runtime execution, we build the app-invoke-API matrix where each element denotes if app i invokes API call j.
R2: To describe the relation that an app exists (i.e., is installed) in a smart phone (i.e., IMEI), we generate the app-exist-IMEI matrix where each element means if app i exists in phone j.
R3: Every app run on the Android platform must be signed by the developer. To depict such relationship, we build the app-certify-signature matrix whose element denotes if app i is certified by signature j.
R4: Package name (a.k.a. Google Play ID) is the unique identifier for an Android app. Companies conventionally use their reversed domain name to begin their package names (e.g., “com.tencent.mobileqq”). We extract the domain name from the package name to denote the relation between an app (e.g., “mobileqq”) and its affiliation (e.g., “tencent.com”); and then we generate the app-associate-affiliation matrix where each element indicates whether app i is associated with affiliation j.
R5: To represent the relation that a smart phone has a set of apps signed by a particular developer, we create the IMEI-have-signature matrix where each element denotes if smart phone i has signature j.
R6: To denote the relation that a smart phone installs a set of apps associated with a specific affiliation, we generate the IMEI-possess-affiliation matrix where each element denotes whether smart phone i possesses affiliation j.
3.2. HIN Construction
In order to depict apps, APIs, IMEIs, signatures and affiliations as well as the rich relationships among them (i.e., R1-R6), it is important to model them in a proper way so that different kinds of relations can be better and easier handled. We introduce how to use HIN, which is capable to be composed of different types of entities and relations, to represent the apps by using the features extracted above. We first present the concepts related to HIN as follows.
A heterogeneous information network (HIN) [Sun and Han2012] is defined as a graph with an entity type mapping : and a relation type mapping : , where denotes the entity set and is the relation set, denotes the entity type set and is the relation type set, and the number of entity types or the number of relation types . The network schema [Sun and Han2012] for a HIN , denoted as , is a graph with nodes as entity types from and edges as relation types from .
HIN not only provides the network structure of the data associations, but also provides a high-level abstraction of the categorical association. For our case, we have five entity types (i.e., app, API, IMEI, package, signature) and six types of relations among them (i.e., R1-R6). Based on the definitions above, the network schema for HIN in our application is shown in Figure 3, which enables the apps to be represented in a comprehensive way that utilizes their semantic and structural information.

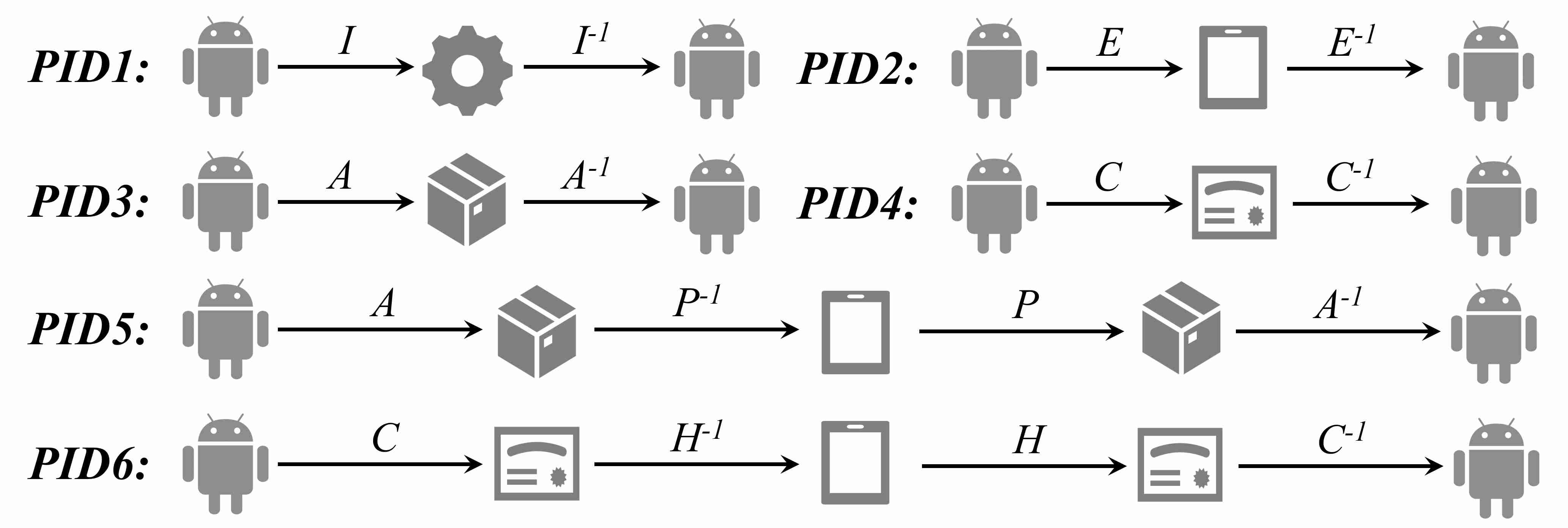

To formulate the relatedness among entities in HIN, the concept of meta-path has been proposed [Sun et al.2011]: a meta-path is a path defined on the graph of network schema , and is denoted in the form of , which defines a composite relation between types and , where denotes relation composition operator, and is length of . In our application, based on the HIN schema shown in Figure 3, incorporated the domain knowledge from anti-malware experts, we design six meaningful meta-paths to characterize the relatedness over apps at different views (i.e., PID1-PID6 shown in Figure 4).
For example, PID1 depicts that two apps are related if they both invoke the same API (e.g., two malicious mobile video players both invoke the API of “requestAudioFocus”); while PID5 describes that two apps are connected if their associated affiliations are possessed by (i.e., co-occur in) the same phone. To measure the relatedness over HIN entities (e.g., apps), traditional representation learning for HIN [Sun et al.2011] mainly focuses on factorizing the matrix (e.g., adjacency matrix) of a HIN to generate latent-dimension features for the nodes in this HIN. However, the computational cost of decomposing a large-scale matrix is usually very expensive, and also suffers from its statistical performance drawback [Grover and Leskovec2016]. Since Android malware detection is a speed sensitive application and requires cost-effective solutions, scalable representation learning method for HIN, especially for out-of-sample nodes, is in need.
3.3. HinLearning: Representation Learning of In-Sample and Out-of-Sample Nodes in HIN
To address the above challenge, we first formalize the problem of HIN representation learning as follow.
To solve the problem of HIN representation learning, due to the heterogeneous property of HIN (i.e., network consisting of multi-typed entities and relations), it is difficult to directly apply the conventional homogeneous network embedding techniques (e.g., DeepWalk [Perozzi, Al-Rfou, and Skiena2014], LINE [Tang et al.2015], node2vec [Grover and Leskovec2016]) to learn the latent representations for HIN. To address this issue, HIN embedding methods [Fu, Lee, and Lei2017, Dong, Chawla, and Swami2017, Fan et al.2018] have been proposed, which are capable to preserve the semantic and structural correlations between different types of nodes . However, most of these existing methods are primarily designed for static networks, where all nodes are known before learning. In our application (i.e., real-time Android malware detection), it is infeasible to rerun HIN embeddings whenever new nodes arrive, especially considering the fact that rerunning HIN embeddings also results in the need of retraining the downstream classifier. How to efficiently learn the representations of out-of-sample nodes in HIN, i.e. nodes that arrive after the HIN embedding process, remains largely unanswered. To solve this problem, we first propose heterogeneous in-sample node embedding (HINE) model to learn in-sample node embeddings that is able to preserve the heterogeneous property of HIN; then, we devise Hin2Img to learn out-of-sample node representations and also enrich in-sample node representations using previous learned in-sample node embeddings without rerunning/adjusting HIN embeddings.
HINE: Heterogeneous In-sample Node Embedding. We first propose a random walk strategy guided by different meta-paths to map the word-context concept in a text corpus into a HIN; then we exploit skip-gram to learn effective in-sample node representations for a HIN.
Given a source node
in a homogeneous network, the traditional random walk is a stochastic process with random variablessuch that is a node chosen at random from the neighbors of node
. The transition probabilityat step
is the normalized probability distributed over the neighbors ofby ignoring their node types. However, this mechanism is unable to capture the semantic and structural correlations among different types of nodes in a HIN. Here, we show how we use different built meta-paths to guide the random walker in a HIN to generate the paths of multiple types of nodes. Given a HIN with schema , and a set of different meta-paths , each of which is in the form of , we put a random walker to traverse the HIN. The random walker will first randomly choose a meta-path from and the transition probabilities at step i are defined as:
where is the node type mapping function, denotes the type of neighborhood of node , is entity type of app, and is the number of meta-paths starting with in the given meta-path set . The walk paths generated by the above strategy are able to preserve both the semantic and structural relations between different types of nodes in the HIN.
After mapping the word-context concept in a text corpus into a HIN via the above proposed meta-path guided random walk strategy (i.e., a sentence in the corpus corresponds to a sampled path and a word corresponds to a node), skip-gram [Mikolov et al.2013a, Perozzi, Al-Rfou, and Skiena2014] is then applied on the paths to minimize the loss of observing a node’s neighbourhood (within a window w) conditioned on its current representation. The objective function of skip-gram is:
where is the current representation vector of , and is defined using the softmax function:
, and employ the stochastic gradient descent to train the skip-gram.
Hin2Img: Out-of-sample node representation learning. Can we use in-sample node embeddings learned by the above proposed HINE to efficiently learn representations of out-of-sample nodes in HIN and also enrich in-sample node representations? To answer this question, we first present the concept of -order neighbors in HIN as following.
k-order Neighbors in HIN. Given a HIN , let 1-order neighbors of a node be so that ; then, -order neighbors of a node () can be denoted as .
By the above definition, each node (i.e., either in-sample or out-of-sample) in HIN is represented by the following representation matrix:

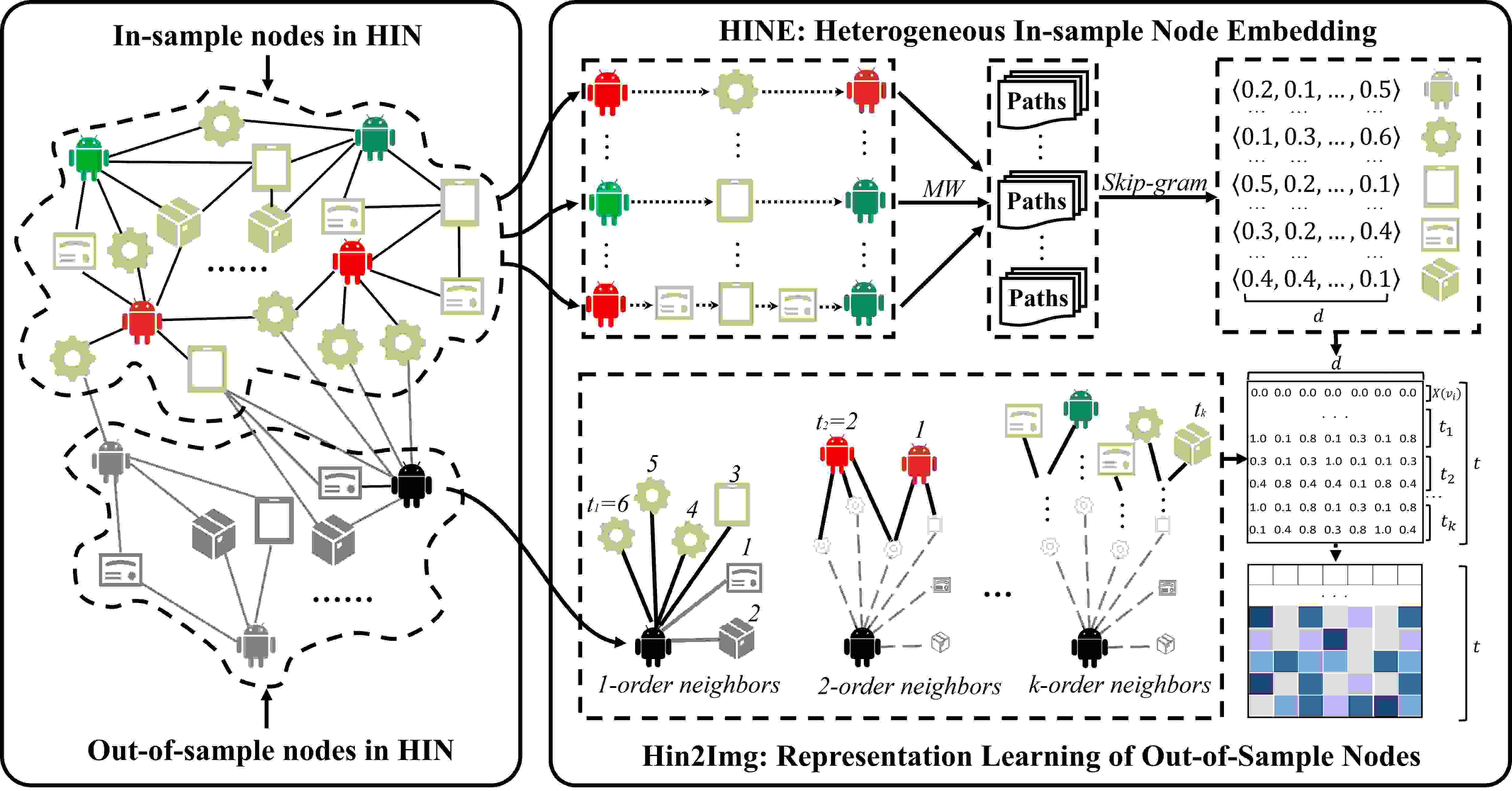

where , each of which denotes -dimensional node embedding. In our application, as illustrated in Figure 5, for each , we exploit breadth-first search (BFS) method to find the neighbors in the order of type app, signature, package, IMEI and API, and . Empirically we found and
perform the best in our application, and apply them to our problem throughout the paper. Note that we zero-pad the representation matrix in the corresponding rows when the node embeddings cannot be found (i.e., out-of-sample nodes) or.
Based on the in-sample node embeddings which can be learned offline using the proposed HINE, when a new node (e.g., a testing app) arrives, it only take time to obtain its representation using the proposed Hin2Img; furthermore, the representation learning for the new arriving node doesn’t require rerunning HIN embeddings, which makes the downstream classifier workable for classifying the new arriving node without retraining.
3.4. Deep Neural Network

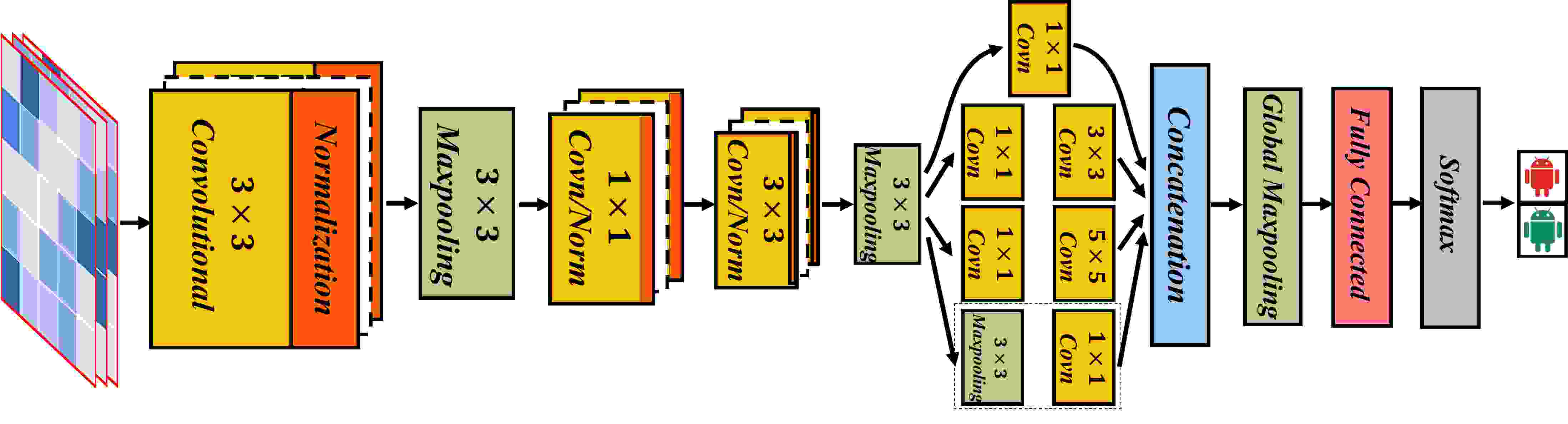

has shown high performance and low computational cost under strict constraints on memory and computational budget. Therefore, taking the generated representations of Android apps from previous section as inputs, we devise our deep learning framework leveraging the advantages of CNNs and Inception for real-time detection of Android malware, which is illustrated in Figure6. In our designed DNN, for training, we take the generated representation matrix
of each in-sample node (with type of app) in HIN as input fed to the multilayer architecture to learn the higher level concept. In this multilayer architecture, the designed DNN first stacks pairs of convolutional layers and normalization layers with different filter sizes and strides followed by maxpoolings to capture universal features, such as curves and edges[Huang, Zhao, and Liu2018]
. It then comes with an Inception module[Szegedy et al.2015] to generate more task-specific features, such as discriminative properties for malicious and benign apps. In the Inception module, the general features will be passed through the mixture of convolutional layers in parallel to take advantage of multi-level feature extraction, in which convolutions and maxpooling are configured for dimensionality reduction prior to , , and
convolutions that are used for feature learning, followed by a concatenation layer to concatenate the resulting feature representations. After the global maxpooling, based on a pair of fully connected layer and a softmax layer, the designed DNN will train the model for classifying any new arriving node (i.e., out-of-sample node with type of app represented as amatrix ) as either benign or malicious.
Algorithm 1 illustrates the implementation of our developed system AiDroid which integrates the above proposed method in detail.
4. Experimental Results and Analysis
In this section, we fully evaluate the performance of our developed system AiDroid for Android malware detection.
4.1. Data Collection
We obtain the large-scale real sample collection from Tencent Security Lab, which contains 190,696 training app (i.e., 83,784 benign and 106,912 malicious). After feature extraction and based on the designed network schema, the constructed HIN has 286,421 nodes (i.e., 190,696 nodes with type of app, 331 nodes with type of API, 70,187 nodes with type of IMEI, 8,499 nodes with type of signature, and 16,708 with type of affiliation) and 4,170,047 edges including relations of R1-R6. The new coming 17,746 unknown apps are used as testing data (to obtain the ground truth, they are further analyzed by the anti-malware experts, 13,313 of which are labeled as benign and 4,433 are malicious).
4.2. Baseline Methods
We validate the performance of our proposed method in AiDroid for Android malware detection by comparisons with different groups of baseline methods.
First, based on the constructed HIN described above, we evaluate our proposed HIN representation learn method HinLearning by comparisons with following baselines.
In-sample node embedding. We compare our proposed HINE with other network embedding methods including:
metapath2vec: We use each meta-path scheme separately to guide random walks in metapath2vec [Dong, Chawla, and Swami2017].
For HINE, we divide the designed meta-paths into three sets (i.e., = PID1, = PID3, PID4, = PID2, PID5, PID6) and use the proposed strategy to guide random walks. The parameter settings used for HINE are in line with DeepWalk, LINE and metapath2vec, which are empirically set as: vector dimension (LINE: 64 for each order (1st- and 2nd-order)), walks per node , walk length and window size .
Out-of-sample node representation learning. We compare our proposed Hin2Img for out-of-sample node representation learning with following baselines:
LocalAvg: The out-of-sample nodes are represented by averaging embeddings of neighboring in-sample nodes.
LabelProp: Label propagation proposed for multivariate regression problem can be used to learn the representations of out-of-sample nodes. As it has been demonstrated [Ma, Cui, and Zhu2018] that the vanilla version of label propagation [Zhu and Ghahramani2002] outperforms others, we hence use it as a baseline.
Rerunning: For comparisons, we also run a baseline by rerunning all node embeddings when new nodes arrive.
Second, we evaluate different types of features for Android malware detection. Our proposed method is general for HINs. Thus, a natural baseline is to see whether the knowledge we add in should be represented as HIN instead of other features. Here we compare two types of features: behavioral sequences and HIN-based features.
Behavioral Sequences (f-1)
: We devise three baselines based on the extracted API call sequences of Android apps: (1) we build support vector machine (SVM) classifier based on binary (i.e., if an API call is invoked by an app) feature vectors (i.e., Bin+SVM); (2) we exploit Long Short-term Memory (LSTM)[Sutskever, Vinyals, and Le2014] for sequence modeling, based on which SVM classifier is then built (i.e., LSTM+SVM); and (3) we also train our proposed DNN based on the extracted API call sequences for evaluation (i.e., Seq+DNN).
HIN-based Features (f-2): Based on the constructed HIN, the proposed HinLearning is applied for representation learning (i.e., both in-sample and out-of-sample nodes), based on which the designed DNN is used to train the classification model for prediction (i.e., AiDroid).
4.3. Comparisons and Analysis
Based on the HIN constructed from the training data, using the developed DNN as downstream classifier and the new coming nodes (i.e., apps) for testing, from Table 1, we can observe that different combinations of in-sample node embedding and out-of-sample representation learning show different performances in Android malware detection: (1) For in-sample node embedding methods, our proposed HINE outperforms all baselines in terms of ACC and F1. That is to say, HINE learns significantly better node (i.e., app) representation in HIN than current state-of-the-art methods. The success of HINE lies in the proper consideration and accommodation of the heterogeneous property of HIN (i.e., the multiple types of nodes and relations), and the advantage of random walk guided by different meta-paths for sampling the node paths. (2) For out-of-sample representation learning, our proposed Hin2Img consistently and significantly outperforms all baselines (i.e., the detection performance achieve superb 0.9908 ACC and 0.9817 F1), which even surpasses the rerunning HIN embeddings. Obviously, representation matrices learned by Hin2Img utilizing 1- and 2-order neighbors are more expressive than other embeddings in depicting the apps for the problem of real-time Android malware detection.
We also show the comparisons in Table 2 for different features in Android malware detection. From the results, we can see that: (1) Based on the extracted API call sequences (i.e., f-1), LSTM provides significant improvement in sequence modeling while our proposed DNN outperforms others in detection Android malware. (2) Compared with content-based features only, HIN-based features (i.e., f-2) indeed perform better. The reason behind this is that HIN-based features are more expressive to characterize a complex and comprehensive relatednesses over apps through the designed meta-paths which consist of not only relationships between apps and their invoked API calls, but also higher-level semantics within the ecosystem.
4.4. Parameter Sensitivity, Scalability and Stability

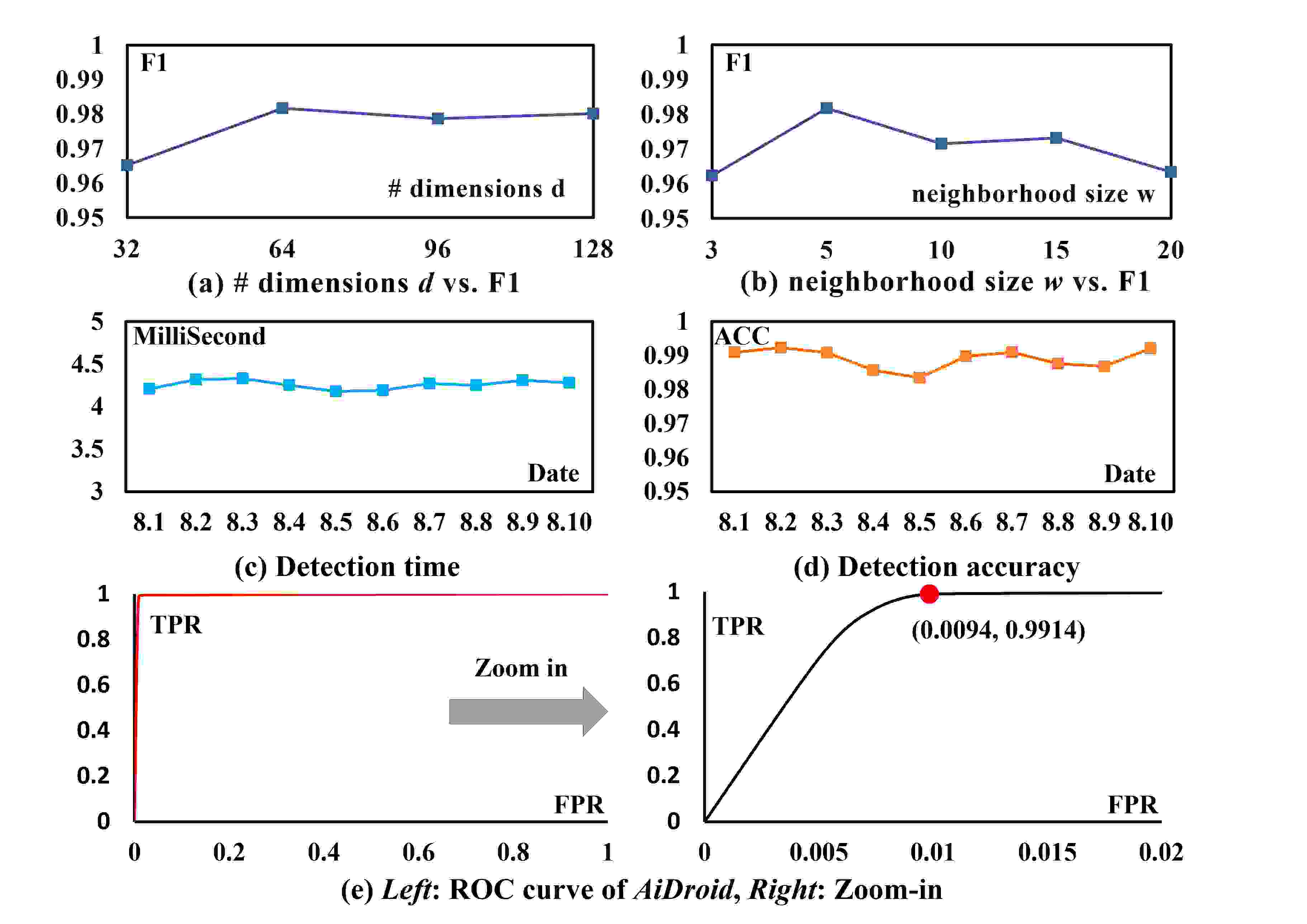

In this set of experiments, we systematically evaluate the parameter sensitivity, scalability and stability of our developed system AiDroid. We first examine how latent dimensions (d) and neighborhood size (w) affect the performance in Android malware detection. As shown in Figure 7.(a) and (b), we can see that AiDroid is not strictly sensitive to these parameters and is able to reach high performance under a cost-effective parameter choice. We then run the experiments using new arriving apps from Aug. 1-10, 2018 to assess the average detection time and accuracy. Figure 7.(c) and (d) demonstrate AiDroid is scalable and stable over a long time span in detecting newly generated Android malware (i.e., average prediction time: 4.3 ms/app and 0.9891 ACC on average). Figure 7.(e) shows the ROC curve of AiDroid based on the data described in Section 4.1 which achieves an impressive 0.9914 true positive rate (TPR) at 0.0094 false positive rate (FPR). We can conclude that AiDroid is indeed feasible in practical use for real-time Android malware detection.
5. Related Work
In recent years, there have been ample research studies on developing intelligent Android malware detection systems using machine learning and data mining techniques[Wu et al.2012, Wu and Hung2014, Hou et al.2016, Chen, Hou, and Ye2017, Ye et al.2017, Saracino et al.2018]. For example, DroidDolphin [Wu and Hung2014] built classifiers based on dynamic analysis, while DroidMat [Wu et al.2012] and DroidMiner [Yang et al.2014] constructed their models based on static analysis. However, most of the existing systems merely utilize content-based features for the detection. To further address the challenges of Android malware detection, in our preliminary work, HinDroid [Hou et al.2017] was proposed which considered higher-level semantic relations among apps and APIs and introduced HIN for the first time in Android malware detection; but HinDroid was primarily designed for static HIN without considering new arriving nodes.
To solve the problem of network representation learning, after DeepWalk [Perozzi, Al-Rfou, and Skiena2014], LINE [Tang et al.2015] and node2vec [Grover and Leskovec2016] that were proposed for homogeneous network embedding, HIN2vec [Fu, Lee, and Lei2017], metapath2vec [Dong, Chawla, and Swami2017], metagraph2vec [Fan et al.2018], and PME [Chen et al.2018] have been proposed for HIN representation learning. However, few of them can deal with out-of-sample nodes, i.e., nodes that arrive after the HIN embedding process. Though algorithms [Chang et al.2015, Zhao et al.2018] have been proposed to infer embeddings for out-of-sample nodes in HIN, they necessitate adjusting in-sample node embeddings and also the downstream classifier retraining. Efficient representation learning for out-of-sample nodes in HIN without rerunning/adjusting HIN embeddings is in need for our application in real-time Android malware detection.
To combat the evolving Android malware attacks, in this paper, we first extract the API call sequences from runtime executions of Android apps and further analyze higher-level semantic relationships within the ecosystem. To depict such complex relations, we introduce HIN for modeling and use meta-path based approach to build up relatednesses over apps. To efficiently classify nodes (i.e., apps) in HIN, we propose the HinLearning method to first gain in-sample node embeddings and then learn representations of out-of-sample nodes without rerunning/adjusting HIN embeddings for the first time. Afterwards, we design a DNN classifier leveraging the advantages of CNNs and Inception for Android malware detection. A comprehensive experimental study on the large-scale real data collections from Tencent Security Lab is performed to compare various baselines. Promising experimental results demonstrate that our developed system AiDroid outperforms others in real-time Android malware detection, which has been incorporated into Tencent Mobile Security product that serves millions of users worldwide.
The authors would also like to thank the anti-malware experts of Tencent Security Lab (Yinming Mei, Yuanhai Luo, Hong Yi, and Kui Wang) for helpful discussion and implementation. Y. Ye, S. Hou, and L. Chen’s work is partially supported by the U.S. National Science Foundation under grants CNS-1618629, CNS-1814825 and OAC-1839909, WV HEPC.dsr.18.5, and WVU Research and Scholarship Advancement Grant (R-844).
