1 Introduction

In the past several years, we have witnessed the success of Convolutional Neural Networks (CNN) in image understanding tasks like classification

[16, 17], segmentation [11], and object detection/localization [13]. It is now well-known that state-of-the-art CNNs [16, 18, 17, 7, 22] are superior to the traditional approaches using hand-crafted features. Encouraged by these progresses, many researchers have applied CNNs to video understanding tasks. However, different from images, videos contain not only visual information but also auditory soundtracks. Also, the continuous frames in videos carry rich motion and temporal information that can hardly be captured by CNN prediction on individual frames, since the CNNs do not naturally handle sequential inputs. In contrast, Recurrent Neural Networks (RNN) are designed to perform sequential modeling tasks. Combined together, CNN and RNN have been proven effective for video analysis [19, 21].

Successful models cannot be trained without large-scale annotated datasets like the ImageNet

[6], FCVID [9] and ActivityNet [4]. More recently, YouTube-8M [1] has been released as a benchmark dataset for large-scale video understanding, which contains 8-million videos annotated with over 4,000 class labels and each video is provided with a sequence of frame level features. The Google Cloud & YouTube-8M Video Understanding Challenge is based on this new dataset.

Since the challenge only provides pre-computed visual features (using CNN of [18]) and audio features without giving the original videos, we can neither obtain extra features like optical flows nor compute frame features with different CNNs. Therefore, aggregating the sequence of frame-level features for video-level classification becomes one of the key directions to tackle this challenge. In our solution, we explore standard RNNs and several variants as means of learning a global descriptor from frame level features. We also adopt the idea of a trainable VLAD layer [2] to perform feature aggregation in temporal dimension. Furthermore, we employ feature transformation to train our models on features from different time scales. We show that these methods are complementary to each other and combining them can produce very competitive results.

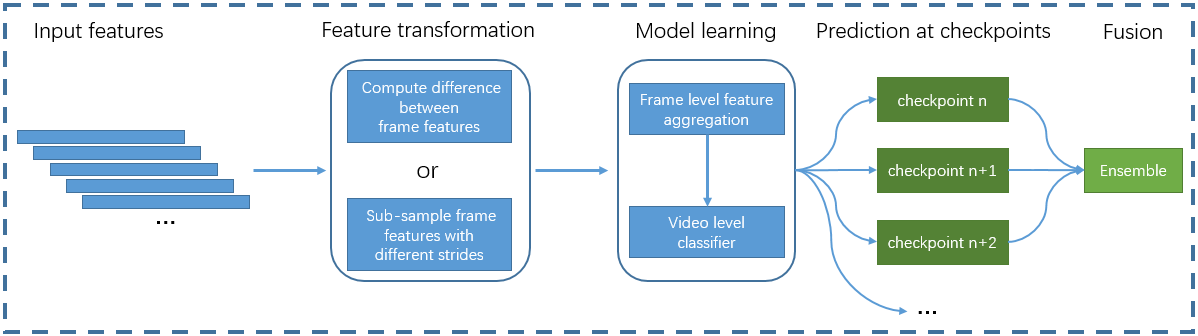

Figure 1: Typical pipeline of a frame-level prediction model. The inputs are a sequence of frame features. During training we save checkpoints for our models at different number of iterations, and generate one set of predictions based on each checkpoint’s model parameters during testing. These predictions are then fused as the final prediction of this model. Fusing predictions at different iterations is found helpful.

2 Related Works

In this section, we briefly review related methods for video classification, particularly those related to our approach developed for the challenge. In general, the first step is to process video frames or optical flows [15] by CNNs to get intermediate layer activations as frame features. After that, the frame representations are aggregated for video-level prediction.

In [1, 24, 21]

, the authors utilized LSTMs to aggregate frame features extracted by CNNs. Over the years, researchers have developed several solutions to improve the performance of RNNs. The Gated Recurrent Unit (GRU)

[5] can often be used in replace of the LSTMs while being more computationally efficient. Semeniuta et al. [14] proposed recurrent dropout to regularize RNNs during training. The recently proposed Layer Normalization [3] and Recurrent Weighted Average (RWA) [12] can help RNNs to converge faster. In addition, Wu et al. [20]

found residual connections can help train deeply stacked RNNs.

Methods other than RNNs can also be applied for aggregating frame features. In [24], the authors evaluated several feature pooling strategies to pool frame features over time. Karpathy et al. [10] used several fusion methods to fuse information in the temporal domain. In [2], the authors proposed a new generalized VLAD layer to aggregate image representations from CNNs spatially in a trainable manner. Similar idea can be adopted to aggregate a sequence of frame representations temporally.

To further improve the classification performance, fusing multiple models is crucial. Simonyan et al. [15] used simple linear weighted fusion. Xu et al. [23] proposed a decision-level fusion approach which optimizes the weights and thresholds for multiple features in the confidence scores. Besides fusion at decision level, Jiang et al. [9] proposed a feature fusion layer to identify and utilize the feature correlations in neural networks.

3 Our Approach

For video-level models based on averaged frame features, we directly adopt Mixture of Experts (MoE) from [1]. We use different number of mixtures such as 4, 8 and 16. In the following we mainly focus on frame-level models, which is more important in our approach.

3.1 Frame-Level Models

We treat frame-level models as means of aggregating frame features, which produce a compact video-level representation. By default, we feed this video-level representation into an MoE model as the final classifier. Figure

1 gives a general pipeline of our frame-level model.

3.1.1 Variants of RNNs

Table 1 contains a list of the RNNs we adopted, which are mainly LSTMs, GRUs and their variants.

All of the RNNs and their variants share the same underlying mechanism. Generally an RNN cell takes a sequence as input. It operates on this sequence step by step, from to . At time step , the RNN cell processes current input and the previous cell state , producing an output at cell state . Thus the RNN cell can be viewed as a function as

After the entire sequence is processed by an RNN cell, we have a sequence of states . Generally we choose to be the representation for this sequence of data. We can also stack multiple RNN cells. The higher layer RNN cell’s input is the output of the lower layer cell. The final state is the concatenation of the final states produced by all the layers. Residual connections can then be added between layers as in [20].

The recurrent dropout variant applies dropout to the cell inputs and outputs at each time step. The bidirectional variant has two RNN cells operating on the normal inputs and the reverse , and then concatenates the outputs of the two cells as the final output.

In addition, based on the idea that in many videos the most informative contents appear around the middle of the video, we introduce a variant of bidirectional RNN. We split the inputs into two equal subsequences and , feed them to a bidirectional RNN, and then concatenate the final states and as the video representation. This variant brings some improvement in our final result.

To better leverage the temporal information captured by the provided frame-level features, we use a simple feature transformation method in some of the model training processes. By taking the difference between adjacent frame pairs as model input, the model can make predictions explicitly based on the trend of feature changes. Although this feature transformation can cause a performance drop for a single model, we notice some performance gain by fusing the result with that of the models without using this feature transformation.

Besides, we train our RNNs with frame features at different time scales. We achieve this by slicing the sequence of frame features into subsequences with equal length in temporal dimension, and imposing mean pooling of the frame features in every subsequence to form a sub-sampled sequence as the RNN input. The length of the subsequence varies.

Batch normalization [8] can be applied to the RNN cell output to accelerate convergence.

Model Variations
LSTM
LSTM Layer normalization & Recurrent dropout
RNN Residual connections
GRU
GRU Bi-directional
GRU Recurrent dropout
GRU Feature transformation
RWA
NetVLAD
DBoF
Table 1: Frame level models. No variation in the second column means the original implementation is adopted. DBoF is from [1].

3.1.2 VLAD Aggregation

In [2], Arandjelovic et al. proposed NetVLAD, using a VLAD layer to pool descriptors extracted from CNNs. The pooling operates on the spatial dimensions of the descriptors. Here we borrow this idea to pool video frame features temporally. Given the sequence of frame features , which is -dimensional and may vary across samples since the video length is different. We wish to pool frame features into a fixed length -dimensional descriptor. Here is a parameter we can adjust as a trade-off between computation cost and performance.

We first randomly sample out of frame features, denoted by . can be viewed as a -dimensional matrix. The cluster mean is denoted by , which is a -dimensional trainable parameter. We compute the strength of association by 1D-convolving into a -dimensional matrix . We use a 1-D convolution kernel with width of 1 and output channel of here. Then we apply soft-max to , so that . The aggregated descriptor is computed by

The resulted descriptors are concatenated to be the new video level representation. Since this aggregation method is different from the RNN based methods, the results produced by this model can be a good complement to that of the RNNs during fusion. Compared with RNNs, the computational cost of this method is lower.

3.2 Label Filtering

The class distribution in the YouTube-8M dataset is imbalanced. Some classes have many positive samples, while some have much fewer samples. In order to better predict those labels with relatively small occurrence probability, we use label filters in some of the model training processes. The labels with high occurrence probability are discarded during training since they are well-trained for other models based on the full set of the labels. Two filter thresholds are used in our approach, making these models focusing only on 2,534 and 3,571 classes with fewer positive training samples, respectively.

3.3 Model Fusion Strategies

Our final prediction is a linear weighted fusion of prediction scores produced by multiple models. Specifically, the fusion is done in two stages.

Stage 1

. We get predictions from multiple model checkpoints saved during training. The checkpoint is chosen after the model is trained for more than 3 epochs. We fuse these predictions as a final result for this model. This stage can be regarded as intra-model fusion.

Stage 2. We fuse predictions from different models generated in Stage 1 to get our final prediction. This can be regarded as inter-model fusion.

We try the following three simple strategies to determine the fusion weights:

Empirical fusion weights: Weights are assigned based on empirical experience of model performance. Better models are assigned with higher weights.

Brute-force Search of fusion weights: On the validation set, we can perform grid-search of fusion weights to identify the best model combination.

Learning for fusion weights:

We can also train a linear regression model to learn the fusion weights on the validation set.

3.4 Implementation Details

All of our models are trained based on the starter TensorFlow code

111https://github.com/google/youtube-8m. Layer and Batch normalization are directly available in TensorFlow. For RWA, we take the authors’ open source implementation222https://github.com/jostmey/rwa. For residual connections in RNN, we use an open source implementation333https://github.com/NickShahML/tensorflow_with_latest_papers.

We concatenate the provided visual and audio features before model training. For our NetVLAD model, we separately process visual and audio features through VLAD layer, and then concatenate them afterwards. We generally stack 2 layers of RNNs.

Please refer to this link444http://github.com/forwchen/yt8m for more details.

4 Evaluation

The models are trained and evaluated on machines with the following settings: OS of Ubuntu 14.04 with gcc version 4.8.4, CUDA-8.0, TensorFlow 1.0.0 and GPU of GeForce GTX TITAN X. The learning rates of our RNN models and NetVLAD models are 0.001 with exponentially decay after each epoch with a decay rate of 0.95. The batch sizes are 128 or 256. Model checkpoints are automatically saved during training every 0.5 hours.

4.1 The Challenge Dataset

The videos in the YouTube-8M dataset are sampled uniformly on YouTube to preserve the diverse distribution of popular contents. Each video is between 120 and 500 seconds long. The selected videos are decoded at 1 frame-per-second up to the first 360 seconds (6 minutes). The decoded frames are fed into the Inception network [18]

and the ReLu activation of the last hidden layer is extracted. After applying PCA to reduce feature dimensions to 1024, the resulted features are provided in the challenge as frame-level features. The video-level features are simply the mean of all the frame features of the video. There are 4,716 classes in total. A video sample may have multiple labels and the average number of classes per video is 1.8. Table 2 gives the dataset partition used in this challenge competition.

Partition Number of Samples
Train 4,906,660
Validate 1,401,828
Test 700,640
Total 7,009,128

Table 2: Dataset partition of the YouTube-8M dataset in the challenge.

4.2 Evaluation Metric

In the challenge, the predictions are evaluated by Global Average Precision (GAP) at 20. For a result with predictions (label/confidence pairs) sorted by its confidence score, the GAP is computed as:

where is the number of final predictions (if there are 20 predictions for each video, then ), is the precision for the first predictions, and is the change in recall. We denote the total number of positives in these predictions as . If prediction is correct then , otherwise .

4.3 Results

Model #Iterations of checkpoints Intra-model fusion weights Inter-model fusion weights
LSTM 353k, 323k, 300k, 280k 0.4, 0.3, 0.2, 0.1 1.0
GRU 69k, 65k, 60k, 55k 0.4, 0.3, 0.2, 0.1 1.0
RWA 114k, 87k, 75k, 50k 0.4, 0.3, 0.2, 0.1 1.0
GRU w. recurrent dropout 56k, 50k, 46k, 40k, 35k 0.4, 0.3, 0.2, 0.05, 0.05 1.0
NetVLAD 24k, 21k, 19k, 16k, 13k 0.4, 0.3, 0.2, 0.05, 0.05 1.0
MoE 127k, 115k, 102k, 90k 0.4, 0.3, 0.2, 0.1 0.5
DBoF 175k, 150k, 137k, 122k, 112k 0.4, 0.3, 0.2, 0.05, 0.05 0.5
GRU w. batch normalization 86k, 74k, 65k, 49k 0.4, 0.3, 0.2, 0.1 0.25
Bidirectional GRU 53k, 45k, 35k 0.5, 0.3, 0.2 0.25
Table 3: Details of the models used in our approach. Every model produces 3 to 5 predictions on the test set with parameters obtained on different training checkpoints and these predictions are firstly linearly fused with the intra-model weights. The resulted predictions of these models are then fused with the inter-model weights.

In the challenge, our submissions are generated by fusing multiple models. Here provide details of one setting with competitive results. Table 3 gives the details. This setting produces a GAP@20 of 0.83996 on the public 50% of test set.

We further provide results of some models and their fusion in Table 4. We can see that the performance can always be improved by appropriately fusing more model predictions. The single NetVLAD is from the prediction of one model trained for 10k iterations. Our NetVLAD produces competitive results to the RNNs, which is appealing considering its low computation cost. Ensemble 1 is the fusion of all the models in Table 3. Ensemble 2 produces our best result, coming from the fusion of Ensemble 1 with some additional models. Details can be found at this link555http://github.com/forwchen/yt8m.

. Model GAP Single NetVLAD 0.79175 NetVLAD multi-model fusion 0.80895 LSTM multi-model fusion 0.81571 GRU multi-model fusion 0.81786 Ensemble 1 0.83996 Ensemble 2 0.84198

Table 4: Results on the public 50% of test set. See texts for details.

5 Conclusion

We have introduced an approach to aggregate frame-level features for large-scale video classification. We showed that fusing multiple models is always helpful. We also proposed a variant of VLAD to aggregate sequence of frame features temporally, which can produce good results with lower computational cost than RNN. Adding all the carefully designed strategies together, our system ranked 4th out of 650 teams worldwide in the challenge competition.
