Single-channel speech enhancement aims at attenuating the noise component of noisy speech to increase the intelligibility and perceived quality of the speech component . It is commonly used to improve the quality of mobile speech communication in noisy environments and enhance the speech signal before amplification in hearing aids and cochlear implants. More importantly, speech enhancement is widely applied as a front-end pre-processing stage to improve the performance of automatic speech recognition (ASR) [2, 3, 4, 5, 6] and speaker recognition under noisy conditions [7, 8].
With the advance of deep learning, deep neural network (DNN) based approaches have achieved great success in single-channel speech enhancement. The mask learning approach[9, 10, 11]
is proposed to estimate the ideal ratio mask or ideal binary mask based on noisy input features using a DNN. The mask is used to filter out the noise from the noisy speech and recover the clean speech. However, it has the presumption that the scale of the masked signal is the same as the clean target and the noise is strictly additive and removable by the masking procedure which is generally not true for real recorded stereo data. To deal with this problem, the feature-mapping approach[12, 13, 14, 15, 16, 17]
is proposed to train a feature-mapping network that directly transforms the noisy features to enhanced ones. The feature-mapping network serves as a non-linear regression function trained to minimize the feature-mapping loss, i.e., the mean square error (MSE) between the enhanced features and the paralleled clean ones. The application of MSE estimator is based on the homoscedasticity and no auto-correlation assumption of the noise, i.e., the noise needs to have the same variance for each noisy feature and the noise needs to be uncorrelated between different noisy features. This assumption is in general violated for real speech signal (a kind of time series data) under non-stationary unknown noise.
Inspired by this, we advance the feature-mapping approach with adversarial learning to further diminish the discrepancy between the distributions of the clean features and the enhanced features generated by the feature-mapping network given non-stationary and auto-correlated noise at the input. We call this method adversarial feature-mapping (AFM) for speech enhancement. In AFM, an additional discriminator network is introduced to distinguish the enhanced features from the real clean ones. The feature-mapping network and the discriminator network are jointly trained to minimize the feature-mapping loss and simultaneously mini-maximize the discrimination loss with adversarial multi-task learning. With AFM, the feature-mapping network can generate pseudo-clean features that the discriminator can hardly tell whether they are real clean features or not. To achieve better performance on ASR task, senone-aware adversarial feature-mapping (SA-AFM) is proposed in which an acoustic model network is introduced and is jointly trained with the feature-mapping and discriminator networks to optimize the senone classification loss in addition to the feature-mapping and discrimination losses.
Note that AFM is different from  in that: (1) In AFM, the inputs to the discriminator are enhanced and clean features while in  the inputs to the discriminator are the concatenation of enhanced and noisy features and the concatenation of clean and noisy features. (2) The primary task of AFM is feature-mapping, i.e., to minimize the distance (MSE) between enhanced and clean features and it is advanced with adversarial learning to further reduce the discrepancy between the distributions of the enhanced and clean features while in  the primary task is to generate enhanced features that are similar to clean features with generative adversarial network (GAN) and it is regularized with the minimization of distance between noisy and enhanced features. (3) AFM performs adversarial multi-task training using GRL method as in  while  conducts conditional GAN iterative optimization as in 26]
uses convolutional neural networks for both.
We perform ASR experiments with features enhanced by AFM on CHiME-3 dataset . Evaluated on a clean acoustic model, AFM achieves 16.95% and 5.27% relative word error rate (WER) improvements respectively over the noisy features and feature-mapping baseline and the SA-AFM achieves 9.85% relative WER improvement over the multi-conditional acoustic model.
2 Adversarial Feature-Mapping Speech Enhancement
With feature-mapping approach for speech enhancement, we are given a sequence of noisy speech features and a sequence of clean speech features as the training data. and are parallel to each other, i.e., each pair of and is frame-by-frame synchronized. The goal of speech enhancement is to learn a non-linear feature-mapping network with parameters that transforms to a sequence of enhanced features such that the distribution of is as close to that of as possible:
To achieve that, we minimize the noisy-to-clean feature-mapping loss , which is commonly defined as the MSE between and as follows:
However, the MSE that feature-mapping approach minimizes is based on the homoscedasticity and no auto-correlation assumption of the noise, i.e., the noise has the same variance for each noisy feature and the noise is uncorrelated between different noisy features. This assumption is in general invalid for real speech signal (time series data) under non-stationary unknown noise. To address this problem, we further advance the feature-mapping network with an additional discriminator network and perform adversarial multi-task training to further reduce the discrepancy between the distribution of enhanced features and the clean ones given non-stationary and auto-correlated noise is at the input.

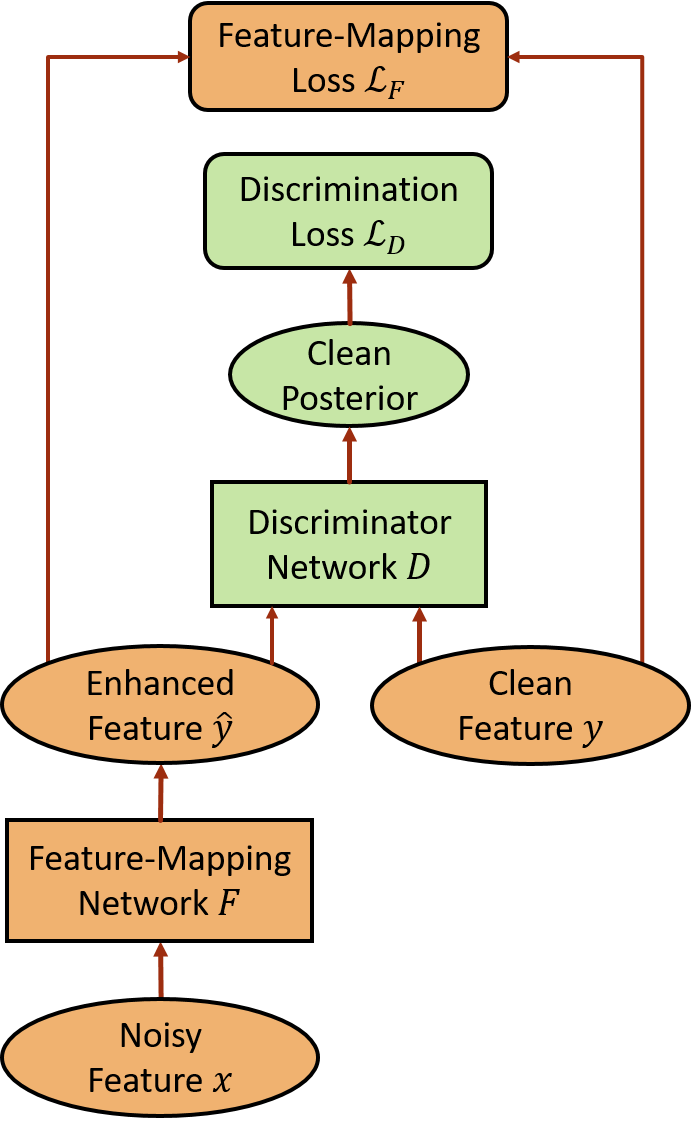

As shown in Fig. 1, the discriminator network with parameters takes enhanced features and clean features
as the input and outputs the posterior probability that an input feature belongs to the clean set, i.e.,
where and denote the sets of clean and enhanced features respectively. The discrimination losses for the is formulated below using cross-entropy:
To make the distribution of the enhanced features similar to that of the clean ones , we perform adversarial training of and , i.e, we minimize with respect to and maximize with respect to . This minimax competition will first increase the generation capability of and the discrimination capability of and will eventually converge to the point where the generates extremely confusing enhanced features that is unable to distinguish whether it is a clean feature or not.
The total loss of AFM is formulated as the weighted sum of the feature-mapping loss and the discrimination loss below:
and are jointly trained to optimize the total loss through adversarial multi-task learning as follows:
where and are optimal parameters for and
respectively and are updated as follows via back propagation through time (BPTT) with stochastic gradient descent (SGD):
where is the learning rate.
Note that the negative coefficient in Eq. (10) induces reversed gradient that maximizes in Eq. (6) and makes the enhanced features similar to the real clean ones. Without the reversal gradient, SGD would make the enhanced features different from the clean ones in order to minimize Eq. (6). For easy implementation, gradient reversal layer is introduced in , which acts as an identity transform in the forward propagation and multiplies the gradient by during the backward propagation. During testing, only the optimized feature-mapping network is used to generate the enhanced features given the noisy test features.
3 Senone-Aware Adversarial Feature-Mapping Enhancement
For AFM speech enhancement, we only need parallel clean and noisy speech for training and we do not need any information about the content of the speech, i.e., the transcription. With the goal of improving the intelligibility and perceived quality of the speech, AFM can be widely used in a broad range of applications including ASR, mobile communication, hearing aids, cochlear implants, etc. However, for the most important ASR task, AFM does not necessarily lead to the best WER performance because its feature-mapping and discrimination objectives are not directly related to the speech units (i.e., word, phoneme, senone, etc.) classification. In fact, with AFM, some decision boundaries among speech units may be distorted in searching for an optimal separation between speech and noise.
To compensate for this mismatch, we incorporate a DNN acoustic model into the AFM framework and propose the senone-aware adversarial feature-mapping (SA-AFM), in which the acoustic model network , feature-mapping network and the discriminator network are trained to jointly optimize the primary task of feature-mapping, secondary task of the third task of clean/enhanced data discrimination and the third task of senone classification in an adversarial fashion. The transcription of the parallel clean and noisy training utterances is required for SA-AFM speech enhancement.

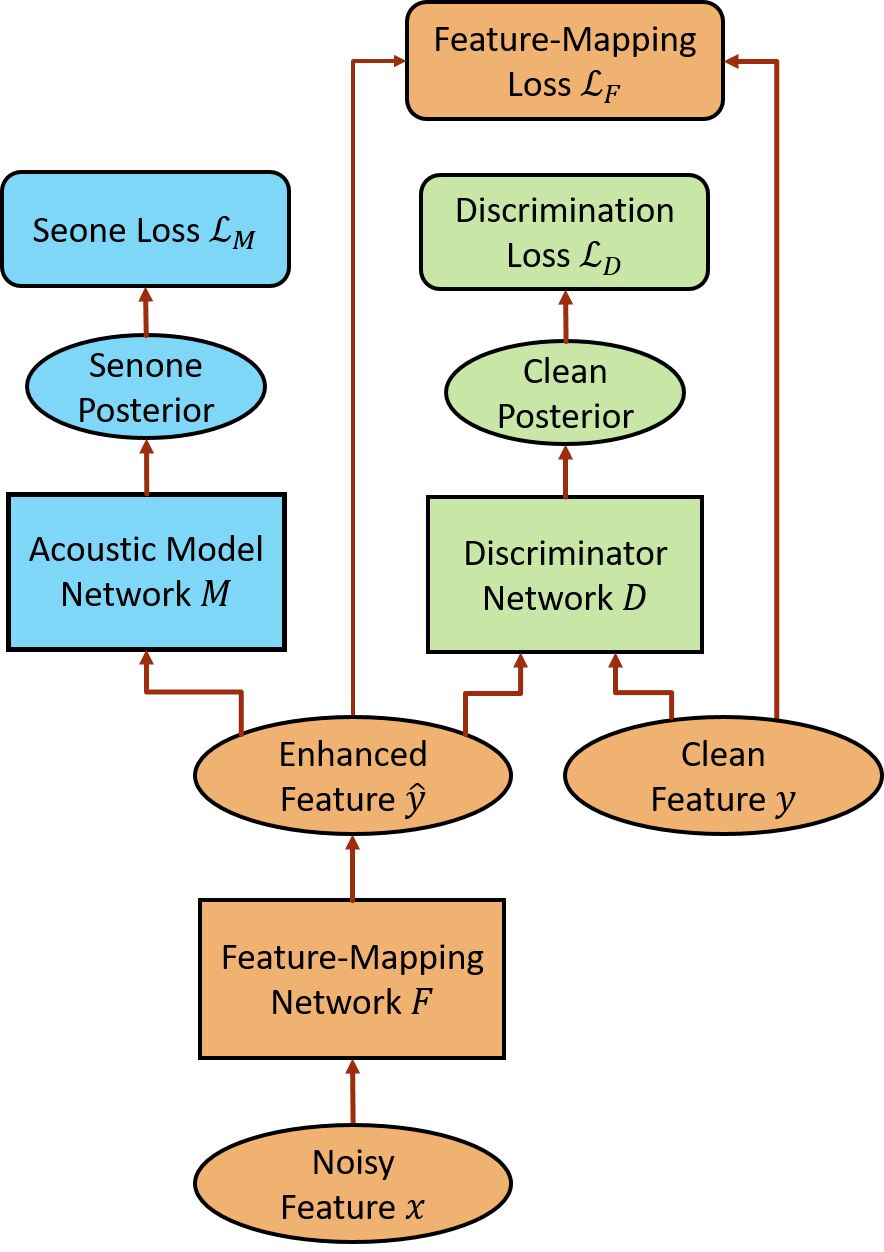

Specifically, as shown in Fig. 2, the acoustic model network with parameters takes in the enhanced features as the input and predicts the senone posteriors as follows:
after the integration with feature-mapping network , we have
We want to make the enhanced features senone-discriminative by minimizing the cross-entropy loss between the predicted senone posteriors and the senone labels as follows:
where is a sequence of senone labels aligned with the noisy data and enhanced data .
Simultaneously, we minimize feature-mapping loss defined in Eq. (3) with respect to and perform adversarial training of and , i.e, we minimize defined in Eq. (6) with respect to and maximize with respect to , to make the distribution of the enhanced features similar to that of the clean ones .
The total loss of SA-AFM is formulated as the weighted sum of , and the senone classification loss as follows:
where is the gradient reversal coefficient that controls the trade-off between and , and is the weight for .
, and are jointly trained to optimize the total loss through adversarial multi-task learning as follows:
During decoding, only the optimized feature-mapping network and acoustic model network are used to take in the noisy test features and generate the acoustic scores.
In the experiments, we train the feature-mapping network with the parallel clean and noisy training utterances in CHiME-3 dataset  using different methods. The real far-field noisy speech from the 5th microphone channel in CHiME-3 development data set is used for testing. We use a pre-trained clean DNN acoustic model to evaluate the ASR WER performance of the test features enhanced by
. The standard WSJ 3-gram language model with 5K-word lexicon is used in our experiments.
4.1 Feedforward DNN Acoustic Model
To evaluate the ASR performance of the features enhanced by AFM, we first train a feedforward DNN-hidden Markov model (HMM) acoustic model using 8738 clean training utterances in CHiME-3 with cross-entropy criterion. The 29-dimensional log Mel filterbank (LFB) features together with 1st and 2nd order delta features (totally 87-dimensional) are extracted. Each feature frame is spliced together with 5 left and 5 right context frames to form a 957-dimensional feature. The spliced features are fed as the input of the feed-forward DNN after global mean and variance normalization. The DNN has 7 hidden layers with 2048 hidden units for each layer. The output layer of the DNN has 3012 output units corresponding to 3012 senone labels. Senone-level forced alignment of the clean data is generated using a Gaussian mixture model-HMM system. A WER of 29.44% is achieved when evaluating the clean DNN acoustic model on the test data.
4.2 Adversarial Feature-Mapping Speech Enhancement
We use parallel data consisting of 8738 pairs of noisy and clean utterances in CHiME-3 as the training data. The 29-dimensional LFB features are extracted for the training data. For the noisy data, the 29-dimensional LFB features are appended with 1st and 2nd order delta features to form 87-dimensional feature vectors.is an LSTM-RNN with 2 hidden layers and 512 units for each hidden layer. A 256-dimensional projection layer is inserted on top of each hidden layer to reduce the number of parameters. has 87 input units and 29 output units. The features are globally mean and variance normalized before fed into . The discriminator is a feedforward DNN with 2 hidden layers and 512 units in each hidden layer. has 29 input units and one output unit.
We first train with 87-dimensional LFB features as the input and 29-dimensional LFB features as the target to minimize the feature-mapping loss in Eq. (3). This serves as the feature-mapping baseline. Evaluated on clean DNN acoustic model trained in Section 4.1, the feature-mapping enhanced features achieve 25.81% WER which is 12.33% relative improvement over the noisy features. Then we jointly train and to optimize as in Eq. (7) using the same input features and targets. The gradient reversal coefficient is fixed at and the learning rate is with a momentum of in the experiments. As shown in Table 1, AFM enhanced features achieve 24.45% WER which is 16.95 % and 5.27% relative improvements over the noisy features and feature-mapping baseline.
4.3 Senone-Aware Adversarial Feature-Mapping Speech Enhancement
The SA-AFM experiment is conducted on top of the AFM system described in Section 4.2. In addition to the LSTM and feedforward DNN , we train a multi-conditional LSTM acoustic model using both the 8738 clean and 8738 noisy training utterances in CHiME-3 dataset. The LSTM has 4 hidden layers with 1024 units in each layer. A 512-dimensional projection layer is inserted on top each hidden layer to reduce the number of parameters. The output layer has 3012 output units predicting senone posteriors. The senone-level forced alignment of the training data is generated using a GMM-HMM system. As shown in Table 2, the multi-conditional acoustic model achieves 19.28% WER on CHiME-3 simulated dev set.
Then we perform senone-aware feature-mapping (SA-FM) by jointly training and to optimize the feature-mapping loss and the senone classification loss in which takes the enhanced LFB features generated by as the input to predict the senone posteriors. The SA-FM achieves 18.51% WER on the same testing data. Finally, SA-AFM is performed as described in Section 3 and it achieves 17.38% WER which is 9.85% and 6.10% relative improvements over the multi-conditional acoustic model and SA-FM baseline.
In this paper, we advance feature-mapping approach with adversarial learning by proposing AFM method for speech enhancement. In AFM, we have a feature-mapping network that transforms the noisy speech features to clean ones with parallel noisy and clean training data and a discriminator that distinguishes the enhanced features from the clean ones. and are jointly trained to minimize the feature-mapping loss (i.e., MSE) and simultaneously mini-maximize the discrimination loss. On top of feature-mapping, AFM pushes the distribution of the enhanced features further towards that of the clean features with adversarial multi-task learning.To achieve better performance on ASR task, SA-AFM is further proposed to optimize the senone classification loss in addition to the AFM losses.
We perform ASR experiments with features enhanced by AFM on CHiME-3 dataset. AFM achieves 16.95% and 5.27% relative WER improvements over the noisy features and feature-mapping baseline when evaluated on a clean DNN acoustic model. Furthermore, the proposed SA-AFM achieves 9.85% relative WER improvement over the multi-conditional acoustic model. As we show in , teacher-student (T/S) learning  is better for robust model adaptation without the need of transcription. We are now working on the combination of AFM with T/S learning to further improve the ASR model performance.
