Adversarial Attack in the Context of Self-driving

by   Zhenhua Chen, et al.
Indiana University Bloomington

In this paper, we propose a model that can attack segmentation models with semantic and dynamic targets in the context of self-driving. Specifically, our model is designed to map an input image as well as its corresponding label to perturbations. After adding the perturbation to the input image, the adversarial example can manipulate the labels of the pixels in a semantically meaningful way on dynamic targets. In this way, we can make a potential attack subtle and stealthy. To evaluate the stealthiness of our attacking model, we design three types of tasks, including hiding true labels in the context, generating fake labels, and displacing labels that belong to some category. The experiments show that our model can attack segmentation models efficiently with a relatively high success rate on Cityscapes, Mapillary, and BDD100K. We also evaluate the generalization of our model across different datasets. Finally, we propose a new metric to evaluate the parameter-wise efficiency of attacking models by comparing the number of parameters used by both the attacking models and the target models.



There are no comments yet.


page 2

page 6

page 7


Generating Unrestricted Adversarial Examples via Three Parameters

Deep neural networks have been shown to be vulnerable to adversarial exa...

Deep adversarial attack on target detection systems

Target detection systems identify targets by localizing their coordinate...

GAP++: Learning to generate target-conditioned adversarial examples

Adversarial examples are perturbed inputs which can cause a serious thre...

Adversarial Attack with Pattern Replacement

We propose a generative model for adversarial attack. The model generate...

Improving Visual Quality of Unrestricted Adversarial Examples with Wavelet-VAE

Traditional adversarial examples are typically generated by adding pertu...

Contextualized Perturbation for Textual Adversarial Attack

Adversarial examples expose the vulnerabilities of natural language proc...

Generating Semantically Valid Adversarial Questions for TableQA

Adversarial attack on question answering systems over tabular data (Tabl...
This week in AI

Get the week's most popular data science and artificial intelligence research sent straight to your inbox every Saturday.

1 Introduction

Many breakthroughs have happened since deep neural networks were re-introduced to the computer vision community a few years ago. At the same time, worries about whether these deep neural networks are reliable or robust to potential attacks are emerging. Unfortunately, more and more research has shown that these deep neural networks are vulnerable to attacks based on adversarial examples

[10, 17, 22, 25]. One explanation is that since a neural network is roughly linear, a small perturbation on the input scan make a big difference on the output if the neural network is deep. Many researchers have been working on improving the robustness of neural networks [7, 11, 21, 18, 24, 26, 27], but most of them can be easily circumvented [3] and we do not have general techniques for ensuring robustness for neural networks.

In contrast, attacking a deep learning-based model is much easier. FGSM


was among the very first attacking algorithms, whose primary idea was to convert the attacking problem into an optimization problem. Specifically, FGSM manipulates the input data in some direction in the image space to make the classifier predict incorrect labels. The main difference between FGSM and backpropagation is that FGSM considers the perturbations rather than each layer’s parameter as trainable parameters.

What is surprising is that we can limit the magnitude of the perturbations to a small range (for example, the infinity norm of the perturbation image is smaller than 8, ) but can still fool a neural network effectively. Although FGSM is designed to attack deep learning-based classifiers, it can also be applied to some high-level applications like image segmentation and object detection. Because stripped to the essence, semantic segmentation methods and object detectors are also composed of multiple “classifiers”. However, attacking a segmentation model or object detection model is relatively more difficult since more constraints have to be considered.

Based on FGSM, several varied forms are proposed. The most straight-forward modification is replacing the one-step optimization with a multi-step optimization process (Here we focus on only attacking segmentation models). For example, [2] explore the robustness of several segmentation models based on FGSM. [29] propose Dense Adversary Generation to attack both segmentation models and two-stage object detectors. Both [29] and  [2] fall into the slot of untargeted attacking which makes target segmentation models predict random labels. A non-target attack can completely collapse a segmentation model’s predictions and thus easy to detect, as Figure 1 shows. The targeted attack, if designed with semantic meanings, can be stealthy. For example,  [8] can fool a segmentation model to predict labels without ’Person’ when there are people in the image. From another viewpoint, these attacking models can be classified in terms of how the perturbations are generated, either by backpropagating the gradients to the input space directly or by adopting a separate generator. The former type is simple but not so flexibile (the number of the parameters always equal to the number of input pixels) [2, 29] while the latter is powerful but more complex [20].

Considering that these deep learning-based segmentation models are being applied to autonomous cars [28, 13, 31, 4] as well as many other applications, once these segmentation models are attacked, serious problems in the real world could happen. In this paper, we propose a method to generate perturbations that can strike dynamic, semantically stealthy attacks. Specifically, we start from the input images as well as the segmentation labels predicted by the target model, then generate semantically stealthy perturbations based on them. When deployed, we use the trained generator to generate perturbations that apply to each testing image. Our main contributions can be summarized as follows:

  • We propose an attacking framework that can strike stealthy, semantically meanful attack on dynamic targets.

  • We design three basic types of semantic attacking, namely label vanishing, fake label adding, and label displacement. Other high-level semantic manipulation can be acquired by combining these basic types.

  • We evaluate our model’s generalization ability across different datasets as well as its parameter-wise efficiency.

Figure 1: Non-targeted attack [2]. Top: The predicted label generated by an target segmentation model. Bottom: The target model’s prediction collapses completely.
Figure 2:

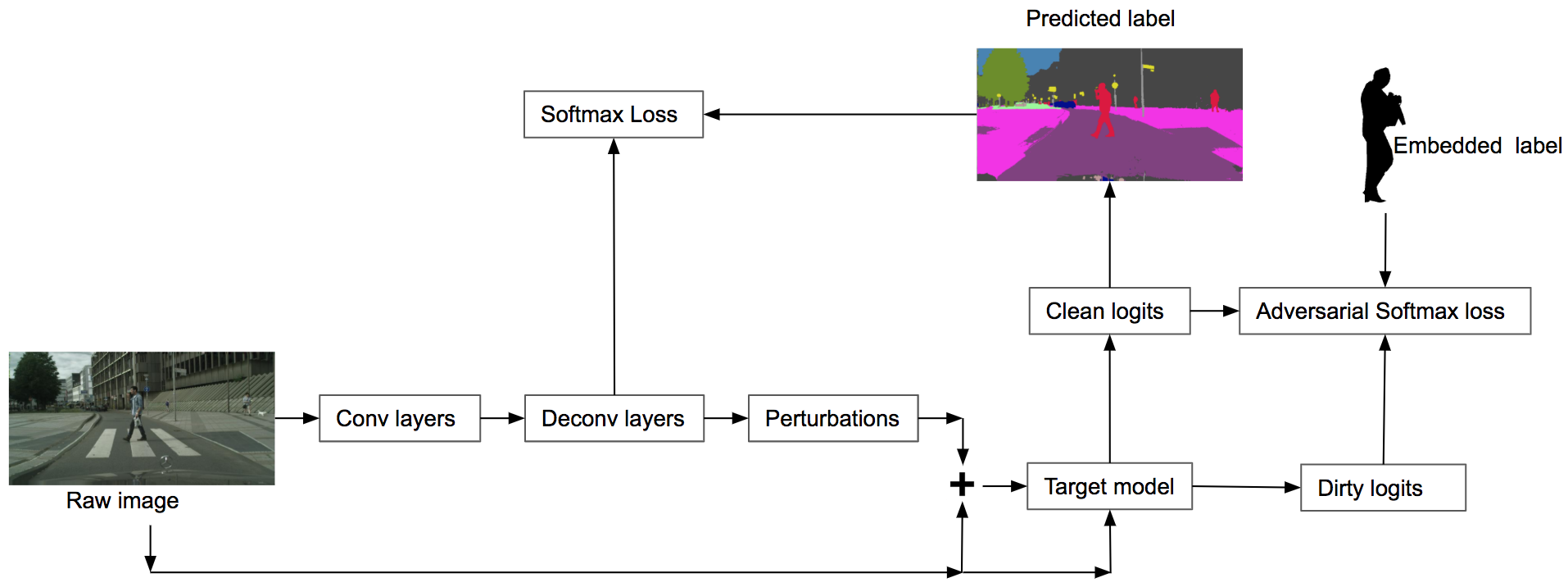

The overview of our attacking model. The ‘Target model’ is the one we attack. During training, each input image is fed into a generator (which is composed of a couple of convolutonal layers and deconvolutional layers) as well as the target model. After the ‘clean logits’ and the ‘dirty logits’ are acquired, we feed them into a customized ‘adversarial softmax loss’. Another critical design is that we regulate the embedded features that come from the generator to predict the target model’s original prediction. The ‘embedded label’ here provides a template for fake labels.

2 Related work

2.1 FGSM-style attacking

Current attacking methods are mostly inspired by FGSM [10]. The core idea of these FGSM-style attacking methods is to choose a label or labels for a target model (the model is treated as a black-box), calculate the loss, and then backpropagate the gradients to the perturbation space. Most attacking algorithms designed for segmentation models also follow this idea. For example,  [2, 29] attack a couple of segmentation models [12, 19, 5] by setting untargeted labels. After attacking, the targeted models predict random labels for each pixel. Although these attacking models are pretty efficient, they are far from subtle and would be easy to get caught. [8] overcomes this issue by setting semantically meaningful target.

Another issue is that these attacking methods, no matter targeted or untargeted, are a straightforward generalization of FGSM [10] which treats each image as an independent target. In other words, their target is each input image rather than the whole model. Treating each input image separately results in low efficiency during testing.

2.2 Universal adversary

The universal adversary might be a solution to overcome the computationally intensive issue of FGSM-based attacks. Universal Adversarial Perturbations (UP) [15] can generate sample-agnostic perturbations offline and thus can strike an attack in real-time. The primary idea of UP is trying to find a universal perturbation that can fool all the training/test images. UP is originally designed for attacking classifiers, but can be easily extended to attack segmentation models. For example,  [14]

propose an attacking solution by finding a perturbation that maximizes the predictive probability of a target class. Specifically,

[14] iteratively backpropagate the gradients to the input space. When the training is finished, the final gradients form the perturbation which is added to each input image during testing time.

2.3 Attacking based on GAN-like structures

UP-based attacking models largely avoid the computationally expensive issue. However, it is not so flexible since the model is limited to have the same neurons as the number of pixels. One straight-forward way to solve this issue is adopting a GAN-like structure, in which the discriminator corresponds to the target model while the generator is supposed to generate the perturbations. The perturbation generator can start from either random noise or an image. If the perturbation comes from an image, it is called as an image-dependent perturbation. For example,

[20] proposes a unified, GAN-like, attacking model that can attack both segmentation models and classifiers. One problem of  [20] is that we found that its structure does not perform very well for dynamic target labels. To soften this issue, we add an extra regularizer that encodes the information of the predicted segmentation labels as well as the input image to generate perturbations for dynamic segmentation targets. The experiment shows that our model achieves good performance on several different attacking types.

2.4 Attacking based on physical attributes

Apart from adding perturbation, it is also possible to add physical attributes to the original image to strike an attack. For example, [23] can fool a face recognizer by adding glasses to a face. [1]

can fool a real-world face recognition system by manipulating some attribute (like hair color, etc.) These methods used to generate physical adversarial examples are weakly related to our work.

3 Our Approach

More and more self-driving cars are adopting deep learning-based segmentation models. Once the segmentation model was attacked, an accident would happen.

3.1 Adversary model

We assume that a potential attacker can get access to the model but can not modify it. The model can be stored in either a self-driving car itself or a server which can communicate with it. We assume the attacker can use the model as a black-box, and can inject unlimited samples into the target model to observe the model’s output. Thus we can train an adversary model to generate adversarial perturbations.

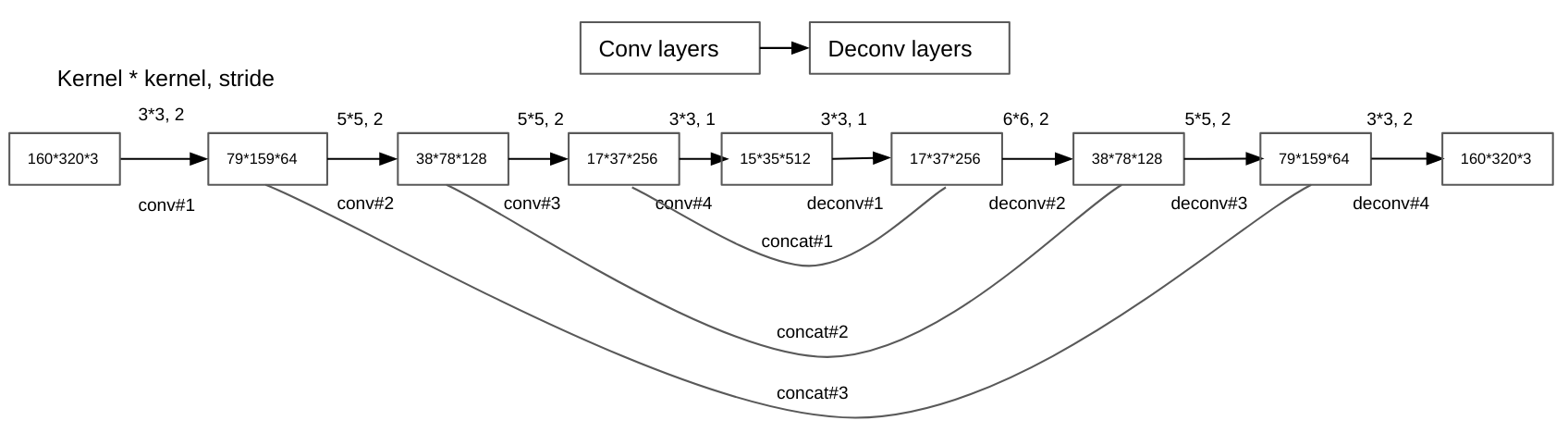

Figure 3: The detailed structure of the generator in Figure 2.
