AdvEntuRe: Adversarial Training for Textual Entailment with Knowledge-Guided Examples

05/12/2018 ∙ by Dongyeop Kang, et al. ∙ 4

We consider the problem of learning textual entailment models with limited supervision (5K-10K training examples), and present two complementary approaches for it. First, we propose knowledge-guided adversarial example generators for incorporating large lexical resources in entailment models via only a handful of rule templates. Second, to make the entailment model - a discriminator - more robust, we propose the first GAN-style approach for training it using a natural language example generator that iteratively adjusts based on the discriminator's performance. We demonstrate effectiveness using two entailment datasets, where the proposed methods increase accuracy by 4.7 on SciTail and by 2.8 single hand-written rule, negate, improves the accuracy on the negation examples in SNLI by 6.1

READ FULL TEXT VIEW PDF
POST COMMENT

Comments

There are no comments yet.

Authors

page 7

This week in AI

Get the week's most popular data science and artificial intelligence research sent straight to your inbox every Saturday.

1 Introduction

The impressive success of machine learning models on large natural language datasets often does not carry over to moderate training data regimes, where models often struggle with infrequently observed patterns and simple adversarial variations. A prominent example of this phenomenon is

textual entailment, the fundamental task of deciding whether a premise text entails () a hypothesis

text. On certain datasets, recent deep learning entailment systems

Parikh et al. (2016); Wang et al. (2017); Gong et al. (2018) have achieved close to human level performance. Nevertheless, the problem is far from solved, as evidenced by how easy it is to generate minor adversarial examples that break even the best systems. As Table 1

illustrates, a state-of-the-art neural system for this task, namely the Decomposable Attention Model

Parikh et al. (2016), fails when faced with simple linguistic phenomena such as negation, or a re-ordering of words. This is not unique to a particular model or task. Minor adversarial examples have also been found to easily break neural systems on other linguistic tasks such as reading comprehension Jia and Liang (2017).



P: The dog did not eat all of the chickens.
H: The dog ate all of the chickens.
S: entails (score )
P: The red box is in the blue box.
H: The blue box is in the red box.
S: entails (score )



Table 1: Failure examples from the SNLI dataset: negation (Top) and re-ordering (Bottom). P is premise, H is hypothesis, and S is prediction made by an entailment system Parikh et al. (2016).

A key contributor to this brittleness is the use of specific datasets such as SNLI Bowman et al. (2015) and SQuAD Rajpurkar et al. (2016) to drive model development. While large and challenging, these datasets also tend to be homogeneous. E.g., SNLI was created by asking crowd-source workers to generate entailing sentences, which then tend to have limited linguistic variations and annotation artifacts Gururangan et al. (2018). Consequently, models overfit to sufficiently repetitive patterns—and sometimes idiosyncrasies—in the datasets they are trained on. They fail to cover long-tail and rare patterns in the training distribution, or linguistic phenomena such as negation that would be obvious to a layperson.

To address this challenge, we propose to train textual entailment models more robustly using adversarial examples generated in two ways: (a) by incorporating knowledge from large linguistic resources, and (b) using a sequence-to-sequence neural model in a GAN-style framework.

The motivation stems from the following observation. While deep-learning based textual entailment models lead the pack, they generally do not incorporate intuitive rules such as negation, and ignore large-scale linguistic resources such as PPDB Ganitkevitch et al. (2013) and WordNet Miller (1995). These resources could help them generalize beyond specific words observed during training. For instance, while the SNLI dataset contains the pattern two men people, it does not contain the analogous pattern two dogs animals found easily in WordNet.

Effectively integrating simple rules or linguistic resources in a deep learning model, however, is challenging. Doing so directly by substantially adapting the model architecture Sha et al. (2016); Chen et al. (2018) can be cumbersome and limiting. Incorporating such knowledge indirectly via modified word embeddings Faruqui et al. (2015); Mrkšić et al. (2016), as we show, can have little positive impact and can even be detrimental.

Our proposed method, which is task-specific but model-independent, is inspired by data-augmentation techniques. We generate new training examples by applying knowledge-guided rules, via only a handful of rule templates, to the original training examples. Simultaneously, we also use a sequence-to-sequence or seq2seq model for each entailment class to generate new hypotheses from a given premise, adaptively creating new adversarial examples. These can be used with any entailment model without constraining model architecture.

We also introduce the first approach to train a robust entailment model using a Generative Adversarial Network or GAN Goodfellow et al. (2014) style framework. We iteratively improve both the entailment system (the discriminator) and the differentiable part of the data-augmenter (specifically the neural generator), by training the generator based on the discriminator’s performance on the generated examples. Importantly, unlike the typical use of GANs to create a strong generator, we use it as a mechanism to create a strong and robust discriminator.

Our new entailment system, called AdvEntuRe, demonstrates that in the moderate data regime, adversarial iterative data-augmentation via only a handful of linguistic rule templates can be surprisingly powerful. Specifically, we observe 4.7% accuracy improvement on the challenging SciTail dataset Khot et al. (2018) and a 2.8% improvement on 10K-50K training subsets of SNLI. An evaluation of our algorithm on the negation examples in the test set of SNLI reveals a 6.1% improvement from just a single rule.

2 Related Work

Adversarial example generation has recently received much attention in NLP. For example, Jia and Liang (2017) generate adversarial examples using manually defined templates for the SQuAD reading comprehension task. Glockner et al. (2018) create an adversarial dataset from SNLI by using WordNet knowledge. Automatic methods Iyyer et al. (2018)

have also been proposed to generate adversarial examples through paraphrasing. These works reveal how neural network systems trained on a large corpus can easily break when faced with carefully designed unseen adversarial patterns at test time. Our motivation is different. We use adversarial examples at training time, in a data augmentation setting, to train a more robust entailment discriminator. The generator uses explicit knowledge or hand written rules, and is trained in a end-to-end fashion along with the discriminator.

Incorporating external rules or linguistic resources in a deep learning model generally requires substantially adapting the model architecture Sha et al. (2016); Liang et al. (2017); Kang et al. (2017). This is a model-dependent approach, which can be cumbersome and constraining. Similarly non-neural textual entailment models have been developed that incorporate knowledge bases. However, these also require model-specific engineering Raina et al. (2005); Haghighi et al. (2005); Silva et al. (2018).

An alternative is the model- and task-independent route of incorporating linguistic resources via word embeddings that are retro-fitted Faruqui et al. (2015) or counter-fitted Mrkšić et al. (2016) to such resources. We demonstrate, however, that this has little positive impact in our setting and can even be detrimental. Further, it is unclear how to incorporate knowledge sources into advanced representations such as contextual embeddings McCann et al. (2017); Peters et al. (2018). We thus focus on a task-specific but model-independent approach.

Logical rules have also been defined to label existing examples based on external resources Hu et al. (2016). Our focus here is on generating new training examples.

Our use of the GAN framework to create a better discriminator is related to CatGANs Wang and Zhang (2017) and TripleGANs Chongxuan et al. (2017)

where the discriminator is trained to classify the original training image classes as well as a new ‘fake’ image class. We, on the other hand, generate examples belonging to the same classes as the training examples. Further, unlike the earlier focus on the vision domain, this is the first approach to train a discriminator using GANs for a natural language task with discrete outputs.

3 Adversarial Example Generation

We present three different techniques to create adversarial examples for textual entailment. Specifically, we show how external knowledge resources, hand-authored rules, and neural language generation models can be used to generate such examples. Before describing these generators in detail, we introduce the notation used henceforth.

We use lower-case letters for single instances (e.g., ), upper-case letters for sets of instances (e.g., ), blackboard bold for models (e.g., ), and calligraphic symbols for discrete spaces of possible values (e.g., class labels ). For the textual entailment task, we assume each example is represented as a triple (, , ), where is a premise (a natural language sentence), is a hypothesis, and is an entailment label: (a) entails () if is true whenever is true; (b) contradicts () if is false whenever is true; or (c) neutral () if the truth value of cannot be concluded from being true.111The symbols are based on Natural Logic Lakoff (1970) and use the notation of MacCartney and Manning MacCartney and Manning (2012).

We will introduce various example generators in the rest of this section. Each such generator, , is defined by a partial function and a label . If a sentence has a certain property required by (e.g., contains a particular string), transforms it into another sentence and provides an entailment label from to . Applied to a sentence , thus either “fails” (if the pre-requisite isn’t met) or generates a new entailment example triple, . For instance, consider the generator for :=hypernym(car, vehicle) with the (partial) transformation function :=“Replace car with vehicle” and the label :=entails. would fail when applied to a sentence not containing the word “car”. Applying to the sentence s=“A man is driving the car” would generate s’=“A man is driving the vehicle”, creating the example .

The seven generators we use for experimentation are summarized in Table 2 and discussed in more detail subsequently. While these particular generators are simplistic and one can easily imagine more advanced ones, we show that training using adversarial examples created using even these simple generators leads to substantial accuracy improvement on two datasets.

Source (s)
Knowledge Base,
WordNet
hyper
anto(x, y)
syno(x, y)
Replace
with in
PPDB
SICK
Hand-authored,
Domain knowledge neg negate()
Neural Model,
Training data (s2s, )
Table 2: Various generators characterized by their source, (partial) transformation function as applied to a sentence , and entailment label

3.1 Knowledge-Guided Generators

Large knowledge-bases such as WordNet and PPDB contain lexical equivalences and other relationships highly relevant for entailment models. However, even large datasets such as SNLI generally do not contain most of these relationships in the training data. E.g., that two dogs entails animals isn’t captured in the SNLI data. We define simple generators based on lexical resources to create adversarial examples that capture the underlying knowledge. This allows models trained on these examples to learn these relationships.

As discussed earlier, there are different ways of incorporating such symbolic knowledge into neural models. Unlike task-agnostic ways of approaching this goal from a word embedding perspective Faruqui et al. (2015); Mrkšić et al. (2016) or the model-specific approach Sha et al. (2016); Chen et al. (2018), we use this knowledge to generate task-specific examples. This allows any entailment model to learn how to use these relationships in the context of the entailment task, helping them outperform the above task-agnostic alternative.

Our knowledge-guided example generators, , use lexical relations available in a knowledge-base: where the relation (such as synonym, hypernym, etc.) may differ across knowledge bases. We use a simple (partial) transformation function, :=“Replace in with ”, as described in an earlier example. In some cases, when part-of-speech (POS) tags are available, the partial function requires the tags for in and in to match. The entailment label for the resulting examples is also defined based on the relation , as summarized in Table 2.

This idea is similar to Natural Logic Inference or NLI Lakoff (1970); Sommers (1982); Angeli and Manning (2014) where words in a sentence can be replaced by their hypernym/hyponym to produce entailing/neutral sentences, depending on their context. We propose a context-agnostic use of lexical resources that, despite its simplicity, already results in significant gains. We use three sources for generators:

WordNet

(Miller, 1995)

is a large, hand-curated, semantic lexicon with synonymous words grouped into

synsets. Synsets are connected by many semantic relations, from which we use hyponym and synonym relations to generate entailing sentences, and antonym relations to generate contradicting sentences222A similar approach was used in a parallel work to generate an adversarial dataset from SNLI Glockner et al. (2018).. Given a relation , the (partial) transformation function is the POS-tag matched replacement of in with , and requires the POS tag to be noun or verb. NLI provides a more robust way of using these relations based on context, which we leave for future work.

Ppdb

(Ganitkevitch et al., 2013) is a large resource of lexical, phrasal, and syntactic paraphrases. We use 24,273 lexical paraphrases in their smallest set, PPDB-S Pavlick et al. (2015), as equivalence relations, . The (partial) transformation function for this generator is POS-tagged matched replacement of in with , and the label is entails.

Sick

(Marelli et al., 2014) is dataset with entailment examples of the form , created to evaluate an entailment model’s ability to capture compositional knowledge via hand-authored rules. We use the 12,508 patterns of the form extracted by Beltagy et al. (2016) by comparing sentences in this dataset, with the property that for each SICK example , replacing (when applicable) with in produces . For simplicity, we ignore positional information in these patterns. The (partial) transformation function is replacement of in with , and the label is .

3.2 Hand-Defined Generators

Even very large entailment datasets have no or very few examples of certain otherwise common linguistic constructs such as negation,333Only 211 examples (2.11%) in the SNLI training set contain negation triggers such as not, ’nt, etc. causing models trained on them to struggle with these constructs. A simple model-agnostic way to alleviate this issue is via a negation example generator whose transformation function is negate, described below, and the label is contradicts.

negate(s): If contains a ‘be’ verb (e.g., is, was), add a “not” after the verb. If not, also add a “did” or “do” in front based on its tense. E.g., change “A person is crossing” to “A person is not crossing” and “A person crossed” to “A person did not cross.” While many other rules could be added, we found that this single rule covered a majority of the cases. Verb tenses are also considered444https://www.nodebox.net/code/index.php/Linguistics and changed accordingly. Other functions such as dropping adverbial clauses or changing tenses could be defined in a similar manner.

Both the knowledge-guided and hand-defined generators make local changes to the sentences based on simple rules. It should be possible to extend the hand-defined rules to cover the long tail (as long as they are procedurally definable). However, a more scalable approach would be to extend our generators to trainable models that can cover a wider range of phenomena than hand-defined rules. Moreover, the applicability of these rules generally depends on the context which can also be incorporated in such trainable generators.

3.3 Neural Generators

For each entailment class , we use a trainable sequence-to-sequence neural model Sutskever et al. (2014); Luong et al. (2015) to generate an entailment example from an input sentence . The seq2seq model, trained on examples labeled , itself acts as the transformation function of the corresponding generator . The label is set to

. The joint probability of seq2seq model is:

(1)
(2)

The loss function for training the seq2seq is:

(3)

where is the cross-entropy loss between the original hypothesis and the predicted hypothesis. Cross-entropy is computed for each predicted word against the same in given the sequence of previous words in . are the optimal parameters in that minimize the loss for class . We use the single most likely output to generate sentences in order to reduce decoding time.

3.4 Example Generation

The generators described above are used to create new entailment examples from the training data. For each example in the data, we can create two new examples: and .

The examples generated this way using and can, however, be relatively easy, as the premise and hypothesis would differ by only a word or so. We therefore compose such simple (“first-order”) generated examples with the original input example to create more challenging “second-order” examples. We can create second-order examples by composing the original example with a generated sentence from hypothesis, and premise, . Figure 1 depicts how these two kinds of examples are generated from an input example .

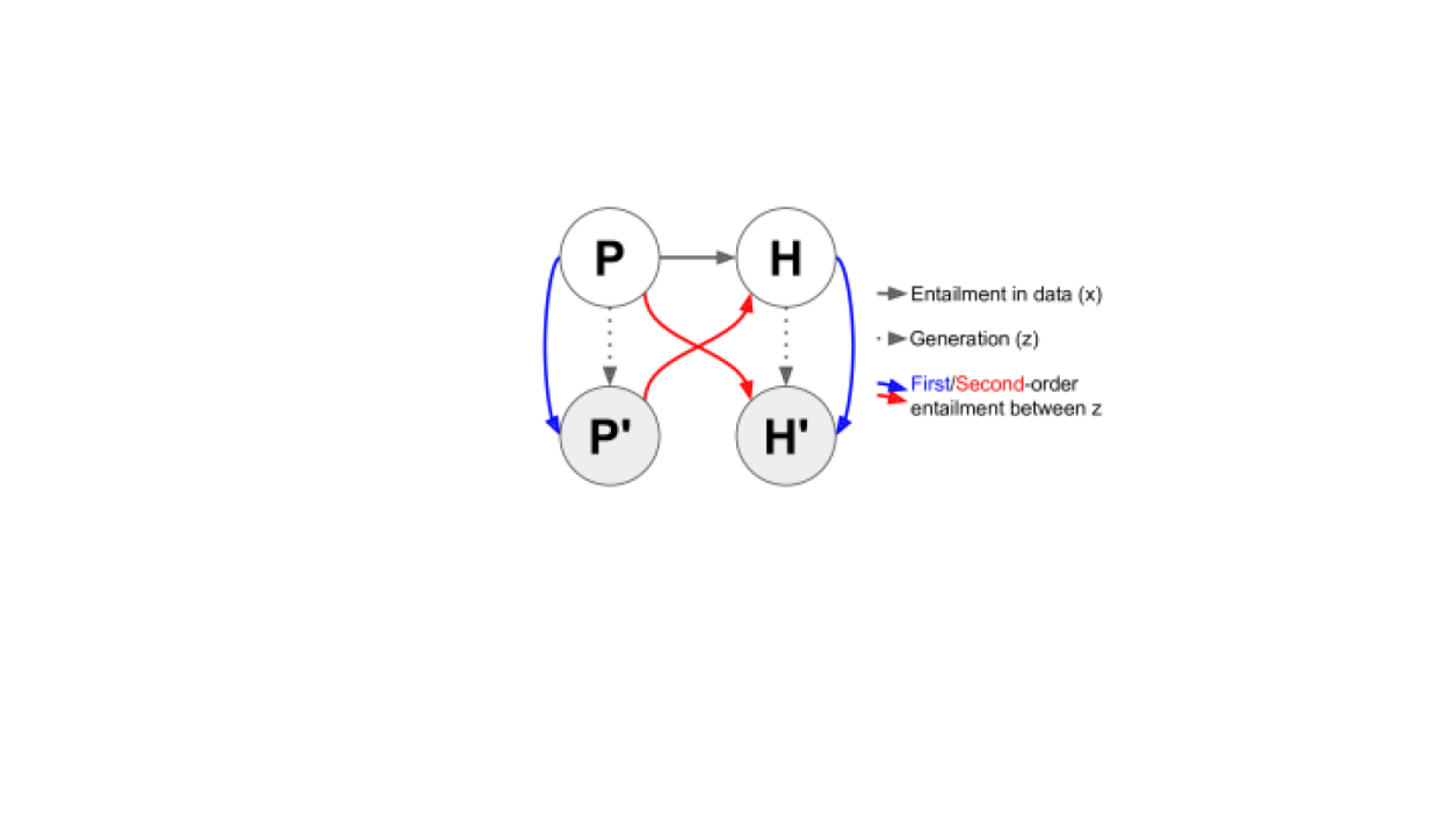

Figure 1: Generating first-order (blue) and second-order (red) examples.

First, we consider the second-order example between the original premise and the transformed hypothesis: , where , defined in the left half of Table 3, composes the input example label (connecting and ) and the generated example label to produce a new label. For instance, if entails and entails , would entail . In other words, is . For example, composing (“A man is playing soccer”, “A man is playing a game”, ) with a generated hypothesis : “A person is playing a game.” will give a new second-order entailment example: (“A man is playing soccer”, “A person is playing a game”, ).

?
?
? ?
? ?
Table 3: Entailment label composition functions (left) and (right) for creating second-order examples. and are the original and generated labels, resp. : entails, : contradicts, : neutral, ?: undefined

Second, we create an example from the generated premise to the original hypothesis: . The composition function here, denoted and defined in the right half of Table 3, is often undetermined. For example, if entails and entails , the relation between and is undetermined i.e. . While this particular composition often leads to undetermined or neutral relations, we use it here for completeness. For example, composing the previous example with a generated neutral premise, : “A person is wearing a cap” would generate an example (“A person is wearing a cap”, “A man is playing a game”, )

The composition function is the same as the “join” operation in natural logic reasoning Icard III and Moss (2014), except for two differences: (a) relations that do not belong to our three entailment classes are mapped to ‘?’, and (b) the exclusivity/alternation relation is mapped to contradicts. The composition function , on the other hand, does not map to the join operation.

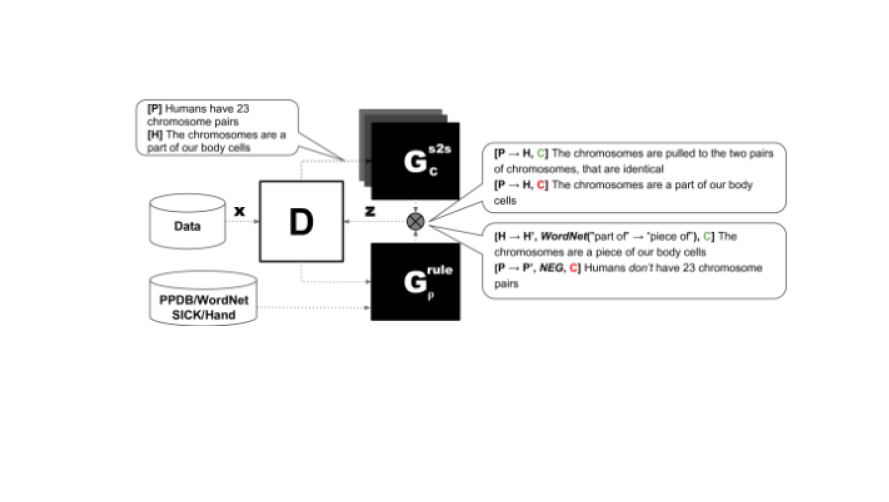

Figure 2: Overview of AdvEntuRe, our model for knowledge-guided textual entailment.

3.5 Implementation Details

Given the original training examples X, we generate the examples from each premise and hypothesis in a batch using and . We also generate new hypothesis per class for each premise using . Using all the generated examples to train the model would, however, overwhelm the original training set. For examples, our knowledge-guided generators can be applied in 17,258,314 different ways.

To avoid this, we sub-sample our synthetic examples to ensure that they are proportional to the input examples , specifically they are bounded to where is tuned for each dataset. Also, as seen in Table 3, our knowledge-guided generators are more likely to generate neutral

examples than any other class. To make sure that the labels are not skewed, we also sub-sample the examples to ensure that our generated examples have the same class distribution as the input batch. The SciTail dataset only contains two classes:

entails mapped to and neutral mapped to . As a result, generated examples that do not belong to these two classes are ignored.

The sub-sampling, however, has a negative side-effect where our generated examples end up using a small number of lexical relations from the large knowledge bases. On moderate datasets, this would cause the entailment model to potentially just memorize these few lexical relations. Hence, we generate new entailment examples for each mini-batch and update the model parameters based on the training+generated examples in this batch.

The overall example generation procedure goes as follows: For each mini-batch (1) randomly choose 3 applicable rules per source and sentence (e.g., replacing “men” with “people” based on PPDB in premise is one rule), (2) produce examples using , and , (3) randomly sub-select examples from to ensure the balance between classes and .

4 AdvEntuRe

Figure 2 shows the complete architecture of our model, AdvEntuRe (ADVersarial training for textual ENTailment Using Rule-based Examples.). The entailment model  is shown with the white box and two proposed generators are shown using black boxes. We combine the two symbolic untrained generators, and into a single model. We combine the generated adversarial examples Z with the original training examples X to train the discriminator. Next, we describe how the individual models are trained and finally present our new approach to train the generator based on the discriminator’s performance.

4.1 Discriminator Training

We use one of the state-of-the-art entailment models (at the time of its publication) on SNLI, decomposable attention model Parikh et al. (2016) with intra-sentence attention as our discriminator . The model attends each word in hypothesis with each word in the premise, compares each pair of the attentions, and then aggregates them as a final representation. This discriminator model can be easily replaced with any other entailment model without any other change to the AdvEntuRe architecture. We pre-train our discriminator  on the original dataset, X=(P, H, C) using:

(4)
(5)

where is cross-entropy loss function between the true labels, and the predicted classes, and are the learned parameters.

4.2 Generator Training

Our knowledge-guided and hand-defined generators are symbolic parameter-less methods which are not currently trained. For simplicity, we will refer to the set of symbolic rule-based generators as . The neural generator , on the other hand, can be trained as described earlier. We leave the training of the symbolic models for future work.

4.3 Adversarial Training

We now present our approach to iteratively train the discriminator and generator in a GAN-style framework. Unlike traditional GAN Goodfellow et al. (2014)

on image/text generation that aims to obtain better generators, our goal is to build a robust discriminator regularized by the generators (

and ). The discriminator and generator are iteratively trained against each other to achieve better discrimination on the augmented data from the generator and better example generation against the learned discriminator. Algorithm 1 shows our training procedure.

1:pretrain discriminator on X;
2:pretrain generators on X;
3:for  number of training iterations  do
4:   for mini-batch  do
5:      generate examples from
6:         ,
7:      balance and s.t.
8:      optimize discriminator:
9:
10:      optimize generator:
11:
12:      Update
Algorithm 1 Training procedure for AdvEntuRe.

First, we pre-train the discriminator and the seq2seq generators on the original data . We alternate the training of the discriminator and generators over K iterations (set to 30 in our experiments).

For each iteration, we take a mini-batch from our original data . For each mini-batch, we generate new entailment examples, using our adversarial examples generator. Once we collect all the generated examples, we balance the examples based on their source and label (as described in Section 3.5). In each training iteration, we optimize the discriminator against the augmented training data, and use the discriminator loss to guide the generator to pick challenging examples. For every mini-batch of examples , we compute the discriminator loss and apply the negative of this loss to each word of the generated sentence in . In other words, the discriminator loss value replaces the cross-entropy loss used to train the seq2seq model (similar to a REINFORCE Williams (1992) reward). This basic approach uses the loss over the entire batch to update the generator, ignoring whether specific examples were hard or easy for the discriminator. Instead, one could update the generator per example based on the discriminator’s loss on that example. We leave this for future work.

5 Experiments

Our empirical assessment focuses on two key questions: (a) Can a handful of rule templates improve a state-of-the-art entailment system, especially with moderate amounts of training data? (b) Can iterative GAN-style training lead to an improved discriminator?

To this end, we assess various models on the two entailment datasets mentioned earlier: SNLI (570K examples) and SciTail (27K examples).555SNLI has a 96.4%/1.7%/1.7% split and SciTail has a 87.3%/4.8%/7.8% split on train, valid, and test sets, resp. To test our hypothesis that adversarial example based training prevents overfitting in small to moderate training data regimes, we compare model accuracies on the test sets when using 1%, 10%, 50%, and 100% subsamples of the train and dev sets.

We consider two baseline models: , the Decomposable Attention model Parikh et al. (2016) with intra-sentence attention using pre-trained word embeddings Pennington et al. (2014); and which extends

with word embeddings initialized by retrofitted vectors

Faruqui et al. (2015). The vectors are retrofitted on PPDB, WordNet, FrameNet, and all of these, with the best results for each dataset reported here.

Our proposed model, AdvEntuRe, is evaluated in three flavors: augmented with examples generated by , , or both, where

. In the first two cases, we create new examples for each batch in every epoch using a fixed generator (cf. Section

3.5). In the third case ( + + ), we use the GAN-style training.

We uses grid search to find the best hyper-parameters for based on the validation set: hidden size 200 for LSTM layer, embedding size 300, dropout ratio 0.2, and fine-tuned embeddings.

The ratio between the number of generated vs. original examples, is empirically chosen to be 1.0 for SNLI and 0.5 for SciTail, based on validation set performance. Generally, very few generated examples (small ) has little impact, while too many of them overwhelm the original dataset resulting in worse scores (cf. Appendix for more details).

5.1 Main Results

Table 4 summarizes the test set accuracies of the different models using various subsampling ratios for SNLI and SciTail training data.

SNLI 1% 10% 50% 100%
57.68 75.03 82.77 84.52
57.04 73.45 81.18 84.14
AdvEntuRe
+ 58.35 75.66 82.91 84.68
+ 60.45 77.11 83.51 84.40
+ + 59.33 76.03 83.02 83.25
SciTail 1% 10% 50% 100%
56.60 60.84 73.24 74.29
59.75 67.99 69.05 72.63
AdvEntuRe
+ 65.78 70.77 74.68 76.92
+ 61.74 66.53 73.99 79.03
+ + 63.28 66.78 74.77 78.60
Table 4: Test accuracies with different subsampling ratios on SNLI (top) and SciTail (bottom).

We make a few observations. First, is ineffective or even detrimental in most cases, except on SciTail when 1% (235 examples) or 10% (2.3K examples) of the training data is used. The gain in these two cases is likely because retrofitted lexical rules are helpful with extremely less data training while not as data size increases.

On the other hand, our method always achieves the best result compared to the baselines ( and ). Especially, significant improvements are made in less data setting: +2.77% in SNLI (1%) and 9.18% in SciTail (1%). Moreover, + ’s accuracy on SciTail (100%) also outperforms the previous state-of-the-art model (DGEM Khot et al. (2018), which achieves 77.3%) for that dataset by 1.7%.

Among the three different generators combined with , both and are useful in SciTail, while is much more useful than on SNLI. We hypothesize that seq2seq model trained on large training sets such as SNLI will be able to reproduce the input sentences. Adversarial examples from such a model are not useful since the entailment model uses the same training examples. However, on smaller sets, the seq2seq model would introduce noise that can improve the robustness of the model.

/ SNLI (5%) SciTail (10%)

+

69.18 60.84
+ PPDB 72.81 (+3.6%) 65.52 (+4.6%)
+ SICK 71.32 (+2.1%) 67.49 (+6.5%)
+ WordNet 71.54 (+2.3%) 64.67 (+3.8%)
+ HAND 71.15 (+1.9%) 69.05 (+8.2%)
+ all 71.31 (+2.1%) 64.16 (+3.3%)

+

69.18 60.84
+ positive 71.21 (+2.0%) 67.49 (+6.6%)
+ negative 71.76 (+2.6%) 68.95 (+8.1%)
+ neutral 71.72 (+2.5%) -
+ all 72.28 (+3.1%) 70.77 (+9.9%)
Table 5: Test accuracies across various rules and classes . Since SciTail has two classes, we only report results on two classes of



P a person on a horse jumps over a broken down airplane
H’: a person is on a horse jumps over a rail, a person jumping over a plane
H’: a person is riding a horse in a field with a dog in a red coat
H’: a person is in a blue dog is in a park
P (or H) a dirt bike rider catches some air going off a large hill
P’: a dirt motorcycle rider catches some air going off a large hill
P’: a dirt bike man on yellow bike catches some air going off a large hill
P’: a dirt bike rider catches some atmosphere going off a large hill
P’: a dirt bike rider do not catch some air going off a large hill
Table 6: Given a premise P (underlined), examples of hypothesis sentences H’ generated by seq2seq generators , and premise sentences P’ generated by rule based generators , on the full SNLI data. Replaced words or phrases are shown in bold. This illustrates that even simple, easy-to-define rules can generate useful adversarial examples.

5.2 Ablation Study

To evaluate the impact of each generator, we perform ablation tests against each symbolic generator in + and the generator for each entailment class . We use a 5% sample of SNLI and a 10% sample of SciTail. The results are summarized in Table 5.

Interestingly, while PPDB (phrasal paraphrases) helps the most (+3.6%) on SNLI, simple negation rules help significantly (+8.2%) on SciTail dataset. Since most entailment examples in SNLI are minor rewrites by Turkers, PPDB often contains these simple paraphrases. For SciTail, the sentences are authored independently with limited gains from simple paraphrasing. However, a model trained on only 10% of the dataset (2.3K examples) would end up learning a model relying on purely word overlap. We believe that the simple negation examples introduce neutral examples with high lexical overlap, forcing the model to find a more informative signal.

On the other hand, using all classes for results in the best performance, supporting the effectiveness of the GAN framework for penalizing or rewarding generated sentences based on ’s loss. Preferential selection of rules within the GAN framework remains a promising direction.

5.3 Qualitative Results

Table 6 shows examples generated by various methods in AdvEntuRe. As shown, both seq2seq and rule based generators produce reasonable sentences according to classes and rules. As expected, seq2seq models trained on very few examples generate noisy sentences. The quality of our knowledge-guided generators, on the other hand, does not depend on the training set size and they still produce reliable sentences.

5.4 Case Study: Negation

For further analysis of the negation-based generator in Table 1, we collect only the negation examples in test set of SNLI, henceforth referred to as nega-SNLI. Specifically, we extract examples where either the premise or the hypothesis contains “not”, “no”, “never”, or a word that ends with “n’t’. These do not cover more subtle ways of expressing negation such as “seldom” and the use of antonyms. nega-SNLI contains 201 examples with the following label distribution: 51 (25.4%) neutral, 42 (20.9%) entails, 108 (53.7%) contradicts. Table 7 shows examples in each category.

P: several women are playing volleyball.
H: this doesn’t look like soccer.
P: a man with no shirt on is performing
with a baton.
H: a man is trying his best at the national
championship of baton.
P: island native fishermen reeling in their
nets after a long day’s work.
H: the men did not go to work today but
instead played bridge.
Table 7: Negation examples in nega-SNLI

While achieves an accuracy of only 76.64%666This is much less than the full test accuracy of 84.52%. on nega-SNLI, + with negate is substantially more successful (+6.1%) at handling negation, achieving an accuracy of 82.74%.

6 Conclusion

We introduced an adversarial training architecture for textual entailment. Our seq2seq and knowledge-guided example generators, trained in an end-to-end fashion, can be used to make any base entailment model more robust. The effectiveness of this approach is demonstrated by the significant improvement it achieves on both SNLI and SciTail, especially in the low to medium data regimes. Our rule-based generators can be expanded to cover more patterns and phenomena, and the seq2seq generator extended to incorporate per-example loss for adversarial training.

References

  • Angeli and Manning (2014) Gabor Angeli and Christopher D Manning. 2014. NaturalLI: Natural logic inference for common sense reasoning. In EMNLP, pages 534–545.
  • Beltagy et al. (2016) Islam Beltagy, Stephen Roller, Pengxiang Cheng, Katrin Erk, and Raymond J. Mooney. 2016. Representing meaning with a combination of logical and distributional models. Computational Linguistics, 42:763–808.
  • Bowman et al. (2015) Samuel R. Bowman, Gabor Angeli, Christopher Potts, and Christopher D. Manning. 2015. A large annotated corpus for learning natural language inference. In EMNLP.
  • Chen et al. (2018) Qian Chen, Xiaodan Zhu, Zhen-Hua Ling, and Diana Inkpen. 2018. Natural language inference with external knowledge. In ACL.
  • Chongxuan et al. (2017) LI Chongxuan, Taufik Xu, Jun Zhu, and Bo Zhang. 2017. Triple generative adversarial nets. In NIPS, pages 4091–4101.
  • Faruqui et al. (2015) Manaal Faruqui, Jesse Dodge, Sujay K Jauhar, Chris Dyer, Eduard Hovy, and Noah A Smith. 2015. Retrofitting word vectors to semantic lexicons. NAACL.
  • Ganitkevitch et al. (2013) Juri Ganitkevitch, Benjamin Van Durme, and Chris Callison-Burch. 2013. PPDB: The paraphrase database. In NAACL-HLT, pages 758–764.
  • Glockner et al. (2018) Max Glockner, Vered Shwartz, and Yoav Goldberg. 2018. Breaking nli systems with sentences that require simple lexical inferences. In ACL.
  • Gong et al. (2018) Yichen Gong, Heng Luo, and Jian Zhang. 2018. Natural language inference over interaction space. ICLR.
  • Goodfellow et al. (2014) Ian Goodfellow, Jean Pouget-Abadie, Mehdi Mirza, Bing Xu, David Warde-Farley, Sherjil Ozair, Aaron Courville, and Yoshua Bengio. 2014. Generative adversarial nets. In NIPS, pages 2672–2680.
  • Gururangan et al. (2018) Suchin Gururangan, Swabha Swayamdipta, Omer Levy, Roy Schwartz, Samuel R Bowman, and Noah A Smith. 2018. Annotation artifacts in natural language inference data. In NAACL.
  • Haghighi et al. (2005) Aria Haghighi, Andrew Ng, and Christopher Manning. 2005. Robust textual inference via graph matching. In EMNLP.
  • Hu et al. (2016) Zhiting Hu, Xuezhe Ma, Zhengzhong Liu, Eduard Hovy, and Eric Xing. 2016. Harnessing deep neural networks with logic rules. ACL.
  • Icard III and Moss (2014) Thomas Icard III and Lawrence Moss. 2014. Recent progress in monotonicity. LiLT (Linguistic Issues in Language Technology), 9.
  • Iyyer et al. (2018) Mohit Iyyer, John Wieting, Kevin Gimpel, and Luke S. Zettlemoyer. 2018. Adversarial example generation with syntactically controlled paraphrase networks. In NAACL.
  • Jia and Liang (2017) R. Jia and Percy Liang. 2017. Adversarial examples for evaluating reading comprehension systems. In EMNLP.
  • Kang et al. (2017) Dongyeop Kang, Varun Gangal, Ang Lu, Zheng Chen, and Eduard Hovy. 2017. Detecting and explaining causes from text for a time series event. In EMNLP.
  • Khot et al. (2018) Tushar Khot, Ashish Sabharwal, and Peter Clark. 2018. SciTail: A textual entailment dataset from science question answering. AAAI.
  • Lakoff (1970) George Lakoff. 1970. Linguistics and Natural Logic. Synthese, 22(1-2):151–271.
  • Liang et al. (2017) Chen Liang, Jonathan Berant, Quoc Le, Kenneth D. Forbus, and Ni Lao. 2017. Neural symbolic machines: Learning semantic parsers on freebase with weak supervision. In ACL.
  • Luong et al. (2015) Thang Luong, Hieu Pham, and Christopher D. Manning. 2015.

    Effective approaches to attention-based neural machine translation.

    In EMNLP.
  • MacCartney and Manning (2012) Bill MacCartney and Christopher D. Manning. 2012. Natural logic and natural language inference. In Computing Meaning. Text, Speech and Language Technology, volume 47.
  • Marelli et al. (2014) Marco Marelli, Stefano Menini, Marco Baroni, Luisa Bentivogli, Raffaella Bernardi, and Roberto Zamparelli. 2014. A SICK cure for the evaluation of compositional distributional semantic models. In LREC, pages 216–223.
  • McCann et al. (2017) Bryan McCann, James Bradbury, Caiming Xiong, and Richard Socher. 2017. Learned in translation: Contextualized word vectors. In NIPS.
  • Miller (1995) George A Miller. 1995. WordNet: a lexical database for english. Communications of the ACM, 38(11):39–41.
  • Mrkšić et al. (2016) Nikola Mrkšić, Diarmuid O Séaghdha, Blaise Thomson, Milica Gašić, Lina Rojas-Barahona, Pei-Hao Su, David Vandyke, Tsung-Hsien Wen, and Steve Young. 2016. Counter-fitting word vectors to linguistic constraints. In HLT-NAACL.
  • Parikh et al. (2016) Ankur P. Parikh, Oscar Täckström, Dipanjan Das, and Jakob Uszkoreit. 2016. A decomposable attention model for natural language inference. In EMNLP.
  • Pavlick et al. (2015) Ellie Pavlick, Pushpendre Rastogi, Juri Ganitkevitch, Benjamin Van Durme, and Chris Callison-Burch. 2015. PPDB 2.0: Better paraphrase ranking, fine-grained entailment relations, word embeddings, and style classification. In ACL.
  • Pennington et al. (2014) Jeffrey Pennington, Richard Socher, and Christopher Manning. 2014. GloVe: Global vectors for word representation. In EMNLP, pages 1532–1543.
  • Peters et al. (2018) Matthew E Peters, Mark Neumann, Mohit Iyyer, Matt Gardner, Christopher Clark, Kenton Lee, and Luke Zettlemoyer. 2018. Deep contextualized word representations. In NAACL.
  • Raina et al. (2005) Rajat Raina, Aria Haghighi, Christopher Cox, Jenny Finkel, Jeff Michels, Kristina Toutanova, Bill MacCartney, Marie-Catherine de Marneffe, Christopher D Manning, and Andrew Y Ng. 2005. Robust textual inference using diverse knowledge sources. In 1st PASCAL Recognition Textual Entailment Challenge Workshop.
  • Rajpurkar et al. (2016) Pranav Rajpurkar, Jian Zhang, Konstantin Lopyrev, and Percy Liang. 2016. SQuAD: 100,000+ questions for machine comprehension of text. In EMNLP.
  • Sha et al. (2016) Lei Sha, Sujian Li, Baobao Chang, and Zhifang Sui. 2016. Recognizing textual entailment via multi-task knowledge assisted lstm. In

    Chinese Computational Linguistics and Natural Language Processing Based on Naturally Annotated Big Data

    , pages 285–298. Springer.
  • Silva et al. (2018) Vivian S Silva, André Freitas, and Siegfried Handschuh. 2018. Recognizing and justifying text entailment through distributional navigation on definition graphs. In AAAI.
  • Sommers (1982) Fred Sommers. 1982. The logic of natural language.
  • Sutskever et al. (2014) Ilya Sutskever, Oriol Vinyals, and Quoc V Le. 2014. Sequence to sequence learning with neural networks. In NIPS, pages 3104–3112.
  • Wang and Zhang (2017) Shanshan Wang and Lei Zhang. 2017. CatGAN: Coupled adversarial transfer for domain generation. CoRR, abs/1711.08904.
  • Wang et al. (2017) Zhiguo Wang, Wael Hamza, and Radu Florian. 2017. Bilateral multi-perspective matching for natural language sentences. In IJCAI.
  • Williams (1992) Ronald J Williams. 1992.

    Simple statistical gradient-following algorithms for connectionist reinforcement learning.

    In Reinforcement Learning, pages 5–32. Springer.

Appendix A Rules and Examples

KB PPDB SICK WordNet
#Rules 6,977,679 12,511 116,000
Examples because of due to, wish would like woods wooden area, kid woman car cabin car, hate love
Table 8: Number of rules in

Table 8 shows the number of rules and additional examples for .

Appendix B Training data sizes

Figure 3 shows training (dotted) accuracies on sub-sampled training datasets and testing (solid) accuracies on original test dataset X of over different sub-sampling percentages of the training set. Since SciTail (27K) is much smaller than SNLI (570K), SciTail fluctuates a lot at smaller sub-samples while SNLI converges with just 50% of the examples.

(a) SciTail
(b) SNLI
Figure 3: for SciTail and SNLI.

Appendix C Effectiveness of Z/X Ratio,

(a) SciTail (D +R, 10%)
(b) SNLI (D +R, 1%)
Figure 4: Effect of balancing ratio between and .

Figure 4 shows train/test accuracies with different balancing ratio between and . The dotted line is training accuracies, the solid black horizontal line is testing accuracy of . The solid red shows test accuracies with different balancing ratio, (x-axis) from , , … from where is fixed as batch size. The generated examples are useful up to a point, but the performance quickly degrades for as they overwhelm the original dataset .

Appendix D Retrofitting Experiment

ratio Lexicon SNLI SciTail
1% framenet 56.15 60.89
1% ppdb 57.04 62.5
1% wordnet 55.58 62.2
1% all 56.81 61.14
10% framenet 72.75 67.99
10% ppdb 72.88 54.74
10% wordnet 73.27 67.29
10% all 73.45 66.43
50% framenet 80.95 66.08
50% ppdb 81.14 67.24
50% wordnet 80.62 69.05
50% all 81.18 68.4
100% framenet 83.66 70.06
100% ppdb 84.14 70.16
100% wordnet 83.91 72.63
100% all 83.68 71.12
Table 9: Results of the word vectors retrofitted on different lexicons on each dataset. We pick the best vectors for each task and sub-sampling ratio.

Table 9 shows the grid search results of retro-fitting vectors Faruqui et al. (2015) with different lexical resources. To obtain the strongest baseline, we choose the best performing vectors for each sub-sample ratio and each dataset. Usually, PPDB and WordNet are two most useful resources for both SNLI and SciTail.

Appendix E In-Depth Analysis: D+R

Table 5 and Table 6 show more in-depth analysis with different sub-sampling ratio on SNLI and SciTail. The dotted line is training accuracy, and the solid red ( +) and sold black () shows testing accuracies.

(a) D+R (5%)
(b) D+R (10%)
(c) D+R (25%)
(d) D+R (50%)
(e) D+R (75%)
(f) D+R (100%)
Figure 5: + with different ratio for SciTail.
(a) D+R (1%)
(b) D+R (5%)
(c) D+R (9%)
(d) D+R (25%)
(e) D+R (50%)
(f) D+R (100%)
Figure 6: + with different ratio for SNLI.
