1. Introduction

By connecting users to relevant products across the vast range available on e-commerce platforms, modern recommender systems are already ubiquitous and critical on both sides of the market, i.e., consumers and product sellers. Among recommendation algorithms used in practice, many fall under the umbrella of collaborative filtering (Sarwar et al., 2001; Linden et al., 2003; Herlocker et al., 1999; Koren et al., 2009), which collect and generalize users’ preference patterns from logged consumer-product interactions (e.g. purchases, ratings). These feedback interactions can be biased by multiple factors, potentially surfacing unfair (or irrelevant) recommendations to users or items underrepresented in the input data. Such phenomena have already raised some attention from the recommender system community: a handful of types of algorithmic biases have been addressed, including selection bias (Schnabel et al., 2016), popularity bias (Yang et al., 2018), and several fairness-aware recommendation algorithms have been proposed (Beutel et al., 2019a; Burke et al., 2018). In this paper, we focus on a relatively underexplored factor—marketing bias—in consumer-product interaction data, and study how recommendation algorithms respond to its effect.

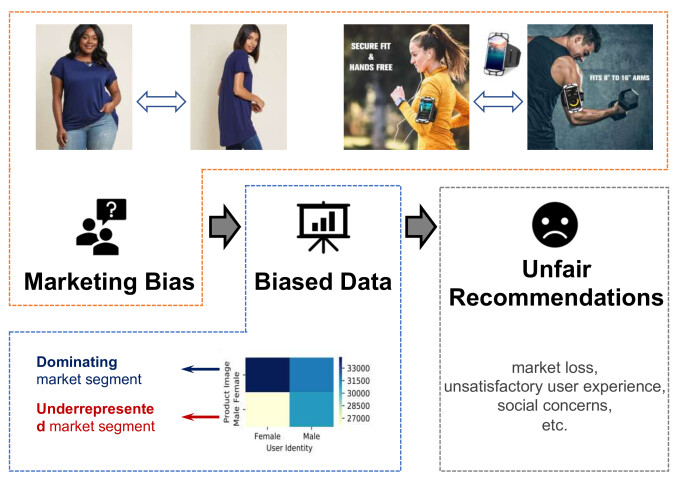

Figure 1. Two illustrative examples on how the same product can be marketed using different human images (different body shapes, different genders). These marketing strategies could affect consumers’ behavior thus resulting in a biased interaction dataset, which is commonly used as the input for modern recommender systems.

We are particularly interested in the human factors, such as the profile of the human model in a product image, reflected in a product’s marketing strategies, which (as indicated in previous marketing studies) could possibly affect consumers’ interactions and satisfaction (Grubb and Grathwohl, 1967; Grubb and Hupp, 1968; Birdwell, 1968). A common hypothesis (known as ‘self-congruence’) is that a consumer may tend to buy a product because its public impression (in our case a product image), among other alternatives, is consistent with one’s self-perceptions (user identity) (Grubb and Hupp, 1968). Based on this assumption, the selection of human models for a product (as shown in Figure 1, a product can be represented by models with different body shapes or different genders) could influence a consumer’s behavior. For example, a female user may be less likely to interact with an armband product which is presumably gender-neutral but marketed exclusively via ‘male’ images. As with many other types of bias, this could lead to underrepresentation of some niche market segments in the input data for a recommender system. Note if undesired patterns are propagated into recommendation results (e.g. even fewer male-represented products are recommended to the potential female users), utility from both sides of the marketplace could be harmed. That is, product retailers may lose potential consumers while users may be struggling to find relevant products. As a consequence, serious ethical and social concerns could be raised as well.

In this work, we seek to understand 1) if such a marketing bias exists in real-world e-commerce datasets; 2) how common collaborative filtering algorithms interact with these potentially biased datasets; and 3) how to alleviate such algorithmic bias (if any) and improve the market fairness of recommendations. We conclude our contributions as follows.

  • We collect and process two e-commerce datasets from ModCloth and Amazon. Then we conduct an observational study to investigate the relationship between interaction feedback and product images (reflected in the selection of a human model) as well as user identities. Different types of correlations in varying degrees can be observed in these two datasets.

  • We implement several common collaborative filtering algorithms and study their responses to the above patterns in the input data. For most algorithms, we find 1) systematic deviations across different consumer-product segments in terms of rating prediction error, and 2) notable deviations of the resulting recommendation outputs from the real interaction data.

  • Note that as the marketing bias could be intricately entangled with users’ intrinsic preferences, our goal in this work is not to pursue the absolute parity of recommendations (e.g. keep recommending products represented by human images which were constantly unfavored by a user). Rather, we expect a fair algorithm is supposed not to worsen the market imbalance in interactions. We thus propose a fairness-aware framework to address it by calibrating the parity of prediction errors across different market segments. Quantitative results indicate that our framework significantly improves recommendation fairness and provides better accuracy-fairness trade-off against several baselines.

2. Related Work

This work is partially motivated by the well-known ‘self-congruity’ theory in marketing research, which is defined as the match between the product/brand image and the consumer’s true identity and the perception about oneself (Grubb and Grathwohl, 1967; Grubb and Hupp, 1968; Birdwell, 1968). Many previous marketing studies focus on assessing this theory by quantifying and validating it through statistical analysis on a small amount purchase transaction data or the feedback in questionnaires (Sirgy, 1982; Sirgy et al., 1997; Malhotra, 1988; Kressmann et al., 2006). Following self-congruity theory, products can be advertised in a way to match their target consumers’ images thus establishing product stereotypes (Grau and Zotos, 2016). Our work is distinguished with these studies from a more computational perspective, by identifying and studying the potential marketing bias for recommender systems on large-scale e-commerce interaction datasets.

Our analysis is related to previous work which examines particular types of biases in real-world interactions and their effects in recommendation algorithms, including the popularity effect and catalog coverage (Jannach et al., 2015), the bias regarding the book author gender for book recommenders (Ekstrand et al., 2018), and the herding effect in product ratings (Zhang et al., 2017).

Another closely related line of work includes developing evaluation metrics and algorithms to address fairness issues in recommendations. ‘Unbiased’ recommender systems with missing-not-at-random training data are developed by considering the propensity of each item

(Schnabel et al., 2016; Joachims et al., 2017)

. A fairness-aware tensor-based algorithm is proposed to address the absolute statistical parity (i.e., items are expected to be presented at the same rate across groups)

(Zhu et al., 2018). Several fairness metrics and their corresponding algorithms are proposed for both pointwise prediction frameworks (Burke et al., 2018; Yao and Huang, 2017) and pairwise ranking frameworks (Beutel et al., 2019a). Methodologically, these algorithms can be summarized as reweighting schemes where underrepresented samples are upweighted (Schnabel et al., 2016; Joachims et al., 2017; Burke et al., 2018) or schemes where additional fairness terms are added to regularize the model (Yao and Huang, 2017; Beutel et al., 2019a; Abdollahpouri et al., 2017).

Note that most of the above studies focus on bias and fairness on one side of the market only (i.e., either user or producer). Our concern about marketing bias is that it could affect fairness for both consumers and product providers. Without global market fairness in mind, the imbalance of the consumer-product segment distribution could be exacerbated through the deployment of recommendation algorithms. Multi-sided fairness is addressed by Burke et al (Beutel et al., 2019a) by considering C(onsumer)-fairness and P(rovider)-fairness. Trade-off between accuracy and fairness in two-sided marketplaces is further explored and a counterfactual framework is proposed to evaluate different recommendation policies without extensive A/B tests (Mehrotra et al., 2018). However the CP-fairness condition where fairness is protected for both sides at the same time still remains an open question.

3. Data Collection and Preprocessing

We introduce two real-world e-commerce datasets collected from a women’s clothing website ModCloth111https://www.modcloth.com/ and the Electronics category on Amazon.222https://www.amazon.com/ These datasets enable us to study the marketing bias induced by the selection of a human model with respect to body shape for clothing products, and investigate the effects from the gender of human models for electronics products. Detailed information about these datasets can be found in Table 1. Datasets in this paper are available at https://github.com/MengtingWan/marketBias.

ModCloth Electronics
#review 99,893 1,292,954
#item 1,020 9,560
#user 44,783 1,157,633
time span 2010-2019 1999-2018
bias type body shape gender
product image
Small (838)
Small&Large (182)
Female (4,090)
Female&Male (2,466)
Male (3,004)
user identity
Large (9,395)
Small (30,140)
N/A (5,248)
Female (71,043)
Male (61,350)
N/A (1,025,240)
Table 1. Basic statistics of the ModCloth and Electronics datasets.

Note that our datasets are not perfect, e.g. errors and selection bias can be introduced via scraping, parsing and processing, control of several confounding factors including inventory status, (etc.). Our intention here is neither to make any normative claims regarding the distributions in the above two applications, nor draw any causal conclusions. Rather, we simply describe the current state of these datasets and study how recommendation algorithms interact with these data.

3.1. ModCloth

ModCloth is an e-commerce website which sells women’s clothing and accessories. One unique property of this data is that many products include two human models with different body shapes (as shown in Figure 1) and measurements of these models. In addition, users can optionally provide the product sizes they purchased and fit feedback (‘Just Right’, ‘Slightly Larger’, ‘Larger’, ‘Slightly Smaller’ or ‘Smaller’) along with their reviews. Therefore we focus on the dimension of human body shape as the source of marketing bias in this dataset.

Product Image Group (Body Shape). We start with the clothing products included in an existing public dataset (Misra et al., 2018), re-scrape their landing pages, collect related model size measurements and all review ratings. We normalize their product sizes as ‘XS’, ‘S’, ‘M’, ‘L’, ‘XL’, ‘1X’, ‘2X’, ‘3X’ and ‘4X’ according to the provided size charts.333e.g. https://www.modcloth.com/size-guide.html Products with only one human model wearing a relatively small size (‘XS’, ‘S’, ‘M’ or ‘L’) are labeled as the ‘Small’ group while products with two models (an additional model wearing a plus-size: 1X’, ‘2X’, ‘3X’ or ‘4X’) are referred as the ‘Small&Large’ group.

User Identity Group (Body Shape).

We then calculate the average size each user purchased and classify users into ‘Small’ and ‘Large’ groups based on the same standard as the product body shape image.

We observe that all products offer the complete spectrum of sizes, while 70% of these products are interacted with by at least one user from the ‘Large’ group and 97% are interacted with by the ‘Small’ group. Thus we conclude that most users are able to consume most products at some point within the time frame of our dataset.

Ultimately we collect nearly 100K reviews about 1,020 clothing products from 44,783 users, where around 90% of users can be matched to the above identity groups.

3.2. Electronics

Electronics is another review dataset collected from the Electronics category on Amazon with Clothing as an auxiliary category. This dataset is built on top of the public Amazon 2018 Dataset (Ni et al., 2019) and further processed to facilitate the research goals in this paper. We regard the gender as the target marketing bias on this dataset.

Product Image Group (Gender). In the Amazon 2018 Dataset, we keep all pictures associated with electronic products444All products attached to the ‘Men’ or ‘Women’ categories are removed.

and run human model detection through an industrial body/face detection API provided by Face++.

555https://www.faceplusplus.com/ The results include whether any human bodies/faces are included in the pictures, as well as gender predictions of these detected models. We only keep products where human models are detected in their associated pictures and treat them as three types of product gender image based on the selection of these human models: ‘Female’ (only female models are included), ‘Male’ (only male models are included) and ‘Female & Male’ (both female and male models are detected, not necessarily in the same picture).

We then involve 3 human labelers to conduct validations on this dataset, where label conflicts are resolved by majority voting. 3,000 randomly sampled pictures are manually labeled regarding 1) if they notably include human models; 2) the gender image from ‘Female Exclusive’, ‘Male Exclusive’ or ‘Both Female & Male’ (if multiple models are included in a single picture). We evaluate the human model detection results from the API based on these labels and find a high precision (96%) regarding the human model detection but a relatively low recall (53%). Note in our setting we are happy to discard ambiguous cases (sacrifice some recall) for the sake of high precision. We later randomly sample 100 products and manually decide if these products preserve any gender constraints based on their descriptions. Although 4 out of 100 products exhibit gender implications,666e.g. https://www.amazon.com/gp/product/B00HX19EDI we don’t find any strict constraints which prevent the unfavorable user identity group from consuming these products.

Term/Symbol Description
product image the public impression of a product; attributes of the human models included in the product pictures are used in this work, e.g. body shape, gender
user identity the perception of oneself; we use the same dimension of attribute as in product image
, user identity group, product image group, e.g. female/male
, the number of possible user identity groups and product image groups
, , predicted user ’s preference score on product , user ’s rating score on product , prediction error
, the user set with the same identity , the item set with the same product image
market segment the market defined for users with the same identity on products with the same type of image
the complete interaction data
, , interactions within the market segment , ,
Table 2. Important terms and notation.

User Identity Group (Gender). Unfortunately, gender identities of Amazon users are not directly accessible. We thus leverage users’ interactions with Clothing products in the Amazon 2018 Dataset to access their gender identities, where most products are explicitly classified into Women’s Clothing or Men’s Clothing. As shown in the figure below, we find a clear bimodal distribution of purchase frequency towards gender-specific clothing products.

We discard ‘ambiguous’ users whose men’s (or women’s) clothing purchase frequencies fall into 40%-60%, and identify the remaining users as ‘Female’ (69%) or ‘Male’ (31%). Finally 11% of total users in the Electronics category can be matched to these identities and 53% of them are identified as ‘Female’.

After removing products without any human models, we are still able to obtain a large-scale dataset containing around 1.3M rating scores across 9,560 electronics products from 1.1M users. Note that although the inferred product gender image and user identity are not as precise as in ModCloth, this dataset is dramatically different from ModCloth regarding its scale and sparsity. In contrast to the relationship between a user’s interactions with clothing products and a dimension of human body shape, we speculate that gender is intuitively less relevant to the intrinsic qualities of most products in Electronics; thus its effects on users’ interactions are possibly more likely to come from marketing bias.

4. Statistical Analysis

We split a consumer’s product preference into two dimensions: 1) the user’s preference in terms of willingness to consume (purchase) a product; and 2) the user’s satisfaction feedback (e.g. ratings) on the consuming experience. We then conduct observational studies on the ModCloth and Electronics datasets to address marketing bias across the above two dimensions.

  • We first investigate if there is a bias introduced by a particular marketing effect in a consumer’s product selection process. Specifically, we examine if a correlation exists between product image and user identity in terms of interaction frequency in our datasets.

  • Then we study consumer satisfaction regarding the purchased products as a function of product image, user identity, and their second-order interactions. These consumer feedback signals include rating scores on ModCloth and Electronics

    , as well as the binarized fit feedback (i.e., if the clothing product fits the user) on

    ModCloth.

Important terms and notation throughout the paper are included in Table 2.

4.1. Product Selection vs. Marketing Bias

ModCloth Electronics
p-value #reviews p-value #reviews
all 158.7 ¡0.001 91,526 581.8 ¡0.001 174,124
¡=2014 0.5 0.466 25,383 151.0 ¡0.001 49,699
2015 66.7 ¡0.001 20,241 172.7 ¡0.001 46,891
2016 70.8 ¡0.001 21,239 96.4 ¡0.001 43,907
¿=2017 29.0 ¡0.001 24,663 120.8 ¡0.001 33,627
Table 3. Results from

test of the two-way contingency tables on

ModCloth and Electronics.

Because of the constraint of conducting real-world experiments with random assignments, we instead address marketing bias in product selection by analyzing the association between product image and user identity in observed data with respect to interaction frequency. Our null hypothesis is that product image and user identity are statistically independent. Given this assumption, we expect to see lower deviations of their observed frequencies and the marginally expected values. Therefore the following Pearson’s Chi-Squared Test Statistic can be used to test the association between these two variables in terms of frequency

(Everitt, 1992):

(1)

where and represent a user identity group and a product image group respectively, is the observed number of interactions in the market segment and represents its expectation. The null hypothesis will be rejected (i.e., the association between two variables exists in terms of frequency) if an extremely large is obtained (i.e., small -value).

User Identity
Product Image Small Large All
Small 31,800 (+754.98) 7,038 (-754.98) 38,838
Small&Large 41,361 (-754.98) 11,327 (+754.98) 52,688
All 73,161 18,365 91,526
(a) ModCloth
User Identity
Product Image Female Male All
Female 34,259 (+1,472.89) 31,587 (-1,472.89) 65,846
Female&Male 26,478 (+880.88) 24,930 (-880.88) 51,408
Male 25,963 (-2,353.77) 30,907 (+2,353.77) 56,870
All 86,700 87,424 174,124
(b) Electronics
Table 4. Contingency tables of the frequency distribution of product images and user identities on ModCloth and Electronics. Deviations () from the expected frequency values are provided in parentheses.

To further separate the potential marketing bias from trending effects, we conduct association tests on the complete interaction data as well as interactions within different time spans. Test results are included in Table 3, where we find all -values are smaller than 0.001 except for the test on interaction data before 2014 on ModCloth. These results may imply the existence of the association between product image and user identity in consumers’ product selections.

In Table 4, we provide contingency tables of the frequency distribution of different market segments and their deviations from expected values (). We observe generally more interactions than expected on the consumer-product segments where users’ identities match the product images (‘self-congruity’), while several market segments are underrepresented in the data. For example, (‘Large’ user, ‘Small’ product) on ModCloth and (‘Female’ user, ‘Male’ product) on Electronics have smaller market sizes compared with other market segments.

4.2. Consumer Satisfaction vs. Marketing Bias

ModCloth Electronics
Rating Fit Rating
F-stat p-value F-stat p-value F-stat p-value
product 171.9 ¡0.001 293.1 ¡0.001 62.6 ¡0.001
user 46.3 ¡0.001 402.4 ¡0.001 3.5 0.061
userproduct 30.7 ¡0.001 0.0 0.997 0.9 0.404
Table 5.

Results from two-way analysis of variance (ANOVA) on

ModCloth and Electronics.

Next we investigate consumer satisfaction as a function of product image and user identity through a standard statistical technique: two-way analysis of variance (ANOVA) (Kleinbaum et al., 1988). We use rating scores to represent users’ satisfaction regarding the overall quality of their consuming experience on both ModCloth and Electronics. For ModCloth, we also study consumer satisfactions with respect to their fit feedback (where ‘Just Right’ is regarded as positive while all others are regarded as negative). The two-way ANOVA model can be formulated as

where the null hypotheses of our tests include

  • [leftmargin=13pt]

  • the average consumer satisfaction is equal across different product image groups;

  • the average consumer satisfaction is equal across different consumer identity groups;

  • there is no interaction effect between product groups and consumer groups with respect to satisfaction.

Given these assumptions, we may expect a lower variance of average satisfactions across different groups (between-group variation) compared with the summation of satisfaction variations within each group (within-group variation). Therefore, the standard F-statistic, defined as the between-group variation divided by the within-group variation (Kleinbaum et al., 1988), can be applied to evaluate the correlations.

Results from statistical tests are included in Table 5

. The heatmaps of sample means within market segments and their 95% confidence intervals are provided in

Figure 2. We observe that users’ rating scores are significantly different across market segments on ModCloth. For example ‘Large’ users provide lower ratings on ‘Small’ products (Figure 1(a)). Although users’ fit feedback differs across product groups and user groups (hypothesis (a) and (b) are rejected in Table 5), their association regarding fit feedback is negligible (results for ‘userproduct’ in Table 5). According to Figure 1(b), we find clothing products in the ModCloth dataset generally fit better on ‘Small’ users, and those products represented by human models with different body shapes (‘Small&Large’) tend to obtain better fit feedback. Although the ‘self-congruity’ pattern is significant in the product selection process on Electronics (see Table 3, Table 3(b)), the interaction between product ‘gender’ and user gender is insignificant with respect to users’ rating scores (userproduct in Table 5).

(a) ModCloth (Rt.)
(b) ModCloth (Fit)
(c) Electronics (Rating)
Figure 2. Heatmaps of sample means within market segments regarding (a) rating scores on ModCloth, (b) fit feedback on ModCloth and (c) rating scores on Electronics.

4.3. Summary of Observations

We summarize insights obtained from the above statistical analysis as follows:

  • The association between product image and user identity is consistently significant in terms of frequency distribution, implying the existence of marketing bias in the collected interaction datasets. The ‘self-congruity’ pattern is also observable, i.e., consumers may generally tend to interact with products with similar impressions as their identities. Such an association notably causes underrepresentation of certain market segments.

  • The relationship between consumer satisfaction and marketing factors is rather complicated. We observe rating disparities across product groups and user groups, while the existence of their interaction effect depends on the type of product and the type of satisfaction measure. We find a similar ‘self-congruity’ pattern for rating scores on ModCloth while the ‘userproduct’ term remains insignificant in the other two testing scenarios.

5. Market-Fairness of Recommender Systems

From the above analysis, we have confirmed that our interaction data is correlated to (and possibly affected by) marketing strategies used by product retailers (i.e., selections of human models). Our next step is to study if (and how) this marketing bias is propagated by algorithms from input data to recommendation results.

Problem Setting. In this study, we focus on recommendation algorithms trained on explicit feedback (i.e., rating scores). The primary predictive task is formulated as a rating prediction problem: rating scores () are assumed to reflect users’ preferences over products, and algorithms are trained to generate users’ product preference scores () which approximate these ratings.

Unlike previous studies (Beutel et al., 2019a, b; Zhu et al., 2018; Yao and Huang, 2017) which focus on evaluating and protecting the fairness of a single side (user or product) of recommender systems, in the context of marketing bias, we are particularly interested in the global market fairness of the recommendations, i.e., user-fairness and product-fairness need to be protected at the same time. Specifically we describe the market fairness in the explicit feedback setting along two dimensions.

  • [leftmargin=13pt]

  • Averaged errors of rating predictions from a recommendation algorithm across different consumer-product market segments are expected to be equal.

  • The distribution of market segments in terms of frequency within recommended interactions are expected to be consistent with the distribution within the real interaction data.

Rating Prediction Fairness. We notice that the first market fairness description is indeed consistent with the null hypothesis of a one-way ANOVA test about the association between prediction errors () and market segments (). That is, with the assumption that average prediction errors from a fair algorithm are supposed to be irrelevant to market segments, we expect to observe a lower variation of average errors across market segments (bewteen-segment variation) compared to the error variations within each segment (within-segment variation). Specifically these variations can be defined as

between-segment var.:
within-segment var.:

where denotes the sample mean of prediction errors within the market segment ; represents the number of interactions included in a consumer-product segment ; denotes the total sample size.

To ensure a tractable distribution for significance testing, the above two terms are corrected by their degrees-of-freedom and the following

F-statistic can thus be calculated:

(2)

Then we obtain a fairness evaluation metric to evaluate a global parity of prediction errors across different consumer-product market segments, where lower indicates better rating prediction fairness.

Product Ranking Fairness. We further investigate the fairness of the product ranking performance from recommendation algorithms. For each user, we rank all products based on the predicted preference scores and regard the top-ranked items as recommended products. By gathering users and the recommended products, we are able to obtain the frequency distribution of market segments within these predicted interactions . We regard the frequency distribution of market segments in the real interactions as the reference distribution, and evaluate the deviation of from using the following KL-divergence (Kullback and Leibler, 1951):

(3)

We use this metric to evaluate the product ranking fairness. Lower indicates better fairness.

6. A Fairness-Aware Framework

A common optimization criterion for model-based collaborative filtering algorithms in the explicit feedback setting is based on MSE

, i.e., minimizing the following loss function

(4)

A popular choice to model the preference score is through matrix factorization (Koren et al., 2009)

(5)

In Eq. 5, is the global intercept, and are item-specific and user-specific offsets, and are -dimensional embeddings to capture items’ latent properties and users’ latent preferences on these dimensions.

Error Correlation Loss. Following previous work using the regularizing schemes (Yao and Huang, 2017; Beutel et al., 2019a; Abdollahpouri et al., 2017), we propose a fairness-aware framework by considering an error correlation loss to regularize systematic error biases on the market:

(6)

where is an additional term to regularize the correlation between prediction errors and the distribution of market segments .

is a hyperparameter to control the trade-off between prediction accuracy and this correlation penalty term.

In practice, we consider the following form by relaxing the evaluation metric Eq. 2:

(7)

where , can be implemented by merging market segments within the same type of user identity groups or product image groups. Note that the three error parity terms in Eq. 7 can be regarded as simplified implementations of the fairness metric in Eq. 2. are binary hyperparameters to instantiate different forms of correlation loss. For example, a selection of represents that we only penalize the correlation between prediction errors and user identity groups.

7. Experiments

We conduct experiments on the collected ModCloth and Amazon datasets to evaluate the recommendation performance and the market fairness as described in Section 5.

Baselines. The following standard algorithms are considered:

  • itemCF, an item-based collaborative filtering algorithm (Sarwar et al., 2001; Linden et al., 2003);

  • userCF, a user-centric collaborative filtering method (Herlocker et al., 1999);

  • MF, the matrix factorization method (Koren et al., 2009), where the value of the preference prediction is unbounded;

  • PoissonMF

    , a hierarchical Bayesian framework where the preference factorization is linked to the rating score through a Poisson distribution, so that the preference score

    is bounded as a positive value (Gopalan et al., 2015).

By studying the recommendation outputs from these methods, we evaluate how standard collaborative filtering algorithms respond to the marketing bias in the input data.

We implement our proposed framework (MF (corr.error)), where is factorized using matrix factorization. By comparing its performance with the above methods (especially MF), we evaluate if the rating prediction and the product ranking fairness can be improved without losing much accuracy by adding the proposed correlation loss. Besides, we consider another two fairness-aware alternatives:

  • MF (corr.value), a method similar to MF (corr.error) except that is implemented as the correlation between the predicted rating values and the market segments. By comparing MF (corr.error) with it, we evaluate the effectiveness of controlling the parity of prediction errors instead of the absolute statistical parity of prediction values.

  • MF (reweighted), a method where the loss function is reweighted based on the sizes of market segments in the training data. We also consider the following generic form of the loss function:

    By comparing it with other baselines, we study if the marketing bias can be alleviated by simply increasing the weights of underrepresented segments in the training data.

For all above methods, we primarily evaluate their rating prediction accuracy through MSE and MAE, and rating prediction fairness in terms of the F-statistic (Eq. 2). We also evaluate their recommendation accuracy through AUC and NDCG, and the product ranking fairness in terms of KL-divergence (Eq. 3).

Experimental Details. We use the following rules to split interactions into train/validation/test sets: for users with at least two reviews, their most recent ratings are regarded as a test set; for users with at least three reviews, their second-to-last ratings are used for validation; the remaining interactions are used for training. We apply the same analysis on both training and test sets as in Section 4, and find similar patterns except that fewer female users (40%) are included in the test set of Electronics.77785% female users (vs. 73% male users) have only one review in our entire dataset.

We use the ADAM optimizer (Bengio and LeCun, 2015) with a learning rate of 0.001, a batch size of 512 and a fixed dimensionality of the latent embeddings in all model-based methods (). An regularizor is applied on all model-based methods, where is selected from . The accuracy-fairness trade-off is chosen from . All hyperparameters are selected based on the recommendation accuracy888MSE for rating prediction accurcy and NDCG for product ranking. on the validation set. For fairness-aware methods, we search hyperparameters from . For each , we first decide all other hyperparameters based on their recommendation accuracy, then select which yields the fairest recommendation results on the validation set. For each user, the top-10 ranked products are regarded as recommended items. Reviews in the test set where rating scores are larger than 3 are considered as reference interactions for the ranking task. All results are reported on the test set.

7.1. How does a standard collaborative filtering algorithm respond to biased input data?

We report the above mentioned rating prediction and product ranking metrics on ModCloth and Electronics, regarding both accuracy and fairness, in Table 6. We first investigate standard recommendation methods without any explicit fairness controls (i.e., itemCF, userCF, PoissonMF and MF). We observe that most methods yield biased prediction results on both datasets according to the F-statistic-based significance test. Although we find seemingly fair prediction errors from userCF, it actually produces a much larger MSE (as well as worse product ranking results) compared to other methods.

(a) ModCloth
(b) Electronics
Figure 3. Differences between the out-segment MSEs and the in-segment MSEs. Market segments are sorted based on their market sizes in the training data.

We further calculate the differences between the out-segment MSEs and the in-segment MSEs for these algorithms. Given a market segment , we have

(8)

indicates, for an algorithm, the market segment is more predictable (smaller MSE) than the interactions outside it. These differences are displayed in Figure 3, where the market segments are sorted based on their training sizes. We observe an overall trend that all algorithms generally tend to favor the dominating market segments (e.g. ‘Small’ users on ‘Small&Large’ products in ModCloth) in varying degrees. We find the correlation between the predictibility and the market segment size is more prominent on ModCloth but rather complicated on Electronics. However, by cross matching Figure 3 and the contingency table Table 3(b), we find that the trend correlates to the deviations of the real market size and the expected market size: the consumer-product segments (‘Female’, ‘Male’), (‘Male’, ‘Female’) and (‘Male’, ‘Female&Male’) are underrepresented based on this difference (), also generally unfavored by the recommendation algorithms.

(a) ModCloth
(b) Electronics
Figure 4. Distribution of market segments within test data (positive interactions only) and within recommendations. Market segments are sorted based on their sizes in training data.

We display the distributions of market segments within positive interactions where rating scores are larger than 3 and the recommended top-10 products from these algorithms in Figure 4. Compared with the distributions in real interactions (the ‘data’ columns in Figure 4), we can observe the deviations of recommendation results from most algorithms, particularly itemCF and userCF on ModCloth. However, systematic patterns about how these deviations correlate to the sizes of different market segments in the training data are not observed.

7.2. Can recommendation fairness be improved by applying the correlation loss?

In Table 6, we further compare the results from fairness-aware algorithms in group (b) to the standard algorithms in group (a), particularly MF. To better visualize the trade-off between recommendation accuracy and market fairness, we present scatter plots of an accuracy metric and a fairness metric on both datasets in Figure 5. We notice the proposed method with error correlation loss MF (corr.error) generally provides better rating and ranking fairness (lower F-statistic and KL-divergence) than standard MF, without trading-off much recommendation accuracy. An interesting finding is the combination selection on the validation set is consistent with our analysis in Table 5: the complete correlation loss () is selected for ModCloth and the addition of product and user correlation () is selected for Electronics.

ModCloth Electronics
Rating Prediction Product Ranking Rating Prediction Product Ranking
Method MSE MAE F-stat p-value AUC NDCG KL MSE MAE F-stat p-value AUC NDCG KL
(a) itemCF 1.398 0.841 2.568 0.053 0.601 0.121 0.557 1.529 0.966 5.099 ¡0.001 0.619 0.098 0.009
userCF 1.880 0.946 3.889 0.009 0.504 0.123 0.303 2.487 0.980 1.501 0.186 0.503 0.087 0.009
PoissonMF 1.168 0.859 9.600 ¡0.001 0.638 0.151 0.001 1.628 1.035 4.112 0.001 0.565 0.085 0.014
MF 1.176 0.859 9.805 ¡0.001 0.817 0.179 0.015 1.590 1.025 3.447 0.004 0.591 0.091 0.012
(b) MF (reweighted) 1.290 0.872 8.402 ¡0.001 0.852 0.183 0.012 1.615 1.017 2.769 0.017 0.594 0.092 0.001
MF (corr.value) 1.208 0.875 9.887 ¡0.001 0.549 0.123 0.484 1.617 1.043 4.543 ¡0.001 0.502 0.086 0.012
MF (corr.error) 1.204 0.873 1.667 0.172 0.818 0.179 0.003 1.543 1.011 1.896 0.091 0.766 0.122 0.002
Table 6. Recommendation results on ModCloth and Electronics. For rating predictions, MSE,MAE are used to evaluate the prediction accuracy while the F-statsitic (Eq. 2) is used to evaluate the prediction fairness and its associated p-value is provided; for product rankings, AUC and NDCG are used to evaluate the recommendation accuracy while the KL-divergence (Eq. 3) is used to evaluate the recommendation fairness. The most accurate and the fairest results are underlined.

We find the reweighting scheme also benefits the fairness metrics, particularly in the product ranking setting. One surprising finding is that by applying the error correlation loss, a significant performance gain in terms of product ranking accuracy (AUC and NDCG) can be obtained on Electronics. A possible reason could be that Electronics is an extremely sparse dataset where algorithms like MF may struggle to converge to an ideal local optimum. The fairness-aware correlation loss, however, could help regularize the training process.

(a) ModCloth (Rating)
(b) Electronics (Rating)
(c) ModCloth (Ranking)
(d) Electronics (Ranking)
Figure 5. Scatter plots for accuracy-fairness trade-off from different algorithms. Shaded arrows indicate the most ideal direction: higher accuracy, better fairness.

8. Conclusions and Future Work

We conclude our work and summarize our findings as follows:

  • We investigated a potential source of bias—marketing bias—in the form of the association between interaction feedback, product image and user identity, on two real-world e-commerce datasets. Through observational studies, the inter-correlations between these factors can be confirmed and the ‘self-congruity’ patterns are noticeable in the product selection process, which eventually results in the underrepresentation of some market segments.

  • We focused on market fairness and investigated how standard collaborative filtering algorithms react to this biased input data. We found such a bias can be propagated to the recommendation outcomes in varying degrees.

  • We developed an error correlation framework, which explicitly calibrates the equity of prediction errors across different market segments. Experimental results demonstrate that by applying this correlation loss, a superior accuracy-fairness trade-off can be achieved.

This work is a first step to approach the potential marketing bias in machine learning systems. We also wish to address several limitations of our data and methods, and to provide potential research directions.

  • Data. We study marketing bias by formulating it as the relationship between the human model images of products and user identities. Multiple marketing factors (e.g. product descriptions, social media advertisement contents) can also be considered. Binary gender identities are inferred in our Electronics dataset, which is limited to represent user identities that are not exclusively masculine or feminine, e.g. users who don’t always purchase products corresponding to their own identities, or those who identify themselves outside the binary definition.

  • Analysis. We collect ModCloth and Electronics as logged interactions where many confounders (inventory status, the observability of each product, potential biases introduced in the scraping and preprocessing stage, etc.) exist and are difficult to be disentangled. Although the inter-correlation between product image and user identity is observed in these datasets, we cannot draw any causal conclusions without controlling some notable confounding factors. Therefore another direction to validate (or more fundamentally address) this marketing bias is to conduct user-centric randomized experiments or natural experiments. In this way, causal conclusions and insights can be provided to product sellers and recommender system practitioners.

  • Algorithms. Although we only focus on algorithms trained on explicit feedback, it is relatively intuitive to extend the proposed error correlation framework to other pointwise recommendation algorithms. Another direction is to address the marketing bias in pairwise ranking recommendation algorithms, where market fairness metrics and debiasing methods can be further explored to accommodate real-world scenarios.

References

  • H. Abdollahpouri, R. Burke, and B. Mobasher (2017) Controlling popularity bias in learning-to-rank recommendation. In RecSys, Cited by: §2, §6.
  • Y. Bengio and Y. LeCun (Eds.) (2015) ICLR. Cited by: §7.
  • A. Beutel, J. Chen, T. Doshi, H. Qian, L. Wei, Y. Wu, L. Heldt, Z. Zhao, L. Hong, E. H. Chi, et al. (2019a) Fairness in recommendation ranking through pairwise comparisons. In KDD, Cited by: §1, §2, §2, §5, §6.
  • A. Beutel, J. Chen, T. Doshi, H. Qian, A. Woodruff, C. Luu, P. Kreitmann, J. Bischof, and E. H. Chi (2019b) Putting fairness principles into practice: challenges, metrics, and improvements. In AIES, Cited by: §5.
  • A. E. Birdwell (1968) A study of the influence of image congruence on consumer choice. The Journal of Business 41 (1), pp. 76–88. Cited by: §1, §2.
  • R. Burke, N. Sonboli, and A. Ordonez-Gauger (2018) Balanced neighborhoods for multi-sided fairness in recommendation. In Conference on Fairness, Accountability and Transparency, Cited by: §1, §2.
  • M. D. Ekstrand, M. Tian, M. R. I. Kazi, H. Mehrpouyan, and D. Kluver (2018) Exploring author gender in book rating and recommendation. In RecSys, Cited by: §2.
  • B. S. Everitt (1992) The analysis of contingency tables. Chapman and Hall/CRC. Cited by: §4.1.
  • P. Gopalan, J. M. Hofman, and D. M. Blei (2015) Scalable recommendation with hierarchical poisson factorization.. In UAI, Cited by: 4th item.
  • S. L. Grau and Y. C. Zotos (2016) Gender stereotypes in advertising: a review of current research. International Journal of Advertising 35 (5), pp. 761–770. Cited by: §2.
  • E. L. Grubb and H. L. Grathwohl (1967) Consumer self-concept, symbolism and market behavior: a theoretical approach. Journal of Marketing 31 (4), pp. 22–27. Cited by: §1, §2.
  • E. L. Grubb and G. Hupp (1968) Perception of self, generalized stereotypes, and brand selection. Journal of Marketing research 5 (1), pp. 58–63. Cited by: §1, §2.
  • J. L. Herlocker, J. A. Konstan, A. Borchers, and J. Riedl (1999) An algorithmic framework for performing collaborative filtering. In SIGIR, Cited by: §1, 2nd item.
  • D. Jannach, L. Lerche, I. Kamehkhosh, and M. Jugovac (2015) What recommenders recommend: an analysis of recommendation biases and possible countermeasures. User Modeling and User-Adapted Interaction 25 (5), pp. 427–491. Cited by: §2.
  • T. Joachims, A. Swaminathan, and T. Schnabel (2017) Unbiased learning-to-rank with biased feedback. In WSDM, Cited by: §2.
  • D. G. Kleinbaum, L. L. Kupper, K. E. Muller, and A. Nizam (1988)

    Applied regression analysis and other multivariable methods

    .
    Vol. 601, Duxbury Press Belmont, CA. Cited by: §4.2.
  • Y. Koren, R. Bell, and C. Volinsky (2009) Matrix factorization techniques for recommender systems. Computer (8), pp. 30–37. Cited by: §1, §6, 3rd item.
  • F. Kressmann, M. J. Sirgy, A. Herrmann, F. Huber, S. Huber, and D. Lee (2006) Direct and indirect effects of self-image congruence on brand loyalty. Journal of Business research 59 (9), pp. 955–964. Cited by: §2.
  • S. Kullback and R. A. Leibler (1951) On information and sufficiency. The annals of mathematical statistics 22 (1), pp. 79–86. Cited by: §5.
  • G. Linden, B. Smith, and J. York (2003) Amazon.com recommendations: item-to-item collaborative filtering. IEEE Internet computing (1), pp. 76–80. Cited by: §1, 1st item.
  • N. K. Malhotra (1988) Self concept and product choice: an integrated perspective. Journal of Economic Psychology 9 (1), pp. 1–28. Cited by: §2.
  • R. Mehrotra, J. McInerney, H. Bouchard, M. Lalmas, and F. Diaz (2018) Towards a fair marketplace: counterfactual evaluation of the trade-off between relevance, fairness & satisfaction in recommendation systems. In CIKM, Cited by: §2.
  • R. Misra, M. Wan, and J. McAuley (2018) Decomposing fit semantics for product size recommendation in metric spaces. In RecSys, Cited by: §3.1.
  • J. Ni, J. Li, and J. McAuley (2019) Justifying recommendations using distantly-labeled reviews and fine-grained aspects. In EMNLP, Cited by: §3.2.
  • B. M. Sarwar, G. Karypis, J. A. Konstan, J. Riedl, et al. (2001) Item-based collaborative filtering recommendation algorithms. In WWW, Cited by: §1, 1st item.
  • T. Schnabel, A. Swaminathan, A. Singh, N. Chandak, and T. Joachims (2016) Recommendations as treatments: debiasing learning and evaluation. In ICML, Cited by: §1, §2.
  • M. J. Sirgy, D. Grewal, T. F. Mangleburg, J. Park, K. Chon, C. B. Claiborne, J. S. Johar, and H. Berkman (1997) Assessing the predictive validity of two methods of measuring self-image congruence. Journal of the academy of marketing science 25 (3), pp. 229. Cited by: §2.
  • M. J. Sirgy (1982) Self-concept in consumer behavior: a critical review. Journal of consumer research 9 (3), pp. 287–300. Cited by: §2.
  • L. Yang, Y. Cui, Y. Xuan, C. Wang, S. Belongie, and D. Estrin (2018) Unbiased offline recommender evaluation for missing-not-at-random implicit feedback. In RecSys, Cited by: §1.
  • S. Yao and B. Huang (2017) Beyond parity: fairness objectives for collaborative filtering. In NeurIPS, Cited by: §2, §5, §6.
  • X. Zhang, J. Zhao, and J. Lui (2017) Modeling the assimilation-contrast effects in online product rating systems: debiasing and recommendations. In RecSys, Cited by: §2.
  • Z. Zhu, X. Hu, and J. Caverlee (2018) Fairness-aware tensor-based recommendation. In CIKM, Cited by: §2, §5.
