1 Introduction
An emerging application of neural language models (NLMs) is smart software keyboards on such mobile devices as smartphones and tablets that provide nextword prediction, allowing users to input entire words with a single tap. For example, the apps SwiftKey^{1}^{1}1http://www.swiftkey.com/ and Swype^{2}^{2}2http://www.swype.com/ both advertise the use of neural networks for predictions. According to Google Play Store, SwiftKey has more than 100 million downloads, demonstrating its popularity.
Based on standard metrics such as perplexity, neural techniques represent an advance in the state of the art in language modeling (Merity et al., 2018b). Better models, however, come at a cost in computational complexity, which translates to higher power consumption. In the context of mobile devices, energy efficiency is, of course, an important optimization objective. A casual web search, for example, reveals numerous complaints from users of the above apps about battery drain, indicating that this is not a hypothetical concern.
In reality, neural language models exist in a accuracy–efficiency tradeoff space. Although this fact has been recognized for applications such as image recognition (Canziani et al., 2016) and keyword spotting (Tang et al., 2018), to our knowledge no one in the NLP community has explored these tradeoffs. All previous papers on NLMs simply report singlepoint perplexity figures. In contrast, the highlevel goal of our work is to understand the tradeoffs between neural modeling accuracy and realworld efficiency constraints: in addition to perplexity, NLMs should be evaluated in terms of FLOPs,^{3}^{3}3Convention from literature defines number of FLOPs as the total number of additions and multiplications. milliJoule per query (mJ/q), and inference latency. We conduct exactly such experiments, using the Raspberry Pi (which shares the same architecture as most mobile devices today) as a more convenient hardware platform.
Ideally, NLMs should provide a “knob” that allows developers to tune accuracy–efficiency tradeoffs. In this paper, we explore pruning approaches that take a pretrained quasirecurrent neural network (QRNN; Bradbury et al., 2017), representing the state of the art in NLM today, and provides exactly such a knob. Furthermore, our techniques allow these tradeoffs to be tuned at inference time, which allows a mobile device to adaptively control its behavior, e.g., favor efficiency at the cost of accuracy when the battery is low.
Thus, this paper makes the following contributions: First, to our knowledge, we are the first to comprehensively explore accuracy–efficiency tradeoffs for NLMs with experimental evaluation of energy consumption on a Raspberry Pi. Second, we evaluate a number of inferencetime pruning techniques that takes any pretrained QRNN and provides a tunable accuracy–efficiency “knob”.
2 Background and Related Work
2.1 Quasirecurrent Neural Networks

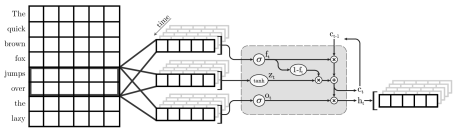

Quasirecurrent neural networks (QRNNs; Bradbury et al., 2017) achieve highly competitive perplexity on wordlevel language modeling datasets, including stateoftheart perplexity on WikiText103 (Merity et al., 2018b). Although applying such techniques as dynamic evaluation (Krause et al., 2017), Hebbian softmax (Rae et al., 2018), and mixture of softmaxes (Yang et al., 2017) can produce lower perplexity, our focus is on the recurrent architecture. Thus, we explore the task of pruning QRNNs without using any other extensions.
Each word is encoded as a onehot vector and then fed into a linear layer, which produces lowerdimensional word embeddings for the QRNN layers. A single QRNN layer consists of two distinct components—convolution and recurrent pooling—that alternate to imitate an LSTM
(Hochreiter & Schmidhuber, 1997). Given a stacked sequence of inputs (e.g., word embeddings in language modeling), the onedimensional convolution layer is defined aswhere , , are the weights associated with the input, forget, and output gates, respectively, represents a masked convolution along time, and
denotes the sigmoid function. For
, is the number of output channels, is the number of input channels, and the window size across time. Without loss of generality, we henceforth represent as twodimensional matrices , where . The outputs are fed into a recurrent pooling layer:2.2 Pruning
Weight pruning is an effective strategy for reducing the computational footprint of a model. An influential pioneering work, LeCun et al. (1990) proposes to discard weights using a errorapproximation approach based on Hessian diagonals. More recent work suggests pruning weights with small magnitudes (Han et al., 2016), with quantization and Huffman coding as additional steps. However, these approaches introduce irregular sparsity to the weights, and they assume that retraining the weights is feasible.
In this work, we take a different approach and focus on techniques that eliminate entire filters. This is because modern implementations of feedforward evaluation (e.g., im2col and particularly NEON instruction on ARM processors) take advantage of dense matrix multiplications. Pruning individual weights without changing the dimensions of the weight matrices has minimal effect on power consumption—this is confirmed by our initial exploratory studies on the Raspberry Pi. Hence, we only examine pruning techniques that discard entire filters of the convolutional layers:
Random pruning. A simple baseline (Mittal et al., 2018) is random filter pruning, where of the filters are randomly pruned, layerbylayer. Interestingly, Mittal et al. (2018) find that random pruning is competitive with more advanced methods.
Filter norm. Li et al. (2017) propose ranking filters by their norms, and then dropping off of the smallest filters on a layerbylayer basis. Mittal et al. (2018) have previously found that norm filter pruning (Li et al., 2017) outperforms a multitude of competing approaches.
Mean activation norm. Among other approaches, Molchanov et al. (2016)
suggest pruning filters whose mean activations are small. This approach is especially effective on ReLU, which both creates sparse activations and forces them to be nonnegative.
regularization. Louizos et al. (2018) apply regularization to neural networks in order to learn sparse, efficient structures. Formally, define an objective
where
is the original loss function and
the weights. The dependence on the hypothesis and training examples has been omitted for brevity. The optimal solution entails a nondifferentiable objective and iteration over all possibilities to choose the best ; hence, Louizos et al. (2018) propose the following relaxation of the objective:where is a binary discrete random mask parameterized by , and is the CDF. Intuitively, for some choice of , the number of active parameters (on average) is penalized. Inspired by the Concrete distribution (Maddison et al., 2016), Louizos et al. (2018) propose the hard concrete distribution for , further relaxing the discrete random mask into a continuous one:
where is a continuous random vector such that , are the mask parameters, and
are scaling hyperparameters. Note that
can also be included as part of the mask parameters ; we follow Louizos et al. (2018) and fix . Louizos et al. (2018) then apply the reparameterization trick (Kingma & Welling, 2014; Rezende et al., 2014) and make a Monte Carlo approximation to the objective:A closed form expression is derived for the penalty,
. At test time, the following estimator is used:
3 InferenceTime Pruning
In this section, we explain how the various techniques in Section 2.2 can be adapted to QRNNs. For the following methods, we assume that a pretrained model is provided. We denote the weights at QRNN layer as . In all methods, we tie the indices across . For example, if filter is selected for pruning at layer , then , where denotes exclusion of index . This allows the removal of the column in the next layer as well.
Random pruning. We apply random pruning to , , and . That is, we randomly prune filters associated with the same indices across the three weights.
Filter norm. We apply filter norm pruning (Li et al., 2017), with the filter norms of acting as the criteria. We find most helpful, since small filter norms should result in small hidden outputs, which is not necessarily the case for and .
Mean activation norm. The hidden output is a natural candidate for collecting mean activation statistics. Intuitively, if is small on average, then the filters for are less important. Statistics are collected using a single pass of the entire training set. For inferencetime pruning, we store the collected statistics.
regularization. Since we are given a pretrained model and are prohibited from altering the weights, we learn the mask parameters only: . We also enforce the sparsity on entire rows of , which corresponds to “group sparsity” in Louizos et al. (2018). Specifically, we formulate the regularization on a feature map level instead, with as the target:
is chosen for the property that the feature map for is zero if is zero for .
This approach entails training and storing extra mask parameters for each operating point. However, we find this to be a nonissue for our task, since there are few operating points—three or four at most, out of which we use two for regularization—so the extra storage is negligible.
3.1 With SingleRank Update
At specific operating points (e.g., 40% and 80% FLOPs), pretrained weight updates can be stored and applied at inferencetime to recover some perplexity. Suppose is a weight matrix in a neural network, and is some known set of weights that results in a lower loss. Clearly, can be stored and added at inferencetime to obtain a better neural network. However, it is obvious that this scheme is wasteful, since could have directly substituted in the first place.
Sacrificing a negligible amount of storage to recover some perplexity, we propose learning a singlerank weight matrix update
to each weight in the convolution layers. Specifically, the process is as follows, beginning with a pretrained model:

Prune a predetermined set of filters for some operating point (e.g., 40% FLOPs).

Initialize the weight updates for each convolution layer , in our case .

Fixing the existing weights for each convolution layer, train a singlerank update such that , where is used as the new weight.

Store for use at inference time on the same operating point.
4 Experimental Setup
We evaluate the aforementioned pruning techniques for wordlevel language modeling on Penn Treebank (PTB) (Marcus et al., 1993; as preprocessed by Mikolov et al., 2010) and WikiText103 (WT103) (Merity et al., 2017). We denote the models for PTB and WT103 as ptbqrnn and wt103qrnn, respectively.
4.1 Datasets and Tasks
For each model, we report wordlevel perplexity and recallatthree (R@3), defined as the percentage of top three token–logit outputs that contain the true next token. For example, if {“cat”, “dog”, “baby”} are the top three predicted tokens for, “I adopted a
,” with “dog” being the ground truth, then the prediction is correct, regardless of the rank of “dog”.Penn Treebank. Built from Wall Street Journal articles, Penn Treebank (PTB) is a small yet popular wordlevel dataset for language modeling. In the standard preprocessed version (Mikolov et al., 2010), the dataset contains roughly 887K, 70K, and 78K training, validation, and testing tokens, respectively. The number of unique tokens is capped at 10,000, yielding a relatively large 4.8% outofvocabulary (OOV) rate.
WikiText103. Merity et al. (2017) introduce WikiText2 and WikiText103, datasets based on freely available Wikipedia articles. We use only WikiText103, since WikiText2 was designed to be similar to Penn Treebank. With 103 million training tokens, WikiText103 is 103 times as large as PTB. WikiText103 contains around 217K tokens for validation, and 245K for testing. The number of unique tokens is 267K, resulting in a 0.4% OOV rate, significantly lower than that of PTB.
4.2 Hyperparameters and Training
In all of the models, we chose the hyperparameters as suggested in Merity et al.’s codebase.^{4}^{4}4https://github.com/salesforce/awdlstmlm For ptbqrnn, we used a fourlayer QRNN with 1550 hidden units for each layer and a 400dimensional embedding. For wt103qrnn, we used a fourlayer QRNN with 2500 hidden units and 400dimensional embeddings, along with a tied adaptive softmax (Merity et al., 2018b). In both models, the first layer uses a window size of two, while the rest use a windows size of one.
Following Merity et al. (2018a)
, we also adopted the regularization techniques randomized backpropagation through time, embedding dropout, temporal activation regularization (TAR), activation regularization (AR), and variational dropout. We followed the same training process as well, with nonmonotonically triggered ASGD (NTASGD) as the optimizer. We use the same hyperparameters as
Merity et al. (2018a) and Merity et al. (2018b) for each model–dataset pair.During the training of wt103qrnn, we follow Merity et al. (2018b), using a tied adaptive softmax (Grave et al., 2017; Merity et al., 2018b) layer. At inference time, we use a regular softmax instead, since we require R@3.
Pruning. We selected a number of distinct operating points that represent discrete points in the accuracy–efficiency tradeoff space. Based on previous work (Tang et al., 2018), floatingpoint operations (FLOPs) is a good proxy of both energy usage and latency, and so we use FLOPs as a way of selecting our operating points. In regularization, the decay strength was selected so that the resulting model corresponds to roughly the FLOPs targets: To achieve 80% and 60% FLOPs for the model on PTB, we used , respectively. To achieve about 70% FLOPs on WT103, we chose .
We trained the hard concrete mask parameters for roughly 5000 steps using Adam with a learning rate of . Since the weight decay penalty is incompatible with the objective, we removed it while training the mask.
For mean activation pruning, which requires some training examples to collect statistics, we used the entire training set for ptbqrnn. Since WikiText103 is large, we used roughly 10% of the first training examples for collecting statistics on wt103qrnn.
Singlerank update (SRU).
For the PTB model, the singlerank update was trained for 10 epochs using NTASGD
(Merity et al., 2018a) with a nonmonotonic interval of three. For WikiText103, the update was trained for 2000 steps using Adam with a learning rate of . All other hyperparameters were the same as those used during the training stage.4.3 Infrastructure Details
We trained all of our models on a commodity machine with a Titan V GPU, i74790k CPU, and 16 GB of RAM. We used PyTorch 0.4.0 (commit
1807bac) for developing and running our models. We deployed our models on a Raspberry Pi (RPi) 3 Model B (ARM CortexA53) running Raspbian Stretch (4.9.41v7+). Specifically, we copied the trained models over to the RPi, and ran them at the same operating points accordingly.We plugged the RPi into a Watts Up Pro meter, a wattmeter that reports power usage at the rate of 1 Hz via a USB cable, which is connected back to the RPi. Evaluating on the test set, we collected power draw statistics on 350 nextword predictions, which were averaged to produce a millijoule per query (mJ/q) estimate. We obtained latency estimates in a similar manner by averaging the milliseconds per query (ms/q). Finally, we subtracted off the idle power usage of the RPi to obtain a better estimate of the actual power for each query.
Although our final application is NLMs running on mobile devices such as smartphones and tablets, there are many challenges to directly evaluating on such hardware. The Raspberry Pi is a convenient standin since it uses exactly the same ARM processor architecture as nearly all mobile devices today. Evaluation on the RPi is widely adopted for research on efficient NNs today (Amato et al., 2017; Tang et al., 2018).
5 Results and Discussion
In our results for PTB and WT103, we compare to stateoftheart results in the past. In general, we find that QRNNs are strong competitors to LSTM approaches, and achieve stateoftheart perplexity on WikiText103 (Merity et al., 2018b).
#  Method  Model Quality  Footprint  w/SRU

Val.  Test  R@3  % FLOPs  ms/q  mJ/q  Test  R@3
1  Skip LSTM  60.9  58.3  –  –  –  –  –  –
2  AWDLSTM  60.0  57.3  –  –  223  295  –  –
3  Orig.  59.0  56.8  44.7%  100%  224  296  –  –
4  reg.  63.0  60.7  43.6%  80%  185  227  59.3  44.1%
5  reg.  69.2  66.8  42.1%  60%  142  183  64.0  42.7%
6  Random  68.2  66.0  42.9%  80%  182  238  61.1  43.8%
7  Filter norm  76.1  72.7  42.4%  80%  182  238  66.1  43.1%
8  Mean activation  68.3  66.1  42.6%  80%  182  238  61.0  43.5%
For PTB, we note that a 20point increase in perplexity may only correspond to a few points decrease in R@3, showing that perplexity changes on a much different scale than accuracy does (see Table 1, rows 3 and 7). Furthermore, lower perplexity does not necessarily imply higher accuracy (see rows 5 and 7), confirming that perplexity alone cannot completely determine the recall. In Table 1, we chose 75 as the cutoffpoint for perplexity—further results are illustrated in Figure 2. For WT103, we observe trends similar to those of PTB; A large drop in perplexity corresponds to a much smaller decrease in R@3 (see Table 2, rows 3 and 4).
#  Method  Model Quality  Footprint  w/SRU

Val.  Test  R@3  % FLOPs  sec/q  J/q  Test  R@3
1  RaeLSTM  36.0  36.4  –  –  –  –  –  –
2  4layer QRNN  32.0  33.0  –  –  1.24  1.48  –  –
3  Orig.  31.9  32.8  51.5%  100%  1.24  1.48  –  –
4  reg.  65.8  65.4  43.1%  69%  0.912  1.06  56.9  44.7%
5  Mean activation  89.8  92.9  38.9%  70%  0.942  1.10  55.7  46.0%
6  Filter norm  85.9  88.2  41.7%  70%  0.942  1.10  59.2  45.4%
7  Random  80.9  81.4  42.9%  70%  0.942  1.10  54.2  46.1%
5.1 Accuracy–Efficiency Tradeoffs
We illustrate the accuracy–efficiency tradeoff space of the PTB and WT103 models in Figure 2. For each model, we tabulate the results at fixed intervals according to the approximated percentage of FLOPs, relative to that of the unpruned model. We omit results that exceed 100 in test perplexity, since they are insufficient for language modeling in practice.
Surprisingly, random filter pruning is a strong baseline, which supports the findings from Mittal et al. (2018). Random pruning not only outperforms filter norm and mean activation pruning, but also regains perplexity more easily with a singlerank update. From Table 1 (rows 6–8) and Table 2 (rows 5–7), we see that random pruning displays equivalent or superior performance to filter norm and mean activation pruning. Interestingly, random pruning achieves the lowest perplexity with a singlerank update (Table 2, rows 4–7), out of all the baseline approaches on WT103.
On the other hand, filter norm pruning is relatively weak, doing worse than random pruning in all cases—with or without a singlerank update—suggesting that filter norm pruning has no practical benefit over random pruning. regularization (Louizos et al., 2018) works best, as shown in rows 4–5 in Table 1 and row 4 in Table 2.
In general, testing on Penn Treebank and WikiText103—two very different datasets—gives us consistent results, thus demonstrating the robustness of regularization (Louizos et al., 2018), compared to the other pruning approaches.
5.2 Power Usage and Latency
On the Raspberry Pi, the PTB models are relatively fast, while the WT103 models are high latency, taking over one second (Table 2, rows 2–3 and 8) for the full models. For typeahead prediction on a mobile device, the WT103 models are unsuitable asis; further steps (e.g., more pruning then retraining, vocabulary reduction, quantization) would be required to deploy the models for practical use. Supporting the findings from Tang et al. (2018), the number of FLOPs scales linearly with latency and power: Full experimental results from Figure 2 yield Pearson’s for both latency– and power–FLOPs measurements, suggesting a strong linear relationship between the number of FLOPs and both latency and power.
In terms of extra parameters, a singlerank update costs less than 74 KB for ptbqrnn, and less than 120 KB for wt103qrnn. Mean activation statistics requires 20 KB for ptbqrnn, and 30 KB for wt103qrnn. Mask parameters for regularization cost about 20 KB on each power level for ptbqrnn, and 30 KB for wt103qrnn. Filter norm pruning and random pruning do not require any extra storage.
6 Conclusion
Motivated by the mass adoption of smart software keyboards on mobile devices, we explore the task of inferencetime pruning on QRNNs, stateoftheart neural language models. Starting with existing trainingtime pruning methods, we extend their usability to QRNNs at runtime, obtaining multiple operating points in the accuracy–efficiency tradeoff space. To recover some perplexity using a negligible amount of memory, we propose to train and store singlerank weight updates at desired operating points.
Acknowledgments
We are grateful for Meng Dong’s work on power measurements and debugging for the RPi experiments, and we thank the reviewers for their time and feedback.
References
 Amato et al. (2017) Giuseppe Amato, Fabio Carrara, Fabrizio Falchi, Claudio Gennaro, Carlo Meghini, and Claudio Vairo. Deep learning for decentralized parking lot occupancy detection. Expert Systems with Applications, 72:327–334, 2017.
 Bradbury et al. (2017) James Bradbury, Stephen Merity, Caiming Xiong, and Richard Socher. Quasirecurrent neural networks. In International Conference on Learning Representations, 2017.
 Canziani et al. (2016) Alfredo Canziani, Adam Paszke, and Eugenio Culurciello. An analysis of deep neural network models for practical applications. arXiv preprint arXiv:1605.07678, 2016.

Grave et al. (2017)
Édouard Grave, Armand Joulin, Moustapha Cissé, David Grangier, and
Hervé Jégou.
Efficient softmax approximation for GPUs.
In Doina Precup and Yee Whye Teh (eds.),
Proceedings of the 34th International Conference on Machine Learning
, volume 70 of Proceedings of Machine Learning Research, pp. 1302–1310, International Convention Centre, Sydney, Australia, 06–11 Aug 2017. PMLR. URL http://proceedings.mlr.press/v70/grave17a.html.  Han et al. (2016) Song Han, Huizi Mao, and William J Dally. Deep compression: Compressing deep neural networks with pruning, trained quantization and huffman coding. In International Conference on Learning Representations, 2016.
 Hochreiter & Schmidhuber (1997) Sepp Hochreiter and Jürgen Schmidhuber. Long shortterm memory. Neural computation, 9(8):1735–1780, 1997.

Inan et al. (2017)
Hakan Inan, Khashayar Khosravi, and Richard Socher.
Tying word vectors and word classifiers: A loss framework for language modeling.
In International Conference on Learning Representations, 2017.  Kingma & Welling (2014) Diederik P Kingma and Max Welling. Autoencoding variational bayes. In International Conference on Learning Representations, 2014.
 Krause et al. (2017) Ben Krause, Emmanuel Kahembwe, Iain Murray, and Steve Renals. Dynamic evaluation of neural sequence models. arXiv preprint arXiv:1709.07432, 2017.
 LeCun et al. (1990) Yann LeCun, John S Denker, and Sara A Solla. Optimal brain damage. In Advances in neural information processing systems, pp. 598–605, 1990.
 Li et al. (2017) Hao Li, Asim Kadav, Igor Durdanovic, Hanan Samet, and Hans Peter Graf. Pruning filters for efficient convnets. In International Conference on Learning Representations, 2017.
 Louizos et al. (2018) Christos Louizos, Max Welling, and Diederik P Kingma. Learning sparse neural networks through regularization. In International Conference on Learning Representations, 2018.
 Maddison et al. (2016) Chris J Maddison, Andriy Mnih, and Yee Whye Teh. The concrete distribution: A continuous relaxation of discrete random variables. arXiv preprint arXiv:1611.00712, 2016.
 Marcus et al. (1993) Mitchell P Marcus, Mary Ann Marcinkiewicz, and Beatrice Santorini. Building a large annotated corpus of english: The penn treebank. Computational linguistics, 19(2):313–330, 1993.
 Melis et al. (2018) Gábor Melis, Chris Dyer, and Phil Blunsom. On the state of the art of evaluation in neural language models. In International Conference on Learning Representations, 2018.
 Merity et al. (2017) Stephen Merity, Caiming Xiong, James Bradbury, and Richard Socher. Pointer sentinel mixture models. In International Conference on Learning Representations, 2017.
 Merity et al. (2018a) Stephen Merity, Nitish Shirish Keskar, and Richard Socher. Regularizing and optimizing LSTM language models. In International Conference on Learning Representations, 2018a. URL https://openreview.net/forum?id=SyyGPP0TZ.
 Merity et al. (2018b) Stephen Merity, Nitish Shirish Keskar, and Richard Socher. An analysis of neural language modeling at multiple scales. arXiv preprint arXiv:1803.08240, 2018b.
 Mikolov et al. (2010) Tomáš Mikolov, Martin Karafiát, Lukáš Burget, Jan Černockỳ, and Sanjeev Khudanpur. Recurrent neural network based language model. In Eleventh Annual Conference of the International Speech Communication Association, 2010.
 Mittal et al. (2018) Deepak Mittal, Shweta Bhardwaj, Mitesh M Khapra, and Balaraman Ravindran. Recovering from random pruning: On the plasticity of deep convolutional neural networks. arXiv preprint arXiv:1801.10447, 2018.
 Molchanov et al. (2016) Pavlo Molchanov, Stephen Tyree, Tero Karras, Timo Aila, and Jan Kautz. Pruning convolutional neural networks for resource efficient transfer learning. CoRR, abs/1611.06440, 2016.
 Rae et al. (2018) Jack W Rae, Chris Dyer, Peter Dayan, and Timothy P Lillicrap. Fast parametric learning with activation memorization. arXiv preprint arXiv:1803.10049, 2018.
 Rezende et al. (2014) Danilo Jimenez Rezende, Shakir Mohamed, and Daan Wierstra. Stochastic backpropagation and approximate inference in deep generative models. In Eric P. Xing and Tony Jebara (eds.), Proceedings of the 31st International Conference on Machine Learning, volume 32 of Proceedings of Machine Learning Research, pp. 1278–1286, Bejing, China, 22–24 Jun 2014. PMLR. URL http://proceedings.mlr.press/v32/rezende14.html.

Tang et al. (2018)
Raphael Tang, Weijie Wang, Zhucheng Tu, and Jimmy Lin.
An experimental analysis of the power consumption of convolutional neural networks for keyword spotting.
In Proceedings of the 2018 IEEE International Conference on Acoustics, Speech and Signal Processing (ICASSP 2018), pp. 5479–5483, 2018.  Yang et al. (2017) Zhilin Yang, Zihang Dai, Ruslan Salakhutdinov, and William W Cohen. Breaking the softmax bottleneck: a highrank rnn language model. arXiv preprint arXiv:1711.03953, 2017.
