Robots have been increasingly moving into human based environments to replace or assist human workers. More specifically, anthropomorphic or dual arm robots (DAR) have more and more played a vital role in many industrial, health care or household environments RN51 ; RN52 ; RN53 ; RN54 ; RN55 ; RN78 . For instance, dual arm manipulators have been effectively employed in a diversity of tasks including assembling a car, grasping and transporting an object or nursing the elderly RN73 . In those scenarios, the DAR have been expected to behave like a human, which is they should be able to manipulate an object similarly to what a person does RN53 . As compared to a single arm robot, the DAR have significant advantages such as more flexible movements, higher precision and greater dexterity for handling large objects RN56 ; RN57 . Nevertheless, since the kinematic and dynamic models of the DAR system are much more complicated than those of a single arm robot, it has more challenges to effectively and efficiently control the DAR, where synchronously coordinating the robot arms are highly expected.
In order to accurately and stabily track the robot arms along desired trajectories, a number of the control strategies have been proposed. For instance, the traditional methods such as nonlinear feedback control RN58 or hybrid force/position control relied on the kinematics and statics RN59 ; RN60 have been proposed to simultaneously control both of the arms. In the works RN61 ; RN62 ; RN63 , the authors have proposed to utilize the impedance control by considering the dynamic interaction between the robot and its surrounding environment while guaranteeing the desired movements. More importantly, robustness of the control performance is also highly prioritized in consideration of designing a controller for a highly uncertain and nonlinear DAR system. In literature of the modern control theory, sliding mode control (SMC) demonstrates a diverse ability to robustly control any system. Since the pioneer work RN64 , the variable structure SMC has enjoyed widespread use and attention in many applications RN10 ; RN11 ; RN12 ; RN65 ; RN67 ; RN68 ; RN77 ; Le2019b ; Le2017 ; VA2018 ; Le2019 ; Le2019a . Nonetheless, due to presence of discontinuities, the SMC law may cause undesirable oscillations, which is also called the chatterring phenomenon. Park et al. RN13 proposed a saturation function to replace the discontinuous signum function in the control signal to reduce effects of the chattering. Recently, the chattering phenomenon can be eliminated by designing the controller without a discontinuous term Le2017 ; VA2018 . For robustly controlling nonlinear systems with unmatched uncertainties, the SMC control law is usually designed in conjunction with the backstepping method, where the sliding surface is aggregated in the last step RN14 ; RN17 . For instance, Chen et al. RN75 developed a backstepping sliding mode controller to enhance the global ultimate asymptotic stability and invariability to uncertainties in a nonholonomic wheeled mobile manipulator. To address the problem of explosion of terms associated with the integrator backstepping technique, Swaroop et al. RN19 proposed the dynamic surface control (DSC) method by using a first-order low-pass filter in the synthetic input.
Nonetheless, the aforesaid traditional control techniques are not really practical when they require to accurately model all the nonlinear dynamics of the DAR system, where its unknown parameters are highly uncertain and not easily estimated. It is noted that uncertainties of the DAR system can practically lead to degradation of its control performance. Furthermore, a number of unexpected disturbances and obstacles in the working environments can cause the DAR system to be unstable. To address the issues of accurately modelling all the nonlinear dynamics and estimating the unknown and uncertain parameters, some modern control approaches based on fuzzy logic or artificial neural network have been proposed in the past decades. For instance, by the use of the adaptive learning and function approximations, Lee and Choi RN70 introduced a radial basis function network (RBFN) for approximating the nonlinear dynamics of a SCARA-type robot manipulator. Similarly, Wang et al. RN72 employed the approximation of a neural network to deal with the nonlinearities and uncertainties of a single robot manipulator, where errors caused by the neural network approximation can be estimated by a proposed control robust term. In addition, the authors in RN73 designed an adaptive control system for a humanoid robot by using the RBFN to develop a scheme to adaptively estimate unknown and uncertain dynamics of the robot. Based on a multi-input multi-output fuzzy logic unit, Jiang et al. RN74 proposed an algorithm to adaptively estimate the dynamics of the DAM, given its nonsysmmetric deadzone nonlinearity. In the context of adaptive DSC, it was proposed to employ fuzzy techniques and neural networks to adaptively estimate parameters for the control laws in uncertain nonlinear systems Luo2009 and nonlinear systems with uncertain time delays Wu2016 , respectively.
In this paper, we propose an adaptive control strategy based on the DSC method and the RBFN to effectively and efficiently control the DAR system. The proposed approach provides the DAR system not only adaptive estimation of the nonlinear dynamics but also robustness to system uncertainties including the system parameter variations, actuator nonlinearities and external disturbances. In other words, the aggregated control scheme based on the DSC technique enables the manipulators to be capable of efficiently tracking the desired trajectories given large variation of the system information such as the undetermined volume and mass of the payload and significantly reducing chattering influences. The RBFN allows the proposed controller to be able to adaptively estimate the nonlinear and uncertain parameters of the DAR system. More importantly, the adaptation mechanism is designed based on Lyapunov method, which mathematically guarantees the stability of the closed-loop control system. The proposed algorithm was extensively validated in the synthetic environments, where the obtained results are highly promising.
The rest of the paper is arranged as follows. We first introduce a model of the DAR system in Section 2. We then present how to construct a RBFN-DSC controller for the DAR system based on the DSC and RBFN in Section 3. Section 4 discusses validation of the proposed approach in a simulation environment before conclusions are drawn in Section 5.
2 Dual Arm Robot Model

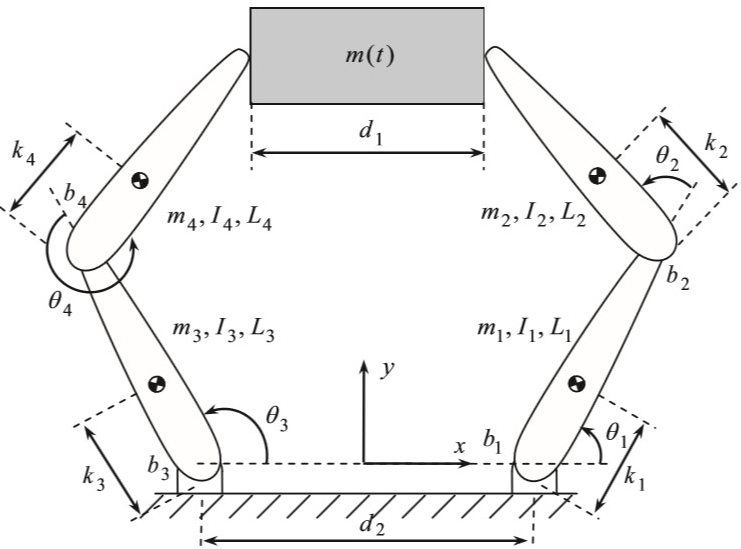

Lets consider a dual two degree of free (DoF) arm robot that cooperatively manipulates an object with mass of as pictorically shown in Fig. 1. It is assumed that both the manipulators rigidly attach to the load so that there is no slip between the grasping points and the grasped load. Let
denote the mass, mass moment of inertia and length of the corresponding link in the model, respectively. We also defineand as the length of the object and distance between the two arms at the robot’s base. The distance from the mass centre of a link to a joint is denoted as while the joint angle between a link and the base or its preceding link is denoted as .
Operationally, in this work we consider that the robot manipulators make motions on the horizontal plane. In other words, the robot arms first move towards the object. After the manipulators are firmly attached to the load, the robot then picks the object up and transports it to a new position by adjusting the motions to robustly follow the given trajectory, demonstrated in Fig. 2, where (,) and (,) are the initial and final locations of the payload, respectively. We let and denote the mass center of the payload on the plane, the trajectory of the object can be specified by
In order to transport the object to a new position, the robot manipulators apply forces and to the payload as illustrated in Fig. 3. On the other hands, to rigidly hold the load up, friction forces and are needed. Let and denote the components of the friction forces in and directions, respectively. To prevent the load from rotating around and axes, it is supposed that and . Then the dynamic equations of the object are as follows,
and . And the relationship between the applied forces and the friction forces is presented by
where is the friction coefficient in dry condition.
If , both the applied forces and can be computed by
Nonetheless, if , those forces can be obtained by
By the use of Lagrange multipliers, the dynamic model of the dual arm robot manipulating the payload can be summarized as follows,
where is a
control torque input vector,is a vector presenting the noise effects on the robot arms and denotes the viscous friction forces on all the joints, which are specified as follows,
where is the viscous friction at the joint. is a matrix of the mass moment of inertia, whose components are specified by
is a Coriolis-centripetal vector, whose elements are computed by
Furthermore, is a Jacobian matrix with the elements obtained by
3 Control Approach
In order to design a control law to efficiently and automatically adjust the robot manipulators, we first discuss a control scheme based on the dynamic surface control method. It is noted that due to the system uncertainties including parameter variations, actuator nonlinearities and external disturbances, system parameters in the designed controller are practically uncertain and unknown; then we introduce a radial basis function network based technique to adaptively estimate those uncertain and unknown dynamics.
Generally speaking, the dynamic model of the dual arm robot (DAR) (2) can be represented as follows,
where and . Let , the (10) can be simplified by
It can be clearly seen that the system uncertainties are now incorporated into that presents the complex nonlinear dynamic of the robot. For the purpose of simplicity, and will be used interchangeably.
3.1 Dynamic surface control for certain DAR systems
The aim of controlling a dual arm robot is to guarantee that tracks the reference . Therefore, we propose to design a control law using the dynamic surface control (DSC) structure as sequentially expressed by the following steps.
Step 1: Let
denote the vector of tracking errors, and consider the first Lyapunov function candidate as follows,
If differentiating with respect to time, one obtains
where is a positive definite diagonal matrix.
Step 2: Let
define the error between the input and the virtual control , which is also an output of the first-order filter when putting through. is assumed a virtual control, given by
If the first-order low-pass filter RN19 is presented by
where and is the filter constant. Then, the sliding surface is defined as follow,
where is a positive definite diagonal matrix. The derivative of the sliding surface can be easily obtained by RN14
Now, let’s consider the second Lyapunov function candicate as follows,
Differentiating with respect to time, one obtains
In order to guarantee the sliding surface to ultimately converge to zero, the control scheme should include two sub-laws. The first is the switching law, which is employed to drive the system states towards a particular sliding surface. This switching control signal is given by
and are the positive definite diagonal matrices. The second is the equivalent control law that is utilized to keep those states lying on the sliding surface. The equivalent control signal is formulated by
Therefore, the total control signal can be formed by
Stability of the proposed control scheme in (24) is analysed in the following theorem.
3.2 Adaptive dynamic surface control for uncertain DAR systems

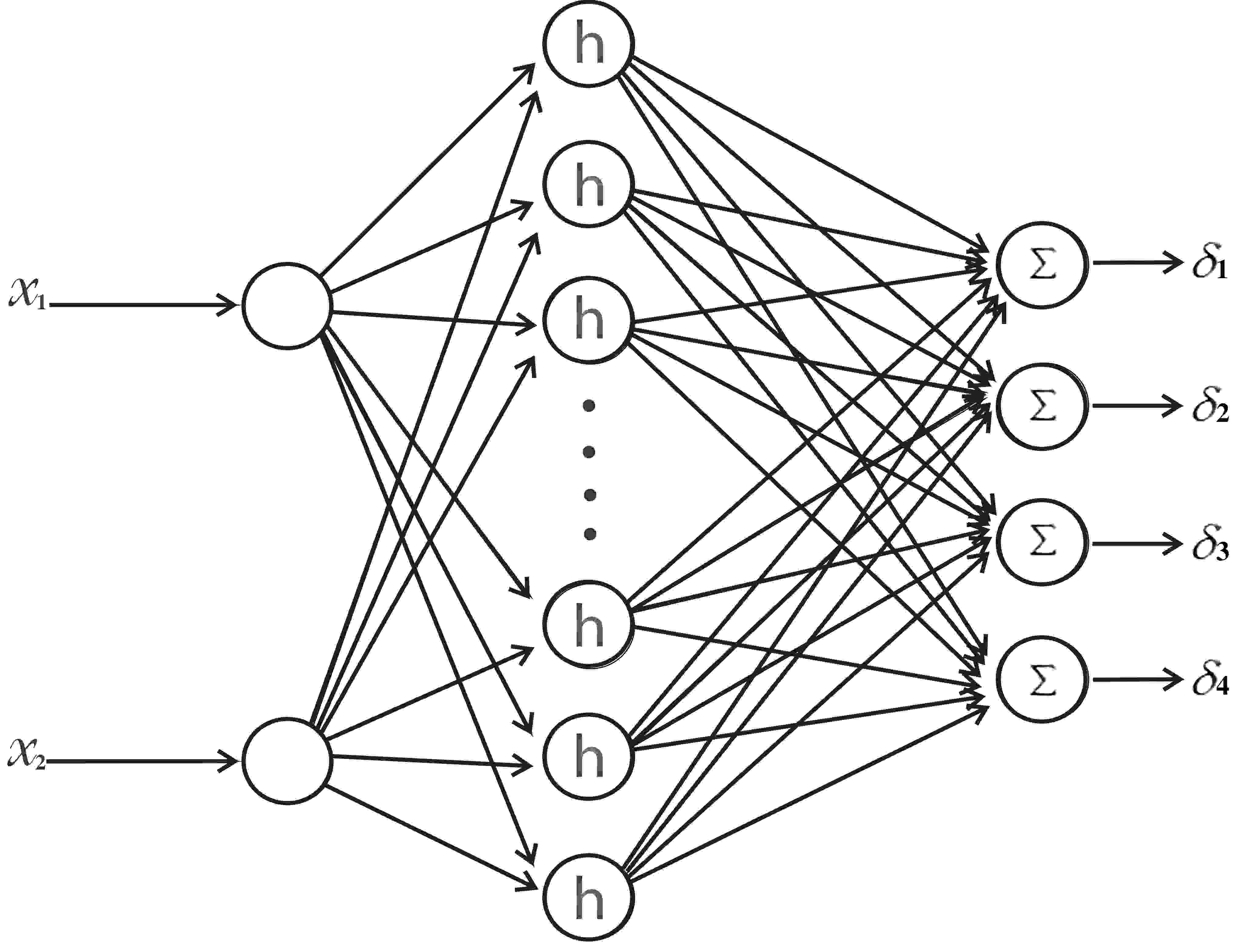

The deterministic control law (24) can be effectively employed provided that the system parameters are certain. Nevertheless, in practice, the DAR system operates under system uncertainties such as parameter variations and nonlinearities or external disturbances. In other words, it is impractical to accurately determine the system parameters in . To deal with these challenges, it is proposed to utilize the radial basis function neural network (RBFN) to approximately estimate the dynamic model , given the system uncertainties.
and a number of neurons in the hidden layers. Ifand , then the output of the RBFN can be presented by
where is the weight matrix, , where
is an activation function. The widely used activation function, which is also employed in this work, is Gaussian,
where is the number of neurons in the hidden layer, is the matrix of means and
is the vector of variances.
If denotes estimation of the weight matrix , which is updated by the adaptation mechanism as follows,
where is positive and is the positive definite diagonal matrix of the adaptation constants, then the output of the RBFN is approximated by
In this work, we employ the RBFN to adaptively estimate the uncertain dynamic ; therefore, the control input in (24) can be approximated by
It is noticed that the estimation of the weight matrix in the RBFN is derived from the Lyapunov theory, which guarantees stability of the closed-loop system as presenting in the following theorem.
where is the minimum value of , and is a small positive number so that the approximation error satisfies .
define the error between the ideal weight and the estimated weight Considering the Lyapunov function candidate
and differentiating it with respect to time, one obtains
By the use of Cauchy-Schwarz inequality
we can easily compute the inequality of the derivative of the Lyapunov function as follows,
In other words, if the sliding surface is outside the attractor, which is
we then have . Therefore, the sliding surface is input-to-state stable.
4 Simulation Results

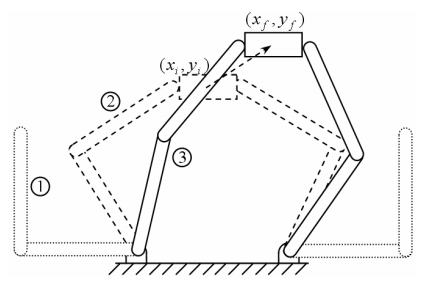

To demonstrate effectiveness of the proposed control law, we conducted experiments in simulation environment. To simulate the DAR protocol, the two robot arms were first to track the desired trajectories to reach the object. The reference trajectories in the first 2 seconds are mathematically specified by
where are the trajectories of the robot arms. and are the initial and final positions of the manipulators, respectively. After firmly holding the payload, the robot transports the object along the half of a circle so that it can avoid collision with an obstacle. The center of the object is expected to travel on a curve as follows,
where is the position of the obstacle, which is also the center of the circle on which the center of the object travels. is the radius of the circle, while is a polar angle that varies from to . It is noted that the joint angles between the link and the base or its preceding link at the beginning were known, and .

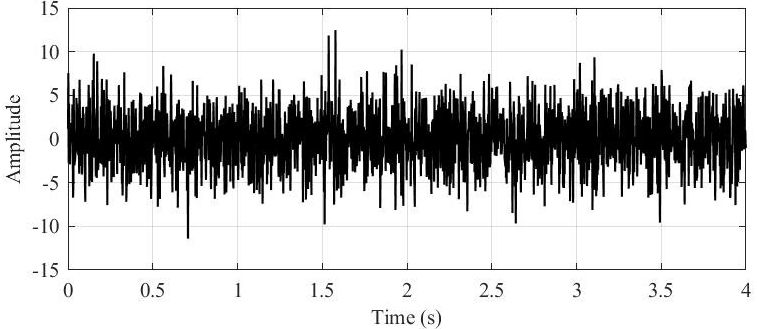

In the synthetic experiments, the physical model parameters of the DAR system were given. Furthermore, the parameters of the DSC controller were known. Those information are summarized in Table 1. It was supposed that there is no prior knowledge of the robot dynamics, then the weight matrix of the RBFN were initialized by zeros. Moreover, an unexpected disturbance as shown in Fig. 5, which exerts the applied forces, was taken into consideration to illustrate robustness of the proposed approach.
|Dynamic model parameters|
|; ; ;|
|Reference trajectory parameters|
Before examining the motions of the robot arms, let’s investigate the motions of the four links of the DAR system by considering the joint angles between the link and the base or its preceding link on as illustrated in Fig. 5. For the purposes of comparisons, in this experimental example we implemented both the algorithms of the conventional DSC scheme as presented in Section 3.1, where the system parameters were assumed to be determined and certain, and the proposed RBFN based DSC (RBFN-DSC) approach. It can be clearly seen in Fig. 6 that the results obtained by the two implemented algorithms were expected to approach the references, which are early obtained from the equations in (41), all the time. While the deterministic DSC control law quickly tracked the references in all the links, the proposed algorithm performed well in the lower links as shown in Figures (a)a and (c)c and insignificantly degraded in the upper links as shown in Figures (b)b and (d)d, approximate 0.05 s behind the DSC method. This is understandable since the parameters of the DSC control law were given, while the RBFN-DSC technique needed time to adaptively estimate those. Nonetheless, in fact, given the system uncertainties including the system parameter variations, actuator nonlinearities and external disturbances, exactly determining the system parameters for the DSC algorithm is not really practical, while the proposed approach can estimate those parameters by the use of the RBFN. Errors of the joint angles at the links as illustrated in Fig. 7 consolidate efficacy of the proposed control scheme.
More importantly, as can be seen in Fig. 8, the motion trajectories of the two end-effectors show that the proposed RBFN-DSC is really efficiently and effectively practical. Given the aim of transporting the payload along a half of a circle to avoid collision with an obstacle, the movements of both the left and right manipulators of the robot under the control of the deterministic DSC scheme in Fig. (b)b and the proposed RBFN-DSC law in Fig. (c)c were expected to track the ideal trajectories as shown in Fig. (a)a. It can be clearly seen that given the system parameters, the DSC method controlled the end-effectors to travel quite smoothly, including before approaching the payload and during transporting it, as compared with the desired references. Nevertheless, though having to estimate the system parameters under their uncertainties and nonlinearities, the trajectories obtained by the proposed RBFN-DSC control scheme in the whole protocol are highly comparable to not only those obtained by the DSC method but also the expectation. That is, the proposed algorithm guarantees that the DAR system to be able to adaptively learn its nonlinear parameters while safely transport the payload to the destination. The RBFN-DSC control law is highly applicable for the uncertain DAR systems.
The paper has introduced a new robust adaptive control approach for an uncertain DAR system, where the manipulators are expected to grasp and transport an object to a destination on the desired trajectories. To guarantee motions of the robot’s end-effectors to be robustly tracked on the references, the control scheme is designed based on the DSC technique. Nonetheless, due to the system uncertainties and nonlinearities, the DAR system dynamics are not practically determined, which leads to impracticality of the DSC algorithm. Hence, it has been proposed to adaptively learn the uncertain system parameters by employing the RBFN, where the adaptation mechanism has been derived from the Lyapunov function to guarantee the stability of the closed-loop control system. The results obtained by a synthetic implementation have verified the proposed control law. It is noted that the proposed algorithm will be implemented in the realistic DAR system in the future works.
-  Hyun Min Do, Chanhun Park, and Jin Ho Kyung. Dual arm robot for packaging and assembling of it products. In Automation Science and Engineering (CASE), 2012 IEEE International Conference on, pages 1067–1070. IEEE, 2012.
-  Yuan F Zheng and JYS Luh. Optimal load distribution for two industrial robots handling a single object. Journal of Dynamic Systems, Measurement, and Control, 111(2):232–237, 1989.
-  Christian Smith, Yiannis Karayiannidis, Lazaros Nalpantidis, Xavi Gratal, Peng Qi, Dimos V Dimarogonas, and Danica Kragic. Dual arm manipulation—a survey. Robotics and Autonomous systems, 60(10):1340–1353, 2012.
-  Pierre Dauchez, Xavier Delebarre, Yann Bouffard, and Eric Degoulange. Task modeling and force control for a two-arm robot. In Robotics and Automation, 1991. Proceedings., 1991 IEEE International Conference on, pages 1702–1707. IEEE, 1991.
-  Kazuo Tanie. Humanoid robot and its application possibility. In Multisensor Fusion and Integration for Intelligent Systems, MFI2003. Proceedings of IEEE International Conference on, pages 213–214. IEEE, 2003.
-  Sheng-Jen Hsieh. Reconfigurable modules, programmable logic controller, and vision system for dual robot asembly workcell design. Journal of Advanced Manufacturing Systems, 2(2):201–228, 2003.
-  Zhi Liu, Ci Chen, Yun Zhang, and CL Philip Chen. Adaptive neural control for dual-arm coordination of humanoid robot with unknown nonlinearities in output mechanism. IEEE transactions on cybernetics, 45(3):507–518, 2015.
-  Sukhan Lee. Dual redundant arm configuration optimization with task-oriented dual arm manipulability. IEEE Transactions on Robotics and Automation, 5(1):78–97, 1989.
-  Wolfgang Meier and Joachim Graf. A two-arm robot system based on trajectory optimization and hybrid control including experimental evaluation. In Robotics and Automation, 1991. Proceedings., 1991 IEEE International Conference on, pages 2618–2623. IEEE, 1991.
-  Xiaoping Yun and Vijay R Kumar. An approach to simultaneous control of trajectory and interaction forces in dual-arm configurations. IEEE Transactions on Robotics and Automation, 7(5):618–625, 1991.
-  Mitsuhiro Yamano, Jin-Soo Kim, Atsushi Konno, and Masaru Uchiyama. Cooperative control of a 3d dual-flexible-arm robot. Journal of Intelligent and Robotic Systems, 39(1):1–15, 2004.
-  Samad Hayati. Hybrid position/force control of multi-arm cooperating robots. In Robotics and Automation. Proceedings. 1986 IEEE International Conference on, volume 3, pages 82–89. IEEE, 1986.
-  Stanley A Schneider and Robert H Cannon. Object impedance control for cooperative manipulation: Theory and experimental results. IEEE Transactions on Robotics and Automation, 8(3):383–394, 1992.
-  Fabrizio Caccavale, Pasquale Chiacchio, Alessandro Marino, and Luigi Villani. Six-dof impedance control of dual-arm cooperative manipulators. IEEE/ASME Transactions On Mechatronics, 13(5):576–586, 2008.
-  Jinoh Lee, Pyung Hun Chang, and Rodrigo S Jamisola. Relative impedance control for dual-arm robots performing asymmetric bimanual tasks. IEEE Trans. Industrial Electronics, 61(7):3786–3796, 2014.
-  Vadim Utkin. Variable structure systems with sliding modes. IEEE Transactions on Automatic control, 22(2):212–222, 1977.
-  Mahmood Reza Azizi and Jafar Keighobadi. Robust sliding mode trajectory tracking controller for a nonholonomic spherical mobile robot. IFAC Proceedings Volumes, 47(3):4541–4546, 2014.
-  Przemysław Herman. Sliding mode control of manipulators using first-order equations of motion with diagonal mass matrix. Journal of the Franklin Institute, 342(4):353–363, 2005.
-  Elbrous M Jafarov and Ramazan Tasaltin. Robust sliding-mode control for the uncertain mimo aircraft model f-18. IEEE Transactions on Aerospace and Electronic Systems, 36(4):1127–1141, 2000.
-  Hideki Hashimoto, Koji Maruyama, and Fumio Harashima. A microprocessor-based robot manipulator control with sliding mode. IEEE Transactions on Industrial Electronics, IE-34(1):11–18, 1987.
-  Selim Yannier, A Sabanovic, Ahmet Onat, and M Bastan. Sliding mode based obstacle avoidance and target tracking for mobile robots. In Proceedings of the IEEE International Symposium on Industrial Electronics, pages 20–23, 2005.
-  Nurkan Yagiz, Yuksel Hacioglu, and Yunus Ziya Arslan. Load transportation by dual arm robot using sliding mode control. Journal of Mechanical science and Technology, 24(5):1177–1184, 2010.
-  Guo-Zhu Zhao and Xing Peng. Variable structure control strategy research on regenerative braking for a brushless dc motor driven electric bus cruising downhill. Journal of Advanced Manufacturing Systems, 13(4):223–236, 2014.
-  Thai Van Nguyen, Nguyen Huu Thai, Hai Tuan Pham, Tuan Anh Phan, Linh Nguyen, Hai Xuan Le, and Hiep Duc Nguyen. Adaptive neural network based backstepping sliding mode control approach for dual arm robots. Journal of Control, Automation and Electrical Systems, 30:In press, 2019.
-  Xuan Hai Le, Van Thai Nguyen, Viet Anh Le, Thi Thuy Nga Vu, and Minh Xuan Phan. Adaptive backstepping hierarchical sliding mode control for uncertain 3d overhead crane systems. In Proc. IEEE International Conference on System Science and Engineering, pages 438–443, Ho Chi Minh City, Vietnam, September 2017.
-  Viet Anh Le, Xuan Hai Le, Duc Thuan Vu, Van Trieu Pham, Anh Tuan Le, and Manh Cuong Hoang. Designing an adaptive controller for 3d overhead cranes using hierarchical sliding mode and neural network. In Proc. IEEE International Conference on System Science and Engineering, page in press, Taipei, Taiwan, September 2018.
-  Viet-Anh Le, Hai Xuan Le, Linh Nguyen, and Minh Xuan Phan. An efficient adaptive hierarchical sliding mode control strategy using neural networks for 3D overhead cranes. International Journal of Automation and Computing, 16:Published online, 2019.
-  Hai Xuan Le, Viet-Anh Le, and Linh Nguyen. Adaptive fuzzy observer based hierarchical sliding mode control for uncertain 2D overhead cranes. Cyber-Physical Systems, 5:In press, 2019.
-  Jong Hyeon Park and Young Jong Lee. Robust visual servoing for motion control of the ball on a plate. Mechatronics, 13(7):723–738, 2003.
-  Tarek Madani and Abdelaziz Benallegue. Backstepping sliding mode control applied to a miniature quadrotor flying robot. In IEEE Industrial Electronics, IECON 2006-32nd Annual Conference on, pages 700–705. IEEE, 2006.
-  A Stotsky, JK Hedrick, and PP Yip. The use of sliding modes to simplify the backstepping control method. In American Control Conference, 1997. Proceedings of the 1997, volume 3, pages 1703–1708. IEEE, 1997.
-  Naijian Chen, Fangzhen Song, Guoping Li, Xuan Sun, and Changsheng Ai. An adaptive sliding mode backstepping control for the mobile manipulator with nonholonomic constraints. Communications in Nonlinear Science and Numerical Simulation, 18(10):2885–2899, 2013.
-  Dvahg Swaroop, JC Gerdes, P Patrick Yip, and J Karl Hedrick. Dynamic surface control of nonlinear systems. In American Control Conference, 1997. Proceedings of the 1997, volume 5, pages 3028–3034. IEEE, 1997.
-  Min-Jung Lee and Young-Kiu Choi. An adaptive neurocontroller using rbfn for robot manipulators. IEEE Transactions on Industrial Electronics, 51(3):711–717, 2004.
-  Liangyong Wang, Tianyou Chai, and Lianfei Zhai. Neural-network-based terminal sliding-mode control of robotic manipulators including actuator dynamics. IEEE Transactions on Industrial Electronics, 56(9):3296–3304, 2009.
-  Yiming Jiang, Zhi Liu, Ci Chen, and Yun Zhang. Adaptive robust fuzzy control for dual arm robot with unknown input deadzone nonlinearity. Nonlinear Dynamics, 81(3):1301–1314, 2015.
-  Xiao-Yuan Luo, Zhi-Hao Zhu, and Xin-Ping Guan. Adaptive fuzzy dynamic surface control for uncertain nonlinear systems. International Journal of Automation and Computing, 6(4):385–390, 2009.
-  Xiao-Jing Wu, Xue-Li Wu, and Xiao-Yuan Luo. Adaptive neural network dynamic surface control for a class of nonlinear systems with uncertain time delays. International Journal of Automation and Computing, 13(4):409–416, 2016.
-  J-JE Slotine and Li Weiping. Adaptive manipulator control: A case study. IEEE transactions on automatic control, 33(11):995–1003, 1988.
-  Zhong-Ping Jiang and Yuan Wang. Input-to-state stability for discrete-time nonlinear systems. Automatica, 37(6):857–869, 2001.
