Software developers and tools often search for code to perform bug fixes, optimization, refactoring, etc. For example, when fixing a bug in one code location, developers often search for other similar locations to fix the same bug [1, 2, 3]. Text-based search techniques allow users to express search intent using keywords or regular expressions. However, it is not easy to express program structures or semantic properties using text-based search, thus hindering its capability to accurately locate desired code locations. TXL  and Wang et al.  provide a domain-specific language (DSL) for describing structural and semantic properties of code. However, learning a new DSL for code search can be cumbersome and time consuming.
. These techniques adopt fixed heuristics to generalize a concrete example to a search pattern, which may not capture various search intent or allow a user to refine the inferred pattern. Lase and Refazer  use multiple examples instead of a single example to better infer the search intent of a user. However, this requirement poses a major usability limitation: a user must come up with multiple examples a priori. Critics allows a user to construct an AST-based search pattern from a single example through manual code selection, customization, and parameterization . However, users of Critics report that, the internal representation of a search pattern is not easy to comprehend and that they could benefit from some hints to guide the customization process.
We propose an interactive code search technique, Alice that infers a search pattern by efficiently incorporating user feedback via active learning. Alice has three major components: (1) a novel user interface that allows a user to formulate an initial search pattern by tagging important features and iteratively refining it by labeling positive and negative examples, (2) a query language that models structural and semantic properties of a program as logic facts and expresses a search pattern as a logic query, and (3) an active learning algorithm that specializes a search pattern based on the positive and negative examples labeled by the user. In this interface, a user can start by selecting a code block in a method as a seed and by tagging important code features that must be included in the pattern. Alice then automatically lifts a logic query from the tagged features and matches it against the logic facts extracted from the entire codebase. Our query language models properties including loops, method calls, exception handling, referenced types, containment structures, and sequential ordering in a program. Therefore, our query language can easily express a search pattern such as ‘find all code examples that call the readNextLine method in a loop and handle an exception of type FileNotFoundException,’ which cannot be accurately expressed by text-based approaches.
Our active learning algorithm utilizes Inductive Logic Programming (ILP) [12, 13] to refine the search pattern. ILP provides an easy framework to express background knowledge as rules and is well-suited for learning from structured data. ILP does not assume a flat
data representation and allows to capture structural properties of code not easily captured by other methods such as neural networks. Additionally, ILP has been proven successful in program synthesis , specification mining [16, 17], and model checking . Since users can only inspect a handful of search results due to limited time and attention , Alice allows the user to provide partial feedback by only labeling a few examples and gradually refine the search pattern in multiple search iterations. Alice uses an inductive bias to specialize the previous search pattern to separate the labeled positive and negative examples in each iteration. This feedback loop iterates until the user is satisfied with the returned result.
We evaluate Alice using two benchmarks from prior work [9, 20]. These benchmarks consist of 20 groups of similar code fragments in large-scale projects such as Eclipse JDT. Alice learns an intended search pattern and identifies similar locations with 93% precision and 96% recall in three iterations on average, when the user initially tags only two features and labels three examples in each iteration.
A comprehensive simulation experiment shows that labeling both positive and negative examples are necessary to obtain the best search results, compared to labeling only positives or only negatives. It is because negative examples quickly reduce the search space, while positive examples are used to capture the search intent. We vary the number of labeled examples and find that labeling more examples in each iteration does not necessarily improve the final search accuracy. This indicates that a user can label only a few in each iteration to reach good accuracy eventually. Alice thus alleviates the burden of labeling many examples at once, as its active learning can leverage partial feedback effectively. The comparison with an existing technique Critics  shows that Alice achieves the same or better accuracy with fewer iterations.
This human-in-the-loop approach in Alice opens a door for incorporating user feedback in a variety of software engineering techniques, e.g., bug detection, code optimization, refactoring, etc. For example, a code optimization framework, Casper, searches for Java programs with loops that sequentially iterate over data and translates the loops to semantically equivalent map-reduce programs . However, the search patterns in Casper are hardcoded and cannot be easily expressed by a user. Alice can aid in such scenarios by allowing a user to interactively construct a search pattern. Our paper makes the following contributions.
We present a novel approach called Alice that integrates active learning and inductive logic programming to incorporate partial user feedback and refine code search patterns. Alice is instantiated as an Eclipse plug-in and the tool is available online.111Our tool and dataset are available at
We conduct a comprehensive simulation experiment that investigates the effectiveness of Alice using different inductive biases, different numbers of labeled examples, and different numbers of annotated code features. An additional robustness experiment shows that our search algorithm is resilient to labeling mistakes by flagging contradictory examples labeled by a user.
We conduct a case study with real developers, demonstrating that participants can easily interact with Alice to search desired code by simply inspecting and labeling code examples. On average, each participant labels two examples in each search iteration and spends about 35 seconds on each example.
Ii Motivating Example
This section describes the code search process using Alice with a real-world example drawn from Eclipse Java Development Toolkit (JDT). Eclipse JDT provides basic tools and library APIs to implement and extend Eclipse plug-ins. As an Eclipse JDT developer, Bob wants to update the getLeadingComments method (Figure 1) to return an empty Comment array when there are no leading comments, instead of returning null, which may cause a NullPointerException in a caller method. Before modifying the code, Bob wants to check other similar locations.
Bob could use a text-based search tool to find other code fragments similar to the getLeadingComments method. For example, Bob could use Comment and arrayCopy as keywords to find code locations that reference the Comment type and call the arrayCopy method. Such text-based techniques are prone to return a large number of search results, many of which merely contain the same keywords but have significantly different code structures or irrelevant functionality. In the JDT codebase, searching with the arrayCopy keyword returns 1854 method locations. It is prohibitively time-consuming to inspect all of them. Prior work has shown that developers only inspect a handful of search results and return to their own code due to limited time and attention [22, 19, 23].
To narrow down the search results, it would be useful to describe the structural properties of getLeadingComments. For example, a code snippet must contain an if condition that checks for >=0 and contain a loop inside the if block. Instead of requiring a user to prescribe such a structural pattern manually, Alice enables the user to tag important code features and label positive vs. negative examples instead.
Iteration 1. Select a Seed Example and Annotate Important Features. Bob first selects a code block of interest in the getLeadingComments method (lines 7-19 in Figure 1). He annotates an if condition, range!=null ( 2⃝ in Figure 1), as a code element that must be included in the search pattern, since he posits that similar locations would have a null check on the range object. Such must-have code elements are colored in green. Alice then automatically constructs a search query based on the selected code and annotations. Since other developers may rename variables in different contexts, Alice generalizes the variable name range in the tagged if condition to match a null check on any variable. Among all 12633 Java methods in the Eclipse JDT codebase, Alice returns 1605 methods with a null check, which are too many to examine. Bob now has two choices. He can annotate more features or label a few examples to reduce the search results. Bob tags another if condition, this.leadingPtr>=0, as another must-have element (1⃝ in Figure 1). The field name leadingPtr is also generalized to match any variable name. Alice refines the previous query and returns ten methods that both perform a null check and contain an if condition checking, if a field is no less than 0. The query is shown below and its syntax is detailed in Section III-D.
query(X) methoddec(X), contains(X,IF0), iflike(IF0,"this.*0"), contains(X,IF2), iflike(IF2,".*!=null").
Iterations 2 to N. Active Learning by Labeling Positive and Negative Examples. After inspecting two examples returned from the previous iteration, Bob labels one example (Figure 2) as positive and another one (Figure 3) as negative. Bob labels Figure 3 as irrelevant, since this example has similar if conditions (line 3), but does not compute the range of a code comment or returns a range. By incorporating this feedback, Alice learns a new query that includes a unique structural characteristic—the null check is contained by the if check for an index field greater or equal to 0—that appears in both the initially selected example and the positive example but not in the negative example, as shown below. As a result, Alice narrows down to six examples (3⃝ in Figure 4). A user can further refine the search query and continue to iterate by labeling examples. As Alice uses a top-down search algorithm to specialize its search results in each iteration, the resulting set is always a subset of the previous results.
query(X) methoddec(X), contains(X,IF0), iflike(IF0,"this.*0"), contains(IF0,IF2), iflike(IF2,".*!=null").
Iii-a Machine Learning Approach
Traditional code search techniques retrieve code examples by matching user-specified patterns. In contrast, Alice
’s central thesis is that such patterns need not be fully specified by the user, and can instead be induced from specific user interactions. This is fundamentally a machine learning approach to code search: the intended pattern is a hypothesis that is learned from data. To achieve this goal,Alice integrates several learning paradigms.
First, it requires labels that categorize code examples as either matching the intended hypothesis or not. Classical supervised learning would require the user to provide prohibitively many labels.Alice, therefore, employs active learning , where the learner has the ability to present some unlabeled examples to the user during learning and ask to provide a label. In a well-designed active learning setup, the user only needs to provide a minimal number of labels for the learner to reliably find the correct hypothesis.
Second, most machine learning approaches represent data as feature vectors, which cannot easily express the structure of source code.Inductive logic programming (ILP) [12, 25] is a form of relational learning that supports structured data encoded as logical facts. In particular, Alice uses the logical predicates listed in the first column of Table LABEL:tab:predicates to represent each code example in a factbase. The next section describes this process in detail.
Given that the data is now in a suitable form, ILP aims to learn a hypothesis by constructing a logical (Prolog ) query that returns exactly those code IDs that the user is searching for. Queries in Alice are represented as definite clauses. For example, in the queries shown in Section II, we are looking for values of the logical variable for which the body of the query is true. The body is true if there exists a value for the remaining logical variables (uppercase), such that each atom in the body is also found in the factbase. The process of learning a query is centered around two operations: generalization and specialization. Generalization changes the query to return more results, e.g., removing atoms from the body, or replacing constants with variables. Specialization is the reverse operation, yielding a query with fewer results. An ILP learner uses these operations to search the space of all hypotheses for the right one.
Finally, even with active learning, Alice operates in a regime where little labeled data is available. We know from learning theory that this is only possible when the learner has a strong inductive bias. That is, the learner already incorporates a lot of knowledge about the learning task, before even seeing the data. We address this in three ways. First, ILP affords the specification of declarative background knowledge, which helps to create a more meaningful inductive bias as it applies to code search. Table LABEL:tab:background shows Alice’s background knowledge, which enables Alice to use additional predicates to construct richer queries. Second, we allow the user to annotate important code features in order to obtain a stronger inductive bias. Third, Alice adopts a specialization procedure that is specifically designed to capture different program structures to strengthen the inductive bias. We implement our own realtime ILP system based on the high-performance YAP Prolog engine .
Iii-B Logic Fact Extraction
Alice creates a factbase from a given code repository using the predicates described in Table LABEL:tab:predicates. It parses program files to Abstract Syntax Trees (ASTs) and traverses the ASTs to extract logic facts from each method. Predicates if and loop capture the control flow within a method; methodcall represents the relationship between a method and its caller; exception captures the type of handled exceptions; type captures the type of defined and used variables; contains describes the relationship between each AST node and its parent recursively; before captures the sequential ordering of AST nodes. Specifically, before(id,id) is true, when node id comes before node id in pre-order traversal while excluding any direct or transitive containment relationship. For Figure 1, loop(loop1, "range==null && ithis.leadingPtr") comes before if(if2, "range!=null") creating before(loop1, if2). Ground facts are then loaded into a YAP Prolog engine  for querying.
Iii-C Generalization with Feature Annotation (Iteration 1)
When a user selects a code block of interest, Alice generates a specific query which is a conjunction of atoms constructed using the predicates in Table LABEL:tab:predicates. Each atom in the query is grounded with constants for its location ID and value representing the AST node content. Alice replaces all ID constants in the query with logical variables to generate an initial candidate hypothesis . For example, one ground atom in the query is of the form if(if,"range!=null") and its variablized atom is of the form if(IF,"range!=null"). To find more examples, Alice generalizes the hypothesis by dropping atoms in other than the user annotated ones, producing .
Regex Conversion. Alice further abstracts variable names in to identify other locations that are similar but have different variable names. Alice converts predicates if and loop to iflike and looplike respectively. As defined in Table LABEL:tab:background, iflike and looplike are background rules that match a regular expression (REGEX) with ground conditions (COND) in the factbase. For instance, each variable name in loop(ID,"range==null && i this.leadingPtr") is converted from a string constant to a Kleene closure expression, generating looplike(ID,".*==null && .*this.*"). The output of this phase is a generalized query and a set of code examples that satisfy this query. This example set is displayed in the Example View in Figure 4.
Iii-D Specialization via Active Learning (Iterations 2 to N)
In each subsequent search iteration, given the set of positive examples () and the set of negative examples () labeled by a user, the previous hypothesis , which is a conjunction of atoms, is specialized to by adding another atom to exclude all negatives while maximally covering positives. The specialization function is defined below.
Suppose all positive examples call foo and all negative examples call bar instead of foo. We add a new atom calls(m,"foo") to specialize , which distinguishes the positives from the negatives. As a design choice, our active ILP algorithm is consistent (i.e., not covering any negative example) but is not complete (i.e., maximally satisfying positive examples). Our learning algorithm is monotonic in that it keeps adding a new conjunctive atom in each search iteration. This specialization procedure always returns a subset of the previous search results obtained by . This feedback loop continues to the -th iteration until the user is satisfied with the search results.
Given the large number of candidate atoms, inductive bias is required to guide the specialization process of picking a discriminatory atom. Alice implements three inductive biases, which are described below. The effectiveness of each bias is empirically evaluated in Section IV.
Feature Vector. This bias considers each code block to have a flat structure. The feature vector bias does not consider the nested structure or sequential code order. It specializes by adding a random atom that reflects the existence of loops, if checks, method calls, types, or exceptions in the code block. It is used as the baseline bias in the evaluation since it does not utilize any structural information such as containment and ordering.
Nested Structure. This bias utilizes the containment structure of the seed code example to add atoms. In addition to adding an atom corresponding to the AST node, the bias adds a contains predicate to connect the newly added atom to one that already appears in the query. Consider an AST with root node , whose children are and ; has children and , and has child . Suppose that includes an atom referring to . Then based on the containment relationships, Alice selects one of or to specialize the query for the next iteration, not . If there are no available children, or if this query fails to separate positives from negatives, it falls back to the parent of or its further ancestors to construct the next query. We choose this nested structure bias as default since it empirically achieves the best performance (detailed in Section IV-A).
Sequential Code Order. This bias uses sequential ordering of code in the seed example to determine which atom to add next. Consider an example AST with root node and children and ; itself has children and . Atoms before(,), before(,), and before(,) are generated according to the rules in Table LABEL:tab:background. Given a query that contains atoms referring to , Alice now chooses one of , , or , to connect to using the before predicate, and adds this node to the query. If there are no available atoms to add, or if this query fails to separate positives from negatives, it falls back to the original feature vector bias.
An alternative approach is to carry out logical generalization where we generate a query by generalizing positive examples and taking the conjunction with the negation of negative example generalization. As a design choice, we do not allow negations in our query for realtime performance, since supporting negations would significantly increase the search space and execution time.
Iv Simulation Experiment
We systematically evaluate the accuracy and effectiveness of Alice by assessing different search strategies and by simulating various user behaviors.
Dataset. We use two complementary sets of similar code fragments as the ground truth for evaluation, as shown in Table LABEL:tab:dataset. The first dataset is drawn from the evaluation data set of LASE . This dataset consists of groups of syntactically similar code locations in Eclipse JDT and SWT, where developers need to apply similar bug fixes. We select groups with more than two similar locations, resulting in 14 groups in total. Each group contains an average of five similar code fragments and each fragment contains a median of 24 lines of code, ranging from 3 to 648. Alice extracts an average of 670K logic facts from each repository. The second data set is from the evaluation dataset of Casper , an automated code optimization technique. This dataset consists of groups of similar code fragments that follow the same data access patterns (e.g., a sequential loop over lists) and can be systematically optimized by Casper. By evaluating Alice with both datasets, we demonstrate that Alice is capable of accurately and effectively searching code in two different usage scenarios—bug fixing and code optimization. Because the second data set includes only the relevant files not the entire codebase, we cannot reliably assess the rate of false positives. Hence we exclude this second dataset when assessing the impact of individual biases, annotations, and labeling effort in Sections IV-A, IV-B, IV-C, and IV-D.
Experiment environment. All experiments are conducted on a single machine with an Intel Core i7-7500U CPU (2.7GHz, 2 cores/4 threads, x64 4.13.0-31-generic), 16GB RAM, and Ubuntu 16.04 LTS. We use YAP Prolog (version 6.3.3), a high-performance Prolog engine  to evaluate search queries.
We write a simulation script to randomly select a code fragment in each group as the seed example. In the first iteration, the script randomly tags important features that represent control structures, method calls, and types in the seed example. In each subsequent iteration, it simulates the user behavior by randomly labeling examples returned in the previous iteration. If a code example appears in the ground truth, it is labeled as positive. Otherwise, it is labeled as negative. The script terminates if no more examples can be labeled in a new search iteration. To mitigate the impact of random choices, we repeat the simulation ten times and report the average numbers for each group.
Result summary. Table LABEL:tab:dataset summarizes the precision, recall, and F1 score of Alice in the final search iteration. When setting and to two and three respectively, Alice empirically achieves the best result, which we detail in Sections IV-C and IV-D. On average, Alice successfully identifies similar code locations with 93% precision and 96% recall in 2.7 search iterations. Alice achieves 100% precision and 97% recall in the first dataset, while it achieves 75% precision and 94% recall in the second dataset. The reason is that the second dataset contains code fragments that loop over a double array with no write to output operations, which is a semantic constraint imposed by Casper  for loop optimization. However, Alice does not learn predicates that differentiate read and write operations on an array and therefore returns a large number of code fragments that write double arrays in a loop, which leads to low precision.
In the first search iteration, 138 methods are returned by Alice on average (median: 23 and maximum: 2352). This set is large, motivating our approach to leverage partial feedback (i.e., only three labeled examples at a time) as opposed to labeling all returned results at once. Alice effectively incorporates partial feedback to reduce the number of returned examples by 93% in the second iteration. Since Alice adopts a top-down search process and always starts with a general query, the initial search result tends to include all code locations in the ground truth. Therefore, the first search iteration often starts with 100% recall and relatively low precision. The precision then improves gradually, as the query is specialized to eliminate false positives in the search results. In Table LABEL:tab:dataset, column query length represents the number of atoms in the final query. On average the query length inferred by Alice contains 11 atoms.
Iv-a Impact of Inductive Bias
During query specialization, an inductive bias is used to effectively navigate the space of all hypotheses. We evaluate the effectiveness of each of the three implemented inductive biases discussed in Section III-D: (1) feature vector, (2) nested structure, and (3) sequential order.

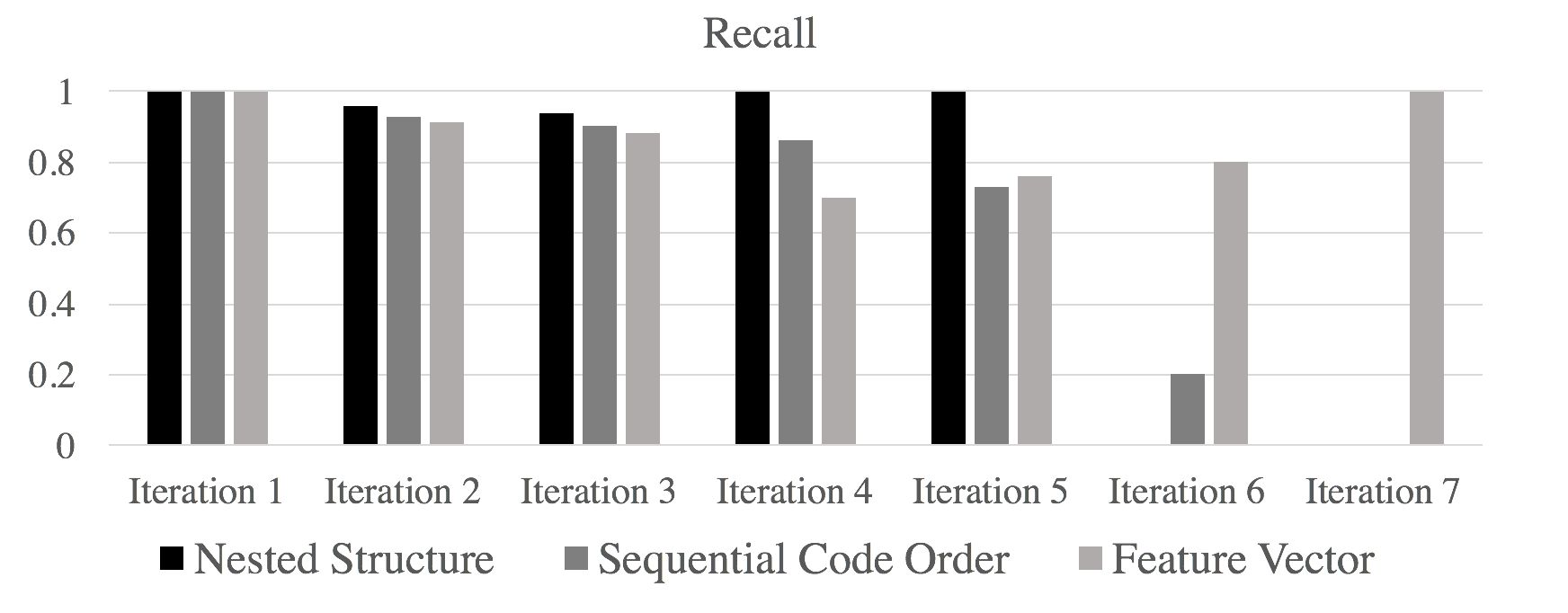

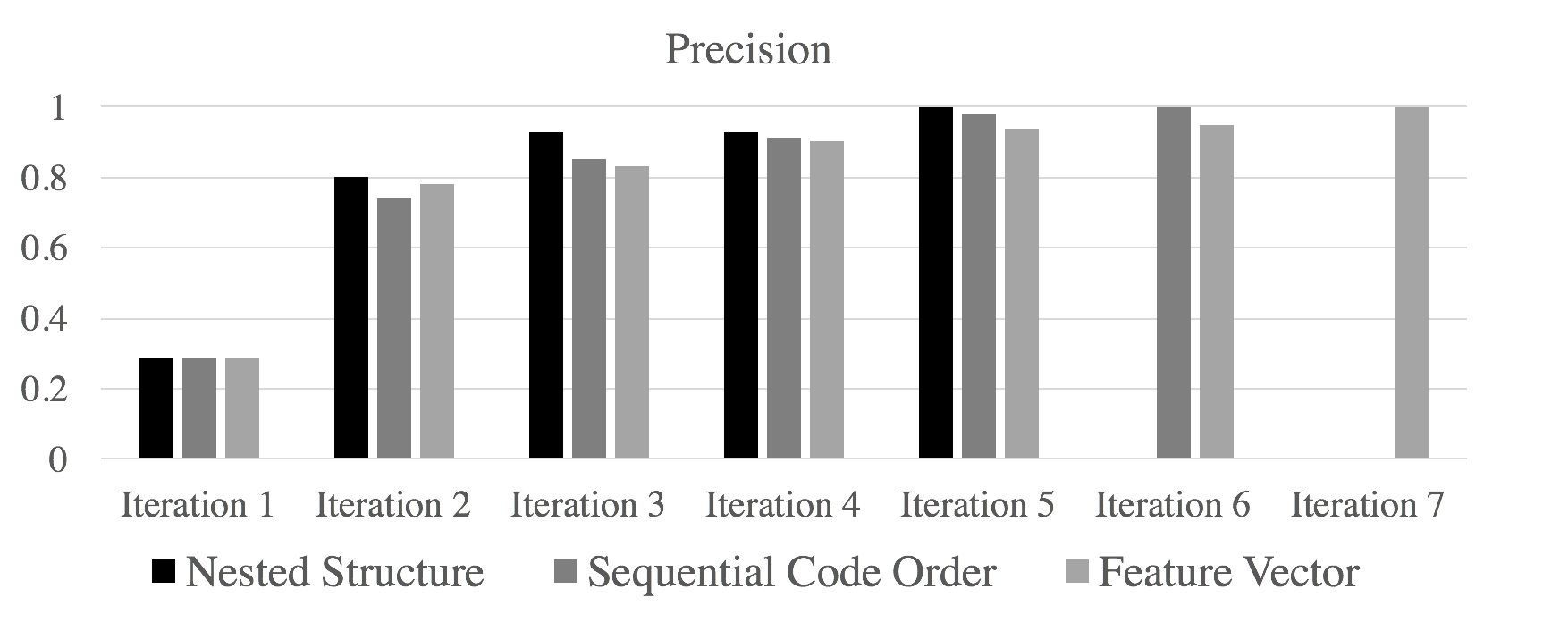

Figures 5 and 6 show the effectiveness of each bias in terms of precision and recall, averaged across ten runs. Overall, the nested structure bias converges fast by taking fewer iterations to reach the highest F1 score. The sequential order bias performs better than the feature vector bias, converging in six iterations as opposed to seven. Although both the sequential order bias and the nested structure bias perform well in terms of precision, encountering the same sequential order between statements or methods is not common in the data set. Therefore, the sequential order bias has a lower recall. The nested structure bias adds atoms based on containment relationships and hence it filters out false positives early and converges faster.
Consider Figure 7, taken from group 8 in Table LABEL:tab:dataset. The first iteration returns 90 examples when annotating checkData and error. The feature vector bias takes six iterations; the sequential order bias takes five; and the nested structure bias takes four. This is because the feature vector bias learns a query that describes calls to checkData, checkWidget, and error regardless of their structure and order. In contrast, the sequential bias finds code that calls checkWidget before error and getFont. The nested structure bias finds code that calls checkData within an if statement, which respects the structure of the selected block. We find that a flat representation of code as a feature vector is not powerful enough to effectively capture the search intent in a few iterations. We need to incorporate the rich structural information already available in the code to achieve desired performance.
Iv-B Labeling Positives and Negatives
To quantify the effect of using different types of labeled code examples, we assess Alice in three different conditions during query specialization—(1) incorporating both positive and negative examples, (2) considering negative examples only, and (3) considering positive examples only.

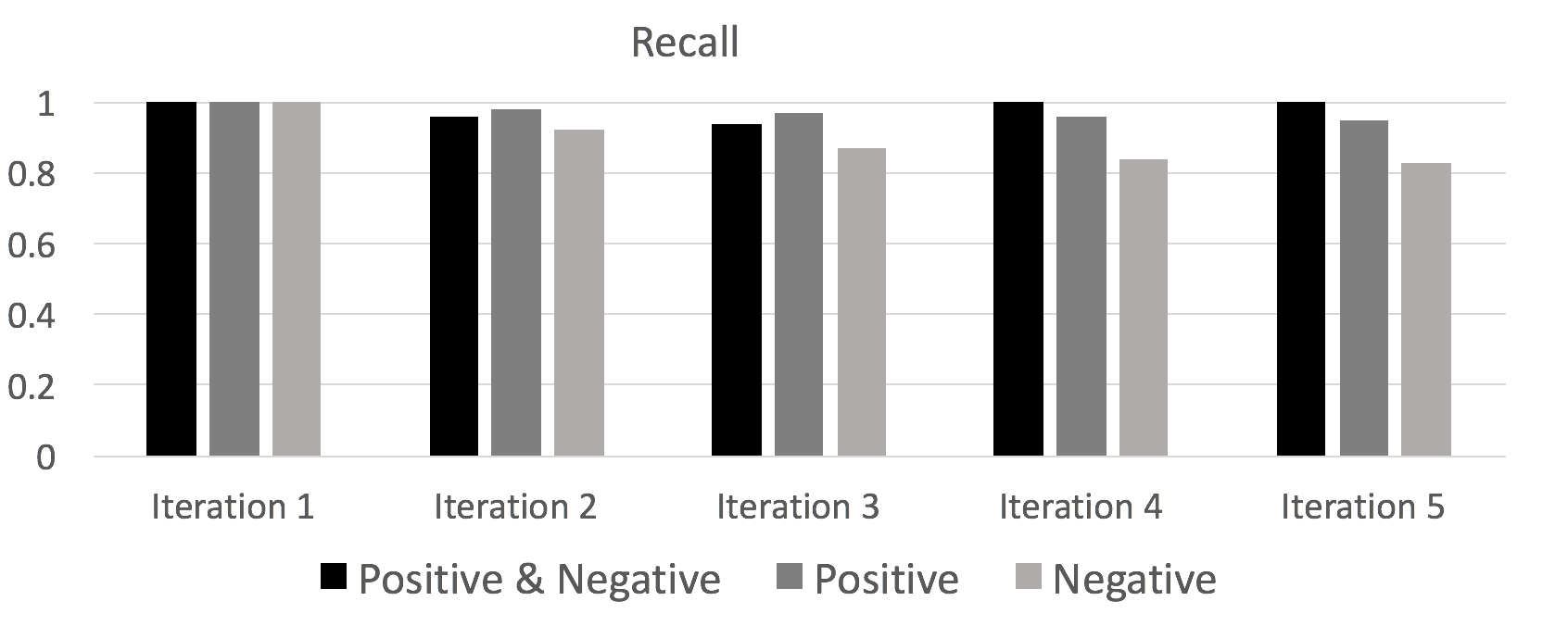

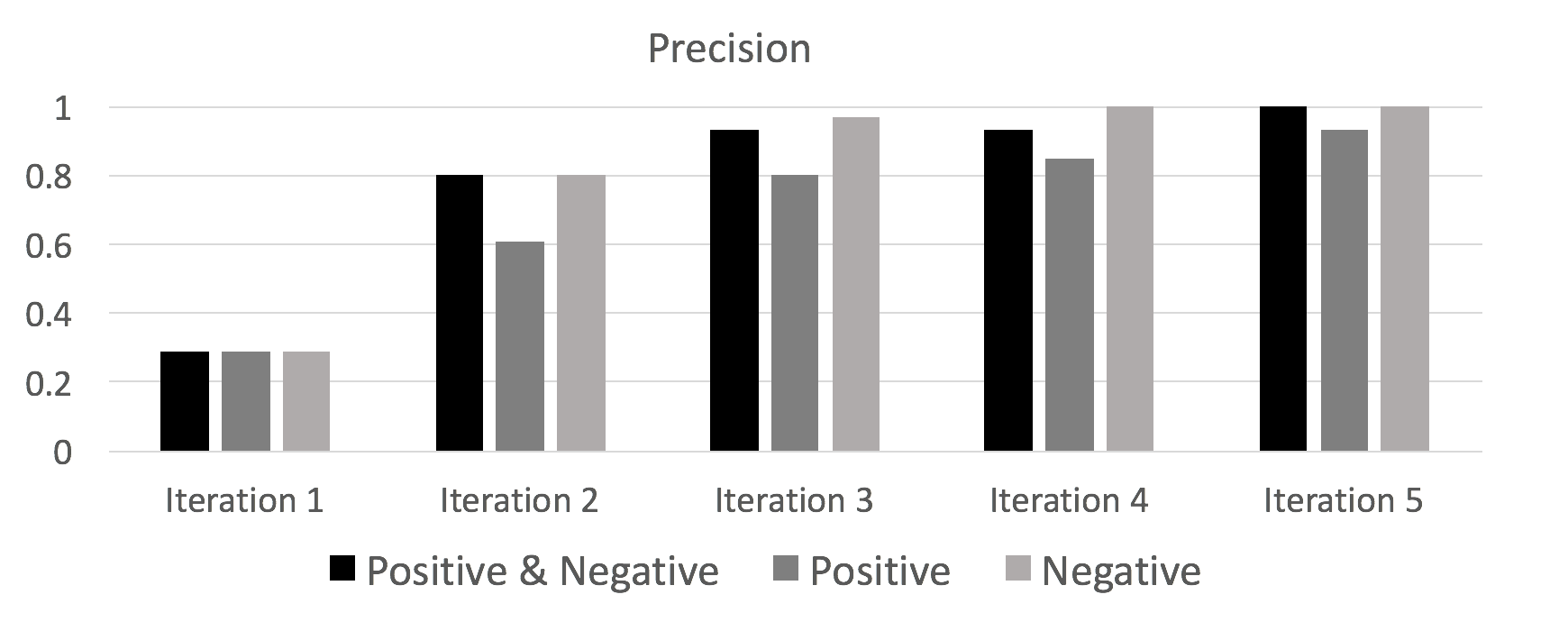

Figures 8 and 9 compare the precision and recall in different conditions. When considering negative examples only, Alice achieves a high precision while converging in five iterations, whereas considering positives only takes more iterations to converge with lower precision. This is because Alice often starts with a general query in the first search iteration, resulting in a large number of search results that contain many false positives. Hence, it is essential to label several negatives to eliminate those false positives quickly. However, if we do not label any positives, we are likely to remove some true positives as well. This is reflected in the recall, where giving negative examples only has the least recall. Therefore, an optimal choice would be to use both positive and negative examples while iteratively specializing the query, which justifies the design of Alice.
Iv-C Varying the Number of Annotated Features
Table LABEL:tab:featurevspr summarizes the average precision and recall right after feature annotation, when varying the number of annotations from one to five. These features are randomly selected from the control structures, method calls and types in the seed example, and the results are averaged over ten runs. The result suggests that annotating more code elements in the seed example can more precisely express the search intent and thus increase the precision. However, the recall is negatively impacted by increasing the number of annotations. When the simulation experiment chooses more features, it is likely to choose features that are not shared across expected code fragments in the ground truth. Thus, the initial search query becomes too specific and therefore misses some expected code fragments. Let us consider the two similar but not identical code examples in Section II (Figures 1 and 2). If a user tags range==null&&ithis.leadingPtr (line 9 in Figure 1) as important, the recall decreases since the expected code example in Figure 2 does not contain this feature. Though a real user can annotate any number of code elements, our experiment shows that tagging two code elements leads to the optimal precision and recall.
Iv-D Varying the Number of Labeled Examples
The type and number of examples that a user labels in each iteration is an important aspect of active-learning based tool design. To quantify the benefit of iterative feedback over simultaneous labeling, we vary the number of labeled examples from two to five. Setting to four or five converges the fastest, with five iterations. When is three, Alice takes six iterations to converge. When is two, it takes seven. Table LABEL:tab:labelvspr summarizes the average precision and recall for different number of labels in the final iteration. Overall, increasing the number of labeled examples maintains precision but does not necessarily increase recall. This is due to overfitting of labeled examples. From Table LABEL:tab:labelvspr and Figure 10, gives a good trade-off between F1 score and the required amount of user feedback, and is more robust than . Figure 10 shows how user feedback helps, and why it is better to spread labeling effort over multiple iterations rather than providing all labeled examples at once.
Alice takes an average of 20 seconds to parse a Java repository of about 20K methods and extract logic facts. This fact extraction is done only once in the beginning. Alice takes 6.8 seconds on average (median: 5 seconds) to infer a query and match the learned query to the entire codebase of about 670K facts. This realtime performance is appreciated by study participants, described in Section V.
V A Case Study with Users
To investigate how a user perceives the paradigm of annotating features and labeling examples during code search, we undertake a case study with three participants. The goal of this study is to investigate how Alice may fit or augment current code search practices, rather than assessing how much benefit Alice provides in comparison to alternative code search approaches. Therefore, we use a case study research method  to understand the in-depth context of how a user may interact with Alice to search desired code. In this study, a user tagged features, examined search results, and labeled them as positive and negative examples. All participants were graduate students with multiple years of Java development experience. Participants reported that they use grep or a regular expression search on a regular basis or have experience of using search features in IDEs. In terms of the study setup, we gave a tutorial about how to use Alice. This included reading a written tutorial followed by a step-by-step demonstration of tool features. The participants were given a seed example of getSelectionText from Eclipse SWT, which is part of Group 5 in Table LABEL:tab:dataset. Since the participants were not familiar with the codebase, we provided two other similar snippets as a reference. Each session took about 30 minutes to 1 hour. Participants were encouraged to follow a think-aloud protocol to verbalize their thought process.
Do you think marking features in a snippet helps search?
[0.5em]0.5em“I think marking features helps greatly when trying to find similar code snippets—as a human, my intuition is to identify key sections of code that I expect to be similar and ignore other sections that I expect to differ.”
“It is obvious that when we are searching for a piece of code and we are expecting to have certain features in it, so marking features in a code snippet helps.” Participants can easily identify important features in the seed example. Two of three participants annotated three features and one started with one feature. Participants found Alice useful for refactoring and reorganizing fragmented yet similar code snippets. They said that Alice would be more useful if integrated into code sharing websites such as GitHub and BitBucket by enabling advanced code search in large-scale repositories, because novice programmers would often prefer to look up functions with similar implementations for optimization opportunities.
How do you think that labeling positive and negative examples fit in the search process?
“As a developer, I will mentally do a quick evaluation of search results to determine if something is definitely negative (i.e., I can skip it) or potentially positive (i.e., it warrants more investigation). It’s normally not an explicit process, but it makes sense to explicitly request feedback when interacting with tools.”
“I really liked the iterative refinement of examples and the almost-realtime performance of the tool. One aspect that may be improved is, assigning a score or priority to the examples (based on how many features are satisfied) so that the user can prioritize which examples to inspect.”
How do you think that an interactive and iterative approach such as ALICE compares to other search techniques that you used in the past? [0.5em]0.5em “ALICE seems useful for finding similar code snippets that span code blocks. It provides a functionality separate from other search techniques I’ve used such as IDE-based functionalities (e.g., call declaration/ method invocation locations) and standard grep which is limited to single line searches. I think ALICE is generally less applicable, but also significantly more powerful. It also helps promote better understanding—for example, IDEs can show where a method is called from, but ALICE can easily show the context in which that method invocation appears.” Participants said Alice was more powerful than standard search tools like grep and built-in search features in IDEs.
What do you like or not like about Alice? Overall, participants like the interactive feature, as it allows for refinement and builds on developer understanding. Some participants find the color scheme in Alice confusing due to the conflict with existing syntax highlighting in Eclipse.
We observe that participants were able to easily recognize the important features in the code example and tag them in the first search iteration. Though participants had little experience with the codebase, they could still distinguish positive and negative examples without much effort. Table I summarizes the number of examples returned in the first search iteration and the time taken for each user to refine the search. In particular, a user took an average of 35 seconds to inspect each example and categorize it as positive or negative. This indicates that the tool does not require much effort for a user to inspect and label examples.
We compare Alice with an existing interactive code search technique called Critics. We choose Critics as a comparison baseline, since Critics also performs interactive search query refinement . Alice differs from Critics in two ways. First, in Critics, a user has to manually select code blocks such as an if-statement or a while loop and parameterizes contents, for example, by replacing Foo f=new Foo() to $T $v=new $T(). Such interaction is time-consuming. To reduce the user burden, ALICE infers a syntactic pattern such as “an if-statement with a condition .*!=null inside a while loop” from positive and negative methods. Second, Critics identifies similar code via tree matching, while Alice abstracts source code to logic facts and identifies similar code via ILP.
We run Alice on the public data set obtained from Critics’s website.222https://github.com/tianyi-zhang/Critics Table LABEL:tab:criticscomparison summarizes the results of Critics vs. Alice. In six out of seven cases, Alice achieves the same or better precision and recall with fewer iterations to converge, compared to Critics. In ID 4, Alice has low precision because the expected code contains a switch statement, which is currently not extracted by Alice as a logic fact. Extending current logic predicates to support more syntactic constructs remain as future work.
Noisy Oracle. The simulation in Section IV assumes that a user makes no mistakes when labeling examples. However, it is possible that a real user may label a positive example as negative, or even provide an inconsistent set of labels. We investigate how resilient Alice is to labeling mistakes and how quickly Alice can inform the user of such inconsistencies. We mutate our automated oracle with an error rate of 10%, 20%, and 40%. Each of the 14 groups from the first dataset is run five times (70 trials) with different annotations, labels, and errors. In many cases, Alice reports inconsistencies in user labeling and provides immediate feedback on the infeasibility of specializing queries (33% to 60%). When Alice does not find any inconsistencies, Alice behaves robustly with respect to errors, eventually reaching 100% precision. Table II summarizes the results.
|% Inconsistent Cases||33%||60%||54%|
Threats to Validity. Regarding internal validity, the effectiveness of different inductive biases may depend on the extent and nature of code cloning in a codebase. For example, when there are many code clones with similar nested code structures (while and if statements), the nested structure may perform better than other inductive biases. The current simulation experiment is run on Alice by choosing one seed example from each group, by randomly selecting annotations from the selected seed, and by labeling a randomly chosen subset of returned results. To mitigate the impact of random selection, we repeat ten runs and report the average numbers. In terms of external validity, we assume that any user could easily annotate features and label examples. However, it is likely that a novice programmer might find it hard to identify important features. To mitigate this threat to validity, as future work, we will investigate the impact of different expertise levels.
Limitations and Future Work. Currently, we generate facts based on structural and intra-procedural control flow properties. Other types of analysis such as dataflow analysis or aliasing analysis could be used in identifying similar snippets. In addition, the query language itself can be extended to make it easier to capture the properties of desired code. For example, by introducing negations in the query language, a user can specify atoms that should not be included. There could be specializations that strictly require negations. However, in our experiments, empirically, we are always able to find a pattern without negations. As mentioned in Section III-D, our learning process is monotonic and to learn a different query, a user may need to start over. To overcome this, we may need backtracking and investigate new search algorithms that generalize and specialize the query in a different way.
Viii Related Work
Code Search and Clone Detection. Different code search techniques and tools have been proposed to retrieve code examples from a large corpus of data [29, 30, 31, 32, 33, 34]. The most popular search approaches are based on text, regular expressions, constraints , and natural language [36, 31, 37, 38]. Exemplar  takes a natural language query as input and uses information retrieval and program analysis techniques to identify relevant code. Wang et al. propose a dependence-based code search technique that matches a given pattern against system dependence graphs . XSnippet  allows a user to search based on object instantiation using type hierarchy information from a given example. Alice differs from these search techniques in two ways. First, Alice allows a user to tag important features to construct an initial query. Second, Alice uses active learning to iteratively refine a query by leveraging positive vs. negative labels.
ALICE is fundamentally different from clone detectors [40, 41, 42, 43, 44] in two ways. First, while clone detectors use a given internal representation such as a token string and a given similarity threshold to search for similar code, ALICE infers the commonality between positive examples, encodes them as a search template, and uses negative examples to decide what not to include in the template. Second, ALICE presents the search template as a logic query to a user, while clone detectors do not infer nor show a template to a user.
Logic-Programming-Based Techniques. JQuery is a code browsing tool based on a logic query language. Users can interactively search by either typing a query in the UI or selecting a predefined template query. Hajiyev et al. present an efficient and scalable code querying tool  that allows programmers to explore the relation between different parts of a codebase. A number of techniques use logic programming as an abstraction for detecting code smells [47, 48, 49]. Many program analysis techniques abstract programs as logic facts and use Datalog rules, including pointer and call-graph analyses [50, 51], concurrency analyses [52, 53], datarace detection , security analyses , etc. Apposcopy is a semantics-based Android malware detector, where a user provides a malware signature in Datalog. While Alice and this line of research both use logic programs as an underlying representation, Alice does not expect a user to know how to write a logic query nor requires having a set of pre-defined query templates. Instead, Alice allows the user to interactively and incrementally build a search query using active ILP.
Interactive Synthesis. Some program synthesis techniques use input-output examples to infer a program and interactively refine its output [57, 58]. For instance, CodeHint  is a dynamic code synthesis tool that uses runtime traces, a partial program sketch specification, and a probabilistic model to generate candidate expressions. Interactive disambiguation interfaces [59, 60] aim to improve the accuracy of programming-by-example systems. Alice is similar to these in leveraging interactivity, but these do not target code search, do not use ILP, and do not assess the impact of iterative labeling and annotations.
Machine Learning. Active learning is often used when unlabeled data may be abundant or easy to come by, but training labels are difficult, time-consuming, or expensive to obtain [61, 24]. An active learner may pose questions, usually in the form of unlabeled data instances to be labeled by an “oracle” (e.g., a human annotator). LOGAN-H is an ILP-based active learning approach . It learns clauses by either asking the oracle to label examples (membership queries) or to answer an equivalence query. Such oracles were first proposed by Angluin in the query-based learning formalism . Other approaches to inductive logic programming and relational learning are surveyed in De Raedt . Alrajeh et al. integrate model checking and inductive learning to infer requirement specifications . Other applications of ILP to software engineering include the work of Cohen [16, 64], to learn logical specifications from concrete program behavior. Because ultimately our approach is not concerned with finding the right hypothesis, and only with retrieving the right code examples, it can also be thought of as a transductive learning problem [65, 66].
Alice is the first approach that embodies the paradigm of active learning in the context of code search. Its algorithm is designed to leverage partial incremental feedback through tagging and labelling. Alice demonstrates realtime performance in constructing a new search query. Study participants resonate with Alice’s interactive approach and find it easy to describe a desired code pattern without much effort. Extensive simulation shows that leveraging both positive and negative labels together can help achieve high precision and recall. Tagging features is also necessary for minimizing the size of initial search space. Our experimental results justify the design choice of Alice, indicating that interactivity pays off—labeling a few in a spread out fashion is more effective than labeling many at a time.
