AceKG: A Large-scale Knowledge Graph for Academic Data Mining

07/23/2018 ∙ by Ruijie Wang, et al. ∙ Shanghai Jiao Tong University 0

Most existing knowledge graphs (KGs) in academic domains suffer from problems of insufficient multi-relational information, name ambiguity and improper data format for large-scale machine pro- cessing. In this paper, we present AceKG, a new large-scale KG in academic domain. AceKG not only provides clean academic information, but also offers a large-scale benchmark dataset for researchers to conduct challenging data mining projects including link prediction, community detection and scholar classification. Specifically, AceKG describes 3.13 billion triples of academic facts based on a consistent ontology, including necessary properties of papers, authors, fields of study, venues and institutes, as well as the relations among them. To enrich the proposed knowledge graph, we also perform entity alignment with existing databases and rule-based inference. Based on AceKG, we conduct experiments of three typical academic data mining tasks and evaluate several state-of- the-art knowledge embedding and network representation learning approaches on the benchmark datasets built from AceKG. Finally, we discuss several promising research directions that benefit from AceKG.



There are no comments yet.


page 1

page 2

page 3

page 4

This week in AI

Get the week's most popular data science and artificial intelligence research sent straight to your inbox every Saturday.

1. Introduction

Knowledge graphs have become very crucial resources to support many AI related applications, such as graph analytics, Q&A system, web search, etc. A knowledge graph, which describes and stores facts as triples, is a multi-relational graph consisting of entities as nodes and relations as different types of edges. Nowadays, many companies and research teams are trying to organize the knowledge in their domain into a machine-readable knowledge graph, e.g., YAGO (Hoffart et al., 2013), NELL (Mitchell et al., 2015), DBpedia (Lehmann et al., 2015), and DeepDive (De Sa et al., 2016). Although these large-scale knowledge graphs have collected tremendous amount of factual information about the world, many fields still remain to be covered.

With information of papers, scholars, institutes, venues, fields of study and other useful entities, data mining on academic networks aims to discover hidden relations and to find semantic-based information. Several academic databases or knowledge graphs have been built with structured academic data (Singhal, 1996; Sinha et al., 2015; Tang et al., 2008). The public academic knowledge graphs can provide scholars with convincing academic information, and offer large-scale benchmark datasets for researchers to conduct data mining projects.

However, there are some limitations in existing databases or knowledge graphs. First, most of existing works provide homogeneous academic graphs, while relations among different types of entities remaining lost (Singhal, 1996; Tang et al., 2008). Second, some databases only concentrate on one specific field of study, limiting the projects which aim at discovering cross-field knowledge (Singhal, 1996). Third, synonymy and ambiguity are also the restrictions for knowledge mining (Sinha et al., 2015). Allocating the unique IDs to the entities is the necessary solution, but some databases use the names of the entities as their IDs directly.

In this paper, we propose Academic Knowledge Graph (AceKG), 111 an academic semantic network, which describes 3.13 billion triples of academic facts based on a consistent ontology, including commonly used properties of papers, authors, fields of study, venues, institutes and relations among them. Apart from the knowledge graph itself, we also perform entity alignment with the existing KGs or datasets and some rule-based inferences to further extend it and make it linked with other KGs in the linked open data cloud. Based on AceKG, we further evaluate several state-of-the-art knowledge embedding and network representation learning approaches in Sections 3 and 4. Finally we discuss several potential research directions that benefit from AceKG in Section 5 and conclude in Section 6.

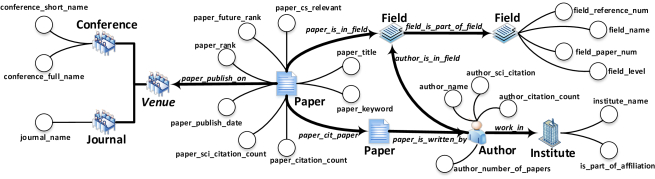

Figure 1. An overview of AceKG Ontology.

Compared with other existing open academic KGs or datasets, AceKG has the following advantages.

  1. AceKG offers a heterogeneous academic information network, i.e., with multiple entity categories and relationship types, which supports researchers or engineers to conduct various academic data mining experiments.

  2. AceKG is sufficiently large (3.13 billion triples with nearly 100G disk size) to cover most instances in the academic ontology, which makes the experiments based on AceKG more convincing and of practical value.

  3. AceKG provides the entity mapping to computer science databases including ACM, IEEE and DBLP, which helps researchers integrate data from multiple databases together to mine knowledge.

  4. AceKG is fully organized in structured triples, which is machine-readable and easy to process.

2. The Knowledge Graph

The AceKG dataset222The sample dataset and experiment code are attached in the supplementary material. can be freely accessed online. All the data are collected from Acemap333 AceKG is a large academic knowledge graph with 3.13 billion triples. It covers almost the whole academic area and offers a heterogeneous academic network.

2.1. Ontology

All objects (e.g., papers, institutes, authors) are represented as entities in the AceKG. Two entities can stand in a relation. Commonly used attributes of each entities including numbers, dates, strings and other literals are represented as well. Similar entities are grouped into classes. In total, AceKG defines 5 classes of academic entities: Papers, Authors, , Venues and Institutes. And the facts including the frequently used properties of each entities and the relations between the entities are described as triples in the knowledge graph. The ontology of AceKG is shown in Figure 1.

To deal with synonymy and ambiguity, each entity in defined classes are allocated with a URI. For example, ace:7E7A3A69 and ace:7E0D6766 are two scholars having the same name: Jiawei Han, one of whom is the influential data mining scientist. Compared with the datasets which use entity names to represent entities directly, AceKG can avoid mistakes caused by synonymy and ambiguity,

The statistics of AceKG are shown in Table 1. All the facts are represented as -- triples (SPO triples). And we release the Turtle format AceKG online. It can be queried by Apache Jena framework444 with SPARQL easily.

Class Number Class Number
Paper 61,704,089 Institute 19,843
Author 52,498,428 Field 50,233
Journal 21,744 Conference 1,278
Total Entities 114,295,615 Total Relations 3,127,145,831
Table 1. Triple statistics of AceKG.

2.2. Entity alignment

In order to make AceKG more connected and comprehensive, we map a large part of papers in computer science of AceKG to the papers stored in IEEE, ACM and DBLP databases. All the latest papers in those three databases have been aligned with AceKG . Some mapping statistics are shown in Table 2. The knowledge graph is updated with the latest academic information periodically.

Mapping number 2,332,358 1,912,535 2,274,773
Table 2. Statistics of node mapping.

2.3. Inference

Rule-based inference on knowledge graph is a typical but critical way to enrich the knowledge graph. The selected inference rules that we design are shown in Figure 2. With those inference rules, we can define the new relations on AceKG, which provides more comprehensive ground truth.

3. Knowledge embedding

In this section, we will evaluate several state-of-the-art approaches for knowledge embedding using AceKG.

3.1. Task Definition

Given a set of triples composed of two entities (the set of entities) and a relation (the set of relationships), knowledge embedding maps each entity to a

-dimensional vector in the embedding space, and defines a scoring function to evaluate the plausibility of the triple

in the knowledge graph. We study and evaluate related methods on link prediction problem defined in (Bordes et al., 2013): given one of the entities and the relation in a latent triple, the task is to predict the other missed entity. The commonly used benchmark datasets are FB15K and WN18, which are extracted from Freebase (Google, ) and WordNet (Miller, 1995). We construct a new benchmark dataset (denoted as AK18K in the rest of this section) extracted from AceKG for knowledge embedding. We will show how it differs from FB15K and WN18 in Section 3.2. We compare the following algorithms in our experiments: TransE (Bordes et al., 2013), TransH (Wang et al., 2014), DistMult (Yang et al., 2015), ComplEx (Trouillon et al., 2017), HolE (Nickel et al., 2016).

Figure 2. Example of rule-based inference. The dotted arrows are inferred predicates.

3.2. Experimental Setup

To extract AK18K from AceKG, we first select 68 critical international venues (conferences and journals) and influential papers published on them. Then we add the triples of authors, fields and institutes. Finally, the train/valid/test datasets are divided randomly.

Table 3 shows the statistics of the WN18, FB15K and AK18K. AK18K is sparser than FB15K but denser than WN18 (indicated by the value of ), and it provides only 7 types of relations. We will evaluate the models’ scalability on the knowledge graph which has simple relation structure but tremendous amount of entities. The code we used is based on the OpenKE (Han et al., ), an open-source framework for knowledge embedding.

Dataset #R #E #Trip. (Train/ Valid/ Test)
WN18 18 40,943 141,442 5,000 5,000
FB15K 1,345 14,951 483,142 50,000 59,071
AK18K 7 18,464 130,265 7,429 7,336
Table 3. Datasets used in knowledge embedding.

3.3. Evaluation Results

We show the link prediction results based on knowledge embedding in Table 4. The reported results are produced with the best set of hyper-parameters after the grid searches reported in the papers.

MRR Hits at
Model Raw Filter 1 3 10
TransE 0.358 0.719 62.7 82.5 89.2
TransH 0.315 0.701 61.0 77.2 84.6
DistMult 0.432 0.749 68.7 79.5 86.1
HolE 0.482 0.864 83.8 87.1 88.2
ComplEx 0.440 0.817 75.4 85.8 89.0
  • Table note: Filtered and Raw Mean Reciprocal Rank (MRR) and Hits@{1,3,10} for the models tested on the AK18K dataset. Hits@{1,3,10} metrics are filtered. Filtered metrics means removing from the test list the other triples that appear in the dataset while evaluation.

Table 4. Results of link prediction task on AK18K.

The compared state-of-the-art models can be divided into two categories: (i) translational models (TransE, TransH); (ii) compositional models (DistMult, HolE, ComplEx). TransE outperforms all counterparts on hit@10 as 89.2%. Although 94.4% of relations in our knowledge graph are many-to-many, which works for TransH, TransE shows its advantages on modeling sparse and simple knowledge graph, while TransH fails to achieve better results. The reason may be the number of relationship types is only 7, which is small. On the other hand, HolE and ComplEx achieve the most significant performances on the other metrics, especially on hit@1 (83.8% and 75.4%) and on filtered MRR (0.482 and 0.440), which confirms their advantages on modeling antisymmetric relations because all of our relations are antisymmetric, such as field_is_part_of and paper_is_written_by.

Compared with the experiment results on FB15K and WN18 reported in (Nickel et al., 2016), performances evaluated using AK18K are noticeably different. First, results on AK18K are lower than those on WN18 but higher than those on FB15K. It is caused by the limited relation types and large amount of potential entities per relation. Some relation such as paper_is_in_field can have thousands of possible objects per triple, limiting the prediction performance. Second, the performance gap between two model categories grows more pronounced as the knowledge graph become more complicated, which indicates the translational models with simple assumptions may not model the complicated graph well.

4. Network representation learning

In this section, we will evaluate several state-of-the-art approaches for network representation learning (NRL) on AceKG.

4.1. Task Definition

Given a network , where denotes the vertex set, denotes the network topology structure and preserves node attributions, the task of NRL is to learn a mapping function , where is the learned representation of vertex and is the dimension of . We study and evaluate related methods including DeepWalk (Perozzi et al., 2014), PTE (Tang et al., 2015a), LINE (Tang et al., 2015b) and metapath2vec (Dong et al., 2017) on two tasks: scholar classification and scholar clustering.

4.2. Experimental Setup

Based on AceKG, we first select 5 fields of study (FOS)5555 fields of study: Biology, Computer science, Economics, Medicine and Physics. and 5 main subfields of each. Then we extract all scholars, papers and venues in those fields of study respectively to construct 5 heterogeneous collaboration networks. We also construct 2 larger academic knowledge graph: (i) we integrate 5 networks above into one graph which contains all the information of 5 fields of study; (ii) we match the eight categories of venues in Google Scholar666 to those in AceKG. 151 of 160 venues (8 categories 20 per category) are successfully matched. Then we select all the related papers and scholars to construct one large heterogeneous collaboration networks. The statistics of these networks are shown in Table 5. Moreover, the category of scholars are labeled with the following approach:

  1. To label the papers, we adopt the field of study information and Google scholar category directly as the label of papers in 6 FOS networks and 1 Google scholar network respectively.

  2. As for the label of the scholars, it is determined by the majority of his/her publications’ labels. When some labels have equal quantity of papers, they are chosen randomly.

Dataset #Paper #Author #Venue #Edge
FOS_Biology 1,211,664 2,169,820 13,511 5,544,376
FOS_CS 452,970 738,253 10,726 1,658,917
FOS_Economics 412,621 597,121 8,269 1,163,700
FOS_Medicine 182,002 491,447 7,251 819,312
FOS_Physics 449,844 596,117 5,465 1,602,723
FOS_5Fields 2,578,185 3,868,419 18,533 10,160,137
Google 600,391 635,585 151 2,373,109
Table 5. Datasets used in network representation learning.

4.3. Evaluation Results

4.3.1. Classification

We adopt logistic regression to conduct scholar classification tasks. Note that in this task 5-fold cross validation are adopted. Table

6 shows the classification results evaluated by Micro-F1 and Macro-F1. metapath2vec learns heterogeneous node embeddings significantly better than other methods. We attribute it to the modified heterogeneous sampling and skip-gram algorithm. However, DeepWalk and LINE also achieve comparable performance, showing their scalability on heterogeneous networks. Another reason for the comparable performance is that our edge types and node types are limited, thus algorithms on homogeneous information network can also learn a comprehensive network representation.

Micro-F1 DeepWalk 0.792 0.545 0.692 0.663 0.774 0.731 0.948
LINE(1st+2nd) 0.722 0.633 0.717 0.701 0.779 0.755 0.955
PTE 0.759 0.574 0.654 0.694 0.723 0.664 0.966
metapath2vec 0.828 0.678 0.753 0.770 0.794 0.831 0.971
Macro-F1 DeepWalk 0.547 0.454 0.277 0.496 0.592 0.589 0.942
LINE(1st+2nd) 0.445 0.542 0.385 0.577 0.640 0.655 0.949
PTE 0.495 0.454 0.276 0.555 0.571 0.528 0.961
metapath2vec 0.637 0.570 0.485 0.659 0.635 0.682 0.968
Table 6. Results of scholar classification.
Model FOS-labeled Google-labeled
DeepWalk 0.277 0.394
LINE(1st+2nd) 0.305 0.459
PTE 0.153 0.602
metapath2vec 0.427 0.836
Table 7. Results of scholar clustering.

It should be noted that there is significant performance gap between FOS-labeled datasets and the Google-labeled dataset, which is because of the different distribution of papers and scholars. Papers collected in the Google-labeled dataset are published in Top-venues and consequently few scholar could be active in multiple categories, while there are more cross-field papers and scholars in FOS-labeled datasets.

Moreover, the performance indicates the level of interdiscipline in these fields. For example, the highest Micro-F1 shows that the sub-fields of Biology are the most independent, while the lowest Micro-F1 means that the sub-fields of CS cross mostly. Finally, the dramatical decline from Micro-F1 to Macro-F1, especially in Economy, indicates the imbalance of sub-fields in some FOS.

4.3.2. Clustering

Based on the same node representation in scholar classification task, we further conduct scholar clustering experiment with k-means algorithm to evaluate the models’ performance. All clustering experiments are conducted 10 times and the average performance is reported.

Table 7 shows the clustering results evaluated by normalized mutual information (NMI). Overall, metapath2vec outperforms all the other models, indicating the modified heterogeneous sampling and skip-gram algorithm can preserve the information of the knowledge graph better. Another interesting result is the performance gap between FOS-labeled dataset and Google-labeled dataset, which indicates the hypothesis we proposed in section 4.3.1.

5. Future directions

There are other research topics which can leverage AceKG. In this section, we propose three potential directions.

Cooperation prediction. To predict a researcher’s future cooperation behavior is an interesting topic in academic mining, and many current works have contributed to it by considering previous cooperators, neighborhood, citation relations and other side information. However, all these factors can be thought as obvious features in an academic knowledge graph, which is incomplete and may always ignore some other features like the same institution or the same field. Given this situation, one may perform cooperation prediction based on the NRL results, which can represent the features of a researcher better and may provide some help to cooperation prediction task.

Author disambiguation. Author disambiguation is a traditional problem in social network, which means distinguishing two people with the same name in a network. With the help of AceKG, author disambiguation can be conducted conveniently. The network structure and node attributes in AceKG can enhance the author disambiguation performance. Then, some author disambiguation algorithms with good performance can be applied to AceKG. The author disambiguation problem can be solved and the quality of AceKG will be improved in such an iterative way.

Finding rising star. Finding academic rising star is important in academic mining in that it can provide helpful reference for universities and companies to hire young faculty or new scientist. Researchers have raised various algorithms for this based on publication increasing rate, mentoring relations and some other factors. In order to make the classification better, we can firstly embed the AceKG to uncover the hidden features of rising star and then apply some clustering algorithms on the embedding results.

6. Conclusion

In this paper we propose AceKG, a large-scale knowledge graph in academic domain, which consists of 3.13 billion triples of academic facts based on a consistent ontology, including commonly used properties of papers, authors, fields of study, venues, institutes and relations among them. Based on AceKG, we design three experimental evaluations and further compare several state-of-the-art approaches on AceKG. Besides, we propose several potential research topics that can also benefit from the dataset. We will keep maintaining and updating the coverage of AceKG for wider usage in these directions.


  • Bordes et al. [2013] Antoine Bordes, Nicolas Usunier, Alberto Garcia-Durán, Jason Weston, and Oksana Yakhnenko. Translating embeddings for modeling multi-relational data. In NIPS, 2013.
  • De Sa et al. [2016] Christopher De Sa, Alex Ratner, Christopher Rē, Jaeho Shin, et al. Deepdive: Declarative knowledge base construction. In ACM SIGMOD Record, 2016.
  • Dong et al. [2017] Yuxiao Dong, Nitesh V. Chawla, and Ananthram Swami. Metapath2vec: Scalable representation learning for heterogeneous networks. In KDD, 2017.
  • [4] Google. Freebase data dumps.
  • [5] Xu Han, Yankai Lin, Ruobing Xie, Zhiyuan Liu, and Maosong Sun. Openke.
  • Hoffart et al. [2013] Johannes Hoffart, Fabian M. Suchanek, Klaus Berberich, and Gerhard Weikum. Yago2: A spatially and temporally enhanced knowledge base from wikipedia. Artificial Intelligence, 194:28–61, 2013.
  • Lehmann et al. [2015] Jens Lehmann, Robert Isele, Max Jakob, Anja Jentzsch, et al. DBpedia - a large-scale, multilingual knowledge base extracted from wikipedia. Semantic Web Journal, 6(2):167–195, 2015.
  • Miller [1995] George A. Miller. Wordnet: A lexical database for english. Commun. ACM, 38(11):39–41, November 1995. ISSN 0001-0782.
  • Mitchell et al. [2015] T. Mitchell, W. Cohen, E. Hruschka, P. Talukdar, et al. Never-ending learning. In AAAI, 2015.
  • Nickel et al. [2016] Maximilian Nickel, Lorenzo Rosasco, and Tomaso Poggio. Holographic embeddings of knowledge graphs. In AAAI, 2016.
  • Perozzi et al. [2014] Bryan Perozzi, Rami Al-Rfou, and Steven Skiena. Deepwalk: Online learning of social representations. In KDD. ACM, 2014.
  • Singhal [1996] Amit Singhal. Computer science bibliograph, 1996. URL
  • Sinha et al. [2015] Arnab Sinha, Zhihong Shen, Yang Song, Hao Ma, et al. An overview of microsoft academic service (mas) and applications. In WWW ’15 Companion, 2015.
  • Tang et al. [2015a] Jian Tang, Meng Qu, and Qiaozhu Mei. Pte: Predictive text embedding through large-scale heterogeneous text networks. In KDD. ACM, 2015a.
  • Tang et al. [2015b] Jian Tang, Meng Qu, Mingzhe Wang, Ming Zhang, Jun Yan, and Qiaozhu Mei. Line: Large-scale information network embedding. In WWW, 2015b.
  • Tang et al. [2008] Jie Tang, Jing Zhang, Limin Yao, Juanzi Li, Li Zhang, and Zhong Su. Arnetminer: Extraction and mining of academic social networks. In SIGKDD, 2008.
  • Trouillon et al. [2017] Théo Trouillon, Christopher R. Dance, Éric Gaussier, Johannes Welbl, Sebastian Riedel, and Guillaume Bouchard.

    Knowledge graph completion via complex tensor factorization.

    J. Mach. Learn. Res., 18(1), January 2017.
  • Wang et al. [2014] Zhen Wang, Jianwen Zhang, Jianlin Feng, and Zheng Chen.

    Knowledge graph embedding by translating on hyperplanes.

    In AAAI, 2014.
  • Yang et al. [2015] Bishan Yang, Wen tau Yih, Xiaodong He, and Li Deng Jianfeng Gao. Embedding entities and relations for learning and inference in knowledge bases. In ICLR, 2015.
