1 Introduction
Linear classifiers are well studied in the literature. Methods such as the perceptron, Fisher discriminant, logistic regression and now linear support vector machines (SVM)
(Michie et al., 1994)are often appropriate for relatively simple, binary classification problems in which both classes are closely clustered or are well separated. An obvious extension for more complex problems is a piecewise linear classifier in which the decision boundary is built up from a series of linear classifiers. Piecewise linear classifiers enjoyed some popularity during the early development of the field of machine learning
(Osborne, 1977; Sklansky and Michelotti, 1980; Lee and Richards, 1984, 1985) and because of their versatility, generality and simplicity there has been recent renewed interest (Bagirov, 2005; Kostin, 2006; Gai and Zhang, 2010; Webb, 2012; Wang and Saligrama, 2013; Pavlidis et al., 2016).A linear classifier takes the form:
(1)
where is a test point in the feature space, is a normal to the decision hypersurface, determines the location of the decision boundary along the normal and is the decision function which we use to estimate the class of the test point through its sign.
A piecewise linear classifier collects a set of such linear classifiers: ; . The two challenges here are, first, how to efficiently train each of the decision boundaries and, second, the related problem of how to partition the feature space to determine which linear decision boundary is used for a given test point.
In Bagirov (2005) for instance, the decision function is defined by partitioning the set of linear classifiers and maximizing the minimum linear decision value in each partition. To train the classifier, a cost function is defined in terms of this decision function and directly minimized using an analog to the derivative for nonsmooth functions (Bagirov, 1999). Naturally, such an approach will be quite computationally costly.
Partitioning of the feature space can be separate from the discrimination borders (Huang et al., 2013) but more normally the discrimination borders are themselves sufficient to partition the feature space (Osborne, 1977; Lee and Richards, 1984; Bagirov, 2005; Kostin, 2006). This means that all or a significant fraction of the component linear classifiers must be evaluated. In Kostin (2006)
, for instance, the linear classifiers form a decision tree.
In the method described in this paper, the constant term, , is changed to a vector and the partitioning accomplished through a nearest neighbours to this vector. Thus the zone of influence for each hyperplane will be described by the Veronoi tesselation (Kohonen, 2000). If the class domains are simply connected and don’t curve back on themselves, then the partitions will also be shaped as hyperpyramids, with the axes of the pyramids roughly perpendicular to the decision border. A dot product with each of the vectors must be calculated, similar to a linear classifier, but afterwards only a single linear decision function is evaluated.
There seems to be some tension in the literature between training the decision boundary through simultaneous optimization (Bagirov, 2005; Wang and Saligrama, 2013) or through methods that are more piece meal (Gai and Zhang, 2010; Herman and Yeung, 1992; Kostin, 2006). Obviously, simultaneous optimization will be more accurate but also much more computationally expensive. In addition, finding global minima for cost functions involving more than a handful of hypersurfaces will be all but impossible. There is also the issue of separability. Many of the current crop of methods seem to be designed with disjoint classes in mind (Herman and Yeung, 1992), for instance Gai and Zhang (2010), who stick the hyperplane borders between neighbouring pairs of opposite classes. Yet there is no reason why a piecewise linear classifier cannot be just as effective for overlapping classes.
The technique under discussion in this paper mitigates all of these issues because it is not a standalone method but requires estimates of the conditional probabilities. It is used to improve the time performance of kernel methods, or for that matter, any binary classifier that returns a continuous decision function that can approximate a conditional probability. This is done while maintaining, in all but a few cases, most of the accuracy.
Several of the piecewise linear techniques found in the literature work by positioning each hyperplane between pairs of clusters or pairs of training samples of opposite class (Sklansky and Michelotti, 1980; Tenmoto et al., 1998; Kostin, 2006; Gai and Zhang, 2010). Other unsupervised or semisupervised classifiers work by placing the hyperplanes in regions of minimum density (Pavlidis et al., 2016). The method described in this paper in some senses combines these two techniques by finding the root of the difference in conditional probabilities along a line between two points of opposite class. It will be tested on two kernelbased classifiers—a support vector machine (SVM) (Michie et al., 1994; Müller et al., 2001) and a simpler, “pointwise estimator” (Terrell and Scott, 1992; Mills, 2011)—and evaluated based on how well it improves classification speed and at what cost to accuracy.
Section 2 describes the theory of support vector machines and the pointwise estimator (“adaptive Guassian filtering”) as well as the piecewise linear classifier or “borders” classifier that will be trained on the two kernel estimators. Section 3 describes the software and test datasets then in section 4 we analyze the different classification algorithms on a simple, synthetic dataset. Section 5 outlines the results for 17 case studies while in Section 6 we discuss the results. Section 7 concludes the paper.
2 Theory
2.1 Kernel estimation
A kernel is a scalar function of two vectors that can be used for nonparametric density estimation. A typical “kerneldensity estimator” looks like this:
(2)
where is an estimator for the density, , is the kernel function, are a set of training samples, is the test point, and is a set of parameters. The normalization coefficient, , normalizes :
(3)
The method can be used for statistical classification by comparing results from the different classes:
(4)
where is the class of the th sample. Similarly, the method can also return estimates of the joint () and conditional probabilities () by dividing the sum in (4) by or by the sum of all the kernels, respectively.
If the same kernel is used for every sample and every test point, the estimator may be suboptimal, particularly in regions of very high or very low density. There are at least two ways to address this problem. In a “variablebandwidth” estimator, the coefficients, , depend in some way on the density itself. Since the actual density is normally unavailable, the estimated density can be used as a proxy (Terrell and Scott, 1992; Mills, 2011).
Let the kernel function take the following form:
(5)
where is the “bandwidth”. In Mills (2011), is made proportional to the density:
(6)
where is the dimension of the feature space. Since the normalization coefficient, , must include the factor, , some rearrangement shows that:
(7)
This is a generalization of the nearestneighbours scheme in which the free parameter, , takes the place of (Mills, 2009, 2011). The bandwidth, , can be solved for using any numerical, onedimensional rootfinding algorithm. The bandwidth is determined uniquely for a given test point but is held constant for that one, which makes this a “balloon” estimator. Contrast a “pointwise” estimator in which bandwidths are different for each training point but need only be determined once (Terrell and Scott, 1992).
Another method of improving the performance of a kerneldensity estimator is to multiply each kernel by a coefficient:
(8)
The coefficients, , are found through an optimization procedure designed to minimize the error (Chen et al., 2015). In the most popular form of this kernel method, support vector machines (SVM), the coefficients are the result of a complex, dual optimization procedure which minimizes the classification error. We will briefly outline this procedure.
2.2 Support Vector Machines
The basic “trick” of kernelbased SVM methods is to replace a dot product with the kernel function in the assumption that it can be rewritten as a dot product of a transformed and expanded feature space:
(9)
For simplicity we have ommitted the kernel parameters. is a vector function of the feature space. The simplest example of a kernel function that has a closed, analytical and finitedimensional is the square of the dot product:
but it should be noted that in more complex cases, there is no need to actually construct since it is replaced by the kernel function, , in the final analysis.
In a binary SVM classifier, the classes are separated by a single hyperplane defined by and . In a kernelbased SVM, this hyperplane bisects not the regular feature space, but the theoretical, transformed space defined by the function, . The decision value is calculated via a dot product:
(11)
and the class determined, as before, by the sign of the decision value:
(12)
where for convenience, the class labels are given by .
In the first step of the minimization procedure, the magnitude of the border normal, , is minimized subject to the constraint that there are no classification errors:
Introducing the coefficients, , as Lagrange multipliers on the constraints:
(13)
generates the following pair of analytic expressions:
(14)
(15)
through setting the derivatives w.r.t. the minimizers to zero. Substituting the second equation, (15), into the decision function in (11) produces the following:
(16)
Thus, the final, dual, quadratic optimization problem looks like this:
(17)
(18)
(19)
There are a number of refinements that can be applied to the optimization problem in (17)(19), chiefly to reduce overfitting and to add some “margin” to the decision border to allow for the possibility of classification errors. For instance, substitute the following for (18):
(20)
where is the cost (Müller et al., 2001). Mainly we are concerned here with the decision function in (16) since the initial fitting will be done with an external software package, namely LIBSVM (Chang and Lin, 2011).
Two things should be noted. First, the function appears in neither the final decision function, (16), nor in the optimization problem, (17). Second, while the use of implies that the time complexity of the decision function could be as in a parametric statistical model, in actual fact it is dependent on the number of nonzero values in . While the coefficient set, , does tend to be sparse, nonetheless in most real problems the number of nonzero coefficients is proportional to the number of samples, , producing a time complexity of . Thus for large problems, calculating the decision value will be slow, just as in other kernel estimation problems.
The advantage of SVM lies chiefly in its accuracy since it is minimizing the classification error whereas a more basic kernel method is more ad hoc and does little more than sum the number of samples of a given class, weighted by distance.
2.3 Borders classification
In kernel SVM, the decision border exists only implicitly in a hypothetical, abstract space. Even in linear SVM, if the software is generalized to recognize the simple dot product as only one among many possible kernels, then the decision function may be built up, as in (16) through a sum of weighted kernels. This is the case for LIBSVM. The advantage of an explicit decision border as in (1) or (11) is that it is fast. The problem with a linear border is that, except for a small class of problems, it is not very accurate.
In the binary classification method described in Mills (2011), a nonlinear decision border is built up piecewise from a collection of linear borders. It is essentially a rootfinding procedure for a decision function, such as in (16). Let be a decision function that approximates the difference in conditional probabilities:
(21)
where represents the conditional probabilities of a binary classifier having labels . For a simple kernel estimator, for instance, is estimated as follows:
(22)
where . For the variable bandwidth kernel estimator defined by (7), this works out to:
(23)
A variable bandwidth kerneldensity estimator with a Gaussian kernel,
(24)
we will refer to as an “Adaptive Gaussian Filter” or AGF for short. This kernel will also be used for SVM where it’s often called a “radial basis function” or RBF for short.
The procedure is as follows: pick a pair of points on either side of the decision boundary (the decision function has opposite signs). Good candidates are one random training sample from each class. Then, zero the decision function along the line between the points. This can be done as many times as needed to build up a good representation of the decision boundary. We now have a set of points, , such that for every where is the number of border samples.
Along with the border samples, , we also collect a series of normal vectors, such that:
(25)
With this system, determining the class is a two step proces. First, the nearest border sample to the test point is found. Second, we define a new decision function, , equivalent to (1), through a dot product with the normal:
(26)
The class is determined by the sign of the decision function as in (12). The time complexity is completely independent of the number of training samples, rather it is linearly proportional to the number of border vectors, , a tunable parameter. The number required for accurate classifications is dependent on the complexity of the decision border.
The gradient of the variablebandwidth kernel estimator in (23) is:
(27)
where is the distance between the test point and the th sample and is the derivative of . For AGF, this works out to:
(28)
where (Mills, 2011).
In LIBSVM, conditional probabilities are estimated by applying logistic regression (Michie et al., 1994) to the raw SVM decision function, , in (16):
(29)
(Chang and Lin, 2011), where and are coefficients derived from the training data via a nonlinear fitting technique (Platt, 1999; Lin et al., 2007).
The gradient of the revised SVM decision function, above, is:
Gradients of the initial decision function are useful not just to derive normals to the decision boundary, but also as an aid to root finding when searching for border samples. If the decision function used to compute the border samples represents an estimator for the difference in conditional probabilities, then the raw decision value, , derived from the border sampling technique in (2.3
) can also return estimates of the conditional probabilities with little extra effort and little loss of accuracy, also using a sigmoid function:
(30)
This assumes that the class posterior probabilities,
, are approximately Gaussian near the border (Mills, 2011).The border classification algorithm returns an estimator, , for the difference in conditional probabilities of a binary classifier using equations (2.3) and (30). It can be trained with the functions in (22), in (23), in (29), or any other continuous, differentiable, nonparametric estimator for the difference in conditional probabilities, . At the cost of a small reduction in accuracy, it has the potential to drastically reduce classification time for kernel estimators and other nonparametric statistical classifiers, especially for large training datasets, since it has time complexity instead of complexity, where , the number of border samples, is a free parameter. The actual number chosen can trade off between speed and accuracy with rapidly diminishing returns beyond a certain point. One hundred border samples () is usually sufficient. The computation of also involves very simple operations— floating point addition, multiplication and numerical comparison, with no transcendental functions except for the very last step (which can be omitted)—so the coefficient for the time complexity will be small.
A border classifier trained with AGF will be referred to as an “AGFborders” classifier while a border classifier trained with SVM estimates will be referred to as an “SVMborders” classifier or an “accelerated” SVM classifier.
2.4 Multiclass classification
The border classification algorithm, like SVM, only works for binary classification problems. It is quite easy to generalize a binary classifier to perform multiclass classifications by using several of them and the number of ways of doing so grows exponentially with the number of classes. Since LIBSVM uses the “oneversusone” method (Hsu and Lin, 2002) of multiclass classification, this is the one we will adopt.
A major advantage of the borders classifier is that it returns probability estimates. These estimates have many uses including measuring the confidence of as well as recalibrating the class estimates (Mills, 2009, 2011). Thus the multiclass method should also solve for the conditional probabilities in addition to returning the class label.
In a onevs.one scheme, the multiclass conditional probabilities can be related to those of the binary classifiers as follows:
(31)
where , , is the number of classes, , and is the difference in conditional probabilities of the binary classifier that discriminates between the th and th classes. Wu et al. (2004) transform this problem into the following linear system:
(32)
where is the th multiclass conditional probability and is a Lagrange multiplier. They also show that the constraints not included in the problem, that the probabilities are all positive, are always satisfied and describe an algorithm for solving it iteratively, although a simple matrix solver is sufficient.
3 Software and data
3.1 Libsvm
LIBSVM is a machine learning software library for support vector machines
developed by ChihChung Chang and ChihJen Lin of
the National Taiwan University, Taipei, Taiwan (Chang and Lin, 2011).
It includes statistical classification using two regularization methods
for minimizing overfitting:
CSVM and SVM.
It also includes code for nonlinear regression and density estimation or
“oneclass SVM”.
SVM models were trained using the svmtrain
command while
classifications done with svmpredict
.
LIBSVM can be found at: https://www.csie.ntu.edu.tw/~cjlin/libsvm
3.2 LibAGF
Similar to LIBSVM, libAGF is a machine learning library but for variable kernel estimation (Mills, 2011; Terrell and Scott, 1992) rather than SVM. Like LIBSVM, it supports statistical classification, lonlinear regression and density estimation. It supports both Gaussian kernels and knearest neighbours. It was written by Peter Mills and can be found at https://github.com/peteysoft/libmsci.
Except for training and classifying the SVM models, all calculations in this paper were done
with the libAGF library. To convert a LIBSVM model to a borders model,
the single command, svm_accelerate
, can be used.
Classifications are then performed with classify_m
.
3.3 Datasets
Type  Train  Test  Reference

heart  13  real  2  270    (Lichman, 2013)
shuttle  9  real  7  43500  14500  (King et al., 1995)
sat  36  real  6  4435  2000  (King et al., 1995)
segment  19  real  7  2310    (King et al., 1995)
dna  180  binary  3  2000  1186  (Michie et al., 1994)
splice  60  cat  3  1000  2175  (Michie et al., 1994)
codrna  8  mixed  2  59535  271617  (Uzilov et al., 2006)
letter  16  integer  26  20000    (Frey and Slate, 1991)
pendigits  16  integer  10  7494  3498  (Alimoglu, 1996)
usps  256  real  10  7291  2001  (Hull, 1994)
mnist  665  integer  10  60000  10000  (LeCun et al., 1998)
ijcnn1  22  real  2  49990  91701  (Feldkamp and Puskorius, 1998)
madelon  500  integer  2  2000  600  (Guyon et al., 2004)
seismic  50  real  2  78823  19705  (Duarte and Hu, 2004)
mushrooms  112  binary  2  8124    (Iba et al., 1988)
phishing  68  binary  2  11055    (Mohommad et al., 2014)
humidity  7  real  8  86400    (Mills, 2009)
The borders classification algorithm was tested on a total of 17 different datasets. These will be briefly described in this section. The collection covers a fairly broad range of size and types of problems, number of classes and number and types of attributes but with the focus on larger datasets where the borders technique is actually useful. Four of the datasets are from the “Statlog” project (Michie et al., 1994; King et al., 1995) and are nicknamed “heart”, “shuttle”, “sat” and “segment”. The heart disease (“heart”) dataset contains thirteen attributes of 270 patients along with one of two class labels denoting either the presence or absence of heart disease. The dataset comes originally from the Cleveland Clinic Foundation and two versions are stored on the machine learning database of U. C. Irvine (Lichman, 2013).
The shuttle dataset is interesting because the classes have a very uneven distribution meaning that multiclass classifiers with a symmetric breakdown of the classes, such as onevs.one, tend to perform poorly. The shuttle dataset comes originally from NASA and was taken from an actual space shuttle flight. The classes describe actions to be taken at different flight configurations.
The satellite (“sat”) dataset is a satellite remotesensing land classification problem. The attributes represent 3by3 segments of pixels in a Landsat image with the class corresponding to the type of land cover in the central pixel. The segmentation (“segment”) dataset is also an image classification dataset consisting of 3by3 pixel sets from outdoor images.
The DNA dataset is concerned with classifying a 60 basepair sequence of DNA into one of three values: an intronextron boundary, an extronintron boundary or neither of those two. That is, during protein creation, part of the sequence is spliced out, with the section kept being the intron and that spliced out being the extron. There are two versions of it: one called “splice” with the original sequence of 4 nucleotide bases but only two classes and one called “dna” in which the features data has been reprocessed so that the 60 base values are transformed to 180 binary attributes but keeping the original three classes (Michie et al., 1994). Another dataset from the field of microbiology is the “codrna” dataset which deals with detection of noncoding RNA sequences (Uzilov et al., 2006).
There are four textclassification datasets: “letter”, “pendigits”, “usps” and “mnist”. The “letter” dataset is a textrecognition problem concerned with classifying a character into one of the 26 letters of the alphabet based on processed attributes of the isolated character (Frey and Slate, 1991). The pendigits dataset is similar to the letter dataset except for classifying numbers instead of letters (Alimoglu, 1996). The “usps” dataset deals with classifying text for the purpose of mailing letters (Hull, 1994). The “mnist” dataset uses 28 by 28 pixel images to classify text into one of ten different characters (LeCun et al., 1998). Pixels that always take on the same value were removed.
Two of the datasets are machinelearning competition challenges. The “ijcnn1
” dataset is from the International Joint Conference on Neural Networks Neural Networks Competition
(Feldkamp and Puskorius, 1998) while the “madelon” dataset comes from the International Conference on Neural Information Processing Systems Feature Selection Challenge
(Guyon et al., 2004).The “seismic” dataset deals with vehicle classification from seismic data (Duarte and Hu, 2004). The “mushrooms” dataset classifies wild mushrooms into poisonous and nonpoisonous types based on their physical characteristics (Iba et al., 1988). The “phishing” dataset uses characteristics of a web address to predict whether or not a website is being used for nefarious purposes (Mohommad et al., 2014).
The final dataset, the “humidity” dataset, comprises simulated satellite radiometer radiances across 7 different frequencies in the microwave range. Corresponding to each instance is a value for relative humidity at a single vertical level. These humidity values have been discretized into 8 ranges to convert it into a statistical classification problem. A full description of the genesis of this dataset as well as a rationale for treatment using statistical classification is contained in Mills (2009). The statistical classification methods discussed in this paper were originally devised specifically for this problem.
Most of the datasets have been supplied already divided into a “test” set and a “training” set. If this is the case, then it is noted in the summary in Table 1 and the data has been used as given with the training set used for training and the test set used for testing. If the data is provided all in one lump, then it was randomly divided into test and training sets with the division different for each of the ten numerical trials.

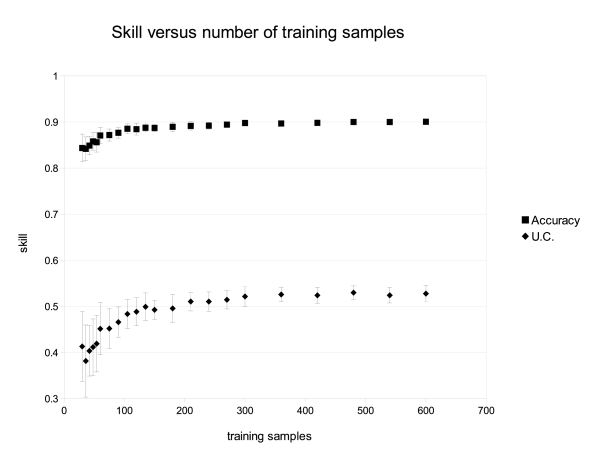

To provide the best idea of when the technique is effective and when it is not, results from all 17 datasets will be shown. All datasets were preprocessed in the same way: by taking the averages and standard deviations of each feature from the training data and subtracting the averages from both the test and training data and dividing by the standard deviations. Features that took on the same value in the training data were removed.
4 A simple example

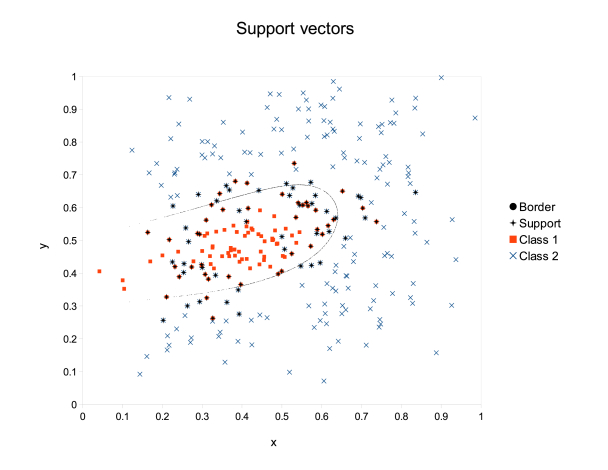

We use the pair of synthetic test classes defined in Mills (2011) to illustrate the difference between support vectors and border vectors and between border vectors derived from AGF and from a LIBSVM model. Figure 1 shows a realization of the two sample classes in red and blue, comprising 300 samples total, along with the support vectors derived from a LIBSVM model. The support vectors are a subset of the training samples and while they tend to cluster around the border, they do not define it. For reference, the border between the two classes is also shown. This has been derived from the borderclassification method described in Section 2.3 using the mathematical definition of the classes, hence it represents the “true” border to within a very small numerical error.

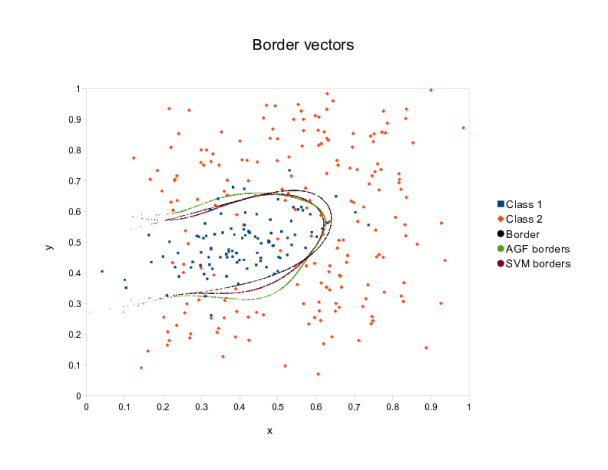

The true border is also compared with those derived from AGF and LIBSVM probability estimates in Figure 2. The classes are again shown for reference. While these borders contain several hundred samples for a clear view of where they are located using each method, in fact the method works well with surprisingly few samples. Figure 3 shows a plot of the skill versus the number of border samples, where U.C. stands for uncertainty coefficient. Note that the scores saturate at only about 20 samples meaning that for this problem at least, very fast classifications are possible.

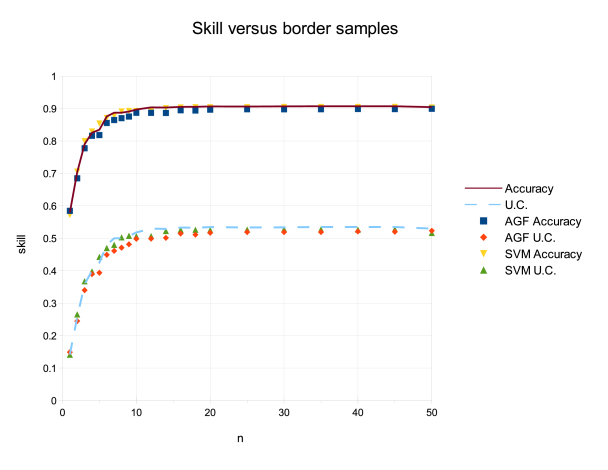

Unlike support vectors, the number of border samples required is approximately independent of the number of training samples. In addition to skill as a function of border samples for both AGF and SVMtrained borderclassifiers, Figure 3 also shows results for a border classifier trained from the mathematical definition of the classes themselves. The skill scores of this latter curve do not level significantly faster than the other two. So long as the complexity of the problem does not increase, adding new training samples does not increase the number of border samples required for maximum accuracy.

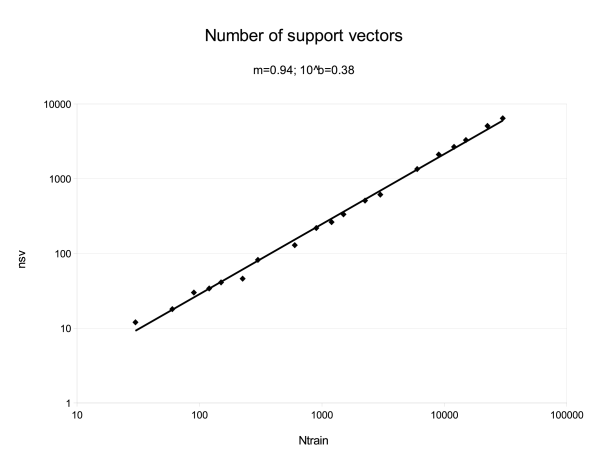

Figure 4 shows the number of support vectors versus the number of training samples. The fitted curve is approximately linear with an exponent of 0.94 and multiplication coefficient of 0.38. In other words, for this problem there will be approximately 38 % as many support vectors as there are training vectors.
Of course it’s possible to speed up an SVM by subsampling the training data or the resulting support vectors. In such case, the sampling must be done carefully so as not to reduce the accuracy of the result. Figure 5 shows the effect on classification skill for the synthetic test classes when the number of training samples is reduced. Skill scores start to saturate at between 200 and 300 samples. By contrast, Figure 3 implies that you need only 20 border samples for good accuracy, so even with only 200 training samples you will still have improved efficiency by using the borders technique.
This suggests a simple scaling law. The number of training samples required for good accuracy, and hence the number of support vectors, should be proportional to the approximate volume occupied by the training data in the feature space: where is the minimum number of training vectors and is volume. Then the number of border vectors should be proportional to the volume taken to the root of one less than the dimension of the feature space: . Putting it together, we can relate the two as follows:
(33)
where is the minimum number of border vectors required for good accuracy.
In other words, provided the class borders are not fractal (Ott, 1993), mapping only the border between classes should always be faster than techniques that map the entirety of the class locations. This includes kernel density methods including SVM as well as similar methods such as learning vector quantization (LVQ) (Kohonen, 2000; Kohonen et al., 1995) that attempt to create an idealized representation of the classes through a set of “codebook” vectors.

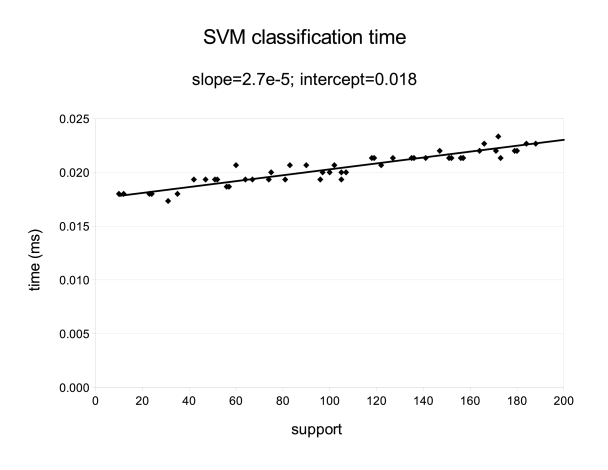

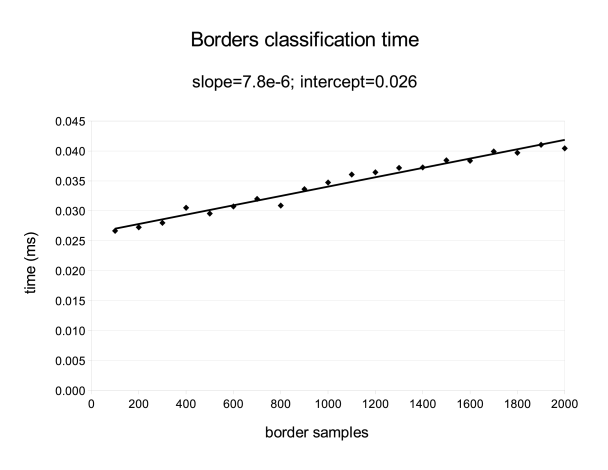

To make this more concrete, Figure 6 plots the classification time versus the number of support vectors for a SVM while Figure 7 plots the classification time versus the number of border samples for a border classifier. Classification times are for a single test point. Fitted straight lines are overlaid for each and the slope and intercept printed in the subtitle.

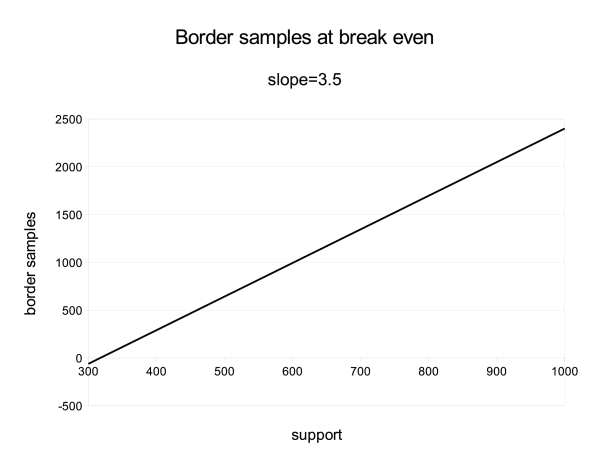

Figure 8 plots the number of border vectors versus the number of support vectors at the “break even” point: that is, the classfication time is the same for each method. This graph was simply derived from the fitted coefficents of the previous two graphs. It is somewhat optimistic since LIBSVM has a larger overhead than the border classifiers. This overhead would be less significant for larger problems with the “rule of thumb” suggested by the slope that the number of border vectors should be less than three times the support for a reasonable gain in efficiency.
Unfortunately the graph is not general: while the borders method scales linearly with the number of classes, in LIBSVM there is some shared calculation for multiclass problems. That is, some of the support vectors are shared between classes moreover the number will be different for each problem. Model size comparisons between the two methods should ideally be between the total number of support vectors versus the total number of border vectors, not border (or support) vectors per class. Both methods will tend to scale linearly with the number of attributes, with a small component independent but a different amount for each method. Once we take into account the number of classes and number of attributes, the model for time complexity becomes quite complex so no attempt will be made here to fit it.
5 Case studies
Dataset  Stat.  KNN  AGF  Accel.  SVM

trials  C
heart  10  0.4  11  10    100  100  0.01  0.5
shuttle  0.25  1  1.5  150  250  100  0.111  1
sat  0.31  5  5  100  200  200  0.1  50
segment  10  0.4  3  3  100  100  50  0.1  100
dna  0.372  11  20  300  500  1000  0.0055  1
splice  0.685  1  15    500  500  0.00167  1
codrna  0.82  11  10  200  500  500  0.125  1
letter  0.4  1  3  200  1000  75  0.065  1
pendigits  0.318  1  2  200  200  50  0.01  50
usps  0.216  1  1  100  250  50  0.004  1
mnist  1  0.143  9  1  200  500  500  0.1  50
ijcnn1  0.647  11  10  400  500  500  0.045  1
madelon  0.231  11  10  200  100  100  0.002  1
seismic  0.2  31  40  400  200  200  0.02  1
mushrooms  10  0.4  3  3  300  500  200  0.0089  50
phishing  10  0.4  3  7  250  500  500  0.00147  1
humidity  0.4  51  10  400  200  200  0.143  50
dataset  quantity  KNN  AGF  SVM  Accel.

heart  train (s)
test (s)
acc
U.C.
shuttle  train (s)
test (s)
acc
U.C.
sat  train (s)
test (s)
acc
U.C.
segment  train (s)
test (s)
acc
U.C.
dna  train (s)
test (s)
acc
U.C.
splice  train (s)
test (s)
acc
U.C.
codrna  train (s)
test (s)
acc
U.C.
letter  train (s)
test (s)
acc
U.C.
pendigits  train (s)
test (s)
acc
U.C.
dataset  quantity  KNN  AGF  SVM  Accel.

usps  train (s)
test (s)
acc
U.C.
mnist  train (s)
test (s)
acc
U.C.
ijcnn1  train (s)
test (s)
acc
U.C.
madelon  train (s)
test (s)
acc
U.C.
seismic  train (s)
test (s)
acc
U.C.
mushrooms  train (s)
test (s)
acc
U.C.
phishing  train (s)
test (s)
acc
U.C.
humidity  train (s)
test (s)
acc
U.C.
Four classification models were tested on each of the 17 datasets described in Section 3.3: knearestneighbours (KNN), a borders model derived from adaptive Gaussian filters (AGF), a support vector machine (SVM) and a borders model derived from the previous SVM model (Accel. for “accelerated” SVM). KNN is useful to get a baseline accuracy from a stable, reliable method although not always an efficient or highperforming one. AGFborders is compared with SVMborders to see how much deriving the class borders from a SVM improves accuracy over using a direct pointwise kernel density estimator. The speed should be the same for the same number of border vectors. Also, raw AGF is normally about as accurate as KNN so we can see how much the borders method increases classification speed (and decreases accuracy) of this simpler kernel estimator. Ideally, for large problems, the borders technique should produce significant time savings while having little effect on accuracy.
The parameters used for each method are summarized in Table 2. Parameters for the AGF method were chosen strictly to maximize accuracy while the single parameter, number of border samples, in the SVMborders technique was chosen for the best compromise between reduced accuracy and a speed improvement over SVM. The parameter, , for AGF is the number of nearest neighbours used when computing the probabilities: while the order of the method, , remains the same, nonetheless it can produce a significant speed improvement for large problems. The parameter, , is the number of class borders used in both AGF and SVMborders.
For SVM, a Gaussian kernel is used as in (24) where is a tunable parameter. is a cost parameter added to reduce overfitting: see Equations (17) and (20).
In order to get a confidence interval on the results, ten trials were performed for most of the datasets. In some cases, only a single trial was performed either because the operation took too long or because of a preexisting separation between test and training data which was taken “as is”. Single trials are indicated through the absence of error bars which are calculated from the standard deviation.
is the fraction of test data relative to the total number of samples.The results are summarized in Tables 3 and 4 including training and test time for each method as well as skill scores. There are two skill scores, the first being simple accuracy or fraction of correct guesses while the second, called the uncertainty coefficient, is based on information entropy and is described below. The best values for each dataset are highlighted in bold. Note that KNN does not have a training phase but sometimes its classification phase is shorter than all the others’ training phase in which case none of the numbers are highlighted but rather the hyphen that’s put in place of the KNN training time. The SVMborders method is not a standalone method thus its training time is never highlighted.
Interestingly, the heart dataset classifiers are so fast that they were not detected by the system clock. Even more interestingly, skill scores for SVMborders are higher than those for SVM. This does not break any laws of probability, however, since the two scores are well within each others’ error bars and the interval for borders is larger than that for SVM.
5.1 Skill scores
It is important to evaluate a result based on skill scores that reliably reflect how well a given classifier is doing. Thus we will define the two scores used in this validation exercise since one in particular is not commonly seen in the literature even though it has several attractive features.
Let be the confusion matrix, that is the number test values for which the first classifier (the “truth”) returns the th class while the second classifier (the estimate) returns the th class. Let be the total number of test points.
The accuracy is given:
(34)
or simply the fraction of correct guesses.
The uncertainty coefficient is a more sophisticated measure based on the channel capacity (Shannon and Weaver, 1963). It has the advantage over simple accuracy in that it is not affected by the relative size of each class distribution. It is also not affected by consistent rearrangement of the class labels.
The entropy of the prior distribution is given:
(35)
(36)
while the entropy of the posterior distribution is given:
(37)
(38)
The uncertainty coefficient is defined in terms of the prior entropy, , and the posterior entropy, , as follows:
(39)
and tells us: for a given test classification, how many bits of information on average does the estimate supply of the true class value? (Press et al., 1992; Mills, 2011).
6 Discussion
Total  Total  Time (s)  Time (s)

support  borders  SVM  accel.
heart  13  2  162  100  0.0  0.0
shuttle  9  7  43500  1277  2100  2.66  1.35
sat  36  6  4435  1447  3000  0.750  0.563
segment  19  7  1386  1050  0.078  0.108
dna  180  3  2000  1288  1000  1.6  1.89
splice  60  2  1000  678  500  0.542  0.098
codrna  8  2  59535  8978  500  293  3.3
letter  112  26  12000  5332  5850  14.0  13.0
pendigits  16  10  7494  602  2250  0.48  0.63
usps  256  10  7291  2081  2250  5.31  2.98
mnist  665  10  60000  14865  22500  449  283
ijcnn1  22  2  49990  4888  500  82.8  2.6
madelon  500  2  2000  1959  100  3.53  0.04
seismic  50  2  78823  44385  200  256  1.21
mushrooms  112  2  4874  200  2.2  0.114
phishing  68  2  6633  500  2.71  0.259
humidity  7  8  51840  37767  5600  194  5.13
dataset  samples  S.V.  train (s)  test (s)  accuracy  U.C.

shuttle
sat
splice
codrna
letter
usps
mnist
ijcnn1
seismic
mushrooms
phishing
humidity
Thirteen of the classification problems show a significant speed increase with the application of the borders technique with heart, segment, dna, pendigits being the exceptions. Table 5 is an attempt to get a handle on the relative time complexity of the two methods and lists all the relevant variables: number of features, number of classes, total number of training samples, total support for SVM, total number of border samples for the borders method compared with the resulting classification time for the two methods. The two most relevant variables here are the number of support vectors versus the number of border vectors. In order to get a successful speed increase, the former should be larger than the latter, but as is apparent from some problems such as sat, usps, and mnist, even having slightly more border samples can sometimes produce a significant, although modest, improvement.
All increases in speed, however, come at the cost of accuracy. The question is, is the speed increase worth the decrease in skill? To test this, we subsample the datasets and then reapply the SVM training until the speed the two methods, SVM and SVMborders, matches. In some cases, SVM could not be made fast enough by subsampling, in which case skill was matched instead.
It might seem more expedient to directly subsample the support vectors themselves rather than the training data. This, however, was found not to work and generated a precipitous drop in accuracy. Since the sparse coefficient set, , is found through simultaneous optimization, the support vectors turn out to be interdependent.
Depending on how much the dataset is reduced, subsampling should be done with at least some care. On one hand, a more sophisticated subsampling technique might be considered a method on its own, comparable with the borders technique, but also likely requiring multiple training phases using the original technique thus making it significantly slower. On the other hand, at minimum we should consider the relative size of each class distribution. If there are roughly the same number of classes, then for small subsamples the relative numbers should be kept constant. The shuttle dataset, however, has very uneven class numbers so it was subsampled differently in order to ensure that the smallest classes retain some membership. Let be the number of samples of the th class. Then the subsampled numbers are given:
(40)
The form of used for the shuttle dataset was:
(41)
where , is determined based on the desired total fraction and is the number of samples in the smallest class. To understand how this functional form was chosen, please see Appendix A.
The results of the subsampling exercise are shown in Table 6. This gives us a clearer understanding of whether or not and when SVM acceration through borders sampling is effective. In some trials the speed increase is enough that even the AGFborders method will provide an improvement over a subsampled SVM model, the results for AGF being wholly disappointing. And in a few trials, the speed increase is so great, SVM cannot match the borders method even through subsampling.
AGFborders never beats SVM in skill and rarely even equals KNN even though it’s essentially the same method but using a more sophisticated kernel and with the borders training applied. Nonetheless, there is good reason to develop the method further: training time varies with the number of training samples () rather than with the square (). This is apparent for the largest datasets with more than a few thousand training samples at which point the AGFborders method starts to train faster than SVM.
There are at least three major sources of error for the AGFborders technique. First, the kernel method upon which it is based is only firstorder accurate. In particular, this will affect gradient estimates which are semianalytic: see Equation (28). Second, the borders method provides only limited sampling of the discrimination border and this sampling is not strongly optimized. The sampling method, using pairs of training points of opposite class, will tend to favour regions of high density, however directly optimizing for classification skill would be the ideal solution. Finally, the probability estimates extrapolate from only a single point. All these errors will tend to compound, especially after converting to multiple classes. Two of these errors sources also affect SVMborders but don’t seem to have a large effect on the final results.
One potential improvement is to recalibrate the probability estimates as done with the LIBSVM decision in equation (29) (Platt, 1999; Lin et al., 2007). There are many other methods of recalibrating classification probability estimates: see for instance NiculescuMizil and Caruana (2005); Zadrozny and Elkan (2001). Initial trials have shown some success. Recalibrating results for the splice dataset by a simple shift of the threshold value for the decision function, for instance, increases the uncertainty coefficient to 0.43 (accuracy=0.87) for AGFborders and 0.48 (accuracy=0.88) for SVMborders. This simplest method of recalibration is built in to the libAGF software and was used to good effect in Mills (2009) and Mills (2011). SVM results for the same problem were already well enough calibrated that no significant improvement could be made by the same technique. Other problems were better calibrated, even for the borders classifiers.
7 Conclusions
dataset  time (s)  U.C.  verdict

SVM  accel.  SVM  Accel.
heart  0.0  0.0  breaks even
shuttle  fails
sat  fails
segment  fails
dna  fails
splice  succeeds
splice  succeeds
codrna  succeeds
letter  fails
pendigits  fails
usps  ambiguous;
must be redone
mnist  fails
ijcnn1  succeeds
madelon  succeeds
seismic  succeeds
mushrooms  succeeds
phishing  succeeds
humidity  succeeds
SVMborders classifier has been calibrated.
The primary goal of this work was to improve the classification time of a SVM using a simple, piecewise linear classifier which we call the borders classifier. The outcome for each of the 17 datasets is summarized in Table 7. When trained from the SVM, the method succeeded for eight of the datasets and by the same criteria, when trained from the simpler pointwise estimator (“AGF”), as compared with SVM, it succeeded for six of the datasets if we include the calibrated splice results. Not a perfect score but certainly worthwhile to try for operational retrievals where time performance is critical, for instance classifying large amounts of satellite data in real time. This is especially so in light of the high performance ratios for some of the problems: the humidity dataset is sped up by almost 20 times, for instance, with even higher factors for some of the binary datasets.
It’s worthwhile to note where the algorithm is most likely to succeed and conversely where it might fail. One of the most successful trials was for the humidity dataset which produced one of the largest time improvements combined with relatively little loss of accuracy. This makes sense since the method was devised specifically for this problem and the humidity dataset epitomizes the characteristics for which the technique is most effective.
Since it assumes that the difference in conditional probabilities is a smooth and continuous function, the borders method tends to work poorly with integer or categorical data as well as problems with sharply defined, nonoverlapping classes. Indeed, two of the problems where it took the biggest hit in accuracy, dna and splice, use binary and categorical data respectively.
Also, since there is no redundancy in calculations for multiple classes, whereas in SVM there is considerable redundancy, problems with a large number of classes should also be avoided. This can be mitigated by using a multiclass classification method requiring fewer binary classifiers such as oneversustherest with performance or a decision tree with performance, rather than oneversusone with its time complexity.
The most important characteristic for success with the borders classification method is a large number of training samples used to train a SVM for maximum accuracy. This also implies a large number of support vectors, making the SVM slow. Choosing an appropriate number of border samples allows one to trade off accuracy for speed, with diminishing returns for larger numbers of border samples. The borders method, unlike SVM, also has a straightforward interpretation: the location of the samples represent a hypersurface that divides the two classes and their gradients are the normals to this surface. In this regard it is somewhat similar to rulebased classifiers such as decision trees.
There are many directions for future work. An obvious refinement would be to distribute the border samples less randomly and cluster them where they are most needed. As it is, the method of choosing by selecting random pairs of opposite classes, will tend to distribute them in areas of high density. The current, random method was found to work well enough. Another potential improvement would be to position the border samples so as to directly minimize classification error. This need not be done all at once as in some of the methods mentioned in the Introduction, but rather pointbypoint to keep the training relatively fast. A first guess could be found through a kernel method and then each pointed shifted along the normal. Piecewise linear statistical classification methods are simple, powerful and fast and we think they should receive more attention.
For certain types of datasets, particularly those with continuum features data, smooth probability functions (typically overlapping classes) and a large number of samples, the borders classification algorithm is an effective method of improving the classification time of kernel methods. Because it is not a standalone method, but requires probability estimates, it can acheive a fast training time since it is not solving a global optimization problem, yet still maintain reasonable accuracy. While it may not be the first choice for cracking “hard” problems, it is ideal for workaday problems, such as operational retrievals, for which speed is critical.
Appendix A Subsampling
Let be the number of samples of the th class such that:
Let be a function used to subsample each of the class distributions in turn:
We wish to retain the rank ordering of the class sizes:
while ensuring that the smallest classes have some minimum representation:
(42)
Thus:
(43)
The simplest means of ensuring that both (42) and (43) are fulfilled, is to multiply the right side of (43) with a constant, , and equate it with the left side:
Integrating:
The parameter, , is set such that:
where is the desired fraction of training data. With rearrangement:
References
 Alimoglu (1996) Alimoglu, F. (1996). Combining multiple classifiers for penbased handwritten digit recognition. Master’s thesis, Bogazici University.
 Bagirov (1999) Bagirov, A. M. (1999). Derivativefree methods for unconstrained nonsmooth optimization and its numerical analysis. Invstigacao Operacional, 19:75–93.
 Bagirov (2005) Bagirov, A. M. (2005). Maxmin separability. Optimization Methods and Software, 20(23):277–296.
 Chang and Lin (2011) Chang, C.C. and Lin, C.J. (2011). LIBSVM: A library for support vector machines. ACM Transactions on Intelligent Systems and Technology, 2(3):27:1–27:27.
 Chen et al. (2015) Chen, F., Yu, H., Yao, J., and Hu, R. (2015). Robust sparse kernel density estimation by inducing randomness. Pattern Analysis and Applications, 18:367.
 Duarte and Hu (2004) Duarte, M. F. and Hu, Y. H. (2004). Vehicle classification in distributed sensor networds. Journal of Parallel Distributed Computing, 64:826–838.
 Feldkamp and Puskorius (1998) Feldkamp, L. and Puskorius, G. V. (1998). A signal processing framework based on dynamic neural networks with application to problems in adaptation, filtering, and classification. Proceedings of the IEEE, 86(11):2259–2277.
 Frey and Slate (1991) Frey, P. and Slate, D. (1991). Letter recognition using hollandstyle adaptive classifiers. Machine Learning, 6(2):161–182.

Gai and Zhang (2010)
Gai, K. and Zhang, C. (2010).
Learning Discriminative Piecewise Linear Models with
Boundary Points.
In Proceedings of the TwentyFourth AAAI Conference on
Artificial Intelligence
, pages 444–450. Association for the Advancement of Artificial Intelligence.
 Guyon et al. (2004) Guyon, I., Gunn, S., Hur, A. B., and Dror, G. (2004). Results analysis of the NIPS 2003 feature selection challenge. In Proceedings of the 17th International Conference on Neural Information Processing Systems, pages 545–552, Vancouver. MIT Press.
 Herman and Yeung (1992) Herman, G. T. and Yeung, K. T. D. (1992). On piecewiselinear classification. IEEE Transactions on Pattern Analysis and Machine Intelligence, 14(7):782–786.
 Hsu and Lin (2002) Hsu, C.W. and Lin, C.J. (2002). A comparison of methods for multiclass support vector machines. IEEE Transactions on Neural Networks, 13(2):415–425.
 Huang et al. (2013) Huang, X., Mehrkanoon, S., and Suykens, J. A. K. (2013). Support vector machines with piecewise linear feature mapping. Neurocomputing, 117(6):118–127.
 Hull (1994) Hull, J. J. (1994). A database for handwritten text recognition research. IEEE Transactions on Pattern Analysis and Machine Intelligence, 16(5):550–554.
 Iba et al. (1988) Iba, W., Wogulis, J., and Lngley, P. (1988). Trading of simplicity and coverage in incremental concept learning. In Proceedings of Fifth International Conference on Machine Learning, pages 73–79.
 King et al. (1995) King, R. D., Feng, C., and Sutherland, A. (1995). Statlog: Comparision of Classification Problems on Large RealWorld Problems. Applied Artificial Intelligence, 9(3):289–333.
 Kohonen (2000) Kohonen, T. (2000). SelfOrganizing Maps. SpringerVerlag, 3rd edition.
 Kohonen et al. (1995) Kohonen, T., Hynninen, J., Kangas, J., Laaksonen, J., and Torkkola, K. (1995). LVQ PAK: The Learning Vector Quantization Package, Version 3.1.
 Kostin (2006) Kostin, A. (2006). A simple and fast multiclass piecewise linear pattern classifier. Pattern Recognition, 39:1949–1962.
 LeCun et al. (1998) LeCun, Y., Bottou, L., Bengio, Y., and Haffner, P. (1998). Gradientbased learning applied to document recognition. Proceedings of the IEEE, 86(11):2278–2324.
 Lee and Richards (1984) Lee, T. and Richards, J. A. (1984). Piecewise linear classification using seniority logic committee methods with application to remote sensing. Pattern Recognition, 17(4):453–464.
 Lee and Richards (1985) Lee, T. and Richards, J. A. (1985). A low cost classifier for multitemporal applications. International Journal of Remote Sensing, 6(8):1405–1417.
 Lichman (2013) Lichman, M. (2013). UCI machine learning repository.
 Lin et al. (2007) Lin, H.T., Lin, C.J., and Weng, R. C. (2007). A note on Platt’s probabilistic outputs for support vector machines. Machine Learning, 68(267):276.
 Michie et al. (1994) Michie, D., Spiegelhalter, D. J., and Tayler, C. C., editors (1994). Machine Learning, Neural and Statistical Classification. Ellis Horwood Series in Artificial Intelligence. Prentice Hall, Upper Saddle River, NJ. Available online at: http://www.amsta.leeds.ac.uk/~charles/statlog/.
 Mills (2009) Mills, P. (2009). Isoline retrieval: An optimal method for validation of advected contours. Computers & Geosciences, 35(11):2020–2031.
 Mills (2011) Mills, P. (2011). Efficient statistical classification of satellite measurements. International Journal of Remote Sensing, 32(21):6109–6132.
 Mohommad et al. (2014) Mohommad, R., Fadi Abdeljaber Thabtah, F. A., and McCluskey, T. (2014). Predicting phishing websites based on selfstructuring neural network. Neural Computing and Applications, 25(2):443–458.
 Müller et al. (2001) Müller, K.R., Mika, S., Rätsch, G., Tsuda, K., and Schölkopf, B. (2001). An introduction to kernelbased learning algorithms. IEEE Transactions on Neural Networks, 12(2):181–201.
 NiculescuMizil and Caruana (2005) NiculescuMizil, A. and Caruana, R. A. (2005). Obtaining calibrated probabilities from boosting. In Proceedings of the TwentyFirst Conference on Uncertainty in Artificial Intelligence, pages 413–420.
 Osborne (1977) Osborne, M. (1977). Seniority Logic: A Logic of a Committee Machine. IEEE Transactions on Computers, 26(12):1302–1306.
 Ott (1993) Ott, E. (1993). Chaos in Dynamical Systems. Cambridge University Press.
 Pavlidis et al. (2016) Pavlidis, N. G., Hofmeyr, D. P., and Tasoulis, S. K. (2016). Minimum Density Hyperplanes. Journal of Machine Learning Research, 17(156):1–33.
 Platt (1999) Platt, J. (1999). Probabilistic outputs for support vector machines and comparison to regularized likelihood methods. In Advances in Large Margin Classifiers. MIT Press.
 Press et al. (1992) Press, W. H., Teukolsky, S. A., Vetterling, W. T., and Flannery, B. P. (1992). Numerical Recipes in C. Cambridge University Press, 2nd edition.
 Shannon and Weaver (1963) Shannon, C. E. and Weaver, W. (1963). The Mathematical Theory of Communication. University of Illinois Press.
 Sklansky and Michelotti (1980) Sklansky, J. and Michelotti, L. (1980). Locally trained piecewise linear classifiers. IEEE Transactions on Pattern Analysis and Machine Intelligence, 2(2):101–111.
 Tenmoto et al. (1998) Tenmoto, H., Kuda, M., and Shimbo, M. (1998). Piecewsise linear classifiers with an appropriate number of hyperplanes. Pattern Recognition, 31(11):1627–1634.
 Terrell and Scott (1992) Terrell, D. G. and Scott, D. W. (1992). Variable kernel density estimation. Annals of Statistics, 20:1236–1265.
 Uzilov et al. (2006) Uzilov, A. V., Keegan, J. M., and Mathews, D. H. (2006). Detection of noncoding rnas on the basis of predicted secondary structure formation free energy change. BMC Bioinformatics, 7:173.
 Wang and Saligrama (2013) Wang, J. and Saligrama, V. (2013). LocallyLinear Learning Machines (L3M). In Proceedings of Machine Learning Research, volume 29, pages 451–466.
 Webb (2012) Webb, D. (2012). Ef
Comments
There are no comments yet.
