Network embedding (NE) methods have shown outstanding performance on a number of tasks including node classification [Bhagat et al.2011, Perozzi et al.2014], community detection [Wang et al.2017] and link prediction [Lü and Zhou2011]. These methods aim to learn latent, low-dimensional representations for network nodes while preserving network topology structure information. Networks’ structures are inherently hierarchical [Perozzi et al.2017]. As shown in Figure 1, each individual is a member of several communities and can be modeled by his/her neighborhoods’ structure information with different scales around him/her, which range from short scales structure (e.g. families, friends), to long distance scales structure (e.g. society, nation states). Every single scale is usually sparse and biased, and thus the node embedding learned by existing approaches may not be so robust. To obtain comprehensive representation of a network node, multi-scale structure information should be considered collaboratively.
Recently, a number of methods have been proposed for learning data representations from multiple scales. For example, DeepWalk [Perozzi et al.2014] models multi-scale indirectly from random walk. Line [Tang et al.] proposes primarily a breadth-first strategy, sampling nodes and optimizing the likelihood independently over short scales structure information such as 1-order and 2-order neighbors. GraRep [Cao et al.2015] generalizes LINE to incorporate information from network neighborhoods beyond 2-order, which can embed long distance scales structure information to the node representation. More recently, some autoencoder based methods, such as DNGR [Cao et al.2016] and ADNE [Wang et al.2016], are proposed. DNGR [Cao et al.2016]
learns the node embedding through stacked denoising autoencoder from the multi-scale PPMI matrix. Similarly, SDNE[Wang et al.2016] is realized by a semi-supervised deep autoencoder model.
Despite their strong task performance, existing methods have the following limitations: (1) Lack of weight learning. To learn robust and stable node embeddings, the information from multiple scales needs to be integrated. During integration, as the importance of different scales can be quite different, their weights need to be carefully decided. For example, if we consider very young kids on a social network, and they may be very tightly tied to their family and loosely tied to the society members. However, for university students, they may have relatively more ties to their friends and the society than very young kids. Existing approaches usually assign equal weights to all scales. In other words, different scales are equally treated, which is not reasonable for most multi-scale networks. (2) Insufficient constrain for embedding distribution
. Take the autoencoder based method for example, an autoencoder is a neural network trained to attempt to copy its input to its output, which has a typical pipeline like (). Autoencoder only requires to approach , and for that purpose the decoder may simply learn to reconstruct regardless of the distribution obtained from . This means that can be very irregular, which sometimes makes the generation of new samples difficult or even infeasible.
In this paper, we focus on the multi-scale network embedding problem and propose a novel Attention-based Adversarial Autoencoder Network Embedding(AAANE) method to jointly capture the weighted scale structure information and learn robust representation with adversarial regularization. We first introduce a set of scale-specific node vectors to preserve the proximities of nodes in different scales. The scales-specific node embeddings are then combined for voting the robust node representations. Specifically, our work has two major contributions. (1) To deal with the weights learning, we propose an attention-based autoencoder to infer the weights of scales for different nodes, and then capture the highly non-linear network structure, which is inspired by the recent progress of the attention mechanism for neural machine translation[Luong et al.2015, Qu et al.2017]. (2) To implement regularisation of the distribution for encoded data, we introduce adversarial training component [Goodfellow et al.2014] to the attention-based autoencoder, which can discriminatively predict whether a sample arises from the low-dimensional representations of the network or from a sampled distribution. Adversarial regularisation reduces the amount of information that may be held in the encoding, forcing the model to learn an efficient representation of the data. Through the attention-based weight learning together with the adversarial regularization, the proposed AAANE model can effectively combine the virtues of multiple scale information to complement and enhance each other.
We empirically evaluate the proposed AAANE approach through network visualization and node classification on benchmark datasets. The qualitative and quantitative results prove the effectiveness of our method. To the best of our knowledge, this is the first effort to adopt the attention-based approach in the problem of multi-scale network embedding.
In this section, we briefly discuss necessary preliminaries of network embedding. First, we clarify the notations and formalize the problem of NE. Then we introduce the concept of -order proximity for multi-scale embedding learning.
2.1 Notations and Definitions
Ntwork Embedding, NE: An information network is represented as , where consist a set of nodes, is an edge indicating the relationship between two nodes. The task of NE aims to build a low-dimensional representation for each node , where is the dimension of embedding space and expected much smaller than node number .
We define adjacency matrix for a network and
is a diagonal degree matrix. Assuming we would like to capture the transitions from one node to another, we can define the (first-order) probability transition matrix, where is the probability of a transition from node to node within one step. It can be observed that the matrix is a normalized adjacency matrix where the summation of each row equals to 1.
2.2 Problem Definition
In this paper, multi-scale structural information serves two functions: 1) the capture of long-distance relationship between two different vertices and 2) the consideration of distinct connections in terms of different transitional orders.
The (normalized) adjacency matrix characterizes the first-order proximity which models the local pairwise proximity between vertices. As discussed earlier, we believe that the -order (with varying ) long scale relational information from the network needs to be captured when constructing such multi-scale network embedding [Cao et al.2015, Yang et al.2017]. To compute the various scale transition probabilities, we introduce the following -order probability proximity matrix:
where the entry refers to the -order proximity between node and .
Multi-Scale Network Embedding: Given a network , the robust node representation can be collaboratively learned from successively network structural information representation, , where captures the view of the network at scale . Intuitively, each member of the family encodes a different view of social similarity, corresponding to shared membership in latent communities at differing scales.
3 The Framework
In this section, we first give a brief overview of the proposed AAANE, and then formulate our method of multi-scale network embedding from attention based adversarial autoencoder.
3.1 An overview of the framework

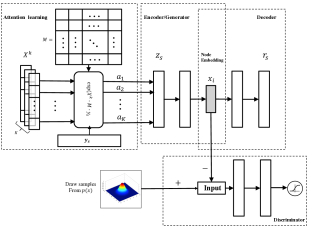

In this work, we leverage attention-based adversarial autoencoder to help learn stable and robust node embedding. Figure 2 shows the proposed framework of Attention-based Adversarial Autoencoder for Network Embedding (AAANE), which mainly consists of two components, i.e., an attention-based autoencoder and an adversarial learning component.
Unlike the matrix factory based dimension reduction method [Cao et al.2015]
, which maps from the original embedding space to a new space with a lower rank through a linear projection, an autoencoder can employ non-linear activation function, such asor , to capture complex, non-linear projections from the inputs to the outputs. More importantly, we introduce an attention mechanism to the autoencoder for learning the weights of structure information with different scales. A standard autoencoder consists of an encoder network and a decoder network. The encoder maps the network structure information into a latent code , and the decoder reconstructs the input data as .
Then, the adversarial learning component acts as regularization for the autoencoder, by matching the aggregated posterior, which helps enhance the robustness of the representation . The generator of the adversarial network is also the encoder of the autoencoder. The adversarial network and the autoencoder are trained jointly in two phases: the reconstruction phase and the regularization phase. In the reconstruction phase, the autoencoder updates the encoder and the decoder to minimize the reconstruction error of the inputs. In the regularization phase, the adversarial network first updates its discriminative network to tell apart the true samples (generated using the prior) from the generated samples (the hidden node embedding computed by the autoencoder). As a result, the proposed AAANE can jointly capture the weighted scale structure information and learn robust representations.
3.2 Attention-based Autoencoder
The Attention-based Autoencoder for network embedding(AANE) model uses a stacked neural network to preserve the structure information. As we discussed in section 2, different -order proximity matrices preserve network structure information in different scales. Scale vector is column in each , for , which denotes the -th scale structure information for the node. The length of each scale vector is the same as the node size. The autoencoder component tries to capture the full range of structure information. We construct a vector representation for each node as the input of the autoencoder in the first step. In general, we expect this vector representation to capture the most relevant information with regards to different scales of a node. is defined as the weighted summation of every scale vector , corresponding to the scale index for each node.
For each scale vector of one node, we compute a positive weight which can be interpreted as the probability that is assigned by one node. Intuitively, by learning proper weights for each node, our approach can obtain most informative scale information. Following the recent attention based models for neural machine translation, we define the weight of scales for a node using a softmax unit as follows:
where is the average of different scale vector, which can capture the global context of the structure information. is a matrix mapping between the global context embedding and each structure scale vector , which is learned as part of the training process. By introducing an attentive matrix , we compute the relevance of each scale vector to the node [dos Santos et al.2016, He et al.2017]. If and have a large dot product, this node believes that scale is an informative scale, i.e., the weight of scale for this node will be largely based on the definition.
Once we obtain the weighted node vector representation , a stacked autoencoder is used to learn a low-dimensional node embedding. An autoencoder performs two actions, an encoding step, followed by a decoding step. In the encoding step, a function is applied to the original vector representation in the input space and send it to a new feature space. An activation function is typically involved in this process to model the non-linearities between the two vector spaces. At the decoding step, a reconstruction function is used to reconstruct the original input vectors back from the latent representation space. The is the reconstructed vector representation. After training, the bottleneck layer representations can be viewed as the low dimension embedding for the input node .
This attention-based autoencoder is trained to minimize the reconstruction error. We adopt the contrastive max-margin objective function, similar to previous work [Weston et al.2011, Iyyer et al.2016, He et al.2017]. For each input node, we randomly sample nodes from our training data as negative samples. We represent each negative sample as , which is computed by averaging its scale vectors as . Our objective is to make the reconstructed embedding similar to the target node embedding while different from those negative samples . Therefore, the unregularized objective is formulated as a hinge loss that maximizes the inner product between and , and minimizes the inner product between and the negative samples simultaneously:
where represents the training dataset.
3.3 Adversarial Learning
We hope to learn vector representations of the most representative scale for each node. An autoencoder consists of two models, an encoder and a decoder, each of which has its their own set of learnable parameters. The encoder is used to get a latent code from the input with the constraint. The dimension of the latent code should be less than the input dimension. The decoder takes in this latent code and tries to reconstruct the original input. However, we argue that training an autoencoder gives us latent codes with similar nodes being far from each other in the Euclidean space, especially when processing noisy network data. The main reason is the insufficient constrain for embedding distribution. Adversarial autoencoder (AAE) addresses these issues by imposing an Adversarial regularization to the bottleneck layer representation of autoencoder, and then the distribution of latent code may be shaped to match a desired prior distribution. Adversarial regularisation can reduce the amount of information that may be held in the encoding process, forcing the model to learn an efficient representation for the network data.
AAE typically consists of a generator and a discriminator . Our main goal is to force output of the encoder to follow a given prior distribution
(this can be normal, gamma .. distributions). We use the encoder as our generator, and the discriminator to tell if the samples are from a prior distribution or from the output of the encoder. D and G play the following two-player minimax game with the value function V (G, D):
where is the distributions of encoded data samples.
3.4 Training Procedure
The whole training process is done in three sequential steps: (1) The encoder and decoder are trained simultaneously to minimize the reconstruction loss of the decoder as equation 4. (2) The discriminator is then trained to correctly distinguish the true input signals from the false signals , where the is generated from target distribution, and
is generated by the encoder by minimizing the loss function5. (3) The next step will be to force the encoder to fool the discriminator by minimizing another loss function: . More specifically, we connect the encoder output as the input to the discriminator. Then, we fix the discriminator weights and fix the target to 1 at the discriminator output. Later, we pass in a node to the encoder and find the discriminator output which is then used to find the loss.
In this section, we conduct node classification on sparsely labeled networks to evaluate the performance of our proposed model.
We employ the following three widely used datasets for node classification.
Cora. Cora is a research paper set constructed by [McCallum et al.2000]
. It contains 2, 708 machine learning papers which are categorized into 7 classes. The citation relationships among them are crawled form a popular social network.
Citeseer. Citeseer is another research paper set constructed by [McCallum et al.2000]. It contains 3, 312 publications and 4, 732 links among them. These papers are from 6 classes.
Wiki. Wiki [Sen et al.2008] contains 2, 405 web pages from 19 categories and 17, 981 links among them. Wiki is much denser than Cora and Citeseer.
4.2 Baselines and Experimental Settings
We consider a number of baselines to demonstrate the effectiveness and robustness of the proposed AAANE algorithm. For all methods and datasets, we set the embedding dimension .
DeepWalk [Perozzi et al.2014]: DeepWalk first transforms the network into node sequences by truncated random walk, and then uses it as input to the Skip-gram model to learn representations.
LINE [Tang et al.]: LINE can preserve both first-order and second-order proximities for the undirected network through modeling node co-occurrence probability and node conditional probability.
GraRep [Cao et al.2015]: GraRep preserves node proximities by constructing different -order transition matrices.
node2vec [Grover and Leskovec2016]: node2vec develops a biased random walk procedure to explore the neighborhood of a node, which can strike a balance between local properties and global properties of a network.
AIDW [Dai et al.2018]: Adversarial Inductive DeepWalk (AIDW) is an Adversarial Network Embedding (ANE) framework, which leverages random walk to sample node sequences as the structure-preserving component.
In our experimental settings, we vary the percentage of labeled nodes from to by an increment of for each dataset. For DeepWalk, LINE, GraRep, node2vec, we directly use the implementations provided by OpenNE toolkit111https://github.com/thunlp/OpenNE. For our methods AAANE, the maximum matrix transition scale is set to 8, and the number of negative samples per input sample is set to 7. For attention-based autoencoder, it has three hidden layers, with the layer structure as
. For the discriminator of AAANE, it is a three-layer neural network, with the layer structure as 512-512-1. And the prior distributions are Gaussian Distribution following the original paper[Makhzani et al.2015].
4.3 Multi-label Classification
Table 1, Table 2 and Table 3 show classification accuracies with different training ratios on different datasets, where the best results are bold-faced. In these tables, AANE denotes our model AAANE without Adversarial component. From these tables, we have the following observations:
The proposed framework, without leveraging the adversarial regularization version AANE, achieving average gains over AIDW on cora and wiki when varying the training ratio from to in most cases, and slightly better result on Citeseer, which suggests that assigning different weights to different scales of a node may be beneficial.
After introducing Adversarial component into AANE, our Method AAANE can achieve further improvements over all baselines. It demonstrates that adversarial learning regularization can improve the robustness and discrimination of the learned representations.
AAANE consistently outperforms all the other baselines on all three datasets with different training ratios. It demonstrates that attention-based weight learning together with the adversarial regularization can significantly improve the robustness and discrimination of the learned embeddings
Another important application for network embedding is to generate visualizations of a network on a two-dimensional space. Therefore, we visualize the learned representations of the Cora network using the -SNE package [Maaten and Hinton2008]. For documents in cora dataset, which are labeled as different categories, we use different colors on the corresponded points. Therefore, a satisfactory visualization result is that the points of the same color are close to each other. From Figure 3, we observe that the representations learned by baseline methods tend to mix together. On the contrary, AAANE learns a better clustering and separation of the vertices, and the boundaries of each group become much clearer. This improvement proves the effectiveness of our discriminative learning model.
4.5 Analysis of the Learned Attentions Over Scales
In our proposed AAANE model, we adopt an attention based approach to learn the weights of scales during voting, so that different nodes can focus most of their attentions on the most informative scales. The quantitative results have shown that AAANE achieves better results by learning attention222The term attention and the term weight have the same meaning here.over scales. In this part, we will examine the learned attention to understand why it can help improve the performances.
We study which scale turn to attract more attentions from nodes. We take the Cora and Wiki datasets as examples. For each scale, we report the results of the scale-specific embedding corresponded to this scale, which achieves by taking only one scale vector as an input of autoencoder. Then, we compare this scale-specific embedding with the average attention values learned by AAANE. The results are presented in Figure 4. Overall, the performances of single scale and the average attention received by these scales are positively correlated. In other words, our approach can allow different nodes to focus on the scales with the best performances, which is quite reasonable.
4.6 Parameter Sensitivity
We discuss the parameter sensitivity in this section. Specifically, we assess how the different choices of the maximal scale size K, dimension can affect node classification with the training ratio as .
Figure 5(a) shows the accuracy of AAANE over different settings of the dimension . The accuracy shows an apparent increase at first. This is intuitive as more bits can encode more useful information in the increasing bits. However, when the number of dimensions continuously increases, the performance starts to drop slowly. The reason is that too large number of dimensions may introduce noises which will deteriorate the performance. Figure 5(b) shows the accuracy scores over different choices of . We can observe that the setting has a significant improvement over the setting , and further outperforms . This confirms that different -order can learn complementary local information. When is large enough, learned -order relational information becomes weak and shifts towards a steady distribution.
5 Related Work
To preserve multi-scale structure information, some random walk and matrix factorization methods [Perozzi et al.2014, Cao et al.2015, Perozzi et al.2017] have been proposed. GraRep [Cao et al.2015] accurately calculates -order proximity matrix, and computes specific representation for each
using SVD based dimension reduction method, and then concatenates these embeddings. Another line of the related work is deep learning based methods. SDNE[Wang et al.2016] , DNGR [Cao et al.2016] utilize this ability of deep autoencoder to generate an embedding model that can capture non-linearity in graphs. AIDW [Dai et al.2018] proposes an adversarial network embedding framework, which leverages the adversarial learning principle to regularize the representation learning. However, existing approaches usually lack weight learning for different scales.
Our work is also related to the attention-based models. Rather than using all available information, attention mechanism aims to focus on the most pertinent information for a task and has been applied to various tasks, including machine translation [Bahdanau et al.2014, Luong et al.2015] and sentence summarization [Rush et al.2015, Shen et al.2017] and question answering [Hermann et al.2015]. MVE [Qu et al.2017] proposes a multi-view network embedding, which aims to infer robust node representations across different networks.
6 Conclusion and Future Work
In this paper, we study learning node embedding for networks with multiple scales. We propose an effective framework to let different scales collaborate with each other and vote for the robust node representations. During voting, we propose an attention-based autoencoder to automatically learn the voting weights of scales while preserving the network structure information in a non-linear way. Besides, an Adversarial regularization is introduced to learn more stable and robust network embedding. Experiments on node classification and visualization tasks demonstrate the superior performance of our proposed method in learning effective network embedding.
