1 Introduction

With the advent of modern data-intensive applications (e.g., Big Data, social networks, or IoT), NoSQL (Not only SQL

) database systems emerged to overcome the limitations that relational systems evidenced to support such applications, namely, scalability, availability, flexibility, and ability to represent complex objects. These systems are classified in several database paradigms, but commonly the term NoSQL refers to four of them:

columnar, key-value, document, and graph systems. NoSQL systems of the same paradigm can have significant differences in features and in the structure of the data. This is because there is no specification, standard, or theory that establishes the data model of a particular paradigm. Therefore, we will assume here the data model of the most popular stores of each category. Table 1 shows the main features of the four mentioned NoSQL paradigms.

NoSQL System Types
Type Data structure Appropriateness Database Systems
Key-value Associative array of key-value pairs Frequent small read and writes with simple data Redis, Memcache
Columnar Tables of rows with varying columns. Column-based physical storage High performance, availability, scalability, and large volumes of data for OLAP queries HBase, Cassandra
Document JSON-like document collections Nested Objects, structural variation, and large volumes of heterogeneous data MongoDB, Couchbase
Graphs Data connected in a graph Highly connected objects, references prevail over nested objects Neo4J, OrientDB
Table 1: Types of NoSQL systems and some example implementations.

Over last years, as the popularity of NoSQL systems increased,111Four of the top 10 being NoSQL systems in the DB engines ranking (https://db-engines.com/en/ranking) as of January 2021: MongoDB (5), Redis (7), Elasticsearch (8), and Cassandra (10). polyglot persistence (a new term coined for heterogeneous database systems) has been gaining acceptance as the data architecture of the future: applications using the set of databases that better fit their needs. Today, relational databases are still clearly the most used by a wide margin, but most popular relational systems are evolving to support NoSQL features.222Top-8 systems in the DB engines ranking (https://db-engines.com/en/ranking are multi-model. Two facts have motivated this interest in polyglot persistence [48, 42]: (i) the complexity and variety of data to be managed by software systems, and (ii) a single type of database system does not fit all the needs of an increasing number of systems (e.g., learning management systems, online retail systems, or social networks.)

The successful adoption of NoSQL requires database tools similar to those available for relational systems. This entails to investigate how common database utilities can be available for NoSQL systems. In addition, these tools should be built taking into account the expected predominance of polyglot persistence. Thus, they should support widespread relational databases as well as NoSQL databases. In the case of data modeling tools, the shift towards multi-model solutions is evident: the most popular relational modeling tools are being extended to integrate NoSQL stores (e.g. ErWin333http://erwin.com/products/erwin-data-modeler. and ER/Studio444https://www.idera.com/er-studio-enterprise-architecture-solutions. provide functionality for MongoDB) and new tools supporting a number of relational and NoSQL databases have appeared (e.g. Hackolade555https://hackolade.com/.). This multi-model nature should be considered for database tooling, i.e., tools should support multiple data models.

Data models determine how data can be organized and manipulated in databases. They are applied to a particular domain by defining schemas that express the structure and constraints for the domain entities. Such information, provided by schemas, is necessary to implement many database tools. However, most NoSQL systems are schemaless (a.k.a “schema-on-read”), that is, data can be directly stored without requiring the previous declaration of a schema. This feature is motivated by the fact that the pace of data structure changes is considerably faster in the new data-intensive applications. Being schemaless does not mean the absence of a schema, but that the schema information is implicit in data and code. Therefore, the schemas implicit in NoSQL stores must be reverse engineered in order to build a cohesive set of utilities for NoSQL databases such as schema viewers, query optimizers, or code generators. This reverse engineering process must tackle the fact that “schema-on-read” systems can store data with different structure even belonging to the same database entity type (and relationship type in graphs), i.e., each entity or relationship type can have one or more structural variations. Recently, several NoSQL schema extraction approaches have been published [43, 36, 52], and some data modeling tools such as those mentioned above provide some kind of reverse engineering functionality.

When building multi-model database tools, the definition of a generic, universal, or unified metamodel can provide some benefits [20, 10, 7, 35, 51]. It offers a unified view of different data models, so that their schemas will be represented in a uniform way. This uniformity facilitates building generic tools that are database-independent. With the predominance of relational databases, the interest in multi-model tools declined, and little attention has been paid to the definition of unified metamodels. A remarkable proposal is the DB-Main approach [20, 34] that defined the GER generic metamodel based on the EER (Extended Entity Relationship) data model. More recently, some universal metamodels [7, 35] have been created in the context of “Model Management” [10, 9]. With the emergence of NoSQL systems, some unified metamodels have been proposed to have a uniform access to data [7, 5], and the idea of an unified metamodel for data modeling tools was outlined in [51].

In the past years, we defined a reverse engineering strategy to infer logical schemas from document NoSQL databases [43], and have presented approaches to visualize inferred schemas [30] and automatically generate object-document mappers code [32] from schemas. Currently, we are tackling the definition of a synthetic data generation approach [33], and the extraction of implicit physical schemas from NoSQL data [38]. As our intention is to build multi-model database utilities, we have tackled the definition of a unified metamodel named U-Schema, which is capable of representing schemas for the four most common NoSQL data models, as well as the relational model. In this paper, we present U-Schema jointly with a data model for each NoSQL paradigm, and the mapping from those data models to U-Schema (forward mappings), and from U-Schema to the data models (reverse mappings). Common strategies are defined to implement and validate the mappings. Several applications of U-Schema are then commented.

The research contributions of this work are as follows:

  1. To our knowledge, we present the first unified metamodel able to represent logical schemas both for the four most common kinds of NoSQL systems and relational systems. Two salient features of our proposal are: (i) U-Schema includes the notion of structural variation for entity and relationship types, as most NoSQL systems are schemaless, and (ii) unlike other proposals, the four kinds of relationships between entities that are typical in logical data modeling are supported by U-Schema: aggregation, references, graph relationships, and generalization. Capturing structural variability allows us to accurately describe the structure of the stored data.

  2. Defining the forward and reverse mappings between U-Schema and the data models that it integrates, we have established the notion of canonical mapping in which there is a natural correspondence between each element of a data model and elements of U-Schema. For each data model, its canonical mapping has been formally defined, as well as the reverse mapping for characteristics not present in the considered data model (e.g. graph systems do not support aggregate relationships, or structural variation is not possible in relational tables.)

  3. A common strategy is proposed to extract unified schemas from databases. This strategy has been applied to implement canonical mappings for each paradigm integrated in U-Schema. As far as we know, all the schema extraction proposals for NoSQL stores, only consider one kind of store, normally document-based [36, 52] or graph [17]. Our strategy also takes into account scalability and performance, using MapReduce processing on the native data.

  4. We provide insights on how U-Schema can ease the implementation of database utilities in multi-model and multi-database environments such as database migration, schema queries, data generation for testing, query optimization, and schema visualization.

  5. We have defined the U-Schema metamodel with the Ecore metamodel, which is the central element of the Eclipse Modeling Framework (EMF) [47]

    , a widely used open-source platform to develop

    Model-Driven Software Engineering (MDE) solutions [11]. Thus, the proposal is open to be used and incorporated in any future database tool development.

The rest of this paper is organized as follows. Next section will present the U-Schema data model. Then, Section 3 will describe the common process devised to reverse engineer implicit schemas from data, introduce a running example database, and will explain the common strategy applied to validate and assert the performance of the schema extraction algorithms. Next five sections will be devoted to define a logical data model, formally specify the mapping between U-Schema and the data model defined, and show the implementation and validation of the corresponding forward mapping. Once presented the unified metamodel and the mappings, we will discuss how they can be applied in common database tasks. Finally, we will contrast our proposal with related works, draw some conclusions, and outline further work.

2 The U-Schema Unified Data Model

2.1 Logical Modeling Concepts in U-Schema

A data model provides a set of concepts to specify the structure and constraints of a database type, and a schema results of applying a concrete data model on a domain or problem. A schema is therefore an instance of a data model. Given a particular data model, textual and graphical languages can be defined to express schemas.

Data models (and therefore schemas) can be defined at different levels of abstraction. Typically, they are classified in three categories: conceptual, logical, and physical. Conceptual schemas represent the domain of an application in a platform-independent way. Logical schemas describe data structures and constraints, but providing physical independence. Finally, Physical schemas include all details needed to implement a logical schema on a specific database system.

At the logical or physical level, a unified or generic data model can be defined to integrate concepts from several data models with the purpose of offering a uniform representation. When using a unified model for data models, instead of managing mappings (each data model with the others), only mappings are needed (between the unified and each of the integrated data models in both directions.)

U-Schema is a unified logical model that integrates the concepts and rules of both the relational model and the four most common NoSQL data models: columnar, document, graph, and key-value. While the relational model is a well-defined data model, there is no specification, standard, or theory that establishes the data model of a particular NoSQL paradigm. In fact, NoSQL systems of the same kind can have significant differences in features and in the structure of the data. We have therefore defined a logical model for each NoSQL category by abstracting from the logical/physical data organization of the most popular stores of each category. This section will present U-Schema, while the logical model defined for each particular NoSQL paradigm will be presented in the section devoted to describe how that data model has been integrated into U-Schema.

U-Schema includes the basic concepts traditionally used to create logical schemas, which are part of well-known formalisms such as Entity-Relationship (ER) [44] and UML Class Models [41]: entity type, simple and multivalued attributes, key attribute, and three kinds of relationships between entity types: aggregation, reference, and inheritance. Also, U-Schema incorporates some additional concepts, such as relationship types (as they are considered in the graph data model [3]), and structural variations of entity and relationship types. Before presenting the U-Schema metamodel, we will define all these concepts. Not all concepts will be present in all of the data models supported by U-Schema. For example, the relationship type is exclusive of the graph model, but conversely, it does not define aggregation.

In data models, an entity type is normally characterized by a set of named properties. Properties can be of several kinds depending on the type of the object or value a property can hold. Three common kinds are: attributes, aggregations, and references. Given a property , it would be an attribute if it can take values of scalar type (e.g. Number) or structured type (i.e. Array or Set), and it would be an aggregation or reference if it is associated to an entity type whose objects are, respectively, embedded in or referenced from objects of the entity type , to which the property belongs. Keys are a special kind of attribute able to record values used as identifiers of instances of entity types.

Graph data models include relationship types in addition to entity types. While nodes are instances of entity types, arcs are instances of relationship types, which can have attributes. Hereafter, we will use “schema type” to gather both entity and relationship types.

Schemas play a similar role to types in programming languages. Given a database schema , only data conforming to can be stored in the database. Therefore, all data of an entity type (resp. a relationship type ) will have the same structure, that defined for (resp. ) in . In absence of schema declarations, however, data of and can have different structure, that is, and will have one or more structural variations.

A structural variation of a schema type is formed by a set of properties , and each pair of variations of differ, at least, in one property. The set is therefore the union of the sets of properties of each of its variations. The set is commonly called union schema of a schema type in a schemaless system. The properties of an schema type can therefore be classified as common or specific, depending on whether they are present in all the variations, or in a subset of them. It is worth noting that specifying a schema type as the union schema, the information on its structural variability is lost. We have considered convenient to record this structural variability in data models defined for NoSQL databases, and therefore the notion of “variation” will be part of U-Schema.

When structural variations are considered, entity and relationship types can be defined as follows.

  • An entity type has a name and is formed by a set of structural variations.

  • A relationship type (only for graph stores) has a name, is formed by a set of structural variations, and refers to both a source and a target entity type.

  • A structural variation is formed by a set of named properties. The kind of properties depend on the data model, and can be: attributes, keys, aggregates, and references.

Table 2 shows the correspondence between concepts of each of the considered database kinds and the logical modeling concepts that we will use in U-Schema. We will use these concepts to abstract a logical data model for the most popular systems of each NoSQL paradigm. These models will be presented in sections 4 to 7.

Logical modeling concepts Relational Columnar Document Graph Key/Value
Schema Schema Database or Keyspace Database Graph Database or Namespace
Entity Type Table Table with column families Collection and nested object Node label Multirow entities
Relationship Type N/A N/A N/A Relation type N/A
Structural Variation Table (only one variation) Rows with different structure within column families Documents with different structure in a collection Same label with different structure Multirow entities with different structure
Key Primary key Row key Document key N/A Pair key
Reference Foreign key Join between tables Join between documents N/A Join between pairs
Aggregation N/A Nested object Nested object N/A Nested object
Attribute Column Column Document property Node and Relation property Pair Value
Primitive Types Scalar Types Scalar Types Scalar Types Scalar Types Scalar Types
Structured Types N/A Collections Collections Array Collections
Table 2: Mapping between logical modeling concepts and NoSQL/Relational Database Systems.

2.2 The U-Schema Metamodel

Data models are commonly expressed formally in form of metamodels. A metamodel is a model that describes a set of concepts and relationships between them. That description determines the structure of models that can be instantiated from the metamodel elements, i.e. a metamodel is a model of a model. Object-oriented conceptual modeling is usually applied to create metamodels: concepts and their properties are modeled with classes, and reference, aggregation, and inheritance relationships are used to model relationships between concepts. Figure 1 shows the metamodel of the U-Schema data model in form of a UML class diagram. Below, we describe this metamodel.

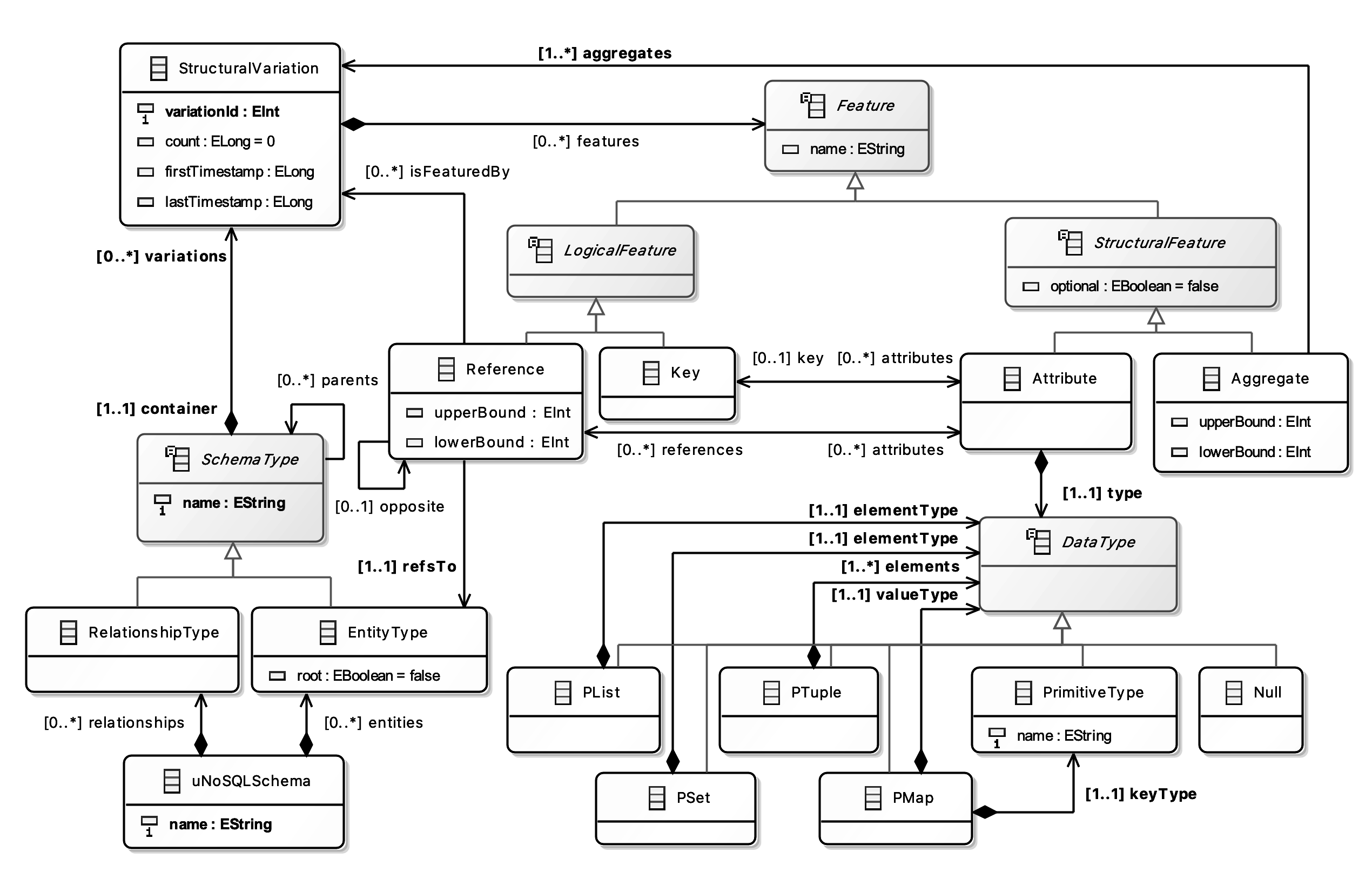

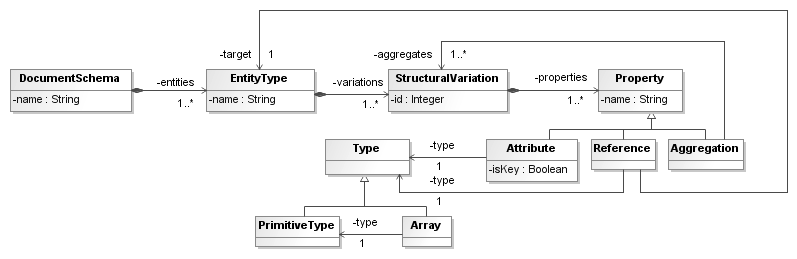

Figure 1: U-Schema Metamodel.

A U-Schema model represents a schema formed by a collection of types (SchemaType) that can be either entity types (EntityType) or relationship types (RelationshipType). Both types have two common properties: They include one or more structural variations (StructuralVariation), and they can form a type hierarchy (parent relationship).

A StructuralVariation has an identifier and is characterized by a set of logical and structural features. StructuralFeatures determine the structure of database objects, and include Attributes and Aggregates, while logical features specify what identifies an object (Key), and which References an object has to other objects.

Each attribute has a name and a data type. The data types included are: Primitive (e.g., Number, String, Boolean), collections (sets, maps, lists, and tuples), and the special Null type. Also, the JSON and BLOB primitive types are included to support relational systems. An aggregation has a name, a cardinality (upper and lower bound), and refers to the structural variation it aggregates, or to a list of variations, if the aggregated object is an heterogeneous collection.

Unlike aggregations, references refer to an entity type (via refsTo), and one or more attributes that match the set of key attributes of the referenced object (all the variations of an entity type must have the same key.) References also have a name, a cardinality, and an optional inverse reference (opposite). Additionally, references can have their own attributes when they represent graph arcs. This entails that a reference has to specify which variation (of its RelationshipType) its set of attributes corresponds to (isFeaturedBy). Key represents the set of attributes playing the role of key for an entity type, holding a unique set of values for each element of the type. Reference also points to the set of attributes that form the referenced key (attributes property).

The aggregation relationship allows objects to be recursively embedded, then forming aggregation hierarchies. In these hierarchies, the identification of the root element is important. Thus, an entity type includes a boolean attribute named root to indicate whether or not their entities are aggregated by others (aggregates relationship).

U-Schema also records information that could be useful to implement some database tasks. For example, as shown in Figure 1, StructuralVariations have a count attribute to record the number of objects that belong to each variation, and two timestamps that hold the creation dates for the first and last stored object of a variation (firstTimestamp and lastTimestamp).

The U-Schema metamodel has been defined with the Ecore metamodeling language. Ecore is the central element of Eclipse Modeling Framework (EMF) [47], a framework widely used to develop Model-Driven Software Engineering (MDE) solutions [11]. EMF-provided tools such as model transformation languages, model comparison and diff/merge tools, or workbenches for the creation of domain-specific languages (DSLs) could be used to build database tools based on U-Schema models. Metamodeling has traditionally been applied to define data models, and transformational approaches have been proposed to tackle problems involving schema mappings [27, 9]. However, the database engineering community has paid little attention to MDE techniques and tools, although metamodeling and model transformations foundations are well established in the MDE field. Using Ecore, we obtain two benefits: leveraging the EMF tooling to develop database utilities, and favor their interoperability with other tools [8].

2.3 U-Schema Flavors: Full Variability vs. Union Schema

U-Schema allows to accommodate the definition of two model flavors:

  • Full Variability: All structural variations of all entity and relationship types are stored.

  • Union Schema: Only one structural variation is stored for each schema type. Structural variability is recorded by using the optional boolean attribute of Feature to indicate if a feature is present or not in all the objects of an schema type. Union schemas are the schemas normally obtained in NoSQL schema discovering processes [36, 52], and visualized in NoSQL modeling tools.

Note that it is easy to convert a U-Schema model from the Full to the Union flavors. This conversion loses information, and thus it is not reversible: Given a schema type with a set of variations , then will be replaced by a schema type with the same name (), and the set will have a single variation with , where is a function that returns the union set of all the features of all the variations with the following rules:

  1. If the same structural feature appears in all variations , then it is included in the result set with its optional attribute set to false (common structural features).

  2. Each structural feature that appears at least in a variation is included in the result set, but with its optional attribute set to true.

  3. Structural features that appear with the same name (name attribute of StructuralFeature) but with different type (they belong to a different sub-metatype of StructuralFeature or have different values of their attributes), are included with a numeric identifier appended to their name, and with their optional attribute set to true.

Example of an union schema for the running example presented in Section 3.2 is shown in Figure 8(b). StructuralVariations are omitted for clarity, and optional features are shown in cursive and green color.

We will use the Full Variability flavor through the rest of the article, as it contains more information and can be trivially converted to the Union Schema if desired.

2.4 Mappings between U-Schema and the Logical Data Models

A unified metamodel is intended to represent all the concepts of the individual data models that it integrates. Therefore, a mapping must be established between the unified metamodel and each data model. We will call forward mapping to a mapping from a NoSQL or relational model to U-Schema, and reverse mapping to a mapping in the opposite direction.

As indicated above, we had to define a logical data model for each NoSQL paradigm. As most NoSQL databases are schemaless, the schemas are implicit in data and code. Therefore, the implementation of a forward mapping must first capture all the logical information of the implicit schema, as described in Section 3, and then apply the mapping to obtain the U-Schema schema (i.e., a U-Schema model).

As U-Schema is richer in concepts than each individual data model, forward and reverse mappings are not unique for a particular data model. In addition, U-Schema concepts not present in a specific data model could be mapped in different ways in a reverse mapping. This has led us to introduce the notion of canonical mapping. A canonical mapping satisfies two conditions:

  1. It must be forward-complete, that is, the rules must correctly map all the characteristics of the data model to U-Schema concepts.

  2. As a consequence, it must be trivially bidirectional within a data model. This is because given a U-Schema model, the original database schema could always be reproduced (as the U-Schema model holds all its information.)

While the canonical mapping rules cover the characteristics of each of the logical data models, there may be cases where a reverse mapping has to be performed on a U-Schema model that contains elements not present in a given data model. Specialized forward and reverse mappings could also be defined for each data model, and even for a given database implementation. These mappings could be devised for specific needs within a development such as a database migration that involves different source and target data models. The need for these mappings raises the interest in creating a mapping language able to specify how the constructs of a given database paradigm are translated into the abstractions of U-Schema, and vice versa. This is out of the scope of this work.

In the following Section, the common strategies devised to implement and validate all the forward mappings will be described. In sections 4 to 8, we will define a logical model for each database paradigm addressed and formally express the canonical mapping between each data model and U-Schema. Additionally, reverse mapping examples will be shown for characteristics not supported in each of the data models. For each paradigm, the forward mapping implementation and validation will be commented. Here, we will introduce the notation used to define the mappings.

  • A mapping between an element of U-Schema and an element of a data model is expressed as:

    where property relations are expressed as indicated below, and the operator is commutative.

  • A property relation expresses that a property of and an property of have the same value. The operator is commutative.

  • A property relation expresses that the value is assigned to the property of or .

  • Let be a property of and let be a property of , a property relation expresses an enclosed mapping between and .

  • In a property relation that expresses a mapping between two elements, the function can be used to obtain the target element of type that maps to the source element ; if maps to a single target element, then the second argument is optional.

  • Given an instance of a meta-class in U-Schema, dot notation is used to refer to its properties. For example, given an instance of EntityType, refers to the attribute name.

  • Functions will be applied on elements of the data model to obtain the value of their properties. Functions will have the same name as the property. For example, given an entity type , will refer to its name property. Other functions will be introduced in some rules, and their proper definition will be shown.

3 A Common Strategy for the Implementation and Validation of the Extraction of U-Schema Models

In this Section, we will first explain how U-Schema models are built from NoSQL databases or relational schemas. Then, a conceptual schema will be presented as a running example to be used to illustrate the explanations of the following five sections. Finally, the experiments used to validate the U-Schema model building process will be exposed. The implementation and validation strategies are common for all the paradigms, but some stages or experiments are not required in the case of the relational model.

3.1 Building U-Schema Models

As indicated in Section 2.4, in the case of NoSQL stores, applying a forward mapping first requires inferring the schema that is implicit in the data and code. These schemas conform to the logical data model abstracted for each NoSQL paradigm. Therefore, U-Schema models are built in a 2-stage process, as illustrated in Figure 2. First, a MapReduce operation is performed on the database to infer its logical schema. This stage is not needed for the relational model. In the second stage, the forward mapping rules are applied to create a U-Schema model from the previously inferred schema. Next, we explain these two stages.

Figure 2: Generic Schema Extraction Strategy.

Inferring the Logical Schema

In the map operation, a raw schema is obtained for each object stored in the database. We call raw schema to an intermediate representation (JSON-like format) that describes the data structure of a structural variation: a set of pairs formed by the name of a property and its data type. Given an object stored in the database of an entity type , its raw schema is obtained by applying the following 4 rules on the values of its properties :

  1. Each value of a property is replaced by a value representing its type according to the rules R2 and R3.

  2. If is of scalar or primitive type, it is replaced by a value that denotes the primitive type: "s" for String, 0 for numeric types, true for Boolean, and so on.

  3. If is an embedded object, the rules R1, R2, and R3 are recursively applied on it.

  4. If is an array of values or objects, rules R2 and R3 are applied to every element, and the array is replaced with an array of values representing types.

In the case of document systems, where the key is explicitly included in the documents, the representation of the structure will contain one scalar property with the name “_id”, representing the key of the entity type. Additionally, the following rule is applied to infer references between objects:

  1. Some commonly used conventions and heuristics are taken into account to identify references. For example, if a property name (with an optional prefix or suffix) matches the name of an existing entity type and the property values match the values of the “

    _id” property of such an entity. The value of the property is replaced concatenating the value indicated in rule R2 with the name of the entity type and the suffix “_ref.”

The process is repeated to obtain the raw schemas of the relationship types in the case of graph databases.

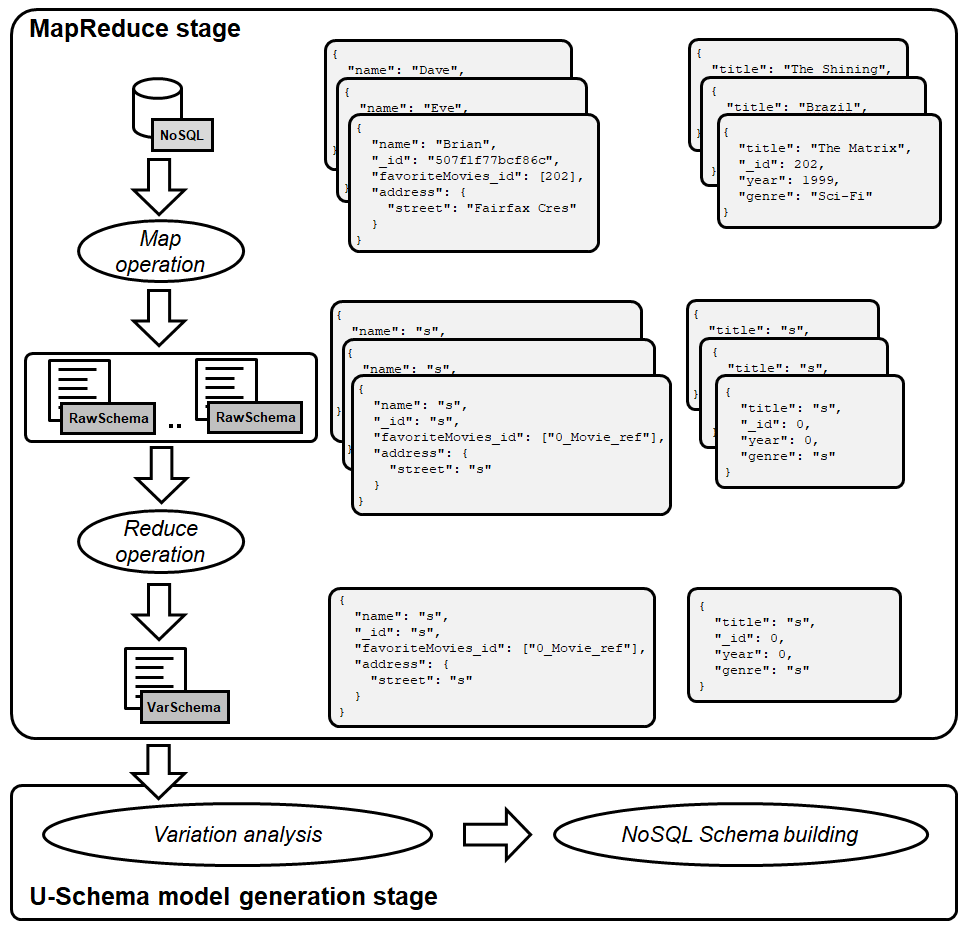

Figure 2 shows how the above rules are applied to User and Movie objects of a document store. A raw schema is obtained for each User object with identical structure, and the same for Movie objects.

Once the map function is performed, the reduce function collects all the identical raw schemas and outputs a single representative raw schema for each structural variation of an entity type, to which we will refer, hereafter, as variation schema. Figure 2 shows the variation schemas obtained for User and Movie objects. Note that a variation schema will be generated for each structural variation of the objects.

In the case of graph and key-value systems, a preliminary stage is needed to achieve an efficient MapReduce processing, as explained in Sections 4.4 and 6.4.

We decided to build U-Schema models directly from the intermediate representation of the MapReduce output instead of building specific metamodels for each paradigm, because U-Schema already contains the abstractions present in each of the individual data models, and the transformation would have been redundant.

Generating a U-Schema Model

In the second stage, variation schemas are analyzed to build the U-Schema model. For this, a parsing process is connected to a schema construction process by applying the Builder pattern [24]. Variation schemas are parsed to identify its constituent parts: properties and relationships, as well as the entity type (or relationship type) to which they belong. Whenever the parser recognizes a part, it passes it to a builder that is in charge of creating the schema. A builder has been implemented for each data model, which captures how parts are mapped to U-Schema. The same parser is used for all the data models as its input are variation schemas. In the case of relational databases, only this second stage is needed, as schemas are already declared.

3.2 The “User Profiles” Running Example

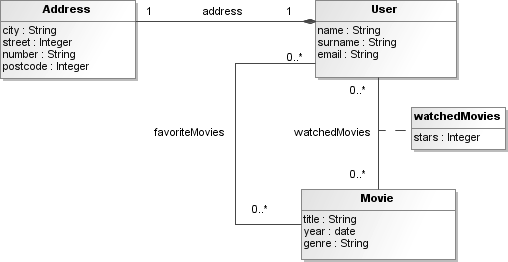

Figure 3 shows a “User Profiles” conceptual schema that will be used to build a database example for each paradigm integrated in our unified model. In each case, a “User Profiles” database will be populated to execute the algorithm that creates the corresponding U-Schema model and also to validate this algorithm as explained in the next subsection.

“User Profiles” schema could be an excerpt of the conceptual schema of a movie streaming platform, which is expressed as a UML class model. It has 3 entities labeled Movie, User, and Address, and 3 relationships: a user aggregates an address, a user has zero or more favorite movies, and a user has zero or more watched movies. User has the attributes name, surname, and email; Address has city, street, number, and postcode; and Movie has title, year, and genre.

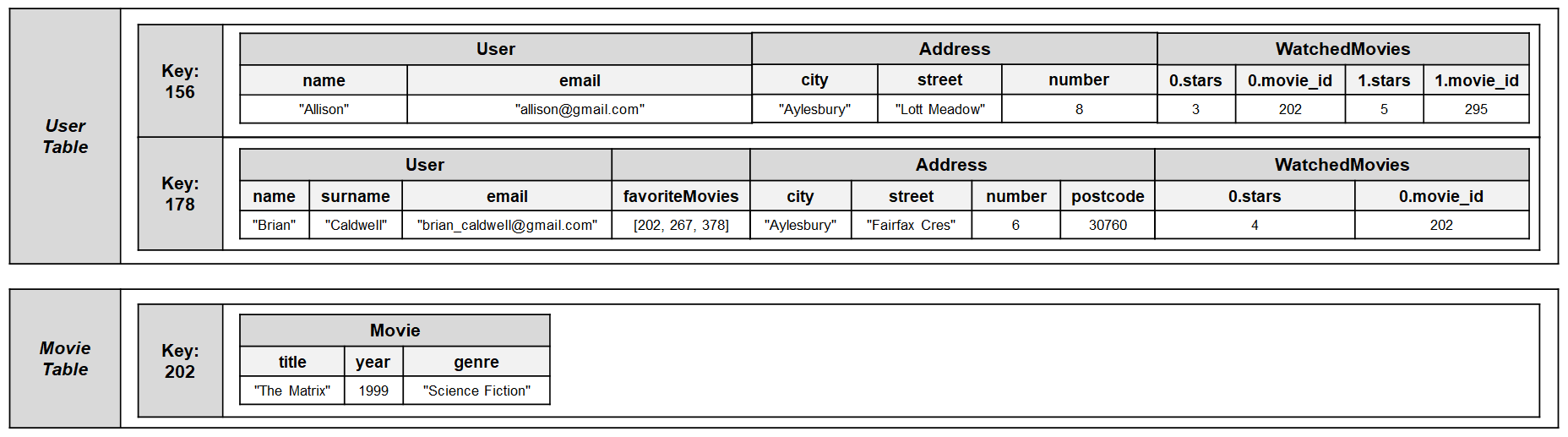

When instantiating each database, we will suppose that there are 2 variations for the Address entity type: , and ; and 2 variations for User that vary in the relationships: either favoriteMovies and watchedMovies coexist, or only watchedMovies is present, and in the attributes: the surName attribute is only present when both relationships are.

Figure 3: “User profile” running example schema.

3.3 Validation of the Schema Building Process

To validate our schema building process, we have applied the same validation for the four kinds of NoSQL paradigms. For each system, we used two databases, a synthetic one based on the running example, an a real dataset. In each one of them, two experiments were carried out: (i) a round-trip strategy to check that the obtained U-Schema model is equivalent to the schema used to synthesize the database or the schema of the real existing database; and (ii) two queries are issued on the real and synthesized databases to assure that at least a data object exists for each inferred structural variation (“all variations exist” query) and that the extraction process correctly calculates the number of data objects of each variation (“correctness count” query). In the case of the relational model, only the second experiment is performed, as only the canonical forward mapping must be implemented, because there is no need to infer the logical model of the database.

The round-trip experiment consisted in the following steps. First, we manually created a U-Schema model (i.e. a schema) with the desired database structure (or the existing structure in the case of the real database). The running example model covers all the elements that can be mapped into the logical data model of the corresponding paradigm, but this may not be the case for the real dataset. To populate the initial running example database, we randomly created elements according to the defined model. Afterwards, we inferred the implicit schema, and finally verified that this schema was equivalent to the original U-Schema model: the resulting model can differ in the ordering of the different variations found for each entity or relationship type, this is why in this case we could not use standard model comparison tools, so we built a custom U-Schema model compare utility.

To evaluate the scalability and performance of the U-Schema model building algorithms, we have generated four datasets of different size for the running example. The larger database contains 800,000 objects for the User and Address entities, 400,000 for Movie, and a mean of 20 watched movies and 20 favorite movies. User and Address have the same number of objects in each of their variations. The rest of datasets reduce the number of objects and relationships in a factor of 2, 4, and 8, as shown in Table 3.

All the performance tests were run on an Intel(R) Core(TM) i7-6700 CPU @ 3.40GHz with 48 GB of RAM and using SSD storage. To give a meaningful expression of the scalability of the schema inference process, instead of comparing absolute times, we used as a time baseline an aggregate query that calculates the average of watched movies by users. This query could be representative of those obtaining periodic reports, so we suppose that the database is not optimized for it. In this way, we can get results that are independent of the different configurations in the deployment. Table 4 show the different times for the queries, schema inference, and the normalized value (inference time divided by query time) for the database sizes in Table 3. We expected the ratio to diminish as the size of the database increases, as the initialization time of the MapReduce framework becomes smaller with respect to the total inference time. Moreover, in all cases the ratio stays in the range of 17.58x (MongoDB, smaller case) to 2.04x (HBase, biggest case), and for the biggest case, the inference reaches a maximum of about 10x slower (MongoDB). This is expected as the query only has to process a part of the database while the inference treats the whole database. In the following sections, these results will be studied.

Size/Item User Movie

Watched/

Favorite Movies

Nodes Relationships
Larger 800k 400k 20/user 2,000k 24,800k
Large 400k 200k 10/user 1,000k 6,400k
Medium 200k 100k 5/user 500k 1,700k
Small 100k 50k 3/user 250k 550k
Table 3: Database Sizes.

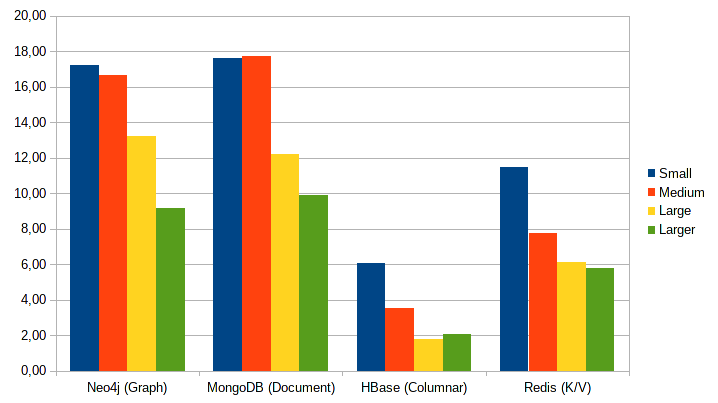

Figure 4: Inference to Query time ratio.
DB Small Medium Large Larger
Neo4j Query (ms) 686 1,213 3,165 12,016
Inference (ms) 11,821 20,177 41,814 109,724
Normalized 17.23 16.63 13.21 9.13
MongoDB Query (ms) 295 380 840 2,366
Inference (ms) 5,187 6,730 10,226 23,452
Normalized 17.58 17.71 12.17 9.91
HBase Query (ms) 931 1,942 6,419 24,023
Inference (ms) 5,615 6,840 11,526 49,042
Normalized 6.03 3.52 1.80 2.04
Redis Qyery (ms) 1,002 2,833 10,091 43,888
Inference (ms) 11,487 22,013 61,505 252,794
Normalized 11.46 7.77 6.10 5.76
Table 4: Times for inference and queries for all the database implementations.

With the extracted U-Schema model, we build a set of queries on the databases to perform the second experiment:

  1. All variations exist The database must store, at least, a database object for each entity type variation (and relationship type variation in the case of a graph store) present in the extracted U-Schema model.

  2. Count correctness No other variations are present in the database, i.e., the total number of objects in the database matches the sum of objects that belong to each structural variation of the entity types present in the extracted model (count attribute included in the StructuralVariation metaclass of the U-Schema metamodel.) Also, this check would be performed for relationship type variations in the case of graph stores.

4 Representing Graph Databases as U-Schema Models

4.1 A Data Model for Graph Databases

In graph systems (e.g., Neo4j and OrientDB), a database is organized as a graph whose nodes (a.k.a. vertex) and edges (a.k.a. arcs) are data items that correspond to database entities and relationships between them, respectively. Edges are directed from an origin node to a destination node, and more than one edge can exist for the same pair of nodes. Both nodes and edges can have labels and properties. Labels denote the entity or relationship type to which nodes or relationships belong, and properties are key-value pairs. This is the so called labeled property graph data model [3], that most NoSQL graph systems implement.

Graph databases are commonly schemaless, so there may exist nodes and relationships with the same label but different set of properties. Moreover, the same label can be used to name relationships that differ in the type of the origin and/or destination nodes. Thus, graph databases can have structural variations as explained in Section 2.1.

For this kind of graph store, we have abstracted the following notion of logical graph data model, which is represented in form of UML class diagram in Figure 5:

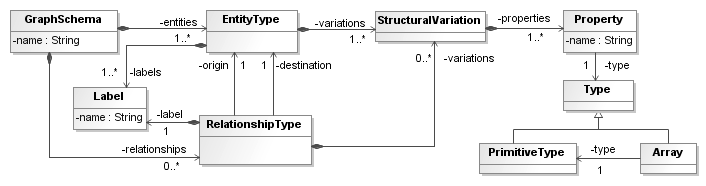

Figure 5: Graph Data Model.
  1. A graph schema has a name (that of the database) and is formed by a set of entity types and a set of relationship types.

  2. An entity type denotes the set of nodes with the same label (or set of labels).

  3. Entity types can be single-label or multi-label depending on whether they have one or more labels.

  4. A relationship type denotes the set of relationships with the same label (or set of labels). A relationship type has origin and destination entity types.

  5. Entity and relationship types can have structural variations.

  6. A structural variation is characterized by a set of properties that is shared by elements with the same set of labels.

  7. A property is a pair that mimics the property of a node or relationship in the graph, having a key and the scalar data type that corresponds to the values of the property.

Table 2 shows the correspondence between graph database elements and the graph model elements expressed above. Note that a graph schema is obtained by the MapReduce operation of the schema extraction process described in the previous section.

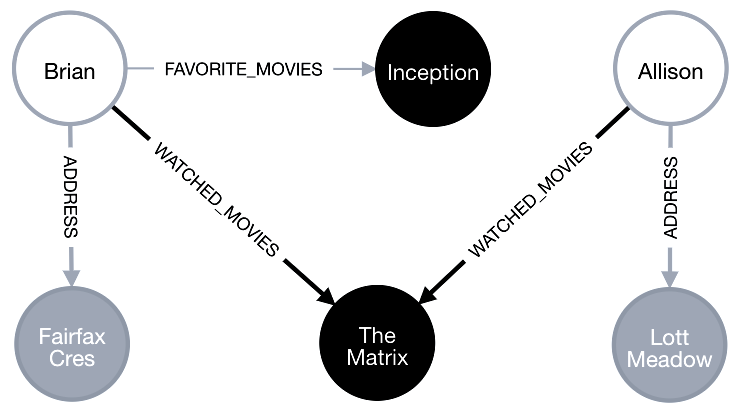

Figure 6 shows a graph database for the “User Profiles” running example. It has three entity types labeled Movie, User, and Address, and three relationship types labeled FAVORITE_MOVIES, WATCHED_MOVIES, and ADDRESS. In the figure, nodes are represented as circles, and relationships as arrows. Nodes having the same labels (i.e. entity type) are filled with the same color. In this example, gray for Address, white for User, and black for Movie. Nodes only show a property for each entity type: title for Movie, name for User, and street for Address. Relationships are tagged with their relationship types, and no properties are shown. We suppose that there are the variations indicated in Section 3.2.

Figure 6: “User Profiles” Graph Database Example.

4.2 Canonical Mapping between Graph Model and U-Schema

Each element of the graph model defined above has a natural mapping to a U-Schema element, with the exception of relationship types, that map to two U-Schema elements: RelationshipType and Reference. The former represents a type or classifier whose instances are relationships between a pair of nodes, and can have variations based in their set of attributes, while the latter denotes a particular link between two nodes. Note that Aggregation and Key U-Schema elements do not have a direct correspondence to elements of the graph model. Next, we express the set of rules that defines the Graph to U-Schema canonical mapping.

R1. A graph schema corresponds to an instance of the uSchemaModel metaclass of U-Schema (i.e., a schema or model) with the same name:

R2. Each different single-label entity type that exists in maps to a root EntityType in the schema, whose name is that of the label associated to :

EntityType instances are included in the collection.

R3. Each different multiple-label entity type that exists in maps to a root EntityType in the schema whose name is formed by concatenating the names of the set of labels , and inherits from each entity type that corresponds to labels in :

R4. Each relationship type that exists in maps to a RelationshipType and a Reference in the schema, which are named the same as the label associated to .

RelationshipType instances are included in the collection, and Rule R7 specifies how references are connected to other elements of the U-Schema schema.

R5. Each “variation schema” of an entity or relationship type in maps to a StructuralVariation in the schema, which is identified by means of a unique identifier (an integer ranging from 1 to or ). Structural variations are included in the collection that both entity types and relationship types have in a U-Schema schema.

R6. Let be the set of properties of a “variation schema” which maps to a StructuralVariation . Each property will map to an Attribute with the same name, which is included in the collection . The type of the property will map to one of the types defined in the Type hierarchy defined in U-Schema, and a mapping has to be specified for each graph store. The property mapping can be expressed as:

R7. Each reference in a U-Schema schema has to be connected to other elements of . Let be a Reference which maps to a relationship type according to Rule R4,

  • must be linked to the EntityType that maps to the entity type that denotes the destination nodes for the relationship .

  • Let the EntityType of that maps to the origin entity type of a relationship type in (), will be present in the set of features of the variations of whose nodes are origin of edges that are instances of .

  • must be linked to the structural variation which features: , where is the StructuralVariation that belongs to the relationship type that returns .

  • The lowerbound cardinality of would be () and the upperbound cardinality could be () or () depending on whether the instances of in the database (i.e. arcs of type ) have one or more destination nodes for a given origin node.

4.3 Reverse Mapping Completeness

The graph model does not include the Key and Aggregate elements. Next, we provide a possible mapping for these two concepts.

  • Key. Remember that the Key concept in U-Schema refers to those attributes that act as an object key or the set of attributes that form part of a reference to another object. As references between objects (nodes) in graphs are explicit in arcs, there is no need to include key information into the graph schema. However, that information could be included in the nodes, for example, using a special property holding the set of properties that act as key.

  • Aggregate. An Aggregate that belongs to a particular StructuralVariation , where is the aggregated variation , could be mapped to a relationship type whose name is adding the prefix “AGGR_”, its origin entity type being , and its destination entity type being . Origin and destination entity types should be created if they do not exist in the graph schema. Also, properties of should be mapped using rules R2 to R7, as well as this rule (if an aggregate is part of the properties of ). Figure 7 shows an example JSON document of an U-Schema entity type Person that aggregates an object of the entity type Address. Figure 8 illustrates the reverse mapping where a relationship type named AGGR_address_address1 connects a Person and Address nodes (we suppose that the aggregated variation identifier is 1.)

Person: {  name: "Diego",  address: { street: "Espinardo Campus", number: 2} }
Figure 7: Example Person Data with Address Aggregate.
Figure 8: Person Aggregates Address in Neo4j.

4.4 Implementation and Validation of the Forward Mapping for Neo4j

A slightly revised strategy to that described in Section 3 has been applied to implement the forward canonical mapping for Neo4j. We chose this store because it is the most popular graph database.666DB-Engines Ranking https://db-engines.com/en/ranking, (January, 2021). It is schemaless and fits into the labeled property graph data model.

The strategy had to be revised because graph databases usually do not offer facilities to efficiently process the whole graph, and sometimes they even fail because of lack of resources. So we devised a preliminary stage that serialized the graph obtaining all the nodes along with their outgoing relationships. Of each arch, the data included the source node with its properties, the properties of the arc, and the ID of the destination node. We modified the map operation of the generic strategy to construct all the raw schemas for nodes and edges with this serialization format. The serialization was organized in batches by using Spark Neo4j connector [46]. This way, an efficient schema extraction process was achieved. The reduce operation did not need any modification from that described in the generic strategy, generating variation schemas for both entity and relationship types from nodes and arcs, respectively.

The process finalizes with creating the U-Schema model by applying the mapping rules to the previous output (i.e. the logical graph model). The resulting schema for the “User Profiles” running example is shown in Figure 8(a). We also show the union schema in Figure 8(b).

(a) Complete Schema.
(b) Union Schema.
Figure 9: “User Profiles” Schema for Graph Stores.

The two experiments introduced in Section 3.3 were successfully carried out on the Neo4j database created for the running example and a Movies dataset available at the Neo4j website.777No longer available at the original site, a copy can be obtained from https://github.com/catedrasaes-umu/NoSQLDataEngineering/blob/master/data/Neo4j/Movies/.

Regarding scalability and efficiency of the model creation process, Table 4 show that the relative times with the reference query decrease as the size of the database increases. Neo4j, jointly with MongoDB show the worst ratio cases. This is because the query (average of watched movies by user) is, by chance, easily optimized by the database. In any case, as the database grows, the factor is never beyond 10x.

5 Representing Document Databases as U-Schema Models

5.1 A Data Model for Document Databases

Document databases (e.g., MongoDB and Couchbase) are organized in collections of data recorded for a particular database entity (e.g., Movie, User, and Address in the running example). Data are stored in the form of semi-structured objects or documents [2, 13] that consist of a tuple of key-value pairs (a.k.a. fields). Keys denote properties or attributes of the entity, and the values can be atomic data (e.g. Number, String, or Boolean), nested or embedded documents, or an array of values. Also, a string or integer value can act as a reference to another document, similar to foreign keys in relational systems, although usually no support for consistency is provided.

Semi-structured data is characterized by having its schema implicit in itself [13]. Thus, document databases are commonly schemaless, and a collection can store different variations of the entity documents. Usually, document databases maintain data in some JSON-like format.

For document databases, we have abstracted the following notion of document data model, which is represented in form of a UML class diagram in Figure 10:

  1. A document schema has a name (that of the database) and is formed by a set of entity types.

  2. An entity type denotes a collection of documents stored in the database.

  3. Entity types have one or more structural variations.

  4. A structural variation is characterized by a set of properties that are shared by documents of the same collection.

  5. Properties have a name and a type, and can be attributes, aggregates, or references.

  6. Attributes denote object’s fields whose value is of scalar or array type. An attribute is specified by the name of the field and the type of its value. We suppose that there exists an attribute that acts as the key of the Entity type (e.g., “_id” in MongoDB).

  7. Aggregates denote object’s fields whose value is an embedded object. An aggregate is specified by the name of the field and the variation schema of the embedded object.

  8. References denote object’s fields whose values are references. A reference is specified by the name of the field and the type of its value.

Figure 10: Document Data Model.

Table 2 shows the correspondence between document database elements and the document model elements expressed above. Note that a document schema is obtained by the MapReduce operation of the schema extraction process described in Section 3.

Figure 11 shows how the “User Profiles” running example would be stored in a document database. Instead of using JSON notation, we depicted the database objects in a representation that remarks their nested structure and the references between objects. There are two collections: User and Movie objects, and the relationships are as follows. User objects aggregate watchedMovies objects with two properties: the stars attribute and the movie_id reference that records the id value of a movie object (arrow from movie_id to Movie objects); watchedMovies objects are recorded in an array. To record favorite movies, User has the favoriteMovies array of references to Movie objects. The user addresses are stored as an address aggregate object of users. While graph databases rely on references (i.e. relationships in graph store terminology) to connect data items, and aggregation is normally not available to compose data, the opposite is true in document database systems.

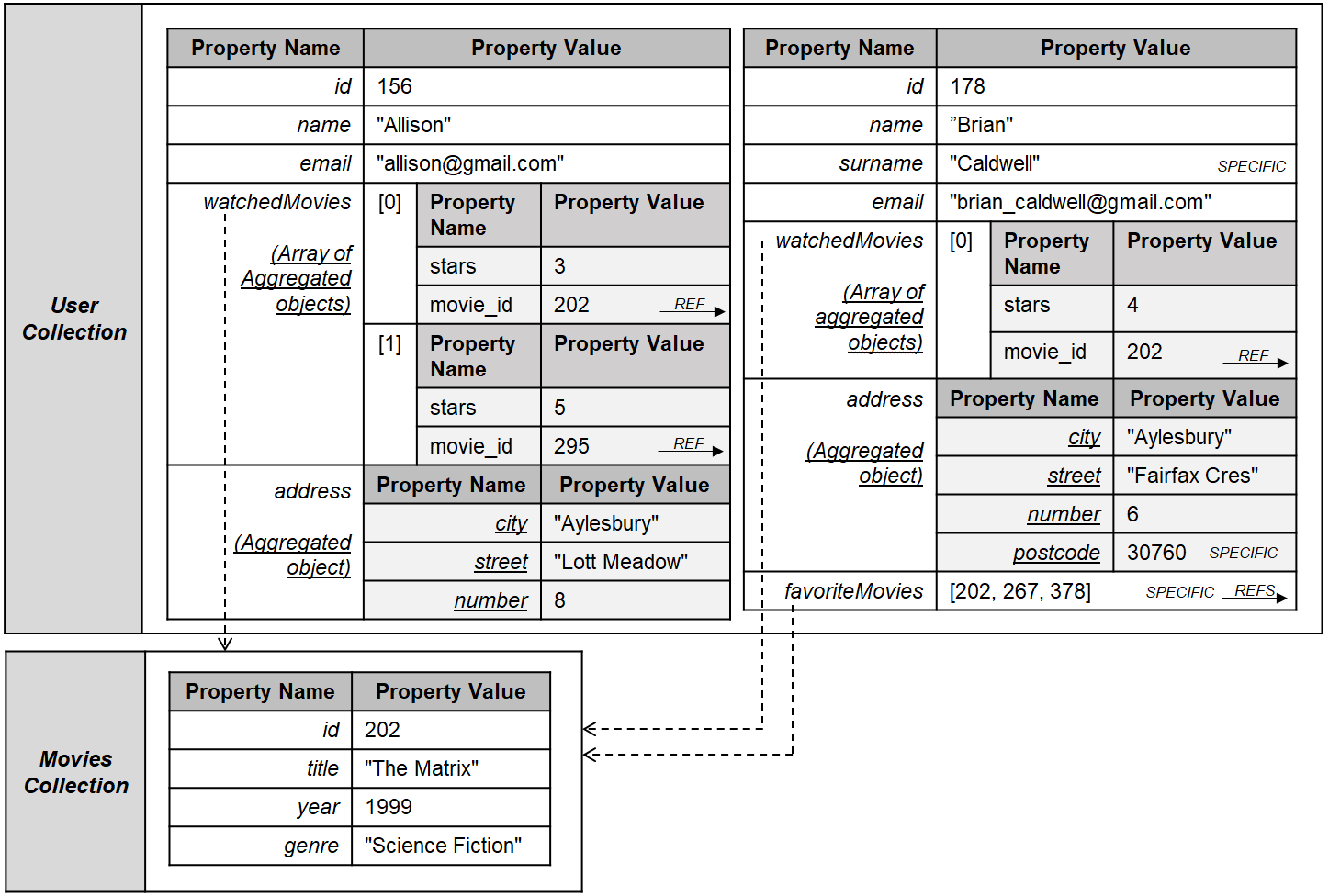

Figure 11: “User Profiles” Document Database Example.

5.2 Canonical Mapping between Document Model and U-Schema

Each element of the document data model defined above has a natural mapping to a U-Schema element. Next, we present the rules for the canonical mapping.

R1. A document schema corresponds to an instance of the uSchemaModel metaclass of U-Schema (i.e., a schema or model) with the same name:

R2. Each entity type that exists in maps to a root EntityType with the same name:

holds the set of instances of EntityType.

R3. Each variation schema of corresponds to a StructuralVariation of in the schema, which is identified by means of a unique identifier (an integer ranging from 1 to ). Each property of will be mapped according to rules R4–R6.

StructuralVariation instances are included in the collection .

R4. If is an attribute,

  • it will map to an Attribute with the same name, which is included in the collection . The mapping is the same as that defined in Rule R6 of the mapping between the graph model and U-Schema.

  • Additionally, if the attribute is the key of the entity type, a Key instance also exists in and is connected to the corresponding attribute .

R5. If is an aggregate that has a set of properties , it will map to three elements in the U-Schema model:

  • A non-root EntityType with the same name but capitalized and stemmed (function ), which is included in the collection :

  • A StructuralVariation instance included in , and each property is mapped recursively according to rules R4 to R6:

  • An Aggregate with the same name as the property, which is included in . This aggregate is connected to the structural variation that it aggregates. The mapping would be:

    The cardinality of would be established as indicated in Rule R7-ii of the mapping between graph models and U-Schema models.

R6. If is a reference, it corresponds to two elements of the U-Schema model:

  • A Reference with the same name, which is included in . The mapping is the same defined in Rule R7 of the mapping between graph models and U-Schema models.

  • An Attribute according to the mapping expressed in Rule R4-i, and and appear connected in the schema: exists in and is part of .

5.3 Reverse Mapping Completeness

The only element of U-Schema that is not directly supported by the document model is the RelationshipType. RelationshipTypes have structural variations, and some References can specify (via its isFeaturedBy property) to which StructuralVariation of a RelationshipType they belong.

Given a RelationshipType in a U-Schema model, the reverse mapping for documents would map to an entity type whose name is . Each variation of will correspond to a variation in , applying mapping rule R3 (i.e., each Attribute in maps to an attribute of the corresponding variation of ). A reference property will exist in all the variations of that will map with rule R6. Then, each Reference that belongs to a StructuralVariation of the entity type to which maps, where is the relationship type such that , and whose isFeaturedBy is a variation in , will map to a reference property named by applying rule R6.

Documents:

// User Collection
{
  "name": "Brian",
  ...
  "watchedMovies": [
        978
  ]
}
// WatchedMovie_REF Collection
{
  "_id": 978,
  "stars": 3,
  "movie_id": 202
}
// Movie Collection
{
  "_id": 202,
  "title": "The Matrix"
  ...
}
Figure 12: Example of Application of the Reverse Mapping from a RelationshipType of U-Schema to a Document Schema.

Figure 12 illustrates the application of the reverse mapping explained above for a U-Schema model containing a RelationshipType for the watchedMovies relationship type of the running example. It can be appreciated how the document schema would contain an entity type named WatchedMovie_REF, which has a structural variation for the single StructuralVariation of the RelationshipType that exists in the U-Schema schema. That variation is connected to the attributes named stars and movie_id. Also, there exists a reference to the entity type Movie, and a reference and attribute named watchedMovie_REF are present in the structural variations of the origin entity type (User in our example). The reference will connect the User objects with the WatchedMovie_REF objects.

Some document systems provide the dbref construct to record references between documents, which can include fields. In these systems, the document data model shown in Figure 10 could be extended to consider that references can have attributes. Then, the document model would include all the U-Schema elements, as it would also support relationship types.

5.4 Implementation and Validation of the Forward Mapping for MongoDB

Once the output of the MapReduce described in Section 3.1 is produced, i.e., the set of variation schemas, the generation of the U-Schema model is achieved by following the mapping rules described above. The only remarkable aspect is that while the root entity types are discovered by the MapReduce process, aggregated entity types reside “unfolded” inside the variation schemas. It is needed to recursively process all the aggregated objects to build the non-root EntityTypes and match the properties to identify the StructuralVariations.

(a) Complete Schema.
(b) Union Schema.
Figure 13: “User Profiles” Schema and Union Schema for Document Stores.

The schema that would be inferred for the running example is shown in Figure 12(a) and the union schema in Figure 12(b).

The common validation strategy of Section 3.3 was successfully applied in MongoDB, with a database created for the running example, and with the EveryPolitician dataset.888Available at http://docs.everypolitician.org/.

As with Neo4j, MongoDB shows worse ratio cases than with other two database implementations, as shown in Table 4. Again, this may be caused by the chance that the query benefits by some optimizations built in the database. The ratio also goes down as the size of the database doubles, with the exception of the Small and Medium times, that are similar (17.58x and 17.71x). The ratio then goes down from around 18x to 10x for the biggest case.

6 Representing Key-Value Databases as U-Schema Models

6.1 A Data Model for Key-Value databases

Key-Value (K/V) stores conform to the simplest physical data model of NoSQL systems. A K/V store is an associative array, dictionary, map, or keyspace, that holds a set of key-value pairs, usually lexicographically ordered by key. As such, they are used to record data with a simple structure, and references and aggregations are not primitive constructs to build up data. They usually store a single entity type (e.g. user profile, user login, or a shopping cart), although data of several entity types could co-exist in the same keyspace.

Like document and columnar systems, K/V stores can record semi-structured objects. Several techniques can be used to encode a tree-like structure into key-value pairs, which use normally namespaces to build hierarchical key values. We chose one of the most commonly used encoding patterns999https://redislabs.com/redis-best-practices/data-storage-patterns/object-hash-storage/. to define the canonical mapping between K/V databases and U-Schema, to which we will call the flattened key pattern of compound objects or simply flattened object-key pattern.

When using this pattern, the key of every pair not only acts as the identifier of the object, but also encodes the name of a property of the entity type, in a similar format to XPath or JSONPath [25]. Keys are built with a separator to differentiate between the object identifier and the property name (e.g., a colon: “<id>:<property>”). It can also be used to differentiate the entity type if different namespaces are not used (e.g., “<entity-type>:<id>:<property>”). When a property aggregates an object, it is possible to use another separator to express properties of the aggregated object (e.g., a dot: “<id>:<property>.<aggregated-property>”), or an index to represent objects of an array (e.g., “<id>:<property>[<index>]”), that in turn can have properties (e.g., “<id>:<property>[<index>].<aggregated-property>”). Figure 14 shows an K/V database example that illustrates the usage of this encoding for the “User Profile” running example. Using this pattern, a database object consists of several entries in the database, all of them sharing the same object identifier. Note that the order of the separated elements of the key may vary depending on the specific queries needed by the application, as the keys are lexicographically ordered.

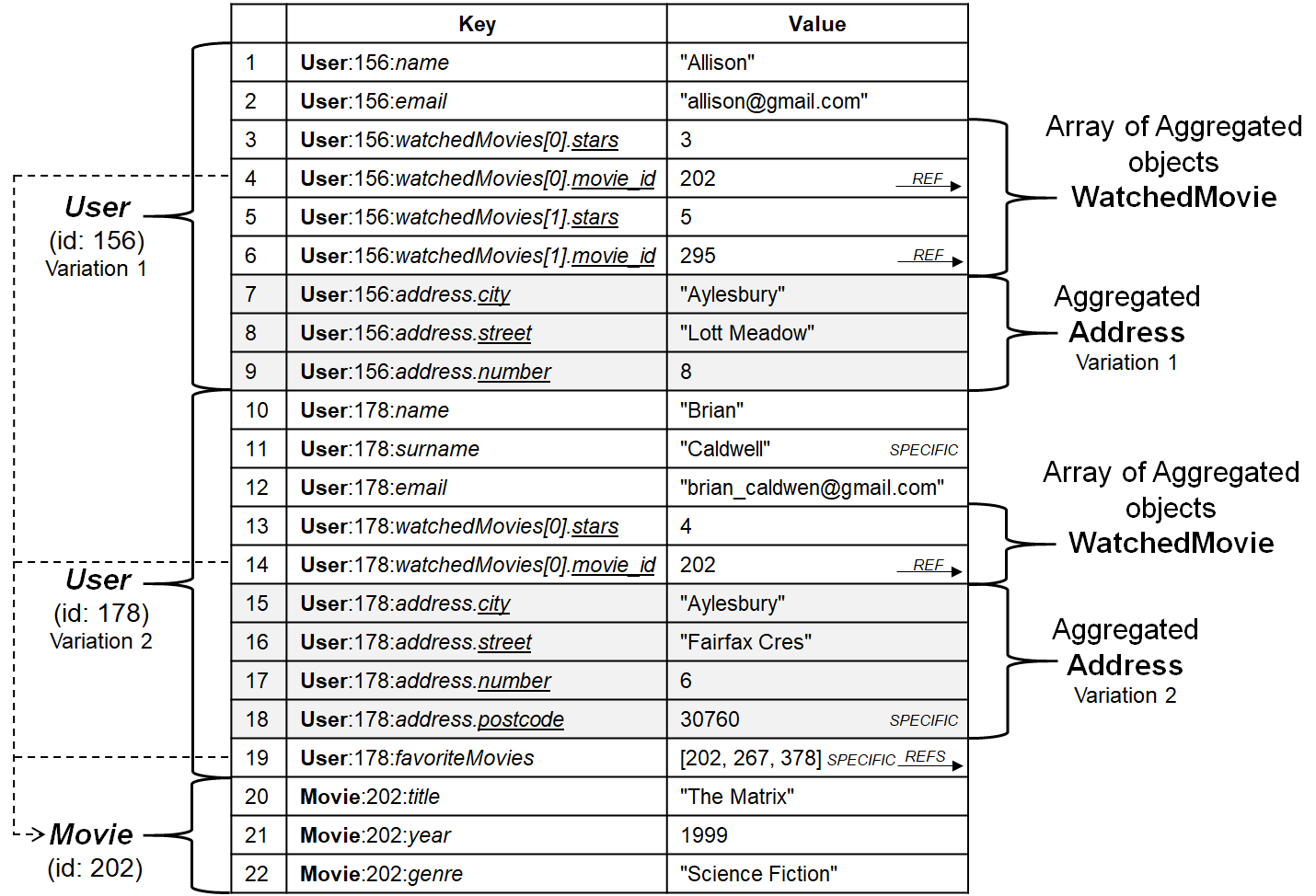

Figure 14: Key-Value Database Example for running example.

K/V systems are schemaless, and several structural variations of an entity type can therefore exist in the database. In Figure 14, the variations of the running example can be observed.

Taking into account the use of the flattened object-key pattern, the document data model presented in Section 5.1, and shown in Figure 10, can also be used for K/V systems by modifying the Key notion. In this case, every database object also has a key, but it is not associated to any attribute. A namespace would correspond to an entity type or either, if only one namespace is used, each different entity type will have a different “<entity-type>” key prefix. This data model, as the Document model, has all the elements of U-Schema except the RelationshipType element, as shown in Table 2. We will use the term aggregate-oriented data model to group the Document, Key-Value, and Columnar data models, as suggested in [42], because they include the same concepts in their respective data models.

A set of data types are available for keys and values, which vary on each system. Keys are normally stored as byte-arrays or strings, which can follow formats as those indicated above. Regarding the data types of values, they usually provide basic scalar types as well as common collection types.

6.2 Canonical Mapping Between Key-Value Model and U-Schema

The mapping between U-Schema and Document model would be applicable for K/V, the only exception being that Rule R4-ii should be removed, and a new rule has to be added because the notion of key is different in this data model.

R7. Each StructuralVariation in the U-Schema model contains a Key instance in whose value of is “_id”, and it is not connected to any Attribute.

6.3 Reverse Mapping Completeness

The same reverse completeness mapping rules exposed in Section 5.3 for the document model are applicable in this case.

6.4 Implementation and Validation of the Forward Mapping for Redis

Redis has been used for the implementation and validation of the general strategy applied for key-value stores. Redis is the most popular key-value database101010As shown in https://db-engines.com/en/ranking. Redis appears in the 7 position (March, 2021)..

A preliminary stage is performed to join all the properties of each entity variation. To do this, a simple MapReduce operation is performed over the database assuming that properties are encoded using the flattened object-key pattern. Spark [46] was used to implement this stage. First, every database pair is mapped to a new pair whose key is the name of the entity type along with its identifier, and the value is formed by the property’s name and its type. Then, the reduce operation joins all pairs of objects that belong to the same object. The result is a set of JSON objects that are similar to those stored in a document database. Now, the two stages of the common strategy are performed: a MapReduce processing to obtain the set of variation schemas, followed by the generation of the U-Schema model, which is similar to the document model with the exception of the key generation using the rule R7.

The schema extracted for the running example is the same as for documents, shown in Figure 12(a). The union schema is shown in Figure 12(b).

The schema extraction process was validated using a database built for the running example, as well as using a real-world dataset. The same EveryPolitician dataset used with MongoDB (Section 5.4) was inserted into Redis.

The performance of the Redis schema inference process implementation versus the query gets better than in MongoDB or Neo4j. This is because the query itself has to process the whole database, as Redis does not include a query language. Note also that in absolute times, the Redis implementation is the slowest, which confirms that the calculation of an aggregate value is not an appropriate operation for a K/V store. As in previous implementations, the ratio goes down from 11.46x to 5.76x as the database doubles.

7 Representing Columnar Databases as U-Schema Models

7.1 A Data Model for Columnar Databases

In columnar databases, data is structured in a similar way to relational databases. In the most popular columnar databases (Hbase [29] and Cassandra [14]),111111This can be observed in https://db-engines.com/en/ranking. Cassandra appears in the 10 position and HBase in the 22 position as of March, 2021. a database or Keyspace schema is composed of a set of tables , and each table usually stores data of a single entity type. As in relational databases, each table has a name, and is organized in rows and columns, but rows have a more complex structure than in relational tables because they are organized in column families. A table is therefore defined in terms of a set of column families . Moreover, each row belonging to a table contains a row key. Figure 15 shows an example of columnar database for the running example, which has the User and Movie tables. The User table contains three column families: User, Address, and WatchedMovies. The Address and WatchedMovies relationships of the running example are represented as column families, and the FavoriteMovies relationship is represented as a column of the User family, which records an array of references to Movie. In the case of Cassandra, column families will be equivalent to User Defined Types (UDTs): in a Cassandra table, the type of an attribute can be either a predefined type or a UDT. Thus, the User table could have the four attributes: name and email whose type would be Text, and address and watchedMovies whose types would be the UDTs Address and Movie, respectively.

Figure 15: Columnar database example for the running example.

Columnar databases also record semi-structured data, and they are normally schemaless, which means that structural variation is possible: the set of columns present for each column family can vary in different rows. In the Figure 15, the structure of the Address object is different for each of the two User objects; moreover, the second row has an additional surname column for the User column family.

We will suppose that a table has a default column family that includes the attributes of the root entity type that corresponds to the table. The rest of column families represent aggregated entity types. (Again, in the case of Cassandra, the set of attributes in the table that are not UDTs will form the default column family.) In the example, the default column family is User, with Address and WatchedMovies as aggregated entities. Note that WatchedMovies aggregates an array of objects, so the name of the columns is formed by using the flattened object-key pattern121212https://hbase.apache.org/book.html#schema.casestudies.custorder.obj.denorm. (“<property>.<index>.<aggregated-property>”), where the property name is the name of the column family and can be omitted. For example: “0.stars”, “0.movie_id” in Figure 15.

As column families are considered a way of embedding objects into a root object, the data model defined for Key-Value and Document stores is applicable for columnar stores, that is, the aggregate-oriented data model.

7.2 Canonical mapping between Columnar Databases and U-Schema Models

In the case of columnar stores, the canonical mapping would be the same as the one defined for document stores. Relationship type would be the only element of U-Schema not included in the columnar model.

7.3 Reverse Mapping Completeness

The data model for columnar databases includes the same abstractions than those established for the document data model. Thus, the reverse mapping rules are the same to those introduced in Section 5.3. Only relationship types do not have a direct mapping to the model, and the same approach used in documents can be implemented: the new entity type with a name convention to hold the structure residing in the references, and the reference itself on the origin entity type variations.

7.4 Implementation and Validation of the Forward Mapping for HBase and Cassandra

We implemented the forward mapping for Hbase and Cassandra. In the case of HBase, we applied the common strategy of Section 3.1, with the MapReduce operation identifying the default and aggregated column families, and building the variation schemas. In the case of Cassandra, the API was used to retrieve the database schema, and then build the U-Schema model.

Validation was carried out as described in Section 3.3. A database was created for the running example, and the same EveryPolitician real world dataset used in MongoDB and Redis, introduced in Section 5.4, was injected into Hbase and Cassandra.

Figures 12(a) and 12(b) show the variation schemas obtained for the running example, which are the same for all the aggregation-based stores.

As shown in Table 4 and Figure 4, Hbase shows the best performance of the inference regarding the ratio relative to the aggregated query. As with all systems, with a slight difference in the two bigger databases (1.8x to 2.04x), the ratio decreases as the size of the database increases. This confirm the scalability of the schema extraction approach. HBase, like Redis, is specialized in fast random-access queries, but the aggregated query has to process most of the database, making the times very close to the full process of the database performed in the schema extraction. Thus, ratios go from just 6x slower to around 2x slower in the case of the Larger databases.

The performance of building the Cassandra model was not recorded as no inference process is required because the schema is already declared.

8 Representing Relational Databases as U-Schema Models

8.1 The Relational Data Model

Unlike NoSQL logical data models, there exists a standard relational data model which is formally defined through relational algebra and calculus. Being “schema-on-write” is another significant feature that differentiates relational databases from NoSQL stores: schemas must be declared prior to store data in tables. The relational model is based on the mathematical concept of relation and its representation in form of tables [15]. A detailed description of the relational model can be found in [49, 19].

A relational schema consists of a set of relation schemas. Each relation schema specifies the relation name, the attribute names and the domain (i.e., type) of each attribute. Relationships between relations are implicitly represented by key propagation from a relation schema to another (one-to-one and one-to-may relationships) or either by a separated relation schema (many-to-many relationships). Therefore, relation schemas can represent entity types or relationship types. A relational schema is instantiated by adding tuples to each relation. Each relation has one or more attributes that form the key (primary key), and each tuple is uniquely identified by the values of the key attributes. Relations are represented as tables, and the term column is used to refer to the attributes, while rows name the tuples of a relation. A table can declare foreign keys: one or more columns that reference to the primary key of another table in a key propagation. Figure 16 shows a relational database example for the schema of the running example. User and Movie tables represent the entity types of identical name, WatchedMovies and FavoriteMovies tables represent the many-to-many relationships from User and Movie in the conceptual schema of the running example, and User aggregates Address by incorporating its attributes. Note that Address could be a separate table related by foreign key, but it has been integrated into User because they hold a one-to-one relationship.

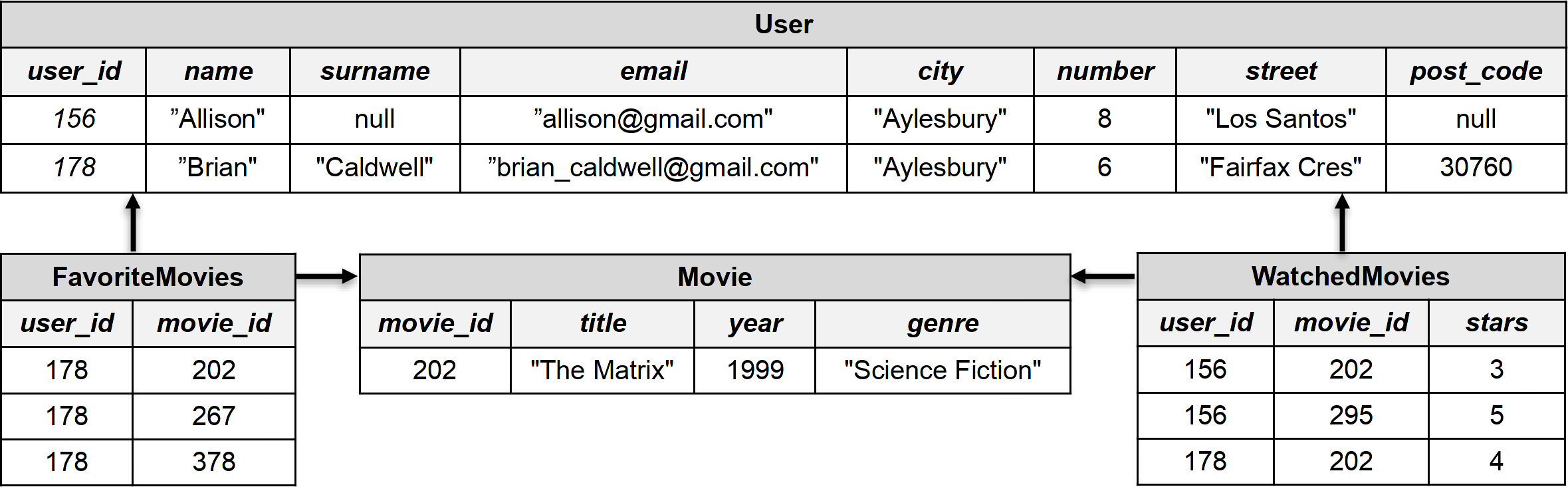

Figure 16: “User Profile” relational example.

In the last four decades, conceptual and logical schemas for relational systems have been extensively studied, and a lot of methods and tools are available for using them in the whole database life cycle. Entity-Relationship (ER) [49], Extended ER (EER) [19] and Object-Orientation modeling are the most widely used formalisms to model conceptual and logical schemas for relational databases. As explained in Section 2.1, the main concepts of such formalisms are included in U-Schema, which redefines most of them, and adds some other concepts.

8.2 Canonical Mapping between Relational Model and U-Schema Models

The relational model is completely integrated in U-Schema, but the latter has the Aggregate element which is not present in relational schemas. Moreover, all the tuples have the same structure, so that the number of structural variations for an entity type is limited to one. Next, we expose a set of rules that specify the canonical mapping between relational and U-Schema models. We will use the terminology of table data models.

R1. A relational schema corresponds to a uSchemaModel instance in U-Schema (i.e., a U-Schema model) with the same name:

R2. Each table in representing an entity type maps to two elements of : a root EntityType with the same name, and a StructuralVariation that represents the only structure of the table that exists in the database. An identifier is generated for the variation and its features are mapped to the columns of the table by applying the rules R4 to R6. This mapping can be expressed as follows:

EntityType instances are included in and is included in .

R3. Each table in representing a relationship type maps to two elements of : a RelationshipType with the same name, and a StructuralVariation that represents the only structure of the table that exists in the database. The mapping between and is solved as in rule R2.

RelationshipType instances are included in and is included in .

R4. Each column of a table is mapped to an Attribute with the same name, and the data type of the column will map to one of types defined in the Type hierarchy of U-Schema (a mapping between types has to be specified for each relational system.) The mapping can be expressed as follows:

Attributes of an EntityType are included in the collection , where is the only structural variation that has.

R5. The primary key of a table is mapped to a Key and the collection includes the attributes that maps to the columns that form . The name of is the name of the attribute (if there is just one), or otherwise (pkname() function):

For each attribute , . is also included in .

R6. Each foreign key of a table to a table is mapped to a Reference , and the collection includes the attributes that map to the columns that form . The name of is the name of the attribute (if there is just one), or otherwise (fkname() function). The reference is included in . It also refers to the entity type that maps to the target table :

8.3 Reverse Mapping Completeness

The U-Schema elements that are not present in the relational model are Aggregate, and (multiple) StructuralVariation. Next, we describe some possible mappings for these elements.

  • The canonical mapping only takes into account a StructuralVariation per schema type (resp. table). If an schema type has several StructuralVariations, then two possible alternatives are: (i) mapping each variation to a table with a distinctive naming scheme, and (ii) mapping all variations to a single table where the columns result of the union of the set of properties of each structural variation. In the latter case, the tuples of the table will have NULL values in the columns not corresponding to their structural variation. Obtaining the different entity variations from a table would require the analysis of all the tuples to register all the different set of non-NULL columns. This could be carried out with a similar operation to the MapReduce described in the common strategy of Section 3.

  • Each Aggregate in an StructuralVariation of a given EntityType could be mapped to elements of the relational model also in several ways: (i) an additional table with the name of the aggregate and the columns mapped to properties in the StructuralVariation using rules R4 to R6. A foreign key column is added to , and a primary key to the table mapped to . (ii) If the aggregate cardinality is one-to-one, the attributes of the variation could be incorporated into the table that maps to . The aggregation relationship between User and Address in the running example schema has been mapped using the second alternative, as shown in Figure 16.

8.4 Implementing and Validating the Relational Schema Extraction Process

In the case of relational databases, it is not necessary to infer schemas: U-Schema models can be obtained from relational schema declarations. We chose MySQL to implement the set of rules exposed above for the relational to U-Schema mapping. Rule R3 cannot be applied as the schema does not distinguish between relationship and entity tables. This information could be provided, for example, through name conventions, which could also be used to specify aggregation tables.

The model generation process is straightforward, and it works following the described mapping rules. First, R1 is applied to create and name the model, then an EntityType and a StructuralVariation are created for each table (R2). An Attribute is created for each column of a table (R4). Next, Keys are created for primary keys in tables, which will have references to Attributes that have been instantiated previously for the columns that are part of the primary key (R5). Finally, References are created for foreign keys in tables, and each Reference will be connected to elements previously created according to the U-Schema metamodel (R6).

The validation has been performed on the Sakila database available at the MySQL official website.131313Sakila can be downloaded from https://dev.mysql.com/doc/index-other.html, and documentation is available at https://dev.mysql.com/doc/sakila/en/sakila-structure.html. Sakila contains 16 tables, and the average numbers of columns and references between tables are, respectively, 5.6 and 1.4. The smallest table has 3 columns, and the biggest one 13 columns. We have checked the correction of the U-Schema model generation by comparing the model obtained with the information on the database available at the MySQL website (SQL creation files and official diagrams). In the study of performance and scalability, as with Cassandra, relational databases have not been considered because schemas are already available.

9 Related work

In this section, the U-Schema metamodel will be contrasted to some relevant generic metamodels defined for database schemas, and the schema inference strategy to others published for NoSQL stores.

9.1 Generic Metamodels

DB-Main was a long-term project aimed at tackling the problems related to database evolution [34, 28]. The DB-Main approach was based on three main elements: (i) The Generic Entity/Relationship (GER) metamodel to achieve platform-independence; (ii) A transformational approach to implement operations such as reverse and forward engineering, and schema mappings; and (iii) A history list to record the schema changes [34]. Here, our interest is focused on the two former elements. The generic GER metamodel was defined as an extension of the ER metamodel [49]. Conceptual, logical, and physical models could be represented in GER. Models for a particular paradigm, system, or methodology were obtained by means of (i) selecting necessary GER elements, (ii) defining structural predicates to establish legal assemblies of that elements, and (iii) choosing an appropriate visual diagram. Regarding schema transformations, a set of basic transformations were defined, and the signature of each of them (name, input, and output) was specified in a particular format to be used to record changes in the history list. Our proposal differs of the GER approach in several significant aspects.

A. Support of semi-structured data in NoSQL stores

It is convenient to remark that our approach shares objectives with DB-Main. However, DB-Main was focused mainly on relational systems, and also on earlier database systems. Instead, we are interested in both structured and semi-structured data, specially in the emerging NoSQL stores and relational databases.

B. Physical and conceptual level separation in different metamodels

U-Schema is intended to represent logical schemas, so that conceptual and physical schemas are separately modeled. Instead of mixing all the information in a single metamodel, we have considered more convenient to separate the large amount of physical concepts in their own metamodel and to have a simpler conceptual model. Because of this concern separation, reusability is promoted, and models are kept simple and readable. The conceptual and physical metamodels are out of the scope of this paper. At this moment, we have defined a physical metamodel for MongoDB, as described in

[38].

C. Concrete schemas are directly represented in U-Schema

Unlike GER, we do not have to define a sub-model of U-Schema for each database system. U-Schema acts as a pivot representation, able to represent NoSQL and relational schemas for all paradigms. The set of rules that maps each data model to U-Schema determines the U-Schema elements involved, and therefore the valid structures.

D. Structural variation representation

A central notion of U-Schema is structural variation. Variations of entity and relationship types can be represented. This information can be useful in different tasks. For example, variations are used to identify whether an entity type contains a type hierarchy (e.g. a Product hierarchy) in [31]. Variations also allow to analyze the database evolution, or can be used to generate test datasets, among other tasks.

E. Solution based on MDE specification

As indicated in Section 2, we have defined U-Schema with the Ecore metamodeling language with the purpose of taking advantage of MDE technology integrated in the EMF framework [47].

F. Schema extraction

In DB-Main, a different schema extractor had to be developed for each database system. In our case, a common strategy have been defined which address the scalability and performance issues.

Model Management (MM) is an approach aimed to solve data programmability problems which normally involve complex mappings between data schemas of different sources [10, 9]. A set of operators between models are proposed, such as match, union, merge, diff, or the modelgen operator that generates a schema from another. In [10], building a universal metamodel is considered a feasible way of developing tools to specify mappings, although it does not seems the more adequate alternative because of the large complexity of the required metamodel.

Two universal metamodels for applying Model Management are presented in [7] and [35]. Paolo Atzeni et al. [7] described a universal metamodel based on a three-level architecture similar to those defined in the EMF framework and used in our work: a metamodeling language (Ecore) is used to define metamodels (U-Schema in our case), which, in turn, are used to create models (schemas in our case). In [7], a set of 13 meta-constructs were defined to represent the concepts used in different data formalisms. For example, Abstract is proposed to model autonomous concepts such as ER entities or OO classes, AbstractAttribute to model references, and Generalization to model Abstract hierarchies. This proposal overlooked the already existing MDE frameworks, in particular EMF/Ecore. Instead, the authors started from scratch, and they even proposed a dictionary structure to store models as instances of the universal metamodel. Schemas are expressed by indicating, for each element, the construct at the level of the data model from which is instantiated, and for each of these constructs its meta-construct at the level of the universal metamodel. The metamodel was accompanied by a basic tooling for textual and graphical visualization.

The main differences between this universal metamodel and U-Schema are the following:

A. A different purpose and meta-modeling architecture

While the universal metamodel of Atzeni et al. is aimed to instantiate data models, U-Schema is a unified metamodel able to represent schemas of a variety of databases. Therefore, the metamodeling architectures are different: Universal metamodel/Data Model/Database Schemas vs. Ecore/U-Schema/Database Schemas. It is worth noting that our approach does not prevent the definition of metamodels for representing any existing data model that is integrated in U-Schema. However, as indicated in Section 3.1, we have considered that creating these metamodels would not provide any benefit as intermediate representation, as the variation schema to data model transformations would be very close to the variation schema to U-Schema transformation.

B. Availability of tools for basic model operations

While we used the EMF metamodeling architecture to create U-Schema, Atzeni et al. had to implement their own metamodeling architecture from scratch, as well reporting and visualization tools. Instead, EMF provide tools supporting model comparison (EMF Compare)141414https://www.eclipse.org/emf/compare/. and model diff/merge operations (EMF Diff/Merge),151515https://wiki.eclipse.org/EMF_DiffMerge. as well as model-transformation languages to implement the modelgen operator.

C. Relationship types and structural variations

The expressiveness of the Universal metamodel is covered by U-Schema elements. In addition, U-Schema includes the notions of relationship types and structural variations, which are convenient to represent schemas of NoSQL stores.

GeRoMe is another generic metamodel proposed for Model Management [35]. A role-based modeling is applied to define a metamodel able to represent different data models. In mid-nineties, role-based modeling approaches received attention in the context of object-oriented programming to model the multiple-classification and object collaborations [40]. However, that interest has decreased over the years because languages and tools do not support the notion of role. Extended ER, Relational, OWL-DL, XML Schema, and UML were analyzed in GeRoMe with the aim to identify their similarities and differences. Then, a set of roles was established, and the role-based metamodel created. U-Schema clearly differs of GeRoMe in its purpose and the kind of representation of the generic metamodel. Our unified metamodel has been defined by applying object-oriented conceptual modeling, the technique commonly used currently to create metamodels, and using a well-know metamodeling architecture.

As far as we know, neither of the three generic metamodels here considered (GER, Atzeni et al., and GeRoMe) has evolved to include elements specific of NoSQL stores. Therefore, none of them has addressed the representation of structural variations or relationship types. In the case of DB-Main, the tool can currently be acquired from the Rever company161616https://www.dataengineers.eu/en/db-main/. as a tool to simplify data engineering tasks.

More recently, several metamodels have been proposed to represent NoSQL schemas. SOS is a metamodel designed to represent schemas of aggregate-based stores [5]. With this uniform representation, a NoSQL schema consists of a set of collections (Set metaclass), which can contain Structs and Attributes. An Attribute represents a key-value property, and a group of key-value pairs is modeled as a Struct. Struct and Set can be nested. Later, SOS evolved to the NoAM (NoSQL Abstract Model) metamodel, which was defined as part of a design method for aggregate-based NoSQL databases [6, 4]. NoAM was designed as an intermediate representation to transform aggregate objects of database applications into NoSQL data. A NoAM database is a set of collections that contains a set of blocks. A block contains a set of key-value pairs, and each block is uniquely identified. In [6], several strategies are described to represent a collection of aggregate objects in form of a NoAM database.

NoAM and SOS were designed with a purpose different to U-Schema. SOS aims to achieve a uniform accessing, and NoAM is part of a design method. Instead, U-Schema has been devised to have a uniform representation able to capture data models of NoSQL and relational data models, with the aim of facilitating the building of database tools supporting several database systems. Therefore, U-Schema offers a higher level of abstraction than SOS and NoAM. These representations are closer to the physical level than the logical. Thus, some key aspects for a logical schema are neglected, such as the relationships between entities. In addition, the existence of structural variations is not considered. Finally, MDE technology was not used in their definition.

ERwin Unified Data Modeler (ModelSet) is a project outlined in an article in infoQ [51] whose purpose is very close to ours. However, to our knowledge, results of that project have not been published yet. In [51], Allen Wang, responsible of the ERwin project, pointed out on the importance of “using logical models describing business requirements and de-normalizing schema to physical data models” in database design. A simple unified logical model is shown to represent three kind of schemas: columnar, document, and relational schema. The metamodel only includes four elements. The three basic modeling constructs: Entity, Relationships, Properties (of entities), and Tags are used to add additional information to basic constructs. A physical model should be built for each system. Query and data production patterns are defined on the logical model for its transformation into physical model. Several significant differences are found between U-Schema and the ERwin metamodel: (i) U-Schema is not only able to represent aggregate-based systems, but also graph stores; (ii) U-Schema is more expressive, ModelSet only includes the three basic constructs of modeling, but this is similar to our variation schemas that are input to the analysis process; (iii) Being U-Schema a representation at higher level of abstraction, the definition and implementation of operations such as schema mapping, visualization, or schema discovery are easier; (iv) U-Schema represents structural variations; (v) Instead of a proprietary tool, U-Schema is part of a free data modeling tool.

The Typhon project171717https://www.typhon-project.org/. is an European project aimed to create a methodology and tooling to design and develop solutions for polystore database systems. As part of this project, the TyphonML [50] language has been built, which allows schemas to be defined in a database system-independent way. Columnar, document, key-value, graph, and relational schemas can be defined with TyphonML. Typhon schemas can also express mappings from schemas to the physical representation. Some remarkable differences with U-Schema are: (i) TyphonML is not a language defined on a unified metamodel, instead U-Schema is separated from any schema declaration language. In fact, we have created the Athena language on U-Schema, and other languages could be defined181818https://catedrasaes-umu.github.io/NoSQLDataEngineering/tools.html.; (ii) The existence of structural variation in NoSQL systems is not considered; (iii) As can be observed in [50], for each paradigm, the TyphonML metamodel includes logical and physical aspects; Instead, our choice is to separate both levels of abstraction in two metamodels as pointed out in [38]; (iv) Although graph stores are represented, the concept of relationship type is not included in TyphonML; (v) Aggregates are not represented as a separate concept, but the same metaclass Reference represents both aggregates and references by using the boolean attribute isComposite to record the kind of relationship; Instead U-Schema represents aggregates and references with two metaclasses, which allows us to have a complete semantics. The logical elements of TyphonML are limited to Entities that aggregate Attributes and References, while our unified metamodel has a wider and richer set of semantic concepts.

A 2-step model transformation chain aimed to transform conceptual models into physical schemas (Cassandra stores are considered) is described in [1]. Logical models are generated in an intermediate step. Conceptual schemas and logical schemas are represented by means of very simple metamodels. A conceptual schema is formed by a set of classes and datatypes, and classes include attributes and relationships. A relational model is used as logical model, to which relationships are added. This proposal has some flaws such as (i) relationship types and references are not distinguished, which is necessary for graph schemas, (ii) references have not properties, and (iii) the separation between logical and conceptual model is not justified because they include the same concepts but different names; this can be observed in the very simple conceptual-to-logical transformation shown in the paper.

Table 5 summarizes the discussion made above, and compares the generics metamodels considered according to several criteria.

DB-Main Universal Metamodel GeRoMe SOS/NOAM ERwin Unified Data Modeler (ModelSet) U-Schema
Aim Evolution tool Model Management Model Management Uniform access / Database Design Modeling tool Database engineering toolkit
Supported Databases Paradigms Relational, OO, ER and Early databases Any metadata formalism and database schema Any metadata formalism and database schema NoSQL databases Relational, document, and columnar Relational and NoSQL (columnar, document, graph, and key-value)
Unified Metamodel GER based on ER Set of 13 meta-constructs to cover all data models Set of 48 roles to cover all data models Collection, Struct or Block, and Attribute (very near to physical model) Entity, Property, and Relationship Set of concepts to cover NoSQL and relational schemas
Metamodeling Language From scratch From scratch From scratch N/A From scratch Ecore (Eclipse Modeling Framework, EMF)
Levels of metamodeling GER metamodel and restrictions to define data model SuperMetamodel/Data Model/Schema (Own architecture) Use of role-based modeling Abstract metamodel / Instances Unified metamodel / Models (schemas of data models) Ecore / U-Schema / Models (schemas of a data model)
Defining concrete schemas Selection of GER elements and definition of constraints Model elements are annotated with meta-construct to which belong it Model elements play one of their roles Programmatically, Java instances Instances of the metamodel (proprietary solution) Instances of the metamodel (use of mapping rules)
Schema Levels Conceptual, Logical and Physical Conceptual and Logical Conceptual and Logical Very simple uniform representation Conceptual and Logical (Physical separated) Logical (Conceptual and Physical separated)
Schemaless supported Not addressed Not addressed Not addressed Structural variations are supported, but not extracted or represented Not addressed Structural variations are modeled
Output ER diagrams and text ER diagrams and text Own visualization N/A Unified ModelSet notation U-Schema models in form of Neo4j graphs
Schema extraction A schema extractor for each system Not addressed Not addressed N/A No details provided, except the use of machine leaning and statistics are obtained Common strategy of 2 steps: MapReduce and U-Schema model building process
Scalability and Performance Not addressed Not addressed Not addressed N/A No details provided MapReduce operation on NoSQL stores
Table 5: Approaches defining a Generic Metamodel.

9.2 NoSQL Schema Extraction Strategies

Recently, several approaches to extract schemas from NoSQL document stores have been published [52, 36, 16]. A detailed study of these works can be found in [23] where they were contrasted to our previous approach for document stores [43]. Moreover, some works on schema extraction from JSON datasets have also been presented. In [16], a MapReduce is used to obtain a collection of key-value pairs from an input JSON dataset. In each pair, the key is a document specifying the structure or type of a JSON object in the dataset, and the value records the number of elements of the that type. In a second step, heuristics are applied to merge similar types.

The main differences of the approach described here with previous extraction strategies are the following: (i) They are focused on document stores. Instead, we have defined a general strategy applicable to the four main NoSQL paradigms and the relational model; (ii) Like [16], our approach use a MapReduce operation to improve the efficiency of the inference process; (iii) Our inference strategy discovers relationships between entities, and structural variations of entities. (iv) The output of our inference process is a model that conforms to an Ecore unified metamodel. In this way, we can take advantage of benefits offered by MDE, which were commented in Section 2.2.

An MDE-based reverse engineering approach for extracting conceptual graph schemas is described in [17]. CREATE Cypher statements are analyzed to obtain a graph model: a graph is formed by nodes and edges, and nodes have incoming and outgoing edges. Then, a model-to-model transformation generates an Extended Entity-Relation (EER) conceptual schema model, whose elements are entities, relationships, attributes, and IS-A relationships. Our inference process differs of this strategy in several significant aspects, apart from being a generic strategy and use a MapReduce to considerably improve the efficiency: (i) We access stored data instead of using CREATE statements, which might not be available. (ii) Instead of building a graph model, we create a table with all relationships as input to the MapReduce operation; this table allows us to obtain the cardinality of each relationship (iii) We obtain a logical schema that include structural variations for relationships and entities.

9.3 Data Modeling Tools

With the emergence of NoSQL systems, multi-paradigm data modeling commercial tools have proliferated. In our study of some of the most relevant of these tools, we have found no evidence showing the use of a unified metamodel. Next, we contrast features of these tools with those considered in our U-Schema approach.

These tools can be classified in two categories. A first category are existing tools for relational databases which are incorporating some NoSQL systems. At this moment, these tools have only added support for document systems, being MongoDB the system integrated in the most of them.

For example, ER/Studio [21] and ERwin [22] provide utilities to extract and visualize schemas for MongoDB and CouchDB since 2015. They extract schemas as a set of entity types whose properties are the union of all fields discovered in objects of that entity, but variations and relationships are not addressed. Recently, ERwin Data Modeler provides an integrated view of conceptual, logical and physical data models to help stakeholders understand data structures and meaning.

The second group is formed by new tools developed with the purpose of offering data modeling for polyglot persistence. As far as we know, Hackolade [26] is the only tool that integrates database systems for the four most common NoSQL paradigms as well as a wide number of relational systems and other leading data technologies. Recently, it has been announced the creation of a unified model named “Polyglot Data Model” but no details have been published. Unlike U-Schema, Hackolade does not address variation and references in the NoSQL schema extraction. Entities extracted are represented as the union of all the fields discovered in different variations of the entity. The collision of fields with the same name but different type is not considered but that modeler should make a decision.

DBSchema [18] is a tool similar to Hackolade: It allows the developer to define schemas with a graphical layout, but also to apply a reverse engineering process to an existing database in order to extract the schema, as long as there is a JDBC Java driver for it. Queries can be created in an intuitive way or either using SQL. In this tool, variations are not considered at all, since it applies a SQL approach to infer the schema, in which variations are not taken into account.

10 Applications of the U-Schema Metamodel

The usefulness of generic metamodels is well known, and has been extensively discussed in the database literature for more than 30 years. In this section, we shall show how U-Schema metamodel favors the implementation of some database operations that involve SQL and NoSQL systems. We will present a migration process and discuss how U-Schema facilitates the development of database migrations, generic solutions to query schemas, generate synthetic data for testing purposes, and visualize schemas.

10.1 Database Migrations

Database migration is a typical task in which a unified or generic representation provides a great advantage. Given a set of database systems, the total number of migrators required is instead of . Here we will describe how U-Schema models can be used to help migrate databases when the source and target systems are different.

To perform a migration, the source and destination databases have to be specified, as well the mapping rules that determine how source data are moved to the destination database. A migration tool usually has to read all the data in the original database, perform some processing, and write the resulting data in the destination database. These steps can be carried out in different ways, that can be simplified by using U-Schema models, as they contain all the information of entities, attributes, and relationships. Therefore, the U-Schema model has to be obtained prior to the aforementioned steps.

There are several options when reading the original data. A set of queries could be constructed to extract the data guided by its structure (i.e., its schema). The inferred U-Schema model from the source database can be used to automatically generate those queries. The queries can produce a set of interchange format files (e.g. JSON or CSV) or can act as a source feed for a streaming process. Likewise, U-Schema models could automate the data ingestion procedure using bulk insertion utilities from files, generated insert queries, or even help to build the ingestion as the last stage of a streaming process.

The next step is to specify and execute the mapping rules between source and destination elements. The mapping rules introduced in sections 4 to 8 should be adapted to the specificities of the migration. For example, an alternate mapping could be devised for characteristics not present in the destination data model, as was the case we showed with aggregates in a graph data model in Section 4.3. The migration rules could be hardcoded, or either specified with a ad-hoc language. This language would be defined taking into account the abstractions of U-Schema. The migration rules would include the U-Schema source element, the target data model element, and the mappings between the parts that constitute the source and target elements, similarly to how we expressed the canonical mappings before.

10.2 Definition of a Generic Schema Query Language

Schema query languages help developers to inspect and understand large and complex schemas. In the case of relational systems, SQL is used to query schemas represented in form of tables in the data dictionary. In NoSQL stores, a similar query facility is provided by some systems that require to declare schemas, for example Cassandra [14] and OrientDB [39]. In the case of schemaless NoSQL systems, the number of variations can be very large in some domains, for example 21,302 variations for the Company

entity type of DBPedia are reported by Wang et al.

[52]. Using U-Schema, a generic query language could be defined which would allow querying relationships and structural variations for any kind of NoSQL store, unlike existing solutions. As far we know, querying variations has been only addressed in the mentioned work of Wang et al. [52], which focused on MongoDB, and only suggested a couple of queries to illustrate the idea. A first version of our language can be downloaded.191919https://github.com/catedrasaes-umu/NoSQLDataEngineering.

The U-Schema query language allows to query the schema of any type of database system under a unique language, and even make it possible in scenarios where the data is stored in different database systems (polyglot persistence). Some examples of the most common queries that a developer might need are: (i) get an overview of the entities and the relationships between them, (ii) search variations with a set of properties, (iii) check all shared properties of all variations of a specific entity. The results of the queries could be displayed as text or a graphic representation in the form of tables, graphs or trees (hierarchical data).

10.3 Generation of datasets for testing purposes

Automatic database generation is a point of interest in designing, validating, and testing of research database tools and deployments of data intensive applications. Often, researchers in the data-engineering field lack of real-world databases with the required characteristics, or they can not access them.

Some works have addressed the generation of synthetic data on relational systems, and some restriction languages have been proposed to this purpose [12, 45]. With U-Schema, a database paradigm-independent restriction language could be defined to tailor the generation of data. In this way, a given specification could be used to generate data for different databases. Note that the language constructs would be at the level of abstraction of U-Schema, and not aligned to elements of any concrete paradigm.

This is of special importance in the case of distributed systems, as most NoSQL deployments are. In this context, a cost model to evaluate query efficiency is very difficult to build, given all the variables involved [37]. Generating different sets of data with different characteristics can help fine-tuning application intended queries. For example, just changing the relationships between the entities of a schema (for example, changing references into aggregations or vice versa), new data that follows this change could be generated to test the queries, helping the developers to find opportunities for optimization.

Finally, another advantage of our approach around U-Schema is that in the case of existing databases, their schema can be inferred into a model, and then used to generate data that can be for the same or different databases, matching the schema or even introducing changes, either for performance tuning or for testing purposes.

We developed an initial version of a U-Schema-based data generation language with the described characteristics [33].

10.4 U-Schema Schema Visualization

When schemas are extracted they must be expressed in a graphical, textual, or tabular format to be shown to stakeholders. Normally, they are shown as a diagram (e.g., ER or UML). In a previous work, we explored the visualization of document schemas and proposed several kinds of diagrams for document systems [30]. Now, it is possible to take advantage of U-Schema to define common diagrams for logical schemas taking into account the existence of variations if needed. Moreover, U-Schema could be mapped to other formats with the purpose of visualizing schemas in existing tools.

11 Conclusions and Future Work

Multi-platform database engineering tools commonly define a unified metamodel to represent database schemas of a variety of systems. In this paper, we have presented a proposal of unified metamodel that integrates data models for relational and NoSQL systems (key-value, document, wide column, and graph). These systems cover most of current database applications. Our work is motivated by the growing interest in multi-model database tooling and systems as polyglot persistence is considered essential to satisfy needs of modern applications. With U-Schema, we have defined a representation able to express inferred or declared schemas at a similar abstraction level to EER and Object-Orientation logical models.

U-Schema is the first logical unified metamodel defined for NoSQL and relational systems taking into account structural variation, relationship types, aggregations, and references. Through forward and reverse mappings, we have formally shown how U-Schema is able to represent each considered data model, and how U-Schema models can be converted to schemas of the individual models. We would like to remark that the extraction of schemas from databases (forward mappings) have been implemented for the most widely used NoSQL systems (Neo4j, MongoDB, Redis, Cassandra, and HBase), as well as for one of the most used relational systems (MySQL). For each extraction algorithm, scalability and performance were assessed. Having used the de facto standard Ecore to represent the schemas turns the framework in a reusable and adaptable tool, and Eclipse modeling tooling can be used to build database tooling.

Future work can be divided in two lines, depending on whether they have to do with the unified metamodeling approach, or with applications based on U-Schema. We approached the unified representation of schemas by separating logical and physical aspects. The metamodel presented here concerns to the logical view, and a new metamodel will represent the unified physical schemas. Thus, we will have U-Schema-Physical and U-Schema-Logical, where physical schemas will be extracted from data stores, and logical schemas could be directly obtained either from stores or from physical schemas, as described in [38]. Physical data models for each system will include data structures at physical abstraction level, indexes, physical data distribution, among others. Regarding improvements of U-Schema, we will extend the metamodel to represent constraints to support new logical validation characteristics in some NoSQL databases, such as the MongoDB Schema Validation. Finally, it is planned to build several tools and languages around U-Schema: (i) The migration approach outlined in Section 10.1, which will include a U-Schema based schema mapping language to express specialized mappings as described in Section 2.4; (ii) Complete the generic Schema Query Language introduced in Section 10.2; (iii) Define some diagramming tools from the results in [30]

; (iv) A universal schema definition language, that, by using U-Schema, allows to define schemas homogeneously through NoSQL and relational datastores; (v) Support an approach of platform-independent schema evolution through the definition of a change taxonomy implemented by a schema change operation language; and (vi) This language could be used to explore the impact of schema changes on the set of queries of an application, following automated reinforcement learning techniques.

References

  • [1] Fatma Abdelhédi, Amal Ait Brahim, Faten Atigui, and Gilles Zurfluh. Logical Unified Modeling for NoSQL Databases. In ICEIS (1), pages 249–256. SciTePress, 2017.
  • [2] Serge Abiteboul, Peter Buneman, and Dan Suciu. Data on the Web: From Relations to Semistructured Data and XML. Morgan Kaufmann, 1999.
  • [3] R. Angles, M. Arenas, P. Barceló, A. Hogan, J. Reutter, and D. Vrgoč. Foundations of Modern Query Languages for Graph Databases. ACM Computing Surveys, 50(5), 2017.
  • [4] Paolo Atzeni, Francesca Bugiotti, Luca Cabibbo, and Riccardo Torlone. Data modeling in the NoSQL world. Comput. Stand. Interfaces, 67, 2020.
  • [5] Paolo Atzeni, Francesca Bugiotti, and Luca Rossi. Uniform Access to Non-relational Database Systems: The SOS Platform. In 24th International Conference on Advanced Information Systems Engineering (CAiSE), pages 160–174, Gdansk, Poland, June 2012.
  • [6] Paolo Atzeni, Francesca Bugiotti, and Luca Rossi. Uniform access to NoSQL systems. Information Systems, 43:117–133, 2014. URL: http://www.sciencedirect.com/science/article/pii/S0306437913000719.
  • [7] Paolo Atzeni, Giorgio Gianforme, and Paolo Cappellari. A universal metamodel and its dictionary. Trans. Large Scale Data Knowl. Centered Syst., 1:38–62, 2009.
  • [8] Francisco J. Bermudez, Jesús García Molina, and Oscar Díaz. On the Application of Model-Driven Engineering in Data Reengineering. Information Systems, 72:136–160, 2017.
  • [9] Philip A. Bernstein, Alon Y. Halevy, and Rachel Pottinger. A vision of management of complex models. SIGMOD Rec., 29(4):55–63, 2000.
  • [10] Philip A Bernstein and Sergey Melnik. Model management 2.0: manipulating richer mappings. In Proceedings of the ACM SIGMOD Int. Conference on Management of data, pages 1–12, 2007.
  • [11] M. Brambilla, J. Cabot, and M. Wimmer. Model-Driven Software Engineering in Practice. Morgan & Claypool Publishers, 2012.
  • [12] Nicolas Bruno and Surajit Chaudhuri. Flexible Database Generators. In 31st International Conference on VLDB, pages 1097–1107, 2005.
  • [13] P. Buneman. Semistructured Data. In Sixteenth ACM SIGACT-SIGMOD-SIGART Symposium on Principles of Database Systems, pages 117–121, Arizona, USA, 1997. ACM.
  • [14] Cassandra webpage, 2016. Accessed September 2020. URL: http://cassandra.apache.org/.
  • [15] E. F. Codd. A Relational Model of Data for Large Shared Data Banks. Commun. ACM, 13(6):377–387, 1970. URL: http://doi.acm.org/10.1145/362384.362685, doi:10.1145/362384.362685.
  • [16] Dario Colazzo, Giorgio Ghelli, and Carlo Sartiani. Typing massive JSON datasets. In International Workshop on Cross-model Language Design and Implementation, volume 541, pages 12–15, 2012.
  • [17] Isabelle Comyn-Wattiau and Jacky Akoka. Model driven reverse engineering of nosql property graph databases: The case of neo4j. In 2017 IEEE International Conference on Big Data, 2017, Boston, MA, USA, December 11-14, 2017, pages 453–458, 2017.
  • [18] Dbschema webpage, 2016. Accessed October 2018. URL: http://www.dbschema.com.
  • [19] Ramez Elmasri and Shamkant B. Navathe. Fundamentals of Database Systems. Pearson, 7th edition, 2015.
  • [20] Vincent Englebert and Jean-Luc Hainaut. DB-Main: A next generation meta-case. Information Systems, 24(2):99–112, 1999.
  • [21] ER-Studio Webpage, 2015. Accessed February 2021. URL: https://www.idera.com/er-studio-enterprise-data-modeling-and-architecture-tools.
  • [22] ERwin Data Modeler Webpage, 2016. Accessed February 2021. URL: http://erwin.com/products/erwin-data-modeler.
  • [23] Severino Feliciano. Inferring NoSQL Data Schemas with Model-Driven Engineering Techniques. PhD thesis, Faculty of Informatics. University of Murcia, Spain, 2017.
  • [24] Erich Gamma, Richard Helm, Ralph Johnson, and John M. Vlissides. Design Patterns: Elements of Reusable Object-Oriented Software. Addison-Wesley Professional, 1994.
  • [25] Stefan Gössner. JSONPath – XPath for JSON, July 2020. URL: https://tools.ietf.org/id/draft-goessner-dispatch-jsonpath-00.html.
  • [26] Hackolade Webpage, 2016. Accessed: September 2020. URL: https://hackolade.com/.
  • [27] Jean-Luc Hainaut. The transformational approach to database engineering. In Generative and Transformational Techniques in Software Engineering, International Summer School, GTTSE 2005, Braga, Portugal, July 4-8, 2005. Revised Papers, pages 95–143, 2005. doi:10.1007/11877028_4.
  • [28] Jean-Luc Hainaut, Vincent Englebert, Jean Henrard, Jean-Marc Hick, and Didier Roland. Database Evolution: the DB-Main Approach. In Pericles Loucopoulos, editor, Entity-Relationship Approach - ER’94, Business Modelling and Re-Engineering, 13th International Conference on the Entity-Relationship Approach, Manchester, UK, December 13-16, 1994, Proceedings, volume 881 of Lecture Notes in Computer Science, pages 112–131. Springer, 1994.
  • [29] Hbase webpage, 2007. Accessed September 2020. URL: https://hbase.apache.org/.
  • [30] Alberto Hernández Chillón, Severino Feliciano Morales, Diego Sevilla Ruiz, and Jesús García Molina. Exploring the Visualization of Schemas for Aggregate-Oriented NoSQL Databases. In ER Forum 2017, 36th Int. Conf. on Conceptual Modelling (ER), pages 72–85, Valencia, Spain, November 2017.
  • [31] Alberto Hernández Chillon, Diego Sevilla Ruiz, and Jesus Garcia-Molina. Discovering Entity Inheritance Relationships in Document Stores. 2021. Manuscript under review.
  • [32] Alberto Hernández Chillón, Diego Sevilla Ruiz, Jesús García Molina, and Severino Feliciano Morales. A Model-Driven Approach to Generate Schemas for Object-Document Mappers. IEEE Access, 7:59126–59142, May 2019.
  • [33] Alberto Hernández Chillon, Diego Sevilla Ruiz, and Jesús Garcia-Molina. Deimos: A Model-based NoSQL Data Generation Language. In CoMoNoS Workshop in Conceptual Modeling Int. Conf., 2020.
  • [34] Jean-Marc Hick and Jean-Luc Hainaut. Strategy for database application evolution: The DB-MAIN approach. In International Conference on Conceptual Modeling, pages 291–306. Springer, 2003.
  • [35] David Kensche, Christoph Quix, Mohamed Amine Chatti, and Matthias Jarke. Gerome: A generic role based metamodel for model management. J. Data Semantics, 8:82–117, 2007.
  • [36] Meike Klettke, Uta Störl, and Stefanie Scherzinger.

    Schema Extraction and Structural Outlier Detection for JSON-based NoSQL Data Stores.

    In Conference on Database Systems for Business, Technology, and Web (BTW), pages 425–444, 2015.
  • [37] Michael J. Mior, Kenneth Salem, Ashraf Aboulnaga, and Rui Liu. NoSE: Schema Design for NoSQL Applications. IEEE Trans. Knowl. Data Eng., 29(10):2275–2289, 2017.
  • [38] Pablo Muñoz, Carlos J. Fernández, Jesús Garcia-Molina, and Diego Sevilla Ruiz. Extracting Physical and Logical Schemas for Document Stores. In CoMoNoS Workshop in Conceptual Modeling Int. Conf., 2020.
  • [39] OrientDB Community Webpage, 2020. Accessed September 2020. URL: http://orientdb.com/orientdb/.
  • [40]

    Trygve Reenskaug, Per Wold, and Odd Arild Lehne.

    Working with objects - the OOram software engineering method. Manning, 1996.
  • [41] James E. Rumbaugh, Ivar Jacobson, and Grady Booch. The unified modeling language reference manual. Addison-Wesley-Longman, 1999.
  • [42] P.J. Sadalage and M. Fowler. NoSQL Distilled. A Brief Guide to the Emerging World of Polyglot Persistence. Addison-Wesley, 2012.
  • [43] Diego Sevilla Ruiz, Severino Feliciano Morales, and Jesús García Molina. Inferring Versioned Schemas from NoSQL Databases and Its Applications. In 34th International Conference on Conceptual Modeling (ER), pages 467–480, Stockholm, Sweden, October 2015.
  • [44] Peter Pin shan Chen. The entity-relationship model: Toward a unified view of data. ACM Transactions on Database Systems, 1:9–36, 1976.
  • [45] Yannis Smaragdakis and et al. Scalable Satisfiability Checking and Test Data Generation From Modeling Diagrams. Automated Software Engineering, 16(1):73, 2009.
  • [46] Apache spark webpage, 2021. Accessed March 2021. URL: https://spark.apache.org/.
  • [47] David Steinberg, Frank Budinsky, Marcelo Paternostro, and Ed Merks. EMF: Eclipse Modeling Framework 2.0. Addison-Wesley Professional, 2009.
  • [48] Michael Stonebraker. The case for polystores. ACM Sigmod Blog, 2015. URL: https://wp.sigmod.org/?p=1629.
  • [49] Dionysios C. Tsichritzis and Frederick H. Lochovsky. Data Models. Prentice Hall Professional Technical Reference, 1982.
  • [50] Typhon Project. Hybrid Polystore Modelling Language (Final Version). Technical report, University of L’Aquila, 2018. URL: https://4d97e142-6f1b-4bbd-9bbb-577958797a89.filesusr.com/ugd/d3bb5c_3394b40f9cb54bcbb873f2c4ea1f2298.pdf.
  • [51] Allen Wang. Unified Data Modeling for Relational and NoSQL Databases. infoq, 2016. URL: https://www.infoq.com/articles/unified-data-modeling-for-relational-and-nosql-databases/.
  • [52] Lanjun Wang, Oktie Hassanzadeh, Shuo Zhang, Juwei Shi, Limei Jiao, Jia Zou, and Chen Wang. Schema management for document stores. Proc. VLDB Endow., 8(9):922–933, 2015. doi:10.14778/2777598.2777601.
