I Introduction

Memory has a pivotal role in human cognition and many different types are well known and intensively studied[1]. In neural networks and signal processing the use of memory is concentrated in preserving in some form (by storing past samples or using a state model) the information from the past. A system is said to include memory if the system’s output is a function of the current and past samples. Feedforward neural networks are memoryless, but the time delay neural network [2], the gamma neural model [3] and recurrent neural networks are memory networks. An important theoretical result showed that these networks are universal in the space of myopic functions [4]. A methodology to quantify linear memories was presented in [3], which proposed an analytic expression for the compromise between memory depth (how much the past is remembered) and memory resolution (how specifically the system remembers a past event). A similar compromise exists for nonlinear dynamic memories (i.e. using nonlinear state variables to represent the past), but is depends on the type of nonlinearity and there is no known close form solution. It is fair to say that currently the most utilized neural memory is the recurrent neural networks (RNN) for sequence learning. Compared to the time delay neural network, RNN keeps a processed version of the past signal in its state. [5][6] proposed the first classic version of RNN which introduces memory by adding a feedback from the hidden layer output to its input for sequence recognition. They are often referred to as vanilla RNN nowadays. A large body of work also used RNNs for dynamic modeling of complex dynamical and even chaotic systems [7]. However, although RNNs are theoretically Turing complete if well-trained, they usually do not perform well when the sequence is long. Long short term memory (LSTM) [8] was proposed to provide more flexibility to RNNs by employing

an external memory called cell state to deal with the vanish gradient problem.

Three logic gates are also introduced to adjust this external memory and internal memory. Later on several variants were proposed [9]

. One example needs to be mentioned is the Gated Recurrent Unit

[10]which combines the forget and input gates and makes some other changes to make the model simpler. Another variant is the peephole network [11] which makes the gate layers look not only the input and hidden state but also the cell state. With the help of the external memory, the network does not need to squeeze all the useful past information into the state variable, the cell state helps to save information from the distant past. The cooperation of the internal memory and the external memory outperforms vanilla RNN in a lot of real-world problem tasks such as language translation [12] video prediction [13, 14] and so on. However, all these sequence learning models have difficulties to accomplish some simple memorization tasks such as copying and reversing a sequence. The problem for LSTM and its variants is that the previous memories are erased after they are updated, which also happens continuously with the RNN state. In order to solve this problem, the concept of online extracting events in time is necessary and can be conceptually captured with an external memory bank. However, a learning system with external event memory must also learn when to store an event, as well as to use it in the future. In this way, the old memory does not need to be erased to make space for the new memory. Neural stack is an example which uses a stack as its external memory bank and gets access to the stack top content through push and pop operations. Its two operations are controlled by either a feedforward network or an RNN such as [6][8]. The research on neural stack network was originated in [15, 16] to mimic the working mechanism of pushdown automata. The continuous push and pop operations in it give an instruction of how to render discrete data structure continuous to all the subsequent papers. The authors in [17, 18] adapted these operations to queue and double queue to accomplish more complex tasks, such as sequence prediction. Moreover, [17] extended the number of stacks in their model. Recently, more powerful network structures such as neural Turing machine[19] and differentiable neural computer [20] are proposed. In these network, all the contents in the memory bank can be accessed. At the same time, Weston [21] also proposed a sequence prediction method using an addressable memory and test it on language and reasoning tasks. Since the accessible content is not restricted to the top of the memory as neural stack, neural RAM has more flexibility to handle its memory bank.

Many memory networks have emerged recently, some of them adopt internal memory; some of them adopt external memory; some of them adopt logic gates; some of them adopts a attention mechanism. As expected, all of them have advantages for some specific tasks, but it’s hard to decide which one is optimal for a new task unless we have a clear understanding of functions of all the components in the memory networks. Although we can try and test them one by one from simple to complex, it is a really time consuming process. And it is also not a good choice to always go for the most complex network because it needs more resources and takes more time to be well-trained. Intuitively, we all know that if the network involves more components, it can make use of more information, but what kinds of the extra information they are using and how useful this extra information is, are still unknown in the current literatures. Understanding the essential differences and relations between these memory networks and connecting these differences to the requirements of different targets is the key to choose the right network. Furthermore, it can instruct us to design an appropriate memory network according to the features of the specific sequences to be learned.

In this paper, we analyze the capabilities of different memory networks based on how they organize their memories. Moreover, we propose a memory network taxonomy which covers the four main classes of memory networks: vanilla RNN, LSTM, neural stack, neural RAM respectively in our paper. Here, each class of network has several different realizations, since the basic idea of all the variants are the same, we only choose one typical network architecture for each class to do analyzation. Our conclusion is that there is an hierarchical organization in the sense that each one of them can be seen as a special case of another one given the following order, i.e. vanilla RNN LSTMneural stackneural RAM. This is no surprise, because it resembles the hierarchical organization of language grammars, but here we are specifically interested in linking the mapping architecture of the learning machine to its descriptive power, which was not addressed before. This inclusion relation is both proved mathematically and verified with four synthetic tasks: counting, counting with interference, reversing and repeat copying whose requirements of the past information are increasing.

Our paper is organized as follows: after this introduction SectionI, Section II outlines the architecture of the four classes of memory networks. Section III describes the proposed taxonomy for memory networks and discussed how they organize their memories, it also describes the four tasks developed to test the capabilities of different networks. In Section IV, the proposed taxonomy is corroborated by conducting four test experiments. Section IV gives the conclusion and discuss some future works.

Ii Model

In this section, we introduce four typical network architectures which represent four classes of memory networks adopted in this paper: vanilla RNN, LSTM, neural stack and neural RAM. Their basic architectures and training methods would be described in detail.

Ii-a Vanilla RNN

The RNN network [6]

is composed of three layers: input, hidden recurrent and output layer. Besides all the feed forward connections, there is a feedback connection from the hidden layer to itself. The number of neurons in each layer is

. The architecture of it is shown in Fig.1.

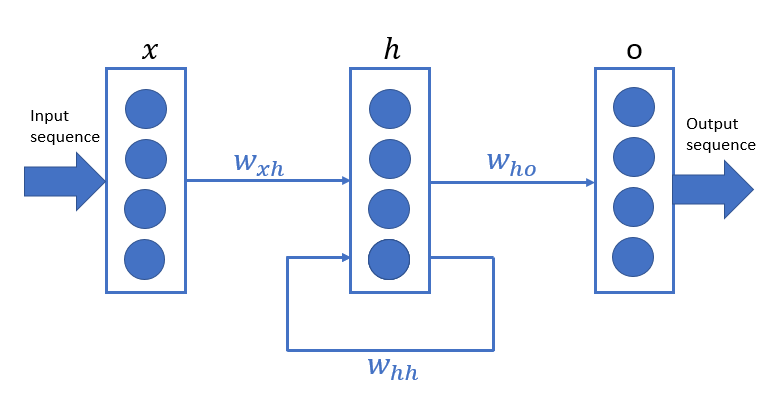

Figure 1: Vanilla RNN

Given a sequence of symbols,

, each symbol is encoded as single vector and fed as input to the network one at a time. The dynamic of the hidden layer can be written as,

(1)

where is the input at time , which is the encoding vector of symbol . is weighting matrix from input layer to hidden layer and is recurrent weight, and is the bias.

is the nonlinear activation function such as the sigmoid activation function

. The output at time is,

(2)

where is the output vector, is the output weights, is the

bias. RNN can be cascaded and trained with gradient decent methods called real time recurrent learning (RTRL) and backpropagation through time (BPTT)

[22] .

The memory of the past at time is encoded in the hidden layer variable . Although the upper limit of the differential entropy of is always larger than the total entropy of the past input , (i.e. the information is always smaller) the information captured is highly dependent on the network weight. Even apart of the vanishing gradient problem[23], there is always a compromise between memory depth and memory resolution in the RNN. In particular for very long memory depths, the information is spread amongst many samples and so there is a chance of overlaps amongst many past events.

Ii-B Lstm

In LSTM[8], as shown in Fig.2, the feedback connection is a weighted vector of the current state and a long term state. The feedback method is described in Eq.(3) to Eq.(6).

(3)
(4)
(5)
(6)

where , , is the input gate, forget gate and output gate at time respectively. is the long term memory at time which is initialized as zero, is the candidate vector to put into the long term memory and is the corresponding weight of size . Different from the vanilla RNN, the memory of the past is a combination of the long term memory and current state variable . The weights between these two kinds of memories are decided by two gates: forget gate decides how relevant the long term memory is and the input gate decides how relevant the current state is. Moreover, whether the calculated memory affects next state is decided by the output gate , these three gates are calculated as follows:

(7)
(8)
(9)

where , , are weights , , , are weights and , and are bias. These three gates give flexibility to operate on memories. For example, the memory in the long past can be obtained by setting the forget gate as 1 and input gate as 0 for several consecutive time steps. However, when the memory is updated as in Eq.(4), the old value is erased. Hence, for the tasks which need more than one previous memories, we must use several feedback loops in parallel as shown in 3.

The output of the network are either the same as the one in RNN as shown in Eq.(2) or a function of the external memory,

(10)

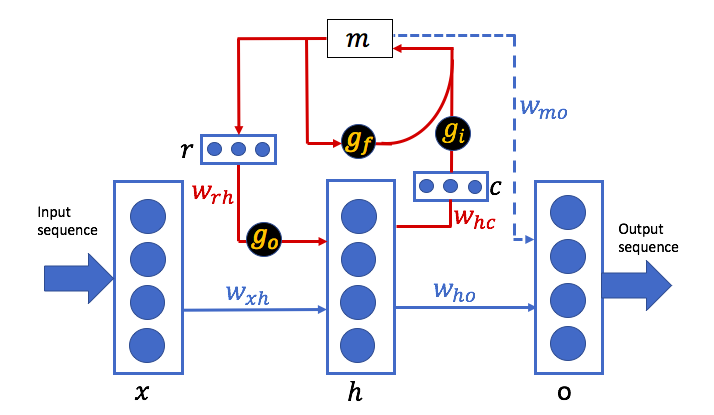

Figure 2: LSTM

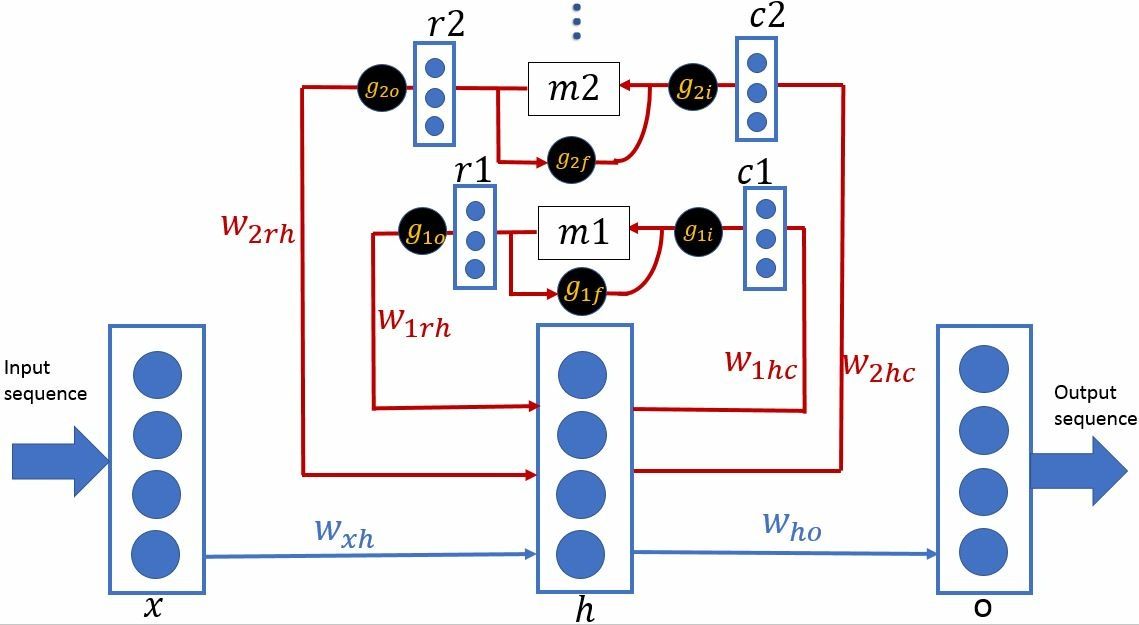

Figure 3: LSTM with parallel memory slots

Ii-C Neural Stack

In this subsection, the neural network with an extra stack is introduced. The diagram of the network is shown in Fig.4.

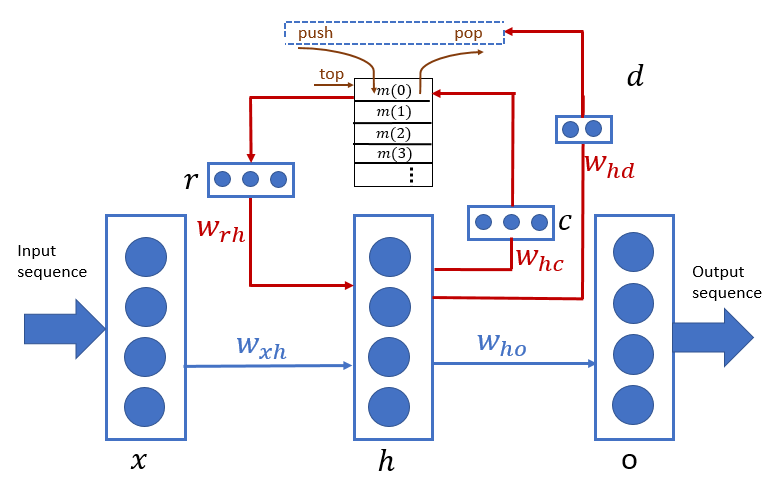

Figure 4: Neural Stack

One stack property is that only the topmost content of the stack can be read or and written. Writing to the stack is implemented by three operations: push, adding an element to the top of the stack; pop, removing the topmost of the stack; no-operation, keeping the stack unchanged. These three operations can help the machine organize the memory in a way to reduce the error. In order to train the network with BPTT, all operations have to be implemented by continuous functions over a continuous domain. According to [16, 17, 18], the domain of the operations are relaxed to any real value in . This extension adds an amplitude dimension to the operations. For example, if the push signal , the current vector will be pushed into the stack as it is, if the current vector is first multiplied by 0.8 and then pushed onto the stack. In this paper, the dynamics of the stack follows [17]. To be specific, elements in stack would be updated as follows,

(11)

is the content of the stack at time in position , is the topmost content, is the candidate content to be pushed onto the stack, , and are push, pop and no-operation signals.

Neural network interacts with the stack memory by , , , and . is the read vector at time , . , , and are decided by the hidden layer outputs and the corresponding weights,

where is the weights and is the bias.

Since the recurrence is introduced by the stack memory,

(12)

is the read vector at time , And the output of the network is the same as (2). As all the variables and weights are continuous, the error can be back propagated to update the weights and bias.

With this external memory, all the useful information are retained. Different from the internal memory, the content of past is not altered, it is stored in its original form or the transformation form. What’s more, as the content and the operation of the past is separated, we can efficiently select the useful content from this structured memory other than using the mixture of all the content before. So the external memory circumvents the compromise between the memory depth versus memory resolution that is always present in the state memory.

Ii-D Neural RAM

The last and most powerful network is the Neural RAM as shown in Fig.5. The neural RAM can be seen as an improvement of the neural stack in the sense that all the contents in the memory bank can be read from and written to. The challenge of the network is that all the memory addresses are discrete in nature. In order to learn the read and write addresses by error backpropogation [24], they have to be continuous. Papers [21, 19, 20]

give a solution for this difficulty: reading and writing to all the positions with different strengths. These strengths can also be explained as the probabilities each position would be read from and written to. One thing to note is that the read and write position do not need to be the same ones. To be specific, the read vector at time step

is,

(13)

is the memory bank with memory locations, and is the normalized weight for th location at time which satisfying,

(14)

For the writing process, the forget and input gates arrangement is also applicable here, for memory location ,

(15)
(16)

here and together can be seen as the write head for memory slot at time . The dynamic of the hidden layer is,

(17)

Here the read weight can be learned as,

(18)

is the weight. The nonlinear activation function is usually set as softmax function. The write weight and the output gate can be learned the same way as Eq.(7) and Eq.(8) in LSTM,

(19)
(20)

here , , and , , are weights , , , are weights and , and are bias. In practice, instead of learning the read and write head from scratch, some methods were proposed to simplify the learning process. For example in Neural Turing machine [19], is coupled with , . And read weight and write weight are obtained by content-addressing and location-addressing mechanisms. The content-addressing mechanism gives the weights (or ) by checking the similarity of the key with all the contents in the memory, the normalized version is,

where is the parameter to control the precision of the focus, is a similarity measure. Then, the weights will be further adapted by the location-addressing mechanism. For example, the weights obtained by content addressing can firstly blend with the previous weight and then shfited for several steps,

is the gate to balance the previous weight and current weight, is the shifting steps, means the circular shift for entities. Since the shifting operation is not differentiable, the method in [19] should be utilized as an approximation.

Another example is [20] which improves the performance even more. To be specific, for reading, a matrix to remember the order of memory locations they are written to can be introduced. With this matrix, the read weight is a combination of the content-lookup and the iterations through the memory location in the order they are written to. And for writing, a usage vector is introduced, which guides the network to write more likely to the unused memory. With this modification, the neural RAM gets flexibility similar to working memory of human cognition which makes it more suitable to intelligent prediction. With these modifications, the training time for the neural RAM is also reduced.

It should be pointed out that the RAM network can be seen as a LSTM with several parallel feedback loops which coupled together in a non-trivial way.

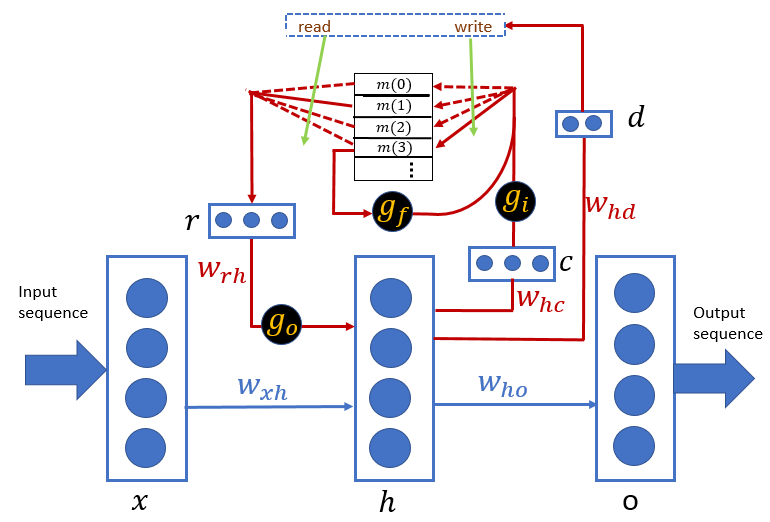

Figure 5: Neural RAM

Iii A Unifying Memory Network Framework

Iii-a Memory network taxonomy

In this section, we propose a hierarchy developed according to the way the four kinds of memory described in the last section as shown in Fig.6. A network in the outer circle can always implement a network in the inner circle as a special case; however, the network in the inner circle will not have the capability to implement the network in the outer circle’s functionality, and so it will display poorer performance. This hierarchy can help us choose the proper network for a specific task. Our principle is always to choose the simplest network since the complex network needs more resources. In this section, we would first prove the inclusion relationship and then visualize how these networks organize their memory space.

Figure 6: Memory Network Taxonomy

Iii-B Inclusion Relationship Derivations

In this subsection, we will prove neural stack is a special case of neural RAM, LSTM is a special case of neural stack and vanilla RNN is a special case of LSTM.

Iii-B1 From Neural RAM to Neural Stack

Neural RAM is more powerful than neural stack because it has access to all the contents in the memory bank. If we restrict the read and write vector, neural RAM is degraded to neural stack. To be specific, for the read head , if all the read weights except the topmost are set to zeros, then,

(21)

here is vector and is the scalar.

And in the writing process, instead of learning all the contents to be written to the stack as in Eq.(15), only the content to be put into M0 is learned as

(22)

all other contents are calculated as,

(23)

Finally only the input and forget gates for the topmost element are learned, all others just copy the values of the topmost’s gates,

(24)
(25)

Since Eq.(21) is a special case of Eq.(18), Eq.(22) , Eq.(23) can be seen as a special case of Eq.(15), Eq.(24) and Eq.(25) can be seen as a special case of Eq.(19) and Eq.(20), hence the neural stack can be treated as a special case of neural RAM. Here works as the output gate, and works as the push, pop and no-operate operations respectively.

Iii-B2 From Neural Stack to LSTM

According to Eq.(6) and Eq.(12), the dynamics of the neural stack have similar form as LSTM except for the reading vector, i.e., the reading vector is . If we set the pop signal as zero, , and no operation on the stack contents except for the topmost elements is avaiable, then

Since the , are calculated in the same way the input gate and forget gate are calculated in LSTM as shown in Eq.(7) to Eq.(8), can be seen as the input gate and can be seen as the forget gate. In this manner, this is exactly how the LSTM organizes its memory. Hence, it is proved that LSTM can be seen as the special case of neural stack.

Iii-B3 From LSTM to RNN

Compared to RNN, LSTM introduces an external memory and the gate operation mechanism. So if we set the output gate , input gate and the forget gate instead of learning from the sequences, the dynamics of LSTM is degraded to RNN as follows,

(26)
(27)
(28)
(29)
(30)

Here (27) is due to , (28) is due to and , (30) is because the weight and bias are set as constants and the activation function is set as linear activation function,

Since Eq.(26) is the dynamic of LSTM and Eq.(30) is the dynamic of RNN, the argument that RNN is a special case of LSTM is proved.

Remark

From the derivation we can draw a conclusion that, the innovation of LSTM is the incorporation of an external memory and three gates to balance the external memory and internal memory; the innovation of Neural stack is to extend one external memory to several external memories and to propose a method to visit the memory slots in a certain order; the innovation of Neural RAM is to remove the constraint of the memory visiting order, which mean any memory slot can be visited at any time.

Iii-C Memory Space Visualization

The analysis in this section ignores the influence of input. Fig. 7 shows the state transition diagram of RNN, where represents the state at time respectively. The blue arrow shows the variables’ dependency relationship. For example, state is decided by , is decided by and so on. The vanilla RNN has an hidden Markov assumption for its input sequences, in other words, the current state can be decided if the previous state is given. Thus for Markov sequence, the RNN always performs well. However, for a lot of sequences we need to deal with, the Markov assumption is not valid. In this situation, the past memory helps a lot when we need to decide what’s the next state is. LSTM is the architecture which firstly take this memory into consideration.

Figure 7: vanilla RNN

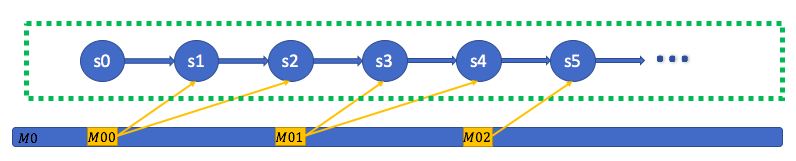

In Fig.8, a blue belt named is used to save previous memory: at , memory is generated and saved, at time , is updated to and at time , is updated to . Every state is decided by its previous one state and some older memory. The weight between these two kinds of past information are decided by the input and forget gates. For example, is decided by and , is decided by and . A property of the memory is to forget the older memory after it is updated. For instance, at time , when the memory is updated from to is forgotten. Thus, for the future state , they don’t have access to memory . According to this property, this architecture is extremely useful when the previous states don’t need to be addressed again when they are updated. The capability of LSTM is greater than vanilla RNN. Actually, RNN is LSTM without the memory belt. In other words, LSTM is a RNN if the previous memory is not used (forget gate is 0 and input gate is 1), as shown in the green dashed block in Fig.8.

Figure 8: LSTM

A more advanced memory neural network is the neural stack. It should be mentioned that, in the current literature, there is no forget and input gates embedded in the neural stack structure which makes it work worse for some specific tasks. But these gates can be added into the network the same way as LSTM. The push and pop operation provide a way to save and address the previous memory as shown in Fig.9. Let’s assume, the network first saves state in belt and updates it to . At time , instead of replacing with a new state , a new belt is created to save . In this way, both and are kept. Similarly, at time , is saved in another belt . In time , the content in the stack is , , and is the topmost element. Since all the useful past states are saved, they can be addressed in the future. However, although it can go back to the previous memory, it has two constraints. Firstly, it can not jump to any memory position, the previous memory should be addressed and updated sequentially. For example, as shown in the second line in Fig.9, if we want to go back to memory in belt , we have to go pass memory in belt first. Secondly, all the memory can only be accessed twice, in other words, after the memory content is popped out of the stack, it will be forgotten. For example, at time , memory in belt is popped out, so in the future time step as shown in the third line, content in belt can not be accessed and updated any more.

LSTM can be seen as a special case of the neural stack if only the push operation is allowed, as shown in the green dashed block in Fig.9. Since all the contents in the stack below the topmost element will never be addressed, only one belt is enough. Hence, the stack can be squeezed to length 1 as shown Fig.9(b), which has exactly the same structure as LSTM.

From the state transition analysis above we can draw the conclusion that, for the tasks where the previous memory need to be addressed sequentially and at most twice, the stack neural network is our first choice.

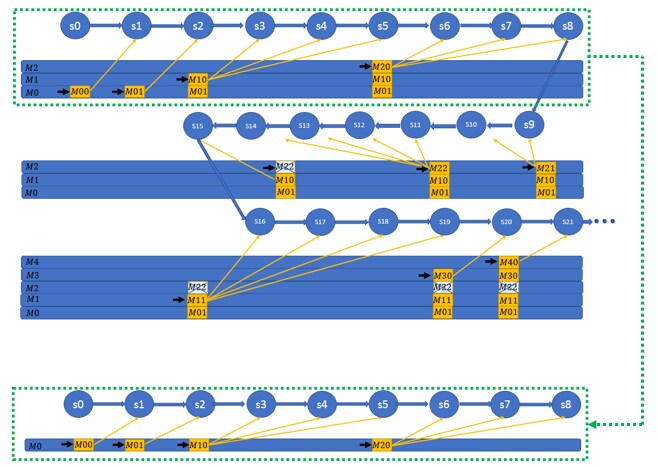

Figure 9: Neural Stack

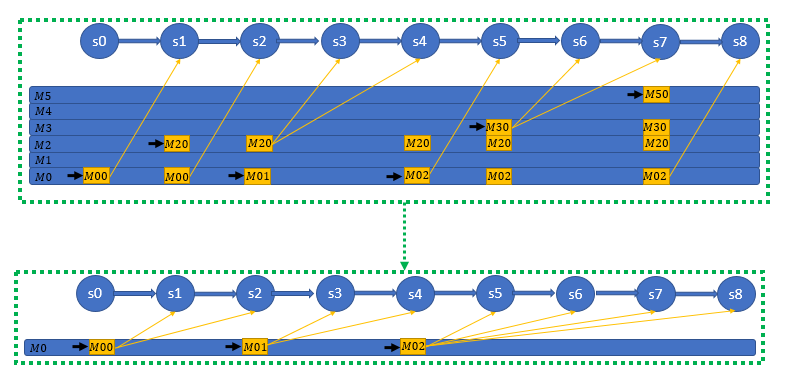

Figure 10: Neural RAM

The most powerful memory access architecture in our hierarchy is the neural RAM. Different from stack neural network, this kind of network saved all the previous memory and can access any of them. There is no requirement for the order of saving, updating and accessing the memory. For example, in Fig.10(a), at time , memory is saved in belt , at time , it can directly jump to belt . This neural RAM network can be degraded to the stack if the order of memory saving and accessing is restricted as shown in Fig. 10(b). Hence, it can be further degraded to the LSTM as shown in Fig.10(c).

All in all, since neural RAM can be degraded to neural stack, neural stack can be degraded to LSTM, LSTM can be degraded to RNN, our inclusion hierarchy is valid.

Iii-D Architecture Verification

In order to verify the proposed taxonomy, 4 types of tasks using strings of characters from easy to difficult are developed: counting, counting with interference, reversing, repeat copying.

For the counting task, the input sequence is the vector of s and the output sequence is the number of s. For instance, when the input sequence is , the output sequence would be 1233345. For this kind of sequence, the state variable is needed to remember the number of s. As long as the network has the feedback loop, the counting can be achieved. Hence, vanilla RNN is the best among all the memory network (In terms of error rate, all of them have very small errors after training with enough time; in terms of training speed, RNN outperforms all other method since it uses least resources). This experiment also proves the argument “LSTM is always better than RNN” is not correct.

For the counting with interference task, the input sequence are the mixture of , and . We still want to count the number of , but if the input is or , the output should also be or . For example, if the input is , the output sequence is . Assuming we have three neurons for both input layer and output layer, the input sequence and output sequence after a vector coding is,

time step input sequence output sequence
1 [1 0 0] [1 0 0]
2 [1 0 0] [2 0 0]
3 [0 1 0] [0 1 0]
4 [0 1 0] [0 1 0]
5 [1 0 0] [3 0 0]
6 [0 0 1] [0 0 1]
7 [1 0 0] [4 0 0]

For this kind of problem, an external memory cache is required, because when or is encountered, the hidden layer’s output value will be overlaid. If we want to recall the memory of the number of s, it need to be saved in an external memory for future usage. Thus the memory bank in LSTM, neural stack and neural RAM can work as this external memory. Hence, all of them except vanilla RNN can complete the counting with interference task.

The third task is sequence reversing. For example. if the input sequence is , the output sequence should be . is the delimiter symbol, means any symbol. When encountering in the input sequence, no matter what the following symbols are, the output would be the input symbols before in a reverse order. For this task, all the useful past information should be stored and then retrieved in a reverse order. Hence, the memory should have the ability to store more than one contents and the read order is related to the write order. Since RNN does not have this memory bank and LSTM’s memory is forgotten after it is updated, these two networks fails for this task. On the other hand, both neural stack and neural RAM can save more than one contents and the task satisfies the “first in last out” principle, they can solve this task.

The last task adopted here to verify the capability of networks is the repeat copying task, by which we mean the output sequence is several times a repetition of the input sequences. For example, if the input sequence is , the output should be . is the end symbol. That is, when encountering the ending signal , the output will be the previous input sequence for three times. For this kind of task, not only more than one past content need be saved, they should be retrieved more than one time, here the number is 3. In the neural stack, since all the saved information is forgotten after being popped out, they can not be revisited again. Thus, neural RAM is the only network that can handle this kind of task.

These four synthetic sequences are good examples to show how the memory networks operate on their respective memories to achieve a certain goal. The details of the memory working mechanism is shown in the simulation results in part IV.

Iv Experiment

Iv-a Synthetic data

In this section, preliminary experimental results would be presented on four synthetic symbol sequences. The goal is to test the capability of different memory networks and show how they organize their memories. For all the experiments, four models are compared: vanilla RNN, LSTM, neural stack, neural RAM.

Iv-A1 Counting

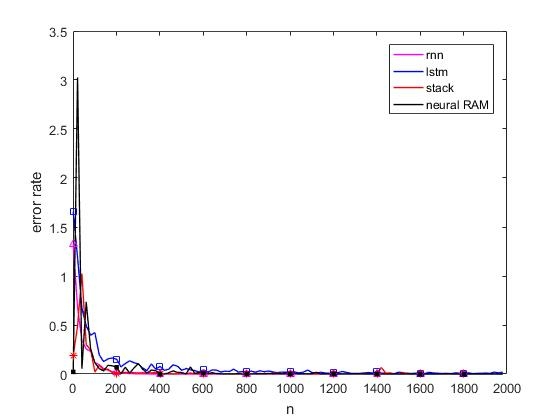

Figure 11: Learning rate comparison for counting task

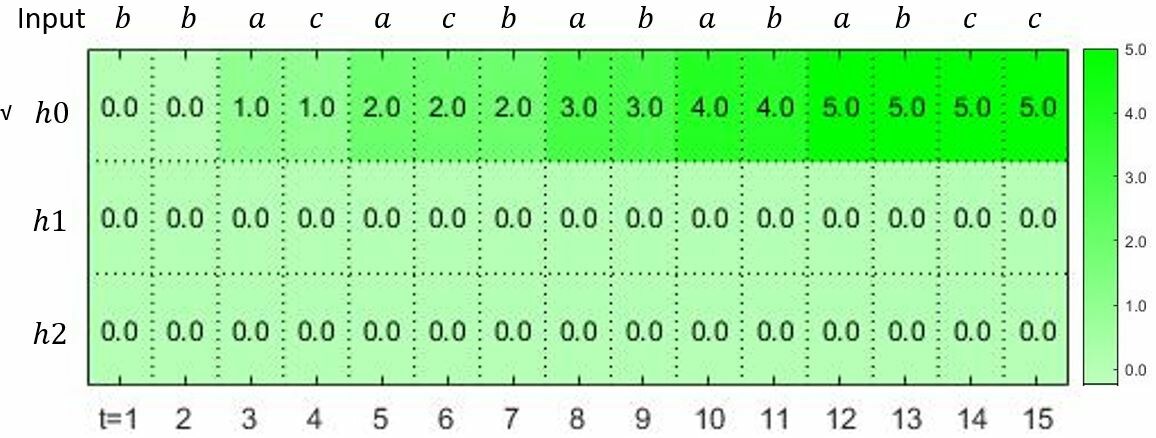

Figure 12: Vanilla RNN: Internal memory content

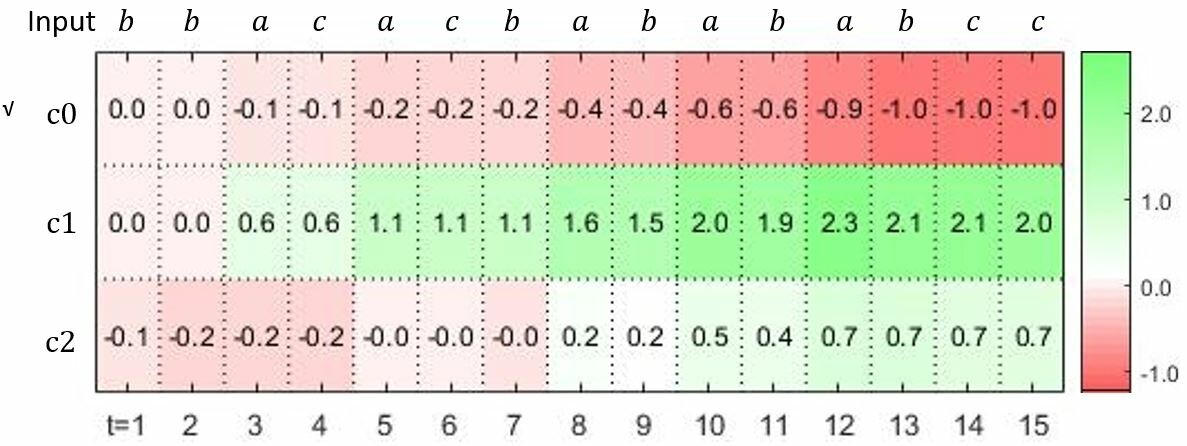

Figure 13: LSTM: External memory content

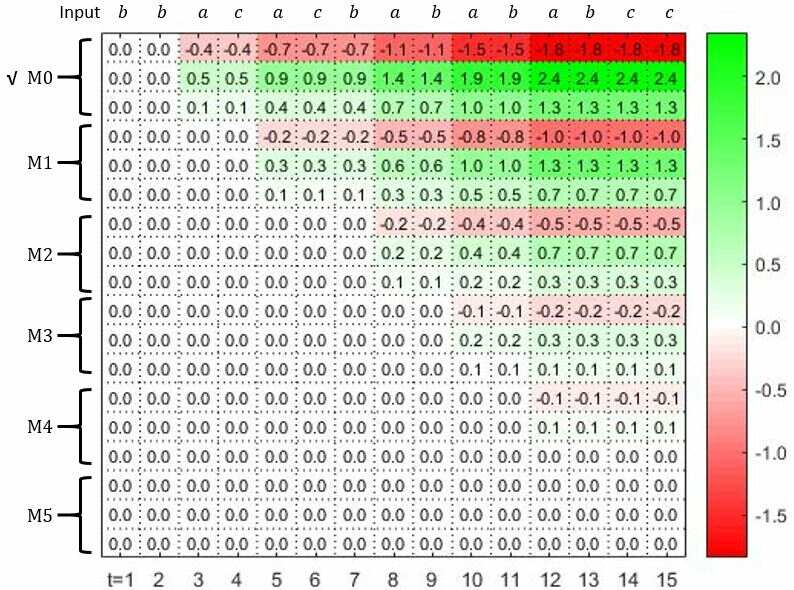

Figure 14: Neural stack: stack content
Figure 15: Neural RAM: Memory bank content and corresponding read and write operation

From the analysis in section III, as long as the network has a feedback loop to introduce memory of the past, it can count. In this experiment sequences of symbols,

are tested. All the symbols are fed into the network one at a time as input vector after a one-hot encoder and the network are trained with BPTT.

In vanilla RNN, the activation function in the hidden layer is Relu and the activation function in the output layer is sigmoid. In LSTM, the external memory’s content are initialized as zero. In the neural stack, the push, pop and no-op operations are initialized as random with mean 0 and variance 1. At first, there is only one content in the stack which is initialized as zero. The depth of the stack can increase to any number as required. In neural RAM, the word size and memory depth are set as 3. The length of read and write vectors are also set as 3. In LSTM, neural stack and neural RAM, the nonlinear activation functions for all the gates are sigmoid functions and others are tanh. The number of input neurons , hidden neurons and output neurons are 3. All the weights are initialized as random variables with mean 0 and variance 1, all the bias are initialized as 0.1.

The model is trained with the synthetic sequences up to length 20. When the input is , the first elements in the output vector would add one, otherwise, the output vector is unchanged.

The learning curve measured in mean square error (MSE) at the output layer is shown in Fig.11. From the results we can see that, after 1000 training sequences, all the four models’ errors are less than 0.1. Fig.12 to Fig15 show the details of the memory contents after the models are well-trained. They are tested on a input sequence .Fig.12 shows that when is received, the first element of the hidden layer is increased by 1. Fig.14 shows that when receiving , the first element of the memory is decreased by 0.3, the second and third elements have a similar pattern, but the increment is not exactly a constant. However, as long as there is at least one element in the memory learning the pattern, after multiplying with the weight vector, the output of the network can give the expected values. Fig.14 shows how the neural stack uses its memory. Although the neural stack has the potential to use unbounded number of stack contents, it only uses the topmost content here, i.e. the push and no-operation cooperate to learn the pattern. Fig.14 shows the memory contents of the neural RAM and the corresponding operations of it. From Fig.15(a), we can see that all the three memory banks are learning the pattern, hence, the read vector, all the three elements are all around 0.3 as shown in Fig.15 (b). From this experiment we can see that two memory banks are redundant here.

The goal of the counting experiment here is to show on the one hand the capability of the four memory networks to remember one past state, and on the other hand, to show the redundancy of the LSTM, neural stack and neural RAM, i.e., the gate mechanism in LSTM, the unbound number of the stack content in neural stack, and the multiple memory contents in neural RAM.

Iv-A2 Counting with interference

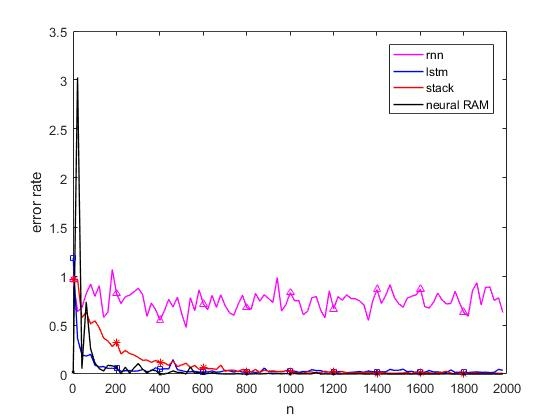

Figure 16: Learning rate comparison for counting with interference task

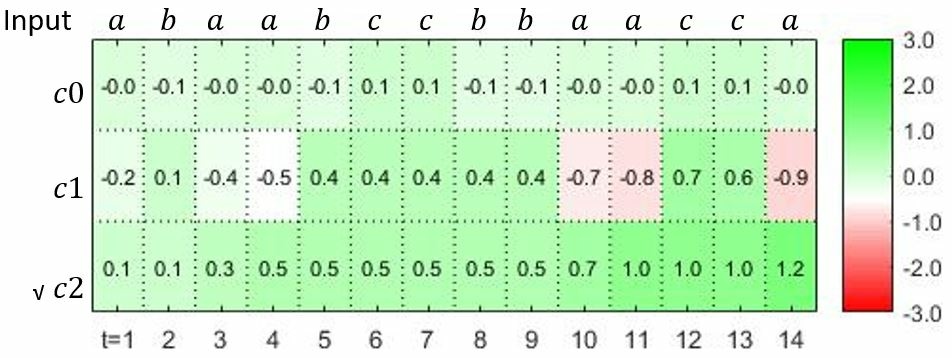

Figure 17: LSTM: External memory content

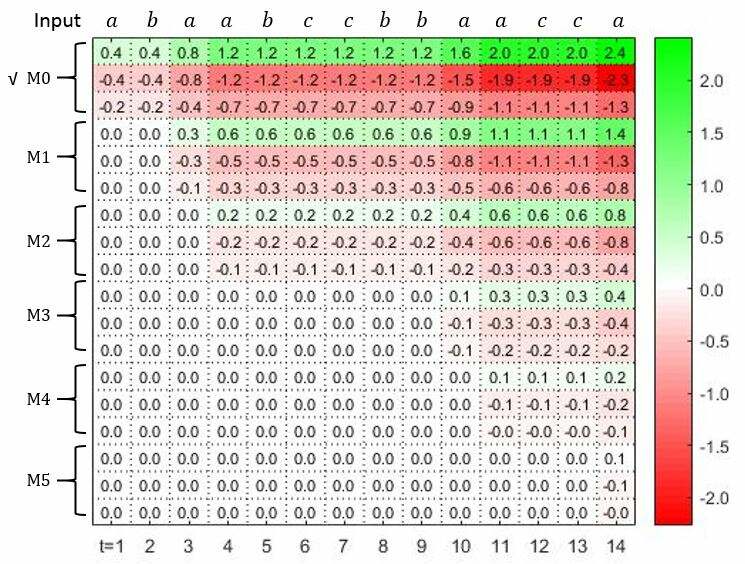

Figure 18: Neural stack: stack content
Figure 19: Neural RAM: Memory bank content and corresponding read and write operation

The second experiment is to test the external memory, i.e., the capability of putting the memory aside and using it when it is needed. This is the new feature of LSTM, neural stack and neural RAM implemented by the gate mechanism. All the settings for the experiments are the same as the counting task except when inputting and . In the counting task, the desired operation is the same as the one in the last time step when inputting and . Here, the desired response is when inputting and when inputting . In order to accomplish this task, the useful memory of the past should be put aside and not disturbed. Since in vanilla RNN, the only memory of the past is the internal memory, it will be refreshed when inputting and , vanilla RNN can never learn the pattern. Fig.16 shows the learning curve for these four networks, all the networks except the vanilla RNN have errors less than 0.1 after enough training samples, which is in consistent with our analysis.

Fig.17 to Fig.19 shows the memory usage of LSTM, neural stack and neural RAM. Fig.17 shows that every time the symbol is input, the third element of the memory content would increase by around 0.2. Fig.18 and Fig.19 also show the similar incremental patterns of neural stack and neural RAM. An notable difference between Fig.17-Fig.18 and Fig.13-Fig.14 is the usage of the memory. When dealing with counting task, the output gates are always 1, however, when dealing with counting with interference task, the output gates are 0 when inputting and , this helps to cut off the interference from the memory. Similarly, the read vector are always around [0.3, 0.3, 0.3] in Fig.15, however, in Fig. 19, the read vector’s elements are almost zeros when encountering and . The read vector here works as the output gates in LSTM and neural stack. It also shows why neural RAM does not need an output gate.

All in all, the goal of this experiment is to show the effect of the gate mechanism and the redundancy of the unbound stack content in neural stack and multiple memory banks in neural RAM.

Iv-A3 Reversing

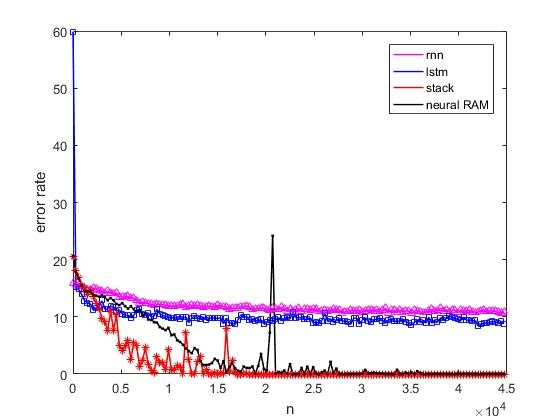

Figure 20: Learning rate comparison for reversing task

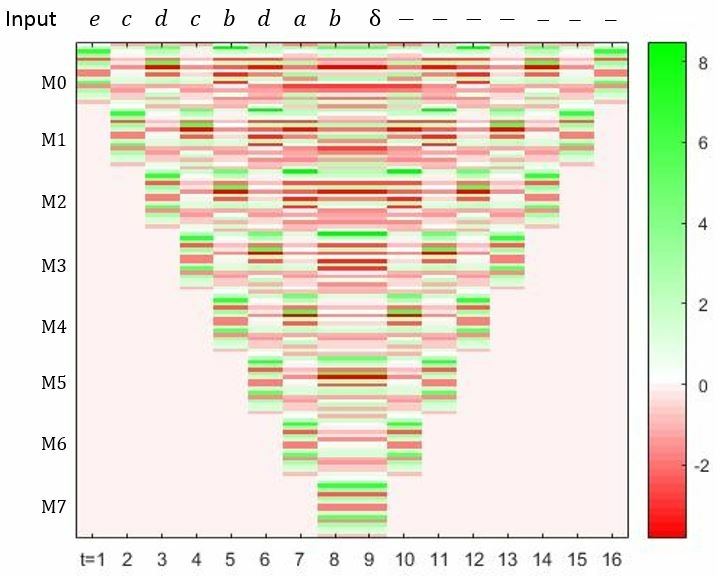

Figure 21: Neural stack: stack content
Figure 22: Neural RAM: Memory bank content and corresponding read and write operation

For the sequence reversing problem, every symbol in the first half of the sequence is randomly picked in the set {}, then a delimiter symbol follows, and the second half of the sequence is the reverse of the first half. The performance is measured on the error rate in output entropy for the second half.

In this experiment, some setting are different from the first two experiments. In vanilla RNN, the activation function in the hidden layer is sigmoid function since we use entropy instead of mean square error as the cost function. In neural RAM, the word size and memory depth are set as 16. The length of read and write vectors are also set as 16. The number of input neurons, hidden neurons and output neurons are 6, 64, 6. The model is trained with sequences up to length 20. To finish this task, all the input samples have to be saved in the memory and be visited in the reverse order. Hence networks with no external memory as RNN or a external memory as LSTM fail. Learning curves of the four networks are shown in Fig.21. We can see that vanilla RNN and LSTM do not have the capability of reversing the sequence no matter how many samples are used for training. Fig.21 shows how neural stack utilizes its stack memory to solve this problem. Since each memory bank’s word size is 16, here we only use colors instead of the specific numbers to show the values of contents in memory. Different from the first two tasks, the function of the stack is finally exploited. In the first half sequence, the input symbols are encoded as 16-elements vectors and pushed into the stack. In the second half of the sequence, the contents in the stack are popped out sequentially. It should be noticed that as long as the the contents are popped out, they can not be revisited anymore. Different from neural stack, the contents in neural stack are never wiped as shown in Fig.22. The contents in the memory banks are only wiped if they are useless in the future or the memory banks are not enough so they have to be wiped to make space for new stuffs. Another feature of the memory bank for neural RAM is the memory banks are not used in order such as M0, M1, M2…In this example, the memory banks are used in the order M0, M2, M7, M13…. But as long as the network knows the writing order, the task can be accomplished. Fig22(b)(c) shows the reading and writing weights, we can see that the second half of the reading weights is the mirror of the first half of the sequence of the writing weights, which means the network learns to reverse.

Overall, the goal of this task is to show the advantage of the multiple memory banks and how the neural RAM and neural stack organize their memory banks.

Iv-A4 Repeat copying

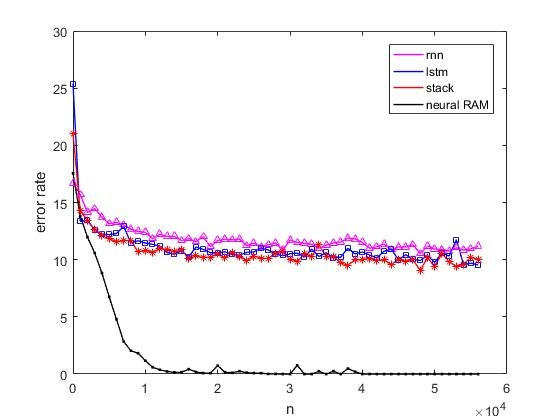

Figure 23: Learning rate comparison for repeat copying task
Figure 24: Neural RAM: Memory bank content and corresponding read and write operation

The last and hardest problem we are going to implement is the repeat copying task. To accomplish this task, the contents saved in the memory banks can not be wiped when they are used for one time. Hence, neural stack is the only network type which can handle this problem. In this experiments, the training sequences are composed of a starting symbol , some symbols in set {} followed by a repeating number symbol and some random symbols. are one-hot encoded with on value 1 and off value 0; is encoded with on value and off value 0, is the repeating number. Fig.23 shows the learning curves for the four network and the fact that neural RAM is the only network that can handle this problem. Fig.24 shows how the neural RAM solves this problem. From the writing weights we can see that, the starting symbol is saved in M0, and symbols needed to be repeated are save in M2, M4, M6, M9. After t=4, the network would read from M2/M5, M4,M6,M9. At the beginning of every loop, the network reads from both M2 and M5 probably because the repeating time symbol is saved in M5. The value in M5 can tell the network whether to continue repeating or to output the ending symbol. We can see from Fig.24(b), at time t=22, after reading from M2 and M5, the network stops reading from M4 to M9 and turns to M0.

The goal of this task is to test whether the networks can operate their memory banks and show the advantage of neural RAM compared to other memory networks.

Iv-B Real world problem

In this section, we will use two natural language processing problems to show the different capabilities of these four kinds of networks. These two examples also give us some hints on how to choose the right memory networks according to the specific tasks.

Iv-B1 Sentiment Analysis

The first experiment is sentiment analysis problem, by which we mean giving a paragraph of texts, determining whether the emotional tone of the text is negative or positive. For example, an example from lmdb movie review dataset with negative emotion is,

“Outlandish premise that rates low on plausibility and unfortunately also struggles feebly to raise laughs or interest. Only Hawn’s well-known charm allows it to skate by on very thin ice. Goldie’s gotta be a contender for an actress who’s done so much in her career with very little quality material at her disposal.”

And a positive text is,

“I absolutely loved this movie. I bought it as soon as I could find a copy of it. This movie had so much emotion, and felt so real, I could really sympathize with the characters. Every time I watch it, the ending makes me cry. I can really identify with Busy Phillip’s character, and how I would feel if the same thing had happened to me. I think that all high schools should show this movie, maybe it will keep people from wanting to do the same thing. I recommend this movie to everybody and anybody. Especially those who have been affected by any school shooting. It truly is one of the greatest movies of all time.”

The output of the neural network should be [1, 0] for the first paragraph and [0, 1] for the second paragraph. After encoding all the words into vectors, they are fed into the network one by one. The decision of the tone of the paragraph will be made at the end of the paragraph. Here we use a pretrained model: GloVe [25] to create our word vector. The matrix contains 400,000 word vectors, each with a dimensionality of 50. The matrix is created in a way that words having similar definitions or context reside in the relatively same position in the vector space. The dataset adopted here is the lmdb movie review data which has 12500 positive reviews and 12500 negative reviews. Here we use 11500 reviews for training and 1000 data for testing. In neural RAM, the word size and memory depth are set as 64. The number of read and write head are 4 and 1. In LSTM, neural stack and neural RAM, the nonlinear activation functions for all the gates are sigmoid. The activation functions at the output layer is sigmoid and others are tanh. The number of input neurons, hidden neurons and output neurons are 50, 64, 2.

In order to judge the emotional tone of the text as the end, an external memory whose value would be affected by some key words is useful. And since the goal here is to classify the emotional tone as either 1 or 0, the specific contents are not very important here so there is no need to store all of them. Hence, the memory banks do not show advantages here. Since LSTM has this external memory and it needs less time to train compared to neural stack and neural RAM, it should be best choice among these four kinds of networks for this task.

Table I shows averaging error rates of 5 runs. We can see that all the networks with external memories have similar performance, which is in compliance with our analysis.

vanilla RNN LSTM neural Stack neural RAM
error rate 315 192.5 2310 209
Table I: Error rate for movie review

Iv-B2 Question Answering

In this section, we investigate the performance of these four networks on three question answering tasks. The target is to give an answer after reading a little story followed by a question. For example, the story is

“Mary got the milk there. John moved to the bedroom. Sandra went back to the kitchen. Mary travelled to the hallway.”

And the question looks like, “Where is the milk?”. The machine is expected to give answer “hallway”. For this problem, in order to give the right answer, machine should memorize the facts that Mary got the milk and travelled to the hallway. What’s more, since the machine doesn’t know the question when reading the stories, it has to store all the useful facts in the story. Thus a large memory bank where all the contents can be visited is useful here. According to our analysis in part III, neural RAM should perform the best here.

In order to verify our conjecture, we test these four networks on three tasks from bAbI dataset[26]. For each task, we use the 10,000 questions to train and report the error rates on the test set in Table II. In vanilla RNN and neural stack, the nonlinear activation functions for all the gates are sigmoid. The activation functions at the output layer is sigmoid and others are tanh. The number of input neurons, hidden neurons and output neurons are 150, 64, 150. The experimental settings for LSTM and neural RAM are the same as [20] and the results for these two networks are from [20]. From the results, we can see that neural RAM achieves the best performance. On thing to be mentioned here is, although the mean error rate of the neural RAM is the lowest, the variance is larger than all others. We believe the reason for this is the complexity of the network, which leads to too many local minimal points. Since the point here is to check the capabilities of different neural memory networks, a better way to utilize the external memory and train the network will be our future work.

Task vanilla RNN LSTM neural Stack neural RAM
1 supporting fact 521.5 28.41.5 412.0 9.012.6
2 supporting facts 792.5 56.01.5 756 39.220.5
3 supporting facts 852.5 51.31.4 786.4 39.616.4
Table II: Error rate for three tasks from bAbI tasks

From these two examples, we can see that the taxonomy proposed in this paper can helps us to analyze the properties of the specific problem and choose the right neural network. But people still have to analyze the problem by themselves. A data-driven method to analyze the tasks and choose the appropriate network is our next step.

V Conclusion and future work

In this paper, we propose a taxonomy based on the state structure for the memory networks recently proposed. The taxonomy are proved mathematically and verified with simple synthetic sequences. Moreover, this work only analyzes what tasks these networks can or can not do, the next step is to analyze the performance of these network and explore the method to improve the memory utilization efficiency. How to use this taxonomy to design an appropriate network for some real-wold problem is our future work.
