A Systematic Method for On-The-Fly Denormalization of Relational Databases

09/30/2020 ∙ by Sareen Shah, et al. ∙ 0

Normalized relational databases are a common method for storing data, but pulling out usable denormalized data for consumption generally requires either direct access to the source data or creation of an appropriate view or table by a database administrator. End-users are thus limited in their ability to explore and use data that is stored in this manner. Presented here is a method for performing automated denormalization of relational databases at run-time, without requiring access to source data or ongoing intervention by a database administrator. Furthermore, this method does not require a restructure of the database itself and so it can be flexibly applied as a layer on top of already existing databases.



There are no comments yet.


page 1

page 2

page 3

page 4

This week in AI

Get the week's most popular data science and artificial intelligence research sent straight to your inbox every Saturday.


Normalized relational databases took their form initially from a need to reduce duplication of records and to organize data in a manner whereby updating or adding records would not lead to data inconsistencies [1]. However, this structure can lead to difficulty with the actual retrieval of usable information. For wide databases, it can be an arduous process to discover the logical sequence of tables that must be joined to bring information from different ends of the database together, especially when many combinations of different data elements are desired. A more important limitation is that an end-user of the data without direct access is reliant upon the database administrator creating the denormalized tables a priori for any data exploration/analysis desired.

Relational databases remain the most common method of storing data [3]. Data collected for research purposes are also usually stored/provided using a relational schema. Thus, there is a role for creating a technique for on-the-fly denormalization, to allow for maximal flexibility for information retrieval by end-users and to unburden the database administrator. The algorithms provided here will enable an end-user to be able to combine any number of columns of interest from any number of tables, and automatically construct the join sequences required to perform this denormalization ad hoc.

Illustrative Example

We will use a modified version of the Northwind Traders database to demonstrate scenarios where an on-the-fly denormalization algorithm can be useful. The Northwind Traders database was originally created by the Microsoft Corporation, and the modified files can be found at https://github.com/sareeneng/NorthwindModified. The modified dataset consists of 11 tables that are organized in a typical normalized fashion, although some of the relationships have been constructed in a way to highlight certain points in the discussion to follow, and so it is not a fully optimized data representation. For simplicity, only the joining columns and a few other columns are shown in Figure 1.

Figure 1: Schema of the modified Northwind dataset. *s represent many-to-one relationships.

Suppose an end-user is interested in finding which employees and customers have interacted with each other. From the diagram, it is clear that the way to accomplish this is to start with the orders table, and then join the employees and customers tables in. A database administrator might create a view to bring the data from these two tables together if this is a frequently requested combination of variables. This requires anticipation on the part of the administrator.

If the end-user wants to explore the database and create many different combinations of variables, then these must also be anticipated. For example, the user might want to know what territories the orders are originating from, or see which vendors served which customers. The user may also want many more variables pulled in together, such as quantity and names of the products sold by each employee. Notably, some of these combinations may not be possible; orders are linked to employees, but employees may serve multiple territories so there is no way to definitively link the tables territories to orders.

One (unfeasible) option is to anticipate all potential combinations that a user may be interested in and create the associated denormalized tables (e.g. with a star schema). This becomes an exponentially laborious task the wider the database and the more variables that a user might want to pull together, and the vast majority of these cases will be extraneous. The on-the-fly denormalization algorithm presented here avoids the need to anticipate end-user data requests.

Graph Structure

A simple way to represent the relational database is by using a directed graph structure that will then allow for the path-finding required. Tables are represented as the nodes, and foreign key links are represented as the edges between nodes. The box details the steps for constructing the graph, and Figure 2 shows the resulting graph for the modified Northwind dataset.

Directed graph representation of relational database

For each foreign key FK link, use the following rules to construct the graph where the nodes are tables and the edges are the foreign key links. Let a 1-1 relationship mean that both tables have only unique values in their respective joining columns, let a M-1 relationship mean that the first joining column has non-unique values and the second joining column has only unique values, and let a M-M relationship mean that both joining columns have non-unique values.

  • If node is already connected to along a different , see text.

  • If has a M-M relationship with

    • Do not connect node to node

  • If has a M-1 relationship with

  • If has a 1-1 relationship with

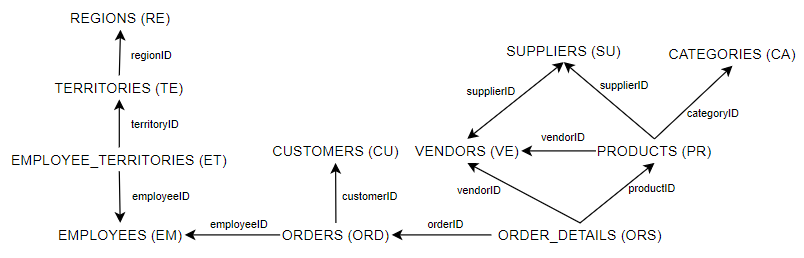

Figure 2: Directed graph representation of the modified Northwind dataset. Many-to-one relationships are connected in one direction, and one-to-one relationships are connected in both directions.
