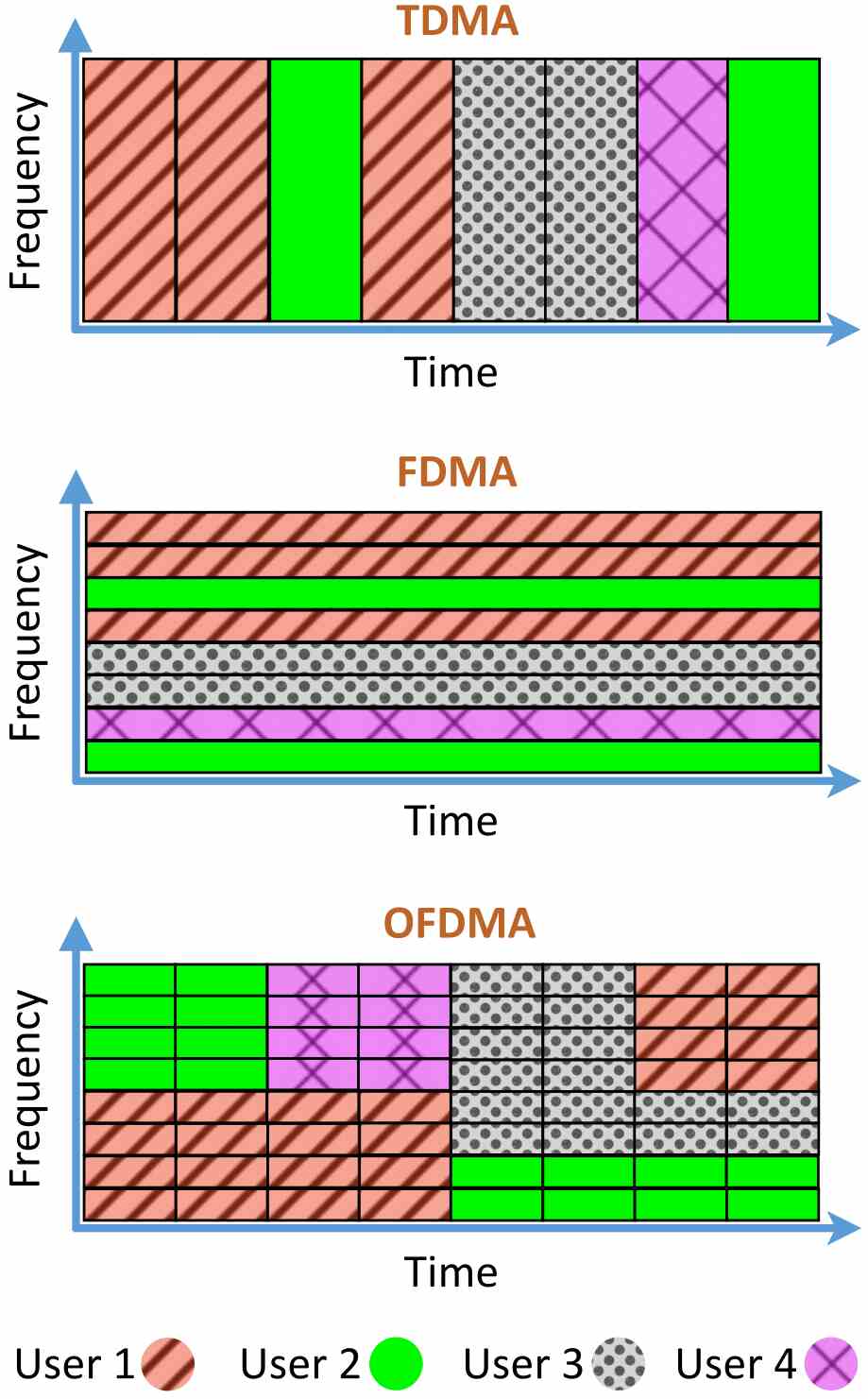

Wireless resources scheduling comprises the allocation of physical radio resources among users and the determination of the users’ serving order (also known as prioritization). The goal is to fulfill some service requirements such as fairness (including avoiding greedy users, where one user consumes overmuch system resources) or congestion, along with other constrains like delay or packet loss rate.
Compared to wired networks, wireless channels have time-varying behaviors, hence more complex scheduling schemes are required for the latter. However, since the scheduling process allows to save resources, wireless schedulers play a crucial role in efficient management of scarce radio resources.
In order to improve the service level, wireless systems have adopted in the past years schedulers that provide Quality of Service (QoS), i.e., the network’s capability to guarantee a certain level of performance to a data flow. Since QoS is usually evaluated in terms of delay, packet loss rate, jitter or throughput, QoS can be regarded as a service quality characterization that is network-centric.
Despite the popularity of QoS-oriented schedulers design, the end-users — humans — have the decisive judgment about the received service quality. In literature, some pioneering authors (Khan et al., 2007; Saul, 2008; Saul and Auer, 2009; Thakolsri et al., 2009) showed that the application of a subjective-based approach may lead to significant improvements on user perceived quality, i.e., Quality of Experience (QoE), compared to network-centric approaches, such as maximization of the system throughput (i.e., the sum of the data rates that are delivered to all terminals). Hence, a shift from QoS- to QoE-oriented mechanisms design has been observed in recent years.
QoE is a concept that tries to cover everything that a user experiences when dealing with multimedia services and systems (Brunnström et al., 2013); it takes into account not only the usability of a multimedia service or system, but also the information content. Consequently, QoE can be regarded as a user-centric characterization of the service quality.
As the number of dimensions involved in the users’ subjective evaluation is immense, QoE-based techniques are becoming progressively more complex and sophisticated than the previous QoS-oriented algorithms. Schedulers that make use of QoE features consequently try to directly reflect the subjective experiences of the users, resulting that their resource allocation and prioritization techniques are more efficient in terms of satisfying the users than the schedulers that adopt conventional metrics. This efficiency can be achieved by avoiding wasting resources in situations where there is a small or even no impact on the user experience. Therefore, QoE-oriented wireless resources schedulers aim to fulfill the mobile system users expectations: watch/listen what I want, anywhere, anytime.
This survey paper gives an extensive overview of the key facets of QoE-oriented wireless resources scheduling. The first two sections that follow this introduction provide a contextualization regarding what is QoE and how traditional schedulers work: in Section 2
, the factors that influence the QoE in multimedia services over communication systems are presented, along with some QoE estimation methods; Section3 illustrates some scheduling algorithms, ranging from the simplest ones to QoS-aware approaches, followed by the introduction of QoS-QoE mapping strategies and utility-based optimization. Section 4
provides the main contribution of this survey, namely the presentation of recent research directions regarding QoE-oriented wireless resources scheduling — state-of-the-art QoE-aware scheduling methods are discussed and classified based on the adjustments required, at the end-user devices, in order to implement the different scheduling strategies on wireless systems. Section6 concludes the paper.
This survey serves as a reference for those who want to implement QoE-aware wireless resource schedulers and also aims to be a valuable contribution for those who want to perform research within this topic.
2 Understanding QoE
The Qualinet white paper on definitions of QoE states that “QoE is the degree of delight or annoyance of the user of an application or service. It results from the fulfillment of his or her expectations with respect to the utility and/or enjoyment of the application or service in the light of the user’s personality and current state” (Brunnström et al., 2013).

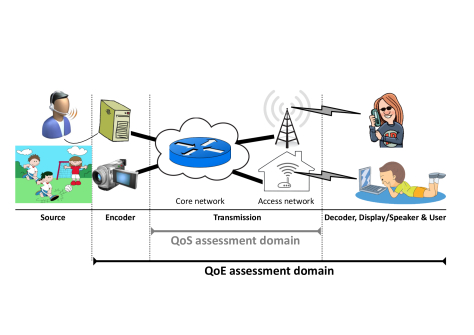

As far as communication systems are concerned, QoE can be affected by factors such as multimedia content, application, service, end-user device, network and context of use. For instance, Sumby and Pollack (1954) showed that if supplementary visual observation of the speaker’s facial and lip movements are also utilized besides the oral speech, higher levels of noise interference can be tolerated by humans than if no visual factors were taken into account. Hence, QoE assessment operations are performed in a broader domain when compared to QoS measurements — cf. Fig. 1.
The following subsections provide some details about the factors that influence the user experience, as well as some QoE estimation methods regarding multimedia services over communication systems.
2.1 Factors Influencing QoE
According to the Qualinet white paper (Brunnström et al., 2013), an influence factor is defined as “any characteristic of a user, system, service, application, or context whose actual state or setting may have influence on the QoE for the user”. Factors influencing QoE may be categorized as human, system, and context factors.
2.1.1 Human factors
The characteristics of the users such as gender, age, and visual and auditory acuity are examples of human physical factors that may impact the users’ perceived quality (Laghari and Connelly, 2012). On the other hand, more variant factors such as motivation, attention level, or users’ mood, i.e., emotional factors, also play an important role when addressing the QoE influence factors (Wechsung et al., 2011). Moreover, even educational background, occupation, and nationality will affect the QoE (Zhu et al., 2015b). In short, human factors that influence the perceived quality are complex and strongly interrelated, and their assessment should also take into consideration the time-dynamic perception of a service (i.e., the memory effect), where previous experiences also have influence on the current QoE (Hoßfeld et al., 2011).
2.1.2 System factors
The technology employed for multimedia content transmission may introduce distortions or impairments in the content, which may affect the users’ QoE. First, the original data need to be compressed, so that the multimedia content can be transmitted through a capacity-limited network. This encoding process, which incorporates many technical decisions such as the chosen bitrate (constant or variable), video frame rate or spatial resolution, may be lossless or lossy, meaning that the latter may lead to a quality degradation (Zinner et al., 2010). In addition, the transmission network may greatly affect the multimedia quality, namely due to major factors like packet loss, delay, and jitter (Minhas et al., 2012). Even with the adoption of a buffer at the receiver side, these network factors may cause the need for rebuffering, a streaming state activated when the playback buffer becomes empty and that leads to a playout stall, which is usually very annoying for the users (Pessemier et al., 2013; Ghadiyaram et al., 2014). Considering non-streaming services, the task completion (e.g., the non completion of a download) or the excessive amount of time a service takes to download or to upload are QoE degrading situations (Dellaert and Kahn, 1999), which are also caused by packet delay or data flow rate reduction. Other system factors that may affect the perceived quality are the type of device used at the users’ side (e.g., the screen resolution, user interface capabilities, audio loudness, computation power, or battery lifetime) and some system specifications (e.g., interoperability, personalization, security, or privacy) (Ickin et al., 2012) — the reader is suggested to refer to (Siris et al., 2014; Liotou et al., 2015) for more examples and details on QoE challenges concerning mobile networks.
2.1.3 Context factors
Apart from the two aforementioned group of factors, there are external factors that influence the users’ QoE by affecting the surrounding environment (Han et al., 2012). These context factors include temporal aspects, such as time of the day or day of the week (e.g., a better experience may be obtained when users are more relaxed, like during evenings or weekends), duration of the content and its popularity (e.g., users usually tolerate more distortion when they are watching popular videos), and service type, i.e., if it is live streaming or not (where users may have different quality expectations). The economic context can be also incorporated in this category of factors influencing QoE (Martinez et al., 2015), namely subscription type, costs, and brand of the system/service (including the availability of other service providers).
2.2 QoE Estimation Methods
Measuring and ensuring good QoE in multimedia applications is very subjective in nature. Hence, one way to assess QoE is to perform subjective tests, which directly measure the perceived quality by inquiring persons about their opinion regarding the quality of the multimedia content that is being tested. The subjective test results can also be used to validate the objective assessment performance, which is another quality assessment methodology.
The Mean Opinion Score (MOS), which is standardized by ITU-T (ITU, 2016)
, is the most widely adopted QoE measurement. MOS is defined as a numeric value ranging from 1 to 5 (1-Bad, 2-Poor, 3-Fair, 4-Good, 5-Excellent) and it corresponds to the arithmetic mean of individual ratings in a panel of users. This approach has some drawbacks, namely it is costly, time consuming, and does not allow real-time evaluations. Moreover, some useful information may not be captured (e.g., if an impairment occurs at a certain moment but affects the overall QoE, this particular moment may not be detected).
Objective quality methods have been developed in order to obtain a reliable QoE prediction while avoiding the need to perform subjective tests. The approach is based on mathematical techniques that yield quantitative measures of the multimedia content or service quality. Within the objective methods, two types of approaches can be identified: parameter-based methods and signal-based methods (Takahashi et al., 2008). The former rely on network/application parameters, such as viewing time (Balachandran et al., 2013), download ratio (Balachandran et al., 2014; Shafiq et al., 2014) or QoS parameters (Section 3.2 gives some examples of QoS-QoE mapping strategies). On the other hand, signal-based methods are based on the analysis of the signal; in intrusive methods, the analysis compares the received data with a reference, which can be the full original data (full reference methods) or some key features of it (reduced reference methods); non-intrusive methods, also known as no-reference methods, do not require access to the original multimedia content, relying only on the received signal to assess its quality. Nevertheless, some issues arise when performing objective assessment. Although intrusive methods are generally accurate, they are impracticable for monitoring live transmissions due to the need of the original multimedia content. Also, objective assessment may not reflect the perception of the users concerning the delivered service; for example, although some impairments may cause minor influence on the users’ QoE, and therefore they could be disregarded, the same impairments may be detected and emphasized by the objective methods.
It is also important to mention that the majority of QoE estimation methods that have been proposed so far address the specific case of video quality evaluation, mainly due to the popularity achieved by video streaming services over the last years — surveys on video quality estimation can be found in (Chikkerur et al., 2011; Lin and Kuo, 2011; Chen et al., 2015c; Juluri et al., 2016), whereas a survey on parametric QoE estimation for popular services, such as video streaming, Voice over IP (VoIP), web browsing, Skype and file download services, can be found in (Tsolkas et al., 2017).
As can be inferred from what was presented so far, QoE cannot be easily modeled and assessed due to the fact that its influence factors are very diverse and they may interrelate, as well as different users have different quality expectations. In order to attain an enhanced QoE evaluation, a combination of objective and subjective methods can be carried out (Rubino et al., 2006; Chen et al., 2010).
3 Background on Scheduling Algorithms
Distributing the available wireless resources among the users, i.e., multi-user scheduling, is one of the most important tasks that must be implemented in any wireless communication system. Specifically, a scheduler decides how users share the wireless channel by allocating radio resources such as power, time slots, frequency channels, or a combination of these resources. For instance, Time Division Multiple Access (TDMA) systems are characterized by having time slots as the radio resources units that can be assigned to a user; on the other hand, a scheduler allocates frequency channels in Frequency Division Multiple Access (FDMA) systems; in Orthogonal Frequency-Division Multiple Access (OFDMA) systems, radio resources are scheduled into the frequency/time domain — Fig. 2 depicts examples of resource allocation within TDMA, FDMA and OFDMA; for more detail about wireless multiple-access schemes, please refer to (Prasad and Mihovska, 2009; Molisch, 2011). Nevertheless, from a conceptual point of view, a scheduler can be designed in such a generic way that it is agnostic to which particular radio resources are handled by the underlying wireless multiple-access scheme — the scheduler only requires knowledge of the total amount of available resource units and the throughput provided by each of these units to each of the different users. As an example, suppose that each resource unit of Fig. 2, within its respective multiple-access scheme, yields the same throughput for all four users, and suppose also that the depicted time/frequency domain span corresponds to a single allocation decision. Accordingly, all three scheduling examples could be generated by the same generic scheduler, namely if the decision was to allocate 3/8, 2/8, 2/8 and 1/8 of the maximum achievable system throughput to user 1, to user 2, to user 3 and to user 4, respectively. For this reason, some of the proposed wireless resource scheduling techniques follow this generic approach and only point out the percentage of total resources that should be allocated to each user and who should be prioritized, leaving out which specific resources are being handled by the scheduler.
Moreover, designing schedulers for wireless systems comprises many trade-offs among complexity, efficiency and fairness:
Complexity: It is important to limit the processing time of scheduling algorithms, since they usually have to perform their job under very short periods of time (e.g., 1 ms is the time that Long Term Evolution (LTE) schedulers have for allocation decisions (3GPP, 2018a)). In addition, scheduling schemes should be scalable, meaning that low-complexity algorithms should be preferred over very complex and non-linear solutions, which could be prohibitive in terms of computational cost, time, and memory usage when applied to scenarios with a large number of users.
Efficiency: Since radio resources are scarce, scheduling algorithms must aim at fully taking advantage of these resources. Performance indicators like the number of users served simultaneously or the average spectral efficiency of the wireless system are two examples of efficiency indicators adopted by many schedulers.
Fairness: A minimum performance must be also guaranteed for all users, in order to avoid unfair sharing of the wireless resources. Accordingly, implementing the fairness requirement in the scheduling schemes enables that users experiencing poor channel conditions (e.g., users that are far away from the base station) are also served, or that greedy users cannot provoke resource starvation in other users within the same wireless system.
In addition to the design factors described above, QoS and QoE provisioning must also be taken into account by the scheduling algorithms. In this section, some scheduling algorithms are reviewed, ranging from the simplest ones to QoS-aware approaches, followed by the introduction of QoS-QoE mapping strategies and utility-based optimization. QoE-based scheduling algorithms are presented in Section 4.
3.1 QoE-unaware Schedulers
As previously mentioned, any scheduling strategy comprises many trade-offs among complexity, efficiency and fairness. In the case of schedulers that do not take QoE into account, these trade-offs also result from the significance that the different scheduling algorithms give to the communication channel characteristics and to QoS parameters.
3.1.1 Channel-unaware Strategies
The schedulers that implement these approaches assume that the transmission channel is error-free and time-invariant, which are unrealistic assumptions when dealing with wireless channels. Nevertheless, these strategies form the basis for more complex algorithms.
First In, First Out (FIFO), also known as First Come, First Served (FCFS) (Arpaci-Dusseau and Arpaci-Dusseau, 2018), can be regarded as the simplest scheduling scheme, in which users are served according to the order of their resource request. Even though this approach is very easy to implement, it is not fair nor efficient.
3.1.2 Channel-aware / QoS-unaware Strategies
A wireless resource scheduler can take into account the channel state information that is usually fed back to the base stations, so as to enhance the efficiency of its scheduling algorithm.
Maximum throughput (MT) (Prasad and Mihovska, 2009) is an example of a policy that, in each scheduling period, prioritizes the resources to the user experiencing the best channel conditions. Accordingly, these schedulers provide the highest system throughput, so that the best possible spectral efficiency is attained. Nevertheless, an MT scheduler is very unfair to users with poor channel conditions and can even make them suffer of starvation.
The concept adopted by Proportional Fair (PF) schedulers (Kelly, 1997) provides a compromise between fairness and spectral efficiency. Within this approach, the average throughput experienced in the past works as a weighting factor in an MT-like strategy, i.e., if two users can achieve the same throughput (taking into account the channel conditions), then the user that has experienced the lower average throughput is prioritized. This means that users with poor conditions will always be served after some time.
3.1.3 Channel-aware / QoS-aware Strategies
For the purpose of attaining a certain performance level, different applications have different requirements, which are typically mapped into QoS parameters. Accordingly, scheduling algorithms should also take into account these QoS parameters. For instance, some scheduling strategies try to guarantee a minimum throughput for the users, whereas others deal with delay constrains. This last approach is more common among QoS-aware schedulers, since many applications, such as real-time flows, video streaming or VoIP calls, require that their packets are delivered within a certain deadline.
The Modified Largest Weighted Delay First (M-LWDF) algorithm (Andrews et al., 2001) and the Exponential/PF (EXP/PF) scheme (Rhee et al., 2003) are two of the most popular QoS-aware scheduling strategies, as they provide a balanced trade-off among fairness, spectral efficiency and QoS provisioning. Besides taking service delay requirements into account, both algorithms support different services and treat differently real-time data flows.
All the above mentioned scheduling strategies, either channel-unaware or channel-aware (with or without taking into account QoS requirements), are just an illustrative sample of what can be found in the literature. The reader is suggested to refer to (So-In et al., 2009; Afolabi et al., 2013; Asadi and Mancuso, 2013; Capozzi et al., 2013; Abu-Ali et al., 2014; Castañeda et al., 2017) for more examples and details on scheduling algorithms that are not QoE-oriented.
3.2 QoS-QoE Mapping Strategies

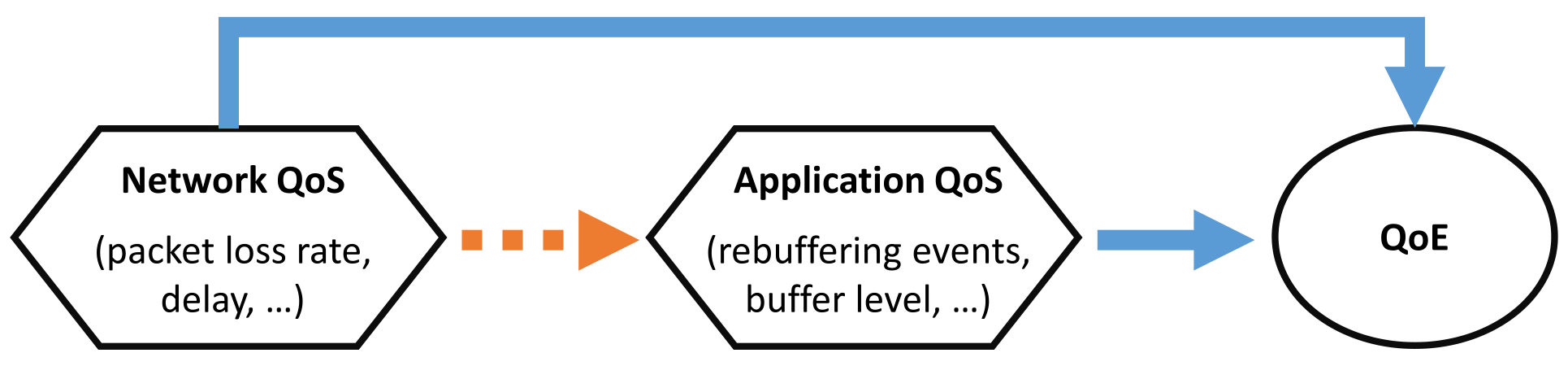

QoS-QoE mapping strategies have been presented to quantify QoE, thus making a transition from QoS- to QoE-oriented optimization. QoS-QoE mapping relies on various QoS parameters, which can be divided into two levels: network QoS parameters (e.g., delay or packet loss rate) and application QoS parameters (e.g., rebuffering events or buffer level). Therefore, QoS-QoE mapping strategies try to discover the relationship between QoE and the two QoS levels, where the network QoS parameters are sometimes first mapped into application QoS parameters — cf. Fig. 3. Nevertheless, both types of QoS parameters can always be regarded as objective quality metrics, since their measurement is always well defined as they do not depend on any subjective judgment.
Choosing a function that establishes a QoS-QoE mapping, i.e., a mapping between the objective quality metrics and a subjective score, is not a straightforward task. A linear mapping relationship could be adopted if a certain subjective quality difference always corresponded to the same proportional objective difference (Korhonen et al., 2012):
where and represent the parameters determined by linear fitting the objective QoS metric versus the measured subjective scores. However, the perceived quality ratings usually do not present a linear behavior with respect to the practical objective quality metrics, meaning that linear mapping functions may lead to an inappropriate assessment of the performance. To overcome this issue, nonlinear mapping relationships have been adopted, discussed and compared (Korhonen et al., 2012; Alreshoodi and Woods, 2013); the most widely used can be summarized as follows:
Considering the most general case, QoS metrics can be mapped into QoE values by performing a combination of the previous functions (1)–(8), including intermediate nonlinear combinations of QoS metrics, i.e.,
As can be seen, QoE modeling through the use of QoS metrics may encompass complex relationships and interdependencies, with a parametrization that constitutes a non-trivial problem. Moreover, other issues arise when designing QoS-QoE mapping strategies, such as finding out which are the QoS metrics that are more useful for QoE prediction or how much data is needed to achieve a certain accuracy on the estimated QoE. Hence, and in order to tackle these challenges, some authors have proposed the use of machine learning techniques, with the final goal of devising complex models regarding the QoS-QoE relationship(Rubino et al., 2006; Balachandran et al., 2013, 2014; Shafiq et al., 2014; Yang et al., 2017; Casas et al., 2017).
In all cases, after computing the predicted QoE values, correlation analysis should be carried out between these and ground truth values, so as to assess the goodness of the mapping strategy. On the other hand, traditional QoS optimization techniques can be applied and assessed in QoE optimization scenarios by making use of QoS-QoE mapping strategies. For instance, Alfayly et al. (2012) investigated and evaluated the performance of three downlink schedulers (PF, M-LWDF and EXP/PF) in terms of QoE metric for VoIP applications over LTE, making it possible to choose the most suitable one in terms of subjective experience.
3.3 Utility-based Optimization
The concept of utility functions emerged from microeconomics theory and formalizes the relationship between the service performance and the user perceived experience and satisfaction (Reichl et al., 2013). More specifically, the following utility function relates all the resources a user could hypothetically have (set ) to real numbers, where indicates that the user has a preference for over , with .
The utility-based scheduling optimization may then be regarded as a maximization of the total sum of users’ utilities through Network Utility Maximization (NUM) techniques (Chiang et al., 2007). In mathematical terms, using NUM to allocate network resources (such as transmission power, time slots, etc.) corresponds to perform the following maximization:
where corresponds to the utility function of the user, stands for the resources allocated to this user, and denotes the bounds of the available resources.
In many cases, scheduling can also be regarded as selecting a throughput vector, for all users, from the current feasible throughput region , i.e., the set of achievable throughputs expected for each user according to the respective allocated resources. Thus, the gradient-based scheduling algorithm (Stolyar, 2005) can be applied in order to perform resource allocation decisions:
where denotes the derivative of an increasing concave utility function and stands for the achievable throughput expected for the user. For example, the MT scheduler can be obtained from (11) by adopting the utility function , whereas the PF policy derives from the gradient-based scheduling technique with an utility function , where represents the past average throughput experienced by the user; accordingly, the selected MT and PF throughput vectors, and respectively, are given by
Based on what was previously described, QoS-QoE mapping strategies combined with utility-based optimization can be regarded as the fundamental tools to perform the shift from QoS- to QoE-oriented scheduling algorithms design. Ideally, one should aim at obtaining mathematical formulas that relate application, transport, and physical layer parameters to subjective quality experienced by the users. With these, it would become possible to know the impact of a certain resource allocation on the user QoE. For example, and considering video streaming over LTE, the QoE metrics presented in (Yaacoub and Dawy, 2014)
try to describe the performance of radio resource management methods regarding the end-users subjective video quality. The authors measured minimum, average and geometric mean QoE when scheduling algorithms like MT and PF are adopted. In(Abbas et al., 2016), the QoE of adaptive video streaming is analyzed under several scheduling policies, like RR and MT, where the QoE is based on the mean video bit rate and the mean buffer surplus. The examination of the performance impact of the different scheduling schemes is then used to suggest the best strategy to be adopted in various mobility scenarios.
On the other hand, the QoE-based mathematical formulas also allow wireless systems design to be adjusted in order to improve the quality perceived by the users. For instance, a closed-form expression was presented by Colonnese et al. (2016)
concerning the probability of timely transmission of video sequences as a function of the users’ allocated bandwidth. As a consequence, and given a certain QoE requirement based on the probability of timely delivery and the received video stream quality level, the aforementioned expression allows to infer the number of users that can be accommodated in the wireless access system, as well as it can be used to design admission procedures, bandwidth pricing policies, and cell dimensioning. In(Hoßfeld et al., 2017), a general fairness metric is formulated for shared systems, which satisfies QoE-relevant properties, assuming that estimated QoE values are known. This QoE fairness metric may be adopted when comparing different resource management techniques in terms of their fairness across users and services, although it says nothing about how good the system is and thus needs to be considered together with the achieved (e.g., mean) QoE in system design.
4 QoE-oriented Scheduling Algorithms
Many challenges arise when attempting to perform QoE-oriented wireless resources scheduling. As seen in the previous sections, it is important to identify the factors that influence QoE and their relationships to QoE metrics for a given type of service. Some more challenges may be identified after addressing the QoE modeling, namely determining which parameters to collect (e.g., user requirements, network performance, application type, context, etc.), where, how, and when to collect them (e.g., the required parameters could be collected at the base stations or at the end-user devices, either before, during, or after the delivery of the service). Lastly, procedures have also to be defined in order to combine all these steps, i.e., it is necessary to design the methods that allow the collected data to perform QoE-aware scheduling.
In this section, state-of-the-art QoE-based scheduling strategies for wireless systems are reviewed, highlighting the parameters adopted for QoE optimization. To simplify the reading of the survey, the strategies that address the downlink scenario have been classified into three categories — cf. Fig. 4: (i) passive end-user device; (ii) active end-user device / passive user; (iii) active end-user device / active user. This classification is based on the adjustments required at the end-user devices in order to implement the different scheduling strategies on wireless systems. The last part of this section provides a review of QoE-aware scheduling methods that can enhance the wireless resources management in other scenarios, namely the uplink direction, the multi-cell case, under heterogeneous, cognitive radio, relay and multi-user Multiple-Input Multiple-Output (MIMO) networks, as well as when dealing with energy-related issues.
4.1 Passive End-user Device Strategies
Scheduling techniques are easier to implement in a wireless network when the users, as well as their devices, do not perform any exclusive QoE tasks (e.g., monitoring, measuring and reporting relevant parameters), as the QoE assessment is based on measurements that can be carried out solely at the base station side. Since the required assessments can be performed by the scheduler on the network side, no extra information needs to be exchanged between the user’s device and the network. On the other hand, these approaches may not achieve the best possible QoE performance, since many relevant metrics, which could be collected at the end-user device (e.g., buffer status), either cannot be used or have to be estimated.
4.1.1 Video Streaming
The simplest QoE-based scheduling approaches consider only the impact of the throughput on the user-perceived quality, namely by adopting the following utility function:
With respect to video streaming, Shehada et al. (2011) and Thakolsri et al. (2011) made use of (14) by first establishing a mapping between video bitrate and MOS, followed by an allocation of resources to each user assuming that the bitrate of the transmitted video is adjusted to match the respective achievable throughput, so that there is a known correspondence between throughput and MOS. Besides considering the NUM, it is also proposed in (Shehada et al., 2011) another allocation criterion that establishes an a priori target mean MOS of all users, in order to save some network resources (which could be used to serve more users or to support high-demand applications), whereas a tuning mechanism is presented in (Thakolsri et al., 2011) that enables the network operator to dynamically adjust the resource allocation between similar perceived quality among all users (system fairness) and maximum average perceived quality (system efficiency). Yu et al. (2018)
proposed a framework to optimize the throughput distribution, which also comprises the determination of video encoding parameters for each user, so that the combined video compression plus radio resource allocation is able to maximize the QoE of all users. Nevertheless, the previous works neglect the impact of packet loss on the QoE, a relevant parameter that was taken into account by other authors. For instance, a trained random neural network is used in(Piamrat et al., 2010) to establish a mapping between the packet loss rate as well as the mean loss burst size and a video QoE score normalized to scale ; next, the respective score of each user, , is adopted as a coefficient in modified versions of the MT and PF algorithms, i.e.,
where corresponds to the respective user weight associated to the MT scheduling policy () or the PF one (). In (Ju et al., 2012)
, throughput was also considered in conjunction with packet loss rate in the work presented, in which an artificial neural network is adopted to learn the relationship between these parameters and the QoE; afterwards, the scheduler allocates resources based on a particle swarm optimization method, which has the goal of maximizing the users’ QoE and, at the same time, balance fairness among them.Ai et al. (2012) also made use of the utility function (14), but now throughput is replaced by goodput (i.e., the rate at which the useful data — namely excluding retransmitted data packets — is delivered), so packet loss rate can be considered implicitly, as well as the resource allocation algorithm proposed therein also aims at decreasing the video quality variation.
The aforementioned scheduling techniques do not take into account the occurrence of playout stalls (which, as mentioned in Section 2.1, are very annoying for the users), mainly because these algorithms assume that the bitrate of the transmitted video is adjusted to match the respective achievable throughput — hence, in theory, rebuffering events would be avoided. However, clients may request video segments with specific bitrates, which means that not only the allocation algorithms must be able to take bitrate constraints as input parameters, but also they should aim at providing interruption-free video transmissions, as playout stalls are more likely to occur if the requested bitrate by a client is too demanding when compared to the respective achievable throughput. One way to tackle this problem is to consider that the radio resource assignment is given by
where stands for a term that reflects the effect of the user satisfaction based on the possibility of rebuffering events taking place. For instance, Wirth et al. (2012) made use of (16) by defining as an exponential weighted moving average filter that depends on the minimum throughput requirement (which stems from the requested video bitrate):
where stands for the value of the previous scheduling period and denotes a small positive value. With this approach, a user will be prioritized if the respective achievable throughput does not meet the minimum rate constraint (in order to try to avoid playout stalls), whereas if this target is met, then the user experiences a very low weight, thus being deferred from being served. Another approach based on (16) is proposed in (Seyedebrahimi et al., 2014), namely by considering and a weight given by
where corresponds to a value that can be adjusted to achieve a certain trade-off between fairness (high values) and efficiency ( close to zero).
Still regarding the occurrence of playout stalls, Pastushok and Turlikov (2016) proposed a lower bound for a mean rebuffering percentage (percentage of the entire streaming time in which a user is experiencing playout stalls), along with a corresponding optimal scheduling strategy. Their approach yields, for each user, an achievable throughput value that ranges from zero to — more precisely, the scheduler serves the users that require less resources (in order to fulfill their demand) until there are no more resources available, thus meaning that users with a high relation are more prone to be left out, where represents the maximum achievable throughput if all resources were assigned to user . Nevertheless, this scheduling technique is not suitable for the case where all users can be served at the same time without network congestion, namely because some spare resources would not be allocated (which could lead to an increase of the initial playout delay). In addition, the aforementioned lower bound assumes that the video representation quality chosen at the beginning will be the same throughout the whole streaming session, which is not true if adaptive video streaming is enforced.
Another factor that may influence the users’ QoE, and which has not been addressed by the previous scheduling algorithms, is when one or more subscribers should be prioritized over the remaining because, e.g., they are paying more in order to obtain a better service. One way to tackle this issue is to divide the users into different classes and assign different priority weights to them. This approach was followed by Hsieh and Hou (2016), in conjunction with a scheduling technique that tries to minimize the duration of playout stalls. More specifically, it is proposed to schedule the client with the largest in each scheduling period and, if a tie occurs, the chosen client is the one that has the smallest , where corresponds to a predetermined weight that takes into account the user’s class. In order to compute , the authors adopt the NUM technique and obtain some tractable solutions; however, it is important to mention that the scheduling technique presented in (Hsieh and Hou, 2016) is designed assuming some conditions, namely that the sum of the minimum throughputs required by the users is not higher than the maximum achievable system throughput. Moreover, since a user will always be sacrificed if the respective channel conditions are poorer than the ones of another user, this scheduling policy is more suitable in scenarios where the throughput of the wireless link is expected to be similar among all users.
Some authors have also considered another relevant parameter not addressed so far, namely the Head-of-Line (HoL) packet delay (i.e., the delay of the first packet), in order to perform QoE-oriented scheduling that is somewhat capable of minimizing playout stalls. In (Chandur and Sivalingam, 2014), a modified version of the PF algorithm is proposed, which adopts the following scheduling decision:
where and denote the HoL packet delay and the average packet delay, respectively, regarding the user, whereas and represent some constants which enable to adjust the impact of the delay variables on the scheduling decision. An approach based on the M-LWDF technique is proposed in (Li et al., 2016), in which the scheduling process jointly considers packet delay, expected throughput and video importance. More specifically, before scheduling a user, some overdue packets are discarded within this scheme, namely those with an associated delay that has exceeded the deadline threshold given by , where and correspond to positive tuning parameters that enable to adjust the deadline threshold with respect to the user. Afterwards, radio resource assignment is performed by following the scheduling rule given by
where stands for the video importance index of the packet that is being download by the user, which is derived from an algorithm described in (Li et al., 2016) and aims at setting a value for how important is a packet in enhancing the video quality. Khan and Martini (2016) proposed a scheduling policy that is similar to the previous one, in the sense that not only it takes into account packet delay, expected throughput and video importance, but also the scheduler is allowed to discard some packets. However, the packet filtering process is now based on the respective contribution towards video quality (instead of overdue packets), under an algorithm that is adjusted to work with scalable video streaming. The scheduling decision of this method is as follows:
where corresponds to the priority rating of the packet that is being downloaded by the user, which takes into account the respective bitrate and contribution towards the perceived video quality, and denotes the number of packets currently residing in the queue to be scheduled to user . It is noteworthy to stress that these last two scheduling techniques are not lossless, i.e., a client may not receive all the information it asked for; on the other hand, resources can be saved (and further allocated in order to enhance the QoE) by not transmitting overdue packets or with low contribution to the video quality, which might have become useless at the receiver in the sense that they would not provide a great QoE enhancement.
4.1.2 Other Applications
The user experience in some wireless applications other than video streaming can also be enhanced by the use of QoE-aware scheduling methods. With respect to VoIP, the algorithm presented in (Chen et al., 2015a) tries to allocate resources in order to limit the delay within a certain deadline and, consequently, meet the tight delay requirements of VoIP; in addition, the proposed framework also has the goal of minimizing the total number of radio resources scheduled during a certain period of time, a procedure which is based on not serving some users at some time instances if their forecasted channel conditions are able to cope with future transmissions that still meet the deadline. Ameigeiras et al. (2010) addressed web browsing applications and suggested a mapping from user throughput to user experienced quality, which enables to perform radio resource allocation through the maximization of the aggregate utility over all users; the respective utility function is given by
where stands for the Web page size — note that this approach can also be regarded as one that aims at rendering the Web page with a service latency lower than approximately 10 seconds, namely because the ratio is intended to correspond to the service response time measured in seconds.
In the general case, wireless networks provide multi-services, where video streaming, VoIP, Web browsing and file download applications are available to the users; consequently, there should be a scheduling concern of providing high QoE for all of them. For instance, the scheduler proposed in (Liotou et al., 2016) tries to maintain the past average throughput values per user, in order to moderate throughput fluctuations; more specifically, the authors adopt the following scheduling rule:
Noticing that this approach is application-unaware, it has the advantage that there is no need for the scheduler to know which service each user is using. On the other hand, and since QoE is also application-dependent (as mentioned in Section 2.1), scheduling strategies should be adjusted in order to take into account the particularities of each service. For instance, the work presented in (Liu et al., 2012) proposes a NUM-based scheduling scheme, in which different utilities functions are adopted for each service — the authors consider mapping functions based on throughput plus packet loss regarding video streaming, the delay is regarded as the relevant parameter for VoIP, whereas the QoE of Web browsing and file download applications are based on service response time and throughput, respectively. This scheduling algorithm was assessed for two operation modes, namely one that aims at maximizing the sum of all users’ QoE and another with the optimization target of maximizing the sum of the logarithm of the users’ QoE — it is claimed that the latter mode improves the fairness among services without a great impact on the average QoE. Anand and de Veciana (2017) designed a scheduling method which takes into consideration the mean flow delays in multi-service systems. More specifically, they propose a framework based on the Gittins index to solve the optimization problem given by
where the denotes the mean delay vector realized by the scheduling policy (for all services) from the feasible delay region , i.e., the set of possible mean delay vectors considering all policies; with respect to service , stands for the arrival rate, represents the mean delay experienced and corresponds to the cost function that reflects the respective QoE sensitivity.
In (Sacchi et al., 2011)
, a wireless resources assignment method is presented that also has the goal of providing a similar QoE among all users (which have miscellaneous requirements for video, voice and data services), namely by making use of game theory concepts, as well as minimum throughput requirement and packet loss probability of the different services, in order to maximize the minimum QoE. A scheduling procedure is proposed in(Xin et al., 2014) with respect to instant messaging service, which can incorporate video chat, audio chat and text chat subservices, and where a user may launch several subservices at the same time (e.g., multiple text chats and an audio chat). More precisely, the authors adopt the average delay of image, voice and text flows as the base metric to quantify QoE, along with a method in which the scheduler computes, without feedback from the terminals, the probability that a user is focusing on a certain subservice (taking into account the subservice type and its serving quality), thus regarding the one with the higher probability as the representative service. Based on this premise, the scheduling scheme first looks up for the user experiencing the poorest QoE of the representative service and then allocates resources for one subservice of this user; regarding this last step, a random approach is devised, such that even though the representative service has a higher chance of being prioritized, the other subservices will not be starved (which also helps to handle inaccurate estimations of the representative service).
|Application||Reference||QoE optimization based on||Additional comments|
|Throughput||Packet loss rate||Delay|
|Video streaming||Shehada et al. (2011)||X||Video bitrate is assumed to be adjusted to match the achievable throughput.|
|Thakolsri et al. (2011)||X|
|Yu et al. (2018)||X|
|Piamrat et al. (2010)||X||X|
|Ju et al. (2012)||X||X|
|Ai et al. (2012)||X||X|
|Wirth et al. (2012)||X||Video bitrate constraints are taken as input parameters.|
|Seyedebrahimi et al. (2014)||X|
|Pastushok and Turlikov (2016)||X|
|Hsieh and Hou (2016)||X|
|Chandur and Sivalingam (2014)||X||X|
|Li et al. (2016)||X||X|
|Khan and Martini (2016)||X||X|
|VoIP||Chen et al. (2015a)||X|
|Web browsing||Ameigeiras et al. (2010)||X|
|Multi-service||Liotou et al. (2016)||X||Application-unaware solution.|
|Liu et al. (2012)||X||X||X||Aim at maximizing the average QoE.|
|Anand and de Veciana (2017)||X|
|Sacchi et al. (2011)||X||X||Attempt to provide similar QoE.|
|Xin et al. (2014)||X|
|Deng et al. (2014)||X||Try to offer a trade-off between providing similar QoE and maximizing the average QoE.|
|Fei et al. (2015)||X|
|Monteiro et al. (2015)||X|
|Rugelj et al. (2014)||X||X||X|
|Hori and Ohtsuki (2016)||X||X||X|
It is important to stress that even though the previous approaches aim at ensuring that all users have an identical QoE (system fairness), this might lead to undesirable situations: for instance, when one user is requesting a very demanding service or is experiencing very poor channel conditions, a QoE-fair scheduler would allocate more resources to this user and eventually force the majority of the remaining users to have a poor experience. On the other hand, a scheduler that maximizes the average perceived quality (system efficiency) could also sacrifice some users by not providing them, at least, an acceptable QoE. For this reason, and regarding multi-service systems, some works proposed solutions that try to offer a trade-off between system fairness and system efficiency (Deng et al., 2014; Fei et al., 2015; Monteiro et al., 2015; Rugelj et al., 2014; Hori and Ohtsuki, 2016) — although these works are somewhat similar, their differences deserve to be highlighted, which will be done in the following paragraph.
According to the scheme introduced in (Deng et al., 2014), the users are served following an MT fashion until all of them have the respective minimum throughput requirement satisfied (it is assumed that QoE is estimated by taking into account solely the throughput of video, audio and file download applications); in the following step, the resources are allocated to the users that can achieve the best QoE gain. In (Fei et al., 2015), the proposed scheduler performs the same first step as the previous solution, i.e., users are served following an MT fashion until all of them have the respective minimum throughput requirement satisfied; afterwards, the remaining resources are allocated in a fair manner such that almost the same quantity is assigned to all users. In (Monteiro et al., 2015), the proposed algorithm serves the users following an MT fashion until a predefined number of users is satisfied by having a QoE equal or greater than a certain threshold (it is assumed that throughput can be mapped into QoE); afterwards, the remaining resources are allocated to the users with the lowest QoE. Rugelj et al. (2014) presented a method that searches for the users with the minimum QoE and assigns resources to them; this process is repeated until each user is considered satisfied according to the respective minimum QoE (the authors adopted mapping functions based on throughput plus packet loss regarding video streaming and audio applications, whereas for Web browsing applications the considered relevant parameter was service response time); next, the remaining resources are allocated following an MT fashion, with the proviso that users that achieve a very high satisfaction threshold are excluded from being further served. The approach of Hori and Ohtsuki (2016) is very similar to the previous one, with the main difference that all users are considered satisfied according to the same QoE threshold (the adopted mapping functions are also slightly different, namely delay is now used as relevant parameters for audio applications); this criterion might be less realistic than the previous one, in the sense that users often expect a different level of satisfaction for different services.
4.1.3 General Considerations on Passive End-user Device Strategies
The previous overview demonstrates that the research community has made some efforts to present scheduling methodologies that enhance the QoE of the users and which rely on measurements that can be carried out solely at the base station side — these strategies are summarized in Table 1. In accordance with the popularity achieved by video streaming services over the last years, the majority of the works proposed QoE-oriented scheduling solutions taking into account this type of service. Moreover, many of these works aim at allocating resources with the goal of proving interruption-free video; however, their approach may still be inefficient: for instance, consider a user that, at a certain scheduling period, has a large amount of data stored in the respective buffer — e.g., the user had paused the playback for a while and, in the meantime, the buffer stored some dozens of seconds of video; if, by following the previously mentioned algorithms, this user is prioritized, then this scheduling decision occurs in a situation where the respective video could be played smoothly during some time, even if this user was not served. Accordingly, this user is being favored over others that might have nearly-empty buffers and, if not served, will experience playout stalls.
Many proposals also addressed the multi-service case, in which the adopted objective functions have a dual role: not only they have to capture the particularities of each service regarding QoE by using relevant metrics that enable to accomplish that goal (e.g., throughput plays a central role when designing QoE-oriented schedulers for the video streaming service, whereas delay is of prime importance for VoIP applications), but also the different objective functions establish a trade-off regarding the different services, namely which service should be prioritized and when this should occur. For instance, users that are performing web browsing or large file downloads may not perceive a QoE degradation if the respective service delay is slightly increased; hence, considering a congested system, it may be beneficial to prioritize applications such as video streaming or VoIP, so that their QoE is not affected or is even increased. On the other hand, considering uncongested systems, scheduling more resources to the latter applications would enhance their QoE only marginally if these applications are already properly served; in this situation, it would make more sense to allocate the remaining resources to web browsing or large file download applications. Therefore, the choice of objective functions that are able to meet simultaneously the two aforementioned goals turns multi-service QoE-oriented scheduling in a tougher challenge when compared to single-service systems. In addition, there is also another issue that usually arises within multi-service systems, namely the need for the scheduler to know which service each user is using, a requirement which entails an extra cooperation between the application-level server and the scheduler.
4.2 Active End-user Device / Passive User Strategies
One way to enhance the subjective quality perception of a service is to perform QoE assessment as close as possible to the end-user and to report this information to the base station. In this way, there is a higher degree of confidence regarding the influence of the scheduler adjustments versus the QoE improvement, since more accurate QoE metrics can be used. However, this type of scheduling algorithms require feedback channels for QoE measurements reporting. For instance, the Dynamic Adaptive Streaming over HyperText Transfer Protocol (DASH) technology, also known as MPEG-DASH (ISO, 2014), and its extensions standardized by the 3rd Generation Partnership Project (3GPP) for DASH use over wireless networks (3GP-DASH) (3GPP, 2018b) already incorporate specifications about how relevant QoE parameters (e.g., video buffer level) can be reported to the server — it is noteworthy to mention that one of the goals of this technology is to cope with variable network conditions, such as those caused by wireless link quality variations, namely by defining how different representations (with different bitrates) of the same multimedia content can be split into smaller segments, which can be independently decoded by a client, and how the clients can select and retrieve these segments from a DASH server; accordingly, a DASH client is able to switch seamlessly between different representations during a streaming session, an adaptation which, for example, enables to minimize the impact of throughput fluctuations on playout stalls, thus enhancing the QoE.
In the scheduling strategies described in this subsection, the end-users devices are regarded as clients that are able to measure and to report to the base stations the QoE metrics that will be be taken into account by the scheduler, while the user itself does not perform any action.
4.2.1 Video Streaming
The buffered playout time (at the end-users devices) of YouTube videos is considered in (Wamser et al., 2012; Pervez and Raheel, 2015) in order to generate signaling events when the buffered video playout time drops below threshold or goes above threshold (), cf. Fig. 5: the former case signalizes video flows in a critical state, thus the scheduler prioritizes the respective packets; when the buffered playout time of a critical video flow becomes greater than , it is relabeled as a normal flow and the scheduler allocates resources according to any scheduling policy (e.g., MT, PF, etc.). This methodology, which is intended to run on top of traditional scheduling algorithms, is not proactive regarding overall QoE improvement, i.e., instead of aiming at QoE amelioration for all users at all scheduling instances, this scheme only prioritizes video flows when QoE impairment, namely a playout stall, might be imminent as a result of a buffer that is becoming empty. Another scheduling method that attempts to avoid QoE degradation is presented in (Seetharam et al., 2015), in which the goal is to maximize the minimum buffered video playout time among all users. On the other hand, a more proactive approach can be adopted, in order to also try to enhance the users’ overall QoE. For instance, Liu et al. (2015) proposed a scheduler that considers , where is a positive value that denotes the overall perceived quality deterioration, which is not only based on ongoing rebuffering events, but also takes into account past playout stalls; accordingly, and in order to provide a fair QoE, the user with the highest is prioritized in each scheduling period — still regarding the fairness issue, a protection mechanism is also conceived so that a user is not continuously prioritized over the others for more than a certain amount of time.
In general, the aforementioned scheduling techniques do not take advantage of the higher throughputs that can be attained by the users that are experiencing better channel conditions — if these users are better served, then the average perceived quality (system efficiency) may be improved, provided that the users that are experiencing poor channel conditions can still achieve a satisfactory QoE. Hence, some scheduling procedures have been devised that make use of the reported buffer level and aim at increasing the system efficiency regarding QoE. In (Joseph and de Veciana, 2014), the following scheduling rule is proposed for radio resource assignment:
where stands for an indicator of risk of violation of rebuffering constrains by the user and denotes a non-negative Lipschitz continuous function such that , for all for some constant (typically set as zero), and is strictly increasing for — the authors suggest an algorithm in which the parameter is updated, in each scheduling period, symmetrically with respect to the buffered playout time of user , denoted from now on as , i.e., is roughly a linear decreasing function of . Some proposals have also been presented which are based on the PF technique, in the sense that they follow the PF scheduling behavior but, whenever the buffer level of some users starts running low, they also carry out a smooth behavior transition in order to allocate more resources to these users. For instance, the scheduling technique introduced in (Navarro-Ortiz et al., 2013) — which was also adopted for multicast systems by Yuan et al. (2017) — aims at prioritizing users with low buffer levels, with the proviso that these users will not consume an excessive amount of resources; this goal is pursued by the scheduling rule
where denotes a decreasing logistic function — hence is upper bounded for low , thus avoiding a monopolization of the resources by one or more users with low buffer levels. In (Ramamurthi and Oyman, 2014), the variation rate of the buffer level is also taken into account when performing resource allocation, with the purpose of a continuous adjustment of the scheduling priorities in order to prevent low buffer levels in the first place; the corresponding resource allocation decision is as follows:
where represents a parameter that determines the time-scale over which rebuffering constrains are enforced for the user — this parameter reflects the current buffer level, in the sense that the authors suggest an algorithm that scales to prioritize users with low buffer levels — and corresponds to a video-aware user token parameter, which should increase or decrease whenever the variation rate of the buffer level is below or above a certain threshold, respectively. The strategy proposed in (Singh et al., 2012) also tries to provide fairness in terms of rebuffering percentage (i.e., the percentage of the total streaming time spent rebuffering); accordingly, the respective scheduling decision is given by
where corresponds to the size of the video frame that the user is downloading, stands for the number of video frames in the buffer of this user, and , which is tunable, represents the minimum number of frames that each client should have in the buffer; the variable denotes the rebuffering percentage of the user, corresponds to the total number of connected users, whereas and stand for other tunable parameters of this scheduling algorithm.
It is noteworthy to mention that even though the previous scheduling strategies exploit the higher throughputs that can be attained by some users, this approach might still be inefficient — for instance, prioritizing the user that is experiencing the highest throughput may not imply that the respective buffer level will have a great increment (e.g., this user could be requesting a very high quality video); therefore, it might be more efficient to serve other users which can store a higher amount of playout time in their buffers, in order to better obviate the occurrence of stalls. This approach is followed by the scheduling algorithm introduced in (Rodrigues et al., 2018), namely by considering explicitly the predicted buffer level variation of the user , , according to the resources that could be allocated to this user:
where denotes an emergency state threshold (somewhat equivalent to the critical state of Fig. 5), which is activated when one or more users have a buffered playout time lower than , i.e., this emergency condition is useful in preventing some users from suffering from starvation (a situation which would give rise to playout stalls).
Some authors also presented scheduling techniques that follow a methodology that is different from what was seen so far; more precisely, the algorithms proposed in (Pu et al., 2012; Essaili et al., 2015; Zhao et al., 2015; Li et al., 2017; Kumar et al., 2017) adopt a proxy-based approach, in which not only users with low buffer levels are prioritized, but also the proxy is able to modify the request of a client and serve a video segment with a lower bitrate, namely if this last procedure is able to avoid impending playout stalls. In spite of the fact that the use of this type of proxy is very helpful in maximizing considerably the number of interruption-free transmissions, there are also some issues that arise and that must be considered before implementing it: first, the video streaming system needs to provide a seamless switching between different bitrate representations, of the same multimedia content, during a streaming session (e.g., a DASH-based approach could be followed); secondly, a client may not be willing to accept a bitrate representation which is different from the one it requested (for instance, although the DASH specifications foresee the case where alternative representations could be admissible at the client side, this option can only be used if the client activates it first).
|Application||Reference||QoE optimization based on||Additional comments|
|Video streaming||Wamser et al. (2012)||X||Run on top of existing schedulers (less proactive).|
|Pervez and Raheel (2015)||X|
|Seetharam et al. (2015)||X||Attempt to offer similar QoE.|
|Liu et al. (2015)||Playout stalls|
|Navarro-Ortiz et al. (2013)||X||Aim also at maximizing throughput.|
|Joseph and de Veciana (2014)||X|
|Ramamurthi and Oyman (2014)||X|
|Yuan et al. (2017)||X|
|Singh et al. (2012)||X||Playout stalls|
|Rodrigues et al. (2018)||X||Tries to maximize buffer filling.|
|Pu et al. (2012)||X||Proxy-based solutions.|
|Essaili et al. (2015)||X|
|Zhao et al. (2015)||X|
|Li et al. (2017)||X|
|Kumar et al. (2017)||X|
|Web browsing||Szabó et al. (2016)||Delay & Page state info.|
|Multi-service||Nguyen et al. (2017)||Delay, Packet loss rate & Jitter|
4.2.2 Other Applications
Turning the attention to applications other than video streaming, a wireless resources redistribution algorithm is proposed in (Szabó et al., 2016) for web browsing, where the page state information is adopted as one of the inputs of the scheduler — more specifically, the proposed method subtracts some capacity from a client when the respective web page enters the “interactive” state, i.e., when something first renders on the screen and the respective user can start browsing; afterwards, the liberated resources are redistributed to those clients that have web pages in the “loading” state, i.e., the initial downloading part where the respective users are awaiting something to be displayed and which corresponds to the most sensitive period in terms of QoE. Nguyen et al. (2017) presented a scheduling strategy for real-time services (especially for voice, but it can also be used for video flows), which follows a PF-like approach with the addition of a multiplying term that takes into account a QoE metric computed at the devices and reported to the scheduler (this QoE metric depends on the delay, packet loss rate and network jitter); as a result, the users that have higher a QoE have a higher probability of being prioritized under this scheduling algorithm, which could pose some difficulties in terms of fairness.
4.2.3 General Considerations on Active End-user Device / Passive User Strategies
As can be inferred from the QoE-oriented scheduling solutions overview performed in this subsection, which are summarized in Table 2, the possibility of reporting relevant QoE metrics, from the users’ devices to a scheduler, is mainly useful for video streaming services. More specifically, the report of information that is only available at the device, such as the buffer level, enables to design scheduling algorithms that are more capable of attaining the interruption-free video goal, thus providing an enhanced QoE when compared to passive end-user device techniques. Moreover, it is noteworthy to point out the usefulness of using real QoE metrics instead of estimated ones: for instance, even though a scheduler could try to estimate the users’ buffer level at the network side (i.e., without any buffer level report from the end-user devices to the network, which would avoid the need for feedback channels), several factors may sometimes turn this estimation task into a meaningless one — e.g., different initial playout delays (an information which is usually not known by the network) lead to different estimated buffer levels, as well as when a user pauses a video but the respective video download is not interrupted.
On the other hand, the reported QoE metrics should be incorporated carefully by the different scheduling methods, i.e., these should take into account the different states of each service and should not regard the same information always in the same way, so that the final QoE is optimized — for instance, consider a scheduler that prioritizes the users that have a low buffered playout time; noticing that a playout stall is usually more annoying than a slightly longer initial playout delay, this scheduler should refrain from giving a high priority to those users that are starting a video download (although their buffer level is closer to zero), because otherwise this could entail a lack of resources for already existing flows.
4.3 Active End-user Device / Active User Strategies
As mentioned in the Introduction, humans have the decisive judgment about the received service quality. Therefore, scheduling strategies that exploit direct and conscious inputs of the users have the advantage of knowing their preferences and if they are satisfied with the service. On the other hand, these approaches require that end-user devices are capable of receiving the necessary user inputs. The strategies described next (and summarized in Table 3) adopt this active user approach.
Aristomenopoulos et al. (2010) presented a QoE provisioning method that enables users to indicate their preference in a dynamic and asynchronous manner concerning the instantaneous perception of the service performance. To attain this goal, a Graphical User Interface (GUI) displays and captures the users’ options (increase or reduce quality), the feasibility and the repercussions of their act (cost). When the preference of a user is manifested, the features of the utility functions are dynamically adjusted, in order to exploit the NUM theory by enabling the smooth incorporation of users’ subjective decision in the resource allocation process. A QoE-aware scheduling framework is proposed in (Lee et al., 2014) to maximize the average amount of satisfied users, where it is assumed that users can feedback one bit to express their degree of satisfaction. Since the decisions taken by the users have a direct influence on the QoE enhancement process, non-trivial fairness constraints are also added so as to prevent starvation.
4.4 Other QoE-oriented Scheduling Methods
All the previous scheduling algorithms addressed the downlink scenario, with the goal of maximizing the aggregate experienced quality of all users within one cell of a single operator. Nonetheless, QoE-aware scheduling methods can enhance the wireless resources management in other scenarios, such as the uplink direction, the multi-cell case, under heterogeneous, cognitive radio, relay and MIMO networks, as well as when dealing with energy-related issues.
A resource scheduling framework for live video uplinking is proposed in (Essaili et al., 2011), in which more resources are allocated for popular contents while ensuring a certain QoE level (based on throughput) for the less popular ones. Wu et al. (2012) presented a QoE-driven scheduler for uplink unicast video delivery (intended for surveillance systems), in which the required throughput and delay are the main factors taken into account by the resource allocation scheme. In (Song et al., 2014), a QoE-based joint resource allocation method is proposed for uplink scenario of LTE networks that make use of carrier aggregation, where the assessment of the users’ QoE satisfaction degree is performed by a resource cost, link reward and utility function designed by the authors. The works presented in (Condoluci et al., 2017; Liu et al., 2018) address haptic teleoperation over wireless networks and introduce new allocations algorithms regarding the scheduling process in the uplink direction, which aim at improving the QoE by reducing the communication delay. With respect to disaster scenarios, and assuming that base stations are mounted on Unmanned Aerial Vehicles (UAVs), an uplink scheduling procedure is proposed in (Ranjan et al., 2018) that has the goal of enhancing the QoE of critical users (i.e., those that are in danger positions or have low battery power), so that they can better communicate with the outside world.
The scheduling strategies mentioned up to this point consider the situation where each base station serves as an independent scheduler. However, a centralized network controller can be adopted in order to improve the QoE of those users that can connect to more than one base station. The works presented in (Zheng et al., 2014; Cho et al., 2015) addressed the inter-cell interference problem and devised QoE-oriented resource allocation techniques that aim at enhancing the users’ satisfaction and fairness, especially for cell edge users. Kim et al. (2015) proposed a QoE-aware scheduling algorithm that also incorporates admission and handover procedures (to neighboring base stations), in order to try to ensure that video streaming users that connected previously to the network maintain at least an acceptable QoE (namely by taking into account the buffer level). In (Miller et al., 2015), the resource allocation problem is considered for a high number of simultaneous video streaming sessions within a dense wireless network scenario, in which a central scheduler has the goal of providing the allocation configuration (among all base stations) that enables to improve the users’ QoE.
4.4.3 Heterogeneous, Cognitive Radio, Relay & Multi-user MIMO Networks
Only single operators have been considered so far, but some research has already been done regarding heterogeneous wireless networks, where users have the desire of being connected to the best accessible networks according to each user application specifications and personal preferences. For instance, Toseef et al. (2011) adopted a game-theoretic approach as a framework for user satisfaction based wireless resource scheduling with various service providers, different sorts of users and several service categories. In (Jailton et al., 2013), a QoE-based handover architecture is presented for heterogeneous mobile networks, which has the goal of providing seamless mobility in multi-operator and multi-access systems while ensuring that users have the best possible connection in terms QoE. Regarding mobile traffic offloading, a method to improve the QoE of video delivery, which incorporates a collaboration between WiFi hotspots and LTE base stations, is proposed in (Seyedebrahimi and Peng, 2015), where the subjective quality assessment is based on video playback discontinuities. Morel and Randriamasy (2017) devised a QoE-based scheduling algorithm that aims at enhancing the video delivery over heterogeneous mobile networks, namely by limiting the inter-cell interference experienced by some users. The work presented in (Abbas et al., 2017) addresses the real-time traffic splitting across cellular and WiFi heterogeneous networks (focusing on video streaming applications) and provides a solution for resource allocation that enhances QoE while reducing delay and energy consumption (namely of mobile terminals). In (Zhu et al., 2015a), a QoE-driven allocation technique is proposed for video streaming through Device-to-Device (D2D) transmissions, where the wireless resource scheduling goal is to enhance the time-averaged quality of video streams transmitted over D2D communications, while constraining the number of stall events for each stream. Hong et al. (2017) devised a QoE-aware D2D-based mobile task outsourcing, in which the cellular mobile equipments cooperate so as to perform computational intensive tasks; a special node within the cellular network is responsible for the D2D task scheduling, where the maximum wait time of each task is adopted as the main QoE influence factor. A management procedure is presented in (Biswash and Jayakody, 2018) for mode switching between base station approach and D2D communications, where QoE parameters are the basis for the switching decisions, as well as for the inclusion, or not, of a third-party terminal to assist a D2D transmission. With respect to vehicular networks, some works have been proposed that provide QoE-driven frameworks, namely for video-on-demand over urban vehicular networks (Xu et al., 2013), for scalable video streaming over cooperative vehicle-to-vehicle (V2V) and vehicle-to-infrastructure (V2I) communications (Yaacoub et al., 2015), as well as with the goal of reducing the transmission delay of vehicular security applications (Ding et al., 2018).
QoE provisioning schemes can also be used when addressing other wireless resources scheduling problems, such as in cognitive radio networks. Jiang et al. (2012) developed a channel assigning algorithm for the transmission of multimedia content over cognitive radio systems, where the base station allocates available channels to secondary users according to the respective QoE requirements (delay and multimedia content quality). A jointly design of spectrum sensing and access policies for multi-user QoE-oriented video delivery within cognitive radio networks is presented in (He et al., 2016), in which the goal is to achieve fairness among the users while maximizing the average QoE (which is based on throughput). Zhang et al. (2017) addressed networks where different types of base stations are deployed to exploit a heterogeneous spectrum pool, containing licensed and harvested spectrum, in order to propose a game-theoretic approach that solves the problem of optimizing the global users’ satisfaction (based on their throughput requirement) by jointly optimizing spectrum sharing, user scheduling, and power allocation in a decentralized manner. A framework is devised in (Piran et al., 2017) that has the goal of managing the inevitable spectrum handoff within cognitive networks while providing seamless multimedia content streaming and QoE enhancement (namely by taking into consideration the delay and the quality of the multimedia content). In (Lin et al., 2017), a QoE-oriented dynamic channel access procedure is presented in order to handle the sharing of spectrum between licensed and secondary users; the scheduler takes into account the type of service that is being requested by the secondary users (either delay sensitive or not) and aims at minimizing the average queuing time of the respective packets. Regarding wireless relaying in cognitive radio networks, and by considering QoE indicators (relay buffer status) rather than traditional QoS indicators, Wu et al. (2013) showed that better user experience can be achieved with sub-optimum system capacity. Reis et al. (2010) considered multi-hop wireless networks and introduced a scheduling algorithm that jointly performs an optimization of multiple video, audio and data streams transmission based on certain QoE targets. The works presented in (Xiang et al., 2017; Fan and Zhao, 2018) developed cross-layer resource allocation schemes for two-hop and ad hoc networks, respectively, where the goal of both works is to enhance the QoE by minimizing the end-to-end video delivery time. In (Bethanabhotla et al., 2016), an efficient system is proposed for video streaming over a wireless system composed by a large amount of wireless helper equipments with multi-user MIMO capabilities, where QoE metrics like video quality and rebuffering percentage are used to optimize the transmission scheduling of users at each base station. Other examples of QoE-based scheduling for multi-user MIMO systems are given in (Cao et al., 2012; Chen et al., 2017), where user selection procedures based on transmitted rate and delay are proposed in order to maximize the average multi-service satisfaction degree. With respect to Virtual Reality (VR) over multi-user MIMO networks, Huang and Zhang (2018) devised a resource allocation technique based on a maximum aggregate delay-capacity utility function, which aims at reducing the delay between user motion and the presentation of multimedia content, as well it aims at maximizing the number of connected VR users with an acceptable QoE.
|Uplink||(Essaili et al., 2011; Wu et al., 2012; Song et al., 2014; Condoluci et al., 2017; Liu et al., 2018; Ranjan et al., 2018)|
|Multi-cell||(Zheng et al., 2014; Cho et al., 2015; Kim et al., 2015; Miller et al., 2015)|
|Heterogeneous networks||(Toseef et al., 2011; Jailton et al., 2013; Seyedebrahimi and Peng, 2015; Morel and Randriamasy, 2017; Abbas et al., 2017)|
|Device-to-device communications||(Zhu et al., 2015a; Hong et al., 2017; Biswash and Jayakody, 2018)|
|Vehicular networks||(Xu et al., 2013; Yaacoub et al., 2015; Ding et al., 2018)|
|Cognitive radio networks||(Jiang et al., 2012; Wu et al., 2013; He et al., 2016; Zhang et al., 2017; Piran et al., 2017; Lin et al., 2017)|
|Relay networks||(Reis et al., 2010; Wu et al., 2013; Bethanabhotla et al., 2016; Xiang et al., 2017; Fan and Zhao, 2018)|
|Multi-user MIMO networks||(Cao et al., 2012; Bethanabhotla et al., 2016; Chen et al., 2017; Huang and Zhang, 2018)|
|Base stations energy consumption||(Ma et al., 2012; Li et al., 2012; Gabale and Subramanian, 2014; Draxler et al., 2014; Sapountzis et al., 2014; Farrokhi and Ercetin, 2016)|
|Terminals energy consumption||(Csernai and Gulyas, 2011; Ksentini and Hadjadj-Aoul, 2012; Szabó et al., 2014; Mushtaq et al., 2015; Hong and Kim, 2016; Abbas et al., 2017)|
4.4.4 Energy-related Issues
The “green” networks is also a domain where QoE-based wireless resources management can have an important role. For instance, Ma et al. (2012) proposed a framework to optimize the power allocation at the base station side, in order to provide a balance between energy efficiency and QoE for video streaming users, whereas Li et al. (2012) devised a power allocation optimization method regarding the QoE for multi-services. In (Gabale and Subramanian, 2014), an “energy-source” based method for delivering multimedia content asynchronously is presented, which adjusts the consignment of delay-tolerant content according to the time intervals where the renewable energy is available, i.e., it tries to balance the service provider energy costs and the QoE (namely the delay) experienced by users. An approach to power-cycle base stations and to control the playback of video streams is presented in (Draxler et al., 2014), where the goal is to reduce the overall energy consumed by the base stations while maintaining a high QoE for the users. A framework to reduce small cell energy consumption contingent on QoE restrictions has been proposed in (Sapountzis et al., 2014), where an analytical investigation is performed regarding the trade-off between switching off underloaded base stations and the performance degradation experienced by the users. An energy efficient resource on-off switching framework for a cellular network comprising a femtocell at the cell edge of a macrocell is investigated in (Farrokhi and Ercetin, 2016), where the goal is to minimize the energy consumption of the cellular network while satisfying a desired level of QoE, which is defined as buffer starvation probability of a mobile device. In (Csernai and Gulyas, 2011), a framework is presented that decreases the energy used by mobile equipments during video delivery over Wireless Local Area Networks (WLANs), in which a QoE-based algorithm makes an estimation of the video quality perceived by a user and adapts the sleep periods of the wireless device so as to enhance the power efficiency while preserving video quality. Ksentini and Hadjadj-Aoul (2012) proposed a novel approach for energy conservation in mobile terminals regarding VoIP flows over WLANs, namely by tuning the sleep intervals according to the user QoE. Schedulers that make use of the discontinuous reception method for LTE systems have been proposed in (Szabó et al., 2014; Mushtaq et al., 2015) (with the latter focusing on VoIP applications), which can provide battery saving for the terminals without degrading the QoE of the services, namely the delay perceived by a user. In (Hong and Kim, 2016), a scheduling policy is proposed to save energy of mobile devices via optimal transmission scheduling of mobile-to-cloud task offloading, which considers several QoE domains in order to capture the energy-latency trade-off. As previously mentioned, Abbas et al. (2017) proposed a method that reduces energy consumption of mobile terminals regarding cellular and WiFi heterogeneous networks.
4.4.5 General Considerations on Other QoE-oriented Scheduling Methods
The scheduling strategies mentioned in this subsection, which are also summarized in Table 4, clearly show that QoE-aware decisions are useful in a vast field of resource management regarding wireless communications. On the one hand, these scenarios (other than the downlink direction with respect to a single base station) introduce some particularities that must be taken into account if one wants to adopt the techniques that were presented in Sections 4.1, 4.2 and 4.3 — issues like, e.g., the exchange of information between different wireless technologies when heterogeneous networks are considered, or the dynamic nature of cognitive radio networks, among others, can lead to a more challenging scheduling scenario. On the other hand, the same particular characteristics can also provide new tools that enable to leverage the users’ QoE — for instance, the handover procedure that is available for the centralized approach of the multi-cell scenario (namely for those users that can be served by more than one base station simultaneously) can be activated with the purpose of liberating resources from a base station, thus enabling that additional users are able to achieve a higher QoE.
Still within the scope of other QoE-oriented scheduling methods, it is noteworthy to mention that the QoE might also be improved if some scheduling decisions are conveyed to the users, such as by giving the option of saving energy at the terminal side at the cost of, e.g., a slightly inferior video streaming quality.
5 Discussion & Future Directions
The scheduling methods referred above perform resource allocation and/or prioritization at the wireless MAC/physical layer level, which is the scope of this work. Nevertheless, there are also QoE-aware algorithms that, although taking into consideration the wireless channel specificities, they permit to preserve an entirely standard and application-layer unaware physical/MAC operation — for instance, algorithms that run above the MAC layer and which arrange suitably the order of the data units delivered to this layer; more examples and details can be found in (Bianchi et al., 2010; Ramamurthi et al., 2014; Chen et al., 2015b; Radics et al., 2015; Borkowski et al., 2016; Eswara et al., 2016; Héder et al., 2016; Kumar et al., 2016; Tajima and Okabe, 2016; Triki et al., 2016; Zheng et al., 2017).
Taking into account the scheduling strategies surveyed herein, video streaming is clearly the application that can benefit more from QoE-aware schedulers. In addition, this will keep being an important topic of research, since not only video streaming is now the most popular application on the Internet, having been responsible for 59% of the entire mobile data traffic at the end of 2017, but also it is foreseen that over three-fourths (79%) of the worldwide mobile data traffic will be video by 2022 (Cisco, 2018). Moreover, some authors already suggested that multimedia services should be priced based on the QoE rather than based on the transmitted binary data (Wang and Wang, 2018).
Nevertheless, it was also seen that a scheduling algorithm and its underlying QoE estimation model need to be careful adjusted for each application, since the user’s perception regarding different applications is influenced by different factors. In other words, a “one-fits-all” solution for wireless resource schedulers is not feasible when QoE comes into action, as quality expectations are highly service dependent, which means that scheduling strategies should always take into account the intended application. As a rule of thumb, schedulers should try to avoid buffer emptiness when dealing with video streaming, they should reduce the delay as much as possible for VoIP and web browsing services, whereas if they are unaware of the application, then serving the best possible throughput for each user is the most reasonable option.
Another issue that follows the previous considerations is that the performance of different QoE-oriented schedulers might not be easily comparable, mainly due to the fact that a common reference scenario might be impractical when dealing with different applications. Accordingly, it is important to clearly identify which are the specific goals of each solution, in order to determine which ones can be adopted for the same scenario; otherwise, the performance comparison becomes unfair, even for applications that appear to be similar — for instance, and considering the video streaming application, a QoE-based scheduling algorithm that was expressly adjusted to handle the transmission of certain videos, namely those that are stored in a repository, might underperform in other video streaming scenarios, e.g., live transmissions.
With respect to the three categories of QoE-aware schedulers addressed in this work, there is still room for further developments in all of them, but the active end-user device / passive user strategies are the ones which might be the focus of attention in the future. The main reason for this is that they enable to gather the maximum amount of relevant QoE information as close as possible to the end-user without requiring direct and conscious human QoE inputs; accordingly, they are the clear candidates to better enhance the performance of QoE-oriented schedulers without annoying the end-user with QoE assessment prompts. Moreover, with the support of miscellaneous biometric sensors that are being incorporated in smartphones — e.g., the TrueDepth camera system of iPhone X (Huggins, 2017), which is able to analyze more than 50 different facial muscle movements, including attention confirmation by detecting the direction of the user’s gaze — more accurate QoE data are becoming available at the end-user device that stem from live human biometric indirect inputs, like pupil variations and galvanic skin reactions (Shye et al., 2008), facial expressions (Whitehill et al., 2008), and body gesticulations (Castellano et al., 2007). Nonetheless, and in spite of the fact that there are already several feedback mechanisms that allow to report a significant number of parameters from the end-user devices to the scheduler, as in the 3GP-DASH standard, important challenges still arise: which are the relevant QoE parameters and which is the specific relationship between each one of them and the user’s subjective perception? Within this subject, machine learning methods can play a major role, higher than the one seen so far, as they enable to devise complex models and learn about non-obvious correlations between the collected parameters and the users’ QoE. In addition, these computer science techniques are a powerful tool to better deal with particular issues regarding mobile networks, such as phone battery, phone overheat, or data connectivity costs, which make QoE assessment more demanding when compared to fixed networks.
Last but not least, QoE evolves over time in the same manner as technology itself does; for instance, although today a user may require Super High Definition (SHD) video content in order to say that he is experiencing a great QoE, some decades ago the same subjective perceived quality would be true for a TV transmission with standard definition. Consequently, a scheduler that takes into account a QoE model that reflects today’s reality may not be the most appropriate one in the future, meaning that QoE-oriented schedulers will always attract the research community’s attention.
Wireless resources scheduling is starting to become more user-centric QoE-oriented, replacing the traditional system-centric QoS-driven approach. Thus, the network operators, in addition to multimedia service providers, aspire to have faithful models that are able to evaluate, foresee and even manage QoE, specially for multimedia content transmissions. This paper provided an extensive survey about this research topic: first, QoE was explained, namely the factors that influence the user experience, as well as some QoE estimation methods regarding multimedia services over communication systems; next, the evolution of wireless scheduling techniques was presented, including QoS-QoE mapping strategies and utility-based optimization; finally, state-of-the-art QoE-based scheduling strategies for wireless systems were described, highlighting the application/service of each solution, as well as the parameters adopted for QoE optimization. Since there are still many issues to be explored and resolved, it is foreseen that a lot of research activity will surely be performed in the future, in order to expand the research frontier of wireless resources schedulers.
This work was funded by Instituto de Telecomunicações and Fundação para a Ciência e a Tecnologia (FCT) under projects UID/EEA/50008/2019 and OCTHOPUS, and by project MESMOQoE (no. 023110 – 16/SI/2016) supported by Norte Portugal Regional Operational Programme (NORTE 2020), under the PORTUGAL 2020 Partnership Agreement, through the European Regional Development Fund (ERDF).
- 3GPP (2018a) 3GPP, 2018a. Evolved Universal Terrestrial Radio Access (E-UTRA) and Evolved Universal Terrestrial Radio Access Network (E-UTRAN); Overall description; Stage 2. 3GPP TS 36.300 (v. 14.8.0).
- 3GPP (2018b) 3GPP, 2018b. Transparent end-to-end Packet-switched Streaming Service (PSS); Progressive Download and Dynamic Adaptive Streaming over HTTP (3GP-DASH). 3GPP TS 26.247 (v. 16.0.0).
- Abbas et al. (2017) Abbas, N., Hajj, H., Dawy, Z., Jahed, K., Sharafeddine, S., 2017. An optimized approach to video traffic splitting in heterogeneous wireless networks with energy and QoE considerations. Journal of Network and Computer Applications 83, 72 – 88. doi:10.1016/j.jnca.2017.01.008.
- Abbas et al. (2016) Abbas, N., Lin, Y.T., Sayrac, B., 2016. Mobility-driven Scheduler for Mobile Networks Carrying Adaptive Streaming Traffic, in: 27th IEEE Annual International Symposium on Personal, Indoor, and Mobile Radio Communications (PIMRC 2016). doi:10.1109/PIMRC.2016.7794827.
- Abu-Ali et al. (2014) Abu-Ali, N., Taha, A.E.M., Salah, M., Hassanein, H., 2014. Uplink Scheduling in LTE and LTE-Advanced: Tutorial, Survey and Evaluation Framework. IEEE Communications Surveys & Tutorials 16, 1239–1265. doi:10.1109/SURV.2013.1127.00161.
- Afolabi et al. (2013) Afolabi, R.O., Dadlani, A., Kim, K., 2013. Multicast Scheduling and Resource Allocation Algorithms for OFDMA-Based Systems: A Survey. IEEE Communications Surveys & Tutorials 15, 240–254. doi:10.1109/SURV.2012.013012.00074.
- Ai et al. (2012) Ai, Q., Ji, Y., Zhong, L., Wang, P., Liu, F., 2012. QoE-based cross-layer resource allocation for video streaming in high speed downlink access, in: 8th International Wireless Communications & Mobile Computing Conference (IWCMC 2012), pp. 1011–1016. doi:10.1109/IWCMC.2012.6314344.
- Alfayly et al. (2012) Alfayly, A., Mkwawa, I.H., Sun, L., Ifeachor, E., 2012. QoE-based performance evaluation of scheduling algorithms over LTE, in: 2012 IEEE GLOBECOM Workshops, pp. 1362–1366. doi:10.1109/GLOCOMW.2012.6477781.
- Alreshoodi and Woods (2013) Alreshoodi, M., Woods, J., 2013. Survey on QoE/QoS correlation models for multimedia services. International Journal of Distributed and Parallel Systems 4, 53–72. doi:10.5121/ijdps.2013.4305.
- Ameigeiras et al. (2010) Ameigeiras, P., Ramos-Munoz, J.J., Navarro-Ortiz, J., Mogensen, P., Lopez-Soler, J.M., 2010. QoE oriented cross-layer design of a resource allocation algorithm in beyond 3G systems. Computer Communications 33, 571 – 582. doi:10.1016/j.comcom.2009.10.016.
- Anand and de Veciana (2017) Anand, A., de Veciana, G., 2017. Measurement-based scheduler for multi-class QoE optimization in wireless networks, in: 36th IEEE International Conference on Computer Communications (INFOCOM 2017). doi:10.1109/INFOCOM.2017.8057014.
- Andrews et al. (2001) Andrews, M., Kumaran, K., Ramanan, K., Stolyar, A., Whiting, P., Vijayakumar, R., 2001. Providing quality of service over a shared wireless link. IEEE Communications Magazine 39, 150–154. doi:10.1109/35.900644.
- Aristomenopoulos et al. (2010) Aristomenopoulos, G., Kastrinogiannis, T., Kaldanis, V., Karantonis, G., Papavassiliou, S., 2010. A Novel Framework for Dynamic Utility-Based QoE Provisioning in Wireless Networks, in: 53rd IEEE Global Telecommunications Conference (GLOBECOM 2010). doi:10.1109/GLOCOM.2010.5683564.
- Arpaci-Dusseau and Arpaci-Dusseau (2018) Arpaci-Dusseau, R.H., Arpaci-Dusseau, A.C., 2018. Operating Systems: Three Easy Pieces. 1.00 ed.. Arpaci-Dusseau Books. chapter Scheduling: Introduction.
- Asadi and Mancuso (2013) Asadi, A., Mancuso, V., 2013. A Survey on Opportunistic Scheduling in Wireless Communications. IEEE Communications Surveys & Tutorials 15, 1671–1688. doi:10.1109/SURV.2013.011413.00082.
- Balachandran et al. (2014) Balachandran, A., Aggarwal, V., Halepovic, E., Pang, J., Seshan, S., Venkataraman, S., Yan, H., 2014. Modeling Web Quality-of-experience on Cellular Networks, in: 20th ACM International Conference on Mobile Computing and Networking (MobiCom ’14), pp. 213–224. doi:10.1145/2639108.2639137.
- Balachandran et al. (2013) Balachandran, A., Sekar, V., Akella, A., Seshan, S., Stoica, I., Zhang, H., 2013. Developing a Predictive Model of Quality of Experience for Internet Video. ACM SIGCOMM Computer Communication Review 43, 339–350. doi:10.1145/2534169.2486025.
- Bethanabhotla et al. (2016) Bethanabhotla, D., Caire, G., Neely, M.J., 2016. WiFlix: Adaptive Video Streaming in Massive MU-MIMO Wireless Networks. IEEE Transactions on Wireless Communications 15, 4088–4103. doi:10.1109/TWC.2016.2533496.
- Bianchi et al. (2010) Bianchi, G., Detti, A., Loreti, P., Pisa, C., Thakolsri, S., Kellerer, W., Widmer, J., 2010. Cross-layer H.264 scalable video downstream delivery over WLANs, in: 11th IEEE International Symposium on a World of Wireless Mobile and Multimedia Networks (WoWMoM 2010). doi:10.1109/WOWMOM.2010.5534890.
- Biswash and Jayakody (2018) Biswash, S.K., Jayakody, D.N.K., 2018. Performance based user-centric dynamic mode switching and mobility management scheme for 5G networks. Journal of Network and Computer Applications 116, 24 – 34. doi:10.1016/j.jnca.2018.05.013.
- Borkowski et al. (2016) Borkowski, M., Skarlat, O., Schulte, S., Dustdar, S., 2016. Prediction-based prefetch scheduling in mobile service applications, in: 2016 IEEE International Conference on Mobile Services (MS 2016), pp. 41–48. doi:10.1109/MobServ.2016.17.
- Brunnström et al. (2013) Brunnström, K., Beker, S.A., Moor, K.D., et al., 2013. Qualinet White Paper on Definitions of Quality of Experience. Output from the 5th Qualinet meeting (v. 1.2).
- Cao et al. (2012) Cao, H., Wang, P., Chen, L., Liu, F., Wang, X., Zhu, Y., Pang, H., 2012. User Satisfaction Based ZFBF Scheduling Algorithm in Multi-user MIMO System, in: 11th IEEE International Conference on Trust, Security and Privacy in Computing and Communications (TrustCom 2012), pp. 1486–1490. doi:10.1109/TrustCom.2012.293.
- Capozzi et al. (2013) Capozzi, F., Piro, G., Grieco, L.A., Boggia, G., Camarda, P., 2013. Downlink Packet Scheduling in LTE Cellular Networks: Key Design Issues and a Survey. IEEE Communications Surveys & Tutorials 15, 678–700. doi:10.1109/SURV.2012.060912.00100.
- Casas et al. (2017) Casas, P., D’Alconzo, A., Wamser, F., Seufert, M., Gardlo, B., Schwind, A., Tran-Gia, P., Schatz, R., 2017. Predicting QoE in cellular networks using machine learning and in-smartphone measurements, in: Ninth International Conference on Quality of Multimedia Experience (QoMEX 2017). doi:10.1109/QoMEX.2017.7965687.
- Castañeda et al. (2017) Castañeda, E., Silva, A., Gameiro, A., Kountouris, M., 2017. An Overview on Resource Allocation Techniques for Multi-User MIMO Systems. IEEE Communications Surveys & Tutorials 19, 239–284. doi:10.1109/COMST.2016.2618870.
- Castellano et al. (2007) Castellano, G., Villalba, S.D., Camurri, A., 2007. Recognising Human Emotions from Body Movement and Gesture Dynamics, in: 2nd International Conference on Affective Computing and Intelligent Interaction (ACII 2007), pp. 71–82. doi:10.1007/978-3-540-74889-2_7.
- Chandur and Sivalingam (2014) Chandur, P., Sivalingam, K.M., 2014. Quality of experience aware video scheduling in LTE networks, in: 20th National Conference on Communications (NCC 2014). doi:10.1109/NCC.2014.6811238.
- Chen et al. (2015a) Chen, J., Yang, W., Gao, S., Zhou, L., 2015a. Scheduling algorithm with delay-limited for VoIP in LTE, in: 2015 Asia-Pacific Signal and Information Processing Association Annual Summit and Conference (APSIPA ASC 2015). doi:10.1109/APSIPA.2015.7415466.
- Chen et al. (2010) Chen, K.T., Chang, C.J., Wu, C.C., Chang, Y.C., Lei, C.L., 2010. Quadrant of euphoria: a crowdsourcing platform for QoE assessment. IEEE Network 24, 28–35. doi:10.1109/MNET.2010.5430141.
- Chen et al. (2017) Chen, L., Jiang, D., Bao, R., Xiong, J., Liu, F., Bei, L., 2017. MIMO Scheduling Effectiveness Analysis for Bursty Data Service from View of QoE. Chinese Journal of Electronics 26, 1079–1085. doi:10.1049/cje.2017.07.018.
- Chen et al. (2015b) Chen, X., Hwang, J.N., Wu, C.J., Yang, S.R., Lee, C.N., 2015b. A QoE-based APP layer scheduling scheme for scalable video transmissions over multi-RAT systems, in: 2015 IEEE International Conference on Communications (ICC 2015), pp. 6779–6784. doi:10.1109/ICC.2015.7249406.
- Chen et al. (2015c) Chen, Y., Wu, K., Zhang, Q., 2015c. From QoS to QoE: A Tutorial on Video Quality Assessment. IEEE Communications Surveys & Tutorials 17, 1126–1165. doi:10.1109/COMST.2014.2363139.
- Chiang et al. (2007) Chiang, M., Low, S.H., Calderbank, A.R., Doyle, J.C., 2007. Layering as Optimization Decomposition: A Mathematical Theory of Network Architectures. Proceedings of the IEEE 95, 255–312. doi:10.1109/JPROC.2006.887322.
- Chikkerur et al. (2011) Chikkerur, S., Sundaram, V., Reisslein, M., Karam, L.J., 2011. Objective Video Quality Assessment Methods: A Classification, Review, and Performance Comparison. IEEE Transactions on Broadcasting 57, 165–182. doi:10.1109/TBC.2011.2104671.
- Cho et al. (2015) Cho, Y.H., Kim, H., Lee, S.H., Lee, H.S., 2015. A QoE-Aware Proportional Fair Resource Allocation for Multi-Cell OFDMA Networks. IEEE Communications Letters 19, 82–85. doi:10.1109/LCOMM.2014.2367115.
- Cisco (2018) Cisco, 2018. Cisco Visual Networking Index Complete Traffic Forecast (2017-2022).
- Colonnese et al. (2016) Colonnese, S., Russo, S., Cuomo, F., Melodia, T., Rubin, I., 2016. Timely Delivery Versus Bandwidth Allocation for DASH-Based Video Streaming Over LTE. IEEE Communications Letters 20, 586–589. doi:10.1109/LCOMM.2016.2516001.
- Condoluci et al. (2017) Condoluci, M., Mahmoodi, T., Steinbach, E., Dohler, M., 2017. Soft Resource Reservation for Low-Delayed Teleoperation Over Mobile Networks. IEEE Access 5, 10445–10455. doi:10.1109/ACCESS.2017.2707319.
- Csernai and Gulyas (2011) Csernai, M., Gulyas, A., 2011. Wireless Adapter Sleep Scheduling Based on Video QoE: How to Improve Battery Life When Watching Streaming Video?, in: 20th International Conference on Computer Communications and Networks (ICCCN 2011). doi:10.1109/ICCCN.2011.6005796.
- Dellaert and Kahn (1999) Dellaert, B.G., Kahn, B.E., 1999. How tolerable is delay?: Consumers’ evaluations of internet web sites after waiting. Journal of Interactive Marketing 13, 41 – 54. doi:10.1002/(SICI)1520-6653(199924)13:1<41::AID-DIR4>3.0.CO;2-S.
- Deng et al. (2014) Deng, X., Gao, Q., Mohammed, S.A., Chen, L., Feiwang, Fei, Z., 2014. A QoE-Driven Resource Allocation Strategy for OFDM Multiuser-Multiservice System, in: 14th IEEE International Conference on Computer and Information Technology (CIT 2014), pp. 351–355. doi:10.1109/CIT.2014.47.
- Ding et al. (2018) Ding, N., Gao, Z., Meng, X., Ma, Y., 2018. QoE-Driven and Traffic-Flow-Density-Based Link Scheduling Algorithm in LLC Protocol for HetVNETs, in: 2018 IEEE International Conference on Smart Internet of Things (SmartIoT2018), pp. 81–86. doi:10.1109/SmartIoT.2018.00-21.
- Draxler et al. (2014) Draxler, M., Dreimann, P., Karl, H., 2014. Anticipatory power cycling of mobile network equipment for high demand multimedia traffic, in: 4th IEEE Online Conference on Green Communications (OnlineGreenComm 2014). doi:10.1109/OnlineGreenCom.2014.7114415.
- Essaili et al. (2015) Essaili, A.E., Schroeder, D., Steinbach, E., Staehle, D., Shehada, M., 2015. QoE-Based Traffic and Resource Management for Adaptive HTTP Video Delivery in LTE. IEEE Transactions on Circuits and Systems for Video Technology 25, 988–1001. doi:10.1109/TCSVT.2014.2367355.
- Essaili et al. (2011) Essaili, A.E., Steinbach, E., Munaretto, D., Thakolsri, S., Kellerer, W., 2011. QoE-driven resource optimization for user generated video content in next generation mobile networks, in: 18th IEEE International Conference on Image Processing, pp. 913–916. doi:10.1109/ICIP.2011.6116708.
- Eswara et al. (2016) Eswara, N., Channappayya, S., Kumar, A., Kuchi, K., 2016. eTVSQ based Video Rate Adaptation in Cellular Networks with -Fair Resource Allocation, in: 2016 IEEE Wireless Communications & Networking Conference (WCNC 2016). doi:10.1109/WCNC.2016.7565109.
- Fan and Zhao (2018) Fan, S., Zhao, H., 2018. Delay-based cross-layer QoS scheme for video streaming in wireless ad hoc networks. China Communications 15, 215–234. doi:10.1109/CC.2018.8456464.
- Farrokhi and Ercetin (2016) Farrokhi, A., Ercetin, O., 2016. QoE Based Random Sleep-Awake Scheduling in Heterogeneous Cellular Networks, in: 2016 IEEE Wireless Communications & Networking Conference (WCNC 2016). doi:10.1109/WCNC.2016.7565172.
- Fei et al. (2015) Fei, Z., Xing, C., Li, N., 2015. QoE-driven resource allocation for mobile IP services in wireless network. Science China Information Sciences 58, 1–10.
- Fiedler et al. (2010) Fiedler, M., Hossfeld, T., Tran-Gia, P., 2010. A generic quantitative relationship between quality of experience and quality of service. IEEE Network 24, 36–41. doi:10.1109/MNET.2010.5430142.
- Gabale and Subramanian (2014) Gabale, V., Subramanian, A.P., 2014. GreenSlice: Enabling renewable energy powered cellular base stations using asynchronous delivery, in: 6th International Conference on Communication Systems and Networks (COMSNETS 2014). doi:10.1109/COMSNETS.2014.6734905.
- Ghadiyaram et al. (2014) Ghadiyaram, D., Bovik, A.C., Yeganeh, H., Kordasiewicz, R., Gallant, M., 2014. Study of the effects of stalling events on the quality of experience of mobile streaming videos, in: 2nd IEEE Global Conference on Signal and Information Processing (GlobalSIP 2014), pp. 989–993. doi:10.1109/GlobalSIP.2014.7032269.
- Han et al. (2012) Han, B., Zhang, X., Qi, Y., Gao, Y., Yang, D., 2012. QoE Model Based Optimization for Streaming Media Service Considering Equipment and Environment Factors. Wireless Personal Communications 66, 595–612. doi:10.1007/s11277-012-0739-7.
- He et al. (2016) He, Z., Mao, S., Kompella, S., 2016. Quality of Experience Driven Multi-User Video Streaming in Cellular Cognitive Radio Networks With Single Channel Access. IEEE Transactions on Multimedia 18, 1401–1413. doi:10.1109/TMM.2016.2564104.
- Hong and Kim (2016) Hong, S.T., Kim, H., 2016. QoE-Aware Computation Offloading Scheduling to Capture Energy-Latency Tradeoff in Mobile Clouds, in: 13th IEEE International Conference on Sensing, Communication, and Networking (SECON 2016). doi:10.1109/SAHCN.2016.7733009.
- Hong et al. (2017) Hong, Z., Wang, Z., Cai, W., Leung, V.C.M., 2017. Connectivity-Aware Task Outsourcing and Scheduling in D2D Networks, in: 26th International Conference on Computer Communication and Networks (ICCCN 2017). doi:10.1109/ICCCN.2017.8038386.
- Hori and Ohtsuki (2016) Hori, T., Ohtsuki, T., 2016. QoE and Throughput Aware Radio Resource Allocation Algorithm in LTE Network with Users using Different Applications, in: 27th IEEE Annual International Symposium on Personal, Indoor, and Mobile Radio Communications (PIMRC 2016). doi:10.1109/PIMRC.2016.7794802.
- Hoßfeld et al. (2011) Hoßfeld, T., Biedermann, S., Schatz, R., Platzer, A., Egger, S., Fiedler, M., 2011. The memory effect and its implications on Web QoE modeling, in: 23rd International Teletraffic Congress (ITC 2011), pp. 103–110.
- Hoßfeld et al. (2017) Hoßfeld, T., Skorin-Kapov, L., Heegaard, P.E., Varela, M., 2017. Definition of QoE Fairness in Shared Systems. IEEE Communications Letters 21, 184–187. doi:10.1109/LCOMM.2016.2616342.
- Hsieh and Hou (2016) Hsieh, P.C., Hou, I.H., 2016. Heavy-Traffic Analysis of QoE Optimality for On-Demand Video Streams Over Fading Channels, in: 35th IEEE International Conference on Computer Communications (INFOCOM 2016). doi:10.1109/INFOCOM.2016.7524527.
- Huang and Zhang (2018) Huang, M., Zhang, X., 2018. MAC Scheduling for Multiuser Wireless Virtual Reality in 5G MIMO-OFDM Systems, in: 2018 IEEE International Conference on Communications Workshops (ICC 2018 Workshops). doi:10.1109/ICCW.2018.8403486.
- Huggins (2017) Huggins, J., 2017. Apple’s Latest: Huge Potential for Healthcare. Intouch Solutions POV.
- Héder et al. (2016) Héder, B., Szilágyi, P., Vulkán, C., 2016. Dynamic and Adaptive QoE Management for OTT Application Sessions in LTE, in: 27th IEEE Annual International Symposium on Personal, Indoor, and Mobile Radio Communications (PIMRC 2016). doi:10.1109/PIMRC.2016.7794857.
- Ickin et al. (2012) Ickin, S., Wac, K., Fiedler, M., Janowski, L., Hong, J.H., Dey, A.K., 2012. Factors influencing quality of experience of commonly used mobile applications. IEEE Communications Magazine 50, 48–56. doi:10.1109/MCOM.2012.6178833.
- ISO (2014) ISO, 2014. Information technology – Dynamic adaptive streaming over HTTP (DASH) – Part 1: Media presentation description and segment formats. ISO/IEC 23009-1:2014.
- ITU (2004) ITU, 2004. Methodological framework for specifying accuracy and crosscalibration of video quality metrics. ITU-R Recommendation BT.1676 (Question ITU-R 44/6).
- ITU (2014) ITU, 2014. Estimating end-to-end performance in IP networks for data applications. ITU-T Recommendation G.1030 (Edition 2.0).
- ITU (2015a) ITU, 2015a. The E-model: a computational model for use in transmission planning. ITU-T Recommendation G.107.
- ITU (2015b) ITU, 2015b. Wideband E-model. ITU-T Recommendation G.107.1.
- ITU (2016) ITU, 2016. Mean opinion score (MOS) terminology. ITU-T Recommendation P.800.1.
- Jailton et al. (2013) Jailton, J., Carvalho, T., Valente, W., Natalino, C., Frances, R., Dias, K., 2013. A quality of experience handover architecture for heterogeneous mobile wireless multimedia networks. IEEE Communications Magazine 51, 152–159. doi:10.1109/MCOM.2013.6525609.
- Jiang et al. (2012) Jiang, T., Wang, H., Vasilakos, A.V., 2012. QoE-Driven Channel Allocation Schemes for Multimedia Transmission of Priority-Based Secondary Users over Cognitive Radio Networks. IEEE Journal on Selected Areas in Communications 30, 1215–1224. doi:10.1109/JSAC.2012.120807.
- Joseph and de Veciana (2014) Joseph, V., de Veciana, G., 2014. NOVA: QoE-driven optimization of DASH-based video delivery in networks, in: 33rd IEEE International Conference on Computer Communications (INFOCOM 2014), pp. 82–90. doi:10.1109/INFOCOM.2014.6847927.
- Ju et al. (2012) Ju, Y., Lu, Z., Zheng, W., Wen, X., Ling, D., 2012. A cross-layer design for video applications based on QoE prediction, in: 15th International Symposium on Wireless Personal Multimedia Communications (WPMC 2012), pp. 534–538.
- Juluri et al. (2016) Juluri, P., Tamarapalli, V., Medhi, D., 2016. Measurement of Quality of Experience of Video-on-Demand Services: A Survey. IEEE Communications Surveys & Tutorials 18, 401–418. doi:10.1109/COMST.2015.2401424.
- Kelly (1997) Kelly, F., 1997. Charging and rate control for elastic traffic. European transactions on Telecommunications 8, 33–37. doi:10.1002/ett.4460080106.
- Khan and Martini (2016) Khan, N., Martini, M.G., 2016. QoE-driven multi-user scheduling and rate adaptation with reduced cross-layer signaling for scalable video streaming over LTE wireless systems. EURASIP Journal on Wireless Communications and Networking 2016. doi:10.1186/s13638-016-0584-6.
- Khan et al. (2007) Khan, S., Duhovnikov, S., Steinbach, E., Kellerer, W., 2007. MOS-based Multiuser Multiapplication Cross-layer Optimization for Mobile Multimedia Communication. Advances in Multimedia 2007. doi:10.1155/2007/94918.
- Kim et al. (2015) Kim, W., Park, K., Song, H., 2015. QoE-Based Interworking Call Admission, Handoff, and Packet Scheduling System for Multimedia Streaming Services over LTE Network, in: 24th International Conference on Computer Communication and Networks (ICCCN 2015). doi:10.1109/ICCCN.2015.7288454.
- Korhonen et al. (2012) Korhonen, J., Burini, N., You, J., Nadernejad, E., 2012. How to evaluate objective video quality metrics reliably, in: 4th International Workshop on Quality of Multimedia Experience (QoMEX 2012), pp. 57–62. doi:10.1109/QoMEX.2012.6263839.
- Ksentini and Hadjadj-Aoul (2012) Ksentini, A., Hadjadj-Aoul, Y., 2012. QoE-based energy conservation for VoIP over WLAN, in: 2012 IEEE Wireless Communications & Networking Conference (WCNC 2012), pp. 1692–1697. doi:10.1109/WCNC.2012.6214056.
- Kumar et al. (2017) Kumar, S., Sarkar, A., Sur, A., 2017. A resource allocation framework for adaptive video streaming over LTE. Journal of Network and Computer Applications 97, 126 – 139. doi:10.1016/j.jnca.2017.08.015.
- Kumar et al. (2016) Kumar, S., Sriram, S., Sarkar, A., Sur, A., 2016. A Three Level Adaptive Video Streaming Framework Over LTE, in: 2016 IEEE International Conference on Systems, Man, and Cybernetics (SMC 2016), pp. 2442–2447. doi:10.1109/SMC.2016.7844605.
- Laghari and Connelly (2012) Laghari, K.U.R., Connelly, K., 2012. Toward total quality of experience: A QoE model in a communication ecosystem. IEEE Communications Magazine 50, 58–65. doi:10.1109/MCOM.2012.6178834.
- Lee et al. (2014) Lee, G., Kim, H., Cho, Y., Lee, S.H., 2014. QoE-Aware Scheduling for Sigmoid Optimization in Wireless Networks. IEEE Communications Letters 18, 1995–1998. doi:10.1109/LCOMM.2014.2354409.
- Li et al. (2012) Li, B., Li, S., Xing, C., Fei, Z., Kuang, J., 2012. A QoE-based OFDM resource allocation scheme for energy efficiency and quality guarantee in multiuser-multiservice system, in: 2012 IEEE GLOBECOM Workshops, pp. 1293–1297. doi:10.1109/GLOCOMW.2012.6477768.
- Li et al. (2016) Li, M., Tan, P.H., Sun, S., Chew, Y.H., 2016. QoE-aware Scheduling for Video Streaming in 802.11n/ac-based High User Density Networks, in: 83rd IEEE Vehicular Technology Conference (VTC 2016-Spring). doi:10.1109/VTCSpring.2016.7504437.
- Li et al. (2017) Li, T., Zhang, H., Tian, J., Guo, S., 2017. QoE-driven centralized scheduling for HTTP adaptive video streaming transmission over wireless networks, in: 9th International Conference on Wireless Communications and Signal Processing (WCSP 2017). doi:10.1109/WCSP.2017.8171114.
- Lin et al. (2017) Lin, S., Kong, L., Gao, Q., Khan, M.K., Zhong, Z., Jin, X., Zeng, P., 2017. Advanced Dynamic Channel Access Strategy in Spectrum Sharing 5G Systems. IEEE Wireless Communications 24, 74–80. doi:10.1109/MWC.2017.1700091.
- Lin and Kuo (2011) Lin, W., Kuo, C.C.J., 2011. Perceptual visual quality metrics: A survey. Journal of Visual Communication and Image Representation 22, 297–312. doi:10.1016/j.jvcir.2011.01.005.
- Liotou et al. (2016) Liotou, E., Schatz, R., Sackl, A., Casas, P., Tsolkas, D., Passas, N., Merakos, L., 2016. The Beauty of Consistency in Radio-Scheduling Decisions, in: 2016 IEEE GLOBECOM Workshops. doi:10.1109/GLOCOMW.2016.7849059.
- Liotou et al. (2015) Liotou, E., Tsolkas, D., Passas, N., Merakos, L., 2015. Quality of experience management in mobile cellular networks: key issues and design challenges. IEEE Communications Magazine 53, 145–153. doi:10.1109/MCOM.2015.7158278.
- Liu et al. (2012) Liu, F., Xiang, W., Zhang, Y., Zheng, K., Zhao, H., 2012. A Novel QoE-Based Carrier Scheduling Scheme in LTE-Advanced Networks with Multi-Service, in: 76th IEEE Vehicular Technology Conference (VTC 2012-Fall). doi:10.1109/VTCFall.2012.6398912.
- Liu et al. (2018) Liu, S., Li, M., Xu, X., Steinbach, E., Liu, Q., 2018. QoE-Driven Uplink Scheduling for Haptic Communications Over 5G Enabled Tactile Internet, in: 2018 IEEE International Symposium on Haptic Audio-Visual Environments and Games (HAVE 2018). doi:10.1109/HAVE.2018.8547503.
- Liu et al. (2015) Liu, Y., Zhu, D., Ma, W., Qian, L., 2015. A QoE-oriented scheduling scheme for HTTP streaming service in LTE system, in: IEEE 20th Symposium on Computers and Communication (ISCC 2015), pp. 889–894. doi:10.1109/ISCC.2015.7405626.
- Ma et al. (2012) Ma, W., Zhang, H., Zheng, W., Lu, Z., Wen, X., 2012. MOS-driven energy efficient power allocation for wireless video communications, in: 2012 IEEE GLOBECOM Workshops, pp. 52–56. doi:10.1109/GLOCOMW.2012.6477543.
- Martinez et al. (2015) Martinez, L., Nesse, P.J., Markendahl, J., 2015. QoE-based service differentiation: Business models analysis for the mobile market. 26th European Regional ITS Conference. International Telecommunications Society (ITS).
- Miller et al. (2015) Miller, K., Bethanabhotla, D., Caire, G., Wolisz, A., 2015. A Control-Theoretic Approach to Adaptive Video Streaming in Dense Wireless Networks. IEEE Transactions on Multimedia 17, 1309–1322. doi:10.1109/TMM.2015.2441002.
- Minhas et al. (2012) Minhas, T.N., Lagunas, O.G., Arlos, P., Fiedler, M., 2012. Mobile video sensitivity to packet loss and packet delay variation in terms of QoE, in: 19th International Packet Video Workshop (PV 2012), pp. 83–88. doi:10.1109/PV.2012.6229747.
- Molisch (2011) Molisch, A.F., 2011. Wireless Communications. 2nd ed., Wiley Publishing.
- Monteiro et al. (2015) Monteiro, V.F., Sousa, D.A., Maciel, T.F., Lima, F.R.M., Rodrigues, E.B., Cavalcanti, F.R.P., 2015. Radio resource allocation framework for quality of experience optimization in wireless networks. IEEE Network 29, 33–39. doi:10.1109/MNET.2015.7340422.
- Morel and Randriamasy (2017) Morel, M.A., Randriamasy, S., 2017. Quality of experience-aware enhanced inter-cell interference coordination for self organized HetNet, in: 10th IFIP Wireless and Mobile Networking Conference (WMNC 2017). doi:10.1109/WMNC.2017.8248841.
- Mushtaq et al. (2015) Mushtaq, M.S., Fowler, S., Mellouk, A., Augustin, B., 2015. QoE/QoS-aware LTE downlink scheduler for VoIP with power saving. Journal of Network and Computer Applications 51, 29 – 46. doi:10.1016/j.jnca.2014.02.001.
- Navarro-Ortiz et al. (2013) Navarro-Ortiz, J., Ameigeiras, P., Lopez-Soler, J.M., Lorca-Hernando, J., Perez-Tarrero, Q., Garcia-Perez, R., 2013. A QoE-Aware Scheduler for HTTP Progressive Video in OFDMA Systems. IEEE Communications Letters 17, 677–680. doi:10.1109/LCOMM.2013.021913.122716.
- Nguyen et al. (2017) Nguyen, D.H., Nguyen, H., Renault, É., 2017. Performance evaluation of E-MQS scheduler with Mobility in LTE heterogeneous network, in: 2017 IEEE International Conference on Communications (ICC 2017). doi:10.1109/ICC.2017.7996487.
- Pastushok and Turlikov (2016) Pastushok, I., Turlikov, A., 2016. Lower Bound and Optimal Scheduling for Mean User Rebuffering Percentage of HTTP Progressive Download Traffic in Cellular Networks, in: XV International Symposium Problems of Redundancy in Information and Control Systems (REDUNDANCY 2016), pp. 105–111. doi:10.1109/RED.2016.7779339.
- Pervez and Raheel (2015) Pervez, F., Raheel, M.S., 2015. Application-state aware scheduling for video delivery over LTE network, in: 9th International Conference on Telecommunication Systems Services and Applications (TSSA 2015). doi:10.1109/TSSA.2015.7440448.
- Pessemier et al. (2013) Pessemier, T.D., Moor, K.D., Joseph, W., Marez, L.D., Martens, L., 2013. Quantifying the Influence of Rebuffering Interruptions on the User’s Quality of Experience During Mobile Video Watching. IEEE Transactions on Broadcasting 59, 47–61. doi:10.1109/TBC.2012.2220231.
- Piamrat et al. (2010) Piamrat, K., Singh, K.D., Ksentini, A., Viho, C., Bonnin, J.M., 2010. QoE-Aware Scheduling for Video-Streaming in High Speed Downlink Packet Access, in: 2010 IEEE Wireless Communication & Networking Conference (WCNC 2010). doi:10.1109/WCNC.2010.5506102.
- Piran et al. (2017) Piran, M.J., Tran, N.H., Suh, D.Y., Song, J.B., Hong, C.S., Han, Z., 2017. QoE-Driven Channel Allocation and Handoff Management for Seamless Multimedia in Cognitive 5G Cellular Networks. IEEE Transactions on Vehicular Technology 66, 6569–6585. doi:10.1109/TVT.2016.2629507.
- Prasad and Mihovska (2009) Prasad, R., Mihovska, A., 2009. New Horizons in Mobile and Wireless Communications, Volume 1: Radio Interfaces. mobile communications series, Artech House.
- Pu et al. (2012) Pu, W., Zou, Z., Chen, C.W., 2012. Video adaptation proxy for wireless Dynamic Adaptive Streaming over HTTP, in: 19th International Packet Video Workshop (PV 2012), pp. 65–70. doi:10.1109/PV.2012.6229745.
- Radics et al. (2015) Radics, N., Szilágyi, P., Vulkán, C., 2015. Insight based dynamic QoE management in LTE, in: 26th IEEE Annual International Symposium on Personal, Indoor, and Mobile Radio Communications (PIMRC 2015), pp. 1746–1751. doi:10.1109/PIMRC.2015.7343581.
- Ramamurthi and Oyman (2014) Ramamurthi, V., Oyman, O., 2014. Video-QoE aware radio resource allocation for HTTP adaptive streaming, in: 2014 IEEE International Conference on Communications (ICC 2014), pp. 1076–1081. doi:10.1109/ICC.2014.6883464.
- Ramamurthi et al. (2014) Ramamurthi, V., Oyman, O., Foerster, J., 2014. Video-QoE aware resource management at network core, in: 2014 IEEE Global Communications Conference (GLOBECOM 2014), pp. 1418–1423. doi:10.1109/GLOCOM.2014.7037007.
- Ranjan et al. (2018) Ranjan, A., Panigrahi, B., Rath, H.K., Misra, P., Simha, A., 2018. LTE-CAS: LTE-based criticality aware scheduling for UAV assisted emergency response, in: 37th IEEE Conference on Computer Communications - Workshops (INFOCOM 2018 Workshops), pp. 894–899. doi:10.1109/INFCOMW.2018.8406949.
- Reichl et al. (2013) Reichl, P., Tuffin, B., Schatz, R., 2013. Logarithmic laws in service quality perception: where microeconomics meets psychophysics and quality of experience. Telecommunication Systems 52, 587–600. doi:10.1007/s11235-011-9503-7.
- Reis et al. (2010) Reis, A.B., Chakareski, J., Kassler, A., Sargento, S., 2010. Quality of experience optimized scheduling in multi-service wireless mesh networks, in: 17th IEEE International Conference on Image Processing (ICIP 2010), pp. 3233–3236. doi:10.1109/ICIP.2010.5651785.
- Rhee et al. (2003) Rhee, J.H., Holtzman, J.M., Kim, D.K., 2003. Scheduling of real/non-real time services: adaptive EXP/PF algorithm, in: 57th IEEE Vehicular Technology Conference (VTC 2003-Spring), pp. 462–466. doi:10.1109/VETECS.2003.1207583.
- Rodrigues et al. (2018) Rodrigues, F., Sousa, I., Queluz, M.P., Rodrigues, A., 2018. QoE-Aware Scheduling Algorithm for Adaptive HTTP Video Delivery in Wireless Networks. Wireless Communications and Mobile Computing 2018, 1–16. doi:10.1155/2018/9736360.
- Rubino et al. (2006) Rubino, G., Varela, M., Bonnin, J.M., 2006. Controlling multimedia qos in the future home network using the psqa metric. The Computer Journal 49, 137–155. doi:10.1093/comjnl/bxh165.
- Rugelj et al. (2014) Rugelj, M., Sedlar, U., Volk, M., Sterle, J., Hajdinjak, M., Kos, A., 2014. Novel Cross-Layer QoE-Aware Radio Resource Allocation Algorithms in Multiuser OFDMA Systems. IEEE Transactions on Communications 62, 3196–3208. doi:10.1109/TCOMM.2014.2347288.
- Sacchi et al. (2011) Sacchi, C., Granelli, F., Schlegel, C., 2011. A QoE-Oriented Strategy for OFDMA Radio Resource Allocation Based on Min-MOS Maximization. IEEE Communications Letters 15, 494–496. doi:10.1109/LCOMM.2011.031411.101672.
- Sapountzis et al. (2014) Sapountzis, N., Sarantidis, S., Spyropoulos, T., Nikaein, N., Salim, U., 2014. Reducing the energy consumption of small cell networks subject to QoE constraints, in: 2014 IEEE Global Communications Conference (GLOBECOM 2014), pp. 2485–2491. doi:10.1109/GLOCOM.2014.7037181.
- Saul (2008) Saul, A., 2008. Simple Optimization Algorithm for MOS-Based Resource Assignment, in: 67th IEEE Vehicular Technology Conference (VTC 2008-Spring), pp. 1766–1770. doi:10.1109/VETECS.2008.404.
- Saul and Auer (2009) Saul, A., Auer, G., 2009. Multiuser Resource Allocation Maximizing the Perceived Quality. EURASIP Journal on Wireless Communications and Networking 2009. doi:10.1155/2009/341689.
- Seetharam et al. (2015) Seetharam, A., Dutta, P., Arya, V., Kurose, J., Chetlur, M., Kalyanaraman, S., 2015. On Managing Quality of Experience of Multiple Video Streams in Wireless Networks. IEEE Transactions on Mobile Computing 14, 619–631. doi:10.1109/TMC.2014.2331963.
- Seyedebrahimi and Peng (2015) Seyedebrahimi, M., Peng, X.H., 2015. Optimising QoE Distribution for Video Applications through LTE-WiFi Interworking, in: 9th International Conference on Next Generation Mobile Applications, Services and Technologies, pp. 335–340. doi:10.1109/NGMAST.2015.70.
- Seyedebrahimi et al. (2014) Seyedebrahimi, M., Peng, X.H., Harrison, R., 2014. Adaptive Resource Allocation for QoE-Aware Mobile Communication Networks, in: 17th IEEE International Conference on Computational Science and Engineering (CSE 2014), pp. 868–875. doi:10.1109/CSE.2014.177.
- Shafiq et al. (2014) Shafiq, M.Z., Erman, J., Ji, L., Liu, A.X., Pang, J., Wang, J., 2014. Understanding the Impact of Network Dynamics on Mobile Video User Engagement, in: 2014 ACM International Conference on Measurement and Modeling of Computer Systems (SIGMETRICS ’14), pp. 367–379. doi:10.1145/2591971.2591975.
- Shehada et al. (2011) Shehada, M., Thakolsri, S., Despotovic, Z., Kellerer, W., 2011. QoE-based Cross-Layer Optimization for video delivery in Long Term Evolution mobile networks, in: 14th International Symposium on Wireless Personal Multimedia Communications (WPMC 2011).
- Shye et al. (2008) Shye, A., Pan, Y., Scholbrock, B., Miller, J.S., Memik, G., Dinda, P.A., Dick, R.P., 2008. Power to the people: Leveraging human physiological traits to control microprocessor frequency, in: 41st IEEE/ACM International Symposium on Microarchitecture, pp. 188–199. doi:10.1109/MICRO.2008.4771790.
- Singh et al. (2012) Singh, S., Oyman, O., Papathanassiou, A., Chatterjee, D., Andrews, J.G., 2012. Video capacity and QoE enhancements over LTE, in: 2012 IEEE International Conference on Communications (ICC 2012), pp. 7071–7076. doi:10.1109/ICC.2012.6364806.
- Siris et al. (2014) Siris, V.A., Balampekos, K., Marina, M.K., 2014. Mobile Quality of Experience: Recent Advances and Challenges, in: 2014 IEEE International Conference on Pervasive Computing and Communications Workshops (PERCOM 2014), pp. 425–430. doi:10.1109/PerComW.2014.6815244.
- So-In et al. (2009) So-In, C., Jain, R., Tamimi, A.K., 2009. Scheduling in IEEE 802.16e Mobile WiMAX Networks: Key Issues and a Survey. IEEE Journal on Selected Areas in Communications 27, 156–171. doi:10.1109/JSAC.2009.090207.
- Song and Tjondronegoro (2014) Song, W., Tjondronegoro, D.W., 2014. Acceptability-Based QoE Models for Mobile Video. IEEE Transactions on Multimedia 16, 738–750. doi:10.1109/TMM.2014.2298217.
- Song et al. (2014) Song, Y., Han, Y., Choi, Y., 2014. A QoE-aware joint resource allocation algorithm for uplink carrier aggregation in LTE-Advanced systems, in: 2014 IEEE International Conference on Communications (ICC 2014). doi:10.1109/ICC.2014.6883462.
- Stolyar (2005) Stolyar, A.L., 2005. On the Asymptotic Optimality of the Gradient Scheduling Algorithm for Multiuser Throughput Allocation. Operations Research 53, 12–25. doi:10.1287/opre.1040.0156.
- Sumby and Pollack (1954) Sumby, W.H., Pollack, I., 1954. Visual Contribution to Speech Intelligibility in Noise. The Journal of the Acoustical Society of America 26, 212–215. doi:10.1121/1.1907309.
- Szabó et al. (2014) Szabó, G., Pongrácz, G., Gódor, I., Cöster, R., Sintorn, M., 2014. Service aware adaptive DRX scheme, in: 2014 IEEE GLOBECOM Workshops, pp. 1132–1138. doi:10.1109/GLOCOMW.2014.7063585.
- Szabó et al. (2016) Szabó, G., Rácz, S., Malomsoky, S., Bolle, A., 2016. When To Take What: QoE-Aware Resource Redistribution mong Web Browsing Users and the Potential of Prioritizing QoE Sensitive Content, in: 2016 IEEE International Conference on Communications (ICC 2016). doi:10.1109/ICC.2016.7511203.
- Tajima and Okabe (2016) Tajima, T., Okabe, Y., 2016. Optimizing Packet Transmission Scheduling for Enhanced Web QoE in Wireless LAN, in: 40th IEEE Annual Computer Software and Applications Conference (COMPSAC 2016), pp. 312–318. doi:10.1109/COMPSAC.2016.164.
- Takahashi et al. (2008) Takahashi, A., Hands, D., Barriac, V., 2008. Standardization activities in the ITU for a QoE assessment of IPTV. IEEE Communications Magazine 46, 78–84. doi:10.1109/MCOM.2008.4473087.
- Thakolsri et al. (2011) Thakolsri, S., Cokbulan, S., Jurca, D., Despotovic, Z., Kellerer, W., 2011. QoE-driven cross-layer optimization in wireless networks addressing system efficiency and utility fairness, in: 2011 IEEE GLOBECOM Workshops, pp. 12–17. doi:10.1109/GLOCOMW.2011.6162395.
- Thakolsri et al. (2009) Thakolsri, S., Khan, S., Steinbach, E., Kellerer, W., 2009. QoE-Driven Cross-Layer Optimization for High Speed Downlink Packet Access. Journal of Communications 4, 669–680. doi:10.4304/jcm.4.9.669-680.
- Toseef et al. (2011) Toseef, U., Khan, M.A., Görg, C., Timm-Giel, A., 2011. User Satisfaction Based Resource Allocation in Future Heterogeneous Wireless Networks, in: 9th Annual Communication Networks and Services Research Conference (CNSR 2011), pp. 217–223. doi:10.1109/CNSR.2011.39.
- Triki et al. (2016) Triki, I., Haddad, M., El-Azouzi, R., Feki, A., Gachaoui, M., 2016. Context-Aware Mobility Resource Allocation for QoE-Driven Streaming Services, in: 2016 IEEE Wireless Communications & Networking Conference (WCNC 2016). doi:10.1109/WCNC.2016.7565146.
- Tsolkas et al. (2017) Tsolkas, D., Liotou, E., Passas, N., Merakos, L., 2017. A survey on parametric QoE estimation for popular services. Journal of Network and Computer Applications 77, 1 – 17. doi:10.1016/j.jnca.2016.10.016.
- VQEG (2010) VQEG, 2010. Report on the Validation of Video Quality Models for High Definition Video Content. HDTV Report (version 2.0).
- Wamser et al. (2012) Wamser, F., Staehle, D., Prokopec, J., Maeder, A., Tran-Gia, P., 2012. Utilizing buffered YouTube playtime for QoE-oriented scheduling in OFDMA networks, in: 24th International Teletraffic Congress (ITC 24).
- Wang and Wang (2018) Wang, W., Wang, Q., 2018. Price the QoE, Not the Data: SMP-Economic Resource Allocation in Wireless Multimedia Internet of Things. IEEE Communications Magazine 56, 74–79. doi:10.1109/MCOM.2018.1701219.
- Wechsung et al. (2011) Wechsung, I., Schulz, M., Engelbrecht, K.P., Niemann, J., Möller, S., 2011. All Users Are (Not) Equal - The Influence of User Characteristics on Perceived Quality, Modality Choice and Performance. Springer New York. pp. 175–186. doi:10.1007/978-1-4614-1335-6_19.
- Whitehill et al. (2008) Whitehill, J., Bartlett, M., Movellan, J., 2008. Measuring the Perceived Difficulty of a Lecture Using Automatic Facial Expression Recognition, in: 9th International Conference on Intelligent Tutoring Systems (ITS 2008), pp. 668–670. doi:10.1007/978-3-540-69132-7_72.
- Wirth et al. (2012) Wirth, T., Sánchez, Y., Holfeld, B., Schierl, T., 2012. Advanced Downlink LTE Radio Resource Management for HTTP-streaming, in: 20th ACM International Conference on Multimedia, pp. 1037–1040. doi:10.1145/2393347.2396376.
- Wu et al. (2013) Wu, K., Guo, L., Chen, H., Li, Y., Lin, J., 2013. Queuing based optimal scheduling mechanism for QoE provisioning in cognitive radio relaying network, in: 16th International Symposium on Wireless Personal Multimedia Communications (WPMC 2013).
- Wu et al. (2012) Wu, P.H., Hwang, J.N., Pyun, J.Y., Lan, K.M., Chen, J.R., 2012. QoE-aware resource allocation for integrated surveillance system over 4G mobile networks, in: 2012 IEEE International Symposium on Circuits and Systems (ISCAS 2012), pp. 1103–1106. doi:10.1109/ISCAS.2012.6271423.
- Xiang et al. (2017) Xiang, L., Ng, D.W.K., Islam, T., Schober, R., Wong, V.W.S., Wang, J., 2017. Cross-Layer Optimization of Fast Video Delivery in Cache- and Buffer-Enabled Relaying Networks. IEEE Transactions on Vehicular Technology 66, 11366–11382. doi:10.1109/TVT.2017.2720481.
- Xin et al. (2014) Xin, X., Wang, W., Huang, A., Shan, H., 2014. Quality of experience modeling and fair scheduling for instant messaging service, in: 6th International Conference on Wireless Communications and Signal Processing (WCSP 2014). doi:10.1109/WCSP.2014.6992088.
- Xu et al. (2013) Xu, C., Zhao, F., Guan, J., Zhang, H., Muntean, G., 2013. QoE-Driven User-Centric VoD Services in Urban Multihomed P2P-Based Vehicular Networks. IEEE Transactions on Vehicular Technology 62, 2273–2289. doi:10.1109/TVT.2012.2228682.
- Yaacoub and Dawy (2014) Yaacoub, E., Dawy, Z., 2014. Network QoE metrics for assessing system-level performance of radio resource management algorithms in LTE networks, in: 10th International Wireless Communications & Mobile Computing Conference (IWCMC 2014), pp. 411–416. doi:10.1109/IWCMC.2014.6906392.
- Yaacoub et al. (2015) Yaacoub, E., Filali, F., Abu-Dayya, A., 2015. QoE Enhancement of SVC Video Streaming Over Vehicular Networks Using Cooperative LTE/802.11p Communications. IEEE Journal of Selected Topics in Signal Processing 9, 37–49. doi:10.1109/JSTSP.2014.2330343.
- Yang et al. (2017) Yang, L., Yuan, M., Chen, Y., Wang, W., Zhang, Q., Zeng, J., 2017. Personalized user engagement modeling for mobile videos. Computer Networks 126, 256 – 267. doi:10.1016/j.comnet.2017.07.012.
- Yu et al. (2018) Yu, Y.J., Pang, A.C., Yeh, M.Y., 2018. Video encoding adaptation for QoE maximization over 5G cellular networks. Journal of Network and Computer Applications 114, 98 – 107. doi:10.1016/j.jnca.2018.04.008.
- Yuan et al. (2017) Yuan, Y., Zhang, Z., Liu, D., 2017. A spectrum allocation scheme for DASH multicast service over wireless network, in: 3rd IEEE International Conference on Computer and Communications (ICCC 2017), pp. 676–680. doi:10.1109/CompComm.2017.8322629.
- Zhang et al. (2017) Zhang, N., Zhang, S., Zheng, J., Fang, X., Mark, J.W., Shen, X., 2017. Qoe driven decentralized spectrum sharing in 5g networks: Potential game approach. IEEE Transactions on Vehicular Technology 66, 7797–7808. doi:10.1109/TVT.2017.2682236.
- Zhao et al. (2015) Zhao, M., Gong, X., Liang, J., Wang, W., Que, X., Cheng, S., 2015. QoE-Driven Cross-Layer Optimization for Wireless Dynamic Adaptive Streaming of Scalable Videos Over HTTP. IEEE Transactions on Circuits and Systems for Video Technology 25, 451–465. doi:10.1109/TCSVT.2014.2357094.
- Zheng et al. (2014) Zheng, J., Cai, Y., Liu, Y., Xu, Y., Duan, B., Shen, X.., 2014. Optimal Power Allocation and User Scheduling in Multicell Networks: Base Station Cooperation Using a Game-Theoretic Approach. IEEE Transactions on Wireless Communications 13, 6928–6942. doi:10.1109/TWC.2014.2334673.
- Zheng et al. (2017) Zheng, X., Cai, Z., Li, J., Gao, H., 2017. A Study on Application-Aware Scheduling in Wireless Networks. IEEE Transactions on Mobile Computing 16, 1787–1801. doi:10.1109/TMC.2016.2613529.
- Zhu et al. (2015a) Zhu, H., Cao, Y., Wang, W., Liu, B., Jiang, T., 2015a. QoE-aware resource allocation for adaptive device-to-device video streaming. IEEE Network 29, 6–12. doi:10.1109/MNET.2015.7340418.
- Zhu et al. (2015b) Zhu, Y., Heynderickx, I., Redi, J.A., 2015b. Understanding the role of social context and user factors in video Quality of Experience. Computers in Human Behavior 49, 412 – 426. doi:10.1016/j.chb.2015.02.054.
- Zinner et al. (2010) Zinner, T., Hohlfeld, O., Abboud, O., Hossfeld, T., 2010. Impact of frame rate and resolution on objective QoE metrics, in: 2nd International Workshop on Quality of Multimedia Experience (QoMEX 2010), pp. 29–34. doi:10.1109/QOMEX.2010.5518277.
