Abstract

The COVID-19 pandemic caused by the SARS-CoV-2 virus has spread rapidly worldwide, leading to a global outbreak. Most governments, enterprises, and scientific research institutions are participating in the COVID-19 struggle to curb the spread of the pandemic. As a powerful tool against COVID-19, artificial intelligence (AI) technologies are widely used in combating this pandemic. In this survey, we investigate the main scope and contributions of AI in combating COVID-19 from the aspects of disease detection and diagnosis, virology and pathogenesis, drug and vaccine development, and epidemic and transmission prediction. In addition, we summarize the available data and resources that can be used for AI-based COVID-19 research. Finally, the main challenges and potential directions of AI in fighting against COVID-19 are discussed. Currently, AI mainly focuses on medical image inspection, genomics, drug development, and transmission prediction, and thus AI still has great potential in this field. This survey presents medical and AI researchers with a comprehensive view of the existing and potential applications of AI technology in combating COVID-19 with the goal of inspiring researches to continue to maximize the advantages of AI and big data to fight COVID-19.

1 Introduction

Severe Acute Respiratory Syndrome Corona-Virus 2 (SARS-CoV-2) is an emerging human infectious coronavirus. Since December 2019, coronavirus disease 2019 (COVID-19) caused by SARS-CoV-2 was first reported in China and later in most of the countries in the world [220, 10, 59]. The World Health Organization (WHO) announced on January 30, 2020, that the outbreak was a Public Health Emergency of International Concern (PHEIC), and confirmed COVID-19 as a pandemic on March 11, 2020. As of May 16, 2020, this disease has been reported in 216 countries or regions around the world and has resulted in serious consequences including 4,525,497 confirmed COVID-19 cases and 307,395 deaths [216].

Most governments, enterprises, and scientific research institutions are fighting COVID-19 from all aspects to curb the spread of the disease [144, 49, 55, 58]. Various stakeholders from different institutions and backgrounds have provided abundant resources and capabilities to support this disease battle [34, 53, 61, 139, 131, 201, 16]. The current scope of combating COVID-19 includes virology and pathogenesis, disease diagnosis, epidemiology, therapeutics, and social control [95, 236]. The virology, origin and classification, physicochemical properties, receptor interactions, cell entry, genomic variation, and ecology in terms of SARS-CoV-2 are thoroughly studied [7, 77, 123, 242, 123, 217]. Nucleic acid testing, serologic diagnosis, and medical imaging (chest X-ray or CT imaging) are the main disease detection and diagnosis methods at present [106, 30, 83, 198, 227]. In terms of pathogenesis, topics such as virus entry and spread, pathological findings, and immune response are the focus [207, 146, 224, 206, 211, 196]. In terms of epidemiology, extensive research has been conducted on the source and spectrum of infection, clinical features, epidemiological characteristics, epidemic prediction, and transmission route tracking [27, 115, 221, 222]. Potential therapeutics of COVID-19 include intensive care, drug development, and vaccine development [36, 150, 200, 118]. In addition, communication prediction and social isolation are the current main social control methods [99, 203, 157, 1, 235].

Artificial intelligence (AI) is defined as a technology that allows computers to imitate human intelligence to process things, including Machine Learning (ML), knowledge graphs, natural language processing, human-computer interaction, computer vision, biometrics, virtual reality, and augmented reality

[189, 26, 114]. As a subset of AI, ML is a type of algorithms that can automatically analyze and obtain rules from data and use these rules for prediction or decision [156, 228, 229]

. ML can be subdivided into traditional ML and deep learning (DL). Traditional ML methods include logistic regression, decision tree, random forest, K-nearest neighbor, Adaboost, K-means clustering, density clustering, hidden Markov models, support vector machine, Naive Bayes, etc

[22, 142, 125]

. DL is a subset of ML, and is a learning method for building deep structural models. Typical DL algorithms include deep belief networks, convolutional neural networks, restricted Boltzmann machines, and recurrent neural networks

[66, 186]

. In addition, ML techniques also include transfer learning, active learning, and evolutionary learning. In recent years, AI technologies have achieved technical breakthroughs and are widely used in various fields of intelligent medicine, including medical image inspection, disease-assisted diagnosis, surgery, hospital management, and medical big data integration

[189]. In addition, AI is actively explored in emerging fields such as surgical robots, wearable devices, new drug discovery, precision medicine, epidemics prevention and control, and gene sequencing.

Encouragingly, in the short period of time since the outbreak of COVID-19, research in the industry, medical, and scientific fields has successfully used advanced AI technologies in the COVID-19 battle and has achieved significant progress. For example, AI supports COVID-19 diagnosis through medical image inspection and provides noninvasive detection solutions to prevent medical personnel from contracting infections [26, 114, 4]. AI is used in virology research to analyze the structure of SARS-CoV-2-related proteins and predict new compounds that can be used for drug and vaccine development [243, 136, 23]. In addition, AI has achieved virus source tracking through genomics research and successfully discovered the relationships between SARS-CoV-2 and the bat virus, as well as SARS-CoV and the Middle East respiratory syndrome-related coronavirus (MERS-CoV) [145, 164, 46]. Moreover, AI learns large-scale COVID-19 case data and social media data to construct epidemic transmission models to accurately predict the time of disease outbreak, transmission route, transmission range, and impact [147, 116, 171, 152]. AI is also widely used in epidemic prevention and social control, such as airport security inspections, patient trajectory tracking, and epidemic visualization [163, 163].

In this survey, we present a comprehensive view of the landscape and contributions of AI in combating COVID-19. The main scope of AI in COVID-19 research includes the aspects of disease detection and diagnosis, virology and pathogenesis, drug and vaccine development, and epidemic and transmission prediction. Note that due to the rapid development of the COVID-19 epidemic, we cited many preprinted references for a comprehensive investigation, where these references still need to be assessed on their accuracy and quality through peer review. The main scope of AI in combating COVID-19 is summarized in Fig. 1.

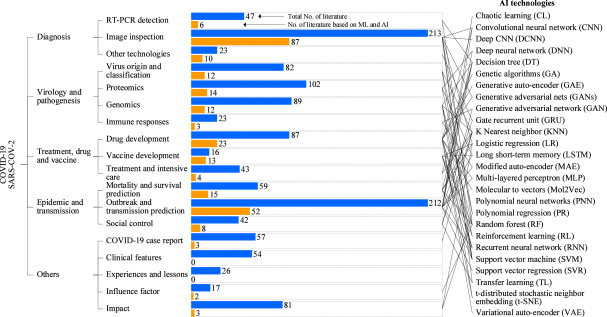

Figure 1: Main scope of AI in fighting against COVID-19. We collected 1273 online publications related to COVID-19, SARS-CoV-2, and 2019-nCoV from databases such as Nature, Elsevier, Google Scholar, arxiv, biorxiv, and medRxiv. Then, we filter out 267 papers that explicitly use AI methods.

The rest of the paper is structured as follows. Sections 2 to 5 discuss the four main scope of AI against COVID-19. Section 6 summarizes the available data and resources to support COVID-19 research. Section 7 highlights the challenges and potential directions in this field. Finally, Section 8 presents the conclusion. Table 1 gives the abbreviations and descriptions of the AI methods used in this survey.

Abbreviation Description Abbreviation Description
CL Chaotic learning MAE Modified auto-encoder
CNN Convolutional neural network MLP

Multi-layered perceptron

DCNN Deep CNN Mol2Vec Molecular to vectors
DNN Deep neural network R-CNN Regional convolutional network
DT Decision tree PNN Polynomial neural networks [141]
FCN Fully convolutional network PR Polynomial regression [44]
GA Genetic algorithm RF Random forest [22]
GAE Generative auto-encoder RL Reinforcement learning
GANs Generative adversarial nets RNN Recurrent neural network
GAN Generative adversarial network SVM Support vector machine
GRU Gate recurrent unit SVR Support vector regression [13]
KNN -nearest neighbor TL Transfer learning
LR Logistic regression t-SNE t-distributed stochastic neighbor embedding [125]
LSTM Long short-term memory [66] VAE Variational auto-encoder [186]
Table 1: Abbreviations and descriptions of the AI methods used in this survey.

2 Disease Detection and Diagnosis

Diagnosis of virus infection is an important part of COVID-19 research. The current detection and diagnosis methods for SARS-CoV-2 virus and COVID-19 disease mainly include nucleic acid testing, serological diagnosis, chest X-ray and CT image inspection, and other noninvasive methods.

2.1 RT-PCR Detection

Benefitting from the advantages of high sensitivity and specificity, real-time Reverse Transcriptase Polymerase Chain Reaction (RT-PCR) is the current standard detection technology in diagnosing the SARS-CoV-2 virus and bacterial infections. Using RT-PCR, 9 RNA positives were detected from pharyngeal swabs of patients, indicating that the SARS-CoV-2 virus had spread in communities of Wuhan, China, in early January 2020 [106]. The shedding of the SARS-CoV-2 virus detected in the throat, lungs, and feces suggests multiple routes of virus transmission [217, 227]. However, RT-PCR faces the limitations of a complicated sample preparation, low detection efficiency, and high false-negative rate [106, 212, 223].

Isothermal nucleic acid amplification and blood testing methods are also commonly used for the rapid screening of SARS-CoV-2 [103, 122, 223]. An ML classification method was used for blood testing to extract important routine hematological and biochemical characteristics and to provide COVID-19 classification. In [223], 105 blood test reports were collected, of which, 27 were collected as positive saples from patients with confirmed COVID-19, and for comparison, negative samples were collected from patients with ordinary pneumonia, tuberculosis, and lung cancer. Each sample contains 49 feature variables, including routine hematological and biochemical parameters. Next, the authors implemented the RF algorithm [22]

on the training samples to perform feature learning and classification. Based on the extracted 11 key feature variables, they built an RF classifier and tested 253 samples of 169 patients with suspected COVID-19 with an accuracy of 96.97%. Although AI technologies rarely participate directly in RT-PCR and blood testing, the viral load and COVID-19 case data collected in these methods provide important data sources for the subsequent AI-based analysis.

2.2 Medical Image Inspection

Medical imaging inspection is another widely used clinical approach for COVID-19 detection and diagnosis. COVID-19 medical image inspection mainly includes chest X-ray and lung CT imaging. AI technology plays an important role in medical image inspection and has achieved significant results in image acquisition, organ recognition, infection region segmentation, and disease classification. It not only greatly shortens the time of a radiologist’s image diagnosis but also improves the accuracy and performance of the diagnosis. We will discuss in detail the contributions of AI methods to chest X-ray and lung CT imaging.

2.2.1 CT Image Inspection

CT imaging provides an important basis for the early diagnosis of COVID-19. The CT imaging manifestations of COVID-19 are mainly Ground Glass Opacity (GGO) in the periphery of the subpleural region, and some are consolidated. If the situation improves, the area will be absorbed and form fibrous stripes. Examples of lung CT images of normal and COVID-19 cases are shown in Fig. 2 [42, 184, 161].

Figure 2: Examples of lung CT images of normal and COVID-19 cases.

The progress of CT image inspection based on AI usually includes the following steps: Region Of Interest (ROI) segmentation, lung tissue feature extraction, candidate infection region detection, and COVID-19 classification. The representative AI architecture for COVID-19 CT image classification is shown in Fig.

3.

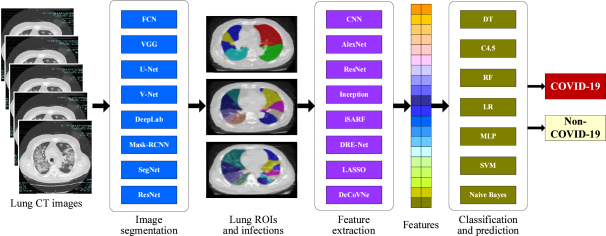

Figure 3: Representative architecture of AI-based CT image classification and COVID-19 inspection.

The segmentation of lung organs and ROIs is a foundational step in AI-based image inspection. It depicts the ROIs in lung CT images (such as lungs, lung lobes, bronchopulmonary segments, and infected regions or lesions) for further evaluation and quantification. Different DL models (such as U-Net, V-Net, and VB-Net) have been used for CT image segmentation [32, 226, 114, 94, 193]. In [179], Shan et al. collected 549 CT images from patients with confirmed COVID-19 and proposed an improved segmentation model (named VB-NET) based on the V-NET [117] and ResNet [69] models. In [32], Chen et al. built a DL model based on the U-Net++ structure [244] to extract the ROIs from each CT image and detect the training curve of suspicious lesions. In [226], Xu et al. used a 3D DL model to segment the infection regions from lung CT images. They then built a classification model using ResNet and location-attention structures and divided the segmented area images into three categories, such as COVID-19, influenza-A viral pneumonia, and normal. In [114], Li et al. used the U-Net segmentation model to extract the lung organ from each lung CT image as an ROI. In [94], Jin et al. proposed an AI-based COVID-19 diagnostic system, which consists of a lung segmentation module and a COVID-19 diagnostic module. The lung segmentation module is implemented based on Deeplabv1 [33]. In [193], Tang et al. used the VB-Net model [179] to accurately segment 18 lung regions and infected regions from lung CT images and further calculated 63 quantitative features.

Focusing on the detection and localization of candidate infection regions, different AI methods were proposed in [65, 181, 212, 85]. In [65], Gozes et al. used commercial software to identify lung nodules and small opacities within the 3D lung volume. Then, they constructed a DL model consisting of U-Net and ResNet structures, where the U-Net module was used to extract the ROI regions, and the ReseNet model was used to detect and classify diffuse turbidity and ground glass infiltration. The authors compared the CT images of 56 patients with confirmed COVID-19 and 101 noncoronavirus patients and analyzed the CT features of COVID-19 in detail. In [181], Shi et al. used a CNN model based on V-Net to segment lung organs and infection regions from lung CT images. Then, they used the LASSO method to calculate the best CT morphological features. Finally, the severity of COVID-19 was predicted and evaluated based on the best CT morphology and clinical features. In [212], Wang et al. collected 195 CT images from 44 patients with COVID-19 and 258 CT images from 55 negative patients. They used the CNN model with the Inception structure [191] to classify randomly selected ROI images and predict COVID-19 disease. In [85], Huang et al. used an InferReadTM CT pneumonia tool based on AI to quantitatively evaluate changes in the lung burden of patients with COVID-19. The tool includes three modules: lung and lobe region extraction, pneumonia segmentation, and quantitative analysis. The CT image features of COVID-19 pneumonia are divided into four types: mild, moderate, severe, and critical.

Based on ROI segmentation and candidate infection region detection, the important features of ROIs and infection regions are extracted for COVID-19 classification [156]. In [156], Qi et al. collected 71 CT images from 52 patients with confirmed COVID-19 in 5 hospitals. They used the pyradiomics method to extract 1,218 features from each CT image and then performed LR and RF methods on these features to distinguish between short-term and long-term hospital stay. In [180], Shi et al. used the VB-NET model [179] to segment the infection and lung fields from CT images and divided them based on 96 features, including 26 volume features, 31 digital features, 32 histogram features, and 7 surface features. Next, they proposed an iSARF method to classify features and predict COVID-19 disease. Comparative experiments showed that the iSARF method is superior to the LR, SVM, and NN methods. In [241], Zheng et al

. proposed a 3D DCNN model (named DeCoVNet) to detect COVID-19 from CT images. The proposed DeCoVNet model includes three components. The first component uses vanilla 3D convolutional layers to extract lung image features, the second component consists of two 3D residual blocks that perform element conversion on the 3D feature maps, and the third component gradually extracts the information in the 3D feature map through 3D max-pooling and outputs the probability of COVID-19. In

[187], Song et al. collected 1990 CT images, including 777 images from 88 patients with COVID-19, 505 images from 100 patients with bacterial pneumonia, and 708 images from 86 healthy people. They proposed a DRE-NET DL model based on the pretrained ResNet50 structure and functional pyramid networks. DRE-NET extracts the top- lesion features from each CT image to predict the classification of patients with COVID-19.

The lack of large-scale datasets is the main challenge that hinders the implementation of AI-based CT image inspection and affects diagnostic performance. To address these challenges, strategies such as transfer learning, data augmentation, and “Human-In-The-Loop” were used in [94, 239, 179]. In [94], Jin et al. used the ImageNet7 dataset [47] to pretrain the proposed 2D classification network. In [239], Zhao et al. provided a public COVID-19 CT scan dataset, including 275 COVID-19 cases and 195 non-COVID-19 cases. They used data augmentation and TL methods to alleviate the shortage of training data. In terms of data augmentation, they used transformation operations to expand the training dataset, such as random transformation, cropping, and rotation. In terms of TL, they pretrained the DenseNet model [84] on the chest X-ray dataset [213] and then used the pretrained model to predict COVID-19. In addition, a “Human-In-The-Loop” strategy was adopted to reduce the workload of radiologists in annotating the training samples [179]. Radiologists annotate a small portion of training samples in the first batch of training. Then, they manually correct the segmentation results in the second batch and used them as annotations of the images. Iterative training is performed in this way to complete the annotation of all training samples.

It is commendable that several works provided open-source code of the designed models and online COVID-19 CT image inspection systems. For example, Li

[114], Jin [94], Zheng [241], and Zhao [239] published the proposed DL models on GitHub [88]. In addition, Song et al. [187] provided an online CT diagnosis service. Wang et al. [212] provided a public website for CT image uploading and testing. In [32], Chen et al. developed a public online CT diagnostic system, and anyone can upload CT images for self-diagnosis. More detailed information about AI-based CT image segmentation and classification methods is provided in Table 2 and Fig. 4.

[b] Literature Data sources Data size COVID-19 cases    AI methods ACC/AUC Sensitivity Specificity Chen [32] 1 private 35,355 20,886 U-Net++ 95.24% 100% 94.0% Gozes [65] private 157 56 U-Net, ResNet 99.6% 98.2% 92.2% Huang [85] private 842 842 U-Net - - - Jin [94] 2 [11, 48] 2095 970 Deeplab, ResNet 94.98% 94.06% 95.47% Li [114] 3 private 4,356 1,325 U-Net, ResNet 96.0% 90.0% 96.0% Qi [156] private 52 52 LR, RF 97.0% 100% 75.0% Shan [179] private 549 549 V-Net, ResNet - - - Shi [180] private 2685 1658 RF 87.9% 90.7% 83.3% Shi [181] private 196 196 V-Net 89.0% 82.2% 82.8% Song [187] 4 private 1990 777 DRE-Net 94.0% 93.0% - Tang [193] private 176 176 RF 87.5% - - Wang [212] 5 private 453 195 Inception 73.1% 74.0% 67.0% Xu [226] private 618 219 ResNet 86.7% - - Zhao [239] 6 [239] 470 275 DenseNet 84.7% 76.2% - Zheng [241] 7 private 630 630 DeCoVNet 90.1% 90.7% 91.1%

  • http://121.40.75.149/znyx-ncov/index.           https://github.com/ChenWWWeixiang/diagnosis_covid19.

  • https://github.com/bkong999/COVNet.git.       http://biomed.nscc-gz.cn/server/Ncov2019.

  • https://ai.nscc-tj.cn/thai/deploy/public/pneumonia_ct.      https://github.com/UCSD-AI4H/COVID-CT.

  • https://github.com/sydney0zq/covid-19-detection.

Table 2: AI-based CT image segmentation and classification methods for COVID-19 inspection.

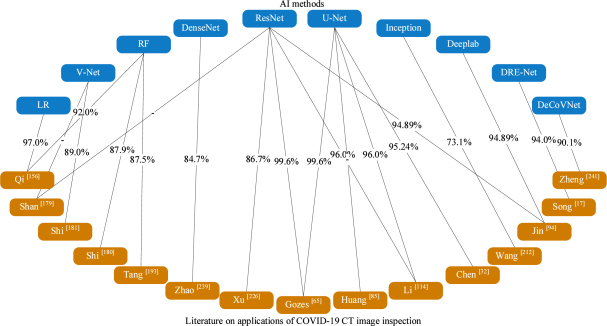

Figure 4: Relationship between AI methods and applications of COVID-19 CT image inspection.

2.2.2 Chest X-ray Image Inspection

Compared with CT images, chest X-ray (CXR) images are easier to obtain in clinical radiology inspections. Although CXR image inspection is a typical imaging method used for COVID-19 diagnosis, it is generally considered to be less sensitive than CT image inspection. Some CXR images of patients with early COVID-19 showed normal characteristics. The radiological signs of COVID-19 CXR images include airspace opacity, GGO, and later mergers. In addition, the distribution of bilateral, peripheral, and lower regions is mostly observed. Examples of CXR images of normal and COVID-19 cases are shown in Fig. 5 from [160, 124]. The CXR image inspection process based on AI techniques usually includes steps such as data preprocessing, DL model training, and COVID-19 classification. The representative AI architecture for COVID-19 CXR image inspection is shown in Fig. 6.

Figure 5: Examples of chest X-ray images of normal and COVID-19 cases.

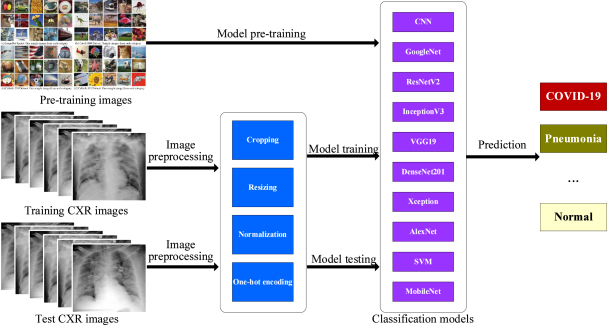

Figure 6: Representative architecture of AI-based CXR image classification and COVID-19 inspection.

Unlike CT images, CXR image segmentation is more challenging because the ribs are projected onto soft tissues, which is confused with image contrast. In this way, most DL models focus on the classification of the entire CXR image, while few works focus on segmenting ROIs and lung organs from CXR images. In [67], Hassanien et al. used a classification method to identify and classify COVID-19 on lung X-ray images through a multilevel threshold and SVM. A multilevel image segmentation threshold was used to segment the lung organs from the background, and then the SVM module classified the infected lungs from the uninfected lungs.

Focusing on COVID-19 classification based on CXR images, several studies built AI-based classification models by nesting or combining existing ML and DL models. In [73], Hemdan et al. proposed a DL framework (called COVIDX-Net) to help radiologists automatically diagnose COVID-19 based on CXR images. The proposed framework integrates 7 DCNN models with different structures, such as VGG19 [183], DenseNet201 [84], ResNetV2 [29], InceptionV3, InceptionResNetV2 [189], Xception [39], and MobileNetV2 [170]. Each model was separately trained on CXR images to classify the patient’s status as COVID-19 positive or negative. In [178], Sethy et al. used different DCNN models in an SVM classifier to diagnose COVID-19 on CXR images. Eleven DCNN models were used as image feature extractors, such as AlexNet, GoogleNet, DenseNet, Inception, ResNet, VGG, XceptionNet, and InceptionResNet. Then, an SVM classifier was used to classify the extracted image features to determine whether the input image was COVID-19. In [26], Castiglioni et al

. collected CXR data (610 images, including 324 COVID-19 cases) from Lombardy, Italy, and constructed a DCNN model to predict COVID-19 disease. The DCNN model is equipped with 10 CNN models, each of which uses the ResNet-50 structure and has been pretrained on the ImageNet dataset. Ioannis

et al. [9] evaluated the performance of 5 DCNN models recommended for medical image classification, including VGG19, MobileNetV2, Inception, Xception, and InceptionResNetV2. To address the shortcomings of the small-scale COVID-19 dataset, each model was pretrained on the ImageNet dataset by using the TL strategy. Then, each pretrained model was executed on the CXR dataset. In [137], Narin et al. also used 3 typical DCNN models (ResNet50, InceptionV3, and InceptionResNetV2) to classify COVID-19 from a small-scale CXR dataset (100 images, including 50 COVID-19 cases).

Another group of works constructed specific DL models for COVID-19 classification [237]. For example, Zhang et al. [237]

proposed a new DL model, which consists of a backbone network, a classification module, and an anomaly detection module. The backbone network extracts the features of each input CXR image. The classification module and anomaly detection module use the extracted features to generate classification scores and scalar anomaly scores, respectively. In

[209], Wang et al. introduced a COVID-Net DCNN model to identify COVID-19 cases based on CXR images. The COVID-Net model uses a large number of convolutional layers in a projection-expansion-projection design pattern. They collected 13,800 CXR images from 13,725 patients (including 183 COVID-19 patients) to establish a CXR database (called COVIDx) for training COVID-Net. It is commendable that the authors provided an open-source of the proposed model code and the COVIDx database.

Similar to CT images, in CXR image inspection, there is also the problem of a lack of large-scale datasets for DL model training. In [121], Loey et al. used the GAN model [86] to generate more CXR images, thereby extending the scale of the CXR dataset. In addition, three DL models (Alexnet [109], GoogleNet [190], and ResNet18 [69]) were used to classify CXR images into four categories: COVID-19, normal, pneumonia bacteria, and pneumonia virus. In [127], Maghdid et al. used CNN and AlexNet models to train CXR and CT images to diagnose COVID-19 cases, respectively. Among them, the AlexNet model was pretrained on the ImageNet dataset to perform COVID-19 classification on the datasets in [41, 140, 124]. Unlike existing TL and image augmentation methods, Afshar et al. designed a capsule network model (named COVID-CAPS) suitable for small-scale CXR datasets [2]

. Each layer of the COVID-CAPS model contains multiple capsules, and each capsule represents a specific image instance at a specific position through multiple neurons. The capsule module

[75] uses protocol routing to capture alternative models of spatial information and attempts to reach a consensus on the existence of objects. In this way, the protocol uses information from instances and objects to identify the relationship between them without the need for large-scale datasets. More detailed information about AI-based CXR image classification methods for COVID-19 inspection is shown in Table 3 and Fig. 7.

[b]   Literature Data sources Data size COVID-19 cases               AI methods Accuracy Afshar [2] 2 [41, 138] 100 50 COVID-CAPS 95.7% Castiglioni [26] private 610 324 ResNet 89.0% Ioannis [9] [41, 112, 102] 1427 224 VGG, MobileNet, Inception, Xception, InceptionResNet 96.78% Hassanien [67] private 40 25 SVM 97.48% Hemdan [73] [41, 159] 50 25 VGG, DenseNet, ResNet, Inception, InceptionResNet, Xception, MobileNet 80.0% Loey [121] [41, 138] 306 69 Alexnet, GoogleNet, ResNet 80.6% Maghdid [127] [41, 140, 124] 170 60 CNN, AlexNet 94.0% Narin [137] [41, 138] 100 50 ResNet, Inception, InceptionResNet 98.0% Sethy [178] [41, 138] 50 25 AlexNet, DenseNet, GoogleNet, Inception, ResNet, VGG, Xception, InceptionResNet, SVM 95.38% Wang [209] 1 [41, 24, 138] 13,800 183 COVID-Net 92.6% Zhang [237] [41, 213] 1531 100 new DL 96.0%

  • https://github.com/lindawangg/COVID-Net. https://github.com/ShahinSHH/COVID-CAPS.

Table 3: AI-based CXR image classification methods for COVID-19 inspection.

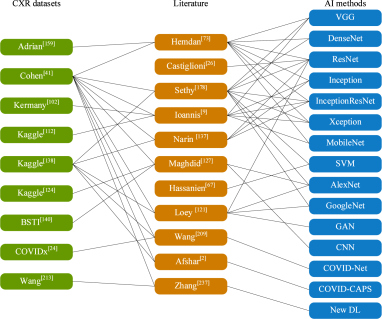

Figure 7: Relationship among CXR datasets, AI methods, and applications of CXR image inspection.

2.3 Other Detection Technologies

In addition to RT-PCR detection and image inspection techniques, some noninvasive measurement methods have also been used for COVID-19 detection and diagnosis, including cough sound judgment and breathing pattern detection.

(1) Monitoring COVID-19 through AI-based cough sound analysis.

Schuller et al. [174] discussed the potential application of computer audition (CA) and AI in the analysis of cough sounds in patients with COVID-19. They first analyzed the CA’s ability to automatically recognize and monitor speech and cough under different semantics, such as breathing, dry and wet coughing or sneezing, speech during colds, eating behaviors, drowsiness, or pain. Then, they suggested applying the CA technology to the diagnosis and treatment of patients with COVID-19. However, due to the lack of available datasets and annotation information, there is no report on the application of this technology in COVID-19 diagnosis. Similarly, Iqbal et al. [90] also discussed an abstract framework that uses the speech recognition function of mobile applications to capture and analyze the cough sounds of suspicious persons to determine whether the user is healthy or suffers from a respiratory disease. In [214], Wang et al. analyzed the respiratory patterns of patients with COVID-19 and other breathing patterns of patients with influenza and the common-cold. In addition, they proposed a respiratory simulation model (named BI-AT-GRU) for COVID-19 diagnosis. The BI-AT-GRU model includes a GRU neural network with a bidirectional and attention mechanism and can classify 6 types of clinical respiratory patterns, such as Eupnea, Tachypnea, Bradypnea, Biots, Cheyne-Stokes, and Central-Apnea.

(2) COVID-19 diagnosis based on noninvasive measurements.

In [128], Maghdid et al. designed an abstract framework for COVID-19 diagnosis based on smart phone sensors. In the proposed framework, smart phones can be used to collect the disease characteristics of potential patients. For example, the sensors can acquire the patient’s voice through the recording function and can obtain the patient’s body temperature through the fingerprint recognition function. Then, the collected data are submitted to the AI-supported cloud server for disease diagnosis and analysis.

3 Virology and Pathogenesis

The virology and pathogenesis of SARS-CoV-2 are one of the most important scientific studies in the fields of biology and medicine. Scientists have analyzed the virus characteristics of SARS-CoV-2 through proteomics and genomic studies [7, 77, 123]. In the field of virology, the origin and classification of SARS-CoV-2, the physical and chemical properties, receptor interactions, cell entry, and the ecology and genomic variation in SARS-CoV-2 have been studied [242, 123, 217]. We mainly discuss the contribution of AI in the pathological research of SARS-CoV-2 from the perspective of proteomics and genomics.

3.1 Proteomics

Since the advent of SARS-CoV-2, there have been a large number of research achievements in proteomics. Five types of structural proteins of SARS-CoV-2 were confirmed, including nucleocapsid (N) proteins, envelope (E) proteins, membrane (M) proteins, and spike (S) proteins [240, 145, 206]. In addition, other proteins translated in the host cells essential for virus replication have also attracted the attention of researchers, such as non-structural protein 5 (NSP5) and 3C-like protease (3CLpro). Moreover, several studies have shown that SARS-CoV-2 uses the human Angiotensin-Converting Enzyme 2 (ACE2) to enter the host [77, 242]. In this field, AI techniques are used to predict protein structures and analyze the interaction network between proteins and drugs. The representative AI architecture for protein structure predication is shown in Fig. 8.

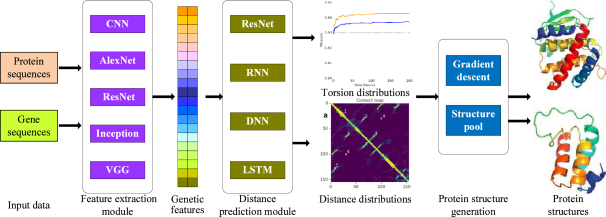

Figure 8: Representative AI architecture for protein structure predication.

In [176, 177], Senior et al. used DL models to implement the AlphaFold system for protein structure prediction. The AlphaFold system uses a ResNet model [69] to analyze the covariance and amino acid residue contacts in homologous gene sequences and to predict the corresponding protein structures. The AlphaFold system consists of a feature extraction module and a distance prediction neural network. The feature extraction module is responsible for searching for protein sequences that are similar to the input protein sequences and constructing the multiple sequence alignment (MSA). The module simultaneously generates residual position and sequence contour features, and the output of 485 feature parameters are input into the distance prediction neural network. The distance prediction neural network is a two-dimensional (2D) ResNet structure, which is responsible for accurately predicting the distance between all residue pairs of every two protein sequences. The authors added a one-dimensional output layer to the network to predict the accessible surface area, distance map, and secondary structure of each residue. Finally, the generated potential is optimized by gradient descent to generate protein structures.

Based on [176, 177], Jumper et al. [96] used the AlphaFold system to predict the structure of SARS-CoV-2 membrane proteins. They published the predicted protein structures such as 3a, Nsp2, Nsp4, Nsp6, and papain-like proteases. Although the structure of these proteins has not been verified by clinical experiments, this publication allows researchers to quickly conduct SARA-CoV-2 studies. In [145], Ortega et al. used a computational method to detect changes in the S1 subunit of the spike receptor-binding domain and determined mutations in the SARS-CoV-2 spike protein sequence, which may be beneficial for studying human-to-human transmission. They collected sequences for modeling and constructed the SARS-CoV-2 spike protein model from the Protein Data Bank (PDB) [19] and used SWISS-MODEL software [12] to construct the SARS-CoV-2 spike protein model. Then, Z-dock software [151] was used to dock between the spike protein and ACE2, and a clustering algorithm was used to cluster the docking results. The work indicated that the SARS-CoV-2 spike protein has a higher affinity for human ACE2 receptors.

Another branch of AI-assisted proteomics research involves finding new compounds and drug candidates for the treatment of COVID-19 by building interactive networks and knowledge maps between proteins and drugs. Please see Section 4 for details.

3.2 Genomics

Genomics is mainly used in SARS-CoV-2 to analyze the origin of SARS-CoV-2, vaccine development, and PT-PCR detection. Various AI algorithms are applied for similarity comparisons of gene sequences, gene fragments, and miRNA prediction [164, 46]. In [164], Randhawa et al. used different ML methods to analyze the pathogen sequences of COVID-19 and identified the inherent features of the viral genomes, thereby rapidly classifying new pathogens. They collected the complete reference genome of the COVID virus from NCBI [53], the bat -coronavirus from GISAID [61], and all available virus sequences from Virus-Host DB [135]. Each genomic sequence was mapped to a corresponding genomic signal in a discrete digital sequence by using chaotic game representation [93]

. In addition, the amplitude spectrum of these genomic signals was calculated by using a discrete Fourier transform. On this basis, they used 6 ML classification models to train the above sequence distance matrix and compared their performance. Finally, they conducted the trained ML models on 29 COVID-19 sequences to classify COVID-19 pathogens. The results of this work support the hypothesis that COVID-19 originated in bats and its classification as a

-coronavirus.

In [46], Demirci et al. performed a miRNA prediction on the SARS-CoV-2 genome based on 3 ML methods and identified miRNA-like hairpins and microRNA-mediated SARS-CoV-2 infection interactions. They collected the complete COVID-19 genome from NCBI [53] and human-mature miRNA sequences from miRBase [108]. The genomic sequences are transcribed and divided into multiple overlapping fragments, which are folded into a secondary structure to extract the hairpin structure. On this basis, the authors used 3 ML methods (e.g., DT, Naive Bayes, and RF) to predict the category of each hairpin and determined the similarity between the hairpins and human miRNA. They searched for mature miRNA targets in human and SARS-CoV-2 genes and analyzed the potential interactions between SARS-CoV-2 miRNAs and human genes and between human miRNAs and SARS-CoV-2 genes. Finally, the gene ontology of SARS-CoV-2 miRNA targets in human genes were analyzed, and the similarity between SARS-CoV-2 miRNA candidates and mature miRNAs of any known organism was evaluated using the PANTHER classification system [134].

In [133], Metsky et al. used genomic and AI technologies to rapidly design nucleic acid detection assays and improved current RT-PCR testing of SARS-CoV-2. They developed a CRISPR tool that uses enzymes to edit the genome by cutting specific genetic code chains and used different ML methods to predict the diversity of the target genome. The authors designed the RT-PCR test method through the CRISPR tool, and it can effectively detect 67 respiratory viruses, including SARS-CoV-2.

4 Drug and Vaccine Development

Based on proteomics and genomics research, a variety of drug and vaccine development programs have been proposed for SARS-CoV-2 and COVID-19. The application of AI in the development of new drugs and vaccines is one of the main contributions in smart medicine and plays an important role in the battle against COVID-19.

4.1 Drug Development

In the field of drug development, AI technologies can screen existing drug candidates for COVID-19 by analyzing the interaction between existing drugs and COVID-19 protein targets. In addition, AI technologies can help to discover new drug-like compounds against COVID-19 by constructing new molecular structures that have inhibitory effects on proteases at the molecular level. The representative AI architecture for new drug-like compound discover is shown in Fig. 9.

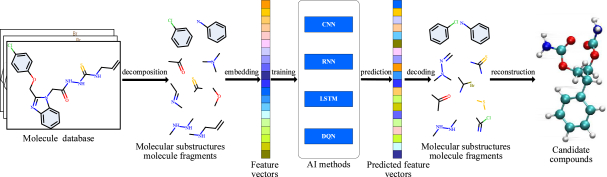

Figure 9: Representative AI architecture for new drug-like compound discover.

Drug development can be divided into small-molecule drug discovery and biological product development. Small-molecule drug discovery mainly focuses on chemically synthesized small molecules of active substances, which can be made into small-molecule drugs through chemical reactions between different organic and inorganic compounds. One group of AI-based drug development focuses on the discovery of new drug-like compounds at the molecular level. In [18, 182], Beck et al. proposed a DL-based drug-target interaction model (MT-DTI) to predict potential drug candidates for COVID-19. The MT-DTI model uses SMILES strings and amino-acid sequences to predict target proteins with 3D crystal structures. The authors collected the amino-acid sequences of 3C-like proteases and related antiviral drugs and drug targets from the databases of NCBI [53], Drug Target Common (DTC) [194], and BindingDB [120]. In addition, they used a molecular docking and virtual screening tool (AutoDock Vina [202]) to predict the binding affinity between 3,410 drugs and SARS-CoV-2 3CLpro. The experimental results provided 6 potential drugs, such as Remdesivir, Atazanavir, Efavirenz, Ritonavir, Dolutegravir, Kaletra (lopinavir/ritonavir). Note that Remdesivir shows promising in clinical trial. In [136], Moskal et al. used AI methods to analyze the molecular similarity between anti-COVID-19 drugs (termed “parents”) and drugs involving similar indications to screen out second-generation drugs (termed “progeny”) for COVID-19. They first used the Mol2Vec [91] method to convert the molecular structure of the parent drugs into a high-dimensional vector space, treated the drug molecule as a “sentence”, and mapped its molecular substructure to a “word”. Then, they used the VAE [186] model to generate SMILES strings with similar 3D shape and pharmacodynamic properties to a given seed molecule [63]. In addition, CNN, LSTM, and MLP models are used to generate the corresponding SMILES strings and molecules. The authors selected 71 parent drugs as seed molecules from the literature and selected 4456 drugs as candidate progeny drugs from ZINC [245] and ChEMBL [56].

In [23], Bung et al. committed to the development of new chemical entities for the SARS-CoV-2 3CLpro based on DL technology. They constructed an RL-based RNN model to classify protease inhibitor molecules and obtained a smaller subset that favored the chemical space. Then, they collected 2515 protease inhibitor molecules in SMILES format from the ChEMBL database as training data, where each SMILES string is regarded as a time series, and each position or symbol is regarded as a time point. The output of small molecules was docked to the 3CLpro structure with minimal energy and ranked based on the virtual screening score obtained by selecting candidates of anti-SARS-CoV-2 [202]. In [192], Tang et al. analyzed 3CLpro with a 3D structure similar to SARS-CoV and evaluated it as an attractive target for anti-COVID-19 drug development. They proposed an advanced deep-Q learning network (called ADQN-FBDD) to generate potential lead compounds of SARS-CoV-2 3CLpro. They collected 284 reported molecules as SARS-CoV-2 3CLpro inhibitors. These molecules were split using the improved BRICS algorithm [45] to obtain the target fragment library of SARS-CoV-2 3CLpro. Then, the proposed ADQN-FBDD model trains each target fragment and predicts the corresponding molecules and lead compounds. Through the proposed Structure-Based Optimization Policy (SBOP), they finally obtained 47 derivatives with inhibitory effects on SARS-CoV-2 3CLpro from these lead compounds, which are regarded as potential anti-SARS-CoV-2 drugs.

Another group of studies focused on screening candidate biological products for COVID-19. Biological products are a type of protein products with therapeutic effects, which are mainly combined with specific cell receptors involved in the disease process. Biological products are prepared from microbial cells such as genetically modified bacteria, yeast, or mammalian cell strains through biotechnology processes. In [79], Hu et al. established a multitask DL model to predict the possible binding between potential drugs and SARS-CoV-2 protein targets, thereby selecting available drugs for SARS-CoV-2. They first collected 8 SARS-CoV-2 viral proteins from GHDDI [58] as potential targets. The proposed DL model is based on the AtomNet model [205, 188] and includes a shared layer to learn the joint representation of all tasks and a task processing layer for performing specific tasks. By fine-tuning the DL model using a coronavirus-specific dataset, the model can predict the possible binding between the drugs and the protein targets and output the binding affinity score. Based on existing studies, RdRp, 3CLpro, and papain-like protease have been confirmed as the three principal targets of SARS-CoV-2 [206, 146, 60]. Based on the prediction results [113, 210], the authors selected the top 10 potential drugs with a high likelihood of inhibition for each target. In [98], Kadioglu et al. used High-Performance Computing (HPC), virtual drug screening, molecular docking, and ML technologies to identify SARS-CoV-2 drug candidates. After performing virtual drug screening and molecular docking, two supervised ML models(e.g., NN and Naivebayes) were used to analyze clinical drugs and test compounds to construct corresponding drug likelihood prediction models. Several approved drugs, including those used for the hepatitis C virus (HCV), the enveloped ssRNA virus, and other infectious diseases, were selected as SARS-CoV-2 drug candidates.

Facing the known COVID-19 protease target 3CLpro, Zhavoronkov et al. [240] designed a small-molecule drug-discovery pipeline to produce 3CLpro inhibitors, used 3CLpro’s crystal structure, homology modeling, and co-crystallized fragments to generate 3CLpro molecules. They collected the crystal structure of COVID-19 3CLpro from [230] and constructed a homology model. At the same time, molecules with activity on various proteases were extracted from [89, 56] and constituted a protease peptidomimetic dataset with 5,891 compounds. Then, they used 28 ML methods (such as GAE, GAN, and GA) and RL strategies to separately train input datasets (e.g., crystal structure, homology model, and co-crystal ligands), and generated new molecular structures with a high score. In [78], Hofmarcher et al. used a ChemAI DL model [154] based on the SmilesLSTM structure [76] to test the resistance of the molecules to COVID-19 proteases. They collected 3.6 million molecules from ChEMBL [56], ZINC [245], and PubChem [104] and formed a training dataset. Then, the ChemAI model was trained on the dataset in a multitask parallel training way, where the output neurons of the model represent the biological effects of the input molecules. The authors used the ChemAI model to predict the inhibitory effects of these molecules on the 3CLpro and PLpro proteases of COVID-19. These molecules have a binding, inhibitory, and toxic effect on the targets. A list of COVID-19 drug development methods based on AI is provided in Table 4.

[b] Literature AI methods    Role of AI methods COVID-19 targets Potential drugs Tang [192] 1 RL, DQN predict molecules and lead compounds for each target fragment 3CLpro 47 compounds Zhavoronkov [240] 2 28 ML generate new molecular structures for 3CLpro 3CLpro 100 molecules Bung [23] RNN, RL classify protease inhibitor molecules 3CLpro 31 compounds Hofmarcher [78] 3 ChemAI predict inhibitory effects of molecules on COVID-19 proteases 3CLpro, PLpro 30,000 molecules Kadioglu [98] NN, Naive bayes construct drug likelihood prediction model spike protein, 3 drugs Hu [79] DL predict binding between drugs and protein targets 3CLpro, RdRp, 10 drugs Beck [18, 182] MT-DTI predict binding affinity between drugs and protein targets 3CLpro, RdRp, helicase, 6 drugs Moskal [136] VAE, CNN, LSTM, MLP generate SMILES strings and molecules - 110 drugs

  • https://github.com/tbwxmu/2019-nCov. https://www.insilico.com/ncov-sprint.

  • https://github.com/ml-jku/sars-cov-inhibitors-chemai.

Table 4: Drug development of COVID-19 based on AI methods.

4.2 Vaccine Development

Currently, there are 3 types of COVID-19 vaccine candidates, such as (1) whole virus vaccines, (2) recombinant protein subunit vaccines, and (3) nucleic acid vaccines [38, 238]. AI technology has been involved in the design and development of COVID-19 vaccines. Compared with explicit applications in other fields, AI technology is usually used in the sub-processes of vaccine development in an implicit manner.

The AI algorithms of netMHC and netMHCpan are used in the development of COVID-19 vaccines for epitope prediction [97, 74, 215]. In [74], Herst et al. obtained the SARS-CoV-2 protein sequences from GenBank and used the MSA algorithm to trim the nucleocapsid phosphoprotein sequences to possible peptide sequences. On this basis, they used netMHC and netMHCpan AI algorithms to train and predict peptide sequences [8, 97]. The pan variant of netMHC integrates the in-vitro objects of 215 HLAs for prediction. Finally, they used the average value of the ANN, SVM, netMHC and netMHCpan methods to calculate the vaccine candidates. In [215], Ward et al downloaded the SARS-CoV-2 nucleotide sequences from the NCBI [53] and GISAID [61] databases, and generated a consensus sequence for each SARS-CoV-2 protein. The sequences can be used as references for prediction, specificity, and epitope mapping analysis. Next, the authors used different epitope prediction tools to predict B cell epitopes and map them to the amino acid sequences of each gene. On this basis, they used the AI-based netMHCpan algorithm to predict HLA-1 peptides and obtained a total of 2,915 alleles in all peptide lengths. BLASTp tool [6] was used to locate the short amino acid epitope sequences to the canonical sequences of SARS-CoV-2 proteins. Finally, the author provided an online tool that provides functions of SARS-CoV-2 genetic variation analysis, epitope prediction, coronavirus homology analysis, and candidate proteome analysis.

In [143], Ong et al. used ML and Reverse Vaccinology (RV) methods to predict and evaluate potential vaccines for COVID-19. They used RV to analyze the bioinformatics of pathogen genomes to identify promising vaccine candidates. They obtained the SARS-CoV-2 sequences and all proteins of the 6 known human coronavirus strains from the NCBI [53] and UniProt [17] databases. Then, they used Vaxign and Vaxign-ML [71, 142]

to analyze the complete proteome of the coronaviruses and predicted their service biological characteristics. Next, they improved the Vaxign-ML model based on ML and RV using LR, SVM, KNN, RF, and XGBoost methods and predicted the protein level of all SARS-CoV-2 proteins. The nsp3 protein was selected for phylogenetic analysis, and the immunogenicity of nsp3 was evaluated by predicting T cell MHC-I and MHC-II and linear B cell epitopes.

In [158], Qiao et al. used DL to predict the patient’s mutated new antigen and identified the best T-cell epitope for peptide-based COVID-19 vaccines. They first sequenced the diseased cells in the patient’s blood and extracted 6 human leukocyte antigen (HLA) types and T-cell receptor (TCR) sequences. Then, they proposed the DeepNovo model to train the patient’s immune peptide and to identify the best T-cell epitope set based on a person’s HLA alleles and immune peptide group information. The DeepNovo model uses LSTM and RNN structures to capture sequence patterns in peptides or proteins and predicts HLA peptides from conserved regions of the virus, thereby predicting new mutant antigens in patients. In addition, they used the IEDB [204] tool to predict the immunogenicity of 177 peptides. They suggested designing an epitope-based COVID-19 vaccine specifically for each person based on their HLA alleles.

The prediction of immune stimulation ability is an important part of vaccine designing [166, 162]. Different ML methods and position-specific scoring matrices (PSSM) are usually used to predict epitope and immune interactions, thereby predicting the generation of adaptive immunity in the target host. In [162], Rahman et al. used immuno-informatics and comparative genomic methods to design a multi-epitope peptide vaccine against SARS-CoV-2, which combines the epitopes of S, M, and E proteins. They used the Ellipro antibody epitope prediction tool [87] to predict linear B cell epitopes on the S protein. Ellipro uses multiple ML methods to predict and visualize a given protein sequence or B-cell epitope in the structure. In addition, Sarkar et al. [172] studied the epitope-based vaccine design for COVID-19 and used the SVM method to predict the toxicity of the selected epitopes. In [153], Prachar et al. used 19 epitope-HLA combined prediction tools including IEDB, ANN, and PSSM algorithms to predict and verify 174 SARS-CoV-2 epitopes.

5 Epidemic and Transmission Prediction

Thanks to the developed information and multimedia technology, the outbreak and spread of COVID-19 were reported in a timely and accurate manner. The number of suspected, confirmed, cured, and dead COVID-19 cases in each country/region is announced in real time. In addition, passenger travel trajectories and related big data are shared for scientific research. Based on the rich data, numerous researchers have participated in the prediction, spread, and tracking of the COVID-19 outbreak.

5.1 Patient Mortality and Survival Rate Prediction

Researchers collected clinical COVID-19 case data and used different AI methods to extract important features and to predict the mortality and survival rate of patients with COVID-19. The representative AI architecture for prediction of patient mortality and survival rate is shown in Fig. 10.

Figure 10: Representative AI architecture for prediction of patient mortality and survival rate.

In [152], Pourhomayoun et al. used 6 AI methods to predict the mortality rate of patients with COVID-19. They used public data of patients with COVID-19 from 76 countries around the world [225], and counted 112 features, including 80 medical annotations and disease features and 32 features from the patients’ demographic and physiological data. Based on the filtering method and wrapper method, 42 best features were extracted, such as demographic features, general medical information, and patient symptoms. On this basis, 6 AI methods (such as SVM, NN, RF, DT, LR, and KNN) are used to predict the mortality of patients with COVID-19. In [173], Sarkar et al. used the RF model to analyze the records of 433 patients with COVID-19 from Kaggle [43] and identified the important features and their impact on mortality. Experimental results show that patients over 62 years of age have a higher risk of death. In [228, 229], Yan et al. analyzed a blood sample dataset of 404 patients with COVID-19 in Wuhan, China, and used the XGBoost classification method [37] to select three important biomarkers and to predict individual patient survival rates. Experimental results with an accuracy of 90% indicated that higher LDH levels seem to play an important role in distinguishing the most critical COVID-19 cases.

5.2 Outbreak and Transmission Prediction

BlueDot [21] and Metabiota [132] are two AI companies that made accurate predictions for the COVID-19 outbreak. BlueDot collected large-scale heterogeneous data from various sources, such as news reports, global ticketing data, animal diseases, global infectious disease alerts, and real-time climate conditions. Then, it used filtering tools to narrow its focus; used various ML and Natural Language Processing (NLP) techniques to detect, mark, and display the potential risk frequency of COVID-19; and predicted the outbreak time of transmission. It is worth mentioning that 9 days before the official announcement of the COVID-19 outbreak, BlueDot accurately predicted the epidemic of COVID-19 and cities with a high risk of virus outbreaks. Metabiota collected large-scale data from social and nonsocial sources (such as biology, socioeconomic, political, and environmental data) and used technologies such as AI, ML, big data, and NLP to accurately predict the outbreak, spread, and intervention measures of COVID-19. More AI-based COVID-19 outbreak and transmission prediction methods are shown in Table 5.

Literature Data sources Methods Country/region
Huang [82] Yang [231], WHO [216] CNN, LSTM, MLP, GRU China
Hu [80, 81] The Paper [148], WHO [216] MAE, clustering China
Yang [233] Baidu [16] SEIR, LSTM China
Fong [52, 51] NHC [139] SVM, PNN China
Ai [3] WHO [216, 54] ANFIS, FPA China, USA
Rizk [168] WHO [216] ISACL-MFNN USA, Italy, Spain
Giuliani [62] Italy [144] EMTMGL Italy
Ayyoubzadeh [14] Worldometer[218], Google [201] LR, LSTM Iran
Marini [130, 129] Swiss population Enerpol Switzerland
Lai [110] IATA [126], Worldpop [219] ML Global
Punn [155] JHU CSSE [49] SVR, PR, DNN, LSTM, RNN Global
Lampos [111] MediaCloud [131], PHE [64], ECDC [55] Transfer learning Global
Table 5: COVID-19 outbreak and transmission prediction based on AI methods.

Although the source of the COVID-19 epidemic has not yet been identified, it was first reported in Wuhan, China. Therefore, the outbreak and spread of COVID-19 in China have received extensive attention. In [82], Huang et al. used 4 DL models, such as CNN, LSTM, GRU, and MLP to train and predict the COVID-19 case data from 7 severe epidemic cities in China. The input of these DL models is the features of the COVID-19 cases, including the number of confirmed cases, cured cases, and deaths. Based on the input of the previous 5 days, each model can predict the number of COVID-19 cases for the following few days. The architecture of the COVID-19 outbreak prediction model based on AI models is shown in Fig. 11.

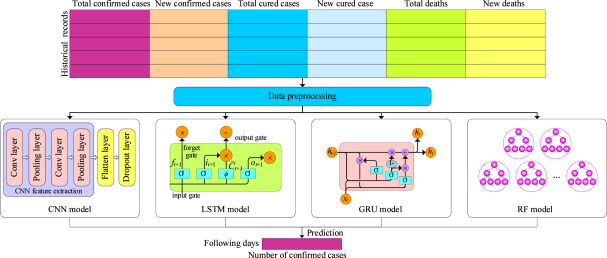

Figure 11: Architecture of COVID-19 outbreak prediction model based on DL models.

In [80, 81], Hu et al. used AI methods such as MAE and clustering algorithms to predict the number of confirmed COVID-19 cases in different provinces and cities in China. In addition, they clustered 34 provinces and cities in China into 9 clusters based on the prediction results and further predicted the spread of COVID-19 among provinces and cities. In [233], Yang et al. used the SEIR model [101] and the LSTM model to predict COVID-19 in China. The population migration data and the latest COVID-19 epidemiological data from Baidu [16] were input into the SEIR model to derive the epidemic curves. In addition, they used SARS data from 2003 to pretrain the LSTM model to predict COVID-19 for the following few days, in which epidemiological parameters, such as the transmission, incubation, recovery probability, and the number of deaths, were selected as input features. Both the SEIR and LSTM models predicted a daily infection peak of 4,000 in the first week of February. In [52, 51], Fong et al. obtained early COVID-19 epidemiological data from NHC [139]. Then, they used traditional time series data analysis methods (e.g., ARIMA, Exponential, and Holt-Winters), ML methods (e.g., KR, SVM, and DT), and AI methods (e.g., PNN) to analyze and predict future outbreaks.

In addition to China, the outbreak and spread of COVID-19 in other countries (including the United States, Italy, Spain, Iran, and Switzerland) have also received widespread attention. In [3], Ai et al. proposed an improved ANFIS method [92] to predict the number of COVID-19 cases. The proposed system connects fuzzy logic and neural networks and uses and enhanced Flower Pollination Algorithm (FPA) [232] for model parameter optimization and model training. In [168], Rizk et al

. proposed an improved Multi-layer Feed-forward Neural Network (ISACL-MFNN) model, which uses an Internal Search Algorithm (ISA) to optimize model parameters and uses the CL strategy to enhance the ISA performance. From the official COVID-19 dataset reported by the WHO

[216], data from January 22, 2020, to April 3, 2020, in the United States, Italy, and Spain were collected to train the ISACL-MFNN model and to predict the confirmed cases within the next 10 days. In [62], Giuliani et al. collected the number of infected people in Italian provinces [144] and used the EMTMGL model to simulate and predict the spatial and temporal distribution of COVID-19 infection in Italy. In [14], Ayyoubzadeh used real-time COVID-19 epidemic data from Google Trends [201] and Worldometer [218] to predict COVID-19 cases in Iran. They collected daily epidemic data and saved them as a time series data format and then used the LR and LSTM models to make predictions, thereby obtaining the outbreak and spread trend of COVID-19 in Iran. In [130, 129], Marini et al. developed an agent-based AI platform to predict the development of COVID-19 in Switzerland. The system accepts the entire Swiss population as input data to simulate and predict the spread of COVID-19 in Switzerland. It simulates the people’s daily trajectories by calibrating the micro-census data and effectively predicts the individual contacts and possible transmission routes.

Many studies have likewise focused on the prediction of the spread of COVID-19 around the world. They collected a large amount of travel data, mobile phone data, and social media data and used AI methods to accurately predict the potential transmission range and transmission route of COVID-19. In [110], Lai et al. collected a large amount of travel and mobile phone data from [219] and constructed corresponding models to predict the transmission risk of COVID-19 in different countries. On this basis, they established air travel network models between domestic cities and cities in other countries to predict risk cities at home and abroad. In [155], Punn et al. used 2 ML models (e.g., SVR [13] and PR [44]) and 3 DL regression models (e.g., DNN, LSTM [66], and RNN) to predict real-time COVID-19 cases. In [111], Lampos et al. used an automatic crawling tool to obtain daily confirmed COVID-19 case data and related articles from online media such as MediaCloud [131], Public Health England (PHE) [64], and European Centre for Disease Prevention and Control (ECDC) [55]. They used the TL strategy to transfer the COVID-19 model of the country where the disease spread to other countries that are still in the early stage of the epidemic curve, and thus achieving the target country’s epidemic prediction. In addition, companies such as Microsoft Bing [20], Google [201], and Baidu [16] have aggregated multiple available data sources and developed COVID-19 global tracking systems to provide a visual tracking interface.

In addition to AI methods, various methods based on statistics and epidemiology are used to predict the outbreak and spread of COVID-19. In [70], He et al

. collected the highest viral load in the pharyngeal swabs of 94 patients with confirmed COVID-19. They fitted a generalized additive model with identity links and smooth spline curves to analyze its overall trend. A gamma distribution was fitted to the transmission pair data to evaluate the serial interval distribution. The results of statistical analysis showed that the patients with confirmed COVID-19 reach the peak of virus shedding before or during symptom onset, and some kinds of transmission may occur before the initial symptoms. In

[208], Wang et al. determined a set of technical indicators (e.g., number of infection cases in the hospital, daily infection rate, and daily cured rate) that reflect the infection status of COVID-19. Next, they proposed a calculation method based on statistical theory to quantify the iconic characteristics of each period and predict the turning point in the development of the epidemic. In addition, numerous studies based on the Susceptible-Infected-Recovered (SIR) and SEIR models have studied the spread of COVID-19 from an epidemiological perspective. Please see [169, 195, 199, 25, 185, 234, 119] for more information.

5.3 Social Control

When COVID-19 appeared, most countries in the world adopted different forms of social control, social alienation, school closures, and blockade measures to prevent the spread of the epidemic [203]. AI technologies have been widely used in epidemic control and social management, including individual temperature detection, video tracking, contact tracking, intelligent robots, etc. Many countries have used smart devices equipped with AI to detect suspicious persons in public transportation places such as airports and train stations [167, 40]. For example, infrared cameras are used to scan for high temperatures in a crowd, and different AI methods perform efficient analysis to detect whether an individual is wearing a mask in real time. In addition, DL-based video tracking technology is used to detect and track suspicious COVID-19 patients in public places [31]. Moreover, at the entrances and exits of cities, the identity information of each passing person was collected. Then, AI-based systems are used to efficiently query the travel history and trajectory of each passing individual to check whether they are from a region seriously affected by COVID-19 [35, 197].

AI technologies are also used in contact tracking of patients with COVID-19 [100]. For each patient with confirmed COVID-19, personal data such as mobile phone positioning data, consumption records, and travel records may be integrated to identify the potential transmission trajectory [57]. In addition, when people are in social isolation, mobile phone positioning and AI frameworks can assist the government in better understanding the status of individuals [165]. Moreover, intelligent robots are used to perform site disinfection and product transfer, and mobile phone positioning functions are used to detect and track the distribution and flow of personnel.

Another group of studies focused on the impact of various social control strategies on the spread of COVID-19. In [72], Hellewell et al. proposed a random propagation model to analyze the success rate of different social control approaches to prevent the spread of COVID-19. By quantifying parameters such as contact tracking and quarantined cases, the proposed model analyzed the maximum number of cases tracked every week and measured the feasibility of public health work. In [105], Kissler et al. established a mathematical model to assess the impact of interventions on the prevalence of COVID-19 in the United States, and intermittent grooming measures were recommended to maintain effective control of COVID-19. Koo et al. [107] applied the population and personal behavior data of Singapore to the influenza epidemic simulation model and assessed different social isolation strategies on the dynamic transmission of COVID-19. Similarly, Chang et al. [28] constructed a simulation model to evaluate the propagation and control of COVID-19 in Australia. The model analyzes the propagation characteristics of COVID-19 and the impact of different control strategies on the propagation results.

6 Data and Resources

The implementation and performance improvement of AI greatly depends on the large-scale available data and resources. Therefore, we compiled available public resources that can be used for COVID-19 disease diagnosis, virology research, drug and vaccine development, and epidemic and transmission prediction. Three types of data and resources were summarized, including medical images, biological data, and informatics resources.

6.1 Medical Images

We collected 17 groups of COVID-19 medical images such as CXR and CT images from individual researchers and organizations. Among them, the CXR image data set published by Cohen et al. [41] is widely cited, which is a collection of CXR images from multiple references. In addition, many researchers uploaded CXR and CT images to Kaggle [138, 112, 124, 160, 15] for COVID-19 research. Moreover, organizations such as the British Society of Thoracic Imaging (BSTI), Eurorad, and Radiopaedia also released online CXR and CT images. Table 6 displays the detailed description of medical image data resources of COVID-19.

Data sources Data type Cited by Refs.
Zhao [239] CT images [239]
HRCT [48] CT images [94]
Armato [11] CT images [94]
Coronacases [42] CT images -
Medical segmentation [175] CT images -
Cohen [41] CXR images [73, 209, 9, 137, 121, 2, 127, 178, 237]
Wang [213] CXR images [239, 237]
COVIDx [24] CXR images [209]
Adrian [159] CXR images [73]
COVID-Net [209] CXR images [209]
Kermany [102] CXR images [9]
Mendeley data [5] CXR images -
Kaggle [138, 112, 124, 160, 15] CXR and CT images [209, 9, 137, 121, 2, 178, 127, 173]
BSTI [140] CXR and CT images [127]
SIRM [184] CXR and CT images -
Eurorad[50] CXR and CT images -
Radiopaedia [161] CXR and CT images -
Table 6: Medical image data resources for COVID-19 research.

6.2 Biological Data

We collected 10 biological data resources, such as NCBI, Protein Data Bank (PDB), UniProt, Clarivate Analytics Integrity (CAI), Drug Target Common (DTC), and Virus-Host DB (VHDB), as shown in Table 7. These data resources provide abundant biological data resources, including gene sequences, proteins, drug molecules and compounds, and miRNA sequences.

Data sources Data type Description Cited by Refs.
NCBI [53] Genome sequences Genome sequencing data of SARS-CoV-2 [164, 46, 18, 182, 143]
GISAID [61] Genome sequences Bat Betacoronavirus RaTG13 [164]
VHDB [135] Genome sequences Virus sequences [164]
PDB [149] Proteins 3D shapes of proteins, nucleic acids, and assemblies [145, 19]
UniProt [17] Proteins SARS-CoV-2 protein entries and receptors [143]
miRBase [108] miRNA sequences Human mature miRNA sequences [46]
ZINC [245] Drug compounds drug compounds and molecules [98, 136, 78]
DTC [194] Drug molecules Drug molecules for 3C-like proteases [18, 182]
CAI [89] Drug discovery Empowering knowledge-based drug discovery and development [240]
BindingDB [120] Amino-acid sequences Amino-acid sequences of 3C-like proteases [18, 182]
Table 7: Biological data sources for COVID-19 research.

6.3 Informatics Resources

Informatics resources such as COVID-19 situation reports, dashboards, COVID-19 cases, and demographic data are gathered in Table 8. Among them, the World Health Organization (WHO), the National Health Commission of the People’s Republic of China (NHC), the Disease Control and Prevention (CDC) provided real-time COVID-19 reports. Companies such as Baidu, Microsoft Bing, Google, and JHU CSSE provided online dashboards for COVID-19 spread tracking. Organizations such as Govuk, Il Sole, and ECDC provided real-time COVID-19 cases in the UK, Italy, and Europe.

Data sources Data type Description Cited by Refs.
WHO [216] Report COVID-2019 situation reports [82, 80, 3, 168]
NHC [139] Report Real-time COVID-19 Report [52, 51]
CDC [54] Report Weekly U.S. influenza surveillance report [3, 111]
GitHub [88] Code Codes and datasets for COVID-19 study [24, 239, 58]
Baidu [16] Dashboard Dashboard for COVID-19 tracking [233]
Bing [20] Dashboard Dashboard for COVID-19 tracking -
Google [201] Dashboard Dashboard for COVID-19 tracking [14]
JHU CSSE [49] Dashboard Dashboard for COVID-19 tracking [155]
Worldometer [218] COVID-19 cases COVID-19 pandemic cases [14]
Govuk [64] COVID-19 cases COVID-19 cases in the UK [111]
ECDC [55] COVID-19 cases COVID-19 cases worldwide [111]
Il Sole [144] COVID-19 cases COVID-19 datasets in Italy [62]
Worldpop [219] Demographic data Spatial demographic and air travel data [110]
GHDDI [58] Community Drug discovery community [79]
Humdata [68] Community community perceptions of COVID-19 -
Table 8: Informatics resources for COVID-19 research.

7 Challenges and Future Directions

Although AI technologies have been used in fighting against COVID-19, and many studies have been published, we note that the applications and contributions of AI in this work are still relatively limited. We summarize the main challenges currently faced by AI against COVID-19 and provide the corresponding suggestions.

7.1 Challenges

At present, the applications of AI in COVID-19 research mainly faces four challenges: the lack of available large-scale training data, massive noisy data and rumors, the limited knowledge on the intersection of computer science and medicine, and data privacy and human rights protection.

  • Lack of available large-scale training data. Most AI methods rely on large-scale annotated training data, including medical images and various biological data. However, due to the rapid outbreak of COVID-19, there are insufficient datasets available for AI. In addition, annotating training samples is very time-consuming and requires professional medical personnel.

  • Massive noisy data and rumors. Challenges arise from relying on the developed mobile Internet and social media; massive noise information and fake news about COVID-19 has been published on various online media without rigorous review. However, AI algorithms seem to be powerless in judging and filtering the noise and erroneous data. This problem limits the application and performance of AI, especially in epidemic prediction and transmission analysis.

  • Limited knowledge in the intersection of computer science and medicine. Many AI scientists are from computer science, but the application of AI in the COVID-19 battle requires in-depth cooperation in computer science, medical imaging, bioinformatics, virology, and many other disciplines. Therefore, it is crucial to coordinate the cooperative work of researchers from different fields and integrate the knowledge of multiple subjects to jointly deal with COVID-19.

  • Data privacy and human rights protection. In the era of big data and AI, the cost of obtaining personal privacy data is very low. Faced with public health issues such as COVID-19, many governments want to obtain various types of personal information, including mobile phone positioning data, personal travel trajectory data, and patient disease data. How to effectively protect personal privacy and human rights during information acquisition and AI-based processing is an issue worthy of discussion and attention.

7.2 Future Directions

In addition to the applications investigated in this paper, AI can also contribute to the battle of COVID-19 from the following 10 potential directions.

  1. Noncontact disease detection. In CXR and CT image detection, the use of noncontact automatic image acquisition can effectively avoid the risk of infection between radiologists and patients during the COVID-19 pandemic. AI can be used for patient posture positioning, standard section acquisition of CXR and CT images, and movement of camera equipment.

  2. Remote video diagnosis. AI and NLP technologies can be used to develop remote video diagnosis systems and chat robot systems and provide COVID-19 disease consultation and preliminary diagnosis to the public.

  3. Patient prognosis management. AI technology (such as intelligent image and video analysis) can be used to automatically monitor patient behavior during the follow-up monitoring and prognostic management process, in addition to long-term tracking and management of patients with COVID-19.

  4. Biological research. In the field of biological research, AI can be used to discover protein structures and features of virus through accurate analysis of biomedical information, such as large-scale protein structures, gene sequences, and viral trajectories.

  5. Drug and vaccine development. AI can not only be used to discover potential drugs and vaccines but also to simulate the interaction between drugs and proteins and between vaccines and receptors, thereby predicting the potential responses to the drugs and vaccines of patients with COVID-19 with different constitutions.

  6. Identification and filtering of fake news. AI can be used to reduce and eliminate fake news and noise data on online social media platforms to provide reliable, correct, and scientific information about the COVID-19 pandemic.

  7. Impact simulation and evaluation. Various simulation models can use AI to analyze the impact of different social control strategies on disease transmission. Then, they can be used to explore more effective and scientific approaches of disease prevention and social control.

  8. Patient contact tracking. By constructing social relationship networks and knowledge graphs, AI can identify and track the trajectories of people in close contact with patients with COVID-19, thereby accurately predicting and controlling the potential spread of the disease.

  9. Intelligent robots. Intelligent robots are expected to be used in applications such as disinfection and cleaning in public places, product distribution, and patient care.

  10. Intelligent Internet of Things. AI is expected to be combined with the Internet of Things to deploy in customs, airports, railway stations, bus stations, and business centers. In this case, we can quickly identify suspicious COVID-19 virus and patients through intelligent monitoring of the environment and personnel.

8 Conclusions

In this survey, we investigated the main scope and contributions of AI in combating COVID-19. Compared with the pandemic of SARS-CoV in 2003 and MERS-CoV in 2012, AI technologies have been successfully applied in almost every corner of the COVID-19 battle. The application of AI in COVID-19 research can be summarized in four aspects, such as disease detection and diagnosis, virology research, drug and vaccine development, and epidemic and transmission prediction. Among them, medical image analysis, drug discovery, and epidemic prediction are the main battlefields of AI in the fight against COVID-19. We also summarized the currently available data and resources for COVID-19 research based on AI, including medical imaging data, biological data, and informatics resources. Finally, we highlighted the main challenges and potential directions in this field. This survey provided medical and AI researchers with a comprehensive view of the existing and potential contributions of AI in combating COVID-19, with the goal of inspiring them to continue to maximize the advantages of AI and big data to fight against this pandemic.

Acknowledgment

This work is partially funded by the National Key R&D Program of China (Grant No. 2018YFB1003401), the National Outstanding Youth Science Program of National Natural Science Foundation of China (Grant No. 61625202), and the International Postdoctoral Exchange Fellowship Program (Grant No. 20180024).

References

  •  1. T. Abel and D. McQueen. The covid-19 pandemic calls for spatial distancing and social closeness: not for social distancing. International Journal of Public Health, 65(3):231–231, 2020.
  •  2. P. Afshar, S. Heidarian, F. Naderkhani, A. Oikonomou, K. N. Plataniotis, and A. Mohammadi. Covid-caps: a capsule network-based framework for identification of covid-19 cases from x-ray images. arXiv preprint arXiv:2004.02696, 2020.
  •  3. M. Al, A. Ewees, and H. Fan. Optimization method for forecasting confirmed cases of covid-19 in china. Journal of Clinical Medicine, 9(3):674, 2020.
  •  4. Z. Allam, G. Dey, and D. Jones. Artificial intelligence (ai) provided early detection of the coronavirus (covid-19) in china and will influence future urban health policy internationally. AI, 1(2):156–165, 2020.
  •  5. A. Alqudah and S. Qazan. Augmented covid-19 x-ray images dataset. Mendeley Data, May 2020. https://data.mendeley.com/datasets/2fxz4px6d8/4.
  •  6. S. Altschul, W. Gish, W. Miller, E. Myers, and D. Lipman. Basic local alignment search tool. Journal of molecular biology, 215(3):403–410, 1990.
  •  7. K. Andersen, A. Rambaut, W. Lipkin, E. Holmes, and R. Garry. The proximal origin of sars-cov-2. Nature Medicine, 26(4):450–452, 2020.
  •  8. M. Andreatta and M. Nielsen. Gapped sequence alignment using artificial neural networks: application to the mhc class i system. Bioinformatics, 32(4):511–517, 2016.
  •  9. I. Apostolopoulos and T. Mpesiana. Covid-19: automatic detection from x-ray images utilizing transfer learning with convolutional neural networks. Physical and Engineering Sciences in Medicine, page 1, 2020.
  •  10. Y. Arabi, S. Murthy, and S. Webb. Covid-19: a novel coronavirus and a novel challenge for critical care. Intensive Care Medicine, pages 1–4, 2020.
  •  11. S. Armato, G. McLennan, L. Bidaut, M. McNitt, and C. Meyer. The lung image database consortium (lidc) and image database resource initiative (idri): a completed reference database of lung nodules on ct scans. Medical Physics, 38(2):915–931, 2011.
  •  12. K. Arnold, L. Bordoli, and J. Kopp. The swiss-model workspace: a web-based environment for protein structure homology modelling. Bioinformatics, 22(2):195–201, 2006.
  •  13. M. Awad and R. Khanna. Support vector regression. In Efficient Learning Machines, pages 67–80. 2015.
  •  14. S. Ayyoubzadeh and H. Zahedi. Predicting covid-19 incidence using google trends and data mining techniques: a pilot study in iran. JMIR Public Health and Surveillance, 2020.
  •  15. Bachir. Covid-19 x-rays. Website, May 2020. https://www.kaggle.com/bachrr/covid-chest-xray.
  •  16. Baidu. Real-time covid-19 data. Website, May 2020. https://voice.baidu.com/act/newpneumonia.
  •  17. A. Bairoch, R. Apweiler, C. Wu, and W. Barker. The universal protein resource (uniprot). Nucleic Acids Research, 33(suppl_1):D154–D159, 2005.
  •  18. B. Beck, B. Shin, Y. Choi, and S. Park. Predicting commercially available antiviral drugs that may act on the novel coronavirus (sars-cov-2) through a drug-target interaction deep learning model. Computational and Structural Biotechnology Journal, 2020.
  •  19. H. Berman, K. Henrick, and H. Nakamura. Announcing the worldwide protein data bank. Nature Structural and Molecular Biology, 10(12):980–980, 2003.
  •  20. M. Bing. Covid-19 tracker). Website, May 2020. https://bing.com/covid.
  •  21. BlueDot. An ai epidemiologist sent the first warnings of the wuhan virus. Website, May 2020. https://bluedot.global.
  •  22. L. Breiman. Random forests. Machine Learning, 45(1):5–32, 2001.
  •  23. N. Bung, S. Krishnan, G. Bulusu, and A. Roy. De novo design of new chemical entities (nces) for sars-cov-2 using artificial intelligence. 2020.
  •  24. A. C. Covid-19 chest x-ray dataset initiative. Website, May 2020. https://github.com/agchung/Figure1-COVID-chestxray-dataset.
  •  25. D. Caccavo. Chinese and italian covid-19 outbreaks can be correctly described by a modified sird model. medRxiv, 2020.
  •  26. I. Castiglioni, D. Ippolito, and M. Interlenghi. Artificial intelligence applied on chest x-ray can aid in the diagnosis of covid-19 infection: a first experience from lombardy, italy. medRxiv, 2020.
  •  27. J. Chan, S. Yuan, K. Kok, and K. To. A familial cluster of pneumonia associated with the 2019 novel coronavirus indicating person-to-person transmission: a study of a family cluster. The Lancet, 395(10223):514–523, 2020.
  •  28. S. Chang, N. Harding, C. Zachreson, and O. Cliff. Modelling transmission and control of the covid-19 pandemic in australia. arXiv preprint arXiv:2003.10218, 2020.
  •  29. T. Chebet, Y. Li, N. Sam, and Y. Liu. A comparative study of fine-tuning deep learning models for plant disease identification. Computers and Electronics in Agriculture, 161:272–279, 2019.
  •  30. H. Chen, J. Guo, C. Wang, F. Luo, and X. Yu. Clinical characteristics and intrauterine vertical transmission potential of covid-19 infection in nine pregnant women: a retrospective review of medical records. The Lancet, 395(10226):809–815, 2020.
  •  31. J. Chen, K. Li, Q. Deng, K. Li, and Y. Philip. Distributed deep learning model for intelligent video surveillance systems with edge computing. IEEE Transactions on Industrial Informatics, 2019.
  •  32. J. Chen, L. Wu, and J. Zhang. Deep learning-based model for detecting 2019 novel coronavirus pneumonia on high-resolution computed tomography: a prospective study. medRxiv, 2020.
  •  33. L. Chen, G. Papandreou, I. Kokkinos, K. Murphy, and A. Yuille. Deeplab: Semantic image segmentation with deep convolutional nets, atrous convolution, and fully connected crfs. IEEE Transactions on Pattern Analysis and Machine Intelligence, 40(4):834–848, 2017.
  •  34. Q. Chen, A. Allot, and Z. Lu. Keep up with the latest coronavirus research. Nature, 579(7798):193–193, 2020.
  •  35. S. Chen, J. Yang, W. Yang, and C. Wang. Covid-19 control in china during mass population movements at new year. The Lancet, 395(10226):764–766, 2020.
  •  36. S. Chen, Z. Zhang, J. Yang, J. Wang, and X. Zhai. Fangcang shelter hospitals: a novel concept for responding to public health emergencies. The Lancet, 2020.
  •  37. T. Chen and C. Guestrin. Xgboost: a scalable tree boosting system. In ACM KDD, pages 785–794, 2016.
  •  38. W. Chen, U. Strych, P. Hotez, and M. Bottazzi. The sars-cov-2 vaccine pipeline: an overview. Current Tropical Medicine Reports, pages 1–4, 2020.
  •  39. F. Chollet. Xception: deep learning with depthwise separable convolutions. In IEEE CVPR, pages 1251–1258, 2017.
  •  40. A. Chun. In a time of coronavirus, china’s investment in ai is paying off in a big way. South China Morning Post, 18, 2020.
  •  41. J. Cohen, P. Morrison, and L. Dao. Covid-19 image data collection. arXiv preprint arXiv:2003.11597, 2020.
  •  42. Coronacases. Ct images of confirmed covid-19 cases. Mendeley Data, May 2020. https://coronacases.org.
  •  43. S. D. Novel corona virus 2019 dataset. Website, May 2020. https://www.kaggle.com/sudalairajkumar/novel-corona-virus-2019-dataset.
  •  44. Y. Decastro, F. Gamboa, D. Henrion, and R. Hess. Approximate optimal designs for multivariate polynomial regression. The Annals of Statistics, 47(1):127–155, 2019.
  •  45. J. Degen, C. Wegscheid, A. Zaliani, and M. Rarey. On the art of compiling and using’drug-like’chemical fragment spaces. ChemMedChem: Chemistry Enabling Drug Discovery, 3(10):1503–1507, 2008.
  •  46. M. Demirci and A. Adan. Computational analysis of microrna-mediated interactions in sars-cov-2 infection. bioRxiv, 2020.
  •  47. J. Deng, W. Dong, R. Socher, and L. Li. Imagenet: a large-scale hierarchical image database. In IEEE CVPR, pages 248–255, 2009.
  •  48. A. Depeursinge, A. Vargas, and A. Platon. Building a reference multimedia database for interstitial lung diseases. Computerized Medical Imaging and Graphics, 36(3):227–238, 2012.
  •  49. E. Dong, H. Du, and L. Gardner. An interactive web-based dashboard to track covid-19 in real time. The Lancet Infectious Diseases, 2020.
  •  50. Eurorad. Images of covid-19 cases. Mendeley Data, May 2020. https://www.eurorad.org.
  •  51. S. Fong, G. Li, N. Dey, and R. Crespo. Composite monte carlo decision making under high uncertainty of novel coronavirus epidemic using hybridized deep learning and fuzzy rule induction. Applied Soft Computing, page 106282, 2020.
  •  52. S. Fong, G. Li, N. Dey, and R. Crespo. Finding an accurate early forecasting model from small dataset: a case of 2019-ncov novel coronavirus outbreak. arXiv preprint arXiv:2003.10776, 2020.
  •  53. N. C. for Biotechnology Information (NCBI). Genome sequencing data of sars-cov-2. Website, May 2020. https://www.ncbi.nlm.nih.gov/genbank/sars-cov-2-seqs/.
  •  54. C. for Disease Control and Prevention. Weekly influenza confirmed cases. Website, May 2020. https://www.cdc.gov/flu/weekly.
  •  55. E. C. for Disease Prevention and Control. Geographic distribution covid-19 cases worldwide. Website, May 2020. https://ecdc.europa.eu/en/publications-data.
  •  56. A. Gaulton, L. Bellis, A. Bento, J. Chambers, and M. Davies. Chembl: a large-scale bioactivity database for drug discovery. Nucleic Acids Research, 40(D1):D1100–D1107, 2012.
  •  57. R. Ge, Y. Qi, Y. Yan, M. Tian, and Q. Gu. The role of close contacts tracking management in covid-19 prevention: a cluster investigation in jiaxing, china. The Journal of Infection, 2020.
  •  58. G. H. D. D. I. (GHDDI). Targeting covid-19: Ghddi info sharing portal. Website, May 2020. https://ghddi-ailab.github.io/Targeting2019-nCoV.
  •  59. I. Ghinai, T. McPherson, J. Hunter, and H. Kirking. First known person-to-person transmission of severe acute respiratory syndrome coronavirus 2 (sars-cov-2) in the usa. The Lancet, 2020.
  •  60. M. Gilman, C. Liu, A. Fung, and I. Behera. Structure of the respiratory syncytial virus polymerase complex. Cell, 179(1):193–204, 2019.
  •  61. GISAID. Gisaid: global initiative on sharing all influenza data. Website, May 2020. https://www.https://www.gisaid.org.
  •  62. D. Giuliani, M. Dickson, G. Espa, and F. Santi. Modelling and predicting the spatio-temporal spread of coronavirus disease 2019 (covid-19) in italy. SSRN, 2020.
  •  63. R. Gómez, J. Wei, D. Duvenaud, and J. Hernández. Automatic chemical design using a data-driven continuous representation of molecules. ACS Central Science, 4(2):268–276, 2018.
  •  64. GOV.UK. Coronavirus (covid-19) cases in the uk. Website, May 2020. https://coronavirus.data.gov.uk/.
  •  65. O. Gozes, M. Frid, and H. Greenspan. Rapid ai development cycle for the coronavirus (covid-19) pandemic: Initial results for automated detection and patient monitoring using deep learning ct image analysis. arXiv preprint arXiv:2003.05037, 2020.
  •  66. K. Greff, R. Srivastava, K. Jan, and B. Steunebrink. Lstm: a search space odyssey. IEEE Transactions on Neural Networks and Learning Systems, 28(10):2222–2232, 2016.
  •  67. A. Hassanien, L. Mahdy, K. Ezzat, and H. Elmousalami. Automatic x-ray covid-19 lung image classification system based on multi-level thresholding and support vector machine. medRxiv, 2020.
  •  68. H. D. E. (HDE). Covid-19 pandemic. Website, May 2020. https://data.humdata.org/event/COVID-19.
  •  69. K. He, X. Zhang, S. Ren, and J. Sun. Deep residual learning for image recognition. In IEEE CVPR, pages 770–778, 2016.
  •  70. X. He, E. Lau, P. Wu, X. Deng, and J. Wang. Temporal dynamics in viral shedding and transmissibility of covid-19. Nature Medicine, pages 1–4, 2020.
  •  71. Y. He, Z. Xiang, and H. Mobley. Vaxign: the first web-based vaccine design program for reverse vaccinology and applications for vaccine development. BioMed Research International, 2010, 2010.
  •  72. J. Hellewell, S. Abbott, A. Gimma, and N. Bosse. Feasibility of controlling covid-19 outbreaks by isolation of cases and contacts. The Lancet Global Health, 2020.
  •  73. E. Hemdan, M. Shouman, and M. Karar. Covidx-net: A framework of deep learning classifiers to diagnose covid-19 in x-ray images. arXiv preprint arXiv:2003.11055, 2020.
  •  74. C. Herst, S. Burkholz, J. Sidney, A. Sette, P. Harris, S. Massey, T. Brasel, E. Cunha, D. S. Rosa, and W. Chao. An effective ctl peptide vaccine for ebola zaire based on survivors’ cd8+ targeting of a particular nucleocapsid protein epitope with potential implications for covid-19 vaccine design. Vaccine, 2020.
  •  75. G. Hinton, S. Sabour, and N. Frosst. Matrix capsules with em routing. 2018.
  •  76. S. Hochreiter and J. Schmidhuber. Long short-term memory. Neural Computation, 9(8):1735–1780, 1997.
  •  77. M. Hoffmann, H. Kleine, S. Schroeder, and N. Krüger. Sars-cov-2 cell entry depends on ace2 and tmprss2 and is blocked by a clinically proven protease inhibitor. Cell, 2020.
  •  78. M. Hofmarcher, A. Mayr, E. Rumetshofer, and P. Ruch. Large-scale ligand-based virtual screening for sars-cov-2 inhibitors using deep neural networks. SSRN, 2020.
  •  79. F. Hu, J. Jiang, and P. Yin. Prediction of potential commercially inhibitors against sars-cov-2 by multi-task deep model. arXiv preprint arXiv:2003.00728, 2020.
  •  80. Z. Hu, Q. Ge, L. Jin, and M. Xiong. Artificial intelligence forecasting of covid-19 in china. arXiv preprint arXiv:2002.07112, 2020.
  •  81. Z. Hu, Q. Ge, S. Li, L. Jin, and M. Xiong. Evaluating the effect of public health intervention on the global-wide spread trajectory of covid-19. medRxiv, 2020.
  •  82. C. Huang, Y. Chen, Y. Ma, and P. Kuo. Multiple-input deep convolutional neural network model for covid-19 forecasting inchina. medRxiv, 2020.
  •  83. C. Huang, Y. Wang, X. Li, L. Ren, and J. Zhao. Clinical features of patients infected with 2019 novel coronavirus in wuhan, china. The Lancet, 395(10223):497–506, 2020.
  •  84. G. Huang, Z. Liu, V. D, and K. Weinberger. Densely connected convolutional networks. In IEEE CVPR, pages 4700–4708, 2017.
  •  85. L. Huang, R. Han, T. Ai, P. Yu, and H. Kang. Serialquantitative chest ct assessment of covid-19: deep-learning approach. Radiology: Cardiothoracic Imaging, 2(2):e200075, 2020.
  •  86. G. Ian, P. Jean, M. Mirza, B. Xu, and W. David. Generative adversarial nets. In Advances in Neural Information Processing Systems, pages 2672–2680, 2014.
  •  87. IEDB. Ellipro: an antibody epitope prediction tool. Website, May 2020. http://tools.iedb.org/ellipro.
  •  88. G. Inc. Github. Website, May 2020. https://github.com.
  •  89. C. A. Integrity. Clarivate analytics integrity. Website, May 2020. https://integrity.clarivate.com/integrity/.
  •  90. M. Iqbal. Active surveillance for covid-19 through artificial intelligence using concept of real-time speech-recognition mobile application to analyse cough sound. 2020.
  •  91. S. Jaeger, S. Fulle, and S. Turk. Mol2vec: unsupervised machine learning approach with chemical intuition. Journal of Chemical Information and Modeling, 58(1):27–35, 2018.
  •  92. J. Jang. Anfis: adaptive-network-based fuzzy inference system. IEEE Transactions on Systems, Man, and Cybernetics, 23(3):665–685, 1993.
  •  93. H. Jeffrey. Chaos game representation of gene structure. Nucleic Acids Research, 18(8):2163–2170, 1990.
  •  94. C. Jin, W. Chen, Y. Cao, Z. Xu, X. Zhang, and L. Deng. Development and evaluation of an ai system for covid-19 diagnosis. medRxiv, 2020.
  •  95. Y. Jin, H. Yang, W. Ji, W. Wu, and S. Chen. Virology, epidemiology, pathogenesis, and control of covid-19. Viruses, 12(4):372, 2020.
  •  96. J. Jumper, K. Tunyasuvunakool, P. Kohli, and D. Hassabis. Computational predictions of protein structures associated with covid-19. Website, May 2020. https://deepmind.com.
  •  97. V. Jurtz, S. Paul, M. Andreatta, P. Marcatili, B. Peters, and M. Nielsen. Netmhcpan-4.0: improved peptide-mhc class i interaction predictions integrating eluted ligand and peptide binding affinity data. The Journal of Immunology, 199(9):3360–3368, 2017.
  •  98. O. Kadioglu, M. Saeed, H. Johannes, and T. Efferth. Identification of novel compounds against three targets of sars cov-2 coronavirus by combined virtual screening and supervised machine learning. Bulletin of the World Health Organization, 2020.
  •  99. N. Kandel, S. Chungong, A. Omaar, and J. Xing. Health security capacities in the context of covid-19 outbreak: an analysis of international health regulations annual report data from 182 countries. The Lancet, 2020.
  •  100. M. Keeling, T. Hollingsworth, and J. Read. The efficacy of contact tracing for the containment of the 2019 novel coronavirus(covid-19). medRxiv, 2020.
  •  101. P. Keeling. Modeling infectious diseases in humans and animals. Anonymous Princeton: Princeton University Press, 366:362, 2008.
  •  102. D. Kermany, M. Goldbaum, and W. Cai. Identifying medical diagnoses and treatable diseases by image-based deep learning. Cell, 172(5):1122–1131, 2018.
  •  103. J. Kim, M. Kang, E. Park, and D. Chung. A simple and multiplex loop-mediated isothermal amplification assay for rapid detectionof sars-cov. BioChip Journal, 13(4):341–351, 2019.
  •  104. S. Kim, P. Thiessen, E. Bolton, and J. Chen. Pubchem substance and compound databases. Nucleic Acids Research, 44(D1):D1202–D1213, 2016.
  •  105. S. Kissler, C. Tedijanto, M. Lipsitch, and Y. Grad. Social distancing strategies for curbing the covid-19 epidemic. medRxiv, 2020.
  •  106. W. Kong, Y. Li, M. Peng, and D. Kong. Sars-cov-2 detection in patients with influenza-like illness. Nature Microbiology, pages 1–4, 2020.
  •  107. J. Koo, A. Cook, M. Park, Y. Sun, and H. Sun. Interventions to mitigate early spread of sars-cov-2 in singapore: a modelling study. The Lancet Infectious Diseases, 2020.
  •  108. A. Kozomara, M. Birgaoanu, and S. Griffiths. mirbase: from microrna sequences to function. Nucleic Acids Research, 47(D1):D155–D162, 2019.
  •  109. A. Krizhevsky, I. Sutskever, and G. Hinton. Imagenet classification with deep convolutional neural networks. In Advances in Neural Information Processing Systems, pages 1097–1105, 2012.
  •  110. S. Lai, I. Bogoch, and N. Ruktanonchai. Assessing spread risk of wuhan novel coronavirus within and beyond china, january-april 2020: a travel network-based modelling study. 2020.
  •  111. V. Lampos, S. Moura, E. Yom, and I. Cox. Tracking covid-19 using online search. arXiv preprint arXiv:2003.08086, 2020.
  •  112. Larxel. Covid-19 x-rays. Website, May 2020. https://www.kaggle.com/andrewmvd/convid19-X-rays.
  •  113. G. Li and E. De. Therapeutic options for the 2019 novel coronavirus (2019-ncov). 2020.
  •  114. L. Li, L. Qin, Z. Xu, and Y. Yin. Artificial intelligence distinguishes covid-19 from community acquired pneumonia on chest ct. Radiology, page 200905, 2020.
  •  115. L. Li, Q. Zhang, X. Wang, J. Zhang, and T. Wang. Characterizing the propagation of situational information in social media during covid-19 epidemic: a case study on weibo. IEEE Transactions on Computational Social Systems, 2020.
  •  116. S. Li, K. Song, B. Yang, Y. Gao, and X. Gao. Preliminary assessment of the covid-19 outbreak using 3-staged model e-ishr. Journal of Shanghai Jiaotong University (Science), 25:157–164, 2020.
  •  117. Y. Li, Z. Zhu, Y. Zhou, Y. Xia, and W. Shen. Volumetric medical image segmentation: a 3d deep coarse-to-fine framework and its adversarial examples. In Deep Learning and Convolutional Neural Networks for Medical Imaging and Clinical Informatics, pages 69–91. Springer, 2019.
  •  118. J. Liu, R. Cao, M. Xu, X. Wang, and H. Zhang. Hydroxychloroquine, a less toxic derivative of chloroquine, is effective in inhibiting sars-cov-2 infection in vitro. Cell Discovery, 6(1):1–4, 2020.
  •  119. P. Liu, P. Beeler, and R. Chakrabarty. Covid-19progression timeline and effectiveness of response-to-spread interventions across the united states. medRxiv, 2020.
  •  120. T. Liu, Y. Lin, X. Wen, R. N. Jorissen, and M. Gilson. Bindingdb: a web-accessible database of experimentally determined protein-ligand binding affinities. Nucleic Acids Research, 35(suppl_1):D198–D201, 2007.
  •  121. M. Loey, F. Smarandache, and N. Khalifa. Within the lack of covid-19 benchmark dataset: a novel gan with deep transfer learning for corona-virus detection in chest x-ray images. 2020.
  •  122. R. Lu, X. Wu, Z. Wan, Y. Li, and L. Zuo. Development of anovel reverse transcription loop-mediated isothermal amplification method for rapid detection ofsars-cov-2. Virologica Sinica, page 1, 2020.
  •  123. R. Lu, X. Zhao, J. Li, P. Niu, B. Yang, and H. Wu. Genomic characterisation and epidemiology of 2019 novel coronavirus: implications for virus origins and receptor binding. The Lancet, 395(10224):565–574, 2020.
  •  124. P. M. Chest x-ray images (pneumonia). Website, May 2020. https://www.kaggle.com/paultimothymooney/chest-xray-pneumonia/metadata.
  •  125. L. Maaten and G. Hinton. Visualizing data using t-sne. Journal of Machine Learning Research, 9(Nov):2579–2605, 2008.
  •  126. A. magazine. International air travel association(iata). Website, May 2020. https://www.iata.org/.
  •  127. H. Maghdid, A. Asaad, K. Ghafoor, A. Sadiq, and M. Khan. Diagnosing covid-19 pneumonia from x-ray and ct images using deep learning and transfer learning algorithms. arXiv preprint arXiv:2004.00038, 2020.
  •  128. H. Maghdid, K. Ghafoor, A. Sadiq, K. Curran, and K. Rabie. A novel ai-enabled framework to diagnose coronavirus covid 19 using smartphone embedded sensors: Design study. arXiv preprint arXiv:2003.07434, 2020.
  •  129. M. Marini, C. Brunner, N. Chokani, and R. Abhari. Enhancing response preparedness to influenza epidemics: agent-based study of 2050 influenza season in switzerland. Simulation Modelling Practice and Theory, page 102091, 2020.
  •  130. M. Marini, N. Chokani, and R. Abhari. Covid-19 epidemic in switzerland: growth prediction and containment strategy using artificial intelligence and big data. medRxiv, 2020.
  •  131. MediaCloud. Mediacloud. Website, May 2020. https://www.mediacloud.org/.
  •  132. Metabiota. How ai is battling the coronavirus outbreak. Website, May 2020. https://www.metabiota.com.
  •  133. H. Metsky, C. Freije, and T. Kosoko. Crispr-based surveillance for covid-19 using kosoko-thoroddsen, tinna-solveig f-comprehensive machine learning design. bioRxiv, 2020.
  •  134. H. Mi, A. Muruganujan, and P. Thomas. Panther in 2013: modeling the evolution of gene function, and other gene attributes, in the context of phylogenetic trees. Nucleic Acids Research, 41(D1):D377–D386, 2012.
  •  135. T. Mihara, Y. Nishimura, Y. Shimizu, H. Nishiyama, G. Yoshikawa, H. Uehara, P. Hingamp, S. Goto, and H. Ogata. Linking virus genomes with host taxonomy. Viruses, 8(3):66, 2016.
  •  136. M. Moskal, W. Beker, R. Roszak, and E. Gajewska. Suggestions for second-pass anti-covid-19 drugs based on the artificial intelligence measures of molecular similarity, shape and pharmacophore distribution. 2020.
  •  137. A. Narin, C. Kaya, and Z. Pamuk. Automatic detection of coronavirus disease (covid-19) using x-ray images and deep convolutional neural networks. arXiv preprint arXiv:2003.10849, 2020.
  •  138. R. S. of North America. Rsna pneumonia detection challenge. Website, May 2020. https://www.kaggle.com/c/rsna-pneumonia-detection-challenge.
  •  139. N. H. C. of the People’s Republic of China. Real-time covid-19 report. Website, May 2020. http://www.nhc.gov.cn/.
  •  140. B. S. of Thoracic Imaging. Covid-19 bsti imaging database. Website, May 2020. https://www.bsti.org.uk/training-and-education/COVID-19-bsti-imaging-database.
  •  141. S. Oh, W. Pedrycz, and B. Park. Polynomial neural networks architecture: analysis and design. Computers and Electrical Engineering, 29(6):703–725, 2003.
  •  142. E. Ong, H. Wang, M. Wong, and M. Seetharaman. Vaxign-ml: supervised machine learning reverse vaccinology model for improved prediction of bacterial protective antigens. Bioinformatics, 2020.
  •  143. E. Ong, M. Wong, A. Huffman, and Y. He. Covid-19 coronavirus vaccine design using reverse vaccinology and machine learning. BioRxiv, 2020.
  •  144. I. S. . ore. The coronavirus datasets in italy. Website, May 2020. https://lab24.ilsole24ore.com/coronavirus.
  •  145. J. Ortega, M. Serrano, F. Pujol, and H. Rangel. Role of changes in sars-cov-2 spike protein in the interaction with the human ace2 receptor: nn in silico analysis. EXCLI Journal, 19:410, 2020.
  •  146. X. Ou, Y. Liu, X. Lei, P. Li, D. Mi, L. Ren, and L. Guo. Characterization of spike glycoprotein of sars-cov-2 on virus entry and its immune cross-reactivity with sars-cov. Nature Communications, 11(1):1–12, 2020.
  •  147. X. Pan, X. Da, W. Zhou, and L. Wang. Identification of a potential mechanism of acute kidney injury during the covid-19 outbreak: a study based on single-cell transcriptome analysis. Intensive Care Medicine, page 1, 2020.
  •  148. T. paper. The paper news network. Website, May 2020. https://www.thepaper.cn.
  •  149. R. P. D. B. (PDB). Covid-19/sars-cov-2 resources. Website, May 2020. https://www.rcsb.org/.
  •  150. J. Phua, L. Weng, L. Ling, M. Egi, and C. Lim. Intensive care management of coronavirus disease 2019 (covid-19): challenges and recommendations. The Lancet Respiratory Medicine, 2020.
  •  151. B. Pierce, K. Wiehe, H. Hwang, and B. Kim. Zdock server: interactive docking prediction of protein-protein complexes and symmetric multimers. Bioinformatics, 30(12):1771–1773, 2014.
  •  152. M. Pourhomayoun and M. Shakibi. Predicting mortality risk in patients with covid-19 using artificial intelligence to help medical decision-making. medRxiv, 2020.
  •  153. M. Prachar, S. Justesen, D. Steen, S. Thorgrimsen, E. Jurgons, O. Winther, and F. Bagger. Covid-19 vaccine candidates: Prediction and validation of 174 sars-cov-2 epitopes. bioRxiv, 2020.
  •  154. K. Preuer, G. Klambauer, F. Rippmann, and S. Hochreiter. Interpretable deep learning in drug discovery. In Explainable AI, pages 331–345. Springer, 2019.
  •  155. N. Punn, S. Sonbhadra, and S. Agarwal. Covid-19 epidemic analysis using machine learning and deep learning algorithms. medRxiv, 2020.
  •  156. X. Qi, Z. Jiang, Q. Yu, C. Shao, and H. Zhang. Machine learning-based ct radiomics model for predicting hospital stay in patients with pneumonia associated with sars-cov-2 infection: a multicenter study. medRxiv, 2020.
  •  157. X. Qian, R. Ren, Y. Wang, Y. Guo, and J. Fang. Fighting against the common enemy of covid-19: a practice of building a community with a shared future for mankind. Infectious Diseases of Poverty, 9(1):1–6, 2020.
  •  158. R. Qiao, N. Tran, B. Shan, A. Ghodsi, and M. Li. Personalized workflow to identify optimal t-cell epitopes for peptide-based vaccines against covid-19. arXiv preprint arXiv:2003.10650, 2020.
  •  159. A. R.

    Detecting covid-19 in x-ray images with keras, tensorflow, and deep learning.

    Website, May 2020. https://www.pyimagesearch.com/category/medical.
  •  160. T. R. Novel corona virus 2019 dataset. Website, May 2020. https://www.kaggle.com/tawsifurrahman/covid19-radiography-database.
  •  161. Radiopaedia. Images of covid-19 cases. Mendeley Data, May 2020. https://radiopaedia.org.
  •  162. M. Rahman, M. Hoque, M. Islam, S. Akter, A. Rubayet, M. Siddique, O. Saha, M. Rahaman, M. Sultana, and M. Hossain. Epitope-based chimeric peptide vaccine design against s, m and e proteins of sars-cov-2 etiologic agent of global pandemic covid-19: an in silico approach. BioRxiv, 2020.
  •  163. S. Rahmatizadeh, S. Valizadeh, and A. Dabbagh. The role of artificial intelligence in management of critical covid-19 patients. Journal of Cellular and Molecular Anesthesia, 5(1):16–22, 2020.
  •  164. G. Randhawa, M. Soltysiak, H. El, and C. de Souza. Machine learning using intrinsic genomic signatures for rapid classification of novel pathogens: Covid-19 case study. bioRxiv, 2020.
  •  165. A. Rao and J. Vazquez. Identification of covid-19 can be quicker through artificial intelligence framework using a mobile phone-based survey in the populations when cities/towns are under quarantine. Infection Control and Hospital Epidemiology, pages 1–18, 2020.
  •  166. N. Rapin, O. Lund, M. Bernaschi, and F. Castiglione. Computational immunology meets bioinformatics: the use of prediction tools for molecular binding in the simulation of the immune system. PLoS One, 5(4), 2010.
  •  167. A. Rivas. Drones and artificial intelligence to enforce social isolation during covid-19 outbreak.

    Medium: Towards Data Science

    , 26, 2020.
  •  168. R. Rizk and A. Hassanien. Covid-19 forecasting based on an improved interior search algorithm and multi-layer feed forward neural network. arXiv preprint arXiv:2004.05960, 2020.
  •  169. R. Sameni. Mathematical modeling of epidemic diseases; a case study of the covid-19 coronavirus. arXiv preprint arXiv:2003.11371, 2020.
  •  170. M. Sandler, A. Howard, M. Zhu, A. Zhmoginov, and L. Chen. Mobilenetv2: inverted residuals and linear bottlenecks. In IEEE CVPR, pages 4510–4520, 2018.
  •  171. K. Santosh. Ai-driven tools for coronavirus outbreak: need of active learning and cross-population train/test models on multitudinal/multimodal data. Journal of Medical Systems, 44(5):1–5, 2020.
  •  172. B. Sarkar, M. Ullah, F. Johora, and M. Taniya. The essential facts of wuhan novel coronavirus outbreak in china and epitope-based vaccine designing against 2019-ncov. BioRxiv, 2020.
  •  173. J. Sarkar and P. Chakrabarti. A machine learning model reveals older age and delayed hospitalization as predictors of mortality in patients with covid-19. medRxiv, 2020.
  •  174. B. Schuller, D. Schuller, K. Qian, J. Liu, H. Zheng, and X. Li. Covid-19 and computer audition: An overview on what speech and sound analysis could contribute in the sars-cov-2 corona crisis. arXiv preprint arXiv:2003.11117, 2020.
  •  175. M. Segmentation. Covid-19 ct segmentation dataset. Website, May 2020. http://medicalsegmentation.com/covid19.
  •  176. A. Senior, R. Evans, J. Jumper, and J. Kirkpatrick. Improved protein structure prediction using potentials from deep learning. Nature, pages 1–5, 2020.
  •  177. A. Senior, R. Evans, J. Jumper, J. Kirkpatrick, and L. Sifre. Protein structure prediction using multiple deep neural networks casp13. Proteins: Structure, Function, and Bioinformatics, 87(12):1141–1148, 2019.
  •  178. P. Sethy and S. Behera.

    Detection of coronavirus disease (covid-19) based on deep features.

    Preprints, 2020030300:2020, 2020.
  •  179. F. Shan, Y. Gao, J. Wang, W. Shi, and N. Shi. Lung infection quantification of covid-19 in ct images with deep learning. arXiv preprint arXiv:2003.04655, 2020.
  •  180. F. Shi, L. Xia, F. Shan, and D. Wu. Large-scale screening of covid-19 from community acquired pneumonia using infection size-aware classification. arXiv preprint arXiv:2003.09860, 2020.
  •  181. W. Shi, X. Peng, T. Liu, and Z. Cheng. Deep learning-based quantitative computed tomography model in predicting the severity of covid-19: a retrospective study in 196 patients. SSRN, 2020.
  •  182. B. Shin, S. Park, K. Kang, and J. Ho. Self-attention based molecule representation for predicting drug-target interaction. arXiv preprint arXiv:1908.06760, 2019.
  •  183. K. Simonyan and A. Zisserman. Very deep convolutional networks for large-scale image recognition. arXiv preprint arXiv:1409.1556, 2014.
  •  184. SIRM. Covid-19 database. Website, May 2020. https://sirm.org/category/senza-categoria/COVID-19.
  •  185. M. Siwiak, P. Szczesny, and M. Siwiak.

    From a single host to global spread. the global mobility based modelling of the covid-19 pandemic implies higher infection and lower detection rates than current estimates.

    The Global Mobility Based Modelling, 2020.
  •  186. M. Skalic, J. Jiménez, D. Sabbadin, and G. De. Shape-based generative modeling for de novo drug design. Journal of Chemical Information and Modeling, 59(3):1205–1214, 2019.
  •  187. Y. Song, S. Zheng, L. Li, X. Zhang, and X. Zhang. Deep learning enables accurate diagnosis of novel coronavirus (covid-19) with ct images. medRxiv, 2020.
  •  188. M. Stepniewska, P. Zielenkiewicz, and P. Siedlecki. Development and evaluation of a deep learning model for protein-ligand binding affinity prediction. Bioinformatics, 34(21):3666–3674, 2018.
  •  189. C. Szegedy, S. Ioffe, V. Vanhoucke, and A. Alemi.

    Inception-v4, inception-resnet and the impact of residual connections on learning.

    In AAAI Conference on Artificial Intelligence, 2017.
  •  190. C. Szegedy, W. Liu, and P. Sermanet. Going deeper with convolutions. In IEEE CVPR, pages 1–9, 2015.
  •  191. C. Szegedy, V. Vanhoucke, S. Ioffe, J. Shlens, Z. Wojna, and Z. Wojna. Rethinking the inception architecture for computer vision. In IEEE CVPR, pages 2818–2826, 2016.
  •  192. B. Tang, F. He, D. Liu, M. Fang, Z. Wu, and D. Xu. Ai-aided design of novel targeted covalent inhibitors against sars-cov-2. bioRxiv, 2020.
  •  193. Z. Tang, W. Zhao, X. Xie, and Z. Zhong. Severity assessment of coronavirus disease 2019 (covid-19) using quantitative features from chest ct images. arXiv preprint arXiv:2003.11988, 2020.
  •  194. Z. Tanoli, Z. Alam, and V. Markus. Drug target commons 2.0: a community platform for systematic analysis of drug-target interaction profiles. Database, 2018, 2018.
  •  195. P. Teles. Predicting the evolution of sars-covid-2 in portugal using an adapted sir model previously used in south korea for the mers outbreak. arXiv preprint arXiv:2003.10047, 2020.
  •  196. I. Thevarajan, T. Nguyen, M. Koutsakos, J. Druce, L. Caly, C. Sandt, X. Jia, S. Nicholson, M. Catton, and B. Cowie. Breadth of concomitant immune responses prior to patient recovery: a case report of non-severe covid-19. Nature Medicine, 26(4):453–455, 2020.
  •  197. H. Tian, Y. Liu, Y. Li, and C. Wu. An investigation of transmission control measures during the first 50 days of the covid-19 epidemic in china. Science, 2020.
  •  198. K. To, O. Tsang, W. Leung, and A. Tam. Temporal profiles of viral load in posterior oropharyngeal saliva samples and serum antibody responses during infection by sars-cov-2: an observational cohort study. The Lancet Infectious Diseases, 2020.
  •  199. A. Toda. Susceptible-infected-recovered (sir) dynamics of covid-19 and economic impact. arXiv preprint arXiv:2003.11221, 2020.
  •  200. F. Touret and X. Lamballerie. Of chloroquine and covid-19. Antiviral research, page 104762, 2020.
  •  201. G. Trends. Coronavirus search trends. Website, May 2020. https://trends.google.com/trends/story/US_cu_4Rjdh3ABAABMHM_en.
  •  202. O. Trott and A. Olson. Autodock vina: improving the speed and accuracy of docking with a new scoring function, efficient optimization, and multithreading. Journal of Computational Chemistry, 31(2):455–461, 2010.
  •  203. R. Viner, S. Russell, H. Croker, J. Packer, J. Ward, C. Stansfield, O. Mytton, and C. Bonell. School closure and management practices during coronavirus outbreaks including covid-19: a rapid systematic review. The Lancet Child and Adolescent Health, 2020.
  •  204. R. Vita, L. Zarebski, J. Greenbaum, and H. Emami. The immune epitope database 2.0. Nucleic Acids Research, 38(suppl_1):D854–D862, 2010.
  •  205. I. Wallach, M. Dzamba, and A. Heifets. Atomnet: a deep convolutional neural network for bioactivity prediction in structure-based drug discovery. arXiv preprint arXiv:1510.02855, 2015.
  •  206. A. Walls, X. Xiong, and Y. Park. Unexpected receptor functional mimicry elucidates activation of coronavirus fusion. Cell, 176(5):1026–1039, 2019.
  •  207. A. C. Walls, Y. Park, M. Tortorici, and A. Wall. Structure, function, and antigenicity of the sars-cov-2 spike glycoprotein. Cell, 2020.
  •  208. H. Wang, Y. Zhang, S. Lu, and S. Wang.

    Tracking and forecasting milepost moments of the epidemic in the early-outbreak: framework and applications to the covid-19.

    medRxiv, 2020.
  •  209. L. Wang and A. Wong. Covid-net: A tailored deep convolutional neural network design for detection of covid-19 cases from chest radiography images. arXiv preprint arXiv:2003.09871, 2020.
  •  210. M. Wang, R. Cao, L. Zhang, and X. Yang. Remdesivir and chloroquine effectively inhibit the recently emerged novel coronavirus (2019-ncov) in vitro. Cell Research, 30(3):269–271, 2020.
  •  211. N. Wang, O. Rosen, and L. Wang. Structural definition of a neutralization-sensitive epitope on themers-cov s1-ntd. Cell Reports, 28(13):3395–3405, 2019.
  •  212. S. Wang, B. Kang, J. Ma, and X. Zeng. A deep learning algorithm using ct images to screen for corona virus disease (covid-19). medRxiv, 2020.
  •  213. X. Wang, Y. Peng, L. Lu, and R. Summers. Hospital-scale chest x-ray database and benchmarks on weakly-supervised classification and localization of common thorax diseases. In IEEE CVPR, 2017.
  •  214. Y. Wang, M. Hu, Q. Li, and X. Zhang. Abnormal respiratory patterns classifier may contribute to large-scale screening of people infected with covid-19 in an accurate and unobtrusive manner. arXiv preprint arXiv:2002.05534, 2020.
  •  215. D. Ward, M. Higgins, J. Phelan, M. Hibberd, S. Campino, and T. Clark. An integrated in silico immuno-genetic analytical platform provides insights into covid-19 serological and vaccine targets. bioRxiv, 2020.
  •  216. WHO. Novel coronavirus 2019 (covid-19). Website, May 2020. https://www.who.int/emergencies/diseases/novel-coronavirus-2019/situation-reports.
  •  217. R. Wölfel, V. Corman, W. Guggemos, and M. Seilmaier. Virological assessment of hospitalized patients with covid-2019. Nature, pages 1–10, 2020.
  •  218. Worldometer. Covid-19 coronavirus pandemic. Website, May 2020. https://www.worldometers.info/coronavirus.
  •  219. Worldpop. The statistics datasets on holidays and air travel. Website, May 2020. https://www.worldpop.org.
  •  220. F. Wu, S. Zhao, B. Yu, Y. Chen, and W. Wang. A new coronavirus associated with human respiratory disease in china. Nature, 579(7798):265–269, 2020.
  •  221. J. Wu, K. Leung, M. Bushman, N. Kishore, R. Niehus, and P. Salazar. Estimating clinical severity of covid-19 from the transmission dynamics in wuhan, china. Nature Medicine, pages 1–5, 2020.
  •  222. J. Wu, K. Leung, and G. Leung. Nowcasting and forecasting the potential domestic and international spread of the 2019-ncov outbreak originating in wuhan, china: a modelling study. The Lancet, 395(10225):689–697, 2020.
  •  223. J. Wu, P. Zhang, L. Zhang, W. Meng, and J. Li. Rapid and accurate identification of covid-19 infection through machine learning based on clinical available blood test results. medRxiv, 2020.
  •  224. S. Xia, M. Liu, C. Wang, W. Xu, and Q. Lan. Inhibition of sars-cov-2 (previously 2019-ncov) infection by a highly potent pan-coronavirus fusion inhibitor targeting its spike protein that harbors a high capacity to mediate membrane fusion. Cell Research, pages 1–13, 2020.
  •  225. B. Xu, B. Gutierrez, S. Mekaru, and K. Sewalk. Epidemiological data from the covid-19 outbreak, real-time case information. Scientific data, 7(1):1–6, 2020.
  •  226. X. Xu, X. Jiang, C. Ma, P. Du, X. Li, and S. Lv. Deep learning system to screen coronavirus disease 2019 pneumonia. arXiv preprint arXiv:2002.09334, 2020.
  •  227. Y. Xu, X. Li, B. Zhu, H. Liang, and C. Fang. Characteristics of pediatric sars-cov-2 infection and potential evidence for persistent fecal viral shedding. Nature Medicine, 26(4):502–505, 2020.
  •  228. L. Yan, H. Zhang, J. Goncalves, and Y. Xiao. A machine learning-based model for survival prediction in patients with severe covid-19 infection. medRxiv, 2020.
  •  229. L. Yan, H. Zhang, Y. Xiao, and M. Wang. Prediction of criticality in patients with severe covid-19 infection using three clinical features: a machine learning-based prognostic model with clinical data in wuhan. medRxiv, 2020.
  •  230. H. Yang, W. Xie, X. Xue, and K. Yang. Design of wide-spectrum inhibitors targeting coronavirus main proteases. PLoS Biology, 3(10), 2005.
  •  231. W. Yang, Q. Cao, L. Qin, X. Wang, and Z. Cheng. Clinical characteristics and imaging manifestations of the 2019 novel coronavirus disease (covid-19): a multi-center study in wenzhou city, zhejiang, china. Journal of Infection, 2020.
  •  232. X. Yang. Flower pollination algorithm for global optimization. In International Conference on Unconventional Computing and Natural Computation, pages 240–249. Springer, 2012.
  •  233. Z. Yang, Z. Zeng, and K. Wang. Modified seir and ai prediction of the epidemics trend of covid-19 under public health interventions. Journal of Thoracic Disease, 12(3):165, 2020.
  •  234. B. Zareie, A. Roshani, M. Mansournia, and M. Rasouli. A model for covid-19 prediction in iran based on china parameters. Archives of Iranian Medicine, 23(4):244–248, 2020.
  •  235. C. Zavaleta. Covid-19: review indigenous peoples’ data. Nature, 580(7802):185, 2020.
  •  236. P. Zhai, Y. Ding, X. Wu, and J. Long. The epidemiology, diagnosis and treatment of covid-19. International Journal of Antimicrobial Agents, page 105955, 2020.
  •  237. J. Zhang, Y. Xie, Y. Li, C. Shen, and Y. Xia. Covid-19 screening on chest x-ray images using deep learning based anomaly detection. arXiv preprint arXiv:2003.12338, pages 1–10, 2020.
  •  238. J. Zhang, H. Zeng, J. Gu, H. Li, L. Zheng, and Q. Zou. Progress and prospects on vaccine development against sars-cov-2. Vaccines, 8(2):153, 2020.
  •  239. J. Zhao, Y. Zhang, X. He, and P. Xie. Covid-ct-dataset: a ct scan dataset about covid-19. arXiv preprint arXiv:2003.13865, 2020. https://github.com/UCSD-AI4H/COVID-CT.
  •  240. A. Zhavoronkov, V. Aladinskiy, and A. Zhebrak. Potential covid-2019 3c-like protease inhibitors designed using generative deep learning approaches. Insilico Medicine, 307:E1, 2020.
  •  241. C. Zheng, X. Deng, Q. Fu, Q. Zhou, and J. Feng. Deep learning-based detection for covid-19 from chest ct using weak label. medRxiv, 2020.
  •  242. P. Zhou, X. Yang, X. Wang, and B. Hu. A pneumonia outbreak associated with a new coronavirus of probable bat origin. Nature, 579(7798):270–273, 2020.
  •  243. Y. Zhou, Y. Hou, J. Shen, and Y. Huang. Network-based drug repurposing for novel coronavirus 2019-ncov/sars-cov-2. Cell Discovery, 6(1):1–18, 2020.
  •  244. Z. Zhou, M. Siddiquee, N. Tajbakhsh, and J. Liang. Unet++: a nested u-net architecture for medical image segmentation. In Deep Learning in Medical Image Analysis and Multimodal Learning for Clinical Decision Support, pages 3–11. Springer, 2018.
  •  245. ZINC. Zinc database. Website, May 2020. https://zinc.docking.org.
