A Solution to Product detection in Densely Packed Scenes

07/23/2020 ∙ by Tianze Rong, et al. ∙ 0

This work is a solution to densely packed scenes dataset SKU-110k. Our work is modified from cascade R-CNN. To solve the problem, we proposed a random crop strategy to ensure both the sampling rate and input scale is relatively sufficient as a contrast to the regular random crop. And we adopted some of trick and optimized the hyper-parameters. To grasp the essential feature of the densely packed scenes, we analysis the stages of a detector and investigate the bottleneck which limits the performance. As a result, our method obtains 58.7 mAP on test set of SKU-110k.

READ FULL TEXT VIEW PDF
POST COMMENT

Comments

There are no comments yet.

Authors

page 2

This week in AI

Get the week's most popular data science and artificial intelligence research sent straight to your inbox every Saturday.

1 Introduction

Densely packed scene detection is a extension of the object detection, but with a larger number, denser arrangement. We adopted a modified random crop strategy and a optimized Cascade R-CNN to solve the problems. Finally, we achieved a mmAP as 58.7% on SKU-110k[1].

2 Method

2.1 Data Description and Analysis

Statistics of Image

After eliminating the invalid data, the size of the data set is shown below:

Image Number Annotation Number
Train Set 8219 1208482
Validation Set 588 90968
Test Set1 2936 431546
Total 11743 1730996
Table 1: Quantitative Statistics of SKU-110k

Dense object scene is mostly with a huge number of objects in a single image. The table below states the statistics of number of annotations in a single image:

Mean Max Min 99.5% percentile 0.5% percentile
Train Set 147 576 1 356 61
Validation Set 154 759 40 582 59
Table 2: Statistics of Number of Annotations in Single Image
Statistics of Annotations

Assume the input size is (1333,800), and the scale of a single bounding box represents as , where stand for the width and height of bounding box. Here, the figure 1, is the histogram and cumulative ratio curve of the scales of the data set.

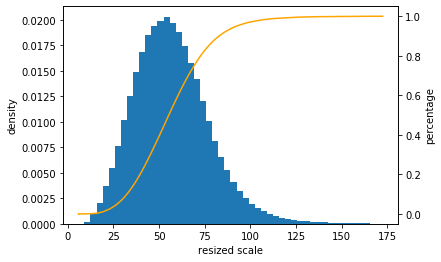

Figure 1: the Histogram and Cumulative Ratio Curve of the Scales

As we can see, a third of bounding box is small object by the definition of MS COCO data set[2] after rescaling, the scale of the object is smaller than 32 pixels.

2.2 Solution to Densely Packed Scene

2.2.1 Promotion via Data

Rescale

As the analysis before, it is apparent that small object problem is a vital factor should be solved to keep a better performance of model. The naivest solution to small objects is to enlarge the input size of images, which is able to make the small objects into larger ones. Regarding that SKU-110K data set possesses a high resolution level, a large input size would not take the side-effect significantly.

Random Crop

Theoretically, we should input the images as large as possible. However, practically, the GPU memory capacity usually limits the input size in most of the cases. We adopt random crop to combines these two urges. But something need to be paid more attention here:

  • When bounding boxes right on the cropping border, it would be clipped and remain the reserved region.

  • Random sampling is probable to make some of the objects never be sampled.

Random Seven Crop

We designed a strategy to relieve these two disadvantage. Clipping the bounding box may cause some fake box whose entity in box has been clipped out but background still remains. These fake box can lead to confusion to model in training. Hence we only remain a clipped box whose IoU to origin box higher than a threshold. Regular random crop sample the position of crop region from a uniform distribution. Random Seven Crop is designed to sample the region from only seven certain position: Four corners of image, center point and two end points of short axis.

Figure 2: The seven sample areas of Random Seven Crop

2.2.2 Adjustment of Detector

Sampler Hyper-parameters

Besides small object problem, another problem is about counts of the bounding boxes in a single image. As the statistics, a single images has a average as about 150 boxes, a number far more than MS COCO. But most of the default hyper-parameters are based on MS COCO data set which has a lower density of objects than SKU-110K. Hence we adjust the max positive sample number of both RPN and R-CNN sampler to release the limits.

Cascade R-CNN

The model can achieve a relatively high AR@50 after sorts of optimization, while mAP(0.5:0.95) declined rather rapidly from AP@50. Cascade R-CNN[3] can refine those bounding box whose location is not that accurate by cascading bounding box heads. In this case, more accurate localization not only makes tight bound, but suppresses duplicated boxes so that reduces false positive boxes.

2.3 Other Modification

Inference Hyper-parameters

Inference hyper-parameters is occasionally neglected by developers during improvement, in this case a.k.a NMS hyper-parameters optimizing. We adopt grid search eliminate by orthogonal design to search the optimal combination of the hyper-parameter.

Backbone and Neck

Empirically, larger networks with more parameters bring better performance. To make an overview on the architecture of two-staged detector with neck. Backbone is the one of the easiest module to be adjust. So we replace the ResNet to ResNeXt[4]. Neck is also available now to be replaced as easy as backbone. BiFPN[5] is a scalable neck structure with a variable number of parameters, meanwhile it can broadly improve the performance of the model.

3 Experiment

All experiment are conducted on MMDetection Platform with single GPU and run evaluation by library pycocotools on validation set. Since that, all mmAPs presented in this work are COCO-style and the IoU threshold of mmAP is [0.5:0.95:0.05]. Because of the differences between SKU-110K and MS COCO, we set the maxDet parameter of pycocotools on 400 instead of the default setting as 100.

3.1 Baseline

We built a baseline via Faster R-CNN[6] with FPN[7] and ResNet-50[8] as backbone, also all configures are inherited from the Faster R-CNN with FPN benchmark on MS COCO from MMDetection[9]. The result mmAP is 50.6%, which is shown in the first row of the result table.

3.2 Performance Improving of Inference

We designed a orthogonal experiment to optimize NMS parameters using . As for the result of orthogonal table, we analyzed with ANOR. And the optimal parameters combination is following:

  • Input and Output boxes number = 3000

  • Minimal confidence threshold = 0.05

  • IoU threshold of positive sample = 0.7

  • Max output boxes number = 400

3.3 Adjustment on Sampler of Detector

According to the statistics, we already knew that number of ground truth in single image impacts the model vitally. We aim on the samplers among the all modules in detector by ruling the others out one by one, since sampler is one of the strongest modules coupled with the quantitative characteristics of a data set. The default RPN sampler number is 256 on COCO and there is a fraction of 0.5 on positive sample, which is not enough for SKU-110K apparently. And we counted positive sample number in all image. The result is illustrated in figure 3. So we enlarge the sample number to 512. Furthermore, we set the R-CNN sampler number to 3072 in accordance with RPN, since we got the called for conclusion on R-CNN sampler.

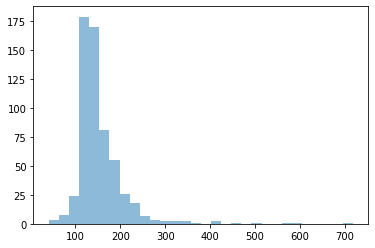

Figure 3: The histogram of positive sample number in a single image(x axis is positive sample number, y axis is count of this bin)

3.4 Random Crop and its Modification

The regular random crop has a problem that it can hardly sample the most of the ground truth sufficiently. We ran a Monte-Carlo simulation to estimate the coverage of random crop on 12 epoch and characterized the probability of the coverage of the IoU of sampled region on the whole image. When we prolong the training epochs to 18, the coverage got a ascendance. Although the prolonging of the epochs can avoid the insufficient sampling somewhat, the distribution of coverage still keeps a fairly wide peak.

We ran a same experiment with random seven crop. The following histogram is the result:

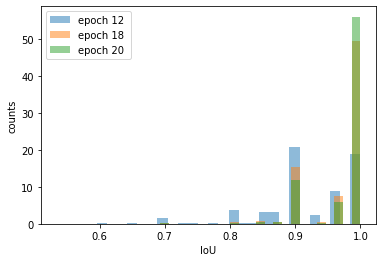

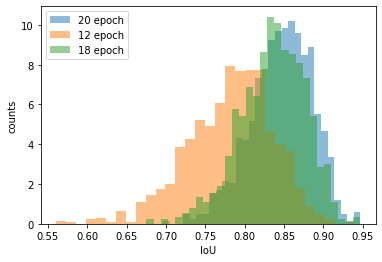

Figure 4: Histogram of Crop Coverage: RandomCrop(left), RandomSevenCrop(right)

Then we ran the random seven crop with the average input size and the crop size as big as our GPU memory can afford.

3.5 Cascade R-CNN

The model can perform a considerable recall by the former operations of us. Ideally, precision is more important to raise the mmAP. The score of detection mmAP is calculated based on IoU, so we analyzed iou of all positive samples and plot a histogram as figure 5.

Numbers and parameters of cascade head is determined by the experiment as table3.

Head Number IoU Threshold mmAP
1 0.5 55.3
2 [0.5, 0.6] 56.9
3 [0.5, 0.6, 0.7] 56.7
Table 3: Parameter and Results of Cascade R-CNN

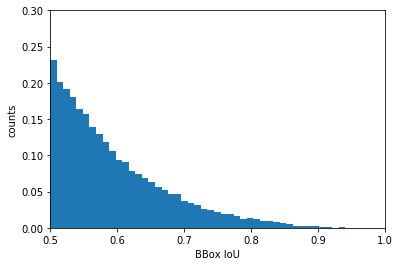

Figure 5: Positive Sample IoU of R-CNN

3.6 Results

Here is the list of adjustment used in the model with abbreviation:

  • ON: Optimal NMS - NMS with the parameters shown in 3.2

  • OS: Optimal Sampler - The random sampler of RPN and R-CNN with optimal parameters

  • OHEM - RPN sampler is the same with OS. R-CNN sampler is replaced by OHEM sampler[10] instead.

  • C: Cascade Head - The RCNN head cascaded with multi-head.

  • ResNeXt - ResNeXt with 32 groups and base width of 4.

  • BiFPN - BiFPN with 2 refine levels.

ON OS C Random Crop Crop Size Backbone Neck Input Size Epoch mmAP(%) mmAP(test)
ResNet-50 FPN (1333,800) 12 50.6
ResNet-50 FPN (1333,800) 12 52.8
ResNet-50 FPN (1333,800) 12 54.0
OHEM ResNet-50 FPN (1333,800) 12 52.1
Uniform (800,800) ResNet-50 FPN (1333,800) 12 53.0
ResNet-50 FPN (1800,1080) 12 55.3
Uniform (1200,1200) ResNet-50 FPN No Rescale 12 54.6
Uniform (1200,1200) ResNet-50 FPN (3000,1800) 12 55.3
Uniform (1200,1200) ResNet-50 FPN (3000,1800) 18 56.1
Seven (1200,1200) ResNet-50 FPN (3000,1800) 18 55.1
Seven (1200,1200) ResNet-50 FPN (3000,1800) 24 56.6
Uniform (1200,1200) ResNet-50 FPN (3000,1800) 18 56.9
Seven (1200,1200) ResNet-50 FPN (3000,1800) 24 57.4
Seven (1200,1200) ResNet-50 BiFPN (3000,1800) 24 57.7
Seven (1200,1200) ResNeXt-101 BiFPN (3000,1800) 24 58.0 58.7
Table 4: Results and Conditions of All Experiment
