A Simple Randomization Technique for Generalization in Deep Reinforcement Learning

10/11/2019 ∙ by Kimin Lee, et al. ∙ 23

Deep reinforcement learning (RL) agents often fail to generalize to unseen environments (yet semantically similar to trained agents), particularly when they are trained on high-dimensional state spaces, such as images. In this paper, we propose a simple technique to improve a generalization ability of deep RL agents by introducing a randomized (convolutional) neural network that randomly perturbs input observations. It enables trained agents to adapt to new domains by learning robust features invariant across varied and randomized environments. Furthermore, we consider an inference method based on the Monte Carlo approximation to reduce the variance induced by this randomization. We demonstrate the superiority of our method across 2D CoinRun, 3D DeepMind Lab exploration and 3D robotics control tasks: it significantly outperforms various regularization and data augmentation methods for the same purpose.

READ FULL TEXT VIEW PDF
POST COMMENT

Comments

There are no comments yet.

Authors

page 2

page 4

page 7

page 15

page 17

page 18

page 21

This week in AI

Get the week's most popular data science and artificial intelligence research sent straight to your inbox every Saturday.

1 Introduction

Deep reinforcement learning (RL) has been applied to various applications, including board games (e.g., Go (Silver et al., 2017) and Chess (Silver et al., 2018)), video games (e.g., Atari games (Mnih et al., 2015) and StarCraft (Vinyals et al., 2017)), and complex robotics control tasks (Tobin et al., 2017; Ren et al., 2019). However, it has been evidenced in recent years that deep RL agents often struggle to generalize to new environments, even when semantically similar to trained agents (Farebrother et al., 2018; Zhang et al., 2018b; Gamrian and Goldberg, 2019; Cobbe et al., 2019). For example, RL agents that learned a near-optimal policy for training levels in a video game fail to perform accurately in unseen levels (Cobbe et al., 2019), while a human can seamlessly generalize across similar tasks. Namely, RL agents often overfit to training environments, thus the lack of generalization ability makes them unreliable in several applications, such as health care (Chakraborty and Murphy, 2014) and finance (Deng et al., 2016).

The generalization of RL agents can be characterized by visual changes (Cobbe et al., 2019; Gamrian and Goldberg, 2019), different dynamics (Packer et al., 2018), and various structures (Beattie et al., 2016; Wang et al., 2016). In this paper, we focus on the generalization across tasks where the trained agents take various unseen visual patterns at the test time, e.g., different styles of backgrounds, floors, and other objects (see Figure 1). We also found that RL agents completely fail due to small visual changes111Demonstrations on the CoinRun and DeepMind Lab exploration tasks are available at [link-video]. because it is challenging to learn generalizable representations from high-dimensional input observations, such as images.

To improve generalization, several strategies, such as regularization (Farebrother et al., 2018; Zhang et al., 2018b; Cobbe et al., 2019) and data augmentation (Tobin et al., 2017; Ren et al., 2019), have been proposed in the literature (see Section 2 for further details). In particular, Tobin et al. (2017) showed that training RL agents in various environments generated by randomizing rendering in a simulator improves the generalization performance, leading to a better performance in real environments. This implies that RL agents can learn invariant and robust representations if diverse input observations are provided during training. However, their method is limited by requiring a physics simulator, which may not always be available. This motivates our approach of developing a simple and plausible method applicable to training deep RL agents.

(a) Outputs of random layer
(b) 2D CoinRun
(c) 3D DeepMind Lab
(d) 3D Surreal robotics
Figure 1: (a) Examples of randomized inputs (color values in each channel are normalized for visualization) generated by re-initializing the parameters of a random layer. Examples of seen and unseen environments on (b) CoinRun, (c) DeepMind Lab, and (d) Surreal robotics control.

The main contribution of this paper is to develop a simple randomization technique for improving the generalization ability across tasks with various unseen visual patterns. Our main idea is to utilize random (convolutional) networks to generate randomized inputs (see Figure 1(a)), and train RL agents (or their policy) by feeding them into the networks. Specifically, by re-initializing the parameters of random networks at every iteration, the agents are encouraged to be trained under a broad range of perturbed low-level features, e.g., various textures, colors, or shapes. We discover that the proposed idea guides RL agents to learn generalizable features that are more invariant in unseen environments (see Figure 3) than conventional regularization (Srivastava et al., 2014; Ioffe and Szegedy, 2015) and data augmentation (Cobbe et al., 2019; Cubuk et al., 2019) techniques. Here, we also provide an inference technique based on the Monte Carlo approximation, which stabilizes the performance by reducing the variance incurred from our randomization method at test time.

We demonstrate the effectiveness of the proposed method on the 2D CoinRun (Cobbe et al., 2019) game, the 3D DeepMind Lab exploration task (Beattie et al., 2016), and the 3D robotics control task (Fan et al., 2018). For evaluation, the performance of the trained agents is measured in unseen environments with various visual and geometrical patterns (e.g., different styles of backgrounds, objects, and floors), guaranteeing that the trained agents encounter unseen inputs at test time. Note that learning invariant and robust representations against such changes is essential to generalize to unseen environments. In our experiments, the proposed method significantly reduces the generalization gap in unseen environments unlike conventional regularization and data augmentation techniques. For example, compared to the agents learned with the cutout (DeVries and Taylor, 2017) data augmentation methods proposed by Cobbe et al. (2019), our method improves the success rates from 39.8% to 58.7% under 2D CoinRun, the total score from 55.4 to 358.2 for 3D DeepMind Lab, and the total score from 31.3 to 356.8 for the Surreal robotics control task.

Our results can be influential to study other generalization domains, such as tasks with different dynamics (Packer et al., 2018), as well as solving real-world problems, such as sim-to-real transfer (Tobin et al., 2017).

2 Related work

Generalization in deep RL. Recently, the generalization performance of RL agents has been investigated by splitting training and test environments using random seeds (Zhang et al., 2018a) and distinct sets of levels in video games (Machado et al., 2018; Cobbe et al., 2019). Regularization techniques is one of the major direction to improve the generalization ability of deep RL algorithms. Farebrother et al. (2018) and Cobbe et al. (2019) showed that regularization methods can improve the generalization performance of RL agents using various game modes of Atari (Machado et al., 2018) and procedurally generated arcade environments called CoinRun, respectively. On the other hand, data augmentation techniques have also been shown to improve generalization. Tobin et al. (2017) proposed a domain randomization method to generate simulated inputs by randomizing rendering in the simulator. Motivated by this, Cobbe et al. (2019) proposed a data augmentation method by modifying the cutout method (DeVries and Taylor, 2017). Our method can be combined with the prior methods to further improve the generalization performance.

Random networks for deep RL. Random networks have been utilized in several approaches for different purposes in deep RL. Burda et al. (2019) utilized a randomly initialized neural network to define an intrinsic reward for visiting unexplored states in challenging exploration problems. By learning to predict the reward from the random network, the agent can recognize unexplored states. Osband et al. (2018)

studied a method to improve ensemble-based approaches by adding a randomized network to each ensemble member to improve the uncertainty estimation and efficient exploration in deep RL. Our method is different because we introduce the random network to improve the generalization ability of RL agents.

Transfer learning

. Generalization is also closely related to transfer learning

(Parisotto et al., 2016; Rusu et al., 2016a, b)

, which is used to improve the performance on a target task by transferring the knowledge from a source task. However, unlike supervised learning, it has been observed that fine-tuning a model pre-trained on the source task for adapting to the target task is not benefical in deep RL. Therefore,

Gamrian and Goldberg (2019) proposed a domain transfer method using generative adversarial networks (Goodfellow et al., 2014) and Farebrother et al. (2018) utilized regularization techniques to improve the performance of fine-tuning methods. Higgins et al. (2017) proposed a multi-stage RL, which learns to extract disentangled representations from the input observation and then trains the agents on the representations. Alternatively, we focus on the zero-shot performance of each agent at test time without further fine-tuning of the agent’s parameters.

3 Network randomization technique for generalization

We consider a standard reinforcement learning (RL) framework where an agent interacts with an environment in discrete time. Formally, at each timestep , the agent receives a state from the environment222Throughout this paper, we focus on high-dimensional state spaces, e.g., images. and chooses an action based on its policy . The environment returns a reward and the agent transitions to the next state . The return is the total accumulated rewards from timestep with a discount factor . RL then maximizes the expected return from each state .

3.1 Training agents using randomized input observations

We introduce a random network with its parameters

initialized with a prior distribution, e.g., Xavier normal distribution

(Glorot and Bengio, 2010). Instead of the original input , we train an agent using a randomized input . For example, in the case of policy-based methods,333Our method is applicable to the value-based methods as well. the parameters of the policy network are optimized by minimizing the following policy gradient objective function:

(1)

where is a set of past transitions with cumulative rewards. By re-initializing the parameters of the random network per iteration, the agents are trained using varied and randomized input observations (see Figure 1(a)). Namely, environments are generated with various visual patterns, but with the same semantics by randomizing the networks. Our RL agents are expected to adapt to new environments by learning invariant representation (see Figure 3 for supporting experiments).

To learn more invariant features, the following feature matching (FM) loss between hidden features from clean and randomized observations is also considered:

(2)

where denotes the output of the penultimate layer of policy . The hidden features from clean and randomized inputs are combined to learn more invariant features against the changes in the input observations. Namely, the total loss is:

(3)

where is a hyper-parameter. The full procedure is summarized in Algorithm 1 in Appendix B.

Details of the random networks. We propose to utilize a single-layer convolutional neural network (CNN) as a random network, where its output has the same dimension with the input (see Appendix F for additional experimental results on the various types of random networks). To re-initialize the parameters of the random network, we utilize the following mixture of distributions: where is an identity kernel, is a positive constant, denotes the normal distribution, and

are the number of input and output channels, respectively. Here, clean inputs are used with the probability

because training only randomized inputs complicates training. The Xavier normal distribution (Glorot and Bengio, 2010) is used for randomization because it maintains the variance of the input and the randomized input . We empirically observe that this distribution stabilizes training.

Removing visual bias. To confirm the desired effects of our method, we conduct an image classification experiment on the dogs and cats database from Kaggle.444https://www.kaggle.com/c/dogs-vs-cats Following the same setup as Kim et al. (2019), we construct datasets with an undesirable bias as follows: the training set consists of bright dogs and dark cats while the test set consists of dark dogs and bright cats (see Appendix J

for further details). A classifier is expected to make a decision based on the undesirable bias, (e.g., brightness and color) since CNNs are biased towards texture or color, rather than shape

(Geirhos et al., 2019). Table 1 shows that ResNet-18 (He et al., 2016) does not generalize effectively due to overfitting to an undesirable bias in the training data. To address this issue, several image processing methods (Cubuk et al., 2019), such as grayout (GR), cutout (CO; DeVries and Taylor 2017), inversion (IV), and color jitter (CJ), can be applied (see Appendix E for further details). However, they are not effective in improving the generalization ability, compared to our method. This confirms that our approach changes the visual appearance of attributes and entities in images while effectively keeping the desired and meaningful information. Prior sophisticated methods (Ganin et al., 2016; Kim et al., 2019) require additional information to eliminate such an undesired bias, while our method does not.555

Using the known bias information (i.e., {dark, bright}) and ImageNet pre-trained model,

Kim et al. (2019) achieve 90.3%, while our method achieves 84.4% without using both inputs.
Although we mainly focus on RL applications, our idea can also be explorable in this direction.

3.2 Inference methods for small variance

Since the parameter of random networks is drawn from a prior distribution , our policy is modeled by a stochastic neural network: . Based on this interpretation, our training procedure (i.e., randomizing the parameters) consists of training stochastic models using the Monte Carlo (MC) approximation (with one sample per iteration). Therefore, at the inference or test time, an action is taken by approximating the expectations as follows: , where and is the number of MC samples. In other words, we generate random inputs for each observation and then aggregate their decisions. The results show that this estimator improves the performance of the trained agents by approximating the posterior distribution more accurately (see Figure 3(d)).

Method Classification Accuracy (%) Train (seen) Test (unseen) ResNet-18 95.0 2.4 40.3 1.2 ResNet-18 + GR 96.4 1.8 70.9 1.7 ResNet-18 + CO 95.9 2.3 41.2 1.7 ResNet-18 + IV 91.0 2.0 47.1 15.1 ResNet-18 + CJ 95.2 0.6 43.5 0.3 ResNet-18 + ours 95.9 1.6 84.4 4.5
Table 1:

The classification accuracy (%) on dogs vs. cats dataset. The results show the mean and standard deviation averaged over three runs and the best result is indicated in bold.

Figure 2: Samples of dogs vs. cats dataset. The training set consists of bright dogs and dark cats, whereas the test set consists of dark dogs and bright cats.

4 Experiments

In this section, we demonstrate the effectiveness of the proposed method on 2D CoinRun (Cobbe et al., 2019), 3D DeepMind Lab exploration (Beattie et al., 2016), and 3D robotics control task (Fan et al., 2018). To evaluate the generalization ability, we measure the performance of trained agents in unseen environments which consist of different styles of backgrounds, objects, and floors. Due to the space limitation, we provide more detailed experimental setups and results in the Appendix.

4.1 Baselines and implementation details

For CoinRun and DeepMind Lab experiments, similar to Cobbe et al. (2019), we take the CNN architecture used in IMPALA (Espeholt et al., 2018) as the policy network, and the Proximal Policy Optimization (PPO) (Schulman et al., 2017) method to train the agents.666We used a reference implementation in https://github.com/openai/coinrun. At each timestep, agents are given an observation frame of size as input (resized from the raw observation of size as in the DeepMind Lab), and the trajectories are collected with the 256-step rollout for training. For Surreal robotics experiments, similar to Fan et al. (2018)

, the hybrid of CNN and long short-term memory (LSTM) architecture is taken as the policy network, and a distributed version of PPO (i.e., actors collect a massive amount of trajectories, and the centralized learner updates the model parameters using PPO) is used to train the agents.

777We used a reference implementation with two actors in https://github.com/SurrealAI/surreal. We measure the performance in the unseen environment for every 10M timesteps and report the mean and standard deviation across three runs.

Our proposed method, which augments PPO with random networks and feature matching (FM) loss (denoted PPO + ours), is compared with several regularization and data augmentation methods. As regularization methods, we compare dropout (DO; Srivastava et al. 2014

), L2 regularization (L2), and batch normalization (BN;

Ioffe and Szegedy 2015

). For those methods, we use the hyperparameters suggested in

Cobbe et al. (2019), which are empirically shown to be effective: a dropout probability of 0.1 and a coefficient of for L2 regularization. We also consider various data augmentation methods: a variant of cutout (CO; DeVries and Taylor 2017) proposed in Cobbe et al. (2019), grayout (GR), inversion (IV), and color jitter (CJ) by adjusting brightness, contrast, and saturation (see Appendix E for more details). For our method, we use for the weight of the FM loss, for the probability of skipping the random network, for MC approximation, and a single-layer CNN with the kernel size of 3 as a random network.

4.2 Experiments on CoinRun

Task description. In this task, an agent is located at the leftmost side of the map and the goal is to collect the coin located at the rightmost side of the map within 1,000 timesteps. The agent observes its surrounding environment in the third-person point of view, where the agent is always located at the center of the observation. CoinRun contains an arbitrarily large number of levels which are generated deterministically from a given seed. In each level, the style of background, floor, and obstacles is randomly selected from the available themes (34 backgrounds, 6 grounds, 5 agents, and 9 moving obstacles). Some obstacles and pitfalls are distributed between the agent and the coin, where a collision with them results in the agent’s immediate death. For evaluation, we measure the success rates, which correspond to the number of collected coins divided by the number of played levels.

PPO
PPO
+ DO
PPO
+ L2
PPO
+ BN
PPO
+ CO
PPO
+ IV
PPO
+ GR
PPO
+ CJ
PPO + ours
Rand Rand + FM
Success
Rate
Seen
100
0.0
100
0.0
98.3
2.9
93.3
11.5
100
0.0
95.0
8.6
100
0.0
100
0.0
95.0
7.1
100
0.0
Unseen
34.6
4.5
25.3
12.0
34.1
5.4
31.5
13.1
41.9
5.5
37.5
0.8
26.9
13.1
43.1
1.4
76.7
1.3
78.1
3.5
Cycle-
Consistency
2-way
18.9
10.9
13.3
2.2
24.4
1.1
25.5
6.6
27.8
10.6
17.8
15.6
17.7
1.1
32.2
3.1
64.7
4.4
67.8
6.2
3-way
4.4
2.2
4.4
2.2
8.9
3.8
7.4
1.2
9.6
5.6
5.6
4.7
2.2
3.8
15.6
3.1
39.3
8.5
43.3
4.7
Table 2: Success rate (%) and cycle-consistency (%) after 100M timesteps in small-scale CoinRun. The results show the mean and standard deviation averaged over three runs and the best results are indicated in bold.
(a) Trajectories
(b) PPO
(c) PPO + ours
(d) Effects of MC samples
Figure 3:

(a) We collect multiple episodes from various environments by human demonstrators and visualize the hidden representation of trained agents optimized by (b) PPO and (c) PPO + ours constructed by t-SNE, where the colors of points indicate the environments of the corresponding observations. (d) Average success rates for varying number of MC samples.

Ablation study on small-scale environments. First, we train agents on one level for 100M timesteps and measure the performance in unseen environments by only changing the style of the background, as shown in Figure 3(a). Note that these visual changes are not significant to the game’s dynamics, but the agent should achieve a high success rate if it can generalize accurately. However, Table 2 shows that all baseline agents fail to generalize to unseen environments, while they achieve a near-optimal performance in the seen environment. This shows that regularization techniques have no significant impact on improving the generalization ability. Even though data augmentation techniques, such as cutout (CO) and color jitter (CJ), slightly improve the performance, our proposed method is most effective because it can produce a diverse novelty in attributes and entities. Training with randomized inputs can degrade the training performance, but the high expressive power of DNNs prevents from it. The performance in unseen environments can be further improved by optimizing the FM loss. To verify the effectiveness of MC approximation at test time, we measure the performance in unseen environments by varying the number of MC samples. Figure 3(d) shows the mean and standard deviation across 50 evaluations. The performance and its variance can be improved by increasing the number of MC samples, but the improvement is saturated around ten samples. Thus, we use ten samples for the following experiments.

Embedding analysis. We analyze whether the hidden representation of trained RL agents exhibits meaningful abstraction in the unseen environments. The features on the penultimate layer of trained agents are visualized and reduced to two dimensions using t-SNE (Maaten and Hinton, 2008). Figure 3 shows the projection of trajectories taken by human demonstrators in seen and unseen environments (see Figure 8 in Appendix C for further results). Here, trajectories from both seen and unseen environments are aligned on the hidden space of our agents, while the baselines yield scattered and disjointed trajectories. This implies that our method makes RL agents capable of learning the invariant and robust representation.

To evaluate the quality of hidden representation quantitatively, the cycle-consistency proposed in Aytar et al. (2018) is also measured. Given two trajectories and , first locates its nearest neighbor in the other trajectory , where denotes the output of the penultimate layer of trained agents. Then, the nearest neighbor of in is located, i.e., , and is defined as cycle-consistent if , i.e., it can return to the original point. Note that this cycle-consistency implies that two trajectories are accurately aligned in the hidden space. Similar to Aytar et al. (2018), we also evaluate the three-way cycle-consistency by measuring whether remains cycle-consistent along both paths, and , where is the third trajectory. Using the trajectories shown in Figure 3(a), Table 2 reports the percentage of input observations in the seen environment (blue curve) that are cycle-consistent with unseen trajectories (red and green curves). Similar to the results shown in Figure 3(c), our method significantly improves the cycle-consistency compared to the vanilla PPO agent.

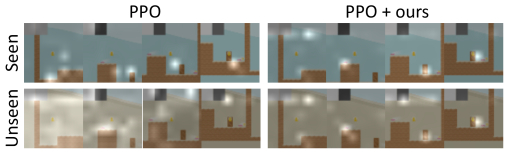

Figure 4: Visualization of activation maps via Grad-CAM in seen and unseen environments in the small-scale CoinRun. Images are aligned with similar states from various episodes for comparison.

Visual interpretation. To verify whether the trained agents can focus on meaningful and high-level information, the activation maps are visualized using Grad-CAM (Selvaraju et al., 2017) by averaging activations channel-wise in the last convolutional layer, weighted by their gradients. As shown in Figure 4, both vanilla PPO and our agents make a decision by focusing on essential objects, such as obstacles and coins in the seen environment. However, in the unseen environment, the vanilla PPO agent displays a widely distributed activation map in some cases, while our agent does not, implying that our agent is more robust to the environment change. As a quantitative metric, we measure the entropy of normalized activation maps. Specifically, we first normalize activations

, such that it represents a 2D discrete probability distribution at timestep

, i.e., . Then, we measure the entropy averaged over the timesteps as follows: . Note that the entropy of the activation map quantitatively measures the frequency an agent focuses on salient components in its observation. Results show that our agent produces a low entropy on both seen and unseen environments (i.e., 2.28 and 2.44 for seen and unseen, respectively), whereas the vanilla PPO agent produces a low entropy only in the seen environment (2.77 and 3.54 for seen and unseen, respectively).

Results on large-scale experiments. Similar to Cobbe et al. (2019), the generalization ability by training agents is evaluated on a fixed set of 500 levels of CoinRun. To explicitly separate seen and unseen environments, half of the available themes are utilized (i.e., style of backgrounds, floors, agents, and moving obstacles) for training, and the performances on 1,000 different levels consisting of unseen themes are measured. As shown in Figure 5(a), our method outperforms all baseline methods by a large margin. In particular, the success rates are improved from 39.8% to 58.7% compared to the PPO with cutout (CO) augmentation proposed in Cobbe et al. (2019), showing that our agent learns generalizable representations given a limited number of seen environments, unlike the baseline agents.

(a) Large-scale CoinRun
(b) DeepMind Lab
(c) Surreal robotics
Figure 5: The performances of trained agents in unseen environments under (a) large-scale CoinRun, (b) DeepMind Lab and (c) Surreal robotics control. The solid/dashed lines and shaded regions represent the mean and standard deviation, respectively.

4.3 Experiments on DeepMind Lab and Surreal robotics control

Results on DeepMind Lab. We also demonstrate the effectiveness of our proposed method on DeepMind Lab (Beattie et al., 2016), which is a 3D game environment in the first-person point of view with rich visual inputs. The task is designed based on the standard exploration task, where a goal object is placed in one of the rooms in a 3D maze. In this task, agents aim to collect as many goal objects as possible within 90 seconds to maximize their rewards. Once the agent collects the goal object, it receives ten points and is relocated to a random place. Similar to the small-scale CoinRun experiment, agents are trained to collect the goal object in a fixed map layout and tested in unseen environments with only changing the style of the walls and floors. We report the mean and standard deviation of the average scores across ten different map layouts, which are randomly selected. Additional details are provided in Appendix I.

Note that a simple strategy of exploring the map actively and recognizing the goal object achieves high scores because the maze size is small in this experiment. Even though the baseline agents achieve high scores by learning this simple strategy in the seen environment (see Figure 6(c) in Appendix A for learning curves), Figure 5(b) shows that they fail to adapt to the unseen environments. However, the agent trained by our proposed method achieves high scores in both seen and unseen environments. These results show that our method can learn generalizable representations from high-dimensional and complex input observations (i.e., 3D environment).

Results on Surreal robotics control. We evaluate our method in the Block Lifting task using the Surreal distributed RL framework (Fan et al., 2018): the Sawyer robot receives a reward if it succeeds to lift a block randomly placed on a table. We train agents on a single environment and test on five unseen environments with various styles of tables and blocks (see Appendix K for further details). Figure 5(c) shows that our method achieves a significant performance gain compared to all baselines in unseen environments while maintaining its performance in the seen environment (see Figure 14 in Appendix K), implying that our method can maintain essential properties, such as structural spatial features of the input observation.

PPO PPO + ours
# of Seen
Environments
Total
Rewards
# of Seen
Environments
Total
Rewards
# of Seen
Environments
Total
Rewards
DeepMind Lab 1 55.4 33.2 16 218.3 99.2 1 358.2 81.5
Surreal Robotics 1 59.2 31.9 25 168.8 155.8 1 356.8 15.4
Table 3: Comparison with domain randomization. The results show the mean and standard deviation averaged over three runs and the best results are indicated in bold.

Comparison with domain randomization. To further verify the effectiveness of our method, the vanilla PPO agents are trained by increasing the number of seen environments generated by randomizing rendering in a simulator, while our agent is still trained in a single environment (see Appendicies I and K for further details). Table 3 shows that the performance of baseline agents can be improved with domain randomization (Tobin et al., 2017). However, our method still outperforms the baseline methods trained with more diverse environments than ours, implying that our method is more effective in learning generalizable representations than simply increasing the (finite) number of seen environments.

5 Conclusion

In this paper, we explore generalization in RL where the agent is required to generalize to new environments in unseen visual patterns, but semantically similar. To improve the generalization ability, we propose to randomize the first layer of CNN to perturb low-level features, e.g., various textures, colors, or shapes. Our method encourages agents to learn invariant and robust representations by producing diverse visual input observations. Such invariant features could be useful for several other related topics, like an adversarial defense in RL (see Appendix D for further discussions), sim-to-real transfer (Tobin et al., 2017; Ren et al., 2019), transfer learning (Parisotto et al., 2016; Rusu et al., 2016a, b), and online adaptation (Nagabandi et al., 2019). Future work can consider an extension to the generalization on domains with various dynamics and structures.

Acknowledgements

This work was supported in part by Kwanjeong Educational Foundation Scholarship and Sloan Research Fellowship. We also thank Sungsoo Ahn, Jongwook Choi, Wilka Carvalho, Yijie Guo, Yunseok Jang, Lajanugen Logeswaran, Sejun Park, Sungryull Sohn, Ruben Villegas, and Xinchen Yan for helpful discussions.

References

  • Y. Aytar, T. Pfaff, D. Budden, T. Paine, Z. Wang, and N. de Freitas (2018) Playing hard exploration games by watching youtube. In NeurIPS, Cited by: §4.2.
  • C. Beattie, J. Z. Leibo, D. Teplyashin, T. Ward, M. Wainwright, H. Küttler, A. Lefrancq, S. Green, V. Valdés, A. Sadik, et al. (2016) Deepmind lab. arXiv preprint arXiv:1612.03801. Cited by: §1, §1, §4.3, §4.
  • Y. Burda, H. Edwards, A. Storkey, and O. Klimov (2019) Exploration by random network distillation. In ICLR, Cited by: §2.
  • B. Chakraborty and S. A. Murphy (2014) Dynamic treatment regimes. Annual review of statistics and its application 1, pp. 447–464. Cited by: §1.
  • K. Cobbe, O. Klimov, C. Hesse, T. Kim, and J. Schulman (2019) Quantifying generalization in reinforcement learning. In ICML, Cited by: Appendix E, Appendix E, §1, §1, §1, §1, §1, §2, §4.1, §4.1, §4.2, §4.
  • E. D. Cubuk, B. Zoph, D. Mane, V. Vasudevan, and Q. V. Le (2019) Autoaugment: learning augmentation policies from data. In CVPR, Cited by: Appendix E, §1, §3.1.
  • Y. Deng, F. Bao, Y. Kong, Z. Ren, and Q. Dai (2016) Deep direct reinforcement learning for financial signal representation and trading. IEEE transactions on neural networks and learning systems 28 (3), pp. 653–664. Cited by: §1.
  • T. DeVries and G. W. Taylor (2017) Improved regularization of convolutional neural networks with cutout. arXiv preprint arXiv:1708.04552. Cited by: Appendix E, §1, §2, §3.1, §4.1.
  • L. Espeholt, H. Soyer, R. Munos, K. Simonyan, V. Mnih, T. Ward, Y. Doron, V. Firoiu, T. Harley, I. Dunning, et al. (2018) Impala: scalable distributed deep-rl with importance weighted actor-learner architectures. In ICML, Cited by: Appendix I, §4.1.
  • L. Fan, Y. Zhu, J. Zhu, Z. Liu, O. Zeng, A. Gupta, J. Creus-Costa, S. Savarese, and L. Fei-Fei (2018)

    Surreal: open-source reinforcement learning framework and robot manipulation benchmark

    .
    In CoRL, Cited by: Appendix K, §1, §4.1, §4.3, §4.
  • J. Farebrother, M. C. Machado, and M. Bowling (2018) Generalization and regularization in dqn. arXiv preprint arXiv:1810.00123. Cited by: §1, §1, §2, §2.
  • S. Gamrian and Y. Goldberg (2019)

    Transfer learning for related reinforcement learning tasks via image-to-image translation

    .
    In ICML, Cited by: §1, §1, §2.
  • Y. Ganin, E. Ustinova, H. Ajakan, P. Germain, H. Larochelle, F. Laviolette, M. Marchand, and V. Lempitsky (2016) Domain-adversarial training of neural networks.

    The Journal of Machine Learning Research

    17 (1), pp. 2096–2030.
    Cited by: §3.1.
  • R. Geirhos, P. Rubisch, C. Michaelis, M. Bethge, F. A. Wichmann, and W. Brendel (2019) ImageNet-trained cnns are biased towards texture; increasing shape bias improves accuracy and robustness. In ICLR, Cited by: §3.1.
  • X. Glorot and Y. Bengio (2010) Understanding the difficulty of training deep feedforward neural networks. In AISTATS, Cited by: §3.1, §3.1.
  • I. J. Goodfellow, J. Shlens, and C. Szegedy (2015) Explaining and harnessing adversarial examples. In ICLR, Cited by: Appendix D.
  • I. Goodfellow, J. Pouget-Abadie, M. Mirza, B. Xu, D. Warde-Farley, S. Ozair, A. Courville, and Y. Bengio (2014) Generative adversarial nets. In NeurIPS, Cited by: §2.
  • K. He, X. Zhang, S. Ren, and J. Sun (2016) Deep residual learning for image recognition. In CVPR, Cited by: Appendix J, §3.1.
  • I. Higgins, A. Pal, A. Rusu, L. Matthey, C. Burgess, A. Pritzel, M. Botvinick, C. Blundell, and A. Lerchner (2017) Darla: improving zero-shot transfer in reinforcement learning. In ICML, Cited by: §2.
  • S. Huang, N. Papernot, I. Goodfellow, Y. Duan, and P. Abbeel (2017) Adversarial attacks on neural network policies. arXiv preprint arXiv:1702.02284. Cited by: Appendix D.
  • S. Ioffe and C. Szegedy (2015) Batch normalization: accelerating deep network training by reducing internal covariate shift. In ICML, Cited by: §1, §4.1.
  • B. Kim, H. Kim, K. Kim, S. Kim, and J. Kim (2019) Learning not to learn: training deep neural networks with biased data. In CVPR, Cited by: Appendix J, §3.1, footnote 5.
  • D. P. Kingma and J. Ba (2015) Adam: a method for stochastic optimization. In ICLR, Cited by: Appendix E.
  • Y. Lin, Z. Hong, Y. Liao, M. Shih, M. Liu, and M. Sun (2017) Tactics of adversarial attack on deep reinforcement learning agents. In IJCAI, Cited by: Appendix D.
  • L. v. d. Maaten and G. Hinton (2008) Visualizing data using t-sne. Journal of Machine Learning Research 9 (Nov), pp. 2579–2605. Cited by: §4.2.
  • M. C. Machado, M. G. Bellemare, E. Talvitie, J. Veness, M. Hausknecht, and M. Bowling (2018) Revisiting the arcade learning environment: evaluation protocols and open problems for general agents.

    Journal of Artificial Intelligence Research

    61, pp. 523–562.
    Cited by: §2.
  • V. Mnih, K. Kavukcuoglu, D. Silver, A. A. Rusu, J. Veness, M. G. Bellemare, A. Graves, M. Riedmiller, A. K. Fidjeland, G. Ostrovski, et al. (2015) Human-level control through deep reinforcement learning. Nature 518 (7540), pp. 529. Cited by: §1.
  • A. Nagabandi, C. Finn, and S. Levine (2019) Deep online learning via meta-learning: continual adaptation for model-based rl. In ICLR, Cited by: §5.
  • I. Osband, J. Aslanides, and A. Cassirer (2018) Randomized prior functions for deep reinforcement learning. In NeurIPS, Cited by: §2.
  • C. Packer, K. Gao, J. Kos, P. Krähenbühl, V. Koltun, and D. Song (2018) Assessing generalization in deep reinforcement learning. arXiv preprint arXiv:1810.12282. Cited by: §1, §1.
  • E. Parisotto, J. L. Ba, and R. Salakhutdinov (2016) Actor-mimic: deep multitask and transfer reinforcement learning. In ICLR, Cited by: §2, §5.
  • X. Ren, J. Luo, E. Solowjow, J. A. Ojea, A. Gupta, A. Tamar, and P. Abbeel (2019)

    Domain randomization for active pose estimation

    .
    In ICRA, Cited by: §1, §1, §5.
  • O. Russakovsky, J. Deng, H. Su, J. Krause, S. Satheesh, S. Ma, Z. Huang, A. Karpathy, A. Khosla, M. Bernstein, et al. (2015) Imagenet large scale visual recognition challenge.

    International journal of computer vision

    115 (3), pp. 211–252.
    Cited by: Appendix J.
  • A. A. Rusu, S. G. Colmenarejo, C. Gulcehre, G. Desjardins, J. Kirkpatrick, R. Pascanu, V. Mnih, K. Kavukcuoglu, and R. Hadsell (2016a) Policy distillation. In ICLR, Cited by: §2, §5.
  • A. A. Rusu, N. C. Rabinowitz, G. Desjardins, H. Soyer, J. Kirkpatrick, K. Kavukcuoglu, R. Pascanu, and R. Hadsell (2016b) Progressive neural networks. arXiv preprint arXiv:1606.04671. Cited by: §2, §5.
  • J. Schulman, P. Moritz, S. Levine, M. Jordan, and P. Abbeel (2016) High-dimensional continuous control using generalized advantage estimation. In ICLR, Cited by: Appendix E.
  • J. Schulman, F. Wolski, P. Dhariwal, A. Radford, and O. Klimov (2017) Proximal policy optimization algorithms. arXiv preprint arXiv:1707.06347. Cited by: §4.1.
  • R. R. Selvaraju, M. Cogswell, A. Das, R. Vedantam, D. Parikh, and D. Batra (2017) Grad-cam: visual explanations from deep networks via gradient-based localization. In ICCV, Cited by: §4.2.
  • D. Silver, T. Hubert, J. Schrittwieser, I. Antonoglou, M. Lai, A. Guez, M. Lanctot, L. Sifre, D. Kumaran, T. Graepel, et al. (2018) A general reinforcement learning algorithm that masters chess, shogi, and go through self-play. Science 362 (6419), pp. 1140–1144. Cited by: §1.
  • D. Silver, J. Schrittwieser, K. Simonyan, I. Antonoglou, A. Huang, A. Guez, T. Hubert, L. Baker, M. Lai, A. Bolton, et al. (2017) Mastering the game of go without human knowledge. Nature 550 (7676), pp. 354. Cited by: §1.
  • N. Srivastava, G. Hinton, A. Krizhevsky, I. Sutskever, and R. Salakhutdinov (2014) Dropout: a simple way to prevent neural networks from overfitting. The Journal of Machine Learning Research 15 (1), pp. 1929–1958. Cited by: §1, §4.1.
  • C. Szegedy, W. Zaremba, I. Sutskever, J. Bruna, D. Erhan, I. Goodfellow, and R. Fergus (2014) Intriguing properties of neural networks. In ICLR, Cited by: Appendix D.
  • J. Tobin, R. Fong, A. Ray, J. Schneider, W. Zaremba, and P. Abbeel (2017) Domain randomization for transferring deep neural networks from simulation to the real world. In IROS, Cited by: §1, §1, §1, §2, §4.3, §5.
  • O. Vinyals, T. Ewalds, S. Bartunov, P. Georgiev, A. S. Vezhnevets, M. Yeo, A. Makhzani, H. Küttler, J. Agapiou, J. Schrittwieser, et al. (2017) Starcraft ii: a new challenge for reinforcement learning. arXiv preprint arXiv:1708.04782. Cited by: §1.
  • J. X. Wang, Z. Kurth-Nelson, D. Tirumala, H. Soyer, J. Z. Leibo, R. Munos, C. Blundell, D. Kumaran, and M. Botvinick (2016) Learning to reinforcement learn. arXiv preprint arXiv:1611.05763. Cited by: §1.
  • R. J. Williams and J. Peng (1991) Function optimization using connectionist reinforcement learning algorithms. Connection Science 3 (3), pp. 241–268. Cited by: Appendix E.
  • A. Zhang, N. Ballas, and J. Pineau (2018a) A dissection of overfitting and generalization in continuous reinforcement learning. arXiv preprint arXiv:1806.07937. Cited by: §2.
  • C. Zhang, O. Vinyals, R. Munos, and S. Bengio (2018b) A study on overfitting in deep reinforcement learning. arXiv preprint arXiv:1804.06893. Cited by: §1, §1.

Appendix A Learning curves

(a) Small-scale CoinRun
(b) Large-scale CoinRun
(c) DeepMind Lab
Figure 6: Learning curves on (a) small-scale, (b) large-scale CoinRun and (c) DeepMind Lab. The solid line and shaded regions represent the mean and standard deviation, respectively, across three runs.
(a) Comparison with regularization techniques
(b) Comparison with data augmentation techniques
Figure 7: The performance in unseen environments in small-scale CoinRun. The solid/dashed line and shaded regions represent the mean and standard deviation, respectively, across three runs.

Appendix B Training algorithm

for iteration do
     Sample the parameter of random networks from prior distribution
     for actor do
         Run policy in the given environment for timesteps
         Compute advantage estimates
     end for
     Optimize in equation (3) with respect to
end for
Algorithm 1 PPO + random networks, Actor-Critic Style

Appendix C Visualization of hidden features

(a) PPO
(b) PPO + L2
(c) PPO + BN
(d) PPO + DO
(e) PPO + CO
(f) PPO + CJ
(g) PPO + IV
(h) PPO + GR
(i) PPO + ours
Figure 8: Visualization of the hidden representation of trained agents optimized by (a) PPO, (b) PPO + L2, (c) PPO + BN, (d) PPO + DO, (e) PPO + CO, (f) PPO + GR, (g) PPO + IV, (h) PPO + CJ, and (I) PPO + ours using t-SNE. The point colors indicate the environments of the corresponding observations.

Appendix D Robustness against adversarial attacks

The adversarial (visually imperceptible) perturbation (Szegedy et al., 2014) to clean input observations can induce the DNN-based policies to generate an incorrect decision at test time (Huang et al., 2017; Lin et al., 2017). This undesirable property of DNNs has raised major security concerns. In this section, we evaluate if the proposed method can improve the robustness on adversarial attacks. Our method is expected to improve the robustness against such adversarial attacks because the agents are trained with randomly perturbed inputs. To verify that the proposed method can improve the robustness to adversarial attacks, the adversarial samples are generated using FGSM (Goodfellow et al., 2015) by perturbing inputs to the opposite direction to the most probable action initially predicted by the policy:

where is the magnitude of noise and is the action from the policy. Table 4 shows that our proposed method can improve the robustness against FGSM attacks with , which implies that hidden representations of trained agents are more robust.

Small-Scale CoinRun Large-Scale CoinRun DeepMind Lab
Clean FGSM Clean FGSM Clean FGSM
PPO 100
61.5
(-38.5)
96.2
77.4
(-19.5)
352.5
163.5
(-53.6)
PPO + ours
100
88.0
(-12.0)
99.6
84.4
(-15.3)
368.0
184.0
(-50.0)
Table 4: Robustness against FGSM attacks on training environments. The values in parentheses represent the relative reductions from the clean samples.

Appendix E Details for training agents using PPO

Policy optimization. For all baselines and our methods, PPO is utilized to train the policies. Specifically, we use a discount factor , a generalized advantage estimator (GAE) Schulman et al. (2016) parameter , and an entropy bonus (Williams and Peng, 1991)

of 0.01 to ensure sufficient exploration. We extract 256 timesteps per rollout, and then train the agent for 3 epochs with 8 mini-batches. The Adam optimizer

(Kingma and Ba, 2015) is used with the starting learning rate 0.0005. We run 32 environments simultaneously during training. As suggested in Cobbe et al. (2019), two boxes are painted in the upper-left corner, where their color represents the - and -axis velocity to help the agents quickly learn to act optimally. In this way, the agent does not need to memorize previous states, so a simple CNN-based policy without LSTM can effectively perform in our experimental settings.

Data augmentation methods. In this paper, we compare a variant of cutout (DeVries and Taylor, 2017) proposed in Cobbe et al. (2019), grayout, inversion, and color jitter (Cubuk et al., 2019). Specifically, the cutout augmentation applies a random number of boxes in random size and color to the input, the grayout method averages all three channels of the input, the inversion method inverts pixel values by a 50% chance, and the color jitter changes the characteristics of images commonly used for data augmentation in computer vision tasks: brightness, contrast, and saturation. For every timestep in the cutout augmentation, we first randomly choose the number of boxes from zero to five, assign them a random color and size, and place them in the observation. For the color jitter, the parameters for brightness, contrast, and saturation are randomly chosen in [0.5,1.5].888For additional details, see https://pytorch.org/docs/stable/_modules/torchvision/transforms/transforms.html#ColorJitter. For each episode, the parameters of these methods are randomized and fixed such that the same image pre-processing is applied within an episode.

Appendix F Different types of random networks

In this section, we apply random networks to various locations in the network architecture (see Figure 10

) and measure the performance in large-scale CoinRun without the feature matching loss. For all methods, a single-layer CNN is used with a kernel size of 3, and its output tensor is padded in order to be in the same dimension as the input tensor. As shown in Figure

9

, the performance of unseen environments decreases as the random network is placed in higher layers. On the other hand, the random network in residual connections improves the generalization performance, but it does not outperform the case when a random network is placed at the beginning of the network, meaning that randomizing only the local features of inputs can be effective for a better generalization performance.

(a) Performance in seen environments
(b) Performance in unseen environments
Figure 9: The performance of random networks in various locations in the network architecture on (a) seen and (b) unseen environments in large-scale CoinRun. We show the mean performances averaged over three different runs, and shaded regions represent the standard deviation.
(a) Block 1
(b) Block 2
(c) Block 3
(d) Residual
(e) First
Figure 10: Network architectures with random networks in various locations. Only convolutional layers and the last fully connected layer are displayed for conciseness.
(a) Seen environment
(b) Unseen environment
(c) Unseen environment
Figure 11: Examples of seen and unseen environments in small-scale CoinRun.

Appendix G Environments in small-scale CoinRun

For small-scale CoinRun environments, we consider a fixed map layout with two moving obstacles and measure the performance of the trained agents by changing the style of the backgrounds (see Figure 11). Below is the list of seen and unseen backgrounds in this experiment:

  • Seen background:

    • kenney/Backgrounds/blue_desert.png

  • Unseen backgrounds:

    • kenney/Backgrounds/colored_desert.png

    • kenney/Backgrounds/colored_grass.png

    • backgrounds/game-backgrounds/seabed.png

    • backgrounds/game-backgrounds/G049_OT000_002A__background.png

    • backgrounds/game-backgrounds/Background.png

    • backgrounds/game-backgrounds/Background (4).png

    • backgrounds/game-backgrounds/BG_only.png

    • backgrounds/game-backgrounds/bg1.png

    • backgrounds/game-backgrounds/G154_OT000_002A__background.png

    • backgrounds/game-backgrounds/Background (5).png

    • backgrounds/game-backgrounds/Background (2).png

    • backgrounds/game-backgrounds/Background (3).png

    • backgrounds/background-from-glitch-assets/background.png

    • backgrounds/spacebackgrounds-0/deep_space_01.png

    • backgrounds/spacebackgrounds-0/spacegen_01.png

    • backgrounds/spacebackgrounds-0/milky_way_01.png

    • backgrounds/spacebackgrounds-0/deep_sky_01.png

    • backgrounds/spacebackgrounds-0/space_nebula_01.png

    • backgrounds/space-backgrounds-3/Background-1.png

    • backgrounds/space-backgrounds-3/Background-2.png

    • backgrounds/space-backgrounds-3/Background-3.png

    • backgrounds/space-backgrounds-3/Background-4.png

    • backgrounds/background-2/airadventurelevel1.png

    • backgrounds/background-2/airadventurelevel2.png

    • backgrounds/background-2/airadventurelevel3.png

    • backgrounds/background-2/airadventurelevel4.png

Appendix H Environments in large-scale CoinRun

In CoinRun, there are 34 themes for backgrounds, 6 for grounds, 5 for agents, and 9 for obstacles. For the large-scale CoinRun experiment, we train agents on a fixed set of 500 levels of CoinRun using half of the available themes and measure the performances on 1,000 different levels consisting of unseen themes. Specifically, the following is a list of seen and unseen themes used in this experiment:

(a) Seen environment
(b) Seen environment
(c) Unseen environment
(d) Unseen environment
Figure 12: Examples of seen and unseen environments in large-scale CoinRun.
  • Seen backgrounds:

    • kenney/Backgrounds/blue_desert.png

    • kenney/Backgrounds/blue_grass.png

    • kenney/Backgrounds/blue_land.png

    • kenney/Backgrounds/blue_shroom.png

    • kenney/Backgrounds/colored_desert.png

    • kenney/Backgrounds/colored_grass.png

    • kenney/Backgrounds/colored_land.png

    • backgrounds/game-backgrounds/seabed.png

    • backgrounds/game-backgrounds/G049_OT000_002A__background.png

    • backgrounds/game-backgrounds/Background.png

    • backgrounds/game-backgrounds/Background (4).png

    • backgrounds/game-backgrounds/BG_only.png

    • backgrounds/game-backgrounds/bg1.png

    • backgrounds/game-backgrounds/G154_OT000_002A__background.png

    • backgrounds/game-backgrounds/Background (5).png

    • backgrounds/game-backgrounds/Background (2).png

    • backgrounds/game-backgrounds/Background (3).png

  • Unseen backgrounds:

    • backgrounds/background-from-glitch-assets/background.png

    • backgrounds/spacebackgrounds-0/deep_space_01.png

    • backgrounds/spacebackgrounds-0/spacegen_01.png

    • backgrounds/spacebackgrounds-0/milky_way_01.png

    • backgrounds/spacebackgrounds-0/ez_space_lite_01.png

    • backgrounds/spacebackgrounds-0/meyespace_v1_01.png

    • backgrounds/spacebackgrounds-0/eye_nebula_01.png

    • backgrounds/spacebackgrounds-0/deep_sky_01.png

    • backgrounds/spacebackgrounds-0/space_nebula_01.png

    • backgrounds/space-backgrounds-3/Background-1.png

    • backgrounds/space-backgrounds-3/Background-2.png

    • backgrounds/space-backgrounds-3/Background-3.png

    • backgrounds/space-backgrounds-3/Background-4.png

    • backgrounds/background-2/airadventurelevel1.png

    • backgrounds/background-2/airadventurelevel2.png

    • backgrounds/background-2/airadventurelevel3.png

    • backgrounds/background-2/airadventurelevel4.png

  • Seen grounds:

    • Dirt

    • Grass

    • Planet

  • Unseen grounds:

    • Sand

    • Snow

    • Stone

  • Seen player themes:

    • Beige

    • Blue

  • Unseen player themes:

    • Green

    • Pink

    • Yellow

Figure 13: The top-down view of the trained map layouts.

Appendix I Environments on DeepMind Lab

Dataset. Among the styles (textures and colors) provided for the 3D maze in the DeepMind Lab, we take ten different styles of floors and walls, respectively (see the list below). We construct a training dataset by randomly choosing a map layout and assigning a theme among ten floors and walls, respectively. The domain randomization method compared in Table 3 uses four floors and four wall themes (16 combinations in total). Trained themes are randomly chosen before training and their combinations are considered to be seen environments. To evaluate the generalization ability, we measure the performance of trained agents on unseen environments by changing the styles of walls and floors. Domain randomization has more seen themes than the other methods, so all methods are compared with six floors and six walls (36 combinations in total), which are unseen for all methods. The mean and standard deviation of the average scores across ten different map layouts are reported in Figure 13.

  • Floor themes:

    • lg_style_01_floor_orange

    • lg_style_01_floor_blue

    • lg_style_02_floor_blue

    • lg_style_02_floor_green

    • lg_style_03_floor_green

    • lg_style_03_floor_blue

    • lg_style_04_floor_blue

    • lg_style_04_floor_orange

    • lg_style_05_floor_blue

    • lg_style_05_floor_orange

  • Wall themes:

    • lg_style_01_wall_green

    • lg_style_01_wall_red

    • lg_style_02_wall_yellow

    • lg_style_02_wall_blue

    • lg_style_03_wall_orange

    • lg_style_03_wall_gray

    • lg_style_04_wall_green

    • lg_style_04_wall_red

    • lg_style_05_wall_red

    • lg_style_05_wall_yellow

Action space. Similar to IMPALA (Espeholt et al., 2018), the agent can take eight actions from the DeepMind Lab native action samples: {Forward, Backward, Move Left, Move Right, Look Left, Look Right, Forward + Look Left, and Forward + Look Right}. Table 5 describes the detailed mapping.

Action DeepMind Lab Native Action
Forward [  0, 0,  0,  1, 0, 0, 0]
Backward [  0, 0,  0, -1, 0, 0, 0]
Move Left [  0, 0, -1,  0, 0, 0, 0]
Move Right [  0, 0,  1,  0, 0, 0, 0]
Look Left [-20, 0,  0,  0, 0, 0, 0]
Look Right [ 20, 0,  0,  0, 0, 0, 0]
Forward + Look Left [-20, 0,  0,  1, 0, 0, 0]
Forward + Look Right [ 20, 0,  0,  1, 0, 0, 0]
Table 5: Action set used in the DeepMind Lab experiment. The DeepMind Lab native action set consists of seven discrete actions encoded in integers ([L,U] indicates the lower/upper bound of the possible values): 1) yaw (left/right) rotation by pixel [-512,512], 2) pitch (up/down) rotation by pixel [-512,512], 3) horizontal move [-1,1], 4) vertical move [-1,1], 5) fire [0,1], 6) jump [0,1], and 7) crouch [0,1].

Appendix J Experiments on dogs and cats database

Dataset. The original database is a set of 25,000 images of dogs and cats for training and 12,500 images for testing. Similar to Kim et al. (2019), the data is manually categorized according to the color of the animal: bright or dark. Biased datasets are constructed such that the training set consists of bright dogs and dark cats, while the test and validation sets contain dark dogs and bright cats. Specifically, training, validation, and test sets consist of 10,047, 1,000, and 5,738 images, respectively.999The code is available at: https://github.com/feidfoe/learning-not-to-learn/tree/master/dataset/dogs_and_cats. ResNet-18 (He et al., 2016)

is trained with an initial learning rate chosen from {0.05, 0.1} and then dropped by 0.1 at 50 epochs with a total of 100 epochs. We use the Nesterov momentum of 0.9 for SGD, a mini-batch size chosen from {32, 64}, and the weight decay set to 0.0001. We report the training and test set accuracies with the hyperparameters chosen by validation. Unlike

Kim et al. (2019), we do not use ResNet-18 pre-trained with ImageNet (Russakovsky et al., 2015) in order to avoid inductive bias from the pre-trained dataset.

Appendix K Experimental results on Surreal robot manipulation

Our method is evaluated in the Block Lifting task using the Surreal distributed RL framework (Fan et al., 2018). In this task, the Sawyer robot receives a reward if it successfully lifts a block randomly placed on a table. Following the experimental setups in (Fan et al., 2018), the hybrid CNN-LSTM architecture (see Figure 14(a)) is chosen as the policy network and a distributed version of PPO (i.e., actors collect massive amount of trajectories and the centralized learner updates the model parameters using PPO) is used to train the agents.101010We used a reference implementation with two actors in: https://github.com/SurrealAI/surreal. Agents take

observation frames with proprioceptive features (e.g., robot joint positions and velocities) and output the mean and log of the standard deviation for each action dimension. The actions are then sampled from the Gaussian distribution parameterized by the output. Agents are trained on a single environment and tested on five unseen environments with various styles of table, floor, and block, as shown in Figure

15. For the Surreal robot manipulation experiment, the vanilla PPO agent is trained on 25 environments generated by changing the styles of tables and boxes. Specifically, we use blue, gray, orange, white, purple and red, blue, green, yellow, cyan for table and box, respectively.

(a) Network architecture
(b) Regularization
(c) Data augmentation
Figure 14: (a) An illustration of network architectures for the Surreal robotics control experiment, and learning curves with (b) regularization and (c) data augmentation techniques. The solid line and shaded regions represent the mean and standard deviation, respectively, across three runs.
(a) Seen environment
(b) Unseen environment
(c) Unseen environment
(d) Unseen environment
(e) Unseen environment
(f) Unseen environment
Figure 15: Examples of seen and unseen environments in the Surreal robot manipulation.
