A simple analysis of flying capacitor converter

by   S. Kadyrov, et al.
Suleyman Demirel University

The paper aims to emphasise how switched systems can be analysed with elementary techniques which require only undergraduate-level linear algebra and differential equations. It is also emphasised how math software can become useful for simplifying analytic complications. The time domain voltage balance methodology is used for stability analysis. As for deriving formulas for the asymptotic average of both capacitor voltage and inductor current, a new simple analytic method is introduced. It was shown analytically that the time average of capacitor voltage converges to half of the source voltage. A formula for the time average of the current of the inductor is also computed. As a by-product it was discovered that the period of the current is half of the switching period. Numerical simulations are obtained to illustrate the accuracy of the results. Higher dimensional generalisations could become a bit complicated as stability analysis of higher dimensional exponential matrices are not so easy to handle. On the other hand, the new discovery on the period of the current is more likely to give new insights in handling higher dimensional systems. Analytical formulas are exact and it helps in accurately modelling flying capacitor converts in practice. FCC is well studied in engineering society. However, not much is done in obtaining exact formulas using analysis. Also, math software is much used in computation of numerical results and obtaining simulations. In this paper, one more important aspect of math software is emphasised, namely, use symbolic computations in analysis.



page 1

page 2

page 3

page 4


XSAT of Exact Linear CNF Classes

It is shown that l-regularity implies k-uniformity in exact linear CNF f...

Construction and application of provable positive and exact cubature formulas

Many applications require multi-dimensional numerical integration, often...

Stability Problems in Symbolic Integration

This paper aims to initialize a dynamical aspect of symbolic integration...

A faster hafnian formula for complex matrices and its benchmarking on the Titan supercomputer

We introduce new and simple algorithms for the calculation of the number...

Andrade rheology in time-domain. Application to Enceladus' dissipation of energy due to forced libration

The main purpose of this work is to present a time-domain implementation...

Exponential Integral Solutions for Fixation Time in Wright-Fisher Model With Selection

In this work we derive new analytic expressions for fixation time in Wri...

Analytical Modelling of Exoplanet Transit Specroscopy with Dimensional Analysis and Symbolic Regression

The physical characteristics and atmospheric chemical composition of new...
This week in AI

Get the week's most popular data science and artificial intelligence research sent straight to your inbox every Saturday.

1 Introduction

Many natural phenomena can be described either with continuous-time models or discrete-time models. There are cases when one type of modeling is not accurate and instead an interplay between continuous and discrete time dynamics is essential. Such models are called switched systems and the current paper deals with one such system, the flying capacitor converter (FCC). The FCC topology has advantages, such as having a natural balancing property and being able to operate at higher voltages, cf. [7]. It can be used both as an AC modulation and DC-DC power converter. The load current high order harmonics imply the fast balancing of the capacitors [4]. In this paper, a simple three-level single-leg flying capacitor converter is considered and its voltage balance dynamics are studied, see Fig. 1. The converter consists of one voltage source , four switches, and a capacitor . Moreover, the load is modeled by an inductor connected in series with a resistor . There are various techniques developed to analyze switch mode power supplies, see e.g. [6, 2, 3, 8]. Following [6]

, the authors are using the time domain voltage balance methodology for stability analysis. However, for analytically deriving the formulas for the asymptotic average of both capacitor voltage and inductor current, a very simple method is introduced. The main goal in this note is to emphasize how switched systems can be analyzed with elementary techniques which require only undergraduate-level basic linear algebra and ordinary differential equations. It is also emphasized how math software can become useful for simplifying analytic complications. Moreover, the Maple™ software scripts used for algebraic operations and numerical simulations are provided for students’ convenience. The methods introduced in this paper show practical applications of basic undergraduate courses. The interesting problems suggested in the conclusion can be presented as an undergraduate capstone project and the results can be published in scientific journals.

Figure 1: Flying capacitor DC/DC converter.
(a) ,
(b) ,
Figure 2: FC converter switching states

2 Model equation


be the column vector whose unknown components are the inductor current

and the capacitor voltage at the time , and superscript is the transpose. Given positive parameters , and the authors consider the following non-homogeneous ODE system with periodic piecewise linear coefficients:

on (1)
on (2)


and  . Here, denotes the time derivative of . The ODE system (1)-(2) describes the switching states of the FC converter, see Fig. 2.
The first result is on existence of the periodic solution and its stability.

Theorem 2.1

The system has a globally asymptotically stable periodic solution. It satisfies




Recall that global asymptotic stability means that the continuous solution for any given initial values converges to the periodic solution over time. In particular, the periodic solution is unique.

Proof. For any initial values , it is easy to verify that the unique continuous solution satisfies


So, it is sufficient to show that for any initial values there exists a solution which satisfies as , where is defined as in (4). Let

Iterating (5) yields

If one can show that the matrix

has all eigenvalues of modulus less than

, then as . To this end, let be the characteristic polynomial of . Then, in view of [1, Fact 11.18.2] it is necessary and sufficient to prove that and . To this end, set for notational convenience

Then, and by Maple symbolic computing

where , (see the Maple script in Algorithm 1.)


A1:=Matrix([[-a, -b], [c, 0]]);
A2:=Matrix([[-a, b], [-c, 0]]);

P:=CharacteristicPolynomial(M, lambda);
alpha:=simplify(coeff(P, lambda, 1));
beta:=simplify(coeff(P, lambda, 0));
Algorithm 1 Maple script to support the proof of Theorem 2.1.

Clearly, and . The following two cases will be considered:
Case 1:  is real. Then and . Then, is equivalent to

which simplifies to This is obvious since the function is increasing on and .
Case 2:  is imaginary. Then, if and only of

As is imaginary, , which results in First, note that

is the same as This is obvious as the left hand side is negative (), while the right hand side is positive. Finally, it is left to show

that is, Notice that Hence, it is sufficient to prove that , that is, which is well-known and left to the reader.
Let denote the average of . Notice that and exist because of the global stability due to Theorem 2.1. The following theorem shows how Theorem 2.1 can be used to find the capacitor voltage and inductor current averages.

Theorem 2.2

Let be a solution of (1)-(2). Then, it holds true that




The first average in Theorem 2.2 relies on the fact that the period of is . Notice that this is rather surprising as all of the coefficients of the ODE system have period and Floquet theory, see e.g. [5], only guarantees the existence of periodic solutions with period . The question whether the similar situation appears in the switched systems with more than one capacitor is left for the future work.

Proposition 2.3

For the initial condition as in (4), it holds that


Proof. First, notice that implies . In order to show , compare to . By Theorem 2.1, . Thus, it follows from (4) that

At this point, the authors find it more convenient to work with Maple symbolic solver. Indeed, the first component of the above vector becomes which means . The authors find the solution provided by the symbolic solver satisfactory; see the Maple script in Algorithm 2.


a:=-R/L; b:=-1/L; c:=1/C;

A1:=Matrix([[a, b], [c, 0]]);
A2:=Matrix([[a, -b], [-c, 0]]);
b1:=Matrix([[VDC/L], [0]]);

xT2:=expm((1/2)*T*A1).x + MatrixInverse(A1)

IAV:=unapply(2*C*(VDC-2*x(2))/T, T);

Algorithm 2 Maple script to support the proof of Proposition 2.3.

Now, Theorem 2.2 can be proved assuming Proposition 2.3.

Proof of Therem 2.2. Since the system is asymptotically globally stable and converges to the unique periodic solution, the average of for any initial condition converges to the average of the periodic solution, that is,

where is given from (4). Integrating the first row of (1) from 0 to and using Proposition 2.3 results in


Integrating the first row of (2) from to and using Proposition 2.3 yields

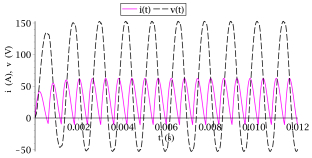

Figure 3: Current and voltage for , , , , . Averages: , .

Multiplying the first and the second rows of (1)-(2) by and , respectively, and integrating from to , results in




T:=1200*10^(-6);  R:=1;  L:=0.25*10^(-3);
C:=100*10^(-6);  VDC:=100;

b:=t->piecewise(t<(1/2)*T, -1/L, 1/L);
c:=t->piecewise(t<(1/2)*T, 1/C, -1/C);
b1:=t->piecewise(t<(1/2)*T, VDC/L, 0);

T1:=0; T2:=20*T;
p:=dsolve({ic1,ic2,ode1,ode2}, numeric, method=rkf45,
          abserr=10^(-9), maxfun = 500000, range=T1..T2);

plot(t->f1(t), t->f2(t)], 0..T2);
plot(t->f1(t), (T2-2*T)..T2);

iave=evalf(Int(t->f1(t), (T2-T)..T2))/T;
vave=evalf(Int(t->f2(t), (T2-T)..T2))/T;
Algorithm 3 Maple script for plotting solutions and calculating the averages.

Now, integrating only from to yields


and by




due to (12) and (13). Integrating the second row of (1) yields


From (15) and (16) it follows . This finishes the proof of (6). Now, the relation (7) will be proved. From on and on it can be deduced that

and implies the first equality in (7). From (9) and (10) it follows that


The mean value theorem for integrals implies

with some and Then,

for some and Thus, (17) takes the form

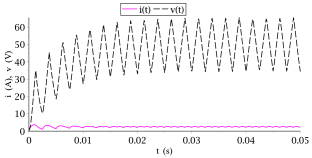

Figure 4: Current and voltage for , , , , . Averages: , .


Remark 2.4

The simulation results indicate that ; see Table 1.

3 Numerical experiments

The computer algebra system Maple was employed to conduct the numerical study; see the Maple script in Algorithm 3.

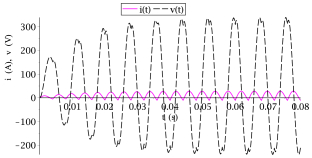

Figure 5: Current and voltage for , , , , . Averages: , .
