A semi-implicit high-order space-time scheme on staggered meshes for the 2D incompressible Navier-Stokes equations

03/15/2020
by   Francesco Lohengrin Romeo, et al.
0

A new high order accurate semi-implicit space-time Discontinuous Galerkin method on staggered grids, for the simulation of viscous incompressible flows on two-dimensional domains is presented. The designed scheme is of the Arbitrary Lagrangian Eulerian type, which is suitable to work on fixed as well as on moving meshes. In our space-time formulation, by expressing the numerical solution in terms of piecewise space-time polynomials, an arbitrary high order of accuracy in time is achieved through a simple and efficient method of Picard iterations. For the dual mesh, the basis functions consist in the union of continuous piecewise polynomials on the two subtriangles within the quadrilaterals: this allows the construction of a quadrature-free scheme, resulting in a very efficient algorithm. Some numerical examples confirm that the proposed method outperforms existing ones.

READ FULL TEXT VIEW PDF
POST COMMENT

Comments

There are no comments yet.

Authors

page 1

page 2

page 3

page 4

03/15/2020

A novel staggered semi-implicit space-time discontinuous Galerkin method for the incompressible Navier-Stokes equations

A new high order accurate staggered semi-implicit space-time discontinuo...
12/04/2019

High order ADER schemes for continuum mechanics

In this paper we first review the development of high order ADER finite ...
10/16/2019

A space-time hybridizable discontinuous Galerkin method for linear free-surface waves

We present and analyze a novel space-time hybridizable discontinuous Gal...
02/23/2021

A discontinuous Galerkin method based on a hierarchical orthogonal basis for Lagrangian hydrodynamics on curvilinear grids

We present a new high-order accurate Lagrangian discontinuous Galerkin (...
07/17/2020

Stable High Order Quadrature Rules for Scattered Data and General Weight Functions

Numerical integration is encountered in all fields of numerical analysis...
09/01/2017

Isogeometric analysis of thin Reissner-Mindlin plates and shells: locking phenomena and B-bar method

We propose a local type of B-bar formulation, addressing locking in dege...
05/01/2021

A robust, high-order implicit shock tracking method for simulation of complex, high-speed flows

High-order implicit shock tracking is a new class of numerical methods t...
This week in AI

Get the week's most popular data science and artificial intelligence research sent straight to your inbox every Saturday.

1 The new staggered space-time finite element method

1.1 The spatial discretization

We propose a numerical scheme for the solution of the incompressible Navier-Stokes equations on 2D domains, following the original ideas in 2DSIUSW ; 2STINS . The spatial discretization is performed through the use of two unstructured grids: a primary triangular grid for the approximated pressure function, and a staggered edge-based quadrilateral grid (named dual grid) for the approximated velocity functions. In the framework of the Galerkin finite element methods, we define the finite element space of order for the discretized pressure using the standard nodal basis functions on the reference triangular element

, by imposing the classical Lagrange interpolation condition

over the 2D Newton-Cotes quadrature nodes:

(1)

with the multi-index and the index ranges and . In this way basis functions are obtained. Analogously, we choose the basis functions on the reference square element for the dual finite element space of order . Since we want to derive a quadrature-free Arbitrary Lagrangian Eulerian implementation, we consider the square as the union of two sub-triangles and and we construct the basis functions following the standard nodal approach of continuous finite elements (indeed, we get two mini-elements). This is an approach very similar to the finite elements used for the velocity approximation in some mixed problems, for example the Stokes problem, where mixed finite element approximations are employed in order to numerically satisfy the inf-sup compatibility condition. These elements are fully described in ern2004 . We build the basis functions over the nodes which lie on the sub-triangle exactly like we did for , and then we extend them continuously to , in order not to have discontinuity inside the square. Viceversa, we construct the basis functions over the nodes which lie on via a transformation between and , and then we extend them continuously to .

1.2 Space-time extension

For the time discretization, the generic space-time element defined in the -th time-step of the simulation is given by a triangular prism for the main grid, and a quadrilateral prism for the dual grid. In the Lagrangian case, these volumes are stretched in some way according to the local mesh velocity, while in the Eulerian case they are some right, not slanting in time, prisms. The temporal basis functions for polynomials of degree are defined as the Lagrange interpolation polynomials passing through the equidistant 1D Newton-Cotes quadrature nodes on the reference interval

. Finally, using the tensor product, we define the basis functions on the space-time elements as

and . Therefore, the total number of basis functions becomes and .

2 The semi-implicit scheme for the incompressible Navier-Stokes equations

We consider the two dimensional Navier-Stokes equations for incompressible Newtonian fluids with homogeneous density and homogeneous dynamic viscosity coefficient , in the conservative, adimensional form:

(2)
(3)

where indicates the normalized fluid pressure; is the physical pressure; is the kinematic viscosity coefficient;

is the velocity vector;

and are the velocity components in the and direction, respectively; is a source term; is the flux tensor of the nonlinear convective terms. Following the same ideas in ADERNSE ; MunzDiffusionFlux , the momentum Eq. (3) can be rewritten as:

(4)

where .

2.1 The Picard’s method for the high-order accuracy in time

The Discontinuous Galerkin finite element formulation considers the integration of Equations (2) and (3) on the space-time control volumes of the primary grid and of the dual grid, respectively. Following the ideas in casulli , 2STINS , a semi-implicit discretization is employed, which combines the simplicity of explicit methods for nonlinear hyperbolic PDE with the stability and efficiency of implicit time discretizations. In order to obtain a method with high-order accuracy in time, we use a simple Picard iteration which introduces the information of the new pressure into the viscous and convective terms, but without involving a nonlinearity in the final system to be solved. This approach is inspired by the local space-time Galerkin predictor method proposed for the high order time discretization of schemes in Dumbser2008 ; ADERNSE . One time step of the final numerical scheme can be summarized as follows:

  1. Initialize and using the known information from the previous time-step, or the initial conditions;

  2. Picard iteration over :

    1. compute using in the discretized momentum equation; then set ;

    2. compute by solving the discrete pressure Poisson equation, coming from a formal substitution of the velocity unknowns from the momentum equation (3) into the incompressibility constraint (2);

    3. update from the pressure correction values ;

  3. set and .

The resulting linear system for the pressure correction is very sparse thanks to the use of the staggered grid, including only four non-zero blocks per element.

3 Numerical results

Some relevant tests were executed in order to assess the computational efficiency and the accuracy of the new numerical method. Compared to the staggered space-time DG algorithm of Tavelli and Dumbser 2STINS the new method proposed here is not only computationally more efficient thanks to its quadrature-free formulation, but also less memory consuming, since all integrals can be precomputed once and for all on a universal reference element. Moreover, thanks to the use of the piecewise basis functions for the dual finite element space, all the matrices of the Galerkin formulation can be updated, with their geometric information, at every time-step , by a cheap matrix-vector product which uses the first levels of the cache memory.

Taylor-Green vortex test

[Eul.]

[Eul.]

[Eul.]

62 6.26E-02 4.40E-02 3.95E-02 2.18E-02 - -
116 2.67E-02 1.87E-02 1.69E-02 8.43E-03 2.7 3.1
380 4.49E-03 3.57E-03 2.52E-03 1.17E-03 3.0 3.2
902 1.36E-03 1.11E-03 6.50E-04 2.97E-04 3.2 3.2
Table 1: P2P2
Table 2: Taylor-Green vortex test, : errors and convergence order.

CPU time

CPU time [Eul.]

RAM usage

RAM usage [Eul.]

62 7 7 49 67
116 21 22 67 106
380 137 178 179 311
902 636 1059 392 709
Table 3: P2P2
Table 4: Taylor-Green vortex test, : CPU times (in seconds) and memory consumption (in MB).

As a numerical test for the incompressible Navier-Stokes equations, we consider the unsteady Taylor-Green vortex problem. The solution of the problem is determined by:

(5)
(6)
(7)

We set periodic boundary conditions for the domain , and the final time . An implicit treatment of the viscosity terms is applied, therefore the time step is given by the CFL-type restriction for only the convective operator:

where , is the minimum of the radii of the circles inscribed in the triangles (primary grid) and

is the maximum, over all the edges of the quadrilaterals (dual grid), of the maximum eigenvalue of the convective flux tensor, that is

.
We have compared the results obtained by the new ALE implementation of the method, using zero velocity mesh, with the results that were obtained in 2STINS by an Eulerian implementation of the method, with fixed meshes: in Table 2 the errors in the norms for the pressure and the velocity field , together with the convergence order , for an increasing size of the primary grid (first column), are reported for the case . In Figure 1 the slope of the third-order method is shown for this test.
Finally, Table 4 and Figure 2 show the improved efficiency of the new algorithm (ALE, with zero mesh velocity), with respect to the Eulerian implementation: for the grid with the highest resolution, of the computational time is saved, and only of the memory is required, with respect to the Eulerian implementation.

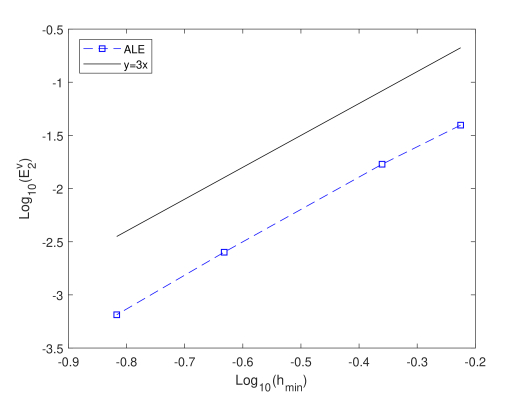

Figure 1: Taylor-Green vortex test: slope of the third-order method (convergence order for the velocity).

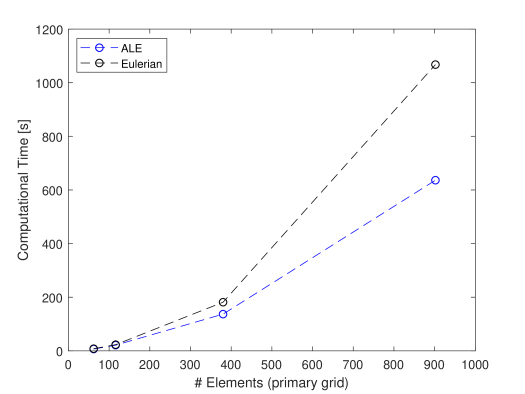

Figure 2: Taylor-Green vortex test: computational times required by the third-order method.
This work was partially funded by the research project STiMulUs, ERC Grant agreement no. 278267. Financial support has also been provided by the Italian Ministry of Education, University and Research (MIUR) in the frame of the Departments of Excellence Initiative 2018-2022 attributed to DICAM of the University of Trento (grant L. 232/2016). The author has also received funding from the University of Trento via the Strategic Initiative Modeling and Simulation.

References

  • (1) V. Casulli, Semi-implicit finite difference methods for the two-dimensional shallow water equations, Journal of Computational Physics, 1990, vol. 86(1), pp. 56–74.
  • (2) M. Dumbser, D. Balsara, E.F. Toro and C.D. Munz, A unified framework for the construction of one-step finite-volume and discontinuous Galerkin schemes, Journal of Computational Physics, 2008, vol. 227, pp. 8209–8253.
  • (3) M. Dumbser, Arbitrary high order PNPM schemes on unstructured meshes for the compressible Navier-Stokes equations, Computers and Fluids, 2010, vol. 39, pp. 60–76.
  • (4) A. Ern and J.-L. Guermond, Theory and Practice of Finite Elements, Springer-Verlag, New York, 2004.
  • (5) G. Gassner, F. Lorcher and C.D. Munz, A contribution to the construction of diffusion fluxes for finite volume and discontinuous Galerkin schemes, Journal of Computational Physics, 2007, vol. 224, pp. 1049–1063.
  • (6) M. Tavelli and M. Dumbser, A high order semi-implicit discontinuous Galerkin method for the two dimensional shallow water equations on staggered unstructured meshes, Applied Mathematics and Computation, 2014, vol. 234, pp. 623–644.
  • (7) M. Tavelli and M. Dumbser, A staggered arbitrary high order semi-implicit discontinuous Galerkin method for the two dimensional incompressible Navier-Stokes equations, Applied Mathematics and Computation, 2014, vol. 248, pp. 70–92.
