Machine Learning (ML) increasingly makes or informs high-stakes decisions allocating or withholding vital resources to individuals and communities in domains such as employment, credit lending, education, welfare benefits, and beyond. If not done carefully, ML-based decision-making systems may worsen existing inequities and impose disparate harms on already underserved individuals and social groups. This realization has motivated an active area of research into quantifying and guaranteeing fairness for ML. Prior work has proposed various mathematical formulations of (un)fairness as predictive (dis)parities (e.g. Berk et al., 2018; Dwork et al., 2012; Hardt et al., 2016; Joseph et al., 2016) and fairness-enhancing algorithms to guarantee the respective parity conditions in the trained model’s predictions (e.g. Agarwal et al., 2018; Hardt et al., 2016; Calmon et al., 2017; Feldman et al., 2015; Zhang et al., 2018; Kamiran et al., 2012). Our work argues that these interventions are not sufficiently well-understood to warrant practical uptake. One crucial limitations of these algorithms is the fact that they are agnostic to the underlying sources of the observed unfairness. As a result, applying them in the wild may simply hide the real problem by ensuring narrowly defined notions of parity in predictions. As a result, what these methods seemingly gain in observational parity can come at the cost of predictive disparity and accuracy loss in deployment, and at worst, they can become an instrument of fair-washing (Aïvodji et al., 2019). Our work offers a simulation framework for examining fairness interventions in the presence of various biases, and it offers an initial yet crucial step toward a broader research agenda: to trace the limitations and scope of applicability of fairness-enhancing algorithms.
Our work aims to address the above shortcoming by offering a simulation framework for examining fairness interventions in the presence of various biases. We start with the observation that the ML pipeline consists of numerous steps, and distinct types of biases (e.g., under-/over-representation of certain groups, label bias, or measurement bias in the training data) can creep into it at various stages, amplifying or concealing each other in the trained model’s predictive disparities. The fair-ML scholarship currently lacks a comprehensive framework for specifying the conditions under which each algorithmic fairness-enhancing mechanism effectively removes specific types of biases—instead of simply covering up their manifestations as unfairness. For example, it is unclear what type of intervention (e.g., pre-, in-, or post-processing) one must employ depending on the underlying cause of the observed statistical disparity. As a concrete instance, a careful investigation of the relationship between biases and fairness remedies may reveal that if the source of unfairness is label bias among examples belonging to the disadvantaged group, imposing fairness constraints on ERM may be more effective than certain types of pre-processing or post-processing techniques. The reverse might be true for a different bias (e.g., biased choice of hypothesis class).
Our simulation tool. Motivated by the above account, in this work, we distinguish and investigate various (stylized) forms of bias that can infiltrate the ML pipeline and lead to observational unfairness. We present a sandbox toolkit to simulate and assess the effectiveness of algorithmic fairness methods in alleviating specific types of bias in a controlled environment. We call this process the bias(stress)-testing of algorithmic interventions. Our simulation toolkit offers users a sandbox to stress-test existing remedies by
simulating/injecting various types of biases (e.g., representation bias, measurement bias, omitted variable bias, model validity discrepancies) into their ML pipeline;
observing the interactions of these biases with one another via the predictions produced at the end of the ML pipeline (i.e., through the trained model);
and testing the effectiveness of a given algorithmic fairness intervention in alleviating the injected biases.
The tool is intended to be used
in research settings to explore the relationships between bias and unfairness, and shape informed hypotheses for further theoretical and empirical investigations;
as an educational tool to demonstrate the nuanced sources of unfairness, and grasp the limitations of fairness-enhancing algorithms;
ultimately in practice for exploring the potential effect of various algorithmic interventions in real-world applications if (and this is an crucial if) the bias patterns in the real-world data are well-understood.
Counterfactual comparisons. The key idea that distinguishes our tool from existing ones is the possibility of evaluating fairness interventions beyond observational measures of predictive disparity. In particular, we can test whether a given remedy can alleviate the injected bias by comparing the predictions resulting from the intervention in the biased setting with the true labels before bias injection. This ability to compare with the unbiased data provides an ideal baseline for assessing the efficacy of a given remedy. We note, however, that the viability of this approach requires access to unbiased data. We, therefore, strongly recommend restricting the use of our tool to synthetic data sets—unless the user has a comprehensive and in-depth understanding of various biases in the real-world dataset they plan to experiment with.
Remark 1 ().
Note that in the case of real-world applications, one can rarely assume the training data is free of bias. However, if the practitioner is aware of what biases are present in the data (e.g., under-representation of a specific group) our toolkit may still allow them to obtain practically relevant insights concerning the effect of their fairness interventions of choice (e.g., up-sampling) on alleviating that bias—assuming that we can extrapolate the observed relationship between the amount of additional bias injected and the trained model’s unfairness. We leave a thorough assessment of our toolkit’s applicability to real-world data as an critical direction for future work.
offer one of the few rigorous analyses of fairness algorithms under specific bias conditions. Their work establishes an intriguing theoretical result that calls into question conventional wisdom about the existence of tradeoffs between accuracy and fairness. In particular, their theoretical analysis shows that when underrepresentation bias is present in the training data, constraining Empirical Risk Minimization (ERM) with Equalized Odds (EO) conditions can recover a Bayes optimal classifier under certain conditions. Utilizing our tool, we investigate the extent to which these findings remain valid in the finite data case. We then investigate the effectiveness of the in-processing EO intervention when alternative types of biases are injected into the training data. Finally, we contrast the in-processing approach with the original post-processing method introduced by(Hardt et al., 2016) to ensure EO. As we discuss in Sections 4 and 5, our empirical analysis identifies several critical limitations of these methods.
Remark 2 ().
Our proof-of-concept demonstration deliberately addresses a small number of fairness-enhancing algorithms, and evaluates them in the presence of a wide range of data biases. While the sandbox can be used to contrast a wide array of fairness definitions and algorithms, such an analysis is beyond the scope of the current contribution and is left as an important avenue for future work.
In summary, we present the unified toolkit to bias(stress)-test existing fairness algorithms by assessing their performance under carefully injected biases. As demonstrated by our case study, our sandbox environment can offer practically relevant insights to users and present researchers with hypotheses for further investigations. Moreover, our work provides a potential hands-on educational tool to learn about the relationship between data bias and unfairness as a part of the AI ethics curricula. Once evaluated and validated carefully, we hope that this tool contributes to educating current and future AI experts about the potential of technological work for producing or amplifying social disparities, and in the process, impacting lives and society.
2. Background and Related Work
Types of fairness-enhancing algorithms. At a high level, there are three classes of fairness-enhancing algorithms or fairness interventions: pre, post, and in-processing (Zhong, 2018). These algorithms are applied at different stages in the ML pipeline and can be accommodated by our sandbox toolkit. Pre-processing algorithms modify the data itself and remove the underlying biases which is best suited when training data is accessible and modifiable. Examples of pre-processing algorithms include optimized pre-processing (Calmon et al., 2017), disparate impact remover (Feldman et al., 2015) and reweighing (Kamiran and Calders, 2012). In-processing algorithms operate on the model directly, removing biases during the training process. Examples in this category include the Meta-Fair Classifier (Celis et al., 2019), adversarial debiasing (Zhang et al., 2018) and exponentiated gradient reduction (Agarwal et al., 2018). Post-processing algorithms utilize the predictions and modify the model outputs directly. This approach is best suited when neither the data nor the models are accessible, as it only requires access to black-box predictions. Example algorithms include Equalized Odds post-processing (Hardt et al., 2016) and reject option classification (Kamiran et al., 2012). In this paper, we demonstrate how our sandbox toolkit applies both in-processing and post-processing fairness interventions at the example of a result from (Blum and Stangl, 2020).
. In order to ease application of fairness interventions in practice, recent work has developed a number of open-source ML fairness software packages or “fairness toolkits”(Bird et al., 2020; Bellamy et al., 2019; Saleiro et al., 2018; Bantilan, 2018; Wexler et al., 2019; Adebayo and others, 2016; Tramer et al., 2017). For example, Fairlearn (Bird et al., 2020) consists of an API to allow researchers and developers to easily use popular fairness interventions (such as Equalized Odds or Demographic Parity) at the three stages of the ML pipeline listed above. Most of these toolkits focus on fairness interventions, or how to apply fairness algorithms (Bird et al., 2020; Bellamy et al., 2019; Saleiro et al., 2018; Bantilan, 2018; Wexler et al., 2019; Adebayo and others, 2016; Tramer et al., 2017). A key distinguishing feature of our work is that our toolkit focuses on specific biases themselves. Our toolkit allows users to inject biases into their data, uses algorithms from Fairlearn to apply fairness interventions, and then compares to the ground truth. Our toolkit currently uses Fairlearn to apply fairness interventions due to its popularity and ease-of-use. Though, in future development of the toolkit, we plan to add other fairness toolkits, such as AIF360 (Bellamy et al., 2019).
Algorithms for specific sources of unfairness. A motivating reason why we focus on injecting specific biases in our toolkit is to evaluate or empirically replicate work or which claims to address specific sources of bias or unfairness. For example, in this paper, we primarily focus on representation bias, measurement bias, and label bias (Frénay and Verleysen, 2013; Mehrabi et al., 2021). See Mehrabi et al. (2021) or Suresh and Guttag (2021) for further detail on more sources of bias or unfairness. To address these sources of unfairness, some have proposed solutions beyond algorithms, such as creating a more representative dataset111See, for example, https://ai.googleblog.com/2018/09/introducing-inclusive-images-competition.html in response to Shankar et al. (2017). addressing larger societal inequities. In our toolkit, however, we focus on interventions which can be implemented at the time of training a model, after the dataset has already been created and any broader conditions surrounding model deployment are fixed. Recent work has proposed attempts at algorithmic solutions to remedy specific sources of biases or unfairness. Here, we present examples of the kinds of papers which our toolkit would be able to evaluate. For example, in the context of medical diagnoses, there exists a significant discrepancy in the quality of an evaluation (consider this as the label) between different races (Obermeyer et al., 2019). (Khani and Liang, 2021) shows that removing spurious features (e.g. sensitive attributes) can decrease accuracy due to the inductive bias of overparameterized models. (Zhou et al., 2021) finds that oversampling underrepresented groups can not only mitigate algorithmic bias in systems that consistently predict a favorable outcome for a certain group, but improve overall accuracy by mitigating class imbalance within data that leads to a bias towards majority class. (Du and Wu, 2021) observes the impact of fairness-aware learning under sample-selection bias. (Wang et al., 2021) considers label bias based on differential label noise. (Wang et al., 2020) looks at whether fairness criteria can be satisfied when the protected group information is noisy, missing, or unreliable. While our toolkit is able to address many of the claims in these papers, we focus on applying Equalized Odds intervention to data sets injected with the biases listed above in this paper.
3. Description of the Sandbox
The proposed sandbox presents a tool to understand the effectiveness of fairness enhancing algorithms under counterfactually injected bias in binary classification settings. The tool can be visualized as a simplified ML pipeline, with room for customization at each step. As indicated by its name, the sandbox prioritizes modularity and allows users to play around and experiment with alternatives at every stage. We summarize the six stages of the pipeline, which are illustrated in Figure 1, in the following.
Choice of Data: The sandbox allows users to select one of three options: input their own dataset of choice, select one of the benchmark datasets in fair ML (e.g. Adult Income (Kohavi and Becker, 2017)), or synthetically generate a dataset. If the third option is selected, we provide a rigorous helper file which allows users to customize how the dataset is built. For example, we permit users to determine the number and quality (e.g. categorical or numeric) of features, the distribution of values for each feature, and the proportion of examples in different protected groups. For simulated data, the protected attribute is assumed to be binary.
Bias Injection: The crux of our sandbox pipeline is the injection of different types of biases. In this iteration of the tool, we provide the options to inject representation bias, measurement bias, sampling bias, and label bias (Mehrabi et al., 2021; Frénay and Verleysen, 2013) which spans a large portion of the bias types discussed in the fair ML literature. Support for other types of bias will be added in the near future. In additional to injecting bias into the whole data set, the sandbox tool allows for application of biases at the intersection of protected attributes and other variables. For example, users can decide to under-sample only the positively-labeled examples from a group. Users are able to inject multiple biases at once which allows for realistic bias patterns that are multi-faceted in nature.
Model Class Selection:
The proposed sandbox tool is compatible with any machine learning model in the scikit-learn paradigm. We encourage the use of the so-called white-box classifiers, as they allow for greater ease when reasoning about the results obtained throughout the sandbox pipeline and present use cases of the sandbox with logistic regression in Sections4 and 5.
Fairness Intervention: We make use of four fairness enhancing algorithms from the Fairlearn package (Bird et al., 2020) covering pre-processing, in-processing and post-processing techniques. First, the CorrelationRemover pre-processing algorithm filters out correlation between the sensitive feature and other features in the data. Next, the ExponentiatedGradient and GridSearch in-processing algorithms operate on a model and are based on (Agarwal et al., 2018). Finally, the ThresholdOptimizer post-processing algorithm adjusts a classifier’s predictions to satisfy a specific fairness constraint. Possible fairness constraints for in- and post-processing algorithms are Equalized Odds, Demographic Parity, Error Rate Parity, and False/True Positive Rate Parity. For example, in Section 4, we utilize the GridSearch algorithm subject to an Equalized Odds constraint.
Evaluation Metrics: Any scikit-learn supported machine learning performance metric for classification can be utilized in our sandbox framework. Examples include precision, accuracy, recall, F1 score, etc. Additionally, the sandbox also supports fairness metrics for evaluation, such as Equalized Odds or Demographic Parity disparities. For example, we obtain Equalized Odds disparities for the demonstrations provided in Sections 4 and 5.
Visualization: The sandbox tool outputs several figures including a visualization of the effectiveness of a fairness intervention at dealing with a particular type of bias. We note that various notions of performance are supported including more traditional measures of performance such as accuracy.

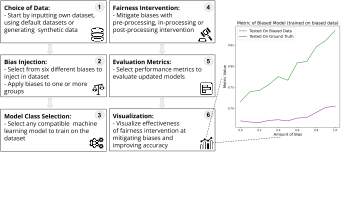

Figure 1 provides an example visualization output of the sandbox. The figure displays the performance of a learned model in the selected metric (here, accuracy) over different degrees of bias (here, under-sampling examples from one group). Our sandbox allows us to compare performance in two dimensions: (1) Between models with and without a fairness intervention, and (2) On biased data versus unbiased ground truth data. In the figure, we show the latter comparison. We inject under-representation bias into the training data and utilize Fairlearn’s CorrelationRemover pre-processing algorithm to modify the data by removing correlations between the sensitive feature and the other features before training the model. What we observe is that, if we only evaluate on biased data, then we might be lulled into a false sense of progress and claim that the intervention is improving our model for increasing amounts of bias. However, when we examine the model’s performance on the unbiased ground truth data, we see that performance does not improve significantly.
Overall, the sandbox tool regards the initial data set as unbiased and splits into training and test examples. While the training data is injected with bias, data reserved for testing remains untouched. After model fitting and fairness intervention, evaluation metrics and visualizations are provided on both the biased training data and the ground truth test data. The entire process is repeated for different levels of injected bias and, if indicated by the user, for several repetitions in order to obtain reliable average results.
4. Case study: can fairness constraints improve accuracy?
A main objective of the proposed sandbox tool is to aid empirical evaluation of the performance of fairness intervention under different biases. There are various special cases in which the effect of imposing fairness constraints has been characterized from a theoretical perspective (e.g. Khani and Liang, 2021; Zhou et al., 2021; Du and Wu, 2021). However, results like these usually focus on an infinite data setting and require a vast array of assumptions which can call their practical usefulness into question. In the coming sections, we use our sandbox tool to empirically replicate a known result from (Blum and Stangl, 2020) (Section 4) and explore performance beyond the assumptions required for the theory (Section 5). The case study demonstrates how our sandbox tool can facilitate understanding of empirical implications of theoretical results and give the user a better sense of what performance to expect in their specific setting.
4.1. Under-representation bias under Equalized Odds constraints
Fairness intervention into machine learning systems is often cast in terms of a fairness-accuracy trade-off. Yet learning from biased data can actually lead to sub-optimal accuracy once evaluated with regards to the the unbiased data distribution. (Blum and Stangl, 2020) theoretically describe settings in which fairness-constrained optimization on biased data recovers the Bayes optimal classifier on the true data distribution. In this case study, we specifically zoom into one of the findings of the paper, that is, Equalized Odds constrained empirical risk minimization on data with under-representation bias can recover the Bayes optimal classifier on the unbiased data. This result requires several structural assumptions on the data generating process as outlined below. We will draw on the described data generating procedure when simulating data for the sandbox demonstration.
Data generating process. Let specify membership in demographic groups where is the minority group and let
be a feature vector from some feature space. We assume there is a coordinate inwhich corresponds to the group membership and write if individual belongs to group . The respective features distributions are denoted by and . In order to generate data, we start with a pair of Bayes optimal classifiers where is a hypothesis class. For a given constant , we then draw data points
such that with probabilityit holds and with probability it holds . Dependent on the class membership, the true label is generated by first, using or and second, independently flipping the output with probability . The second step controls the errors of by ensuring that and
have the same error rate and errors are uniformly distributed.
Starting with a ground truth data set including observations and label noise , under-representation bias is introduced by discarding positive observations from the minority group with some probability. Specifically, for each pair with and , the data point is independently excluded from the data set with probability . Note that is the amount of under-representation bias.
Recovery of the Bayes optimal classifier. We first note that recovery of a classifier only pertains to the binary predictions. A Bayes optimal classifier learned from the noisy unbiased data does not necessarily have the same class probability predictions as even in the infinite data setting. To see this, consider the case in which and . Then, fitting a sufficiently complex threshold based classifier on enough noisy data will result in a predictor with . While class probabilities differ, both and are Bayes optimal and, in this case, reflect the same binary predictor.
Main recovery result. The derivations in (Blum and Stangl, 2020)
are concerned with fairness constrained empirical risk minimization where an estimatoris deemed fair if for (equality of opportunity) or (Equalized Odds). Here, denotes the protected group attribute. In our binary prediction setting, the Equalized Odds (Hardt et al., 2016) constraint is equivalent to
for . The main result presented here is based on Theorem 4.1 in (Blum and Stangl, 2020) where a proof can be found. We note that this is a population level or ‘with enough data’ type of result.
Theorem 1 ().
Let true labels be generated by the described data generating process and corrupted with under-representation bias. Assume that
both groups have the same base rates, i.e. , and
label noise and bias parameter are such that
Then, is among the classifiers with lowest error on the biased data that satisfies Equalized Odds.
4.2. Empirical replication using the sandbox toolkit
Contribution of the sandbox. The finding in Theorem 1 implies that fairness intervention can improve accuracy in some settings which goes against the common framing of fairness and accuracy as a trade-off. However, Theorem 1 is a purely theoretical result which can make it difficult to assess its usefulness in any specific application setting. For example, the Theorem operates at the population level suppressing issues of sample complexity. In practice it is unclear how much data would be needed for a satisfactory performance even if all the assumptions were met. Our proposed sandbox tool can bridge this gap between theory and practice by providing a controlled environment to test the effectiveness of fairness interventions in different settings. In the case of Theorem 1, the fairness sandbox can help to (1) Give a sense of how fast the result kicks in with a finite sample, (2) Assess effectiveness in a specific data generation and hypothesis class setting , and (3) Understand the importance of the different assumptions for the result.
Implementation with the sandbox. We describe how the different modules of the sandbox toolkit are used to empirically replicate the findings of Theorem 1.
Choice of Data: We opt for a synthetic data set generation according to the exact process described in Section 4.1. This leaves room for several input parameters which can be varied by the user. While some of these parameters determine whether the assumptions of Theorem 1 are met, i.e. the relative size of groups and the amount of label noise, the theorem is agnostic to the number of features, the distribution of features, and the Bayes optimal classifiers and their hypothesis class. In order to simplify reasoning about the results, our analysis focuses on a setting with only three features and a linear function class for the Bayes optimal classifiers. More specifically, the group dependent Bayes optimal classifiers are thresholded versions of logistic regression functions
for group dependent parameter vectors . We set the parameters to fixed values and which leads to different continuous distributions of probabilities between groups but to approximately the same positive rates when thresholded at 0.5 as required for the theoretical setting of the Theorem. Note that to adhere to the theory, we start out with a threshold-based classifier and subsequently add label noise with (instead of the more common way of turning probabilistic predictions into labels, i.e., flipping biased coins for the binary labels).
Bias Injection: Theorem 1 is concerned with a specific form of inter-sectional under-representation bias which strategically leaves out positive observations from the minority group. The sandbox is set up to inject this type of bias based on a user specified parameter which determines the amount of bias injected. The addition of further types of biases goes beyond the theory presented in (Blum and Stangl, 2020) and is empirically explored with the sandbox tool in Section 5.
Model Class Selection: The theoretical result we are looking to replicate operates on a population level and does not constrain the Bayes optimal classifier or learned model to belong to a specific class of functions. However, in practice we need to select a class of models with enough capacity to express both Bayes optimal classifiers and at once since the fairness constrained empirical risk minimization requires us to train a single model for both groups. To accomplish this, we select a logistic regression function of the form
where corresponds to the parameters used for rows belonging to group , and denotes the parameters used for . The indicator functions are absorbed into the data by reformatting the feature vectors to feature vectors with for and for . Note that the additional intercept increases the capacity of the model and can only help our performance here.
Fairness Intervention: Recall that (Blum and Stangl, 2020) analyze the setting of fairness constrained empirical risk minimization. We choose Equalized Odds constrained optimization as fairness intervention in order to mimic the theoretical setting of the result we are replicating. The constrained optimization is performed by scikit-learn unpenalized logistic regression with Equalized Odds enforcement provided by Fairlearn’s Grid Search function which is based on (Agarwal et al., 2018). For the sake of comparison, we also fit the model from Equation 2 without fairness intervention.
Since in-processing fairness intervention is not always desirable or possible, e.g. sometimes we only have access to biased black-box predictions, we conduct the same experiments with Fairlearn’s post-processing method which enforces Equalized Odds by optimizing group-specific thresholds (Hardt et al., 2016). The respective results are discussed in detail in Appendices B.1 and B.2.
Evaluation Metrics: There are several relevant evaluation metrics for the case study, all of which are supported by our sandbox toolkit. First, we are interested in the overall and group-wise accuracy of the learned model which is provided for the models learned with and without fairness invention. Second, we evaluate the Equalized Odds disparity of the models in order to demonstrate the effectiveness of the intervention. Following (Agarwal et al., 2018), the extent to which a classifier violates Equalized Odds is computed by
where is the protected group attribute. This definition is adapted to a finite data version by inserting the respective sample means for the expected values. Lastly, we want to demonstrate the explicit finding of Theorem 1 which is concerned with the recovery of Bayes optimal classifier. To this end, we compute the fidelity between the predictions of the learned models and the Bayes optimal classifier. The fidelity between two binary classifiers and with respect to a data set is defined as
i.e. as the fraction of examples on which the predictions of the classifiers coincide. The evaluation metrics are output each for the training and test sets. While fidelity results are discussed in detail in the main text, we refer to Appendix A.1 for a summary of accuracy and disparity results.
Visualization: The sandbox tool provides visualizations of the effectiveness of the fairness intervention. In the context of the case study, this consists of figures displaying the accuracies and fidelities to the Bayes optimal classifier of the models learned with and without fairness intervention at different levels of injected inter-sectional under-representation bias.
4.3. Empirical results
Parameter inputs. The sandbox tool with the described configurations is used to examine the empirical performance of the theoretical result from (Blum and Stangl, 2020) presented in Theorem 1. In this setting of the sandbox, the user can input several numerical values corresponding to the size of the minority group , the number of synthetic data points to be generated , the amount of overall label noise to be injected and the number of times the whole simulation should be repeated . In each run of the simulation, new data is sampled and injected with bias before the respective models are fit. The whole simulation pipeline is performed based on the input values and performance metrics and visualizations are output to the user.
For the sake of demonstration, we chose , , , which provides one of many examples within the bounds of the theory. In an effort to explore how much data is actually required to obtain the performance promised by the population level theory in our example, we vary the number samples . We note that half of the synthetically generated data is used for model training and half for evaluation and visualization.
(left to right) samples for training and testing each. Results are reported averaged over 50 simulation runs with error bars for one standard deviation in each direction. We see that Equalized Odds constrained optimization retrieves the Bayes optimal classifier almost perfectly at all levels of bias when using large amounts of data () but deviates from the Bayes optimal predictions when trained on data points. The model class used in this example is logistic regression in 7 parameters.
Figure 2 displays the fidelity results of the sandbox simulation case study measured on the portion of the data sets withheld for testing. We note that fidelity here corresponds to the fraction of test examples that receive the same predictions from the model trained on biased data and the Bayes optimal classifier fit to the unbiased data. No bias is injected in the data used for testing.
We intuitively expect the model fit on biased data without fairness intervention to deviate from the Bayes optimal model especially when large amounts of bias are injected. This is confirmed by the downward slopes of the dashed curves in Figure 2. Theorem 1 implies that fitting the same model on biased data with Equalized Odds fairness intervention recovers the Bayes optimal classifier on the true data distribution. To see that the assumptions of the Theorem are met in our example, note that we selected the Bayes optimal classifiers and specifically to have equal base rates (see Equation 1), and that our choice of parameters and fulfills for all levels of injected bias . We would thus expect the fidelity of the models with fairness intervention to be 1 for all levels of which is only partially supported by Figure 2. For small amounts of training data (), the average fidelity over simulation runs and levels of injected bias only reaches a level of 0.837 with even poorer performance in the minority group. In cases with 90% of positive minority examples deleted from the training data, the model learned with fairness intervention on average only classifies about 64% of the minority test examples the same way as the Bayes optimal classifier. In addition, results vary significantly over simulation runs leading to many instances with little to moderate amounts of injected bias in which the model learned from biased data without intervention is closer to the Bayes optimal than the model with intervention. With more training data (), the test fidelity performance of the intervention model increases to 0.942 on average. Yet even in this setting, the biased model outperforms the intervention model if only 20% or less of positive minority examples are deleted from the test data. Only when increasing the training data size to (), the fidelity of the intervention model reaches 0.982 which is much closer to the results implied by the theory. In this case, the model with intervention outperforms the model without intervention for almost all positive bias levels.
Overall, the findings of the sandbox demonstrate that a considerable amount of data is needed to recover from under-representation bias. We only observed satisfactory results at all positive bias values when 30000 training examples were used for a relatively simple 7 parameter logistic regression model. 222In general, the amount of data required to reliably fit a model increases with complexity of the model class. Many algorithms used in practice exceed the complexity of the model studied here which suggests that even more data is required to observe the desired fairness mitigation effects. Many practical applications fall into the range of small data sets and little to moderate under-representation bias in which the intervention model showed to be no more successful in recovering the Bayes optimal model than a model without intervention. The presented case study demonstrates how the sandbox toolkit can help to uncover insights of this type for users who are looking to assess the effectiveness of fairness intervention in their specific application setting.
Comparison to post-processing intervention. While (Blum and Stangl, 2020) specifically call for in-processing intervention, fairness constrained risk minimization is not the only method that targets Equalized Odds across groups. Since post-processing strategies are desirable in some cases, we repeat the same experiments with the threshold based post-processing Equalized Odds algorithm from (Hardt et al., 2016). Note that this corresponds to changing the configuration of step ‘(4) Fairness intervention’ in the sandbox pipeline while keeping the fairness metric fixed. The results from this analysis are discussed in Appendix B.1 and indicate a very similar performance to the in-processing method.
5. Exploration of other forms of bias
Section 4 demonstrates the usefulness of the proposed sandbox tool by empirically evaluating the performance of a theoretical result from (Blum and Stangl, 2020). For this, we assume the exact setting of the paper with requires a list of structural assumptions on the synthetic data generation, Bayes optimal model and type of injected bias. For example, the replicated finding only considers a specific case of under-representation bias. Real world applications are likely to violate some of the posed assumptions and can carry a number of different biases. In the following, we show how the modularity of the sandbox allows us to explore the performance of fairness intervention beyond the setting posed by the theory. We loosen the assumption of equal base rates in Bayes optimal predictions and inject different types of biases in order to stress-test the efficacy of the intervention. The changes to the sandbox modules discussed in the following refer to the sandbox configuration presented in Section 4.2.
5.1. Difference in base rates

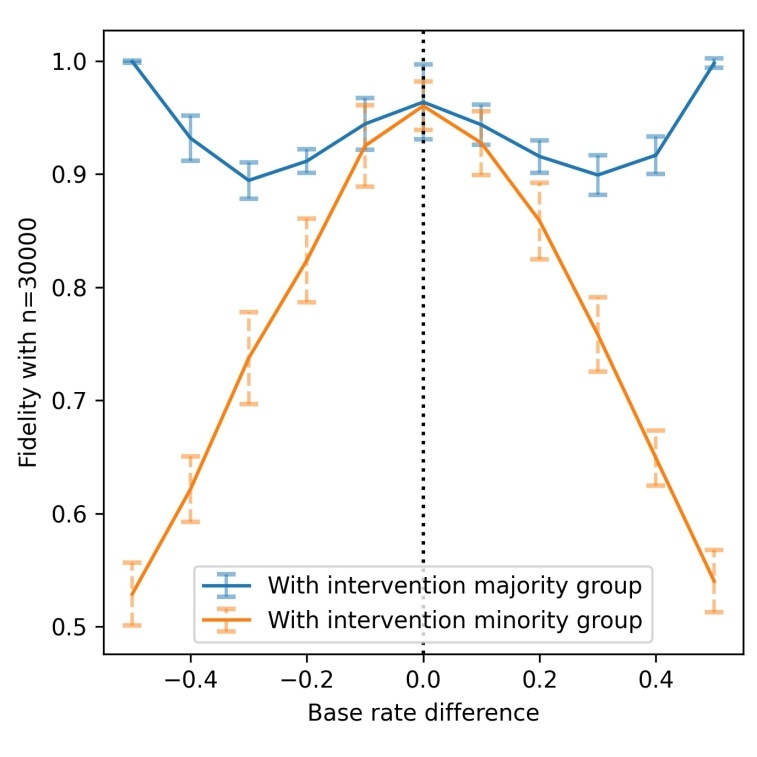

Implementation with the sandbox and parameter values. The result of Theorem 1 relies on the assumption that base rates are the same across groups which is often violated in practice. We use the sandbox framework to test the extend to which the fidelity of the Equalized Odds intervention is affected by diverging rates and alter the data choice module of the sandbox used in the case study for this purpose. A collection of data sets with different base rates is generated as follows. We leave the labeling model and effect parameters untouched and sample the features conditional on group membership with and for . Here, is from a collection of feature mean values selected to lead to evenly spaced base rate differences in once the binary Bayes optimal outcomes are computed. Note that the rate of positive outcomes for the minority group is always 0.5 which justifies the range of the interval.
As in the previous experiments, we set the additional input parameters to and . This aligns with the setting in Section 4 and thus enables us to compare performance across different types of injected bias. That the choices made here are one example among many, they were picked early on to comply with theory and were never changed to obtain specific results. We run the experiment with data points at each base rate difference split evenly between training and testing and set the under-representation bias level to .
. The larger the base rate difference becomes in absolute value, the more the predictions of the fair trained model and the Bayes optimal model diverge. The performance in the minority group appears to be particularly poor with a minority base rate of 0.5 and majority base rate of 0.8 leading to minority group fidelity of 0.423 on average. Larger differences in base rates also seem to lead to intervention models with less stable performance which leads to large standard errors.
In order to understand why the result of Theorem 1 does not generalize to settings with different base rates , consider that the true positive rate of the Bayes optimal classifier for on unbiased data takes the form
which is different for different base rates and . When under-representation bias is introduced, the true positive rate for group becomes
which coincides with the rate for the unbiased data. It follows that the Bayes optimal classifier does not have equal true positive rates, and thus does not satisfy Equalized Odds, on the biased data if base rates are different. It can therefore not be recovered by the fair trained model.
5.2. Sampling bias
Implementation with the sandbox and parameter values. Our previous discussion of under-representation bias only considered bias specifically injected into the subgroup of examples at the intersection of minority group and positive labels. We extend this setting to under-representation bias in the full minority group, which we will refer to as sampling bias, by altering the bias injection module of the sandbox to remove minority examples with some probability ranging between 0 and 1. Experiments are repeated with equal base rates and with base rate difference of -0.2 which allows us to explore how the performance changes as a difference in base rates is introduced while ensuring that the data still contains examples for both outcomes in each group. We set the parameter inputs to and to comply with the parameter choices in previous experiments.
Results. The results of the experiments for bias injected in the whole minority group, positively labeled minority examples, and positively labeled minority examples with different base rates are depicted in the first column of Figure 4. The left plot shows a decreasing minority test set fidelity with increasing sampling bias in the minority group. With maximally injected bias, 99% of minority examples are deleted and the average minority group fidelity only reaches 0.694. With smaller amounts of bias, the intervention model classifies over 90% of minority test samples like the Bayes optimal classifier. Intuitively, the decreased performance on the minority set can be led back to less available training data for the group. Since we fit only one model for both groups, this leads the predictions for the majority group to be closer to the Bayes optimal predictions than for the minority group. When bias is injected only for positively labeled minority examples, the intervention successfully recovers the base optimal classifier as discussed in Section 4. The right plot of the figure displays the test set fidelity in the case of different Bayes optimal base rates in groups with bias injected only for positively labeled minority group examples. We note that the fidelity here appears much less stable over different runs of the simulation which leads to larger standard errors. In contrast to the setting with equal base rates, the bias injection here impacts also the fidelity of the majority group. Recall that the Bayes optimal classifier does not satisfy Equalized Odds on the biased data in this setting and can thus not be recovered by strictly requiring Equalized Odds. However, the figure suggests a remarkably high fidelity for low amounts of bias in the different base rates case and we hypothesize that the model was faced with large accuracy fairness trade-offs and opted for a small violation of the fairness constraint in favor of accuracy.
5.3. Label bias
Implementation with the sandbox and parameter values. Recall that our experiments use a noise parameter which represents the probability with which the Bayes optimal label is flipped in our observed labels. So far, this value was chosen independently from group membership. Since data in real-world application often suffers from differential label noise, we test how well the Equalized Odds intervention can recover the Bayes optimal model under label bias. To achieve this, we alter the choice of data module to inject 40% label noise into the majority group to be consistent with the previous experiments. We then change the bias injection module to inject label bias of 0-45% into the minority group. Note that the label bias cannot exceed 50% in order for the Bayes optimal classifiers to be correct which justifies the chosen range. Similarly, we repeat the experiment by injecting constant bias of 40% into both the majority and negatively labeled minority group and vary the amount of bias among the positively labeled minority. In all instances, the test set has 40% label bias throughout like in the previous experiments. The experiment is repeated with different base rates for bias injected into the positively labeled minority examples. As before, we set and .
Results. The results of the label noise experiments are depicted in Figure 5. We observe that fidelity performance of the intervention model deteriorates in the minority group as the amount of label noise diverges. This holds true both when bias is injected into the whole group and when bias is injected into positively labeled minority examples. To understand why the intervention cannot retrieve the Bayes optimal classifier, we note that the Bayes optimal classifier does not fulfill Equalized Odds under differential label noise. To see this, assume a setting with label noise bias in the majority group and bias in the minority group. The Bayes optimal classifier has true positive and true negative rates of 0.6 on the majority group data while has true positive and true negative rates of on the minority portion of the biased data. Note that this assumes that base rates are 0.5 like in our experiment, but the same phenomenon with a similar calculation holds true for other cases. If bias is injected into the positively labeled minority examples and base rates differ by -0.2, the fidelity curves of both the minority and majority groups are impacted.
5.4. Feature measurement bias
Implementation with the sandbox and parameter values. Our final exploration focuses on a type of feature noise which is injected in the form of missingness in one of the features. We alter the bias injection module in the sandbox and set feature to 0 with varying probability while omitting the injection of other types of biases. The functionality to enforce different base rates in the data choice module is retained. Feature measurement bias is injected in to the whole minority group or the minority group with positive labels in different variations of the experiment. As before, we choose and . Experiments are repeated with base rate differences of 0 and -0.2.
Results. The test set fidelity results of the feature noise experiments are displayed in Figure 6. We see that the intervention model recovers the Bayes optimal model for small amounts of feature missingness while fidelity slightly decreases as more bias is injected. While performance remains above the 0.95 mark for most amounts of injected bias, we observe an average fidelity of only 0.635 if all instances of in the minority group default to 0. Similar to the other types of bias, the intervention model successfully recovers from measurement bias if the bias is only injected into positively labeled examples. In contrast to our observations for other types of biases, a difference in base rates appears to not deteriorate the fidelity by more than 1-2 percentage points for up to 70% feature missingness in a single feature among the minority group examples with positive labels. Assuming our hypothesis from Section 5.2, i.e. with no additional bias the fair learned model on different base rates trades off fairness for accuracy, is true, we conjecture that the performance when injecting measurement bias does not deteriorate quickly because it only introduces very small amounts of Equalized Odds disparity. On a high level, removing the information of one feature leads to a higher concentration around the mean in the predicted conditional probabilities. While this leads to a small violation of Equalized Odds, the fair trained model accepts this unfairness in favor of a high accuracy.
5.5. Comparison to post-processing intervention
We repeat the exploration experiments with threshold-based post-processing fairness intervention (Hardt et al., 2016) which corresponds to altering the fairness intervention module of the sandbox tool. The result are discussed in detail in Appendix B.2. While the two intervention methods showed to lead to fairly similar results in the original case study setting, this is not necessarily the case when base rates differ or different types of bias are injected. In those cases, the algorithms face a trade-odd between fairness and accuracy which can lead to different predictions across different intervention methods. For example, we see that the in-processing method yields higher fidelity performance than the post-processing intervention when feature measurement bias is injected as the in-processing method is better in trading off some amount of fairness for accuracy.
6. Summary and Future Directions
This work presented a simulation toolkit to investigate the performance of fairness-enhancing algorithms under various forms of counterfactually injected biases. We demonstrated the utility of our tool through a thorough case study of (Blum and Stangl, 2020). The theoretical contribution of Blum and Stangl stated that if the source of unfairness is under-representation bias in the training data, constraining ERM with EO can recover the Bayes optimal classifiers on the unbiased data under certain conditions. Our tool allowed us to examine EO constraints under the conditions of (Blum and Stangl, 2020) as well as a number of new biased settings.
Lessons from case study. Through our case study, we established several limitations of the existing theory. In particular, we observed the need for very large volumes of data for the theory to hold. (In our example, we needed 30k training data points for a 7-parameter logistic regression.) Furthermore, our empirical results suggest that the smaller the amount of injected bias, the larger the volume of data needed in order for the fairness-constrained model to outperform the unconstrained one trained on biased data. We emphasize that many practical applications do not satisfy these preconditions (i.e., either the volume of data or the amount of under-representation bias is relatively small). Therefore the theoretical findings of (Blum and Stangl, 2020), while conceptually interesting, might not be applicable in those practical domains. Another key prerequisite of the theory was the equality of base rates across groups. This assumption is also often violated in practice, and we showed empirically that EO constrained ERM can not recover the Bayes optimal models if base rates differ—even slightly.
Exploring the implications of various biases and interventions. We experimented with various forms of biases and assessed the performance of EO constraints in alleviating them. For example, our empirical investigation of sampling bias demonstrated how the EO-constrained model struggles to recover comparable performance across groups. We also observed that the constraint could not retrieve the Bayes optimal classifiers under label bias either. In terms of the choice of interventions, we contrasted the in-processing method of Agarwal et al. (2018) with the post-processing method proposed by Hardt et al. (2016). The key distinction between these two approaches appeared to be in their ability to trade off accuracy and fairness. In particular, the in-processing method offers a wider range of tradeoff possibilities, while the post-processing method yields fair classifiers but with no error guarantees. When the theoretical conditions of our case study hold, the two methods perform similarly, but they diverge as soon as those conditions are relaxed.
An active-learning module in AI ethics curricula
An active-learning module in AI ethics curricula. In addition to offering insights to researchers and practitioners, we believe our work presents a concrete tool to educators and students interested in issues of bias and unfairness in ML. In recent years, call for “greater integration of ethics across computer science curriculum” have amplified (see, e.g., (Fiesler et al., 2020)). However, instructors without a background in the area may lack the necessary tools to cover these issues in depth (Saltz et al., 2019; Martin, 1997). Our sandbox toolkit can serve these educators as a self-contained and ready-to-use learning module. With the toolkit, students can inject various types of biases into a given dataset, observe the fairness ramifications of the bias, and evaluate the effectiveness of various fairness interventions in alleviating them. By offering a hands-on practice, we hypothesize that the toolkit improves students’ understanding of the Machine Learning pipeline, the underlying causes of unfairness, and the scope and limitation of existing algorithmic remedies depending on the type of bias present in the setting at hand. In our future work, we plan to conduct human-subject studies at college-level computer science programs to examine the effect of our sandbox toolkit in achieving FATE-related learning objectives and improving the learning experience.
- FairML: toolbox for diagnosing bias in predictive modeling. Ph.D. Thesis, Massachusetts Institute of Technology. Cited by: §2.
- A reductions approach to fair classification. In International Conference on Machine Learning, pp. 60–69. Cited by: §B.1, Appendix B, §1, §2, item 4, item 4, item 5, §6.
- Fairwashing: the risk of rationalization. In International Conference on Machine Learning, pp. 161–170. Cited by: §1.
- Themis-ml: a fairness-aware machine learning interface for end-to-end discrimination discovery and mitigation. Journal of Technology in Human Services 36 (1), pp. 15–30. Cited by: §2.
- AI fairness 360: an extensible toolkit for detecting and mitigating algorithmic bias. IBM Journal of Research and Development 63 (4/5), pp. 4–1. Cited by: §2.
- Fairness in criminal justice risk assessments: the state of the art. Sociological Methods & Research 50 (1), pp. 3–44. Cited by: §1.
- Fairlearn: a toolkit for assessing and improving fairness in ai. Microsoft, Tech. Rep. MSR-TR-2020-32. Cited by: §2, item 4.
- Recovering from biased data: can fairness constraints improve accuracy?. In Proceedings of the 2020 Symposium on the Foundations of Responsible Computing (FORC), External Links: Cited by: §B.1, §B.1, Appendix B, §1, §2, item 2, item 4, §4.1, §4.1, §4.3, §4.3, §4, §5, §6, §6.
- Optimized pre-processing for discrimination prevention. In Proceedings of the 31st International Conference on Neural Information Processing Systems, pp. 3995–4004. Cited by: §1, §2.
- Classification with fairness constraints: a meta-algorithm with provable guarantees. In Proceedings of the conference on fairness, accountability, and transparency, pp. 319–328. Cited by: §2.
- Robust fairness-aware learning under sample selection bias. arXiv preprint arXiv:2105.11570. Cited by: §2, §4.
- Fairness through awareness. In Proceedings of the 3rd Innovations in Theoretical Computer Science Conference on - ITCS '12, Cited by: §1.
- Certifying and removing disparate impact. In proceedings of the 21th ACM SIGKDD international conference on knowledge discovery and data mining, pp. 259–268. Cited by: §1, §2.
- What do we teach when we teach tech ethics? a syllabi analysis. In Proceedings of the 51st ACM Technical Symposium on Computer Science Education, pp. 289–295. Cited by: §6.
Classification in the presence of label noise: a survey.
IEEE transactions on neural networks and learning systems25 (5), pp. 845–869. Cited by: §2, item 2.
Equality of opportunity in supervised learning. Advances in neural information processing systems 29, pp. 3315–3323. Cited by: §B.1, Appendix B, §1, §1, §2, item 4, §4.1, §4.3, §5.5, §6.
- Fairness in learning: classic and contextual bandits. In Advances in Neural Information Processing Systems, D. Lee, M. Sugiyama, U. Luxburg, I. Guyon, and R. Garnett (Eds.), Vol. 29, pp. . External Links: Cited by: §1.
- Data preprocessing techniques for classification without discrimination. Knowledge and Information Systems 33 (1), pp. 1–33. Cited by: §2.
- Decision theory for discrimination-aware classification. In 2012 IEEE 12th International Conference on Data Mining, pp. 924–929. Cited by: §1, §2.
- Removing spurious features can hurt accuracy and affect groups disproportionately. In Proceedings of the 2021 ACM Conference on Fairness, Accountability, and Transparency, pp. 196–205. Cited by: §2, §4.
- UCI machine learning repository, adult income dataset. Data Mining and Visualization, Silicon Graphics. External Links: Cited by: item 1.
- The case for integrating ethical and social impact into the computer science curriculum. In The supplemental proceedings of the conference on Integrating technology into computer science education: working group reports and supplemental proceedings, pp. 114–120. Cited by: §6.
- A survey on bias and fairness in machine learning. ACM Computing Surveys (CSUR) 54 (6), pp. 1–35. Cited by: §2, item 2.
- Dissecting racial bias in an algorithm used to manage the health of populations. Science 366 (6464), pp. 447–453. Cited by: §2.
- Aequitas: a bias and fairness audit toolkit. arXiv preprint arXiv:1811.05577. Cited by: §2.
- Integrating ethics within machine learning courses. ACM Transactions on Computing Education (TOCE) 19 (4), pp. 1–26. Cited by: §6.
- No classification without representation: assessing geodiversity issues in open data sets for the developing world. In NIPS 2017 workshop: Machine Learning for the Developing World, Cited by: footnote 1.
- A framework for understanding sources of harm throughout the machine learning life cycle. In Equity and Access in Algorithms, Mechanisms, and Optimization, pp. 1–9. Cited by: §2.
- Fairtest: discovering unwarranted associations in data-driven applications. In 2017 IEEE European Symposium on Security and Privacy (EuroS&P), pp. 401–416. Cited by: §2.
- Fair classification with group-dependent label noise. In Proceedings of the 2021 ACM Conference on Fairness, Accountability, and Transparency, pp. 526–536. Cited by: §2.
- Robust optimization for fairness with noisy protected groups. arXiv preprint arXiv:2002.09343. Cited by: §2.
- The what-if tool: interactive probing of machine learning models. IEEE transactions on visualization and computer graphics 26 (1), pp. 56–65. Cited by: §2.
- Mitigating unwanted biases with adversarial learning. In Proceedings of the 2018 AAAI/ACM Conference on AI, Ethics, and Society, pp. 335–340. Cited by: §1, §2.
- A tutorial on fairness in machine learning. External Links: Cited by: §2.
- Improving fairness of ai systems with lossless de-biasing. arXiv preprint arXiv:2105.04534. Cited by: §2, §4.
Appendix A Supplementary figures for in-processing Equalized Odds intervention
a.1. Section 4: Case study
Appendix B Results for post-processing Equalized Odds intervention
The results described in Section 4 and 5 are based on in-processing Equalized Odds fairness intervention following the reductions approach from (Agarwal et al., 2018). This is a natural choice as (Blum and Stangl, 2020) call for fairness constrained empirical risk minimization for their findings, one of which we are replicating on Section 4. However, since post-processing methods are desirable in some settings, we repeat the same experiments with the threshold based post-processing Equalized Odds algorithm from (Hardt et al., 2016). The results are presented and compared to the in-processing method in the following.
b.1. Section 4: Case study
Figure 9 displays the test set fidelities in the original setting of (Blum and Stangl, 2020) for different amounts of training data under post-processing Equalized Odds intervention. For consistency, we choose the same parameter inputs as in Section 4.3, i.e. , and . The figure suggests that and examples for training and fairness thresholding are not sufficient to retrieve the Bayes optimal classifier. In fact, Figure 10 confirms that the data-driven Bayes optimal models are far from the analytical Bayes optimal model (which has accuracy of 60%) for . For , the post-processing method successfully classifies like the Bayes optimal classifier in most cases and for most levels of bias . We note that the post-processing method for Equalized Odds intervention requires a positive number of predictions for all classes in each of the groups in order to debias the predictions. For small data sets with a lot of injected bias, this assumption is not met in some cases which renders the post-processing method not applicable.
We compare the post-processing results from Figures 9-11 to the analogous figures from the in-processing Equalized Odds method (see Figures 2,7 and 8), and observe very similar results. This similarity is unsurprising given the general characteristics of the in-processing and post processing Equalized Odds solutions. On a high level, the threshold based post-processing method from (Hardt et al., 2016) takes the predictions of a biased classifier and debiases them to fulfill Equalized Odds. This leads to an unbiased classifier which is not necessarily guaranteed to be the fair classifier with minimal error. In contrast, the reductions Equalized Odds approach from (Agarwal et al., 2018) realizes different trade-offs between fairness and accuracy from which the user can select and our implementation chooses to weigh the factors 50/50. In the given setting, (Blum and Stangl, 2020) show that there is no trade-off between fairness and accuracy and the classifier with minimum error on the test set aligns with the classifier with minimal Equalized Odds violation.
b.2. Section 5: Exploration
While in-processing and post-processing Equalized Odds intervention showed to lead to similar results in replication of Theorem 1, there are some differences in observations for our exploratory experiments. We discuss these differences in the following.
Figure 12 depicts test set fidelity after post-processing intervention when under-representation bias is injected and base rates differ which corresponds to the setting from Section 5.1 and Figure 3. While the qualitative observation, i.e. the Bayes optimal classifiers can only be retrieved if base rates are the same across groups, is the same for both in-processing and post-processing intervention, the shapes of the curves differ when base rates diverge. Overall, the minority group fidelity appears to be lower in the post-processing case than in the in-processing case. We hypothesize that this occurs because, for non-zero base rate differences, the in-processing method trades off some amount of fairness for accuracy while the post-processing method does not have this option as discussed in Appendix B.1.
In the cases of sampling bias and label bias (Figure 13 and 14), we receive similar results for in-processing and post-processing interventions in experiments with the same base rates across groups. When base rates differ, the in-processing method outperforms the post-processing method in fidelity with the same reasoning as above.
We depict the post-processing results for feature measurement bias in Figure 15 and observe considerable performance differences when comparing to the in-processing results from Figure 6. While the Bayes optimal classifiers are approximated closely for most bias levels when applying the in-processing Equalized Odds intervention, the post-processing intervention leads to decreasing fidelity in one of the groups as more bias is injected. To understand why this is the case, we recall our reasoning from Section 5.4. As more and more information is removed from the features, the predicted minority group scores of the models concentrate more around their means. This introduces a small amount of disparity into the Bayes optimal predictions on the biased training set which is accepted by the in-processing intervention in favor of higher accuracy. In contrast to the in-processing intervention, the post-processing method cannot trade fairness and accuracy off and instead rebalances predictions on the biased training data set to fulfill Equalized Odds exactly. This leads the model to select group-specific thresholds with poor performance on the unbiased test data which is reflected as decreases fidelity here.
