A Robust Lane Detection Associated with Quaternion Hardy Filter

1 Preliminaries

In order to mention the proposed method, some basic knowledge about quaternion algebra [30], quaternion Fourier transform [7, 14], quaternion Hardy space [24], Jin’s gradient operator [26] and Hough transform [41] are reviewed as follows.

1.1 Quaternion algebra and quaternion Fourier transform

Let $H$

denote the Hamiltonian skew field of quaternion

H := {q = q_{0} + q_{1} i + q_{2} j + q_{3} k | q_{0}, q_{1}, q_{2}, q_{3} \in R},

(1.1)

which is an associative anti-commutative four-dimensional algebra. A quaternion-valued function $f : R^{2} \to H$ can be represented by

f (x_{1}, x_{2}) = f_{0} (x_{1}, x_{2}) + f_{1} (x_{1}, x_{2}) i + f_{2} (x_{1}, x_{2}) j + f_{3} (x_{1}, x_{2}) k,

(1.2)

where $f_{n} : R^{2} \to R (n = 0, 1, 2, 3)$ .

1.2 Quaternion Hardy space

Let $f \in L^{1} (R^{2}, H)$ . Then the quaternion Fourier transform (QFT) [7, 17, 18] of $f$ is defined by

F [f] (w_{1}, w_{2}) := \frac{1}{2 π} \int_{R^{2}} e^{- i w_{1} x_{1}} f (x_{1}, x_{2}) e^{- j w_{2} x_{2}} d x_{1} d x_{2},

(1.3)

where $w_{l} (l = 1, 2)$ denote the 2D angular frequencies. Furthermore, if $f$ is an integrable $H$ -valued function defined on $R^{2}$ , the inverse quaternion Fourier transform (IQFT) [7, 17, 18] of $f$ is defined by

F^{- 1} [f] (x_{1}, x_{2}) := \frac{1}{2 π} \int_{R^{2}} e^{i w_{1} x_{1}} f (w_{1}, w_{2}) e^{j w_{2} x_{2}} d w_{1} d w_{2} .

(1.4)

Let $C^{+} := {z | z = x + s i, x, x \in R, s > 0}$ , namely upper half complex plane and $H^{2} (C^{+})$ be the Hardy space on the upper half complex plane. Let $C_{i j} := {(z_{1}, z_{2}) | z_{1} = x_{1} + s_{1} i, z_{2} = x_{2} + s_{2} j, x_{l}, s_{l} \in R, l = 1, 2}$ . And a subset of $C_{i j}$ is defined by $C_{i j}^{+} := {(z_{1}, z_{2}) | z_{1} = x_{1} + s_{1} i, z_{2} = x_{2} + s_{2} j, x_{l}, s_{l} \in R, s_{l} > 0, l = 1, 2} .$ The quaternion Hardy space $Q^{2} (C_{i j}^{+})$ consists of all functions $h$ satisfying [Hu1],

⎧ ⎪ ⎪ ⎪ ⎪ ⎪ ⎪ ⎪ ⎪ ⎪ ⎪ ⎪ ⎪ ⎪ ⎨ ⎪ ⎪ ⎪ ⎪ ⎪ ⎪ ⎪ ⎪ ⎪ ⎪ ⎪ ⎪ ⎪ ⎩ \begin{matrix} \frac{\partial}{\partial_{1}} h (z_{1}, z_{2}) = 0; h (z_{1}, z_{2}) \frac{\partial}{\partial_{2}} = 0; {⎛ ⎜ ⎜ ⎝ sup \begin{matrix} s_{1} > 0 s_{2} > 0 \end{matrix} \int_{R^{2}} | h (x_{1} + s_{1} i, x_{2} + s_{2} j) |^{2} d x_{1} d x_{2} ⎞ ⎟ ⎟ ⎠}_{R^{2}}^{\frac{1}{2}} < \infty, \end{matrix}

(1.5)

where $\frac{\partial}{\partial_{1}} := \frac{\partial}{\partial x_{1}} + i \frac{\partial}{\partial s_{1}}$ , $\frac{\partial}{\partial_{2}} := \frac{\partial}{\partial x_{2}} + j \frac{\partial}{\partial s_{2}}$ .

1.3 Jin’s gradient operator

Let $g$ be an $M \times N$ color image that maps a point $(x, y)$

to a vector

(g_{1} (x, y)

g_{2} (x, y)

g_{3} (x, y))

. Specifically, for color image

g

, let

(g_{1} (x, y)

g_{2} (x, y)

g_{3} (x, y))

denotes the red, the green, and the blue channel, respectively. Then the square of the variation of

f

at the position

(x, y)

with the distance

b

in the direction

θ

is given by

\begin{matrix} d g^{2} & := ∥ g (x + b cos θ, y + b sin θ) - g (x, y) ∥_{2}^{2} \approx 3 \sum i = 1 {(\frac{\partial g_{i}}{\partial x} b cos θ + \frac{\partial g_{i}}{\partial y} b sin θ)}^{2} = b^{2} f (θ), \end{matrix}

(1.6)

where

\begin{matrix} g (θ) := & 2 3 \sum i = 1 \frac{\partial g_{i}}{\partial x} \frac{\partial g_{i}}{\partial y} cos θ sin θ + 3 \sum i = 1 {(\frac{\partial g_{i}}{\partial x})}^{2} {cos}^{2} θ + 3 \sum i = 1 {(\frac{\partial g_{i}}{\partial y})}^{2} {sin}^{2} θ . \end{matrix}

(1.7)

Define

⎧ ⎪ ⎪ ⎪ ⎪ ⎪ ⎪ ⎪ ⎪ ⎪ ⎪ ⎪ ⎪ ⎨ ⎪ ⎪ ⎪ ⎪ ⎪ ⎪ ⎪ ⎪ ⎪ ⎪ ⎪ ⎪ ⎩ \begin{matrix} H := 3 \sum i = 1 {(\frac{\partial g_{i}}{\partial x})}^{2}; J := 3 \sum i = 1 {(\frac{\partial g_{i}}{\partial y})}^{2}; K := 3 \sum i = 1 \frac{\partial g_{i}}{\partial x} \frac{\partial g_{i}}{\partial y} . \end{matrix}

(1.8)

Then the gradient magnitude $f_{max}$ of the Jin’s gradient operator is given by

\begin{matrix} g_{max} (θ_{max}) : & = max 0 \leq θ \leq 2 π g (θ) = & \frac{1}{2} (H + K + \sqrt{(H - K)^{2} + (2 J)^{2}}) . \end{matrix}

(1.9)

The gradient direction is defined as the value $θ_{max}$ that maximizes $g (θ)$ over $0 \leq θ \leq 2 π$

θ_{max} :=

(1.10)

where $(H - K)^{2} + J^{2} \neq 0$ , $sgn (J) = {\begin{matrix} 1, & J \geq 0; - 1, & J < 0. \end{matrix}$ While $(H - K)^{2} + J^{2} = 0$ , $θ_{max}$ is undefined.

1.4 Hough transform

The Hough transform is done on a binary image, obtained after processing the original image by an edge detector [25, 41, 35]. This is an ingenious method that converts such global curve detection problem into an efficient peak detection problem in parameter space. In addition, Dorst et al [11, 10, 9, 8] studied the application of plane-based geometric algebra in the representation of straight lines. The basic idea of Hough transform is to use the duality relationship between the points and lines in the image domain and the parameter domain. In particular, the slope-intercept form is a classical parametric form for straight line detection, as is shown in Eq. (1.11):

f (x, y) = y - k x - b = 0,

(1.11)

where $(x, y)$ is the coordinate of the pixel being mapped, and the parameters $k$ and $b$ are the slop and y-intercept of the line respectively. It’s worth noting that this method is sensitive to the choice of coordinate axes on the image plane because both the parameters become unbounded when $k$ is infinite.

Duda and Hart [12] lucidly resolved the issue of unboundedness by mapping a point in image space to a sinusoidal curve in $ρ - θ$ parameter space. Here we use HoughlinesP method to detect lines, which is based on statistics not only could detect the two endpoints of the straight lines but also have the advantage of high efficiency. $ρ$ and $θ$ satisfy the following relationship:

ρ (θ) = x cos θ + y sin θ,

(1.12)

where $θ$ is the angle between the line and the $Y$ -axis, $ρ$ is the distance from the origin to the line in the image coordinate, $ρ > 0$ and $ρ (θ + π) = - ρ (θ)$ .

The first step of Hough transform is initialize accumulator to all zeros, followed by the parameter space is quantized in intervals of $Δ ρ$ and $Δ θ$ and corresponding accumulators are created to collect the evidence (or vote) of object pixels satisfying Eq.(1.12). Consider the ( $m$ , $n$ )th accumulator corresponding to intervals [( $m - 1) Δ ρ$ , $m Δ ρ$ ) and [( $n - 1) Δ θ$ , $n Δ θ$ ) where $m, n \in Z^{+}$ . For each object pixel satisfying Eq.(1.12) with parameters in the above range, the vote in the ( $m$ , $n$ )th accumulator is incremented by 1. In the peak detection phase, the accumulators having number of votes above a critical threshold correspond to straight lines in the image. Therefore, the line detection problem is converted to peak statistics problems.

2 Quaternion Hardy filter

The analytic signal [16] of a given real signal $f$ is defined by

f_{a} (x) := f (x) + i H [f] (x), x \in R,

(2.1)

where $H [f]$ denotes the Hilbert transform [28] of $f$ . By a direct computation, the Fourier transform of $f_{a}$ is given by

_{a} (w) = (1 + sgn (w)) ˆ f (w), w \in R .

(2.2)

Figure 1: The flowchart of the proposed lane detection method.

The analytic signal of $f$ can be regarded as the output signal of a filter with input $f$ . The system function of this filter is given by

H_{1} (w) := 1 + sgn (w) .

(2.3)

Motivated by the success of analytic signal in the real signal processing, we try to use the alternative tool in the 2D signal processing.

Give a 2D quaternion-valued signal $f$ . The quaternion analytic signal [5] $f_{q}$ is defined by

f_{q} (x_{1}, x_{2}) := f (x_{1}, x_{2}) + i H_{x_{1}} [f] (x_{1}) + H_{x_{2}} [f] (x_{2}) j + i H_{x_{1} x_{2}} [f] (x_{1}, x_{2}) j,

(2.4)

where $H_{x_{1}}$ , $H_{x_{2}}$ are the partial Hilbert transforms with respect to $x_{1}, x_{2}$ respectively, while $H_{x_{1} x_{2}}$ the 2D Hilbert transform. By a direct computation [Kou2], the quaternion Fourier transform of $f_{q}$ is written as

F [f_{q}] (w_{1}, w_{2}) = [1 + sgn (w_{1})] [1 + sgn (w_{2})] F [f] (w_{1}, w_{2}) .

(2.5)

The quaternion analytic signal of $f$ can be regarded as the output signal of a filter with input $f$ . The system function of this filter is given by

H_{2} (w_{1}, w_{2}) := [1 + sgn (w_{1})] [1 + sgn (w_{2})] .

(2.6)

By the inverse quaternion Fourier transform on the both side of (2.5), we obtain

f_{q} (x_{1}, x_{2}) = F^{- 1} [H_{2} F [f]] (x_{1}, x_{2}) .

(2.7)

In this paper, we apply quaternion Hardy filter as a lane detector of color image. The system function of quaternion Hardy filter is defined by

	$H_{3} (w_{1}, w_{2}, s_{1}, s_{2}) :=$	$e^{- ∣ w_{1} ∣ s_{1}} e^{- ∣ w_{2} ∣ s_{2}} H_{2} (w_{1}, w_{2})$		(2.8)
	$=$	$e^{- ∣ w_{1} ∣ s_{1}} e^{- ∣ w_{2} ∣ s_{2}} [1 + % sgn (w_{1})] [1 + sgn (w_{2})] .$		(2.8)

Based on the above analysis, we have the following theorem.

Figure 2: The first row is the original image in rainy night driving condition. The second row and the third row are the lane detection results which are captured by Jin’s algorithm and the the proposed algorithm, respectively.

Theorem 2.1

Let $f \in L^{2} (R^{2}, H)$ , and

f_{Q} (x_{1}, x_{2}, s_{1}, s_{2}) = F^{- 1} [H_{3} F [f]] (x_{1}, x_{2}, s_{1}, s_{2}) .

(2.9)

Where $H_{3}$ is given by (2.8). Then $f_{Q} \in Q^{2} (C_{i j}^{+})$ .

The proof of Theorem 2.1 can be found in [QHF]. It states that the output signal of the quaternion Hardy filter belongs to the quaternion Hardy space $Q^{2} (C_{i j}^{+})$ .

Remark 2.2

The quaternion analytic signal is a special case of quaternion Hardy filter. That is, when $s_{1} = s_{2} = 0$ in Theorem 2.1, the system function $H_{3} (x_{1}, x_{2}, 0, 0)$ reduces to $H_{2} (w_{1}, w_{2})$ , and the signal $f_{Q} (x_{1}, x_{2}, 0, 0)$ reduces to $f_{q} (x_{1}, x_{2})$ which is defined by equation (2.7).

Remark 2.3

In image processing, quaternion Hardy filter can not only suppress the high frequency of image, but also enhance the edge feature. It’s worth noting that, the system function $H_{3} (x_{1}, x_{2}, s_{1}, s_{2})$ plays a key role in quaternion Hardy filter. It has the advantage of both Hilbert transform and low-pass filter. On the one hand, the factor $[1 + sgn (w_{1})] [1 + sgn (w_{2})]$ in $H_{3} (x_{1}, x_{2}, s_{1}, s_{2})$ performs Hilbert transform on the input signal. It can enhance the edge feature. On the other hand, $e^{- ∣ w_{1} ∣ s_{1}} e^{- ∣ w_{2} ∣ s_{2}}$ could improve the ability of noise immunity for the quaternion Hardy filter.

3 The proposed lane detection algorithm

The flowchart is shown in Fig. 1. In the following, let’s consider the details of the proposed algorithm. They are divided by the following steps.

Step 1. Input the road image $f (x_{1}, x_{2})$ . By quaternion representation, it can be written as

$f (x_{1}, x_{2}) = f_{R} (x_{1}, x_{2}) i + f_{G} (x_{1}, x_{2}) j + f_{B} (x_{1}, x_{2}) k,$ (3.1)

where $f_{R}, f_{G}$ and $f_{B}$ represent the red, green and blue components of color image $f$ , respectively.
Step 2. Compute the discrete quaternion Fourier transform (DQFT) [37], $F_{D} [f] (w_{1}, w_{2})$ , of the image $f$ from Step 1, we have

$F_{D} [f] (w_{1}, w_{2}) = M - 1 \sum x_{1} = 0 M - 1 \sum x_{2} = 0 e^{- i 2 π (w_{1} x_{1} / M)} f (x_{1}, x_{2}) e^{- j 2 π (w_{2} x_{2} / M)} .$ (3.2)

Figure 3: The first row is the original image in snowy night driving condition. The second row and the third row are the lane detection results which are captured by Jin’s algorithm and the the proposed algorithm, respectively.
Step 3. For the fixed positive $s_{1}$ and $s_{2}$ , calculate $H_{3}$ by Eq. (2.8), we have

$H_{3} (w_{1}, w_{2}, s_{1}, s_{2}) := e^{- ∣ w_{1} ∣ s_{1}} e^{- ∣ w_{2} ∣ s_{2}} [1 + sgn (w_{1})] [1 + sgn (w_{2})] .$

Multiplying $F_{D} [f]$ with $H_{3}$ , from Step 2 and 3, respectively. By Theorem 2.1, we have

$F_{D} [f_{Q}] (w_{1}, w_{2}) = H_{3} (w_{1}, w_{2}, s_{1}, s_{2}) F_{D} [f] (w_{1}, w_{2}) .$ (3.3)
Step 4. Compute the inverse DQFT of $F_{D} [f_{Q}]$ , from Step 3,

(3.4)

We obtain $f_{Q}$ .
Step 5. Extract the vector part of $f_{Q}$ , we obtain

(3.5)

where $h_{k}$ , $k = 1, 2, 3$ are real-valued functions.
Step 6. Applying the Jin’s gradient operator [26] to $V e c (f_{Q})$ .
Step 7. Furthermore, perform the Hough operator [3].
Step 8. Finally, we show the final result by placing the resulting lane lines on the original image.

4 Experiment

To verify the effectiveness of quaternion hardy filter-based lane detection algorithm, we conduct experiments on 27 video clips. The experiments are programmed in Matlab R2016b. The proposed algorithm is compared with previous work [39], [2], [27], [43], [32], [6], and [26]. Here, Jin [26] means that the proposed method without steps 2-4 and provides a baseline reference results. The previous work involved six different approaches that are typical of the field of lane line detection.
The video clips used in the experiment were from public dataset [1], which were shot using dashboard cameras in the US and Korea. This data set contains a total of 49 video clips, and 27 are randomly selected for this experiment. The 27 video clips consist of 44159 frame images which divided into 6 different weather conditions: day-clear (5), day-rainy (5), day-snowy (5), night-clear (5), night-rainy (5) and night-snowy (2). The number in parentheses after the weather label represent the number of video clips used in the experiment.

4.1 Visual results

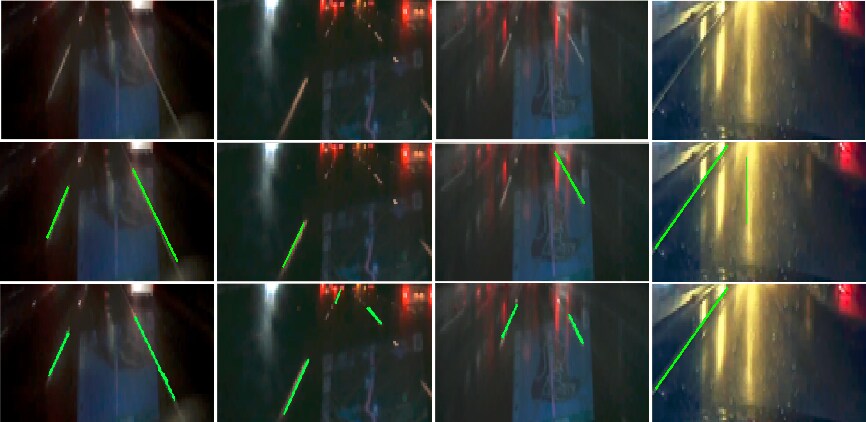

Visual results including rain night and snow night are illustrate in Fig. 2 and Fig. 3, respectively. When car lights form bright lines on the road on a rainy night, the comparison method may fail. It affects the detection of lane lines. For example, in the second row and fourth column of Fig. 2, Jin’s method is obviously affected by the light, thus making a misjudgment of the lane line. In addition, Jin’s method (e.g., the second row and first column in Fig. 3) detects the boundary line of the navigation screen and ignores the actual lane line on the right. Gradient-based approaches [43] may preserve the boundary portion of the navigation screen while ignoring the actual lane lines when they are reflective navigation screens are present. In general, the proposed method can achieve satisfactory results under complex weather conditions and illumination conditions. The proposed method cannot, however, detect lane markings when affected by surrounding buildings or windshield wipers, as shown in Fig. 4.

4.2 Quantitative comparisons

For each image, two boundary lines are drawn on the long edge of the lane mark in the presence of the lane mark, and the real value of the ground is obtained manually. The detection rate is obtained by the following

D R = \frac{c o r r e c t}{t o t a l} \times 100 %

(4.1)

where $c o r r e c t$ represents the number of images correctly detected and $t o t a l$ represents the total number of images participated in the detection.

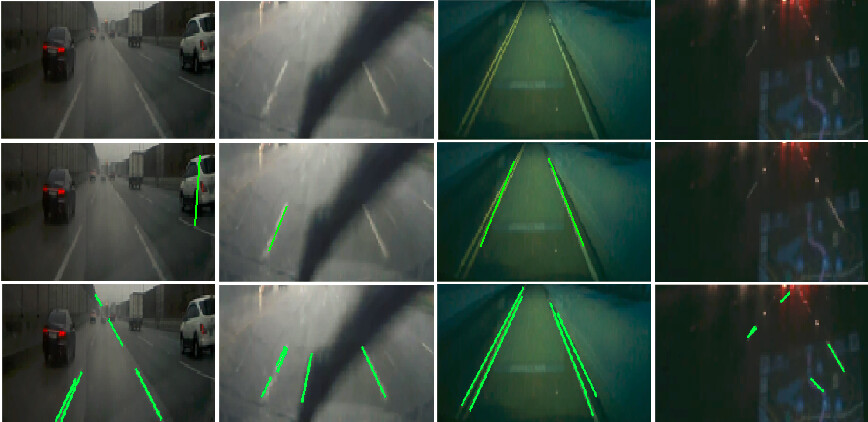

Figure 4: The first row is the original image in complex driving condition. The second row and the third row are the false lane detection results which are captured by Jin’s algorithm and the the proposed algorithm, respectively.

We present a quantitative evaluation for seven methods in Table 2. It can be seen from Table 2 that all the algorithms can generate good results when lane images are captured with good conditions, as shown in clear days and nights. For clear day sets, QHF-based method achieves a 99.4% accuracy among the compared methods. For rain day and snow day sets, the proposed method keeps steady in the accuracy. On clear night sets, the accuracy of the proposed method is still in the Top three. In the rainy night data set, the accuracy of the proposed method was still 88.5%, despite the fact that raindrops falling on the windshield caused considerable interference with the lane lines in the image. For the snowy night data set, the other six methods were not considered, and the proposed method was accurate to 95.4%. We have to say that there are some situations that are hard to dealt with. Fig. 4 gives several failure samples. For those images affected by wipers, illuminations and weather conditions, our method faces challenges. A potential solution to solve this problem is to use $Λ$ ROI (region of interest) [6]. However, ROI-based lane detection method require much computation cost. Therefore, more optimization works needs to be done in the future.

DR (%)	Son[39]	Aly[2]	Jung[27]	Yoo[43]	Liu[32]	Lee[6]	Jin[26]	Ours
Clear-Day	93.1	96.3	88 $\sim$ 98	96.36	-	99	99.3	99.4
Rain-Day	89	-	-	96.19	98.67	96.9	96.8	97
Snow-Day	-	-	-	-	-	93	94.2	95.5
Clear-Night	94.3	-	87.7	96.5	94.06	98	95.7	96.1
Rain-Night	93	-	-	-	-	93.6	79.4	88.5
Snow-Night	-	-	-	-	-	-	89.9	95.4
Processing
time/	33	20	3.9	50	200	35.4	300	800
frame(ms)
Platform	PC	PC	PC	PC	PC	ARM	PC	PC
CPU	Unknow	Core 2	2.8GHz	Unknow	2.3GHz	A9 GHz	2.3GHz	2.3GHz
		@2.4GHz				@800MHz

Table 2: Comparison of detection rate of different algorithms for color image lane detection on 44159 images .

5 Conclusion and future work

In this paper, we proposed a QHF-based lane detection method for color image. It exploits quaternion Hardy filter to generate clear feature image, and it use Jin’s gradient operator and Hough transform to provided lane lines, which ensures accuracy lane lines. Our method could handle with multiple situations such as various weather conditions, illuminations and lane markings. Experiments conducted on the dataset indicate that the proposed method achieves satisfactory results. The results were accurate and robust with respect to the complex environment lane markings. Finally, we are interested in extending our proposed quaternion lane line detection idea to color video for lane line detection in the future. In order to optimize the algorithm, we will also consider fast algorithms [20] and algorithm optimization software [15].

Acknowledgment

This research was supported by Macao Science and Technology Development Fund (No. FDCT/085/2018/A2).
