A Robust Imbalanced SAR Image Change Detection Approach Based on Deep Difference Image and PCANet

by   Xinzheng Zhang, et al.
Chongqing University

In this research, a novel robust change detection approach is presented for imbalanced multi-temporal synthetic aperture radar (SAR) image based on deep learning. Our main contribution is to develop a novel method for generating difference image and a parallel fuzzy c-means (FCM) clustering method. The main steps of our proposed approach are as follows: 1) Inspired by convolution and pooling in deep learning, a deep difference image (DDI) is obtained based on parameterized pooling leading to better speckle suppression and feature enhancement than traditional difference images. 2) Two different parameter Sigmoid nonlinear mapping are applied to the DDI to get two mapped DDIs. Parallel FCM are utilized on these two mapped DDIs to obtain three types of pseudo-label pixels, namely, changed pixels, unchanged pixels, and intermediate pixels. 3) A PCANet with support vector machine (SVM) are trained to classify intermediate pixels to be changed or unchanged. Three imbalanced multi-temporal SAR image sets are used for change detection experiments. The experimental results demonstrate that the proposed approach is effective and robust for imbalanced SAR data, and achieve up to 99.52 superior to most state-of-the-art methods.


page 1

page 2

page 3

page 4

page 5


Two-Phase Object-Based Deep Learning for Multi-temporal SAR Image Change Detection

Change detection is one of the fundamental applications of synthetic ape...

Robust Unsupervised Small Area Change Detection from SAR Imagery Using Deep Learning

Small area change detection from synthetic aperture radar (SAR) is a hig...

Change Detection from Synthetic Aperture Radar Images via Dual Path Denoising Network

Benefited from the rapid and sustainable development of synthetic apertu...

A Convolutional Neural Network with Parallel Multi-Scale Spatial Pooling to Detect Temporal Changes in SAR Images

In synthetic aperture radar (SAR) image change detection, it is quite ch...

Imbalanced Learning-based Automatic SAR Images Change Detection by Morphologically Supervised PCA-Net

Change detection is a quite challenging task due to the imbalance betwee...

A New Unsupervised Change Detection Approach Based on PCA Based Blocking and GMM Clustering for Detecting Flood Damage

In this paper, a new and effective unsupervised change detection techniq...

Unsupervised Change Detection in Multi-temporal VHR Images Based on Deep Kernel PCA Convolutional Mapping Network

With the development of Earth observation technology, very-high-resoluti...

I Introduction

SAR image change detection technology is widely used in earth observation tasks such as environmental protection, urban research, and forest resource monitoring [1]. Compared with optical images, multi-temporal SAR images are usually contaminated by inherent speckle noise, which impacts much negative effects on change detection algorithms [2]-[5].

Due to the extreme shortage of multi-temporal SAR images with ground truth, supervised methods are limited in SAR image change detection. At present, unsupervised methods are widely studied and applied in this field. The main steps of unsupervised methods usually include: 1) Preprocessing; 2) difference image (DI) generation; 3) classification. A common method of generating DI is to calculate the log-ratio of the two SAR images pixel by pixel, the obvious disadvantage of which is the poor noise robustness. In classification, unsupervised clustering algorithms are applied at early stages. For example, -means clustering [6], multiple kernel -means clustering [7], and fuzzy -means clustering [8] have been extensively studied to classify pixels or produce pseudo-label training samples to subsequent classifiers from a DI. However, these existing clustering algorithms have significant disadvantages. On one hand, these distance-based clustering algorithms are extremely sensitive to speckle noise, which often leads to treat changes caused by speckles as real terrain objects changes. On the other hand, most of the existing clustering algorithms assume that the changed and unchanged classes are balanced. In many cases, the pixels of changed class are far less than the those of unchanged class, which is typical imbalanced. Traditional clustering methods will cause excessive false alarms when faced with imbalanced data.

In recent years, deep learning exhibits excellent performance in pattern recognition. Many researchers have introduced deep learning into SAR image change detection and achieved superior performance. Gao

et al. use cluster-based PCANet [9] and CWNN [10] to exploit the key information, respectively. In [3], Geng et al

. proposed a saliency-guided deep neural network for SAR image change detection. Li

et al

. proposed a SAR image change detection method based on convolutional neural network (CNN) [11]. Recently, researchers have noticed the imbalance in SAR image change detection. Wang

et al. proposed an imbalanced learning method by morphologically supervised PCANet [12]. To our best knowledge, there are still few studies on the imbalanced SAR images change detection, it is a fact that deep learning methods have extremely high requirements on the quality of training samples. However, the problem is that, with strong speckle noise and imbalanced data, it is hard to obtain high reliable pseudo-label training samples for deep learning models. Apparently, high quality DI and effective clustering methods are benefit for this issue.

In this research, a novel approach based on deep learning is proposed for imbalanced SAR image change detection. Especially, a novel DI generation method to get deep difference image (DDI) and a parallel FCM clustering (PFCMC) method are developed in the proposed approach. Our approach integrates DDI, PFCMC and PCANet to implement imbalance multi-temporal SAR image with strong speckle noise change detection, which is abbreviated as DP_PCANet. Our main contributions are as follows:

1) Based on the ideas of convolution and pooling in deep learning, we developed weighted pooling and cumulative weighted pooling. This method of generating DDI can effectively suppress various speckle noise and enhance terrain changes than traditional method.

2) PFCMC method is developed for imbalanced SAR image based on combining nonlinear mapping, Gabor wavelets and basic FCM, it can provide more reliable pseudo-labels training samples in the case of significantly imbalanced SAR images.

3) In PCANet classification, over-sampling and under-sampling are employed to reduce the negative impact of imbalanced data.

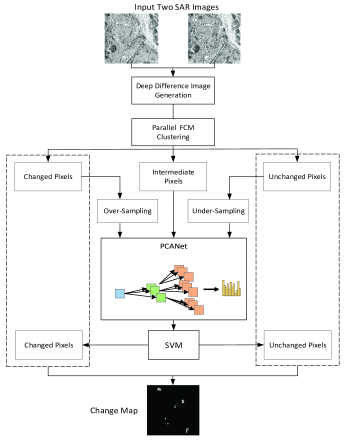

Fig. 1: The flowchart of the proposed change detection approach.

The remainder of this letter is organized as follows. Section II describes the proposed approach. Experimental results, comparison and analysis are in Section III. Finally, the conclusion is given in Section IV.

Ii Methodology

In this letter, the proposed approach mainly includes three parts: 1) generating a DDI; 2) parallel FCM clustering; 3) a PCANet with SVM are designed to classify pixels based on pseudo-label training samples. The flowchart of the proposed approach is illustrated in Fig. 1.

Ii-a Deep Difference Image Gerneration

In deep CNN, average-pooling and maximum-pooling are important processes to extract deep features. Although average-pooling is effective in suppressing noise, it can also easily result in excessive loss of details information. As for maximum-pooling, it can effectively enhance image features, however, it is more sensitive to noise. Motivated by the above ideas, we have proposed a weighted-pooling method for generating a DDI based on the distance measure of the local window.

If the local window is size of , where

is odd , the weighted-pooling kernel

is a matrix with the same size as shown in Equation (1). Each element value is determined by the distance between the current position and the matrix center, which is calculated by Equation (2).


As a special case, the value of the element at the center of the matrix is defined as . After weighted-pooling convolution, each pixel in the weighed-pooling image can be represented by Equation (3), where is pixel in the original image


Given two multi-temporal SAR images and , where , convolution of each SAR image using the same weighted pooling kernel to obtain two pooled images and , where denote 2-D convolution operation. Then, the log-ratio image is calculated as:


The log-ratio operator has weak anti-noise performance, there is still a certain degree of speckle noise in

. Based on the sparse distribution of noise outliers and the aggregated distribution of real change in log-ratio image, we apply weighted-pooling operation with different local window size to

for times, obtaining pooled images. Then, all pooled images is accumulated to generate the DDI denoted by :


where and denotes a pooled image of after weighted-pooling with parameter .The process of generating the DDI is exhibited in Fig. 2.

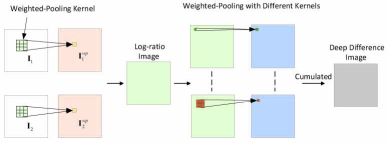

Fig. 2: The process of generating a deep difference image.

Ii-B Parallel FCM Clustering

In SAR image change detection, the number of changed pixels is often much less than that of unchanged pixels, The traditional clustering methods have poor clustering effect in case of imbalanced data.We develop parallel FCM clustering based on

mapping method to generate high quality pseudo labels. In order to enhance the difference of pixel categories and effectively reduce the impact of sample imbalance characteristics, the PFCM method first employs two sigmoid functions to map DDI to obtain two mapped images. The Sigmoid mapping function is with two parameters

and , and a variable is mapped by (6).


The Gabor wavelet transform is used to extract features from the two mapped images to obtain two sets of pixel-level feature vectors and

respectively, details of Gabor feature extraction can be referred in [9]. At last, FCM and simple coding method are used to get the final clustering results. The detailed descriptions of the parallel FCM algorithm are as follows:

1) Input: Deep difference image .

2) Step1: Obtain by normalizing and centralizing , apply two mapping to with two different parameter sets pixel-by-pixel to get and .

3) Step2: Perform Gabor feature extraction to and respectively. Two Gabor feature vector sets are obtained, which are denoted as and , where represents a Gabor feature vector.

4) Step3: FCM is utilized to perform two class clustering on and to get two label sets and respectively, where represents a label corresponding to a Gabor feature vector. The value of is 0 or 1. The simple averaging operation is used to encode the two label sets, obtaining the final label set , where .

5) Step4: If , assign the corresponding pixel to the changed class , if , assign the corresponding pixel to the unchanged class , the others are assigned to the intermediate class .

6) Output: The clustering result can be denoted by an image with labels {, , }.

The pixels belonging to

have the high probability to be changed, while the pixels belonging to

have the high probability to be unchanged. These two kinds of pixels can be chosen as samples for training PCANet model to classify those pixels belonging to .

Ii-C PCANet Classification Model

PCANet is a kind of deep learning model with strong robustness to noise [13]. In this letter, a PCANet with the similar two stages structure in [9] and linear SVM are adopted as the classification model.

Patches of size are generated pixel by pixel on two weighted-pooled SAR images and . The corresponding patches are connected to form a new patch set denoted as , where . Over-sampling the pixels of and down-sampling the pixels of to maintain a certain balance between the sample numbers. Randomly select image-patch samples and vectorize them to obtain feature vectors, then subtract vector mean from each a vector and combine them to a new feature matrix . The expression for calculating the PCA filter is as:


where is a function that maps to a matrix , and means the -th

principle eigenvector of

. Then the -th filter output of the first stage in PCANet is:


where denotes 3-D convolution.

The first layer of PCANet calculation is completed to obtain . The process of the second stage is similar to the first stage, the same method is applied to each to get the second stage output where .


We binarize outputs to obtain

, where is a Heaviside step function, whose value is one for positive and zero otherwise. Around each pixel of , the vector of binary bits can be converted into an integer value, the conversion formula is as follows:


The single integer-value image is obtained, and each pixel is an integer in the range . We further transform into a histogram denoted by . Then the PCANet feature of the image-patch can be defined as


Every image-patch is processed by the above method to get PCANet feature, and the extracted features and clustering labels are fed into linear SVM to train model. Use the model to further classify the pixels belonging to into and . Reconstruct the labels by position to get the final changed map.

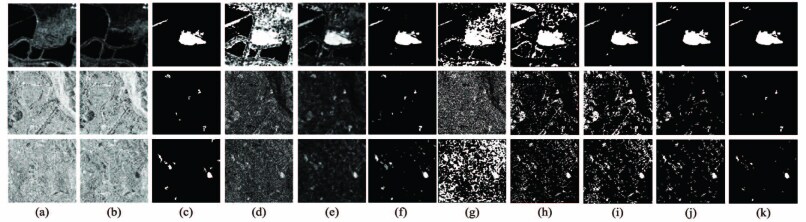

Fig. 3: Visualize results.The first line is for dataset A, the second line is for dataset B, and the third line is for dataset C. (a) and (b) show two original SAR images, respectively; (c) The Ground truth; (d) The DI generated by the traditional log-ratio operator; (e) The DDI generated by our proposed method; (f) Parallel FCM clustering results; (g) Results of PCA_kmeans; (h) Results of NR_ELM; (i) Results of Gabor_PCANet ; (j) Results of CWNN; (k) Results of our proposed approach.

Iii Experimental Results and Analyses

Iii-a Experimental Setup

In order to evaluate the performance of the proposed approach, we apply three real SAR datasets. The first is called the A dataset, which presents a section of two SAR images acquired by ERS-2 SAR sensor over the city of San Francisco. Each of these images is size of . The second dataset and the third dataset are named the B and C dataset respectively, which presents two SAR images captured by the COSMO-Skymed SAR sensor with a size of . The SAR images in B and C contain relatively strong speckle noise, and the areas of changed and unchanged in these SAR images are extremely imbalanced.

The following indicators are employed to evaluate the proposed approach: false positives (FP), false negatives (FN), percentage correct classification (PCC) and Kappa coefficient (KC). The FP denotes the number of unchanged pixels that are false detected, while FN refers the number of real changed pixels are detected as unchanged. True negatives (TN) indicates the unchanged pixels that are correctly detected, and true positives (TP) is the correct detection of changed pixels. Let Nc and Nu refer the number of truly changed and unchanged pixels of the ground truth respectively. We employ to measure the imbalance between the changed class and unchanged class. Overall errors (OE) is utilized to indicate the number of pixels for all detected errors. The PCC refers the ratio of correctly classified pixels to all pixels, which is expressed as . The KC is considered as an essential criterion, which is for consistency check. It is calculated as:


For comparison, four state-of-the-art approaches are utilized on the above three datasets. These approaches are PCA_kmeans [14] , NR_ELM [15], Gabor_PCANet [9] and CWNN[10]. Moreover, the parameters of these methods are set with reference to the corresponding papers.

In the proposed DP_PCANet approach, we set and

, respectively. In order to reduce the number of hyperparameters, we define the relationship and constraint between the two sets of the center biases

in the function:.

As mentioned in [9], the parameter of PCANet include image-patch size , the filter numbers and , and the training samples . We set and the . At the stage of generating DDI and parallel clustering, we set for A; for B; for C.

Iii-B Analysis of Result

Comparing (d) and (e) in Fig. 3, it can be found that The proposed method of generating DDI can effectively suppress speckle noise and enhance the characteristics of the real changed area for all three datasets. This is mainly because the weighted pooling has noise reduction on the original image, in addition, the image features are effectively retained. Then, the cumulated weighted-pooling can further weaken the sparse high-value noise on the log-ratio image, and further strengthen real changes. The DDI is significantly better than traditional DI visually.

The imbalanced ratio was calculated: , and . As can be seen from (f) in Fig. 3, the PFCMC method can effectively adapt to images of different imbalanced ratio, and clustering results image is satisfied for all three datasets.

In Table I, we exhibit the values of the above-mentioned indicators to evaluate these change detection methods. The PCC and KC of DP_PCANet are 99.08% and 0.9296, respectively, which are slightly higher than 98.90% and 0.9164 of Gabor_PCANet, 98.94% and 0.9231 of CWNN. It demonstrates that the change detection result of DP_PCANet is almost identical to the Ground truth. For the dataset B with strong speckle noise, the PCC of DP_PCANet reaches 99.52%, the KC reaches 0.7177. For C dataset, the PCC of DP_PCANet reaches 98.65% and the KC is 0.6081. The indicators of our proposed algorithm are higher than other methods on three datasets. Comparing the change detection results of these five approaches in Fig. 3, we draw the conclusion that proposed approach is superior to other methods. Above results illustrates that our algorithm’s robustness and generalization are significantly better than other methods on the three sets of data, and have extremely strong detection performance.

The degree of imbalance in the three datasets is quite different, the imbalance of dataset B is very serious, especially. Various imbalance in these datasets has a strong negative effect on the clustering accuracy and the performance of the deep learning classification model. Due to imbalanced characteristic, the other four methods identify large number of unchanged pixels as changed pixels, leading to great false alarms. Compared with other methods, the FP of our proposed approach are 221, 266, and 585 on the three sets of data. DP_PCANet has the lowest FP and maintains the lowest OE, while keeping the highest PCC and KC. Experimental results demonstrate that DP_PCANet has strong adaptive ability and generalization performance on imbalanced multi-temporal SAR image change detection tasks.

Model Results on the A dataset
PCA_kmeans 13496 218 13714 0.7907 0.3170
NR_ELM 10137 10 10147 0.8452 0.4161
Gabor_PCANet 311 409 720 0.9890 0.9164
CWNN 545 150 695 0.9894 0.9231
DP_PCANet 221 382 603 0.9908 0.9296
Model Results on the B dataset
PCA_kmeans 60119 241 60360 0.6228 0.0220
NR_ELM 20721 236 20957 0.8690 0.0912
Gabor_PCANet 23761 131 23892 0.8507 0.0862
CWNN 7194 417 7611 0.9524 0.2077
DP_PCANet 266 503 769 0.9952 0.7177
Model Results on the C dataset
PCA_kmeans 62095 180 62275 0.6108 0.0567
NR_ELM 15714 1121 16835 0.8948 0.1885
Gabor_PCANet 20860 695 21555 0.8653 0.1733
CWNN 7854 898 8752 0.9453 0.3487
DP_PCANet 585 1663 2248 0.9860 0.6092

Iii-C Analysis of Parameter b and T

We choose a set of to explore the relationship between the cumulative times and the performance of DP_PCANet, is adopted as the evaluation indicator. The same way is also used to analyze the center bias . The results are exhibited in Fig. 4.

From Fig. 4, it can be found that the parameter and have little effect on the dataset A, our algorithm can always maintain excellent performance for data A, the highest is 0.9296 when and . For dataset B and C with strong speckle noise, the result becomes better as increases. When reaches 9 and more, the tends to be stable and maintain a highelevel. The above experimental results prove that more cumulative times has a stronger effect on reducing speckle noise and retaining the true change. In theory, the benchmark of center bias is 0. The clustering algorithm has no preference of any kind when . Experimental results show the and are 98.76%, 0.5542 for data B and 98.60%, 0.5549 for data C when , it explains the benchmark parameters allow DP_PCANet to show good performance in most data. there is a most suitable center biases for SAR data with different characteristics, It is worth further research to automatically select appropriate .

Fig. 4: Relationship between and parameter

Iv Conclusion

In this letter, we have proposed a robust imbalanced multi-temporal SAR change detection approach. The proposed DDI generation method can effectively reduce speckle noise and enhance features. A parallel FCM clustering method was developed to increase the gap between the change class and the unchanged class, which can obtain excellent clustering performance under imbalanced data, thereby providing highly reliable pseudo-label training samples. Over-sampling and under-sampling were employed to mitigate the imbalance effects on PCANet. Experiment results confirmed the effectiveness, generalization and robustness of the proposed approach.


  • [1] M. N. Sumaiya and R. Shantha Selva Kumari, “Logarithmic mean-based thresholding for SAR image change detection,” IEEE Geosci. Remote Sens. Lett., vol. 13, no. 11, pp. 1726–1728, Nov. 2016.
  • [2] M. Gong, Z. Zhou, and J. Ma, “Change detection in synthetic aperture radar images based on image fusion and fuzzy clustering,” IEEE Trans. Image Process., vol. 21, no. 4, pp. 2141–2151, Apr. 2012.
  • [3] J. Geng, X. Ma, X. Zhou and H. Wang, “Saliency-guided deep neural networks for SAR image change detection,” IEEE Trans. Geosci. Remote Sens., vol. 57, no. 10, pp. 7365–7377, Oct. 2019.
  • [4] M. Gong, J. Zhao, J. Liu and Q. Miao, “Change detection in synthetic aperture radar images based on deep neural networks,” IEEE Trans. Neural Netw., vol. 27, no. 1, pp. 125–138, Jan. 2016.
  • [5] L. Jia, M. Li, Y. Wu, P. Zhang, H. Chen, and L. An, “Semisupervised SAR image change detection using a cluster-neighborhood kernel,” IEEE Geosci. Remote Sens. Lett., vol. 11, no.8 pp. 1443–1447, Aug. 2014.
  • [6]

    Y. Zheng, X. Zhang, B. Hou, and G. Liu, “Using combined difference image and k-means clustering for SAR image change detection,”

    IEEE Geosci. Remote Sens. Lett., vol. 11, no. 3, pp. 691–695, Mar. 2014.
  • [7] L. Jia, M. Li, P. Zhang, Y. Wu, and H. Zhu, “SAR image change detection based on multiple kernel k-means clustering with local-neighborhood information,” IEEE Geosci. Remote Sens. Lett., vol. 13, no. 6, pp. 856-862, Jun. 2012.
  • [8] H. Li, T. Celik, and W. J. Emery, “Gabor feature based unsupervised change detection of multitemporal SAR images based on two-level clustering,” IEEE Geosci. Remote Sens. Lett., vol. 12, no. 12, pp. 2458–2462, Dec. 2015.
  • [9] F. Gao, J. Dong, B. Li, and Q. Xu, “Automatic change detection in synthetic aperture radar images based on PCANet,” IEEE Geosci. Remote Sens. Lett., vol. 13, no. 12, pp. 1792–1796, Dec. 2016.
  • [10] F. Gao, X. Wang, Y. Gao, J. Dong , and S. Wang, “Sea ice change detection in SAR images based on convolutional-wavelet neural networks” IEEE Geosci. Remote Sens. Lett., vol. 16, no. 8, pp. 1240–1244, Aug. 2019.
  • [11] Y. Li, C. Peng, Y. Chen, and L. Jiao, “A deep learning method for change detection in synthetic aperture radar images,” IEEE Trans. Geosci. Remote Sens., vol. 57, no. 8, pp. 5751–5763, Aug. 2019.
  • [12] R. Wang, J. Zhang, J. Chen, and L. Jiao, “Imbalanced learning-based automatic SAR images change detection by morphologically supervised PCANet,” IEEE Geosci. Remote Sens. Lett., vol. 16, no. 4, pp. 554–558, Apr. 2019.
  • [13] T. H. Chan, K. Jia, S. Gao, J. Lu, Z. Zeng, and Y. Ma, “PCANet: A simple deep learning baseline for image classification?,” IEEE Trans. Image Process., vol. 24, no. 12, pp. 5.17–5.32, Dec. 2015.
  • [14]

    T. Celik, “Unsupervised change detection in satellite images using principal component analysis and k-means clustering,”

    IEEE Geosci. Remote Sens. Lett., vol. 6, no. 4, pp. 772–776, Oct. 2009.
  • [15] F. Gao, J. Dong, B. Li, Q. Xu, and C. Xie, “Change detection from synthetic aperture radar images based on neighborhood-based ratio and extreme learning machine,” J. Appl. Remote Sens., vol. 10, no. 4, Dec 2016, Art. no. 084684.
