A robust and non-singular formulation of the boundary integral method for the potential problem

02/08/2019
by   Q. Sun, et al.
0

A non-singular formulation of the boundary integral method (BIM) is presented for the Laplace equation whereby the well-known singularities that arise from the fundamental solution are eliminated analytically. A key advantage of this approach is that numerical errors that arise due to the proximity of nodes located on osculating boundaries are suppressed. This is particularly relevant in multi-scale problems where high accuracy is required without undue increase in computational cost when the spacing between boundaries become much smaller than their characteristic dimensions. The elimination of the singularities means that standard quadrature can be used to evaluate the surface integrals and this results in about 60 also affords a numerically robust way to calculate the potential close to the boundaries. Detailed implementations of this approach are illustrated with problems involving osculating boundaries, 2D domains with corners and a wave drag problem in a 3D semi-infinite domain. The explicit formulation of problems with axial symmetry is also given.

READ FULL TEXT VIEW PDF
POST COMMENT

Comments

There are no comments yet.

Authors

page 17

02/06/2021

Solving Fredholm second-kind integral equations with singular right-hand sides on non-smooth boundaries

A numerical scheme is presented for the solution of Fredholm second-kind...
09/17/2020

The Boundary Element Method of Peridynamics

The peridynamic theory reformulates the governing equation of continuum ...
10/19/2019

Efficient Emulation of Computer Models Utilising Multiple Known Boundaries of Differing Dimensions

Emulation has been successfully applied across a wide variety of scienti...
07/24/2019

On the solution of Laplace's equation in the vicinity of triple-junctions

In this paper we characterize the behavior of solutions to systems of bo...
09/18/2021

Quadrature by fundamental solutions: kernel-independent layer potential evaluation for large collections of simple objects

Well-conditioned boundary integral methods for the solution of elliptic ...
10/21/2021

A boundary integral method for 3D nonuniform dielectric waveguide problems via the windowed Green function

This paper proposes an efficient boundary-integral based "windowed Green...
02/25/2022

Conformal capacity and polycircular domains

We study numerical conformal mapping of multiply connected planar domain...
This week in AI

Get the week's most popular data science and artificial intelligence research sent straight to your inbox every Saturday.

1 Introduction

Solution of the Laplace equation for the potential problem underpins many applications in electrostatics and heat conduction. It is also central to modelling moving or deformable boundaries in the high Reynolds number regime in fluid mechanics. There, viscous and boundary layer effects are not dominant whereby a description based on potential flow can therefore be used as a first approximation or as a base case for further refinement. Numerous examples can be found in hydrofoil dynamics (Faltinsen and Semenov, 2008; Xu and Wu, 2013), the description of waves (Xue et al., 2001; Liu et al., 2001), cavitation or supercavitation phenomena (Blake et al., 1986, 1987), in civil, marine and ocean engineering and oscillating bubble dynamics in sonophysics and sonochemistry (Leighton, 1994).

Many of the above applications in multiphase fluid mechanics require the accurate tracking of moving interfaces that can be cumbersome and expensive to implement using grid based methods, especially in 3D. Consequently the use of the boundary element method (BEM) is advantageous because computational effort can focus on modelling all the important interfaces with the additional benefit of reducing the dimension of the problem by one, thus obviating the need to compute solutions in the whole flow domain. To track moving and deforming interfaces with precision, the Laplace equation is solved at each time step and the boundaries evolve according to the unsteady Bernoulli equation. This approach can readily be adapted to handle large or infinite domains or boundaries. The BEM is especially appealing for infinite fluid domains since the behaviour at infinity can be accounted for analytically. Although the BEM generates dense matrix equations, the Fast Multipole Boundary Element Method (Liu, 2009) can be used to reduce both CPU time and memory requirement from to . Thus in spite of being a simplification of the full Navier-Stokes description, the theory of potential flow together with the Bernoulli equation to describe unsteady problems occupies an important role in multiphase fluid dynamics.

The inherent use of the fundamental solution in the formulation of the BEM means that the integral equation contains singular kernels. This characteristic feature has been described as “a mathematical monster that leaps out of every page” due to “very unfamiliar and complex mathematics” (Becker, 1992). Since the physical problem itself is perfectly well behaved on the boundaries, such singularities are numerical inconveniences generated by the mathematical formulation (Liu and Rudolphi, 1999). Traditionally, the singular behaviour is dealt with by a local change of variables in the evaluation of the surface integrals (Telles, 1987) that comes at the expense of additional coding effort. Previous attempts to remove such singularities analytically required the introduction of additional unknowns such as derivatives tangential to the surface that have to be found by developing and solving extra integral equations (Liu and Rudolphi, 1999; Chen et al., 2005). Another method to remove the singularities requires finding additional parameters that have to be determined on a fictitious ‘nearby’ boundary (Cao et al., 1991; Zhang et al., 1999; Chen et al., 2009).

Moreover, when two different boundaries or two parts of the same boundary become close to each other, the traditional implementation of the BIM does not prevent the deleterious influence of singularities that originate from nodes of one boundary on the other. In particular, for moving boundary potential problems, it is highly desirable to eliminate all singular terms that arise in traditional formulations of the BEM as this avoids the need to track the spatial separation of different parts of the boundary and to determine when remedial action may be required.

Here we show that the well-known mathematical singularities that arise in the BEM for solving the Laplace equation can be removed analytically without generating additional unknowns or equations to be solved. The desingularised formulation is given for both general 3D and axisymmetric cases. The approach can also be applied to evaluate the potential at points near boundaries in a numerically robust way. The implementation and resulting improvement in accuracy are illustrated with a number of examples: a problem with osculating boundaries, a 3D problem with a semi-infinite domain that arises in the study of wave drag near a deformable surface (with movies in the electronic supplement) and problems involving domains with corners in 2D.

2 Non-singular formulation of the boundary integral method

To develop a non-singular formulation of the boundary integral method, consider the internal problem in a 3D domain that is bounded by the closed surface , as shown in Fig. 1. The potential, , is governed by the Laplace equation

(1)

By using the 3D free space Green’s function and with the help of Green’s second identity, the solution of Eq. (1) can be found by solving the conventional boundary integral equation

(2)

where is the solid angle at the observation point on and the surface element is at . The normal derivatives are defined by and , where

is the unit normal vector pointing out of the internal domain at

 (Becker, 1992). If either or or a mixed boundary condition is given on the whole boundary , the corresponding or/and can be obtained from Eq. (2). Although numerical integration over the singularities in and can be effected by established methods (Telles, 1987), our aim is to remove such mathematical singularities analytically at the outset.

Figure 1: The 3D internal domain defined by the closed surface with the observation point with outward normal , the integration point with outward normal and a sample location of .

Corresponding to a given point on the boundary, we construct a function that also satisfies the Laplace equation and hence Eq. (2), with the properties that as , and , where is the outward unit normal vector at . We choose to be of the form

(3)

so the function must satisfy

(4)

Taking the difference between the conventional boundary integral equations for and for we obtain an integral equation relating and on that replaces the conventional boundary integral equation in Eq. (2):

(5)

The key point is that both integrands in Eq. (2) are now non-singular and thus any convenient quadrature method can be used to evaluate the integrals. Note also that the solid angle no longer appears. Implicit in the derivation of Eq. (2) is that the outward unit normal is uniquely defined at . The implementation of Eq. (2) at nodes where the normal is not defined, e.g. at a corner, is considered in Section 5. A detailed proof of this de-singularisation method using the linear function: has been given elsewhere Klaseboer et al. (2012) and establishes the theoretical basis of the numerical scheme constructed earlier to regularise the system of linear equations that arise from the standard implementation of the BEM (Klaseboer et al., 2009). This approach has also been extended to de-singularise boundary integral equations that arise in Stokes flow, in solving the Helmholtz equation and the equations of linear elasticity using a linear function for  (Klaseboer et al., 2012).

However, for potential problems involving domains of infinite extent (external problems), a different choice of is required since the linear function is unbounded at infinity. One possible choice for is

(6)

The constant vector is the position of any convenient point that is located outside the solution domain and satisfies . In the next section, we will use this form of to formulate a non-singular BEM for axisymmetric problems and in Section 6, we demonstrate how Eq. (6) can be used to formulate a non-singular boundary integral problem in a semi-infinite domain to solve a 3D time-dependent potential flow problem. Before proceeding, we note that we are not restricted to using a linear function or the form given by Eq. (6) for to construct non-singular versions of the boundary integral equation. In fact, any form of that satisfies the conditions given by Eq. (4) can be considered for use in Eq. (2) to remove the singular behaviour due to the presence of and at .

3 Non-singular axisymmetric boundary integral equation

For problems that possess axial symmetry whereby in the cylindrical variables: and , we have and , the integration over the azimuthal angle, , can be evaluated analytically (Becker, 1992). Since a point on the axisymmetric boundary surface is specified by some given equation , the surface integrals for the axisymmetric case can be reduced to 1D integrals.

The given by Eq. (6) will be an axisymmetric function if we choose (in Cartesian coordinates) to lie on the -axis of symmetry with located outside the solution domain. We measure the azimuthal angle, , relative to so that and the surface normals are given by and . With these definitions, the axisymmetric function in Eq. (6) and its normal derivative are given explicitly by

(8)

where , , and .

The axisymmetric version of the non-singular boundary integral equation obtained after performing the -integration in Eq. (2) using Eq. (6) is (see also (Becker, 1992))

(9)

where . The arc length element may be expressed as using the equation: that defines the axisymmetric surface. The quantities and are the complete elliptic integrals of the first and second kind of the parameter, (see (Becker, 1992; Abramowitz and Stegun, 1972)), with

(10)

The axisymmetric boundary integral equation given by Eq. (3) is non-singular because the divergence in as in the limit is now suppressed by the terms containing the difference between and and between and that vanish as as . Thus the line integral in Eq. (3) can be evaluated using any quadrature method. This is a consequence of using an axisymmetric form of given by Eq. (6) that simplified to Eqs. (3) and (8).

An additional bonus of the non-singular axisymmetric formulation in Eq. (3) is that no special effort is required to handle node points that are located on the axis of symmetry that has been a technical inconvenience of the conventional axisymmetric form of the boundary integral equation (Becker, 1992).

4 Robust method to calculate the potential near a boundary

The method of de-singularising the boundary integral equation by subtracting out the singular behaviour can also be used to give a numerically robust method to calculate the value of the potential at points near boundaries. To find the potential, , at an observation point that is located inside the domain but may be close to the boundary, we begin with the conventional boundary equation, Eq. (2), for the function , with given by Eq. (3) and for points inside the domain,

(11)

The point is located on the boundary and its relation to is specified below. The nearly singular behaviour of the integrands when is close to the boundary can be eliminated by subtracting Eq. (2) from Eq. (4) to give

(12)

When the observation point is near the boundary, a suitable choice for the boundary point, , is to project onto the boundary using the relation , with .

Another important benefit arising from the numerical robustness of the present de-singualarised formulation of the BIM occurs when different parts of the domain boundary become close together as often happens in multi-scale moving boundary problems. A simple example of this is when the boundary comprises of two nearly touching spheres and the point is located near where the spherical boundaries are close together. The present formulation eliminates the near singular behaviour of the kernel at nodes that are on a different part of boundary that is close spatially to the observation point . A numerical demonstration of this is given in Section 6.

5 Corner nodes in 2D

The above formulation of the non-singular form of the BEM for the potential problem assumes that the unit normal is uniquely defined at . When is a corner node on a 2D boundary, we choose to have the form

(13)

where is the potential at , and the constants and are the values of normal derivatives as one approaches from the ‘left’ () and from the ‘right’ (). The functions and satisfy the following conditions

(14)
(15)

The value of at the corner can be expressed in two equivalent forms

(16)

in which, and are the two tangential derivatives of the potential on side and at , respectively, and and are the unit tangential vectors along side and at , respectively. This compatibility condition in Eq. (16) provides an additional relation between and  (Grilli and Svendsen, 1990) in the formulation of the BIM whereas the tangential derivatives can be constructed from the values of at neighbouring nodes.

A choice for and for a 2D corner problem can be constructed in terms of the surface normals and on either side of the corner at

(17)

and

(18)

6 Numerical demonstrations and examples

(a)
(b)
Figure 2: Variation of the velocity potential along the meridian for two nearly osculating spheres translating along their line of centre at equal constant speed in potential flow. (a) Nodes 1–101 are on the sphere of radius and nodes 102–202 are on the sphere of radius . The gap between the spheres is . (b) Erroneous results of the potential obtained from the standard axisymmetric boundary integral method (symbols) when compared to our non-singular method given by Eq. (3) (line) are circled.

6.1 Two nearly touching spheres

To demonstrate the utility and robustness of our non-singular boundary integral method for problems with near osculating boundaries, we consider the potential problem associated with two nearly touching spheres translating along their line of centre at identical constant speed. The spheres have radii and and are at a separation of at the point of closest approach (Fig. 2a). We compare the velocity potential obtained using the standard axisymmetric boundary integral method (Wang et al., 1996), with our non-singular version given by Eq. (3) with set to the centre of each sphere. In Fig. 2b, we see that the error in the standard axisymmetric boundary integral method is very large in the region where the spheres are close together. The standard 3D boundary integral method gives errors similar to the standard axisymmetric method whereas the non-singular 3D version given by Eq. (2) has the same accuracy as the axisymmetric version. This large error arises in the standard version of the boundary integral method because of the influence of the observation point on one sphere from the singular kernel centred at nearby nodes located on the other sphere. As we have shown in Section 4, with our non-singular formulation, such effects do not arise.

6.2 Corner problem in 2D

Figure 3: Rectangular domain for an interior 2D potential problems.

To illustrate the implementation of our non-singular formulation of the BIM, we consider three different interior potential problems in rectangular domains of different shapes, as shown in Fig. 3. The length of all four edges are set to be 1 unit. Uniform linear elements are employed on the boundary of the parallelogram specified by the angle, . At the corner nodes, the function given by Eq. (13) used in the non-singular boundary integral equation (2) and the double node technique Grilli and Svendsen (1990) has been applied. The tangential derivatives of the potential in the compatibility condition in Eq. (16) are obtained by a fourth order finite difference scheme using values of along the boundaries. For the remaining nodes on the edges, the form of in Eq. (3) with is used in Eq. (2).

We tested three cases corresponding to analytical solutions:

(19)
(20)
(21)
(a)
(b)
Figure 4: Variation in the normal derivative along two different domain boundaries corresponding to Fig. 3 as and , between the exact solutions given by Eqs. (19)-(21) (lines) and the results obtained by our non-singular BIM (symbols). For clarity, only a subset of the results on the 21 nodes on each side of the parallelogram are shown for Case I: black squares, Case II: blue circles and Case III: green triangles.

We solved the above corner problems with Dirichlet boundary conditions. The comparisons between the results for the normal derivatives obtained by our non-singular BIM with 21 nodes on each edge and the analytical solutions are shown in Fig. 4 when and . The absolute errors for these cases can be found in Table 1.

Domain angle Case I Case II Case III
0.0046% 0.29% 0.87%
0.012% 0.019% 0.77%
Table 1: Absolute error of the 2D non-singular boundary integral mehtod for solving Cases I, II and III given by Eqs. (19)-(21) for the domain in Fig. 3 for different corner angle .

Other pairs of and that satisfy Eqs. (14) and (15) can also be used, for example

(22)
(23)

where and are located outside of the calculation domain, and

(24)

This pair of and are also used to solve the above three cases with Dirichlet boundary conditions when . Once again, 21 nodes are employed on each edge. The absolute errors between the results for the normal derivatives obtained by our non-singular BIM and the analytical solutions for these cases are the same as Table 1.

This method of treating corner nodes can be extended to handle edges and vertices in 3D domains, but will not be considered here.

6.3 Wave drag at a semi-infinite deformable boundary

To illustrate the generality of our non-singular formulation of the BEM, we examine the following wave drag problem that has sufficient complexity to be interesting (Landau and Lifshitz, 1966). Consider two identical spheres of radius, , separated by a constant distance between their centres and moving with constant speed at the same depth below an infinite deformable free surface in a gravity field, as shown in Fig. 5. The origin of the global reference frame is set to coincide with the initially undisturbed free surface (at ) with the surface elevation pointing upwards (Fig. 5). For simplicity, the upper phase (air) is assumed to have negligible mass density and interfacial tension effects have been omitted, although it is easy to dispense with such simplifications at the expense of introducing more physical parameters. This is a time-dependent potential flow problem as surface waves will be generated on the deformable free surface while the pair of spheres travelling beneath it.

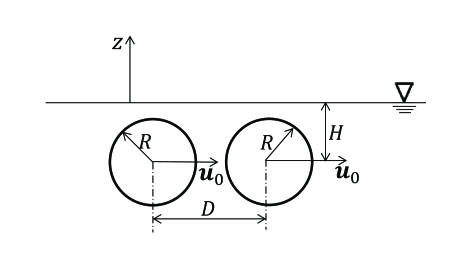

Figure 5: The geometry of two spheres translating near a deformable free interface.
