I Introduction
In this paper, we address the problem of face clustering, especially for the scenario of grouping a set of face images without knowing the exact number of clusters. Face clustering algorithms provide meaningful partitions for given face image sets by combining faces with similar appearances while separating dissimilar ones. Ideally, face images in a partition should belong to the same identity, while images from different partitions should not. Identitysensitive face clustering algorithms is an active research in computer vision and has several applications, including but not limited to organizing personal pictures, summarizing imagery from social media, and homeland security camera during investigation. Clustering is also important when we need large amount of data to train a deep convolutional neural network (DCNN) for face verification, classification, or detection tasks. Recently, Microsoft Research released the MSCeleb1M dataset
[8], which contains 1M celebrity names and over 8 million face images. Due to its diversity, this verylarge dataset has the potential to improve the performance of face recognition systems. However, since the MSCeleb1M dataset has been built from the outputs of search engines, labeling errors could adversely affect the training of deep networks. An effective approach to tackle this problem is to apply a reliable clustering algorithm on the MSCeleb1M training dataset to harvest sufficient number of face images that can be used for training a DCNN.
Despite extensive studies on general clustering algorithms over the past few decades, face image clustering remains a difficult task. The difficulties are mainly twofold. Since face images of a person may have variations in illumination, facial expressions, occlusion, age, and pose, it is challenging to measure the similarity between two face images. Another issue is that without knowing the actual number of clusters, many wellestablished clustering algorithms, such as means, may not be effective.
Recent advances on DCNNs have brought about impressive improvements for image classification and verification tasks [23, 11], which can be attributed to its ability to extract discriminative information from each image and represent it compactly. Inspired by this progress, we apply a DCNN to extract deep features from the given face and define a similarity measure to separate one face from another. Traditional methods define pairwise similarity based on monotonically decreasing functions of distance, e.g. the Gaussian kernel . Recently, Zhu et al. [30] proposed RankOrder clustering where pairwise similarity is measured based on the ranking of shared nearest neighbors. Otto et al. [17] improved the scalability and accuracy of RankOrder clustering by considering only the presence or absence of nearest neighbors. We hypothesize, based on the works by Zhu and Otto, that neighborhood geometry should be considered to achieve improved clustering performance. However, RankOrder clustering computes similarities based on shared nearest neighbors in a domain where geometrical information may be lost (i.e.
, ‘rank’ only contains the ordering information). Our approach measures the similarity between neighborhoods directly in the feature space: neighborhood geometries are first transferred to an evaluation hyperplane, pairwise similarity is then defined by evaluating the points on the hyperplanes.
Ii Related Work
General Clustering Algorithms Clustering algorithms can be generally categorized into partitional and agglomerative approaches. Both approaches build upon a similarity graph defined for the given dataset. The graph can be either fully connected, in neighborhood or in nearest neighbor. For partitional approaches, given the number of clusters, means [15]
iteratively updates the group centers and corresponding members until convergence. Spectral clustering finds the underlying structure based on graph Laplacian
[22, 16, 28]. For agglomerative approaches [7, 12], groups of data points are merged whenever the linkage between them is above some threshold. Finding the proper similarity measure is one of the major tasks in designing clustering algorithms. Traditional approaches use nonincreasing functions of pairwise distance as the similarity measure, e.g. . Recently, sparse subspace clustering (SSC) [3, 4] and lowrank subspace clustering (LRSC) [24, 14], which exploit the subspace structures in a dataset, have gained some attention. Both methods assume data points are selfexpressive. By minimizing the reconstruction error under the sparsity/lowrank criterion, the similarity matrix can be obtained from the corresponding sparse/lowrank representation. However, SSC and LRSC are computationally expensive and hard to scale. In [18], dimensionality reduction and subspace clustering are simultaneously learned to achieve improved performance and efficiency. Another category, known as supervised clustering, learns appropriate distance metric from additional datasets [9, 1, 6, 13].Image Clustering Algorithms Yang et al. [26] proposed learning deep representations and image clusters jointly in a recurrent framework. Each image is treated as separate clusters at the beginning, and a deep network is trained using this initial grouping. Deep representation and cluster members are then iteratively refined until the number of clusters reached the predefined value. Zhang et al. [29] proposed to cluster face images in videos by alternating between deep representation adaption and clustering. Temporal and spatial information between and within video frames is exploited to achieve high purity face image clusters. Zhu et al. [30] measured pairwise similarity by considering the ranks of shared nearest neighbors, and transitively merged images into clusters when the similarity is above some threshold. Otto et al. [17] modified the algorithm by (i) using deep representations of images (ii) considering only the absence and presence of the shared nearest neighbors and (iii) transitively merging only once. Superior clustering results and computational time are achieved from the modifications. Sankaranarayanan et al. [20] proposed learning a lowdimensional discriminative embedding for deep features and applied hierarchical clustering to realize stateoftheart precisionrecall clustering performance on the LFW dataset.
Different from these studies, we propose a clustering algorithm that does not require (i) training a deep network iteratively [26] (ii) partial identity information [29] and (iii) additional training data [20]. Our approach focuses on exploiting the neighborhood structure between samples and implicitly performing domain adaptation to achieve improved clustering performance.
Iii Proposed Approach

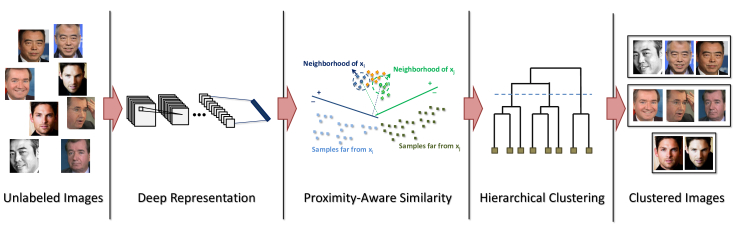

In this section, we introduce our clustering algorithm, illustrated in Fig. 1. The face images first pass through a pretrained face DCNN model to extract the deep features. Then, we compute the ProximityAware similarity scores using linear SVMs trained with corresponding neighborhoods of the samples. Finally, the agglomerative hierarchical clustering method is applied on the similarity scores to determine the cluster labels to each sample. The details of each components are described in the following subsections.
Iiia Notation
We denote the set of face images as . Our goal is to assign labels for each image to indicate the cluster it belongs to. The images are first passed through a pretrained DCNN model to extract the deep features, which are then normalized to unit length. Specifically, let be the DCNN network parameterized by , and be the normalization. The corresponding deep representations for the face images are given by . For each representation , we define as the set of nearest neighbors of , including itself.
IiiB Agglomerative Hierarchical Clustering
Agglomerative hierarchical clustering [7, 12] initializes all samples as separate clusters. Based on the pairwise distance matrix measured from the features, clusters are iteratively merged whenever the clustertocluster distance is below some threshold . The hierarchical clustering algorithm, denoted as , generates the cluster assignments for all the faces in . In our work, we use average linkage as a measure of clustertocluster distance.
Recent advances in DCNN have yielded great improvements for face verification task, which uses cosine distance as the similarity measure to decide whether two faces belong to the same subject. Given two features on the unit hypersphere , the similarity measure between them is computed by
(1)
The pairwise distance matrix in this case is simply
(2)
Since DCNNs trained on large datasets extract discriminative features for images, , where is from (2), can perform well on datasets that have similar distribution as the training dataset. However, the difference in distribution encountered in many realworld applications degrades the performance significantly. Inspired by previous works [30, 17], we aim at measuring similarity based on the neighborhood structure.
IiiC ProximityAware Similarity
To have a formulation that is able to take neighborhoods , into account when measuring the similarity between and , we rewrite the inner product as
(3)
In (3), the similarity between and is evaluated by averaging two asymmetric measures: How similar is from the view of and how similar is from the view of . Specifically, can be interpreted as evaluating on hyperplane and can be interpreted as evaluating on hyperplane . This observation allows us to generalize the asymmetric measure as follows.
Given a hyperplane which contains information about , the asymmetric similarity from to some set is defined as
(4)
Following (3), the generalized similarity measure, which we call “ProximityAware similarity”, is the average of two asymmetric measures from to and from to :
(5)
Unlike cosine similarity,
is not bounded. We introduce a nonlinear transformation to define the ProximityAware pairwise distance(6)
This choice of nonlinearity is for experimental simplicity. One can also consider . The ProximityAware Hierarchical clustering is then characterized by the following algorithm:
(7)
The above construction helps us to cast the problem of defining the similarity function between neighborhoods into finding hyperplanes
. Our ultimate goal is to find a similarity measure for each pair of feature vectors that reflects whether they belong to the same class. We conjecture that
and should have the following property:has a large value when evaluating on sets that are near , and has a small value otherwise.
The constraint not only forces the similarity measure to be locally geometrysensitive (proximityaware) but also adaptive to the data domain. This motivates the use of linear classifiers to separate positive samples

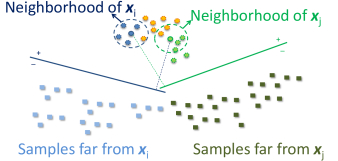

from their corresponding negative samples. Fig. 2 shows a demonstrative example. This approach is analogous to the oneshot similarity technique [25]. In this work, we use the linear SVM as our candidate algorithm for finding hyperplanes. Specifically, we solve(8)
where and . We treat as positive samples with cardinality , and a subset of as negative samples with cardinality . for positive samples and for negative samples. The regularization constants and are given by and .
In [25]
, Linear Discriminant Analysis (LDA) is used as the classifier to evaluate oneshot similarity score. However, we do not consider LDA as our candidate because the bimodal Gaussian prior assumption is not always satisfied for the positive and negative samples drawn from realworld datasets. In the proposed method, negative samples often consist of features from different identities with variations from nuisance factors, which do not obey a single Gaussian distribution.
IiiD Choice of Positive and Negative Sets
Since the hyperplane is chosen based on largemargin classification between positive samples and negative samples, the choice of them would be crucial. In this paper, we first construct the nearest neighbor list for each data sample , where . corresponds to , and we choose as the negative samples. In Section IV, we show how parameters affect the clustering performance in detail.
Iv Experimental Results
In this section, we evaluate our clustering algorithm qualitatively
on the recently released MSCeleb1M [8] dataset
and quantitatively on the IARPA Janus BenchmarkA (IJBA), JANUS
Challenge Set 3 (CS3), and Celebrities in FrontalProfile (CFP)
datasets. To compute ProximityAware similarity,
we use the LIBLINEAR library [5] with L2regularized L2loss primal SVM. The parameter is set at throughout this section.
MSCeleb1M [8]:
Microsoft Research recently released this very large face image dataset, consisting of 1M identities. The training dataset of MSCeleb1M is prepared by selecting top 99,892 identities from the 1M celebrity list. There are 8,456,240 images in total, roughly 85 images per identity. This dataset is designed by leveraging a knowledge base called “freebase”. Since face images are created using a search engine, labeling noise may be a problem when this dataset is used in supervised learning tasks. We demonstrate the effectiveness of the proposed clustering algorithm in curating largescale noisy dataset in Section
IVC and Section IVF. In this paper, we directly use the aligned images provided along with the dataset.Celebrities in FrontalProfile (CFP) [21]:
This dataset contains 500 subjects and 7,000 face images. Of the 7,000 faces, 5,000 are in frontal view, and the remaining 2,000 are in profile views where each subject contains 10 frontal and 4 profile
images. Unlike the IJBA dataset, the CFP dataset aims at isolating the
factor of pose variation in order to facilitate research in
frontalprofile face verification. Extreme variations in poses can be
seen in Fig. 3. In this work, we apply our
clustering algorithm on all 7,000 face images.
IARPA Janus Benchmark A (IJBA) [10] and JANUS Challenge Set 3 (CS3):
The IJBA dataset contains 500 subjects with a total of 25,813 images
taken from photos and video frames (5,399 still images and 20,414
video frames). Extreme variations in illumination, resolution,
viewpoint, pose and occlusion make it a very challenging dataset.
In this work, we cluster the templates corresponding to the query set for each split in IJBA 1:1 verification protocol
where a template is composed of a combination of still images and video frames. The CS3 dataset is a superset of IJBA dataset which
contains 11,876 still images and 55,372 video frames sampled from 7,094 videos. In this paper, we use images and video frames provided in CS3 1:1 verification protocol. There are totally 1,871 subjects and 12,590 templates. Fig. 4 shows sample images from different templates.
Iva Preprocessing
All the face bounding boxes and fiducial points for the IJBA, and JANUS CS3 datasests are extracted using the multitask face and fiducial detector of Hyperface [19]. For the MSCeleb1M and CFP datasets, we use the fiducial points or aligned images provided with the dataset. Each face is aligned into the canonical coordinate with the similarity transform using seven landmark points: two left eye corners, two right eye corners, nose tip, and two mouth corners. For the CFP dataset, since fiducial points are only available for half face, we use two eye corners of one of eyes, nose tip, and one of mouth corners. In training phase, data augmentation is performed by randomly cropping and horizontally flipping face images.
IvB Deep Network and Image Representation
We implement the network architecture presented in [2] and train it using the CASIAWebFace dataset [27]. We preprocess this dataset using the steps presented in Section IVA. We denote this pretrained network as ‘DCNN (CASIA)’. This network is further finetuned with curated MSCeleb1M dataset [8], which we denote as ‘DCNN (CASIA+MSCeleb)’. The process of removing mislabeled images in MSCeleb1M will be introduced in the next section. DCNN (CASIA) is trained using SGD for 780K iterations with a standard batch size 128 and momentum 0.9. The learning rate is set to 1e2 initially and is halved every 100K iterations. The weight decay rates of all the convolutional layers are set to 0, and the weight decay of the final fully connected layer is set to 5e4. Pretraining the DCNN network with the CASIA dataset not only provides good initialization for the model parameters but also greatly reduces the training time on the curated MSCeleb1M dataset. Then, we finetune the pretrained network to obtain DCNN (CASIA+MSCeleb) for improved face representation. We use the learning rate 1e4 for all the convolutional layers, and 1e2 for the fully connected layers. The network is trained for 240K iterations. In the training phase of DCNN (CASIA) and DCNN (CASIA+MSCeleb), the dropout ratio is set as 0.4 to regularize fc6 due to the large number of parameters (i.e. 320 10503 for the CASIA dataset and 320 58207 for the curated MSCeleb1M dataset.). Note that we manually remove the overlapping subjects with the IJBA and JANUS CS3 datasets from the CASIAWebFace and the MSCeleb1M datasets.
The inputs to the networks are RGB images. Given a face image, deep representation is extracted from the pool5 layer with dimension 320. In the case of IJBA and CS3 datasets, if there are multiple images and frames in one template, we perform media average pooling to produce the final representation.
IvC Qualitative Study on MSCeleb1M
As a qualitative study, we apply the clustering algorithm to remove face images with noisy labels in MSCeleb1M training dataset. Feature representation is first obtained by passing the whole dataset through DCNN(CASIA) described in Section IVB. We divide the total 99,892 identities into batches with size 50. For each batch, we apply , with . Clusters whose majority identity have less than 30 images are discarded. The number of the curated dataset is about 3.5 millions face images of 58,207 subjects. Fig. 5 shows one example of the clustering results. Since the PAHC exploits local property, face images with extreme pose are not discarded. In addition, our approach does not require external training dataset.
IvD Quantitative Study on the CFP, IJBA, and CS3 datasets
Images in CFP, IJBA, and CS3 datasets are first processed as described in Section IVA. In this section, we aim to compare our clustering algorithm with traditional hierarchical clustering, means, and Approximate RankOrder clustering [17], on the three datasets described earlier. Throughout our experiments, ‘Approximate RankOrder clustering’ refers to our implementation of the algorithm proposed in [17]. We use the precisionrecall curve defined in [17] as the performance metric to compare different algorithms at all operation points. Pairwise precision is the fraction of the number of pairs within the same cluster which are of the same class, over the total number of samecluster pairs. Pairwise recall is the fraction of the number of pairs within a class which are placed in the same cluster, over the total number of sameclass pairs.

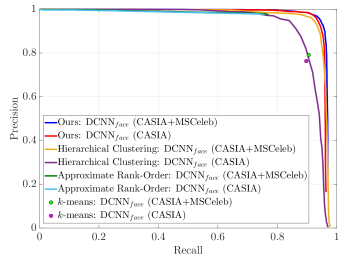

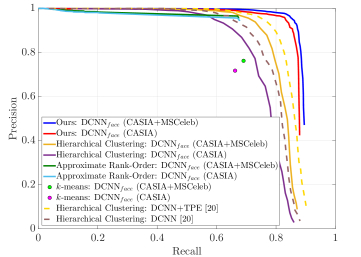

For the CFP dataset, we cluster 7,000 images. For the IJBA dataset, we cluster the query set provided in the 1:1 verification protocol for each split, and compute the average performance over 10 splits. For the CS3 dataset, we apply the clustering algorithms on 10,718 probe templates. We use the standard MATLAB implementation for hierarchical clustering and means, where we choose as the true number of identities. Fig. 6, Fig. 7, and Fig. 8 show the precisionrecall performance comparisons, and Fig. 9 and Fig, 10 show some sample clustering results.

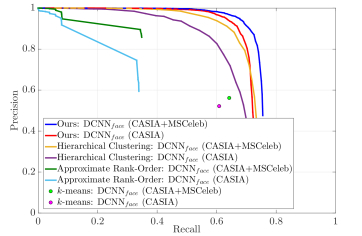

Compared to hierarchical clustering based on cosine distance, the PAHC attains significant gains by exploiting the neighborhood structure for each sample. The Approximate RankOrder clustering cannot reach recall greater than 0.7 because it only computes distances between samples which share a nearest neighbor, which means there are some samples which will not be merged for any choice of thresholding.
IvE Parameter and Negative Set Study

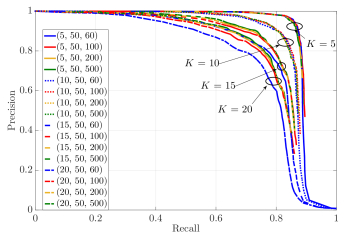

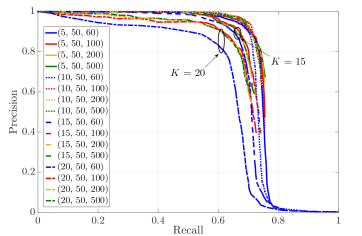

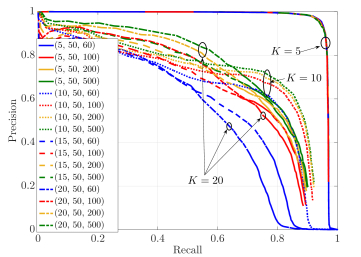

Fig. 11, 12, and 13 show results for different parameters settings of the proposed algorithm on the CFP, IJBA, and CS3 datasets. For smaller values of neighborhood size , e.g. , the choice of negative sets have little effect on the performance. This is because may not be able to represent the ‘local’ structure for large . In this case, the similarity between and would deviate significantly from the similarity between and . According to our experiments, setting gives the best performance.

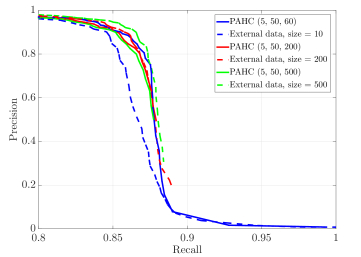

Since we claim that by choosing as negative samples, the deep representation can be adapted to the target domain, in the following, we experiment with the IJBA dataset by sampling templates from the training data in each split and use them as negative samples when training the linear SVM. It can be observed from Fig. 14 that when properly labeled templates, which contain nonoverlapping identities with the verification dataset, are used, improved performance is achieved. However, it is not an effective approach to realworld problems since preparing data with nonoverlapping identity with the unseen dataset is difficult.
IvF Finetuning DCNN using Curated MSCeleb1M dataset

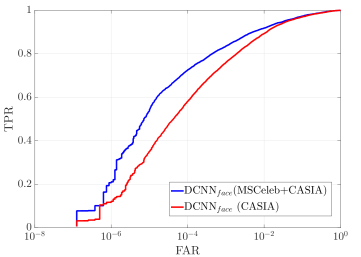

As described in Section IVB, we finetune the pretrained DCNN(CASIA) model using the curated subset of MSCeleb1M attained by our clustering algorithm, DCNN(CASIA+MSCeleb). In contrast, if we do not perform clustering and finetune DCNN(CASIA) using all the images of MSCeleb1M, the model does not converge. Then, we compare the results of JANUS CS3 1:1 verification task for the two networks: DCNN (CASIA) and DCNN (CASIA+MSCeleb). From Fig. 15 and Fig. I, DCNN (CASIA+MSCeleb) outperforms DCNN (CASIA), and it demonstrates that the proposed clustering algorithm improves the quality of training data used for the DCNN.
2 FAR  DCNN
(CASIA)
DCNN
(CASIA+MSCeleb)

1e1  0.9703  0.9731
1e2  0.8934  0.9184
1e3  0.7599  0.8355
1e4  0.5813  0.7252
2
V Conclusion
We proposed an unsupervised algorithm, namely, the PAHC algorithm, to measure the pairwise similarity between samples by exploiting their neighborhood structures along with domain adaptation. From extensive experiments, we show that our clustering algorithm achieves high precisionrecall performance at all operation points when the neighborhood is properly chosen. Following this, the PAHC is applied to curate the MSCeleb1M training dataset. Our algorithm retains faces with variations in pose, illumination and resolution, while separating images with different identities. We further finetuned the DCNN network with the curated dataset. Significant improvement on CS3 1:1 verification task demonstrates the effectiveness of our algorithm.
Vi Acknowledgments
This research is based upon work supported by the Office of the Director of National Intelligence (ODNI), Intelligence Advanced Research Projects Activity (IARPA), via IARPA R&D Contract No. 201414071600012. The views and conclusions contained herein are those of the authors and should not be interpreted as necessarily representing the official policies or endorsements, either expressed or implied, of the ODNI, IARPA, or the U.S. Government. The U.S. Government is authorized to reproduce and distribute reprints for Governmental purposes notwithstanding any copyright annotation thereon.
References

[1]
A. BarHillel, T. Hertz, N. Shental, and D. Weinshall.
Learning a mahalanobis metric from equivalence constraints.
Journal of Machine Learning Research
, 6:937–965, 2005.  [2] J.C. Chen, V. M. Patel, and R. Chellappa. Unconstrained face verification using deep cnn features. In IEEE Winter Conference on Applications of Computer Vision (WACV), pages 1–9. IEEE, 2016.
 [3] E. Elhamifar and R. Vidal. Sparse subspace clustering, 2009.
 [4] E. Elhamifar and R. Vidal. Sparse subspace clustering: Algorithm, theory, and applications. IEEE Transactions on Pattern Analysis and Machine Intelligence, 2013.
 [5] R.E. Fan, K.W. Chang, C.J. Hsieh, X.R. Wang, and C.J. Lin. LIBLINEAR: A library for large linear classification. Journal of Machine Learning Research, 9:1871–1874, 2008.

[6]
T. Finley and T. Joachims.
Supervised clustering with support vector machines.
pages 217–224, 2005.  [7] K. C. Gowda and G. Krishna. Agglomerative clustering using the concept of mutual nearest neighbourhood. Pattern Recognition, 10(2):105–112, 1978.
 [8] Y. Guo, L. Zhang, Y. Hu, X. He, and J. Gao. Msceleb1m: A dataset and benchmark for largescale face recognition. European Conference on Computer Vision (ECCV), 2016.
 [9] M. I. Jordan, F. R. Bach, and F. R. Bach. Learning spectral clustering. In Advances in Neural Information Processing Systems, 2003.
 [10] B. F. Klare, B. Klein, E. Taborsky, A. Blanton, J. Cheney, K. Allen, P. Grother, A. Mah, M. Burge, and A. K. Jain. Pushing the frontiers of unconstrained face detection and recognition: IARPA Janus Benchmark A. In IEEE Conference on Computer Vision and Pattern Recognition, 2015.
 [11] A. Krizhevsky, I. Sutskever, and G. E. Hinton. Imagenet classification with deep convolutional neural networks. In Advances in Neural Information Processing Systems, pages 1097–1105, 2012.
 [12] T. Kurita. An efficient agglomerative clustering algorithm using a heap. Pattern Recognition, 24(3):205–209, 1991.
 [13] M. T. Law, Y. Yu, M. Cord, and E. P. Xing. Closedform training of mahalanobis distance for supervised clustering. In The IEEE Conference on Computer Vision and Pattern Recognition (CVPR), June 2016.

[14]
G. Liu and S. Yan.
Latent lowrank representation for subspace segmentation and feature extraction.
In IEEE International Conference on Computer Vision (ICCV), pages 1615–1622, 2011.
[15]
J. Macqueen.
Some methods for classification and analysis of multivariate
observations.
In
In 5th Berkeley Symposium on Mathematical Statistics and Probability
, pages 281–297, 1967.
[16]
A. Y. Ng, M. I. Jordan, and Y. Weiss.
On spectral clustering: Analysis and an algorithm.
In Advances in Neural Information Processing Systems, pages 849–856, 2001.  [17] C. Otto, D. Wang, and A. K. Jain. Clustering millions of faces by identity. CoRR, abs/1604.00989, 2016.
 [18] V. M. Patel, H. V. Nguyen, and R. Vidal. Latent space sparse and lowrank subspace clustering. IEEE Journal of Selected Topics in Signal Processing, 9(4):691–701, 2015.
 [19] R. Ranjan, V. M. Patel, and R. Chellappa. Hyperface: A deep multitask learning framework for face detection, landmark localization, pose estimation, and gender recognition. arXiv preprint arXiv:1603.01249, 2016.
 [20] S. Sankaranarayanan, A. Alavi, C. D. Castillo, and R. Chellappa. Triplet probabilistic embedding for face verification and clustering. In 2016 IEEE 8th International Conference on Biometrics Theory, Applications and Systems (BTAS), 2016.
 [21] S. Sengupta, J.C. Chen, C. Castillo, V. M. Patel, R. Chellappa, and D. W. Jacobs. Frontal to profile face verification in the wild. In IEEE Winter Conference on Applications of Computer Vision (WACV), pages 1–9. IEEE, 2016.
 [22] J. Shi and J. Malik. Normalized cuts and image segmentation. IEEE Transactions on Pattern Analysis and Machine Intelligence, 22(8):888–905, 2000.
 [23] K. Simonyan and A. Zisserman. Very deep convolutional networks for largescale image recognition. arXiv preprint arXiv:1409.1556, 2014.
 [24] R. Vidal and P. Favaro. Low rank subspace clustering (lrsc). Pattern Recognition Letters, 43:47–61, 2014.
 [25] L. Wolf, T. Hassner, and Y. Taigman. The oneshot similarity kernel. In IEEE International Conference on Computer Vision (ICCV), 2009.

[26]
J. Yang, D. Parikh, and D. Batra.
Joint unsupervised learning of deep representations and image clusters.
In The IEEE Conference on Computer Vision and Pattern Recognition (CVPR), 2016.  [27] D. Yi, Z. Lei, S. Liao, and S. Z. Li. Learning face representation from scratch. arXiv preprint arXiv:1411.7923, 2014.
 [28] L. Zelnikmanor and P. Perona. Selftuning spectral clustering. In Advances in Neural Information Processing Systems, pages 1601–1608, 2004.
 [29] Z. Zhang, P. Luo, C. C. Loy, and X. Tang. Joint face representation adaptation and clustering in videos. In European Conference on Computer Vision (ECCV), 2016.
 [30] C. Zhu, F. Wen, and J. Sun. A rankorder distance based clustering algorithm for face tagging. In The IEEE Conference on Computer Vision and Pattern Recognition (CVPR), pages 481–488, 2011.
