1 Introduction

Classification of objects has long been recognized as a major driver in natural sciences, from taxonomical classification of species, anthropological variation of cultures (e.g. Stocking, 1968), to the vastness of galaxy shapes (De Vaucouleurs, 1959). Empirical classifications are powerful triggers for novel theories, an archetypal example being the Linnaean classification of organisms (Linnaeus, 1758) that subsequently inspired the birth of Darwin’s renowned theory of common descent (Darwin, 1859).

Even though the properties of objects in nature may lie along a continuum, and groups may be defined by fuzzy boundaries, it may still be practical to divide them into categories that ideally reflect some physical distinctions. In astronomy, a canonical example is the one-dimensional Morgan-Keenan (Morgan & Keenan, 1973) system of spectral stellar classification, in which stars of each class share similar ionization states or effective temperatures. The system was later used to compose the two-dimensional Hertzsprung-Russell diagram (e.g. Chiosi et al., 1992, and references therein), in which different stages of stellar evolution (e.g. main sequence, white dwarfs, giants, etc.) are grouped according to their luminosity (or magnitude) and effective temperature (or colour).

In the context of extragalactic astrophysics, various classification schemes have been proposed to help ascertain the main drivers regulating galaxy evolution; this task becomes imperative in the face of the deluge of information gathered by current (e.g. Sloan Digital Sky Survey, York et al., 2000; Zhang & Zhao, 2015) and upcoming (e.g. Large Synoptic Survey Telescope, Ivezic et al., 2009) large-scale sky surveys. Some examples are the classification of galaxies based on their morphological type (Lintott et al., 2008), their surrounding environment (von der Linden et al., 2010), or their spectral features (Morgan & Mayall, 1957; Ucci et al., 2017).

Notably, the collisionally excited emission–lines are powerful diagnostics to differentiate galaxies according to their ionization power source (e.g. Stasińska, 2007), i.e. nuclear emission, star formation, and so forth. Some of the most widely used emission-line diagnostics are the Baldwin-Phillips-Terlevich (BPT; Baldwin et al., 1981; Veilleux & Osterbrock, 1987; Rola et al., 1997; Kewley et al., 2001; Kauffmann et al., 2003; Stasinska et al., 2006; Schawinski et al., 2007) and, more recently, the vs. [NII]/H (WHAN; Cid Fernandes et al., 2010; Cid Fernandes et al., 2011) diagrams.

The BPT diagram111Also known as the Seagull diagram.classifies galaxies into star-forming (SF), composite, and active galactic nuclei (AGN) hosts. The latter can be further subdivided into low-ionization nuclear emission-line region (LINER) galaxies and Seyferts. The lines used to define such classification are H, [OIII] 5007, H, and [NII] 6583, and the galaxies are classified in the parameter space formed by [NII]/H (-axis) and [OIII]/H (-axis). SF galaxies are those in which the photoionization processes responsible for the emission-lines are mainly due to young hot stars; they reside mostly in the left wing locus of the BPT diagram. On the opposite side lie the AGN-dominated objects, which are composed of two large groups, the LINERs and the Seyferts, usually divided by the line proposed by Schawinski et al. (2007). Objects classified as LINERs have an uncertain source of photoionization (Belfiore et al., 2016), that could be due to true nuclear activity or perhaps evolved stellar populations (Singh et al., 2013). Finally, we have the composite area of the diagram, marking the transition between SF and AGN objects, which are usually delimited by the theoretical extreme starburst line described by Kewley et al. (2001) and the empirical starburst line proposed by Kauffmann et al. (2003). It is worth noting that these boundaries are still a matter of debate and further alternative lines have been proposed (for instance Stasinska et al., 2006).

The WHAN diagram has the same emission line ratio (i.e. [NII]/H) on the -axis as the BPT. On the other hand, it uses the equivalent width of H, i.e. EW(H), as the characteristic parameter on the -axis, instead of [OIII]/H. The WHAN diagram uses a set of perpendicular and parallel straight lines to divide galaxies into strong AGN (sAGN), weak AGN (wAGN), SF, and retired/passive galaxies. Because H is also used for the -axis, a larger number of galaxies may be analysed, many of which would not appear on the BPT due to the lack of some emission features (H  and [OIII] 5007), i.e. groups of galaxies mainly represented by the retired and passive galaxy classes (Cid Fernandes et al., 2010; Cid Fernandes et al., 2011; Stasińska et al., 2015). However, it lacks the definition of a transitional composite region.

Other examples of emission-line diagrams are: the Mass-Excitation diagram (Juneau et al., 2014), which also uses the stellar mass of galaxies as a proxy for classification; the Colour-Excitation diagram (Yan et al., 2011); the Blue diagram (Lamareille et al., 2004; Lamareille, 2010); and the Trouille-Barger-Tremonti diagram (Trouille et al., 2011). Moreover, many of these classification methods also include photometric information, such as the mid-infrared colour-colour diagrams (Lacy et al., 2004; Sajina et al., 2005; Stern et al., 2005). More recently, classifications based on UV information have been proposed in order to better understand the nature of galaxies at high redshifts (Feltre et al., 2016).

A common characteristic of most of these diagrams and the majority of standard classification systems in astronomy is the sharp division between classes, in which boundaries are more often than not defined by eye or fitted without accounting for a smooth transition between objects. Given the ever-increasing richness of information enclosed in astronomical surveys, we advocate updating standard classification schemes under the paradigm of contemporary statistical methods, while still maintaining the crucial role of expert knowledge in the physical interpretation of data-driven classes.

From a methodological point of view, a recent trend in object classification has been the reliance on machine learning for data analysis (Hastie et al., 2009; Murphy, 2012)

. While being conceptually very similar to well-known existing statistical methods, the tremendous increase in both available data as well as computational power over the past two decades has led to the development of a variety of advanced techniques. Machine learning aims at deriving “models”, which can retrieve useful information in an automatic manner. Examples of machine learning in astronomy are: supernovae classification

(e.g. Richards et al., 2012; Ishida & de Souza, 2013; Karpenka et al., 2013; Lochner et al., 2016; Sasdelli et al., 2016), studies of emission-line spectra of galaxies (Beck et al., 2016; Ucci et al., 2017)

, photometric redshift estimation

(e.g. Collister & Lahav, 2004; Krone-Martins et al., 2014; Cavuoti et al., 2015; Elliott et al., 2015; Hogan et al., 2015; Beck et al., 2017)

, and detection of galaxy outliers

(e.g. Baron & Poznanski, 2017).

In the past few decades, various new techniques have been proposed along two prominent lines of research: supervised and unsupervised learning

(Hastie et al., 2009)

. For the former, one is given labelled data, i.e. objects described by a set of parameters along with a class label (e.g. discrimination between early and late type galaxies based on their photometric colours). The other line of research, unsupervised learning, does not make assumptions about pre-existing labels; the goal is to automatically derive conclusions about the data structure by assigning “similar” objects to the same group. Thus, in contrast to supervised classification, no information is made available about the categories or classes to which objects belong. Instead, the unsupervised learning model must discover such classes. While supervised learning methods have been applied previously to the specific problem of AGN classification

(Beck et al., 2016), the unsupervised approach is by definition more suitable for challenging or reinforcing the existing classification paradigm, as it can study what statistical evidence the measurement data contain in support of given classes. For this reason, in this paper we adopt an unsupervised approach.

One type of unsupervised model is the so-called Gaussian mixture model (GMM; e.g. Everitt et al., 2011). Most unsupervised clustering methods, like the popular friends-of-friends algorithm (Davis et al., 1985, also known as single-linkage agglomerative clustering in statistical parlance), are non-parametric and less robust against different choices of algorithms (Feigelson & Babu, 2012). GMMs, in contrary are parametric, hence solvable by maximum likelihood approach. This makes the GMMs a desideratum due to its objective, stable and interpretable probabilistic results.

Previous examples of the application of mixture models in astronomy are the search for sub-cluster structures of young stars in massive star-forming regions (Kuhn et al., 2014), and the separation of millisecond pulsars from a broader sample (Lee et al., 2012). This paper demonstrates the application of GMM for the emission-line classification of galaxies, and further discusses how the data-driven groups can be related to classic classifications, which are based on expert domain knowledge.

The outline of this paper is as follows. In Section 2 we provide an overview of the sample selection. Section 3 describes the GMM methodology. We present our main results in Section 4, discuss their physical meaning in Sections 5 and 6, and present our conclusions in Section 8. The standard CDM cosmology with {, , = {70 , 0.3, 0.7} has been used throughout the paper.

2 Catalogue

The galaxy sample used in this work is the result of matching two databases: the Sloan Digital Sky Survey Data Release 7 (SDSS-DR7, Abazajian et al., 2009) and the public SEAGal/STARLIGHT catalogue222http://casjobs.starlight.ufsc.br/casjobs/. The SDSS-DR7 comprises photometry in five broad-band filters () and optical spectroscopy between 3800Å and 9200Å in the observed frame. Our initial sample retrieved from the SDSS-DR7 database is volume-limited333This choice follows a similar procedure as e.g. Mateus et al. (2006); Cid Fernandes et al. (2011), and aims to mitigate the bias towards galaxies with the presence of strong emission lines. and composed of galaxies brighter than , with , over the redshift range 444The narrow redshift range herein employed has the aim to mitigate potential biases caused by evolutionary effects.. The magnitudes in our sample were treated to account for the effects of Galactic extinction, and further -corrected using the software kcorrect v3.2 (Blanton et al., 2003a).

The SEAGal/STARLIGHT catalogue provides spectral synthesis parameters such as average stellar metallicity (, with respect to the Sun’s metallicity), average stellar age (, in units of year), and the 4000 Å  break (D4000)555For more information, we refer the reader to the STARLIGHT Casjobs Schema Browser: http://casjobs.starlight.ufsc.br/casjobs/field_list.html., as well as emission-line measurements of all SDSS-DR7 galaxies. The empirical spectral synthesis technique is carried out using the starlight code (Cid Fernandes et al., 2005), which fits the stellar continuum by using a library of simple stellar populations from Bruzual & Charlot (2003).

The emission-lines are fitted by subtracting the stellar continuum and using a Gaussian profile (for more details, see Cid Fernandes et al., 2010). For this analysis, fluxes and equivalent widths of the [OIII] 5007, H, H and [NII] 6583 emission-lines are extracted from the SEAGal/STARLIGHT database. In order to ensure good quality measurements, we impose a signal-to-noise ratio of and a fraction of bad pixels lower than , for all emission-lines. The aforementioned constraints and matching between both databases lead to a final galaxy sample that consists of 83,578 objects. Figure 1 displays the projections of all galaxies in the sample on the traditional BPT and WHAN diagrams.

Figure 1: BPT and WHAN diagrams, from left to right, with galaxy points from the SDSS and SEAGal datasets. On the BPT diagram, the curves define the division between SF and AGN classes (dotted: Kewley et al. 2001; solid: Stasinska et al. 2006; dashed: Kauffmann et al. 2003), and the dot-dashed line shows the division between AGN and LINERs as suggested by Schawinski et al. (2007). On the WHAN diagram, the dashed straight lines discriminate between sAGN, wAGN, SF, and retired/passive galaxies (Cid Fernandes et al., 2011). For better visualization, the points in the figure represent a sub-sample of 10,000 randomly selected galaxies.

3 Gaussian mixture models

GMM is a parametric model that, within a given feature space, assumes the existence of classes that can be described by a superposition of multivariate Gaussian distributions

(e.g. McLachlan & Peel, 2000; Hastie et al., 2001; Mengersen et al., 2011; Murphy, 2012)

. The model is defined as a probability density function comprised of a weighted summation of Gaussian component (GC) densities. The goal is to describe the distribution of data in a certain feature space and assign probabilities to the membership of a given datum in each class. More specifically, for a total of

clusters in a

-dimensional parameter space, the GMM is a probability distribution

given by a weighted summation of components:

(1)

with mixture weights denoted by , and . Here, each of the model components is described as a -variate Gaussian density, fully characterized by its mean and covariance matrix :

(2)

Various ways exist to fit such a GMM to a given set of data points, among which stands out the popular Expectation Maximization algorithm

(EM; Dempster et al., 1977; McLachlan & Krishnan, 2008). This work adopts the EM algorithm from the r (R Core Team, 2016) package mclust (Fraley & Raftery, 2002) to fit the GMMs.666Additionally, an independent GMM was implemented using the python package scikit-learn (Pedregosa et al., 2011) to check the cross-consistency of our results.

4 GMM application to SDSS and SEAGal data

This section presents the results from the application of a GMM to the SDSS-DR7 and SEAGal/STARLIGHT catalogues.

4.1 Results

We now apply the GMM to our galaxy catalogue projected into the joint combination of the BPT and WHAN diagrams. Hence, the dimension of the parameter space is

and the data vector

x in Equation 1 is given by:

(3)

The output is a soft classification of each object given by the membership probability for each group, together with parameters and for each 3-variate GC.

We show the results in Figure 2 of the two-, three- and four-cluster solutions, each projected onto the two-dimensional BPT and WHAN parameter space. A visual inspection suggests that while the whole population of galaxies cannot be explained by a single Gaussian distribution, their overall distribution can be approximated by multiple Gaussian clusters. The contours represent and confidence levels around the mean of each GC respectively. The leftmost panel of Figure 2 shows that the two-cluster solution roughly separates the SF and AGN dominated galaxies in both diagrams. The solution with three clusters, displayed in the middle panel, identifies a composite region of the BPT diagram, and a possible transitional region in the WHAN diagram, which will be further discussed in Section 5. The solution with four clusters indicates a possible subdivision of the SF region in the BPT, which may be connected to the existence of starburst galaxies, predominantly located in the top-left region of the BPT diagram. The parameters for the four-cluster solution are shown in Table 1. Four GCs are preferred to describe the galaxy population in the [NII]/H, [OIII]/H, and EW(H)  feature space, based on a set of cluster validation methods, as described next.

Parameter value
0.281
0.252
0.276
0.189

Table 1: Parameters of the GMM solution with four Gaussian components for the galaxy distribution in the [NII]/H, [OIII]/H, and EW(H)  space. Shown are the mixture weights , central vectors of the clusters, , and covariance matrices .

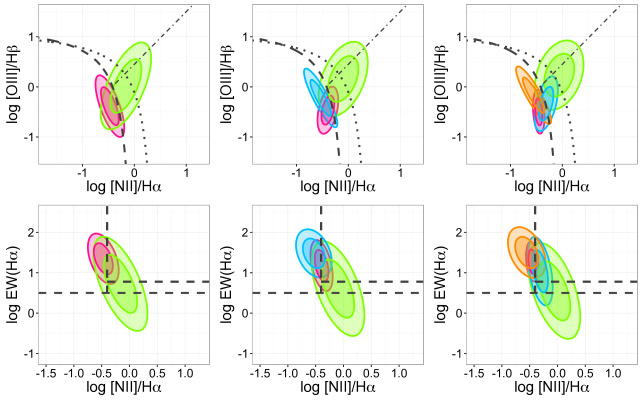

Figure 2: The Gaussian components projected onto the BPT (top panels) and WHAN (bottom panels) diagrams. From left to right are the solutions for 2, 3 and 4 GCs. For each component the thick lines represent 68% and 95% confidence levels, respectively.

4.2 Internal cluster validation

Cluster validation plays a key role in assessing the quality of a given clustering structure. It is called internal when statistics are devised to capture the quality of the induced clusters using solely the available data objects. Four validation measures are used: Bayesian information criterion (BIC; Schwarz et al., 1978), but see also Drton & Plummer (2017), integrated complete likelihood (ICL; Biernacki et al., 2000), entropy (Baudry et al., 2010), and silhouette (Rousseeuw, 1987) diagnostics. See Appendix A for details of each of the former methodologies. Below, the scrutiny of the adopted diagnostics for GMM solutions up to 10 GCs.

BIC and ICL solutions are shown on the left panel of Figure 3. Note that BIC fails to constrain the model to a reasonably low number of groups. ICL on the other hand suggests a lower number of GCs. Similar differences between BIC and ICL are well known in the statistical literature (e.g. Biernacki et al., 2000). Entropy values for solutions ranging from 2 to 10 clusters are shown in the middle panel of Figure 3. There is an elbow in the plot at = 3 GCs, which, together with the preference of ICL, leads us to focus our attention around this solution. Additionally, the silhouette values are displayed in the rightmost panel of Figure 3, suggesting the preference for only two groups.

At this point, multiple standard internal validation methods suggest that 2-3 clusters are present in the data, but the discrimination is not clear and more cluster components are compatible with the internal validation measurements. In the following, we propose the use of a residual analysis to break the tie and quantify how well each model performs in terms of synthetically reproducing the original data structure.

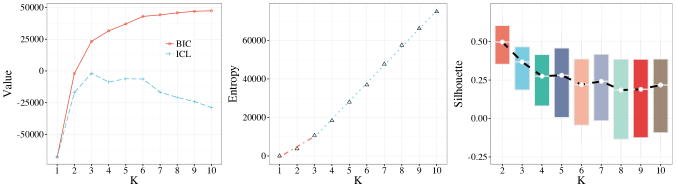

Figure 3: Results for number of Gaussian components for each of the internal validation methods as follows: the leftmost panel shows the BIC and ICL values, the middle panel shows the entropy elbow diagnostics, and the rightmost panel shows the silhouette results.

4.3 Residual analysis

Residual analysis is one of the most informative methods to check a model fit. It helps to measure how well a statistical model explains the data at hand and its ability to predict future sets of observations (see e.g. Lindsay & Roeder, 1992; Cui et al., 2015, for applications of residual analysis in the context of mixture models).

In order to check the goodness of fit of each GMM solution, a comparison between the synthetic and observed data for each model projected onto the BPT and WHAN diagrams is performed. Results are presented in Figure 4, which shows the smoothed observed data contrasted with the GMM solutions for two, three, and four GCs777To smooth the residual maps, we use kernels with a bandwidth of 0.05 within a grid of .. A visual analysis of Figure 4 reveals that on the BPT diagram, the solution with two clusters barely reproduces the two-wing shape, and the four-cluster solution seems to be a nearly perfect match with the original data. On the WHAN diagram a visual inspection does not does not lead to equally clear conclusions, but the solution with four groups seems to be preferred.

Figure 4: Comparison between observed and synthetic data for two-, three-, and four-cluster solutions on the BPT and WHAN diagrams. Both the original and synthetic data are smoothed using the same kernel.

A quantitative analysis of Figure 4 is displayed in Figure 5, which shows the residual map for each solution together with a linear fit between the smoothed observed and simulated data for each GMM solution. Note that for the BPT diagram, each increase in the number of GCs considerably improves the amount of variance explained by the model, which is consistent with the visual analysis of Figure 4. The solution with four GCs is able to explain up to of the data variance. For the WHAN diagram the distinction between the solutions with two and three clusters is fuzzy, but the solution with four GCs is equally capable of explaining of the data variance. Combining the residual analysis and the internal validation methods previously described leads us to keep the solution with four GCs as our "fiducial model" hereafter.

Figure 5: Goodness of fit diagnostics for the 2, 3, and 4 Gaussian components solutions projected onto the BPT (left panel) and WHAN (right panel) diagrams. Top: residual surface density, negative residuals are shown in blue and positive residuals are shown in red. Also displayed is the maximum variation of the residual map in comparison to the original data. Note that for the solution with four GCs, the maximum difference between the simulated and original data is always . Bottom: surface density of the mixture model solution is plotted against surface density of the smoothed observed data. A linear fit of predicted vs. observed values is green, and on the left side of each panel we indicate the proportion of variance explained, .

5 External Cluster Validation Applied to the GMM solution

This section discusses how to attribute physical meaning to the statistically motivated groups, and provide the means on how to compare them to current classification schemes. If the cluster validation is performed against an external and independent classification of objects (e.g. the BPT and WHAN classifications), the validation is called external. External cluster validation (ECV) is based on the assumption that an understanding of the output of the clustering algorithm can be achieved by finding a resemblance of the clusters to existing classes. In the present application, ECV is used to compare the cluster structure produced by a GMM to the class structure corresponding to well-established galaxy classification schemes.

The idea is to use an objective methodology to decide if the induced clusters have recovered an existing classification, or if there is evidence to claim the existence of novel data groups not resembling existing classes. Specifically, we use a probabilistic approach to individually compute the distance between each cluster and its most similar class; the degree of separation between cluster and class can then be analysed to decide on the scientific value behind a small distance (near match) or long distance (strong disagreement). The methodology herein employed follows the work of Vilalta et al. (2007); we briefly describe its main concepts in appendix B. The method relies on the estimate of the Kullback–Leibler distance (KL; Kullback & Leibler, 1951, a measure of relative entropy) between different groups projected into one dimension via linear discriminate analysis (LDA). Smaller KL distances are found for closer groups.

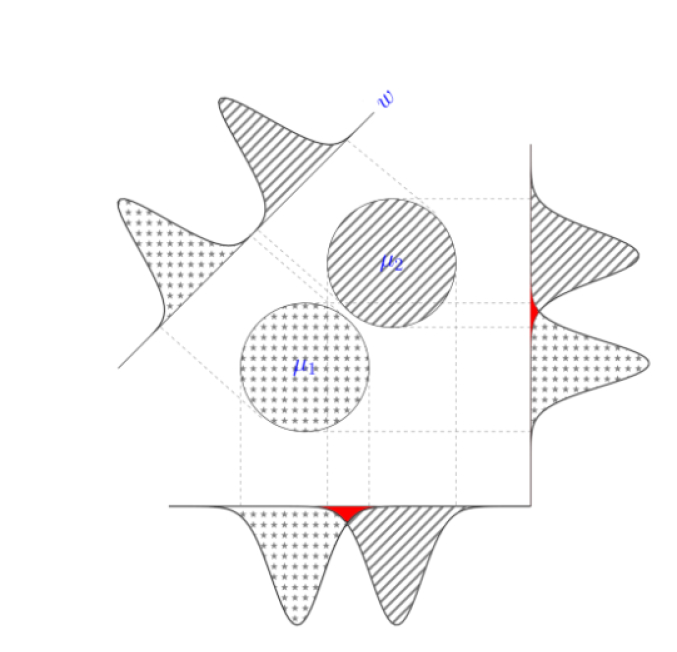

To illustrate the application of ECV methodology in our dataset, we show a pairwise comparison of the one-dimensional linear discriminant projections of the four GCs to the BPT and WHAN classifications in Figures 6 and 7, respectively. The figure depicts each group – colour-coded as in Figure  2 – alongside the astrophysically motivated classes.

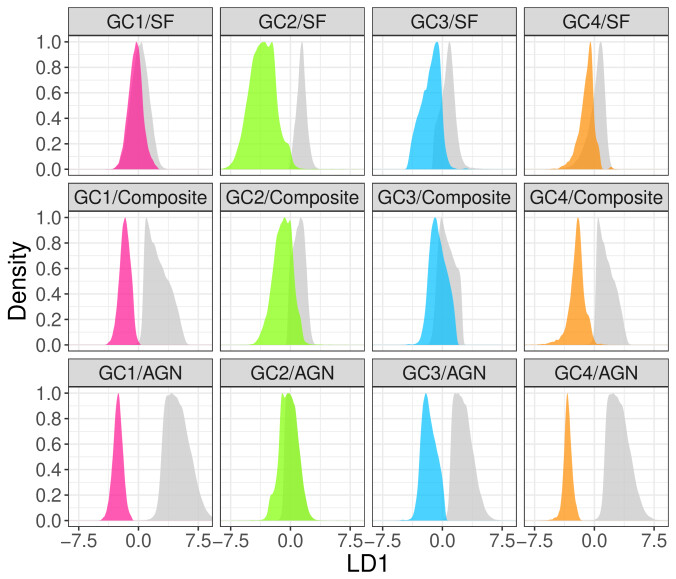

Figure 6: Density distributions in the one-dimensional linear discriminant projections for each of the 4 Gaussian components (coloured distributions) compared to the traditional BPT classification of SF, composite, and AGN galaxies (grey distributions).

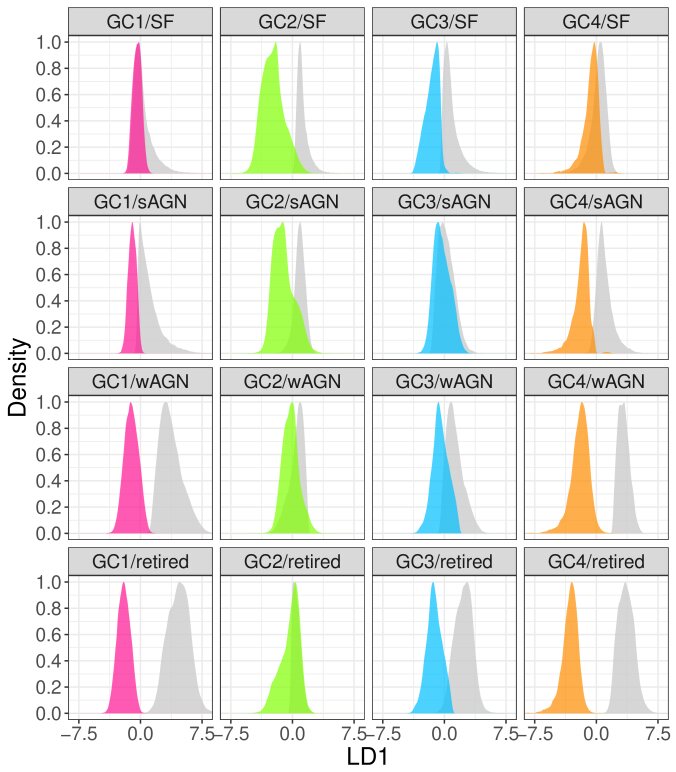

Figure 7: Density distributions in the one-dimensional linear discriminant projections for each of the 4 Gaussian components (coloured distributions) compared to the traditional WHAN classification of SF, sAGN, wAGN, and retired galaxies (grey distributions).

A visual inspection of Figures 6 and 7 reveals that groups GC1 and GC4 are closer to SF galaxies in both BPT/WHAN diagrams, while GC2 and GC3 are closer to AGN/(wAGN & retired/passive) and composite/sAGN, respectively. Thus, there is no particular evidence for a new group, but surprisingly GMMs are capable of automatically identifying groups of galaxies resembling the traditional classification scheme of both diagrams from a higher dimensional feature space. Table 2 summarizes the results showing each class and its closest GC alongside to 1-KL distance.


GMM
BPT WHAN
GC1 Star forming (0.981) Star forming (0.996)
GC2 AGN (0.981) wAGN(0.961) + retired (0.983)
GC3 Composite (0.943) sAGN (0.984)
GC4 Star forming (0.934) Star forming (0.957)
Table 2: Summary of the associations between GMM, BPT and WHAN groups. Next to each class is one minus the KL distance of each BPT and WHAN class to its respective GC.

In order to better visualize the closest associations (i.e. with a normalized KL ), we show a chord diagram (Gu et al., 2014; De Souza & Ciardi, 2015) in Figure 8. It illustrates the level of relationship between distinct groups, which are represented by segments around the circle. Normalized distances between distributions are shown as ribbons; the thickness of the ribbons is weighted by 1-KL distance between each pair of groups, so the thicker the ribbon, the closer the GC to its traditional classification counterpart.

Figure 8: Chord diagrams representing the associations between the Gaussian components and the astronomical classification classes defined on the BPT, left panel, and the WHAN, right panel, diagrams. A thicker connecting ribbon indicates stronger association.

GC1/GC4 Interpretation

The connection between GC1, GC4 and the SF region in both BPT and WHAN diagrams is straightforward and somewhat expected. In terms of the WHAN diagram, by construction (Cid Fernandes et al., 2011), the vertical line at [NII]/H-0.40 represents an optimal transposition of the Stasinska et al. (2006) SF/AGN-BPT division projected into the WHAN diagram. Consequently, the combination of both diagrams in a three dimensional space should still preserve the same locus for SF dominated galaxies, which is automatically retrieved by the GMM methodology.

Albeit the solution with 3 GCs (90% of the data variance) only requires a single GC within the SF region, the solution with 4 GCs (97% of the data variance) splits the SF region into GC1 and GC4, a behaviour that may be physically interpreted by the presence of starburst galaxies, predominantly populating the top-left wing of the BPT diagram. To be more specific, galaxies at the top-left wing have current specific SFRs about 2 orders of magnitude larger than the metal-rich galaxies at its bottom(see Fig. 2, Asari et al., 2007).

GC2 Interpretation

The locus occupied by the GC2 in the 3-dimensional emission-line space is concomitantly connected to the BPT-AGN region and mainly wAGN + retired region (seconded by the sAGN region) in the WHAN diagram. The result may appear controversial at first glimpse, as one could expect that the BPT-AGN galaxies should relate to the sAGN galaxies in the WHAN diagram. Nonetheless, the GMM recovers a previous finding by Cid Fernandes et al. (2010). The authors show that the dichotomy between Seyferts and LINERs is wiped out by the presence of weak line galaxies in the sample, which are usually left out from vanilla emission-line galaxy studies solely relying on the BPT plane. They suggest that the right-wing of the BPT diagram is actually populated by AGN and retired galaxies, which is corroborated by the GMM results. In other words, by finding a larger group composed by AGN-BPT and wAGN + retired-WHAN galaxies, our method does not show a statistical evidence for the separation between Seyferts and LINERs as independent sub-classes.

GC3 Interpretation

As aforementioned, Figures 6 and 7 indicate that GC2 also relates to the sAGN region at the WHAN diagram in a lesser extent than the GC3, which we shall discuss next. GC3 relates mostly to the composite-BPT and sAGN-WHAN regions. While it is desirable that GMM finds the composite-BPT locus, the connection to the sAGN-WHAN galaxies is not so straightforward. This can be explained due to the lack of a formal composite area in such diagram. From Figure 2, we see that GC3 occupies a transitional region between GC1/GC4, and GC2; a locus that could also be designated as an “effective composite" area between SF and sAGN dominated galaxies.

6 Age, metallicity, and 4000 Å  break distributions for the GMM Groups

We now address whether these data-driven groups bring new insights beyond what is given by established classification schemes. This section discusses characteristics of the galaxies in each GC alongside the BPT and WHAN classes.

It is well known that different galaxy properties share some sort of symbiotic relationship; for instance, D4000 is closely linked to the characteristics of the stellar population (e.g. average population age, metallicity; as described in Poggianti & Barbaro, 1997; Blanton et al., 2003b; Goto, 2003; Costa-Duarte et al., 2013; Stasińska et al., 2015; Vazdekis et al., 2016, and references therein). Hence, the aforementioned features serve as proxies to derive other galaxy properties (e.g. star formation rate Tinsley, 1980; Zaritsky, 1993; Poggianti & Barbaro, 1997; Vazdekis et al., 2016).

In order to probe how the GCs compare to the classes derived by classical diagrams, we look into their properties not explicitly used in the GMM analysis. For that purpose, we choose three of the main features retrieved from the SEAGal/STARLIGHT output data, as defined in Section 2: , , and D4000888Note that we are using average values weighted by flux/luminosity due to the smaller uncertainties on those (see Table 1, Cid Fernandes et al., 2005). In the case of missing values, synthetic D4000 was used. This is done for a better sampling statistics, but it does not affect the overall results.. The goal is to check how these properties vary according to the employed classification: GMM, BPT and WHAN. To that end, we portray their statistical properties as boxplots in Figures 9, 10, and 11, as well as their summary statistics in Table 3, which shows the values for the median, 1st (Q1) and 3rd

(Q3) quartiles, and the interquartile range (IQR

Q3-Q1).

On the boxplots, the groups are vertically aligned based on their proximity in terms of the KL distance, and the fiducial order roughly follows increasing values of [NII]/H  in the BPT diagram (i.e. from left to right: SF, Composite, AGN). As we can see from the boxplots, by aligning these groups in this way, a positive monotonic relationship between the classes and the median values of , , and D4000 distributions is revealed. The trend is a consequence of the AGN host galaxies having different characteristics from their inactive counterparts, preferentially populating the so-called green valley and red sequence of the colour-mass diagram (e.g. Schawinski et al., 2010). Thus, as we move towards the right side of the BPT diagram, one is mostly looking at early-type galaxies, that are characterized by older and more metallic stellar populations, and higher values of D4000 (e.g. Poggianti & Barbaro, 1997; Schawinski et al., 2010; De Souza et al., 2016).

Notably, the GMM solutions automatically find groups that share meaningful physical properties, beyond the features used in the clustering algorithm. An inspection of Table 3 confirms that the statistical properties are quite similar between the GMM groups and their respective counterparts on the BPT and WHAN diagrams. Additionally, Table 3 shows that the distributions of galaxy properties in SF groups are consistent between the BPT and WHAN diagrams in terms of medians and IQR. Their values roughly lie between those of GC4 and GC1. For instance, GC4 and GC1 have median values for of 0.50 and 0.58, while the BPT and WHAN SF groups have values of 0.56 and 0.55, respectively.

In the case of and D4000, the median and IQR increase more steadily for the GCs, in comparison to the BPT and WHAN classes. The trend of D4000 visible in Figure 11 indicates that different types of galaxies occupy different loci in the GMM classification. For instance, GC4, the first one on the left, has low median values for those parameters, which is in agreement with the characteristics of young stellar populations, i.e. SF galaxies. On the other hand, GC2, composed mostly of AGN hosts and retired/passive objects, has a higher median value of D4000, which is in accordance with older stellar populations. As D4000 can be used as proxy for morphology (Dressler & Gunn, 1990; Brinchmann et al., 2004), the higher D4000 median highlights the AGN preference to reside in early-type galaxies (Schawinski et al., 2010; De Souza et al., 2016). Besides, the larger IQR for GC2, corroborates with the fact that AGN can reside either within early or late-type galaxies. The decreasing trend in terms of median and IQR found for , within the GMM groups is overall consistent with the traditional diagrams as well.

The GMM systematically finds groups that have a sharper differentiation of their values of , , and D4000, when compared to the standard classification, especially in terms of distributing most of the dispersion into fewer clusters (usually only one), yielding to a majority of lower-dispersion classes. These findings elucidate the power of the proposed method – since the physical parameters were not included in the GMM classification, their favourable behaviour within and between the GCs has been inherently caused by the method applied.

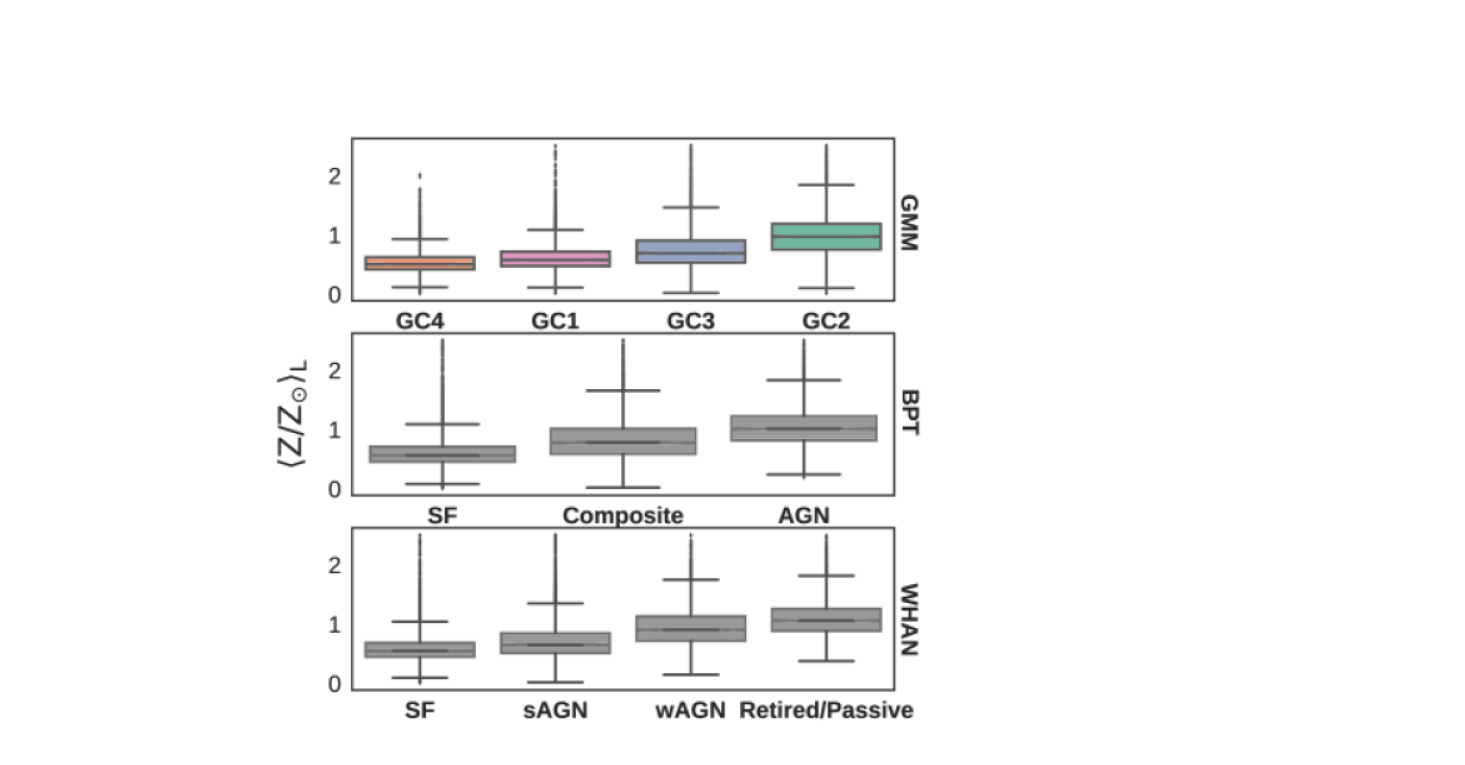

Figure 9: Metallicity distributions portrayed as boxplots for GMM, BPT and WHAN diagram classes, from top to bottom. For the GMM we can see the GCs displayed in the following order: GC4, GC1, GC3, GC2 following increasing [NII]/H, i.e. the -axis of the BPT diagram. The order of the remaining groups is given by the KL distance to the GMM components. The width of boxes is proportional to the square root of the number of galaxies within each bin and the whiskers extend to the most extreme data point, which is within the 50 per cent interquartile range (IQR). To better illustrate the overall distribution of the sample, for the boxplots of the BPT diagram we have omitted part of the outlier zone, “zooming” into the interquartile distance.

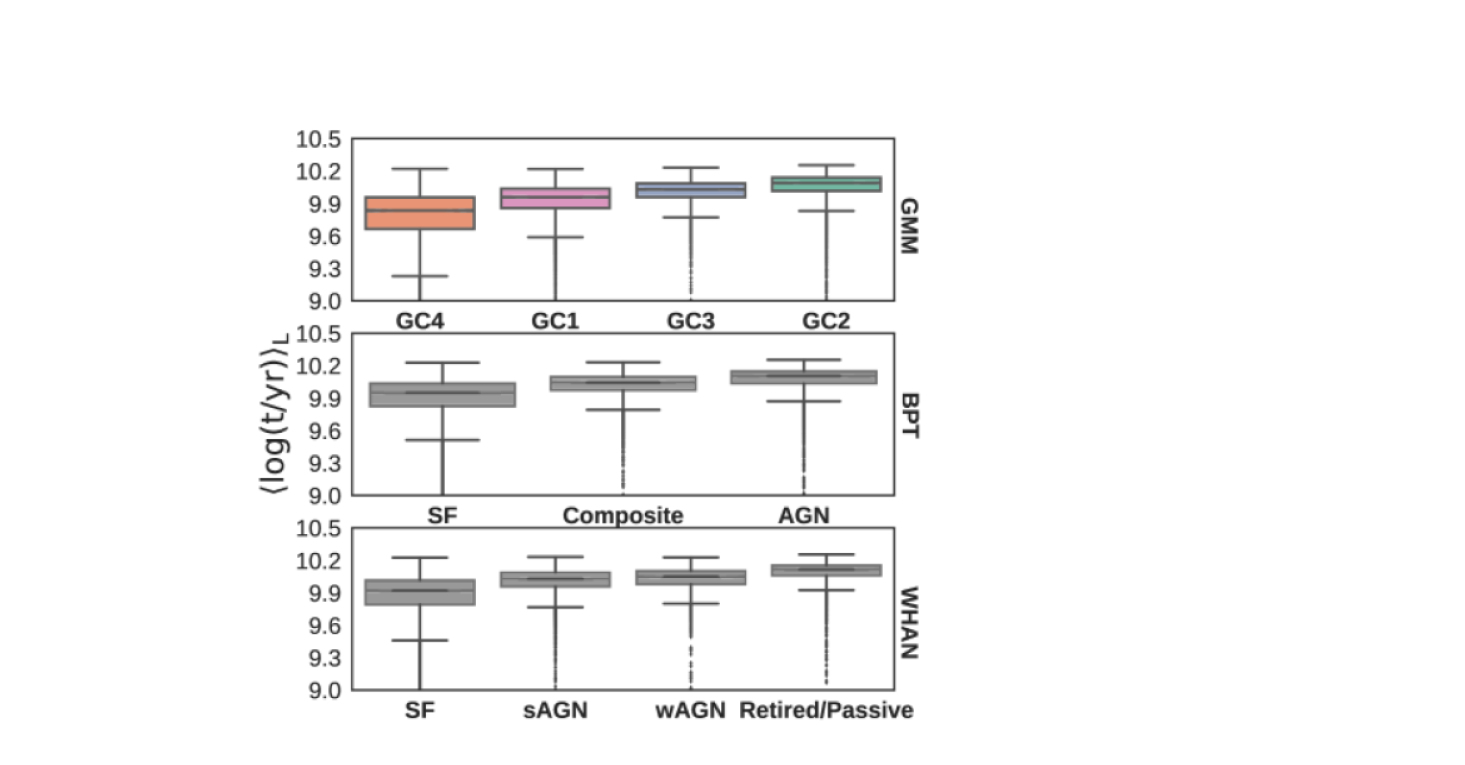

Figure 10: Average stellar age distributions portrayed as boxplots for GMM, BPT and WHAN diagram classes, from top to bottom. The GCs and remaining groups are ordered as in Figure 9.
Figure 11: D4000 distributions portrayed as boxplots for GMM, BPT and WHAN diagram classes, from top to bottom. The GCs and remaining groups are ordered as in Figure 9.
Method D4000
Classification Median IQR Q1 Q3 Median IQR Q1 Q3 Median IQR Q1 Q3
GMM
GC4 0.50 0.20 0.42 0.62 9.83 0.30 9.66 9.96 1.23 0.08 1.20 1.28
GC1 0.58 0.25 0.47 0.72 9.96 0.18 9.86 10.04 1.32 0.10 1.28 1.38
GC3 0.69 0.37 0.53 0.90 10.03 0.13 9.96 10.09 1.46 0.16 1.38 1.54
GC2 0.97 0.44 0.75 1.19 10.09 0.12 10.02 10.14 1.71 0.29 1.56 1.85
BPT
SF 0.56 0.25 0.46 0.71 9.95 0.21 9.83 10.04 1.31 0.13 1.25 1.38
Composite 0.78 0.42 0.59 1.01 10.04 0.13 9.97 10.10 1.53 0.20 1.43 1.63
AGN 1.01 0.40 0.82 1.22 10.10 0.11 10.04 10.15 1.73 0.27 1.62 1.89
WHAN
SF 0.55 0.24 0.45 0.69 9.92 0.25 9.79 10.04 1.29 0.11 1.24 1.35
sAGN 0.65 0.34 0.51 0.85 10.03 0.13 9.96 10.09 1.42 0.15 1.35 1.50
wAGN 0.91 0.41 0.72 1.13 10.05 0.12 9.98 10.10 1.60 0.14 1.54 1.68
Retired/Passive 1.06 0.37 0.89 1.26 10.12 0.09 10.06 10.15 1.81 0.18 1.71 1.89
Table 3: Summary statistics for the , , and D4000 galaxy properties. Shown are the median, IQR, and the first and third quartile for the properties of the GMM, BPT and WHAN groups.

7 Digging deeper – the Seyfert/LINERs dichotomy and the quest for Passive Galaxies

Internal validation methods present a trade-off between predictive power and simplicity. In other words, a good model should describe the data as best as possible with the fewer number of groups necessary. Whilst our fiducial model based on diverse criteria points for a solution around 3-4 groups, there is a physical motivation to look further and see if we can spot the presence of LINERs and discriminate the Passive/Retired galaxies in our sample.

The results of the GMM fit with 5 and 6 GCs are displayed at Fig. 12, and the corresponding associations, for the solution with 5 GCs, with the BPT and WHAN classification at Fig. 13. For visualization purposes, the solution with 6 GCs is also shown, but it fragments the SF region into 3 parts, which is mostly driven by its banana-shape rather than by some physical reason. The inclusion of GC5 reveals the presence of the LINERs in our sample. As expected, the group also appears connected to the Passive/Retired galaxies class in the WHAN diagram. Conversely, the residual analysis depicted at Fig. 14 show that the inclusion of an extra 5 and 6 component increases the level of variance explained, as one should expect from a maximum likelihood estimator for more complex models, but not significantly. Despite the existence of a physical motivation for the use of an extra group, it does not play a major role in explaining the global data variance on this particular feature space. This suggests that a different choice of feature space or the inclusion of an extra-dimension (i.e. emission-lines) could be desirable to make the between-group divisions clearer. While our method is capable of automatically recovering groups that resemble previous classifications and provides the means to evaluate their uncertainties, it does not exclude the importance of the domain expert knowledge in order to attribute astrophysical meaning to the results.

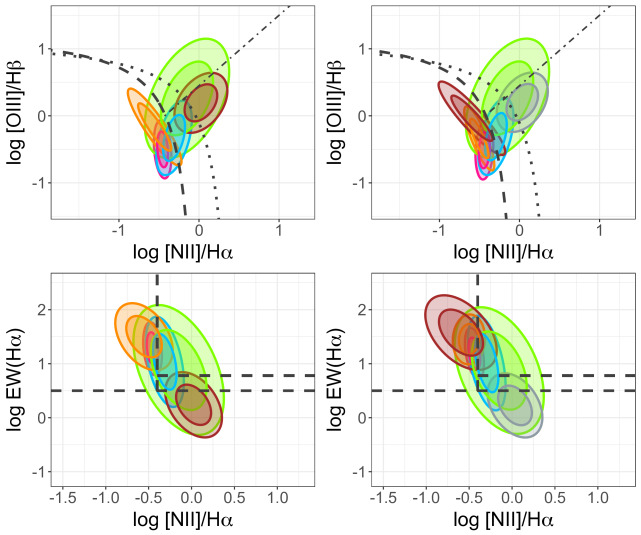

Figure 12: The Gaussian components projected onto the BPT (top panels) and WHAN (bottom panels) diagrams. From left to right are the solutions for 5, and 6 GCs. For each component the thick lines represent 68% and 95% confidence levels, respectively.
Figure 13: Chord diagrams representing the associations between five Gaussian components and the astronomical classification classes defined on the BPT (with the additional LINER/Seyfert division), left panel, and the WHAN, right panel, diagrams. A thicker connecting ribbon indicates stronger association.
Figure 14: Goodness of fit diagnostics for the 5 and 6 GCs projected onto the BPT (left panel) and WHAN (right panel) diagrams. Top: Smoothed synthetic data on the BPT and WHAN diagrams as in Fig. 4. Bottom: surface density of the mixture model solution is plotted against surface density of the smoothed observed data. A linear fit of predicted vs. observed values is green, and on the left side of each panel we indicate the proportion of variance explained, .

8 Conclusions

In this work we develop a data-driven probabilistic approach to classify galaxies, according to their ionization sources, in a three-dimensional space composed of the [OIII]/H, [NII]/H, and EW(H)  emission-lines, which represent a joint BPT-WHAN diagram, using public data from SDSS and the SEAGal/Starlight project.

The results from the parametric Gaussian mixture model are combined with cutting-edge cluster validation methods, also known as internal cluster validation techniques: BIC, ICL, entropy, silhouette, and residual analysis. This comprehensive study suggests the existence of 4 different classes of galaxies, which are capable to explain up to 97% of the data variance in both diagrams.

Given the solution with four groups, an external cluster validation approach is employed to compare the GMM results with previous classification schemes based on domain-expert knowledge (i.e. traditional astronomical classes). The results are visualized using an ubiquitous visualization tool in genetics, also known as chord diagram.

Our main scientific results and caveats can be summarized as follows:

  1. The best solution for the GMM, based on maximum likelihood estimation and various quantitative evaluation criteria, has four clusters. The GMM statistically retrieves the existence of the SF, Composite, and AGN BPT-based groups; and the SF, wAGN, sAGN, and retired/passive WHAN-based groups.

  2. A combination of the GMM results with the external cluster validation technique provides the means to quantify the closeness of each group to their respective counterparts. The SF region (in both diagrams) is divided in two Gaussian components, which might be a consequence of the existence of starburst galaxies populating the top-left wing of the BPT diagram. The composite-BPT region and the sAGN region are both connected to the same GMM-based group, which is mostly due to the lack of a formal composite region in the WHAN diagram. The GMM solution indicates the presence of composite galaxies on the WHAN diagram, in an intermediate region comprising part of the traditional SF and sAGN areas. The wAGN+retired/passive galaxies and the AGN-BPT galaxies are connected to a single GMM group as well, which can be explained by the presence of weak line galaxies that populate the right-wing BPT diagram together with AGN-host galaxies.

  3. Within the boundaries of the GMM, and in the three-dimensional optical emission-line feature space where we perform the clustering, our data-driven approach does not find a strong statistical evidence for separate LINER and Seyfert sub-classes for the fiducial solution. However, LINERs do emerge as a statistically insignificant subgroup when 5 GCs are considered.

  4. To further explore the features of the GMM-based groups against other physical galaxy parameters, not included in the clustering analysis, we compare the statistical distributions of the

    , , and D4000 for the GMM, BPT and WHAN classifications. The GMM groups have similar statistical properties compared to the standard diagrams, but with a steeper monotonicity in terms of galactic evolutionary properties.

Our statistical analysis has some limitations and caveats; we address them as follows.

Sample selection;

we decided to work with a volume-limited sample to mitigate the Malmquist bias (e.g. Sandage, 2000) towards objects with stronger emission lines. If, on the other hand, a magnitude limited samples was chosen, it would include more fainter/dwarf objects. These objects present larger specific star formation and gas fraction galaxies, and preferentially populate the left-wing region of the BPT diagram. It does not change the overall conclusions regarding the number and location of the GCs. The choice of samples slightly affects the location of the fourth Gaussian component responsible for the left-wing region.

Number of clusters;

whilst this fiducial model indicates the presence of four GCs, the results should be informed by astrophysical considerations (e.g. photoinization models). The ICL criterion, which is a regularized version of BIC suggests 3 groups as optimal case, with the drawback of explaining only up to 90% of the data variance, in contrast to the 97% explained by the use of 4 GCs. A possible solution to explain the extra variance, while still keeping 3 groups would be to use a distorted Gaussian mixture model based for instance in a banana-shape (see e.g. Laine, 2008, for an example of how to sample from a banana-shaped distribution)

, or to use a non-linear transformation of the feature space

(see e.g. Long et al., 2012, as an example of how a non-linear coordinate transformation maps a banana-shaped distributions into a Gaussian one)

. We should reinforce that the aim here was to build the best model without compromising simplicity and interpretation. Hence, the methodology is a trade-off between predictive power and parsimony, so we prefer to preserve the original space of features and refrained from use non-parametric models (e.g. DBSCAN, k-nearest) or multi-parametric distributions as e.g. t-mixture models

(Lee & McLachlan, 2013). Nonetheless, if physically motivated, a more tailored distribution or feature space should be pursued.

Why Gaussian?

We may ask ourselves if a GMM is, in fact, a good approximation to explain the data structure of the BPT-WHAN combined subspaces, specially due to the banana-shape of the BPT left wing. One could apply a more flexible non-parametric method, such as DBSCAN, k-nearest neighbours); or to project the data into a non-linear subspace via e.g. kernel principal components analysis

(Ishida & de Souza, 2013) or isomaps (Wang, 2011). However, in any of these options an important feature would be missing – again, simplicity and interpretation; which is a hard compromise to get in general in the machine learning approaches. The GMM may not be the best possible stochastic model to describe the data, but it is a good trade-off between a parsimonious versus an over-complex model.

Possible follow-ups:

i) the incorporation of physical priors in some based on some flavour of semi-supervised technique, in which information regarding the expected number of groups and their locus could be incorporated and refined; ii) inclusion of additional astrophysical motivated features. For instance, the use of the FWHM of [OIII], could unravel extra groups such as the shock-dominated population, since merges are known to leave imprints in the emission line signal (Leslie et al., 2014)

; iii) work directly in the raw spectra using a combination of a manifold and deep learning approaches

(Sasdelli et al., 2016) to extract the main spectral features instead of a pre-selected set of emission-line; iv) a comprehensive search for the best lower dimensional subspace able to maximize the discrimination between different galaxy classes.

The analysis herein employed suggests that galaxies with different levels of star formation, with and without supermassive black hole accretion, can be explained by a few classes in low-dimensional spaces. These classes have a measurable mean and standard deviation in the emission-line optical space, and also in the space of other physical parameters, allowing the development of astrophysical models that might be able to predict the physical conditions responsible by the loci occupied by each class.

Summa summarum, this work takes a step forward in the systematic use of machine learning in astronomy. It provides a quantitative and robust recipe for unsupervised astronomical classification and how to combine its output with previous domain knowledge, hence conveying physically interpretable results. Our approach stands out as a valuable tool for future investigations, thanks to its potential to unveil non-trivial relationships in data which may be overlooked by standard procedures. Thus, we strongly advocate for the use of such techniques, especially due to their ability to deal with high-dimensional datasets.

Acknowledgements

This work is a product of the COIN Residence Program (CRP#3). We thank Zsolt Frei for encouraging the accomplishment of this event. CRP#3 was held in Budapest, Hungary on August 2016 and supported by Eötvös University.
We specially thank E. E. O. Ishida for the organization of the CRP#3 and the fruitful comments and revision of the manuscript. We thank K. Parmar for the preliminary external cluster assessment script provided, and C.-A.Lin for the kind help provided during CRP#3. The authors would also like to thank Prof. Plüssmaci for his useful feedback during the entire CRP#3. RSS thanks Fundação de Amparo à Pesquisa do Estado de São Paulo (FAPESP) process no 2016/13470-3, and 2012/00800-4 for financial support. MLLD acknowledges Coordenação de Aperfeiçoamento de Pessoal de Nível Superior (CAPES) and Instituto de Astronomia, Geofísica e Ciências Atmosféricas da Universidade de São Paulo (IAG-USP) for the financial support. MLLD specially acknowledges S. Rossi and Programa de Excelência Acadêmica (PROEX) for the grant provided for attending CRP#3 and, therefore, accomplishing this work. MLLD also thanks R. Cid Fernandes for providing the treated dataset, R. Davies for the help provided and insights in the beginning of this work, and P. Coelho for the fruitful discussions and support. MVCD thanks his scholarship from FAPESP (processes 2014/18632-6 and 2016/05254-9). AKM thanks the Portuguese agency Fundação para Ciência e TecnologiaFCT, for financial support (SFRH/BPD/74697/2010). RB was supported through the New National Excellence Program of the Ministry of Human Capacities, Hungary. FG would like to acknowledge the generous support by the Radboud Excellence Initiative.

The IAA Cosmostatistics Initiative (COIN) is a non-profit organization whose aim is to nourish the synergy between astrophysics, cosmology, statistics, and machine learning communities. This work benefited from the following collaborative platforms: Overleaf999https://www.overleaf.com, Github101010https://github.com, and Slack111111https://slack.com/.

In memoriam of Joseph M. Hilbe (30th December, 1944 - 12th March, 2017).

References

  • Abazajian et al. (2009) Abazajian K. N., et al., 2009, ApJS, 182, 543
  • Asari et al. (2007) Asari N. V., Cid Fernandes R., Stasińska G., Torres-Papaqui J. P., Mateus A., Sodré L., Schoenell W., Gomes J. M., 2007, MNRAS, 381, 263
  • Baldwin et al. (1981) Baldwin J. A., Phillips M. M., Terlevich R., 1981, PASP, 93, 5
  • Baron & Poznanski (2017) Baron D., Poznanski D., 2017, MNRAS, 465, 4530
  • Baudry et al. (2010) Baudry J.-P., Raftery A. E., Celeux G., Lo K., Gottardo R., 2010, Journal of Computational and Graphical Statistics, 19, 332
  • Beck et al. (2016) Beck R., Dobos L., Yip C.-W., Szalay A. S., Csabai I., 2016, MNRAS, 457, 362
  • Beck et al. (2017) Beck R., Lin C.-A., Ishida E. E. O., Gieseke F., de Souza R. S., Costa-Duarte M. V., Hattab M. W., Krone-Martins A., 2017, MNRAS, 468, 4323
  • Belfiore et al. (2016) Belfiore F., et al., 2016, MNRAS, 461, 3111
  • Biernacki et al. (2000) Biernacki C., Celeux G., Govaert G., 2000, IEEE Trans. Pattern Anal. Mach. Intell., 22, 719
  • Blanton et al. (2003a) Blanton M. R., et al., 2003a, AJ, 125, 2348
  • Blanton et al. (2003b) Blanton M. R., et al., 2003b, ApJ, 594, 186
  • Brinchmann et al. (2004) Brinchmann J., Charlot S., White S. D. M., Tremonti C., Kauffmann G., Heckman T., Brinkmann J., 2004, MNRAS, 351, 1151
  • Bruzual & Charlot (2003) Bruzual G., Charlot S., 2003, MNRAS, 344, 1000
  • Cavuoti et al. (2015) Cavuoti S., et al., 2015, MNRAS, 452, 3100
  • Chiosi et al. (1992) Chiosi C., Bertelli G., Bressan A., 1992, ARA&A, 30, 235
  • Cid Fernandes et al. (2005) Cid Fernandes R., Mateus A., Sodré L., Stasińska G., Gomes J. M., 2005, MNRAS, 358, 363
  • Cid Fernandes et al. (2010) Cid Fernandes R., Stasińska G., Schlickmann M. S., Mateus A., Vale Asari N., Schoenell W., Sodré L., 2010, MNRAS, 403, 1036
  • Cid Fernandes et al. (2011) Cid Fernandes R., Stasińska G., Mateus A., Vale Asari N., 2011, Monthly Notices of the Royal Astronomical Society, 413, 1687
  • Collister & Lahav (2004) Collister A. A., Lahav O., 2004, PASP, 116, 345
  • Costa-Duarte et al. (2013) Costa-Duarte M. V., Sodré L., Durret F., 2013, MNRAS, 428, 906
  • Cover & Thomas (2006) Cover T. M., Thomas J. A., 2006, Elements of Information Theory. Wiley
  • Cui et al. (2015) Cui C., Mao C. X., Zhong J., Zhuang W., 2015, Journal of Agricultural, Biological, and Environmental Statistics, 20, 218
  • Darwin (1859) Darwin C., 1859, On the Origin of Species by Means of Natural Selection, Or, The Preservation of Favoured Races in the Struggle for Life. J. Murray, https://books.google.de/books?id=jTZbAAAAQAAJ
  • Davis et al. (1985) Davis M., Efstathiou G., Frenk C. S., White S. D. M., 1985, ApJ, 292, 371
  • De Souza & Ciardi (2015) De Souza R. S., Ciardi B., 2015, Astronomy and Computing, 12, 100
  • De Souza et al. (2016) De Souza R. S., et al., 2016, MNRAS, 461, 2115
  • De Vaucouleurs (1959) De Vaucouleurs G., 1959, Classification and Morphology of External Galaxies. Springer Berlin Heidelberg, Berlin, Heidelberg, pp 275–310, doi:10.1007/978-3-642-45932-0_7, http://dx.doi.org/10.1007/978-3-642-45932-0_7
  • Dempster et al. (1977) Dempster A. P., Laird N. M., Rubin D. B., 1977, Journal of the Royal Statistical Society. Series B (Methodological), 39, 1
  • Dressler & Gunn (1990) Dressler A., Gunn J. E., 1990, in Kron R. G., ed., Astronomical Society of the Pacific Conference Series Vol. 10, Evolution of the Universe of Galaxies. pp 200–208
  • Drton & Plummer (2017) Drton M., Plummer M., 2017, Journal of the Royal Statistical Society: Series B (Statistical Methodology), 79, 323
  • Duda et al. (2001) Duda R. O., Stork D. G., Hart P. E., 2001, Pattern Classification. Wiley
  • Elliott et al. (2015) Elliott J., de Souza R. S., Krone-Martins A., Cameron E., Ishida E. E. O., Hilbe J., 2015, Astronomy and Computing, 10, 61
  • Everitt et al. (2011) Everitt B., Landau S., Leese M., Stahl D., 2011, Cluster Analysis. Wiley Series in Probability and Statistics, Wiley, https://books.google.com.br/books?id=w3bE1kqd-48C
  • Feigelson & Babu (2012) Feigelson E. D., Babu G. J., 2012, Modern Statistical Methods for Astronomy
  • Feltre et al. (2016) Feltre A., Charlot S., Gutkin J., 2016, MNRAS, 456, 3354
  • Fisher (1936) Fisher R. A., 1936, Annals of Eugenics, 7, 179
  • Fraley & Raftery (2002) Fraley C., Raftery A. E., 2002, Journal of the American Statistical Association, 97, 611
  • Goto (2003) Goto T., 2003, PhD thesis, The University of Tokyo
  • Gu et al. (2014) Gu Z., Gu L., Eils R., Schlesner M., Brors B., 2014, Bioinformatics, 30, 2811
  • Hastie et al. (2001) Hastie T., Tibshirani R., Friedman J., 2001, The Elements of Statistical Learning. Springer Series in Statistics, Springer New York Inc., New York, NY, USA
  • Hastie et al. (2009) Hastie T., Tibshirani R., Friedman J., 2009, The Elements of Statistical Learning. Springer
  • Hogan et al. (2015) Hogan R., Fairbairn M., Seeburn N., 2015, MNRAS, 449, 2040
  • Ishida & de Souza (2013) Ishida E. E. O., de Souza R. S., 2013, MNRAS, 430, 509
  • Ivezic et al. (2009) Ivezic Z., et al., 2009, in American Astronomical Society Meeting Abstracts #213. p. 366
  • Juneau et al. (2014) Juneau S., et al., 2014, ApJ, 788, 88
  • Karpenka et al. (2013) Karpenka N. V., Feroz F., Hobson M. P., 2013, MNRAS, 429, 1278
  • Kauffmann et al. (2003) Kauffmann G., et al., 2003, MNRAS, 346, 1055
  • Kewley et al. (2001) Kewley L. J., Dopita M. A., Sutherland R. S., Heisler C. A., Trevena J., 2001, ApJ, 556, 121
  • Krone-Martins et al. (2014) Krone-Martins A., Ishida E. E. O., de Souza R. S., 2014, MNRAS, 443, L34
  • Kuhn et al. (2014) Kuhn M. A., et al., 2014, ApJ, 787, 107
  • Kullback & Leibler (1951) Kullback S., Leibler R. A., 1951, Ann. Math. Statist., 22, 79
  • Lacy et al. (2004) Lacy M., et al., 2004, ApJS, 154, 166
  • Laine (2008) Laine M., 2008, Adaptive MCMC methods with applications in environmental and geophysical models. Contributions: Ilmatieteen Laitos, Finnish Meteorological Inst., https://books.google.com.br/books?id=JVyDPgAACAAJ
  • Lamareille (2010) Lamareille F., 2010, A&A, 509, A53
  • Lamareille et al. (2004) Lamareille F., Mouhcine M., Contini T., Lewis I., Maddox S., 2004, MNRAS, 350, 396
  • Lee & McLachlan (2013) Lee S. X., McLachlan G. J., 2013, Journal of Statistical Software, 55, 1
  • Lee et al. (2012) Lee K. J., Guillemot L., Yue Y. L., Kramer M., Champion D. J., 2012, MNRAS, 424, 2832
  • Leslie et al. (2014) Leslie S. K., Rich J. A., Kewley L. J., Dopita M. A., 2014, Monthly Notices of the Royal Astronomical Society, 444, 1842
  • Liddle (2007) Liddle A. R., 2007, MNRAS, 377, L74
  • Lindsay & Roeder (1992) Lindsay B. G., Roeder K., 1992, Journal of the American Statistical Association, 87, 785
  • Linnaeus (1758) Linnaeus C., 1758, Systema naturae per regna tria naturae :secundum classes, ordines, genera, species, cum characteribus, differentiis, synonymis, locis
  • Lintott et al. (2008) Lintott C. J., et al., 2008, Monthly Notices of the Royal Astronomical Society, 389, 1179
  • Lochner et al. (2016) Lochner M., McEwen J. D., Peiris H. V., Lahav O., Winter M. K., 2016, ApJS, 225, 31
  • Long et al. (2012) Long A. W., Wolfe K. C., Mashner M., Chirikjian G. S., 2012, in Robotics: Science and Systems. http://dblp.uni-trier.de/db/conf/rss/rss2012.html#LongWMC12
  • Mateus et al. (2006) Mateus a., Sodre L., Fernandes R. C., Stasinska G., Schoenell W., Gomes J. M., 2006, Monthly Notices of the Royal Astronomical Society, 370, 721
  • McLachlan & Krishnan (2008) McLachlan G., Krishnan T., 2008, The EM algorithm and extensions, 2. ed edn. Wiley series in probability and statistics, Wiley, Hoboken, NJ, http://gso.gbv.de/DB=2.1/CMD?ACT=SRCHA&SRT=YOP&IKT=1016&TRM=ppn+52983362X&sourceid=fbw_bibsonomy
  • McLachlan & Peel (2000) McLachlan G. J., Peel D., 2000, Finite mixture models. Wiley series in probability and statistics, J. Wiley & Sons, New York, http://opac.inria.fr/record=b1097397
  • Mengersen et al. (2011) Mengersen K., Robert C., Titterington M., 2011, Mixtures: Estimation and Applications. Wiley Series in Probability and Statistics, Wiley, https://books.google.com.br/books?id=9JJU_V49MmwC
  • Morgan & Keenan (1973) Morgan W. W., Keenan P. C., 1973, ARA&A, 11, 29
  • Morgan & Mayall (1957) Morgan W. W., Mayall N. U., 1957, PASP, 69, 291
  • Murphy (2012) Murphy K. P., 2012, Machine Learning: A Probabilistic Perspective. The MIT Press
  • Pedregosa et al. (2011) Pedregosa F., et al., 2011, Journal of Machine Learning Research, 12, 2825
  • Poggianti & Barbaro (1997) Poggianti B. M., Barbaro G., 1997, A&A, 325, 1025
  • R Core Team (2016) R Core Team 2016, R: A Language and Environment for Statistical Computing. R Foundation for Statistical Computing, Vienna, Austria, https://www.R-project.org/
  • Richards et al. (2012) Richards J. W., Homrighausen D., Freeman P. E., Schafer C. M., Poznanski D., 2012, MNRAS, 419, 1121
  • Rola et al. (1997) Rola C. S., Terlevich E., Terlevich R. J., 1997, MNRAS, 289, 419
  • Rousseeuw (1987) Rousseeuw P. J., 1987, Computational and Applied Mathematics, 20, 53
  • Sajina et al. (2005) Sajina A., Lacy M., Scott D., 2005, ApJ, 621, 256
  • Sandage (2000) Sandage A., 2000, Malmquist Bias and Completeness Limits, doi:10.1888/0333750888/1940.
  • Sasdelli et al. (2016) Sasdelli M., et al., 2016, MNRAS, 461, 2044
  • Schawinski et al. (2007) Schawinski K., Thomas D., Sarzi M., Maraston C., Kaviraj S., Joo S.-J., Yi S. K., Silk J., 2007, MNRAS, 382, 1415
  • Schawinski et al. (2010) Schawinski K., et al., 2010, ApJ, 711, 284
  • Schwarz et al. (1978) Schwarz G., et al., 1978, The annals of statistics, 6, 461
  • Singh et al. (2013) Singh R., et al., 2013, A&A, 558, A43
  • Stasińska (2007) Stasińska G., 2007, arXiv:0704.0348,
  • Stasinska et al. (2006) Stasinska G., Fernandes R. C., Mateus a., Sodre L., Asari N. V., 2006, Monthly Notices of the Royal Astronomical Society, 371, 972
  • Stasińska et al. (2015) Stasińska G., Costa-Duarte M. V., Vale Asari N., Cid Fernandes R., Sodré L., 2015, MNRAS, 449, 559
  • Stern et al. (2005) Stern D., et al., 2005, ApJ, 631, 163
  • Stocking (1968) Stocking G., 1968, Race, Culture, and Evolution: Essays in the History of Anthropology. Phoenix Series, University of Chicago Press, https://books.google.de/books?id=aOP43AlmLP8C
  • Tinsley (1980) Tinsley B. M., 1980, Fundamentals Cosmic Phys., 5, 287
  • Trouille et al. (2011) Trouille L., Barger A. J., Tremonti C., 2011, ApJ, 742, 46
  • Ucci et al. (2017) Ucci G., Ferrara A., Gallerani S., Pallottini A., 2017, MNRAS, 465, 1144
  • Vazdekis et al. (2016) Vazdekis A., Koleva M., Ricciardelli E., Röck B., Falcón-Barroso J., 2016, MNRAS, 463, 3409
  • Veilleux & Osterbrock (1987) Veilleux S., Osterbrock D. E., 1987, ApJS, 63, 295
  • Vilalta et al. (2007) Vilalta R., Stepinski T., Achari M., 2007, Data Mining and Knowledge Discovery, 14, 1
  • Wang (2011) Wang J., 2011, Isomaps. Springer Berlin Heidelberg, Berlin, Heidelberg, pp 151–180, doi:10.1007/978-3-642-27497-8_8, http://dx.doi.org/10.1007/978-3-642-27497-8_8
  • Yan et al. (2011) Yan R., et al., 2011, ApJ, 728, 38
  • York et al. (2000) York D. G., et al., 2000, AJ, 120, 1579
  • Zaritsky (1993) Zaritsky D., 1993, Publications of the Astronomical Society of the Pacific, 105, 1006
  • Zhang & Zhao (2015) Zhang Y., Zhao Y., 2015, Data Science Journal, 14, 11
  • von der Linden et al. (2010) von der Linden A., Wild V., Kauffmann G., White S. D. M., Weinmann S., 2010, MNRAS, 404, 1231

Appendix A Internal Cluster Validation Methods

Bayesian Information Criterion

From a Bayesian viewpoint, model selection of a mixture model can be estimated by the integrated likelihood of the model with components. BIC can be used as a technique that penalizes the likelihood in model selection (Schwarz et al., 1978; Liddle, 2007). The higher the value of BIC, the better the result. The BIC for a mixture model log-likelihood is given by

(4)

where is the maximum likelihood estimate of , and is the number of free parameters for a model with components.

Integrated Complete Likelihood

There is one particular drawback when using BIC to find the best number of clusters: the method works appropriately when each mixture component corresponds to a separate cluster, but this is not always the case. In particular, a cluster may be both cohesive and well distanced from other clusters, without its distribution being Gaussian. Such cluster is best represented with two or more mixture components, rather than a single Gaussian. Hence, the intrinsic number of data clusters may be different from the number of components in the Gaussian mixture model. Biernacki et al. (2000) suggested an alternative to overcome this limitation by directly estimating the number of clusters, as opposed to the number of mixture components; he proposed using the integrated complete likelihood (ICL), which can be roughly understood as BIC penalized by mean entropy (Baudry et al., 2010). As a rule of thumb, the number of clusters estimated by ICL is smaller than the number estimated by BIC, due to the additional entropy term. We shall use both indices to constrain lower and upper limits of our solution.

Entropy

A complementary visualization technique to validate the number of clusters based on BIC and ICL is to use the elbow rule: a graphical display of entropy variation against the number of clusters. The decrease of entropy at each step serves as a guideline to optimize the number of clusters (Baudry et al., 2010).

Silhouette

The silhouette approach measures the degree of similarity (dissimilarity) of objects within and between clusters (Rousseeuw, 1987). It quantifies the common sense that a good clustering algorithm is able to partition the data such that the average distance between objects in the same cluster (i.e., the average intra-distance) is significantly lower than the distance between objects in different clusters (i.e., the average inter-distance). The technique assigns a value, known as the silhouette width, , to a given cluster solution, which is defined as follows:

(5)

where is the average distance between the object and all other objects in a given cluster; is the minimum average distance between the objects in a given cluster and objects in other clusters. Higher silhouette values indicate high-quality clustering solutions.

Appendix B External Cluster Validation algorithm

The methodology computes a distance matrix where rows correspond to classes and columns correspond to clusters. Each entry captures the (probabilistic) distance between the two data groups. Each class and cluster is modelled as a multivariate Gaussian distribution . From now one, we refer to as the Gaussian model for a particular class , and as the corresponding Gaussian model for a cluster . We now describe the nature of the metric used to capture the distance between the two Gaussian models.

A straightforward approach to measure the degree of separation between class and cluster is to use the concept of relative entropy (or Kullback–Leibler distance) of two density functions Cover & Thomas (2006). The relative entropy is the expectation of the logarithm of a likelihood ratio121212The original definition contains , instead of ; we prefer the latter because it simplifies when the functions are Gaussians; we switch then from a measurement in bits to one in nats..

(6)

This measure can be interpreted as the error generated by assuming that can be used to represent (or alternatively, the additional amount of information required to describe given ). The higher the distance, the higher the dissimilarity between the two distributions.

The metric defined above can be approximated using numerical methods, but the computational cost can become very expensive; integrating over high-dimensional spaces soon turns intractable even for moderately low number of attributes. To address this problem, one final step is necessary. The data is projected into a single dimension , in order to compute the distance function along that dimension alone. In particular, the proposed solution consists of projecting data objects over a single dimension that is orthogonal to Fisher’s linear discriminant (Duda et al., 2001; Fisher, 1936)131313The use of Fisher’s LDA is appropriate here because both LDA and GMMs assume multivariate normality in the components

. The general idea is to find a hyperplane that discriminates data objects in cluster

from data objects in class . The weight vector that lies orthogonal to the hyperplane will be used as the dimension upon which the data objects will be projected. The rationale behind this method is that among all possible dimensions over which that data can be projected, classical linear discriminant analysis identifies the vector with an orientation that results in a maximum (linear) separation between data objects in and ; the distribution of data objects over provide a better indication of the true overlap between and in multiple dimensions, compared to the resulting distributions obtained by projecting data objects over the attribute axes. Figure 15 shows our methodology. Weight vector , which lies orthogonal to the hyperplane that maximizes the separation between the objects in cluster and class is used as the dimension over which data objects are projected.

To add more detail, Fisher’s linear discriminant finds the vector that maximizes the following criterion function: . is the between-class scatter matrix, defined as the outer product of two vectors: , where and are the mean vectors of and respectively. is the within-class scatter matrix, defined as the scatter matrix over the two distributions: . It can be shown that a solution maximizing is in fact independent of : . Geometrically the goal is to find a vector so that the difference of the projected means over is large compared to the standard deviations around each mean (Figure 15).

Figure 15: Illustrative figure representing the linear discriminant analysis method. Weight vector which lies orthogonal to the hyperplane that maximizes the separation between the objects in cluster and class is used as the dimension over which galaxies are projected.
