A Performance Evaluation of Correspondence Grouping Methods for 3D Rigid Data Matching

07/05/2019 ∙ by Jiaqi Yang, et al. ∙ Huazhong University of Science u0026 Technology 2

Seeking consistent point-to-point correspondences between 3D rigid data (point clouds, meshes, or depth maps) is a fundamental problem in 3D computer vision. While a number of correspondence selection methods have been proposed in recent years, their advantages and shortcomings remain unclear regarding different applications and perturbations. To fill this gap, this paper gives a comprehensive evaluation of nine state-of-the-art 3D correspondence grouping methods. A good correspondence grouping algorithm is expected to retrieve as many as inliers from initial feature matches, giving a rise in both precision and recall as well as facilitating accurate transformation estimation. Toward this rule, we deploy experiments on three benchmarks with different application contexts including shape retrieval, 3D object recognition, and point cloud registration together with various perturbations such as noise, point density variation, clutter, occlusion, partial overlap, different scales of initial correspondences, and different combinations of keypoint detectors and descriptors. The rich variety of application scenarios and nuisances result in different spatial distributions and inlier ratios of initial feature correspondences, thus enabling a thorough evaluation. Based on the outcomes, we give a summary of the traits, merits, and demerits of evaluated approaches and indicate some potential future research directions.

READ FULL TEXT VIEW PDF
POST COMMENT

Comments

There are no comments yet.

Authors

page 1

page 8

page 10

page 13

This week in AI

Get the week's most popular data science and artificial intelligence research sent straight to your inbox every Saturday.

1 Introduction

Establishing correct point-to-point matching relationship between rigid 3D shapes (e.g., point clouds, meshes, and depth maps), a.k.a. correspondence problem, is pivotal in 3D computer vision. It has been successfully applied to many areas such as point cloud registration [1, 2], object recognition [3, 4], shape retrieval [5], and localization [6]

. The key reason is that accurate six-degree-of-freedom (6DoF) pose can be estimated with consistent 3D correspondences (matches), allowing data fusion, coordinate system normalization, and relative pose calculation. Moreover, when temporal information is available, we are able to obtain the movement information of a 3D object such as linear and angular velocities.

The initial correspondences between two shapes, namely a source shape and a target shape, are usually generated with three standard steps [7, 8]

. First, a set of sparse and distinctive keypoints are detected from the two shapes because the raw 3D data are always with great redundancy. Second, local geometric feature description is performed for each keypoint, specifically in the local surface patch formed by the radius neighbors of a keypoint, to encode the local shape and spatial information. Third, by matching local geometric feature descriptors using distance metrics such as Euclidean distance, we can obtain initial point-to-point correspondences. However, this set may be contaminated by a large amount of false matches (outliers) due to the following reasons.

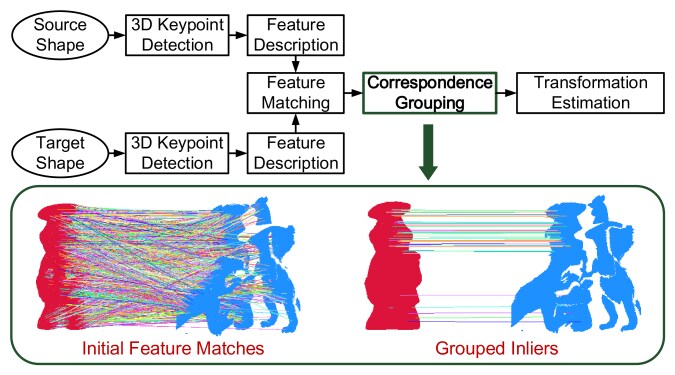

Fig. 1: Illustration of local feature-based matching paradigm, where the objective of 3D correspondence grouping is searching inliers from an initial correspondence set with outliers between two shapes.

Data/scenario perturbations. (i) Noise. Many current 3D sensors, especially for those recent low-cost Microsoft Kinect and Intel RealSense devices, are not able to capture clean point cloud data. Heavy noise will corrupt the geometric structure greatly. (ii) Data density variation. Distance changes between the sensor and the object/scene will lead to data resolution variation in raw data. This happens frequently for moving sensors or objects. (iii) Clutter and occlusion. In 3D object recognition scenario, the object of interest is often localized in complex scenes with clutter and occlusion, causing data missing and huge amounts of outliers. (iv) Partial overlap. In point cloud registration scenario, data scanned from different viewpoints usually suffer from limited overlaps. It naturally results in a number of correspondences that fall outside the overlapping region.

Limitations of detectors/descriptors. (i) For existing 3D keypoint detectors, most of them still suffer from limited repeatability particularly in point cloud registration and object recognition applications [9]. Truly corresponding points may miss each other because of keypoint localization errors. (ii) For existing 3D local geometric descriptors, although a number of descriptors have been proposed, evaluation studies [10, 11] still show that their performance needs improvement for data with severe occlusion and noise. In addition, local descriptors are sensitive to repetitive patterns.

The above challenges highlight the significance of correspondence grouping, making it a critical role in the local feature-based matching paradigm (as shown Fig. 1) that is a prevalent approach for high-level vision tasks such as 3D registration and 3D object recognition. The goal of correspondence grouping is retrieving as many as inliers from raw feature correspondences, giving a rise in both precision and recall as well as facilitating accurate transformation estimation. In the 2D image domain, correspondence grouping is a long-standing issue with a number of solutions, e.g., parametric methods such as random sampling consensus (RANSAC) [12] and universal RANSAC (USAC) [13]; non-parametric methods such as grid-based motion statistics (GMS) [14] locality preserving matching (LPM) [15]. By directly changing the hypothesis model for parametric methods or leveraging 3D geometric constraints for non-parametric methods, many of these methods can be generalized to the 3D domain, e.g., RANSAC and spectral technique (ST) [16]. However, 3D data possess some unique peculiarities to images, e.g., surface normals, local reference frame (LRF), and rigidity. Through leveraging these properties, a number of 3D-targeted correspondence grouping methods have been proposed [17, 18, 19, 20, 21, 22, 23]. Based on the number of candidates considered for grouping, we categorize them as individual-based and group-based. Individual-based methods judge the correctness of a correspondence independently, while group-based methods try to find the cluster formed by inliers. With the wealth of a wide range of 3D correspondence grouping techniques, yet, the advantages and shortcomings of them remain unclear because the efficacy of each method is usually tested on datasets addressing a particular application with limited variety in nuisance types and insufficient comparisons, making it confusing for developers to select a proper method for a specific application.

Motivated by these considerations, this paper presents a comprehensive evaluation of nine popular 3D correspondence grouping algorithms, i.e., similarity score (SS), nearest neighbor similarity ratio (NNSR) [24], ST [16], RANSAC [12], geometric consistency (GC) [17], 3D Hough voting [19]

, game theory matching (GTM)

[20], search of inliers (SI) [21], and consistency voting (CV) [22]. SS and NNSR are considered as baselines because one can directly group matches based on the local descriptor’s distinctiveness. As the input for a correspondence grouping method, the initial correspondence set varies in terms of inlier ratios and spatial distributions. To promise a rich variety of the two terms, we consider three application contexts including shape retrieval, 3D object recognition, and point cloud registration with different nuisances including noise, point density variation, clutter, occlusion, partial overlap, different scales of initial correpsondences and different combinations of keypoint detectors and descriptors. All considered nuisances have been quantized for a detailed comparison. The efficiency of tested methods respecting correspondence sets with different scales has also been tested. This paper extends the conference version [25] from five aspects. (i) More evaluated methods. This paper additionally considers two methods, i.e., the well-known GTM [20] and recently proposed CV [22], to achieve a more extensive comparison. (ii)

More metrics. In addition to precision and recall, we also consider the F-score and rigid data alignment measure to achieve aggregated and task-level evaluation.

(iii) More analysis on experimental data. We present detailed statistics of the number of inliers and inlier ratios for each experimental data setting. It enables an insightful illustration of the effect caused by each considered nuisance on the quality of initial matches. (iv) More experiments. Rather than using a fixed detector-descriptor combination [25], this paper considers six combinations of 3D keypoint detectors and descriptors to address the concern of the effect when using different detector-descriptor combos. (v) A review of the existing literature. Existing evaluation works related to this evaluation have been comprehensively surveyed and discussed. To summarize, this paper has three main contributions.

  • An abstraction of nine state-of-the-art 3D correspondence grouping methods into a set of core stages, which helps to highlight the peculiarities of each approach and their differences.

  • A comprehensive performance evaluation of several popular 3D correspondence grouping methods. This evaluation covers the major concerns for such topic, performance under a large variety of application contexts and perturbations (e.g., noise, point density variation, clutter, occlusion, partial overlap, different numbers of initial correspondences, and different detector-descriptor combinations) and computational efficiency.

  • A summary and discussion of evaluated methods in terms of their traits, merits, and demerits based on the experimental outcomes. This provides useful application guidance for developers and potential future research directions for scholars to overcome existing issues in this research field.

The remainder of this paper is organized as follows. Sect. 2 reviews related evaluations in the area of local geometric feature matching. Sect. 3 gives a taxonomy and review of nine state-of-the-art methods by identifying the core computational steps of each method. Sect. 4 presents the evaluation methodology with descriptions on datasets, metrics, considered terms for evaluation, and implementation details of each method. Sect. 5 presents the evaluation results and relevant explanations. Sect. 6 gives a summary and discussion of for each method based on the evaluation results. The conclusions are finally drawn in Sect. 7.

2 Related Work

This section reviews existing performance evaluation works relate to local geometric feature-based matching.

For 3D keypoint detection, Tombari et al. [9] conducted an evaluation of several fixed-scale and adaptive 3D keypoint detectors in terms of repeatability, distinctiveness, and computational efficiency. The evaluation datasets are characterized by interferences such as noise, clutter, occlusions, and partial overlap. For 3D local feature descriptors, Sukno et al. [26] presented a comparison of local geometric descriptors for craniofacial landmarks annotated on 144 point cloud scans for clinical research. Kim and Hilton [27] tested four 3D local feature descriptors in the context of multi-modal data registration, showing that the robustness of current descriptors to data modality changes is still limited. Guo et al. [10] quantitatively assessed ten popular 3D local geometric feature descriptors on datasets addressing shape retrieval, point cloud registration, and 3D object recognition scenarios. The evaluated terms including descriptiveness, compactness, efficiency, and robustness to a number of common nuisances. Buch et al. [28] performed an evaluation of the results when fusing various local geometric features for the task of 3D object recognition, showing that the feature matching, pose estimation, and object recognition performance can be effectively boosted with proper combinations of geometric features. Yang et al. [11] evaluated the effect of different characterizations of the local spatial information on the distinctiveness, compactness, and robustness of local descriptors. Because many of existing local geometric features rely on a local reference frame (LRF) on one hand to achieve rotation invariance and on the other to fully characterize the local spatial information, there are also some evaluations on LRFs. Specifically, Petrelli and Stefano [29] presented a study on the effect of LRF errors on the distinctiveness of local descriptors and gave an evaluation of seven LRFs in the context of partial shape matching. Later, they proposed a new metric to more precisely evaluate the repeatability of LRFs and tested two additional LFRs with experiments on a vast corpus of data. Yang et al. [30]classified existing LRFs as covariance analysis-based and point spatial distribution-based and tested a total of eight LRFs on six datasets with different application scenarios and nuisances. They also assessed the descriptor matching performance when using different LRFs and feature representation combinations. In addition to independently evaluating keypoint detectors and descriptors, Bronstein et al. [31] and Boyer et al. [5] tested the performance of shape feature detectors and descriptors under a wide range of transformations for the task of shape retrieval. Salti et al. [32] compared many possible combinations between state-of-the-art 3D detectors and descriptors on datasets with different modalities and contexts. Hänsch et al. [33] evaluated the effectiveness of different combinations of 3D keypoint detectors and descriptors for point cloud fusion/reconstruction. The considered datasets including LiDAR and Kinect point clouds. For geometric feature matching, Rusu et al. [34] analyzed six distance metrics for the matching of point feature histograms in point clouds when applied to point-to-point correspondences searching and point classification. These distance metrics were also evaluated in [35] and [36] for the matching of rotational contour signatures (RCS) and local point pair feature histograms (PPF Hist), respectively.

Regarding the point-to-point correspondence problem, Raguram [37] evaluated the RANSAC algorithm and several of its variants for robust estimation from image feature correspondences with outliers. Bian et al. [38] gave a comparative evaluation of several 2D feature matchers and proposed a uniform feature matching benchmark. These matchers were evaluated from different aspects including matching ability, correspondence sufficiency, and efficiency. However, to the best of our knowledge, no prior works have been carried out for the evaluation of correspondence grouping approaches in the 3D domain (except the preliminary version of this paper [25]) and they mainly concentrate on studying feature detectors and descriptors. A comprehensive evaluation of 3D correspondence grouping methods is necessary and valuable because it will advance the development of this field and provide complementary information to existing evaluations about local geometric feature detectors and descriptors.

3 Considered Methods

Nine 3D correspondence grouping algorithms are considered in our evaluation mainly die to their popularity and state-of-the-art performance. They are either individual-based or group-based. Before recapping these methods, we first describe some notations for better readability.

The correspondence grouping problem can be formulated as follows. Given a source shape and a target shape , an initial correspondence set is generated by matching the feature sets and computed for the keypoints on and , respectively. The goal is to seek an inlier set from that identifies the correct matching relationship between and . A component in can be parameterized by , where , , , , and is the feature similarity score assigned to . With these notations, we describe the key ideas and computation steps of each method in the following.

3.1 Individual-based

Individual-based methods intend to first assign a score for each correspondence using feature similarity or geometric cues, and then group correspondences independently based on the scores. The score can be computed either using a single correspondence or taking local/global context information into consideration.

Similarity Score. The initial correspondence set can be naively split based on the similarity score of the two descriptors extracted from  [39, 2]. The assumption is that correspondences agreed with more similar descriptors are more likely to be correct. Although a number of distinctive 3D local features [40, 4] have been proposed, common nuisances such as noise, data resolution variations, and repetitive patterns could easily cause false judgments. This method, dubbed as SS, is served as a baseline in our evaluation that judges a correspondence as correct if:

(1)

where is the normalized feature of and . We use the distance to calculate in this paper.

Nearest Neighbor Similarity Ratio [24]. Lowe’s ratio rule [24] is regarded as the other baseline in this evaluation. It penalizes correspondences by the ratio of the nearest and the second nearest distance in feature space. This rule enables distinctive regions to achieve high ranking scores. Analogous to SS’s thresholding strategy, NNSR accepts a correspondence as inlier if:

(2)

where and respectively represent the most and the second most similar features to , and .

Search of Inliers [21]. The search of inliers (SI) [21] method concentrates on the problem of 3D correspondence selection for 3D rigid data matching. SI follows a voting paradigm and designs both spatially local and global geometric constraints to determine whether a vote should be casted. This method includes three main steps, i.e, initialization, local voting, and global voting.

During initialization, a portion of the initial correspondence set , i.e., , is selected with the Lowe’s ratio rule (c.f. Eq. 2). At the local voting stage, local voters for are defined as the intersection of and the nearest neighbors of . The components in that satisfy the rigidity constraint (c.f. Eq. 12) are defined as the positive local votes :

(3)

where is a free parameter at the local voting stage. The local score of is defined as .

At the global voting stage, the global voters are selected as the former correspondences ranked in a decreasing order according to Lowe’s ratio scores. To judge the affinity between two correspondences, and will take the following test:

(4)

where is with being the LRF of . The global voters are then localized by applying both local and global constraints:

(5)

where is a Euclidean distance tolerance. The eventual vote score for is defined as:

(6)

The correspondences with higher values than the threshold determined based on Otsu’s adaptive method [41] are SI-judged inliers.

Consistency Voting [22]. Based on the assumption that only inliers are compatible with each other, Yang et al. [22] proposed consistency voting (CV) to check the agreement of a query correspondence with a voting set composed by distinctive correspondences. There are three main computational steps.

First, the initial correspondence set is ordered according to NNSR [24] scores and top- candidates from the re-ordered set are served as the voting set. Second, a compatibility measure for a correspondence pair that incorporates both rigidity and LRF affinity constraints is introduced. The rigidity term is defined as:

(7)

The LRF affinity term is defined as:

(8)

where

(9)

where represents the LRF of . By combining both constraints, the compatibility measure is defined as:

(10)

where and represent the rigidity and LRF affinity parameters, respectively.

Third, the final voting score of a correspondence is defined as the aggregation of all compatibility scores of and :

(11)

Correspondences with higher voting scores than a threshold are served as inliers.

3.2 Group-based

Group-based methods assume that inliers form a cluster in a particular domain and select correct correspondences in an one-shot manner. The finding of inlier cluster usually relies on generating reasonable hypotheses, seeking cluster center or candidates that pairwisely agree with each other.

Random Sampling Consensus [12]. RANSAC [12] iteratively performs hypothesis-verification and evaluates the correctness of current samples based on the number of identified inliers. It has been broadly employed in both 2D [42] and 3D domains [1]. Despite its variants [43, 44], we focus on evaluating the original RANSAC method.

It repeatedly performs the following operations times. At each iteration, the method first randomly samples three candidates from . Second, the sampled correspondences are used to generate a hypothesis, i.e., a transformation for 3D rigid data alignment. To judge the correctness of , the source keypoints in (the intersection of and ) will be transformed using . The confidence of is positively correlated to the number of transformed source keypoints whose Euclidean distances to their corresponding points in are smaller than a threshold . Finally, the transformation yielding to the maximum inlier count is taken as the optimal , and correspondences in coherent with are grouped as inliers.

Spectral Technique [16]. Spectral methods are widely used for searching the main cluster of a graph [45, 46]. Leordeanu and Hebert [16] used a spectral technique (ST) to group correspondences based on the observation that inliers in should form a consistent cluster. The essential idea is finding the level of association of each correspondence with the main cluster exits in the initial correspondence set . The basic calculation procedure can be abstracted as follows.

First, an adjacent non-negative matrix is computed for

in which each component is the pairwise affinity score of two correspondences. Second, the principle eigenvector of

is calculated as and the location of the maximum value of , e.g., , indicates being the cluster center. Third, remove from all potential components in conflict with . By repeating the previous two steps until or , the selected candidates from the second step thus consist the final inlier cluster.

ST is general for both 2D and 3D correspondence problems, depending on the definition of the pairwise affinity term. Here, we use the popular rigidity constrain [47, 21] in the 3D domain as the pairwise term of and , which is defined as:

(12)

By thresholding on using , one can conclude whether and are compatible or not.

Geometric Consistency [17]. The GC method [17] is independent from the feature space and applies constraints relating to the compatibility of spatial locations of corresponding points. The compatibility score for two given correspondences and is defined as:

(13)

where and is a threshold to judge if and satisfy the geometric constraint or not.

With the above rule, GC then associates a consistent cluster to each correspondence. Particularly, for a correspondence , its compatibility scores with all other correspondences in are computed based on Eq. 13. All the correspondences with confirmed compatibility scores therefore form a cluster for , and the size of the cluster decides how the current cluster is likely to be the inlier cluster. By repeating the procedure for all correspondences, the largest cluster is served as the grouped inlier set.

3D Hough Voting [19]. The Hough transform [48] is a popular computer vision technique initially proposed to detect lines in images. Tombari and Stefano [19] extended it for 3D object recognition and named it as 3D Hough voting (3DHV) . This method is also employed to group correspondences for partial shape matching [petrelli2015pairwise]. In 3DHV, each correspondence casts a vote in a 3D Hough space based on the following steps.

For the th correspondence in denoted by

, the vector between

and the centroid of the source shape is firstly computed as:

(14)

which is then transformed in the coordinates given by the local reference frame (LRF) of as:

(15)

where is the rotation matrix and each row of is a unit vector of the LRF at . LRF is an independent coordinate system constructed in the local surface around a keypoint for the purpose of making the underlying feature representation rotation invariant and leveraging full spatial information. This step endows the vector of with invariance to rigid transformations. Analogously, we can obtain a vector for . If and are correctly corresponded, should coincide with . Based on this assumption, the vector is finally transformed in the global coordinate of as:

(16)

With above transformations, the feature could cast a vote in a 3D Hough space by means of a vector . The peak in the Hough space indicates center of the cluster constituted by inliers.

Game Theory Matching [20]. Rodolà et al. [20] interpreted the correspondence grouping problem as a non-cooperative game and proposed game theory matching (GTM) that selects a small group of highly coherent correspondences. In the GTM framework, candidates in the initial correspondence set are treated as available strategies. Pairs of players play a symmetric game and will adapt their behavior to prefer strategies that receive larger payoffs. Let represents the amount of population that plays each strategy at a given time. At the beginning, the initial population is set around the barycenter to be fair for each strategy. Then, the population will dynamically updates ( repetitions in our evaluation) with an evolutionary process by applying the following replicator dynamics equation:

(17)

where is the payoff matrix that assigns the payoff between strategies and to row and column . Such dynamics will converge to a Nash equilibrium [49]. The payoff between two correspondences and is measured by the compatibility between them. GTM also employs the rigidity-based compatibility metric presented in Eq. 12. Therefore, the payoff matrix is defined as:

(18)

After the evolutionary process, correspondences (strategies) with larger populations, i.e., the population playing a strategy is greater than a threshold , are served as inliers.

4 Evaluation Methodology

This section introduces the experimental datasets, performance metrics, considered nuisances, and implementation details of tested methods. We intend to generate inputs for correspondence grouping with various inlier ratios and spatial distributions, achieved by matching rigid data from different application scenarios or injected with different nuisances.

4.1 Datasets


Fig. 2: Sample views (visualized in mesh representation) from (a) B3R [9], (b) U3OR [39, 18], and (c) U3M [50] datasets.

B3R [9]. The Bologna 3D Retrieval (B3R) dataset addresses the scenario of retrieving 3D rigid complete shapes. The original B3R dataset has three types of data group corrupted by Gaussian noise with 0.1 pr, 0.3 pr, and 0.5 prstandard deviations. Here and hereinafter, pr denotes the point cloud resolution, i.e., the average shortest distance among neighboring points in the point cloud. For each data group, 8 models and 18 scenes are included where scenes are rotated copies of models. The models are all taken from the Stanford Repository [51]. The original B3R dataset therefore provides 54 matching pairs. In our evaluation, we will augment the B3R dataset by considering 9 levels of Gaussian noise and down-sampling the scenes to generate 9 data decimation levels. The augmented B3R dataset finally contains 324 scenes with quantized levels of noise and point density variation.

U3OR [39, 18]. The UWA 3D object recognition (U3OR) dataset is a popular dataset in 3D computer vision that addresses model-based 3D object recognition with clutter and occlusion. It has 5 models and 50 scenes. The scenes are generated by first randomly placing 4 or 5 models together and then scanning them from a particular view, resulting in approximately 65%-95% clutter and 60%-90% occlusion. A total of 188 valid matching pairs are available in this dataset.

U3M [50]. The UWA 3D modeling (U3M) addresses point cloud (2.5D views) registration scenarios. It consists of 22, 16, 16 and 21 2.5D views respectively captured from the Chef, Chicken, T-rex, and Parasaurolophus models. Since the ground truth transformations are not available for this dataset, we conduct manual alignment for each data pair and then use ICP [52] for refinement to obtain the ground truth. Eventually, 425 valid data pairs that have at least 30% overlap are available for evaluation.

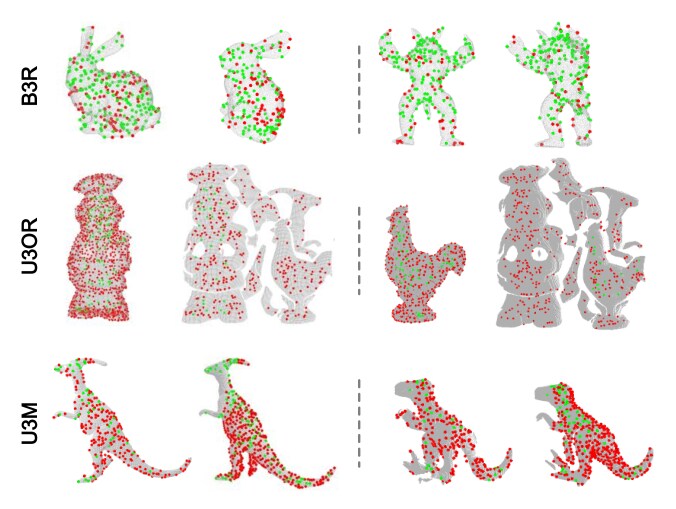

Fig. 3: Spatial distributions of corresponding keypoints (detector: H3D [53]; descriptor: SHOT [40]) on two example matching pairs for each dataset. Green and red dots represent keypoints with correct and false correspondences, respectively.

The experimental datasets (Fig. 2) have different application scenarios, particularly covering “full to full” (B3R), “full to partial” (U3OR), and “partial to partial” (U3M) matching cases. It makes the initial correspondences generated by matching keypoint descriptors on these datasets distribute spatially different and contain various numbers of inliers. The variety of initial correspondences can be further enriched by changing the sparsity of keypoints or trying different detector-descriptor combinations, enabling a thorough evaluation for correspondence grouping.

4.2 Criteria

We judge the quality of a correspondence grouping method from two perspectives. One is the quality of the reduced correspondence set and the other is whether successful rigid registration can be accomplished using the reduced set.

Regarding the former one, we use precision, recall, and F-score for assessment. Let denote the ground truth transformation between and , where , , and . A correspondence is accepted as correct only if:

(19)

where is a distance threshold. Let , , and respectively denote the grouped correspondence set by a tested method, inliers in the grouped set, and the ground truth inlier set in the initial set , precision and recall are defined as:

(20)
(21)

and F-score is given as .

Regarding the latter one, as previously illustrated in Fig. 1, the following procedure after correspondence grouping is performing transformation estimation for data alignment and fusion. The de-facto estimator for 3D rigid data matching is arguable RANSAC [8]. RANSAC prefers correspondences with high precision because 3 correct correspondences are sufficient to achieve successful registration [54]. Therefore, we judge a registration as successful if the precision of the grouped correspondence set is greater than a threshold . We experimentally observe that RANSAC manages to quickly estimate a reasonable transformation when the correspondence set have at least 10% inliers. Thus, we set to 0.1.

4.3 Challenges

Noise. Noise refer to as unwanted points near to the surface that may impair the intrinsic structure of 3D data (Fig. 5). It often arises from the limitations of sensors or cluttered environments. We inject the scenes from the B3R dataset with Gaussian noise along the , , and axes. The standard deviation of noise increases from 0.05 pr to 0.45 pr with an incremental step of 0.05 pr.

Density variation. Different from images, the change of distance from the senor to objects/scenes results in data density variation for point clouds rather than scale variations (Fig. 5). This frequently happens when scanning an object from different viewpoints or monitoring a moving object. We therefore down-sample the scenes in the B3R dataset and ensure the down-sampled data undergo 90% to 10% data decimations with an interval of 10%.

(a) Noise
(b) Density variation
(c) Clutter
(d) Occlusion
(e) Partial overlap
(f) Threshold
(g) Number of initial matches
(h) Det. & Desc. on B3R
(i) Det. & Desc. on U3OR
(j) Det. & Desc. on U3M
Fig. 4: Information in terms of inlier ratio and the number of inliers for the initial correspondences when confronted with different challenges. Details about the generation of the initial correspondence set in each challenge case are presented in Sect. 4.3.


Clutter and occlusion. For model-based 3D object recognition and pose estimation, clutter and occlusion possess great challenges for local feature matching-based methods. The U3OR dataset contains different degrees of clutter and occlusion. Specifically, clutter and occlusion are respectively defined as [39]:

(22)
(23)

Accordingly, we split the U3OR dataset to 7 subsets with different degrees of clutter from 65% to 95% and analogously obtain another 7 subsets with different degrees of occlusion from 60% to 90%.

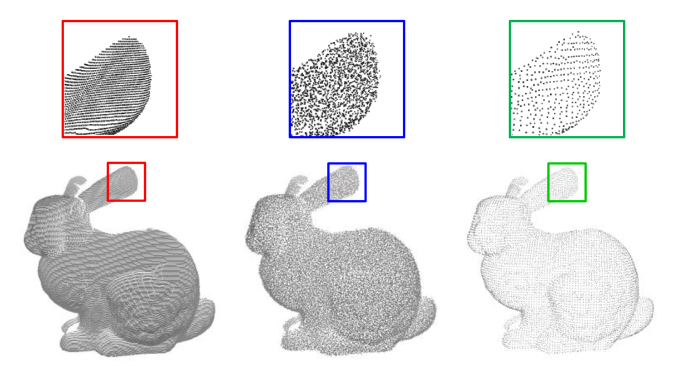

Fig. 5: Comparison of (left) a clean rigid data and its (middle) noisy and (right) down-sampled copies. The standard deviation of noise is 0.5 pr and the down-sampling ratio is 0.7.


Partial overlap. Due to self-occlusion, only 2.5D data can be obtained when scanning a 3D object/scene from a particular view. The overlap ratio between two 2.5D views dominantly decides difficulty of pairwise registration [50]. The U3M dataset has view pairs with at least 0.3 overlap. The definition of overlap is given as [50]:

(24)

The U3M dataset is divided into 7 groups with different levels of overlap.

Varying threshold . The threshold in Eq. 19 determines the accuracy of an inlier. As the requirement for such accuracy may vary with applications, it is necessary to evaluate the performance of a correspondence method with different values of . Specifically, we consider the whole U3OR dataset for the evaluation of this term. Note that we set to 5 pr by default.

Varying numbers of initial matches. Different numbers of initial matches are desired respecting different tasks, e.g., dense matching for shape morphing [55] and sparse matching for crude scan alignment. The number of initial matches is controlled by the number of detected keypoints on both data. In traditional 3D keypoint detectors, the sparsity of detected keypoints is usually determined by a parameter called non-maximum-suppression (NMS) radius [9]. We vary the NMS radius of the employed keypoint detector to generate initial matches with different sizes.

Different detector-descriptor combinations. The spatial distribution and quality of initial correspondences can be also affected by the chosen keypoint detector and descriptor. In our evaluation, we consider two popular 3D keypoint detectors, i.e., Harris 3D (H3D) [53] and intrinsic shape signatures (ISS) [56], and three representative local geometric descriptors, i.e., SHOT [40], local feature statistics histograms (LFSH) [2], and rotational contour signatures (RCS) [35]. All possible combinations of these detectors and descriptors are considered. In the following, we use “C1C6” to represent the combinations of H3D+SHOT, H3D+LFSH, H3D+RCS, ISS+SHOT, ISS+LFSH, and ISS+RCS, respectively. This term is tested on all experimental datasets. When testing the robustness to other nuisances, we employ H3D+SHOT to generate raw matches by default.

SS Adaptive [41]
NNSR [24] 0.8
RANSAC [12] 10000
5 pr
ST [16] 0.6
GC [17] 3 pr
3DHV [19] - -
GTM [20] 100
Adaptive [41]
SI [21] 250
0.9
5 pr
CV [22] 200
Adaptive [41]
TABLE I: Parameters used through the evaluation.

In order to examine the impact of above challenges on the resulted correspondences and improve the interpretability for the experimental results as will be shown in Sect. 5, we present the results respecting the number of inliers and inler ratio for each challenge case in Fig. 4. As expected, the rich variety of application scenarios and perturbations produces a number of correspondence sets with different qualities. For instance, correspondences computed on the B3R dataset with 0.05 pr Gaussian noise have more than 50% inliers while these computed on the U3OR dataset generally have less than 3% inliers.

4.4 Implementation Details

The input for the tested methods in this paper, i.e., the initial correspondence set , is generated by matching the distance of keypoint descriptors extracted from the source and target shapes using d-tree. The support radius of employed local geometric descriptor is set to 15 pr [4].

As for the parameter settings of evaluated approaches, we report them in Table I. For SS, GTM, and CV, we make the thresholds used for splitting correspondence set adaptive as suggested by [21]. For ST and GC, their thresholds are determined via tuning experiments. For RANSAC, 10000 loops are assigned to strike a balance between accuracy and efficiency. The remaining parameters are kept consistent to the settings in their original papers.

All considered methods are implemented in the point cloud library (PCL) [57] with a 3.4GHz processor and 24GB RAM.

5 Results

Based on the experimental setup described in the previous section, this section presents corresponding outcomes with necessary explanations and discussions.

5.1 Correspondence Grouping Performance

(a) Noise
(b) Density variation
(c) Clutter
(d) Occlusion
(e) Partial overlap
(f) Threshold
(g) Number of initial matches
(h) Det. & Desc. on B3R
(i) Det. & Desc. on U3OR
(j) Det. & Desc. on U3M
Fig. 6: Precision, recall, and F-score performance of selected methods in Sect. 4 on experimental datasets with different challenges (Sect. 4.3).

The results of selected methods in Sect. 4 in terms of precision, recall, and F-score are aggregatedly presented in Fig. 6. Generally, the performance of each method changes frequently when faced with different nuisances. Specifically, we could make the following observations.

(a) Noise
(b) Density variation
(c) Clutter
(d) Occlusion
(e) Partial overlap
(f) Threshold
(g) Number of initial matches
(h) Det. & Desc. on B3R
(i) Det. & Desc. on U3OR
(j) Det. & Desc. on U3M
Fig. 7: Rigid registration performance of selected methods in Sect. 4 regarding various application scenarios and challenges (Sect. 4.3).
  1. []

  2. Fig. 6(a) shows that when the standard deviation of noise is smaller than 0.2 pr, all methods achieve acceptable performance where RANSAC and ST are two top-ranked ones. The superiority of these two methods becomes more obvious as the noise gets severe. In terms of precision, it is interesting to note that NNSR even surpasses GC and 3DHV. It is because NNSR prefers to select distinctive correspondences, which is peculiar sufficient in this dataset as the models possess wealthy distinctive structures. ST, RANSAC, GC, GTM, and CV manage to retrieve almost all inliers under all levels of noise. A significant deterioration of performance can be found for SI when undergoing severe noise, indicating its sensitivity to such perturbation.

  3. Fig. 6(b) shows some similar results to Fig. 6(a). For instance, RANSAC and ST are still the best two competitors and a high recall is achieved by many methods such as GTM and CV. Yet, the differences are that SS even outperforms SI when the down-sampling ratio reaches 0.3 regarding precision and the recall performance of NNSR and SI drops dramatically for sparse data. It arises from the SHOT’s sensitivity to varying point densities [40], making the feature less distinctive (e.g., NNSR’s principle) for data with significant resolution variation. The reason for SI is that the LRF of SHOT (e.g., the component in the global voting stage for SI) exhibits poor repeatability with data resolution variation [30].

  4. Fig. 6(c) and Fig. 6(d) suggest that all methods meet a dramatic performance degradation. By referring to Fig. 4 we can find that U3OR dataset is more challenging than B3R dataset. A salient point can be found that GTM is the top performer, which exceeds the second best one by a large gap in terms of precision under the condition of clutter and occlusion. It is due to the fact that GTM has very strong selectivity as it adopts -type constraint to optimize the inlier searching problem [58]. Since the recall performance of GTM is mediocre, we can conclude that the reduced correspondence set by GTM is sparse but accurate. Regarding the ranking of recall performance, CV is the best method and its gap with others is more clear in cluttered scenes. Notably, the ST method, with leading performance on the B3R dataset, performs quite poor on the U3OR dataset. This is because ST tries to find large isometry-maintained clusters, which rarely exit in scenes with high percentages of clutter and occlusion.

  5. Common to all algorithms, as shown in Fig. 6(e), is that their performance generally drops as the degree of overlap decreases. When the percentage of overlap is greater than 70%, GTM significantly outperforms other in terms of precision. More specifically, it surpasses the second best one by approximately 30% and 20% with 90% and 80% overlap, respectively. As the overlap ratio decreases, GTM and RANSAC achieve comparable precision performance. In terms of recall, CV outperforms all others at all levels of overlap, followed by SI. A common trait for CV and SI is that both methods are individual-based and they employ a voting mechanism to judge the correctness of a correspondence. So they have no requirements on the spatial distribution of inliers and those isolated inliers can be also identified by these two methods, giving a rise in recall. Weighing up both precision and recall, GTM and RANSAC are more preferable than others.

  6. When changing the judging threshold for an inlier, as shown in Fig. 6(f), all methods achieve a performance gain in terms of precision, where RANSAC and GTM climb more rapidly. However, only SI, CV, and SS achieve an evident performance improvement regarding recall. The ranking of all methods is generally stable as the judging threshold changes.

  7. Fig. 6(g) suggests that different algorithms give different responses when varying the number of initial feature matches. The performance of some algorithms, e.g., GC, RANSAC, and 3DHV, fluctuates as the number of initial matches augments. Meanwhile, one can find that the size of initial correspondence set has a relatively strong impact on the SI and CV algorithms. To be more specific, when there are less than 1000 input correspondences, these two algorithms suffer from low precision values. However, as the initial feature matches become dense, i.e., more than 1000 correspondences, the precision performance of SI and CV improves quickly. Note that the CV method even reaches the second best precision with around 3000 initial correspondences. Still, SI and CV are the best two methods in terms of recall performance and surpass the others by a clear gap.

  8. The effect of changing the combination of keypoint detector and descriptor is reflected by Fig. 6(h)-(j). On the B3R dataset, using H3D+LFSH and ISS+LFSH for computing initial correspondences results in far less inliers than others, but GTM still achieves near 100% precision and exceeds the others under all considered combinations of detector and descriptor. CV, GC, and RANSAC manage to retrieve almost all inliers within the initial set regardless the change of “detector-descriptor” combination. On the U3OR dataset, the best performance is achieved by all methods when using RCS for local geometric feature description. The ranking of tested methods is generally consistent when varying detectors and descriptors. Specifically, GTM achieves the best precision performance due to its outstanding selectivity and both SI and CV obtain superior recall performance. On the U3M dataset, the best performance of most methods is achieved when using ISS+LFSH. The ranking of SI, 3DHV, and NNSR sometimes alters with the change of detector and descriptor but the ranking of other methods is quite consistent. In particular, GTM achieves the best overall performance, followed by GC, RANSAC, and ST.

To summarize, RANSAC and ST are viable choices in the presence of noise and data density variation. In terms of robustness to clutter, occlusion, and partial overlap, GTM is able to find a reduced set with particularly high precision, though its recall performance is inferior than most of the other methods. SI and CV, as two individual-based methods with a voting scheme for correspondence selection, are able to retrieve the majority of inliers under all tested conditions.

5.2 Rigid Registration Performance

The rigid registration performance of evaluated methods according to the protocol in Sect. 4.2 is shown in Fig. 8. Several observations can be made from the figure.

  1. []

  2. All methods manage to align the data pairs in the B3R dataset with Gaussian noise ( Fig. 8(a)). This can be explained by Fig. 6(a) because all methods obtain an average precision value that is greater than 0.4. When undergoing data decimation ( Fig. 8(b)), all methods achieve a 100% registration precision when the down-sampling ratio is greater than 0.3, but some methods (e.g., SI and SS) start to show failure cases as the data are further simplified. Most methods achieve pleasurable registration performance on the B3R dataset with noise and density variation.

  3. In the presence of clutter and occlusion (Fig. 8(c)-(d)), GC achieves the best performance, followed by GTM. This deviates much with the rankings presented in Fig. 6(c)-(d). For example, RANSAC gets higher precision than GC in most cases but obtains inferior registration performance. Similar observations can be found for GTM and NNSR. The reason is that some group-based methods (e.g., GTM and RANSAC) assume that inliers exist in a cluster form and the precision of the retrieved set by these methods is often extremely low or high. More intuitively, as shown in Fig. 8, GC rarely achieves a precision value greater than 0.5 per matching pair on the U3OR dataset, but the correspondence set selected by GC always contains more than 10% inliers. By contrast, RANSAC achieves particularly high precisions (usually greater than 0.5) for successful instances but may not able to retrieve any inliers in failure cases. This leads to the result that GC behaves better than RANSAC in terms of rigid registration performance.


    Fig. 8: Precision results of GC and RANSAC on each matching pair from the U3OR dataset.
  4. When aligning data pairs with partial overlap (Fig. 8(e)), GTM achieves the best performance under all levels of partial overlap, followed by RANSAC and GC. When the overlap ratio is smaller than 0.6, all methods fail to align most of the data pairs. As will later be shown in Fig. 8(j), the overall registration performance is closely related to the selection of a proper “detector-descriptor” combination.

  5. The change of threshold (Fig. 8(f)) has a faint effect on the overall ranking of evaluated methods respecting registration performance, where GC and GTM are the best two methods. When changing the size of the initial correspondence set, as shown in Fig. 8(g), the increase of the initial correspondence count slightly boosts the rigid registration performance of most methods. GTM is the best competitor with around 500 initial matches and is surpassed by GC with denser matches.

  6. For considered “detector-descriptor” combinations, all methods achieves stable yet high registration precision on the B3R dataset (Fig. 8(h)). On the U3OR dataset (Fig. 8(i)), GC and GTM generally deliver the best performance. Notably, SS shows significantly poor performance for all combinations. This is because most models in the U3OR dataset are symmetric, resulting in many repetitive patterns that are hard to distinguish simply using the feature similarity cue. Nonetheless, using feature similarity ratio, i.e., NNSR, sometimes presents very competitive performance. Fig. 8(j) shows that GTM outperforms the others in all cases and the peak is achieved with correspondences generated by ISS+LFSH.

In general, rigid data in the shape retrieval context even with noise and density variation can be accurately aligned using most of the evaluated methods. For scenarios such as 3D object recognition and point cloud registration, GC and GTM present more competitive performance than the others.

5.3 Computational Efficiency

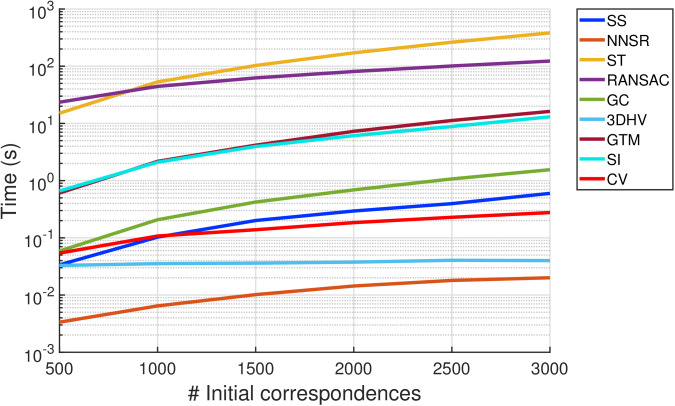

Fig. 9: Computational efficiency with regards to different sizes of the initial correspondence set.

Respecting the efficiency concern of a correspondence grouping method, the time cost is mainly affected by the number of initial correspondences that often varies with application contexts and the selection of keypoint detector. Therefore it is necessary to compare the computational efficiency of considered methods with respect to inputs with different cardinalities. The deployment of this experiment is as follows. First, the NMS radius of the Harris 3D keypoint detector is varied to obtain initial correspondence sets with different scales. Second, these sets are fed to the evaluated methods and their time costs are recorded. Finally, we repeat the former stage 10 times and record the average timing results. The efficiency evaluation result is shown in Fig. 9. We also provide the computational complexity information of evaluated methods in Table II to help explaining the result.

]

TABLE II: Computational complexity of evaluated methods.
SS
NNSR
ST
RANSAC
GC
3DHV
GTM
SI
CV

One can make several observations from the results. First, ST and RANSAC are the two most time-consuming ones, especially for large-scale initial correspondence sets. The reason for ST is that the computational cost for solving the principle eigenvector of an matrix increases dramatically when the order (i.e., the size of the initial correspondence set) gets larger. The explanation for RANSAC is that “hypothesis-verification” is repeatedly performed to search the inlier cluster and at each iteration the whole correspondence set is required to participate the calculation of retrieved inliers. Second, NNSR and 3DHV are the two most efficient ones. We remark that as SS employs an adaptive thresholding strategy [41] in our implementation, it is therefore a bit less efficient than NNSR. 3DHV is efficient even for correspondence sets with thousands of candidates due to the linear computational complexity. Third, GTM and SI are more time-consuming than most compared methods. It is because GTM has a computational complexity of  [20] and SI needs local and global consolidations to judge the correctness of a correspondence. Although CV is a voting-based method as well, far less time is required because CV does not conduct nearest neighbor search to find voters, as opposed to the local voting stage in SI.

5.4 Visualization

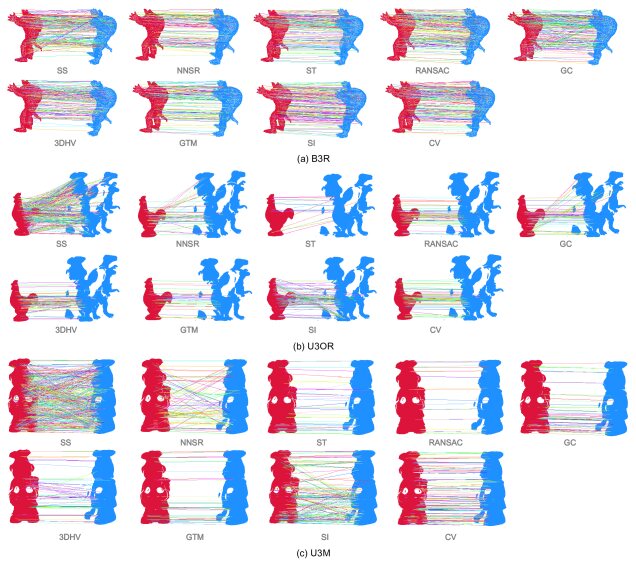

Fig. 10: Visual results of the grouped inlier sets by evaluated methods on sample data from the experimental datasets.

We finally provide some visual results of the selected correspondence sets by evaluated methods in Fig. 10. From the figure, we can percept some visual differences of outcomes by different methods. For instance, the selected sets by SS and NNSR contain a relatively high ratio of outliers except on the B3R dataset. This verifies that algorithms relying on feature matching score are very sensitive to nuisances directly affecting a feature’s discriminative power, e.g., clutter, occlusion, and partial overlap. Another evident phenomenon is that with different grouping principles, the number as well as the spatial locations of the outcomes of evaluated methods generally differ from each other.

6 Summary and Discussion

In light of the evaluation results shown in Sect. 5, we present a summary of evaluated methods regarding their advantages, shortcomings, and suitable applications in the following.

  • SS and NNSR, as two baselines relying on the distinctiveness of the local geometric descriptor, are sensitive to perturbations such as clutter, occlusion, and partial overlap. For data with rich geometric information, NNSR can be an intriguing option as it also affords real-time performance.

  • ST has a main positive trait that both high precision and recall can be achieved when sufficient inliers are included in the raw correspondence set. However, its performance degrades significantly in 3D object recognition and point cloud registration applications that usually suffer from particularly low inlier ratios. ST is also not competitive for time-crucial applications because it is the most time-consuming one among evaluated methods especially for large-scale correspondence sets.

  • RANSAC behaves well with high quality initial matches, but often achieves extremely low precisions for inputs with scarce inliers. This makes it suffer from relatively poor rigid registration performance in 3D object recognition context. Similar to ST, performing correspondence selection with RANSAC on large-scale dense correspondence set is inefficient.

  • GC is recommended for rigid data registration problems since it shows superior registration performance in various application scenarios. For correspondence grouping, GC is inferior to most methods when the initial inlier ratio is high but delivers pleasurable performance for correspondence sets with low inlier ratios.

  • 3DHV is an ultra efficient algorithm which simultaneously returns acceptable inlier searching performance in many applications. These merits suggest that 3DHV can be applied to time-crucial applications, e.g., simultaneous localization and mapping (SLAM), object grasping, and 3D object recognition in mobile platforms.

  • GTM is an outstanding method with superior precision results in terms of correspondence grouping and rigid data registration. The gap with other methods is even more evident in challenging conditions such as object recognition with clutter and occlusion and data registration with limited overlap. The shortcomings of GTM include the limited recall performance and expensive timing cost when coping with dense initial correspondences.

  • SI and CV are preferable choices for applications requiring dense correspondences because both methods are prominent in terms of recall under various conditions. Specifically, CV shows better precision performance and is more computationally efficient than SI.

When comparing group-based and individual-based methods from a general perspective, we can summarize that more promising precision performance can be achieved by group-based methods and individual-based methods (except for SS and NNSR that merely leverage the local geometric feature cue) exhibit better recall performance. Our evaluation also confirms the necessity of performing correspondence grouping because directly performing RANSAC on the raw correspondence set results in poor registration performance, while using proper correspondence selection methods such as GC and GTM prior to transformation estimation can improve the performance greatly. Finally, two open issues are highlighted by this evaluation.

  • More effective solutions to correspondence selection in 3D object recognition and point cloud registration contexts. Fig. 6 and Fig. 7 consistently suggest that all tested methods deliver limited performance with severe clutter and occlusion or very limited overlapping region. This is because of the resulted extremely low inlier ratio (Fig. 4), which remains a great challenge in this research area.

  • A good trade-off among precision, recall, and efficiency. All evaluated methods in this paper cannot balance well regarding the three aspects, which may limit their deployments in real-world applications.

7 Conclusions

This paper has presented a comprehensive performance evaluation of several state-of-the-art 3D correspondence selection methods. We have also abstracted all considered methods to a number of core stages to better interpret their peculiarities and differences. The experiments were deployed on datasets with a variety of application scenarios and nuisances, thus leading to raw correspondence sets for grouping with different numbers of inliers, inlier ratios, and spatial locations. Furthermore, we have summarized the traits, merits, and demerits of each method based on the evaluation results. Our evaluation therefore presents valuable guidances to developers for the choice of a proper correspondence selection method regarding a particular application, and may help the following scholars to highlight the blind spots in this area and devise effective methods to break current bottlenecks.

Acknowledgments

The authors would like thank Dr. Anders Glent Buch and Dr. Emanuele Rodolà for sharing the code of their methods to us, and the developers of PCL for making many methods evaluated in this paper publicly available. We would also like to thank the Standford 3D Scanning Repository, the University of Western Australia, and the University of Bologna for freely providing their datasets. This work is supported in part by the National Natural Science Foundation of China (No. 61876152).

References

  • [1] R. B. Rusu, N. Blodow, Z. C. Marton, and M. Beetz, “Aligning point cloud views using persistent feature histograms,” in Proc. IEEE/RSJ International Conference on Intelligent Robots and Systems, 2008, pp. 3384–3391.
  • [2] J. Yang, Z. Cao, and Q. Zhang, “A fast and robust local descriptor for 3d point cloud registration,” Information Sciences, vol. 346, pp. 163–179, 2016.
  • [3] S. Salti, F. Tombari, and L. Di Stefano, “Shot: Unique signatures of histograms for surface and texture description,” Computer Vision and Image Understanding, vol. 125, pp. 251–264, 2014.
  • [4] Y. Guo, F. Sohel, M. Bennamoun, M. Lu, and J. Wan, “Rotational projection statistics for 3d local surface description and object recognition,” International Journal of Computer Vision, vol. 105, no. 1, pp. 63–86, 2013.
  • [5] E. Boyer, A. Bronstein, M. Bronstein, B. Bustos, T. Darom, R. Horaud, I. Hotz, Y. Kelle, J. Keustermans, A. Kovnatsky et al., “Shrec 2011: Robust feature detection and description benchmark,” in Proc. Eurographics Workshop on 3D Object Retrieval, 2011.
  • [6] K. Tateno, F. Tombari, and N. Navab, “When 2.5 d is not enough: Simultaneous reconstruction, segmentation and recognition on dense slam,” in Proc. IEEE International Conference on Robotics and Automation.   IEEE, 2016, pp. 2295–2302.
  • [7] A. S. Mian, M. Bennamoun, and R. A. Owens, “Automatic correspondence for 3d modeling: an extensive review,” International Journal of Shape Modeling, vol. 11, no. 02, pp. 253–291, 2005.
  • [8] Y. Guo, M. Bennamoun, F. Sohel, M. Lu, and J. Wan, “3d object recognition in cluttered scenes with local surface features: A survey,” IEEE Transactions on Pattern Analysis and Machine Intelligence, vol. 36, no. 11, pp. 2270–2287, 2014.
  • [9] F. Tombari, S. Salti, and L. Di Stefano, “Performance evaluation of 3d keypoint detectors,” International Journal of Computer Vision, vol. 102, no. 1-3, pp. 198–220, 2013.
  • [10] Y. Guo, M. Bennamoun, F. Sohel, M. Lu, J. Wan, and N. M. Kwok, “A comprehensive performance evaluation of 3d local feature descriptors,” International Journal of Computer Vision, vol. 116, no. 1, pp. 66–89, 2016.
  • [11] J. Yang, Q. Zhang, and Z. Cao, “The effect of spatial information characterization on 3d local feature descriptors: A quantitative evaluation,” Pattern Recognition, vol. 66, pp. 375–391, 2017.
  • [12] M. A. Fischler and R. C. Bolles, “Random sample consensus: a paradigm for model fitting with applications to image analysis and automated cartography,” Communications of the ACM, vol. 24, no. 6, pp. 381–395, 1981.
  • [13] R. Raguram, O. Chum, M. Pollefeys, J. Matas, and J.-M. Frahm, “Usac: a universal framework for random sample consensus.” IEEE Transactions on Pattern Analysis and Machine Intelligence, vol. 35, no. 8, pp. 2022–2038, 2013.
  • [14] J. Bian, W.-Y. Lin, Y. Matsushita, S.-K. Yeung, T.-D. Nguyen, and M.-M. Cheng, “Gms: Grid-based motion statistics for fast, ultra-robust feature correspondence,” in Proc. IEEE Conference on Computer Vision and Pattern Recognition.   IEEE, 2017, pp. 2828–2837.
  • [15] J. Ma, J. Zhao, J. Jiang, H. Zhou, and X. Guo, “Locality preserving matching,” International Journal of Computer Vision, pp. 1–20, 2018.
  • [16] M. Leordeanu and M. Hebert, “A spectral technique for correspondence problems using pairwise constraints,” in Proc. International Conference on Computer Vision, vol. 2.   IEEE, 2005, pp. 1482–1489.
  • [17] H. Chen and B. Bhanu, “3d free-form object recognition in range images using local surface patches,” Pattern Recognition Letters, vol. 28, no. 10, pp. 1252–1262, 2007.
  • [18] A. Mian, M. Bennamoun, and R. Owens, “On the repeatability and quality of keypoints for local feature-based 3d object retrieval from cluttered scenes,” International Journal of Computer Vision, vol. 89, no. 2-3, pp. 348–361, 2010.
  • [19] F. Tombari and L. Di Stefano, “Object recognition in 3d scenes with occlusions and clutter by hough voting,” in Proc. Pacific-Rim Symposium on Image and Video Technology.   IEEE, 2010, pp. 349–355.
  • [20] E. Rodolà, A. Albarelli, F. Bergamasco, and A. Torsello, “A scale independent selection process for 3d object recognition in cluttered scenes,” International Journal of Computer Vision, vol. 102, no. 1-3, pp. 129–145, 2013.
  • [21] A. G. Buch, Y. Yang, N. Krüger, and H. G. Petersen, “In search of inliers: 3d correspondence by local and global voting,” in Proc. IEEE Conference on Computer Vision and Pattern Recognition.   IEEE, 2014, pp. 2075–2082.
  • [22] J. Yang, Y. Xiao, Z. Cao, and W. Yang, “Ranking 3d feature correspondences via consistency voting,” Pattern Recognition Letters, vol. 117, pp. 1–8, 2019.
  • [23] Á. P. Bustos and T.-J. Chin, “Guaranteed outlier removal for point cloud registration with correspondences,” IEEE Transactions on Pattern Analysis and Machine Intelligence, vol. 40, no. 12, pp. 2868–2882, 2018.
  • [24] D. G. Lowe, “Distinctive image features from scale-invariant keypoints,” International Journal of Computer Vision, vol. 60, no. 2, pp. 91–110, 2004.
  • [25] J. Yang, K. Xian, Y. Xiao, and Z. Cao, “Performance evaluation of 3d correspondence grouping algorithms,” in Proc. International Conference on 3D Vision.   IEEE, 2017, pp. 467–476.
  • [26] F. M. Sukno, J. L. Waddington, and P. F. Whelan, “Comparing 3d descriptors for local search of craniofacial landmarks,” in Proc. International Symposium on Visual Computing.   Springer, 2012, pp. 92–103.
  • [27] H. Kim and A. Hilton, “Evaluation of 3d feature descriptors for multi-modal data registration,” in Proc. International Conference on 3D Vision.   IEEE, 2013, pp. 119–126.
  • [28] A. G. Buch, H. G. Petersen, and N. Krüger, “Local shape feature fusion for improved matching, pose estimation and 3d object recognition,” SpringerPlus, vol. 5, no. 1, p. 297, 2016.
  • [29] A. Petrelli and L. D. Stefano, “On the repeatability of the local reference frame for partial shape matching,” in Proc. IEEE International Conference on Computer Vision, 2011, pp. 2244–2251.
  • [30] J. Yang, Y. Xiao, and Z. Cao, “Toward the repeatability and robustness of the local reference frame for 3d shape matching: An evaluation,” IEEE Transactions on Image Processing, vol. 27, no. 8, pp. 3766–3781, 2018.
  • [31] A. M. Bronstein, M. M. Bronstein, B. Bustos, U. Castellani, M. Crisani, B. Falcidieno, L. J. Guibas, I. Kokkinos, V. Murino, M. Ovsjanikov et al., “Shrec 2010: robust feature detection and description benchmark,” Eurographics Workshop on 3D Object Retrieval, vol. 2, no. 5, p. 6, 2010.
  • [32] S. Salti, A. Petrelli, F. Tombari, and L. Di Stefano, “On the affinity between 3d detectors and descriptors,” in Proc. International Conference on 3D Imaging, Modeling, Processing, Visualization and Transmission.   IEEE, 2012, pp. 424–431.
  • [33] R. Hänsch, T. Weber, and O. Hellwich, “Comparison of 3d interest point detectors and descriptors for point cloud fusion,” ISPRS Annals of the Photogrammetry, Remote Sensing and Spatial Information Sciences, vol. 2, no. 3, p. 57, 2014.
  • [34] R. B. Rusu, Z. C. Marton, N. Blodow, and M. Beetz, “Persistent point feature histograms for 3d point clouds,” in Proc. International Conference on Intelligent Autonomous Systems, 2008, pp. 119–128.
  • [35] J. Yang, Q. Zhang, K. Xian, Y. Xiao, and Z. Cao, “Rotational contour signatures for both real-valued and binary feature representations of 3d local shape,” Computer Vision and Image Understanding, vol. 160, pp. 133–147, 2017.
  • [36] A. G. Buch, D. Kraft, S. Robotics, and D. Odense, “Local point pair feature histogram for accurate 3d matching,” in Proc. British Machine Vision Conference, 2018.
  • [37] R. Raguram, J.-M. Frahm, and M. Pollefeys, “A comparative analysis of ransac techniques leading to adaptive real-time random sample consensus,” in Proc. European Conference on Computer Vision.   Springer, 2008, pp. 500–513.
  • [38] J. Bian, R. Yang, Y. Liu, L. Zhang, M.-M. Cheng, I. Reid, and W. Wu, “Matchbench: An evaluation of feature matchers,” arXiv preprint arXiv:1808.02267, 2018.
  • [39] A. S. Mian, M. Bennamoun, and R. Owens, “Three-dimensional model-based object recognition and segmentation in cluttered scenes,” IEEE Transactions on Pattern Analysis and Machine Intelligence, vol. 28, no. 10, pp. 1584–1601, 2006.
  • [40] F. Tombari, S. Salti, and L. Di Stefano, “Unique signatures of histograms for local surface description,” in Proc. European Conference on Computer Vision, 2010, pp. 356–369.
  • [41] N. Otsu, “A threshold selection method from gray-level histograms,” Automatica, vol. 11, no. 285-296, pp. 23–27, 1975.
  • [42] M. Brown and D. G. Lowe, “Automatic panoramic image stitching using invariant features,” International Journal of Computer Vision, vol. 74, no. 1, pp. 59–73, 2007.
  • [43] P. H. Torr and A. Zisserman, “Mlesac: A new robust estimator with application to estimating image geometry,” Computer Vision and Image Understanding, vol. 78, no. 1, pp. 138–156, 2000.
  • [44] O. Chum and J. Matas, “Matching with prosac-progressive sample consensus,” in Proc. IEEE Conference on Computer Vision and Pattern Recognition, vol. 1.   IEEE, 2005, pp. 220–226.
  • [45] J. Shi and J. Malik, “Normalized cuts and image segmentation,” IEEE Transactions on Pattern Analysis and Machine Intelligence, vol. 22, no. 8, pp. 888–905, 2000.
  • [46] S. Mahamud, L. R. Williams, K. K. Thornber, and K. Xu, “Segmentation of multiple salient closed contours from real images,” IEEE Transactions on Pattern Analysis and Machine Intelligence, vol. 25, no. 4, pp. 433–444, 2003.
  • [47] A. E. Johnson and M. Hebert, “Surface matching for object recognition in complex three-dimensional scenes,” Image and Vision Computing, vol. 16, no. 9, pp. 635–651, 1998.
  • [48] H. P. VC, “Method and means for recognizing complex patterns,” 1962, uS Patent 3,069,654.
  • [49] J. W. Weibull, Evolutionary game theory.   MIT press, 1997.
  • [50] A. S. Mian, M. Bennamoun, and R. A. Owens, “A novel representation and feature matching algorithm for automatic pairwise registration of range images,” International Journal of Computer Vision, vol. 66, no. 1, pp. 19–40, 2006.
  • [51] B. Curless and M. Levoy, “A volumetric method for building complex models from range images,” in Proc. Annual Conference on Computer Graphics and Interactive Techniques, 1996, pp. 303–312.
  • [52] P. J. Besl and N. D. McKay, “Method for registration of 3-d shapes,” IEEE Transactions on Pattern Analysis and Machine Intelligence, vol. 14, no. 2, pp. 239–256, 1992.
  • [53] I. Sipiran and B. Bustos, “Harris 3d: a robust extension of the harris operator for interest point detection on 3d meshes,” The Visual Computer, vol. 27, no. 11, pp. 963–976, 2011.
  • [54] A. E. Johnson and M. Hebert, “Using spin images for efficient object recognition in cluttered 3d scenes,” IEEE Transactions on Pattern Analysis and Machine Intelligence, vol. 21, no. 5, pp. 433–449, 1999.
  • [55] M. Alexa, “Recent advances in mesh morphing,” in Proc. Computer Graphics Forum, vol. 21, no. 2.   Wiley Online Library, 2002, pp. 173–198.
  • [56] Y. Zhong, “Intrinsic shape signatures: A shape descriptor for 3d object recognition,” in Proc. International Conference on Computer Vision Workshops.   IEEE, 2009, pp. 689–696.
  • [57] R. B. Rusu and S. Cousins, “3d is here: Point cloud library (pcl),” in Proc. IEEE International Conference on Robotics and Automation, 2011, pp. 1–4.
  • [58] E. Rodolà, A. Torsello, T. Harada, Y. Kuniyoshi, and D. Cremers, “Elastic net constraints for shape matching,” in Proc. IEEE International Conference on Computer Vision, 2013, pp. 1169–1176.
