I Introduction
With the great progress in Internet technology and the maturation of digital image processing techniques, various applications of digital images are commonly widespread and are still continuously and rapidly increasing in the future. Although, a potential information security risk is still and always exist during the transmission operation of digital images over an opened (unsecured) networks. Naturally, the security of multimedia content such as plainimages attracts more and more attention from cryptographers points of view and leads to the importance of image encryption technology in many applications.
Image encryption principles is different from that of text due to some intrinsic features of images such as bulk data capacity, high redundancy, strong correlation among adjacent pixels, and so forth. The traditional of various encryption algorithms that is based on number theory such as Data Encryption Standard (DES), Advanced Encryption Standard (AES) and the RSA cryptosystem, are found to have the weakness of lowlevel efficiency when the image is becoming bulky and large [1], [2]. Consequently, these algorithms are not fully suitable for the encryption of such kind of large sized data, especially for a realtime communication scenarios.
In many situations, the color images are commonly used and frequently transmitted over the Internet and through wireless communication networks, because, they contain more abundant information than the grayscale images. Though some encryption algorithms for grayscale images can be easily extended and modulated to handle color images, it consumes more running time due to additional information required to represent the Red, Green and Blue (RGB) color image components. So, the need to develop a secure encryption algorithm for color images has attracted growing attentions in recent years [3],[4].
In this paper, we proposed a new encryption scheme based on segment the image into blocks of size , in order to increase the security level of the cipherimages and the resistance against knownplaintext and chosenplaintext attacks.
The paper is organized as follows. In Section II, the preliminaries of EC and CBC mode are discussed. In Section III, given a background about the current image encryption schemes. In Section IV, the description of the proposed schemes are presented. In Section V, presented the experimental results and discussion while conclusions are given in Section VI.
Ii Preliminaries
Iia Elliptic Curve over a Binary Finite Field
The field is called a binary
finite field and it can be viewed as a vector space of dimension
over the field which consists of two binary elements . A nonsupersingular elliptic curve over a binary field is defined by an equation taking the form(1)
where the parameters with . The set consists of all the points , which satisfy the defining equation given in (1), together with a special point called the point at infinity. These set of points form an abelian group with respect to the arithmetic of elliptic curve addition rules over this abelian group [5].
IiB The ChaosDriven ECPRNG
The ChaosDriven Elliptic Curve Pseudorandom Number Generator (CD ECPRNG) is considered to be the ECLinear Congruential Generator [6] driven by a chaotic map and is presented in [7] for the prime finite field . Such specific modification improves randomness of the sequence generated and increases it’s periodicity. The CD ECPRNG for a given seed point as the secret key, is defined as the following sequences of points generated by ECpoints addition operation:
(2)
where is the ”initial value” and is the random bits generated by a chaotic map
(3)
where the state space is the interval and , are two subsets of the interval equal to [8].
IiC The CBC Mode of Operation
In cipher block chaining (CBC) mode, the encryption of a block not only depends on the key but also on the previous blocks [9]. The encryption process is contextdependent operation. This means that the same size blocks in different contexts are encrypted differently. The receiver can confirm that the cipher block has been changed because the decryption process of a manipulated cipher block does not work.
The CBC mode uses a fixed initialization vector (IV) which can be made public. Then, the plainimage is decomposed into blocks of length . If Alice encrypts the sequence of plainimage blocks of length using the key , then she sets
(4)
She obtains the cipher block
(5)
In general, the CBC mode of operation encrypts the same plainimage differently with different initialization vectors. Moreover, the encryption of a plainimage block depends on the preceding plainimage blocks. Therefore, if the order of the cipherimage blocks is changed or if the cipherimage blocks are replaced, then the decryption process becomes very hard or even impossible.
Iii Literature Review
Pareek et al. [3] proposed a new approach for color image encryption based on chaotic logistic maps. An external secret key of bit length and two chaotic logistic maps are employed. Eight different operationtypes are used to encrypt the image pixels. In [10], Huang and Nien proposed a color image cryptosystem using multichaotic systems, which is composed of two shuffling stages parameterized by chaotically generated sequences. But, it is found that this method cannot resist knownplaintext attack and chosenplaintext attack [11]. Liu and Wang [12] designed a streamcipher algorithm based on onetime keys and robust piecewise linear chaotic maps in order to get high security and improve the dynamical degradation. The initial conditions were generated by the Message Digest hash function (MD5) of the mouse positions. In [13], Patidar et al. have designed a fast lossless symmetric color image cipher based on the widely used substitutiondiffusion principle which utilized chaotic logistic maps. In [14] Rhouma et al. have proposed an approach for color image encryption based on oneway coupledmap lattices (OCML). An external secret key of bit length was used to generate the initial conditions and parameters of the OCML by making algebraic transformations to the secret key. Liu and Wang [15] applied a bitlevel permutation and highdimension piecewise linear chaotic map to encrypt color image. The chaotic Chen system was employed to confuse and diffuse the red, green and blue components simultaneously. In [16], Ye has proposed an efficient image encryption scheme based on generalized Arnold map and generalized Bernoulli shift map. The proposed scheme can shuffle the plainimage efficiently in the permutation process. In [17], a new color image encryption algorithm was presented based on Logistic map, which is used to encrypt the red, green and blue components of color image at the same time and make the three components affect each other.
It is found that most of the chaosbased cryptosystems for color images usually employ the low dimensional and single chaotic system which leads to some fundamental drawbacks such as insufficient key space and weak security function. Moreover, the red, green and blue components are unchanged when only pixel shuffle is used.
Iv The Proposed Image Encryption Schemes
In this section, two encryption schemes for grayscale and color images are proposed. The first scheme is described in algorithm (Scheme ) and it starts with reading the grayscale or color image, then, divide it into blocks of size . Here, we divide the image into blocks of sizes , and . Then, we convert each D plain block to D block array by using Zigzag pattern. The resulted block arrays are encrypted with it’s analogue secret key using the XOR operation. We repeat the encryption operation until the end of the plainimage blocks.
The second scheme starting the same way, but, the plainimage block is XORed with the previous encrypted image block before it is in turn encrypted according to the CBC mode given in Section IIC. In the second scheme which described in algorithm (Scheme), the encryption of each image block depends on all the previous blocks. In other words, each image block is used to modify the encryption of the next block. So, each cipherimage block is dependent not just on the plainimage block that generated it, but, on all the previous plainimage blocks.
Block Size  Gray Image  Horizontal  Vertical  Diagonal
Scheme
Lena1  0.110731  0.019723  0.064634
Brain1  0.078563  0.027462  0.068747
Brain2  0.080802  0.020420  0.059806
Lena1  0.003129  0.030368  0.054511
Brain1  0.001796  0.019956  0.047490
Brain2  0.001519  0.019827  0.044745
Lena1  0.015067  0.013705  0.008321
Brain1  0.006978  0.006833  0.013169
Brain2  0.009111  0.007917  0.005091
Scheme  Lena1  0.007554  0.002917  0.002976
Brain1  0.008014  0.004825  0.001519
Brain2  0.015339  0.010465  0.006979
Lena1  0.001588  0.010809  0.004753
Brain1  0.002683  0.004188  0.000231
Brain2  0.001019  0.040991  0.009674
Lena1  0.008448  0.005313  0.002331
Brain1  0.000296  0.002431  0.002793
Brain2  0.002351  0.011532  0.001332
Block Size  Color Image  Horizontal  Vertical  Diagonal

Scheme  Lena2  0.082513  0.037293  0.068243
Lena  0.078532  0.036584  0.063751
Peppers  0.049236  0.037812  0.031654
Lena2  0.010421  0.000204  0.045462
Lena  0.012032  0.000660  0.042805
Peppers  0.011683  0.002831  0.031449
Lena2  0.019763  0.009177  0.012030
Lena  0.018391  0.011639  0.012637
Peppers  0.011303  0.011811  0.004381
Scheme  Lena2  0.005078  0.009510  0.000686
Lena  0.011888  0.002805  0.005339
Peppers  0.007140  0.000409  0.005576
Lena2  0.004184  0.002763  0.007892
Lena  0.003383  0.005404  0.007359
Peppers  0.002886  0.001597  0.001081
Lena2  0.004221  0.004797  0.001803
Lena  0.005993  0.003371  0.005426
Peppers  0.003712  0.010077  0.004915
V Experimental Results
In this section, the performance of the two proposed schemes is analyzed by using different security test measures. These measures are taken as follows: key space analysis, statistical analysis including histogram analysis and computing the correlation coefficients of adjacent pixels, information entropy analysis, test security against differential attack including calculating the number of pixel change rate (NPCR) and unified average changing intensity (UACI). The used grayscale images are (brain1 and brain2) with size and (lena1) with size . Also, the color images (lena and peppers) with size and (lena2) with size are used and the security analysis of the cipherimages is carried out.
Va Histogram Analysis

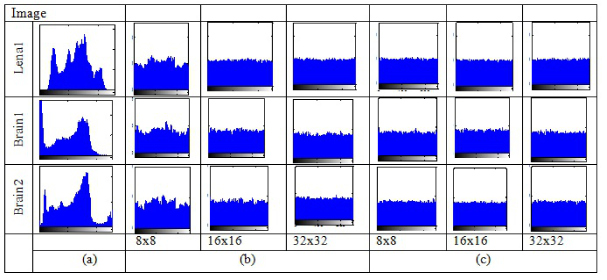

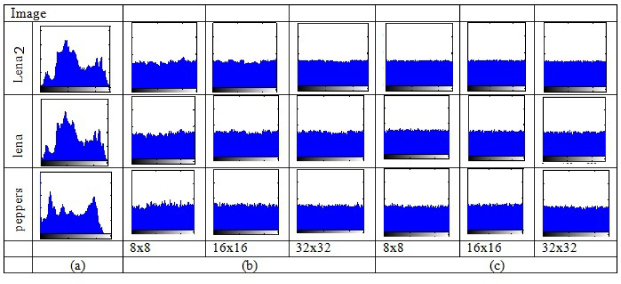

To prevent the leakage of information, it is important to ensure that cipherimage does not have any statistical resemblance with it’s original plainimage. A robust encryption scheme should always generate a cipherimage of uniform histogram for any plainimage. In this work, the histograms are plotted for grayscale/color plain and ciphered images. Figs. 1(a – c) and Figs. 2(a – c) display the histogram of the grayscale and color images (Fig. 1(a) and Fig. 2(a) and the corresponding cipherimages (Fig. 1(b, c) and Fig. 2(b, c)), respectively. From these figures, one can clearly notice that the histograms of the ciphered image are fairly uniform and significantly different about those of the original image. The statistical feature of the original images is enhanced in such a manner that the cipherimages had a uniform level distribution and good balance property.
VB Correlation Analysis
It is known that two adjacent pixels in every plainimage are highly correlated vertically, horizontally and diagonally. This could be the property of any ordinary image. The maximum value of correlation coefficient test is and the minimum value is . A robust image encryption scheme versus statistical attack should have a correlation coefficient value of ~0. Results of horizontal, vertical and diagonal directions are obtained as shown in Table I for different grayscale images and Table II for different color images. These results demonstrate that there is negligible correlation between the two adjacent pixels in the cipherimages, even when these two adjacent pixels in the plainimage are highly correlated. Also, it is comparable to the correlation coefficient values presented by references [10],[14], [18], [19], [20] and [21] as shown in Table III.
VC Entropy Analysis
Entropy is defined to show the degree of uncertainties in the system. It is well known that the entropy of a message source can be calculated as:
(6)
where
represents the probability of symbol

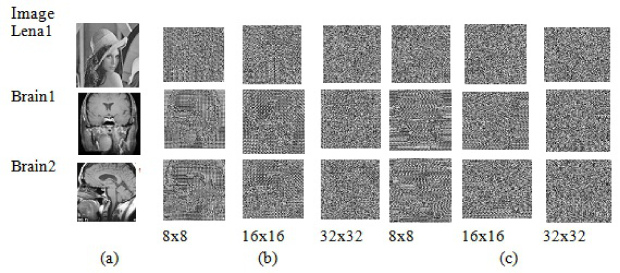

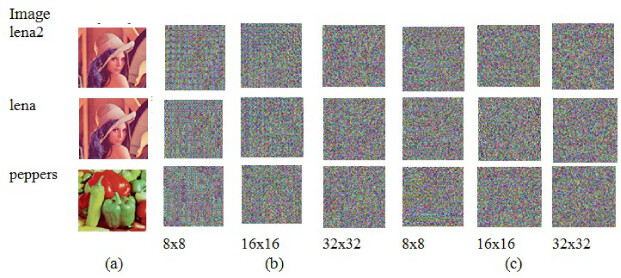

. For all the considered cipherimages shown in Fig. 3(b, c) and Fig. 4(b, c), the number of occurrence of each grayscale and color images is recorded and the probability of occurrence is computed for grayscale images and color images with different block sizes, respectively. Table IV and V indicates the various values of the entropies for the encrypted images by the presented schemes. It can be noted that the entropy of the cipherimages are very near to the theoretical value of indicating that all the pixels in the encrypted images occur with almost equal probability. Therefore, the information leakage in the proposed encryption schemes is negligible, and it is secure against the entropybased attack. Also it is comparable to the entropy values presented by references [12], [14], [18] and [22] as shown in Table VI.Scheme  Horizontal  Vertical  Diagonal

Original Lena image  0.958853  0.980061  0.943422
The proposed scheme  0.017363  0.011263  0.012563
The proposed scheme  0.011888  0.002805  0.005331
Ref.[10]  0.1257  0.0581  0.0504
Ref.[14]  0.0681  0.0845  0.0046
Ref.[18]  0.00124  0.00176  0.00193
Ref.[19]  0.00368  0.00014  0.02298
Ref.[20]  0.0042  0.0033  0.0024
Ref.[21]  0.0018  0.00033  0.00427
VD Sensitivity Analysis
In order to avoid the knownplaintext attack, the changes in the cipherimage should be significant even with a minor change in the plainimage. If one small change in the plainimage can cause a significant change in the cipherimage, with respect to diffusion and confusion properties, then the differential attack actually loses its efficiency and becomes practically useless. To quantify this requirement, two common measures are used here: number of pixels change rate (NPCR) and unified average changing intensity (UACI) [23]. We have tested the NPCR and UACI with the proposed encryption schemes to assess the influence of changing a single pixel in the plainimages on the cipherimages. From the obtained results, we have found that the average values of the percentage of pixels changed in cipherimages is greater than 99.65% for NPCR and 33.46% for UACI for the two proposed encryption schemes. This implies that the proposed schemes is very sensitive with respect to minor changes in the plainimage as shown in Table VII and Table VIII.
VE Key Space Analysis
The key space that is being used for encryption must be large enough to make the bruteforce attack infeasible [24]. The key sequences generated using the elliptic curve generator over the field had high periodicity so that the cipherimages are secure. In addition, the used chaosdriven elliptic curve pseudorandom key sequence generator has a flexible, moderately large key space, which comprises of the following parameters:

The secret key of the chaotic generator (if the precision is , then, the size of the key space for initial condition and control parameter is ),

Possible elliptic curves and the base point,

The external secret user’s key of CBC mode.
Then, the total number of possible keys is the size of the key space and is equal to the product of the above parameters. It is to be noted that unless all the above elements of the key space are known to the attacker, decryption using brute force attack is difficult. Even if the proposed schemes are hacked, after number of iterations and using different keys, the attacker is able to view only one single part/block of the image.
Vi Conclusion
Image encryption algorithms play a vital role in the security of digital images and is considered one common method to protect the image information. In this paper, we presented two encryption schemes for grayscale/color images based on split the image into subblocks of different sizes to increase the image security. Each block is transformed into a one dimensional (D) array by using the Zigzag pattern. Then, the XOR logical operation is used to encrypt each block with the analogous secret key. In the second scheme, after the transformation process and before the next block is encrypted, it is XORed with the first encrypted block to become the next input to the encrypting routine and so on. This feedback mechanism depends on CBC mode of operation which considers highly nonlinear.
The results show that lower correlation and higher entropy resulted by using smaller block sizes. Also, the results showed that the correlation between image elements was significantly decreased by using the second proposed scheme (Scheme) with block size and .
Block Size  Gray Image  Entropy

Scheme  Lena1  7.987895
Brain1  7.986050
Brain2  7.983381
Lena1  7.99897
Brain1  7.99643
Brain2  7.996091
Lena1  7.999046
Brain1  7.99747
Brain2  7.998037
Scheme  Lena1  7.99914
Brain1  7.99747
Brain2  7.99782
Lena1  7.999268
Brain1  7.99768
Brain2  7.99842
Lena1  7.999294
Brain1  7.998186
Brain2  7.998090
Block Size  Color Image  Entropy

Scheme  Lena2  7.9974
Lena  7.99653
Peppers  7.994405
Lena2  7.99854
Lena  7.99764
Peppers  7.99764
Lena2  7.99942
Lena  7.99869
Peppers  7.99871
Scheme  Lena2  7.99973
Lena  7.99903
Peppers  7.99873
Lena2  7.99978
Lena  7.99902
Peppers  7.99890
Lena2  7.99976
Lena  7.99897
Peppers  7.99876
Scheme  Entropy

The proposed scheme  7.998137
The proposed scheme  7.999034
Ref.[12]  7.985467
Ref.[14]  7.975033
Ref.[18]  7.989633
Ref.[22]  7.9870
Block Size  Gray Image  NPCR (%)  UACI (%)

Scheme  Lena1  99.5712  27.3573
Brain1  99.5947  30.4378
Brain2  99.6005  28.8077
Lena1  99.6784  28.9233
Brain1  99.6503  32.1215
Brain2  99.6708  30.3371
Lena1  99.6093  33.4635
Brain1  99.5966  32.2349
Brain2  99.6113  30.6637
Scheme  Lena1  99.5853  28.6517
Brain1  99.6259  31.8237
Brain2  99.6015  30.2017
Lena1  99.6105  28.5656
Brain1  99.6230  31.9521
Brain2  99.5761  30.3085
Lena1  99.6124  28.6939
Brain1  99.6337  31.8058
Brain2  99.6425  30.2723
Block Size  Color Image  NPCR (%)  UACI (%)

Scheme  Lena2  99.6093  33.4635
Lena  99.7339  31.2896
Peppers  99.7014  33.3449
Lena2  99.6093  33.4635
Lena  99.6515  31.0247
Peppers  99.6383  32.2480
Lena2  99.6093  33.4635
Lena  99.6358  30.4976
Peppers  99.5854  32.2896
Scheme  Lena2  99.6093  33.4635
Lena  99.6114  30.3397
Peppers  99.6164  32.1348
Lena2  99.6093  33.4635
Lena  99.5885  30.4506
Peppers  99.6276  32.3855
Lena2  99.6093  33.4635
Lena  99.6007  30.4142
Peppers  99.5905  32.0023
Scheme  NPCR (%)  UACI (%)

The proposed scheme  99.6023  30.339
The proposed scheme  99.6514  33.463
Ref.[10]  99.52  26.7933
Ref.[14]  99.5843  33.3755
Ref.[17]  99.6358  33.4428
Ref.[18]  42.7519  13.2874
Ref.[19]  99.7915  49.2191
Ref.[20]  99.2173  33.4055
Ref.[21]  99.9654  33.5720
Ref.[25]  99.6062  33.8981
