I Introduction

Full Dimension-Multi Input Multi Output (FD-MIMO) is a key technology in achieving larger network throughputs by simultaneously connecting a large number of devices. This has been an active topic in the standardisation activities of 3 Generation Partnership Project (3GPP). In FD-MIMO, a two dimensional antenna array structure is used that helps in beamforming along both elevation and azimuth directions. With this kind of beamforming, an enhanced multi-user MIMO transmission can be done at the base station to achieve a multi-fold enhancement in the network throughput [1]. From Release 8 to Release 13, 3GPP has continuously evolved its specifications to enhance the multi-user MIMO feature and thus, enable a large number of users to be supported by the base station [2, 3]. In Release 13, 3GPP specifications support both the azimuth and elevation beamforming for the data channel. Based on a newly introduced channel state information-reference signals (CSI-RS) and the demodulation reference signals (DMRS), the beamforming is performed for the data channel. With this kind of beamforming, 2-3.6 times gain in the cell throughput is achieved [1].

(a) Release 8
(b) Release 13
Fig. 1: Physical layer transmission as per Release 8 and Release 13 3GPP specifications
Fig. 2: CCE formation in the current LTE PDCCH

In Long Term Evolution (LTE), the downlink physical layer has five channels [4, 5, 6]. They are physical broadcast channel (PBCH) for broadcasting the system information, physical control format indicator channel (PCFICH) for defining the structure of the control channel, physical HARQ indicator channel (PHICH) for conveying the ack/nack, physical downlink control channel (PDCCH) for carrying the control information and physical downlink shared channel (PDSCH) for transmitting the user intended data. In this paper, we focus on PDCCH which carries the downlink control information (DCI). DCI conveys the information required to decode the user intended data. As explained later in Section III, the PDCCH region in any subframe is limited to 3 symbols [6] and hence, can accommodate a limited number of DCIs in a transmission time interval (TTI). Thus, the PDCCH effectively indicates the number of users scheduled in any TTI.

In Release 8 3GPP specifications, PDCCH and PDSCH rely on cell-specific reference signals (CRS) for the channel estimation. Whereas from Release 13, the PDSCH supports beamforming and hence, has DMRS for the channel estimation. Fig.

1 presents the transmission of the physical layer signals in both Release 8 and 13. CRS is common for all the users and beamforming CRS would impact the performance of cell search and synchronisation. Thus, with the current 3GPP specifications, the control channel does not possess the benefits of beamforming. Note that a user can decode the data channel only after decoding a DCI. Thus, even though the beamforming allows to schedule more users in PDSCH, the PDCCH has a limited capacity and has become a bottleneck in increasing the network throughput. In Release 11, to enhance the PDCCH capacity, 3GPP introduced enhanced PDCCH (EPDCCH) design which uses the concepts of beamforming. However, the EPDCCH has to be transmitted in the resources of the data channel as shown in Fig. 3, and the location of the EPDCCH has to be conveyed apriori to the user.

Fig. 3: EPDCCH configuration in a subframe

The availability of the large antennae structure with the FD-MIMO is never exploited in the context of the PDCCH. This is because, for beamforming, some feedback is required from the user. But control channel itself is the first communication link where the user performs blind decoding for the DCI. Improving the PDCCH capacity by exploiting the large antennae structure has a high impact on network throughput and has never been considered in the literature. Motivated by this, in this paper we propose a novel beamformed PDCCH (BF-PDCCH) design which addresses all the above-said issues. The proposed BF-PDCCH design relies on the uplink sounding reference signals transmitted from the user. As explained later in Section V, the multi-user MIMO feature of proposed BF-PDCCH is enabled only to the users who have sent these uplink reference signals. The proposed BF-PDCCH design schedules all the other users in a legacy LTE fashion. The features of the proposed BF-PDCCH design are as follows:

  • The proposed BF-PDCCH design is aligned with the 3GPP specifications and requires no changes at the user end.

  • Unlike EPDCCH, the proposed design does not use the resources from the data channel.

  • The proposed BF-PDCCH design significantly increases the control channel capacity.

The rest of the paper is organised as follows. Section II presents some of the related work in the literature. The current physical downlink control channel structure and the enhancements as per 3GPP specifications are explained in the Section III. In Section IV, the antenna array structure, the design and the implementation of the beam weights are explained. In Section V, the proposed BF-PDCCH design is presented and it’s performance is analysed. In Section VI, the procedures and the algorithms for the implementation of the proposed scheme are discussed. In Section VII, the simulation model is presented, and the numerical results are discussed. Some concluding remarks and possible future work are presented in Section VIII.

Ii Related Work

In [7], authors have presented an algorithm to optimally schedule the users in PDCCH and thus, increase the control channel capacity. In [8], authors have proposed a novel method of allocation for cell radio network temporary identifiers and increase the control channel capacity. In [9], authors propose power allocation techniques to improve the control channel capacity. However, none of the above papers discussed the beamforming and exploited the large antennae structure for increasing the control channel capacity. Further, we have implemented the optimal LTE-PDCCH scheduling algorithm presented in [7], and compared its performance against the proposed BF-PDCCH design in Section VII.

In [10, 11], novel search space designs of EPDDCH have been presented to improve the capacity of the control channel. In [12, 13], the performance and analysis of the EPDCCH design is presented. In [14], the authors have proposed an algorithm to improve the channel estimation accuracy and thus, in turn, improve the performance of the EPDCCH. However, as per the 3GPP specifcations [4, 5, 6], the EPDCCH uses the resource elements from the data channel for beamforming. To the best of our knowledge, none of the papers in the literature have addressed the issue of increasing the control channel capacity by exploiting the large antennae structure. Next, we explain the current control channel design and it’s enhancements as per 3GPP specifications.

Iii 3GPP Physical Downlink Control Channel

DCI is the payload transmitted in PDCCH. DCI carries the information for decoding the user data, location of uplink scheduling, random access responses, modulation and coding scheme. There are various DCI formats for each purpose. Prior to transmission, the DCI payload is appended with cyclic redundancy check parity bits, convolution coded and is then rate-matched to a certain number of bits called aggregation level (AL). These rate-matched bits are then QPSK modulated and multiplexed in the radio frame.

The PDCCH is present in the first few orthogonal frequency division multiplexing (OFDM) symbols of every subframe. The number of symbols for PDCCH is defined by PCFICH. The first OFDM symbol has PCFICH, PHICH and PDCCH multiplexed in it. In LTE, the smallest time-frequency resource in a radio frame is called as a resource element. Excluding the PCFICH and PHICH resource elements, the remaining resource elements available are grouped in number of four (in a frequency first and time second manner) and called as Resource Element Groups (REGs). A collection of nine such REGs is called as one control channel element (CCE). In LTE PDCCH, the allocation of the DCIs is done in units of CCEs. Fig. 2 presents the formation of CCEs as per current 3GPP specifications [4]. Based on the channel conditions of the user, the payload is rate matched to an aggregation level. The data in one AL can fit in one CCE. In LTE PDCCH, the AL{1,2,4,8} and thus, AL=2 requires 2 CCEs and so on.

Fig. 4: Search space design of current 3GPP PDCCH
Fig. 5: Antenna array structure

Search space is defined as the region or collection of CCEs over which a user expects a DCI. The control channel region is broadly classified into two categories.

  • Common Search Space (CSS): Common DCIs which carry system information, paging and common scheduling information are transmitted in a specific region called CSS.

  • UE specific Search Space (USS): The DCIs which are intended for a particular user are transmitted in USS.

Note that, the number of CCEs in PDCCH varies with the number of symbols over which PDCCH is present and also with the bandwidth of the system. In any subframe, irrespective of the number of CCEs available, the CSS is present only in the first 16 CCEs. The search space design as per the current 3GPP specifications is depicted in Fig. 4.

In any search space, the scheduling of DCIs is carried out as follows. For each DCI, based on the AL and the user identity [4], possible CCEs for scheduling are calculated using the formula given in (1). The base station can transmit the DCI in any of those possible CCE locations.

(1)

where, , is aggregation level, is number of CCEs  in the subframe , and are the constants defined by the higher layer parameters in 3GPP specification [15].

Note that the user has no information about the location and the aggregation level of the DCI. Hence, the user calculates all the possible indices and blindly performs the search at all those locations. This procedure is repeated for all the aggregation levels until a DCI is decoded.

In any subframe, based on the available bandwidth, there are a limited number of CCEs in PDCCH. This limitation has an impact on the multi-user scheduling in PDSCH. In Release 11, 3GPP has introduced enhanced PDCCH design to increase the PDCCH capacity. The EPDCCH is transmitted in the data channel region as shown in the Fig. 3. The search space region for monitoring the DCI in EPDCCH is conveyed to the user prior through higher layer signalling. The advantage of the EPDCCH is that it can use beamforming concepts like data channel and thus, schedule more number of DCIs. However, this comes at the cost of sacrificing the PDSCH resources. Note that the EPDCCH has demodulation reference signals to decode the beamformed data. In this paper, we propose a novel BF-PDCCH design which does not use any PDSCH resources and yet achieves improvement in network capacity. Next, we present the design and implementation of beams for the proposed BF-PDCCH scheme.

Iv Design and Implementation of Beams for BF-PDCCH

Fig. 6: Normalised radiation pattern of six beams in a sector at in azimuth plane

The antenna array structure considered for generating beams for the BF-PDCCH is shown in Fig. 5. As per 3GPP specifications [16], the rectangular panel array is described by the following tuple () , where, and represent the number of panels in the vertical and horizontal direction, and represents the number of antenna elements with the same polarisation in the vertical and horizontal direction in each panel, and represents the panel is either single polarised (=1) or cross polarised (=2). The uniform rectangular array considered in this paper has the configuration of , where 4 elements are placed in vertical, 8 elements in horizontal and each being a cross-polarised has 64 antenna elements in total. With this given antenna structure, the effective array factor (AF) is calculated as follows.

(2)

where , and are the antenna element spacing in horizontal and vertical, and are the azimuth and the elevation angles and, and are the phase excitations for the antenna elements in the y and z axes respectively. Note that as shown in the Fig. 5, and are the angles with respect to x-axis and z-axis respectively.

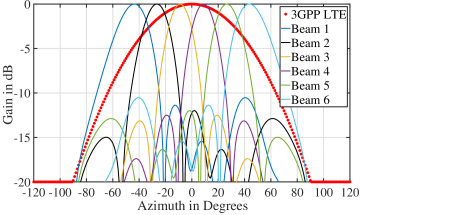

Fig. 7: Antenna pattern of six beams in the proposed BF-PDCCH compared against that of 3GPP LTE

A sample set of six beams covering the sector is generated according to the procedure mentioned above and is presented in the Fig. 6. The desired directions of the beams are assumed to be at six positions equi-distant from one other in the region of [] in the azimuth plane. Further, for each beam, the gains in the azimuth plane are plotted in the Fig. 7 and are compared against the 3GPP sectoral pattern. The sectoral pattern of legacy LTE is generated as per the 3GPP specifications [17]. Note that the side lobes are below the 10 dB level for each beam and all the six beams cover the entire sector similar to the legacy LTE sectoral pattern.

For the transmission of data in this desired beams, the resource elements are multiplied with respective beam weights. A resource element is beamformed or transmitted in a particular direction by precoding it with the required beam pattern as follows.

(3)
(4)

where, and are the resource elements at index of frequency-time before and after beamforming respectively, has the beam weights for beam, and and are the phase shifters generated for the beam. Next, we present the BF-PDCCH design.

V Proposed Beamformed PDCCH design

In this section, we initially explain the constraints for designing beamformed PDCCH as per 3GPP specifications. Then, we propose a novel beamformed PDCCH design and in the end, we discuss and analyse the performance of the proposed scheme.

In multi-user MIMO, initially, the best beams for each user are identified (a clear explanation of identifying the best beam for a user is provided in Section VI-B). These beams are spatially well separated, and thus, the transmission is done simultaneously in each beam with minimal interference. This way, multi-fold improvement is achieved in the network throughput. We consider beams are active in the sector all the time to implement multi-user MIMO. The primary synchronisation signal (PSS), the secondary synchronisation signal (SSS), PBCH and PDCCH assume same channel characteristics as they rely on CRS. Hence, all of these have to behave similarly in terms of spatial configuration [4, Section 6.8.4]. Thus, if PDCCH has to be beamformed, then it forces CRS, PBCH and PSS/SSS also to be beamformed. With all these constraints a PDCCH beamforming has to be designed which can improve the PDCCH capacity.

V-a Proposed Scheme

With all the constraints mentioned earlier, we propose the search space design for beamformed PDCCH as follows. Consider beams active in the sector all the time. All the common signals PSS, SSS, PBCH, PCFICH, PHICH and CRS are transmitted in all the beams. Thus there is no impact on CRS channel estimation based reception for common channels as both the CRS and the common channels observe a similar channel (a detailed mathematical explanation for the same is presented in the Section V-B and is shown with system level simulations in the Section VII).

PDCCH has two search spaces, CSS and USS. Since CSS has to address all the users present in the sector, CSS has to be present in all the beams exactly at same CCEs. In order to schedule USS differently in each beam, a mechanism is needed to identify the best beam for each user. For this purpose, we depend on the sounding reference signal transmitted in the uplink from the user. The implementation procedure for finding the best beams is presented in Section VI-B. Now with the best beam assigned to each user, the USS is scheduled differently in each beam. Further, some users are at the cell edge/beam edge and experience a large interference with this dynamic scheduling of different data streams in each beam. Hence, the USS beamforming is applied only for the users who are at the boresight of the beam. Therefore, USS is split into two search spaces, USS - 1 and USS - 2. The search space for BF-PDCCH is thus divided into three regions:

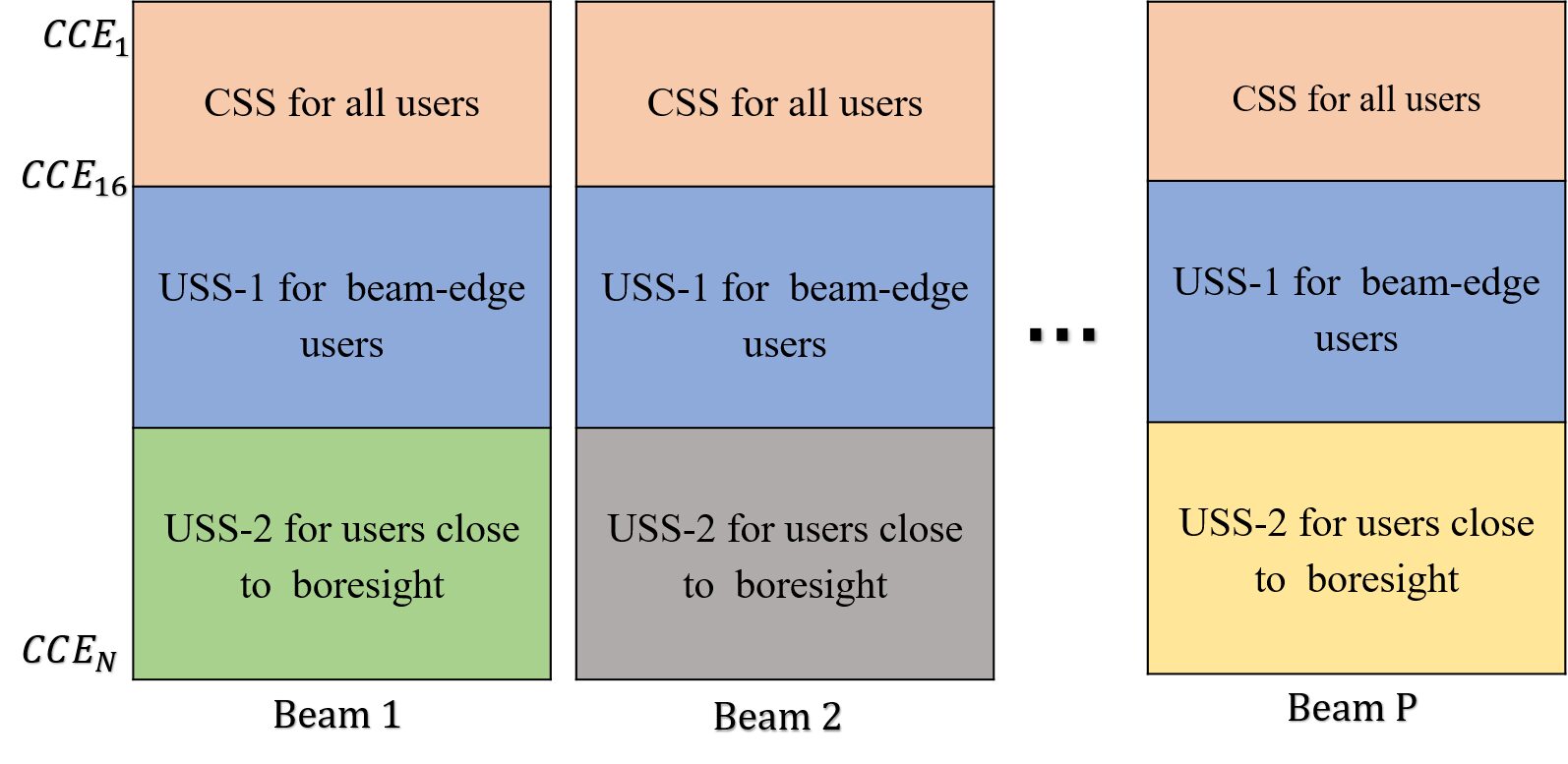

Fig. 8: Search space design of proposed BF-PDCCH
  • Irrespective of the available bandwidth CSS is present in the first 16 CCEs of the PDCCH as in current 3GPP specifications [6]. Since CSS is common to all the users in the sector, it is present in all the beams.

  • USS - 1 has DCIs addressing the users at cell edge/beam-edge and hence, is present in all the beams.

  • USS - 2 has the DCIs addressing the users at boresight. Different DCIs are scheduled in each beam and hence, the improvement in PDCCH capacity is achieved by USS - 2.

An illustration of the proposed BF-PDCCH design is presented in Fig. 8.

Note that the users are not aware of PSS/SSS, common channels and the PDCCH being beamformed. They decode all the channels as per the 3GPP specifications. The users are scheduled in USS - 2 only when the base station receives the sounding reference signal from the user. Until then the user will be scheduled in USS - 1. Further, the CSS and the USS regions do not deviate from the current 3GPP specifications. There is no extra signalling for the user to indicate where it has to perform the blind decoding. Only the base station has the notion of USS - 1 and USS - 2, and it intelligently schedules users in USS - 1 and USS - 2. The user is not aware of the PDCCH being beamformed. It considers the region of USS - 1 and USS - 2 as a regular USS in the legacy LTE PDCCH and does the blind decoding in a similar fashion as it does in the legacy LTE PDCCH. Next, we present the impact on the link level performance with the implementation of the proposed BF-PDCCH scheme.

V-B Performance Analysis

In this section, we present the impact on the performance of various channels because of the proposed beamforming design.

V-B1 Channel estimation of common channels, CSS and USS-1

(a) CRS and Common channels/CSS/USS - 1 transmission
(b) CRS and USS - 2 transmission
Fig. 9: CRS, USS - 1 and USS - 2 transmission with the proposed BF-PDCCH

Since CRS and USS - 1 are present in all the beams, the users observe the same channel for both of them as shown in the Fig. 8(a). Let and denote the received CRS and the USS - 1 symbols, and denote the transmitted CRS and USS - 1 symbols, denote the beam weights as per (4), and denote the observed channel and the noise respectively. The estimated channel is formulated as follows.

(5)
(6)

Since and are transmitted in all the beams and both observe the same channel , the decoding has minimal impact when the is used to equalise the received data .

V-B2 Channel estimation for the USS - 2

In USS - 2, different data is present in each beam as shown in the Fig. 8(b). For a user with data transmitted in beam, the received CRS (), the received data (), the estimated channel () and the equalized data () are formulated in (7)-(8)

(7)
(8)

Note that for the user in beam the channel experienced by the data is . Since same is present in all the beams, the user estimated channel would be . Thus, the estimated channel has errors caused by the other active beams. Further, in addition to this incorrect channel estimation error, there is an extra interference from other beams on the data as well. Both of these errors are represented as and in (7)-(8). Thus, there is an impact on the decoding of data for the USS - 2. Hence, with this BF-PDCCH, the operating signal to interference plus noise ratio (SINR) of the user will drop, and the user requires a comparatively large AL when transmitted in USS - 2. To solve this issue, we increase the AL for the user and allocate the user with more resource elements. However, we can compensate for this increased AL by packing more users within the existing resources by using the beam-specific scheduling for BF-PDCCH, i.e., multi-user MIMO concepts on the PDCCH. Note that with the proposed BF-PDCCH, the increase in the channel capacity can be achieved only through USS - 2. Next, we present the procedures for the implementation of the proposed scheme.

Vi Procedures for the implementation and evaluation of BF-PDCCH

A system level simulation typically abstracts the link layer characteristics. For this, a block error rate (BLER) vs. signal to interference plus noise ratio (SINR) curve is generated for different modulation and coding schemes which is thereafter used in a system level simulation. For the proposed BF-PDCCH evaluation, we need to further abstract the channel estimation errors. Hence, we initially present the link level simulations and conclude on the abstraction to be used in the system level simulations. Then, we present the implementation procedure for the proposed scheme.

Vi-a Link Level Simulations

Vi-A1 Abstraction of channel estimation errors for USS - 2

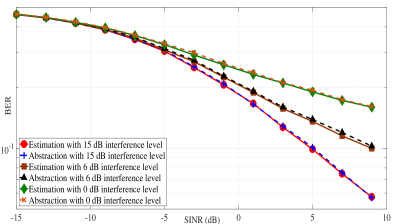

Fig. 10: BER for both the estimation and abstraction for various interference levels

From (7)-(8), it can be observed that the degradation in the SINR of a user is mainly because of the interference observed in the channel estimation and the data. Let denote the inter-beam leak from beam of the current sector. As shown in (7)-(8), there is an impact of interference from other beams while estimating the channel and similar interference levels are seen while equalising the data . Hence, a twice the interference from the other beams () in the current sector is added as an additional interference to compensate the both effects and the SINR is formulated as shown in (9).

(9)

We have performed link level simulations with channel estimation and the abstraction mentioned above. The simulations are carried for Rayleigh fading channel, QPSK modulation and various inter beam leak () levels. For the estimation curves, the channel is estimated in the presence of interference from the other beams as per (7)-(8), and the bit error rate (BER) is calculated. Whereas for the abstraction, the impact of the channel estimation errors is captured in the SINR as per (9) and the BER is calculated. The BER results for both the estimation and the abstraction are presented in the Fig. 10. It can be observed that, the abstraction of the channel estimation errors gives similar performance as that of the estimated ones and hence, can be used for the system level simulations.

Vi-A2 Abstraction of the block error rate (BLER) for mapping SINR to AL

Parameter Value
DCI Size (format 1) 31 bits
CRC length 16 bits
Channel Coding tail biting convolution code
Modulation QPSK
Bandwidth 10 MHz
Channel Model AWGN
Aggregation levels {1, 2, 4, 8}
Antenna configuration (BS, UE) 1, 2
TABLE I: Link level simulation parameters

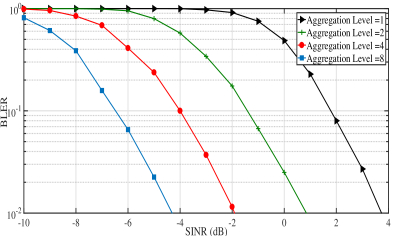

Fig. 11: BLER curves for various aggregation levels

The link level simulations are carried out for the parameters mentioned in the Table I and the block error rate curves (BLER) are plotted in Fig. 11 for various ALs. The results presented in the Fig. 11 are aligned with [18] and the 3GPP specification [19]. For the link abstraction in system level simulations, we consider 1% block error rate for target SINR [18] and perform the mapping of SINR to allocate an AL for each user. This a standard and a widely used mechanism for mapping the rate to SINR [18] and hence, we use the same in this paper. For a given SINR of each user, a minimum AL is chosen such that the BLER is less than 1% at that SINR.

The above two abstractions are used in the system level simulations while evaluating the performance of the BF-PDCCH and various other 3GPP mechanisms. Next, we present the implementation algorithm for the proposed scheme.

Vi-B Implementation algorithm for the proposed scheme

Fig. 12: Flow chart depicting the implementation of the proposed scheme

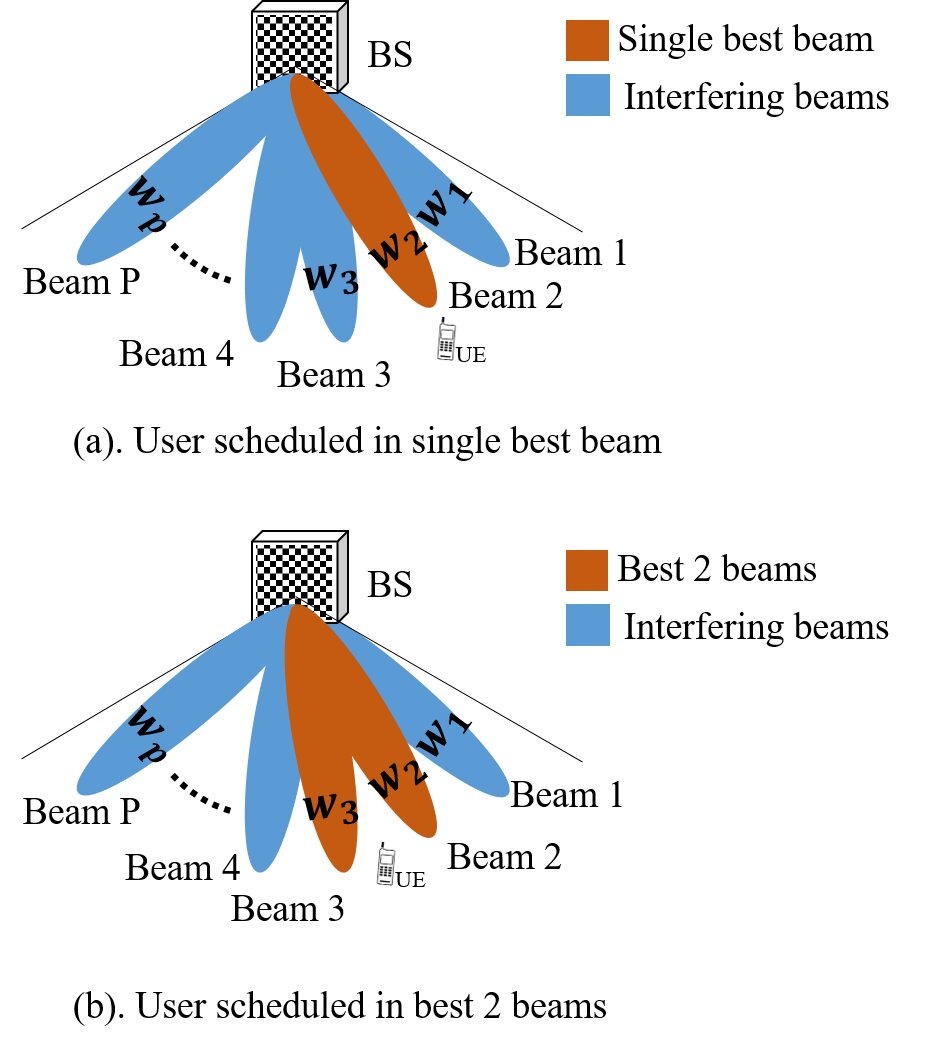

Fig. 13: Pictorial representation of user scheduling in 1 and 2 best beams respectively

The user transmits sounding reference signals (SRS) in the uplink. The base station receives the channel coefficients () on all the antenna from each user. The beam weights () for each specific beam are calculated as mentioned in (4). The is defined as the signal to interference-plus-noise ratio when the data is transmitted for a user in beam and interference is observed from all the other beams. According to (9), is calculated as follows.

(10)

The for which is maximum is chosen as the best beam for the user. For this chosen , is compared against the minimum SINR required for in legacy LTE case. If , then user is scheduled only in beam. The reason for this is explained with an example as follows. Consider the following worst case scenario where eight users require AL=1 in legacy LTE PDCCH scenario, and the same eight users need AL=4 in BF-PDCCH scenario with eight beams (). When scheduled in legacy LTE PDCCH, the users need 8 CCEs. But in the case of BF-PDCCH, even though they require 4 CCEs each when scheduled in a single best beam, they will be spatially multiplexed across the 8 beams in the same 4 CCEs and will need just 4 CCEs in total. Note that if the users require AL=1, 2 with BF-PDCCH then the multiplexing gain increases further, and when the users require AL=8 with BF-PDCCH, the gain completely disappears. Hence, with eight beams active in the sector, we consider the users with a maximum of AL=4 for USS - 2.

If the , then the user is checked for two best beams in a similar fashion as follows.

(11)

is defined as the signal to interference-plus-noise ratio when data is transmitted in two best beams and interference is observed from the other beams. A similar procedure like earlier is followed and best beams are chosen such that is maximum. The user is then scheduled in those two best beams if . Note that both the above transmissions will be scheduled in USS - 2. If the , then the user is assumed to be in cell-edge/beam-edge and the data is transmitted for the user in all the beams in USS-1. All the above procedure is presented as a flow chart in Fig. 12, and a pictorial representation of user scheduling is shown in Fig. 13. Next, we present the simulation results.

Vii Simulation Results and Discussion

Parameter Value
Cell layout 7 cell sites, 3 sectors/site
Inter-site distance 500 m
BS antenna height 25m
UE antenna height 1.5m
Carrier frequency 2.4 GHz
BS transmit power 44 dBm
Number of antennae (BS, UE) 64, 2 (BF-PDCCH),
1, 2 (LTE PDCCH)
Bandwidth 20 MHz
Channel model 3D UMa in TR 36.873 [20]
Direction of selective beams Azimuth:[] Elevation:[]
Available DL CCEs 42 (with CFI=3 OFDM symbols)
Aggregation levels {1, 2, 4, 8}
Extra PRBs for EPDCCH 4 PRBs
BS antenna element radiation pattern According to TR 36.873 [20]
TABLE II: System level simulation parameters

The parameters for the system level simulations are considered as per the 3GPP specifications [20] and are presented in Table II. The evaluation for various schemes is performed as follows. The users are dropped randomly in a cell site. For the given parameters in the Table II, the SINR is calculated for each user. While calculating the SINR, the interference from other sectors () is modelled using wrap around algorithm mentioned in [21]. When the data is transmitted in one best beam, the user observes interference from all the remaining beams. Similarly, when the data is transmitted in two adjacent beams, the user observes interference from all the remaining beams. Apart from the interference from the other sectors and other beams, the user observes errors in the channel estimation because of CRS re-use happening across the beams. These channel estimation errors are accounted in SINR calculation as per the abstraction procedure mentioned in (9)-(11). Thus, the SINR for various configurations is calculated as follows.

  • SINR with data in one best beam:

  • SINR with data in two best beams:

  • SINR with data in all the beams:

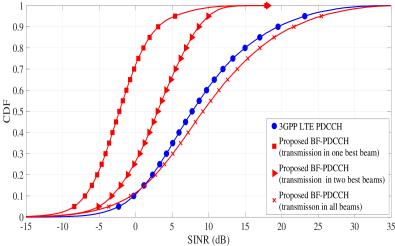

Fig. 14: Variation of SINR of users with proposed and the existing 3GPP schemes

In Fig. 14

, the SINR distribution of users with the various configurations of the active number of beams is presented and compared against that of the legacy LTE. The SINR curve for 3GPP LTE PDCCH is generated for a 1 tx and 2 rx antennae case. The cumulative distribution function (CDF) of the SINR for the 3GPP LTE PDCCH in Fig.

14 is aligned with the 3GPP calibrations mentioned in [22]. The proposed BF-PDCCH with data transmitted in all eight beams has the mean SINR value greater than LTE PDCCH. With eight beams active all the time, each beam gets of the total transmit power. However, we see an improvement in the mean SINR value because of beamforming done using the 64 antenna elements. Note that, when compared to the legacy LTE case, there are null regions between the beams, and hence, the users observing the lower SINRs has also increased.

Further, the SINR distribution has been analysed for the case where the data is transmitted in one best beam, and best two adjacent beams. From Fig. 14, it can be observed that more than 30% of the users have an SINR range above 0 dB and hence, require AL=2 even when the data is transmitted in one beam. Thus for all these users, if MU-MIMO is enabled in other beams, there will be an eight-fold improvement in the network capacity. Note that when the data is transmitted in the best two adjacent beams, more than 70% of the users have an SINR range above 0 dB. Considering all the above facts, we perform the scheduling for BF-PDCCH according to the algorithm mentioned in Section VI-B as follows. Initially, based on the SRS feedback, one best beam is identified for the user. The AL required for the base station to transmit a DCI to the user in that best beam is calculated. Based on the BLER abstraction mentioned in the earlier section, the SINR is mapped to the required AL. If the AL is less than eight with data in one best beam, it helps in achieving improvement in the network capacity. This is because, if there are eight other users with AL=4 which have other beams as their best beams, they can be scheduled across different beams. The base station can thus schedule eight users in only 4 CCEs. When the user requires AL=8 with the transmission in one beam, the AL required while transmitting in two adjacent beams is checked and a similar procedure as earlier is followed. If the user needs AL=8 in both the scenarios, then the user is assumed to be a cell-edge user and DCI will be scheduled for the user in all the active eight beams. The scheduling procedure is continued for all the users until the CCEs in a TTI are exhausted. The remaining users are scheduled in the successive TTIs in a similar manner.

For a given bandwidth and number of OFDM symbols, the available CCEs vary. We have performed the simulation with 500 users dropped in a sector and for a bandwidth of 20 MHz with PDCCH active in 3 symbols in each TTI. For 20 MHz bandwidth and PDCCH in 3 symbols, the number of CCEs available is 84 as per 3GPP specifications [4]. We assume that half the CCEs are available for both downlink and uplink grants. Hence, in the simulation, the users are scheduled in the available 42 downlink CCEs. A similar procedure is followed for PDCCH and EPDCCH. For the EPDCCH case, the additional PRBs could be 2, 4 and 8 [6]. In our simulations, we consider 4 PRBs of resources from the data channel are available for EPDCCH. Further, we have implemented the optimal scheduling procedure presented in [7] where the users are scheduled based on a set packing algorithm to increase the control channel capacity. We have compared its performance against the proposed BF-PDCCH design in Fig. 1516.

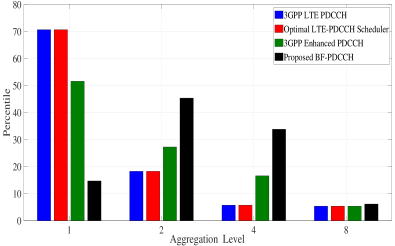

Fig. 15: Histogram of average number of users scheduled across various ALs

In Fig. 15, the allocation of the aggregation level with the proposed BF-PDCCH is compared against that of 3GPP LTE PDCCH, optimal LTE-PDCCH scheduler [7] and enhanced PDCCH. The optimal LTE-PDCCH scheduler presented in [7]

schedules the users in the available control channel region by minimising the resource wastage. It has similar AL allocation as of the 3GPP LTE PDCCH. Compared to 3GPP LTE PDCCH, enhanced PDCCH has lesser users with AL=1 and more users with AL=2, 4. When a user is scheduled in enhanced PDCCH region, the probability of having AL=1 is reduced because of the MU-MIMO scheduling and thus, more number of users are scheduled with AL=2, 4. A similar change is observed with the proposed BF-PDCCH as well. However, since the entire control channel is beamformed for MU-MIMO, the probability of users with AL=1 is further less than that of the enhanced PDCCH case and thus, the probability of users with AL=2, 4 has increased. As shown in Fig.

14, when compared with 3GPP LTE PDCCH, there are more users with lower SINR values even when the data is transmitted in all the beams. Thus, the percentile of users with AL=8 is more than that of the 3GPP LTE PDCCH case. Note that even though the AL is increased, the network capacity will be enhanced because of the MU-MIMO feature.

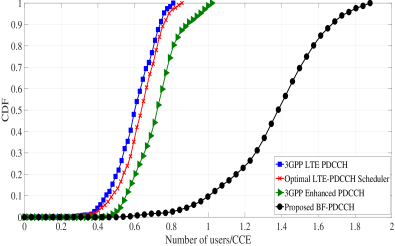

Fig. 16: CDF plot of number of users scheduled/CCE
Scheme Average users/TTI
3GPP LTE PDCCH 25.1
Optimal LTE-PDCCH Scheduler [7] 26.4
Enhanced PDCCH 36.0
Proposed BF-PDCCH 58.3
TABLE III: Average users scheduled in a TTI with the proposed and current 3GPP mechanisms

In Fig. 16, the CDF of the number of users scheduled per CCE is presented. The number of CCEs available is more in enhanced PDCCH because of the extra four PRB resources, and hence, for a fair comparison, the normalisation is carried out with the available CCEs for each case. The 3GPP LTE PDCCH has the least performance among all the schemes. The optimal LTE-PDCCH scheduler [7] minimises the control channel resource wastage and hence, can accommodate more users in the control channel region. Thus, optimal LTE-PDCCH scheduler has comparatively more number of users scheduled per CCE. The EPDCCH has a better performance compared to the 3GPP LTE PDCCH and optimal LTE-PDCCH scheduler. However, note that EPDCCH uses an additional four PRBs from the PDSCH resources and also requires additional control signalling. The proposed BF-PDCCH has better performance than all these schemes. The average number of users scheduled in a TTI are presented in the Table III. In the proposed BF-PDCCH scheme, even though the users experience a poor operating SINR and require large AL, because of the multi-user MIMO more number of users can be scheduled. From Fig. 16, it can be observed that more than two-fold improvement in the network capacity is achieved with the proposed BF-PDCCH.

Viii Conclusion and Future Work

We proposed a novel beamforming design for the control channel of LTE which is aligned to the current 3GPP specifications and requires no changes at the user end. Unlike the current 3GPP mechanisms of enhancing the capacity, the proposed scheme does not use additional resources from the data channel. We efficiently use the large antenna structure available at the base station and schedule more users in the PDCCH with FD-MIMO. For this, we rely on the sounding reference signals transmitted in the uplink to decide the best beam for a user. We then ingeniously schedule the users and enhance the PDCCH capacity. We performed link level simulations and provided mechanisms to abstract the channel estimation errors caused by the proposed scheme. We then used these abstractions in the system level simulations to evaluate the performance of the proposed scheme. We have shown that the proposed design always performs better than the state of art algorithms and the existing 3GPP schemes. In future, we will validate the performance of the proposed BF-PDCCH design by implementing it on the hardware test-beds.
