A New Registration Approach for Dynamic Analysis of Calcium Signals in Organs

02/01/2018
by   Peixian Liang, et al.
0

Wing disc pouches of fruit flies are a powerful genetic model for studying physiological intercellular calcium (Ca^2+) signals for dynamic analysis of cell signaling in organ development and disease studies. A key to analyzing spatial-temporal patterns of Ca^2+ signal waves is to accurately align the pouches across image sequences. However, pouches in different image frames may exhibit extensive intensity oscillations due to Ca^2+ signaling dynamics, and commonly used multimodal non-rigid registration methods may fail to achieve satisfactory results. In this paper, we develop a new two-phase non-rigid registration approach to register pouches in image sequences. First, we conduct segmentation of the region of interest. (i.e., pouches) using a deep neural network model. Second, we obtain an optimal transformation and align pouches across the image sequences. Evaluated using both synthetic data and real pouch data, our method considerably outperforms the state-of-the-art non-rigid registration methods.

READ FULL TEXT VIEW PDF

page 3

page 4

01/12/2020

A Comparative Study for Non-rigid Image Registration and Rigid Image Registration

Image registration algorithms can be generally categorized into two grou...
04/24/2021

Deep Convolutional Neural Network for Non-rigid Image Registration

Images taken at different times or positions undergo transformations suc...
04/13/2018

Non-rigid image registration using spatially region-weighted correlation ratio and GPU-acceleration

Objective: Non-rigid image registration with high accuracy and efficienc...
05/11/2020

Non-iterative Simultaneous Rigid Registration Method for Serial Sections of Biological Tissue

In this paper, we propose a novel non-iterative algorithm to simultaneou...
02/21/2022

Deep Feature based Cross-slide Registration

Cross-slide image analysis provides additional information by analysing ...
06/27/2017

Dense Non-rigid Structure-from-Motion Made Easy - A Spatial-Temporal Smoothness based Solution

This paper proposes a simple spatial-temporal smoothness based method fo...
07/09/2018

HDFD --- A High Deformation Facial Dynamics Benchmark for Evaluation of Non-Rigid Surface Registration and Classification

Objects that undergo non-rigid deformation are common in the real world....

1 Introduction

is a ubiquitous second messenger in organisms [1]. Quantitatively analyzing spatial-temporal patterns of intercellular calcium () signaling in tissues is important for understanding biological functions. Wing disc pouches of fruit flies are a commonly used genetic model system of organ development and have recently been used to study the decoding of signaling in epithelial tissues [1, 2]. However, wing discs can undergo considerable movements and deformations during live imaging experiments. Therefore, an effective automatic image registration approach is needed to align pouches across image sequences.

Registering tissues that undergo deformations in time-lapse image sequences is a challenging problem. For example, experimental image data of wing disc pouches at different time points are moving or deforming due to a general feature of tissue growth, morphogenesis, and due to general movement during the live imaging process. Furthermore, a time-lapse movie can contain many frames, and a number of movies are needed to obtain reliable measurements of activity due to the noisy and stochastic nature of the signals, which make the processing more complicated and costly. Common approaches suffer considerably due to cumbersome intensity distortions of tissues caused by oscillations. A method for minimizing the error residual between the local phase-coherence representations of two images was proposed to deal with non-homogeneity in images [3], which relies heavily on structural information. But, in our problem, the intensity inside the pouches may change a lot, thus causing such methods to fail. A Markov-Gibbs random field model with pairwise interaction was used to learn prior appearance of a given prototype, which makes it possible to align complex images [4]. Incorporation of spatial and geometric information was proposed to address the limitations of the static local intensity relationship [5]. But, the computational complexity of these methods is high. In our problem, a single time-lapse movie may have hundreds of frames, and hundreds of movies are analyzed. Hence, these methods do not work well for our problem. In general, known methods do not address well the kind of complex intensity distortion in our images with a reasonable computation cost.

To address the difficulty of spatial intensity distortion along with various ROI deformations and movements, we propose a new non-rigid registration approach to effectively align pouches at different time points in image sequences. Our approach consists of two main stages: (1) a segmentation stage and (2) a mapping stage (see Fig. 1). The segmentation stage is based on a deep neural network (FCN). Because the accuracy of the ROI boundary is a key factor influencing the registration results, we apply a graph search algorithm to refine the segmented pouch boundaries. The mapping stage uses the segmentation results from the first stage to characterize an optimal transformation. We first apply a rigid transformation to modulate the movement of pouches, and then design an object pre-detection B-spline based non-rigid algorithm to produce the final mapping.

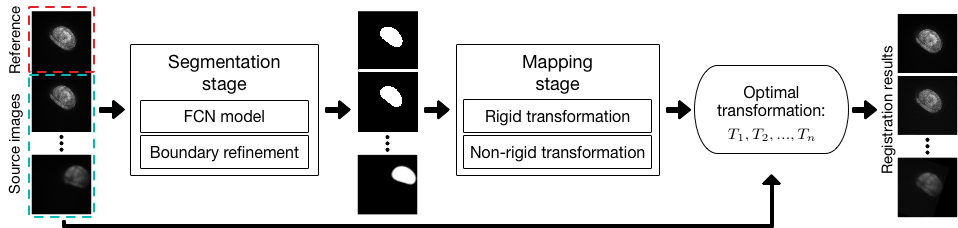

Figure 1: An overview of our proposed registration approach.

2 Methodology

In this section, we present a complete pipeline, which takes time-lapse image sequences of pouches as input and produces the registered sequences (see Fig. 1). We first discuss the segmentation stage (i.e., FCN model and boundary refinement), and then the mapping stage (i.e., rigid transformation and non-rigid transformation).

2.1 Segmentation Stage

Our registration approach is based on accurate pouch segmentation. Pouches in our images are commonly surrounded and touched by extra tissues with similar intensity and texture, and the separation boundary between pouches and extra tissues is usually of poor visibility. Meanwhile, the noise induced by the live imaging process makes the segmentation task more challenging. Thus, it is important for our segmentation algorithm to leverage the morphological and topological contexts, in order to correctly segment the shape of each actual pouch, especially its boundary, from the noisy background. For this, we employ an FCN model to exploit the semantic context for accurate segmentation, and a graph search algorithm to further refine the boundaries.

FCN module

   Recently, deep learning methods have emerged as powerful image segmentation tools. Fully convolutional networks (FCN) are widely used in general semantic segmentation and biomedical image segmentation

[6, 7].

It is worth mentioning that in our images, the separation boundary between a pouch and other tissues is usually quite subtle (as thin as 3 to 5 pixels wide) and obscure, while the whole contextual region (including both the pouch and extra tissues) can be of a relatively large scale (more than pixels). Therefore, the FCN model must fully exploit both the fine details and a very large context. For this purpose, we carefully design the FCN architecture following the model in [8] to leverage a large receptive field without sacrificing model simplicity and neglecting fine details. The exact structure of our FCN model is depicted in Fig. 2.

Figure 2: The structure of our FCN model.

Boundary refinement    We observed that the boundaries of the output pouches from our FCN model may be fuzzy or of irregular shape in difficult cases (see Fig. 4(F)). To improve the boundary accuracy of the segmented pouches, we first apply a Gaussian smooth filter to reduce the influence of intensity variations inside the pouches and then employ a graph search algorithm with the node weights being the negatives of the gradients to further refine the shape boundaries. This allows the subsequent mapping stage to be built upon more accurate segmentation and produce better registration results. Details of this process are omitted due to the page limit.

2.2 Mapping Stage

The goal of the registration process is: For every point in the source image, obtain an optimal corresponding point in the reference image. A key observation is that the intensity profile of the same pouch may incur substantial changes in different frames of an image sequence, due to undergoing signal waves. Hence, intensity is not a reliable cue for finding optimal correspondence between points in different frames of a sequence. Here, we utilize the results from the segmentation stage.

Rigid transformation    Since there are lots of movements (i.e., rotation and translation) of pouches in image sequences, we first compute an optimal rigid transformation to reduce their influence. This optimization step uses a regular-step gradient descent algorithm. Note that here, local optimum traps could be an issue in practice. Specifically, since the pouches are often of oval shapes, a local optimum may yield incorrect results where the object is aligned with the opposite orientation. To resolve this issue, we always initialize the optimization process using the optimum parameters computed from the preceding frame in the sequence, since the pouch movement in consecutive frames is usually not very big.

Non-rigid transformation   The non-rigid registration seeks an optimal transformation : , which maps any points in the source image at time to time (i.e., in the reference image). We use the free-form deformation (FFD) transformation model, based on B-splines [9], to find an optimal transformation.

For our problem, not too many control points are needed outside a pouch, because we need to focus only on the ROI. Thus, detecting ROIs first can save computation time. Pouches will be near the same position in the frames after the rigid registration, making it possible to do non-rigid transformation only around the ROI area. Based on this observation, we can crop an area in the first frame, and apply a lattice to this area in the following changing frames. We define the lattice as an grid in the domain (see Fig. 3).

We define the registration model as follows. Let be a rectangular domain in the plane, where the and values specify the boundary of the detection area. To approximate the intensity of scattered points, , in a pouch, we formulate a function as a uniform cubic B-spline function: , where , and . In addition, represents the -th basis function of the cubic B-spline: , and

Since the resolution of the control points determines the non-rigid degree and has a big impact on the computation time, a higher resolution of control points gives more freedom to do deformation while also increasing the computation time. To optimize this trade-off, we use a multi-level mesh grid approach [10] to devise a computationally efficient algorithm. Let denote a hierarchy of meshes of control points with increasing resolutions and be the deformation functions with respect to each mesh. We first apply a coarse deformation, and then refine the deformation gradually. The size of the mesh grid is increased by a factor of 2 with the same spacing, so that the raw image is down-sampled to the corresponding size at different levels. The final deformation is the composition of these functions:

To obtain an optimal transformation , we minimize the following energy function: , where the first term is the similarity measure and the second term is for regularization. is the curvature penalization and is the displacement of control points. The similarity measure we use is the sum of squared distance (SSD): , where is the reference image intensity function, is the intensity function of the transformed image of a source image under the current transformation and is the number of pixels.

This process iteratively updates the transformation parameters, , using a gradient descent algorithm. When a local optimum of the cost function is smaller than or the number of iterations is bigger than , the algorithm will terminate.

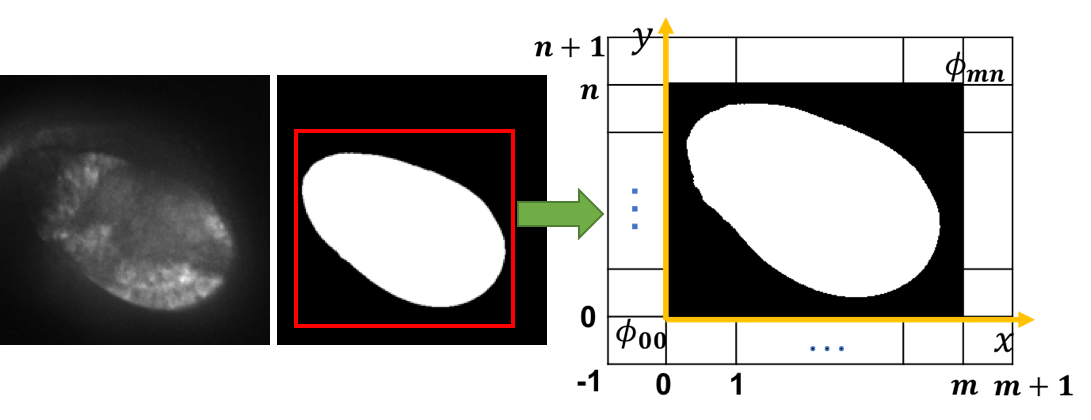

Figure 3: Configuration of lattice grid for non-rigid transformation.

3 Experiments and Evaluations

We evaluate our registration approach from two perspectives. First, we evaluate the accuracy of the segmentation method, because the segmentation accuracy is crucial to our overall approach. Second, we conduct experiments using both synthetic data and real biological data to assess the registration performance of different approaches.

3.1 Segmentation Evaluations

We conduct experiments on 100 images of 512512 pixels selected from 10 randomly chosen control videos. Our method is compared with both traditional method (e.g., level set [11]) and state-of-the-art FCN models (i.e., U-Net [7] and CUMedNet [12]). The FCN models are trained using the Adam optimizer [13] with a learning rate of 0.0005. Data augmentation (random rotation and flip) is used during training. We use the mean IU (intersection over union) and F1 as the metrics. Table 1 shows the quantitative results of different methods, and Fig. 4 shows some segmentation examples of pouches using different methods. It is evident that our FCN model works better in segmenting difficult ROIs, and our boundary refinement can help obtain accurate ROI boundaries.

Mean IU F1 score
Level set 0.8235 0.8294
CUMedNet 0.9394 0.9454
U-Net 0.9479 0.9542
Our FCN 0.9586 0.9643
Our FCN + BR 0.9617 0.9682
Table 1: Comparison results of segmentation.

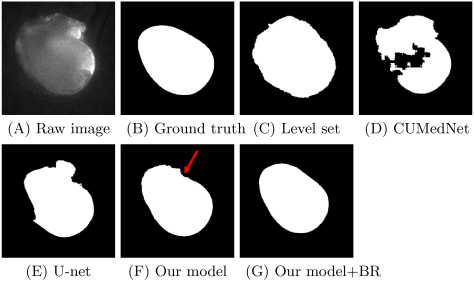

Figure 4: Segmentation results of different methods on a somewhat difficult pouch image (BR = Boundary Refinement). The red arrow indicates a location that demonstrates the effect of BR.

3.2 Registration Evaluations

We compare the registration performance with the Demon algorithm [14] and a B-spline method based on Residual Complexity (RC) [15], which are two state-of-the-art non-rigid registration methods for images with spatially-varying intensity.

Synthetic data   For synthetic data, we choose 8 pouch images as reference images. Specifically, for each reference image , we generate 20 source images by adding geometric distortion , and intensity distortion , to simulate an image sequence with undergoing movements and signaling (i.e., . For geometric distortions, we apply an elastic spline deformation to perturb the points according to the grid deformation and a rigid transformation. For intensity distortion, we first add Gaussian noise in random disk-shaped regions within the pouch to simulate the calcium signal waves and then rescale the intensity to [0, 1]. Our target is to find the optimal transformation from every source image to the corresponding reference image (i.e., . To quantify the performance, we compare the intensity root mean square error (RMSE) between the reference image and the clean registered images , which are obtained by applying to the geometrically distorted images without intensity distortion (i.e., . The idea is to evaluate whether the registration algorithm is able to find an optimal geometric transformation without damaging the texture. Fig. 5.I shows some visual results of different methods, and Table 2 gives quantitative results. The results of our approach are considerably more accurate.

Movie
No.
Our method
RMSE (pixel)
RC
RMSE (pixel)
Demon
RMSE (pixel)
Table 2: Registration results of synthetic data.

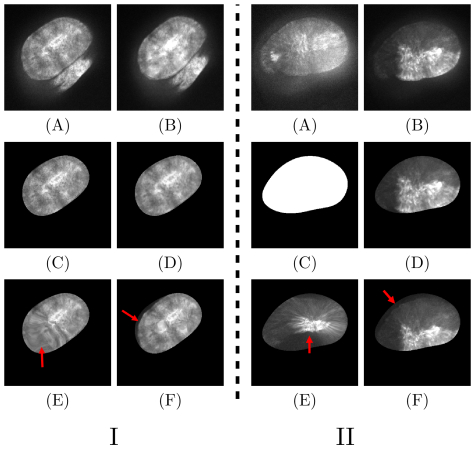

Figure 5: Registration results. I: Synthetic data. (A) A reference image; (B) A source image; (C) The expected registration result; (D) Our method; (E) RC; (F) Demon. II: Real pouches. (C) Intermediate segmentation; (D) Our method; (E) RC; (F) Demon. The red arrows point at some areas with unsatisfactory registration.
