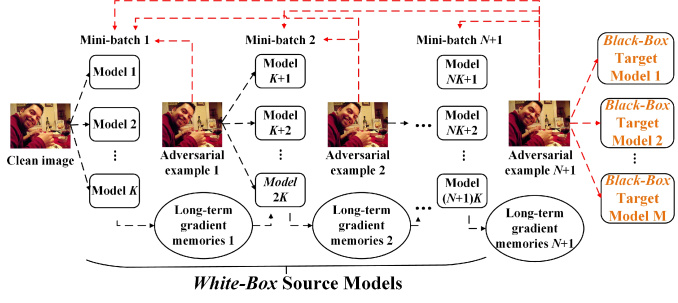

Figure 1: The general idea of the proposed attack. Our attack divides a large number of pre-trained source models into several mini-batches. For each batch, we craft an adversary that fools multiple intra-batch source models. We also recursively accumulate the “long-term” gradient memories of previous batch to the following batch, in order to preserve the learned adversarial information and to improve inter-batch transferability. The red dashed lines denote that the crafted adversarial example can fool the previous source models, and also successfully fools the black-box target models.

Deep neural networks, despite their great success in various vision tasks, are susceptible to adversarial attacks [Szegedy et al.2014, Goodfellow et al.2015]. The adversarial attacks add some quasi-imperceptible perturbations to the original input, to significantly change the model output. More importantly, some well-designed adversarial examples can transfer across different models. That is, the adversary crafted against some pre-trained source models can transfer to other new target models. Despite the source and target models adopting diverse architectures and parameters, they may share similar decision boundaries. Thus, if an adversary can fool several source models, it can capture the intrinsic transferable adversarial information that allows it to fool a broad class of other black-box target models. The transferability of adversarial examples provides a potential chance to launch black-box attacks without having access to the target model. In contrary, white-box attacks require all information of target model, thus they are not practical in real world.

Particularly, adversarial attack serves as an efficient surrogate to evaluate the robustness of deep networks before they are deployed in real world, especially for security-related applications, e.g. autonomous driving [Yang and Hsu2017, Alletto et al.2016] and face verification [Sharif et al.2016, Dong et al.2019]. Therefore, exploring adversarial attacks, especially the transferable black-box ones, is critical to demystifying the fragility of deep neural networks.

Current approaches for crafting transferable adversarial examples fall into two major categories: (1) Ensemble attacks [Dong et al.2018, Liu et al.2017, Xie et al.2017] craft transferable adversarial examples via fooling multiple white-box source models in parallel. (2) Generative methods [Zhao, Dheeru, and Sameer2018, Wei et al.2019] rely on an extra generative adversarial network (GAN). Specifically, a generator is trained to produce the adversaries that aim to fool the target model, while a discriminator is trained to distinguish the synthetic adversaries from original clean images for minimizing the perceptibility.

However, current methods have some drawbacks: (1) Normal ensemble attacks only consider a limited number of source models. To the best of our knowledge, the state-of-the-art ensemble attacks [Liu et al.2017, Dong et al.2018] adopt less than 8 source models to craft the adversaries. In their implementations, all of the source models are combined in parallel. As a result, the number of source models is limited by the GPU memory. (2) Although the parallel computing technique enables concurrent attacks against a large number of models, it brings new optimization challenges, because computing and back-propagating the gradients of cost function w.r.t a large number of models become slow and difficult. (3) Generative methods rely on an extra GAN network which is not easy to train, and also require a lot of training samples with expensive labels.

For solving these problems, we propose a novel Serial-Mini-Batch-Ensemble-Attack (SMBEA). Before elaborating our method, we first introduce two empirical observations that inspire our method: (1) Crafting an adversarial example is analogous to training a model, and the transferability of the adversarial example is analogous to the generalizability of the model [Dong et al.2018]. Thus, it is expected to increase the transferability of adversary via fooling diverse source models as much as possible, (2) Compared to the magnitude of the perturbation, the spatial structure of the adversarial perturbation has stronger impact on the final fooling ability [Xie et al.2017]. Thus, we focus on preserving the learned adversarial structure information to optimize the fooling ability and transferability, while mitigating the magnitude of perturbation to minimize the perceptibility.

Inspired by the aforementioned empirical observations, our method mimics classical deep network training procedures to craft transferable adversaries, as shown in Fig. 1. Specifically, we divide a large number of pre-trained source models into several mini-batches, and each single batch contains ( is the batch-size) individual source models. For each batch, we introduce 3 new ensemble strategies to combine these individual models, in order to improve intra-batch transferability. For the inter-batch case, we propose a new algorithm that recursively accumulates the “long-term” gradient memories of previous batch to the following batch. This way, the learned adversarial information can be preserved and the inter-batch transferability can be improved. As shown in Fig. 1, we start from a clean image, then recursively update the adversary across different batches, and finally obtain an adversary that not only fools all previous source models, but also fools new black-box target models.

We summarize our contributions as follows:

  • A new black-box attack approach: We propose a novel black-box attack, where we introduce 3 new ensemble strategies for improving intra-batch transferability, and propose a new algorithm that preserves “long-term” gradient memories for improving inter-batch transferability.

  • Generality: Our method can attack multiple pixel-to-pixel vision tasks, e.g. image translation and saliency prediction. Besides, our method successfully fools two online black-box saliency prediction systems in the real world: i.e. DeepGaze-II and SALICON.

  • A new repository: We provide a software repository including 13 common attack methods and our proposed attack, and 16 pre-trained source models. This repository aims to boost adversarial attack and defense research in pixel-to-pixel tasks. It also serves as a complement to CleverHans repository [Papernot et al.2016a].

Related works

In 2014, Szegedy et al. verified the existence of adversarial examples for the first time [Szegedy et al.2014].

Goodfellow et al. [Goodfellow et al.2015] introduced the fast gradient sign method (FGSM) to craft white-box adversarial examples by one-step gradient update along the direction of the sign of gradient at each pixel.

Kurakin et al. [Kurakin et al.2016] proposed the basic iterative version of FGSM, i.e.

I-FGSM. I-FGSM utilizes a small step to update adversarial example for multiple iterations by vanilla Stochastic Gradient Descent (

SGD) optimization. However, SGD has some drawbacks, such as slow convergence and always drops into poor local minima.

Papernot et al. [Papernot2017] proposed a black-box

attack against image classifiers. Specifically, they trained a surrogate model to mimic the target

black-box model.

Dong et al. [Dong et al.2018] introduced the Momentum based Iterative Method (MIM), which utilizes Momentum based Stochastic Gradient Descent (MSGD) [Qian1999] optimizer to craft adversaries. MIM accumulates the momentum in gradient descent direction to reduce poor local minima and to avoid “over-fitting” one specific model, thus demonstrating better transferability in black-box setting.

Madry et al. [Madry et al.2018] proposed the Projective Gradient Descent (PGD) attack, which extends the I-FGSM method to a universal first-order adversary by introducing a random start state. PGD also uses SGD to update the adversary iteratively. It serves as a strong white-box attack.

Carlini et al. [Carlini and Wagner2017] introduced an efficient white-box attack, dubbed C

W’s attack, which breaks defensive distillation

[Papernot et al.2016b]. CW’s attack utilizes Adam optimization due to its fast convergence and high fooling ability.

Liu et al. [Liu et al.2017] proposed targeted and nontargeted ensemble attacks that successfully fool black-box classification system i.e. Clarifai.com. Wei et al. [Wei et al.2019] also trained a generative network to craft transferable adversaries against image and video detection models.

Xie et al. [Xie et al.2017] proposed Dense Adversary Generation (DAG) to attack segmentation and object detection models. Mopuri et al. [Mopuri, Ganeshan, and Radhakrishnan2018] introduced a general objective function that produces image-agnostic adversaries from latent space.

Figure 2: Visualizations of three ensemble strategies in feature space

. The raw feature maps are processed by the batch normalization and ReLU activation function.

CU: Channel amount Unification, BI

: Bilinear Interpolation,

SN: Softmax Normalization, APC: Average Pooling in Channel direction. represents an elementwise weighted summation.

Proposed method

In this section, we introduce a novel black-box adversarial attack dubbed Serial-Mini-Batch-Ensemble-Attack (SMBEA). We first introduce the intra-batch algorithm, then we elaborate the inter-batch algorithm.

Intra-batch ensemble strategies

In our implementation, each single mini-batch includes =4 111Batch-size is a tunable hyper-parameter. Here we adopt 4 as the batch-size because it achieves a good tradeoff between the transferability and GPU memory cost. white-box source models that are pre-trained over the same pixel-to-pixel task. Thus, these models have similar decision boundaries, despite adopting diverse architectures and parameters. Similar decision boundaries across models increase the chance of crafting an adversary that fools all these models. At the same time the diversity across different models serves as the regularization and alleviates “over-fitting” to a specific model, which in turn results in high intra-batch transferability.

In this work, we only consider the targeted attack. The non-targeted attack is a straightforward extension. We formulate the targeted ensemble attack in pixel-to-pixel tasks as a constrained optimization problem. For simplicity, we first introduce a basic ensemble strategy, where multiple models are fused in output space, i.e. the optimization objective is computed by an element-wise weighted summation of the final predictions of multiple source models:


where and are original clean image and adversarial example, respectively. represents the guide image, while is the ground-truth output of . For the targeted attack, the goal is to change the models’ ensemble prediction of towards the prediction of the guide image. is the source model within the mini-batch, and represents the final prediction of the model on the crafted adversary . is ensemble weight, .

is the loss function that is minimized when

. is the perceptual constraint, e.g. , , or norms, which is minimized to guarantee that the crafted adversary looks (perceptually) similar to the original clean image . is the maximum perceptual constraint for single batch. is a hyper-parameter to balance the fooling ability loss and the perceptual constraint .

However, the basic ensemble strategy in Eq1 only fools the final predictions in the output space. Here we further dig into the feature space to explore other efficient ensemble strategies. This is motivated by the consideration that combining output space and feature space ensembles provides a deep supervision for crafting strong adversary that not only fools the final predictions, but also fools the intermediate feature maps. This way, the objective is rewritten as:


where and represent the feature maps of the source model on the crafted adversary and guide image . is the feature space ensemble weight, . is the loss function that aims to minimize the feature space distance between and . is a hyper-parameter to balance feature space fooling loss , together with output space fooling loss and perceptual constraint.

Different models utilize different network architectures, so their feature maps have different resolutions and channels. For solving this, we introduce 3 different feature space ensemble strategies, as shown in Fig. 2. More details regarding the feature layer selection are provided in the experiments section. Here we focus on explaining ensemble strategies.

The first ensemble strategy evenly samples feature maps from each model, and the sampling interval of the model can be computed as , where is the total number of feature channels of one selected feature layer from the model. We set and as the powers of 2, to make sure that is an integer. This way, we obtain the same number of feature maps (channels) from different models. Next, we use bilinear interpolation to resize the selected feature maps of different models to the same resolution (i.e. heightweight). Then, we adopt softmax function to normalize these feature maps. Finally, we obtain the feature-space ensemble result by an element-wise weighted summation of different feature maps.

The other two ensembles have similar pipelines, except for the first step, which is explained below. For each model, the second ensemble computes the average pooling of the feature maps in the channel direction, and obtains a 2D one-channel feature map from each model. The third ensemble divides feature maps into groups, then computes the channel direction average of each group, and obtains candidate feature maps from each model.

0:     Original clean image ,   guide image (randomly selected);Intra-batch source models: , , …, ; Decay factors of short-term gradient momentums: , ; Smoothing term: ;Maximum iterations X for single mini-batch;Maximum perceptual constraint for the first mini-batch; Step size of iterative gradient descent ;
0:     An adversarial example ;    The ultimate momentum ,    and the ultimate momentum .
1:   Initialization: , , ,
2:   while (   and   do

;    (update the iteration epoch)

4:       ;    ( is defined in Eq2)
5:           (gradient normalization)
6:       ;    (update the )
7:           (update the )
8:       ;    (bias correction)
9:       ;    (bias correction)
10:       ;    (update the adversary)
11:   end while
12:   return  ,   ,   .
Algorithm 1 : Intra-batch update rules of SMBEA. This algorithm is applicable to the first mini-batch. represents the

gradient momentum vector, while

represents the gradient momentum vector. is an element-wise product.

Intra-batch update rules

For solving the constrained optimization problem in Eq2, we exhaustively test 5 common gradient descent optimization methods, i.e. stochastic gradient descent (SGD), momentum based gradient descent (MSGD) [Qian1999], Adagrad [Duchi, Hazan, and Singer2011], RMSProp [Tieleman and Hinton2012], and Adam [Kingma and Ba2015]. The major differences between these gradient descent methods are two gradient momentums, explained below.

The gradient momentum accumulates the gradients of previous iterations to stabilize the gradient descent direction, and helps to reduce poor local minima.


gradient momentum adapts the learning rates to different parameters. In pixel-to-pixel attacking tasks, we aim to update the image pixels of the crafted adversarial example. However, in the attacking process, a small fraction of pixels are frequently updated, while the remaining pixels are occasionally updated. The intensities of frequent pixels grow rapidly and reach the bound of perceptual constraint quickly, while the infrequent pixels are far from convergence at this moment. This issue limits the tradeoff between fooling ability and perceptibility. For mitigating this limitation, the

gradient momentum was proposed, which assigns a small update step-size for frequent pixels, while assigning a big update step-size for infrequent pixels.

In our tasks, Adam achieves the best tradeoff between transferability, perceptibility, and convergence speed. The update rules of the intra-batch algorithm based on Adam optimizer are given in the Algorithm  1. Specifically, Adam optimizer utilizes the momentum to avoid local poor minima and to prevent “over-fitting”, thus improving transferability. Besides, it also uses the momentum to adapt the learning rates for different pixels, thus enhancing the tradeoff between fooling ability and perceptibility.

In our implementation, the original image and the guide image are normalized to be in the range [0, 1]. The default decay factors are set as and . is a smoothing term to avoid division by zero. The maximum number of iterations X for a single batch is 20. The iterative gradient descent step size . We adopt norm as the perceptual constraint. Finally, we clip the crafted adversary into the range [0, 1] to make sure is a valid image. This way, we obtain an adversary that is able to fool multiple intra-batch source models.

Inter-batch update rules

The intra-batch algorithm only guarantees that the crafted adversary can fool a limited number of source models. For breaking this limitation, we propose a novel inter-batch algorithm that recursively accumulates the “long-term” gradient memories of the previous batches to the following batches. These “long-term” gradient memories preserve the learned adversarial information, and also serve as the regularization to prevent “over-fitting” on a specific batch, thus increasing the inter-batch transferability.

The proposed inter-batch update rules are presented in the Algorithm 2. The main differences between the two algorithms are the initialization and the bias corrections.

0:     The adversarial example of the previous batch ,   the guide image ;The gradient momentum of the previous batch ;The gradient momentum of the previous batch ;Maximum perceptual constraint of the previous batch;Maximum perceptual constraint of the first batch;Maximum batch number ;Intra-batch models of the current batch: , , …, ; Decay factors of short-term gradient momentums: , ; Weights of long-term gradient momentums: , ; Decay factor of perceptual constraint: ;
0:     An adversarial example of current batch ;   The ultimate momentum ,   and ultimate momentum of the current batch.
1:   Initialization: ,    ,    ,    ,
2:   while (   and     and   do
3:       do Step.3 - Step.7 of the Algorithm. 1.
4:       ;    (bias correction)
5:       ;    (bias correction)
6:       ;
7:   end while
8:   return  , , , .
Algorithm 2 : Inter-batch update rules of SMBEA. This algorithm is applicable to all mini-batches, except for the first one, i.e. . Notice that the superscript in brackets denotes the batch number, e.g.  is the adversary of the batch, while the superscript w/o brackets denotes the pow, e.g.  denotes the to the power .

We first introduce the initialization. We adopt four variables of the previous batch to recursively initialize the variables of the following batch, explained below.

  • : we adopt the adversarial example of the previous batch as the initial state of the current batch, because has learned some adversarial information against multiple models of previous batch.

  • and : we utilize the and momentums of the previous batch to initialize the momentums of the current batch. These “long-term” gradient momentums preserve the learned adversarial information, and also serve as the regularization to prevent “over-fitting” on the following batch, thus boosting the inter-batch generalizability of the crafted adversary.

  • : we recursively update the maximum perceptual constraint of the current batch (i.e. ) by adding a loose factor to the perceptual constraint of the previous batch (i.e. ), in order to prevent premature convergence that causes “under-fitting”. Besides, by increasing the number of batches, the adversarial example tends to be converged, so we reduce the loose factor via a decay rate , where denotes the to the power ( is the batch number).

The proposed inter-batch algorithm inherits the good properties of the classical Adam method, explained below.

Property 1: The effective step-size of inter-batch update rules is invariant to the scale transform of the gradient.

Proof 1: As shown in Step.6 of Algorithm. 2, assuming , the effective step-size of the adversarial example at iteration is . The effective step-size is invariant to the scale transform of gradient, because scaling raw gradient with factor will be normalized by norm, i.e. . Thus, , , are invariant to the scale transform of the gradient.

Property 2: The proposed inter-batch bias corrections can correct for the discrepancy between the expected value of the exponential moving averages (i.e.  or ) and the true expected gradients (i.e.  or ).

Proof 2: The proposed inter-batch bias corrections are shown in Steps.4-5 of the Algorithm. 2. Here, we derive the bias correction for the

momentum estimate, and the derivation for the

momentum is completely analogous.

Let be the normalized gradient at iteration , and we wish to estimate its momentum using an exponential moving average of the true squared gradient. In the inter-batch case, the raw momentum is initialized as . The recursive update equation of raw momentum can be rewritten as:


We wish to know how , the expected value of the exponential moving average at iteration , relates to the true expected squared gradient , so we can correct for the discrepancy between them. We take expectations of the left and right sides of Eq3


where if the true momentum is stationary, according to Adam [Kingma and Ba2015]. We suppose is stationary, and divide the left and right sides of Eq4 by :


where ( is initialized as ) is the “long-term” momentum from the previous batch. This “long-term” momentum decreases rapidly with the increase of iteration due to the decay rate . However, in our tasks, we wish to assign a smooth decay rate to the “long-term” momentum in subsequent iterations, in order to preserve the learned adversarial information as much as possible. Thus, we modify the decay weight as , which obtains a slower decay rate than . We first subtract , then add to the left and right sides of Eq. 5


Next, we plug into Eq6, and obtain


This way, we obtain the corrected momentum, as shown in Step.5 of Algorithm. 2 (left side of Eq.7), which is composed of two parts (right side of Eq.7): the “long-term” gradient momentum with a smooth decay rate , and the true expected squared gradient .

We utilize 3 new hyper-parameters in the inter-batch algorithm, i.e. , , and , where and control the weights of “long-term” momentums from previous batches, and decides the decay rate of the perceptual constraint. In our implementation, the default settings are , , . For selecting the good settings, we test these hyper-parameters by line-searching on 2 validation datasets, i.e. Cityspaces and LSUN’17.

Datasets (original performance) Cityspaces  (MSE=0.0139) Facades  (MSE=0.0521) Google Satellite  (MSE=0.0255) LSUN’17  (CC=0.7748)
Target black-box model pix2pix U-Net Global pix2pixHD Local pix2pixHD SALICON
Number of mini-batches 1               3               5 1               3               5 1               3               5 1               3               5
Percep. cons. ( norm) 1.0      2.0      2.4 1.2      2.4      2.8 1.0      2.0      2.4 3.4      6.6      7.8
Random noise +0.0002      +0.0008      +0.0011 +0.0003      +0.0010      +0.0013 +0.0002      +0.0006      +0.0011 -0.0002      -0.0002      -0.0003
Ensemble Attack using PGD +0.0108      +0.0169      +0.0174 +0.0104      +0.0133      +0.0166 +0.0074      +0.0083      +0.0099 -0.0022      -0.0264      -0.0511
Ensemble Attack using CW +0.0113      +0.0170      +0.0173 +0.0097      +0.0131      +0.0168 +0.0068      +0.0087      +0.0096 -0.0763      -0.2117      -0.2452
Ensemble Attack using MIM +0.0116      +0.0193      +0.0227 +0.0125      +0.0162      +0.0178 +0.0093      +0.0099      +0.0113 -0.0771      -0.2417      -0.2880
Liu’s Ensemble Attack +0.0118      +0.0194      +0.0230 +0.0129      +0.0165      +0.0184 +0.0098      +0.0105      +0.0116 -0.0780      -0.2533      -0.2941
Proposed SMBEA +0.0148      +0.0213      +0.0264 +0.0155      +0.0230      +0.0275 +0.0108      +0.0137      +0.0145 -0.0871      -0.3017      -0.4180
Table 1: Comparison under black-box setting. Fooling ability is measured by performance drop: CC for LSUN’17, MSE for other datasets.
Figure 3: Attacking real-world applications. With the increase of batch number, our attack fools two online black-box saliency prediction systems, i.e. DeepGaze-II and SALICON. However, normal ensemble attack based on PGD [Madry et al.2018] fails to fool these models.


The selection of loss functions

In Eqs.1-2, we provide a general paradigm for computing objective cost functions. For different tasks, we select different task-specific loss metrics to reach a better attack performance. Specifically, for image-translation, we use a linear combination of Mean Absolute Error (MAE), negative Pearson’s Linear Correlation Coefficient (CC), and VGG loss [Dosovitskiy and Brox2016] as the output space fooling ability loss . For saliency prediction, we use a linear combination of Kullback-Leibler divergence (KL), MAE, and negative CC as . We use KL as feature-space fooling ability loss , because the intermediate feature maps of source models are normalized by softmax as the distributions. The averaged norm serves as perceptual loss .

Datasets and evaluation protocol

To explore the generalization ability of SMBEA, we conduct experiments on 4 pixel-to-pixel vision datasets, i.e. Cityspaces [Cordts and Omran2016], Facades [Tylecek2013], Google Satellites, and LSUN’17 [Jiang et al.2015]. For Cityspaces, we select 1000 “Semantic label Real photo” pairs as test set. For Facades, we select 400 “Architectural label Real photo” pairs. For Google Satellites, we select 1000 “Google Map Satellite Image” pairs. For LSUN’17, we select 1000 “Real Photo Saliency Map” pairs.

For fair comparison, we adopt the performance drop to measure the fooling ability, i.e. the difference between the performances on clean images and on adversarial examples. The stronger the attack, the bigger the performance drop. For image translation tasks, we use the Mean Squared Error (MSE) to measure the performance drop. For the saliency prediction task, we use the Pearson’s Linear Correlation Coefficient (CC) to measure the performance drop. For measuring the perceptibility, we use the averaged norm. In this paper, the images are normalized to be in the range [0, 1], and the norm is averaged by the number of pixels.

Source models

For the saliency prediction task, we adopt 16 state-of-the-art deep saliency models as the raw source models. However, we wish to use additional source models to explore the upper-bound of our attack. Thus, we design an augmentation strategy to enlarge the number of models. Specifically, we replace the standard convolution (adopted in most of the current CNN models) in the original architecture with two new convolutions, i.e. deformable convolution kernel [Dai et al.2017] and dilated convolution kernel [Yu and Koltun2016]. By doing so, for each raw source model, we obtain two new variants that have diverse architectures, without causing obvious performance drop. This way, we obtain 48 source models in total. We use the same model augmentation strategy for other tasks.

Target model Attack No. of Batch: 3 No. of Batch: 5 No. of Batch: 7
GazeGAN I-FGSM -0.0125 -0.0177 -0.0206
GazeGAN MIM -0.1315 -0.1582 -0.2063
GazeGAN SMBEA -0.2190 -0.2731 -0.3255
SAM-ResNet I-FGSM -0.0164 -0.0238 -0.0295
SAM-ResNet MIM -0.1622 -0.1900 -0.2258
SAM-ResNet SMBEA -0.2317 -0.2996 -0.3484
Table 2: Evading defense: attack performance comparison against the adversarially trained black-box models. LSUN’17 is the test set.
Figure 4: Qualitative results of black-box MIM [Dong et al.2018] ensemble attack and our attack over multiple pixel-to-pixel vision tasks.


In Table. 1, we compare our method with other ensemble attacks in the black-box setting. These ensemble attacks adopt state-of-the-art gradient back-propagation attack algorithms. For fair comparison, we use the same perceptual constraint for different competing methods. We can see that our attack achieves the best performance over different datasets.

It was verified that injecting adversarial examples into training set will increase the robustness of deep networks against attacks [Goodfellow et al.2015]. Currently, this adversarial training strategy is the most efficient defense method. In Table. 2, we compare our method with other attacks against the adversarially trained black-box models. Specifically, we keep two adversarially trained models as the hold-out target models, and use the rest source models to craft the adversarial examples. We can see that the adversarially trained models can not defend our attack effectively.

We further compare our attack with the normal ensemble attack based on PGD [Madry et al.2018] algorithm against two online black-box saliency prediction models, as shown in Fig. 3. We notice that, by increasing the number of batches, our method misleads the model prediction towards the guide image, while the normal attack fails to fool these models. Besides, we also compare our method with the black-box ensemble attack based on MIM [Dong et al.2018] algorithm from a qualitative perspective, as shown in Fig. 4. For fair comparison, we apply the same perceptual constraint to different competing methods. We observe that, the outputs of our attack are more similar to the outputs of the guide images, demonstrating better fooling ability.

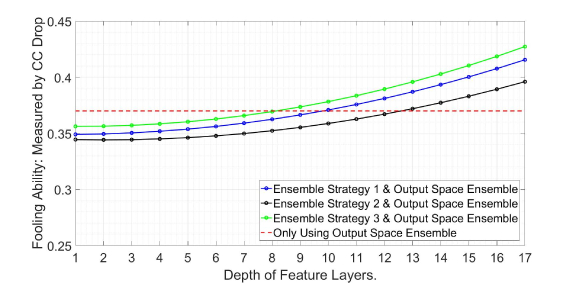

Figure 5: The relationship between fooling ability (against the source models) and the depth of feature layers. We compare different ensemble strategies when fusing 4 source models including GazeGAN [Che et al.2019], Globalpix2pix [Wang et al.2018], SAM-ResNet [Cornia et al.2018], and SalGAN [Pan et al.2017].

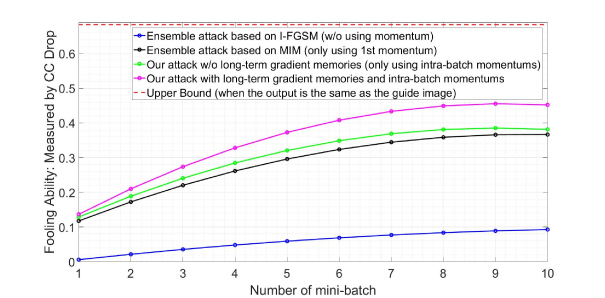

Figure 6: Ablation study of our attack. We use the online black-box SALICON model as the target model. With the increase of batch number, the perceptual constraint increases (as shown in Step.1 of Algorithm.2). For fair comparison, in the same batch, different competing attacks adopt the same perceptual constraint.

Ablation studies

In Fig. 5, we explore the relationship between the fooling ability and the depth of feature layers. We introduce 3 new feature space ensemble strategies, as shown in Fig. 2. Here we explain how to select good feature layers to conduct an efficient attack. Experiments indicate that the deeper layers obtain better fooling ability. Besides, the proposed feature space ensemble strategies further improve the performance, and the ensemble strategy obtains the best performance.

Next, we explore the contributions of intra-batch momentums and inter-batch “long-term” momentums, as shown in Fig. 6. We notice that, both intra-batch “short-term” momentums and inter-batch “long-term” gradient memories increase the transferability in the black-box setting.


In this paper, we propose a novel black-box attack. Our attack divides a large number of pre-trained source models into several batches. For each batch, we introduce 3 feature-space ensemble strategies for improving intra-batch transferability. Besides, we propose a new algorithm that utilizes the “long-term” gradient memories. The long-term gradient memories preserve the learned adversarial information and improve inter-batch transferability. Our attack achieves the best performance over multiple pixel-to-pixel datasets, and fools two online black-box applications in the real world. We share our code with the community to promote the research on adversarial attack and defense over pixel-to-pixel tasks.


This work was supported in part by the National Science Foundation of China under Grant 61831015, Grant 61771305, and Grant 61927809.


  • [Alletto et al.2016] Alletto, S.; Palazzi, A.; Solera, F.; Calderara, S.; and Cucchiara, R. 2016. Dr(eye)ve: a dataset for attention-based tasks with applications to autonomous and assisted driving. In CVPRw.
  • [Carlini and Wagner2017] Carlini, N., and Wagner, D. 2017. Towards evaluating the robustness of neural networks. In SP.
  • [Che et al.2019] Che, Z.; Borji, A.; Zhai, G.; Min, X.; Guo, G.; and Callet, P. 2019. How is gaze influenced by image transformations? dataset and model. TIP.
  • [Cordts and Omran2016] Cordts, M., and Omran, M. 2016.

    The cityscapes dataset for semantic urban scene understanding.

    In CVPR.
  • [Cornia et al.2018] Cornia, M.; Baraldi, L.; Serra, G.; and et al. 2018.

    Predicting human eye fixations via an lstm-based saliency attentive model.

  • [Dai et al.2017] Dai, J.; Qi, H.; Xiong, Y.; Li, Y.; Zhang, G.; Hu, H.; and Wei, Y. 2017. Deformable convolutional networks. In ICCV.
  • [Dong et al.2018] Dong, Y.; Liao, F.; Pang, T.; Su, H.; Zhu, J.; Hu, X.; and Li, J. 2018. Boosting adversarial attacks with momentum. In CVPR.
  • [Dong et al.2019] Dong, Y.; Su, H.; Wu, B.; Li, Z.; Liu, W.; and Zhang, T. 2019.

    Efficient decision-based black-box adversarial attacks on face recognition.

    In CVPR.
  • [Dosovitskiy and Brox2016] Dosovitskiy, A., and Brox, T. 2016. Generating images with perceptual similarity metrics based on deep networks. In NeurIPS.
  • [Duchi, Hazan, and Singer2011] Duchi, J.; Hazan, E.; and Singer, Y. 2011. Adaptive subgradient methods for online learning and stochastic optimization. JMLR.
  • [Goodfellow et al.2015] Goodfellow, I.; Shlens, J.; Szegedy, C.; and Goodfellow, I. 2015. Explaining and harnessing adversarial examples. In ICLR.
  • [Huang et al.2017] Huang, X.; Shen, C.; Boix, X.; and Zhao, Q. 2017. Online saliency prediction system SALICON. http://salicon.net/demo/.
  • [Jiang et al.2015] Jiang, M.; Huang, S.; Duan, J.; and Zhao, Q. 2015. Salicon: Saliency in context. In CVPR.
  • [Kingma and Ba2015] Kingma, D. P., and Ba, J. 2015. Adam: A method for stochastic optimization. In ICLR.
  • [Kummerer2017] Kummerer, M. 2017. Online saliency prediction system Deepgaze-II. https://deepgaze.bethgelab.org/.
  • [Kurakin et al.2016] Kurakin, A.; Goodfellow, I.; Bengio, S.; and Bengio, S. 2016. Adversarial examples in the physical world. In ICLRw.
  • [Liu et al.2017] Liu, Y.; Chen, X.; Liu, C.; and Song, D. 2017. Delving into transferable adversarial examples and black-box attacks. In ICLR.
  • [Madry et al.2018] Madry, A.; Makelov, A.; Schmidt, L.; Tsipras, D.; and Vladu, A. 2018.

    Towards deep learning models resistant to adversarial attacks.

    In ICLR.
  • [Mopuri, Ganeshan, and Radhakrishnan2018] Mopuri, K. R.; Ganeshan, A.; and Radhakrishnan, V. B. 2018. Generalizable data-free objective for crafting universal adversarial perturbations. TPAMI.
  • [Pan et al.2017] Pan, J.; Canton, C.; McGuinness, K.; Connor, N.; Torres, J.; Sayrol, E.; and Nieto, X. 2017. Salgan: Visual saliency prediction with generative adversarial networks. In CoRR:1701.01081.
  • [Papernot et al.2016a] Papernot, N.; Goodfollow, I.; Sheatsley, R.; Feinman, R.; and McDaniel, P. 2016a.

    cleverhans v2. 0.0: an adversarial machine learning library.

    In arXiv preprint.
  • [Papernot et al.2016b] Papernot, N.; McDaniel, P.; Wu, X.; Jha, S.; and Swami, A. 2016b. Distillation as a defense to adversarial perturbations against deep neural networks. In SP.
  • [Papernot2017] Papernot, N. 2017. Practical black-box attacks against machine learning. In ACM ACCCS.
  • [Qian1999] Qian, N. 1999. On the momentum term in gradient descent learning algorithms. Neural networks.
  • [Sharif et al.2016] Sharif, M.; Bhagavatula, S.; Bauer, L.; and Reiter, M. K. 2016. Accessorize to a crime: Real and stealthy attacks on state-of-the-art face recognition. In ACM SIGSAC.
  • [Szegedy et al.2014] Szegedy, C.; Zaremba, W.; Sutskever, I.; Bruna, J.; Erhan, D.; Goodfellow, I. J.; and Fergus, R. 2014. Intriguing properties of neural networks. In ICLR.
  • [Tieleman and Hinton2012] Tieleman, T., and Hinton, G. 2012. Lecture 6.5-rmsprop: Divide the gradient by a running average of its recent magnitude. COURSERA: Neural networks for machine learning.
  • [Tylecek2013] Tylecek, R. 2013. Spatial pattern templates for recognition of objects with regular structure. In GCPR.
  • [Wang et al.2018] Wang, T. C.; Liu, M. Y.; Zhu, J. Y.; Tao, A.; Kautz, J.; and Catanzaro, B. 2018. High-resolution image synthesis and semantic manipulation with conditional gans. In CVPR.
  • [Wei et al.2019] Wei, X.; Liang, S.; Chen, N.; and Cao, X. 2019. Transferable adversarial attacks for image and video object detection. In IJCAI.
  • [Xie et al.2017] Xie, C.; Wang, J.; Zhang, Z.; Zhou, Y.; and an A. Yuille, L. X. 2017. Adversarial examples for semantic segmentation and object detection. In ICCV.
  • [Yang and Hsu2017] Yang, S., and Hsu, Y. 2017. Full speed region sensorless drive of permanent-magnet machine combining saliency-based and back-emf-based drive. TIE.
  • [Yu and Koltun2016] Yu, F., and Koltun, V. 2016. Multi-scale context aggregation by dilated convolutions. In ICLR.
  • [Zhao, Dheeru, and Sameer2018] Zhao, Z.; Dheeru, D.; and Sameer, S. 2018. Generating natural adversarial examples. In ICLR.
