1 Introduction

With the development of artificial intelligence, the multi-source information fusion technology that can fuse the collected information to improve the security and stability of the system, is widely used in the real world

zhang2017perceiving ; zhou2017online , such as decision-making debnath2018game ; he2018evidential , fault diagnosis janghorbani2017fuzzy ; lin2018multisensor , risk and reliability analysis song2018sensor ; chemweno2018risk ; dutta2017modeling ; seiti2018developing ; chen2018new

, pattern recognition

liu2017combination ; liu2017classifier , etc. However, in complex environments, the data received by sensors based on physical hardware technology is often inaccurate and uncertain. If the data are directly fused, the results may be incorrect or counter-intuitive. The reason for such a result is often the interference information generated by the complex environment or the malfunctioning sensor recognition function. Therefore, how to effectively solve the fusion of uncertain information in complex environments is still an open issue. To address this issue, many mathematical theories are proposed by scholars, like fuzzy set theory chen2013fuzzy , belief function theory frikha2015analytic , grey theory chen2018new

, probability theory

nakamori2003linear ; mcclean2001aggregation , etc. There are also some methods basing on Z-numbers kang2018stable ; zadeh2011note , D-numbers li2018d ; mo2018new ; xiao2018novel ; bian2018failure and so on XU201743 .

As a generalization of Bayesian theory feller2008introduction ; bernardo2009bayesian , Dempster-Shafer evidence theory was first proposed by Dempster in 1967 dempster1967upper and developed by Shafer in 1976 shafer1976mathematical . As Dempster-Shafer evidence theory can flexibly handle information with incompleteness and uncertainty zhang2019weighted ; 8906062 , it is widely used in practical application systems han2018enhanced , such as classification liu2017weighted , clustering Zhou2017SELP ; su2018bpec ; meng2020belief , reliability analysis deng2018dependence , correlation analysis jiang2018correlation , multi-attribute decision analysis fu2016distributed ; fu2018determining , fault diagnosis xiao2017novel ; GONG2018395 ; zhang2019weighted ; cheng2016new and so on Su2019 . Nevertheless, Dempster-Shafer evidence theory has many limitations that need to be improved. Firstly, the key step is how to automatically generate basic probability assignment (BPA), which is the prerequisites for the application of Dempster-Shafer evidence theory and the use of Dempster’s combination rule. However, the method for BPA generation is still a difficult and open issue. The quality of generated BPA will directly affect subsequent practical applications. If the method of generating BPA is unreasonable, causing failure to generate an effective BPA, the fusion result is likely to be counter-intuitive. Secondly, Yager et al. yager1987dempster believed the normalization of the combination rule is the main reason for the unreasonable fusion results, so modification of Dempster’s combination rule is suggested. Smets and Kennes smets1994transferable pointed out that modifying the combination rule usually breaks good properties, like commutativity and associativity. And they proposed that it is unreasonable to modify the combination rule if the result is caused by a sensor failure. Therefore, the concepts of the open world and the closed world are introduced in the Transferable Belief Model (TBM) smets1994transferable . Dubois and Prade dubois1988default suggest assigning the conflicting evidence to the union of focal elements. Sun et al. sun2000new proposed that even if there is a conflict between evidences, the evidences are also partly available. Therefore, by calculating the average of the conflict between every two pieces of evidences, they defined the valid coefficients of evidences, and then allocated total evidential conflict to propositions according to a certain proportion. Li et al. li2001efficient pointed out that Sun et al.’s method sun2000new has a clear physical meaning and subjective factors of the formulas, but they are not obvious. Some models are presented to allocate evidential conflict in accordance with the weighted averaging support of each proposition wang2019base ; li2020improved . The belief entropy also attracts many attentions deng2016deng ; song2018evidence ; jirouvsek2018new ; Zheng2020Deng . Other solutions for this problem can be found in xiao2018improved ; xiao2019multi ; liu2017weighted . In this paper, we will focus on the process of using multi-source information to generate BPAs in the open world, which is the base of data fusion in the evidence theory.

Many BPA generation methods based on the complete frame of discernment have been proposed by researchers. For example, Xu et al. xu2013new

generated BPA of a nested structure by probability density function. Denoeux

denoeux2008k used the training samples to generate BPA. The similarity between the training samples and its neighboring samples is calculated, then the similarity was combined with the actual subjection degree information to make a final judgement. With the upgrading of detection instruments and other equipment, the ability to obtain information has improved, which may lead to the existence of some unknown classes of the elements out of the frame of discernment. Hence, in reality, most of the frames of discernment may be in the open world. In the open world, also named the incomplete frame of discernment, Deng deng2015generalized defined a novel concept called generalized basic probability assignment (GBPA) to model uncertain information, and provide a generalized combination rule (GCR) for the combination of GBPAs. Zhang et al. zhang2017method proposed a method using triangular fuzzy numbers to determine BPA in the open world, which can generate reasonable GBPA based on the prior sample data and decrease conflicts among the propositions. Jiang et al. jiang2018improved also put forward a new method to generate GBPA in the open world according to the triangular fuzzy numbers. It defined a pessimistic strategy based on the magnitude of the difference between samples and the model to obtain the known target’s BPA. However, most of the methods have the disadvantages of computational complexity, which may not meet the needs of real-time changes. And the recognition accuracy of those method needs to be improved. Consequently, how to effectively and quickly generate GBPA in the incomplete frame of discernment is still an open issue.

In the article deng2011methods , Deng pointed out that the strongly constrained GBPA generation method can generate a GBPA with an empty set that is not equal to zero, and its size reflects the possibility that the system is the open world. Zhang et al. zhang2017method proposed a new method based on triangular fuzzy number to determine BPA in the open world. In the article zhang2017method

, the mean value, standard deviation, extreme values as well as triangular membership function of each attribute are utilized to generate the fuzzy triangle curves, and construct the nested structure BPA function with an assignment for the null set. With the in-depth study, Jiang et al.

jiang2017modified found that the GCR still has its issue. Therefore, a modified generalized combination rule (mGCR) in the framework of generalized evidence theory (GET) was proposed. The mGCR satisfies all properties of GCR in GET, illustrating and modeling the real world more reasonably than the original. In comparison with the method in zhang2017method , the contribution of the proposed method can be distinguished as follows:

  1. The proposed method simplifies the generation criterion of . In zhang2017method , the sum of the generated GBPA values may exceed 1, and the generation criterion of depends not only on whether the sample intersects the triangular fuzzy numbers represented by propositions, but also on whether the sum of the GBPA values of other single-subset and multi-subset propositions is greater than 1. In the proposed method, the sum of GBPA values for all propositions is less than or equal to 1, and the generation criterion of is just 1 minus the sum of GBPA values of all single-subset propositions and multi-subset propositions. In this way, the generation criterion of in this method is simpler.

  2. The proposed method improves the strategy for generation of GBPA. When the sample intersects with the triangular fuzzy number representation model of multiple propositions, the strongly constrained GBPA generation strategy is: the high point of the ordinate is the GBPA that the sample supports the proposition, and the low point of the ordinate is the GBPA that the sample supports the multi-subset proposition. The GBPA generation strategy in this paper is: the interval length of the high point of the ordinate minus the low point of the ordinate is the GBPA for which the sample supports a single or multiple subset proposition, the low point of the ordinate is the GBPA that the sample supports the multi-subset proposition.

  3. The method in this paper generalized the ability of modeling uncertain information in the open world by generating more non-zero values of . In zhang2017method , is often given 0 because the sum of non-empty sets’ values of GBPA exceed 1, but in the proposed method, 0 will be assigned only when the sample and the triangle fuzzy number model of the proposition intersect the vertex. Therefore, the improved method will have a better chance to generate for incomplete information, which reduces the loss of external environmental information.

The rest of the paper is arranged as follows. Section 2 introduces the preliminary of this paper. Section 3 proposes a new method to generate GBPA. Section 4 uses UCI data sets to prove the effectiveness and superiority of the proposed method. Section 5 discusses the application of the proposed model in a closed world as well as the experiment basing on the improved Dempster combination rule. Section 6 draws a conclusion.

2 Preliminaries

Some preliminaries are briefly introduced in this section, including Dempster-Shafer evidence theory shafer1976mathematical ; dempster1967upper , Generalized evidence theory deng2015generalized , Triangle fuzzy number zadeh1965fuzzy ; dubois1978operations , and Modified generalized combination rule jiang2017modified .

2.1 Dempster-Shafer Evidence Theory

Dempster-Shafer evidence theory was proposed by Dempster dempster1967upper and was then further developed by Shafer shafer1976mathematical . In this part, a few concepts of Dempster-Shafer evidence theory are mainly introduced. The concepts are introduced as below.

Definition 1

Assume that is a nonempty set with mutually exclusive and exhaustive events, is the frame of discernment (FOD). The power set of consists of elements denoted as follows:

(1)
Definition 2

A mass function is a mapping from the power set to the interval [0,1]. satisfies:

(2)

If , then is called a focal element. indicates the support degree of the evidence on the proposition .

Definition 3

The body of evidence (BOE), also known as basic probability assignment (BPA) or basic belief assignment (BBA), is defined as the focal sets and the corresponding mass functions:

(3)

where is a subset of the power set .

Definition 4

A BPA can also be represented by the belief function or the plausibility function , defined as follows:

(4)
Definition 5

In Dempster-Shafer evidence theory, 2 independent mass functions and can be fused with Dempster’s rule of combination:

(5)

where is a normalization factor defined as follows:

(6)

2.2 Generalized evidence theory

The basic concepts of generalized evidence theory (GET) is introduced in this section deng2015generalized . In GET, the generalized basic probability assignment (GBPA) corresponds to BPA in Dempster-Shafer evidence theory, which is used for data expression and modeling, and the generalized combination rule (GCR) is provided for combining conflicting or inconsistent or uncertain evidence.

Definition 6

Suppose that is a frame of discernment in an open world. Its power set, , is composed of propositions, . A mass function is a mapping , that satisfies

(7)

Then, is the GBPA of the frame of discernment, . The difference between GBPA and traditional BPA is the restriction of . In GET, is not necessary in GBPA, and this is a big difference from conventional Dempster-Shafer evidence theory. In other words, the empty set can also be a focal element. If , the GBPA reduces to a conventional BPA in Dempster-Shafer evidence theory.

Definition 7

Given a GBPA , the GBF is GBel: , which satisfies

(8)

and

(9)
Definition 8

Given a GBPA , the GBF is GPl: , which satisfies

(10)

and

(11)
Definition 9

In generalized evidence theory, means that the intersection between two empty sets is still an empty set. Given two GBPAs ( and ), the GCR is defined as follows.

(12)
(13)
(14)
(15)
Definition 10

Jiang et al. proposed a modified generalized combination rule (mGCR) jiang2017modified to improve the shortcomings of the generalized evidence combination rule. Given two sets of GBPAs , the modified generalized combination rule is defined as follows:

(16)
(17)

with

(18)
(19)

2.3 Triangle Fuzzy Number

The theory of fuzzy number dubois1978operations is based on the fuzzy set which is proposed by Zadeh in 1965 zadeh1965fuzzy , a fuzzy set in a certain domain of discourse can be represented as a membership function . For there always exists a . And is called the membership degree of to .

A triangular fuzzy number is a fuzzy number with a piecewise liner membership function defined by:

(20)

A fuzzy number is limited with its upper bound and lower bound . Symbol corresponds the most likely value.

3 A new approach for the generation of GBPA

Based on the multi-subset propositional representation model of fuzzy mathematics, this paper proposes a method to generate GBPA in the incomplete framework of discernment. The prerequisite is to have prior knowledge of the maximum, minimum, and mean values in the sample data of all classes. Hence, the proposed method is suitable for practical projects that contain an amount of sample data. The idea of the proposed method is that if a sample is between the maximum and minimum values of multiple classes, it is considered that the sample has GBPA that supports multiple propositions and GBPA that supports the single proposition. The detailed steps of the proposed method are as follows:

Step 1

Set the minimum of the triangular membership function to 0.01. When the attribute value of the test sample is equal to the maximum or minimum of the triangular fuzzy number model, it is unreasonable to assign the membership degree of the attribute to 0. Therefore, the minimum of the triangle membership function is set to 0.01, so that it can avoid unreasonable situations and not change the boundary value of the triangle fuzzy number model too much.

Step 2

When the test sample intersects with the triangular fuzzy number models, intersection points will be produced. Symbolize the ordinate values in ascending order as .

Step 2.1

Determine the interval of to belongs to which triangular fuzzy number model that contains the most propositional subsets.

Step 2.2

The ordinate of minus the ordinate of is the GBPA for which multi-subset proposition the sample supports. Let represent the BPA value of the focal element . Figure 1 is the visual form of this rule. The detailed rule are as follows:

(21)

Figure 1: The generation of GBPA

Step 3

Assign the value that 1 minus the sum of generated GBPA values to . Because the framework of discernment is incomplete, is used to represent the influence of external environmental factors.

In Figure 2, the ordinate represents the GBPA value, and the abscissa represents the data detected by the sensor. For sensor 3, the test sample only intersects the triangle fuzzy number model of class C. Obviously, the test sample’s GBPAs is divided into 2 parts. The lower part of the interval is in the triangle fuzzy number model of class C, so the length of the interval is the value of . The upper part of the interval is not in any triangle fuzzy number models, so the length value of this interval is assigned to . For sensor 2, the test sample intersects the triangle fuzzy number model of class A, class B and class C. The test sample’s GBPA is divided into 4 parts. The bottom interval is in the common representation model of class A, class B and class C, so its length is equal to , and the interval above it is in the representation model of class A and class B, so the length of the interval is equal to and so on. Through the above steps, the generation of GBPA for the second sensor can be completed.


Figure 2: The example of generation of GBPA

4 Experiment

In this section, a series of experiments for verification of the proposed method is designed. These experiments not only use the data set to demonstrate the generation of GBPA, but also use data set to test the rationality and performance of the proposed method, as well as analyze the robustness of classification accuracy.

4.1 An example to generation of GBPA

In this section, data set is used to demonstrate the effectiveness of GBPA generation in the open world. The data set contains cases from a study that was conducted between 1958 and 1970 at the University of Chicago’s Billings Hospital. The study counted the age of patients at time of operation, the patients’ year of operation, the number of positive axillary nodes detected, and the patients’ final survival status. Of these cases, 225 patients survived 5 years or longer, and 81 patients died within 5 years.

In the data set, the framework of discernment is set to , event represents the result of the patient’s survival for 5 years or more, and the event represents the result of the patient’s death within 5 years. In events and , 200 and 72 cases are randomly selected as the training set, and the remaining samples are used as the test set. In the proposed method, each of the four attributes is treated as an independent information source, and test samples’ GBPA are generated with a step length of 1. Each GBPA of the test samples is marked on the triangular fuzzy number representation models. The distribution of GBPA on the frame of discernment of the age of patients at time of operation is shown in Figure 3. The distribution of GBPA on the frame of discernment of the patients’ year of operation is shown in Figure 4. The distribution of GBPA on the frame of discernment of the number of positive axillary nodes detected is shown in Figure 5.

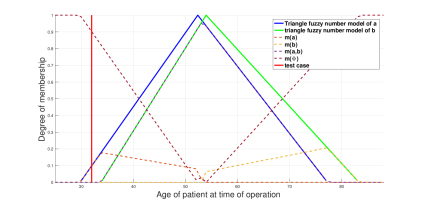

Figure 3: Curves in attribute of the age of patients at time of operation

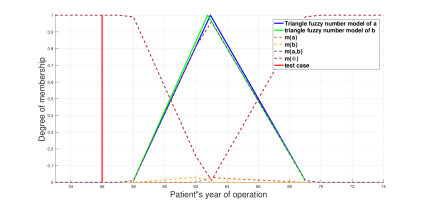

Figure 4: Curves in attribute of the patients’ year of operation

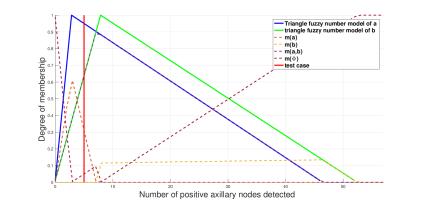

Figure 5: Curves in attribute of the number of positive axillary nodes detected

Figure 3, Figure 4, and Figure 5 show the following features.

1)

When the test sample is not in the interval of the triangular fuzzy number model of class a and class b, as shown in Figure 4 where the sample’s value is less than 58, the test sample has no intersection with the triangular fuzzy number model of class a and class b. Therefore, it is easy to get , and , , which means that the system cannot determine which target the test sample belongs to, or which target it is more inclined to belong to. In practical engineering applications, when class a and class b are not within the frame of discernment, it is a reasonable behavior to consider the test sample as an unknown class.

2)

When the test sample is in the triangular fuzzy number of class a but not in the triangular fuzzy number of class b, as shown in Figure 3 where the test sample’s value is equal to 32, only and are available for GBPA values greater than 0, and decreases as increases in the frame of discernment. If the system supports class more and more, it indicates that the system is more and more convinced that the discriminated class belongs to class a, rather than unknown classes.

3)

When the test sample is in the mixed triangular fuzzy number of class a and class b, a nested set is generated. The value of and decreases or does not change as the value of increases. The value of reaches the maximum when the test sample is at the intersection point of the two triangular fuzzy number representation models of class a and class b. As shown in Figure 5 where the number of positive axillary nodes detected is equal to 7, the system considers that the recognized object is most likely to belong to . In the common interval of triangular fuzzy number models class a and class b, the value of is related to , , , and their relationship can be expressed as .

4.2 Application in classification of Iris data set in the open world

In this section, data set of is used to verify the rationality and performance of the proposed method. In the data set, there are three classes of iris, namely Setosa (a), Versicolor (b) and Virginia (c), each of which contains 50 samples. Each sample includes four attributes, namely calax length (SL), calax width (SW), petal length (PL), and petal width (PW). 40 samples are randomly selected from each class as the training set, use the maximum, minimum, and mean values of each attribute of each class in the training set to construct the corresponding triangular fuzzy number model, and set the remaining samples as the test set to verify the rationality of the proposed method. The following tables show the process of using a test sample from class a, generating GBPAs and using the modified generalized combination rule for data fusion in the open world.

We calculate the maximum, minimum, and mean values of the four attributes of the three iris classes in the training set, so that we can get the triangular fuzzy number of any attribute in each iris class. The detailed data of these 12 groups of triangular fuzzy numbers are shown in Table 1.

Class SL SW PL PW
a (4.3000, 4.9975,5.8000) (2.3000,3.4125,4.2000) (1.0000,1.4650,1.9000) (0.1000,0.2525,0.6000)
b (4.9000, 5.9775,7.0000) (2.0000,2.7750,3.4000) (3.0000,4.2425,5.0000) (1.0000,1.3275,1.8000)
c (4.9000, 6.5050,7.7000) (2.2000,2.9600,3.8000) (4.5000,5.4850,6.9000) (1.5000,2.0150,2.5000)
Table 1: Triangular fuzzy numbers from the training set

A test sample was randomly selected from class a to generate GBPA. The test sample’s attribute values on SL, SW, PL, and PW are shown in Table 2.

Attribute SL SW PL PW
Value 5.1 3.8 1.5 0.3
Table 2: The attributes’ value of the sample

During classification, the attribute of the test sample is considered as independent information sources. In this way, driven by a certain attribute value of the test sample, GBPAs are obtained according to the intersection of the attribute value and the triangular fuzzy number models. The intersection of the four attribute values of the test sample with triangular fuzzy number models of a, b, and c is shown in Figure 6.

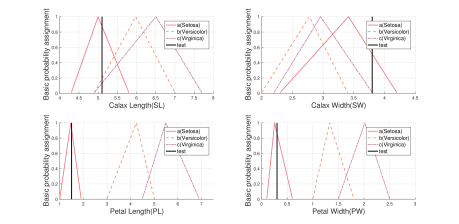

Figure 6: Intersection of test samples with triangular fuzzy number model

According to the proposed in this paper, the SL, SW, PL, and PW attribute values of the test samples are assigned according to the intersection with the triangular fuzzy number models. The assigned results are shown in Table 3. When the attribute value is at the boundary of one triangular fuzzy number model, as shown in Figure 6 where the value of SW is at the maximum of the triangular fuzzy number model of class b, its membership is 0.01, not 0.

Attribute
SL 0.680 0 0 0.061 0 0 0.133 0.126
SW 0.503 0 0 0 0.010 0 0 0.487
PL 0.920 0 0 0 0 0 0 0.080
PW 0.865 0 0 0 0 0 0 0.135
Table 3: GBPAs generated from test sample in the open world

After using the proposed method to generate GBPAs for each information source, mGCR was used to fuse the GBPAs generated by the four groups of information sources in Table 3. The final fusion results are shown in Table 4.

BPA
Value 0.9981 0 0 0 0 0 0 0.0019
Table 4: the fusion result of the test sample in the open world

It can be seen from the fusion results that the proposed method has a good performance. In the open world with environmental interference, it still assigns a very high belief value to the correct class a, which means a good recognition effect. The experiment in this section reflects the rationality and easy recognition of the proposed method.

4.3 Classification testing in the open world

In this section, the frame of discernment of the data set of is divided into three cases to model respectively:

(22)

where stands for class Setosa, stands for class Versicolor, and stands for class Virginica. For example, in the framework of discernment , for each test sample, four sets of GBPAs will be generated according to their attributes. If the actual class of the test sample is , then the maximum belief value should be assigned to . Since the class is not in the framework of discernment, for the test sample whose actual class is , a high belief value assigned to is reasonable.

The result of the proposed method with the true class of test samples is compared in three frameworks of discernment respectively. In each framework of discernment, 40 samples are randomly selected from each class as the training set, and the remaining 10 samples are used as the test set. In addition, 10 samples are randomly selected from the ”unknown class” and added to the test set to serve as unknown factors in the open world. Each attribute of the data set is still considered as an independent information source. After using mGCR to fuse all evidences of the test sample, a new BOE is generated. The final decision rule in the new BOE is to select the class corresponding to the maximum GBPA. The results of three frameworks of discernment are shown in Table 5, Table 6, and Table 7. The accuracy of the final result reflects the high efficiency of the proposed method.

Sample Actual class Ideal class Sample number Correct number Accuracy
a a 20 16 80.00%
b b 20 20 100.00%
c 20 20 100.00%
Total - - 60 56 93.30%
Table 5: Classification results in the open world
Sample Actual class Ideal class Sample number Correct number Accuracy
a a 20 20 100%
b 20 20 100%
c c 20 20 100%
Total - - 60 60 100%
Table 6: Classification results in the open world
Sample Actual class Ideal class Sample number Correct number Accuracy
a 20 20 100.00%
b b 20 20 100.00%
c c 20 15 75.00%
Total - - 60 55 91.60%
Table 7: Classification results in the open world

5 Discussion

A good decision usually has downward compatibility. When the whole set of BPA is assigned to be singleton propositions in the frame of discernment, the BPA is equal to the probability in probability theory. As another example, if a system is in the closed world, the GCR assigns to 0, and then the GCR degenerates to the Dempster combination rule. Similarly, the proposed method can also be used in the complete frame of discernment. Only the final step of the proposed method is needed to change. Let the value of 1 minus the sum of GBPAs value be evenly distributed to the other BPAs ( is the cardinality of the frame of discernment), indicating that each event is equally likely to occur.

5.1 Compatibility in classification of Iris data set in the closed world

The value of is evenly distributed in Table 3 to other BPAs, so that the BPA is constructed in the closed world. The distribution results in the closed world are shown in Table 8, where the fraction represents the value evenly obtained from the value of .

Attribute
SL
SW
PL
PW
Table 8: BPA generated from the test sample in the closed world

The Dempster combination rule is used to fuse the evidences in Table 8. Then, the final fusion results are shown in Table 9.

BPA
Value 0.9995 0.0002 0.0001 0.0001 0 0 0
Table 9: The fusion result of the test sample in the closed world

From the fusion results in Table 9, it can be seen that as there is no interference from external environmental factors, this method assigns higher belief value than that in the open world () to the correct class a, reflecting the effectiveness of this method in the complete frame of discernment. In this section, It is proved that this method has good downward compatibility. In the closed world where is no Interference caused by external environmental factors, the results obtained by this method are more discerning. For practical applications in unstable environments (referring to switching between the open and closed world), just the last step of this method is needed to switch easily, which shows the simplicity and flexibility of this method.

5.2 Robust experiments with adjusted the training set proportions in the closed world

In this section, the impact on classification performance is explored when changing the proportion of the training set in the closed world. If the result of this method still has a good effect in the case of a low proportion of training, it indicates that this method has strong robustness. We utilize the data set of , and use 10 times randomized leave-out method respectively under the different proportions of the training set, to obtain the average value as the final recognition accuracy.

Table 10 shows all the accuracies obtained by this method at different proportions of training set, where each column represents the proportion of the training set, and each row represents the n-th leave-out method. Figure 7 visualizes the data in the Table 10, where the abscissa represents the proportion of the training set, the ordinate represents the -th leave-out method, and the height of the cylinder indicates the recognition accuracy. It is clear from Figure 7 that with the increase in the proportion of the training set, the recognition accuracy is getting higher and higher generally. Table 11 shows the average recognition accuracy under different training set proportions.

Training part 1st 2nd 3rd 4th 5th 6th 7th 8th 9th 10th
10% 70.83% 91.67% 75.00% 79.17% 66.67% 91.67% 62.50% 75.00% 87.50% 87.50%
20% 87.50% 95.83% 79.17% 91.67% 75.00% 87.50% 87.50% 87.50% 87.50% 91.67%
30% 95.83% 75.00% 87.50% 83.33% 87.50% 95.83% 87.50% 87.50% 87.50% 79.17%
40% 91.67% 83.33% 83.33% 83.33% 87.50% 87.50% 91.67% 91.67% 79.17% 95.83%
50% 86.67% 84.44% 82.22% 88.89% 91.11% 86.67% 93.33% 80.00% 93.33% 86.67%
60% 88.33% 93.33% 88.33% 90.00% 91.67% 95.00% 90.00% 91.67% 93.33% 90.00%
70% 88.89% 75.00% 91.67% 94.44% 91.67% 91.67% 88.89% 94.44% 0.9722 91.67%
72% 88.89% 88.83% 86.11% 86.11% 91.67% 94.44% 97.22% 88.89% 91.67% 94.44%
74% 100.00% 83.33% 94.44% 86.11% 94.44% 91.67% 80.56% 94.44% 88.89% 88.89%
76% 88.89% 91.67% 94.44% 91.67% 88.89% 88.89% 80.56% 94.44% 91.67% 86.11%
78% 88.89% 88.89% 91.67% 88.89% 94.44% 86.11% 94.44% 91.67% 94.44% 94.44%
80% 93.33% 93.33% 93.33% 86.67% 86.67% 93.33% 86.67% 93.33% 0.8667 93.33%
82% 86.11% 91.67% 88.89% 88.89% 86.11% 88.89% 88.89% 88.89% 94.44% 94.44%
84% 91.67% 94.44% 86.11% 91.67% 94.44% 94.44% 88.89% 86.11% 97.22% 91.11%
86% 91.67% 94.44% 91.67% 88.89% 88.89% 80.56% 94.44% 91.67% 86.11% 91.67%
88% 91.67% 88.89% 80.56% 91.67% 97.22% 80.56% 97.22% 94.44% 0.8333 86.11%
90% 94.44% 94.44% 91.67% 88.89% 91.67% 86.11% 94.44% 86.11% 88.89% 91.67%
92% 94.44% 94.44% 88.89% 91.67% 86.11% 88.89% 88.89% 91.67% 88.89% 91.67%
94% 94.44% 100.00% 97.22% 91.67% 91.67% 91.67% 91.67% 91.67% 91.67% 91.67%
96% 97.22% 86.11% 91.67% 88.89% 97.22% 91.67% 91.67% 94.44% 94.44% 91.67%
98% 91.67% 97.22% 88.89% 88.89% 91.67% 88.89% 94.44% 97.22% 88.89% 88.89%
Table 10: The recognition accuracy for the 1st, 2nd, …, and 10th randomized leave-out experiment with different proportions of training set in the closed world

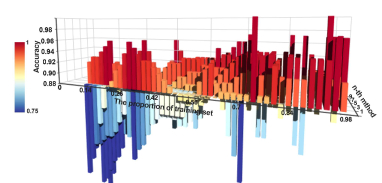

Figure 7: The recognition accuracy of different proportions of the training set in the closed world
Training part 10% 20% 30% 40% 50% 60% 70% 72% 74% 76% 78%
Average accuracy 78.75% 87.08% 86.67% 87.50% 87.33% 91.17% 90.57% 90.28% 90.28% 89.72% 91.39%
Training part 80% 82% 84% 86% 88% 90% 92% 94% 96% 98%
Average accuracy 90.67% 89.72% 91.11% 90.00% 89.17% 90.83% 90.56% 93.33% 92.50% 91.67%
Table 11: The average accuracy of leave-out method in the closed world

As known, the accuracy of classification methods is positively related to the proportion of the training set. When the training set contains most samples, the model will cause over-fitting, leading to the evaluation result that may not be stable and accurate, which is also the disadvantage of using the leave-out method. In order to cross-validate the accuracy of this method, the cross-validation method is used to modify the average accuracy in Table 11. Compared with the leave-out method, the cross-validation method can improve the stability and fidelity of the evaluation results to a certain extent. Taking into account that the proportion that is not a multiple of ten cannot divide the data set into subsets evenly, which makes the process of evaluation difficult, so 10-times-10-fold cross-validation method and 10-times-5-fold cross-validation method are used respectively for cases with 80% and 90% of the proportion of the training sets. The calculated accuracy also represents the accuracy of its surrounding interval [-5,5]. For example, 10-times-5-fold cross-validation method is as follows:

1)

Divide the data set into 5 mutually exclusive subsets of the same size. In other words, let . are mutually exclusive, where each subset is obtained from D by a stratified sampling method, thereby maintaining the consistency of data.

2)

Use 4 subsets as the training set and the remaining one as the test set each time. In this way, sets of training / test sets can be obtained, so that training and testing can be performed, and the average value of test results can be finally obtained.

3)

Repeat step 2) 10 times to get the average value. The purpose of this step is to reduce the differences caused by different sample partitions.

4)

Modify the original data from 76% to 94% according to the accuracy correction formula, which is defined as follows:

(23)

The results of using 10 times cross-validation for 80% and 90% of the training set proportions are shown in Table 12, where each row represents the proportion of the training set, and each column represents the -th cross-validation.

Training part 1st 2nd 3rd 4th 5th 6th 7th 8th 9th 10th Average accuracy
80% 92.00% 92.00% 89.33% 91.33% 89.33% 91.33% 90.67% 90.00% 91.33% 90.67% 90.80%
90% 91.33% 92.00% 92.00% 91.33% 91.33% 90.67% 92.00% 91.33% 91.33% 92.00% 91.53%
Table 12: The accuracy of cross-validation in the closed world for the 1st, 2nd, …, and 10th randomized leave-out experiment

After using the accuracy correction formula, the corrected accuracy of the proportion of the training set is as follows:

Training part 76% 78% 80% 82% 84% 86% 88% 90% 92% 94%
Modified accuracy 90.26% 91.09% 90.73% 90.26% 90.95% 90.76% 90.35% 91.18% 91.05% 92.43%
Table 13: The modified accuracy with different proportion of the training set

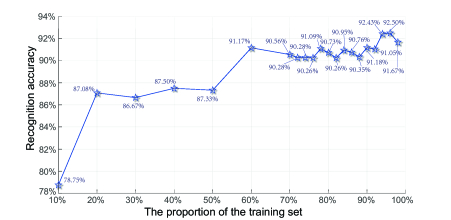

Figure 8: The recognition accuracy

Figure 8 shows the classification accuracy of this method under different proportions of the training set. The abscissa represents the proportion of training set and the ordinate represents the recognition accuracy. It can be roughly seen from Figure 8 that when the proportion of the training set is higher, the recognition accuracy is higher, and finally tends to stabilize gradually. It is showed that when the number of training samples is sufficient, this method can correctly recognize unknown classes with high accuracy. Even when the number of training samples is not enough, as shown in Figure 8 where the training set accounts for only 10%, the accuracy of recognition accuracy approaches 80%, and when it accounts for 20%, the recognition accuracy can reach 87%. This method is of great help in practical engineering applications with little experimental data. This section verifies that this method has high efficiency and strong robustness.

5.3 Comparative analysis of experimental results of improved Dempster combination rule

Although the recognition accuracy of this method is relatively satisfactory in the closed world, there is still flaw when using the Dempster combination rule to fuse evidence. The reason for the flaw is that the Dempster combination rule is sensitive to during fusion. Here is a special example to explain the impact of the flaw. Assume there are 2 sensors to recognize 3 classes A, B, and C. The data obtained from the sensors are as follows:

(24)

The results obtained from Dempster combination rule are as follows:

(25)

Obviously, using Dempster’s combination rule will produce result that is counter-intuitive, which is very unreasonable and unreliable. It can be seen that the classic Dempster combination rule cannot work when the evidence has a highly conflict. However, the negation method can provide information from the opposite perspective. When using negation of BPA instead of the original BPA, the following data can be obtained:

(26)

Using the Dempster combination rule on the above data can get the following results:

(27)

From the above fusion results, it can be seen that the belief value of non-target C is higher than that of non-target A and non-target B, and the belief value of non-target A is equal to that of non-target B, which is in common sense. Therefore, in the closed world, the recognition accuracy in this paper can be further improved through the negation of BPA.

6 Conclusions

In the framework of Dempster-Shafer evidence theory, this paper proposes a method that can generate both GBPA in the open world and BPA in the closed world. The proposed method is based on a multi-subset propositional representation model, where the principle is simple and intuitive as well as be able to cope with complex and unstable environmental conditions. The proposed method enhances the ability to model incomplete information in the open world, thus, it can detect more unknown information in the external environment and to reduce the loss of effective information. Based on the experiments of the data set of in the open world, the experimental result shows that the fusion result of the proposed method can be very distinguishable, and its recognition accuracy in practical applications also has a promising performance. We discussed the property of the proposed method, and verified that the proposed method has a downward compatibility in classification and robust experiments. In the closed world, the proposed method can assign a belief value of above 0.999 to the correct class according to the fusion result. Even if the system is in an unfamiliar environment with a small number of training samples, the robustness experiment that investigates the recognition accuracy by changing the proportion of the training set verifies that the recognition accuracy can be as high as 87% even when the proportion of the training set is 20%.

References

  • [1] Limao Zhang, Xianguo Wu, Hongping Zhu, and Simaan M AbouRizk. Perceiving safety risk of buildings adjacent to tunneling excavation: An information fusion approach. Automation in Construction, 73:88–101, 2017.
  • [2] Daming Zhou, Ahmed Al-Durra, Fei Gao, Alexandre Ravey, Imad Matraji, and Marcelo Godoy Simões. Online energy management strategy of fuel cell hybrid electric vehicles based on data fusion approach. Journal of power sources, 366:278–291, 2017.
  • [3] Animesh Debnath, Abhirup Bandyopadhyay, Jagannath Roy, and Samarjit Kar. Game theory based multi criteria decision making problem under uncertainty: a case study on indian tea industry. Journal of Business Economics and Management, 19(1):154–175, 2018.
  • [4] Zichang He and Wen Jiang. An evidential dynamical model to predict the interference effect of categorization on decision making results. Knowledge-Based Systems, 150:139–149, 2018.
  • [5] Amin Janghorbani and Mohammad Hassan Moradi. Fuzzy evidential network and its application as medical prognosis and diagnosis models. Journal of biomedical informatics, 72:96–107, 2017.
  • [6] Yun Lin, Yuyao Li, Xuhong Yin, and Zheng Dou. Multisensor fault diagnosis modeling based on the evidence theory. IEEE Transactions on Reliability, 67(2):513–521, 2018.
  • [7] Yafei Song, Xiaodan Wang, Jingwei Zhu, and Lei Lei. Sensor dynamic reliability evaluation based on evidence theory and intuitionistic fuzzy sets. Applied Intelligence, 48(11):3950–3962, 2018.
  • [8] Peter Chemweno, Liliane Pintelon, Peter Nganga Muchiri, and Adriaan Van Horenbeek. Risk assessment methodologies in maintenance decision making: A review of dependability modelling approaches. Reliability Engineering & System Safety, 173:64–77, 2018.
  • [9] Palash Dutta. Modeling of variability and uncertainty in human health risk assessment. MethodsX, 4:76–85, 2017.
  • [10] Hamidreza Seiti and Ashkan Hafezalkotob. Developing pessimistic–optimistic risk-based methods for multi-sensor fusion: An interval-valued evidence theory approach. Applied Soft Computing, 72:609–623, 2018.
  • [11] Luyuan Chen and Yong Deng. A new failure mode and effects analysis model using dempster–shafer evidence theory and grey relational projection method. Engineering Applications of Artificial Intelligence, 76:13–20, 2018.
  • [12] Zhun-Ga Liu, Quan Pan, Jean Dezert, and Arnaud Martin.

    Combination of classifiers with optimal weight based on evidential reasoning.

    IEEE Transactions on Fuzzy Systems, 26(3):1217–1230, 2017.
  • [13] Zhunga Liu, Quan Pan, Jean Dezert, Jun-Wei Han, and You He. Classifier fusion with contextual reliability evaluation. IEEE transactions on cybernetics, 48(5):1605–1618, 2017.
  • [14] Shiyu Chen, Yong Deng, and Jiyi Wu. Fuzzy sensor fusion based on evidence theory and its application. Applied Artificial Intelligence, 27(3):235–248, 2013.
  • [15] Ahmed Frikha and Hela Moalla. Analytic hierarchy process for multi-sensor data fusion based on belief function theory. European Journal of Operational Research, 241(1):133–147, 2015.
  • [16] Seiichi Nakamori, Raquel Caballero-Águila, Aurora Hermoso-Carazo, and Josefa Linares-Pérez.

    Linear recursive discrete-time estimators using covariance information under uncertain observations.

    Signal processing, 83(7):1553–1559, 2003.
  • [17] Sally McClean, Bryan Scotney, and Mary Shapcott. Aggregation of imprecise and uncertain information in databases. IEEE Transactions on Knowledge and Data Engineering, 13(6):902–912, 2001.
  • [18] Bingyi Kang, Gyan Chhipi-Shrestha, Yong Deng, Kasun Hewage, and Rehan Sadiq. Stable strategies analysis based on the utility of z-number in the evolutionary games. Applied Mathematics and Computation, 324:202–217, 2018.
  • [19] Lotfi A Zadeh. A note on z-numbers. Information Sciences, 181(14):2923–2932, 2011.
  • [20] Xihua Li and Xiaohong Chen. D-intuitionistic hesitant fuzzy sets and their application in multiple attribute decision making. Cognitive Computation, 10(3):496–505, 2018.
  • [21] Hongming Mo and Yong Deng. A new mada methodology based on d numbers. International Journal of Fuzzy Systems, 20(8):2458–2469, 2018.
  • [22] Fuyuan Xiao. A novel multi-criteria decision making method for assessing health-care waste treatment technologies based on d numbers. Engineering Applications of Artificial Intelligence, 71:216–225, 2018.
  • [23] Tian Bian, Haoyang Zheng, Likang Yin, and Yong Deng. Failure mode and effects analysis based on d numbers and topsis. Quality and Reliability Engineering International, 34(4):501–515, 2018.
  • [24] Zeshui Xu and Hai Wang. On the syntax and semantics of virtual linguistic terms for information fusion in decision making. Information Fusion, 34:43 – 48, 2017.
  • [25] Willliam Feller. An introduction to probability theory and its applications, volume 2. John Wiley & Sons, 2008.
  • [26] José M Bernardo and Adrian FM Smith. Bayesian theory, volume 405. John Wiley & Sons, 2009.
  • [27] Arthur P Dempster. Upper and lower probabilities induced by a multi-valued mapping. Annals of Mathematical Statistics, 38(2):325–339, 1967.
  • [28] Glenn Shafer. A mathematical theory of evidence, volume 42. Princeton university press, 1976.
  • [29] Hepeng Zhang and Yong Deng. Weighted belief function of sensor data fusion in engine fault diagnosis. Soft Computing, pages 1–11, 2019.
  • [30] Xuelian Zhou and Yongchuan Tang. A note on incomplete information modeling in the evidence theory. IEEE Access, 7(1):166410–166414, 2019.
  • [31] Yuzhen Han and Yong Deng. An enhanced fuzzy evidential dematel method with its application to identify critical success factors. Soft computing, 22(15):5073–5090, 2018.
  • [32] Yu-Ting Liu, Nikhil R Pal, Amar R Marathe, and Chin-Teng Lin. Weighted fuzzy dempster–shafer framework for multimodal information integration. IEEE Transactions on Fuzzy Systems, 26(1):338–352, 2017.
  • [33] Kuang Zhou, Arnaud Martin, Quan Pan, and Zhunga Liu. Selp: Semi–supervised evidential label propagation algorithm for graph data clustering. International Journal of Approximate Reasoning, 92:139–154, 2018.
  • [34] Zhi-gang Su and Thierry Denoeux. Bpec: Belief-peaks evidential clustering. IEEE Transactions on Fuzzy Systems, 27(1):111–123, 2018.
  • [35] Jintao Meng, Dongmei Fu, and Yongchuan Tang. Belief-peaks clustering based on fuzzy label propagation. Applied Intelligence, 50:1259–1271, 2020.
  • [36] Xinyang Deng and Wen Jiang. Dependence assessment in human reliability analysis using an evidential network approach extended by belief rules and uncertainty measures. Annals of Nuclear Energy, 117:183–193, 2018.
  • [37] Wen Jiang. A correlation coefficient for belief functions. International Journal of Approximate Reasoning, 103:94–106, 2018.
  • [38] Chao Fu, Dong-Ling Xu, and Shan-Lin Yang. Distributed preference relations for multiple attribute decision analysis. Journal of the Operational Research Society, 67(3):457–473, 2016.
  • [39] Chao Fu, Dong-Ling Xu, and Min Xue. Determining attribute weights for multiple attribute decision analysis with discriminating power in belief distributions. Knowledge-Based Systems, 143:127–141, 2018.
  • [40] Fuyuan Xiao. A novel evidence theory and fuzzy preference approach-based multi-sensor data fusion technique for fault diagnosis. Sensors, 17(11):2504, 2017.
  • [41] Yongjian Gong, Xiaoyan Su, Hong Qian, and Ning Yang. Research on fault diagnosis methods for the reactor coolant system of nuclear power plant based on d-s evidence theory. Annals of Nuclear Energy, 112:395 – 399, 2018.
  • [42] Gang Cheng, Xi-hui Chen, Xian-lei Shan, Hou-guang Liu, and Chang-fei Zhou. A new method of gear fault diagnosis in strong noise based on multi-sensor information fusion. Journal of Vibration and Control, 22(6):1504–1515, 2016.
  • [43] Xiaoyan Su, Lusu Li, Hong Qian, Sankaran Mahadevan, and Yong Deng. A new rule to combine dependent bodies of evidence. Soft Computing, 23(20):9793–9799, Oct 2019.
  • [44] Ronald R Yager. On the dempster-shafer framework and new combination rules. Information sciences, 41(2):93–137, 1987.
  • [45] Philippe Smets and Robert Kennes. The transferable belief model. Artificial intelligence, 66(2):191–234, 1994.
  • [46] Didier Dubois and Henri Prade. Default reasoning and possibility theory. Artificial Intelligence, 35(2):243–257, 1988.
  • [47] Quan Sun, X-q Ye, and W-K Gu. A new combination rules of evidence theory. Acta Electronica Sinica, 28(8):117–119, 2000.
  • [48] Bicheng Li, Bo Wang, Jun Wei, Yuqi Huang, and Zhigang Guo. Efficient combination rule of evidence theory. In Object Detection, Classification, and Tracking Technologies, volume 4554, pages 237–240. International Society for Optics and Photonics, 2001.
  • [49] Yunjuan Wang, Kezhen Zhang, and Yong Deng. Base belief function: an efficient method of conflict management. Journal of Ambient Intelligence and Humanized Computing, 10(9):3427–3437, 2019.
  • [50] Rongfei Li, Hao Li, and Yongchuan Tang. An improved method to manage conflict data using elementary belief assignment function in the evidence theory. IEEE Access, 8:37926–37932, 2020.
  • [51] Yong Deng. Deng entropy. Chaos, Solitons & Fractals, 91:549–553, 2016.
  • [52] Yafei Song, Xiaodan Wang, Wenhua Wu, Wen Quan, and Wenlong Huang. Evidence combination based on credibility and non-specificity. Pattern Analysis and Applications, 21(1):167–180, 2018.
  • [53] Radim Jiroušek and Prakash P Shenoy. A new definition of entropy of belief functions in the dempster–shafer theory. International Journal of Approximate Reasoning, 92:49–65, 2018.
  • [54] Haixia Zheng and Yongchuan Tang. Deng entropy weighted risk priority number model for failure mode and effects analysis. Entropy, 22(3):280, 2020.
  • [55] Fuyuan Xiao. An improved method for combining conflicting evidences based on the similarity measure and belief function entropy. International Journal of Fuzzy Systems, 20(4):1256–1266, 2018.
  • [56] Fuyuan Xiao. Multi-sensor data fusion based on the belief divergence measure of evidences and the belief entropy. Information Fusion, 46:23–32, 2019.
  • [57] Peida Xu, Yong Deng, Xiaoyan Su, and Sankaran Mahadevan. A new method to determine basic probability assignment from training data. Knowledge-Based Systems, 46:69–80, 2013.
  • [58] Thierry Denoeux. A k-nearest neighbor classification rule based on dempster-shafer theory. In Classic works of the Dempster-Shafer theory of belief functions, pages 737–760. Springer, 2008.
  • [59] Yong Deng. Generalized evidence theory. Applied Intelligence, 43(3):530–543, 2015.
  • [60] Jingfei Zhang and Yong Deng. A method to determine basic probability assignment in the open world and its application in data fusion and classification. Applied Intelligence, 46(4):934–951, 2017.
  • [61] Wen Jiang and Weiwei Hu. An improved soft likelihood function for dempster–shafer belief structures. International Journal of Intelligent Systems, 33(6):1264–1282, 2018.
  • [62] Yong Deng and Deqiang Han. Methods to determine generalized basic probability assignment in generalized evidence theory. Journal of Xi’an JiaoTong University, 45(2):34–38, 2011.
  • [63] Wen Jiang and Jun Zhan. A modified combination rule in generalized evidence theory. Applied Intelligence, 46(3):630–640, 2017.
  • [64] Lotfi A Zadeh. Fuzzy sets. Information and control, 8(3):338–353, 1965.
  • [65] Didier Dubois and Henri Prade. Operations on fuzzy numbers. International Journal of systems science, 9(6):613–626, 1978.
