1 Introduction
Few equations are as central to modern macroeconomics and current monetary policy debates as the Phillips Curve (PC) – and its modern incarnation, the New Keynesian Phillips Curve (NKPC). Yet, many problems plague its estimation and thus, our understanding of how increasing economic activity translates into higher pressures on the price level. Similarly, our understanding of how inflation expectations influence current inflation is also compromised.
This paper focuses on a predictive Phillips curve – building an equation that uses, among other things, some measure of real activity to forecast inflation. It provides a new solution to an extremely pervasive problem in empirical inflation modeling and economics research in general. Namely, the two key components of the NKPC, inflation expectations () and the output gap (), are both unobserved. Instantly, this opens the gates to the proxies’ zoo. Which gap to choose? Which inflation expectations at what horizon from whom? Those are crucial empirical choices on which theory is practically silent. and are necessary to produce and understand inflation forecasts, both of which are needed to guide monetary policy action – especially entering 2022.
A Hemisphere Neural Network. Taking a step back, what basic macroeconomic theory tells us, is that two sufficient statistics summarizing different groups of economic indicators should predict inflation reasonably well. More precisely, we know that (i) there should exist some abstract output gap, or in other words, a possibly nonlinear combination of variables related to the state of the economy (labor markets, industrial production, national accounts) that influence inflation, and (ii) some combination of price variables (past CPI values and several others) and other measures of inflation expectations also impact inflation directly. I make this vision operational by developing a new Deep Neural Network (DNN) architecture coined Hemisphere Neural Network (HNN). As the name suggests, the DNN is restricted so that its final inflation prediction is the sum of components composed from groups of predictors separated at the entrance of the network into different hemispheres. The peculiar structure allows the interpretation of the final layer’s cells output as key macroeconomic latent states in a linear equation – the NKPC. Moreover, the estimation of timevarying PC coefficients and the key latent states is performed within a single model.
While HNN’s development is motivated from inflation, its applicability extends to the various problems in economics where the link between "theoretical variables" and "Excel variables" is not crystal clear. Examples include the neutral interest rate, Taylor rules inputs, term premium, and of great interest recently, "financial conditions" in Adrian et al. (2019)
’s quantile regressions of GDP growth – a nontrivial and noninnocuous modeling choice
(PlagborgMøller et al., 2020). This extends to poorly measured observed explanatory variables. Thus, econometrically, this paper develops a new tool, rooted in modern deep learning machinery, to take the mismeasurement error bull by the horns. Obviously, HNN is by no means the first methodology dealing with latent state extraction
(Harvey, 1990; Durbin and Koopman, 2012) or attenuation bias (Schennach, 2016). But, when compared to the older generation of methods, its empirical merits will be decisive.This paper sits at the intersection of at least four literatures: estimating the output gap, estimating Phillips curves, interpretable artificial intelligence, and the application of deep learning methods in macroeconomic forecasting. Given how vast those literatures are, the substantial review and discussion of them are relegated to its own Section
3. By blending them into a common goal, substantial amelioration over traditional methods are attainable. In short, the method has four key advantages. First, by the virtues of being a supervised learning problem, HNN improves over methods where
is extracted from an economic activity series and then thrown in a "second stage" PC regression. That is, is by construction the most relevant summary statistic of real activity to explain inflation.Second, with respect to econometric methods that included some mild form of supervision in the estimation of (Kichian, 1999; Blanchard et al., 2015; Chan et al., 2016, 2018; Hasenzagl et al., 2018; Jarociński and Lenza, 2018), HNN improves by dropping restrictive law of motion assumptions inherent to a statespace methodology. It also handles easily a highdimensional group of inputs for both and and carries computations quickly through standard highly optimized deep learning software.
Third, nonlinearities in how activity variables translate into or (and ultimately ) are allowed through a deep and wide network architecture with over 2 million parameters. This is, in fact, a necessary feature given the accumulating evidence that the PC might be nonlinear with respect to traditional slack indicators (Lindé and Trabandt, 2019; Goulet Coulombe, 2020a; Forbes et al., 2021). Fourth, with respect to the numerous applications of neural networks in macroeconomic forecasting (see references in Section 3), HNN improves by being interpretable – through the components of the neural PC. Moreover, unlike most econometric applications of NNs, HNN fully embrace the implications from double descent phenomenon (Belkin et al., 2019; Hastie et al., 2019; Bartlett et al., 2020) by being overtly overparametrized and yet providing stellar results.
Results. Two main variants of HNN are proposed. The first one (HNN) is less restrictive on how exogenous timevariation mixes with other nonlinearities. The caveat is that only the gap’s contribution to inflation can be extracted from such a model. The second architecture (HNNF, the flagship model) has a builtin factorization which allows to disentangle ’s estimates from its exogenously timevarying coefficient.
Many new insights are obtained. First, forecasts are typically much better than traditional PCbased forecasts. Unlike plain DNNs, this can be understood in economic terms. For the post2008 period, this can be partly attributed to HNNF’s gap – projected outofsample – closing much faster than traditional ones, then slips back gently into negative territory in the mid2010s. HNN also captures the 2021 upswing in inflation and attributes it first to a rapid disanchoring in the expectations component, and then to a strongly positive output gap. While both effects’ peak are comparable in size to the 1970s, the components show much less persistence than they did four decades ago—in line with the stopandgo nature of economic constraints of the Pandemic era. Second, throughout the whole sample and for both architectures, the contribution of the output gap component is shown to be much higher than what is reported from timevarying PC regression with traditional gap measures. Thus, it appears that mismeasuring , to no astounding surprise, can severely bias downward its estimated impact on the price level. Conversely, the effect of the expectations component is found to be milder overall, with the notable exception of 2021, where it radically jumps upward while traditional estimates remain flat. Third, the Neural Phillips curve coefficient in HNNF is found to have decreased sharply in the early 1980s (somehow suggesting a break during Volker disinflation) then experience a revival starting from the 2000s. This contrasts with many traditional PC regressions suggesting the PC was buried in the last decade as a result of a decadeslong decline. As a result, HNNF – through its positive gap and aliveandwell PC coefficient – forecasts the inflation awakening of 2021.
A first extension is considered in which an additional "volatility" hemisphere is introduced. By simply altering the loss function in the software, the family of HNN models can deliver both forecasts
and the expected precision of those. Estimated conditional volatility showcases the usual Great Moderation pattern, but also volatility blasts in recessions punctuated with rapid movements in oil prices. Accordingly the network signaled exante its cluelessness about 2020Q3 and 2020Q4 but is confident in the upward forecasts of 2021.As mentioned earlier, the HNN paradigm allows more generally for the supervised estimation of any latent indicator related to inflation, beyond and . To that effect, two extensions are considered. Firstly, HNNF4NK extends the latter PC’s to include additional hemispheres for "credit conditions" and the central bank’s balance sheet, as suggested in Sims and Wu (2019)’s 4 equations NK model. HNNF4NK reports that, as derived in Sims and Wu (2019), favorable credit conditions have a negative marginal impact conditional on other components. In sharp contrast, a simpler approach with timevarying coefficients including the apparently suitable Chicago Fed National Financial Conditions Credit Subindex would suggest no such effect exists, or has the opposite sign. The second extension, HNNFIKS, creates, among other things, a supervised composite from a panel of international GDP growth data. It is found that, overall, and except for a few spikes (like some during the pandemic), the international "gap" has limited explanatory power for US inflation. HNNFIKS also includes a kitchen sink hemisphere whose variable importance analysis reports extended use of complementary variables that are all forwardlooking in nature – in accord with theory suggesting inflation is an expected discounted stream of future marginal costs.

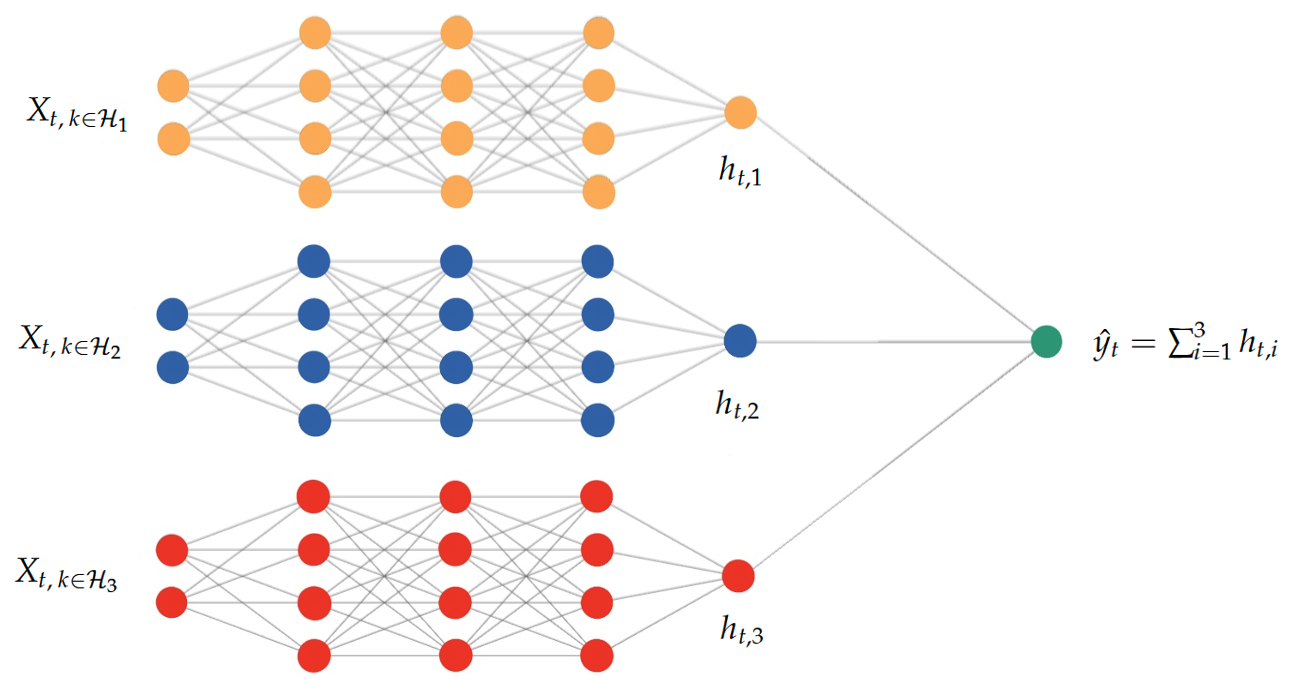

2 The Architecture
This section discusses the motivation behind the newly proposed network architecture. It all starts with an expectationsaugmented PC, or alternatively a NKPC derived from a linearized plain vanilla New Keynesian DSGE model (Galí, 2015):
(1)
In (1), and are parameters possibly evolving through time, which have lately appeared to be an empirical necessity (but not in the textbook derivation) in order to accurately describe inflation in most advanced economies (Blanchard et al., 2015), and is noise. Defining expectations less stringently as and acknowledging that empirically, commodity prices (energy in particular) can matter a lot, and may impact directly (Hazell et al., 2020), we get
(2)
Ultimately, we want those components to forecast inflation. Thus, let us turn (2) into the steps ahead predictive problem
(3)
Essentially, this is a 3factor model where we can define , , and . Thus, let , , and be the expectations, real activity, and commodities prices hemispheres, respectively.^{1}^{1}1The terms "gap" and "output gap" are used throughout the paper is a loose fashion, meaning they refer to a generic latent indicator of economic nonslack. That is, it refers to an abstract gap between aggregate demand and aggregate supply, not a deviation from the trend of a particular observed measure of economic output. In the context of the NKPC, HNN’s extraction could also be linked directly to the marginal cost. To make this operational, we impose some restrictions on a fully connected NN so that its ’s will carry economic meaning A shallow and narrow (for visual convenience) HNN architecture for the three hemispheres case is displayed in Figure 1.
Some remarks are in order. First, HNN’s architecture is trivially extendable to more than 3 hemispheres. This makes it convenient for splitting some hemispheres in subhemispheres (like expectations into shortrun vs. longrun). It also makes it a flexible testing ground for theories claiming the NKPC should be augmented with something, but that something is not clearly defined in terms of what is in our actual databases. Such extensions are considered in Section 6.
Second, HNN does not give us nor , but their product . This is not the neural network’s doing, but rather the design of the problem. With and both unobserved and possibly timevarying, they cannot be separately identified without additional assumptions on how and should or should not evolve through time. Those assumptions are common but not harmless. One, implicit to the approaches reviewed in Section 3.1, is to obtain from assumptions on its time series properties and its composition (typically GDP or unemployment) and then treat it as given in subsequent regressions. Another would be to assume which would deliver identified up to a scaling constant. Less radically, one could posit that is only a function of certain things (like ) excluding what is made of, then write some modified HNN where the output of two hemispheres multiplies one another in the last layer – the PC layer. HNNF, developed and motivated in Section 2.2, will leverage this restriction to separate the Siamese twins and .^{2}^{2}2However, it is noteworthy that uncertain remains surrounding the fact the PC coefficient – using observed (or simple transformations of) economic data as regressions – is simply driven by exogenous time variation (Stock and Watson, 2008; Lindé and Trabandt, 2019; Goulet Coulombe, 2020a). HNNF will work by putting apart nonlinearities that are of fixed structure through time (the gap), and those that are exogenously evolving. Of course, there are many such restrictions, some more credible than others.The point being made is that HNN provides as the most sensible output given the econometric conditions, but nothing prevents a researcher from splitting it in and using whichever assumptions he or she deems reasonable. Nonetheless, for policy purposes, a crucial use of is to inform us on how real activity contributes to – and that what HNN spits out directly. Finally, this does not prevent from comparing HNN results with other methodologies since their gap’s contribution to inflation can easily be calculated from the PC regression (see Section 4).
Third, a comment on the "separability assumption", which is, for all intents and purposes, the only binding assumption in HNN. Precisely, by separability, it is meant that ’s are the product of mostly nonoverlapping (they share in common) groups of predictors. of course, it is possible that the interaction of the prices group and the real activity group influences inflation.^{3}^{3}3Some forecasting results on this will be reported in Section 4. On the other hand, some level of separability is what gives interpretability in this highdimensional environment: ’s in a fully connected network are essentially meaningless.^{4}^{4}4Moreover, DNNs tend to make a dense use of inputs (in contrast to sparsity) making the outputs of variable importance measures for the whole prediction (Breiman, 2001) or partial dependence plots (PDPs, Friedman 2001) rather inconclusive (Borup et al., 2020). It is the separation, as suggested by the (linearized) NKPC, which gives ’s their interesting economic meaning. While there is nothing sacred about linearized NKPCs, it is noteworthy that the proposed separation is not new to HNN at all. It is inherent to almost any linear PC estimation (there is a block of lags, and an output gap, all separated and typically noninteracting). As a side note, some overlap between the contents of ’s is absolutely possible if the definition of ’s calls for it. Finally,
need not be orthogonal since they are obtained from supervised learning procedure which dispenses with most of the traditional identification problems inherent to unsupervised learning (like factors models estimated by PCA,
Stock and Watson (2002)).Lastly, HNN’s architecture, beyond the uncommon separation, is rather plain. It is not excluded that, in future work, some extensions of it could further improve its predictive performance and ability to retrieve latent states. Such extensions, as it often the case in deep learning model building, would consist in new modules behind inserted into the feedforward architectures. Two obvious things come to mind. First, one could bring in "variable selection networks" (Lim et al., 2021) within each hemisphere to do what its name suggests. Second, one could bring back some of the older state space paradigm goodies, like a law of motion for (which we will obtain from HNNF in Section 2.2) by considering recurrent units for neurons outputs entering the PC layer. This could favor a more persistent estimate of the gap, which may be desirable in certain contexts. However, all empirical results in Section 4 point out that estimates are reasonably smooth and that extra smoothness may not be warranted – like when modeling the pandemic era.
2.1 Data and Defining ’s for Benchmark Model
The baseline estimation is at the quarterly frequency using the dataset FREDQD (McCracken and Ng, 2020). The latter is publicly available at the Federal Reserve of StLouis’s website and contains 248 US macroeconomic and financial aggregates observed from 1960Q1. The target considered main analysis is CPI Inflation (thus ). Forecasting and some robustness checks on are conducted using core inflation (, meaning steps ahead) and yearoveryear (YoY) headline CPI four quarters ahead (). The transformations to induce stationarity for predictors are indicated in McCracken and Ng (2020).
Content

(exogenous time trend)
Inflation expectations from SPF, and Michigan Survey, lags of , lags of price indexes in FREDQD,
Labor Market Variables, Industrial Production Variables, National Accounts,
Oil and Gas price series from FREDQD, Metals PPI,
Our empirical baseline model comprises 4 hemispheres. It consists in the 3 described in Section 2, with one of them being split in two subhemispheres. Precisely, to examine them separately, I split expectations in two additive components: longrun/exogenous (), and shortrun (). The remaining two ’s are real activity and commodity/energy prices. For each variable , we include 4 lags of it and 3 moving averages of order 2, 4, and 8. This is motivated by Goulet Coulombe et al. (2021)’s socalled Moving Average Rotation of X (MARX) transformation, developed to alter the implicit prior of certain ML algorithms when applied to time series data – without recoding them.^{5}^{5}5For instance, in the case of DNNs, earlystopping has been associated with ridge regularization (Raskutti et al., 2014) and dropout with the spikeandslab prior (Nalisnick et al., 2019). Goulet Coulombe et al. (2021)’s observation is that encoding inputs as moving averages change the implicit prior from shrinking every lag coefficient to 0 to shrinking each of them to one another. In this paper’s application, it also provides the network with inputs where different frequency ranges have been accentuated. ’s composition details are in Table 1 and the complete list of FREDQD mnemonics in available in Appendix A.4.
2.2 Extracting the Output Gap and its Coefficient with HNNF
As a consequence of sparing HNN from the numerous assumptions typically associated with output gap extraction, the procedure only produces , the gap’s contribution to inflation, rather than itself. It was discussed that splitting into and can be done if the researcher is willing to assume more about and . One possible factorization is and .^{6}^{6}6Note that means variable is excluded from the set of predictors included in the hemisphere . The factorization coerces the PC coefficient to move exogenously and slowly – like what is assumed by random walk coefficients in Chan, Koop, and Potter (2016) (henceforth CKP) and many others. This is merely an interpretation device because what we can say of and depends perfectly on what we assume they can be. For instance, a convex PC is ruled out by but residual "convexity" will be mechanically relegated to . Nonetheless, what HNNF provides is a which composition function of real activity data that is constant through time, up to a slowmoving scaling coefficient () – which can be assumed fixed for short and mediumrun forecasting horizons.
Implementing is easy within HNN and the PyTorch (Python) or Torch (R) environments. First, an additional hemisphere containing only is created. Then, in the final layer, rather than summing 3 or 4 ’s as in Figure 1, some last layer outputs will be multiplied together. Namely, the output of the hemisphere containing only will be multiplied with that of and the product will be added to the rest of the sum constituting the neural PC. For consistency, this intuitive factorization is forced on each component. Thus, using the notation established in (3), the final layer in HNNF (F for factorized) will be
(4)
Clearly, the various ’s of (4) are not identified, except for since it is not multiplied with any other component. To identify the relevant ’s, timevarying coefficient hemisphere outputs , and are all forced to be nonnegative by feeding them forward through an absolute value layer before they enter the final layer above. This prevents the gap from being the symmetrical opposite of what it is expected to be.^{7}^{7}7Various forms of regularization forces the respective scales of and in estimation. However, they are obviously not statistically identified and
’s standard deviation must be fixed and the level of the coefficient
adjusted accordingly. In section 4, ’s standard deviation is set to that of CBO’s output gap to facilitate comparison.A concern that has often been raised with Phillips Curve estimation is how much the chosen can influence results. Obviously, if
(5)
and is timevarying (e.g., higher in the last decades and lower in the early years), we have a timevarying attenuation bias which can easily create pervasive illusions about the collapse/resurgence of the PC. While certainly a valid theoretical worry, most authors have deemed it to be of limited empirical relevance. Recently, Stock and Watson (2019) considers a variety of (largely crosscorrelated) classical slack measures in turn and find homogeneously pessimistic results about PC’s current health. In a similar vein, Del Negro et al. (2020) argue that the decline cannot be attributed to increased measurement error since the comovements between key slack indicators and marginal cost proxies are very alike pre and post1990, whereas the unemploymentinflation relationship on both subsamples clearly differ. But this was in a very different modeling environment, mostly grounded in linear econometric modeling with limited data. Moreover, it implicitly assumes that mismeasurement was inexistent or negligible prior to the 1990s – which if true, makes, for instance, filtered unemployment adequate for that era. HNNF turns the problem on its head. By estimating flexibly (e.g., not imposing it to be an autoregressive process of some order) and allowing for to vary exogenously through time, HNNF allow for an investigation of the declining link between real activity and inflation with a lessened worry that a declining be solely due to a mismeasured .
2.3 Estimation and Tuning
Within each , we have a standard feedforward fully connected network. We set and . For HNN, we maximize efficiency by enabling weight sharing (Nowlan and Hinton, 1992; Bender et al., 2020) across hemispheres. In other words, nonlinear processing parameters are forced to be identical across hemispheres. In HNNF, we relax that constraint and the states hemispheres are given and while the coefficients hemispheres (with only input being ) have and .^{8}^{8}8More layers or neurons beyond that point visibly increase what is apparent noise in the components, and not improve outofbag MSE.
The maximal number of epochs (optimizer steps) is fixed at 500. The activation functions are all
ReLU () and the learning rate is 0.005. 85% of the training sample is used to estimate the parameters and the MSE of the remaining 15% is used to determine when to optimally stop optimization – early stopping being known to perform a form a ridge regularization on network weights (Raskutti et al., 2014). This random shuffling of data is done through shuffling blocks of 6 quarters for quarterly data. The batch size is the whole sample and the optimizer is Adam. For forecasting, I do 50 random 8515 allocations of data and ensemble resulting predictions. This is beneficial in two aspects. First, it stabilizes the optimal early stopping point choice. Second, it is known that ensembling overfitting ("interpolating") networks can give a performance similar to that of very large yet computationally costly networks, by among other things, integrating out noise coming from network weights initialization
(d’Ascoli et al., 2020). Finally, I perform a mild form of dropout by setting the dropout rate to 0.2.For HNN, we normalize each predictor to have mean 0 and variance 1, which is standard in regression networks. For HNNF, since there is no weight sharing, we ought to be more careful in order not give implicitly some hemisphere a higher prior weight in the network. This could occur, for instance, if some
has a much larger number of inputs than another. With early stopping performing a type of ridge regularization, it entails the prior that each variable should contribute but in a mild way. If the real activity group contains 40 times more regressors than the commodities one, then going for the standard normalization gives a much larger prior weight to its resulting component by construction. To avoid this scenario, and give equal a priori importance to ’s, we divide each standardized by (the square root of the number of variables in that hemisphere). The intuition for using such a denominator comes from the fact that if all variables are mutually uncorrelated and each given a weight of one or minus one (i.e., no learning beyond what ridge prescribed has taken place), then the variance of the simplistic (linear) component is . Thus, dividing each member of that group by the square root of it sets each ’s a priori variance to be 1.2.4 Quantifying Uncertainty
Ensembling requirements are higher to conduct inference on ’s and other HNNs’ byproducts. First, we need more bootstrap replicas. Second, blocksubsampling is used to avoid breaking the serial dependence properties of . Blocks of 1.5 years are used. A refined version of a crosssection analog to this strategy has been popular to assess uncertainty surrounding DNN’s predictions (Lakshminarayanan et al., 2017).^{9}^{9}9Neural Network consistency and inference have also been studied by econometricians in recent years (Farrell et al., 2021; Parret, 2020). In particular, Farrell et al. (2021) provides a consistency result applying to a generic class of feedforward DNN architectures which includes the HNN (fundamentally a form of restricted DNN). In this application, we will be looking at inference on ’s – functionals of and the network’s weights – which are arguably much more economically meaningful than predictions themselves. , the total number of bootstraps, is set to 300 when looking at ’s and their derivatives. This takes an hour to run on an M1 MacBook Air. Forecasting necessitates fewer bootstraps – typically less than 40 – for the prediction to stabilize, so HNN is absolutely amenable to recursive pseudooutofsample exercises where it needs to be reestimated many times.
Since any DNN can easily fit the training data much better than it actually does on the test data (more on this below), it is wiser to opt for an outofbag strategy in order to calculate ’s insample as well as their quantiles. More precisely, the calculations proceed as follows. Assume we have a sample of size 100. We estimate HNN using data points from 1 to 85, and project it "outofbag" on the 15 observations not used in training. This gives us for a single allocation while are still NAs. By considering many such random (block) allocations where "bag" and "outofbag" roles are interchanged, I obtain the final ’s by averaging over at each such that
(6)
This constitutes an approximation to a Block Bayesian Bootstrap by replacing the posterior tree functional in Goulet Coulombe (2020a) by HNN. Thus, draws can be used to compute credible regions. This relies on the connection between Breiman (1996)’s bagging and Rubin (1981)’s Bayesian Bootstrap, as originally acknowledged by Clyde and Lee (2001)
, and put forward for random forest by
Taddy et al. (2015). More recently, Newton et al. (2021) develop a weighted Bayesian Bootstrap, derive theoretical guarantees, and show its applicability to deep learning. This machinery is typically used to conduct inference (in the statistical sense) on a model’s prediction. Goulet Coulombe (2020a) and this paper make it even more useful by focusing on economically meaningful functionals, like ’s.How should we think of the statistical adequacy of HNN’s key outputs? There are a number of proofs of DNN’s nonparametric consistency for generic architectures – for instance Farrell et al. (2021). HNN and HNNF are restricted DNNs, or, alternatively, semiparametric models. If restrictions are approximately true (like the separability in HNN, and the factorization in HNNF), then we can be confident our ’s are close to true latent states. Those restrictions can be implicitly tested by fitting a fully connected DNN with the same data and comparing predictive performance outofsample or outofbag. Thus, if HNN increase bias much less than it curbs variance, it will supplant the plain DNN. It is interesting to note that the restrictions’ benefits are twofold: they reduce variance and provide interpretability.
Another requirement, in addition to the validity of HNN’s restrictions, is for to be exempt from overfitting. This is specifically why outofbag
’ are used. Given that HNN also uses dropout to a mild extent and is optimally earlystopped to maximize holdout sample performance, this additional precaution may not appear necessary at first sight. For instance, one would not bother to do so with an optimally tuned ridge regression (even if it has more parameters than observations). However, it is the object of a burgeoning literature of its own that bestperforming DNNs outofsample can very well overfit insample
(Belkin et al., 2019). This obviously complicates things for insample analysis of the selected model, and considering outofbag estimates is the hammer solution to that problem.^{10}^{10}10For instance, Goulet Coulombe (2020a) used it for ’s obtained from a random forest. However, the insample/outofsample differential is typically much more pronounced for random forest than for DNN for datasets of the size typically used in macroeconomics (Goulet Coulombe, 2020c).3 HNN and its Numerous Ancestors
I now review in greater detail current approaches, how HNN expands on them, and how, by doing so, it addresses key empirical issues.
3.1 Estimating Output Gaps
There exists many methods to estimate , but by far the most popular is to filter either GDP or unemployment. A significant problem is that those methods perform poorly in realtime. The final estimate can be very far from the one had at time (Orphanides and Norden, 2002; Guay and St.Amant, 2005). This problem is known under different names: twosided vs. onesided estimation, filtering vs. smoothing, or simply the boundary problem when taking the view that flexibly detrending a series is a nonparametric estimation problem with entering the kernel. Fortunately, there have been many recent contributions providing reliable real time , either by developing more adequate filtering methodologies (Hamilton, 2018; Quast and Wolters, 2020) or by incorporating more (timely) information (Berger et al., 2020; De Carvalho and Rua, 2017). The objective is clearly defined: if can be extracted from some frequency range of an observed variable, then we can obtain it, and we want that estimate of to be usable at time – essentially a nowcasting problem for a transformed variable.
Taking a step back, there is the deeper question of whether this filtered (or that of CBO or the Fed’s Greenbook) is what we should be after at all, especially that its explanatory power for inflation seems to be vanishing quickly (Blanchard et al., 2015) . From an ML perspective, all the above approaches can be considered "unsupervised learning" (Friedman et al., 2001). That is, the gap is typically constructed based on some assumed structure, without consulting inflation. A datarich unsupervised approach would be a factor model (à la Stock and Watson (1999) or a dynamic one like in Barigozzi and Luciani (2018)
), or going nonlinear with the nowpopular autoencoders
(Goodfellow et al., 2016; Hauzenberger et al., 2020). A fundamental problem plaguing them is that these methods seek to create latent factors that summarize regardless of whether they will be of any relevance to the dependent variable. With a very large , like one gets from McCracken and Ng (2020)’s distilled quarterly FRED database, it is unlikely that an unsupervised approach stumbles upon the "real" output gap by serendipity. In short, most often, statistical factors will lack explanatory power for inflation, economic meaning, or both.There are exceptions to the reign of unsupervised learning in output gap estimation (Kichian, 1999; Blanchard et al., 2015; Chan et al., 2016; Hasenzagl et al., 2018; Jarociński and Lenza, 2018). But then, again, there are some stringent assumptions being made on how moves through time and its composition. Output need not be GDP, and the labor market need not be the unemployment rate. Jarociński and Lenza (2018) dispense with (most of) the need to choose by considering a dynamic factor model specification.^{11}^{11}11Nevertheless, Jarociński and Lenza (2018) consider fewer than 10 such variables, and the estimation of dynamic factor models with a wide panel of regressors is known to be computationally demanding. However, in their application, is defined as an AR(2) process^{12}^{12}12Hasenzagl et al. (2018) rather opt for an ARMA(2,1)., and such an assumption, while endemic to the statespace paradigm, is not benign.^{13}^{13}13Indeed, the qualitative shape of obtained from their various models changes only slightly from the inclusion of additional "supervisors", which can either be due to the strength of the common "true" factor, or that the law of motion is a straitjacket. In contrast, HNN takes a fully supervised approach that does not force into some tight parametric law of motion and does not restrict to be made of a single variable somehow chosen wisely. Rather, HNN constructs an implicit deep output gap from writing a nonlinear model where a basket of real activity variables can be processed and transformed, so that a sufficient statistic made from them explains some share of inflation dynamics.
It be would naive, however, to think that HNN, being a neural network with the "universal approximation" property, is completely devoid of a priori statistical structure within hemispheres. Indeed, in an environment with little training data, regularization, network structure, and associated priors all enter the estimates to some extent. This is why careful network design has always been a staple of deep learning practice, even with vast amounts of data (Goodfellow et al., 2016). In the case of HNN, that structure, while fully estimable, is that of successive layers of activation functions.^{14}^{14}14Results are mostly unchanged from changing ReLu to Selu, a softer activation function, and adjusting the learning rate accordingly. As anything in this business, the merits of one structure over another will be proportional to its predictive abilities on the outofbag samples, and ultimately, on the holdout sample.
At first sight, a simpler (and more traditional) supervised approach could be some intricate form of partial least squares. But this imposes that variables within enter linearly in , which rules out, among many other things, the HPfiltered GDP which is itself a nonlinear transformation of the original data. Augmenting that approach with a kernel could, at a conceptual level, retrieve nonlinearities. However, kernel approaches and large (or
in this paper’s setup) do not mix well, both computationally and statistically. In contrast, the HNN approach can easily deal with highdimensional data on both fronts – through highly optimized yet adjustable software and the various regularization mechanisms available in DNNs.
3.2 Estimating Phillips Curves
There is an evergrowing literature on the flattening PC – either structural or reduced form, which was originally sparked from the surprisingly immaterial disinflation during and following the Great Recession (GR). Standard approaches typically imply one of the following two assumptions (and sometimes both). First, that the output (or unemployment) gap can be properly extracted by some form of filtering (Blanchard et al., 2015; Hasenzagl et al., 2018) and second, that the decline in the gap coefficient can be captured by either slowly moving timevarying parameters (Blanchard et al., 2015; Galí and Gambetti, 2019) or a wellsituated structural break(s) (Stock and Watson, 2019; Del Negro et al., 2020). However, the true may look very different than what filtering suggests — be it from HPfiltering, Hamilton (2018) filtering, or assuming potential GDP growth rate is a random walk (or variations on it) within a statespace model (Kichian, 1999; Blanchard et al., 2015; Chan et al., 2016, 2018; Hasenzagl et al., 2018). In fact, all those statistical methods embed similar assumptions about the time series properties of , and unsurprisingly so, often report very similar gaps (at least, expost). Using one prototypical slack measure or another, all filtered in the same fashion, also deliver lookalike slack measures (Stock and Watson, 2019). Clearly, if the economic slack proxy is a poor approximation of reality for some period of time – say, recently –including it in a subsequent regression model will naturally give the impression of a suddenly dormant PC.
The second assumption, that of a slowly and exogenously declining PC, inherent to most "second stage" regressions taking the output gap measure as given, can also be problematic. For instance, there are theoretical reasons to believe the reducedform PC is convex (Lindé and Trabandt, 2019). Additionally, Goulet Coulombe (2020a)
documents, using a machine learning approach, that the coefficient on HPfiltered unemployment (very close to
Blanchard et al. (2015)’s gap) is declining slowly and exhibit procyclical behavior. In HNN, no restrictive time series and composition assumptions are made on whether the gap or its attached coefficient – we are simply positing that there be must be some sufficient statistic of economic activity, be it what it may, having explanatory power for inflation. Thus, it will be possible to quantify how much of the reported PC decline is attributable to certain methodological choices or to a fundamental decline of the link between economic activity and inflation. In HNNF, some of those assumptions are brought back to split "contributions" into a gap and a coefficient. However, unlike traditional methods, residual nonlinearity will be captured within , making it nonlinear in the original economic variables space. Nonetheless, comparing HNN and HNNF results will be informative on how costly it is to assume an exogenously varying (and thus, a factorization) when is estimated rather than (mostly) assumed.On the inflation forecasting front, things are even murkier. Evidence in favor of PCbased inflation forecasting is at best very weak, with minor or inexistent improvements over simpler benchmarks like plain autoregressions (Atkeson and Ohanian, 2001; Stock and Watson, 2008; Wright, 2012; Faust and Wright, 2013; Kamber et al., 2018; Quast and Wolters, 2020). Recent extensive evaluations for the Euro area (Banbura and Bobeica, 2020) suggest there is a case for some cautious hope with specifications allowing for flexible trend inflation and an endogenously estimated gap (still with the aforementioned drawbacks, however). Despite all the evidence on its uneven empirical potency, PCs are still widely used to forecast and understand inflation (Yellen, 2017), mostly because they are rooted in some basic form of macroeconomic theory. This paper – by suggesting a particular deviation from econometric practice inertia – investigates whether there is more statistical backing for the practice to be found.
Most of the current discussion has been so far focused on the gap and its coefficient. I now turn to inflation expectations. Galı and Gertler (1999) sparked a literature evaluating the empirical of fully rational forwardlooking expectations. The outcome of the vast research enterprise that ensued is unclear, with conclusions about the importance of expectations and the measure of slack (or marginal cost) often depending on econometric choices (see Mavroeidis et al. (2014)’s extensive review and references therein). For instance, Galı and Gertler (1999) originally found strong evidence in favor of using the marginal cost as a forcing variable rather than the unemployment/output gap. Mavroeidis et al. (2014) finds that adding a few years of data to Galı and Gertler (1999)’s original model overturns this finding, with gaps and marginal costs giving very similar results. Obviously, this sort of dilemma falls within the scope of problems of HNN can deal with. Finally, it is also reported that the chosen GMM estimation method, the selected instruments, and the number of inflation lags all can greatly influence results (Ma, 2002; Guay and Pelgrin, 2004; Dufour et al., 2006; Mavroeidis et al., 2014). This leads Mavroeidis et al. (2014) to conclude that research energies would be better spent on radically different approaches (like moving past macro data) than minor tweaks within the unpromising (mostly) GMMbased paradigm.
Given the everaccumulating challenges of GMM estimation and other empirical limitations, proxying directly for inflation expectations with surveybased data emerged as a popular alternative to the rigid fully rational expectations (Coibion et al., 2018).^{15}^{15}15Early adopters include (but are not limited to) Roberts (1995), Rudebusch (2002), Dufour et al. (2006), Fuhrer and Olivei (2010), and Nunes (2010). Obviously, the downside is that theory provides little to no guidance about what expectations from who should be used (Yellen, 2016). Coibion and Gorodnichenko (2015) provide regression evidence on consumers’ expectations better approximating firms’ expectations than professional forecasters. Binder (2015) reports that certain demographic groups’ expectations have more predictive power for future inflation than others. Meeks and Monti (2019) use a functional principal component approach to summarize the distributional aspect of the expectations from the Michigan survey of consumers (among others) and finds that the additional information annihilates the role of inflation persistence. It is noteworthy that these papers almost universally take the unemployment/output gap as given. Lastly, a recurrent finding from approaches opting for empirical expectations is that deploying an instrumental variable approach or going for a plain regression typically does not alter results in any appreciable way (Mavroeidis et al., 2014; Coibion and Gorodnichenko, 2015). Thus, we can be cautiously confident that HNN should not suffer in any cataclysmic fashion from relying on least squares estimation.^{16}^{16}16However, there is nothing at a conceptual level that would prevent the extension of the forecasting HNN to a simultaneous GMMbased HNN (a change of loss function in the software) in future work.
This paper, for simplicity and to maximize the length of the historical period being studied, opts for very standard series of inflation expectations as inputs, like the average expectations from professional forecasters and consumers surveyed by the University of Michigan. As we will see in Section 4.2, a nonlinear mixture of those indeed does matter. From a methodological and practical standpoint, nothing prevents the inclusion of a much richer and heterogeneous set of beliefs – these wouldbe additional regressors in . By construction, the HNN procures the optimal "summary statistic" of such expectations because the nonlinear information compression parameters are estimated in a supervised fashion. Thus, HNN could easily digest larger expectations information sets (like the whole crosssection dimension of a survey, or many quantiles of it) and provide a nonlinear nonparametric approximation to the "distributional" component entering the Phillips curves discussed in Meeks and Monti (2019) without the need for manual choices in how to summarize the distribution. Given that the processing of expectations has become as thorny of an empirical question as is the choice of the gap (Yellen, 2016), HNN provides a convenient generalization of previous approaches that can convincingly deal with and problems within one consistent datadriven framework.
3.3 Neural Networks and Macroeconomic Forecasting
The application of AI methods, and more particularly deep neural networks, has not generally, until now, delivered gamechanging results when applied to macroeconomic data. At the same time, a careful reading of the deep learning literature reveals that it is the construction of deep neural networks (DNNs) architectures specialized for a given problem that gives the phenomenal results that have contributed to its great popularity (Goodfellow et al., 2016). In stark contrast, most of the literature in macroeconomic forecasting typically uses architectures already available (and developed for other tasks such as image or language recognition), with typically limited forecasting gains and even more limited interpretability.
The origin of NNs in macroeconomic forecasting can be traced back, at least, to Kuan and White (1994), Swanson and White (1997), and other works by Halbert White. A small literature follows in the 2000s (e.g., Moshiri and Cameron 2000; Nakamura 2005; Medeiros et al. 2006; Marcellino 2008). With DNN recent successes in many fields, there is a resurgence of interest in using for macroeconomic forecasting. Most focus on using plain NNs (Choudhary and Haider, 2012; Goulet Coulombe et al., 2019), or refined architectures like CNNs (Smalter Hall and Cook, 2017) and various forms of recurrent NNs (Almosova and Andresen, 2019; Verstyuk, 2020; Paranhos, 2021). Some develop architecture inspired by accounting relationships within aggregates (Barkan et al., 2020). Others have used autoencoders to estimate nonlinear (unsupervised) factors models — see Andreini et al. (2020) and many others, like Hauzenberger et al. (2020) applying it to inflation forecasting.
Outside of the direct vicinity of the macroeconomic forecasting literature, there is a growing interest in generalizing the older generation of time series models to the deep learning framework (see Sezer et al. (2020) and the many references therein). Two obvious examples are the autoregression (DeepAR, Salinas et al. 2020) and the factor model (deep factors, Wang et al. 2019). In comparison, HNN is tailored for inflation by incorporating minimal "theoretical’ restrictions which allow the last layer’s outputs to be understood as economic states – rather than, for instance, the notoriously hard to interpret (deep or not) statistical factors.
As a statistical model, HNN (not HNNF) is a generalized additive model (Hastie and Tibshirani, 2017) where more than one regressor is allowed to enter each linearly separated nonparametric function, and all functions are learned simultaneously through a gradientbased approach (as opposed to sequential model building through a greedy algorithm). In that sense, HNN fits within what Hothorn et al. (2010)
defines as structurebased additive models. HNNF could be seen to be on the fringe of it, with its multiplicative effects that would certainly be an odd modeling choice without a timevarying unobserved components regression in mind. Closely related,
Agarwal et al. (2020), O’Neill et al. (2021), and Rügamer et al. (2020)all develop an architecture inspired from generalized additive models to enhance interpretability in deep networks for generic tasks. While these articles certainly tackle some of the opacity issues coming from nonparametric nonlinear estimation with deep learning, none address those that are inherent to any nonsparse highdimensional (even linear) regression–i.e., that analyzing partial derivatives of 200 things that typically comove together unfortunately borders on the meaningless. In macroeconometrics, the dominant solutions have been factor models and sparsity (either explicit or implicit). The former is notsointerpretable in the end because most factors are nameless and their unsupervised extraction comes with a series of untestable identification restrictions. The latter can be wrong for various reasons already mentioned in this text. HNN and HNNF core innovation is the observation that grouping variables in hemispheres and combining their outputs according to "theory" opens a gateway to interpret the highdimensional nonlinear black box as a sparse linear unobserved components model.
4 Analysis

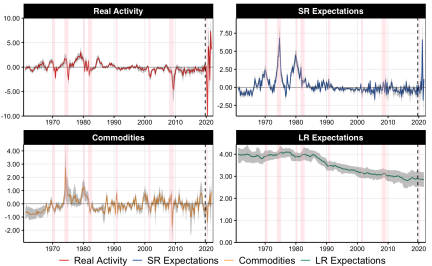

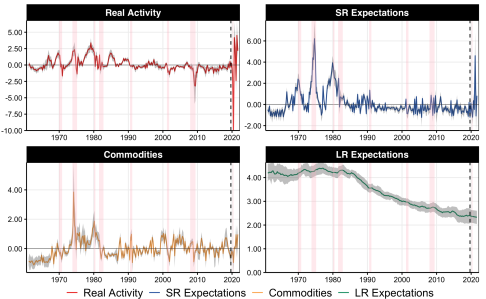

As starting point, ’s are displayed in Figure 2 for a training sample ending in 2019Q4. Figure 16 (appendix) reports largely unchanged estimates from using a training sample ending in 2007. First, we observe large positive contributions of to in 1970s and 1980s which have been much more muted since then, in line with the declining PC narrative (this will be formally assessed when looking at in Figure 5). But that was before the pandemic. HNNF and HNN (Figure 15) both report an extremely high positive contribution from to starting from late 2020–as projected from a fixed structure estimated up until 2019. As a result, HNNF’s (and HNN as well) are forecasting annualized headline inflation consistently above 4.5 starting from 2020Q4 (see Figures 3(b) and 6(b)). While this finding lends support for the view that inflation’s comeback was rooted in economic fundamentals (and potentially caused by a cocktail of expansionist policies, Blanchard 2021; Goodhart and Pradhan 2021; Gagnon 2021), it is not entirely inconsistent – at least statistically – with the possibility of the inflation surge ending rapidly. Indeed, contribution and gaps estimates in the Pandemic era move up and down at a much faster rate than that of previous recessions (along, among other things, public health policies), and it seems possible (statistically, at least) that closes as fast as it opened. However, as of 2021Q3 data (i.e., excluding the Omicron surge), seems now firmly stationed in positive territory. Moreover, HNN’s estimation of support the growing evidence that the PC is highly nonlinear in traditional economic indicators space and that the steep part of it has simply been unsolicited in recent decades (Lindé and Trabandt, 2019; Goulet Coulombe, 2020a; Forbes et al., 2021).
estimates of the last 2 years cast some doubts on methodologies forcing smoothness through laws of motion. Those typically require potential output to trend upward slowly (a random walk, or locallevel process) whereas it has been subject to important and rapid downward or upward swings due to "COVID19 shocks" (Blanchard, 2021). Among other things, there are constraints on production that did not exist in 2019 and many Americans have exited the workforce in 20202021 not to return just yet. This trend has a name – the Great Resignation – and can be seen in the participation rates as of late 2021. Capturing the conjunction of these phenomena statistically using data through 2019Q4, HNN’s is reported in section 4.2 to heavily use a nonlinearly processed HelpWanted Index–which has hit alltimes highs in recent quarters. Further reinforcing the view that is as positive as HNN estimates it to be, coming from the demand side, reallocation shocks puts some sectors are under considerable stress for increased production. Also, a significant amount of resources is now dedicated to producing new goods and services (vaccines, tests, etc.) which are partly procured free of charge by governments and do not appreciably crowd out private spending – which itself has been galvanized by fiscal and monetary policies. Thus, private consumption has caught up with its prepandemic trend while government expenditures are magnitudes larger than they were back in 2019, making for the total of the two largely surpassing prepandemic levels. The purposes of this discussion is not to review every aspect of inflation commentary in 2021 and early 2022, but to highlight that there are plausible economic arguments rationalizing HNN’s seemingly unusual findings – in addition to the plethora of statistical ones reported in this work.
Contribution of the component was extremely strong during the 1970s and has been literally shut down since the beginning of Paul Volker’s chairmanship – at least, until early 2021. The hibernating woke up, and captures nicely the consequences of supply chain disruptions and the general sentiment in the media and population that inflation could be back. By doing so, it procures relatively accurate inflation forecasts for the turbulent 2021. This will be further discussed in Section 4.1. It appears that the main reason why inflation forecasts did not climb to 1970s levels in late 2021 is , which despite its earlier spike, shows much less persistence than 45 decades ago. Said differently, expectations are still relatively wellanchored, by not deviating persistently from the longrun ones.
Additionally, gentle upward spikes are observed postGR which lend some support to Coibion and Gorodnichenko (2015)’s point that higher expectations following the financial crisis can explain the missing disinflation puzzle. In Figure 19 (from ablation studies in Appendix A.2), this nonlinear pattern is even more apparent from dropping some of the more volatile inputs from . Finally, the commodity group (with oil being naturally its most influential member) contributed strongly, to nobody’s surprise, from the first oil crisis of the 1970s, through the second oil shock, and ends after the second of the twin recessions. Finally, is found to be slowly decreasing, as expected. Note that the overall level of is not identified separately from and here it was set by normalizing the other three components to have mean zero over the sample.
Since gaps themselves rather than contributions are what is typically reported, Figure 3 reports contributions from a canonical PC regression for comparison purposes. In the case of "CBO", those are constructed from a traditional PC specification (including 2 lags of and the gap) with timevarying coefficients obtained from Goulet Coulombe (2020b) twosteps ridge regression approach.^{17}^{17}17
Conveniently, the procedure incorporates a crossvalidation step that determines the optimal level of time variation in the random walks and a second step that allows in a datadriven way for some parameters to vary more and some other less. Typically, results from the ridge regression are very similar (but overall less erratic) to what obtained using a typical Kalman filter approach (the
R function tvp.reg) or kernel smoothing (from the R package tvReg) Contributions are interesting in their own right because, unlike gaps and coefficients, they are completely identified and expressed in "inflation units". The difference between HNNF and alternatives is striking for , with the latter giving real activity much less weight in driving inflation than what the former reports. This is especially true in the 1970s and 1980s, but also from recent years. From an ocular spectral analysis standpoint, it is clear that includes much higher frequencies than what traditional gaps/contributions do. is prone to rapid spikes that the alternatives completely forego (e.g., the mid1980s, the years preceding the 1990s recession,and the mid 1990s). It is worth remembering the reader that the frequency range for classical estimators is not an outcome but an assumption – which is explicit in the case of bandpass filters (Guay and St.Amant, 2005)."HNNF CBO", which replaces all the activity data in by the CBO gap itself – thus keeping all the other modeling ingredients from HNN – partly helps in understanding this wedge. Indeed, the green and red line follow each other closely each except following the 19811982 and 20082009 recessions. "HNNF CBO" seems to use nonlinearities to avoid to the two very negative contributions from the PC regression. Nonetheless, it is clear that a key difference between HNN and the canonical regression is the nonlinear processing of a rich real activity data set. Finally, only the classic PC regression and Chan et al. (2016)’s gap (CKP) calls from a deep and lasting negative output gap following 2008. "HNNF CBO" circumvent it interacting with a small implicit and HNN follows a very different pattern where the gap closes rapidly (as early as 2011) but remains gently in negative territory at least until 2018. Finally, from the early 1990s up until the GR, both "CBO" and "CKP" contributions are practically 0 whereas HNNF sees a mild downward contribution from real activity in the years surrounding the 2001 recession.
HNN’s current estimates differ even more dramatically from that of standard techniques. CKP’s gap in Figure 5 behaves like most unemployment filtering methods do. It reports strong overheating in the late 2010s^{18}^{18}18This is because the trend has been adjusted downward by then,. Estimates including COVID19 observations make this even more pronounced. and a gently positive gap in late 2021. As we will see in the forecasting results of section 4.1, this will be largely insufficient as upward forcing to obtain wellcentered forecasts during that period. This is no surprise: this approach yields an output gap which is mostly negative throughout the Pandemic and the PC coefficient is small. Berger et al. (2020)’s multivariate approach reports online a positive gap as of January 12th 2022 that is comparable in size to that of the end of the last two expansions (unlike HNN which sees mostly unprecedented inflationary pressures starting from 2020Q4). Also, Hazell et al. (2020) (and their updated estimates here) utilize an extremely persistent ARMA(2,1) output gap (looking very much like filtered unemployment), which allegedly pushes the model to explain the data with an energy price cycle. As per Figure 2 (and eventually even clearer in Figure LABEL:graphs_hnns), the direct role of commodity prices has become more muted in recent years – a finding likely due to HNN allowing for a more flexible . This debate is important: different decompositions imply different policy recommendations. While HNN ’s unequivocally calls for a tightening of monetary policy, during times of sectoral reallocation, the divine coincidence is broken, leading to an "optimal" level of inflation that is easily above the target (Guerrieri et al., 2021). Obviously, letting inflation sit for a while above the target range comes at the risk of disanchoring expectations which were anchored at great cost long ago.

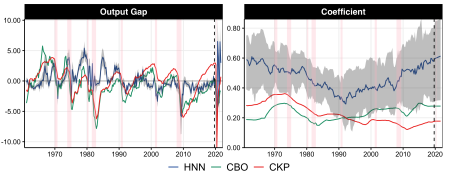

In Figure 2(b), it is striking that, unlike Figure 2(a), HNN and its altered version form a cluster. This suggests that the information contained in beyond lags of only seldom makes a difference — although it makes all the difference for latest inflation upswing. It is also obvious that HNNs allocated a much smaller fraction of inflation to expectations, which is particularly visible from the 1970s inflation spirals (mostly the second) and the 1980s. One way to explain this is that a mispecified led to put an excessive burden on explanation on lagged values.
Figure 4 reports inflation shares in two ways. In Figure 3(a), the decline of the overall influence of in favor of , with the emergence of trend inflation dominance in the mid1990s. peak contributions are with the 3 inflation spirals of the 1970s, and to a lesser extent the mild increase from the end of the 1980s. The share of is much more stable than what typically reported by PC regressions although it appears to be milder (in a very subtle fashion) starting from the 2000s. The effect of energy and commodity prices appears stable. Figure 3(b) makes clear that key historical increases are always due in large part to , including that of 2021. A key pattern is an initially mild positive contribution from followed by a large and lasting upswing in the blue component.
HNN successes and failures in forecasting post2019 inflation can be easily understood from Figure 3(b). The "overkill" downswing is entirely due to the real activity component, and the increase in first half of 2021 is due to a pattern very similar to the 1970s being replicated, that is, a gentle positive impulse from followed by a sizable upward pressure from . A noteworthy observation is that appeared dormant until 2021, like in the "PC reg" and "HNN (only lags)" specifications of Figure 2(b), while it truly was not. Its spectacular awakening from nearly 3 decades of hibernation, most likely due to unsolicited nonlinearities now being useful, is what makes HNN forecasts of 2021 on point whereas other PCbased forecasts fail — their coefficients are so weak that resulting forecasts often look close to straight lines.
So far, the focus has been on . As discussed in Section 2.2, HNNF allows for a separate inspection of and . Figure 5 reports them for the estimation ending in 2019Q4. Unlike recessions that preceded it, the GR is characterized by a rapid yet incomplete closing of the gap. Interestingly, this mildly negative gap lasting for a decade coincides in part with the socalled missing inflation era. This observation – a rapidly closing gap followed by a long slightly negative one – is found whether we estimate the model using data up to today, or end estimation in 2007. Thus, HNNF is not reverse engineering a to fit the postGR inflation data. Moreover, the rapid closing of following the GR is not observed for the early 1990s and 2000s recessions. This distinction is even clearer when using the less volatile Core CPI as supervising variable in Figure 9. Thus, what is observed for in the early 2010s is not due to it always closing faster, perhaps in a mechanical way.

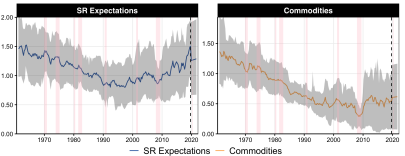

What about , the widely studied evolving coefficient of the PC? The evidence in Figure 5 is in partial agreement with the recent literature on the matter (Blanchard, 2016; Galí, 2015; Del Negro et al., 2020) in the sense that the exogenously timevarying has been decreasing. However, there are many notable differences. First, there seem to be a break around 1980, in the midst of Volker disinflation, where ’s decline substantially accelerates. Second, unlike results from standard approaches, is not found to decline further following 2008, but rather to increase gently. Results including COVID19 data suggests an even stronger pickup of HNNF’s in the last 12 years. These observations are in sharp contrast with Blanchard (2016)’s findings using a (supervised) filtered unemployment gap. They report a slowly decaying that gets even closer to 0 following the GR, which is very close to CKPbased results (the red line) obtained in Figure 5. Stock and Watson (2019) report very similar results for a plethora of slack measures (albeit all of them being strongly correlated with each other), with coefficients being all in the vicinity of 0 for the 20002018 period. Also using unemployment as real activity indicator but identifying with crosssectional variation (US States), Hazell et al. (2020) also find a small PC coefficient. Given how different HNNF’s is with respect to traditional detrended GDPs, filtered unemployment, and other neighboring alternatives, atypical vivacity is not entirely surprising. All in all, HNNF results suggest that, yes, there exist a measure of slack which effect on has been appreciable and mostly stable over the last 4 decades —and that is not filtered unemployment.

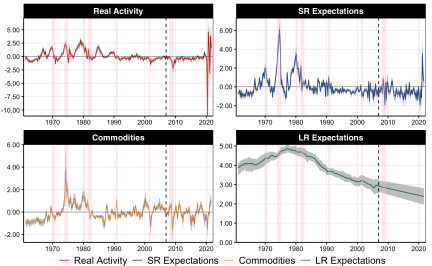

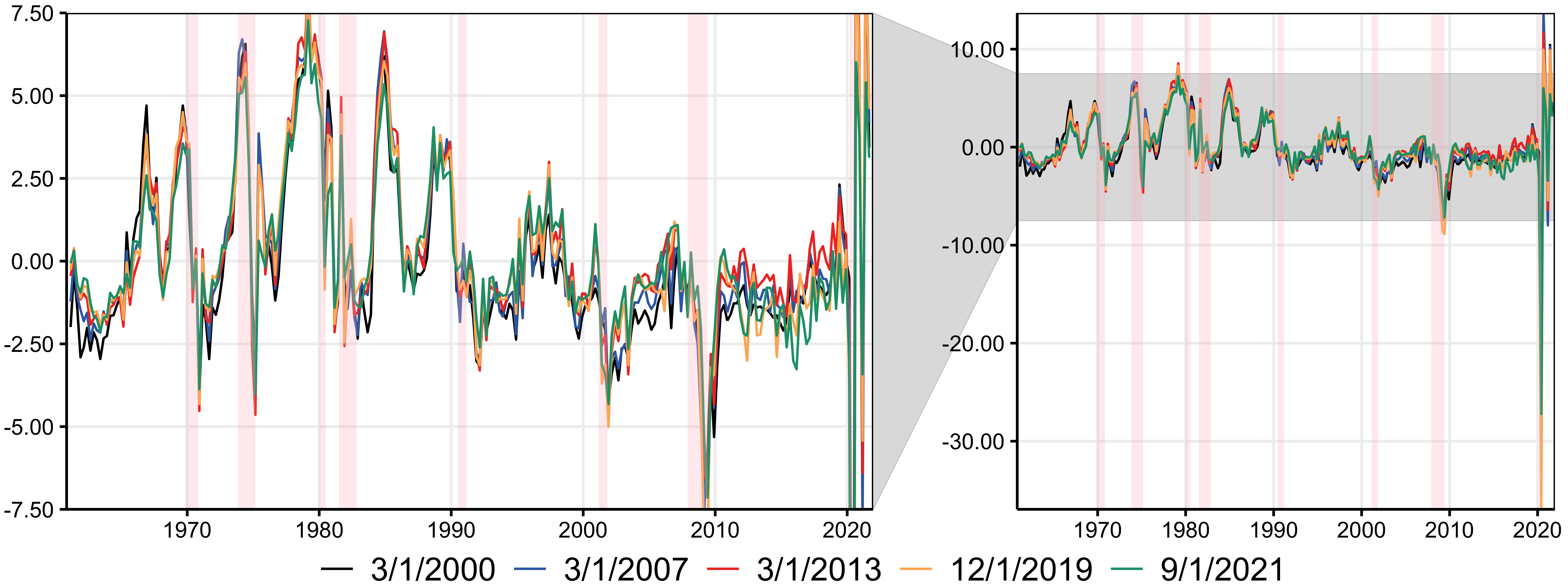

A relevant statistical question is whether HNN could be prone to rewriting history — because many of the gap estimation methods based on plain filtering are (Orphanides and Norden, 2002; Guay and St.Amant, 2005). Figure 6 suggest that HNNF’s estimation of ’s to be rather stable, with the qualitative patterns observed in Figure 5 being completely intact. There are some mild quantitative disagreements between the 2000 version and the remaining four, especially for the positive preceding the crisis. As for the aftermath of the crisis and the 2010s, there are some mild quantitative disagreement but the pattern – strikingly different from those of traditional methods – is the same across specifications. That is, we get a major but shortlived dip following the crisis, a brief comeback to 0, then a long mildly negative phase up until 2018. All estimations agree on economic pressures on inflation increasing from the mid 2010s up until the Pandemic., with a slight disagreement on the overall level of . Historical results are robust to the inclusion/exclusion of wild pandemic observations and movements are rather similar whether they are projected outofsample from 2019 or using all the data up until today. The quantitative discrepancy between the 2019 and the fullsample versions is obviously larger during 2020, but so is estimation uncertainty. The 20202021 data has the effect of dampening the gaps movement in the last 2 years because the algorithm attempts to minimize (now insample) the large forecast error for 2020Q3, an observation that should be in fact discarded with dummies. Overall, results with training ending in 2019Q4 were preferred as benchmarks since COVID19 observations have an extremely high level of volatility attached to them and one simple way to statistically account for that is to drop them (Lenza and Primiceri, 2020; Schorfheide and Song, 2020). Moreover, it allows to evaluate whether a statistical model that has not seen 2021.
Many ingredients enter HNN for it to deliver the gap and expectations reported in this section. Dispensing with some of them helps in understanding the respective contribution of each. In Appendix A.2, I conduct an ablation study where HNN is deprived, in turns, of the large data set and the nonlinear supervised processing. In short, the combination of both appears essential. For instance, one could wonder if the use of a data set partly populated by growth rates – rather than levels or deviations from them – could have been a factor behind HNN’s success that has little to do with HNN itself. It turns that no: the linear unsupervised processing of the same data set produces a that remains below 0 or in the vicinity of it throughout 2021.
4.1 Forecasting
4.1.1 Setup
The pseudooutofsample period starts in 2008Q1 and ends 2021Q3. I use expanding window estimation from 1961Q3. HNNs are reestimated and tuned every 4 quarters. Following standard practice, the quality of point forecasts is evaluated using the root Mean Square Error (MSE). For the outofsample (OOS) forecasted values at time for :
Three targets are considered. First, CPI(), which is the supervisor in the benchmark HNN specifications. Additionally, the alternative supervisors eventually studied in Section 4.3 – CPI average inflation from to () and Core CPI() – are considered. Performance results are reported including and excluding 2020 observations.^{19}^{19}19The exclusion zone is extended to 2021Q1Q2 for 4 quarters ahead forecasts for the simple reason that they were made during the depth of 2020Q1Q2 and the models propagate a year later what it thinks is an unusually large negative (yet typical in composition) demand shock. As we will see in Section 5, while NNs in general provide erroneous forecasts for 2020Q3 and 2020Q4, an extended HNNF which models both the conditional mean and the conditional variance predicts unprecedented levels of imprecision for those two forecasts. In contrast, HNNF is as confident as it gets for the 2021 projections. Thus, using that timely information, a forecaster would have discarded 2020 forecasts exante (but not those of 2021) in a similar fashion to what the barplots of this section are doing expost.
A few obvious benchmarks from both sides of the aisle are considered. On the ML side, there is a fully connected neural network with the same hyperparameters as HNN (
DNN) and a random forest (RF) with default tuning parameters (typically hard to beat). They all use the exact information set as HNN (variables and aforementioned transformations). Then, there are inflationspecialized econometric benchmarks of increasing sophistication. First, we have the AR(4) which will stand as the generic numeraire of reported MSEs. Then, two rolling means are considered, the oneyear mean à la Atkeson and Ohanian (2001) (1y Avg) and a longerrun one (10y Avg). Bringing in real activity information in, I consider a PC regression (PC, two lags of and the CBO gap) estimated on a rolling window of 15 years to allow for timevarying parameters. Note that this PC reg is given a handicap by using the latest CBO gap which may have been substantially revised expost — and after observing inflation, the forecasting target. Additionally, an identical PC regression augmented with two lags of oil prices and survey expectations (PC+) is considered to match some of the information set in HNN, and more generally specifications inspired from Coibion and Gorodnichenko (2015). Finally, we consider Chan et al. (2016)’s timevarying bounded Phillips curve model (CKP) where is extracted in a supervised fashion from unemployment by assuming the natural rate of unemployment to follow a random walk. Key coefficients also follow random walks. This approach was reported to have sporadic success in forecasting euro area inflation (Banbura and Bobeica, 2020) and could be seen as the stateoftheart Bayesian method to forecast inflation based on some form of gap. All those nonNN methods are reestimated every quarter.4.1.2 Results
I now report the forecasting performance of HNNs for the three targets and look at their forecasts. In Figure 6(a), HNN and HNNF are shown to perform well –when excluding the aberrant 2020 observations. In Figure 6(b), we understand that HNN’s relative success is due in part to capturing with reasonable accuracy the recent upswing in inflation. Of course, this achievement is counterbalanced (within all of outofsample) by overly pessimistic forecasts following the dip of 2020. On the other hand, HNN was not communicated of an unprecedented governmentinduced economic shutdown, and a careful use of the model would have discarded the downward spike.
For the 3 targets, HNN and HNNF forecasts are very close to one another throughout the outofsample. Notable exceptions are the 4 recent quarters for CPI() and Core CPI() where HNN delivers very accurate forecasts and HNNF performance lives somewhere between that of HNN and PC+. Nonetheless, both models predict being above the target range starting from 2021Q1. While a certain potency during 2021 is common to all deep networks, DNN’s predictions (unreported), while broadly getting the upward "trend" right, are volatile and are either too high or too low. During the same period, PC+ visibly acts as an autoregression, pushing the forecast upward according to previous positive shocks. Additionally, it wrongly calls for largest immaterial deflation in the aftermath of 2008, which is, in effect, a classic failing of regression models predicting inflation with an output gap. HNN and HNNF are not completely exempted from this failing for CPI() but avoid this predicament CPI() and Core CPI(). One explanation is the rapid closing of HNN’s gap, for all three supervising variable (see Figure 9 and its discussion in Section 4.3). The other emerges from Variable Importance results of Section 4.2. Another modern approach is CKP, based on a Bayesian bivariate statespace model of trend inflation and the gap. Its reliance on unemployment appears fatal in two historical episodes. First, its forecasts are consistently too low for most of 20082012. Second, its forecasts remain significantly below realizations for all of 2021. The reason for this is selfevident from Figure 5: detrended unemployment rate, the forcing variable, is negative for most of 2021. Thereby, if it forces in any direction, it is downward, not upward.
Turning to Core CPI, we again see that, leaving out 2020 data, HNNs have the lowest MSEs. It is noteworthy that the extent of the "2020 forecasts demise" is much smaller for core inflation. HNN captures reasonably accurately what is, at least since the 1990s, a rise in Core CPI that is unprecedented in both speed and magnitude. Similarly to headline CPI results, CKP forecasts are again too low.
For oneyear ahead forecasts, Figures 6(e) and 6(f) reveal that HNN and HNNF provide the best PCbased forecast in the lot, again, when excluding 2020. As mentioned earlier and explored in detail in section 5, this exclusion can alternatively be motivated from an augmented HNN itself recognizing that its forecasts are very likely unreliable. Unlike PC+ in Figure 6(f), HNNF and HNN are not lured into predicting longlasting disinflation (or even deflation) following the GR— because HNNF’s gap is closing as fast as that of the benchmark CPI() estimation and is moderately small (see Section 4.3). This, however, does not prevent HNNs from displaying the Phillips curve relationship in all its vivacity when needed. While NNbased forecasts are more dispersed for this target, they agree on one thing, an average CPI inflation of 4% from 2020Q4 to 2021Q3 inclusively, which is well above target. In contrast, PC+ calls for a timid 2.5% and CKP expects inflation to be below the target. The closest competitor is the atheoric 10 years mean. While their associated MSEs are relatively close, forecasts differ substantially, with HNNF channeling information about real activity whereas the rolling mean does what a rolling mean does, i.e., a semiflat line.
Unsurprisingly, yearly results for 2020 and most of 2021 are not great for any realactivitybased forecasts, including HNN. In a similar fashion to what reported in Figure 6(b), this is due to HNN and PC regressions not being informed that this is no ordinary recession and that extraordinary governmental programs have been implemented to life support the economy. This limitation has even stronger consequences when forecasting since the mediumrun dynamic transmission mechanism itself is certainly quite different during the Pandemic than for previous recessions. In other words, due to an imminent structural break, it is not shocking that HNNs or PC regressions are overpessimistic in the initial and most of the subsequent response of the COVID19 shock. On top of that, oneyear ahead inflation is particularly subject to the various pandemic plot twists which can occur within four quarters.
Overall, barplots of Figure 7 show improvements ranging from 10% to 25% when excluding 2020 observations, with HNNF and HNN always delivering comparable RMSEs. For all 3 targets, the closest competitors in terms of RMSE are the rolling 10 years mean, PC+ (which includes the survey of professional forecasters’ forecast as a predictor), and sometimes Random Forest. For the former, it is not an uncommon result, especially for a period of relative stability in the 2010s — and avoiding the perils of calling missing disinflation by construction. But those forecasts cannot capture what crucially matters for policy: when inflation gets out of its target range. Additionally, any form of macroeconomic rationale (except that of anchored expectation) is evacuated from those forecasts. Same is true of the various AR or ARMA configurations. This is, in great part, what still motivates the use of PC regressions despite their welldocumented failings (Yellen, 2017). Thus, all in all, HNNs fare well by providing reliable forecasts that have economic soundness and can predict that will exit the target range before it does.
4.2 What are the gap and expectations made of?
Unlike simpler datapoor estimates – where the modeler decides which variables matter exante – or datarich linear ones – where nonlinearities are typically prespecified (e.g., trendcycle decomposition) and we can look at the factor model’s loadings – that of HNN needs additional computations to understand what it is made of. By construction, and are combinations of thousands of parameters nonlinearly processing many regressors. Consequently, looking at network weights by themselves is inherently meaningless. More productively, I investigate which seems to matter most by designing a variable importance (VI) exercise very much inspired from what Goulet Coulombe (2020a) studied for "generalized timevarying parameters" in a random forest context – which is itself inspired from traditional variable importance measures for tree ensembles predictions.
I focus on groups of variable , meaning we will evaluate the overall effect of all transformations and lags of variable (as mentioned in section 2.1, we include 4 lags of each and moving averages of order 2, 4 and 8). The variable importance procedure to evaluate the relevance of variable to can be summarized as follows. , for a variable
, works in three steps. First, we shuffle randomly variable
(and all its attached transformations, i.e., lags and MARXs). Second, we recompute (but do not reestimate) the component (using the shuffled data for and the original data for all other variables). Third, we calculate its distance to the real component estimate . Formally, the standardized , in terms of % of increase in MSE, is(7)
Intuitively, randomizing important variables will push further from its original estimate than randomizing useless ones.
VI results are reported in Figure 8. Here are key observations for . First, AWHMAN’s (average weekly hours in the manufacturing sector) predominance for suggest an important for the intensive margin, whereas typical laborbased gap measures are mostly about extensive margin (like filtered unemployment). Recently, Bulligan et al. (2019) find the former can complement the latter as forcing variables in linear PCs for Euro area (but not the US). Second, the composite HelpWanted Index (HWIx) of Barnichon (2010) –which McCracken and Ng (2020) splice earlier in the sample with the original Conference Board product for "print" job postings – is shown to play an important role. Intuitively, the index, by construction, characterizes increased labor demand (and perhaps shortages) which is expected, by economic theory, to translate in higher wages, and eventually, higher aggregate prices. This partly explains the very positive gap in Figure 5 since HWIx is effectively skyrocketing as of late 2021 despite being largely stagnant in 2018 and 2019. However, this not the whole story: nonlinear neural processing of HWIx seems essential as reported in the ablation study (Appendix A.2). In Figure 18 (Appendix), we see that, at times, the unemployment rate and HWIx were closely related, like during 1990s and the 2000s. But other times they were not, like the 1970s and in a very striking fashion, right now. Moreover, their acceleration rate can differ in key recession and expansion episodes. By putting its money on some transformation of HWIx , HNN leveraged historical patterns to avoid relying on less potent forcing variables. As we now know, those are directly responsible for the failure of traditional PC forecasts in 2021 (Figures 5 and 7).
Remaining variables that are marginally more important than the rest are typically related to employment levels in different sections. Third, GDP and associated measures seem unimportant, so is the unemployment rate. The only traditional gap measure making an appearance in ’s top 25 is total capacity utilization (TCU), which, interestingly, is also the one among them delivering (after some filtering) the fastest closing of the gap following the great recession in Stock and Watson (2019) (see their Chart 3).^{20}^{20}20In unreported results, a traditional HPfiltered unemployment and the CBO gap were included within . The estimate of did not budge and the two gaps were excluded from the VI’s top 25. In more traditional econometric analysis, Berger et al. (2021) report that the unemployment rate may dilute the cyclical information ones wishes to extract for , making alternatives measures attractive for output gap estimation.
Turning to , we see that a handful of very familiar variables dominate the top 25. First, the obvious preponderance of the University of Michigan Survey of Consumer Inflation Expectations (inf_mich) strengthen the case for the increasingly popular practice of using survey expectations in PC regressions (Binder, 2015; Coibion and Gorodnichenko, 2015; Coibion et al., 2018; Meeks and Monti, 2019). It also completes the explanation as to why HNNF forecasts did not call for lasting disinflation following the GR. That is, as suggested by Coibion and Gorodnichenko (2015), proxying expectations using survey expectations rather than, say, lags of the CPI, procures more accurate post2008 predictions. HNN learned that prior to 2007 by putting a high weight on inf_mich. Nonetheless, suggests mixing in expectations from different economic agents and formulated for different horizons seems more appropriate, which is in line with recent results for simpler regression models in Banbura et al. (2021). There is also a minor role for "backwardlooking expectations" or "inflation persistence" as characterized by the presence of lags of the CPI (Ylag) in the top 4.
Lastly, we see the overall producer price index (PPIACO) and the PPI for crude materials for further processing (WPSID62) being marginally more important than the remaining variables. These contribute information about costpush shocks that producers will eventually pass in part to consumers. These enter the model in seconddifferences of the log (following the transformation suggested in McCracken and Ng (2020)) and thus represents "acceleration rates".^{21}^{21}21Longerrun information is not completely discarded for those series as moving average terms (which use is motivated from Goulet Coulombe et al. (2021)’s MARX argument) are in fact partial sums of lags. Looking at those time series reveals that the highest acceleration on record (since 1960) was recorded for both variables in the third quarter of 2020. Consequently, the visually obvious spike (that is not necessarily unique to those two series) is arguably what is driving the flash disanchoring of .
4.3 Changing Supervisors
The deep output gap and associated results from HNN have been learned through supervision with headline inflation. Changing supervisors could alter results. For instance, it has been reported recently and less recently that alternative measures of inflation – typically strippeddown version of the CPI designed to be less volatile – can deliver different results, for instance, about the strength of the PC (Morel et al., 2013; Ball and Mazumder, 2019; Stock and Watson, 2019; Luciani, 2020). Making a deep dive in the pool of alternatives CPI is left for future work, but investigating trivial alternatives can be informative on the robustness of and the mechanics of HNN. In this section, I report ’s and ’s obtained from HNNF with two alternative supervisors that were introduced in the forecasting experiment (Section 4.1). The first is Core CPI (headline minus food and energy). The second is the average inflation rate over the forthcoming year. Tuning and architecture details remain intact from Section 2.3, except that dropout is turned off for these two less noisy targets.

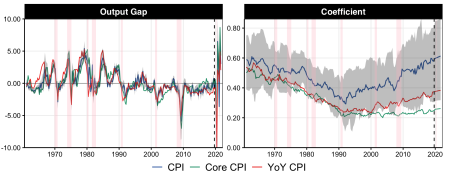

Estimation results reported in Figure 9 are suggestive that there is such a thing as a unique real activity latent state driving future inflation for various horizons.^{22}^{22}22A natural extension of this paper’s framework would be to consider multiple targets – namely all horizons from 1 to, say, 8 quarters – and extract a common gap. All ’s follow a clear common pattern, with that of yearly inflation showing larger amplitudes than one quarter ahead up to 1990, and that Core CPI being slightly less. All gaps close relatively slowly following the early 2000s recession (with Core CPI’s gap closing the slowest of the 3) and all close extremely fast following the GR. They also share a common arcshaped mildly negative gap from 2011 to the onset of the COVID19 era. During the pandemic, the general pattern is again common to all three but magnitudes differ substantially, in line with the wide uncertainty of the last two years. For instance, obtained from CPI (benchmark) is dissenting from those of CPI Core and YoY CPI by calling for a negative gap in 2021Q2 . The other two ’s remain (very) positive from the end of 2020, which is the basis for their respective upward forecasts in 2021 reported in Figure 7.
In terms of coefficients (’s), those are typically lower for both alternatives supervisors, and so is their revival in the 2000s, with that of being practically nonexistent. Credible regions suggest slack’s contribution to inflation is similar for the CPI at and . ’s overall level suggests a slightly lower passthrough from real activity to core inflation. Nevertheless, the main message from the previous section stands still: there is a nonlinear measure of real activity which still impacts inflation greatly and drives current (mostly onpoint) forecasts – much more than what one may obtain from a plethora of classical gaps.

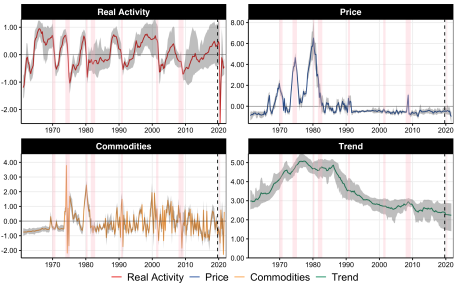

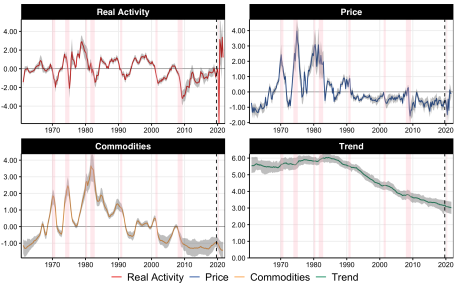

In Appendix A.3, a more radical departure from the benchmark specification is conducted with the federal fund rate replacing inflation as supervisor. Accordingly, this last gap is extracted from a Taylor rule rather than a PC and will represent the the Fed "has in mind". Interestingly, the resulting gap looks more like a traditional filtered one, suggesting there may a gap between the monetary authority’s view of economic slack (in line with typical econometric estimates used by economists) and what can rationalize the inflation record.
5 Can HNN Predict its own Demise? On Inflation Volatility
In comparison to trademark AI applications like image recognition and machine translation, the signaltonoise ratio is low for most economic applications. This means that a predictive algorithm is fallible to an extent where it becomes useful to also predict volatility — i.e., when it is more likely to miss its target by larger margins. Econometricians know that all too well and have proposed a suite of models for conditional heteroscedasticity which have been used extensively in macroeconometrics and financial econometrics, with stochastic volatility (SV) and (G)ARCH being respectively the leading paradigms
(Engle, 1982; Jacquier et al., 2002). In the case of inflation, the unobserved components model with stochastic volatility (UCSV) has been popular for forecasting purposes (Stock and Watson, 2007)and the timevarying parameter vector autoregression with SV for structural analysis
(Primiceri, 2005).An important roadblock is that those options are not readily implementable without deviating significantly from the highlyoptimized software environments that make HNN computations trivial. SV requires Bayesian computations and appears restrictive in the kind of variation it allows for, especially when compared to the conditional mean function. As a result of it being essentially a trendfiltering problem for squared residuals, it is unequipped to detect future volatility spikes in the target series–although it can be adjusted to deal with outliers after the fact
Carriero et al. (2021). Implementing GARCHlike volatility within HNN would be similarly daunting given that the MLE estimation of simple GARCH models is already challenging in itself (Zumbach, 2000; Zivot, 2009). Approaches alternating the fit of the conditional mean and the conditional variance until convergence – à la iterated weighted least squares – are also highly impractical. First, the DNN residuals within the training sample can easily be reduced to dust (Belkin et al., 2019), making them an unusable target in a secondary conditional variance regression. Second, it is sometimes difficult to get a single DNN to converge, so alternating between two of them will unlikely deliver. Lastly, the many bells and whistles of gradient descent (like the Adam optimizer) can make a sizable difference. Thus, there is great statistical and computational cost in deviating from the current implementation of HNN or DNNs in general.Would not it be nice if it were possible to merely create an additional volatility hemisphere, and carry HNN estimation practically as is? As it turns out, it is – and only requires changing HNN’s loss function. The key insight is that Spady and Stouli (2018)’s simultaneous meanvariance linear regression can be generalized by a HNN with a marginally more sophisticated loss function (Goulet Coulombe, 2022). For the current application, the least squares problem is replaced by
(8)
where are network weights associated with the mean equation, those of the volatility hemisphere. is the conditional standard deviation of shocks and is the conditional mean function with the hemispheric structure laid out in (4). Spady and Stouli (2018)’s implementation requires concentrating out the conditional mean coefficients by leveraging that linear regression coefficients have a closedform solution given the volatility parameters. This severe limitation to the broad applicability of the method is directly remedied by (8), which can be solved directly by any DNN software after specifying a hemispheric structure. From an optimization point of view, (8) is expected to be well behaved given that, in the linear special case, Spady and Stouli (2018) show the above problem is globally convex. This, of course, does imply that such qualities are directly transferable to the HNN version. Nevertheless, it is suggestive that such an optimization problem should not be considerably harder than what has been considered up to now.
The remaining details are those pertaining to the structure of the function . To account for both slow changes in the volatility process and rapid changes based on observed data, is given a factorized structure similar to the components of HNNF. More precisely,
where is enforced and is given 3 layers of 100 neurons.^{23}^{23}23Note that will be positive by construction since , , and are themselves constrained to be positive for identification purposes in section 4. Additionally, both and ’s outputs are normalized to have a mean of 1, again, to achieve identification. The restriction on is to coconstrain the longrun movements in the volatility level with that of the influence of the 3 nonexogenous components of the conditional mean. Note that all ’s are estimated simultaneously so this constraint will affect the resulting timevarying coefficients of the conditional mean as well. In unreported results, they are largely unchanged compared to the benchmark HNNF specification. Thus, accounts for variations that random walk SV models could capture while deals with abrupt changes that a nonlinear GARCH model with many exogenous regressors could perhaps provide. This last association comes from noting that could, at least in theory, create by nonlinearly processing its inputs (whose includes ). This observation hints at further developments for sharing parameters across the mean and variance networks, like having as a direct input to . These considerations are evidently beyond the scope of this paper and are studied in ongoing work (Goulet Coulombe, 2022).
Figure 10 reports results from HNNF with evolving volatility. The resulting showcase diverse kinds of fluctuations. First, we get volatility blasts during all recessions punctuated with important fluctuations in the price of oil. This is something that a SV model based on the random walk – hence putting the accent on longerrun changes – would hardly capture. The various plots of Figure 10 have a capped yaxis because, as one could expect, the outofsample volatility forecast skyrockets following the first 2020 economic shutdown. In accord with most SV estimations, we get a significant decline in the volatility level at "rest" during the Great Moderation. Volatility in the last decade has been comparable to that of nonrecession periods of the 1970s. It appears that the most appropriate "classical" specification of the volatility process would be a 2 or 3state switching process based on observables, combined with a slowmoving component. Conveniently, this augmented HNNF had learned those patterns nonparametrically using data through 2019Q4.
The highest prepandemic volatility peaks – the two inflation spirals of the 1970s – are topped by a huge margin for the 2020Q3 and 2020Q4 forecasts. As is clearly visible in the second panel of Figure 9(b), HNNF knows its forecasts are highly uncertain following the unprecedented variations in macroeconomic indicators. In fact, the bands simply reveal that the network, being handed only macroeconomic data and no additional information, sees everything as possible. This is not surprising given how reliant on extrapolations such forecasts are — many inputs exited their usual range with an unprecedented vigor. HNN completely comes back to its senses in 2021Q1 and appears confident in its forecasts, whose bands effectively exclude the inflation target. In terms of the quality of point forecasts, those reported in 9(a) are comparable to those of Figure 6(b) for the most part. However, while plain HNNF predictions in Figure 6(b) are slightly below the late 2021 realizations, the above version including the volatility hemisphere produces wellcentered forecasts for the tumultuous period.
From an econometric point of view, it appears that this "augmented" HNN can aptly predict the likelihood of its own demise. This is a highly desirable feature. While providing a strikingly erroneous forecast for 2020Q3 in Figure 6(b), it communicated its user that, based on historical patterns, this particular forecast is extremely uncertain. This further motivates the exclusion of 2020 observations in the barplots of Figure 7
– and based on estimation set in stone in 2019Q4. Observing the disturbing volatility predictions, a user would look for modeling alternatives such as heuristic forecasts. In Figure
9(b), we see a similar (yet much more moderate) pattern for the 2008 recession and its aftermath. That is, forecasts are too low for first two quarters of 2009, but the bands widen in a timely manner to include the realized values.This section is merely a first step in the direction of timevarying uncertainty prediction within a single network. Its purpose is to show that yes, HNN can conveniently and flexibly model inflation volatility while retaining its original advantages.
6 HNN as an Evaluator or Generator of New Theories
With typical PC regressions often being only mildly supported by the data, there has been a business of proposing augmented PCs. Often times, the newly proposed component is either suggested from formal theory or common sense economic arguments. In both cases, there can be a disconnect between what is in the database and what comes out of the theory, again compromising the proper evaluation of the potency of such augmentations. By adding new hemispheres dedicated to the newcomers, HNN can palliate this problem.
6.1 An Investigation of the 4Equation NK Model
Sims and Wu (2019) introduce a fourequation New Keynesian model that skillfully blends the tractability (and the derivation of an explicit Phillips curve) of the canonical 3equation model (Galí, 2015) and relevance for analyzing the effects of quantitative easing (QE). As a result of incorporating, among other things, financial intermediaries, bonds of different terms, and credit market shocks, their Phillips curve includes two additional variables beyond those of (1): the real market value of the monetary authority’s longterm bond portfolio and credit conditions. While the former is rather clearly defined in terms of observed variables, the latter needs to be proxied, and ambiguity reigns as to which financial market variable will adequately proxy for "credit conditions". The HNN solution is now obvious: create a with a myriad of indicators containing information on the health of credit markets.
The expected signs for coefficients, as derived from theory, is that keeping the output gap fixed, favorable credit conditions bring inflation downward, and so does an expanding positive central bank balance sheet. Those signs are obviously those of marginal effects, i.e., when controlling for the output gap. In this section, I augment HNNF with two additional hemispheres inspired from Sims and Wu (2019)’s model. Then, results regarding the effect of credit conditions are compared to a much simpler model – a PC regression with timevarying parameters that is augmented with oil prices, the reserves of depository institutions (total and nonborrowed), and, most importantly, the Chicago Fed National Financial Conditions Credit Subindex.

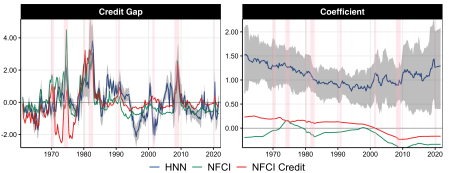

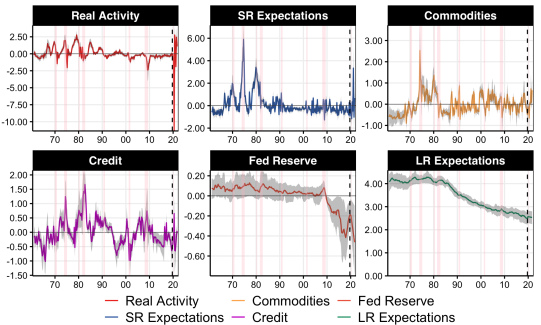

Figure 11 reports, among other things, the contribution of credit conditions and the Fed expanding balance sheet to as estimated from HNNF. The four original components are largely unchanged, largely because the additional two are of limited relative importance. Figure 12 reports results from augmented PC regressions with timevarying parameters. The NFCI is found to have a negligible impact on , whereas the credit index created endogenously by HNNF from the credit group of variables in FREDQD (see McCracken and Ng (2020) for the complete list) has an appreciable effect during certain historical episodes. For instance, there is mild upward pressure on prices due to tightening credit conditions before and after the early 1990s recession, as well in running up to the GR. Also, loose credit conditions and an everexpanding Fed balance sheet are credited for very light (direct, not indirectly through the gap) downward pressure on prices during the mid 2010s. This is, obviously, the direct marginal effect, keeping the gap fixed.
In Figure 12, the HNN credit conditions index shares some peaks and troughs with NFCICredit and mostly overall NFCI, but, all in all, they are only mildly correlated. As a result, compared to a more traditional test of the 4NK model, we get a much larger (and correctly signed^{24}^{24}24This cannot be assessed by looking at the coefficient since it is forced to be positive for identification purposes. Rather, the statement comes from observing that HNN’s index is positively correlated with a known measure of credit stress and that its ups and down are consistent with the kind of cyclical variation we expect from it.) coefficient for credit conditions in HNN. This is explained by HNN’s index being active during certain periods while either NFCICredit is essentially flat (from the early 1980s on, excluding the GR) or has the opposite sign (for almost all of the 1970s). Thus, unlike classical methods, HNN finds a mild positive contribution of tightening credit conditions from the mid 1980s until the early 1990s, an era punctuated by the 1987 stock market crash and a general credit slowdown from 19891992 (Akhtar et al., 1994). Additionally, HNN finds easy credit conditions from 1995 until 2005, with the exception of a small peak following the collapse of the Dotcom bubble. Overall, the credit conditions index created by "inflation supervision" is suggestive of a much less persistent behavior and much more action during the Great Moderation than what can be seen from the NFCICredit. Finally, the coefficient on credit index is found to be declining exogenously through time starting from 1980s but then experience a revival in the 2010s. However, there is wide uncertainty surrounding the coefficient estimates of the last decade.
From a methodological standpoint, the takeaway message is the following. If one chooses the NFCICredit, arguably a very legitimate proxy for credit conditions as they enter Sims and Wu (2019)’s PC, literally no empirical support is found for the new model. In contrast, HNN, by constructing a credit index supervised by , finds some evidence for the PC as derived by Sims and Wu (2019). This contribution of credit conditions – albeit light when compared to that of the original four components – is nontrivial. The same cannot be said of the Fed’s reserves, which have a limited direct effect on . But this could be due to the limited length of the "QE sample".
6.2 Adding an International Component and a Kitchen Sink
The connectedness of the world economy suggests inflation can be influenced by nondomestic factors, like the vigor of the trading partners’ economy. There is crosssectional and time series evidence on the matter (Borio and Filardo, 2007; Laseen and Sanjani, 2016; Bobeica and Jarociński, 2019) and it is not infrequent to see proxies of international economic or inflation conditions enter PC regressions (Blanchard et al., 2015). The 2021 inflation experience, with many countries reporting historically high YoY inflation rates simultaneously, does not negate the importance of a global component either. As always, the question is how to properly construct a global measure of slack that may or may not influence US inflation, when controlling for its own gap.
To create a global gap (excluding the US), I construct a hemisphere where the inputs are quarterly GDP growth rates from 1970 for OECD members and potential member states, which data is available here. Country aggregations (like G7, to avoid overlap with domestic variables) are excluded, and so are countries which data starts post1960.^{25}^{25}25Exceptions are made for China and India. China’s data is replaced with that available FRED that starts in the mid1990s (with residual seasonality filtered out with dummies) and the interpolated yearly series of the World Bank is spliced in before that. OECD data is kept for India post1996 and interpolated yearly data from the World Bank is used prior to that. Transformations mentioned in section 2.1 are carried with the new data.
Since this specification is not motivated from any tight theory (as it was the case in Section 6.1), I also indulge in adding a Kitchen Sink hemisphere, which, as the name suggests, will include all the variables in FREDQD that are not already included in our four benchmark hemispheres. This will provide yet another robustness check on the path estimated for key components like and . This can also point, via the VI analysis, to variables that could eventually deserve their own hemispheres in extensions of this work. The resulting specification is referred to as HNNFIKS, namely, HNNF with an international component and a kitchen sink.
The international output gap seems to be of limited importance compared to other components — its contribution is typically contained within the 0.5 to 0.5 range and the bands often times includes 0. This statement, of course, does not apply to the Pandemic era where massive swings similar to those of are observed. Notable recent episodes are a flash negative contribution circa the GR and a gently negative one in the mid2010s, corresponding to the missing inflation period.^{26}^{26}26Laseen and Sanjani (2016) also report on the informativeness of external factors for the 20082015 period in a conditional BVAR exercise. However, results from HNN, which dispenses with many assumptions from BVAR and related methods (but comes with some its own, in all fairness), points out this effect to be mild.

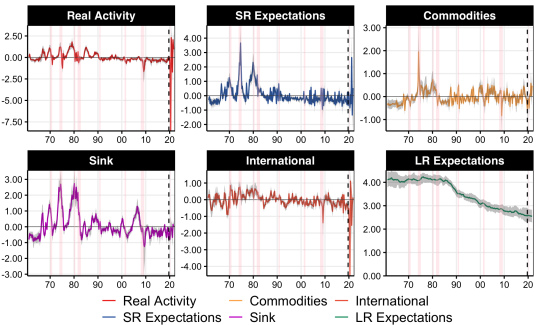

In Figure 13, it is found that and are qualitatively unchanged, but one can notice an overall weakened effect (with respect to Figure 2) of both components especially in the 1970s. The major reason for that last observation is arguably the commanding presence of the kitchen sink, which contribution entertain some important highs in the 1970s, as well as three intriguing bumps before the 1990, 2001, and 2008 recessions. Importantly, it is worth remembering that its very inclusion changes the definition of and are per the network structure. Thus, their reported dampening should be taken with a grain of salt.
Nonetheless, understanding what is in the sink could clearly prove valuable. Figure 14, by reporting the VI for the sink component, strongly suggests that information about future economic outcomes is key: the first six variables are all considered leading indicators. Very interestingly, it is, again, the survey variant of such expectations that comes on top (UMCSENTx). Then, comes marketbased forwardlooking variables: a US exchange rate followed by three spreads (5year treasury bill minus federal fund rate (FFR), 3month commercial paper minus FFR, 3month treasury bill minus FFR). The literature documenting the potency of spreads as predictors of business cycle turning points is vast (Stock and Watson, 1989; Estrella and Mishkin, 1998). Their link to inflation seems thinner (Stock and Watson, 2008) in linear PC regressions but Goulet Coulombe (2020a) finds that their link to inflation appears to be highly nonlinear (using a newly developed random forest approach). HNN also can deal with the necessary nonlinearities.
Finally, SPCS20RSA (S&P/CaseShiller 20City Composite Home Price Index) and ACOGNOx (Manufacturers’ New Orders for Consumer Goods Industries) are both leading indicators within their own economic sectors. Overall, there is a clear push from forwardlooking variables during the periods that precede economic downturns. This large weight accorded to variables inputting information about future economic outcomes is not surprising, as the latter is directly related to expectations about future marginal costs (and so are unit labor costs^{27}^{27}27In fact, in a wellknown paper, Galı and Gertler (1999) showed that proxying for marginal costs directly with the labor share gives a significant Phillips curve slope coefficient whereas using some form of output gap does not. However, Mavroeidis et al. (2014) mostly overturn this result by noting few differences between the results of the two different specifications , entering at positions 10 and 11 in Figure 14) – solving forward the NKPC yields that is a function of expected future marginal costs.^{28}^{28}28In unreported results, unit labor costs were included in the baseline HNNF specification, which is a legitimate enterprise in itself if we wish to extract directly rather than . The estimates of the gap (or ) did not budge but unit labor costs ranked highly in VI. This suggests that, while unit labor costs carry pertinent information, it was already proxied for by a nonlinear combination of real activity variables already contained in . The empirical importance of considering forwardlooking expectations about the marginal costs has been highlighted before, mostly from a structural model perspective (Del Negro et al., 2015). Nonetheless, it is worth remembering that VI results for the kitchen sink are more dispersed than those of Figure 8 and it is clear that a plethora of regressors contribute to the component beyond those at the top.
7 Parting Words
This paper estimates a neural Phillips Curve with a deep output gap by developing the Hemisphere Neural Network. Results vary substantially from those obtained with traditional econometric methods by dispensing with a plethora of assumptions inherent to the latter. Among others: the choice of variable from which the gap should be made of, filter choices and laws of motions, restrictive time variation in coefficients, etc. As a result, unlike timevarying PC regressions with the CBO gap or others, HNNs delivers good forecasts, like capturing some of the upswing in the CPI observed in 2021. The model attributes some of it to a widening positive output gap, unlike traditional estimates which typically deliver negative (or mildly positive) gaps throughout 2021. Additionally, unlike methodologies which impose smoothness assumptions through autoregressive laws of motion, HNN’s gap is highly volatile during the Pandemic period – a finding consistent with the intermittent closing/opening of the economy following the successive waves of Coronavirus infections.
It is shown that the HNN framework can be extended in many directions. One is to test more sophisticated Phillips Curve specifications by creating hemispheres for theoretical additions that are not well defined in terms of actual variables. Another is to predict inflation volatility directly within the same model without any significant alteration to the code or computations.
From a general econometric standpoint, this work calls into question the quasihegemony of filtering methods when it comes to latent states extraction in macroeconomics. In fact, it appears that alternative routes leveraging larger databases, modern machine learning techniques, and cuttingedge computing environments can contribute to economic debates in ways their predecessors could not.
0.75
References
 Adrian et al. (2019) Adrian, T., Boyarchenko, N., and Giannone, D. (2019). Vulnerable growth. American Economic Review, 109(4):1263–89.
 Agarwal et al. (2020) Agarwal, R., Frosst, N., Zhang, X., Caruana, R., and Hinton, G. E. (2020). Neural additive models: Interpretable machine learning with neural nets. arXiv preprint arXiv:2004.13912.
 Akhtar et al. (1994) Akhtar, M. et al. (1994). Causes and consequences of the 198992 credit slowdown: overview and perspective. Studies on Causes and Consequences of the 198992 Credit Slowdown, Federal Reserve Bank of New York, pages 1–38.

Almosova and Andresen (2019)
Almosova, A. and Andresen, N. (2019).
Nonlinear inflation forecasting with recurrent neural networks.
May 2019.  Andreini et al. (2020) Andreini, P., Izzo, C., and Ricco, G. (2020). Deep dynamic factor models. arXiv preprint arXiv:2007.11887.
 Atkeson and Ohanian (2001) Atkeson, A. and Ohanian, L. E. (2001). Are phillips curves useful for forecasting inflation? Federal Reserve bank of Minneapolis quarterly review, 25(1):2–11.
 Ball and Mazumder (2019) Ball, L. M. and Mazumder, S. (2019). The nonpuzzling behavior of median inflation. Technical report, National Bureau of Economic Research.
 Banbura and Bobeica (2020) Banbura, M. and Bobeica, E. (2020). Does the phillips curve help to forecast euro area inflation?
 Banbura et al. (2021) Banbura, M., LeivaLeon, D., and Menz, J.O. (2021). Do inflation expectations improve modelbased inflation forecasts?
 Barigozzi and Luciani (2018) Barigozzi, M. and Luciani, M. (2018). Measuring us aggregate output and output gap using large datasets. Technical report, Working paper.
 Barkan et al. (2020) Barkan, O., Caspi, I., Hammer, A., and Koenigstein, N. (2020). Predicting disaggregated cpi inflation components via hierarchical recurrent neural networks. arXiv preprint arXiv:2011.07920.
 Barnichon (2010) Barnichon, R. (2010). Building a composite helpwanted index. Economics Letters, 109(3):175–178.
 Bartlett et al. (2020) Bartlett, P. L., Long, P. M., Lugosi, G., and Tsigler, A. (2020). Benign overfitting in linear regression. Proceedings of the National Academy of Sciences.
 Belkin et al. (2019) Belkin, M., Hsu, D., Ma, S., and Mandal, S. (2019). Reconciling modern machinelearning practice and the classical bias–variance tradeoff. Proceedings of the National Academy of Sciences, 116(32):15849–15854.

Bender et al. (2020)
Bender, G., Liu, H., Chen, B., Chu, G., Cheng, S., Kindermans, P.J., and Le,
Q. V. (2020).
Can weight sharing outperform random architecture search? an
investigation with tunas.
In
Proceedings of the IEEE/CVF Conference on Computer Vision and Pattern Recognition
, pages 14323–14332.  Berger et al. (2021) Berger, T., Boll, P. D., Morley, J., and Wong, B. (2021). Cyclical signals from the labor market.
 Berger et al. (2020) Berger, T., Morley, J., and Wong, B. (2020). Nowcasting the output gap. Journal of Econometrics.
 Binder (2015) Binder, C. C. (2015). Whose expectations augment the phillips curve? Economics Letters, 136:35–38.
 Blanchard (2016) Blanchard, O. (2016). The phillips curve: Back to the’60s? American Economic Review, 106(5):31–34.
 Blanchard (2021) Blanchard, O. (2021). In defense of concerns over the $1.9 trillion relief plan. Peterson Institute for International Economics Realtime Economic Issues Watch, 18.
 Blanchard et al. (2015) Blanchard, O., Cerutti, E., and Summers, L. (2015). Inflation and activity–two explorations and their monetary policy implications. Technical report, National Bureau of Economic Research.
 Bobeica and Jarociński (2019) Bobeica, E. and Jarociński, M. (2019). Missing disinflation and missing inflation: A var perspective. 57th issue (March 2019) of the International Journal of Central Banking.
 Borio and Filardo (2007) Borio, C. E. and Filardo, A. J. (2007). Globalisation and inflation: New crosscountry evidence on the global determinants of domestic inflation.
 Borup et al. (2020) Borup, D., Rapach, D., and Schütte, E. C. M. (2020). Nowand backcasting initial claims with highdimensional daily internet searchvolume data. Available at SSRN 3690832.
 Breiman (1996) Breiman, L. (1996). Bagging predictors. Machine learning, 24(2):123–140.
 Breiman (2001) Breiman, L. (2001). Random forests. Machine learning, 45(1):5–32.
 Bulligan et al. (2019) Bulligan, G., Guglielminetti, E., and Viviano, E. (2019). Adjustments along the intensive margin and wages: Evidence from the euro area and the us.
 Carriero et al. (2021) Carriero, A., Clark, T. E., Marcellino, M. G., and Mertens, E. (2021). Addressing covid19 outliers in bvars with stochastic volatility.
 Chan et al. (2018) Chan, J. C., Clark, T. E., and Koop, G. (2018). A new model of inflation, trend inflation, and longrun inflation expectations. Journal of Money, Credit and Banking, 50(1):5–53.
 Chan et al. (2016) Chan, J. C., Koop, G., and Potter, S. M. (2016). A bounded model of time variation in trend inflation, nairu and the phillips curve. Journal of Applied Econometrics, 31(3):551–565.
 Choudhary and Haider (2012) Choudhary, M. A. and Haider, A. (2012). Neural network models for inflation forecasting: an appraisal. Applied Economics, 44(20):2631–2635.
 Clyde and Lee (2001) Clyde, M. and Lee, H. (2001). Bagging and the bayesian bootstrap. In AISTATS.
 Coibion and Gorodnichenko (2015) Coibion, O. and Gorodnichenko, Y. (2015). Is the phillips curve alive and well after all? inflation expectations and the missing disinflation. American Economic Journal: Macroeconomics, 7(1):197–232.
 Coibion et al. (2018) Coibion, O., Gorodnichenko, Y., and Kamdar, R. (2018). The formation of expectations, inflation, and the phillips curve. Journal of Economic Literature, 56(4):1447–91.
 De Carvalho and Rua (2017) De Carvalho, M. and Rua, A. (2017). Realtime nowcasting the us output gap: Singular spectrum analysis at work. International Journal of Forecasting, 33(1):185–198.
 Del Negro et al. (2015) Del Negro, M., Giannoni, M. P., and Schorfheide, F. (2015). Inflation in the great recession and new keynesian models. American Economic Journal: Macroeconomics, 7(1):168–96.
 Del Negro et al. (2020) Del Negro, M., Lenza, M., Primiceri, G. E., and Tambalotti, A. (2020). What’s up with the phillips curve? Technical report, National Bureau of Economic Research.
 Dufour et al. (2006) Dufour, J.M., Khalaf, L., and Kichian, M. (2006). Inflation dynamics and the new keynesian phillips curve: an identification robust econometric analysis. Journal of Economic dynamics and control, 30(910):1707–1727.
 Durbin and Koopman (2012) Durbin, J. and Koopman, S. J. (2012). Time series analysis by state space methods. Oxford university press.
 d’Ascoli et al. (2020) d’Ascoli, S., Refinetti, M., Biroli, G., and Krzakala, F. (2020). Double trouble in double descent: Bias and variance (s) in the lazy regime. In International Conference on Machine Learning, pages 2280–2290. PMLR.
 Engle (1982) Engle, R. F. (1982). Autoregressive conditional heteroscedasticity with estimates of the variance of united kingdom inflation. Econometrica: Journal of the econometric society, pages 987–1007.
 Estrella and Mishkin (1998) Estrella, A. and Mishkin, F. S. (1998). Predicting us recessions: Financial variables as leading indicators. Review of Economics and Statistics, 80(1):45–61.
 Farrell et al. (2021) Farrell, M. H., Liang, T., and Misra, S. (2021). Deep neural networks for estimation and inference. Econometrica, 89(1):181–213.
 Faust and Wright (2013) Faust, J. and Wright, J. H. (2013). Forecasting inflation. In Handbook of economic forecasting, volume 2, pages 2–56. Elsevier.
 Forbes et al. (2021) Forbes, K., Gagnon, J., and Collins, C. G. (2021). Low inflation bends the phillips curve around the world. Technical report, National Bureau of Economic Research.
 Friedman et al. (2001) Friedman, J., Hastie, T., and Tibshirani, R. (2001). The elements of statistical learning, volume 1. Springer series in statistics New York, NY, USA:.

Friedman (2001)
Friedman, J. H. (2001).
Greedy function approximation: a gradient boosting machine.
Annals of statistics, pages 1189–1232.  Fuhrer and Olivei (2010) Fuhrer, J. C. and Olivei, G. (2010). The role of expectations and output in the inflation process: an empirical assessment. FRB of Boston Public Policy Brief, (102).
 Gagnon (2021) Gagnon, J. (2021). Inflation fears and the biden stimulus: look to the korean war, not vietnam. Petersen Institute for International Economics, Realtime economic issues watch, 25.
 Galí (2015) Galí, J. (2015). Monetary policy, inflation, and the business cycle: an introduction to the new Keynesian framework and its applications. Princeton University Press.
 Galí and Gambetti (2019) Galí, J. and Gambetti, L. (2019). Has the us wage phillips curve flattened? a semistructural exploration. Technical report, National Bureau of Economic Research.
 Galı and Gertler (1999) Galı, J. and Gertler, M. (1999). Inflation dynamics: A structural econometric analysis. Journal of monetary Economics, 44(2):195–222.
 Goodfellow et al. (2016) Goodfellow, I., Bengio, Y., Courville, A., and Bengio, Y. (2016). Deep learning, volume 1. MIT press Cambridge.
 Goodhart and Pradhan (2021) Goodhart, C. and Pradhan, M. (2021). What may happen when central banks wake up to more persistent inflation? VOX EU.
 Goulet Coulombe (2020a) Goulet Coulombe, P. (2020a). The macroeconomy as a random forest. arXiv preprint arXiv:2006.12724.
 Goulet Coulombe (2020b) Goulet Coulombe, P. (2020b). Timevarying parameters as ridge regressions. arXiv preprint arXiv:2009.00401.
 Goulet Coulombe (2020c) Goulet Coulombe, P. (2020c). To bag is to prune. arXiv preprint arXiv:2008.07063.
 Goulet Coulombe (2022) Goulet Coulombe, P. (2022). One network to estimate them all: Simultaneous conditional mean and variance deep learning. Work In Progress.
 Goulet Coulombe et al. (2019) Goulet Coulombe, P., Leroux, M., Stevanovic, D., and Surprenant, S. (2019). How is machine learning useful for macroeconomic forecasting? Technical report, CIRANO.
 Goulet Coulombe et al. (2021) Goulet Coulombe, P., Leroux, M., Stevanovic, D., and Surprenant, S. (2021). Macroeconomic data transformations matter. International Journal of Forecasting, 37(4):1338–1354.
 Guay and Pelgrin (2004) Guay, A. and Pelgrin, F. (2004). The us new keynesian phillips curve: an empirical assessment. Technical report, Bank of Canada.
 Guay and St.Amant (2005) Guay, A. and St.Amant, P. (2005). Do the hodrickprescott and baxterking filters provide a good approximation of business cycles? Annales d’Economie et de Statistique, pages 133–155.
 Guerrieri et al. (2021) Guerrieri, V., Lorenzoni, G., Straub, L., and Werning, I. (2021). Monetary policy in times of structural reallocation. University of Chicago, Becker Friedman Institute for Economics Working Paper, (2021111).
 Hamilton (2018) Hamilton, J. D. (2018). Why you should never use the hodrickprescott filter. Review of Economics and Statistics, 100(5):831–843.
 Harvey (1990) Harvey, A. C. (1990). Forecasting, structural time series models and the kalman filter.
 Hasenzagl et al. (2018) Hasenzagl, T., Pellegrino, F., Reichlin, L., and Ricco, G. (2018). A model of the fed’s view on inflation. The Review of Economics and Statistics, pages 1–45.
 Hastie et al. (2019) Hastie, T., Montanari, A., Rosset, S., and Tibshirani, R. J. (2019). Surprises in highdimensional ridgeless least squares interpolation. arXiv preprint arXiv:1903.08560.
 Hastie and Tibshirani (2017) Hastie, T. J. and Tibshirani, R. J. (2017). Generalized additive models. Routledge.
 Hauzenberger et al. (2020) Hauzenberger, N., Huber, F., and Klieber, K. (2020). Realtime inflation forecasting using nonlinear dimension reduction techniques. arXiv preprint arXiv:2012.08155.
 Hazell et al. (2020) Hazell, J., Herreno, J., Nakamura, E., and Steinsson, J. (2020). The slope of the phillips curve: evidence from us states. Technical report, National Bureau of Economic Research.
 Hothorn et al. (2010) Hothorn, T., Bühlmann, P., Kneib, T., Schmid, M., and Hofner, B. (2010). Modelbased boosting 2.0. Journal of Machine Learning Research, 11:2109–2113.
 Jacquier et al. (2002) Jacquier, E., Polson, N. G., and Rossi, P. E. (2002). Bayesian analysis of stochastic volatility models. Journal of Business & Economic Statistics, 20(1):69–87.
 Jarociński and Lenza (2018) Jarociński, M. and Lenza, M. (2018). An inflationpredicting measure of the output gap in the euro area. Journal of Money, Credit and Banking, 50(6):1189–1224.
 Kamber et al. (2018) Kamber, G., Morley, J., and Wong, B. (2018). Intuitive and reliable estimates of the output gap from a beveridgenelson filter. Review of Economics and Statistics, 100(3):550–566.
 Kichian (1999) Kichian, M. (1999). Measuring potential output within a statespace framework. Technical report, Bank of Canada.
 Kuan and White (1994) Kuan, C.M. and White, H. (1994). Artificial neural networks: An econometric perspective. Econometric reviews, 13(1):1–91.
 Lakshminarayanan et al. (2017) Lakshminarayanan, B., Pritzel, A., and Blundell, C. (2017). Simple and scalable predictive uncertainty estimation using deep ensembles. Advances in Neural Information Processing Systems, 30.
 Laseen and Sanjani (2016) Laseen, S. and Sanjani, M. T. (2016). Did the global financial crisis break the US Phillips Curve? International Monetary Fund.
 Lenza and Primiceri (2020) Lenza, M. and Primiceri, G. E. (2020). How to estimate a var after march 2020. Technical report, National Bureau of Economic Research.
 Lim et al. (2021) Lim, B., Arık, S. Ö., Loeff, N., and Pfister, T. (2021). Temporal fusion transformers for interpretable multihorizon time series forecasting. International Journal of Forecasting.
 Lindé and Trabandt (2019) Lindé, J. and Trabandt, M. (2019). Resolving the missing deflation puzzle.
 Luciani (2020) Luciani, M. (2020). Common and idiosyncratic inflation.
 Ma (2002) Ma, A. (2002). Gmm estimation of the new phillips curve. Economics Letters, 76(3):411–417.
 Marcellino (2008) Marcellino, M. (2008). A linear benchmark for forecasting GDP growth and inflation? Journal of Forecasting, 27(4):305–340.
 Mavroeidis et al. (2014) Mavroeidis, S., PlagborgMøller, M., and Stock, J. H. (2014). Empirical evidence on inflation expectations in the new keynesian phillips curve. Journal of Economic Literature, 52(1):124–88.
 McCracken and Ng (2020) McCracken, M. and Ng, S. (2020). Fredqd: A quarterly database for macroeconomic research. Technical report, National Bureau of Economic Research.
 Medeiros et al. (2006) Medeiros, M. C., Teräsvirta, T., and Rech, G. (2006). Building Neural Network Models for Time Series: A Statistical Approach. Journal of Forecasting.
 Meeks and Monti (2019) Meeks, R. and Monti, F. (2019). Heterogeneous beliefs and the phillips curve.
 Morel et al. (2013) Morel, L., Khan, M., and Sabourin, P. (2013). The common component of cpi: An alternative measure of underlying inflation for canada. Technical report, Bank of Canada.
 Moshiri and Cameron (2000) Moshiri, S. and Cameron, N. (2000). Neural network versus econometric models in forecasting inflation. Journal of Forecasting, 19(3):201–217.
 Nakamura (2005) Nakamura, E. (2005). Inflation forecasting using a neural network. Economics Letters, 86(3):373–378.
 Nalisnick et al. (2019) Nalisnick, E., HernándezLobato, J. M., and Smyth, P. (2019). Dropout as a structured shrinkage prior. In International Conference on Machine Learning, pages 4712–4722. PMLR.
 Newton et al. (2021) Newton, M. A., Polson, N. G., and Xu, J. (2021). Weighted bayesian bootstrap for scalable posterior distributions. Canadian Journal of Statistics, 49(2):421–437.
 Nowlan and Hinton (1992) Nowlan, S. J. and Hinton, G. E. (1992). Simplifying neural networks by soft weightsharing. Neural computation, 4(4):473–493.
 Nunes (2010) Nunes, R. (2010). Inflation dynamics: the role of expectations. Journal of Money, Credit and Banking, 42(6):1161–1172.
 O’Neill et al. (2021) O’Neill, L., Angus, S., Borgohain, S., Chmait, N., and Dowe, D. L. (2021). Creating powerful and interpretable models with regression networks. arXiv preprint arXiv:2107.14417.
 Orphanides and Norden (2002) Orphanides, A. and Norden, S. v. (2002). The unreliability of outputgap estimates in real time. Review of economics and statistics, 84(4):569–583.
 Paranhos (2021) Paranhos, L. (2021). Predicting inflation with neural networks. arXiv preprint arXiv:2104.03757.
 Parret (2020) Parret, A. (2020). Neural Networks in Economics. University of California, Irvine.
 Phillips (1958) Phillips, A. W. (1958). The relation between unemployment and the rate of change of money wage rates in the united kingdom, 18611957. economica, 25(100):283–299.
 PlagborgMøller et al. (2020) PlagborgMøller, M., Reichlin, L., Ricco, G., and Hasenzagl, T. (2020). When is growth at risk? Brookings Papers on Economic Activity, 2020(1):167–229.
 Primiceri (2005) Primiceri, G. E. (2005). Time varying structural vector autoregressions and monetary policy. The Review of Economic Studies, 72(3):821–852.
 Quast and Wolters (2020) Quast, J. and Wolters, M. H. (2020). Reliable realtime output gap estimates based on a modified hamilton filter. Journal of Business & Economic Statistics, pages 1–17.
 Raskutti et al. (2014) Raskutti, G., Wainwright, M. J., and Yu, B. (2014). Early stopping and nonparametric regression: an optimal datadependent stopping rule. The Journal of Machine Learning Research, 15(1):335–366.
 Roberts (1995) Roberts, J. M. (1995). New keynesian economics and the phillips curve. Journal of money, credit and banking, 27(4):975–984.
 Rubin (1981) Rubin, D. B. (1981). The bayesian bootstrap. The annals of statistics, pages 130–134.
 Rudebusch (2002) Rudebusch, G. D. (2002). Assessing nominal income rules for monetary policy with model and data uncertainty. The Economic Journal, 112(479):402–432.
 Rügamer et al. (2020) Rügamer, D., Kolb, C., and Klein, N. (2020). Semistructured deep distributional regression: Combining structured additive models and deep learning. arXiv preprint arXiv:2002.05777.
 Salinas et al. (2020) Salinas, D., Flunkert, V., Gasthaus, J., and Januschowski, T. (2020). Deepar: Probabilistic forecasting with autoregressive recurrent networks. International Journal of Forecasting, 36(3):1181–1191.
 Schennach (2016) Schennach, S. M. (2016). Recent advances in the measurement error literature. Annual Review of Economics, 8:341–377.
 Schorfheide and Song (2020) Schorfheide, F. and Song, D. (2020). Realtime forecasting with a (standard) mixedfrequency var during a pandemic.
 Sezer et al. (2020) Sezer, O. B., Gudelek, M. U., and Ozbayoglu, A. M. (2020). Financial time series forecasting with deep learning: A systematic literature review: 2005–2019. Applied Soft Computing, 90:106181.
 Sims and Wu (2019) Sims, E. R. and Wu, J. C. (2019). The four equation new keynesian model. Technical report, National Bureau of Economic Research.
 Smalter Hall and Cook (2017) Smalter Hall, A. and Cook, T. R. (2017). Macroeconomic indicator forecasting with deep neural networks. Federal Reserve Bank of Kansas City Working Paper, (1711).
 Spady and Stouli (2018) Spady, R. and Stouli, S. (2018). Simultaneous meanvariance regression. arXiv preprint arXiv:1804.01631.
 Stock and Watson (1989) Stock, J. H. and Watson, M. W. (1989). New indexes of coincident and leading economic indicators. NBER macroeconomics annual, 4:351–394.
 Stock and Watson (1999) Stock, J. H. and Watson, M. W. (1999). Forecasting inflation. Journal of Monetary Economics, 44(2):293–335.
 Stock and Watson (2002) Stock, J. H. and Watson, M. W. (2002). Macroeconomic forecasting using diffusion indexes. Journal of Business & Economic Statistics, 20(2):147–162.
 Stock and Watson (2007) Stock, J. H. and Watson, M. W. (2007). Why has us inflation become harder to forecast? Journal of Money, Credit and banking, 39:3–33.
 Stock and Watson (2008) Stock, J. H. and Watson, M. W. (2008). Phillips curve inflation forecasts. Technical report, National Bureau of Economic Research.
 Stock and Watson (2019) Stock, J. H. and Watson, M. W. (2019). Slack and cyclically sensitive inflation. Technical report, National Bureau of Economic Research.
 Swanson and White (1997) Swanson, N. R. and White, H. (1997). A model selection approach to realtime macroeconomic forecasting using linear models and artificial neural networks. Review of Economics and Statistics, 79(4):540–550.
 Taddy et al. (2015) Taddy, M., Chen, C.S., Yu, J., and Wyle, M. (2015). Bayesian and empirical bayesian forests. arXiv preprint arXiv:1502.02312.
 Verstyuk (2020) Verstyuk, S. (2020). Modeling multivariate time series in economics: From autoregressions to recurrent neural networks. Available at SSRN 3589337.
 Wang et al. (2019) Wang, Y., Smola, A., Maddix, D., Gasthaus, J., Foster, D., and Januschowski, T. (2019). Deep factors for forecasting. In International conference on machine learning, pages 6607–6617. PMLR.
 Wright (2012) Wright, J. H. (2012). What does monetary policy do to longterm interest rates at the zero lower bound? The Economic Journal, 122(564):F447–F466.
 Yellen (2016) Yellen, J. (2016). Macroeconomic research after the crisis: a speech at" the elusive’great’recovery: Causes and implications for future business cycle dynamics" 60th annual economic conference sponsored by the federal reserve bank of boston, boston, massachusetts, october 14, 2016. Technical report, Board of Governors of the Federal Reserve System (US).
 Yellen (2017) Yellen, J. L. (2017). Inflation, uncertainty, and monetary policy. Business Economics, 52(4):194–207.
 Zivot (2009) Zivot, E. (2009). Practical issues in the analysis of univariate garch models. In Handbook of financial time series, pages 113–155. Springer.
 Zumbach (2000) Zumbach, G. (2000). The pitfalls in fitting garch (1, 1) processes. In Advances in quantitative asset management, pages 179–200. Springer.
Appendix A Appendix
1.25
a.1 Additional Figures
a.2 Ablation Studies
HNN involves many ingredients, like the use of many economic indicators and nonlinear supervised processing. In this section, I conduct a brief inspection of what happens when dispensing with one or the other.
Content

(exogenous time trend)
Inflation expectations from SPF, and Michigan Survey, lags of ,
Unemployment,
Oil price,
First, I consider a specification where key hemispheres only contains what would enter in typical modern PC OLSbased regression, as detailed in Table 2. Essentially, more finegrained data on prices and any real activity indicator except for unemployment have been liquidated (with respect to Table 1). Unemployment is now in levels and aforementioned transformations (lags and moving averages) are kept. The idea is to have the neural network filter unemployment itself by nonlinearly interacting it with , analogously to what unsupervised filtering does. In this context, for identification reasons (detrending unemployment and estimating a trending coefficient on it), HNN (not HNNF) results are reported in Figure 19 and the focus is kept on contributions.
Here are key observations from Figure 19. The contribution of real activity is much smaller in absolute terms throughout the sample than it it is for baseline specifications, highlighting the importance of diversified real activity indicators. The bands include 0 much more often starting from the 2000s, in line with traditional results using filtered unemployment. Speaking of, the extracted looks much more like filtered unemployment, albeit smaller (HodrickPrescott smoothing parameter) than what is typically used. Lastly, and rather not unexpectedly, is negative all Pandemic long (as of 2021Q3) making it rather unequipped to force its inflation forecast upward during the last 3 quarters. All in all, the inclusion of many real indicators in seems vital for a more proactive characterization of real activity. This is not an unfamiliar conclusion (Stock and Watson, 2002).
The expectations component is more alike what reported throughout the paper (e.g., Figures 2 and 15). This is not surprising given the high importance accorded to survey expectations and lags of the CPI by HNN, as reported by VI calculations in Figure 7(b). However, in 19 their nonlinear processing is even more evident: the component is drastically shut down starting from 1990, and only wakes up for one obvious spike during the Great Recession. The contribution, however, excludes the 2021Q2 very noticeable peak, which makes the forecast takes off (Figure 3(b)) from the historical mean. Thus, dispensing with the vast number of price series originally included in HNN leads to missing key abrupt changes in the shortrun expectations component that go under the radar of traditional aggregated measures.
The second ablation study exercise maintain the datarich environment, but dispense with nonlinearities and supervision (in part). Figure 20 conducts different PCAbased extractions of the data contained in and . A few alternatives are reported. PCA Real Activity means reporting the first factor of . Weighted PCA Real Activity means that, after standardization, variables were given weights in accord to VI estimates from Figure 8. This brings back some of the supervision from HNN. The real activity part of Figure 20 contains two additional extractions. PCA All is the first factor of all the contemporaneous data included in HNN, whereas PCA All+ includes lags and MARX’s as well. The rationale for including the last two (in the top part of the panel only) stems from the often reported finding that the first factor extracted from broad macroeconomic panels looks very much like a real activity factor (McCracken and Ng, 2020).
Findings are as follows. In Figure 19(a), PCA extractions, except for the weighted version, form a cluster throughout. For the period spanning from 2000 to the Pandemic era, that cluster seemingly includes . However, during periods of overheating, differences are manifest and no linear method seem to approximate . This is true of the 1970s, and also of the current period (Figure 19(b))), with two linear extractions signaling no overheating at all, and two others showing a rather quaint or shortlived one. Weighted PCA Real Activity is mostly far away from the pack, suggesting nonlinear processing of important variables (such as the HelpWanted Index, which trend is clearly visible in Weighted PCA Real Activity) cannot be dispensed with. Nevertheless, this "mildly supervised" PCA extraction is the only one pointing to a widening positive gap in 2021 – as does .
Differences between PCA extracts and HNNF’s own are very apparent in Figure 19(c). For instance, HNNF’s essentially consists in being resting around 0 or having important positive peaks – i.e., there is no important downward pressure from expectations as suggested by either PCA or its weighted version (for instance 2008, or after the 2nd 1980s recession). Obviously, the nonsymmetrical behavior of is possible due to nonlinear processing through the network. This behavior is also noticeable in Figure 19(d), with PCA and the mildly supervised PCA mostly being indicators of current inflation, whereas does not dip following the flash recession (like prices themselves), but exhibit an abrupt peak a few quarters later. Thus, nonparametric nonlinear processing seems to be vital in extracting from price and expectations data that is actually forwardlooking.
Overall, results from the Ablation studies suggest that both using vast amounts of data and nonlinear supervised processing of it are essential to obtain the desirable and delivered by HNNF.
a.3 Taylor Rule Supervision
This section explores a curiosity which can be understood as a more radical change of supervisors than what reported in Section 4.3. From an econometric point of view, it showcases yet one of the many potential applications of HNN beyond inflation and Phillips curves.
Inflation is retired in favor of the federal funds rate and the supervision relationship becomes an empirical Taylor rule. That is, we are extracting the contribution of the gap and inflation to the monetary policy instrument values. An interesting economic question is whether looks remotely like . In other words, does the "fed view" of the gap – assuming the Taylor rule is a valid approximation to its behavior – coincides with what the inflation record suggests?
There are two important changes with respect to the baseline specification. First, is replaced by the federal fund rate next period (). Second, the energy/commodities group is replaced by the "Smoothing" group which includes lags of . This inclusion is typical of empirical Taylor rules and statistically accommodates for the fact that the monetary authority avoids drastic changes in .
In Figure 21, looks much more like what one would obtain from traditional filteringbased gap except for the Pandemic episode. First, there is a certain persistence to it that is characteristic of specification assuming autoregressive laws of motion. Second, albeit remaining cyclical, the contribution is mostly negative starting from the 2000s, whereas it was roughly symmetrical around 0 beforehand – which is reminiscent of many unemploymentrelated measures of slack (Stock and Watson, 2019). Third, it mostly exhibits a slow climb back to 0 starting from 2008, like one would obtain from, e.g., the CBO gap.
There are 3 episodes where predictions (unreported) from this model can be off for a few quarters. First, the two ZLB episodes, where this Taylor rule prescribes interest rates going below zero—not inconsistent with the deployment of quantitative easing following the GR and during the Pandemic period. Interestingly, the third episode is right now, with asking for much higher rates than those currently in effect. In other words, if the Fed was consistent with how it responded to slack/overheating (as extracted by HNNF) during the last decades, rates should be higher than they are right now. Two grains of salt on this statement are that (i) the Fed changed its approach to inflation targeting in 2020, and (ii) Pandemic era slack is different from previous recessions slack (like the distributive aspects of it) and addressing it more upfront will have different (likely higher) costs on other dimensions of economic wellbeing. A formalization of this view is that, in times of sectoral (or structural) reallocation, the divine coincidence is broken, leading to an "optimal" level of inflation that is above the target (Guerrieri et al., 2021). However, an important drawback of deviating from the HNNbased Taylor Rule is the risk of disanchoring expectations—which for now appears mild since economic agents can allegedly differentiate between what one should expect from normal and Pandemic economic times.
The evident wedge between and reported throughout the paper hints that there may be a gap between the monetary authority’s view of economic slack and what matches the inflation record. Nonetheless, this application is meant as illustrative about HNN versatility, and to understand further how supervision affect . A comprehensive assessment of "neural Taylor rules" is material for future work.
