1 Introduction
The Constraint Programming (CP) paradigm enables to express complex relations in form of constraints to be satisfied. CP allows to model and solve Constraint Satisfaction Problems (CSPs) as well as Constraint Optimization Problems (COPs) [handbook]. Solving a CSP means finding a solution that satisfies all the constraints of the problem, while a COP is a generalized CSP where the goal is to find a solution that minimises or maximises an objective function.
A fairly recent trend in CP is solving a problem by means of portfolio approaches [DBLP:journals/ai/GomesS01], which can be seen as instances of the more general Algorithm Selection problem [rice_algorithm_selection]. A portfolio solver is a particular solver that exploits a collection of constituent solvers to get a globally better solver. When a new, unseen problem comes, the portfolio solver tries to predict the best constituent solver(s) (with ) for solving and then runs them.
Unfortunately —despite their proven effectiveness— portfolio solvers are scarcely used outside the walls of solvers competitions, and often confined to SAT solving. Regarding the CP field, the first portfolio solver (for solving CSPs only) was CPHydra [cphydra] that in 2008 won the International CSP Solver Competition. In 2014, the sequential portfolio solver sunnycp [sunnycp] attended the MiniZinc Challenge (MZC) [DBLP:journals/constraints/StuckeyBF10] with respectable results (4^{th} out of 18). To the best of our knowledge, no similar tool exist for solving both CSPs and COPs.
In this paper we take a major step forward by introducing sunnycp2, a significant enhancement of sunnycp. Improvements are manifold. Firstly, sunnycp2 is parallel: it exploits multicore architectures for (possibly) running more constituent solvers simultaneously. Moreover, while most of the parallel portfolio solvers are static (i.e., they decide offline the solvers to run, regardless of the problem to be solved), sunnycp2 is instead dynamic: the solvers scheduling is predicted online according to a generalization of the SUNNY algorithm [sunny]. Furthermore, for COPs, the parallel execution is also cooperative: a running solver can exploit the current best bound found by another one through a configurable restarting mechanism. Finally, sunnycp2 enriches sunnycp by incorporating new, stateoftheart solvers and by providing a framework which is more usable and configurable for the end user.
We validated sunnycp2 on two benchmarks of CSPs and COPs (about 5000 instances each). Empirical evidences show very promising results: its performance is very close (and sometimes even better) to that of the Virtual Best Solver (VBS), i.e., the oracle solver which always selects the best solver of the portfolio for a given problem. Moreover, for COPs, sunnycp2 using cores always outperforms the Virtual Parallel Solver (), i.e., a static portfolio solver that runs in parallel a fixed selection of the best solvers of the portfolio.
2 Generalizing the SUNNY Algorithm
SUNNY is the algorithm that underpins sunnycp. Fixed a solving timeout and a portfolio , SUNNY exploits instances similarity to produce a sequential schedule where solver has to be run for seconds and . For any input problem , SUNNY uses a Nearest Neighbours (NN) algorithm to select from a training set of known instances the subset of the instances closer to . According to the
instances, SUNNY relies on three heuristics:
, for selecting the most promising solvers to run; , for allocating to each solver a certain runtime (the more a solver is promising, the more time is allocated); and , for scheduling the sequential execution of the solvers according to their presumed speed. These heuristics depend on the application domain. For example, for CSPs selects the smallest subportfolio that solves the most instances in , by using the solving time for breaking ties. allocates to each a time proportional to the instances that can solve in , while sorts the solvers by increasing solving time in . For COPs the approach is analogous, but different performance metrics are used [paper_lion].As an example, let be a CSP, a portfolio of 4 solvers, seconds the solving timeout, the neighbours of , and the runtimes of solver on problem defined as in Table 1. In this case, the smallest subportfolios that solve the most instances are , , and . The heuristic selects because these solvers are faster in solving the instances in the neighbourhood. Since and solve 2 instances and solves 1 instance, splits the solving time window into slots: 2 allocated to and , and 1 to . Finally, sorts the solvers by increasing solving time. The final schedule produced by SUNNY is therefore .
T  3  T  278
593  T  T  T
T  36  1452  T
T  T  122  60
For a detailed description and evaluation of SUNNY we refer the reader to [sunny, paper_lion]. Here we focus instead on how we generalized SUNNY for a multicore setting where cores are available and, typically, we have more solvers than cores. sunnycp2 uses a dynamic approach: the schedule is decided online according to the instance to be solved. The approach used is rather simple: starting from the sequential schedule produced by SUNNY on a given problem, we first detect the solvers of having the largest allocated time, and we assign a different core to each of them. The other solvers of (if any) are scheduled on the last core, by preserving their original order in and by widening their allocated times to cover the entire time window .
Formally, given cores and the sequential schedule computed by SUNNY, we define a total order such that , and a ranking function such that if and only if is the th solver of according to . We define the parallelisation of on cores as a function which associates to each core a sequential schedule such that:

where .
Let us consider the schedule of the previous example: . With cores, the parallelisation of is defined as and .
The rationale behind the schedule parallelisation is that SUNNY aims to allocate more time to the most promising solvers, scheduling them according to their speed. Assuming a good starting schedule , its parallelisation is rather straightforward and it is easy to prove that, assuming an independent execution of the solvers without synchronization and memory contention issues, can never solve less problems than .
Obviously, different ways to parallelise the sequential schedule are possible. Here we focus on what we think to be one of the most simple yet promising ones. An empirical comparison of other parallelisation methods is outside the scope of this paper.
3 SunnyCp 2
sunnycp2 solves both CSPs and COPs encoded in the MiniZinc language [Nethercote07minizinc:towards], nowadays the defacto standard for modelling CP problems. By default, sunnycp2 uses a portfolio of 12 solvers disparate in their nature. In addition to the 8 solvers of sunnycp (viz., Chuffed, CPX, G12/CBC, G12/FD, G12/LazyFD, G12/Gurobi, Gecode, and MinisatID) it includes new, stateoftheart solvers able to win four gold medals in the MZC 2014, namely: Choco, HaifaCSP, iZplus, and ORTools.
Figure 1 summarizes the execution flow of sunnycp2. It takes as input a problem to be solved and a list of input parameters specified by the user (e.g., the timeout used by SUNNY, the number of cores to use, etc.). If a parameter is not specified, a corresponding default value is used.
The solving process then relies on two sequential steps, later detailed: (i) the presolving phase, where a static schedule of solvers may be run and the instance neighbourhood is computed; (ii) the solving phase, which runs the dynamic schedule on different cores.
If is a CSP, the output of sunnycp2 can be either SAT (a solution exists for ), UNS ( has no solutions), or UNK (sunnycp2 can not say anything about ). In addition, if is a COP, two more answers are possible: OPT (sunnycp2 proves the optimality of a solution), or UNB ( is unbounded).
3.1 Presolving
The presolving step consists in the simultaneous execution on cores of two distinct tasks: the execution of a (possibly empty) static schedule, and the neighbourhood detection.
Running for a short time a static schedule has proven to be effective. It enables to solve those instances that some solvers can solve very quickly (e.g., see [3s]) and, for COPs, to quickly find good suboptimal solutions [paper_cp].
The static schedule is a prefixed schedule of solvers decided offline, regardless of the input problem . To execute it, sunnycp2 applies a “FirstCome, FirstServed” policy by following the schedule order. Formally, the first solvers with are launched on different cores. Then, for , the solver is started as soon as a solver (with ) terminates its execution without solving . If a solver fails prematurely before (e.g., due to memory overflows or unsupported constraints) then is discarded from the portfolio for avoiding to run it again later. If instead reached its timeout, then it is just suspended: if it has to run again later, it will be resumed instead of restarted from scratch. The user has the possibility of setting the static schedule as an input parameter. For simplicity, the static schedule of sunnycp2 is empty by default.
When solving COPs, the timeout defined by the user may be overruled by sunnycp2 that examines the solvers behaviour and may decide to delay the interruption of a solver. Indeed, a significant novelty of sunnycp2 is the use of a waiting threshold . A solver scheduled for seconds is never interrupted if it has found a new solution in the last seconds, regardless of whether the timeout is expired or not. The underlying logic of is to not stop a solver which is actively producing solutions. Thus, if a solver may be executed for more than its allocated time. Setting to a high value might therefore delay, and thus hinder, the execution of the other solvers.
For COPs, sunnycp2 also enables the bounds communication between solvers: the suboptimal solutions found by a solver are used to narrow the search space of the other scheduled solvers. In [paper_cp] this technique is successfully applied in a sequential setting, where the best objective bound found by a solver is exploited by the next scheduled ones. Things get more complicated in a multicore setting, where solvers are run simultaneously as black boxes and there is no support for communicating bounds to another running solver without interrupting its solving process. We decided to overcome this problem by using a restarting threshold . If a running solver finds no solution in the last seconds, and its current best bound is obsolete w.r.t. the overall best bound found by another solver, then is restarted with the new bound . The reason behind is that restarting an active solver is risky and potentially harmful even when its current best bound is actually obsolete. However, also ignoring the solutions found by other solvers could mean to neglect valuable information. The choice of is hence critical: a too small value might cause too many restarts, while a big threshold inhibits the bound communication. Care should be taken also because restarting a solver means to lose all the knowledge it gained during the search.
After performing some empirical investigations, we found reasonable to set the default values of and to 2 and 5 seconds respectively. The user can however configure such parameters as she wishes, even by defining a customized setting for each different solver of the portfolio.
The neighbourhood detection phase begins in parallel with the static schedule execution only after all the solvers of has been started. This phase has lower priority than since its purpose is not quickly finding solutions, but detecting the neighbourhood later on used to compute the dynamic schedule. For this reason, the computation of the neighbourhood starts as soon as one core is free (i.e., the number of running solvers is smaller than ). The first step of prescheduling is the extraction of the feature vector of , i.e., a collection of numerical attributes (e.g., number of variables, of constraints, etc.) that characterizes the instance
. The feature vector is then used for detecting the set
of the nearest neighbours of within a dataset of known instances.The default dataset of sunnycp2 is the union of a set of 5527 CSPs and a set of 4988 COPs, retrieved from the instances of the MiniZinc 1.6 benchmarks, the MZCs 2012–2014, and the International CSP Solver Competitions 2008/09. sunnycp2 provides a default knowledge base that associates to every instance its feature vector and the runtime information of each solver of the portfolio on (e.g., solving time, anytime performance, etc.). In particular, the feature vectors are used for computing while the runtime information are later used for computing the dynamic schedule by means of SUNNY algorithm.
The feature extractor used by sunnycp2 is the same as sunnycp.^{1}^{1}1 The feature extractor mzn2feat is available at https://github.com/CPUnibo/mzn2feat. For further information please see [mzn2feat] and [sunnycp]. The neighbourhood size is set by default to : following [knn] we chose a value of close to , where is the number of training samples. Note that during the presolving phase only is computed. This is because SUNNY requires a timeout for computing the schedule . The total time taken by the presolving phase ( in Figure 1) must therefore be subtracted from the initial timeout (by default, seconds as in sunnycp). This can be done only when the presolving ends, since is not predictable in advance.
The presolving phase terminates when either: (i) a solver of the static schedule solves , or (ii) the neighbourhood computation and all the solvers of have finished their execution. In the first case sunnycp2 outputs the solving outcome and stops its execution, skipping the solving phase since the instance is already solved.
3.2 Solving
The solving phase receives in input the time taken by presolving and the neighbourhood . These parameters are used by SUNNY to dynamically compute the sequential schedule with a reduced timeout . Then, is parallelised according to the operator defined in Section 2. Once computed , each scheduled solver is run on according to the input parameters. If a solver of had already been run in the static schedule , then its execution is resumed instead of restarted. If is a COP, the solvers execution follows the approach explained in Section 3.1 according to and thresholds. As soon as a solver of solves , the execution of sunnycp2 is interrupted and the solving outcome is outputted.
Note that we decided to make sunnycp2 an anytime solver, i.e., a solver that can run indefinitely until a solution is found. For this reason we let the solvers run indefinitely even after the timeout until a solution is found. Moreover, at any time we try to have exactly running solvers. In particular, if is greater or equal than the portfolio size no prediction is needed and we simply run a solver per core for indefinite time. When a scheduled solver fails during its execution, the overall solving process is not affected since sunnycp2 will simply run the next scheduled solver, if any, or another one in its portfolio otherwise.
Apart from the scheduling parallelisation, sunnycp2 definitely improves sunnycp also from the engineering point of view. One of the main purposes of sunnycp2 is indeed to provide a framework which is easy to use and configure by the end user. First of all, sunnycp2 provides utilities and procedures for adding new constituent solvers to and for customizing their settings. Even though the feature extractor of sunnycp2 is the same as sunnycp, the user can now define and use her own tool for feature processing. The user can also define her own knowledge base, starting from raw commaseparated value files, by means of suitable utility scripts. Furthermore, sunnycp2 is much more parametrisable than sunnycp. Apart from the aforementioned and parameters, sunnycp2 provides many more options allowing, e.g., to set the number of cores to use, limit the memory usage, ignore the search annotations, and specify customized options for each constituent solver.
The source code of sunnycp2 is entirely written in Python and publicly available at https://github.com/CPUnibo/sunnycp.
4 Validation
Metric  sunnycp  sunnycp2  VPS  VBS

1 core  2 cores  4 cores  8 cores  1 core  2 cores  4 cores  8 cores
proven (%)  83.26  95.26  99.11  99.38  99.35  89.04  93.51  95.19  99.24  100
time (s)  504.10  223.21  136.04  112.60  112.32  297.30  211.13  176.81  68.52  54.30
Metric  sunnycp  sunnycp2  VPS  VBS
1 core  2 cores  4 cores  8 cores  1 core  2 cores  4 cores  8 cores
proven (%)  71.55  74.40  74.94  75.68  76.34  61.33  63.45  65.60  75.86  76.30
time (s)  594.79  501.35  482.95  469.74  454.54  718.86  682.35  645.68  463.63  457.00
90.50  92.26  93.00  93.45  93.62  82.80  85.99  89.53  90.79  93.63
area (s)  257.86  197.44  149.33  138.94  130.53  314.07  266.11  188.20  178.81  132.28
We validated the performance of sunnycp2 by running it with its default settings on every instance of (5527 CSPs) and (4988 COPs). Following the standard practices, we used a 10fold crossvalidation: we partitioned each dataset in 10 disjoint folds, treating in turn one fold as test set and the union of the remaining folds as the training set.
Fixed a solving timeout , different metrics can be adopted to measure the effectiveness of a solver on a given problem . If is a CSP we typically evaluate whether, and how quickly, can solve . For this reason we use two metrics, namely proven and time, to measure the solved instances and the solving time. Formally, if solves in seconds, then and ; otherwise, and . A straightforward generalization of these two metrics for COPs can be obtained by setting and if proves in seconds the optimality of a solution for , the unsatisfiability of or its unboundedness. Otherwise, and . However, a major drawback of such a generalization is that the solution quality is not addressed. To overcome this limitation, we use in addition the score and area metrics introduced in [paper_cp].
The score metric measures the quality of the best solution found by a solver at the stroke of the timeout . More specifically, is a value in linearly proportional to the distance between the best solution that finds and the best known solution for . An additional reward () is given if is able to prove optimality, while a punishment () is given if does not provide any answer. Differently from score, the area metric evaluates the behaviour of a solver in the whole solving time window and not only at the time edge . It considers the area under the curve that associates to each time instant the best objective value found by in seconds. The area value is properly scaled in the range so that the more a solver is slow in finding good solutions, the more its area is high (in particular, if and only if ). The area metric folds in a number of measures the quality of the best solution found, how quickly any solution is found, whether optimality is proven, and how quickly good solutions are found. For a formal definition of area and score we refer the reader to [paper_cp].
We ran sunnycp2 on all the instances of and within a timeout of seconds by varying the number of cores in . We compared sunnycp2 against the very same version of sunnycp submitted to MZC 2014^{2}^{2}2The source code of sunnycp is publicly available at https://github.com/CPUnibo/sunnycp/tree/mznc14 and the Virtual Best Solver (VBS), i.e., the oracle portfolio solver that —for a given problem and performance metric— always selects the best solver to run. Moreover, for each we consider as additional baseline the Virtual Parallel Solver (), i.e., a static portfolio solver that always runs in parallel a fixed selection of the best solvers of the portfolio . The is a static portfolio since its solvers are selected in advance, regardless of the problem to be solved. Obviously, the portfolio composition of
depends on a given evaluation metric. For each
we therefore defined a corresponding by selecting the best solvers of according to the average value of over the or instances. Note that is an “ideal” solver, since it is an upper bound of the real performance achievable by actually running in parallel all its solvers. An approach similar to has been successfully used by the SAT portfolio solver ppfolio [ppfolio]. The is sometimes also called Single Best Solver (SBS) while is exactly equivalent to the Virtual Best Solver (VBS).In the following, we will indicate with the version of sunnycp2 exploiting cores. Empirical results on CSPs and COPs are summarized in Table 2 and 3 reporting the average values of all the aforementioned evaluation metrics. On average, sunnycp2 remarkably outperforms all its constituent solvers as well as sunnycp for both CSPs and COPs. Concerning CSPs, a major boost is given by the introduction of HaifaCSP solver in the portfolio. HaifaCSP solves almost 90% of problems. However, as can be seen from the Tables 2 and 3, solves more than 95% of the instances and, for , solves nearly all the problems. This means that just few cores are enough to almost reach the VBS performance. The best proven performance is achieved by .^{3}^{3}3 The practically negligible difference with
is probably due to synchronization and memory contention issues (e.g., cache misses) that slow down the system when 8 cores are exploited.
Nevertheless, the average time of is slightly slower. However, difference are minimal: and are virtually equivalent. Note that is always better than in terms of proven and, for , also in terms of time. Furthermore, solves more instances than . In other words, running sequentially the solvers of sunnycp2 on a single core allows to solve more instances than running independently the four solvers of the portfolio that solve the most number of problems of . Analogously, solves more instances than . This witnesses that in a multicore setting —where there are typically more available solvers than cores— sunnycp2 can be very effective.Even better results are reached by sunnycp2 on the instances of , where there is not a clear dominant solver like HaifaCSP for . sunnycp2 outperforms sunnycp in all the considered metrics, and the gain of performance in this case is not only due to the introduction of new solvers. Indeed, the best solver according to time and proven is Chuffed, which was already present in sunnycp. For each and for each performance metric, is always better than the corresponding . Moreover, as for CSPs, sunnycp2 has very good performances even with few cores. For example, by considering the proven, time, and score results, is always better than and its score even outperforms that of . This clearly indicates that the dynamic selection of solvers, together with the bounds communication and the waiting/restarting policies implemented by sunnycp2, makes a remarkable performance difference.
Results also show a nice monotonicity: for all the considered metrics, if then is better than . In particular, it is somehow impressive to see that on average sunnycp2 is able to outperform the VBS in terms of time, proven, and area, and that for score the performance difference is negligible (0.01%).

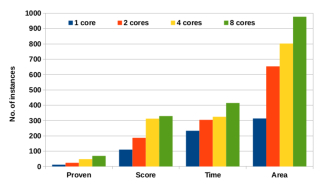

This is better shown in Figure 2 depicting for each performance metric the number of times that sunnycp2 is able to overcome the performance of the VBS with cores. As increases, the number of times the VBS is beaten gets bigger. In particular, the time and area results show that sunnycp2 can be very effective to reduce the solving time both for completing the search and, especially, for quickly finding suboptimal solutions. For example, for 414 problems has a lower time than VBS, while for 977 instances it has a lower area. Table 4 reports a clear example of the sunnycp2 potential on an instance of the ResourceConstrained Project Scheduling Problem (RCPSP) [brucker1999resource] taken from the MiniZinc1.6 suite.^{4}^{4}4The model is rcpsp.mzn while the data is in la10_x2.dzn Firstly, note that just half of the solvers of can find at least a solution. Second, these solvers find their best bound very quickly (i.e, in a time of between 1.46 and 4.05 seconds) but none of them is able to prove the optimality of the best bound within a timeout of seconds. Conversely, sunnycp2 finds and proves its optimality in less than 11 seconds. Exploiting the fact that CPX finds in a short time (for CPX seconds, while sunnycp2 takes 5 seconds due to the neighbourhood detection and scheduling computation), after seconds any other scheduled solver is restarted with the new bound . Now, Gecode can prove almost instantaneously that is optimal, while without this help it can not even find it in half an hour of computation.
Choco  Chuffed  CPX  G12/FD  Gecode  ORTools  Other solvers  sunnycp2

(s)  4.05  52.49  2.42  2.87  3.31  1.46  N/A  5.00
959  958  958  959  959  959  N/A  958
time  10.56
5 Related Work
The parallelisation of CP solvers does not appear as fruitful as for SAT solvers where techniques like clause sharing are used. As an example, in the MZC 2014 the possibility of multiprocessing did not lead to remarkable performance gains, despite the availability of eight logical cores (in a case, a parallel solver was even significantly worse than its sequential version).
Portfolio solvers have proven their effectiveness in many international solving competitions. For instance, the SAT portfolio solvers 3S [3s] and CSHC [cshc] won gold medals in SAT Competition 2011 and 2013 respectively. SATZilla [satzilla] won the SAT Challenge 2012, CPHydra [cphydra] the Constraint Solver Competition 2008, the ASP portfolio solver claspfolio [claspfolio] was gold medallist in different tracks of the ASP Competition 2009 and 2011, ArvandHerd [arvandherd] and IBaCoP [ibacop] won some tracks in the Planning Competition 2014.
Surprisingly enough, only a few portfolio solvers are parallel and even fewer are the dynamic ones selecting online the solvers to run. We are aware of only two dynamic and parallel portfolio solvers that attended a solving competition, namely p3S [3spar] (in the SAT Challenge 2012) and IBaCoP2 [ibacop] (in the Planning Competition 2014). Unfortunately, a comparison of sunnycp2 with these tools is not possible because their source code is not publicly available and they do not deal with COPs.
Apart from the aforementioned CPHydra and sunnycp solvers, another portfolio approach for CSPs is Proteus [proteus]. However, with the exception of a preliminary investigation about a CPHydra parallelisation [parrallelCSPPortfolio], all these solvers are sequential and except for sunnycp they solve just CSPs. Hence, to the best of our knowledge, sunnycp2 is today the only parallel and dynamic CP portfolio solver able to deal with also optimization problems.
The parallelisation of portfolio solvers is a hot topic which is drawing some attention in the community. For instance, parallel extensions of wellknown sequential portfolio approaches are studied in [lindauerlion15a]. In [aspeed] ASP techniques are used for computing a static schedule of solvers which can even be executed in parallel, while [cire2014parallel] considers the problem of parallelising restarted backtrack search for CSPs.
6 Conclusions
In this paper we introduced sunnycp2, the first parallel CP portfolio solver able to dynamically schedule the solvers to run and to solve both CSPs and COPs encoded in the MiniZinc language. It incorporates stateoftheart solvers, providing also a usable and configurable framework.
The performance of sunnycp2, validated on heterogeneous and large benchmarks, is promising. Indeed, sunnycp2 greatly outperforms all its constituent solvers and its earlier version sunnycp. It can be far better than a ppfoliolike approach [ppfolio] which statically determine a fixed selection of the best solvers to run. For CSPs, sunnycp2 almost reaches the performance of the Virtual Best Solver, while for COPs sunnycp2 is even able to outperform it.
We hope that sunnycp2 can stimulate the adoption and the dissemination of CP portfolio solvers. Indeed, sunnycp was the only portfolio entrant of MiniZinc Challenge 2014. We are interested in submitting sunnycp2 to the 2015 edition in order to compare it with other possibly parallel portfolio solvers.
There are many lines of research that can be explored, both from the scientific and engineering perspective. As a future work we would like to extend the sunnycp2 by adding new, possibly parallel solvers. Moreover, different parallelisations, distance metrics, and neighbourhood sizes can be evaluated.
Given the variety of parameters provided by sunnycp2, it could be also interesting to exploit Algorithm Configuration techniques [smac, isac] for the automatic tuning of the sunnycp2 parameters, as well as the parameters of its constituent solvers.
Finally, we are also interested in making sunnycp2 more usable and portable, e.g., by preinstalling it on virtual machines or multicontainer technologies.
Acknowledgements
We would like to thank the staff of the Optimization Research Group of NICTA (National ICT of Australia) for allowing us to use Chuffed and G12/Gurobi solvers, as well as for granting us the computational resources needed for building and testing sunnycp2. Thanks also to Michael Veksler for giving us an updated version of the HaifaCSP solver.
