1 Introduction

The ability of machine learning to generate structured objects has progressed dramatically in the last few years. One particularly successful example of this is the flurry of developments devoted to generating small molecules

(Gómez-Bombarelli et al., 2018; Segler et al., 2017; Kusner et al., 2017; Dai et al., 2018; Simonovsky and Komodakis, 2018; De Cao and Kipf, 2018; Jin et al., 2018; Liu et al., 2018; You et al., 2018). These models have been shown to be extremely effective at finding molecules with desirable properties: drug-like molecules (Gómez-Bombarelli et al., 2018), biological target activity molecules (Segler et al., 2017), and soluble molecules (De Cao and Kipf, 2018).

However, these improvements in molecule discovery come at a cost: these methods do not describe how to synthesize such molecules, a prerequisite for experimental testing. Traditionally, in computer-aided molecular design, this has been addressed by virtual screening (Shoichet, 2004), where molecule data sets , are first generated via the expensive combinatorial enumeration of molecular fragments stitched together using hand-crafted bonding rules, and then are scored in an step.

In this paper we propose a generative model for molecules (shown in Figure 1) that describes how to make such molecules from a set of commonly-available reactants. Our model first generates a set of reactant molecules, and second maps them to a predicted product molecule via a reaction prediction model. It allows one to simultaneously search for better molecules and describe how such molecules can be made. By closely mimicking the real-world process of designing new molecules, we show that our model: 1. Is able to generate a wide range of molecules not seen in the training data; 2. Addresses practical synthesis concerns such as reaction stability and toxicity; and 3. Allows us to propose new reactants for given target molecules that may be more practical to manage.

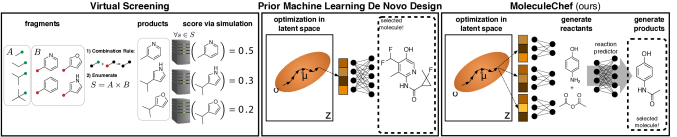

Figure 1: An overview of approaches used to find molecules with desirable properties. Left: Virtual screening (Shoichet, 2004) aims to find novel molecules by the (computationally expensive) enumeration over all possible combinations of fragments. Center: More recent ML approaches, eg (Gómez-Bombarelli et al., 2018), aim to find useful, novel molecules by optimizing in a continuous latent space; however, there are no clues to whether (and how) these molecules can be synthesized. Right: We approach the generation of molecules through a multistage process mirroring how complex molecules are created in practice, whilst maintaining a continuous latent space to use for optimization. Our model, Molecule Chef, first finds suitable reactants which then react together to create a final molecule.

2 Background

We start with an overview of traditional computational techniques to discover novel molecules with desirable properties. We then review recent work in machine learning (ML) that seeks to improve parts of this process. We then identify aspects of molecule discovery we believe deserve much more attention from the ML community. We end by laying out our contributions to address these concerns.

2.1 Virtual Screening

To discover new molecules with certain properties, one popular technique is virtual screening (VS) (Shoichet, 2004; Hu et al., 2011; Pyzer-Knapp et al., 2015; Chevillard and Kolb, 2015; Nicolaou et al., 2016)

. VS works by (a) enumerating all combinations of a set of building-block molecules, which are combined via virtual chemical bonding rules, (b) for each molecule, calculating the desired properties via simulations or prediction models, (c) filtering the most interesting molecules to synthesize in the lab. While VS is general, it has the important downside that the generation process is not targeted: VS needs to get lucky to find molecules with desirable properties, it does not search for them. Given that the number of possible drug-like compounds is estimated to be

(van Hilten et al., 2019), the chemical space usually screened in VS is tiny. Search in combinatorial fragment spaces has been proposed, but is limited to simpler similarity queries Rarey and Stahl (2001).

2.2 The Molecular Search Problem

To address these downsides, one idea is to replace this full enumeration with a search algorithm; an idea called de novo-design (DND) (Schneider and Schneider, 2016). Instead of generating a large set of molecules with small variations, DND searches for molecules with particular properties, recomputes them for the newfound molecules, and searches again. We call this the molecular search problem

. Early work on the molecular search problem used genetic algorithms, ant-colony optimization, or other discrete search techniques to make local changes to molecules

(Hartenfeller and Schneider, 2011). While more directed than library-generation, these approaches still explored locally, limiting the diversity of discovered molecules.

The first work to apply current ML techniques to this problem was Gómez-Bombarelli et al. (2018) (in a late 2016 preprint). Their idea was to search by learning a mapping from molecular space to continuous space and back. With this mapping it is possible to leverage well-studied optimization techniques to do search: local search can be done via gradient descent and global search via Bayesian optimization (Snoek et al., 2012; Gardner et al., 2014). For such a mapping, the authors chose to represent molecules as SMILES strings (Weininger, 1988) and leverage advances in generative models for text (Bowman et al., 2016)

to learn a character variational autoencoder (CVAE)

(Kingma and Welling, 2014). Shortly after this work, in an early 2017 preprint, Segler et al. (2017)

trained recurrent neural networks (RNNs) to take properties as input and output SMILES strings with these properties, with molecular search done using reinforcement learning (RL).

In Search of Molecular Validity.

However, the SMILES string representation is very brittle: if individual characters are changed or swapped, it may no longer represent any molecule (called an invalid molecule). Thus, the CVAE often produced invalid molecules (in one experiment, sampling from the continuous space produced valid molecules only of the time (Kusner et al., 2017)). To address this validity problem, there has been a flurry of recent work using alternative molecular representations such as parse trees (Kusner et al., 2017; Dai et al., 2018) or graphs (Simonovsky and Komodakis, 2018; De Cao and Kipf, 2018; Li et al., 2018; Jin et al., 2018; Liu et al., 2018; You et al., 2018; Jin et al., 2019), where Jin et al. (2018); Liu et al. (2018); You et al. (2018) guarantee validity. In parallel, there has been work based on RL that has aimed to learn a validity function during training directly (Guimaraes et al., 2017; Janz et al., ).

2.3 The Molecular Recipe Problem

Crucially, all of the works in the previous section solving the molecular search problem focus purely on optimizing molecules towards desirable properties. These works, in addressing the downsides of VS, removed a benefit of it: knowledge of the synthesis pathway of each molecule. Without this we do not know how practical ML-generated molecules are to make.

To address this concern is to address the molecular recipe problem: what molecules are we able to make, given a set of readily-available starting molecules? So far, this problem has been addressed independently of the molecular search problem through synthesis planning (SP) (Segler et al., 2018). SP works by recursively deconstructing a molecule. This deconstruction is done via (reversed) reaction predictors: models that predict how reactant molecules produce a product molecule. More recently, novel ML models have been designed for reaction prediction (Wei et al., 2016; Segler and Waller, 2017; Jin et al., 2017; Schwaller et al., 2018a; Bradshaw et al., 2019; Schwaller et al., 2018b).

2.4 This Work

In this paper, we propose to address both the molecular search problem and the molecular recipe problem jointly. To do so, we propose a generative model over molecules using the following map: First, a mapping from continuous space to a set of known, reliable, easy-to-obtain reactant molecules. Second a mapping from this set of reactant molecules to a final product molecule, based on a reaction prediction model (Wei et al., 2016; Segler and Waller, 2017; Jin et al., 2017; Schwaller et al., 2018b; Bradshaw et al., 2019). Thus our generative model not only generates molecules, but also a synthesis route using available reactants. This addresses the molecular recipe problem, and also the molecular search problem, as the learned continuous space can also be used for search. Compared to previous work, in this work we are searching for new molecules through virtual chemical reactions, more directly simulating how molecules are actually discovered in the lab.

Concretely, we argue that our model, which we shall introduce in the next section, has several advantages over the current deep generative models of molecules reviewed previously:

Better extrapolation properties

Generating molecules through graph editing operations, representing reactions, we hope gives us strong inductive biases for extrapolating well.

Validity of generated molecules

Naive generation of molecular SMILES strings or graphs can lead to molecules that are invalid. Although the syntactic validity can be fixed by using masking (Kusner et al., 2017; Liu et al., 2018), the molecules generated can often still be semantically invalid. By generating molecules from chemically stable reactants by means of reactions, our model proposes more semantically valid molecules.

Provide synthesis routes

Proposed molecules from other methods can often not be evaluated in practice, as chemists do not know how to synthesize them. As a byproduct of our model we suggest synthetic routes, which could have a useful, practical value.

3 Model

In this section we describe our model. We define the set of all possible valid molecular graphs as , with an individual graph representing the atoms of a molecule as its nodes, and the type of bonds between these atoms (we consider single, double and triple bonds) as its edge types. The set of common reactant molecules, easily procurable by a chemist, which we want to act as building blocks for any final molecule is a subset of this, .

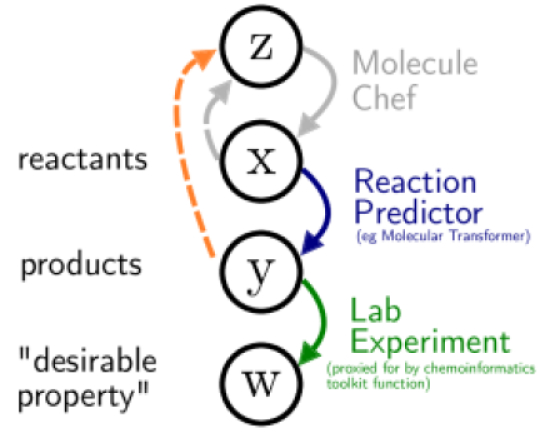

As discussed in the previous section (and shown in Figure 1) our generative model for molecules consists of the composition of two parts: (1) a decoder from a continuous latent space, , to a bag (ie multiset111Note how we allow molecules to be present multiple times as reactants in our reaction, although practically many reactions only have one instance of a particular reactant.) of easily procurable reactants, ; (2) a reaction predictor model that transforms this bag of molecules into a multiset of product molecules .

The benefit of this approach is that for step (2) we can pick from several existing reaction predictor models, including recently proposed methods that have used ML techniques (Kayala et al., 2011; Segler and Waller, 2017; Schwaller et al., 2018b; Bradshaw et al., 2019; Coley et al., 2019). In this work we use the Molecular Transformer (MT) of Schwaller et al. (2018b), as it has recently been shown to provide state-of-the-art performance in this task (Schwaller et al., 2018b, Table 4).

This leaves us with the task of (1), learning a way to decode to (and encode from) a bag of reactants, using a parameterized encoder and decoder . We call this co-occurrence model Molecule Chef, and by moving around in the latent space we can select using Molecule Chef different “bags of reactants”.

Again there are several viable options of how to learn Molecule Chef. For instance one could choose to use a VAE for this task (Kingma and Welling, 2014; Rezende et al., 2014). However, when paired with a complex decoder these models are often difficult to train (Bowman et al., 2016; Alemi et al., 2018), such that much of the previous work for generating graphs has has tuned down the KL regularization term in these models (Liu et al., 2018; Kusner et al., 2017). We therefore instead propose using the WAE objective (Tolstikhin et al., 2018), which involves minimizing

where is cost function, that enforces the reconstructed bag to be similar to the encoded one, and is a divergence measure which forces the marginalised distribution of all encodings to match the prior on the latent space, which is weighted in relative importance by . Following Tolstikhin et al. (2018) we use the maximum mean discrepancy (MMD) divergence measure, with and a standard normal prior over the latents. We choose so that this first term matches the reconstruction term we would obtain in a VAE, i.e. with . This means that the objective only differs from a VAE in the second, regularisation term, such that we are not trying to match each encoding to the prior but instead the marginalised distribution over all datapoints. Empirically, we find that this trains well and does not suffer from the same local optimum issues as the VAE.

3.1 Encoder and Decoder

We can now begin describing the structure of our encoder and decoder. In these functions it is often convenient to work with

-dimensional vector embeddings of graphs,

. Again we are faced with a series of possible alternative ways to compute these embeddings. For instance, we could ignore the structure of the molecule and learn embeddings for each, or use fixed molecular fingerprints, such as Morgan Fingerprints (Morgan, 1965). We instead choose to use deep graph neural networks (Merkwirth and Lengauer, 2005; Duvenaud et al., 2015; Battaglia et al., 2018) that can produce graph-isomorphic representations.

Deep graph neural networks have been shown to perform well on a variety of tasks involving small organic molecules, and their advantages compared to the previously mentioned alternative approaches are that (1) they take the structure of the graph into account and (2) they can learn which characteristics are important when forming higher-level representations. In particular in this work we use 4 layer Gated Graph Neural Networks (GGNN) (Li et al., 2016). These can compute higher-level representations for each node. These node-level representations in turn can be combined by a weighted sum, to form a graph-level representation invariant to the order of the nodes, in an operation referred to as an aggregation transformation (Johnson, 2017, §3).

Encoder

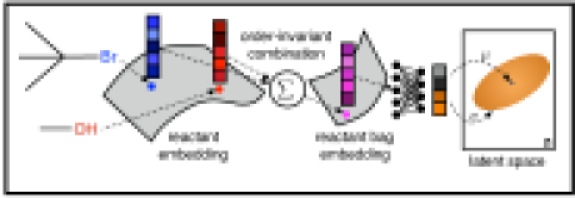

Figure 2: The encoder of our Molecule Chef. This maps from a multiset of reactants to a distribution over latent space. There are three main steps: (1) the reactants molecules are embedded into a continuous space by using GGNNs (Li et al., 2016)

to form molecule embeddings; (2) the molecule embeddings in the multiset are summed to form one order-invariant embedding for the whole multiset; (3) this is then used as input to a neural network which parameterizes a Gaussian distribution over

.

The structure of Molecule Chef’s encoder, , is shown in Figure 2. For the th data point the encoder has as input the multi-set of reactants

. It first computes the representation of each individual reactant molecule graph using the GGNN, before summing these representations to get a representation that is invariant to the order of the multiset. A feed forward network is then used to parameterize the mean and variance of a Gaussian distribution over

.

Decoder

The decoder, , (Figure 3) maps from the latent space to a multiset of reactant molecules. These reactants are typically small molecules, which means we could fit a deep generative model which produces them from scratch. However, to better mimic the process of selecting reactant molecules from an easily obtainable set, we instead restrict the output of the decoder to pick the molecules from a fixed set of reactant molecules, .

This happens in a sequential process using a recurrent neural network (RNN), with the full process described in Algorithm 1. The latent vector, is used to parametrize the initial hidden layer of the RNN. The selected reactants are fed back in as inputs to the RNN at the next generation stage. Whilst training we randomly sample the ordering of the reactants, and use teacher forcing.

0:   (latent space sample), GGNN (for embedding molecules), RNN (recurrent neural network), (set of easy-to-obtain reactant molecules), (learnt “halt” embedding), (learnt matrix that projects the size of the latent space to the size of RNN’s hidden space)
   ; {Start symbol}
  for  to  do
      ; STACK([GGNN(g) for all g in ] + [])

     logits


     if  then
         break {If the logit corresponding to the halt embedding is selected then we stop early}
     else

     end if
  end for
  return
Algorithm 1 Molecule Chef’s Decoder
Figure 3: The decoder of Molecule Chef. The decoder generates the multiset of reactants in sequence through calls to a RNN. At each step the model picks either one reactant from the pool or to halt, finishing the sequence. The latent vector, , is used to parameterize the initial hidden layer of the RNN. Reactants that are selected are fed back into the RNN on the next step. The reactant bag formed is later fed through a reaction predictor to form a final product.

3.2 Adding a predictive penalty loss to the latent space

As discussed in section 2.2 we are interested in using and evaluating our model’s performance in the molecular search problem, that is using the learnt latent space to find new molecules with desirable properties. In reality we would wish to measure some complex chemical property that can only be measured experimentally. However, as a surrogate for this, following (Gómez-Bombarelli et al., 2018), we optimize instead for the QED (Quantitative Estimate of Drug-likeness (Bickerton et al., 2012)) score of a molecule, , as a deterministic mapping from molecules to this score, , exists in RDKit (RDKit, online, ).

To this end, in a similar manner to Liu et al. (2018, §4.3) & Jin et al. (2018, §3.3), we can simultaneously train a 2 hidden layer property predictor NN for use in local optimization tasks. This network tries to predict the QED property, , of the final product from the latent encoding of the associated bag of reactants. The use of this property predictor network for local optimization is described in Section 4.2.

4 Evaluation

In this section we evaluate Molecule Chef in (1) its ability to generate a diverse set of valid molecules; (2) how useful its learnt latent space is when optimizing product molecules for some property; and (3) whether by training a regressor back from product molecules to the latent space, Molecule Chef can be used as part of a setup to perform retrosynthesis.

In order to train our model we need a dataset of reactant bags. For this we use the USPTO dataset (Lowe, 2012), processed and cleaned up by Jin et al. (2017). We filter out reagents, molecules that form context under which the reaction occurs but do not contribute atoms to the final products, by following the approach of Schwaller et al. (2018a, §3.1).

We wish to use as possible reactant molecules only popular molecules that a chemist would have easy access to. To this end, we filter our training dataset so that each reaction only contains reactants that occur at least 15 times across different reactions in the original larger training USPTO dataset. This leaves us with a dataset of 34426 unique reactant bags for training the Molecule Chef. In total there are 4344 unique reactants. For training the baselines, we combine these 4344 unique reactants and the associated products from their different combinations, to form a training set for baselines, as even though Molecule Chef has not seen the products during training, the reaction predictor has.

4.1 Generation

Model Name Validity Uniqueness Novelty Quality FCD
Molecule Chef + MT 99.15 94.92 87.41 95.87 0.76
AAE (Kadurin et al., 2017; Polykovskiy et al., 2018) 85.91 98.54 93.21 94.46 1.06
CGVAE (Liu et al., 2018) 100.00 93.51 95.80 44.26 11.29
CVAE (Gómez-Bombarelli et al., 2018) 12.02 56.28 85.57 52.64 37.14
GVAE (Kusner et al., 2017) 12.92 70.07 87.80 46.65 28.81
LSTM (Segler et al., 2017) 91.19 93.43 73.72 99.68 0.47
Table 1: Table showing the validity, uniqueness, novelty and normalized quality (all as %, higher better) of the products/or molecules generated from decoding from 20k random samples from the prior . Quality is the proportion of molecules that pass the quality filters proposed in Brown et al. (2018, §3.3), normalized such that the score on the training set is 100. FCD is the Fréchet ChemNet Distance (Preuer et al., 2018), capturing a notion of distance between the generated molecules and the training dataset (lower better). MT stands for the Molecular Transformer (Schwaller et al., 2018b).

We begin by analyzing our model using the metrics favored by previous work222Note that we have extended the definition of these metrics to a bag (multiset) of products, given that our model can output multiple molecules for each reaction. However, when sampling 20000 times from the prior of our model, we generate single product bags 96.3% of the time, so that in practice most of the time we are using the same definition for these metrics as the previous work which always generated single molecules. (Jin et al., 2018; Liu et al., 2018; Li et al., 2018; Kusner et al., 2017): validity, uniqueness and novelty. Validity is defined as requiring that at least one of the molecules in the bag of products can be parsed by RDKit. For a bag of products to be unique we require it to have at least one valid molecule that the model has not generated before in any of the previously seen bags. Finally, for computing novelty we require that the valid molecules not be present in the same training set we use for the baseline generative models.

In addition, we compute the Fréchet ChemNet Distance (FCD) (Preuer et al., 2018) between the valid molecules generated by each method and our baseline training set. Finally in order to try to assess the quality of the molecules generated we record the (train-normalized) proportion of valid molecules that pass the quality filters proposed by Brown et al. (2018, §3.3); these filters aim to remove molecules that are “potentially unstable, reactive, laborious to synthesize, or simply unpleasant to the eye of medicinal chemists”.

For the baselines we consider the character VAE (CVAE) (Gómez-Bombarelli et al., 2018), the grammar VAE (GVAE) (Kusner et al., 2017), the AAE (adversarial autoencoder) (Kadurin et al., 2017), the constrained graph VAE (CGVAE) (Liu et al., 2018), and a stacked LSTM generator with no latent space (Segler et al., 2017). Further details about the baselines can be found in the appendix.

The results are shown in Table 1. As Molecule Chef decodes to a bag made up from a predefined set of molecules, those reactants going into the reaction predictor are valid. The validity of the final product is not 100%, as the reaction predictor can make non-valid edits to these molecules, but we see that in a high number of cases the products are valid too. Furthermore, what is very encouraging is that the molecules generated often pass the quality filters, giving evidence that the process of building molecules up by combining stable reactant building blocks often leads to stable products.

4.2 Local Optimization

As discussed in Section 3.2, when training Molecule Chef we can simultaneously train a property predictor network, mapping from the latent space of Molecule Chef to the QED score of the final product. In this section we look at using the gradient information obtainable from this network to do local optimization to find a molecule created from our reactant pool that has a high QED score.

Figure 4: KDE plot showing that the distribution of the best QEDs found through local optimization, using our trained property predictor for QEDs, has higher mass over higher QED scores compared to the best found from a random walk. The starting locations’ distribution (sampled from the training data) is shown in green. The final products, given a reactant bag are predicted using the MT (Schwaller et al., 2018b). Figure 5: Having learnt a latent space which can map to products through reactants, we can learn a regressor back from the suggested products to latent space (orange arrow shown) and couple this with Molecule Chef’s decoder to see if we can do retrosynthesis – the act of computing the reactants that create a particular product.

We evaluate the local optimization of molecular properties by taking 250 bags of reactants, encoding them into the latent space of Molecule Chef, and then repeatedly moving in the latent space using the gradient direction of the property predictor until we have decoded ten different reactant bags. As a comparison we consider instead moving in a random walk until we have also decoded to ten different reaction bags. In Figure 4 we look at the distribution of the best QED score found in considering these ten reactant bags, and how this compared to the QEDs started with.

When looking at individual optimization runs, we see that the QEDs vary a lot between different products even if made with similar reactants. However, Figure 4 shows that overall the distribution of the final best found QED scores is improved when purposefully optimizing for this. This is encouraging as it gives evidence of the utility of these models for the molecular search problem.

4.3 Retrosynthesis

A unique feature of our approach is that we learn a decoder from latent space to a bag of reactants. This gives us the ability to do retrosynthesis by training a model to map from products to their associated reactants’ representation in latent space and using this in addition to Molecule Chef’s decoder to generate a bag of reactants. This process is highlighted in Figure 5. Although retrosynthesis is a difficult task, with often multiple possible ways to create the same product and with current state-of-the-art approaches built using large reaction databases and able to deal with multiple reactions (Segler et al., 2018), we believe that our model could open up new interesting and exciting approaches to this task. We therefore train a small network based on the same graph neural network structure used for Molecule Chef followed by four fully connected layers to regress from products to latent space.

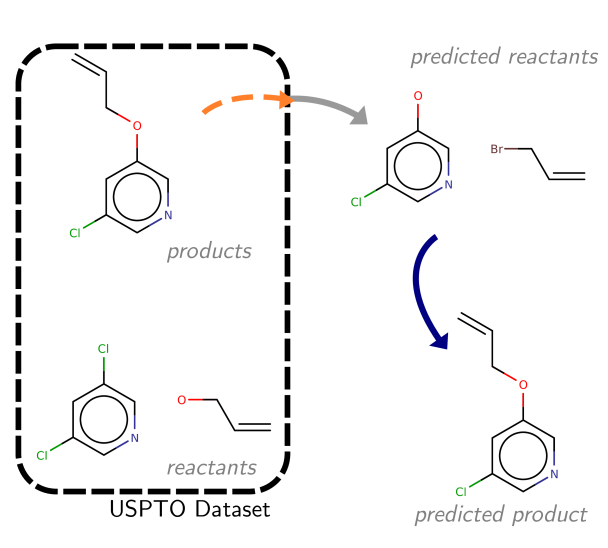

Figure 6: An example of performing retrosynthesis prediction using a trained regressor from products to latent space. This reactant-product pair has not been seen in the training set of Molecule Chef. Further examples are shown in the appendix. (a) Reachable Products (b) Unreachable Products Figure 7: Assessing the correlation between the QED scores for the original product and its reconstruction (see text for details). We assess on two portions of the test set, products that are made up of only reactants in Molecule Chef’s vocabulary are called ‘Reachable Products’, those that have at least one reactant that is not are called ‘Unreachable Products’.

A few examples of the predicted reactants corresponding to products from reactions in the USPTO test set, but which can be made in one step from the predefined possible reactants, are shown in Figure 6 and the appendix. We see that often this approach, although not always able to suggest the correct whole reactant bag, chooses similar reactants that on reaction produce similar structures to the original product we were trying to synthesize. While we would not expect this approach to retrosynthesis to be competitive with complex planning tools, we think this provides a promising new approach, which could be used to identify bags of reactants that produce molecules similar to a desired target molecule. In practice, it would be valuable to be pointed directly to molecules with similar properties to a target molecule if they are easier to make than the target, since it is the properties of the molecules, and not the actual molecules themselves that we are after.

With this in mind, we assess our approach in the following way: (1) we take a product and perform retrosynthesis on it to produce a bag of reactants, (2) we transform this bag of reactants using the Molecular Transformer to produce a new reconstructed product, and then finally (3) we plot the resulting reconstructed product molecule’s QED score against the QED score of the initial product. We evaluate on the test set of USPTO, however we split this into two sets: ‘Reachable Products’ which can be made fully from the Molecule Chef’s reactant vocabulary and ‘Unreachable Products’, which have at least one reactant that is not in the vocabulary. The results are shown in Figure 7; overall we see that there is some correlation between the properties of products and the properties of their reconstructions.

4.4 Qualitative Quality of Samples

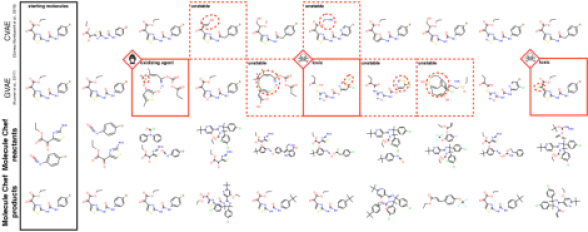

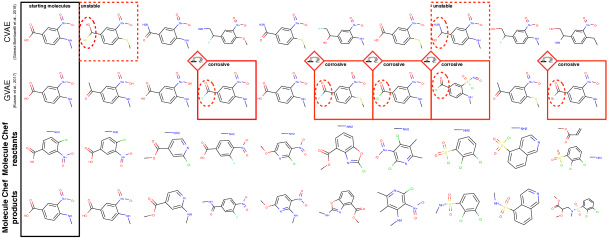

Figure 8: Random walk in latent space. See text for details.

In Figure 8 we show molecules generated from a random walk starting from the encoding of a particular molecule (shown in the left-most column). We compare the CVAE, GVAE, and Molecule Chef (for Molecule Chef we encode the reactant bag known to generate the same molecule). We showed all generated molecules to a domain expert and asked them to evaluate their properties in terms of their stability, toxicity, oxidizing power, corrosiveness. Many molecules produced by the CVAE and GVAE show undesirable features, unlike the molecules generated by Molecule Chef.

5 Discussion

In this work we have introduced Molecule Chef, a model that generates synthesizable molecules. By constructing molecules through selecting reactants and running chemical reactions, while performing optimization in continuous latent space, we can combine the strengths of previous VAE-based models and classical discrete de-novo design algorithms based on virtual reactions.
