I Introduction

AD is currently foreseen as the future of road traffic to enhance safety and efficiency. Within the system-and-control community, multi-vehicle coordination, motion planning and control for AD has attracted a strong research attention, since it poses relevant engineering challenges, spanning from fundamental to computational and practical challenges. Providing each vehicle with a high degree of decision-making autonomy is in fact key towards automated road traffic. From an optimal-control perspective, to autonomously drive vehicles within a complex dynamic environment, several algorithms propose a MPC approach [1], [2], [3], or some variants, such as scenario-based MPC [4], spatial-based MPC [5], and distributed MPC [6, 7], as well as multi-layer decision-making frameworks [8], [9].

The quintessential feature in multi-vehicle driving scenarios is that drivers are selfish decision makers, or agents, that pursue their own individual interests, e.g. minimum travel time or minimum fuel consumption, while sharing the road space-time. To handle the presence of selfish vehicles, the principles of game theory have been adopted, first in high-level traffic control [10], and more recently in multi-vehicle motion planning [11, 12, 13].

In this paper, compared with the referred literature, we consider a general driving scenario on multi-lane highways with multiple vehicles, each with a cost function to be minimized given the driving decisions of the other vehicles, individual constraints, e.g. speed and acceleration limits, and safety-distance constraints. Furthermore, for each vehicle, we embed both continuous and discrete decisions over a prediction horizon, namely, the longitudinal cruise speed and the occupied lane in the highway, respectively, see Fig. 1 for an illustration. This motivates us to model the dynamics of each noncooperative vehicle over a certain horizon as a MLD system [14].

The presence of multiple noncooperative agents with mixed-integer decision variables and safety constraints complicates enormously the solution of the inter-dependent decision-making problems, as conflicts naturally arise [15]. For instance, one conflict arises when two vehicles aim at swapping their lanes by simultaneously activating their direction indicators, see Fig. 2. Conflicts arise even on a single lane, when a fast vehicle approaches a slower one, hence the two “compete” for the free space, see Fig. 3.

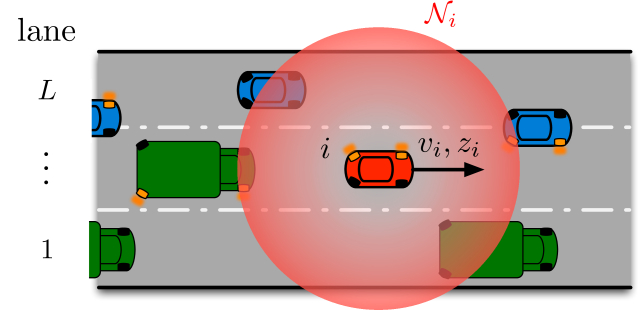

Fig. 1: A set of vehicles driving along a highway.

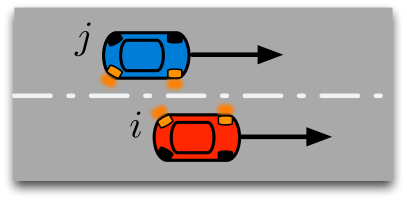

Fig. 2: Two vehicles traveling side by side along two consecutive lanes. Vehicle (left lane) has the right indicator on, while (right lane) the left one.

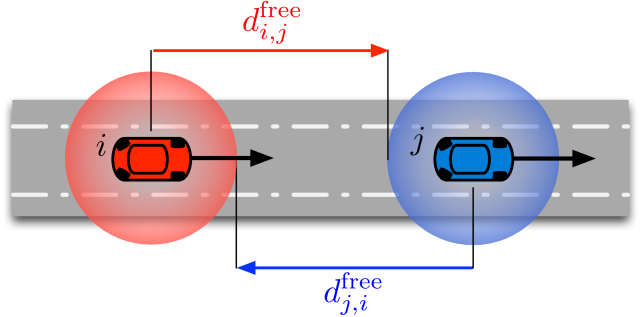

Fig. 3: Two vehicles traveling on the same lane and competing for the longitudinal free space.

Our approach to resolve conflicts and potential collisions is by introducing some “AD rules” (§IV

). For simplicity, we assume that each vehicle is aware of the planning of its neighboring vehicles, e.g. by exchanging information and/or estimating the motion of the neighboring vehicles (§

II). Finally, we formalize the multi-vehicle AD problem as a generalized mixed-integer potential game (§V), where an equilibrium solution, obtained via a Gauss-Southwell algorithm (§VI), corresponds to a sequence of mixed-integer decisions for the vehicles that are individually optimal, given the decisions of the other vehicles and the imposed AD rules.

Ii Highway traffic as a system of mixed-logical-dynamical system

Let be the set of vehicles driving on a highway with lane set . For any pair of vehicles , let denote the inter-vehicle distance between and . Throughout the paper, we refer to as a generic vehicle in and to as a vehicle in the neighborhood of vehicle , i.e., , where denotes a predefined interaction distance. As shown in Fig. 1, we assume that each vehicle controls its longitudinal (cruise) speed and selects the traveling lane . Over a prediction horizon , each vehicle has decision variables and . We assume that vehicle seeks for a sequence of hybrid decisions that trade off the tracking of a desired speed profile , while driving along a desired lane . Therefore, we can preliminary formulate the MPC motion planning as a MILP:


where . The sets and shall be defined to limit the cruise speed and its variations, and the selected lane. For instance, given and as the maximum velocity and acceleration/deceleration for vehicle , respectively, we can define:

To model the longitudinal distance between pairs of vehicles, we adopt the Euler forward scheme as updating rule for the relative distance between the vehicle and :


where denotes the length of a predefined time interval. It follows that within the introduced hybrid MPC framework, each vehicle can estimate the relative distance with respect to its neighboring vehicles by knowing their velocities.

In this paper, we do not address the issue of communication among vehicles. Our aim is instead to design a hybrid framework capable to model the AD problem in highways. Specifically, we focus on the mixed-integer decision-making layer for coordination and motion planning of the vehicles. Therefore, in the remainder of the paper, we assume that: i) each vehicle is driven autonomously by the solution of the hybrid decision-making framework; ii) vehicles can exchange information, i.e., their decision variables, without communication delays or packet loss. By starting from (1), and in the spirit of [14], we introduce several mixed-logical coupling constraints among vehicles that lie within a certain set, with the aim to ensure safety.

Ii-a Safety distance

The first mixed-logical coupling constraint we introduce refers to the safety distance among vehicles traveling on the same lane. Directly from the common driving experience in highways, it seems reasonable to assume the safety distance, , as a function of the actual cruise speed, . For instance, compared to driving at high speed, we are induced to get closer to the vehicle ahead at low speed. Thus, let us define the discrete variable , where and are the lane selected by vehicle and , respectively, and introduce the following logical implications, for all :


The necessary conditions on the left-hand side, which must occur simultaneously, allow to select only those vehicles that, in the prediction of vehicle , occupy the same lane. Note that the inequality allows one to cluster the vehicles in as either ahead or behind . Then, for all and for which both the conditions are met, the relative distance must be greater or equal than the safety distance .

Definition 1 (Longitudinal safety)

A pair of vehicles is longitudinally safe over the prediction horizon if, for all such that , and, furthermore, if , . The system is longitudinally safe over the prediction horizon if any pair of vehicles is longitudinally safe.

Ii-B Direction indicators

Lane change maneuvers are particularly challenging to automate because each vehicle has to adapt its actions to several road users. Inspired by a common practice in a multi-lane environment, here we introduce integer-linear constraints to characterize the direction indicators and their utilization in the lane change maneuver. Next, we will show how to exploit it to rule out potential source of collision among vehicles, as in Fig. 2.

To model the direction indicators, we introduce two binary decision variables, and . Specifically, denotes that vehicle has its right direction indicator on, hence wants to change its current lane, moving to the right; analogously, denotes that vehicle has left direction indicator turned on. At each time , the vehicles may turn only one indicator on. This translates into an exclusive OR constraint:


Next, we impose that vehicles may perform a lane-change maneuver only after activating the suitable direction indicator. Thus, for all , we define


hence, the feasible-lane constraint reads as . Although the activation of the direction indicator is mandatory before a lane change, we remark that the constraints that define do not force the lane change, but instead they make it possible in the next time interval.

Iii Safety rules for multi-lane traffic

Fig. 4: Example of longitudinal collision: (a) Velocity profiles. (b) Relative and safety distances.

The logical implications introduced above allow for unsafe driving scenarios. In the following, after analyzing these scenarios, we propose some “autonomous driving rule” that rule out potential sources of collision.

Iii-a A free-space agreement on the lane

Let us consider the situation in Fig. 3, where a feasible scenario is that vehicle accelerates, to e.g. minimize its traveling time, while vehicle reduces its speed, e.g. with the aim to minimize fuel consumption. In terms of velocity profile, an optimal strategy exists for both the vehicles (Fig. (a)a), i.e., the MILP problems in (1) with additional constraints are feasible. However, since the vehicles travel on the same lane, such strategies are clearly not implementable because they lead to a collision, as shown in Fig. (b)b.

To rule out this unsafe scenario, we propose an “agreement” on the free space available between vehicles traveling on the same lane. Specifically, under the same necessary conditions in (3), we impose that the relative velocity between two vehicles in consecutive steps shall be limited.

In details, let us refer to Fig. 3 and let introduce as the relative velocity between vehicle and .

Then, we have, for all and :


Informally speaking, at each time interval, each vehicle is allowed to (selfishly) exploit only a portion (at most half) of the free longitudinal space. We emphasize that the condition in Definition 1 would introduce nonlinear constraints. In fact, this motivates our agreement rule in (6) that introduces mixed-integer linear constraints.

Proposition 1

Given a pair of vehicles , assume that are feasible. The hybrid MPC formulation in (1) with safety distance constraints (3) and free-space agreement (6) guarantees the longitudinal safety.

Without restriction, assume that , for all and . The free space at step between two vehicles is . Directly from (6a), we have . Therefore, by the definition of in (2), we obtain , which turns into . From (3), . In the worst case, i.e., when , we obtain . Now, a longitudinal collision happens if:


By (6a), we have that:


Finally, (8) fulfill the conditions in (7) if:

The latter system has no solution due to the fact that . This implies that the free-space agreement is sufficient to avoid that conditions in (7) may occur.

Iii-B The need for direction indicators

Fig. 5: Example of lateral collision between two vehicles: (a) Lane profiles. (b) Relative distance.

In this subsection, we exploit the direction indicators to avoid unsafe scenarios between vehicles on consecutive lanes. Let us consider the scenario depicted in Fig. 2. The safety-distance logical implications in (3) do not allow to change lane individually over the prediction horizon , due to the small relative distance between them. However, the situation is different if both vehicles aim to perform the same maneuver in “opposite directions”, swapping the lanes as showed in Fig. (a)a. In this case, both predict that the destination lane will be free during the successive time intervals. Therefore, it is possible that by keeping their own speed unchanged, as well as relative distance, the two vehicles perform the lane change at the same time, causing a collision. However, these unsafe maneuvers are feasible for the hybrid motion planning in (1).

We then introduce as the inter-distance between vehicles that could lead to a lateral collision during a simultaneous change lane. We remark that shall be chosen large enough to exclude potential conflict on consecutive lane, accordingly to the following definition.

Definition 2 (Consecutive lane safety)

A pair of vehicles is safe on consecutive lanes over the prediction horizon if, for all such that and , and . The system is safe on consecutive lanes over the prediction horizon if any pair of vehicles is safe on consecutive lanes.

To avoid lateral collisions caused by simultaneous lane changes, we propose an additional mixed-logical rule that exploits the direction indicators. Without restriction, we refer to a scenario involving a pair of vehicles as the one illustrated in Fig. 2. Thus, two vehicles travel side by side on consecutive lanes if and . In case of both vehicles express the will of change lane performing a swap, i.e., vehicle turns on the left indicator , while the vehicle the right one at the same time , then we force the vehicle traveling on a lower lane to keep it, that is . Note that the proposed solution is one possible solution to resolve conflicts on consecutive lanes. Higher lanes are usually deputed for overtaking maneuvers, hence vehicles should facilitate the re-entry towards lower lanes. This motivates our proposed solution. Thus, the logical rule reads as:

Proposition 2

Given a pair of vehicles and some sufficiently large, assume that and are feasible. The hybrid MPC formulation in (1) with rule (III-B) guarantees the consecutive lane safety.

By Def. 2, two vehicles might not be safe on consecutive lanes if and . In view of (5), this is possible only if and each vehicle turns on the proper direction indicator, i.e., and (or and ). If the vehicles may swap the lanes without collision; otherwise (III-B) forces the vehicle driving on a lower lane to keep it.

Iv From logical implications to mixed-integer linear constraints

In this section we show how to translate the logical implications in (3), (6), (III-B) into mixed-integer linear constraints suitable for (1). By referring to the vehicle , we introduce the constraints to be designed for each neighboring vehicle and for each time .

Iv-a Preliminaries

Let us consider the safety distance constraints in (3

). We introduce two further logical implications and related binary variables,

, which allow to discriminate only such vehicles that effectively travel along the same lane () of the -th one, either ahead () or behind it ():


Hence, equations (3), (6) can be rewritten as nonlinear inequalities:


In a similar way, it is possible to handle (III-B) with some extra binary variables, , and . Thus, we then introduce the associated logical implications:


which allow to equivalently reformulate (III-B) as:


Iv-B The mixed-integer linear constraints

For the sake of clarity, we define several patterns of inequalities that allow to handle all the constraints. Given a linear function , let define , with compact set. Then, with and , a first system of mixed-integer inequalities correspond to , i.e.,

while a second to :

Here is a small tolerance beyond which the constraint is regarded as violated. As an example, let consider the right-hand side in (10a): introducing , , translates into , while into . Moreover, we define the next two blocks of inequalities, involving only binary variables, which allow to solve propositions with logical AND:

and with logical OR:

Specifically, is equivalent to the integer inequalities , while into . Referring again to (10a), corresponds to . Finally, (10a) coincides with the system of mixed-integer inequalities given by:


Thus, it follows that:


Next, we follow the procedure in [14] to recast the inequalities in (11) and (13) into a mixed-integer linear formulation by means of additional auxiliary variables (both real and binary, [16]). Specifically, starting from (11), we define , which satisfies the system of inequalities


By referring to (11a), we also define the real auxiliary variables , and that shall satisfy the pattern of linear inequalities given by:

The latter is equivalent to: , while . Hence, for each real auxiliary variable previously introduced, we have the systems:


Thus, the nonlinear inequalities in (11a) becomes:


Now, let us consider (11b). We define two real auxiliary variables, and , that satisfy:


Hence, (11b) is rewritten with linear formulation as:


Finally, we proceed with the same procedure as for (13) by introducing two auxiliary binary variables, and , that satisfy the systems


and two discrete variables, and , so that we obtain:


Then, the variables and satisfy the inequalities


Iv-C The final mixed-integer linear model

In the previous subsection, for each vehicle , we have introduced 21 auxiliary variables, both continuous and discrete, and 71 mixed-integer linear constraints. By rearranging all the inequalities, we propose the final MILP for each vehicle:


The total number of mixed-integer linear constraints for player is , while for the whole neighborhood is . Note that the coupling constraints in contain the strategies of the neighbors as affine, given terms. Thus, by defining , where , and ,

, as the vector of all the decision variables in the neighborhood



for suitable , , vectors and matrices of suitable structure.

V Automated Driving as a Generalized Mixed-Integer Potential Game

Within our hybrid framework, selfish road users can be driven by a set of mutually influencing mixed-integer strategies obtained by solving (33) for all . Thus, we aim at designing suitable sequences of decision variables that control each vehicle towards its own goal, without compromising the overall safety. To achieve such a trade-off, we propose to formalize the AD coordination problem as a generalized mixed-integer potential game.

We preliminary define the feasible set of each player, namely , and . Furthermore, by noticing that each depends only on the local variable , we introduce the function . By [17], is an exact potential function for the proposed AD game because it satisfies, for all , for all , and for all , ,

Let us now introduce the mixed-integer best response mapping for player (i.e., vehicle) , given the strategies of its neighbors :

Definition 3 (-Mixed-Integer Nash Equilibrium)

Let . is an MINE of the game if, for all ,

where .

Any -global minimizer of the potential function , i.e., any such that for all , is an MINE of the generalized mixed-integer potential game [18, Th. 2]. The converse does not hold in general.

It follows that an MINE is a vector of (individually) optimal strategies that allows to safely coordinate a set of noncooperative vehicles driving on a highway.

Vi Game resolution and numerical simulations via Gauss-Southwell Algorithm

In this section, we show numerical results obtained by solving the mixed-integer potential game associated with the AD problem. To compute an MINE, we adopt the best-response-based GS method, described next. At each algorithmic step , an arbitrary is chosen; then, vehicle updates its decision variable as follows:


with , while . The iteration goes on until holds for all . Under suitable conditions on the sequence of , this algorithm converges to an MINE in a finite number of steps [18, Th. 4].

In Figures 67 the logical rules allow to prevent the potential conflicts illustrated in Figures. 23, while Fig. 8 shows an example of multi-lane traffic simulation. Finally, Tab. I shows the average computational times for solving a single optimization problem over the full horizon .

Vii Conclusion and outlook

A hybrid decision-making framework can model the multi-lane, multi-vehicle automated driving problem in highways and, if augmented with simple driving rules, can ensure a safe use of the road space-time, despite the presence of selfish vehicles. The decision-making problem can be in fact modeled as a generalized mixed-integer potential game, which can be solved iteratively via a Gauss-Southwell best-response algorithm. Future research will focus on closed-loop control for the generalized mixed-integer potential game that arises in multi-vehicle automated driving.

Fig. 6: Lateral conflict resolution with logic rule in (III-B) (, [s]). (a) 0–3 [s]. (b) 3.1–6 [s]. (c) 6.1–9 [s].
Fig. 7: Longitudinal conflict resolution with free-space agreement in (6). (a) Velocity profiles. (b) Relative distance.
Fig. 8: Multi-lane traffic simulation with six vehicles disposed side by side on three lanes. Each vehicle achieves a randomly chosen target lane and tracks a reference speed (, [s]). (a) 0–3 [s]. (b) 3.1–6 [s]. (c) 6.1–9 [s]. (d) 9.1–12 [s].
Fig. # # vehicles # iterations Avg. computational time [ms] (to solve (32))
6 2 4 15.1
7 2 4 14.6
8 6 18 56.3
- 9 27 69.2
TABLE I: Computational-time summary.
