A Learning Approach To Wireless Information and Power Transfer Signal and System Design

10/29/2018 ∙ by Morteza Varasteh, et al. ∙ 0

The end-to-end learning of Simultaneous Wireless Information and Power Transfer (SWIPT) over a noisy channel is studied. Adopting a nonlinear model for the energy harvester (EH) at the receiver, a joint optimization of the transmitter and the receiver is implemented using Deep Neural Network (DNN)-based autoencoders. Modulation constellations for different levels of "power" and "information rate" demand at the receiver are obtained. The numerically optimized signal constellations are inline with the previous theoretical results. In particular, it is observed that as the receiver energy demand increases, all but one of the modulation symbols are concentrated around the origin and the other symbol is shot away from the origin along either the real or imaginary subchannel.

READ FULL TEXT VIEW PDF
POST COMMENT

Comments

There are no comments yet.

Authors

page 1

page 2

page 3

page 4

This week in AI

Get the week's most popular data science and artificial intelligence research sent straight to your inbox every Saturday.

1 Introduction

Radio Frequency (RF) signals are capable of bearing information as well as power. The transferred power can be utilized for energizing low power devices, such as wireless sensors and Internet-of-Things (IoT) devices. This along with the growth of low energy devices, has created a significant attention towards the study of Simultaneous Wireless Information and Power Transfer (SWIPT) systems [1]. The fundamental tradeoff between the information rate and the delivered power was first studied in [2] by Varshney, where a characterization of the capacity-power function for a point-to-point discrete memoryless channel is obtained.

In order to design efficient SWIPT architectures, it is crucial to model the energy harvester (EH) with a high level of accuracy. The EH consists of a rectenna, which is composed of an antenna followed by a rectifier. The rectifier is used to convert the RF power into DC current in order to charge devices. Although most of the results in the literature adopt a linear characteristic function for the rectifier, in practice, due to the presence of a diode in the rectifier, the output of the EH is a nonlinear function of its input

[3, 4].

Due to the nonlinearity of the diode characteristic function, the RF-to-DC conversion efficiency of the EH is highly dependent on the power as well as the shape of the waveform [3, 4, 5]. Observations based on experimental results reveal that signals with high Peak-to-Average Power Ratio (PAPR) result in high delivered DC power compared to other signals [4]. Motivated by this observation, in [3], an analytical model for the rectenna is introduced and a joint optimization over the phase and amplitude of a deterministic multisine signal is studied. It is concluded that unlike the linear EH model that favours a single-carrier transmission, a nonlinear model favours a multicarrier transmission.

In Wireless Power Transfer (WPT) systems, the goal is to design waveforms that maximize the DC power at the output of the EH, whereas, in SWIPT systems, the goal is to maximize the DC power as well as the information rate, which is commonly referred as maximizing the rate-power (RP) region. Unlike most of the SWIPT systems with the linear model assumption for EH, for SWIPT systems with nonlinear EH, there exists a tradeoff between the rate and delivered power [1]. Due to the presence of nonlinear components in EH, obtaining the exact optimal tradeoff analytically has so far been unsuccessful. However, after making some simplifying assumptions, some interesting results have been derived in [6, 7, 8, 9]. In particular, in multicarrier transmission, it is shown in [6] that nonzero mean Gaussian input distributions lead to an enlarged RP region compared to Circularly Symmetric Complex Gaussian (CSCG) input distributions. In single carrier transmissions over Additive White Gaussian Noise (AWGN) channel, in [9, 8]

, it is shown that (under nonlinearity assumption for the EH) for circular symmetric inputs, the capacity achieving input distribution is discrete in amplitude with a finite number of mass-points and with a uniformly distributed independent phase. This is in contrast to the linear model assumption of the EH, where there is no tradeoff between the information and power (i.e., from system design perspective the two goals are aligned), and the optimal inputs are Gaussian distributed

[1].

While designing SWIPT signals and systems (under nonlinear assumptions for the EH) using analytical tools seems extremely cumbersome, Deep Learning (DL)-based methods reveal a promising alternative to tackle the aforementioned problems. In fact, DL-based methods, and particularly, autoencoders have recently shown remarkable results in communications, achieving or even surpassing the performance of state-of-the-art algorithms

[10, 11]

. The advantage of DL-based methods versus analytical algorithms lies in their ability to extract complex features from the training data, and the fact that their model parameters can be trained efficiently on large datasets via backpropagation. The DL-based methods learn the statistical characteristics from a large training dataset, and optimize the algorithm accordingly, without obtaining explicit analytical results. At the same time, the potential of DL has also been capitalized by researchers to design novel and efficient coding and modulation techniques in communications. In particular, the similarities between the autoencoder architecture and the digital communication systems have motivated significant research efforts in the direction of modelling end-to-end communication systems using the autoencoder architecture

[10, 11]. Some examples of such designs include decoder design for existing channel codes [12], blind channel equalization [13], learning physical layer signal representation for SISO [14] and MIMO systems [15], OFDM systems [16, 17].

Figure 1: Point-to-point SWIPT system model with an additive noise channel. The receiver is assumed to be capable of jointly capturing the power and decoding the information of the received signal.

In this work, we leverage DL-based methods in SWIPT. We consider signal modulation design for a point-to-point SWIPT over a noisy channel. In particular, we consider the SWIPT system as an autoencoder structure, where the transmitter and receiver are considered as multi-layer Deep Neural Networks (DNN). The results are obtained by optimizing the transmitter and receiver jointly over a large training data. The numerical optimization reveals the following: First, as the demand for power at the receiver increases, one of the channel input symbols (namely, the power symbol) is getting away from zero with the other symbols (namely, the information symbols) distributed symmetrically around the origin. Second, the power symbol is always along either the real or imaginary axis. This observation is inline with the result in [7], where it is shown that as the power demand at the receiver increases, the transmitter allocates more power to either real or imaginary axis. It is also inline with the flash signaling interpretation of [9]. Third, for higher power delivery demands, the number of channel information symbols decreases, i.e., the transmitter sacrifices some of the information symbols by mapping them to the same channel input (usually zero symbol). Fourth, for power delivery purposes, the DC power increases with the number of channel input symbols, and all the symbols but one are with zero amplitude111We note that, in this paper, we focus on small-signal range analysis. Therefore, we have assumed to operate in the non-breakdown regime of the diode for reasons highlighted in [6]..

The rest of the paper is organized as follows. In Section 2, we introduce the system model, and provide some background on nonlinear EH. In Section 3, we formulate the problem and introduce the DNN architecture. Section 4 is dedicated to the evaluation of the performance of the DNN architecture. Finally, Section 5 concludes the work.

2 System Model

The design of communication systems, in general, relies on the optimization of individual components of the transmitter and the receiver. However, in many scenarios, it is unclear whether this approach is the optimal possible design. Motivated by this, we aim at utilizing machine learning (ML) to enable optimization of SWIPT systems for end-to-end performance, without the need for dividing the transmitter and receiver into different sections.

We study a point-to-point SWIPT problem over an additive noise channel222In this paper, we consider Additive White Gaussian Noise (AWGN) for the channel noise, however, the approach can be extended to any noise model.. The system model is shown in Figure 1, where the receiver is capable of harvesting the power (denoted by ) of the received signal as well as decoding the information, jointly333The tools presented in this paper can be easily extended to the scenario where there is a power splitter at the receiver as in [6].. The baseband information bearing pulse modulated signal is represented as , where is the pulse waveform and is the k complex information-power symbol at time . The received signal in the baseband is , where is the baseband complex-valued noise. The EH is fed with the received RF signal, i.e., , where is the carrier frequency.

Adopting rectenna nonlinear model of 444Rectenna is composed of an antenna and a rectifier. The antenna is modelled as a voltage source followed by a resistance and the rectifier is modelled as a nonlinear diode followed by low pass filter (LPF). [3, 8, 18], the received RF signal is converted at the rectifier’s output into a DC signal across a load resistance . Assuming perfect impedance matching, i.e., ( is the equivalent input impedance of the circuit observed after the antenna), the received power is completely transferred to the rectifier. Therefore, we have or equivalently [3]. The current flowing through the diode is related to the voltage drop by the Shockley diode equation , where and are the diode’s reverse bias saturation current, the ideality factor (typically ranging between 1 and 2) and the thermal voltage (approximately mV at room temperature), respectively. Assuming that the capacitance of the LPF is sufficiently large, the output voltage can be assumed constant, i.e., [18]. Applying Kirchoff’s current law to the circuit in Figure 2, we have

(1)
(2)
Figure 2: The nonlinear model for the rectenna circuit

where (1) is due to , and (2) is due to , (recall is approximately constant). Reformulating the RHS of the equations (1) and (2), and averaging (over one sumbol duration and randomness of the channel input), we obtain555We note that the nonlinear model presented in this paper is a generalization of the nonlinear model to complex channel inputs introduced in [18, 8].

(3)

where . The DC power delivered to the load is . Note that the RHS of (3) strictly increases with . Hence, imposing a minimum delivery power constraint is equivalent to imposing constraint on (3), i.e.,

(4)

Assuming a rectangular pulse with unit amplitude and duration , we have in time slot . Hence, the received signal in the RF domain reduces to in time slot , where the symbol

is a realization of random variable

at time slot . Hence, (3) reads as

(5)
(6)
(7)

where in (6) we have neglected the effect of noise and in (7), is the modified Bessel function of the first kind and order zero, and the equality is due to [19, Sec. 3.338, Eq. 4]. Using (7), the EH constraint reduces to

(8)

3 Implementation

We model a SWIPT system as an autoencoder, where both the transmitter and receiver are implemented as two DNNs in order to perform the encoding and decoding processes, respectively. The transmitter communicates one of possible messages , where each message carries bits, and denotes the message alphabet set. In order to be transmitted, the message

is transformed in one-hot vector (a

-dimensional vector of all zeros except one in position). The one-hot vector corresponding to the message is denoted by . The DNN maps then the vector into a codeword of complex symbols. The mapping from the set of messages to the transmitted signal space is denoted by , where refers to the set of transmitter parameters, related to the weights and biases across the layers of the DNN. As the weights and the biases of the network are real numbers, each symbol of the codeword is represented by two output units corresponding to the real and imaginary part of the symbol. We note that to satisfy the average power constraint at the transmitter, a power normalization layer is included as the last layer of the transmitter. The encoded signal is corrupted by the channel noise (here we consider AWGN). The received signal at the receiver is denoted by .

Figure 3: Illustration of the autoencoder structure for the problem studied in this paper.

The receiver aims both to detect the transmitted symbol as well as harvest the delivered power . The decoding is performed by mapping the received noisy codeword to an

-dimensional probability vector denoted by

(and outputting the detected message by obtaining the index corresponding to the maximum probability) through a parametric function defined by a fully-connected DNN . refers to the set of receiver parameters in terms the weights and biases across different layers of the DNN to be optimized. Note that the communication rate for this system is bits per channel use.

The delivery power harvested at the receiver is modelled as in (8). We recall that for the power delivery purposes, the received RF signal is directly fed to the EH. Therefore, for power delivery purposes, the signal is not processed through the DNN.

We model the information loss as the cross entropy function between the transmitted one-hot vector , and the output probability vector at the receiver, i.e., , where the and indicate the entry of the vectors and , respectively. Accordingly, the cost function used in order to optimize the system is given by

(9)

where is the size of the training data, which is assumed independent and identically distributed (iid). Note that different values of the parameter in (9

) can be associated to different information rate and power demands at the receiver. In our implementation of the DNN-based autoencoder, which includes the encoder at the transmitter, an AWGN channel between the transmitter and receiver and the decoder at the receiver, we have used the Adam mini-batch Gradient Descent algorithm with the programming written in Tensorflow.

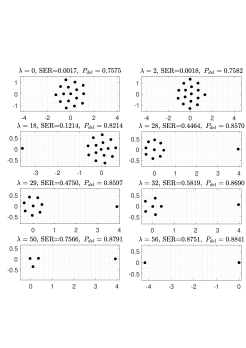

Figure 4: Representation of 16-symbols modulation for different values of (different information rate and power demand at the receiver) with SNR dB. By increasing , the delivered power at the receiver increases.

4 Numerical Results

In our model, we consider a training set of symbols. The training of the NN is implemented using Adam mini-batch gradient descent (MGD) algorithm with mini batch sizes of . In order to decrease the dependency of the final solution on the initialization of the algorithm, we run the algorithm times with the same design parameters (here ) and each time with a different seed for initialization. Each message666We assume that the message set follows a uniform distribution. is transmitted over the complex baseband channel using channel uses (in this paper we have assumes corresponding the communication rate bits per channel use). We consider a certain threshold as the maximum allowable Symbol Error Rate (here we consider ). The objective is to minimize the cost in (9) (for a predetermined size of the messages) for different values of , while keeping the SER of the transmission less than or equal to , i.e., SER. Accordingly, for each message size, the value of in (9) is increased incrementally, starting from (Note that is equivalent to information-only demands). We continue increasing until the inequality SER is contradicted or is larger than a threshold (here we consider ). In Figure 4, the transmitted signal modulations are shown for and for different values of . Recall from (9) that is interpreted as a factor to control the information rate and power demand at the receiver. By increasing , the demand for power at the receiver increases. Accordingly, the transmitted signal modulation loses its symmetry around the origin in a way that one of the transmitted symbols (power symbol) is getting away from the origin, either along the real or imaginary subchannel. This observation is similar to the result in [7], where it is shown that for the Gaussian inputs, in order to have the maximum delivered power at the receiver, the transmitter is to allocate its power budget to solely real or imaginary subchannels. Another observation is that, as the power demand at the receiver increases, the transmitter sacrifices some of the messages by mapping them to the zero symbol (e.g., see the last five signal constellations in Figure 4). In the extreme scenario, where the receiver merely demands for power (still some information is transmitted over the channel, however with a very high SER), we have only two symbols (indeed one power symbol far from the origin and the remaining information symbols collapsing on top of each other at zero). Additionally, an interesting observation about the SWIPT modulations in Figure 4 (specifically focusing on the last modulation and considering a very long transmission) is that, they approach to distributions with low-probability/high-amplitudes and high-probability/zero-amplitudes. This result is also in line with the result obtained in [9], where it is shown that the optimal channel input distributions for power delivery purposes (accounting for nonlinearity with some simplification assumptions) follow the same behaviour, i.e., low probability-high amplitudes and high probability-zero amplitudes.

In Figure 5, the delivered power versus complementary of symbol error rate () for different message sizes () with signal to noise ratio dB is illustrated. It is observed that as the size of the message is increased (which is equivalent to increasing the channel input symbols), the delivered power at the receiver increases as well. This can be justified as follows. For power delivery purposes, the transmitter favours distributions with high probability information symbols around zero and a low probability power symbol away from zero. Noting that the message set is uniformly distributed, such a distribution can be achieved by having more symbols around zero and one symbol away from zero. It can be easily verified that the probability of the power symbol (equivalently the occurrence of the power symbol in the long term) and its amplitude decreases and increases, respectively, with the size of the message set. This in turn results in more delivered power at the receiver. As the last point, we note that, due to the nonlineary effect (dependency of the delivered power on Bessel function in (4)), the delivered power is directly dependent on the channel input average input power constraint. This is equivalent to the fact that two systems with the same SNR but different average power levels result in different designs. Due to lack of space, we have postponed this investigation for the longer version of the paper.

Figure 5: Representation of the tradeoff between the delivered power and information rate at the receiver. The delivered power at the receiver increases with the number of symbols of the transmitted signal constellation.

5 Conclusion

In this paper, we studied a point-to-point SWIPT signal and system design. We considered the system as an autoencoder, where the transmitter and the receiver are implemented as deep neural networks. The end-to-end optimization of the system is done by jointly learning the transmitter and receiver parameters as well as signal encoding. We considered the case where the transmitter uses one complex symbol to transmit each message. The numerical results reveal that, as the power demand at the receiver increases, the transmitted signal modulation is reshaped, such that one of the symbols (power symbol) is shot away from the origin along either real or imaginary subchannel and the other symbols (information symbols) are symmetrically distributed around the origin. As future research directions, we note that short block length transmissions as well as obtaining a model that features the practical limitations of the rectenna (nonlinearity) accurately, are under investigation.

References

  • [1] B. Clerckx, R. Zhang, R. Schober, D. W. K. Ng, D. I. Kim, and H. V. Poor, “Fundamentals of wireless information and power transfer: From rf energy harvester models to signal and system designs,” IEEE Journal on Selected Areas in Communications, vol. 37, no. 2, pp. 1–30, Feb. 2019.
  • [2] L. R. Varshney, “Transporting information and energy simultaneously,” in IEEE Int’l Sym. Inf. Theory, Jul. 2008, pp. 1612–1616.
  • [3] B. Clerckx and E. Bayguzina, “Waveform design for wireless power transfer,” IEEE Trans. Signal Processing, vol. 64, no. 23, pp. 6313–6328, Dec. 2016.
  • [4] A. Boaventura, A. Collado, N. B. Carvalho, and A. Georgiadis, “Optimum behavior: Wireless power transmission system design through behavioral models and efficient synthesis techniques,” IEEE Microwave Magazine, vol. 14, no. 2, pp. 26–35, Mar. 2013.
  • [5] B. Clerckx and E. Bayguzina, “Low-complexity adaptive multisine waveform design for wireless power transfer,” IEEE Antennas and Wireless Propagation Letters, vol. 16, pp. 2207–2210, 2017.
  • [6] B. Clerckx, “Wireless information and power transfer: Nonlinearity, waveform design, and rate-energy tradeoff,” IEEE Trans. Signal Processing, vol. 66, no. 4, pp. 847–862, Feb. 2018.
  • [7] M. Varasteh, B. Rassouli, and B. Clerckx, “Wireless information and power transfer over an awgn channel: Nonlinearity and asymmetric gaussian signaling,” in IEEE Inf. Theory Workshop (ITW), Nov. 2017, pp. 181–185.
  • [8] R. Morsi, V. Jamali, D. W. K. Ng, and R. Schober, “On the capacity of swipt systems with a nonlinear energy harvesting circuit,” in IEEE International Conference on Commun. (ICC), May 2018, pp. 1–7.
  • [9] M. Varasteh, B. Rassouli, and B. Clerckx, “On capacity-achieving distributions for complex AWGN channels under nonlinear power constraints and their applications to SWIPT,” CoRR, vol. abs/1712.01226, 2017.
  • [10] T. O’Shea and J. Hoydis, “An introduction to deep learning for the physical layer,” IEEE Trans. Cognitive Communications and Networking, vol. 3, no. 4, pp. 563–575, Dec. 2017.
  • [11] T. J. O’Shea, K. Karra, and T. C. Clancy, “Learning to communicate: Channel auto-encoders, domain specific regularizers, and attention,” in IEEE Int’l Sym. Signal Processing and Information Technology (ISSPIT), Dec. 2016, pp. 223–228.
  • [12] E. Nachmani, E. Marciano, L. Lugosch, W. J. Gross, D. Burshtein, and Y. Be’ery, “Deep learning methods for improved decoding of linear codes,” IEEE Journal of Selected Topics in Signal Processing, vol. 12, no. 1, pp. 119–131, Feb. 2018.
  • [13] A. Caciularu and D. Burshtein, “Blind channel equalization using variational autoencoders,” in IEEE Int’l Conf. Commun. Workshops (ICC Workshops), May 2018, pp. 1–6.
  • [14] T. O’Shea and J. Hoydis, “An introduction to deep learning for the physical layer,” IEEE Trans. Cognitive Communications and Networking, vol. 3, no. 4, pp. 563–575, Dec. 2017.
  • [15] Timothy J. O’Shea, Tugba Erpek, and T. Charles Clancy, “Deep learning based MIMO communications,” CoRR, vol. abs/1707.07980, 2017.
  • [16] A. Felix, S. Cammerer, S. Dorner, J. Hoydis, and S. Ten Brink, “Ofdm-autoencoder for end-to-end learning of communications systems,” in IEEE 19th Int’l Workshop on Signal Processing Advances in Wireless Communications (SPAWC), Jun. 2018, pp. 1–5.
  • [17] H. Ye, G. Y. Li, and B. Juang,

    “Power of deep learning for channel estimation and signal detection in ofdm systems,”

    IEEE Wireless Commun. Letters, vol. 7, no. 1, pp. 114–117, Feb. 2018.
  • [18] M. R. V. Moghadam, Y. Zeng, and R. Zhang, “Waveform optimization for radio-frequency wireless power transfer : (invited paper),” in IEEE 18th Int’l Workshop on Signal Processing Advances in Wireless Communications (SPAWC), Jul. 2017, pp. 1–6.
  • [19] I. S. Gradshteyn and I. M. Ryzhik, Table of integrals, series, and products, Elsevier/Academic Press, Amsterdam, seventh edition, 2007.
