A Lattice-Theoretic Perspective on the Persistence Map

We provide a naturally isomorphic description of the persistence map from merge trees to barcodes in terms of a monotone map from the partition lattice to the subset lattice. Our description is local, which offers the potential to speed up inverse computations, and brings classical tools in combinatorics to bear on an active area of research in topological data analysis (TDA).

READ FULL TEXT VIEW PDF

Authors

page 1

page 2

page 3

page 4

11/28/2020

Multidimensional Persistence Module Classification via Lattice-Theoretic Convolutions

Multiparameter persistent homology has been largely neglected as an inpu...
08/30/2021

Functional Data Representation with Merge Trees

In this paper we face the problem of representation of functional data w...
03/27/2022

An Introduction to Multiparameter Persistence

In topological data analysis (TDA), one often studies the shape of data ...
10/16/2020

Optimizing persistent homology based functions

Solving optimization tasks based on functions and losses with a topologi...
07/04/2019

Injective envelopes of transition systems and Ferrers languages

We consider reflexive and involutive transition systems over an ordered ...
10/14/2020

Edit Distance and Persistence Diagrams Over Lattices

We build a functorial pipeline for persistent homology. The input to thi...
10/02/2019

A Framework for Differential Calculus on Persistence Barcodes

We define notions of differentiability for maps from and to the space of...
This week in AI

Get the week's most popular data science and artificial intelligence research sent straight to your inbox every Saturday.

1 Background on the Inverse Problem

Merge trees play a central role in topological data analysis (TDA). One can apply persistent homology to a merge tree to obtain an “adjacency free” description of a merge tree in terms of its barcode, we call this association of a barcode to a merge tree the persistence map. Characterizing precisely how many merge trees map to the same barcode was studied in [curry2017fiber, TRN, trees_barcodesII] and has yielded significant connections to geometric group theory, combinatorics, and statistics. Understanding the fiber of the persistence map is crucial for understanding how noise in data propagates to noise in persistent homology.

In [TRN, trees_barcodesII] a combinatorial version of this inverse problem was considered; see Figure 1. A combinatorial merge tree is a binary, rooted, combinatorial tree with birth-ordered labels on the leaves and death-ordered labels on the internal nodes. Every barcode with finite-length bars whose left (birth) endpoints are distinct and whose right (death) endpoints are distinct can be encoded by a combinatorial barcode if the birth endpoint is matched with the death endpoint. Equivalently, a combinatorial barcode is the graph of a permutation of .

In this abstract, we characterize the persistence map from combinatorial merge trees to combinatorial barcodes in terms of monotone maps between two lattices: the subset lattice and the partition lattice. We show that a maximal chain in the subset and partition lattices corresponds to a combinatorial barcode and combinatorial merge tree respectively, and that one may incrementally construct solutions to the inverse problem using this correspondence.

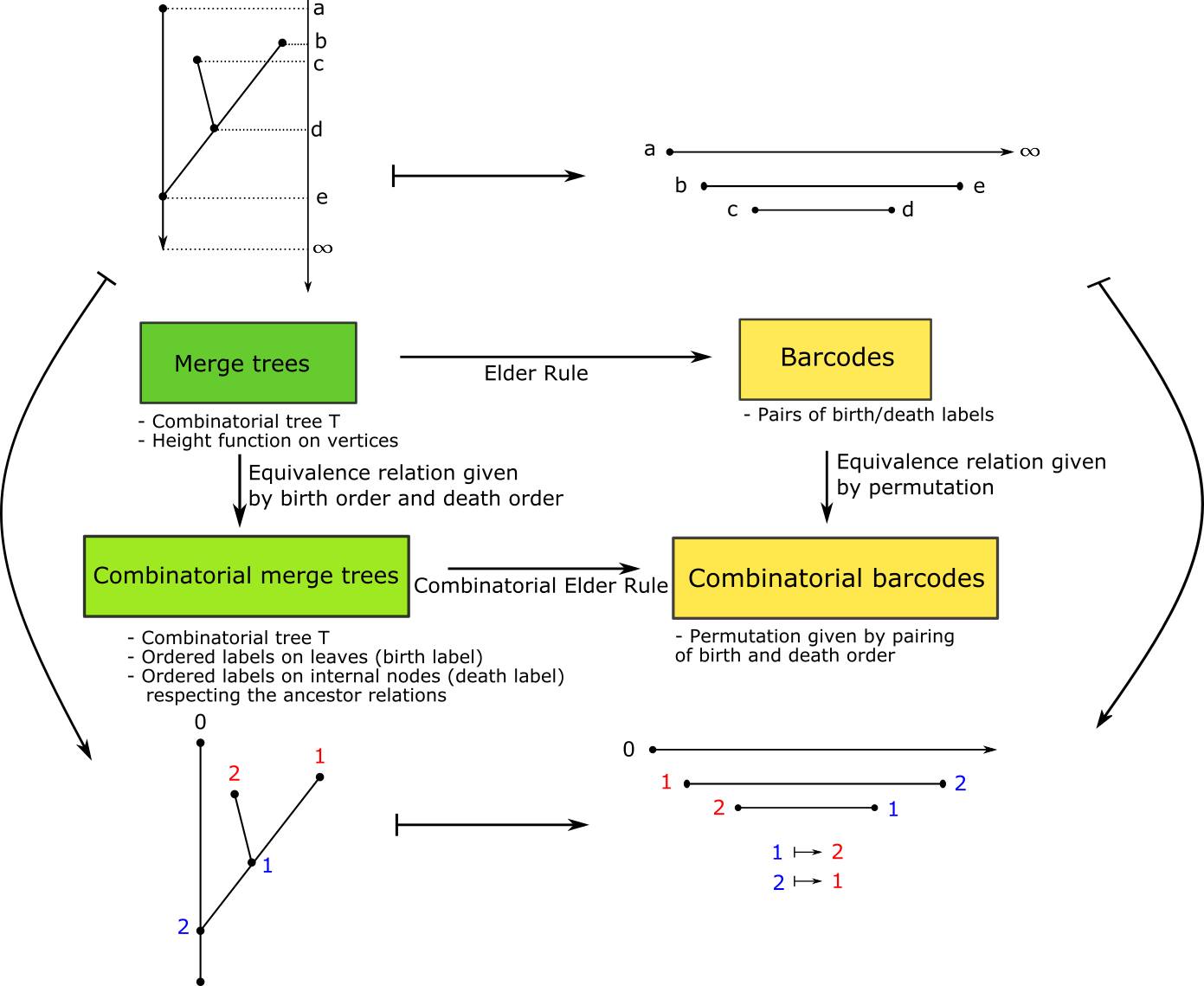

Figure 1: Figure from [trees_barcodesII], expressing the combinatorial inverse problem.
