In real world applications the recorded measurements are often not sufficient to predict a single outcome. Instead, we often have a large manifold of potential interpretations, and we can only use the measurements to narrow down this manifold to a smaller manifold. The modelling of the remaining ambiguities and uncertainties is often challenging, especially in high-dimensional outputs, like segmentation maps. This particularly arises in the fine-grained distinctions that need to be made in medical images. For example a lesion in a CT scan can have identical shape and gray values independently of whether it consists of cancer or healthy cells in the real world (see Fig. 1
a). In the same way the true shape of the structure might not be resolvable due to fuzzy borders, occlusions and noise. Similar ambiguities also appear in natural images, e.g. think of cats and dogs lying under a sofa with only parts of their fur being visible. An uncertainty-aware segmentation algorithm can assign a 50% cancer / 50% non-cancer probability (or 50% cat / 50% dog probability) to each pixelkendall2015bayesian ; kendall2017uncertainties
, but depending on the downstream task this pixel-wise probability is not sufficient, because it only provides the marginals of the high-dimensional probability distribution. For example, in a potential clinical application a clinician with access to additional non-imaging data can select the correct segmentation, or a number of segmentation hypotheses can be presented to a subsequent classification network to assign a diagnosis to each possible interpretation of the medical scande2018clinically . Several algorithms have been proposed that provide samples from the output distribution (here: consistent segmentation maps instead of pixel-wise samples). They are based on ensembles lakshminarayanan2017simple , networks with multiple heads batra2012diverse ; lee2015m ; lee2016stochastic ; rupprecht2017learning , or image-conditional generative models isola2017image ; zhu2017unpaired ; zhu2017toward ; liu2017unsupervised ; park2019semantic such as cVAEs vae1 ; vae2 ; vae3 ; sohn2015learning ; esser2018variational , as in the Probabilistic U-Net kohl2018probabilistic . These type of approaches work well for a single object in the image or for other global variations (like different segmentation styles, e.g. more narrow or more inclusive outlining), but do not scale to images containing multiple objects with uncorrelated variations. There exist several approaches which use hierarchical latents to produce rich probability distributions gregor2016towards ; sonderby2016ladder ; kingma1606improving ; salimans2017pixelcnn++ ; menick2018generating ; maaloe2019biva ; de2019hierarchical
, but this concept has not yet been used in the context of segmentation or image-to-image translation.
Here we propose a ‘Hierarchical Probabilistic U-Net’ (the HPU-Net) that overcomes these issues. Similar to the existing Probabilistic U-Net kohl2018probabilistic it combines a segmentation U-Net Ronneberger2015 with a cVAE. Instead of global latent variables we use a coarse-to-fine hierarchy of latent variable maps (see Fig. 1) that are injected into the synthesis path of the U-Net at the corresponding resolutions.
Our main contributions are: (1) A generative model for semantic segmentation able to learn complex-structured conditional distributions equipped with a latent space that scales with image size. This results in (2) Compared to prior art, strongly improved fidelity to fine structure in the models’ samples and reconstructions. (3) Improved modelling of distributions over segmentations including independently varying scales and locations, as demonstrated in its ability to generate instance segmentations. (4) Automatic learning of factors of variations across space and scale.
We demonstrate the improved quality of the segmentations on a lung lesion segmentation task. Furthermore we show the ability of the model to learn highly complex probability distributions, by presenting an instance segmentation task, where we ask the model to label (‘colorize’) each instance consistently with a random instance id. We test this ability on neuronal structures in EM images as well as on car instances in natural images. Finally we show that the model is also capable of predicting consistent segmentations with corresponding uncertainties in a blacked out region of the image. In a medical application this could be used to predict disease progression by applying a 4D version of the proposed network to time series (3 spatial axes and 1 time axis), where the blacked out part corresponds to the unknown future development of the disease. The model will be open-sourced athttps://github.com/project_repo111The url will be updated once available..
2 Network Architecture and Learning Objective
The standard Probabilistic U-Net (abbreviated as ‘sPU-Net’) models segmentation ambiguities using a low-dimensional, image global latent vector, that is sampled from a separate ‘prior net’ and is combined with U-Net features by means of a shallow network of-convolutions kohl2018probabilistic . As we show below, this image-global latent space heavily constrains the granularity at which the output space can be modelled. While our proposed architecture also combines a U-Net with a cVAE, it instead employs a hierarchical latent space that resides in the U-Net’s decoder. A hierarchical decomposition yields a much more flexible generative model that can further easily model top-down dependencies. E.g. the global part can model the patient’s genetic predisposition for a certain disease, while the local parts can model indiscernible tissue types, or fuzzy borders at different scales. The spatial arrangement of the latent variables further enables the network to easily model local independent variations (like multiple lesions). Due to the fully-convolutional architecture, it can also generalize from few to many lesions at arbitrary locations. Beside these fundamental extensions, we additionally removed the separate prior net and instead use U-Net internal features to predict the parameters of the prior distributions (as in esser2018variational ), which results in parameter and run-time savings. For the network to employ the full hierarchy, we further found it crucial to minimize obstructions between latent scales by introducing (pre-activated) res-blocks he2016identity (as discussed in Appx. D and in line with kingma1606improving ; maaloe2019biva ).

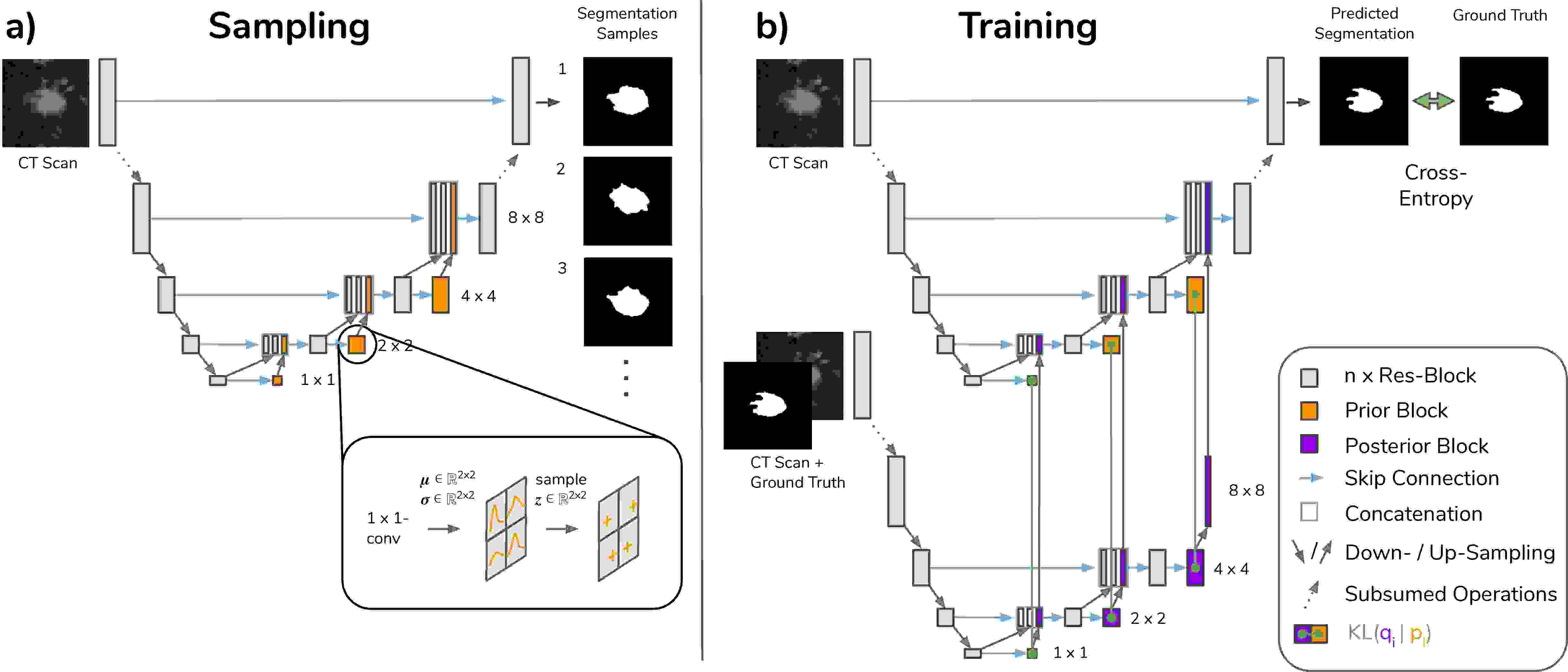

Sampling The architecture’s main feature is its highly flexible parameterization of the conditional prior that it employs. This prior is composed of a) a deterministic feature extractor that computes features at spatial resolutions up to scale (counted with ascending resolution) for the given input image and b) a cascade of distributions interleaved with the U-Net’s decoder, that allows to hierarchically sample latents. In a conventional U-Net, the U-Net decoder’s features of every resolution are up-sampled and then concatenated with the features of the U-Net’s encoder from the respective resolution above Ronneberger2015 . In our proposed architecture there is one additional step at each scale of the latent hierarchy: Conditioned on the decoder features of each scale , we sample a spatial grid of latents and concatenate it with the input decoder features, before the usual up-sampling and concatenation with encoder features from above takes place, see Fig. 1a. The latents of each scale thus depend on the input image and on all latents of scales that have already been sampled lower in the hierarchy, which we collectively denote as . At each scale with spatial dimensions the model uses conditional Gaussian distributions with mean
and variance. The means and variances are predicted by -convolutions for each spatial position of that scale. Sampling from the corresponding Gaussian distribution results in the spatial latents :
Our experiments did not benefit from going beyond scalar latents at each spatial location, which however is a choice that one might want to make depending on the application. The hierarchical (ancestral) sampling results in a joint distribution for the prior that decomposes as follows:
Every run of the network yields a segmentation hypothesis for the given image (where and stands for the segmentation network), which is illustrated in Fig. 1a. Note that only the U-Net’s decoder (including the hierarchical sampling) needs to be rerun to produce the next segmentation samples for the same image. The number of latent scales is a hyper-parameter and typically chosen smaller than the full number of scales of the U-Net; our models use (4 scales).
Training As is standard practice for VAEs, the training procedure aims at maximizing the so-called evidence lower bound (ELBO) on the likelihood , where in our case is a segmentation and is an image. This requires to model a variational posterior that depends on both and . The structure matches with that of the prior:
The posterior is modeled in form of a separate network with the same hierarchical topology in which for each scale , we compute conditional Gaussian distributions with mean and variance . During training, samples are fed into the U-Net’s decoder (as illustrated in the bottom half of Fig. 1b) with the aim of learning to reconstruct the given input segmentation . The reconstruction objective () is formulated as a cross-entropy loss between the prediction and the target (below formulated as a pixel-wise categorical distribution
). Additionally there is a Kullback-Leibler divergence, that assimilates and (more details in Appx. A). Our ELBO objective with a relative weighting factor thus amounts to
Minimizing leads to sub-optimally converged priors in our experiments. For this reason we make use of the recently proposed -objective rezende2018taming that adds in a constraint on the reconstruction term and thus dynamically balances it with the KL terms from above:
where is chosen as the desired reconstruction loss value and the Lagrange multiplier is updated as a function of the exponential moving average of the reconstruction constraint. This formulation initially puts high pressure on the reconstruction and once the desired is reached it increasingly moves the pressure over on the KL-term. For more details we refer to Appx. D and the literature rezende2018taming .
We additionally perform an online hard-negative mining, specifically, we only back-propagate the gradient of the th percentile of the worst pixels of the batch wu2016bridging , . We chose (the worst pixels) in all experiments of the HPU-Net and stochastically pick the th percentile nikolov2018deep (we sample from a Gumbel-Softmax distribution jang2016categorical over per pixel).
The sPU-Net has established significant performance advantages over other approaches in segmenting ambiguous images kohl2018probabilistic . With this work we aim at improving on the flexibility of the sPU-Net to model complex output interdependencies as well as segmentation fidelity. To this end we report results for a segmentation task of CT scans showing potential lung abnormalities annotated by four expert graders (examples are shown in Fig. 2). We further consider the task of segmenting individual instances, i.e. inferring a latent id for each object in an image, and use it to assess the models’ ability to capture correlated pixel-uncertainty. We use the EM dataset of the SNEMI3D challenge (published in kasthuri2015saturated ), which contains instance segmentations of neuronal cells (examples are shown in Fig. 4) and further probe our model’s performance on the segmentation of car instances on natural street scenes from Cityscapes (see Fig. 6). For training details in the respective tasks we refer to Appx. D.
|a) LIDC||IoU||0.75 0.04||0.97 0.00|
|Hungarian-matched IoU||0.50 0.03||0.53 0.01|
|Hungarian-matched IoU (subset B)||0.37 0.07||0.47 0.01|
|b) SNEMI3D||IoU||0.13 0.03||0.60 0.00|
|Rand Error||0.52 0.10||0.06 0.00|
|Car Instances||Rand Error||-||0.13|
Test set results. Mean and standard deviation are calculated from results of 10 random model initializations and 1000 bootstraps with replacement. Data splits are defined inAppx. C.
3.1 Performance Measures
We are interested in assessing how well the conditional distribution produced by the respective generative model and the given ground-truth distribution agree, which we measure in terms of the intersection-over-union (IoU) based Generalized Energy Distance () and the Hungarian-matched IoU. Furthermore, we would like to measure an upper-bound on the fidelity of the models’ samples, i.e. how accurately the models are able to produce fine segmentation structure and detail, for which we employ the reconstruction IoU, where . To assess the instance segmentation performance we employ the metric used in the SNEMI3D challenge, the Rand Error. For more details and definitions of all metrics, we refer to Appx. B.
3.2 LIDC: Segmentation of Ambiguous Lung Scans
The LIDC-IDRI dataset armato2015 ; armato2011lung ; clark2013cancer contains 1018 lung CT scans from 1010 lung patients with manual lesion segmentations from four experts. We process and use the data in the exact same way as kohl2018probabilistic , see Appx. C, i.e. the models are fed lesion-centered 2D crops of size for which at least one grader segmented a lesion, resulting in 8882 images in the training set, 1996 images in the validation set and 1992 images in the test set.
The LIDC results are reported in Table 1a. The HPU-Net performs better in terms of the Hungarian-matched IoU (and in terms of ), while showing a largely improved reconstruction fidelity, that amounts to a near perfect posterior reconstruction of . Retraining the sPU-Net with an identical training set-up as in kohl2018probabilistic , we obtain an unsatisfactorily low value of for the foreground-restricted reconstruction IoU () and recapture kohl2018probabilistic ’s of 0.29 (re-implementation: ). We additionally evaluate the models on the test subset of samples for which all 4 graders agree on the presence of an abnormality (‘subset B’, see Appx. C), exposing the HPU-Net’s significantly improved ability to capture shape variations (see also Appx. E).

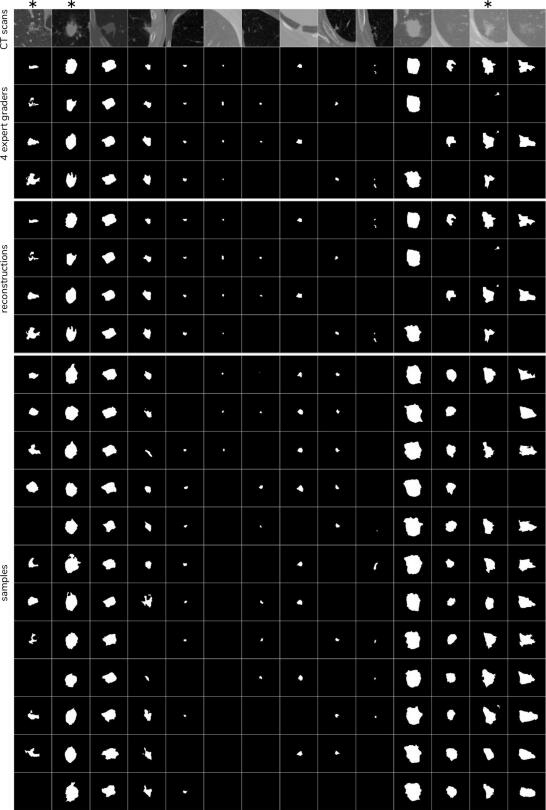

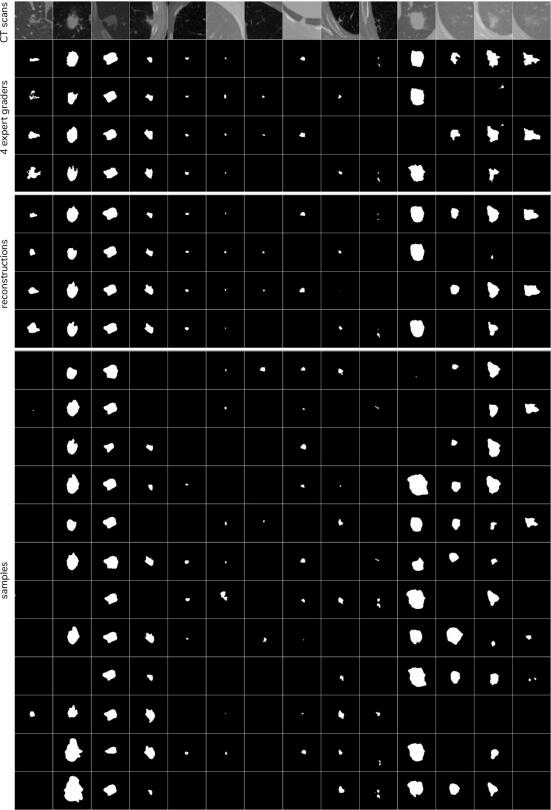

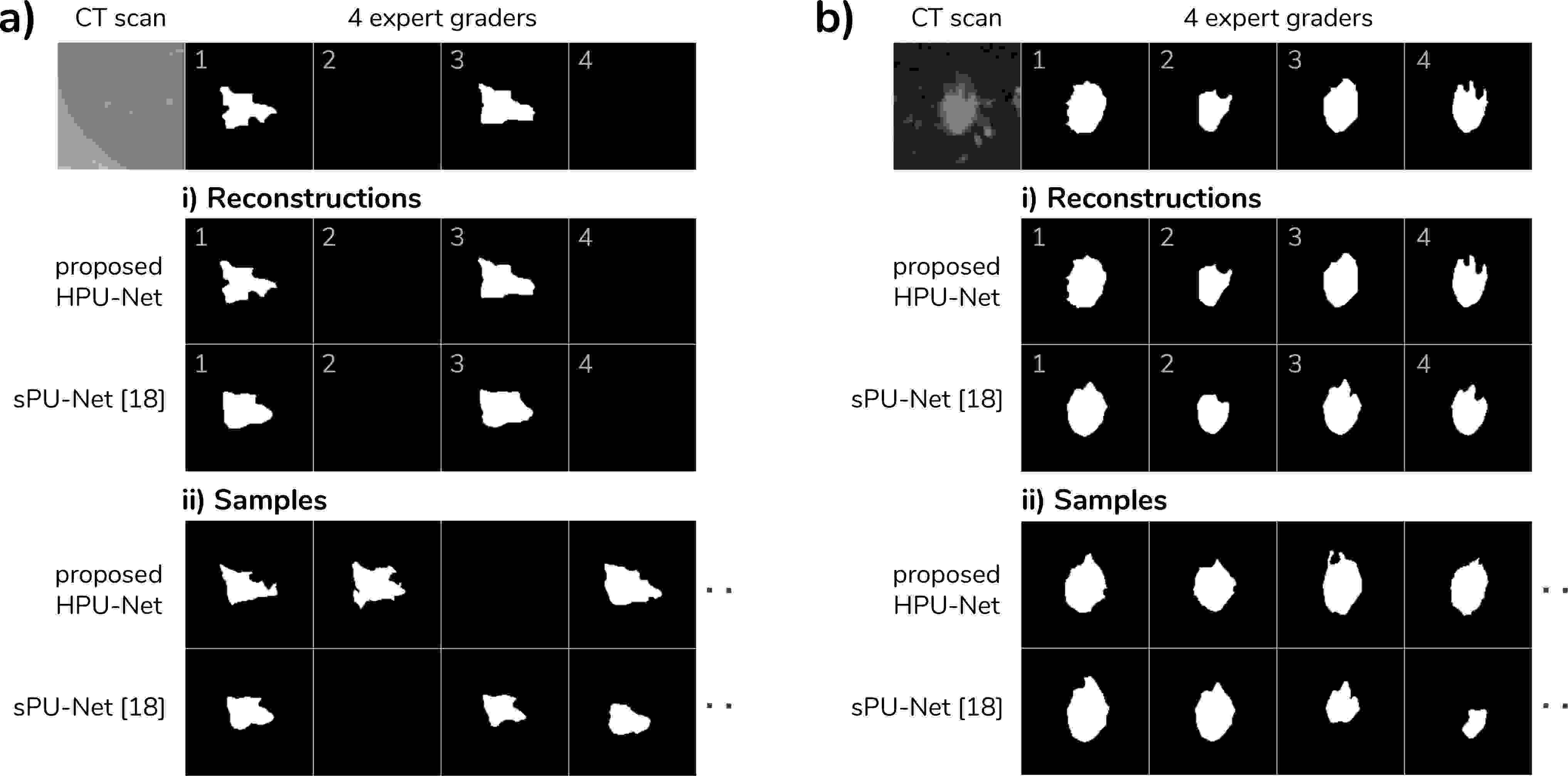

The HPU-Net’s capacity to faithfully learn segmentation distributions with high reconstruction and sample fidelity is also qualitatively evident. Fig. 2 compares samples from both models given a pair of CT scans of prospective lung abnormalities. The hierarchical model exhibits enhanced local segmentation structure. Its samples reflect the difficulty to pin-down the boundary of normal vs. abnormal tissue from the image alone (Fig. 2a) and also whether or not the salient structure is abnormal. The sPU-Net’s samples on the other hand appear much coarser and ‘blobby’ (Fig. 2b).

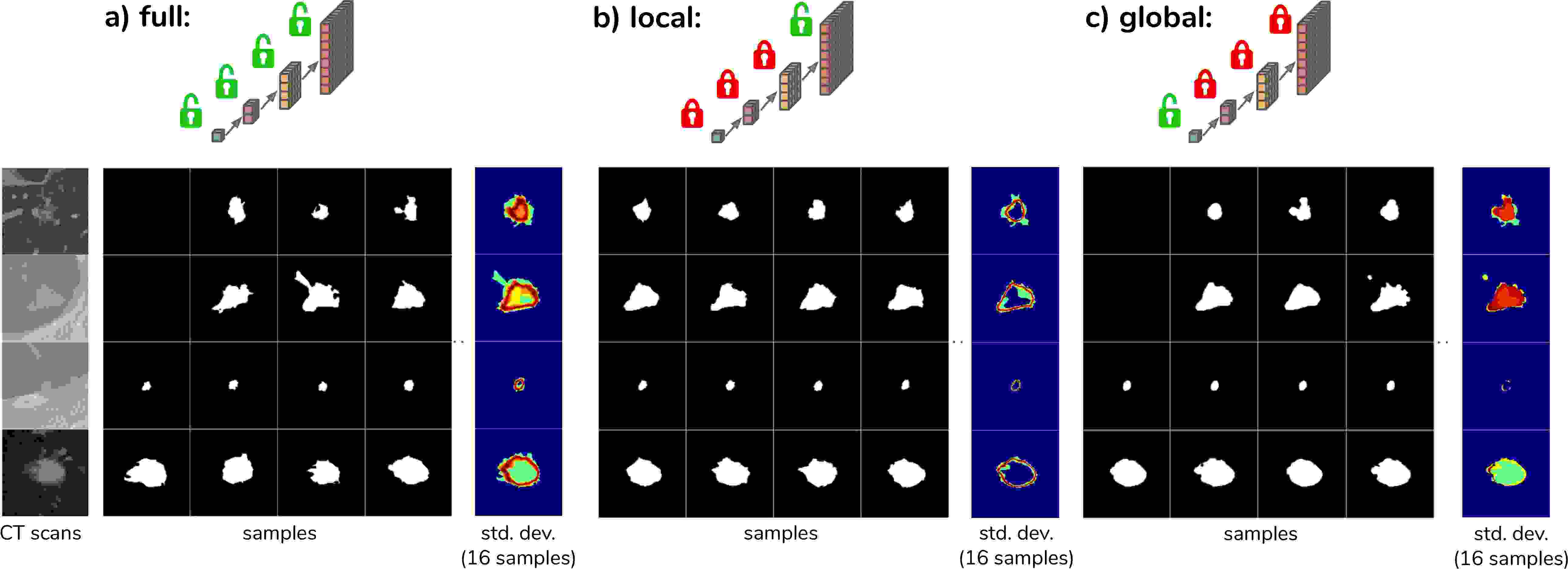

In order to explore how the model leverages the hierarchical latent space decomposition, we can use the predicted means for some scales instead of sampling. Fig. 3a shows samples for the given CT scans resulting from the process of sampling from the full hierarchy, i.e. from 4 scales in this case. Fig. 3b,c show the resulting samples when sampling from the most global or most local scale only. The hierarchical latent space appears to induce the anticipated bias: the global scales determine the coarse structure, which in this case includes the decision on whether or not the structure at hand is abnormal, while the more local scales fill in appropriate local annotations.
3.3 SNEMI3D: Generative Instance Segmentation of Neurites
As a second dataset we use the SNEMI3D challenge dataset that is comprised of a fully annotated 3D block of a sub-volume of mouse neocortex, imaged slice by slice with an electron microscope kasthuri2015saturated . We crop 2D patches of size resulting in 1280 images for training, 160 for validation and 160 for testing (for more details see Appx. C). During training we randomly map the instance ids of the cells to one of 15 labels. Because the number of individual cells per image can surmount this number, the training task does not necessitate a unique predicted instance id for every cell, which is why we aggregate a number of samples for a given image to obtain a final instance segmentation. For this purpose we employ a greedy Hamming distance based clustering across 16 samples followed by a light-weight post-processing, detailed in Algorithm Algorithm 1 and Appx. H.

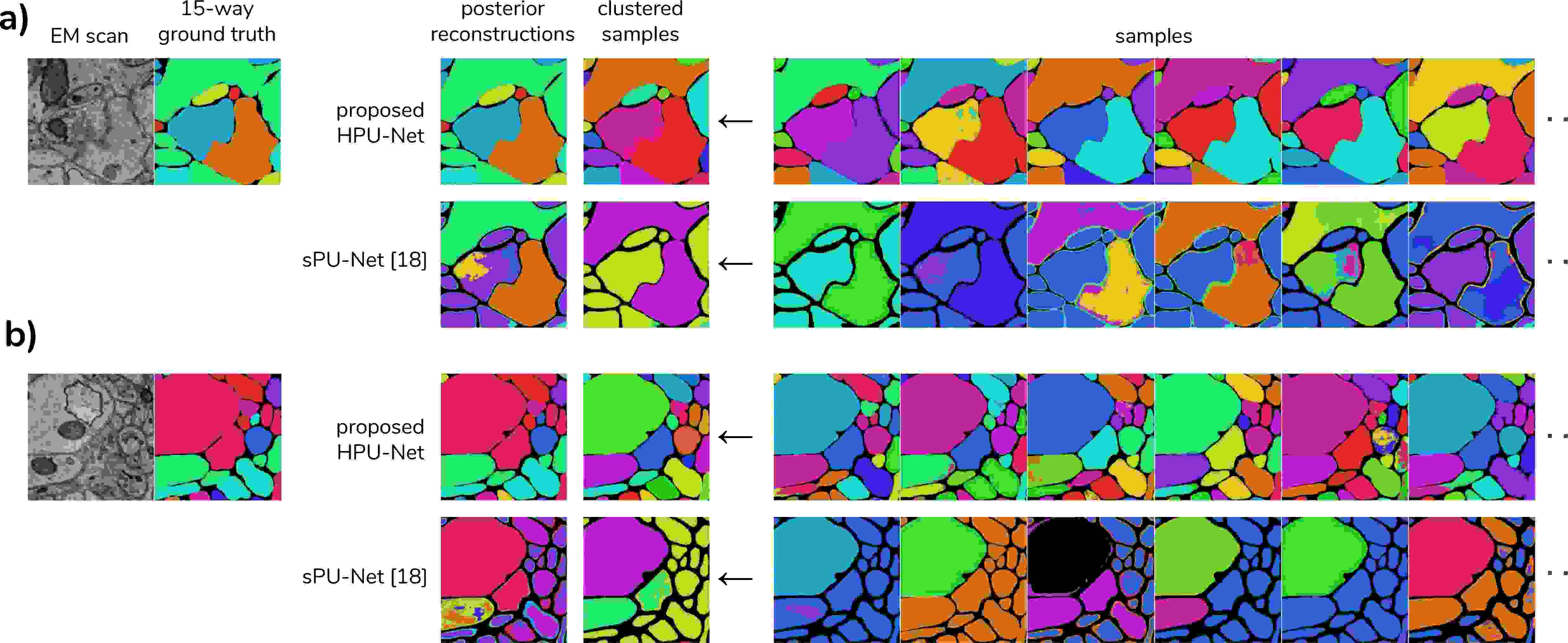

The HPU-Net, in this case using four latent scales, displays both a strong reconstruction fidelity, , as well as a very low . Although we want to caution against a direct comparison between results obtained on our smaller test set (in 2D) against those from the official test set (in 3D), it is interesting to put an eye on the official leader-board, where the best dedicated algorithms reach a Rand Error of (e.g. lee2017superhuman ) and the human baseline achieved a value of 222http://brainiac2.mit.edu/SNEMI3D/leaders-board. For the sPU-Net the parameter settings used in kohl2018probabilistic (on other datasets) did not produce satisfactory results. Even when matching the number of global latents of a 4-scale HPU-Net (), the sPU-Net struggles with reconstructing instance segmentations of neurites and likewise scores badly in terms of the Rand Error, see Table 1c).

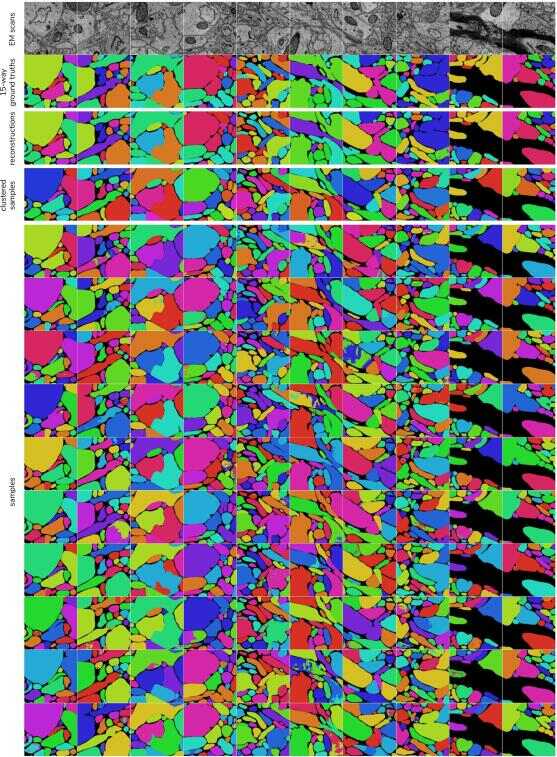

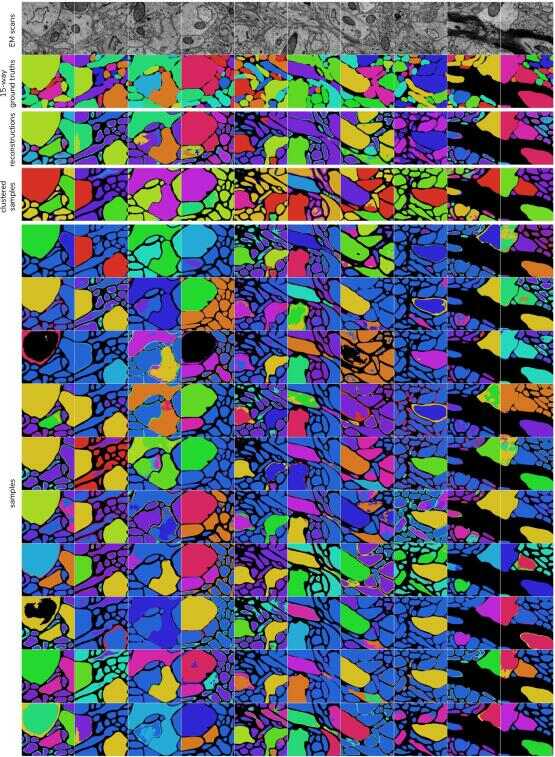

From Fig. 4 it is evident that the HPU-Net is able to sample coherent instance segmentations of these amorphous structures with largely varying size and shape, resulting in faithful instance segmentations when clustered across samples. In contrast, the sPU-Net has a hard time accommodating for the independently varying instances and also fails to coherently segment individual instances which is apparent in its samples, the clustering thereof and its reconstructions.

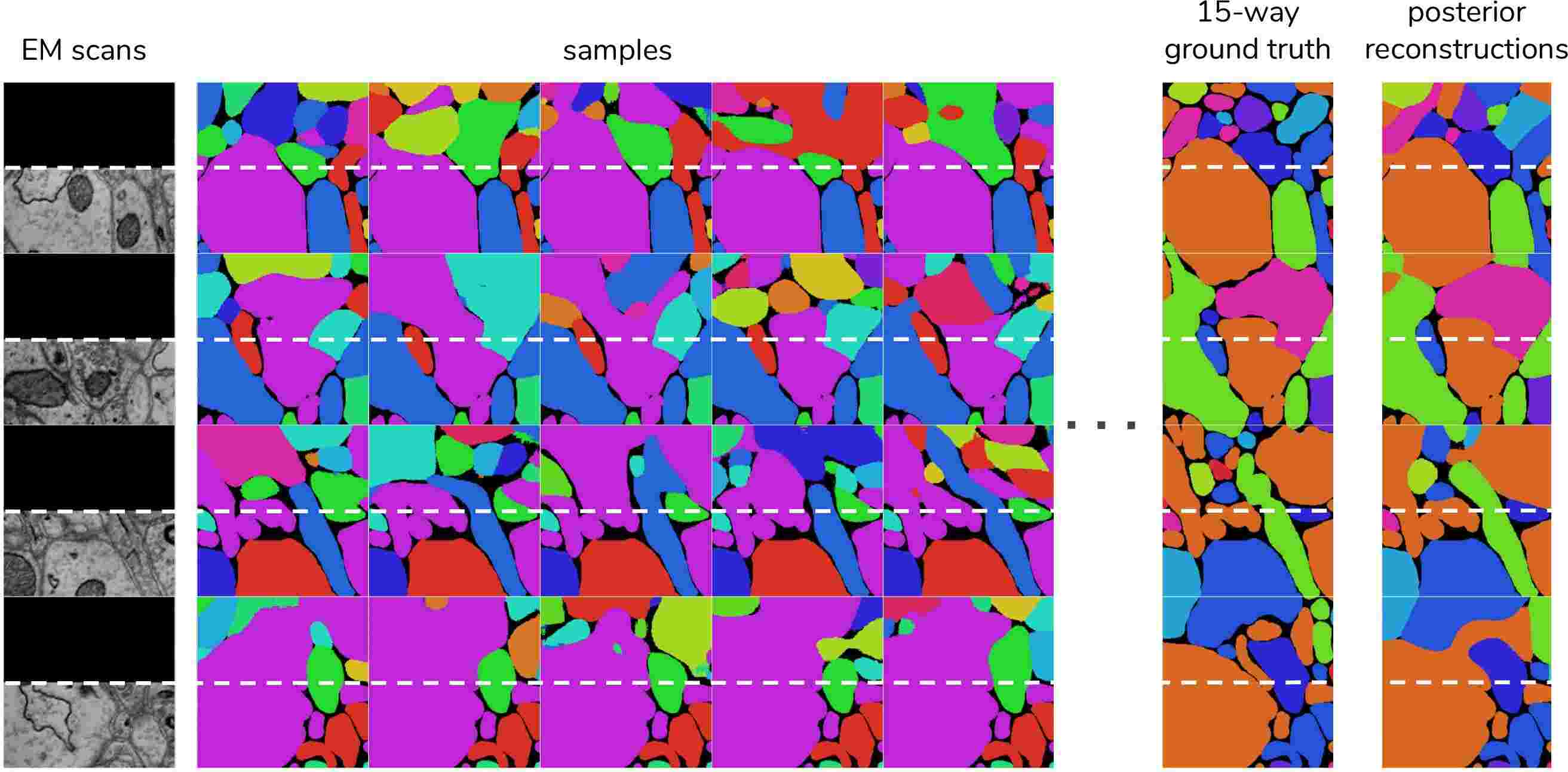

In order to further explore the expressiveness of the proposed generative model, we train it to generate extrapolated segmentations given masked images. The masked parts are maximally ambiguous and sensible ways of extrapolating need to be inferred from the unmasked regions. Samples and reconstructions are shown in Fig. 5. To be able to visualize the extrapolations across samples we feed in both the image and the ground-truth segmentation of the unmasked region to the prior, so that it can fix the found instance ids (which is not required for this to work). We observe that the model’s generative structure can produce convincing extrapolations, note how the model preserves scale and appearance of unmasked instances, e.g. large cells are more likely to cover larger areas in the masked region and slim cells remain slim and elongated, see third row of samples.
3.4 Cityscapes Cars: Generative Instance Segmentation of Cars
In order to test our model’s ability to coherently flip independent regions on natural images, we evaluate it on the task of segmenting car instances on Cityscapes. We train our model to segment all 19 Cityscapes classes while introducing additional alternative car classes that are randomly flipped during training. We run on half-resolution, i.e. (more details in Appx. C and D). At test time we cluster 32 samples per image (see Appx. G). Results on the official validation set (our held-out test set) are reported in Table 1d). Employing 4 latent scales (with the highest latent resolution at ), we reach an , a and a , without ensembling or any other test-time augmentations. While these results are not competitive with top-performing bounding box regressors such as Mask R-CNN he2017mask ( on the Cityscapes test set), which are tailored towards instance segmentation of boxy objects, we observe an arguably solid out-of-the-box performance of the HPU-Net. Direct comparison may further suffer from the post-hoc computation of object-level confidence scores which we are required to carry out for the AP-metric and which bounding-box regressors on the other hand can optimize for during training.

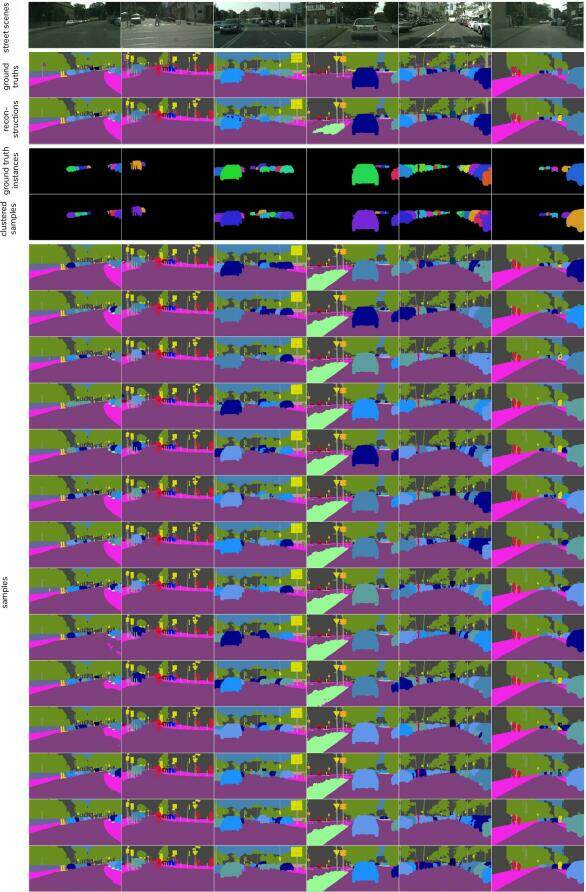

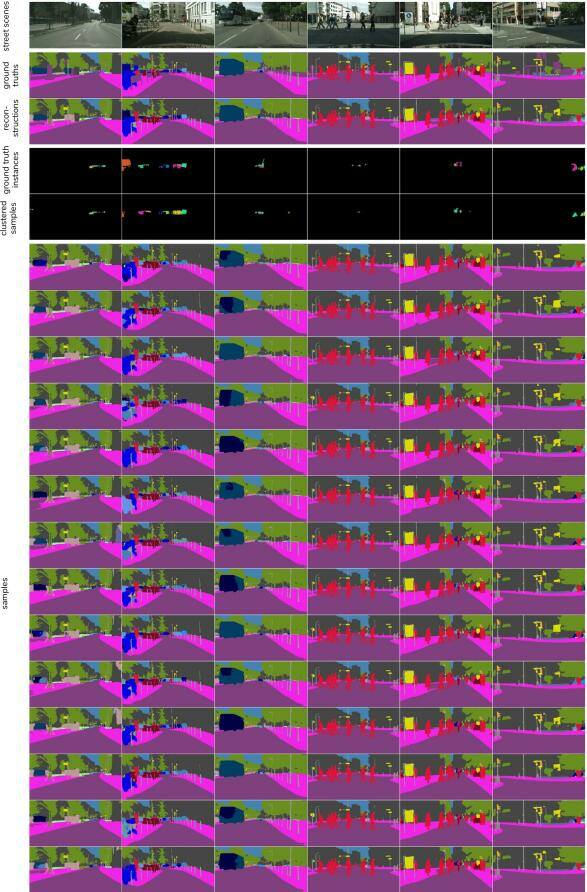

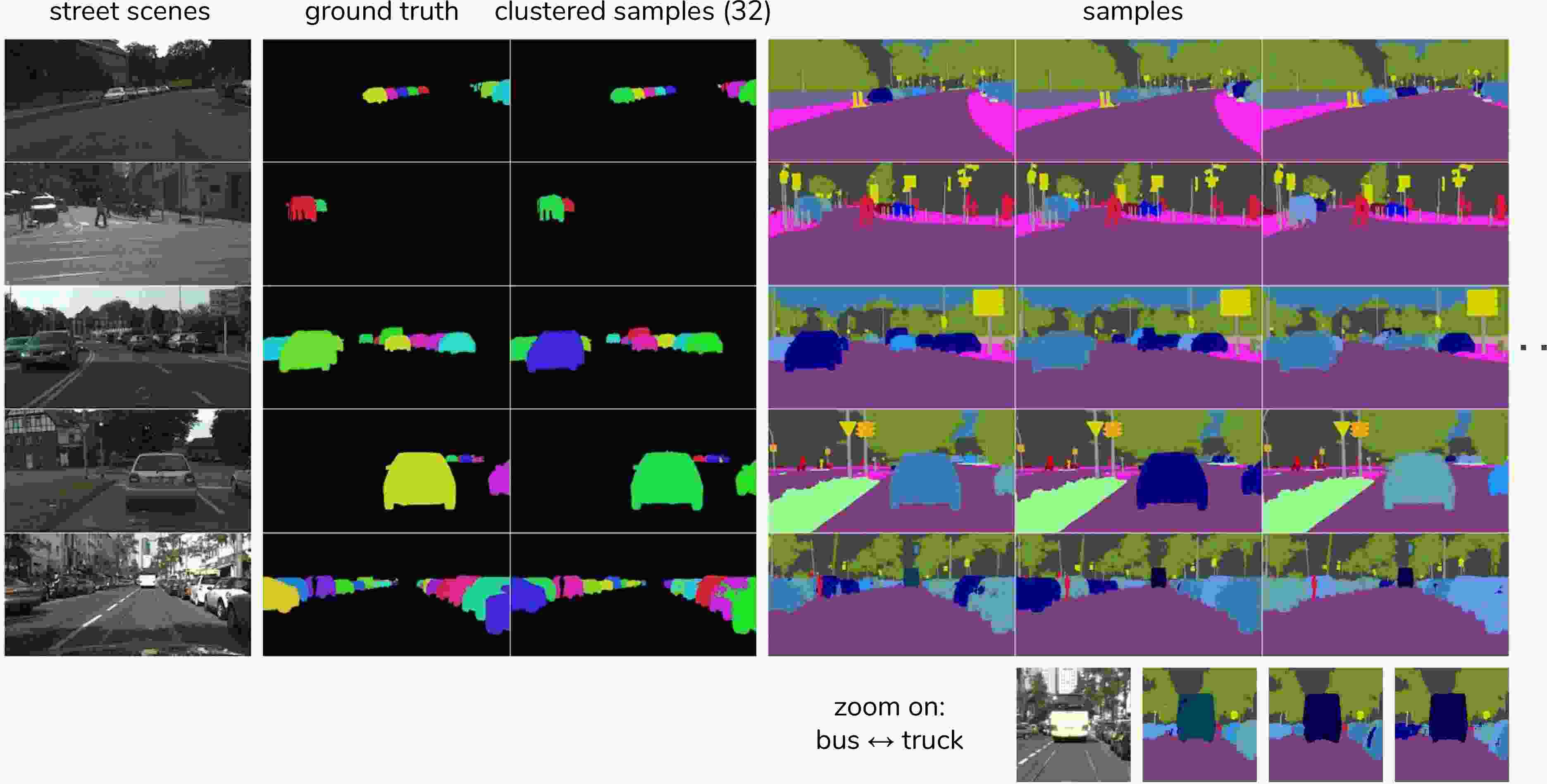

Fig. 6 shows predicted and ground truth instance segmentations for five scenes. This task is difficult as aside from varying factors such as appearance and illumination, cars nestled along the road can be heavily occluded and individual cars can cover anything between tiny to large regions of the image. Nonetheless our proposed model can sample individual instance segmentations with good coherence, resulting in strong instance segmentations. Interestingly the model also picks up on ambiguity that is naturally present in the data, e.g. the samples in the first row show coherent flips between parts of the and and the last row shows coherent flips between and annotation for the bus at the end of the road (for which we provide zoomed crops of size in Fig. 6). Fig. 15 shows samples and the standard deviations when sampling from only the most local versus only the most global latent scales. It is apparent that the local latents affect small and distant cars while the global latents control more global factors such as cars close to the observer. This shows that also on this large scale natural image data, the model has learned to separate scales.
Targeted at the segmentation of ambiguous medical scans, prior work (the sPU-Net kohl2018probabilistic ) learns an image-global distribution that allows to sample consistent segmentation hypotheses. As we show here, this model however suffers from poor sample and reconstruction fidelity and breaks down altogether in more complex scenarios such as instance segmentation. This work proposes a much improved model, the HPU-Net, which shows clear quantitative and qualitative evidence for its advantages over the prior art. Our proposed model uses a much more flexible generative model and further profits from advances such as improved training procedures for VAEs and efficient hard-negative mining (which we ablate in Appx. F). The hierarchical latent space formulation enables to model ambiguities at all scales and affords the learning of complex output interdependencies such as e.g. coherent regions of pixels as found in the task of instance segmentation.
In addition to presenting high-quality results on the segmentation of ambiguous lung CT scans, we achieve strong out of the box performance in instance segmentation of both neurobiological images as well as natural images of street scenes, showing the flexibility and amenability of the proposed model to such tasks. While state-of-the-art deterministic bounding-box regressors he2017mask ; lin2017focal still perform significantly better on car instance segmentation, they are predominantly based on a pixel-wise refinement of bounding-boxes and are not designed for overlapping or intertwined instances as found in neurobiological instances. Our generative approach could be a way to directly perform dense object-level segmentation, which has recently attracted attention kirillov2018panoptic ; kulikov2018instance ; kulikov2019instance ; xiong2019upsnet ; chen2019tensormask .
The HPU-Net’s samples are indicative of model uncertainty for ambiguous cases that it has seen during training, which is expected to benefit prospective down-stream tasks. As such the expressed model uncertainty is valid within the data distribution only and, like many others, the model is not aware if and when it fails out-of-distribution nalisnick2018deep . Aside from allowing to capture multiple scales of variations simultaneously, the latent hierarchy further imposes an inductive bias that mirrors the structure of many medical imaging problems, in which global information can affect top-down decision making, i.e. local annotations in our case. We show this trait in our lung CT scan experiments, where the model learns to separate variations at different scales. Here our model automatically opts to take the decision as to whether the given structure may be abnormal at its most global scale, while reserving more local decisions for local latents, see Fig. 3. A similar decomposition is apparent on natural images (Fig. 15). In terms of KL cost, it is more expensive to model global aspects locally, which in combination with the hierarchical model formulation itself, is the mechanism that puts into effect the separation of scales. Disentangled representations are regarded highly desirable across the board and the proposed model may thus also be interesting for other down-stream applications or image-to-image translation tasks.
In the medical domain the HPU-Net could be applied in interactive clinical scenarios where a clinician could either pick from a set of likely segmentation hypotheses or may interact with its flexible latent space to quickly obtain the desired results. The model’s ability to faithfully extrapolate conditioned on prior observations could further be employed in spatio-temporal predictions, such as e.g. predicting tumor therapy response.
We would like to thank Peter Li and Jeremy Maitin-Shepard of Google Brain for their help with the SNEMI3D dataset, Tamas Berghammer and Clemens Meyer for engineering support and program management respectively and Jeffrey de Fauw and Shakir Mohamed for valuable discussions.
-  Kendall, A., Badrinarayanan, V., Cipolla, R.: Bayesian segnet: Model uncertainty in deep convolutional encoder-decoder architectures for scene understanding. arXiv preprint arXiv:1511.02680 (2015)
-  Kendall, A., Gal, Y.: In: Advances in Neural Information Processing Systems. (2017) 5580–5590
-  De Fauw, J., Ledsam, J.R., Romera-Paredes, B., Nikolov, S., Tomasev, N., Blackwell, S., Askham, H., Glorot, X., O’Donoghue, B., Visentin, D., et al.: Clinically applicable deep learning for diagnosis and referral in retinal disease. Nature medicine 24(9) (2018) 1342
Lakshminarayanan, B., Pritzel, A., Blundell, C.:
Simple and scalable predictive uncertainty estimation using deep ensembles.In: Advances in Neural Information Processing Systems. (2017) 6405–6416
-  Batra, D., Yadollahpour, P., Guzman-Rivera, A., Shakhnarovich, G.: Diverse m-best solutions in markov random fields. In: European Conference on Computer Vision, Springer (2012) 1–16
-  Lee, S., Purushwalkam, S., Cogswell, M., Crandall, D., Batra, D.: Why m heads are better than one: Training a diverse ensemble of deep networks. arXiv preprint arXiv:1511.06314 (2015)
-  Lee, S., Prakash, S.P.S., Cogswell, M., Ranjan, V., Crandall, D., Batra, D.: Stochastic multiple choice learning for training diverse deep ensembles. In: Advances in Neural Information Processing Systems. (2016) 2119–2127
-  Rupprecht, C., Laina, I., DiPietro, R., Baust, M., Tombari, F., Navab, N., Hager, G.D.: Learning in an uncertain world: Representing ambiguity through multiple hypotheses. In: International Conference on Computer Vision (ICCV). (2017)
Isola, P., Zhu, J.Y., Zhou, T., Efros, A.A.:
Image-to-image translation with conditional adversarial networks.arXiv preprint (2017)
-  Zhu, J.Y., Park, T., Isola, P., Efros, A.A.: Unpaired image-to-image translation using cycle-consistent adversarial networks. In: Proceedings of the IEEE international conference on computer vision. (2017) 2223–2232
-  Zhu, J.Y., Zhang, R., Pathak, D., Darrell, T., Efros, A.A., Wang, O., Shechtman, E.: Toward multimodal image-to-image translation. In: Advances in Neural Information Processing Systems. (2017) 465–476
-  Liu, M.Y., Breuel, T., Kautz, J.: Unsupervised image-to-image translation networks. In: Advances in Neural Information Processing Systems. (2017) 700–708
-  Park, T., Liu, M.Y., Wang, T.C., Zhu, J.Y.: Semantic image synthesis with spatially-adaptive normalization. arXiv preprint arXiv:1903.07291 (2019)
-  Kingma, D.P., Welling, M.: Auto-encoding variational bayes. In: Proceedings of the 2nd international conference on Learning Representations (ICLR). (2013)
Jimenez Rezende, D., Mohamed, S., Wierstra, D.:
Stochastic backpropagation and approximate inference in deep generative models.
In: Proceedings of the 31st International Conference on Machine Learning (ICML). (2014)
-  Kingma, D.P., Jimenez Rezende, D., Mohamed, S., Welling, M.: Semi-supervised learning with deep generative models. In: Neural Information Processing Systems (NIPS). (2014)
-  Sohn, K., Lee, H., Yan, X.: Learning structured output representation using deep conditional generative models. In: Advances in neural information processing systems. (2015) 3483–3491
Esser, P., Sutter, E., Ommer, B.:
A variational u-net for conditional appearance and shape generation.
In: Proceedings of the IEEE Conference on Computer Vision and Pattern Recognition. (2018) 8857–8866
-  Kohl, S., Romera-Paredes, B., Meyer, C., De Fauw, J., Ledsam, J.R., Maier-Hein, K., Eslami, S.A., Rezende, D.J., Ronneberger, O.: A probabilistic u-net for segmentation of ambiguous images. In: Advances in Neural Information Processing Systems. (2018) 6965–6975
-  Gregor, K., Besse, F., Rezende, D.J., Danihelka, I., Wierstra, D.: Towards conceptual compression. In: Advances In Neural Information Processing Systems. (2016) 3549–3557
Sønderby, C.K., Raiko, T., Maaløe, L., Sønderby, S.K., Winther, O.:
Ladder variational autoencoders.In: Advances in neural information processing systems. (2016) 3738–3746
-  Kingma, D.P., Salimans, T., Jozefowicz, R., Chen, X., Sutskever, I., Welling, M.: Improving variational inference with inverse autoregressive flow.(nips), 2016. URL http://arxiv. org/abs/1606.04934
-  Salimans, T., Karpathy, A., Chen, X., Kingma, D.P.: Pixelcnn++: Improving the pixelcnn with discretized logistic mixture likelihood and other modifications. arXiv preprint arXiv:1701.05517 (2017)
-  Menick, J., Kalchbrenner, N.: Generating high fidelity images with subscale pixel networks and multidimensional upscaling. arXiv preprint arXiv:1812.01608 (2018)
-  Maaløe, L., Fraccaro, M., Liévin, V., Winther, O.: Biva: A very deep hierarchy of latent variables for generative modeling. arXiv preprint arXiv:1902.02102 (2019)
-  De Fauw, J., Dieleman, S., Simonyan, K.: Hierarchical autoregressive image models with auxiliary decoders. arXiv preprint arXiv:1903.04933 (2019)
-  Ronneberger, O., Fischer, P., Brox, T.: U-net: Convolutional networks for biomedical image segmentation. In: Medical Image Computing and Computer-Assisted Intervention (MICCAI) 2015. Volume 9351 of LNCS., Springer (2015) 234–241
-  He, K., Zhang, X., Ren, S., Sun, J.: Identity mappings in deep residual networks. In: European conference on computer vision, Springer (2016) 630–645
-  Rezende, D.J., Viola, F.: Taming vaes. arXiv preprint arXiv:1810.00597 (2018)
-  Wu, Z., Shen, C., Hengel, A.v.d.: Bridging category-level and instance-level semantic image segmentation. arXiv preprint arXiv:1605.06885 (2016)
-  Nikolov, S., Blackwell, S., Mendes, R., De Fauw, J., Meyer, C., Hughes, C., Askham, H., Romera-Paredes, B., Karthikesalingam, A., Chu, C., et al.: Deep learning to achieve clinically applicable segmentation of head and neck anatomy for radiotherapy. arXiv preprint arXiv:1809.04430 (2018)
-  Jang, E., Gu, S., Poole, B.: Categorical reparameterization with gumbel-softmax. arXiv preprint arXiv:1611.01144 (2016)
-  Kasthuri, N., Hayworth, K.J., Berger, D.R., Schalek, R.L., Conchello, J.A., Knowles-Barley, S., Lee, D., Vázquez-Reina, A., Kaynig, V., Jones, T.R., et al.: Saturated reconstruction of a volume of neocortex. Cell 162(3) (2015) 648–661
-  Armato, I., Samuel, G., McLennan, G., Bidaut, L., McNitt-Gray, M.F., Meyer, C.R., Reeves, A.P., Clarke, L.P.: Data from lidc-idri. the cancer imaging archive. http://doi.org/10.7937/K9/TCIA.2015.LO9QL9SX (2015)
-  Armato, S.G., McLennan, G., Bidaut, L., McNitt-Gray, M.F., Meyer, C.R., Reeves, A.P., Zhao, B., Aberle, D.R., Henschke, C.I., Hoffman, E.A., et al.: The lung image database consortium (lidc) and image database resource initiative (idri): a completed reference database of lung nodules on ct scans. Medical physics 38(2) (2011) 915–931
-  Clark, K., Vendt, B., Smith, K., Freymann, J., Kirby, J., Koppel, P., Moore, S., Phillips, S., Maffitt, D., Pringle, M., et al.: The cancer imaging archive (tcia): maintaining and operating a public information repository. Journal of digital imaging 26(6) (2013) 1045–1057
-  Lee, K., Zung, J., Li, P., Jain, V., Seung, H.S.: Superhuman accuracy on the snemi3d connectomics challenge. arXiv preprint arXiv:1706.00120 (2017)
-  He, K., Gkioxari, G., Dollár, P., Girshick, R.: Mask r-cnn. In: Proceedings of the IEEE international conference on computer vision. (2017) 2961–2969
-  Lin, T.Y., Goyal, P., Girshick, R., He, K., Dollár, P.: Focal loss for dense object detection. In: Proceedings of the IEEE international conference on computer vision. (2017) 2980–2988
-  Kirillov, A., He, K., Girshick, R., Rother, C., Dollár, P.: Panoptic segmentation. arXiv preprint arXiv:1801.00868 (2018)
-  Kulikov, V., Yurchenko, V., Lempitsky, V.: Instance segmentation by deep coloring. arXiv preprint arXiv:1807.10007 (2018)
-  Kulikov, V., Lempitsky, V.: Instance segmentation of biological images using harmonic embeddings. arXiv preprint arXiv:1904.05257 (2019)
-  Xiong, Y., Liao, R., Zhao, H., Hu, R., Bai, M., Yumer, E., Urtasun, R.: Upsnet: A unified panoptic segmentation network. arXiv preprint arXiv:1901.03784 (2019)
-  Chen, X., Girshick, R., He, K., Dollár, P.: Tensormask: A foundation for dense object segmentation. arXiv preprint arXiv:1903.12174 (2019)
-  Nalisnick, E., Matsukawa, A., Teh, Y.W., Gorur, D., Lakshminarayanan, B.: Do deep generative models know what they don’t know? arXiv preprint arXiv:1810.09136 (2018)
-  Kuhn, H.W.: The hungarian method for the assignment problem. Naval Research Logistics (NRL) 2(1-2) (1955) 83–97
-  Munkres, J.: Algorithms for the assignment and transportation problems. Journal of the society for industrial and applied mathematics 5(1) (1957) 32–38
Cordts, M., Omran, M., Ramos, S., Rehfeld, T., Enzweiler, M., Benenson, R.,
Franke, U., Roth, S., Schiele, B.:
The cityscapes dataset for semantic urban scene understanding.In: Proceedings of the IEEE conference on computer vision and pattern recognition. (2016) 3213–3223
-  Rand, W.M.: Objective criteria for the evaluation of clustering methods. Journal of the American Statistical association 66(336) (1971) 846–850
-  Arganda-Carreras, I., Turaga, S.C., Berger, D.R., Cireşan, D., Giusti, A., Gambardella, L.M., Schmidhuber, J., Laptev, D., Dwivedi, S., Buhmann, J.M., et al.: Crowdsourcing the creation of image segmentation algorithms for connectomics. Frontiers in neuroanatomy 9 (2015) 142
Nunez-Iglesias, J., Kennedy, R., Plaza, S.M., Chakraborty, A., Katz, W.T.:
Graph-based active learning of agglomeration (gala): a python library to segment 2d and 3d neuroimages.Frontiers in neuroinformatics 8 (2014) 34
Appendix A KL-Divergence between Posterior and Prior
where for improved clarity we omit and as conditional arguments to and respectively. For brevity our notation additionally subsumes and similar for . For our choice of posterior and prior distribution (see Eq. 1 and 3) the KL-terms above can be evaluated analytically. The expectations in Eq. 5 and 6 using samples are performed with a single sampling pass.
Appendix B Performance Measures
b.1 Distribution Agreement
We report how well the distribution produced by the respective generative model and the given ground-truth distribution agree on the LIDC dataset. In real world scenarios such as the LIDC dataset, the ground-truth distribution is only known in terms of a set of samples. One way to measure the agreement between two distributions that only requires samples as opposed to knowledge of the full distributions is by means of the Generalized Energy Distance (, also referred to as Maximum Mean Discrepency). This kernel-based metric was employed in kohl2018probabilistic using as a distance kernel, where IoU is the intersection over union metric between two segmentations. We found this measure inadequate in such cases where the models’ samples only poorly match the ground truth samples, since the metric then unduly rewards sample diversity, regardless of the samples’ adequacy. As an alternative that appears less vulnerable to such pathological cases, we propose to use the Hungarian algorithm kuhn1955hungarian ; munkres1957algorithms to match samples of the model and the ground-truth. The Hungarian algorithm finds the optimal 1:1-matching between the objects of two sets, for which we use to determine the similarity of two samples. We report the match as the Hungarian-matched IoU, i.e. the average IoU of all matched pairs and duplicate both sets so that their number of elements matches their least common multiple. As empty segmentations can be valid gradings in the LIDC dataset we need to define how the IoU enters the distribution metrics for the case of correctly predicted absences, which is detailed below.
b.2 Reconstruction Fidelity
The reconstruction fidelity is an upper bound to the fidelity of the conditional samples. In order to asses this upper bound on the fidelity of the produced segmentations we measure how well the model’s posteriors are able to reconstruct a given segmentation in terms of the IoU metric, i.e. we report the reconstruction IoU, where . Whenever we employ the IoU-metric, i.e. also when it enters the measures for distribution agreement, we calculate it with respect to the stochastic foreground classes only. We further do not calculate it globally across all the test set pixels (as is regularly done in semantic segmentation challenges, e.g. in Cityscapes cordts2016cityscapes ), but calculate it across the pixels of each image and then average across all test set images. For these reasons the question arises how to deal with a correctly predicted absence of a class in an image, a case for which the IoU metric is undefined (the denominator would be 0). For the LIDC dataset, empty ground-truth segmentations can be a valid grading which is why we follow kohl2018probabilistic and define a correctly predicted absence as IoU = 1. In the SNEMI3D and Cityscapes instance segmentation tasks we do not want to evaluate whether a model correctly predicts a class’ absence, which is why we correct class absences do not enter the mean IoU of an image, while wrongly predicted absences are penalized (in practice we perform a ‘NAN-mean’ over the classes of interest). In the Cityscapes case we additionally make use of the provided ignore-masks, keeping unlabeled pixels out of the evaluations.
b.3 Instance Segmentation
In order to score how well the predicted instance segmentations (the instance clusters) agree with the ground truth, we calculate the Rand Error. This measure is defined as -score, where the precision and recall values that enter the
-score, where the precision and recall values that enter the-score are determined from whether pixel pairs between the ground truth clustering and a predicted clustering belong to the same segment (positive class) or different segments (negative class) rand1971objective ; arganda2015crowdsourcing . We use the foreground-restricted version as employed in the SNEMI3D challenge333Available as adapted_rand_error in the python package gala nunez2014graph ..
On Cityscapes instance segmentation we additionally report the Average Precision (AP). It is based on object level scoring and defined as the area under the precision recall curve for all predicted object detections. To span the precison recall curve, an object level score that quantifies a model’s confidence in the ‘objectness’ of its prediction is required. For our car instance segmentation experiments we employ the Cityscapes evaluation scheme444Official evaluation code can be found here., reporting and AP, the average precision when requiring predictions to match above a thresholded and when averaging across multiple such thresholds (10 different overlaps ranging from 0.5 to 0.95 in steps of 0.05), respectively. To artificially obtain object-level scores we average the softmax scores of all stochastic classes across samples and pixels of a predicted instance mask kulikov2018instance .
Appendix C Dataset Details
LIDC-IDRI The LIDC-IDRI dataset armato2015 ; armato2011lung ; clark2013cancer contains 1018 lung CT scans from 1010 lung patients with manual lesion segmentations from four experts. We use the same setup as in kohl2018probabilistic , i.e. we employ the annotations from a second reading and employ the same data splits (722 patients for training, 144 patients for validation and 144 patients for the test set). The data is then cropped to 2D images of shape pixels, resulting in 8882 images in the training set, 1996 images in the validation set and 1992 images in the test set. Crops are centered at positions for which at least one grader indicates a lesion. In the LIDC dataset, empty foreground segmentations can be viable expert gradings, which is why we employ when a model sample agrees in such cases. is an average of the reconstructions of all four gradings. As in kohl2018probabilistic we only use those lesions that were specified as a polygon (outline) in the XML files of the LIDC dataset, disregarding the ones that only have center of shape. That is, according to the LIDC paper only such lesions that are larger than 3mm are used, with smaller ones filtered out as they are regarded clinically less relevant armato2011lung . We filter out each Dicom file whose absolute value of SliceLocation differs from the absolute value of ImagePositionPatient[-1]. Finally we assume that two masks from different graders correspond to the same lesion if their tightest bounding boxes overlap.
LIDC-IDRI subset B For ‘Subset B’ we consider only those test set cases, which have annotations by all 4 graders, i.e. all graders agree on the presence of an abnormality. This results in 638 images, so close to a third of the full test set.
SNEMI3D As a second dataset we use the SNEMI3D challenge555http://brainiac2.mit.edu/SNEMI3D/home dataset that is comprised of a fully annotated 3D block of a sub-volume of mouse neocortex, imaged slice by slice with an electron microscope kasthuri2015saturated . This stack is voxels large, comes at a voxel size of and contains a total of 400 fully annotated neurite instance annotations. We use the first 80 z-slices as our training dataset, the adjacent 10 slices as a validation set and the remaining 10 slices as a test set to report results on. We crop non-overlapping patches of size resulting in 1280 images for training, 160 for validation and 160 for testing. During training we randomly map the instance identifiers (ids) of the cells to one of 15 labels, thereby treating the instance id of the cells as latent information that the networks need to model. Because the number of individual cells per image can surmount this number, the training task does not necessitate a unique predicted instance id for every cell. This means that in order to obtain a predicted instance segmentation at test time, we need to aggregate a number of samples for a given image. For this purpose we employ a greedy Hamming distance based clustering across samples followed by a light-weight post-processing, detailed in Algorithm 1 of Appx. G and Appx. H (we chose and Hamming distance threshold ).
Cityscapes As a third dataset we use the Cityscapes street scene dataset that comes with both dense category segmentations, as well as with instance segmentations for a number of categories. The official Cityscapes training dataset (with fine annotations) comprises 2975 images. We employ the official validation set of 500 images as a test set to report results on, and split off 274 images (corresponding to the 3 cities of Darmstadt, Mönchengladbach and Ulm) from the official training set as an internal validation set. At test time, we cluster 32 samples per image (see Appx. G), using a threshold of .
Appendix D Architecture and Training Details
Architecture The Hierarchical Probabilistic U-Net implementations employed for the different tasks differ in their number of processing scales, the depth of each such scale and the number of latent scales employed. The architecture as employed during the sampling process is depicted in Fig. 1a. The setup for the training process is depicted in Fig. 1b) and includes the separate posterior net that is required during training.
At each processing scale of the HPU-Net we employ a stack of pre-activated residual blocks he2016identity (grey blocks in Fig. 1), where determines the depth of that scale. For both the LIDC and SNEMI3D experiments we use residual blocks and for the Cityscapes experiment we use residual blocks at each processing scale of the U-Net’s encoder and decoder respectively. Similar to kingma1606improving ; maaloe2019biva , we find the use of unobstructed connections (in our case res-blocks) between latent scales of the hierarchy to be crucial for the lower scales to be employed by the generative model. Without the use of res-blocks the KL-terms between distributions (indicated by green connecting lines in Fig. 1) at the beginning of the hierarchy often become early on in the training, essentially resulting in uninformative and thus unused latents.
In each res-block the residual feature map is calculated by means of a series of three -convolutions, the first of which always halves the number of the feature maps employed at the present scale, such that the residual representations live on a lower dimensional manifold. At the end of the residual branch a single (un-activated) -convolution projects the features back to the number of features of the given scale. The resulting residual is then added to the skipped feature map, which is skipped forward (i.e. left untouched) unless the number of feature maps is set to change, in which case it is projected by a -convolution. This happens only at transitions that change the feature map resolutions. For down-sampling of feature maps we use average pooling and upsample by using nearest neighbour interpolation. As described in
-convolution. This happens only at transitions that change the feature map resolutions. For down-sampling of feature maps we use average pooling and upsample by using nearest neighbour interpolation. As described inSec. 2, the spatial grid of latent variables is sampled at the end of each U-Net decoder scale that is part of the hierarchy and concatenated to the final feature map produced at this scale, before both are up-sampled.
The number of latent scales is chosen empirically such as to allow for a sufficiently granular effect of the latent hierarchy. For the tasks and image resolutions considered here, we found 3 - 5 latent scales to work well. The number of processing scales is chosen such that a smallest possible spatial resolution is achieved in the bottom of the U-Net. For the square images in LIDC and SNEMI3D this means a resolution of and for the Cityscapes task the minimum resolution is (in this case we however employ , which is detailed below). The employed separate posterior mirrors the number of scales and the number of feature maps of the corresponding components in the U-Net, see the bottom part of Fig. 1b. Its only architectural difference is its first convolutional layer, which processes the input image concatenated with the corresponding one-hot segmentation along the channel axis. All weights of all models are initialized with orthogonal initialization having the gain (multiplicative factor) set to 1, and the bias terms are initialized by sampling from a truncated normal with .
Training The HPU-Net is trained using the GECO-objective (Eq. 6) and a stochastic top-k reconstruction loss. As described in Sec. 2, the th percentile employed for the top-k objective is fixed across tasks to 2 of each batch’s pixels. The GECO-objective aims at matching a reconstruction target value . For each experiment we chose sufficiently low so as to correspond to a strong reconstruction performance while resulting in a training schedule that is not dominated by the reconstruction term over the entire course of the training (e.g. if is chosen too high, the Lagrange multiplier , and thus the learning pressure it exerts, mounts and remains on the reconstruction term rather then moving over on the KL terms). The desired behavior of the reconstruction objective and the Lagrange multiplier can be observed in Fig. 7 and Fig. 8, where rises until matches , after which drops and the pressure on the KL-terms increases.
In contrast to the regular cross-entropy employed in semantic segmentation, the reconstruction error here is not averaged but summed over individual pixels (before being averaged across batch instances). This is because the likelihood is assumed to factorize over the pixels of an image and so their log-likelihood is summed over. For comparability we however report and per pixel (e.g. in Fig. 7, Fig. 8 and in Table 2).
The precise training setups for each of the tasks and models are reported below. Note that the training objectives for all models encompass an additional weight-decay term that is weighted by a factor of .
d.1 LIDC-IDRI Lung CT scans
During training on LIDC, image-grader pairs are drawn randomly. Similar to what was done in kohl2018probabilistic , we apply random augmentations666We use the code available at https://github.com/deepmind/multidim-image-augmentation/. to the image and label tiles ( pixels size) including random elastic deformation, rotation, mirroring, shearing, scaling and a randomly translated crop that results in a tile size of pixels. Any padding added to the images and labels during the augmentation process is masked from the loss during training.
pixels. Any padding added to the images and labels during the augmentation process is masked from the loss during training.
In order to evaluate the Probabilistic U-Net on additional metrics than those employed in kohl2018probabilistic , we retrain a re-implementation of the model with the exact same hyperparameters and setup as in
, we retrain a re-implementation of the model with the exact same hyperparameters and setup as inkohl2018probabilistic , i.e we employ a 5-scale model, with three -convolutions per encoder and decoder-scale, a separate prior and posterior net that mirror the used U-Net’s encoder as well as 6 global latents and three final convolutions. Moreover we employ an identical ELBO-formulation (), train with identical batch-size of 32, number of iterations () and learning rate schedule .
On LIDC, the HPU-Net uses 8 latent scales resulting in a global -‘U-Net bottom’ and 3 res-blocks per encoder and decoder scale. The base number of channels is 24 and until the fourth down-sampling the number of channels is doubled after each down-sampling operation, resulting in a maximum width of 192 channels. The U-Net’s decoder mirrors this setup. We train the HPU-Net with an initial learning rate of that is lowered to in 4 steps over the course of iterations. The employed batch-size is 32. The HPU-Net is trained with the GECO-objective using .

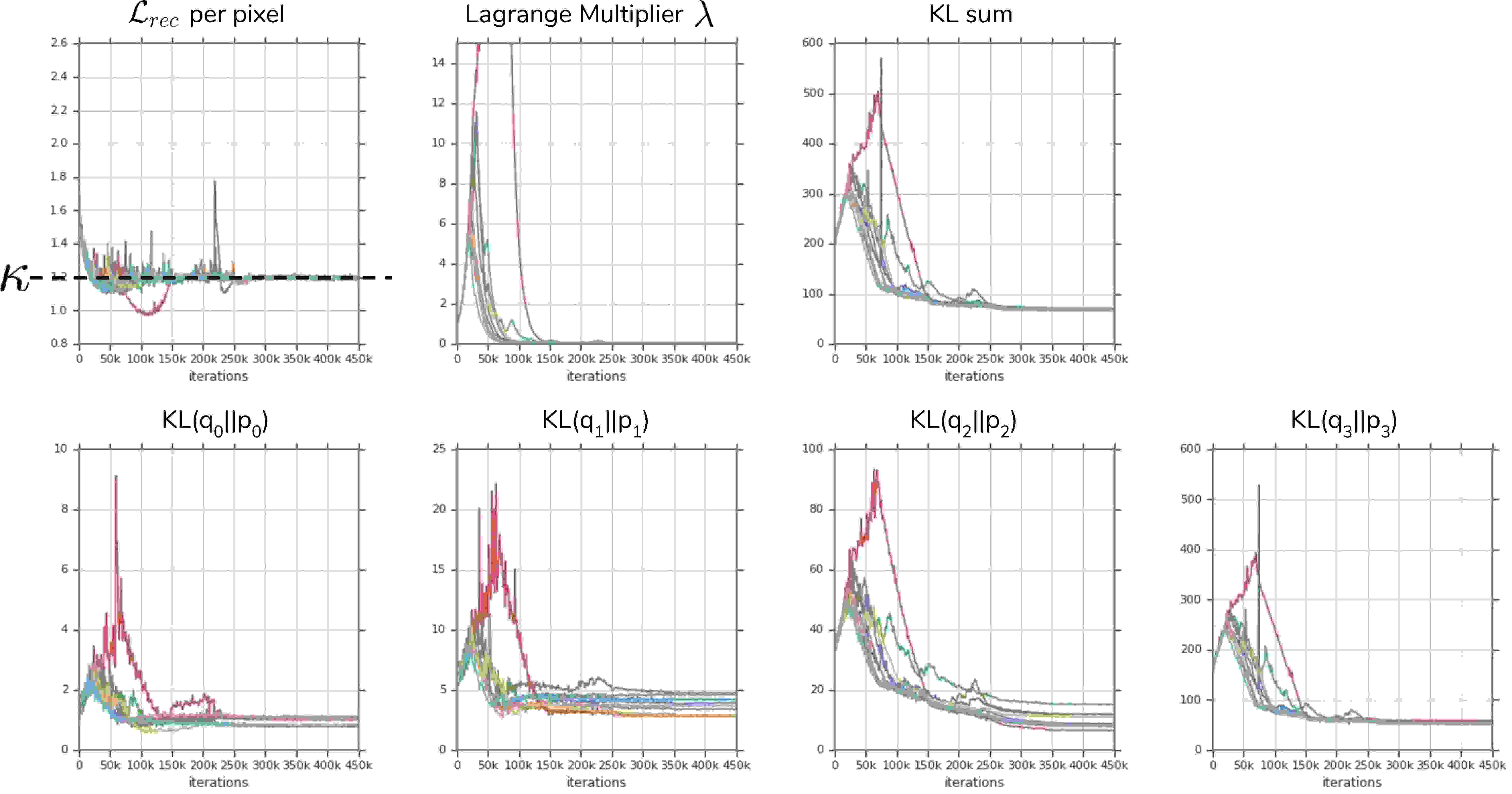

Fig. 7 shows how the top-k reconstruction term , the Lagrange multiplier , as well as the individual KL-terms (and their sum) progress in the course of training for the 10 random model initializations reported in Table 1. As mentioned above, GECO structures the dynamics such that puts pressure on until it reaches its target value . After that the training objective holds the reconstruction term at while optimizing for lower overall Kullback-Leibler divergence (‘KL’). The KL is a measure for how much more information the posterior distribution carries compared to the prior, a quantity that we aim to minimize. Note that the KL-sum is very similar for all models, but the way the KL splits across the hierarchy can differ. The models that end up using the global latents profit from a slightly lower overall KL indicating that this decomposition is more efficient, e.g. it is more efficient not to repeat global information in the local latents when it is already provided by global latents etc.
