A Graph-constrained Changepoint Detection Approach for ECG Segmentation

04/24/2020 ∙ by Atiyeh Fotoohinasab, et al. ∙ 0

Electrocardiogram (ECG) signal is the most commonly used non-invasive tool in the assessment of cardiovascular diseases. Segmentation of the ECG signal to locate its constitutive waves, in particular the R-peaks, is a key step in ECG processing and analysis. Over the years, several segmentation and QRS complex detection algorithms have been proposed with different features; however, their performance highly depends on applying preprocessing steps which makes them unreliable in real-time data analysis of ambulatory care settings and remote monitoring systems, where the collected data is highly noisy. Moreover, some issues still remain with the current algorithms in regard to the diverse morphological categories for the ECG signal and their high computation cost. In this paper, we introduce a novel graph-based optimal changepoint detection (GCCD) method for reliable detection of R-peak positions without employing any preprocessing step. The proposed model guarantees to compute the globally optimal changepoint detection solution. It is also generic in nature and can be applied to other time-series biomedical signals. Based on the MIT-BIH arrhythmia (MIT-BIH-AR) database, the proposed method achieves overall sensitivity Sen = 99.76, positive predictivity PPR = 99.68, and detection error rate DER = 0.55 which are comparable to other state-of-the-art approaches.

READ FULL TEXT VIEW PDF
POST COMMENT

Comments

There are no comments yet.

Authors

page 1

This week in AI

Get the week's most popular data science and artificial intelligence research sent straight to your inbox every Saturday.

I Introduction

The electrocardiogram (ECG) is a quasi-periodical, rhythmically repeating biomedical signal that includes information about the electrical activities of cardiac muscle. One cycle of ECG, called a heartbeat, is delineated by arrangements of P, QRS-complex and T waveforms as well as PQ and ST segments. Out of all the waveforms, the QRS-complex is the most striking waveform as it represents the ventricular depolarization and reflects the major part of the electrical activity of the heart. Precisely detecting the location of R-peak as the highest and the only positive peak within the QRS complex plays a critical role in obtaining the morphology of the QRS-complex. Besides, the localization of R-peak serves as the basis for the automated determination of the heart rate and thereby, it is a significant criterion for discerning any heart abnormality. Not only heart diseases but also many other diseases can be diagnosed in a non-invasive way using R-peak detection due to the relationship between heart rate variability (HRV) and several physiological systems (vasomotor, respiratory, central nervous, thermoregulatory, etc.). Revealing R-peaks is a simple task in noise-free ECG signals; however, the challenge emerges when the ECG signal is corrupted by noise and artifacts.

Several methods have been proposed to detect different waves in the ECG signal. However, the majority of these methods still suffer from several drawbacks such as misdetection of ECG waveforms with determinant morphological patterns in some life-threatening heart arrhythmias, or the high complexity of the algorithm that is a barrier for online processing or long-recording analysis. Typically, current methods consist of two main steps; pre-processing, and detection. In the pre-processing step, the algorithm attempts to eliminate the noise and artifacts, and highlight the relevant sections of the ECG [1, 19]

. In the second step, most of the methods locate R-peaks using the result from the pre-processing step in the first place, then other waves are detected by defining a set of heuristic rules

[9]. However, in real-time data processing of ambulatory care settings and remote monitoring systems, where the collected data is highly noisy, preprocessing-based algorithms are less effective. Besides, the performance of most detection algorithms depends highly on the used dataset, and also, incorrect detection of R-peak leads to the incorrect identification of other waves.

Most of the state-of-the-art methods in the field of ECG waves detection are either based on the wavelet transform, Hidden Markov models (HMM), and simple mathematical operations such as differentiation, integration, and squaring. Wavelet transform is a common approach to capture non-stationary behaviors of the ECG signal

[17]. However, the caveat with the Wavelet transform is the difficulty in determining a proper mother wavelet derived from the various shape of the QRS-complex and finding the required threshold in the detection step. More importantly, discrete wavelet transforms (DWT) often fail to derive reliable results from short-recordings of the signal. Algorithms stem from simple mathematical operations are computationally efficient, and thereby ideal for real-time analysis of the large data sets. Pan and Tompkins [16] algorithm and its modifications [5]

are the most popular techniques in this category. However, their high performance is guaranteed in case of the ECG signal is weakly disturbed by the noise. Hidden Markov models (HMMs) are also graphical models that have highly drawn attention in the task of ECG segmentation in order to consider the temporal dependency among the waveforms. In addition to the aforementioned methods, some studies addressed the problem of ECG delineation using deep learning. Although deep learning-based algorithms demonstrated high performance in the classification problems, they rely on large scale datasets for training the algorithm and suffer from the imbalanced class problem

[15, 12, 14, 13, 11, 18].

In this work, we leverage a graph-constrained changepoint detection (GCCD) model introduced by Hocking et al. in [7] in order to detect R-peak positions in a fast and effective way. Hocking et al. [7] proposed an algorithm that can solve changepoint detection problems with graph constraints on segment’s means with log-linear complexity in the amount of data, thereby has high efficiency on huge data sets. Their model can represent a time series signal as a set of constant value segments of varying lengths, as well as their precise locations over space or time. They have shown that their model has high accuracy in detecting abrupt changes in genomic data such as DNA copy number profiles [8] and ChIP-sequencing [6]. In this paper, we indicate that this model not only is applicable for a periodic signal but also can outperform other state-of-the-art methods concerned with ECG delineation.

There are a few studies in the literature that have exploited changepoint detection models to find abrupt changes in heart rhythm. However, up to our best knowledge, this is the first study where a changepoint detection model is used to segment ECG waveforms. One of the key contributions of this work is using graphs to some extent employ biological prior knowledge of the signal into the model and lessen the complexity of the model. The proposed method does not need a pre-processing step since it leverages the sparsity of changepoints to denoising the signal as well as detecting abrupt changes. As a result, it can be more effective in real-time processing of noisy data. Besides, GCCD takes the whole cardiac beat into account to detect and study each wave separately, as opposed to most of the current methods which use the location of R-wave to detect other waves.

The rest of the paper is organized as follows. In the next section, we describe the proposed Graph-Constrained Changepoint Detection model and its application in localization of R-peak. Section III provides a description of the dataset used in this study and a discussion of the results as well as a comparison between the performance of the proposed algorithm and other state-of-the-art algorithms. Finally, IV summarizes this research work and its contribution.

Ii Methodology

The proposed method treats the problem of ECG waveforms delineation as a changepoint detection problem over a non-stationary ECG signal. It represents the periodic ECG signal as piece-wise locally stationary pieces so as each piece is the mean of one segment of data points. The model takes a raw ECG signal and a predefined graph, which encodes expected changepoints from the signal, as inputs and yields the onset/offset and the mean of desired segments. Figure 1 illustrates an overview of the proposed algorithm in detecting waveforms of a normal ECG. In the next sections, we will briefly describe the GCCD model.

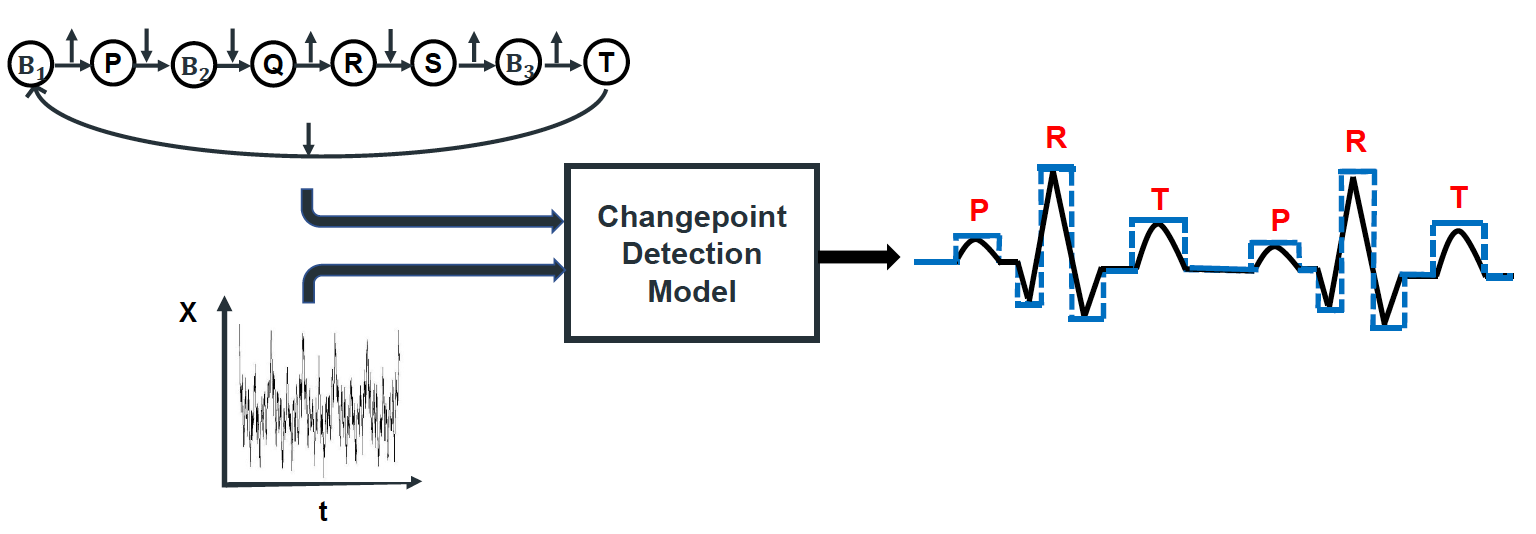

Fig. 1: An overview of the Graph-Constrained Changepoint Detection (GCCD) model. The GCCD model takes a constraint graph and a raw ECG signal as inputs, and then, detects segments corresponding to the nodes of the constraint graph at the output. The up/down arrows above each edge represents the expected up/down change in the segment means, respectively. In this model, the proposed constraint graph has a vertex for each main waveform (i.e. ) as well as Baselines (-), which are intermediate states.
