A Framework for eVTOL Performance Evaluation in Urban Air Mobility Realm

11/09/2021
by   Mrinmoy Sarkar, et al.
0

In this paper, we developed a generalized simulation framework for the evaluation of electric vertical takeoff and landing vehicles (eVTOLs) in the context of Unmanned Aircraft Systems (UAS) Traffic Management (UTM) and under the concept of Urban Air Mobility (UAM). Unlike most existing studies, the proposed framework combines the utilization of UTM and eVTOLs to develop a realistic UAM testing platform. For this purpose, we first enhanced an existing UTM simulator to simulate the real-world UAM environment. Then, instead of using a simplified eVOTL model, a realistic eVTOL design tool, namely SUAVE, is employed and an dilation sub-module is introduced to bridge the gap between the UTM simulator and SUAVE eVTOL performance evaluation tool to elaborate the complete mission profile. Based on the developed simulation framework, experiments are conducted and the results are presented to analyze the performance of eVTOLs in the UAM environment.

READ FULL TEXT VIEW PDF
POST COMMENT

Comments

There are no comments yet.

Authors

page 6

10/14/2021

A Novel Traffic Simulation Framework for Testing Autonomous Vehicles Using SUMO and CARLA

Traffic simulation is an efficient and cost-effective way to test Autono...
08/23/2019

Trajectory-Based Urban Air Mobility (UAM) Operations Simulator (TUS)

Nowadays, the demand for optimized services in urban environments to pro...
07/12/2019

Learning an Urban Air Mobility Encounter Model from Expert Preferences

Airspace models have played an important role in the development and eva...
06/23/2020

Learning-to-Fly: Learning-based Collision Avoidance for Scalable Urban Air Mobility

With increasing urban population, there is global interest in Urban Air ...
10/13/2020

Motivations and Preliminary Design for Mid-Air Deployment of a Science Rotorcraft on Mars

Mid-Air Deployment (MAD) of a rotorcraft during Entry, Descent and Landi...
04/18/2021

ARCH-Elites: Quality-Diversity for Urban Design

This paper introduces ARCH-Elites, a MAP-Elites implementation that can ...
08/22/2020

Investigating the Performance Gap between Testing on Real and Denoised Aggregates in Non-Intrusive Load Monitoring

Prudent and meaningful performance evaluation of algorithms is essential...
This week in AI

Get the week's most popular data science and artificial intelligence research sent straight to your inbox every Saturday.

I Introduction

To address ground traffic congestion, NASA initiated the “Urban Air Mobility” concept to utilize the three-dimensional airspace to accommodate the heavy demand for cargo deliveries as well as passenger transportation in urban areas. The electric Vertical Takeoff and Landing (eVTOL)111“AHS International Leads Transformative Vertical Flight Initiative”. evtol.news. Retrieved 2020-09-23. aircraft is proposed as a promising solution to implement UAM in the future. Under this direction, different types of eVTOL have been extensively investigated by researchers from the industry such as Uber, Joby Aviation and Boeing. It is envisioned that eVTOLs will significantly reduce the heavy traffic congestion during peak times and improve the efficiency of urban traffic networks.
The safety and reliability of UAM have motivated extensive research works for both design and evaluation of UAM and eVTOLs. In [15, 18, 11, 7, 8, 1], the authors primarily focused on developing different alternatives for the management of UAM with respect to different objectives however, no systematic approach is available to generate all possible alternatives. Also, most UTM alternatives are evaluated in different simulation interfaces and no common platform is yet developed for the evaluation of these alternatives. Considering these challenges, a preliminary framework with metrics and a simulation interface was developed to compare and evaluate different alternatives for UAM in [12]. However, it simplified eVTOL operations from 3-D to 2-D space and ignored the physical configuration of the eVTOL’s shape, weight, and battery efficiency. Moreover, the preliminary framework did not consider the practical mission profiles of eVTOL, and thus cannot effectively model their behaviors in real-world scenarios.

The open-source conceptual design tool, namely SUAVE

[9], is capable of modeling the physical properties of eVTOLs and incorporating the practical mission profile of eVTOLs. In [3], SUAVE is used to optimize the design of eVTOLs by identifying the relationship between vehicle configurations and performance without considering the interactions with other eVTOLs in UAM. However, in real-world scenarios, the operational environment of eVTOLs is dense and interaction from other eVTOLs must be considered. In summary, several limitations of the existing studies of UAM and eVOTLs are as follows:

  • According to authors’ knowledge, no prior work has developed a framework for the evaluation of eVTOLs in a fully-realized UAM environment.

  • The trade-off between fidelity and scale is not considered in the existing UTM simulation frameworks; High fidelity takes a longer time with poor scalability while low fidelity may ignore infeasible missions with better scalability.

  • Existing testing and design tools of eVTOLs rarely consider the complexity of the operational environment in UAM.

In light of these limitations, we develop an effective framework to evaluate the performance of eVTOLs in UAM. The proposed framework can not only simulate the interactions of eVTOLs in a highly congested UAM network but also mimic the realistic properties of eVTOLs. With a low-fidelity UTM simulator, the proposed framework can provide detailed analysis to identify and explain infeasible mission profiles, which partially consider the trade-off effect between fidelity and scale. The contributions of this work are two-fold: First, we integrate the preliminary framework from [12] with the SUAVE tool to develop a more comprehensive evaluation framework for eVTOLs. Second, we conduct simulations using the developed framework and present the simulation results to analyze the performance of eVTOLs in a UAM network.
The remainder of this paper is organized as follows: Section II provides a review of different research studies in UTM and eVTOL testing. The details of the proposed framework are described in Section III. Section IV presents experimental studies using the proposed framework. The advantages of the proposed framework are summarized in Section V. Finally, concluding remarks and future work are outlined in Section VI.

Ii Literature Review

The demand for a new air traffic management system to coordinate increasingly dense low-altitude flights has recently attracted substantial research [15, 18, 11, 7, 1]. Most of these research studies propose different air-traffic management methods and testing tools to evaluate the effectiveness of aerial vehicle (such as eVTOL) designs under different flight profiles and objectives. In this section, we review those studies and identify gaps to motivate a more realistic aerial vehicle testing and evaluation framework.

UTM Simulation Framework for UAM: A systematic approach to generate all viable architectures, as required by a thorough decision-making process, is still under development. Some architectures are still at the Concept of Operations (ConOps) stage and have not been thoroughly evaluated. Although some other architectures have been tested in simulation environments, each approach is tested with a distinct simulator and some simulators are not publicly available. This makes the evaluation and comparison of the architectures difficult. For instance, architectures such as Full Mix, Layers, Zones, and Tubes, are developed using the TMX simulator [2], while the Iowa UTM [18] and Altiscope [13] architectures utilize the Custom 2D simulator. Moreover, DLR Delivery Network [11], Linköping distributed [14] and Linköping centralized [14] architectures are built on the Custom 3D simulator.

To address these gaps and design a better decision-making process for UTM, recent work in [12] has proposed an open-source simulation framework that can generate various alternatives for different UTM subsystems. In addition, the framework can compare alternatives based on safety, efficiency, and capacity. The framework consists of four elements: system decomposition, alternative generation, comparison metric establishment, and alternative evaluations. To create general alternatives for the conceptual design, the author decomposed the UTM into four subsystems: airspace structure, access control, preflight planning, and collision avoidance.

The author used a custom-built open-source 2D agent-based simulation framework to generate and evaluate alternatives. However, the 2D simulation framework fails to capture important factors of a real-world environment, including the agent’s altitude and wind condition. Additionally, the agents are modeled as 2D points in the simulator, and the vehicle’s sizes, shapes, and dynamics are ignored, which hinders the practicality of the simulator for modeling real-world scenarios. In the real-world environment, the physical design of the vehicles plays an important role in studying the effect of aerodynamics, airspace capacity, weather, and other factors.

Moreover, it is assumed that the vehicles stay at the same altitude throughout the flight and a simple 2D approach is used for the modeling. Accordingly, the take-off and the landing procedures are completely ignored by the study. This simplification reduces the framework’s complexity by omitting one of the essential components of the overall flight process where there are numerous uncertainties and challenges. Once the agents are granted access to the airspace, each agent optimizes their own trajectory using either the decoupled method, safe interval path planning, or local path planning. The collision avoidance system is implemented using a reactive, decentralized strategy called Modified Voltage Potential (MVP) [4, 5]. Finally, the UTM’s performance is evaluated based on the established objectives.

eVTOL Design and Performance Analysis Tool : In [3], a method is proposed for testing different types of eVTOL designs in accomplishing a given mission profile. It uses SUAVE [9] to achieve a realistic design of various types of aircraft configurations with varying aerodynamic fidelity analyses. After designing and optimizing the eVTOLs in SUAVE, each vehicle is tested with a static mission profile. As shown in Figure 1, the mission profile starts with an initial take-off and it is followed by the ascent, cruise, descent, and reserve hover/loiter. Based on a fixed mission profile the performance of different eVTOL designs is evaluated.

Despite the fact that the study in [3] considers testing of different realistic eVTOL designs, it fails to study the effect of different dynamic mission profiles on the performance of the eVTOL. In a real-world scenario, the eVTOL should be robust enough to follow different mission profiles generated based on various environmental conditions and circumstances. However, [3] considered a fixed mission profile where the eVTOL follows a pre-defined mission that is fixed in terms of time and altitude. Under congested low-altitude UAM conditions, the speed of the eVTOL can be affected by different internal and environmental factors, such as eVTOL payloads, weather conditions, and collision avoidance system. The author also assumes a collision-free path, which is unrealistic.

Fig. 1: A generalized eVTOL flight profile [16].
Features UTM Simulator[12] SUAVE [3] Proposed
Realistic UAM simulation environment
Real-eVTOL dynamics and configuration
Dynamic mission profile
Evaluate each segment of the mission profile
Can test a novel-realistic aircraft design
TABLE I: Comparison of studies in literature.

In this paper, we aim to address these gaps. We propose an eVTOL performance testing and evaluation framework that leverages the advantages of the realistic UTM simulator from [12, 4, 9] and a practical eVTOL design and flight profiling tool from [3, 9]. In Table I, we summarized the features of the existing UTM simulation framework and eVTOL performance analysis tool with the proposed simulation framework.

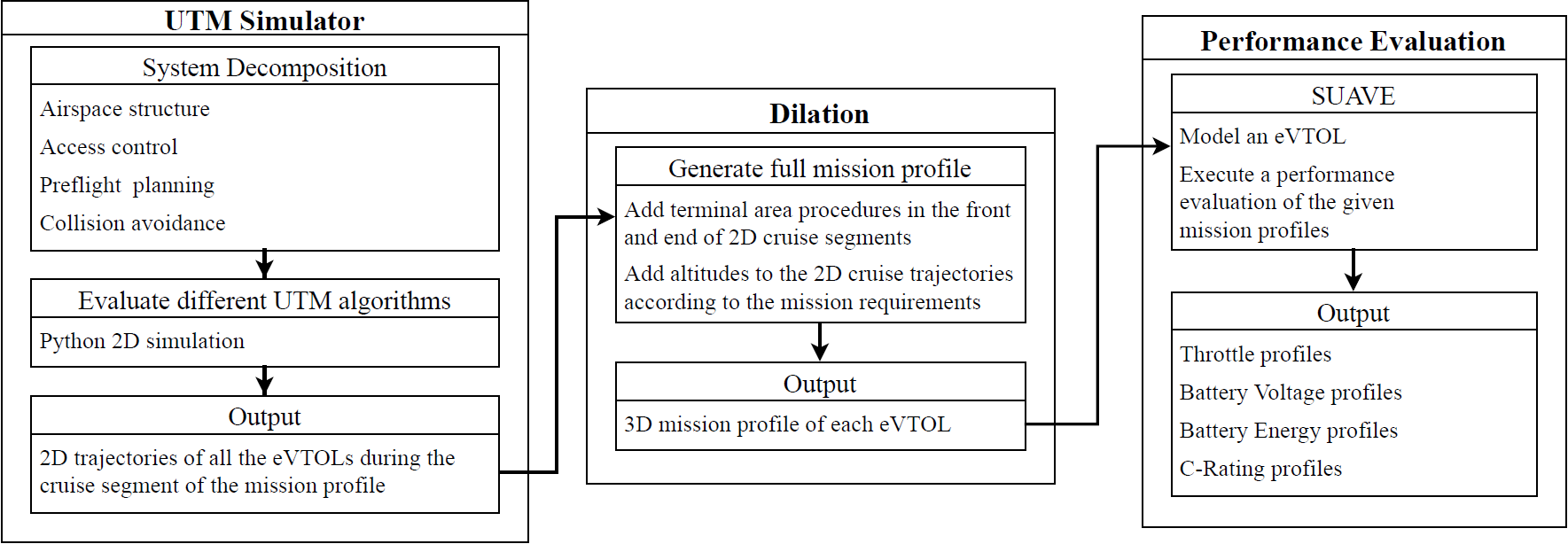

Fig. 2: The architecture of the integrated simulation framework.

Iii Methodology

As described in Sections I and II, the existing studies provide UTM and eVTOL performance evaluation independently. Nevertheless, the concept of UAM can be only fully realized when UTM and eVTOL performance evaluations are integrated. In this paper, we combined these two different performance evaluation schemes and developed a new simulation framework. With this new framework, we can analyze the limitations and strengths of any UTM algorithm or realistic eVTOL model within a UAM environment. The system architecture of the proposed integrated simulation framework is shown in Figure 2. It consists of three sub-modules: (1) UTM Simulator, (2) Dilation, and (3) Performance Evaluation. Details of each sub-module are described in the following sub-sections.

Iii-a UTM Simulator

The UTM Simulator is developed by adapting the open source implementation of the UTM simulation framework from [12]. It uses off-the-shelf implementations of the airspace structure, access control, preflight planning, and collision avoidance algorithms. We modify the visualization tool of the original implementation to make it realistic and extract the entire trajectory of each agent/eVTOL. This new feature provides more details about the behaviors of eVTOLs at different time intervals during the overall mission. Since the original implementation of the UTM simulator in [12] ignores vertiport 222A type of airport for aircrafts which take off and land vertically. terminal area procedures (Standard Instrument Departures (SIDs), Standard Instrument Arrivals (STARs) and Approaches etc.) by focusing only on the cruise segment of the entire flight profile, we extract only the 2D trajectory of the cruise segment in our UTM simulator sub-module. Thus, the output of the UTM simulator in our framework is a set of 2D trajectories of all the eVTOLs in the simulation, which enter the airspace at a specific time and finish an entire flight. Each entry of the 2D trajectory is composed of five elements: x-coordinate, y-coordinate, -velocity, -velocity, and time-stamp.

Iii-B Dilation

We elaborate the cruise segment with other required segments such as takeoff, transition, climb, descent and land in the dilation sub-module. Accordingly, the output of the dilation algorithm is a full mission profile of each eVTOL. Moreover, we convert the trajectories into 3D trajectories by incorporating altitudes for all the entries in the 2D trajectories. The algorithmic description of the dilation sub-module is shown in algorithm 1. Though real-world implementation of vertiport terminal area procedures requires further investigation, the Hover Climb, Transition Climb, Departure Terminal area Procedures, Arrival Terminal area Procedures, Transition Descend and Hover Descend segments in the dilation algorithm can be inferred as vertiport terminal area procedures.

0:  2D Trajectories generated from UTM Simulator
0:  3D Trajectories with initial and ending segments of the mission profile


  for  to  do

     Append Hover Climb Segment to
     Append Transition Climb Segment to
     Append Departure Terminal area Procedures Segment to
     Append Accelerated Climb Segment to
     Insert a constant altitude to each waypoint of the 2D Trajectory
     Append the 3D Trajectory as the Cruise Segment to
     Append Decelerated Descend Segment to
     Append Arrival Terminal area Procedures Segment to
     Append Transition Descend Segment to
     Append Hover Descend Segment to
     Append to
  end for
  return
Algorithm 1 Creation of Full Mission profiles for each eVTOL

Iii-C Performance Evaluation

To evaluate the performance of each eVTOL in the UAM environment, we use the open-source software tool SUAVE [17, 10]. SUAVE is a set of tools to design and optimize conceptual novel aircraft. As an example, we used an eVTOL model developed in SUAVE. The elaborated mission profiles generated by the dilation sub-module are used in SUAVE to evaluate the performance of the eVTOL model. There are several evaluation criteria, however, four built-in metrics, including Throttle profile, Battery energy profile, Battery voltage profile, and C-Rating profile, are employed to evaluate the performance of the eVTOL for all the mission profiles. The metrics are described as follows:

Throttle profile

In general, the throttle controls the vertical motion of an eVTOL and this measurement is directly proportional to the thrust generated from its motors. From the throttle profile, the amount of thrust contribution from each motor during different segments of the mission profile are obtained.

Battery Voltage profile

Using the battery voltage profile, we can observe the decreasing trend of battery voltage for the eVTOL as the mission progresses.

Battery Energy profile

: This profile shows the battery energy consumption by the eVTOL along the mission profile. It is an important metric for eVTOL performance measurement because battery energy consumption is directly related to the range of the mission that can be achieved by the eVTOL.

C-Rating profile

The C-Rating profile shows the battery discharge rate of the eVTOL for the given mission profile.

Iv Results

We present our results from the integrated eVTOL performance measurement framework and those details are discussed below.

For the UTM simulator, a set of algorithms are selected [12] and Table II summarizes all the parameters. We use “free airspace structure,” meaning all eVTOL can fly their preferred path to their destination and “free access control” which allows an eVTOL to take-off if there is no immediate conflict. In this simulation study, no preflight planning is used but a reactive decentralized strategy known as Modified Voltage Potential (MVP) algorithm is used for collision avoidance.

The eVTOL model used in our experiment is developed based on the geometry of the Kitty Hawk Cora eVTOL prototype. This eVTOL configuration is also known as a lift+cruise configuration. The original Kitty hawk Cora eVTOL and the generated eVTOL from SUAVE tool are shown in Figure

3. Some of the high-level parameters of the eVTOL are listed in Table III. The complete list of parameters of the eVTOL model can be found in the SUAVE GitHub repository 333 https://github.com/suavecode/SUAVE/
blob/develop/regression/scripts/Vehicles/Stopped_Rotor.py
.

Parameter name Value
Operational area
Minimum separation
Sensing radius
Max speed of the eVTOL
TABLE II: List of parameters used for the UTM simulator
Fig. 3: The kitty Hawk Cora eVTOL (left) and SUAVE-Open VSP generated eVTOL model (right).
Parameter name Value
Max Takeoff mass
Max Payload mass
Total reference area
Number of lift motor
Number of cruise motor
Battery type Lithium Ion
Battery max voltage
Battery energy specific density
Speed
TABLE III: A set of high-level parameters of the considered eVTOL model3.

From the UTM simulator module we generated 2D trajectories using the simulation parameters from Table II. We then used the dilation algorithm 1 to convert the 2D trajectories into full mission profiles as shown in Figure 1. During the dilation procedure, we referred to the required specification of a UAM mission for eVTOL from Uber Elevate [16, 6], which are described in Table IV. However, we kept the altitude as Table IV, but chose other parameters such as vertical speed and horizontal speed randomly from a bound of , where are the values showed in Table IV. This implementation is inspired by the different environmental conditions (both geographical and weather) at different vertiport locations.

Mission
segment
Vertical
speed(ft/min)
Horizontal
speed(mph)
AGL Ending
Altitude (ft)
Hover Climb 0 to 500 0 50
Transition + Climb 500
0 to
300
Departure Terminal
area Procedures
0 300
Accel + Climb 500
to 110
1500
Cruise 0 110 1500
Decel + Descend 500
110 to
300
Arrival Terminal
area Procedures
0 to 500 300
Transition + Descend 500 to 300
to 0
50
Hover + Descend 300 to 0 0 0
TABLE IV: Baseline mission specification used in the integrated simulation framework.

From the UTM simulator with the dilation algorithm, we generated 262 full mission profiles. It took 2h 28.21min to execute the performance analysis of the mission profiles in a workstation with configuration Intel Xeon(R) CPU at 2.2GHz with 88 cores, 128GB RAM, Nvidia Geforce RTX 2080Ti GPU, and Ubuntu OS. In the first step, we conducted feasibility analysis of these 262 mission profiles with the SUAVE tool using the eVTOL shown in Figure 3. We found that only 55 mission profiles could be executed by the eVTOL. For the remaining 207 mission profiles, the SUAVE eVTOL model failed to execute at least one segment of the mission profile. Table V shows the performance evaluation comparison between the existing UTM simulator and the proposed simulator. From this comparison study, we can infer that the physical constraints of eVTOL performance can directly impact the applicability of various UTM algorithms.
For further analysis, we show two representative mission profiles, one from the feasible set and another from the infeasible set, in Figure 4. The corresponding airspeed profiles are shown in Figure 5. From Figure 4 as indicated by the red vertical bars, the eVTOL was unable to execute the departure terminal area procedure and cruise segments. Since the departure terminal area procedures are generated randomly between a given upper and lower bound, this infeasibility indicates that the considered eVTOL cannot follow any abrupt terminal area procedures. After analyzing the cruise segments of the mission profile using the UTM simulator, we found that the UTM simulator required a certain speed profile to avoid collision, or maintain minimum separation in the airspace. However, the SUAVE eVTOL cannot achieve these speed profiles. These two cases are the indication of sample contingency that will occur in UAM environment. The proposed simulation framework can also be extended to capture other types of contingencies in UAM such as vertiport terminal congestion, adverse weather or emergency landing scenarios.
We continued our analysis using the feasible set of mission profiles to measure other performance metrics. Figure 6 shows the consumed battery energy for mission profiles with different ranges. Figure 7 shows the voltage reading of the battery at the end of different mission range values. From Figure 6 and 7, it is clear that the energy consumption of eVTOL is proportional to the mission range while the change in voltage reading is negligible.

Simulation
framework
Number of feasible
mission profiles
Number of infeasible
mission profiles
Baseline
UTM simulator
262 0
Proposed simulator 55
207
(176 in departure
terminal area
procedure segment
& 31 in cruise
segment)
TABLE V: Performance evaluation comparison of the proposed simulation framework with baseline UTM simulator

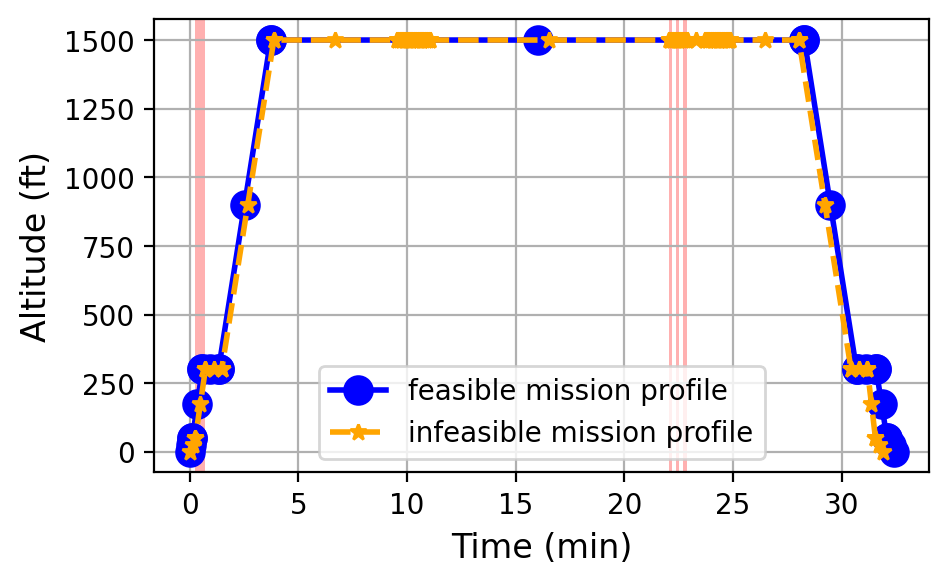

Fig. 4: A sample feasible and infeasible mission profile. The red vertical bars highlight the segments of the infeasible mission profile where SUAVE eVTOL was unable to execute.

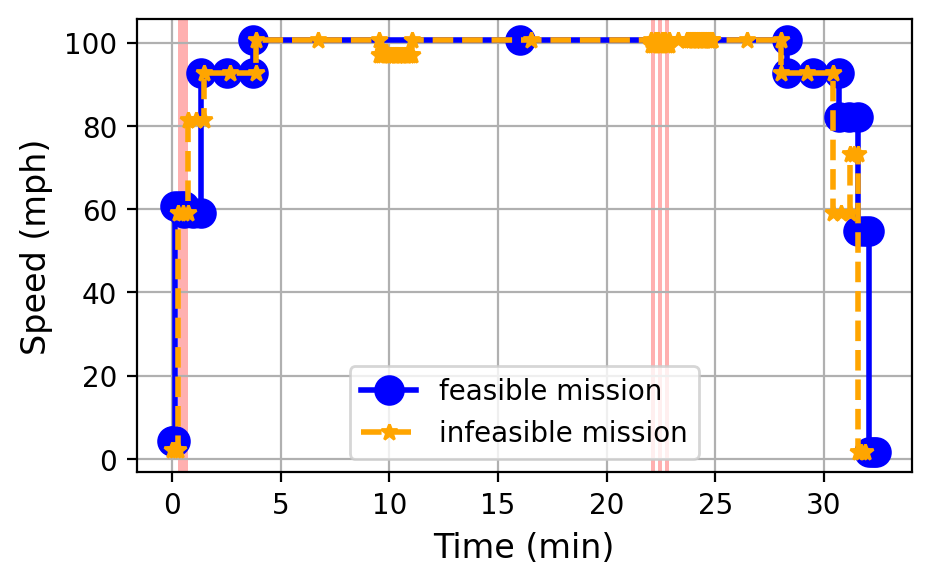

Fig. 5: A sample feasible and infeasible airspeed profile. The red vertical bars highlight the segments of the infeasible mission profile where SUAVE eVTOL was unable to execute.

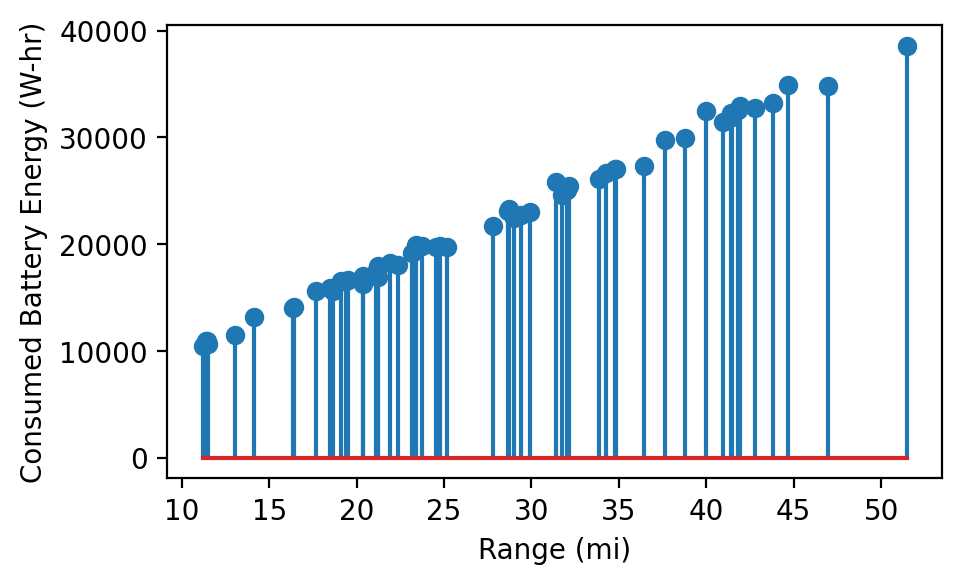

Fig. 6: Battery energy consumption of eVTOLs along the mission range.

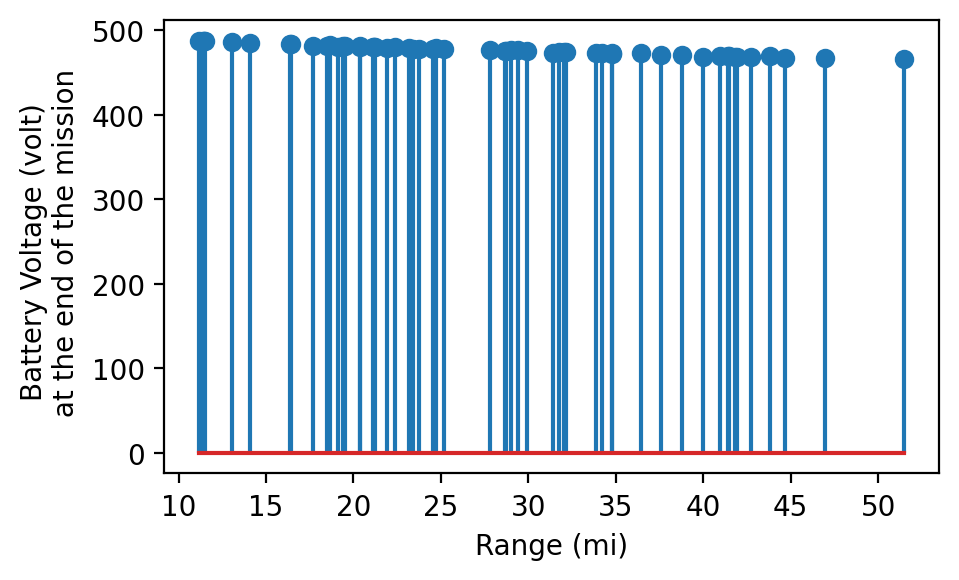

Fig. 7: Battery voltage reading of eVTOLs along the mission range.

In addition, we conducted a C-Rating analysis of the eVTOL’s battery and a throttle analysis of the lift and forward motors of the eVTOL for each segment of the mission profile. The C-rating analysis and throttle analysis is displayed in Figures 8 and 9, respectively. From the C-rating analysis, we observe that the eVTOL drives maximum current during the transition climb and arrival procedure. From the throttle analysis, we discover that the lift motors primarily contribute during the vertical motion such as the hover climb and hover descend, while forward motor contributes in all other segments of the mission profile.

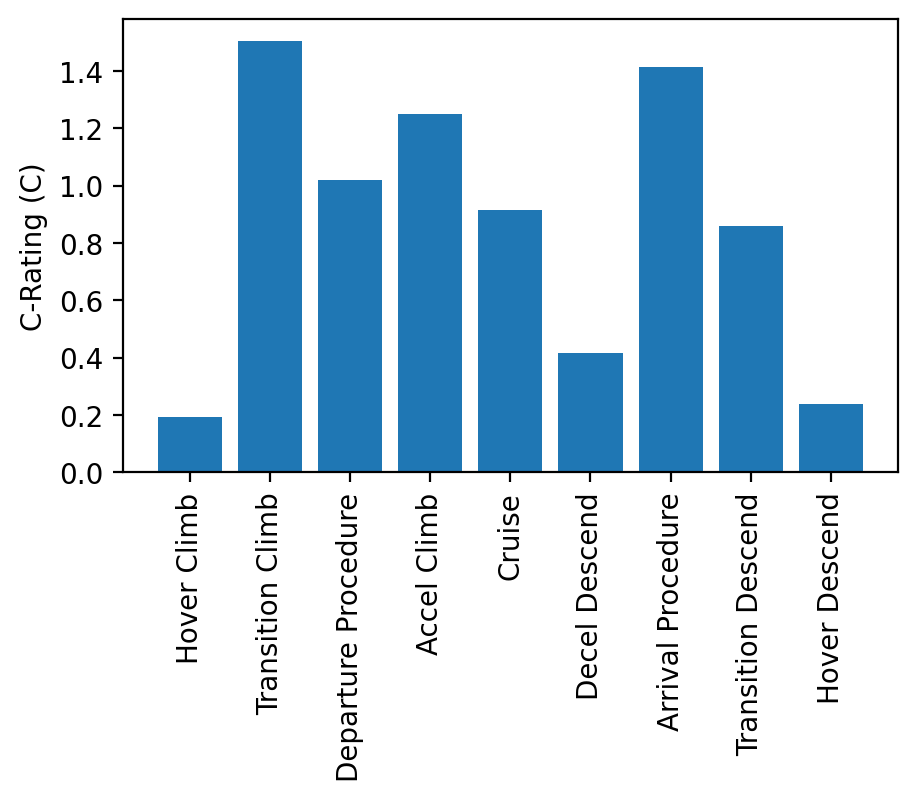

Fig. 8: C-Rating of the eVTOL for different mission segment averaged over the 55 feasible mission profiles.

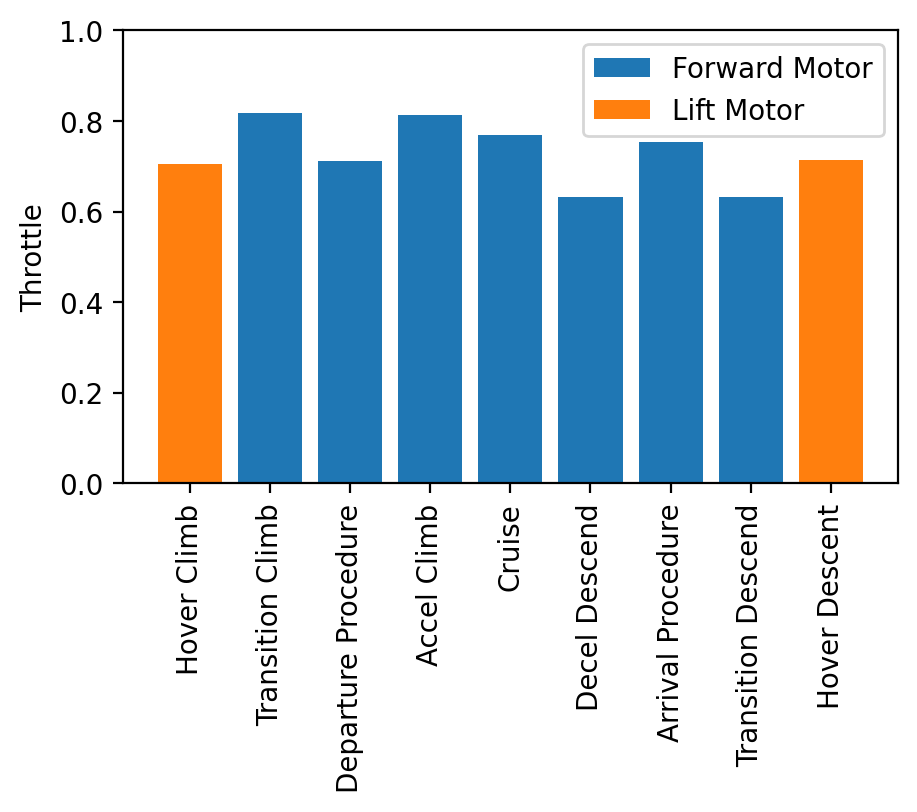

Fig. 9: Throttle from lift & forward motors of the eVTOL for different mission segment averaged over the 55 feasible mission profiles.

V Discussion

From the simulation results, the advantages of the proposed simulation framework are summarized below.

  • The framework provides a more comprehensive and realistic platform for the evaluation of eVTOL’s performance in the UAM realm;

  • It mitigates the limitation of the low-fidelity UTM simulator by capturing and analyzing the infeasible mission profiles using the dilation sub-module;

  • And the framework can be extended to perform more efficient analysis on selected representative mission profiles for a large-scale of eVTOLs in the UAM network.

Vi Conclusion

In this paper, we presented a new simulation framework to evaluate the performance of eVTOLs utilizing state-of-the-art UTM architectures in the UAM realm. The proposed framework integrates a UTM simulator with an open-source eVTOL design tool to achieve a realistic representation of the UAM environment for evaluation purposes. The developed dilation sub-module provides detailed analysis on the unfeasible missions for the low-fidelity UTM simulator, which considers the trade-off between fidelity and scale. Simulations are performed on the developed framework to demonstrate and analyze the performance of eVTOLs in UAM facilities in terms of different evaluation metrics. From the simulation, the proposed framework not only reflects the details of an eVTOL’s performance during different phases of the mission profile, but also captures the occurrence of infeasible mission profiles. Additionally, the proposed framework provides further insights into the specific regions of the infeasible mission profiles to indicate different contingency situations that may occur in future UAM environments.

In the future, the following research directions will be investigated:

  • The proposed framework currently, employs a model-based performance evaluation procedure for eVOTLs. We will address developing a data-driven performance evaluation tool for the proposed framework to reduce the time complexity.

  • The current implementation of the proposed framework omits the design of the vertiport and terminal area procedures. We will work to add the vertiport to the proposed framework and build a more realistic simulation interface.

Acknowledgment

The authors would like to thank Dr. James Paduano from Aurora Flight Sciences for his suggestions during the preparation of the manuscript.
