Introduction
Patients undergoing surgery and anesthesia experience external stresses that place them at risk for numerous complications, including acute kidney injury and acute respiratory failure. One of the roles of the anesthesia clinician is to regulate the patient’s physiology to minimize these risks. Logistic regressionbased models for predicting postoperative acute kidney injury [1, 2, 3] and acute respiratory failure[4, 5, 6]
have been developed by multiple groups. Linear models offer a high degree of transparency regarding which features drive the output, but they are inherently limited in their flexibility, which limits their predictive accuracy. Various machine learning (ML) models have been proposed to solve these clinical prediction tasks with greater accuracy. Classifiers for acute kidney injury have been described in postoperative
[7] and nonsurgical hospitalized patients[8, 9]. Although these ML models outperform logistic regression, they are not frequently used in clinical practice in part due to their lack of interpretability.An interpretable model must provide predictions that are both accountable and actionable. An accountable model provides information about which features are contributing to the output prediction. This information can include feature importance and feature interactions. An actionable model provides guidance regarding how to modify the input features so that the postintervention features will lead to the desired output.
Interpreting ML models is an extremely active field [10, 11, 12]. Incorporating interpretability constraints directly into the structure of the model and using posthoc interpretation methods are two of the main directions[13]. Most existing work focuses on accountability. Che et al [14]
transfer the DNN’s knowledge to gradient boosting trees (GBT) using knowledge distillation and interpret feature importance through measures of variable importance designed for GBT. Another work
[15] visualizes the region of interest through class activation maps. Ge et al.[16]feed features extracted from recurrent neural networks into a logistic regression model for prediction, where importance of the transformed features can be directly read off. Neural networks with attentionlike mechanisms are also popular to visualize the features which contribute the most to a classifier for a particular case
[11]. A smaller number of techniques address the actionability requirement. An early work [17]proposed an integer linear programming method to extract actionable knowledge from a random forest. Gardner et al. proposed a label changing method by searching semantically meaningful changes to an image under its manifold space
[18]. As far as we know, little work has been done on addressing accountability and actionability at the same time in the clinical area.An extension to generalized linear models, generalized additive models (GAMs), can address accountability and actionability simultaneously. Examples includes LR, density based logistic regression [19] (DLR), generalized additive neural networks [20] (GANN), and deep embedding logistic regression [21]
(DELR). LR assumes a fixed (up to a parameter) monotonic relationship between each feature and the outcome probability, limiting its flexibility and predictive performance. GAMs loosen these assumptions by inferring a transformation of the inputs with the full flexibility of nonparametric or parametric methods. For example, DLR transforms each feature through a kernel estimator, and our recently proposed DELR performs featurewise nonlinear transformation using neural networks. GANN, which used a single hidden layer, can be treated as a special case of DELR, which used multilayer DNNs. Despite the increased flexibility, with suitable constraints we can extract accountability and actionability from GAMs. Given an input example, GAMs allow us to calculate the contribution of each feature to that example’s predicted value. Feature contribution curves can be drawn to provide actionable directions on the optimal change and magnitude of improvement for each numeric feature. However, only when all the features are conditionally independent (given the label) can GAMs model the true distribution of data
[22]. Feature interactions are not allowed in GAMs, restricting their performance in dealing with complex datasets. In addition, GAMs have the undesirable property of treating static and timevarying features equally. For example, demographic characteristics such as age, gender, and height are not possible to change. On the other hand, it is possible to deliver interventions that modify a patient’s vital signs during surgery.To address these problems, we propose a variation of GAMs that splits features into timevarying (or targeted) features and static features. FGAM fits a contextbased scaling for each timevarying factor based on the static factors, substantially increasing its flexibility compared to models which require the effect of a feature to be the same for all examples, but retains the ability to derive personalized featureeffect curves. FGAM retains the full flexibility of a DNN for the effect of static features and DNNbased flexibility for the transformation of timevarying factors. We implement FGAM as an endtoend trained model with minimal hyperparameters. In extreme cases where there are no static features available, FGAM reduces to DELR. If there are no timevarying features, FGAM becomes a DNN. We empirically validate the accuracy performance of FGAM with existing ML models, including other GAMs and demonstrate the interpretability of FGAM through a case study on predicting acute kidney injury.
Background and Notation
Notation
Operating room data contains both preoperative data such as demographic information and intraoperative data such as vital signs and medications administered. Given a patient , preop data collected before the surgery are treated as static feature vectors while intraop data represented as can be modified in real time. Together, we use to denote input features and to represent the binary outcomes.
Our examples are binary classification, but the extension to multiclass classification is straightforward with a final softmax transformation and appropriate loss function.
Generalized Additive Models
A generalized additive model (GAM) is an ensemble of univariate functions, where is the number of features. We use and to denote the th dimension of input and class label, respectively. The output of each univariate function, denoted as is a real number. We can write the GAM structure as
(1)
where the function is the link function, bounding the range of right hand side value of Eq.1, and is the expected value of the label conditional on x. Constraints on
such as smoothness or degrees of freedom regularize the estimation problem to decrease outofsample loss. With a little abuse of notations, we use
to denote throughout this paper for ease of presentation. By inversing the link function, the GAM has the form,(2)
where the model output is controlled by the sum of each univariate function. GAM assumes all the features of input
are making contributions independently. Interpreting a GAM is straightforward as the marginal impact of a specific feature does not rely on the rest of features; we are able to know the importance of a feature by plotting its corresponding univariate function or calculating its variance over the sample. Actionable changes can be made based the shape of each
.Logistic regression is a special case of GAM by choosing logit function
as the link function and setting to be yielding(3)
where the sigmoid function
is the inverse form of the logit function. LR assumes a monotonic relationship between the final output and input features due to the linear function . However, this condition doesn’t hold in many cases, such as the relationship between ICU transfer rate and age[19].Methods  Model Algorithm
In this section, we propose a factored generalized additive model (FGAM) framework in which interactions between timevarying features and static features are allowed. The overall model has the form
(4)
In FGAM, is no longer a constant weight parameter, but the output of a DNN that accepts the static feature vector as input and estimates the weight of th timevarying feature for each case. The featurewise nonlinear transformation functions , are jointly estimated. is a bias / intercept term that also depends only on the static features. In our operative examples, represents the estimate of risk before any intraoperative data becomes available as long as the input features have been appropriately centered.

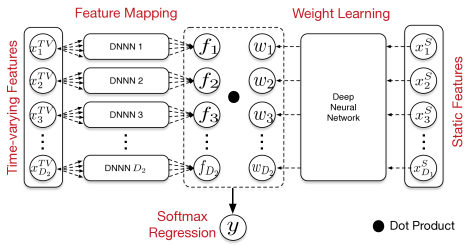

FGAM can be decomposed into four different modules: timevarying feature mapping module, feature weights learning module, bias term learning module and logistic/softmax regression module. We display the FGAM architecture in Figure 1.
Timevarying feature mapping module
In traditional GAMs, the ability of the univariate function to approximate the unknown transformation plays a crucial role in model performance. We choose to use deep and narrow neural networks (DNNN)[21]
for the nonlinear feature embedding. Being a universal approximator, a DNNN is able learn complex patterns automatically. The general tools for regularizing neural networks are immediately available to control overfitting without the difficulttounderstand smoothness or degreeoffreedom constraints of other GAM transformations. Each timevarying feature is fed into a DNNN with distinct parameters; however, several hyperparameters (depth, width, dropout, training stopping time) are shared across
to avoid having to search over a large hyperparameter space. The shared architectural parameters also tend to prevent overfitting of just a few features (data not shown). A learnable lookup table (categorical embedding) is attached before a DNNN for categorical features. In our examples, all timevarying features are quantitative or ordinal rather than categorical.Feature weights learning module
Rather than applying fixed weights for the input features, we use nonlinear functions to adjust the feature weight dynamically. The nonlinear function should have the following two properties. First, the nonlinear function should not increase the number of parameters dramatically. Second, the nonlinear function should be able to handle both numerical features and categorical ones. Thus, we choose to use deep neural networks as the nonlinear functions. Rather than assigning each a standalone DNN as we did for , all the weightlearning functions are estimated with a common DNN except the last layer. With this multitask setup, we are able to exploit the shared structure of the data to reduce the effective number of parameters. Joint predictions of also allow the module to dynamically choose between potentially correlated to emphasize, meaning that represents both the relevance and precision of in the given context. For the second property, we use categorical embedding. When there are no static features, is a constant per timevarying feature and FGAM reduces to DELR. That is to say, DELR is a special case of our model.
Bias term learning module
In order to increase expressiveness of the final model, we add a bias term based on the static features. Again, we use a DNN to model the bias term. This DNN is appended to the penultimate layer of the feature weights module to reduce redundancy. When there are no timevarying features, only the bias term controls the final output. In this case, FGAM simplifies to a deep neural network.
Logistic/softmax regression module
With all the transformed features and weights ready, we apply the dot product operation to the timevarying feature mapping and the learned weights. After adding the bias term , a sigmoid function is used to model the positive rate given input data.
Our FGAM is trained endtoend by minimizing the cross entropy loss between true label distribution and prediction distribution. We also apply weight decay and an early stopping strategy to avoid overfitting. The code is available at https://github.com/nostringattached/FGAM.
Methods  Experiments
Data Sources
Models were trained and validated using a dataset obtained from a single academic medical center (Barnes Jewish Hospital, St. Louis, Missouri). All adult patients who received surgery with anesthesia between June 2012 and August 2016 were eligible for inclusion. Due to the limited incidence of acute respiratory failure among patients who were not admitted to the intensive care unit (ICU) after surgery, prediction of this complication was limited to patients admitted to the ICU after surgery.
Acute kidney injury and acute respiratory failure were the two complications that were used as targets in the experimental models. Per Kidney Disease: Improving Global Outcomes (KDIGO) criteria, acute kidney injury was defined as an increase in the serum creatinine value by 0.3 mg/dL or 50% within 48 hours, compared to the preoperative value[23]. Acute kidney injury was undefined if the patient was receiving dialysis before surgery. The preoperative creatinine was the most recent value available before surgery, but no more than 30 days before surgery. Acute respiratory failure was defined as mechanical ventilation for 48 hours after surgery or reintubation within 48 hours. Acute respiratory failure was undefined if the patient was receiving mechanical ventilation before surgery, if the patient had a second surgery within 48 hours, or if the patient died within 48 hours.
Baseline demographic characteristics, comorbid health conditions, and preoperative laboratory values were retrieved from the electronic medical record. The total doses of commonly used medications (including intravenous fluids, blood pressureraising and lowering agents, sedatives, pain medications, and nephrotoxic antibiotics) were also retrieved. The full list of features included in the analysis is shown in Table 1.







Preop Vital Signs  Systolic blood pressure, Diastolic blood pressure, Pulse oximeter, Heart rate
Preop Labs







For intraoperative time series features, summary measures were derived. For each feature, the mean, standard deviation, maximum, and minimum over the entire surgery were calculated. The maximum pulse oximeter reading was omitted due to ceiling effects, while minimum peak inspiratory pressure and minimum tidal volume were omitted due to expected lack of clinical significance. In addition, the fraction of surgery with extreme values of certain parameters were also calculated, using multiple cutoff values. These included duration of low mean arterial pressure (
55, 60, or 65 mmHg), high heart rate (100, 110, or 120 beats per min), low heart rate (60, 55, or 50 beats per min), low temperature (36 or 35.5 °C), low pulse oximeter (90 or 85%), high exhaled carbon dioxide (50 mmHg), low exhaled carbon dioxide (30 mmHg), high peak inspiratory pressure (30 mmHg), and high tidal volume (10 mL per kg). Lung compliance was also calculated as final tidal volume divided by final peak inspiratory pressure.Experimental Technique
For each of the two target outcomes, FGAM was compared to four baseline models (decision tree [DT], random forest [RF], support vector machine [SVM], and deep neural network [DNN]) and to three GAMs (logistic regression [LR], gradient boosting decision stumps
[24][GBDS] and deep embedding logistic regression [DELR]). Note that density based logistic regression (DLR) was not included as it did not finish training in 24 hours. Each model was trained using a 70% random sample of the dataset. 10% of the dataset was selected as a validation set for hyperparameter tuning and performance was tested on the remaining 20% of the dataset. Model performance was quantified using area under the receiver operating characteristic curve (AUROC) and area under the precisionrecall curve (AUPRC). We calculate twosided 95% confidence intervals for each measure using the statistical analysis method given by Hanley and McNeil
[25].Results
Model  Acute Kidney Injury  Acute Respiratory Failure






Baselines  DT





RF





SVM





DNN





GAMs  LR





GBDS





DELR





Our Method  FGAM




The dataset included 111,890 patients. Of these patients, 5,018 were excluded from the acute kidney injury model because they were receiving dialysis before surgery or because no postoperative creatinine value was available. Of the remaining 106,872 patients, 6,472 (6.1%) experienced acute kidney injury. Of the original 111,890 patients, 89,688 were excluded from the acute respiratory failure model because they were not admitted to the intensive care unit, while 6,578 were excluded due to preoperative mechanical ventilation or one of the other exclusion criteria. Of the remaining 15,624 patients, 489 (3.1%) experienced acute respiratory failure.

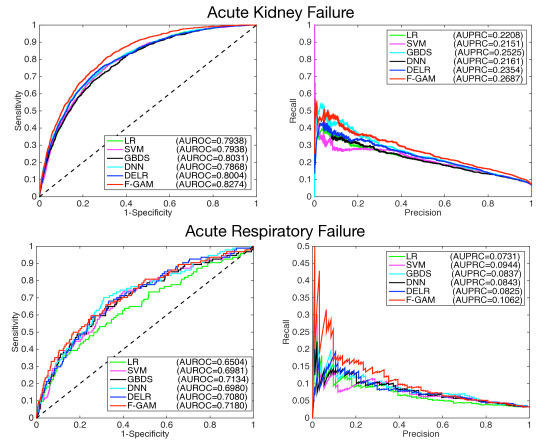

Performance of the models is shown in Table 2, while the receiveroperating characteristic and precisionrecall curves are shown in Figure 2. For both outcomes, FGAM provided the highest AUROC and the highest AUPRC. DT and RF are excluded from Figure 2 for readability purposes.

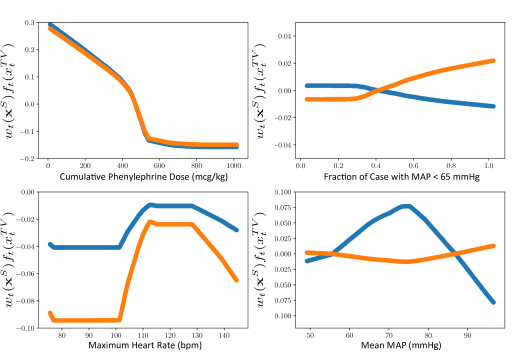

Figure 3 demonstrates how the contribution to the predicted risk of acute kidney injury changes at different values of four representative timevarying features in two randomly selected patients. Each panel assumes that all other timevarying features remain constant. Points that are higher on the vertical axis represent a larger contribution to the predicted probability.
Discussion
Our experimental results demonstrate that FGAM outperforms other methods with respect to accuracy on this task while also offering the benefits of accountability and actionability. All of the models tended to perform better for kidney injury than for respiratory failure, which is likely related to the higher incidence of kidney injury in our dataset and the larger sample size used for this outcome (106,872 versus 15,624). The pure deep neural network didn’t perform as well in our dataset, likely because it is very easy to overfit despite traditional regularization methods such as learning rate decay and weight decay being applied. The random forest model had performance characteristics that were most similar to FGAM, but FGAM would be preferable over the random forest because FGAM offers interpretability, while the random forest does not.
Figure 3 demonstrates how predictions generated by FGAM can be used to guide intraoperative management. For example, the lowerleft panel shows that an increase in maximum heart rate from 100 bpm to 110 bpm appears to be associated with an increased risk for acute kidney injury, because the graph has a steep positive slope in this region. On the other hand, an increase from 80 bpm to 90 bpm is not associated with increased risk, because the graph has a flat slope in this region. Multiplication times the scalar allows the curve to expand or shrink vertically depending on the baseline characteristics and other health conditions of an individual patient. Thus an increase in maximum heart rate from 100 bpm to 110 bpm appears to be associated with increased risk both in a healthy patient (blue curve) and in a very ill patient (orange curve), but the increase in risk (i.e., the slope) is much greater for the very ill patient. This observation fits the anesthesia clinician’s intuition.
The anesthesia clinician should not assume that the associations reported by this model indicate that elevated heart rate causes acute kidney injury. Nor should the clinician assume that blindly giving a medication that lowers the heart rate will decrease the patient’s risk for acute kidney injury. On the contrary, increased heart rate is often a sign of an underlying problem, such as dehydration. The underlying problem, not the fast heart rate, is what increases the risk for acute kidney injury. It is the clinician’s job to identify the underlying problem and correct it.
The upperleft panel provides another example of a scenario where the reported correlation should not be assumed to indicate causation. The graph shows a negative slope as the cumulative dose of phenylephrine (a medication that raises blood pressure) increases from 0 to 100 mcg/kg. This suggests that administration of low doses of phenylephrine might decrease the risk of acute kidney injury (if all other features remain constant). This example demonstrates one of the limitations of any factorized model structure; it is unlikely that large doses of phenylephrine decrease the risk of acute kidney injury in and of itself, but it is well supported in the anesthesia literature that untreated low blood pressure increases acute kidney injury risk. Additionally, zero or very low doses of phenylephrine (a weaker first line drug) may represent immediate escalation to stronger vasopressor such as norephinephrine, which increases risk.
In regions where the curve is relatively flat, observing a different value for that feature will have minimal impact on the predicted probability of the target. This can be seen in the left portion of the upperright panel. Static features (such as age) may also be important (and our model accounts for these effects through the presence of static features in the weights and in the bias term), but these features by definition are nonmodifiable and change neither when intraoperative problems occur nor when the problems are corrected.
When FGAM predicts a high probability of an adverse outcome such as acute kidney injury, the timevarying features contributing the most to that prediction are those with the highest current values of . Curves similar to those shown in Figure 3 can be shown to the clinicians in real time during surgery. When a clinician enters the room to provide assistance with a patient who triggered a highrisk alert, these curves can help the clinician quickly determine what features are important in this particular case. This saves time that would otherwise be spent reviewing all the vital signs and other data. In an environment with as much realtime data as an operating room, streamlining data review is a major advantage, particularly if the clinician coming to provide assistance is otherwise unfamiliar with the patient. Ideally, the clinician will identify the underlying diagnosis sooner and deliver treatment sooner, if treatment is needed.
Conclusion
In this paper, we have described a novel Factored Generalized Additive Model (FGAM) and demonstrated its use in predicting postoperative acute kidney injury and acute respiratory failure in a historical cohort of patients receiving surgery with anesthesia. FGAM allows for interactions between static and timevarying input features while retaining the qualities of accountability and actionability. Our model outperformed baseline models and other GAMs in predicting both of the complications tested, and the graphical displays of risk indicated associations that have face validity to an anesthesia clinician. Next steps include application of this technique to other outcomes and prospective deployment of these models for prediction of complications.
References
 1. Chertow GM, Lazarus JM, Christiansen CL, Cook EF, Hammermeister KE, Grover F, et al. Preoperative renal risk stratification. Circulation. 1997;95(4):878–884.
 2. Kheterpal S, Tremper KK, Heung M, Rosenberg AL, Englesbe M, Shanks AM, et al. Development and validation of an acute kidney injury risk index for patients undergoing general surgeryresults from a national data set. Anesthesiology: The Journal of the American Society of Anesthesiologists. 2009;110(3):505–515.
 3. Palomba H, De Castro I, Neto A, Lage S, Yu L. Acute kidney injury prediction following elective cardiac surgery: AKICS Score. Kidney international. 2007;72(5):624–631.
 4. Arozullah AM, Daley J, Henderson WG, Khuri SF, Program NVASQI, et al. Multifactorial risk index for predicting postoperative respiratory failure in men after major noncardiac surgery. Annals of surgery. 2000;232(2):242.
 5. Gupta H, Gupta PK, Fang X, Miller WJ, Cemaj S, Forse RA, et al. Development and validation of a risk calculator predicting postoperative respiratory failure. Chest. 2011;140(5):1207–1215.
 6. Johnson RG, Arozullah AM, Neumayer L, Henderson WG, Hosokawa P, Khuri SF. Multivariable predictors of postoperative respiratory failure after general and vascular surgery: results from the patient safety in surgery study. Journal of the American College of Surgeons. 2007;204(6):1188–1198.
 7. Thottakkara P, OzrazgatBaslanti T, Hupf BB, Rashidi P, Pardalos P, Momcilovic P, et al. Application of machine learning techniques to highdimensional clinical data to forecast postoperative complications. PloS one. 2016;11(5):e0155705.
 8. Kate RJ, Perez RM, Mazumdar D, Pasupathy KS, Nilakantan V. Prediction and detection models for acute kidney injury in hospitalized older adults. BMC medical informatics and decision making. 2016;16(1):39.
 9. Koyner JL, Carey KA, Edelson DP, Churpek MM. The development of a machine learning inpatient acute kidney injury prediction model. Critical care medicine. 2018;46(7):1070–1077.

10.
CaicedoTorres W, Gutierrez J.
ISeeU: Visually interpretable deep learning for mortality prediction inside the ICU.
arXiv preprint arXiv:190108201. 2019;.  11. Sha Y, Wang MD. Interpretable predictions of clinical outcomes with an attentionbased recurrent neural network. In: Proceedings of the 8th ACM International Conference on Bioinformatics, Computational Biology, and Health Informatics. ACM; 2017. p. 233–240.
 12. Guidotti R, Monreale A, Ruggieri S, Turini F, Giannotti F, Pedreschi D. A survey of methods for explaining black box models. ACM computing surveys (CSUR). 2018;51(5):93.
 13. Montavon G, Samek W, Müller KR. Methods for interpreting and understanding deep neural networks. Digital Signal Processing. 2018;73:1–15.
 14. Che Z, Purushotham S, Khemani R, Liu Y. Interpretable deep models for ICU outcome prediction. In: AMIA Annual Symposium Proceedings. vol. 2016. American Medical Informatics Association; 2016. p. 371.

15.
Rajaraman S, Candemir S, Kim I, Thoma G, Antani S.
Visualization and interpretation of convolutional neural network predictions in detecting pneumonia in pediatric chest radiographs.
Applied Sciences. 2018;8(10):1715.  16. Ge W, Huh JW, Park YR, Lee JH, Kim YH, Turchin A. An Interpretable ICU Mortality Prediction Model Based on Logistic Regression and Recurrent Neural Networks with LSTM units. In: AMIA Annual Symposium Proceedings. vol. 2018. American Medical Informatics Association; 2018. p. 460.
 17. Cui Z, Chen W, He Y, Chen Y. Optimal action extraction for random forests and boosted trees. In: Proceedings of the 21th ACM SIGKDD International Conference on Knowledge Discovery and Data Mining. ACM; 2015. p. 179–188.
 18. Gardner JR, Upchurch P, Kusner MJ, Li Y, Weinberger KQ, Bala K, et al. Deep manifold traversal: Changing labels with convolutional features. arXiv preprint arXiv:151106421. 2015;.
 19. Chen W, Chen Y, Mao Y, Guo B. Densitybased logistic regression. In: Proceedings of the 19th ACM SIGKDD international conference on Knowledge discovery and data mining. ACM; 2013. p. 140–148.
 20. Potts WJ. Generalized additive neural networks. In: Proceedings of the fifth ACM SIGKDD international conference on Knowledge discovery and data mining. ACM; 1999. p. 194–200.
 21. Cui Z, Zhang M, Chen Y. Deep embedding logistic regression. In: International Conference on Big Knowledge. vol. 00; 2019. p. 176–183.
 22. Levy R. Probabilistic models in the study of language. NA, NA. 2012;.
 23. Kellum JA, Lameire N. Diagnosis, evaluation, and management of acute kidney injury: a KDIGO summary (Part 1). Critical care. 2013;17(1):204.
 24. Hastie T, Tibshirani R, Friedman J. The Elements of Statistical Learning. Springer Series in Statistics. New York, NY, USA: Springer New York Inc.; 2001. p. 361–364.
 25. Hanley JA, McNeil BJ. The meaning and use of the area under a receiver operating characteristic (ROC) curve. Radiology. 1982;143(1):29–36.
